Cuisinart CERAMIC 900 User manual

Manual Revision #: 12092013 PD
ASSEMBLY
MANUAL
READ AND SAVE MANUAL FOR FUTURE REFERENCE.
Assemble your grill immediately.
Missing or damaged parts should be claimed within 30 days of purchase.
For product inquiries, parts, warranty and troubleshooting support, please call 1-800-309-3452.
www.cuisinartbbqs.com
LIMITED 5-YEAR WARRANTY
Cuisinart®CERAMIC 900 85-3086-6 (G61803) Propane
85-3087-4 (G61804) Natural Gas

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES
1-800-309-3452
HEAVY ARTICLE NEEDS 2 TO LIFT
To ORDER non-warranty replacement parts or accessories,
or to register your warranty, please visit us on the web at
www.cuisinartbbqs.com
THIS BARBECUE IS FOR OUTDOOR USE ONLY
CUISINART®CUSTOMER CARE HOTLINE
Sharp edges. Wear gloves when assembling
your grill.
Read and follow all safety statements,
assembly instructions, use and care directions
before attempting to assemble and cook.
This manual should be kept with the BBQ at
all times.
CAUTION DANGER
DANGER
CAUTION
CAUTION
Failure to follow all of the Manufacturer’s
instructions could result in hazardous fires,
explosions, property damage, or serious
personal injury or even death.
Follow all leak check procedures carefully prior
to operation of barbecue, even if grill was dealer
assembled. Do not try lighting this BBQ without
reading the Lighting Instructions section of the
Safety and Care Manual that accompanies this
grill.
WARNING
INSTALLER OR
ASSEMBLER/CONSUMER
1. If you smell Gas:
a. Shut off gas to the appliance
b. Extinguish any open flame
c. Open lid
d. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department
2. Do not store or use gasoline or other
flammable liquids or vapours in the vicinity of
this or any other appliance.
3. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
1. Do not store or use gasoline or other
flammable liquids or vapours in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
Avoid burns. The stainless steel and steel
surfaces of this barbecue can become extremely
hot, in direct sun and while the barbecue is in
operation.

1

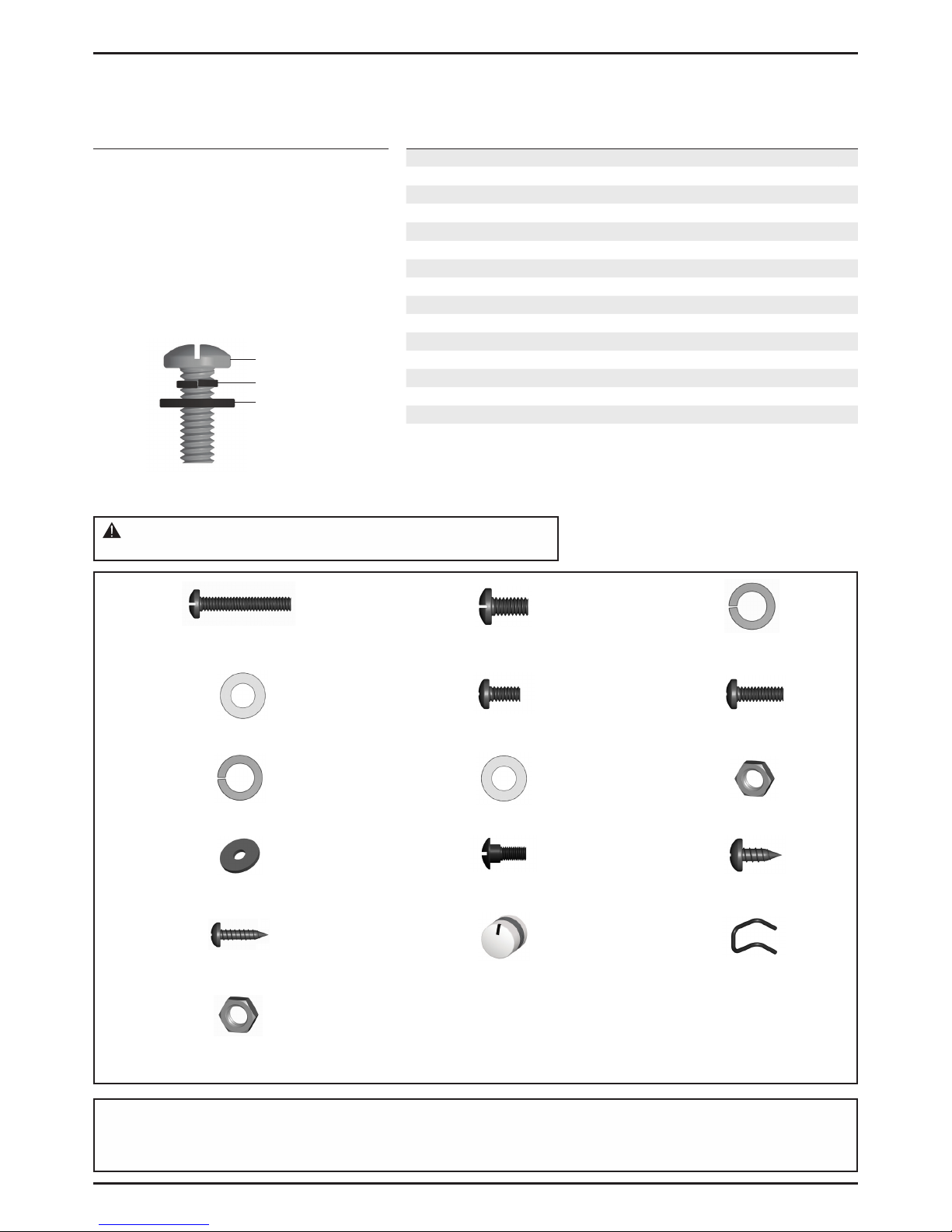

HARDWARE PACK
No. Description Part Number Qty.
1 1/4"-20UNCx38 Screw 20120-13038-250 12
2 1/4"-20UNCx13 Screw 20120-13013-250 20
3φ7 Lock Washer 41400-07000-250 32
4φ7 Washer 40300-07000-250 32
5 NO.10-24UNC x10 Screw 20124-10010-250 14
6 NO.10-24UNC x13 Screw 20124-10013-250 6
7φ5 Lock Washer 41400-05000-250 22
8φ5 Washer 40300-05000-250 16
9 NO.10-24UNC Nut 30224-10000-250 2
10 Fiber Washer G501-0033-9100 4
11 Side Burner Lid Screw G523-0055-9000 2
12 ST4.2X10 Tapping Screw 22500-42010-137 12
13 ST4.2X20 Tapping Screw 22500-42020-137 1
14 Knob G618-0014-9000 2
15 U-Pin Tool G350-0026-9000 1
16 1/4” Nut 30220-13000-250 4
1/4”-20UNCx38 Screw
X 12
φ7 Washer
X 32
NO.10-24UNC Nut
X 2
1/4”-20UNCx13 Screw
X 20
NO.10-24UNC x10 Screw
X 14
U-Pin Tool
X 1
φ5 Lock Washer
X 22
φ7 Lock Washer
X 32
NO.10-24UNC x13 Screw
X 6
φ5 Washer
X 16
Fiber Washer
X 4
Side Burner Lid Screw
X 2
1 2 3
4 5
16
6
7 8 9
10 11 12
13 14 15
ST4.2X10 Tapping Screw
X 12
ST4.2X20 Tapping Screw
X 1
Knob
X 2
1/4” Nut
X 4
Tools Needed for Assembly
• #2 Phillips screwdriver (long and short)
• ¼” Slotted screwdriver (long and short)
• Adjustable wrench
• Pliers
• Rubber Mallot
For correct hardware assembly, always
position the lock washer between the screw
and the flat washer.
Note: Do not fully tighten all the nuts
during this initial stage
Caution:
Sheet metal can cause injury. Wear gloves when installing this grill.
Lock Washer
Flat Washer
Screw
BEFORE ASSEMBLING THE BARBECUE, READ THESE INSTRUCTIONS CAREFULLY.
Assemble the barbecue on a flat, clean surface. Grill is heavy. Two people are recommended
to complete assembly.

2
Item No. Qty. Description Part No.
AA 1 Top Lid G618-2000-01
AB 1 Lid Handle G618-0003-01
AC 2 Lid Handle End Cap G618-0004-01
AD 1 Thermometer G512-0085-01
AE 2 Screw for Top Lid G433-0002-01
AF 2 Lid Bumper G508-0063-01
AG 1 Logo G618-0054-01
BA1 1 Burner Box Assembly G618-4000-01
BA2 1 Burner Box Rear Surround G618-4000-02
BB 4 Main Burner G525-3800-01
BC 1 Carryover Assembly G618-0008-02
BD 4 3-Pc. Stainless Steel Radiant G618-0056-01
BE 32 Ceramic Stone G618-0057-01
BF 3 Cooking Grate, Burner Box G617-0020-01
BG 1 Warming Rack G618-0060-01
BH 1 Infrared Rotisserie Burner G618-7000-01
BI 1 Electrode Set, Rotisserie
Burner
G525-0046-01
BJ 1 Wind Shield,Rotisserie G618-0017-01
BK 1 Match holder G508-0039-01
BL 1 Rotisserie Valve, LP G525-0042-01
BM 1 Heat Plate Brace, Front G618-0061-01
BN 1 Heat Plate Brace, Back G618-0062-01
BO 2 Lid Support Pin G525-0014-01
CA 1 Manifold assembly - LP G618-6000-01
CB 1 Regulator G606-0008-01
CC 1 Side Burner Valve - LP G618-0045-01
CD 2 Metal Hose G516-0029-01
CE1 1 Rotisserie Flexible Hose G601-0055-A1
CE2 1 Rotisserie LP orice G523-0059-01
CF1 1 Electronic Ignition Assembly G513-0021-01
CF2 1 Electronic Ignition Battery Cap G513-0021-02
CG 4 Electrode Set, Main Burner G525-0030-02
CH 6 Control Knob G618-0014-01
CI 6 Bezel, Control Knob G525-0012-01
CJ 1 Control Panel G618-0055-01
CK 1 Front Brace G618-0022-01
CL 1 Grease Tray G618-0600-01
CM 1 Grease Cup G416-0015-01
CN 1 Upper Back Panel G618-0024-01
CO 1 Lower Back Panel G618-0023-01
CP 1 Right Heat Shield G618-0028-01
CQ 1 Interior Cart Side Panel G618-0025-01
CR 1 Interior Cart Shelf G618-0026-01
CS 1 Left Heat Shield G618-0027-01
PARTS LIST (PROPANE) FOR 85-3086-6 (G61803)
Item No. Qty. Description Part No.
DA 1 Side Shelf Table - Right G618-0700-01
DB 1 Side Shelf Fascia - Right G618-0032-01
DC 1 Infrared Zone Support Frame G618-0800-01
DD 1 Infrared Zone Side Burner G618-2200-01
DE 1 Electrode Set, Infrared Zone G610-0009-01
DF 1 Infrared Side Burner Wind
Shield
G618-0047-01
DG 1 Lid, Infrared Zone G618-0033-01
DH 2 Lid Bumper, Infrared Zone G501-0066-01
DI 2 Towel Bar G618-0031-01
DJ 1 Cooking Grate, Infrared Zone G618-0059-01
DK 1 Infrared Grease Tray G618-0035-01
DL 1 Side Shelf Table - Left G618-0029-01
DM 1 Side Shelf Fascia - Left G618-0030-01
DN 1 Multi-Spark™ Ignition G525-0028-01
EA 1 Cart Side Panel - Left G618-0020-01
EB 1 Cart Side Panel - Right G618-0021-01
EC 1 Bottom Shelf - LP G618-0500-01
ED 2 Wheel with Lock G515-0082-01
EE 2 Wheel G350-0024-01
EF 1 Left Door Assembly G618-2300-01
EG 1 Right Door Assembly G618-2400-01
EH 2 Door Handle G518-0032-01
EI 4 Door Magnet Assembly G501-00F2-03
EJ 2 Condiment Basket G618-0043-01
F1 1 Hardware Pack G618-B001-01
F2 1 Assembly Manual G618-M003-01
F3 1 Safety and Care Manual G525-M005-02
F4 1 Tank Screw G505-0047-01
F5 1 Ceramic Heat Plate Guide G618-M003-02

3

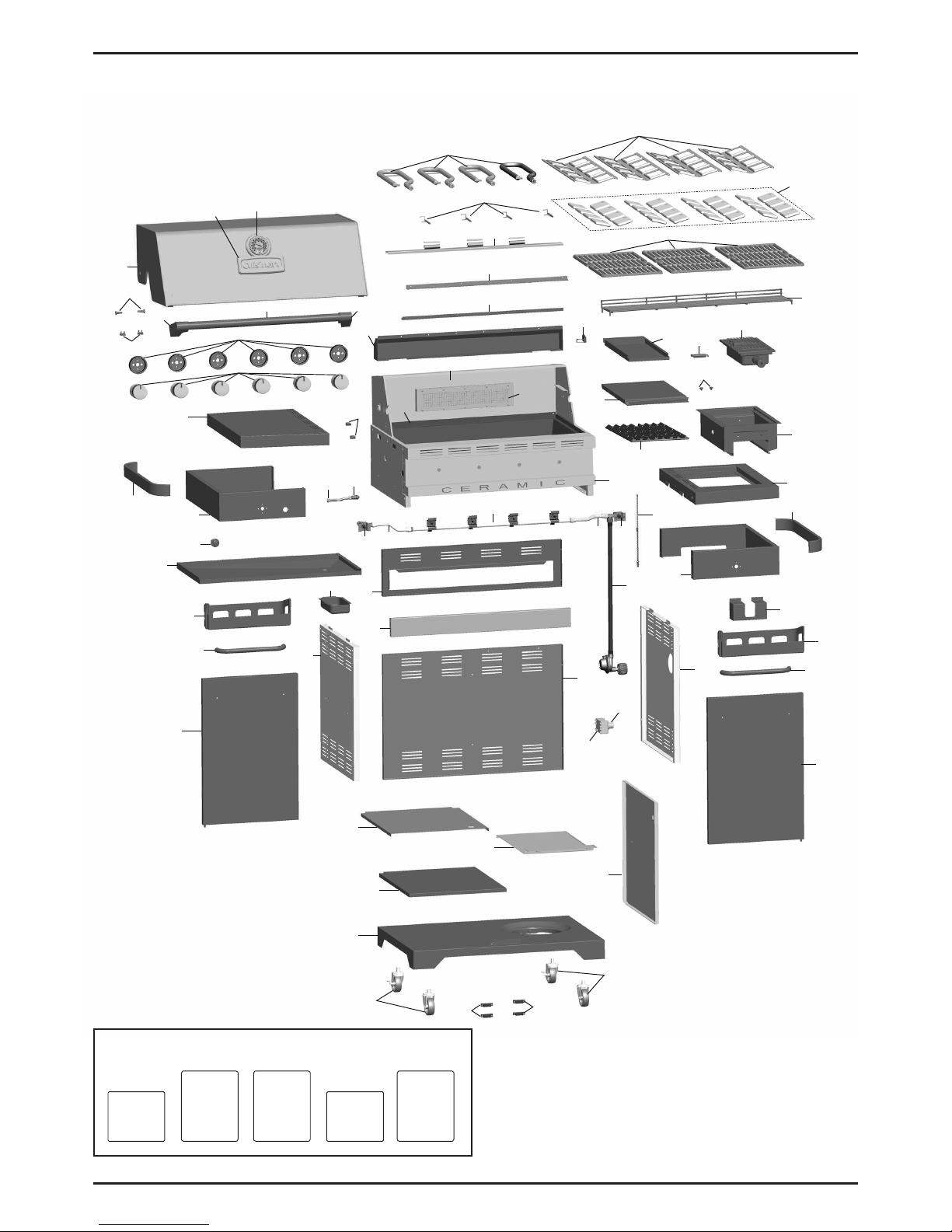

EXPLODED DIAGRAM (PROPANE)
FOR 85-3086-6 (G61803)
Hardware
Pack
Tank
Screw
Assembly
Manual
Safe Use
& Care
Manual
Ceramic
Heat Plate
Guide
EXTRAS
F1 F4F2 F3 F5
AD
BG
DC
DG
DK
BH
DB
DL
EF
CS
CR
CP
EC
AA
DA
DF
EJ
EB EH
EG
CB
BK
CO
CJ
DI
DD
DJ
DE
DH
BI
CM
BA1
BJ
BO
CE2
CF2
CA
CD CC
CD
BL
CE1
CF1
EA
EI
EI
EE
ED
BA2
BM
BC
BN
BD
BE
BF
CG
BB
AG
CN
DN
DM
CL
EJ
EH
CK
CQ
AE
AF
CI
CH
AB AC
AC
DI

4
PARTS LIST (NATURAL GAS) FOR 85-3087-4 (G61804)
Item No. Qty. Description Part No.
AA 1 Top Lid G618-2000-01
AB 1 Lid Handle G618-0003-01
AC 2 Lid Handle End Cap G618-0004-01
AD 1 Thermometer G512-0085-01
AE 2 Screw for Top Lid G433-0002-01
AF 2 Lid Bumper G508-0063-01
AG 1 Logo G618-0054-01
BA1 1 Burner Box Assembly G618-4000-01
BA2 1 Burner Box Surround G618-4000-02
BB 4 Main Burner G525-3800-01
BC 1 Carryover Assembly G618-0008-02
BD 4 3-Pc. Stainless Steel Radiant G618-0056-01
BE 32 Ceramic Stone G618-0057-01
BF 3 Cooking Grate, Burner Box G617-0020-01
BG 1 Warming Rack G618-0060-01
BH 1 Infrared Rotisserie Burner G618-7000-01
BI 1 Electrode Set, Rotisserie
Burner
G525-0046-01
BJ 1 Wind Shield,Rotisserie G618-0017-01
BK 1 Match holder G508-0039-01
BL 1 Rotisserie Valve, NG G525-0049-01
BM 1 Heat Plate Brace, Front G618-0061-01
BN 1 Heat Plate Brace, Back G618-0062-01
BO 2 Lid Support Pin G525-0014-01
CA 1 Manifold assembly - NG G618-2700-01
CB 1 Natural Gas Hose G501-0099-01
CC 1 Side Burner Valve - NG G618-0046-01
CD 2 Metal Hose G516-0029-01
CE1 1 Rotisserie Flexible Hose G601-0055-A1
CE2 1 Rotisserie NG orice G525-0050-01
CF1 1 Electronic Ignition Assembly G513-0021-01
CF2 1 Electronic Ignition Battery Cap G513-0021-02
CG 4 Electrode Set, Main Burner G525-0030-02
CH 6 Control Knob G618-0014-01
CI 6 Bezel, Control Knob G525-0012-01
CJ 1 Control Panel G618-0055-01
CK 1 Front Brace G618-0022-01
CL 1 Grease Tray G618-0600-01
CM 1 Grease Cup G416-0015-01
CN 1 Upper Back Panel G618-0024-01
CO 1 Lower Back Panel G618-0023-01
CP 1 Right Heat Shield G618-0028-01
CQ 1 Interior Cart Side Panel G618-0025-01
CR 1 Interior Cart Shelf G618-0026-01
CS 1 Left Heat Shield G618-0027-01
Item No. Qty. Description Part No.
DA 1 Side Shelf Table - Right G618-0700-01
DB 1 Side Shelf Fascia - Right G618-0032-01
DC 1 Infrared Zone Support Frame G618-0800-01
DD 1 Infrared Zone Side Burner G618-2200-01
DE 1 Electrode Set, Infrared Zone G610-0009-01
DF 1 Infrared Side Burner Wind
Shield
G618-0047-01
DG 1 Lid, Infrared Zone G618-0033-01
DH 2 Lid Bumper, Infrared Zone G501-0066-01
DI 2 Towel Bar G618-0031-01
DJ 1 Cooking Grate, Infrared Zone G618-0059-01
DK 1 Infrared Grease Tray G618-0035-01
DL 1 Side Shelf Table - Left G618-0029-01
DM 1 Side Shelf Fascia - Left G618-0030-01
DN 1 Multi-Spark™ Ignition G525-0028-01
EA 1 Cart Side Panel - Left G618-0020-01
EB 1 Cart Side Panel - Right G618-0021-01
EC 1 Bottom Shelf - NG G618-1000-01
ED 2 Wheel with Lock G515-0082-01
EE 2 Wheel G350-0024-01
EF 1 Left Door Assembly G618-2300-01
EG 1 Right Door Assembly G618-2400-01
EH 2 Door Handle G518-0032-01
EI 4 Door Magnet Assembly G501-00F2-03
EJ 2 Condiment Basket G618-0043-01
F1 1 Hardware Pack G618-B001-01
F2 1 Assembly Manual G618-M003-01
F3 1 Safety and Care Manual G525-M005-02
F4 1 Ceramic Heat Plate Guide G618-M003-02

5
AD
BG
DC
DG
DK
BH
DB
DL
CB
EF
CS
CR
CP
EC
AA
DA
DF
EJ
EB EH
EG
BK
CO
CJ
DI
DD
DJ
DE
DH
BI
CM
BA1
BJ
BO
CE2
CF2
CA
CD CC
CD
BL
CE1
CF1
EA
EI
EI
EE
ED
BA2
BM
BC
BN
BD
BE
BF
CG
BB
DI
CN
DN
DM
CL
EJ
EH
CK
CQ
AE
AF
CI
CH
AB AC
AC
EXPLODED DIAGRAM (NATURAL GAS)
FOR 85-3087-4 (G61804)
Hardware
Pack
Assembly
Manual
Safe Use
& Care
Manual
EXTRAS
F1 F2 F3
AG
Ceramic
Heat Plate
Guide
F4

6
Separate the 2 different types of Wheels,
2 Locking Wheels (ED) and 2 Regular Wheels
(EE).
Insert the U Pin Tool (#15) into one of the
Regular Wheels (EE), as shown in image B.
Attach the Regular Wheel (EE) to the front of
the Bottom Shelf (EC), and use the U Pin Tool
(#15) to secure and tighten.
Repeat for remaining 3 wheels (EE & ED).
NOTE: Regular Wheels (EE) need to be
assembled to the front of the Bottom
Shelf (EC), and Wheels with Lock (ED)
need to be assembled to the back of
the Bottom Shelf (EC), as shown in
image A.
Ensure that the wheels are firmly locked in the
“ON” position before continuing.

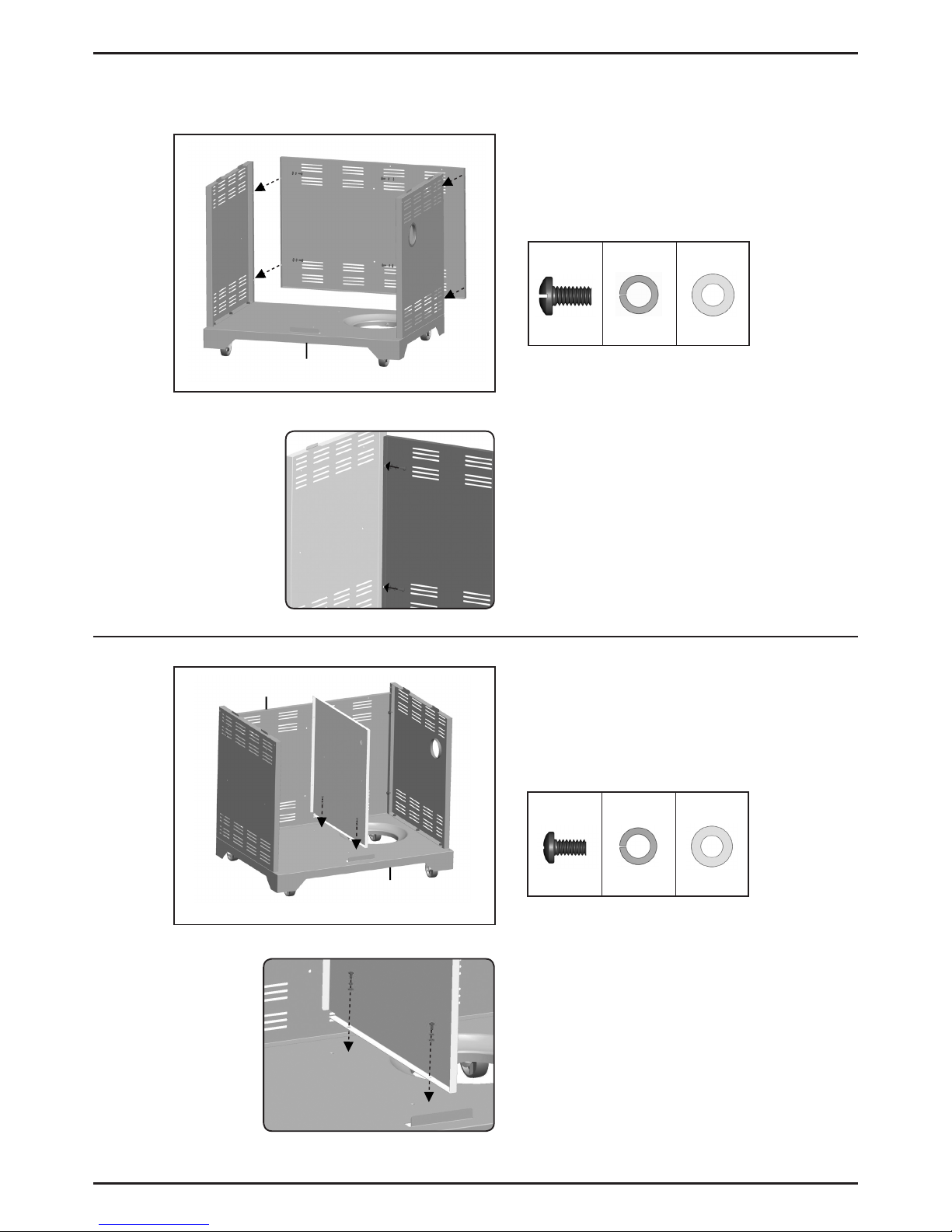

Assemble the Left Cart Side Panel (EA) and the
Right Cart Side Panel (EB) to the Bottom Shelf
(EC).
6
6
X 1
X 6 X 6 X 6
YOU WILL NEED:
YOU WILL NEED:
1.
2.
Back view
Front view
Close up
Close up
ED
EE
EE
EB
EA
EC
15
EC
EA
15
2 3 4
B
B
A
A
ASSEMBLY INSTRUCTIONS
EC

7
Assemble the Lower Back Panel (CO) to the
Left and Right Cart Side Panel (EA and EB).
6
X 4 X 4 X 4
YOU WILL NEED:
3.
Front View
Front view
Close up
Close up
CO
CO
EB
EB
EA
CQ
EC
EA
EA
EC
CO
CQ
CO
2 3 4
B
A
A
ASSEMBLY INSTRUCTIONS
4. a. Assemble the bottom of the Interior Cart
Divide (CQ) to the Bottom Shelf (EC),
as shown.
EC
6
X 2 X 2 X 2
YOU WILL NEED:
5 7 8

8
ASSEMBLY INSTRUCTIONS
4. b. Complete assembly of the Interior Cart
Divider (CQ) by assembling to Lower Back
Panel (CO), as shown.
a. Preassemble the Interior Cart Shelf (CR)
stabilizing hardware, as shown in figure A.
b. Mount the Interior Cart Shelf (CR) onto the
stabilizing hardware, as shown in figure B.
5.
Front view
Back view
A
B
Close up
B
6
X 2
YOU WILL NEED:
12
CO
CO
EC
CO
CQ
EA
EB
CQ
EA
A1
A1
B2
B2
B2
B2 A1
A1
EA
CR
A1 B2
66
X 4
X 4 X4 X 4
YOU WILL NEED:
16
1 3 4

9
ASSEMBLY INSTRUCTIONS
Assemble the Left Heat Shield (CS) to the
Left Cart Side Panel (EA) and the Interior Cart
Divider (CQ), as shown. See close up for
correct Left Heat Shield (CS) assembly.
6.
Front view
Back view
EA
CS
CR
CQ
6
X 4
YOU WILL NEED:
12
7. THIS STEP REQUIRES 3 OR MORE
PEOPLE. DO NOT ATTEMPT ALONE.
EXTREMELY HEAVY.
a. Position the Top Lid and Burner Box
Assembly (A and B) onto Cart Assembly (C),
as shown.
A
C
A+B
Close up
B
A
CS
CQ

10
ASSEMBLY INSTRUCTIONS
7. b. Remove Electrode Wires (CG) from Manifold
Assembly (CA), and feed the wires through
the hole in Left Heat Shield (CS), as shown in
figure B.
c. Assemble the Front Brace (CK) to the Burner
Box and Cart Assembly (B + C), as shown in
figure C.
8.
Front, left side view
Front view
b. Assemble the Right Heat Shield (CP) to
the Lower Back Panel (CO), as shown in
figure B.
a. Assemble the front of the Right Heat Shield
(CP) to the Front Brace (CK), as shown in
figure A.
B
C
A
CP
CK
X 4 X 4 X 4
YOU WILL NEED:
1 3 4
Back view
B
CP
CO X 2
X 2
YOU WILL NEED:
YOU WILL NEED:
12
12
CK
CS
CQ
C
B+C
CG

11
ASSEMBLY INSTRUCTIONS

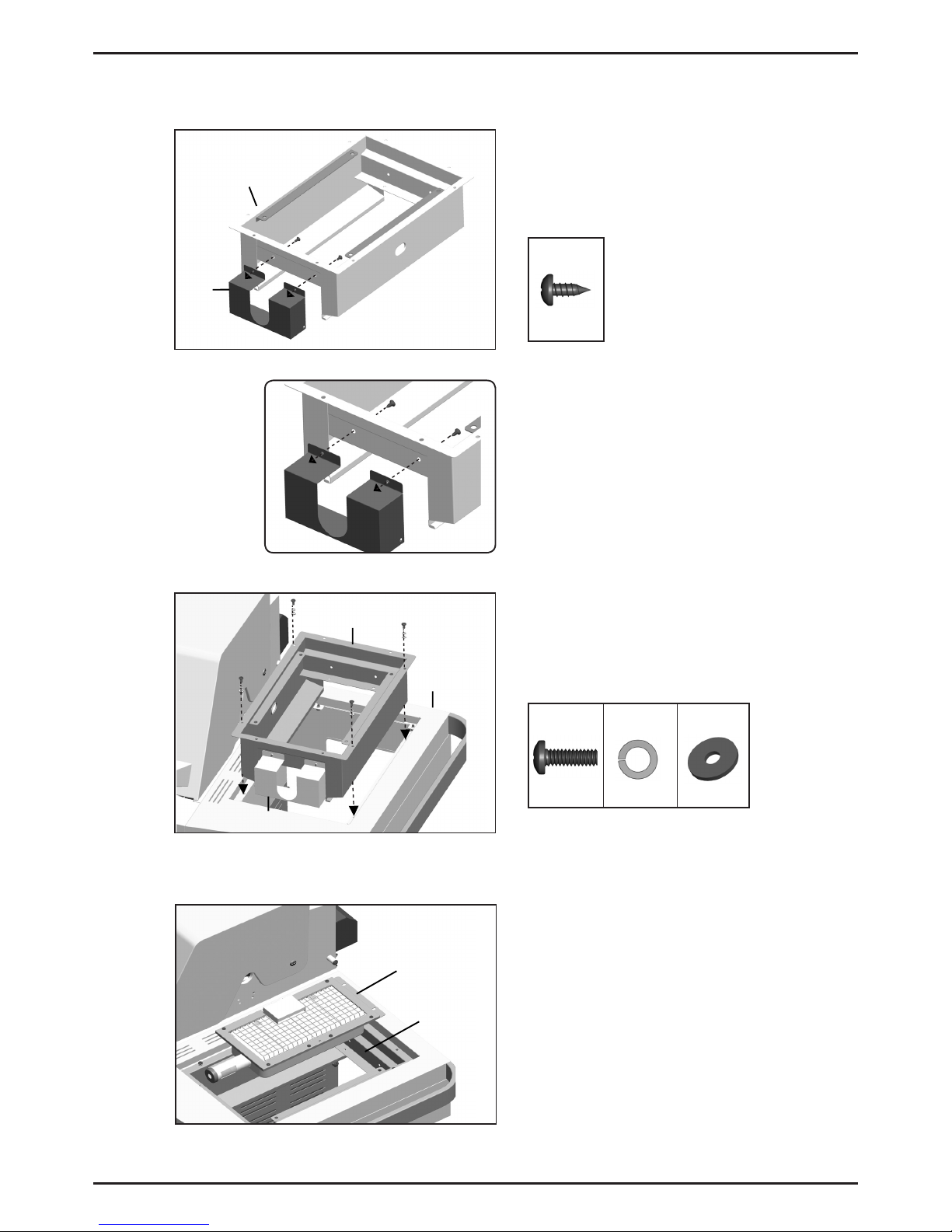

a. Assemble a Towel Bar (DI) to the Left Side
Shelf Table (DL), as shown.
b. Repeat for the Right Side Shelf Table (DA).
9.
10.
6
X 5 X 5 X 5
YOU WILL NEED:
2 3 4
6
6
X 4
X 4
X 4
X 4
X 4
X 4
YOU WILL NEED:
YOU WILL NEED:
5
5
7
7
8
8
Front, left side view
View under left side shelf
a. Assemble the Left Side Shelf Assembly
(DL and DM) to the Cart Assembly by
inserting the Side Shelf tabs into the holes on
the Cart Assembly (figure A).
b. Secure using hardware, as shown in figure B.
A
B
DL
DM
DL
DL
DI
Close up
B
A

12
ASSEMBLY INSTRUCTIONS

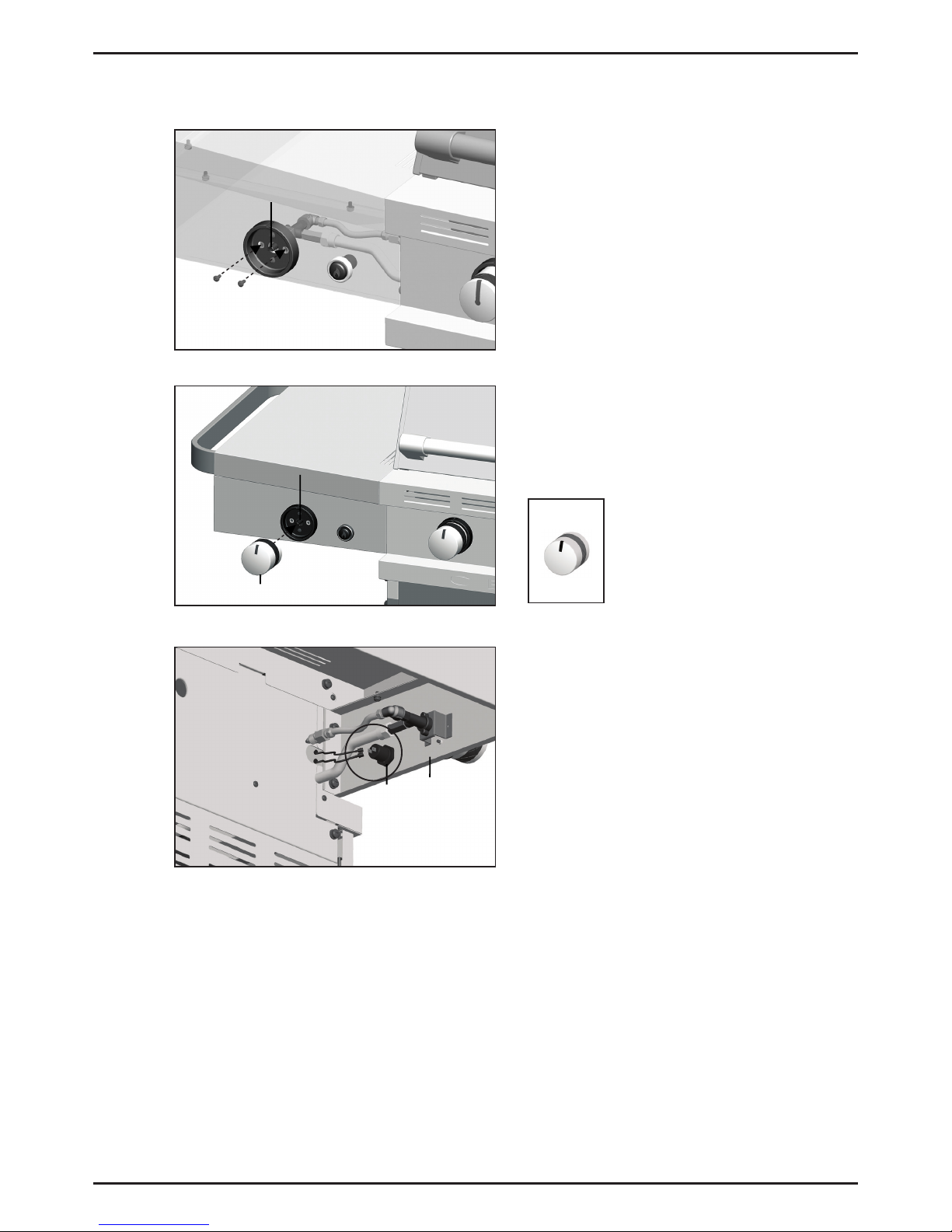

11. a. Remove the hardware that is pre-assembled
to the Rotisserie Valve (BL) as shown in
figure A.
b. Insert the rotisserie burner valve stem
through the rear of the Left Side Shelf Fascia
(DM), and assemble using the hardware
removed.
c. Assemble the Control Knob (#14) to the
Rotisserie Valve (BL).
d. Attach the two Ignition Button wires to the
Electronic Ignition Button (DN), as shown in
figure C.
A
B
C
6
X 1
YOU WILL NEED:
14
BL
BL
14
DN DM
DM
DM
Front, left side view
Front, left side view
View under left side shelf

13
ASSEMBLY INSTRUCTIONS
Front, right side view

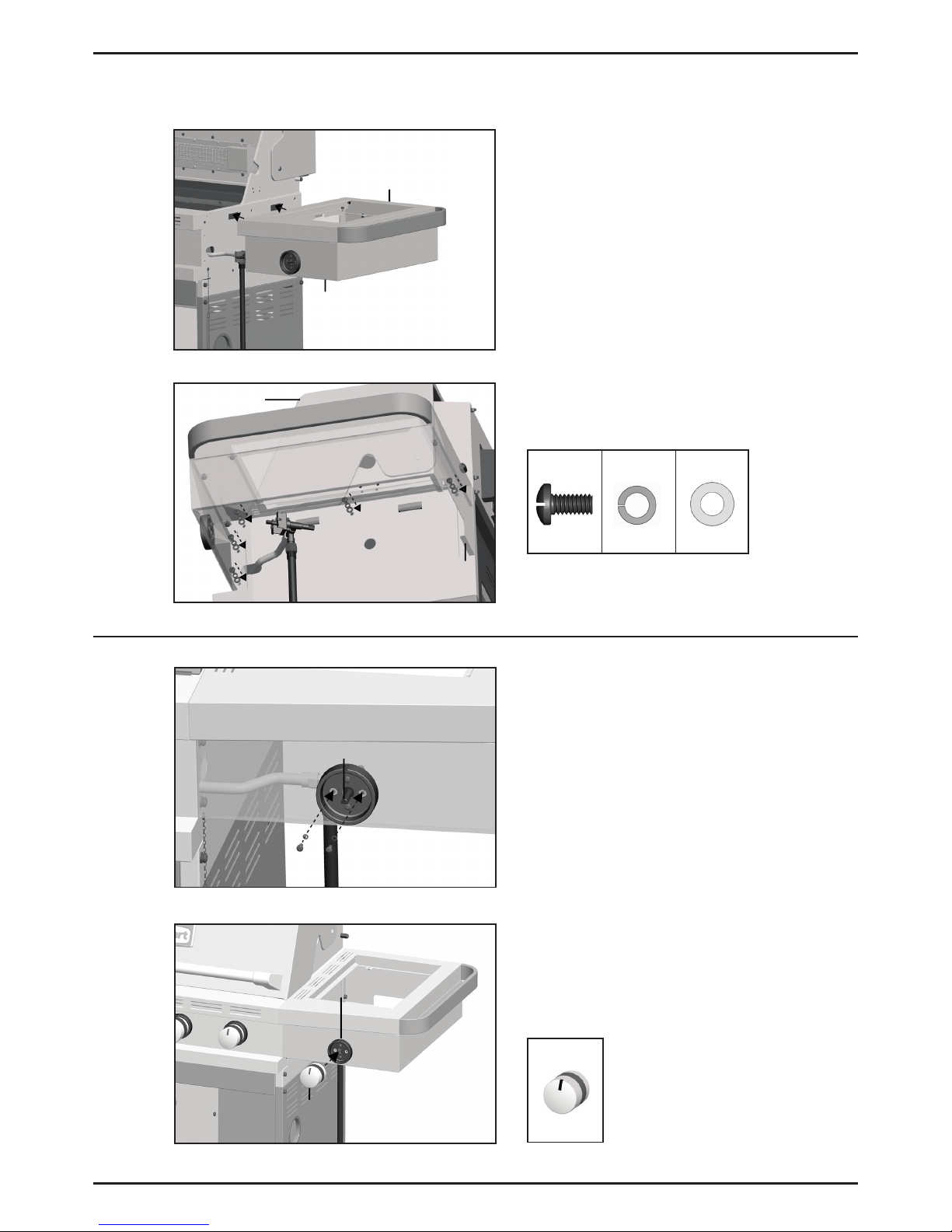

12. a. Assemble the Right Side Shelf Assembly (DA
and DB) to the Cart Assembly by inserting
the Side Shelf tabs into the holes on the Cart
Assembly (figure A).
b. Secure using hardware, as shown in figure B.
A
13.
Front, right side view
B
a. Remove the hardware that is pre-assembled
to the Side Burner Valve bracket (CC), as
shown in figure A.
b. Insert the Side Burner Valve stem (CC)
through the rear of the Right Side Shelf
Fascia (DB), and assemble using the
hardware removed.
c. Assemble the side burner Control Knob (#14)
to the Side Burner Valve (CC) (figure B).
A
B
CC
CC
DB
DB
14
6
X 1
YOU WILL NEED:
14
6
X 5 X 5 X 5
YOU WILL NEED:
2 3 4
DA
DA
DB
DB
Right side view
Side view, under right side shelf

14
ASSEMBLY INSTRUCTIONS
14.
b. Assemble the Infrared Support Frame (DC) to
the Right Side Shelf Table (DA), as shown.
a. Assemble the Infrared Side Burner Wind
Shield (DF) to the Infrared Support Frame
(DC), as shown in figure A.
c. Position the Infrared Zone Side Burner (DD)
through the opening in the Infrared Support
Frame (DC).
B
A
C
6
X 4 X 4 X 4
YOU WILL NEED:
6 7 10
Front, right side view
6
X 2
YOU WILL NEED:
12
DC
DA
DF
DC
DD
DC
Close up
DC
DF
DF

15
e. Assemble the Infrared Zone Side Burner (DD)
to the Infrared Zone Support Frame (DC), at
the 2 points indicated in figure E.
14.
ASSEMBLY INSTRUCTIONS

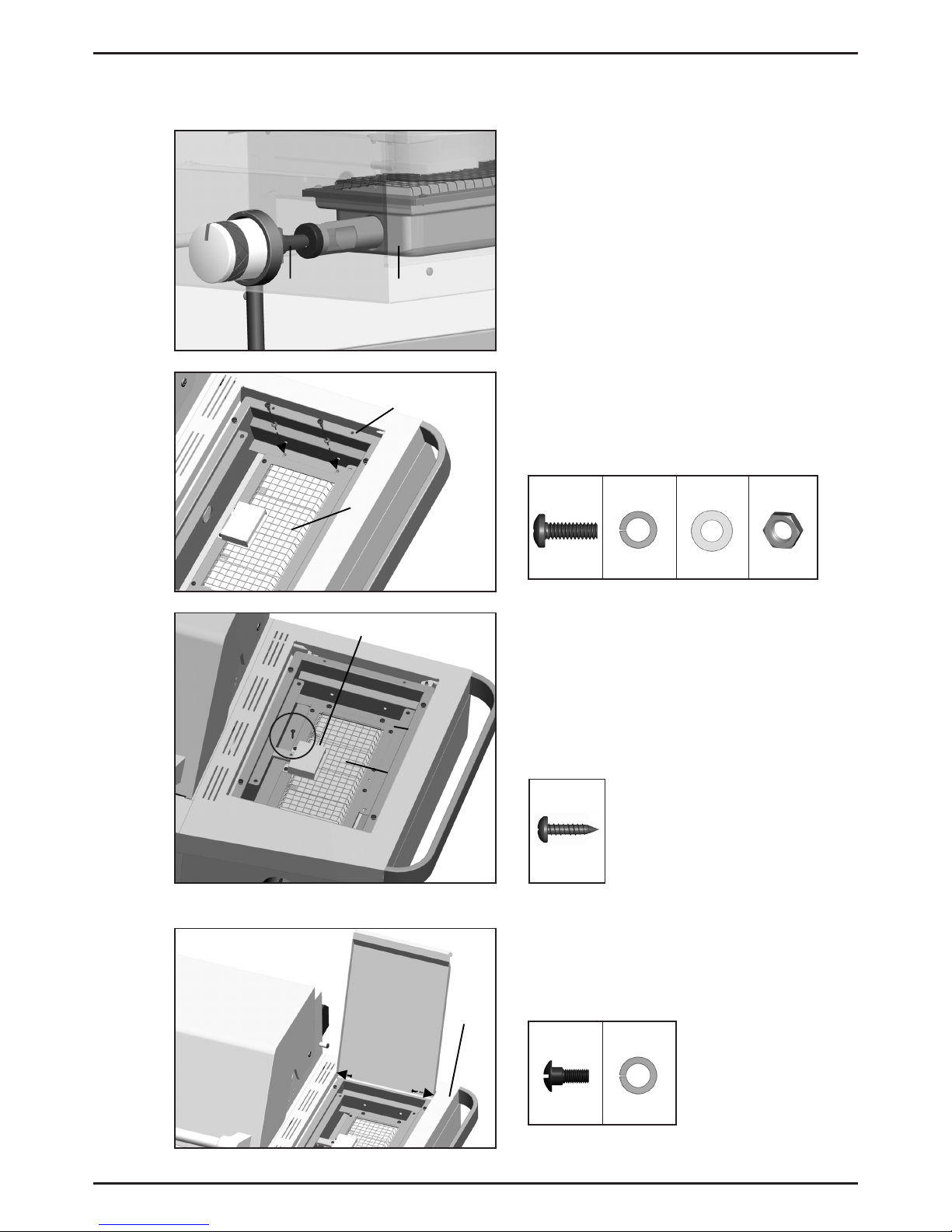

d. Make sure that the Infrared Zone Side Burner
(DD) engages the Side Burner Valve (CC) gas
jet, as shown in figure D.
f. Feed the Infrared Zone Electrode wire (DE)
from underneath the Infrared Zone Side
Burner (DD), through the small opening on
the left side of the Infrared Zone Support
Frame (DC). Align and assemble the
electrode using the self tapping screw
provided, as shown in figure F.
g. Attach the Infrared Zone Lid (DG) to the Right
Side Shelf Table (DA), as shown.
F
G
D
E
DE
DC
DG
DD
DA
6
X 1
YOU WILL NEED:
13
6
6
X 2
X 2
X 2X 2
X 2
X 2
YOU WILL NEED:
YOU WILL NEED:
6
7
97
11
8
Front, right side view
Front, right side view
CC DD
DC
DD

16
ASSEMBLY INSTRUCTIONS

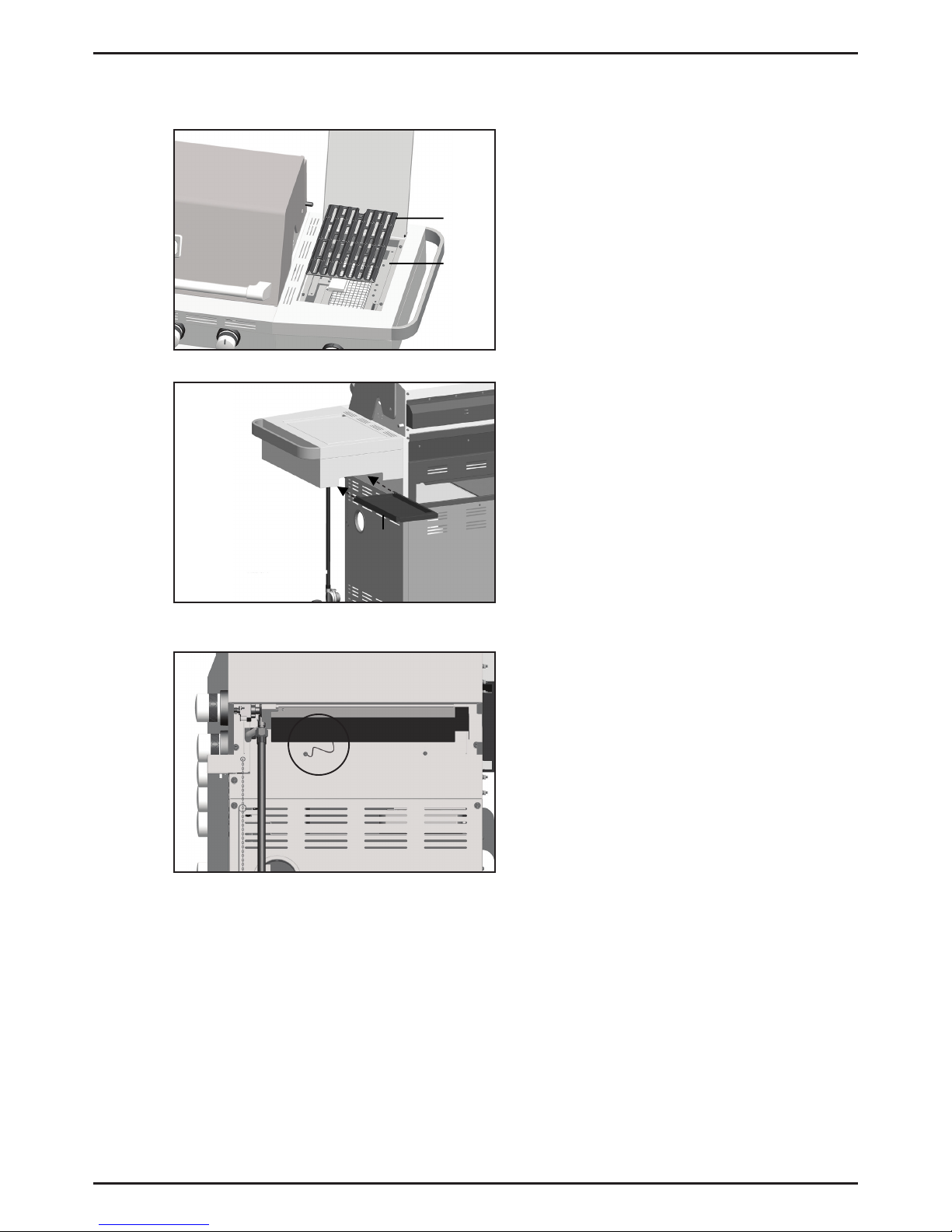

14. h. Position the Infrared Zone Cooking Grate
(DJ) on the Infrared Zone Support Frame
(DC).
i. Insert the Infrared Grease Tray (DK) into the
back of the Infrared Zone Support Frame
(DC), as shown.
j. Verify that the black grounding wire attached
to the side burner electrode pre-assembled
to the side of the burner box as shown in
figure J. If it has come loose in shipping,
assemble to the closest screw on the outside
of the right side of the burner box.
B
B
Front, right side view
Back, right side view
View from under right side shelf
H
I
J
DK
BA
DC
DJ

17
ASSEMBLY INSTRUCTIONS
16.
Back view
a. Insert the Grease Tray (CL) into the opening
in the Upper Back Panel (CN), making sure
to engage tracks located under Burner Box
(BA).
b. Place the Grease Cup (CM) onto the tracks,
located on the underside of the Grease Tray
(CL).
A
CL
CN
CM
15. Assemble the Upper Back Panel (CN) to the
Left and Right Cart Side Panels (EA and EB),
and Burner Box Assembly (BA), as shown.
X 4 X 4 X 4
YOU WILL NEED:
31 4
Back view
A
Close up
CN
CN
BA
EB
EA
BA
EB

18
ASSEMBLY INSTRUCTIONS

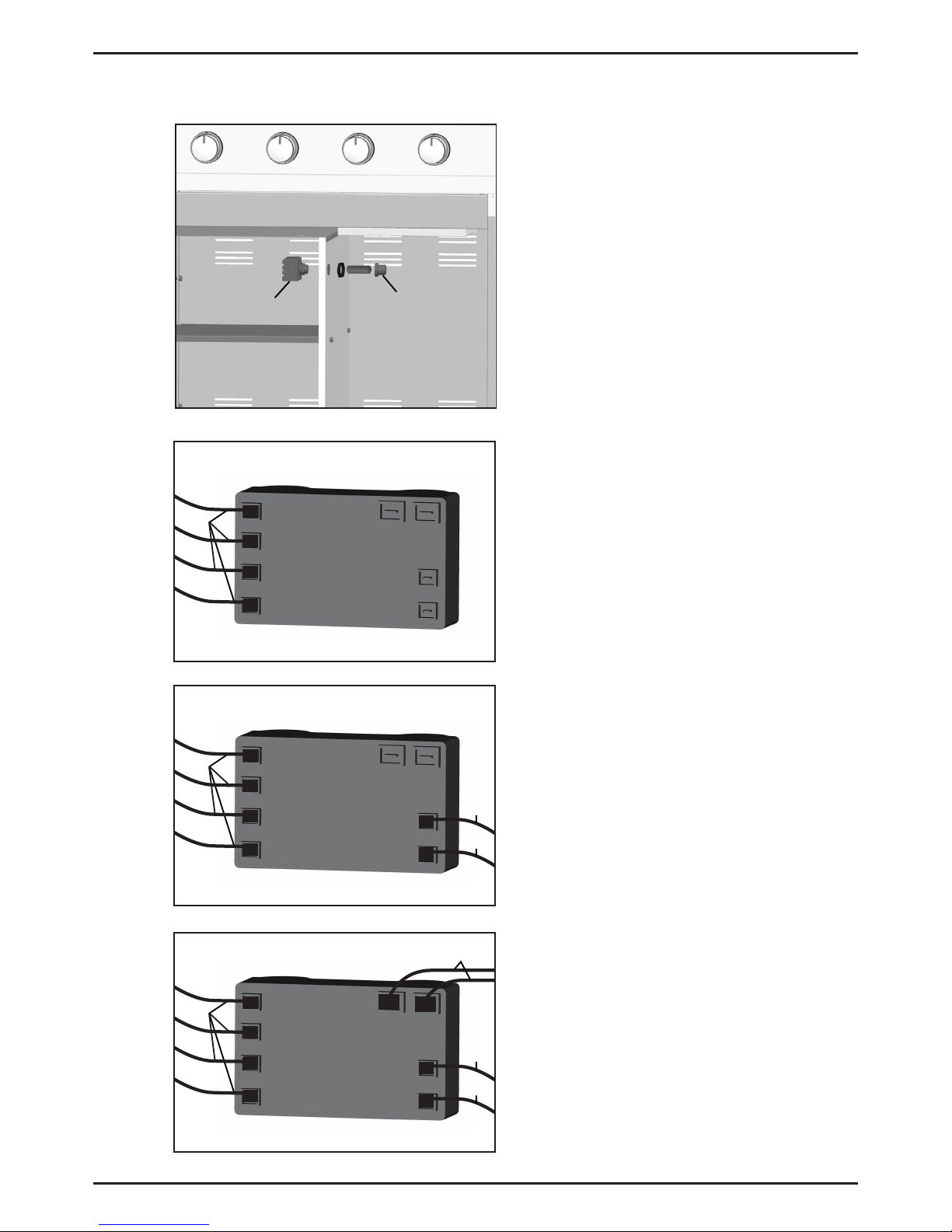

17.
d. Insert the Electrode Wire, Infrared Zone (DE)
and the Electrode Wire, Rotisserie Burner
(BH) into the Electronic Ignition Assembly
(CF1), as shown in figure C.
e. Insert the two Multi-Spark™ Ignition (DN)
wires into the Electronic Ignition Assembly
(CF1), as shown in figure D.
CG
CG
CG
DE
DE
DN
BH
BH
CF1
CF1
CF1
D
C
B
c. Insert the four Electrode Set, Main Burner
wires (CG) into the Electronic Ignition
Assembly (CF1), as shown in figure D.
NOTE: All main burner, Infrared Zone side
burner and rotisserie burner electrode
wire connection points are the same
size.
a. Remove the Electronic Ignition Battery Cap
(CF2) and the plastic nut from the Electronic
Ignition Assembly (CF1) and feed the
Electronic Ignition Assembly (CF1) through
the opening in the Interior Cart Divider (CQ),
and secure using the nut.
b. Insert one “AA” battery into the battery
compartment with the positive end facing
outward, as shown. Secure using the
Electronic Ignition Battery Cap (CF2).
A
CF1 CF2
-+
