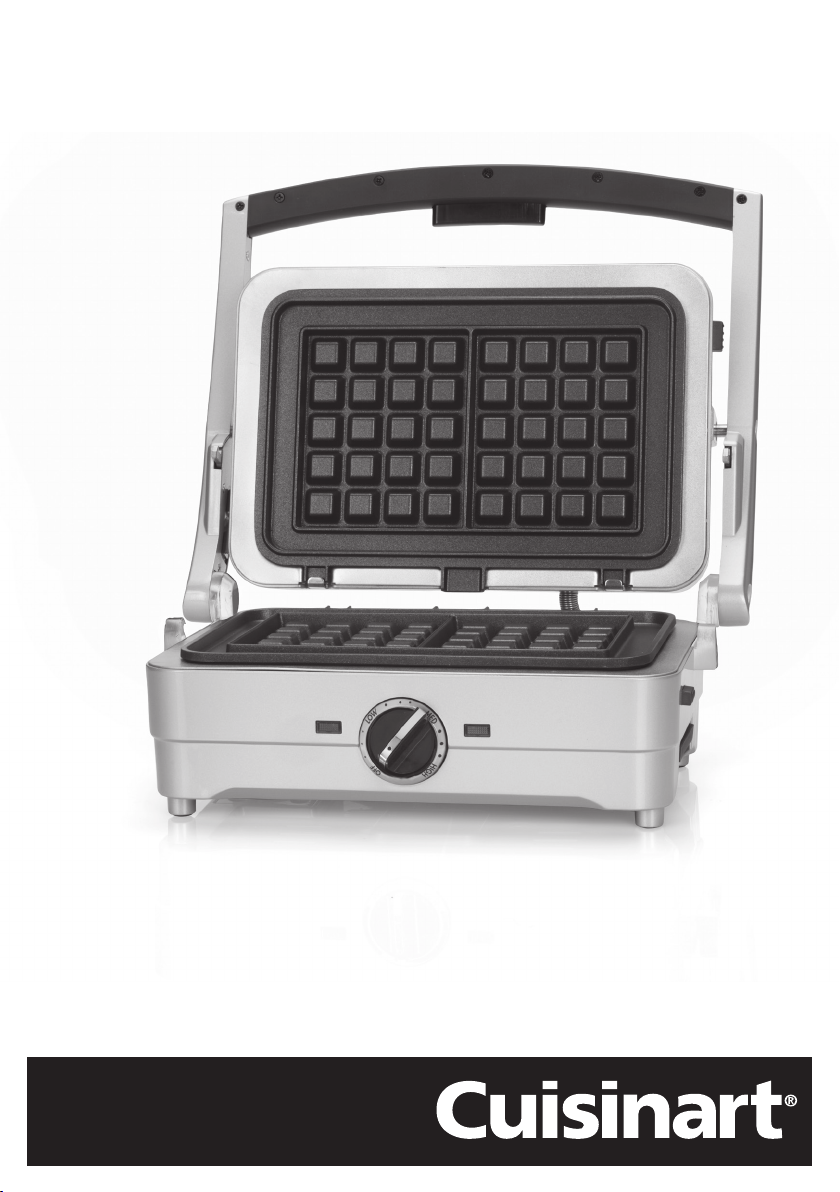

Cuisinart WAF2U User manual

2 IN 1 WAFFLE & PANCAKE MAKER
WAF2U
CPT445U

3
Congratulations on your purchase of the Cuisinart 2 In 1
Waffle and Pancake Maker.
For over 30 years Cuisinart’s aim has been to produce the
very finest kitchen equipment. All Cuisinart products are
engineered for exceptionally long-life, and designed to be
easy to use as well as to give excellent performance day
after day.
To learn more about our products and for recipe ideas visit
our website www.cuisinart.co.uk

4
Contents
Product Description.............................................................................5
Safety Cautions ...................................................................................6
Selecting the Plates.......................................................................... 10
Fitting and Removing the Plates......................................................11
Fitting and Removing the Integrated Waste Tray......................... 12
Using the 2 in 1 Waffle & Pancake Maker.................................... 13
Cooking with the Waffle & Pancake Plates ................................. 14
Cleaning &Maintenance ................................................................. 15
UK Guarantee.................................................................................... 16
UK After Sales Service ..................................................................... 17
Recipes............................................................................................... 18

5
Product Description
Handle
Upper Plate Release Button
Waffle Plates
Temperature Control Dial
Indicator Lights
Housing Base
Lower Plate Release Button
Pancake Plates
Handle Release Button
Integrated Waste Tray

6
Important Safety Cautions
Carefully read all the instructions before using the appliance and
keep in a safe place for future reference.
Always follow these safety cautions when using this appliance to avoid
personal injury or damage to the appliance. This appliance should be
used only as described within this instruction book. There is a risk of
injury if the product is misused.
IMPORTANT SAFEGUARDS
CAUTION: BURN HAZARD
nWARNING: very hot surfaces.
nDO NOT TOUCH hot surfaces as possible injury could
occur. Always use the handle.
nTHIS IS AN ATTENDED APPLIANCE. Do not leave unattended during
use, unplug after each use. Never leave the appliance unattended
when switched on or plugged in.
nAny adjacent furniture must be able to withstand a minimum temperature
rise of 85˚C, above the ambient temperature of the room it is located in,
whilst in use. This appliance requires 100mm clearance around the front,
back and sides of the appliance and a minimum of 700mm between
the cooking plate and the underside of any horizontal surface above
it. Certain types of vinyl or laminate kitchen furniture are particularly
prone to heat damage or discolouration at temperatures even below
the guidelines given above. Any damage caused by the appliance being
installed in contravention of these instructions will be at the liability of
the owner. You should not use this appliance to store items on or as a
work surface.
nDo not use the appliance near or under combustible materials like
curtains or furniture.
nThis appliance is not intended for use by persons with reduced physical,

7
sensory or mental capabilities, or lack of experience and knowledge
unless they have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
nChildren should always be supervised to ensure that they do not play
with this appliance.
nNot for use by children. Keep the appliance and its supply cord out of
reach of children during and after use.
nThis appliance is for indoor, domestic use only and is not intended to
be used in applications such as: staff kitchen areas in shops, offices
and other working environments; farmhouses; by customers in hotels,
motels and other residential type environments; bed and breakfast type
establishments.
nDo not use the appliance if the supply cord is damaged. In the event of
supply cord damage, discontinue use immediately. If the supply cord is
damaged it must be replaced by the manufacturer. Return the appliance
to the Customer Care Centre (refer to ‘UK After Sales Service’ section for
further information). No repair must be attempted by the consumer.
nDo not wrap the supply cord around the main body of the appliance
during or after use.
nDo not leave the supply cord hanging over the edge of a kitchen table or
worktop.
nDo not allow the supply cord to come into contact with sources of heat.
nAs the outer surfaces may get hot when the appliance is in use, take care
not to allow the appliance surfaces to come into contact with other heat
sensitive surfaces.
nDo not use metal utensils as this will damage the cooking plates.
nAlways unplug the appliance from the mains outlet and allow to cool
before cleaning.
ELECTRICAL SAFETY
nAlways ensure the voltage to be used corresponds with the voltage on
the appliance, this is indicated on the bottom of the housing.
nThe appliance is not intended to be operated by means of an external
timer or separate remove control system.
nAlways disconnect the appliance from the electric supply if it is left
unattended and before assembling, disassembling or cleaning.

8
nNever pull the plug out of the mains socket by the supply cord.
nAlways ensure that your hands are dry before touching the supply
cord or removing the plug from the mains socket.
GENERAL SAFETY
nEnsure all packaging materials and any promotional labels or stickers
are removed from the appliance before first use.
nAlways inspect the appliance before use for noticeable signs of
damage. Do not use if damaged, or if the appliance has been dropped.
In the event of damage, or if the appliance develops a fault, contact
the Cuisinart Customer Care Line (refer to “UK After Sales Service
section” for further information)
nBefore switching on the appliance ensure that the selected plates are
correctly fitted and locked into position.
nDo not use the appliance for anything other than its intended use.
nDo not touch hot surfaces; use the handles whilst the appliance is
switched on and during cooling time.
nPosition the appliance on a stable, level, heat resistant surface near a
power socket.
nDo not attempt to move or lift the appliance by the handle, when
lifting the appliance ensure you fully support from underneath.
nDo not place anything on top of the appliance while it is operating or
while it is hot.
nDo not wrap food in plastic film, polythene bags or metal foil during
cooking. This may cause damage to the cooking plates and create a
fire hazard.
nDo not use accessories or attachments with this appliance other than
those recommended by Cuisinart.
nDo not place the appliace on or near a hot gas or electric burner or
place in a heated oven.
nNever leave the appliance unattended when switched on or plugged
in.
nPeriodically check all parts before use. If any part is damaged DO NOT
USE.
nTo avoid injury or possible fire, do not cover the appliance when in
use.
nTo protect againt fire, electric shock or personal injury, do not immerse
the housing base, cord or plug in water or other liquids or place in a

9
dishwasher.
nTo disconnect, turn the control to the off setting and then remove the
plug from the mains.
nSwitch off and unplug the appliance after use.
nUnplug from the mains when not in use and before cleaning. Allow to
cool completely before fitting or removing parts and before cleaning
the appliance.
nWe recommend carefully washing the plates by hand. If a dishwasher
is to be used, place them on the top rack only.
WARNING: Polythene bags over the product or packaging
may be dangerous. To avoid danger of suffocation, keep away
from babies and children. These bags are not toys.
This product complies fully with all appropriate EU and UK legislation
and the standards relevant with this type and class of appliance. We
are an ISO9001:2015 certified company that continually evaluates
our Quality Management System Performance. If you have any queries
regarding product safety and compliance, please contact our Customer
Services Department (see “UK After Sales Service” section).
Disposing of electrical and electronic appliances at the end-
of-life
This symbol on the product or on the packaging indicated that this
product may not be treated as household waste. Instead it should
be handed over to the appliance collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed
of correctly you will help prevent potential negative consequences for
the environment and human health which could otherwise be caused
by inappropriate waste handling of the product. For more detailed
information about the recycling of this product, please contact your
local council office or your household waste disposal service.

10
Before First Use
Before using your 2 in 1 Waffle & Pancake Maker for the first time, ensure all
packaging is removed and clean the waffle and pancake plates thoroughly
(see Cleaning & Maintenance Section).
Selecting the Plates
Before you begin, select which plates are best suited for the food you wish
to cook.
Waffle Plates
The waffle plates can be used to make homemade sweet or savoury waffles,
that have a golden-brown crust and a soft fluffy centre.
Pancake Plates
The pancake plates can be used to create light and fluffy pancakes.

11
Fitting &Removing The Plates
Fitting the Plates
nEnsure the appliance is switched off and is fully cooled down.
nSelect either the waffle or pancake plates.
nPosition the appliance so that the controls are facing towards you.
nPress the handle release button and list the handle to fully open the
product.
nAlign the two cut outs at the back of the plate (see Fig. 1) with the
brackets on the bottom of the housing base. Tilt the plate and slide it
underneath the bracket.
nPush down the front end of the plate until it locks into place. To lock the
plate more easily, its recommended to press the plate release button,
when fitting the plate.
nRepeat with the second plate.
Removing the Plates
nEnsure the product is switched off and is fully cooled down. Always allow
the appliance to cool for at least 30 minutes
before removing the plates.
nLocate the plate release buttons, which can be
found on the right side of the units upper and
lower housing (see Fig. 2). Press the upper release
button firmly, the upper plate will slightly loosen
to be able to remove from the top cover. Lift the
plate up and slide out, under the brackets in the
Positioning guides Positioning guides
Fig. 1
Waffle Plates Pancake Plates
Fig. 2
Upper
Plate
Release
Button
Lower
Plate
Release
Button

12
centre.
nRepeat by pressing the lower release button and releasing the lower
plate.
nThe plates can be hand washed or cleaned in the dishwasher after use.
Fitting and Removing the Integrated Waste Tray
The 2 in 1 Waffle & Pancake Maker has a clever waste drainage system.
Excess batter mix is drained via a small recess at the rear of the plates,
allowing waste to drip down into the integrated tray.

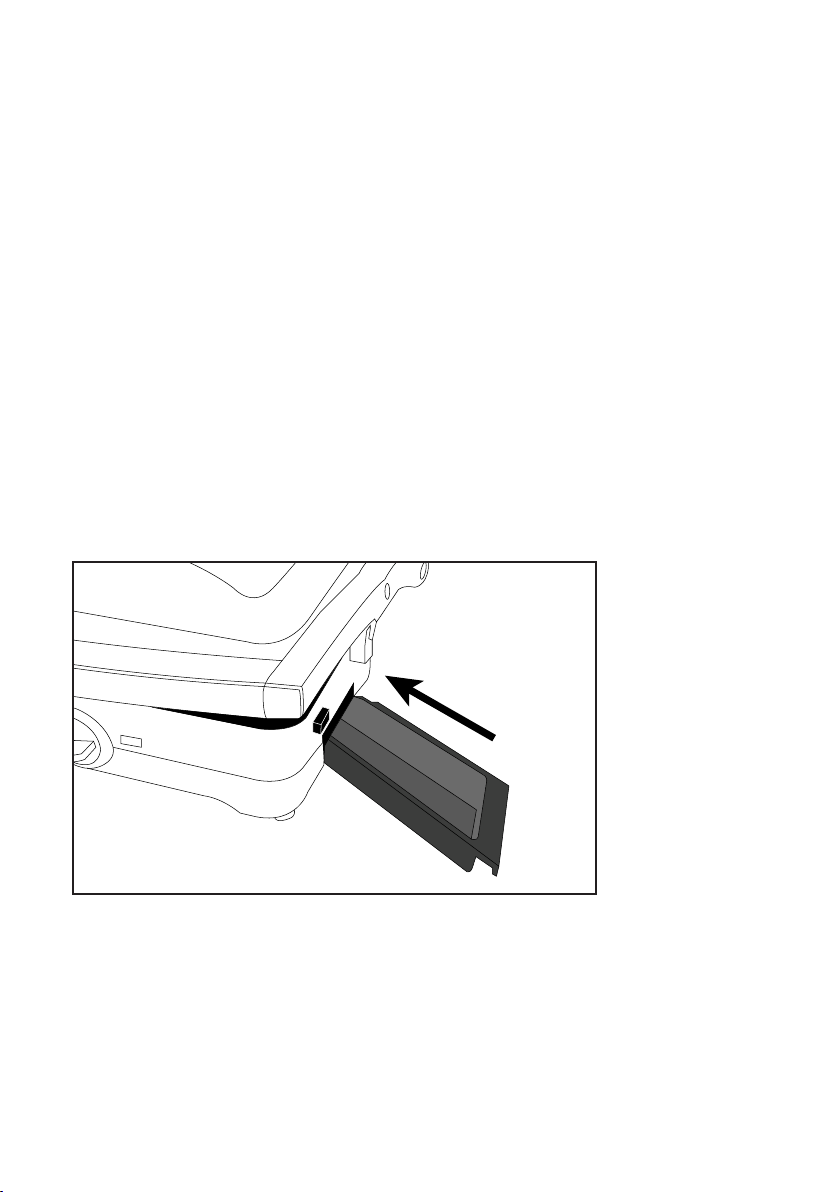

To insert the waste tray, insert it into the slot on the right side of the lower
housing (see Fig. 3). To remove the waste tray, simply slide the tray out of
the slot. The waste tray can be washed in the dishwasher.
Fig. 3

13
Using the 2 in 1 Waffle & Pancake Maker
Once you have fitted the plates and integrated drip tray, you are ready to
start using the 2 in 1 Waffle & Pancake Maker.
Preheating the Appliance
For optimum results, always preheat the unit completely before using.
nPlug the appliance into a suitable mains socket.
nAlthough the plates have a non-stick coating, we recommend that you
prepare the plates with cooking spray or oil. If using oil, apply with a
paper towel or pastry brush.
nClose the lid and turn the temperature control dial to
the desired setting for cooking: Low, Medium or High.
N.B. Adjust the temperature according to the food.
nWhen the dial is in place, a red light will illuminate on
the front of the appliance to indicate that the power
is on and the appliance is heating up.
nOnce the appliance has reached the optimal
temperature, the green light will illuminate to indicate the appliance is
ready to cook.
Using the Handle
nThe handle is designed to lock when used in either waffle or pancake
mode.
nTo open the appliance, grasp the handle, pressing in the handle release
button as you lift the lid upwards.
nTo close the appliance, push the handle downwards.
N.B. Batter will expand, during cooking, so it’s not always necessary for the
handle to be locked, when cooking.
ACTUAL SIZE SAMPLE:
150%
CONTINENTAL CONAIR LIMITED
Customer:
Model No.
Description:
Prepared by:
Version:
Checked by:
Approved by:
Released on:
Vendor:
Printer:
Artwork No.:
CUISINART
GR-3
Knob Bezel sa
PETER 03/14/07
CH HO 03/19/07
Beth Lowe 03/19/07
03/19/07
TSANN KUEN
Scale 1 : 1
12345cm
H
I
G
H
O
F
F
•
•
•
L
O
W
•
•
•
M
E
D
•
•
•

14
Cooking with the Waffle and Pancake Plates
nPreheat the appliance, until the green indicator illuminates.
nPlace the food on the lower plate and allow to close, over the top of
your food.
N.B. It is important to lock the plates, to ensure your waffles and pancakes
seal properly.
nIt may take a few seconds for the green light to switch off. This is
normal.
nThe green light runs on a thermostat and indicates when the product is
up to temperature. As part of the cooking cycle the light will go on and
off during this process. You will need to assess if the food is cooked by
firmly pressing the release button and lifting the lid.
nWhen you are happy the food is cooked, remove it by gently loosening
the edges with a heat-proof plastic spatula.
N.B: When using the pancake plates always fill to just below the rim, to
avoid over filling the plates.
IMPORTANT: Never use metal utensils, as they may damage the non-stick
coating.
nOnce you have finished cooking, turn the temperature control dial to
the ‘OFF’ position and unplug the power cord from the mains. Allow the
appliance to cool for at least 30 minutes before handling.
N.B. When using the appliance for the first time, there may be a slight
odour and it may smoke a little. This is normal and common for appliances
with a non-stick surface.

15
Cleaning &Maintenance
nBefore first use and after every use, clean each part thoroughly.
nOnce you have finished cooking, turn the temperature control to the OFF
position and unplug the power cord from the mains.
nAllow the appliance to cool, for at least 30 minutes, before cleaning.
nDispose of excess mixture from the waste tray. The waste tray can be
cleaned by hand or in the dishwasher.
nThe plates can be washed by hand or in the dishwasher. Do not use
metallic objects such as knives, when cleaning as this can damage the
non-stick coating. Use wooden or heatproof utensils only.
nNever immerse the base unit in water or other liquids. To clean the
housing and control panel, simply wipe with a clean, damp cloth.
nIn between recipes, scrape off excess food build up, then wipe off any
residue with a paper towel, before proceeding with the next recipe.
nNever leave plastic untesils in contact with the hot plates.
nMake sure all parts are clean and dry before storing.
nNever wrap the cord around the outside of the appliance.
nNever immerse the plug or lead in water or any other liquid.
N.B. Do not use abrasive cleaners, hard implements or a scourer, as this
may cause damage to the non-stick coating.

16
UK Guarantee
This appliance is guaranteed for consumer use for 5 years and is only valid
within the United Kingdom.
This guarantee covers consumer use only i.e. defects occurring under
normal use within the home from date of purchase or date of delivery,
whichever is later.
If the product develops a fault due to defects in materials or manufacture
within 12 months from the date of purchase, to avoid delays and
unnecessary inconvenience, where possible please return the product to
the point of purchase for an exchange.
If the product develops a fault due to defects in materials or manufacture
after 12 months from the date of purchase, and within the guarantee
period, Conair UK After Sales Service will repair or replace the product.
Exclusions
This guarantee will no longer be valid meaning that The Conair Group Ltd
will not be liable to repair or replace your product where:
1.The appliance has been used on a voltage supply other than that which is
marked on the product, or advised within this instruction booklet
2.The appliance has been purchased from an unauthorised stockist*
3.The appliance is used for professional / non domestic usage
4.Repairs or alterations have been attempted by unauthorised persons
5.The failure of the appliance is a direct result of misuse
6.The failure is a result of not following the instructions for use
This guarantee does not cover any cosmetic damage due to misuse of the
product nor any damage to persons or property that occurs because of
product misuse.
*unauthorised stockists include, but are not limited to online auction sites,
private sellers and those selling second hand goods, refurbished products,
etc.
Please contact the Conair Customer Care Line on 03702 406902 (09:00
to 17:00 Monday to Friday) or email [email protected] for further
information on authorised stockists.

17
It is important to retain your proof of purchase. We recommend
attaching your receipt to this page.
Even where a refund may be applicable, no refund will be provided
without a valid receipt or proof of purchase, we will only be able to
offer a repair or replacement service. Please note this does not apply if
the product was purchased directly from The Conair Group Ltd.
Guarantees on replacement products run from the original purchase date or
date of delivery, whichever is later, and not from the date of replacement.
This guarantee is an additional benefit and does not affect your
statutory rights as a consumer.
If you have any queries regarding this guarantee please contact the Conair
Customer Care Line on 03702 406 902 (09:00 to 17:00 Monday to Friday)
or email your enquiry to [email protected]
UK After Sales Service
For further advice on using the appliance or should you need to return
your product, please contact the Conair Customer Care Line on 03702 406
902 (09:00 to 17:00 Monday to Friday) or email your enquiry to support@
cuisinart.co.uk
Return address:
Customer Care Centre
Conair Logistics
Unit 4, Revolution Park
Buckshaw Avenue
Buckshaw Village
Chorley
PR7 7DW
Please enclose your returns number, name and address details, together
with a copy of proof of purchase and details of the fault.
Please note this Instruction Booklet is not the guarantee.

18
Basic Waffles
Makes 12 Waffles
Ingredients
250g plain flour
1 tbsp. caster sugar
1 tsp. baking powder
1 tsp. salt
400ml semi skimmed milk
3 medium eggs
30ml vegetable oil
nInsert the waffle plates and preheat the machine to medium.
nPlace all the ingredients into a mixing bowl and mix until you have a
smooth batter. Leave to rest for 5 minutes.
nWhen the green light indicator shows, pour approximately 60ml of
batter into each waffle plate.
nClose the lid and cook for approximately 3 to 3 ½ minutes.
nRemove the waffles and repeat with the remaining batter.

19
Sweet Potato Waffles
Makes 4 Waffles
Ingredients
250g sweet potato, coarsely grated
2 medium free-range eggs
1 tbsp. chia seeds
½ tsp. cayenne pepper
Sea salt & freshly ground black pepper
Vegetable oil, to lightly grease the waffle plates
To serve :
2 avocados, sliced
4 eggs, fried
nInsert the waffle plates and preheat the machine to medium.
nIn a large bowl, mix the grated sweet potato, eggs, chia seeds, cayenne
pepper, salt and pepper.
nWhen the green light indicator shows, spread your sweet potato waffle
mixture onto each grid.
nClose the lid and cook for 5 – 7 minutes, until starting to turn golden.
Repeat with the remaining batter.
nServe with sliced avocado, topped with a fried egg.

20
Basic Pancakes
Makes 8-10 Pancakes
Ingredients
120g self-raising flour, sifted
1 tsp. baking powder, sifted
½ tbsp. caster sugar
Pinch of salt
225ml milk
1 medium egg
15g butter, melted
nInsert the pancake plates and preheat the machine to medium.
nIn a large bowl, place the self-raising flour, baking powder, sugar and
salt and mix together, ensuring there are no lumps.
nIn a separate bowl, lightly whisk together the milk and egg, then whisk
in the melted butter.
nGradually add the milk mixture, into the dry ingredients, whilst whisking,
until you have a smooth batter.
nWhen the green light indicator shows, pour in the pancake batter, until
it just fills the top of each mould.
nClose the lid and cook for approximately 3 minutes, or until golden in
colour.
nRemove the pancakes from the plates and repeat with the remaining
batter.
Tip: Allowing the batter to rest, for up to 1 hour in the fridge, before
cooking, will give a lighter pancake.
