Currys Essentials CFSG10WH Parts list manual

FREE STANDING GAS COOKER
INSTRUCTION / INSTALLATION MANUAL
CFSG10WH
CFSG10SV
GB
CFSG10WH_SV_IB_final110427.indd 1 27/04/2011 7:12 PM

CFSG10WH_SV_IB_final110427.indd 2 27/04/2011 7:12 PM

Contents
Unpacking..................................................................................................................................... 5
Product Overview......................................................................................................................... 6
Front View ...................................................................................................................................................................6
Top View.......................................................................................................................................................................6
Control Panel..............................................................................................................................................................7
Gas Burners.................................................................................................................................................................7
Before Using your Cooker............................................................................................................ 7
Lighting the Burners .................................................................................................................... 8
Flame Failure Safety Feature ....................................................................................................... 8
If the Burner does not Light......................................................................................................... 8
If the Flame is Irregular ................................................................................................................ 8
General Guidelines....................................................................................................................... 9
First Time Use of the Oven ........................................................................................................... 9
Lighting the Oven....................................................................................................................... 10
Flame Failure Safety Feature ..................................................................................................... 10
Using the Oven ........................................................................................................................... 10
Oven/Grill Control ...................................................................................................................... 10
Cooking Table ............................................................................................................................. 11
Lighting the Grill......................................................................................................................... 11
Using the Grill ............................................................................................................................. 12
General Advice............................................................................................................................ 13
Cleaning the Outside of the Cooker.......................................................................................... 13
Cleaning the Oven Door Glass................................................................................................... 13
Cleaning the Inside of Your Oven .............................................................................................. 14
Cleaning the Gas Hob................................................................................................................. 14
Burner Parts and Pan Supports ................................................................................................. 14

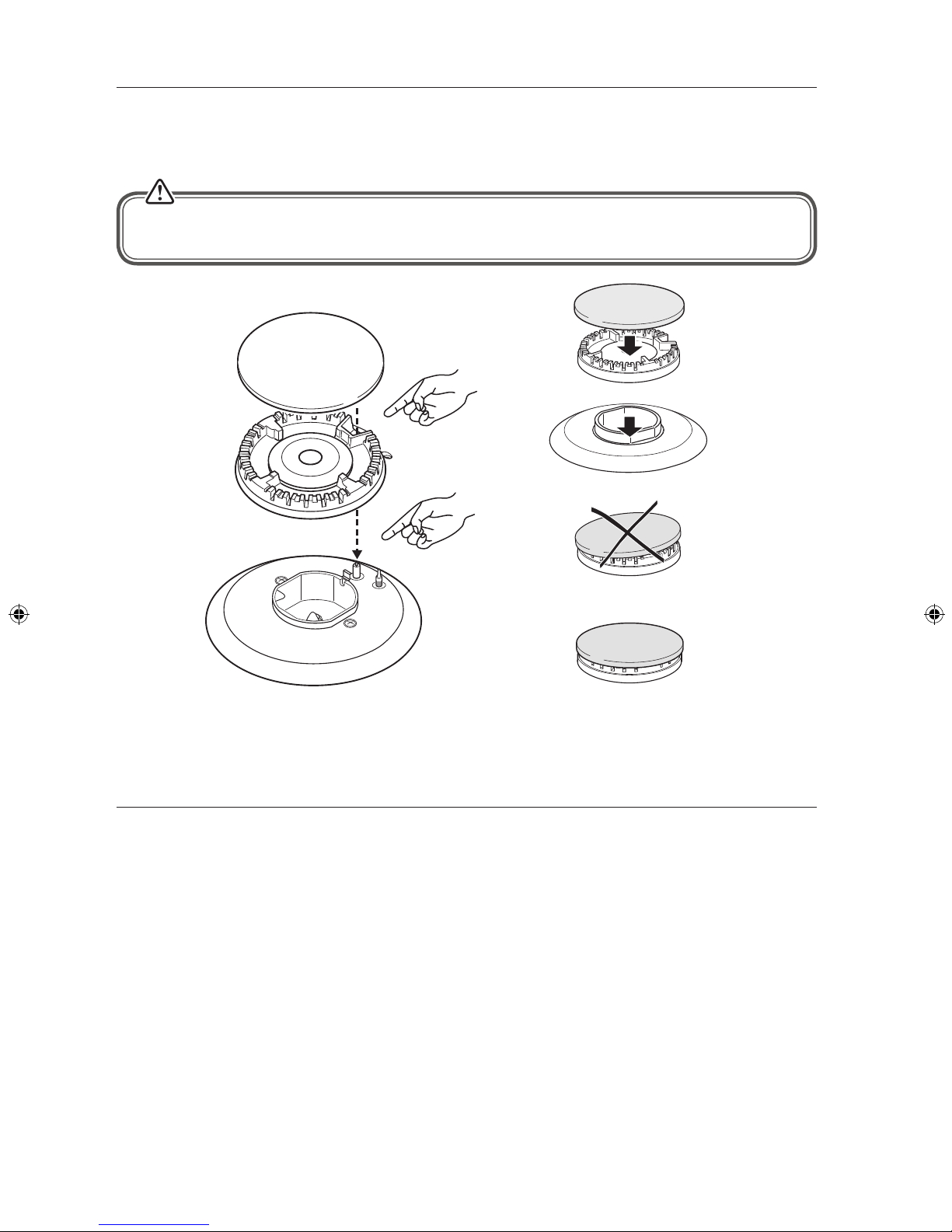

Replacing the Burners................................................................................................................ 15
Hob Controls (Gas Taps) ............................................................................................................. 15
Removing the Oven Door .......................................................................................................... 16
Replacing the Oven Lamp.......................................................................................................... 16
Hints and Tips ............................................................................................................................. 17
Specication ............................................................................................................................... 18
Installation .................................................................................................................................. 19
Adjusting the Feet ...................................................................................................................... 20
CFSG10WH_SV_IB_final110427.indd 3 27/04/2011 7:12 PM

Moving the Cooker ..................................................................................................................... 20
Stability Bracket ......................................................................................................................... 20
Ventilation Requirements.......................................................................................................... 21
Gas Installation........................................................................................................................... 21
Installation and Service Regulations ........................................................................................ 21
Gas Connection........................................................................................................................... 22
Installation Relevant to Natural Gas ...............................................................................................................22
Installation Relevant to Liquid Petroleum Gas (LPG)................................................................................22
To Connect the Gas Supply:............................................................................................................................... 23
Replacement of Burner Injectors .............................................................................................. 24
To Replace the Hob Injectors ............................................................................................................................24
To Replace the Oven/Grill Injectors ................................................................................................................24
- Removal of the Oven Burner..................................................................................................................24
- Removal of the Grill Burner Injector .................................................................................................... 25
Table for the Choice of the Injectors ......................................................................................... 26
Lubrication of the Gas Taps ....................................................................................................... 26
Electrical Connection ................................................................................................................. 26
Safety Warnings.......................................................................................................................... 27
CFSG10WH_SV_IB_final110427.indd 4 27/04/2011 7:12 PM

5
Thank you for purchasing your new Currys Essentials Free Standing Gas Cooker.
You must read this manual in order to fully understand how to operate it correctly.
This unit MUST be installed by a competent and Registered Engineer (Gas Safe in the UK).
Please allow the installer to view the installation section of this manual.
Read all the safety instructions carefully before use and keep this manual for future reference.
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local
regulations.
The following items are included:
The Main Unit
LPG Conversion Kit:
0
9
8
Max
Min
7
6
5
4321
Grill Deector x 1
P.N.: Y10-05-40-0008
Grill Tray x 1
P.N.: Y10-05-40-0009
Stability Bracket x 2
P.N.: Y10-01-40-0018
Small Pan Stand x 1
P.N.: Y30-01-40-0024
Grill Rack x 1
P.N.: 20-25-11-004
Oven Shelf x 1
P.N.: 20-25-11-001
Grill Pan Handle x 1
P.N.: 20-25-90-006
LPG nozzles x 6
LPG Replacement Rating Plate x 1
P.N.: 20-10-15-010
LPG Nozzle Installation Guide x 1
P.N.: 20-10-60-030
Large Burner (P.N.: 20-40-59-001)
Standard Burner x 2 (P.N.: 20-40-59-002)
Small Burner (P.N.: 20-40-59-003)
Oven Burner (P.N.: 20-40-59-005)
Grill Burner (P.N.: 20-40-59-010)
Pan Supports (Left/Right) × 2
P.N.: 20-25-22-003
Instruction / Installation Manual
P.N.: CFSG10WH_SV-002
Large Burner Ring × 1
P.N.: 20-40-72-001
Large Burner cap × 1
P.N.: 20-40-75-001
Standard Burner Ring × 2
P.N.: 20-40-72-002
Standard Burner Cap × 2
P.N.: 20-40-75-002
Small Burner Ring × 1
P.N.: 20-40-72-003
Small Burner Cap × 1
P.N.: 20-40-75-003
If items are missing, or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
50*60INJEC TORTABLE FOR FREE STANDING OVENSTCN
BURNER
NAME
RAPID
BURNER
Ø1.15mm
Ø0.97mm
Ø0.97mm
Ø0.72mm
Ø0.92mm
Ø0.97mm
SEMI-RAPID
BURNER
SEMI-RAPID
BURNER
AUXILIARY
BURNER
GRILL
BURNER
OVEN
BURNER
BURNER
SYMBOL
NGG20 (20mBar) LPGG20 (30mBar) NGG25 (25mBar) NG G20 (13mBar) LPG G30 (50mBar)
05-2010
320.10.3800620.10.60.030 Revision date:21/05/2010
Ø0.85mm
Ø0.65mm
Ø0.65mm
Ø0.50mm
Ø0.60mm
Ø0.70mm
Ø1.20mm
Ø0.95mm
Ø0.95mm
Ø0.70mm
Ø0.92mm
Ø0.95mm
Ø1.45mm
Ø1.10mm
Ø1.10mm
Ø0.85mm
Ø1.10mm
Ø1.50mm
Ø0.75mm
Ø0.50mm
Ø0.50mm
Ø0.43mm
Ø0.60mm
Ø0.70mm
FREE STANDING GAS COOKER
INSTRUCTION / INSTALLATION MANUAL
CFSG10WH
CFSG10SV
GB
CFSG10WH_SV_IB_final110427.indd 5 27/04/2011 7:12 PM

6

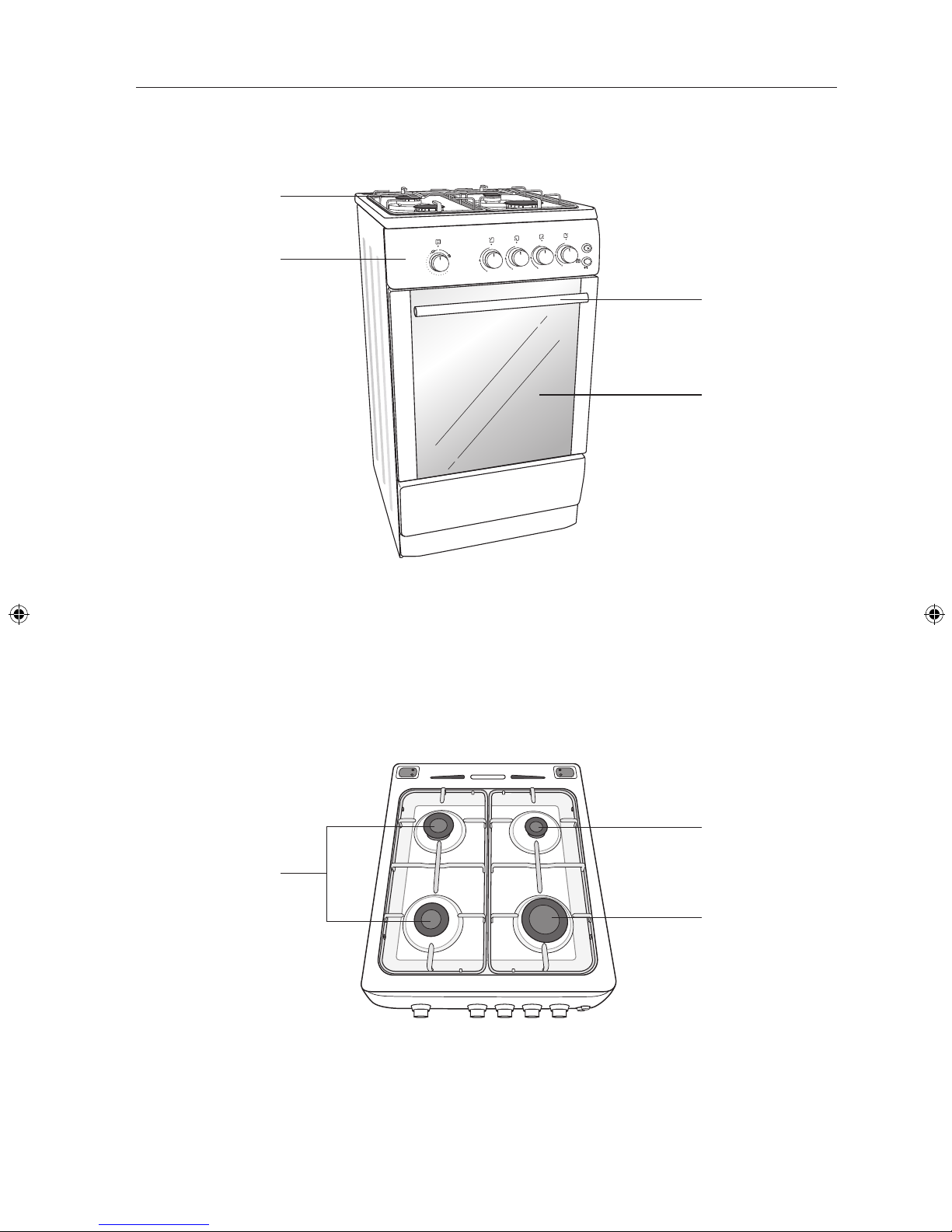

Product Overview
Front View
Top View
1. Standard Burners
2. Small Burner (Simmer)
1. Gas Hob
2. Control Panel
3. Large Burner (Fast)
3. Oven Door Handle
4. Oven Door
0
9
8
Max
Min
7
6
5
4321
2
1
4
3
2
1
3
CFSG10WH_SV_IB_final110427.indd 6 27/04/2011 7:12 PM

7

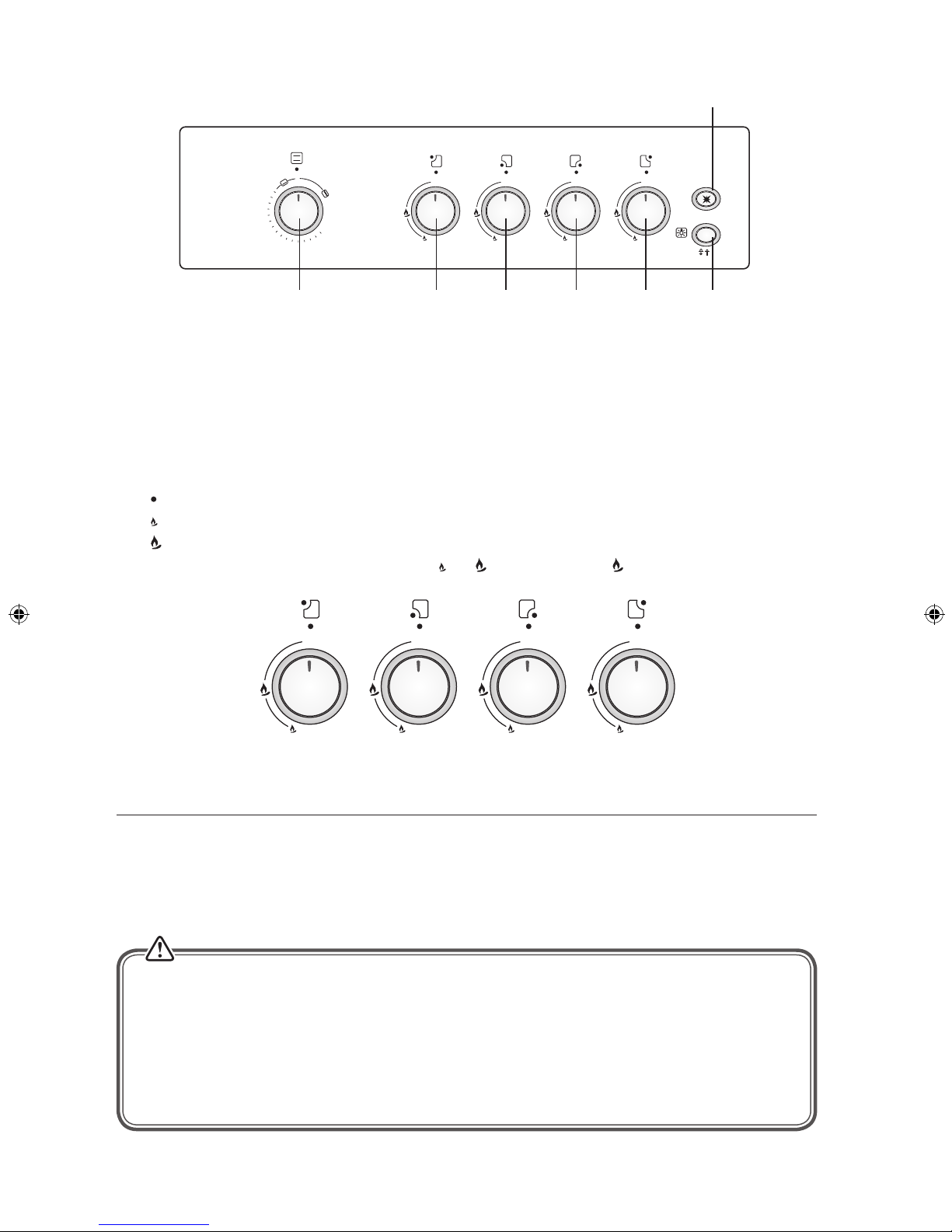

Control Panel
1. Oven/Grill Control
2. Rear Left Burner (Standard) Control
3. Front Left Burner (Standard) Control
4. Front Right Burner (Fast) Control
5. Rear Right Burner (Simmer) Control
6. Oven Light Switch
7. Ignition Switch
0
9
8
Max
Min
7
6
5
4321
1 2 3 4 5 6
7
0
9
8
Max
Min
7
6
5
4321
Gas Burners
The relevant controls adjust the ow of gas through each of the burners.
• = OFF
• = Minimum Flame
• = Maximum Flame
You can choose to cook at any heat setting between and , but never between and the OFF position.
Before Using your Cooker
Before using your new cooker, please:
• Read this instruction/installation manual, taking special note of the "Safety Warnings" section.
• Make sure all the controls are turned o.
• Turn the mains power on.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example room
heating.
• The use of a gas cooking appliance results in the production of heat, moisture and products of
combustion in the room in which it is installed. Ensure that the kitchen is well ventilated especially
when the appliance is in use: keep natural ventilation holes open or install a mechanical ventilation
device (mechanical extractor hood). Prolonged intensive use of the appliance may call for additional
ventilation, for example opening of a window, or more eective ventilation, for example increasing the
level of mechanical ventilation where present.
CFSG10WH_SV_IB_final110427.indd 7 27/04/2011 7:12 PM

8
If the Flame is Irregular
If the ame is yellow or irregular, check that the burner parts, including the burner cap, are:
• Clean and dry.
• Positioned correctly. See ‘Replacing the Burners’.
• Also see 'Hints and Tips'.
Flame failure
probe
Ignitor
Lighting the Burners
1. Choose the control for the burner you want to use.
2. Press the Ignition switch and at the same time gently press and hold the burner control in and then turn it
anti-clockwise to the position. Release the Ignition switch once the burner is lit.
Continue to hold the control in for approximately 10 seconds after the burner has lit. Releasing the control
too soon will extinguish the ame.
3. Adjust the ame anywhere between the and positions. Do not adjust the ame between the and OFF
position.
Flame Failure Safety Feature
The ame supervision device (FSD) probe cuts o the gas supply to the burner if the ame is blown out.
When lighting the burner, hold the control in for approximately 10 seconds after the burner has lit. Releasing the
control too soon will extinguish the ame.
If the ames are accidentally extinguished, turn o the burner and do not try to light it again for at least one
minute (to allow the gas to disperse).

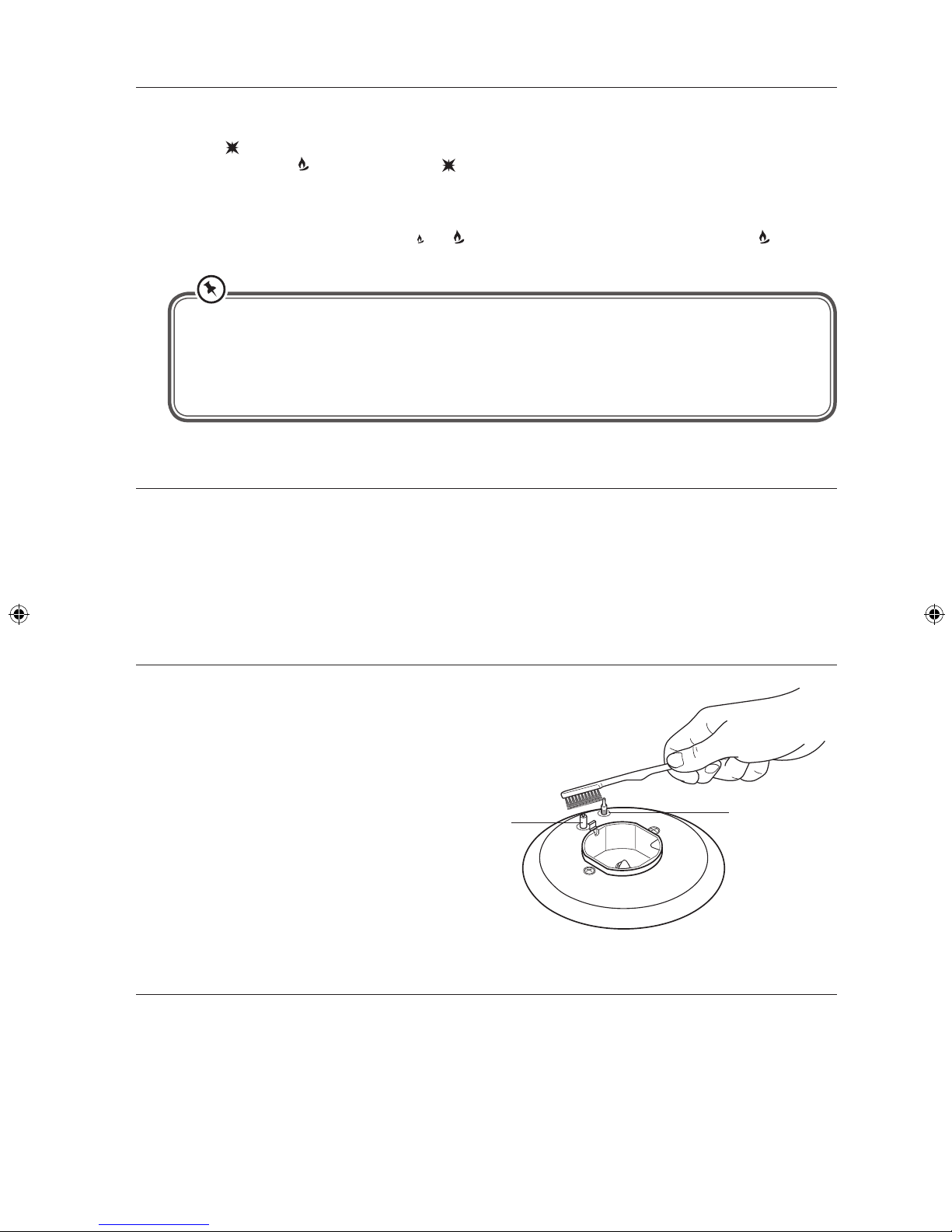

If the Burner does not Light
If the burner does not light, check that:
• The cooker is switched on.
• The gas is turned on.
• You have held the control in for at least ten
seconds.
• The ignitors are sparking. If the ignitors are
not sparking, they may be dirty or wet. Clean
them gently with a small nylon brush such as a
toothbrush as shown below.
• If the burner does not light within 15 seconds, turn the control o and wait for at least one minute
before trying again.
• To switch the burner o, turn the control clockwise to the OFF position and you will hear the
safety click.
• After use, always turn the controls to the OFF position.
CFSG10WH_SV_IB_final110427.indd 8 27/04/2011 7:12 PM

9
• Do not let large saucepans or frying pans overlap the edges of your hob as this can deect heat onto your
worktop and damage the surface.
• Always make sure saucepans are stable. Using very heavy saucepans may bend the trivet/pan support or deect
the ame.
• Always lift the cookware when removing from the hob, do not drag.
• When you need to boil, simmer or fry food, rst set the temperature to the high position.
Once the food is boiling, reduce the temperature to maintain a steady ow of heat to cook your food
thoroughly. Doing this will reduce the cooking time.

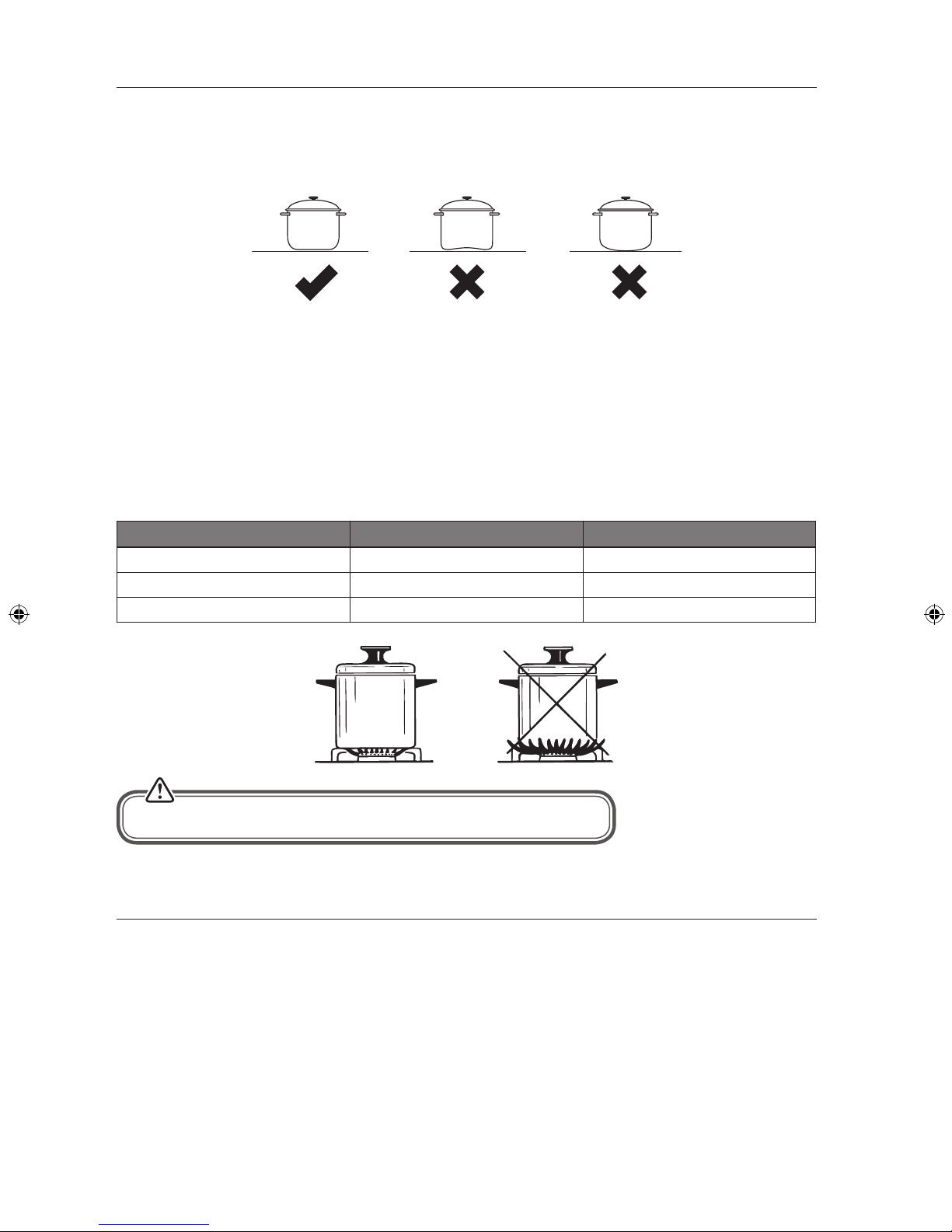

• Pan sizes should be as per the table shown below.
Burners Diameter Minimum Diameter Maximum Diameter
Small (Simmer) 15 cm 18 cm
Standard 18 cm 22 cm
Large (Fast) 22 cm 24 cm
General Guidelines
To get the best out of your hob, follow these simple suggestions:
• Use saucepans with thick at bottoms. Food in a saucepan with an uneven bottom will take longer
to cook.
First Time Use of the Oven
Ensure that nothing has been left in the oven. Remove any insert cards or plastic bags. Before connecting the
power, use a damp cloth to carefully wipe the inner cavity wall and housing. Clean all the detachable parts in hot,
soapy water before using.
Heat the oven on maximum for 45 minutes. (Please refer to the "Lighting the Oven" section) There may be a little
smoke and odour upon initial start up (for about 15 mins). This is normal. It is due to the protective substance
which protects the cooker from the eects of corrosion during shipping from the factory.
Do not use cooking vessels on the hob that overlap the edges of the hob.
CFSG10WH_SV_IB_final110427.indd 9 27/04/2011 7:12 PM

10

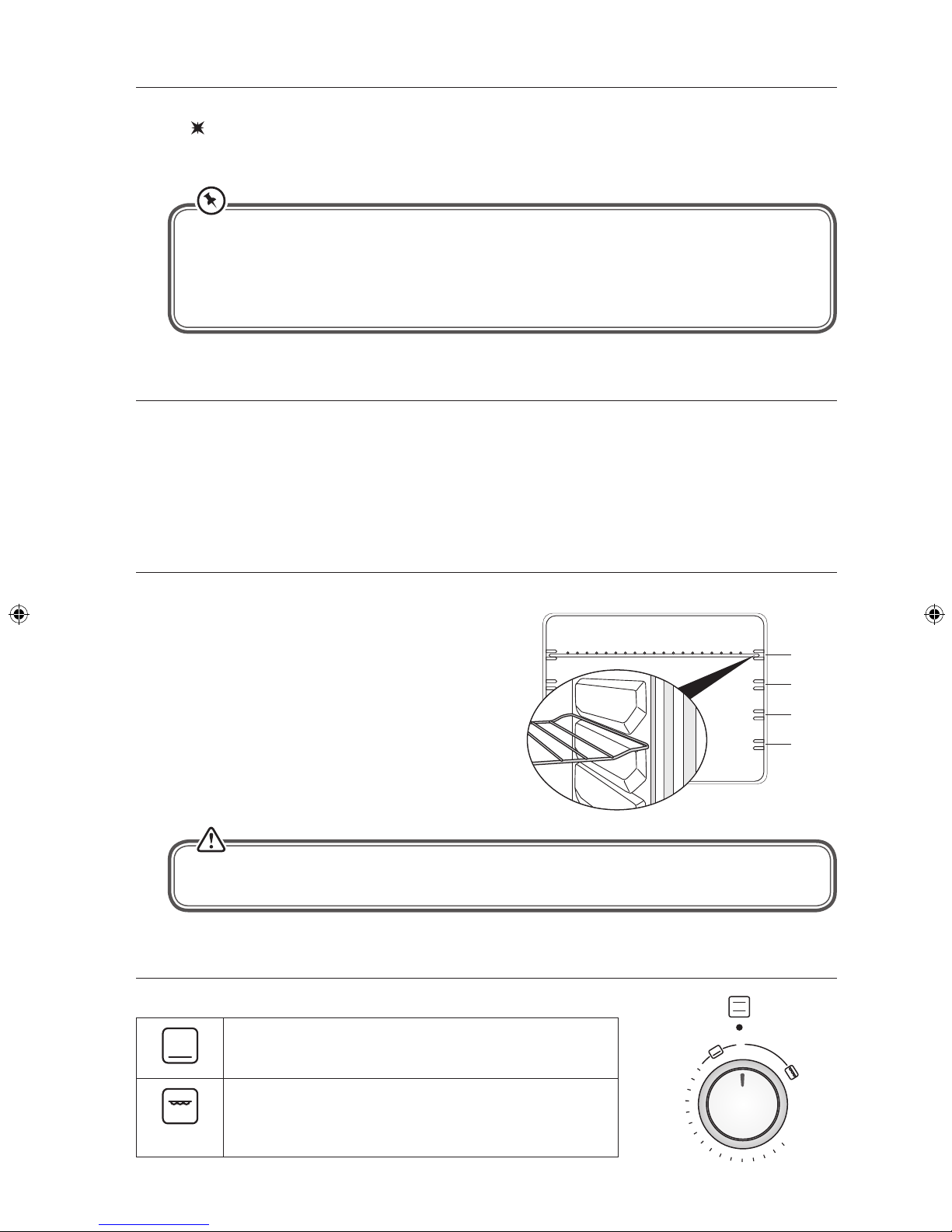

Oven/Grill Control
This control is used to select the cooking functions available, which are:
This controls the bottom (oven) burner.
Turn the control anti-clockwise and set to the relevant setting
needed.
This controls the top (grill) burner.
When using this mode, ensure that the Grill Deector is used.
(Refer to "Using the Grill" for details)
Turn the control fully clockwise to use.
Flame Failure Safety Feature
The ame supervision device (FSD) probe cuts o the gas supply to the oven burner if the ame is blown out.
When lighting the burner, hold the control in for approximately 10 seconds after the burner has lit. Releasing the
control too soon will extinguish the ame.
If the ames are accidentally extinguished, turn o the burner, ensure the oven door is open and do not try to
light it again for at least one minute (to allow the gas to disperse).
Using the Oven
1. To get the best results, the smallest distance allowed between the food and the grill burner is 30 mm.
2. On the wall of the inner cavity there are 4 dierent
shelf guide slots. You can place the shelf at dierent
heights to achieve the best cooking performance
depending on the heat of the oven and the size of
the food. If only the Grill is on, we suggest that you
place the shelf on guide 1 (make sure that there is a
minimum distance of 30mm between the food and the
grill burner).
3. Always monitor the food during operation to ensure
that you are not overcooking it.
4. For heavy food, use a baking pan rather than the wire shelf.
Lighting the Oven
1. Press and hold the Oven/Grill control in gently and turn it anti-clockwise to position 9. At the same time press
the Ignition switch. Once the oven burner is lit you may release the ignition switch.
2. Keep holding the Oven/Grill control in for approximately 10 seconds after the oven burner has lit. (You will
see blue ames through the bottom burner grid). Releasing the control too soon will extinguish the ame.
Guide 1
Guide 2
Guide 3
Guide 4
0
9
8
Max
Min
7
6
5
4321
• If the oven burner does not light within 15 seconds, turn the control o and wait for at least one
minute before trying again.
• To switch the oven burner o, turn the control clockwise to the OFF position and you will hear the
safety click.
• After use, always turn the controls to the OFF position.
During use the appliance becomes hot. Care should be taken to avoid touching hot parts (hob pan
stands, oven door glass and Grill Deector). Children should be kept away.
CFSG10WH_SV_IB_final110427.indd 10 27/04/2011 7:12 PM
