Curtis MILANO G3 User manual

G3 Hot water dispenser
Water boiler English
User manual

2User manual Curtis G3 Hot water dispenser
|
Congratulations on the purchase of your CurtisHot
water dispenser.
The G3 Hot water dispenser is a combination unit for
the dispensing of larger quantities of hot water.
Follow the User Manual
> Read the User Manual carefully prior to use.
> Please refer to the User Manual, paying
special attention to the safety instructions
and Safety chapter.
> Follow the warning instructions on the hot
water dispenser.
> Ensure that the staff and all users have access
to the User Manual.
Hazard to life due
toelectricalshock
• The voltage inside the hot water dispenser is
ahazard to life.
> Never open the housing.
> Never loosen the screws, and do not remove
any housing parts.
Conditions for use and installation
> In the event of failure to comply with
maintenance information and the specifi-
cations in the Technical Data chapter, no
liability is accepted for any resultant damage.
> Follow the User Manual.
> Maintenance and repair work may be
performed only by the Curtis Service, using
original spare parts.
CAUTION
Follow the User Manual signs and
symbols
page 18
Follow the Safety chapter
starting on page 35
WARNING
Follow the Safety chapter
starting on page 43
IMPORTANT
Technical data
starting on page 42
Maintenance
starting on page 39
Introduction and general information

3
User manual Curtis G3 Hot water dispenser
Table of contents
1 Safety 5
1.1 General safety instructions 5
1.2 Intended use 11
1.3 Conditions for use and installation 13
2 Introduction 16

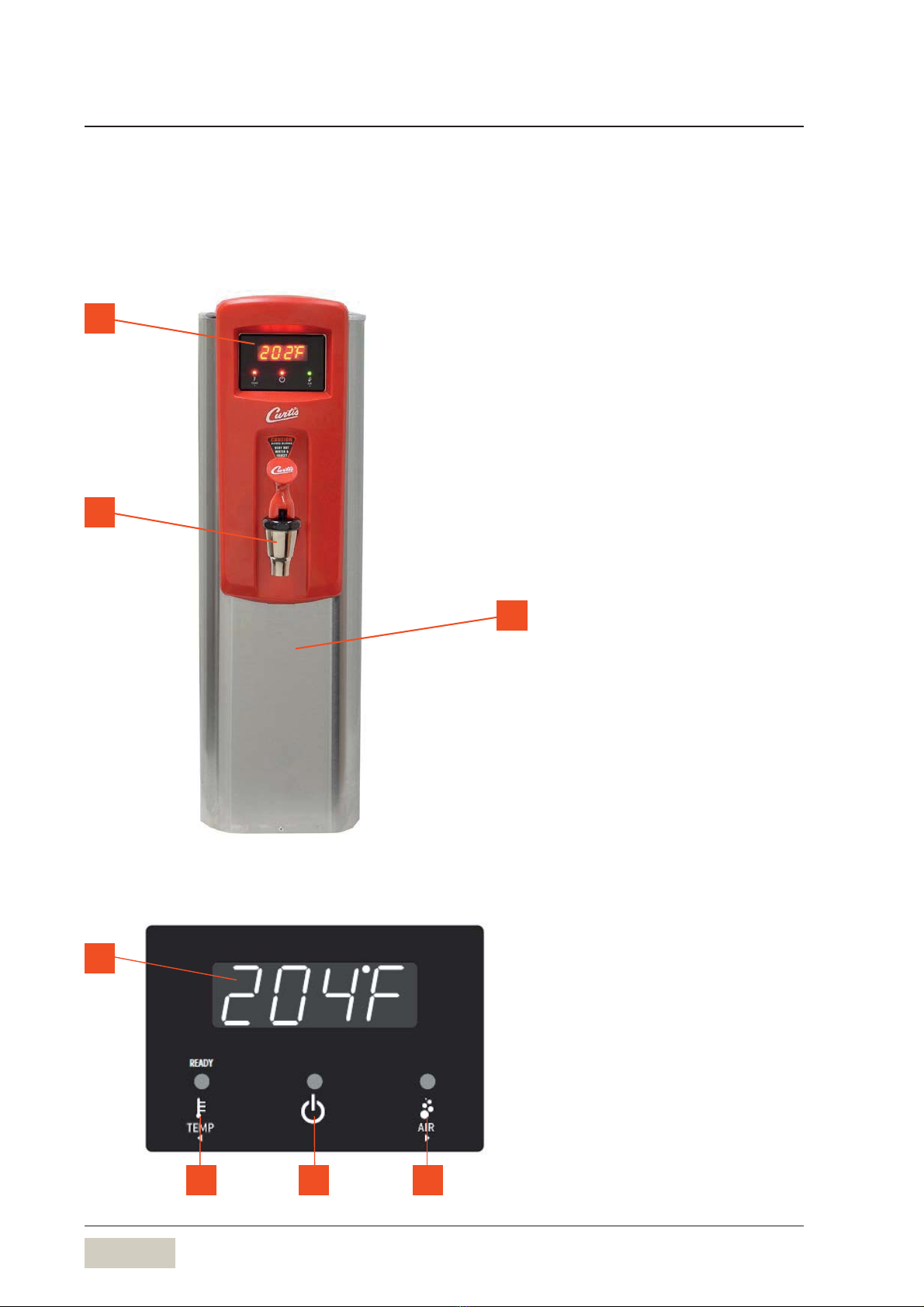

2.1 Parts of the coffee machine 16
Contol panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3 Operation 20
3.1 Operation safety instructions 20
3.2 Powering Up the hot water dispenser 21
3.3 Hot water dispense 22
3.4 Aerator 23
4 Software 24
4.1 Control Panel 24
4.1.1 Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
HOT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
°F/°C - Changing the display to Celsius . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Energy Saver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
To change the energy saver setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5 Care 27
5.1 Care safety instructions 27
5.2 Cleaning intervals overview 28
5.3 Daily cleaning or regular cleaning 29
5.3.1 Cleaning The Water Boiler and Dispensing Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5.3.2 Flushing the Pre-heat Coil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6 HACCP 30
7 Maintenance and descaling 32
7.1 Maintenance 32
7.2 CurtisService 32
8 Troubleshooting guide 33
8.1 Troubleshooting Guidelines 33
9 Safety and warranty 35
9.1 Hazards to the hot water dispenser 35
9.2 Directives 37
9.3 Duties of the owner / operator 38
9.4 Warranty claims 39
Appendix: Technical data 42
Technical data for hot water dispenser 42
Appendix: Accessories and spare parts 45

4User manual Curtis G3 Hot water dispenser

5
User manual Curtis G3 Hot water dispenser
Safety
1 Safety
Misuse
• Failure to follow the safety
instructions can result in death or
serious injury.
> Follow all the safety instructions.
1.1 General safety instructions
Hazards to the operator
At Curtis, safety is one of the most
essential product features. The
effectiveness of the safety devices can
only be ensured if the following points are
observed:
> Read the User Manual carefully
prior to use.
> Do not touch hot machine
components.
> Do not use the hot water dispenser
if it is not working properly or if it
is damaged.
> Use the hot water dispenser only
when it is completely assembled.
WARNING
CAUTION

6User manual Curtis G3 Hot water dispenser
Safety
> Built-in safety devices must never
be altered.
> Children must not play with the
device.
> Cleaning and user maintenance
must not be performed by children.
Despite the safety devices, every coffee
machine poses potential hazards if
incorrectly used. Please observe the
following instructions when using the hot
water dispenser so as to prevent injury and
health hazards:
CAUTION

7
User manual Curtis G3 Hot water dispenser
Safety
Hazard to life due
toelectricalshock
• The voltage inside the coffee
machine is ahazard to life.
> Never open the housing.
> Never loosen the screws, and do not
remove any housing parts.
> Avoid damage to the power cord. Do
not kink or crush.
> Never use adamaged power cord.
Adamaged power cord must be
replaced by the manufacturer or
aservice representative in order to
prevent ahazard.
> Never immerse the mains plug in
water or other liquids. Never pour
water or other liquids over the mains
plug. Always keeps the mains plug dry.
> The hot water dispenser must be
disconnected from the power supply
prior to maintenance and repair work.
Pull out the plug to do so. Theperson
performing the maintenance or repair
must always be able to check, with
aclear line of sight, that the power
supply has been disconnected.
WARNING

8User manual Curtis G3 Hot water dispenser
Safety
Burn hazard/scalding hazard
• Do not touch the adjacent surfaces,
because they can be hot.
> Do not pull the brew basket out
immediately after the brewing
process. Hot liquid can splash out!
> When dispensing beverages, do not
reach beneath the spouts.
> Do not reach beneath the spouts
during the heating-up phase.
> Do not touch the spouts
immediately after dispensing.
> Always place an appropriate cup
under the spout before dispensing
abeverage.
CAUTION

9
User manual Curtis G3 Hot water dispenser
Safety
Bruising or crushing hazard/
risk of injury
• The hot water dispenser contains
moving parts that can cause finger
or hand injury.
> Never reach into the brewing unit
when the machine is switched on.
> Always switch off the hot water
dispenser and unplug the mains
plug before reaching into the
opening of the brewing unit.
Health hazard
> Only use products that are suitable
for consumption and for use with
the hot water dispenser.
> The water tank may only be filled
with materials for the use intended.
CAUTION
CAUTION

10 User manual Curtis G3 Hot water dispenser
Safety
Health hazard
• The cleaner is caustic.
> Follow the protective measures
on the packaging of the cleaning
agent.
Slipping hazard
• Fluids can be discharged from the
coffee machine if used improperly
or if errors occur. These fluids can
cause aslipping hazard.
> Regularly check the hot water
dispenser for leaks, and make sure
no water is coming out.
CAUTION
CAUTION

11
User manual Curtis G3 Hot water dispenser
Safety
1.2 Intended use
Misuse
• If the machine is used other than as
intended, this could lead to arisk of
injury.
> The hot water dispenser must only
be used as intended.
• The Curtis G3 Hot water dispenser is designed for dispensing
coffee or hot water into apropriate receptacles.
• The water used must be suitable for processing in the hot
water dispenser. The products must not be processed after their
expiration date.
• This device is intended for industrial and commercial use and
should be operated by experts or trained users in stores, offices,
restaurants, hotels, or similar places.
• This machine is intended for large-scale service in hotels,
restaurants, and similar locations. The machine may be installed
in self-service areas if aresponsible person is on location while
it is being used. The machine may be operated only by specialist
personnel.
WARNING

12 User manual Curtis G3 Hot water dispenser
Safety
Installation location
• A secure surface capable of supporting the weight of the
appliance.
• The machine must be set up so as to allow good visual access.
• The device must be placed and leveled on ahorizontal, sturdy,
water-resistant, and heatproof base.
• The device must not be cleaned using awater jet. The device
must be installed where it is protected against water spray.
• The device must not be located on asurface that is sprayed or
cleaned with awater hose, steam jets, steam cleaner, or similar
devices.
Water supply
On site:
• Water connection 1/4“ flare
• Water pressure 138-620 kPa
• Min. flow rate 3.8l/min

13
User manual Curtis G3 Hot water dispenser
Safety
1.3 Conditions for use and installation
Risk of fire and accidents
> The conditions for use and
installation listed in the “Technical
Data” chapter must be met.
> Before inserting the device plug,
ensure that the information on
the rating plate matches the mains
voltage for the installation.
> Installation is to be performed only
by a qualified installer.
Any necessary on-site preparatory work for electricity, water, and
drainage connections at the customer‘s premises is to be arranged
by the machine owner/operator. The work must be carried
out by authorised installation technicians in compliance with
general, country-specific and local regulations. The CurtisService
engineers must only connect the water dispenser to existing
prepared connection points. CurtisService is neither authorised
nor responsible for carrying out any on-site installation work
prior to connection.
Risk due toelectricalshock
• Improper electrical connection
may result in an electric shock
hazard or damage the unit. This hot
water dispenser must be properly
grounded.
WARNING
Technical data
page 42
WARNING

14 User manual Curtis G3 Hot water dispenser
Safety
Note
DO NOT connect this brewer to a hot
water supply. The water inlet valve is
not rated for hot water.
Do not exceed the maximum water
pressure stated in the technical data
section.
Installation Requirements
• For units without an attached cord set attached:
Appropriately sized, VDE listed, grounding type power cable
tp meet the electrical specifications for the appliance. If you
have questions about the correct cable size and length, consult
a qualified installer. If the appliance will be hard wired to a
junction box, the power cable must be long enough so that the
unit can be moved for cleaning underneath.
• A grounded electrical connection to an electrical circuit
that meets the electrical specifications of the appliance
(see Technical Data). The circuit must be protected by the
appropriate sized circuit breaker. If you are not certain that the
existing circuit meets the requirements for your unit, consult a
licensed electrician.
• A water filtration system is required to maintain trouble-free
operation. Wilbur Curtis Co., Inc. recommends a Wilbur Curtis
approved water filter.
• Potable water supply line connection from the water filter
capable of supplying the minimum flow rate required by the
specifications. The water supply line must be able to connect to
the flare fitting on the back of the unit. See Technical Data for
the correct size.
NOTE

15
User manual Curtis G3 Hot water dispenser
Safety
The water line should also be capable of being controlled by a
shut off valve. Do not connect the water line to a saddle valve
or needle valve.

16 User manual Curtis G3 Hot water dispenser
1
2
5 6 7
4
3
Introduction | Designation of the device parts
2 Introduction
2.1 Designation of the device parts
Control Panel
Programming
Control Module
Software
starting on page 24

17
User manual Curtis G3 Hot water dispenser
Introduction | Designation of the device parts
1Control Panel
2Hot water faucet
3Water tank
Control Panel
4Digital temperature display
5TEMP button
6ON/Off button
7AIR button
The pads and buttons on the display are available, depending on the settings and
the machine model.
The functions shown here are examples.
Software starting on page 24

18 User manual Curtis G3 Hot water dispenser
Introduction | Designation of the device parts
User Manual Signs and Symbols
Personal injury safety instructions
If the safety instructions are not followed, this
could lead to mild to severe injury in case of
improper use.
Personal injury safety instructions
If the safety instructions are not followed, this
could lead to mild injury in case of improper use.
Electrical shock Slipping hazard
Bruising or
crushing hazard Hot surfaces
Notice of property damage
• to the coffee machine
• to the installation location
> Always follow the User Manual.
Note/tip
• Instructions for safe use and tips for easier
operation.
WARNING
Follow the Safety chapter
starting on page 5
CAUTION
Operation safety instructions
page 20
Care safety instructions
page 27
Follow the Safety chapter
starting on page 5
IMPORTANT
Follow the Warranty chapter
starting on page 43
Technical data
starting on page 42
NOTE
TIP

19
User manual Curtis G3 Hot water dispenser
Introduction | Designation of the device parts
Glossary
Term Explanation
• • Listings, selection options
Individual steps
Text in italics Description of coffee machine state and/or explanations
of automatic steps.
Beverage dispensing Dispensing coffee or hot water (such as for tea)
Carbonate hardness Quoted in °dKH. The water hardness is ameasure of the
calcium dissolved in the drinking water.
Decaf Decaffeinated coffee
SB mode
(self-service mode)
Self-service customer operation
UCM Universal Control module

20 User manual Curtis G3 Hot water dispenser
Operation | Operation safety instructions
3 Operation
3.1 Operation safety instructions
Burn hazard/scalding hazard
• Do not touch the adjacent surfaces, because
they can be hot.
> Before you brew coffee, put a suitable
container under the brew basket.
> When dispensing hot water, do not reach
beneath the spouts.
> Do not reach beneath the spouts during the
heating-up phase.
> Do not touch the spouts immediately after
dispensing.
> Always place an appropriate cup under the
spout before dispensing abeverage.
Health hazard
• Only use products that are suitable for
consumption and for use with the hot water
dispenser.
CAUTION
Follow the Safety chapter
starting on page 5
CAUTION
Follow the Safety chapter
starting on page 5
