Cuscini ABRI User manual

of 10
Fixed Classic Roof / Single Rail System
ABRI
Step by Step Assembly Instructions
Assembly Requirements
Before You Begin
Two Persons
Hand Drill
Ladder
Wrench Kit
Tape Measure
These installation instructions will lead you through the process of installing your new shelter. The installation of the shelter
requires special attention to certain detail. Before you begin you should:
CHECK YOUR ORDER. Make sure the contents of the carton match the product numbers on your order. Contact your dealer
if there are any damaged, missing or incorrect parts.
PAY ATTENTION TO SAFETY. Because of the size and weight of certain parts, installation is recommended with no fewer
than two people. Always maintain a clean, organized work area.
MAKE SURE YOU HAVE THE RIGHT TOOLS AND MATERIALS. Jardin de Ville supplies the appropriate fasteners upon
request through your dealer for anchoring the shelter securely to the ground. If you are unsure about the required anchoring
system best suited for your shelter, consult your dealer for the proper fastening method.
REVIEW ENTIRE INSTALLATION GUIDE. This step gives you the opportunity to contact your dealer to answer any
questions before you begin.
Level
Rubber Hammer
Screwdriver Set
1
Model # Pavillion 1.0Distributor: ShadeScapes Americas 970.527.7070cuscini.shadescapesamericas.com

of 10

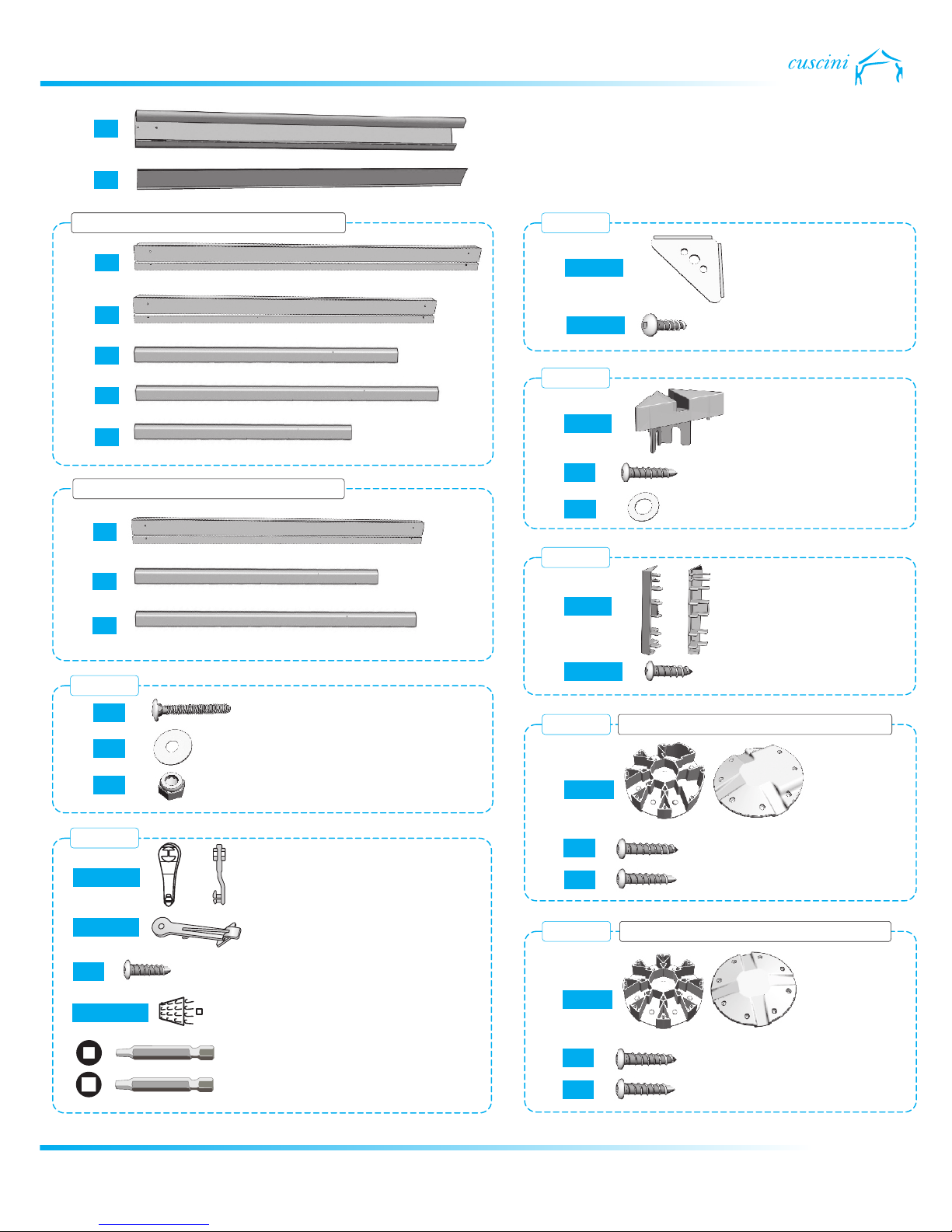

Part List
12’ or 14’ Side Beam
10’ Side Beam
10’ Side Beam
Triangular Corner Post
Corner Post Cover
Metal Screw #8-1/2”
Plastic Corner Beam Inserts
Corner Post Top Cover
2
2x B1
2x B2
4x B2
4x P1
4x P2
6x S1
4x S1
4x S2
4x S2
1x S3
Post End Plate
Carriage Bolt - 5/16” x 1-1/4”
5/16” x 1-1/2” Flat Washer
5/16” Nylon Lock Nut
End Plate Metal Screw #12-5/8”
Roof Cover Hook
#8 Square Head Screwdriver Bit*
#10 Square Head Screwdriver Bit*
*Provided for European countries only
Pulleys included with curtains
Velcro Strips (shipped with decorative curtains)
Joint Cover Screw #7-3/4”
Joint Cover Screw #7-3/4”
Roof Joint
Box (2 pieces)
Roof Joint
Box (2 pieces)
Bottom
Bottom
Top
Top
Roof Corner Spoke (punched hole at one end)
Roof Corner Spoke (punched hole at one end)
Roof Side Spoke (punched hole at one end)
Roof Side Spoke (punched hole at one end)
Roof Middle Support Spoke (both ends with punched holes)
Self-taping Screw #8-3/4”
Self-taping Screw #8-1/2”
Self-taping Screw #8-3/4”
KC12
16x BL3016
4x LA3005
KC15
16x 017
16x 007
16x 012
KC14
KC13
16x BL3015
4x PL103
4x PL110
MISC
6x 040
054
4x 040
KC10
16x 062
8x 062
2x PL104
1x PL105
Supplied with rectangular models
Supplied with rectangular models
KC21 Supplied with square models
Supplied with square models
K.PL101
K.APL001
K.PL106
Self-tapping Screw #8-1”
4x 072
4x 005 9/32” x 5/8” Flat Washer
Model # Pavillion 1.0Distributor: ShadeScapes Americas 970.527.7070cuscini.shadescapesamericas.com

of 10
Getting Started
3
1
Secure the base plates to the bottom of[KC12.LA3005]
each of the aluminum corner posts using metal screws[P1]
[KC12.BL3016] as shown in the diagram. (Repeat step for all
four corner posts.)
On a flat surface, assemble all the beams together by inserting the
plastic corners at each end. Once fully inserted, lock in[KC14.PL103]
place the plastic corners with supplied screws , as[KC14.BL3015]
shown in view A-A. You may use pieces of the cardboard shipping
box to protect the frame from scratches.
2
Cardboard
View A-A
A-A
B1
B1
B2
B2
P1
BL3016
LA3005
Holes used
in step 14
PL103
BL3015
3Attach all side spokes to the beams of the structure with the (6)[S1]
self-taping screws . Each side spoke should be[(KC10 or KC21).040]
centered between sticker markers on the beams as shown in view B-B.
NOTE that the punched hole end of the spoke should be facing
downwards and away from the beam. (Repeat step on all sides of the
structure.)
Top View Profile View
B-B
View B-B
Sticker
Markers
Drilling
Location
S1
The punched hole
should be on this
end facing downwards.
S1
040
Model # Pavillion 1.0Distributor: ShadeScapes Americas 970.527.7070cuscini.shadescapesamericas.com

of 10

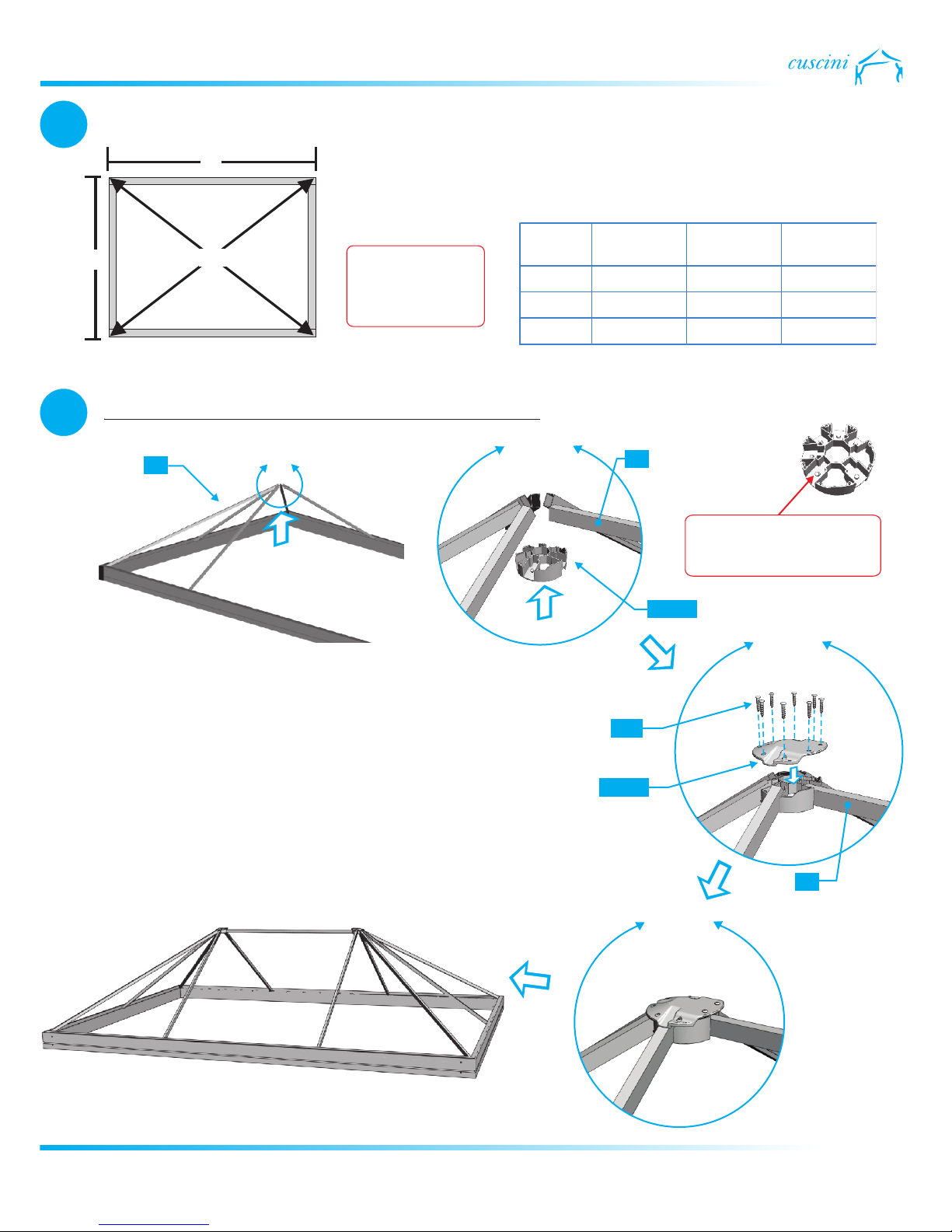

Assembling the Roof
4
4
W
L
D
Top View
Make sure the frame is well levelled and that corners are set at right angles
as shown in the left hand diagram. Forcing the diagonal in both direction[D]
to be equal will ensure corners are set at right angles. Consult the table
below for external frame dimensions.
Set frame at
right angles
before continuing
assembly.
5
C-C
View C-C
View C-C
Raise
Spokes
Assembled Roof Framework Center Spoke
PL104
PL104
S3
S2
062
View D-D
Secure the punched end
of each spokes over the
joint box protrusions.
Insert the corner spokes by simply wedging one end into the one-[S2]
inch slot of each corner. Then raise the spoke assembly to fit inside the
plastic joint box as shown in View C-C. Install as well the[KC10.PL104]
center support at this time with the punched holes facing downwards.[S3]
Fit the punched end of the spokes securely over the joint box protrusions
before installing the joint box cap using screws . (Repeat step[KC10.062]
on other side of the structure).
Center Spoke
S3
RECTANGULAR MODEL (see 6 for square model)
External
Dimension
10x10 Model
inches (cm)
10x12 Model
inches (cm)
10x14 Model
inches (cm)
W 116 5/8 (296.0) 116 5/8 (296.0) 116 5/8 (296.0)
L 116 5/8 (296.0) 143 3/4 (365.0) 166 3/8 (422.5)
D 164 7/8 (419.0) 185 1/8 (470.0) 203 1/8 (516.0)
Model # Pavillion 1.0Distributor: ShadeScapes Americas 970.527.7070cuscini.shadescapesamericas.com

6SQUARE MODEL (see 5 for rectangular model)
C-C
View C-C
View C-C
Raise
Spokes
PL105
PL105
S2
S1
062
View D-D
Secure the punched end
of each spokes over the
joint box protrusions.
Insert the corner spokes by simply wedging one end[S2]
into the one-inch slot of each corner. Then raise the spoke
assembly to fit inside the plastic joint box [KC21.PL105]
as shown in View C-C. Fit the punched end of the spokes
securely over the joint box protrusions before installing the
joint box cap using screws .[KC21.062]
Assembled Roof Framework
Some spokes
omitted for clarity
5
Assembling the Roof
of 10
Model # Pavillion 1.0Distributor: ShadeScapes Americas 970.527.7070cuscini.shadescapesamericas.com

of 10
Installing the Corner Posts
7
6
8
This step may require a second person or a ladder to lift the roof
assembly in order to fix all four corner posts . Insert the top cover[P1]
[KC13.PL110] [P1]to each corner post as shown in the top left diagram.
Attach one of the four corner posts and its top cover to each corner of
the structure using bolts , washers and lock-nuts[KC15.017] [KC15.007]
[KC15.012] as shown in the upper diagram. Attach all corner spokes
[S2] [KC13.PL110]to the plastic covers with the (4) self-tapping screws
[KC13.072] [KC13.005]and flat washers . The screws are installed
underneath the plastic covers at the circular mark location. See diagrams
below for assembly steps.
Lay the roof cover over the top of the frame.
P1
P1
P1
P1
Start
Lock-Nut
Flat Washer
017
007
012
P1 Roof truss and cover not
shown for clarity
(TOP VIEW)
Assembled
Corner Post
PL110
Circular
Mark
072 Corner Top Cover
Bottom View
005
Flat Washer
Model # Pavillion 1.0Distributor: ShadeScapes Americas 970.527.7070cuscini.shadescapesamericas.com

of 10
Archoring the Shelter
Structure Anchorage System Recommendations
9
Remaining holes in plate [LA3005]
are used for fixing the
structure on the floor
Make sure the structure is well aligned and levelled with
the floor as shown in the diagram below. Consult the
section below for recommendations on the type of
anchorage required for fixing the structure on the floor.
D
W
L
level
7
WOOD
CONCRETE
SOIL
OPTION A
WOOD DECK/FLOOR
OPTION B
CONCRETE/CEMENT FLOOR
Requirements:
8 (2 per plates) of each
- 5/16" x 2" wood screws
- 5/16" washers
Requirements:
8 (2 per plates) of each
- 3/8" x 1-1/2" expansion anchor
* use 1/2" cement drill bit
Dimensions given from center to center
of plates [LA3005]
10x12 Model
inches (cm)
10x10 Model
inches (cm)
10x14 Model
inches (cm)
Internal
Dimension
W
L
D
113-3/4 (289.0)113-3/4 (289.0) 113-3/4 (289.0)
140-3/4 (357.5)113-3/4 (289.0) 163-3/8 (415.0)
181 (459.5)160-7/8 (408.6) 199-1/8 (505.5)
This anchoring system is the recommended solution for
anchoring your tent on other surfaces than wood or concrete
such as paver or grass. Consult your dealer for more
information on this fastening method.
PAVER/GRASS
Model # Pavillion 1.0Distributor: ShadeScapes Americas 970.527.7070cuscini.shadescapesamericas.com

of 10
Final Frame Assembly
8
10
11
centerline
12
Step 12
Sides
Eyelet
Step 11
Corners

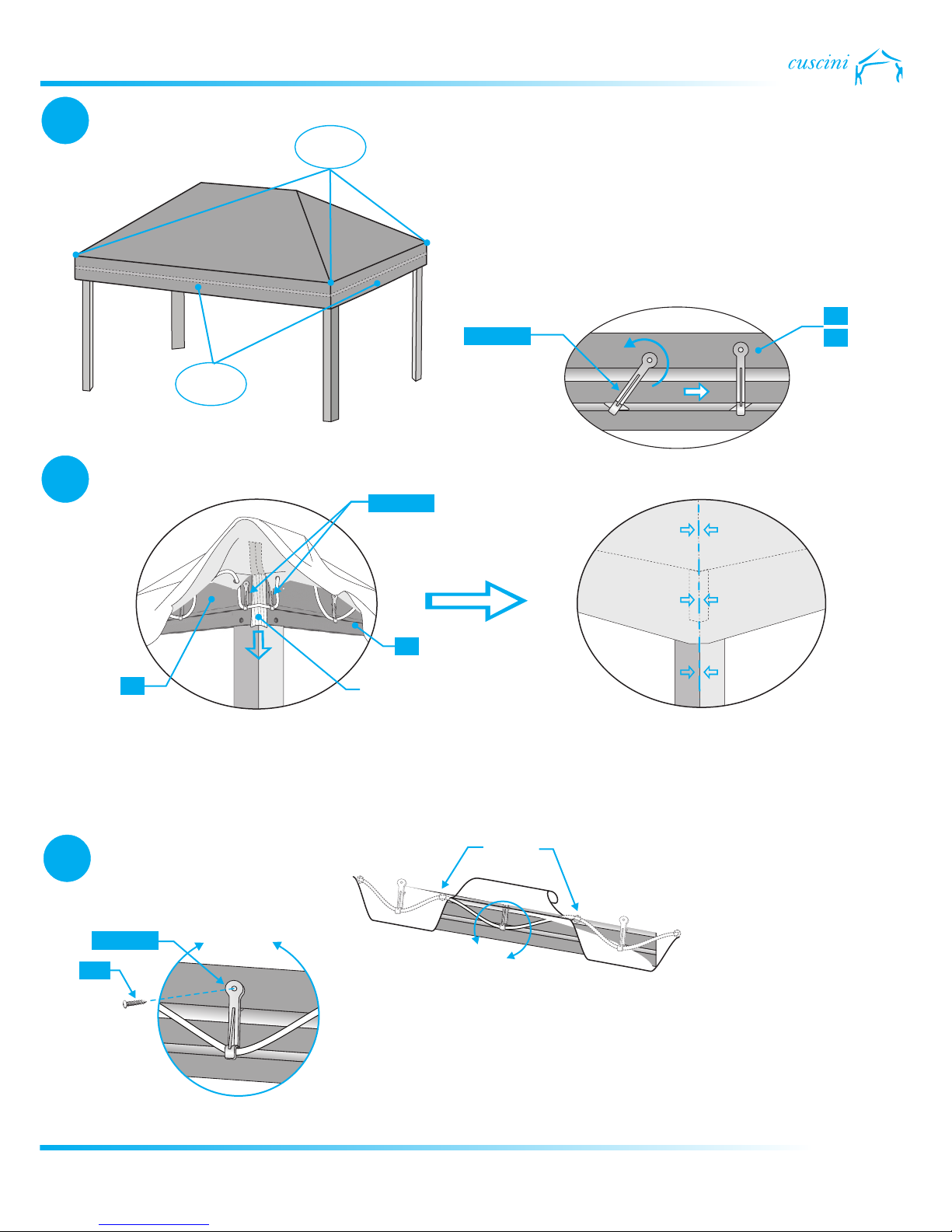

The roof awning fabric is attached to the structure with the
hooks provided. The hooks are inserted and[MISC K.PL106]
secured in place in the beam slots as shown in the diagram
below. Install first two hooks in each corners (Step 11) then
work your way around the sides installing hooks between
each eyelets (Step 12). Once all the hooks are positioned
correctly secure them to the beams with the self-tapping
screws (Step 12 View F-F).[MISC 054]
B1
Complete securing the awning fabric to the structure by installing
remaining hooks on all fours sides as shown in the[MISC K.PL106]
diagram. Work your way progressively around the structure to produce an
even tension in the elastic.
View F-F F-F
B2
K.PL106
K.PL106
054
Place the nylon webbing over
the beam corner and under the elastic
B1
B2
K.PL106
When installing the roof cover and hooks at each corner make sure that the nylon webbing from[MISC K.PL106]
the roof cover, elastic and hooks are placed as shown in the left diagram above. This step will ensure that the
elastic remains in position when tension is applied. Once the roof cover is in place, verify that its corner is aligned
with the corner of the structure as shown in the right diagram above.
Model # Pavillion 1.0Distributor: ShadeScapes Americas 970.527.7070cuscini.shadescapesamericas.com

of 10
Installing the Roof Fabric
9
14
13

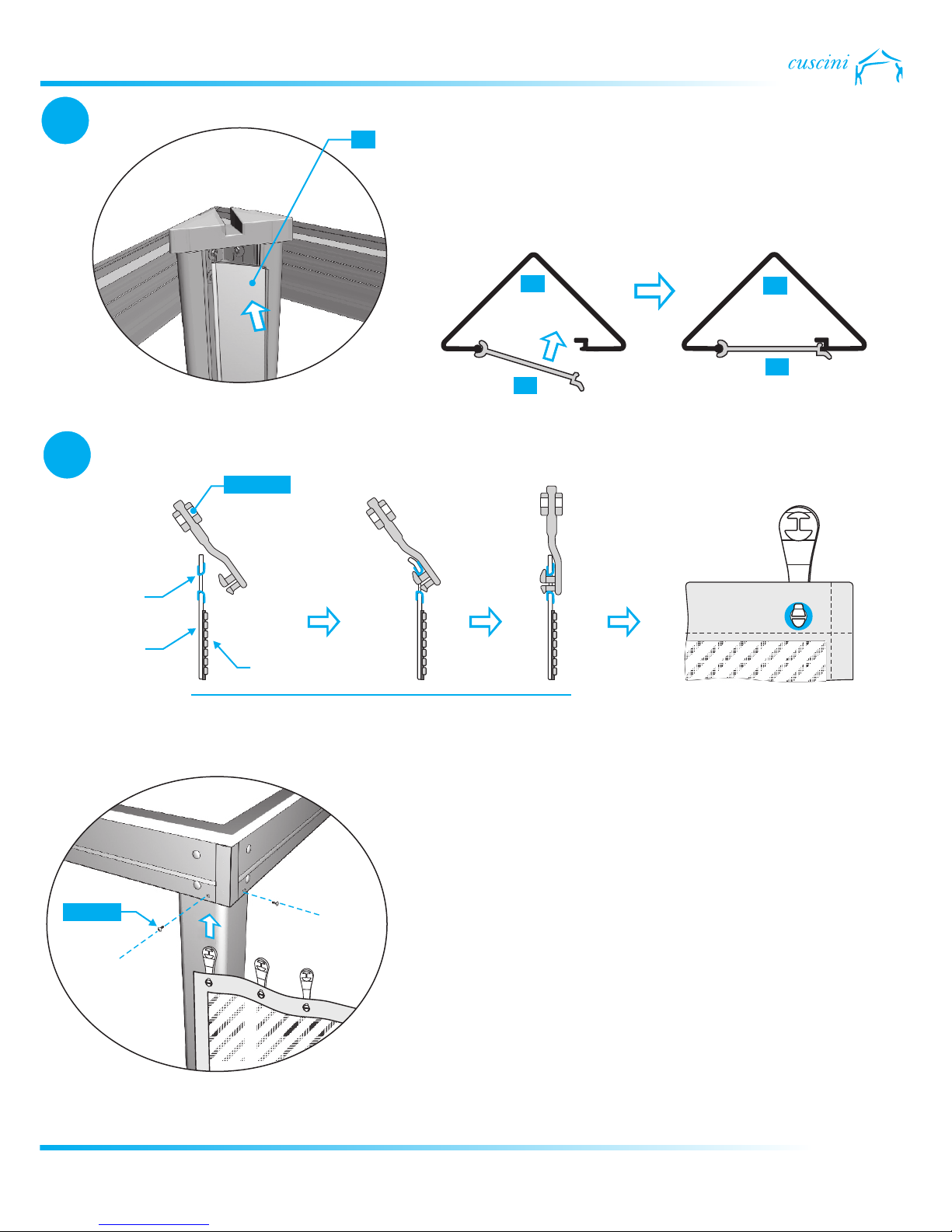

Install plastic pulleys by snapping them in each[MISC K.PL101]
metallic curtain eyelet. Pulleys should be facing towards the
curtain side on which the zipper is located (see above steps).
Then install each curtain sections into the provided beam slots
as shown by left hand diagram. After installing all pulleys, block
the access with the screws as shown in the[KC14.BL3015]
diagram. Repeat step for each corner. See next step (15) for
curtain installation example.
Profile View
Zipper
(Interior Side)
Metallic
Eyelet
Curtain
(Exterior Side)
Curtain
Exterior Side
Plastic Pulley Snap Pulley
in place
BL3015
P2
To complete the post assembly, snap together the corner posts
[P1] [P2]and corner post covers using a rubber hammer as
shown in the diagrams above. Repeat step for each corner.
Top View
P1 P1
P2
P2
K.PL101
Roof truss not shown for clarity
Model # Pavillion 1.0Distributor: ShadeScapes Americas 970.527.7070cuscini.shadescapesamericas.com

of 10
Installing the Curtains
10
15
Complete installation of each curtain sections as shown
by example in the left hand diagram.
beam rail
plastic curtains TOP VIEW
Optional decorative curtains
(installed using velcro strips
on bottom beam groove)
Velcro Strips
Bottom Groove
12” (30.5cm) apart
The optional decorative curtains are installed using
velcro strips inserted 12” (30.5cm)[MISC K.APL001]
apart in the bottom groove of the beams. Repeat on all
four corners.
Distributor: ShadeScapes Americas
970.527.7070
cuscini.shadescapesamericas.com
[email protected]
[email protected]
Model # Pavillion 1.0Distributor: ShadeScapes Americas 970.527.7070cuscini.shadescapesamericas.com
