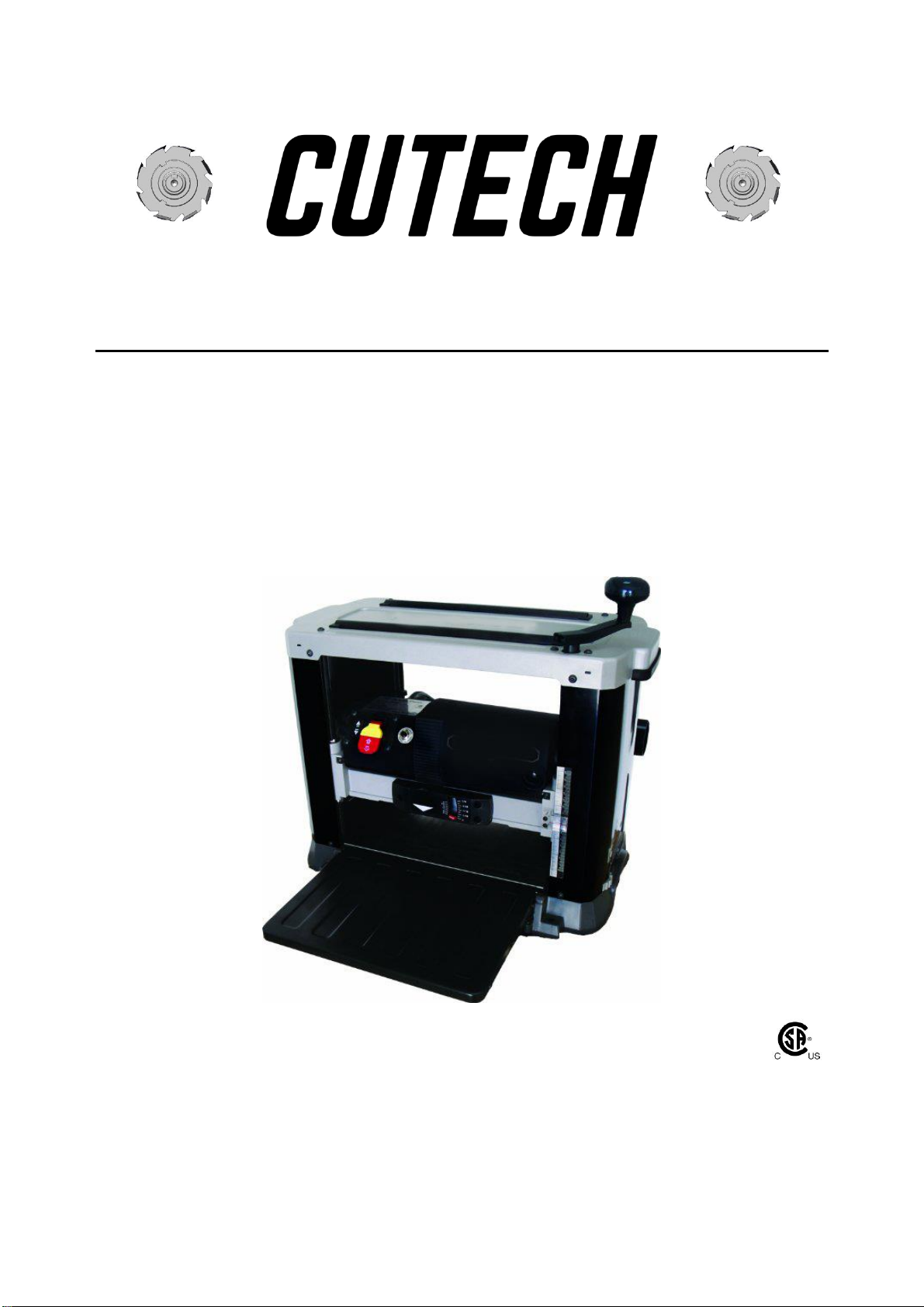

Cutech 40300H-CT User manual

User Manual
Read this manual before using machine to avoid serious injury and damage.
40300H-CT
13” SPIRAL CUTTERHEAD
PLANER
For technical support, email [e-mail] or call at 858-886-7333
VER. 21.05.20

2
TABLE OF CONTENTS
INTRODUCTION
SECTION 1 Warranty ...............................................................................................3
SECTION 2 Product Specifications ..........................................................................5
SECTION 3 FeatureIdentification .............................................................................6
SECTION 4 General Safety.......................................................................................7
SECTION 5 Product Safety ....................................................................................11
SECTION 6 Grounding Instructions........................................................................13
SECTION 7 Unpacking & Inventory.........................................................................15
SECTION 8 Assembly ............................................................................................16
SECTION 9 Adjustment..........................................................................................18
SECTION 10 Operations ..........................................................................................21
SECTION 11 Maintenance .......................................................................................25
SECTION 12 Troubleshooting ..................................................................................29
SECTION 13 Parts List………………………………………........................................31
This user manual is intended for use by anyone working with this machine. It should be
kept available for immediate reference so that all operations can be performed with
maximum efficiency and safety. Do not attempt to perform maintenance or operate this
machine until you have read and understand the information contained in this manual.
The drawings, illustrations, photographs, and specifications in this user manual represent
your machine at time of print. However, changes may be made to your machine or this
manual at any time with no obligation to CUTECH.

3
WARRANTY
2 YEAR LIMITED WARRANTY
CUTECH warrants its machinery to be free of defects in workmanship and materials for a period of two (2)
years from the date of the original purchase by the original owner. This warranty applies to products sold in
the United States only. The warranty does not apply to any product used for professional or commercial
production purposes nor for industrial or educational applications. Such cases are covered by our 1 year
Limited Warranty with the Conditions and Exceptions.
Warranty does not include failures, breakage or defects deemed after inspection by an Authorized Service
Center or our agent to have been directly or indirectly caused by or resulting from improper use, lack of or
improper maintenance, misuse or abuse, negligence, accidents, damage in handling or transport, or normal
wear and tear of any part or component. Examples are consumables such as inserts and knives or wear
items like drive belts, bearings or brushes. Additionally, warranty is void if repairs or alterations are made to
the machine by an unauthorized service center without the direct consent of CUTECH.
To file a claim of warranty or to find a service center, call 858-886-7333 or email [e-mail].
Warranty applies to the original buyer only and may not be transferred. You will need to furnish with your
claim a copy of the original sales receipt as proof of purchase and the serial number from the machine.
The defective units should be returned Freight prepaid to CUTECH’s Authorized Service Center for
inspection. If the warranty claim is considered to be invalid due to exclusions listed above, CUTECH will at
your direction dispose of or return the product. In the event you choose to have the product returned, you
will be responsible for the handling and shipping cost of the return.
CUTECH furnishes the above warranties in lieu of all other warranties, express or implied. CUTECH shall
not be liable for any special, indirect, incidental, punitive or consequential damages, including without
limitation loss of profits arising from or related to the warranty, the breach of any agreement or warranty, or
the operation or use of its machinery, including without limitation damages arising from damage to fixtures,
tools, equipment, parts or materials, direct or indirect loss caused by any other part, loss of revenue or
profits, financing or interest charges, and claims by and third person, whether or not notice of such possible
damages has been given to CUTECH. Not responsible for damages of any kind for any delay by or failure
of CUTECH to perform its obligations under this agreement or claims made a subject of a legal proceeding
against CUTECH more than one (1) year after such cause of action first arose.
The validity, construction and performance of thisWarranty and any sale of machinery by CUTECH shall be
governed by the law of the State of California, without regard to conflicts of laws provisions of any
jurisdiction. Any action related in any way to any alleged or actual offer, acceptance or sale by CUTECH or
any claim related to the performance of and agreement including without limitation this Warranty, shall take
place in the federal or state courts in San Diego, California.
CUTECH reserves the right to change the specification without prior notice.

4
PRODUCT SPECIFICATIONS
Feed speed F/min 26 FPM
Cutterhead speed RPM 10,000
Motot RPM 23000+/-10% (No Load)
Cutterhead diameter 2”
Max planer capacity 6" x 13"
Max depth of cut @ 6”1/8"
Max depth of cut @ 13”1/16"
Cutter inserts qty 26
Motor power input 120 V, 60 Hz, AC Only, 15Amp
Shipping Weight 66lbs
Shipping Dimensions 406(L) x 609(W) x 472(H)mm

5

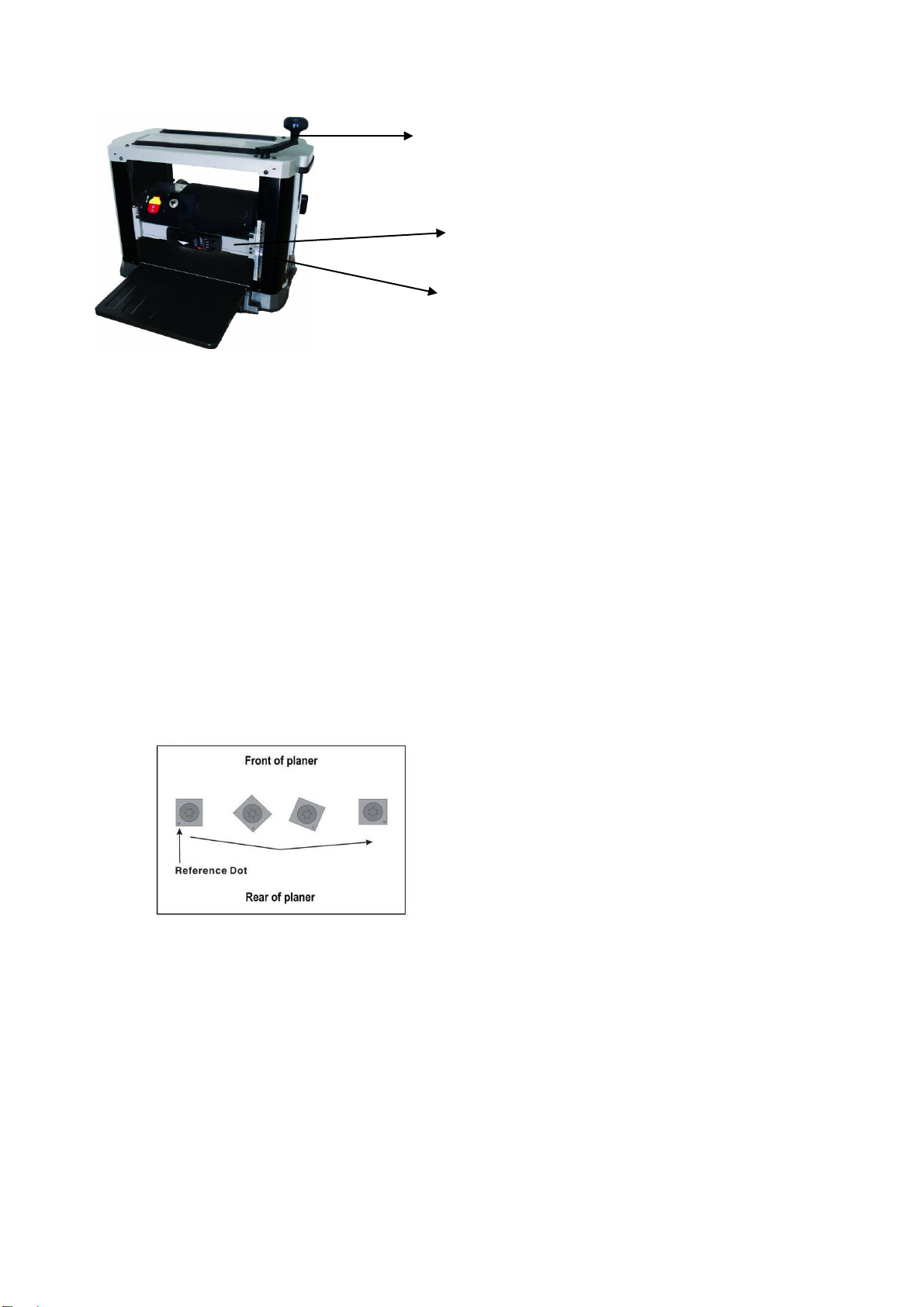

FEATURE IDENTIFICATION
Infeed Table
Thickness Scale
Power Switch
Raise/Lower Handle
Depth-of-Cut Indicator
Dust Port

6
GENERAL SAFETY
TOAVOID serious injury and damage to the machine, read and follow all Safety and
Operating Instructions before assembling and operating this machine. This manual is not
totally comprehensive. It does not and can not convey every possible safety and
operational problem which may arise while using this machine. The manual will cover
many of the basic and specific safety procedures needed in an industrial environment.
All federal and state laws and any regulations having jurisdiction covering the safety
requirements for use of this machine take precedence over the statements in this manual.
Users of this machine must adhere to all such regulations.
Exposure to the dust created by power sanding, sawing, grinding, drilling and other
construction activities may cause serious and permanent respiratory or other injury,
including silicosis (a serious lung disease), cancer, and death. Avoid breathing the dust,
and avoid prolonged contact with dust. The dust may contain chemicals known to the
State of California to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
•Lead from lead-based paints.
•Crystalline silica from bricks, cement and other masonry products.
•Arsenic and chromium from chemically-treated lumber.
Always operate tool in well ventilated area and provide for proper dust removal. Use a
dust collection system along with an air filtration system whenever possible. Always use
properly fitting NIOSH/OSHA approved respiratory protection appropriate for the dust
exposure, and wash exposed areas with soap and water.
ALWAYS wear eye protection. Any machine can throw debris into the eyes during
operations, which could cause severe and permanent eye damage. Everyday eyeglasses
are NOT safety glasses. ALWAYS wear Safety Goggles (that comply with ANSI standard
Z87.1) when operating power tools.
ALWAYS wear hearing protection. Plain cotton is not an acceptable protective device.
Hearing equipment should comply with ANSI S3.19 Standards.
ALWAYS wear a NIOSH/OSHAapproved dust mask to prevent inhaling dangerous dust
or airborne particles.
ALWAYS keep the work area clean, well lit, and organized. DO NOT work in an area
that has slippery floor surfaces from debris, grease, and wax.

7
ALWAYS unplug the machine from the electrical receptacle when making adjustments,
changing parts or performing any maintenance.
AVOID ACCIDENTAL STARTING. Make sure that the power switch is in the “OFF”
position before plugging in the power cord to the electrical receptacle.
AVOID a dangerous working environment. DO NOT use electrical tools in a damp
environment or expose them to rain or moisture.
CHILDPROOF THE WORKSHOPAREAby removing switch keys, unplugging tools from
the electrical receptacles, and using padlocks.
DO NOT use electrical tools in the presence of flammable liquids or gasses.
DO NOT FORCE the machine to perform an operation for which it was not designed. It
will do a safer and higher quality job by only performing operations for which the machine
was intended.
DO NOT stand on a machine. Serious injury could result if it tips over or you accidentally
contact any moving part.
DO NOT store anything above or near the machine.
DO NOT operate any machine or tool if under the influence of drugs, alcohol, or
medication.
EACHAND EVERY time, check for damaged parts prior to using any machine. Carefully
check all guards to see that they operate properly, are not damaged, and perform their
intended functions.
Check for alignment, binding or breakage of all moving parts.Any guard or other part that
is damaged should be immediately repaired or replaced.
Ground all machines. If any machine is supplied with a 3-prong plug, it must be plugged
into a 3-contact electrical receptacle. The third prong is used to ground the tool and
provide protection against accidental electric shock. DO NOT remove the third prong.
Keep visitors and children away from any machine. DO NOT permit people to be in the
immediate work area, especially when the machine is operating.
KEEP protective guards in place and in working order.
MAINTAIN your balance. DO NOT extend yourself over the tool. Wear oil resistant rubber

8
soled shoes. Keep floor clear of debris, grease, and wax.
MAINTAIN all machines with care. ALWAYS KEEP machine clean and in good working
order. KEEP all blades and tool bits sharp.
NEVER leave a machine running, unattended. Turn the power switch to the OFF position.
DO NOT leave the machine until it has come to a complete stop.
REMOVE ALL MAINTENANCE TOOLS from the immediate area prior to turning the
machine ON.
SECURE all work. When it is possible, use clamps or jigs to secure the workpiece. This is
safer than attempting to hold the workpiece with your hands.
STAY ALERT, watch what you are doing, and use common sense when operating any
machine. DO NOT operate any machine tool while tired or under the influence of drugs,
alcohol, or medication. A moment of inattention while operating power tools may result
in serious personal injury.
USE ONLY recommended accessories. Use of incorrect or improper accessories could
cause serious injury to the operator and cause damage to the machine. If in doubt, DO
NOT use it.
THE USE of extension cords is not recommended for 230V equipment. It is better to
arrange the placement of your equipment and the installed wiring to eliminate the need for
an extension cord. If an extension cord is necessary, refer to the chart in the Grounding
Instructions section to determine the minimum gauge for the extension cord. The
extension cord must also contain a ground wire and plug pin.
Wear proper clothing, DO NOT wear loose clothing, gloves, neckties, or jewelry. These
items can get caught in the machine during operations and pull the operator into the
moving parts. Users must wear a protective cover on their hair, if the hair is long, to
prevent it from contacting any moving parts.
SAVE these instructions and refer to them frequently and use them to instruct other users.
Information regarding the safe and proper operation of this tool is also available from the
following sources:
Power Tool Institute
1300 Summer Avenue
Cleveland, OH 44115-2851
www.powertoolinstitute.org
National Safety Council

9
1121 Spring Lake Drive
Itasca, IL 60143-3201
American National Standards Institute
25 West 43rd Street, 4th floor
New York, NY 10036
www.ansi.org
ANSI 01.1 Safety Requirements for
Woodworking Machines, and the U.S. Department
of Labor regulations
www.osha.gov

10
PRODUCT SAFETY
1. Serious personal injury may occur if normal safety precautions are overlooked or
ignored. Accidents are frequently caused by lack of familiarity or failure to pay
attention. Obtain advice from supervisor, instructor, or another qualified individual
who is familiar with this machine and its operations.
2. Every work area is different. Always consider safety first, as it applies to your work
area. Use this machine with respect and caution. Failure to do so could result in
serious personal injury and damage to the machine.
3. Prevent electrical shock. Follow all electrical and safety codes, including the
National Electrical Code (NEC) and the Occupational Safety and Health Regulations
(OSHA). All electrical connections and wiring should be made by qualified
personnel only
4. TO REDUCE the risk of electrical shock. DO NOT use this machine outdoors. DO
NOT expose to rain. Store indoors in a dry area.
5. STOP using this machine, if at any time you experience difficulties in performing any
operation. Contact your supervisor, instructor or machine service center immediately.
6. Safety decals are on this machine to warn and direct you to how to protector yourself
or visitors from personal injury. These decals MUST be maintained so that they are
legible. REPLACE decals that are not legible.
7. DO NOT leave the unit plugged into the electrical outlet. Unplug the unit from the
outlet when not in use and before servicing, performing maintenance tasks, or
cleaning.
8. ALWAYS turn the power switch “OFF” before unplugging the jointer.
9. DO NOT handle the plug or jointer with wet hands
10. USE only accessories as described in this manual. USE accessories only
recommended by CUTECH.
11. DO NOT pull the jointer by the power cord. NEVER allow the power cord to come in
contact with sharp edges, hot surfaces, oil or grease.
12. DO NOT unplug the jointer by pulling on the power cord. ALWAYS grasp the plug, not
the cord.
13. REPLACE a damaged cord immediately. DO NOT use a damaged cord or plug. If the
jointer is not operating properly, or has been damaged, left out- doors or has been in
contact with water.
14. DO NOT use the jointer as a toy. DO NOT use near or around children.
15. ENSURE that the machine sits firmly before using. If the machine wobbles or is
unstable, correct the problem by using shims or blocks prior to operation.
16. This machine is designed to process wood ONLY.
17. NEVER position fingers or thumbs near the infeed roller.
18. Long pieces of stock should ALWAYS be supported with some type of fixture.
19. DO NOT operate jointer with dull or damaged blades.
20. MAKE CERTAIN that the jointer is properly adjusted prior to use.
21. DO NOT try and remove excessive amounts of wood in one single pass.
22. NSPECT all stock before planing, ensuring that there are no foreign objects

11
embedded in the wood, loose knots, or knots that may become loose during
operation.
23. DO NOT attempt to remove jams until power is disconnected and all moving parts
have come to a complete stop.
24. MAKE SURE that there is adequate operating space on both the infeed and outfeed
sides of the jointer before operating.
25. DO NOT attempt to plane wood that is less than 7” long or less than 1/8-inch thick.

12
GROUNDING INSTRUCTIONS
This machine MUST BE GROUNDED while in use to protect the operator from electric
shock.
In the event of a malfunction or breakdown, GROUNDING provides the path of least
resistance for electric current and reduces the risk of electric shock. The plug MUST be
plugged into a matching electrical receptacle that is properly installed and grounded in
accordance with ALL local codes and ordinances.
If a plug is provided with your machine DO NOT modify the plug. If it will not fit your
electrical receptacle, have a qualified electrician install the proper connections to meet all
electrical codes local and state. All connections must also adhere to all of OSHA
mandates.
IMPROPER ELECTRICAL CONNECTION of the equipment-grounding conductor can
result in risk of electric shock. The conductor with the green insulation (with or without
yellow stripes) is the equipment-grounding conductor. DO NOT connect the
equipment-grounding conductor to a live terminal if repair or replacement of the electric
cord or plug is necessary.
Check with a qualified electrician or service personnel if you do not completely
understand the grounding instructions, or if you are not sure the tool is properly grounded.
Electrocution or fire could result if this machine is not grounded properly or if the electrical
configuration does not comply with local and state electrical
codes.
MAKE CERTAIN the machine is disconnected from power source before starting any
electrical work.
MAKE SURE the circuit breaker does not exceed the rating of the plug and receptacle.
The motor supplied with your machine is a 115 volt, 60 hertz, single phase motor. Never
connect the green or ground wire to a live terminal. Amachine with a 115 volt plug should
only be connected to an outlet having the same configuration as the plug.
To reduce the risk of fire or electrical shock, use the proper gauge of extension cord.
When using an extension cord, be sure to use one heavy enough to carry the current your
machine will draw.
The smaller the gauge-number, the larger the diameter of the extension cord is. If in doubt
of the proper size of an extension cord, use a shorter and thicker cord. An undersized
cord will cause a drop in line voltage resulting in a loss of power and overheating.

13
USE ONLY a 3-wire extension cord that has a 3-prong grounding plug and a 3-pole
receptacle that accepts the machine’s plug.
If you are using an extension cord outdoors, be sure it is marked with the suffix “W-A”
(“W” in Canada) to indicate that it is acceptable for outdoor use.
Make certain the extension cord is properly sized, and in good electrical condition. Always
replace a worn or damaged extension cord immediately or have it repaired by a qualified
person before using it.
Protect your extension cords from sharp objects, excessive heat, and damp or wet areas.
MINIMUM RECOMMENDED GAUGE FOR EXTENSION CORDS (AWG)
115 VOLT OPERATION ONLY
25’ LONG
50’ LONG
100’ LONG
150’ LONG
0 to 6Amps
18 AWG
16 AWG
16 AWG
14 AWG
6 to 10 Amps
18 AWG
18 AWG
14 AWG
12 AWG
10 to 12 Amps
16 AWG
16 AWG
14 AWG
12 AWG

14
UNPACKING & INVENTORY
Check shipping carton and machine for damage before unpackaging. Carefully remove
packaging materials, parts and machine from shipping carton. Always check for and
remove protective shipping materials around motors and moving parts. Lay out all parts
on a clean work surface.
Remove any protective materials and coatings from all of the parts and the planer. The
protective coatings can be removed by spraying WD-40 on them and wiping it off with a
soft cloth. This may need to be redone several times before all of the protective coatings
are removed completely.
After cleaning, apply a good quality paste wax to any unpainted surfaces. Make sure to
buff out the wax before assembly.

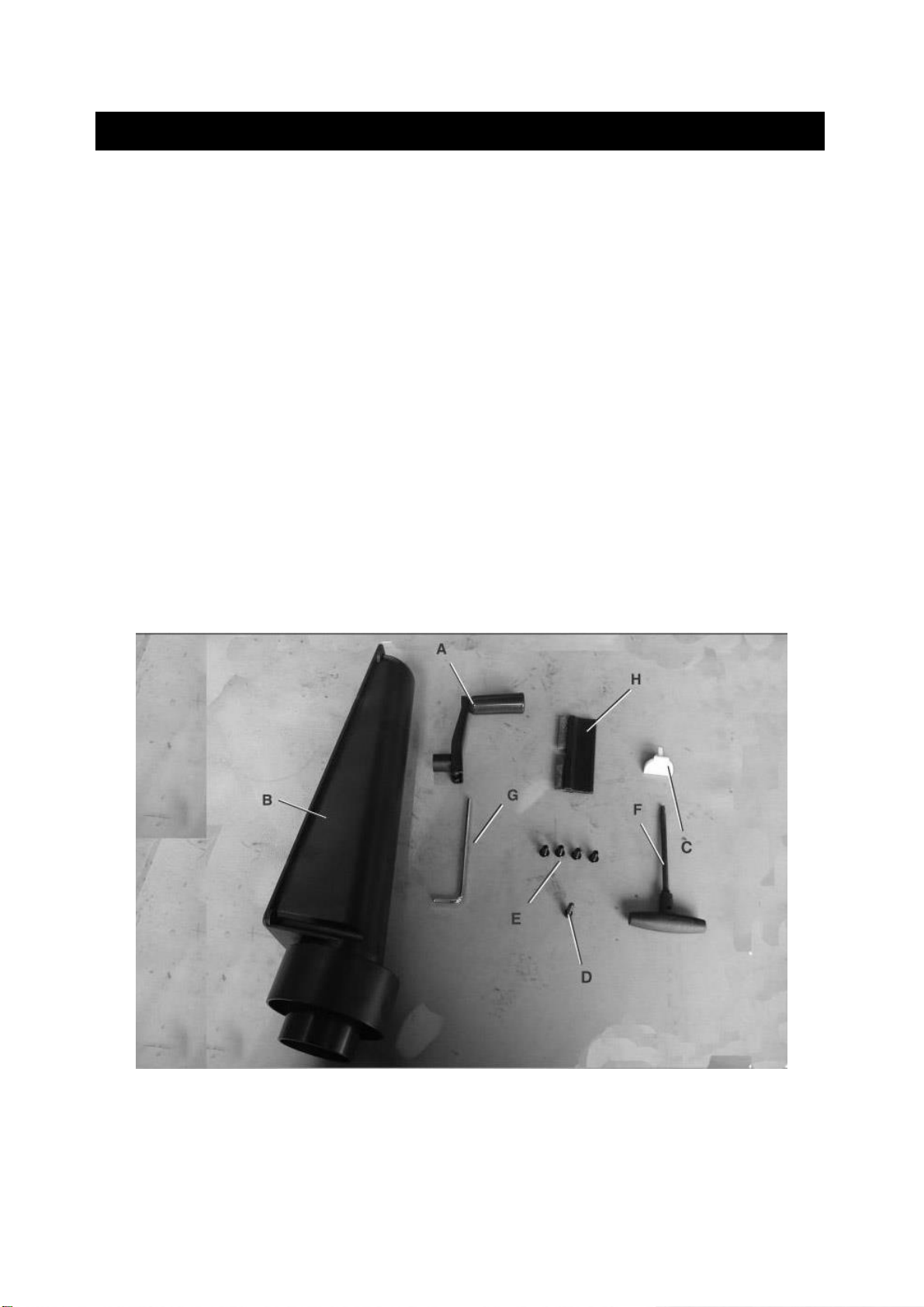

Compare the items to inventory figures; verify that all items are accounted for before
discarding the shipping box.
If any parts are missing, do not attempt to plug in the power cord and turn “ON” the
machine. The machine should only be turned “ON” after all the parts have been obtained
and installed correctly. For missing parts, contact CUTECH at 858-886-7333.
A. Handle E. Hex Soc Head Cap Screw
B. Dust Port F. Torx Wrech
C. Key G. Hex Wrech
D. Hex Soc Head Screw

15
ASSEMBLY
MAKE CERTAIN THAT THE MACHINE IS DISCONNECTED FROM THE POWER
SOURCE.
ATTACHING DEPTH ADJUSTMENT HANDLE
1. Attach the depth adjustment handle (A) to the shaft (B) and fasten in place with 1 Hex
Soc Head screw. Tighten screw using supplied hex wrench. SEE FIG 1.
FIG 1
ATTACHING DUST PORT
The Dust Port is to be used when the planer to be connected to a dust collector. It has a
4” port on it to accommodate most dust collection systems.
To install:
1. Install the dust port in the rear of the planer by tightening the soc head cap screws.
(4) supplied. SEE FIG 2.
FIG 2

16
SECURING PLANER TO A TABLE OR WORKBENCH
During operation, if there is any tendency for the planer to tip over, slide or walk, the
planer MUST be secured to a supporting surface such as a workbench or table. Four
holes are provided (2 are shown at (A)) to securely mount the planer. The surface you are
mounting the planer to should be perfectly flat. SEE FIG 3.
FIG 3

17
ADJUSTMENTS
MAKE CERTAIN THAT THE MACHINE IS DISCONNECTED FROM THE POWER
SOURCE.
LEVELING EXTENSION TABLES
The extension tables must be level with the planer table. To check the extension tables
and adjust if necessary:
1. Lay a straight edge (A) on the planer table (C) with one end of the straight edge over
the infeed table (B). SEE FIG 4.
2. Check to make sure that the infeed table is level with the planer table.
3. If an adjustment is necessary, loosen and adjust Pan Head Screws (2) (D) on each
side of the table until the infeed table is level with the planer table. This will adjust
the outer edge of the infeed table.
4. Repeat this process for adjusting the outfeed table.
FIG 4
RAISING AND LOWERING HEAD ASSEMBLY
The head assembly consists of the cutterhead and knives, feed rollers, cutterhead guard,
and the motor.
Raising and lowering of the head assembly controls the depth of cut on the planer. To
adjust:
1. To raise the head assembly (A), turn the adjusting handle (B) clockwise. SEE FIG 5.
2. To lower the head assembly, turn the adjusting handle counterclockwise.
NOTE: One revolution of the handle will move the cutterhead up or down approximately
1/16”. You can confirm this by referencing the scale (C) on the right side of the planer.

18
FIG 5
NOTE: when lowering the head assembly, ensure the quick set thickness indicator is in
the lowest position. Failure to do so may result in excess downward pressure and cause
damage to the adjustment rod and upper frame. Refer to FIG 5 crank handle, FIG 11
indicator.
ADJUSTING / REPLACING KNIVES
13" cutterhead is equipped with 26 indexable cutter insers; Each cutter insert can be
rotated to reveal any one of its two cutting edges. Therefore, if one cutting edge becomes
dull or damaged, simply rotate it 90°to reveal a fresh cutting edge.
In addition , each cutter insert has a reference dot on one corner. As the cutter insert is
rotated , the reference dot location can be used as an indicator of which edges are used
and which are new. When the reference dot revolves back around to its starting position,
the cutter should be replaced. See FIG 6
FIG. 6
To rotate or change a cutter insert:
DISCONNECT THE PLANER FROM THE POWER SOURCE!
Lower the upperframe to the lowest position by turning the handwheel.
From the back of the planer, remove the two dust chute knobs to take off dust chute
Remove the belt guard by loosening 3 screws (key#46 on explored drawing), then
rotate the cutterhead pulley and belt by hand until the cutterhead in place for you to
change the cutter insert.
Remove any sawdust from the head of the Torx screw.
Remove the Torx screw and Cutter insert.

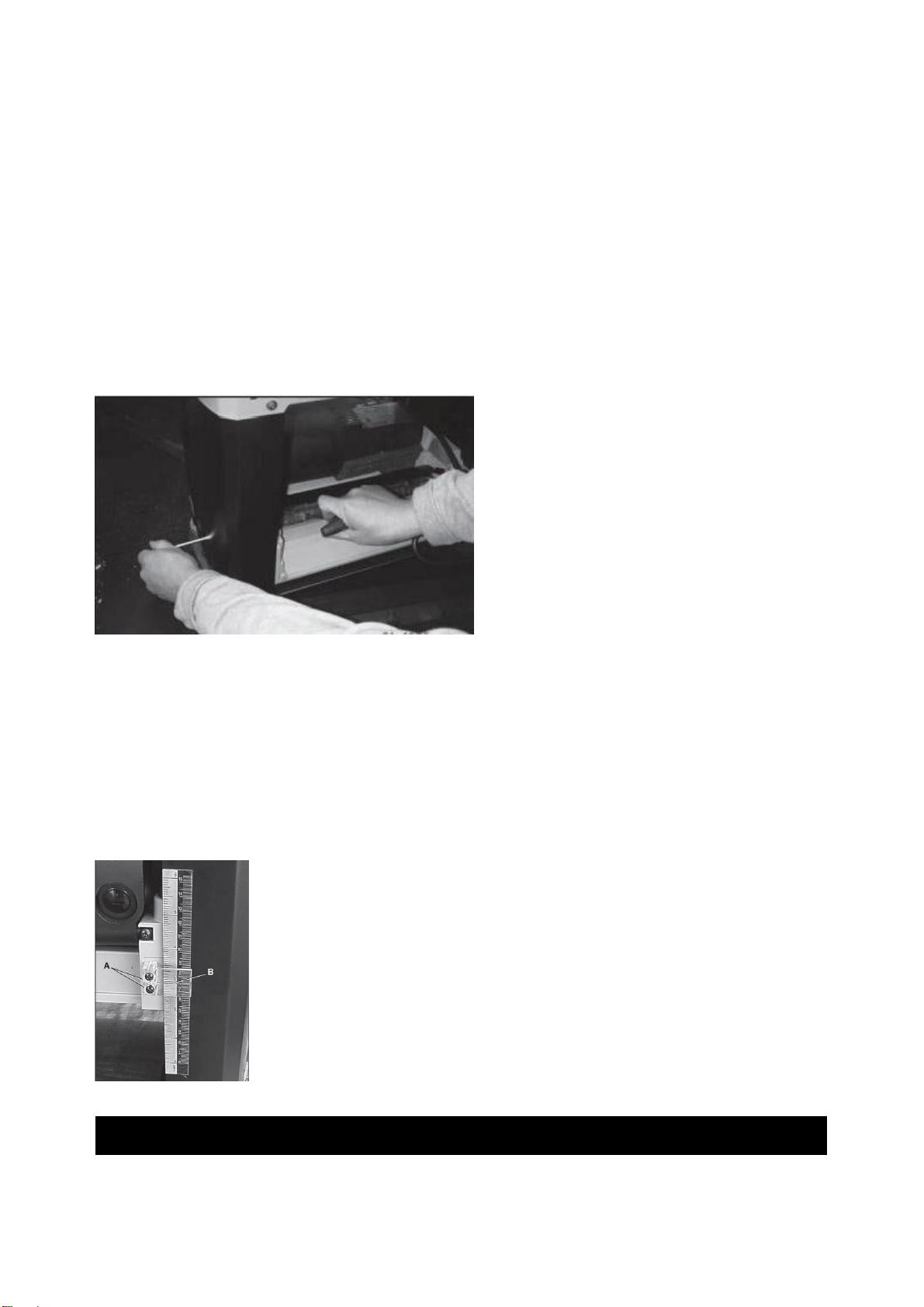

Insert hex wrench into right side panel & cutterhead and turn the cutterhead to a
position for changing tips. SEE FIG. 7
B
A
C

19
Clean all dust and dirt off the cutter insert and the cutterhead pocket from which the
cutter insert was removed, and replace the cutter insert so a fresh, sharp edge is
facing outward. If available, try using pitch and gum remover to be sure all of the
wood residue is off the cutterhead and cutter insert before attempting to rotate them.
Using a shot of compressed air is also helpful, be sure to wear safety glasses.
Lubricate the Torx screw threads with a light machine oil, wipe the excess oil off the
threads, and torque the Torx screw to 48-50 inch/ pounds. When rotating a cutter
insert, the cutter insert will seat itself before tightening.
Note: Proper cleaning is critical to achieving a smooth finish. Dirt or dust trapped between
the cutter insert and cutterhead will slightly raise the cutter insert, and make a noticeable
marks on your workpieces the next time you plane.
FIG. 7
THICKNESS SCALE ADJUSTMENT
The thickness scale, located on the right of the planer, shows the thickness of the finished
workpiece. To make sure the scale is set properly, run a piece of wood through the planer
and measure the thickness of the wood. If the scale is out of alignment, loosen the two
round head screws (A) holding the scale indicator (B) and adjust the thickness indicator to
the correct setting. Make sure to re-tighten the two screws once the adjustment is
complete. SEE FIG. 8
FIG. 8
OPERATIONS
NOTICE: This operations section was designed to give instructions on the basic

20
operations of this planer. However, it is in no way comprehensive of every planer
operation. It is strongly recommended that you read books, trade magazines, or get
formal training to maximize the potential of your planer while minimizing the risks.
NOTICE: This planer is designed to process wood ONLY.
POWER SWITCH
The planer is turned on by flipping the switch into the up position and it is turned off by
flipping the switch in the down position. This planer is also equipped with a special lockout
toggle switch that prevents unauthorized use. To prevent unauthorized use of the planer,
simply pull out the yellow key (A) located on the face of the switch. SEE FIG 9.
FIG 9.
DEPTH OF CUT SCALE
The Depth Of Cut Scale, located on the front of the machine, is a convenient way to
quickly determine how much material is being planed off in one pass.
1. With the machine OFF, insert your workpiece just under the depth of cut scale (A).
SEE FIG 10
2. Crank the raising / lowering handle until the button (B) comes in contact with the
workpiece.
3. As you rotate the raising / lowering handle, the needle on the depth of cut scale will
move showing you how much material will be removed in that pass.
