Cutter SCX264 User manual

Read these instructions before using the machine
Lea las instrucciones antes de utilizar la máquina
MODELS: SCX264 SCXC264 BSCSCX264
10052380 10052430 10052860
SCX324 SCXC324
10052390 10052440
Operating Instructions (ENG)
Instrucciones de funcionamiento (SPA)
86039080 - BN 01/20/12
PRV NO. 98964
WALK BEHIND SCRUBBER
IPX4

MACHINE DATA LOG/OVERVIEW
CUTTER 24V 86039080 05/04/11
2
For the name and address of your dealer contact: Windsor Industries
YOUR DEALER
Name: __________________________________________________________________________________________________
Address: _______________________________________________________________________________________________
Phone Number: _________________________________________________________________________________________
OVERVIEW
The Saber Cutter is a battery powered, self-propelled, hard floor scrubber intended for
commercial use. The appliance applies a cleaning solution onto a hard floor, scrubs the floor
with brushes or pads, and then vacuums the soiled water back into the recovery tank.
MODEL _______________________________________
DATE OF PURCHASE __________________________
SERIAL NUMBER ______________________________
SALES REPRESENTATIVE # _____________________
DEALER NAME ________________________________
OPERATIONS GUIDE NUMBER ___________________
PUBLISHED __________________________________________
Warranty Registration
Thank you for purchasing a Windsor product. Warranty registration is quick and easy.
Your registration will allow us to serve you better over the lifetime of the product.
To register your product go to:
www.windsorind.com/WarrantyRegistration.aspx
For customer assistance:
1-800-444-7654

TABLE OF CONTENTS
CUTTER 24V 86039080 04/17/07
3
Machine Data Log/Overview.........................2
Table of Contents..........................................3
HOW TO USE THIS MANUAL
How to use this Manual.................................1-1
SAFETY
Important Safety Instructions........................2-1
Hazard Intensity Level. .................................2-2
Safety Label Location. ..................................2-3
OPERATIONS
Technical Specifications. ..............................3-1
How the Machine Works...............................3-3
Components..................................................3-4
Controls.........................................................3-5
Machine Operation........................................3-9
Pre-Run Machine Inspection......................3-9
Starting Machine........................................3-9
Emergency Stop Procedures.....................3-9
Filling the Solution Tank.............................3-9
Scrubbing................................................ 3-10
Emptying & Cleaning Tanks.................... 3-11
MAINTENANCE
Service Schedule.............................. ........ 4-1
Batteries........................................................4-3
Battery Maintenance..................................4-3
Checking Battery Specific Gravity..............4-4
Charging the Batteries...............................4-4
Changing Batteries. ...................................4-5
Battery Connections...................................4-5
Squeegee Blades..........................................4-6
Adjusting Squeegee......................................4-6
Replace or Rotate Rear Squeegee Blade.. ..4-6
Replace or Rotate Front Squeegee Blade. ..4-6
Adjusting Squeegee Pitch................. ........ ..4-7
Adjusting Rear Deflection. ................ ........ ..4-7
Replacing Aqua-Mizer Squeege Blades.......4-7
Scrub Brushes. .............................................4-8
Types.........................................................4-8
Replacing or Installing Scrub Brushes.......4-8
Float Shut-Off................................................4-8
Solution Strainer ...........................................4-9
Brush Motor Replacement............................4-9
Traction Motor Brush Replacement.. .........4-10
Circuit Breaker.................................. .........4-10
Brush Shrouds & Brush Skirts.......... .........4-10
Vacuum Motors................................. .........4-11
Actuator Scrub Deck......................... .........4-12
Greasing Axles ................................. .........4-13
Machine Troubleshooting ................. .........4-14
GROUP PARTS LIST
Control Handle............................................ 5-1
Cover (Front) & Tank Mount....................... 5-3
Cover (Top) & Tank Mount......................... 5-5
Decal........................................................... 5-7
Electrical Panel........................................... 5-9
Lift Handle................................................... 5-11
Lift Handle Linkage..................................... 5-13
Recovery Tank............................................ 5-15
Scrub Brush/Pad Driver.............................. 5-17
Scrub Deck Aqua-Mizer-26in Scrubhead ... 5-19
Scrub Deck Aqua-Mizer-32in Scrubhead ... 5-21
Scrub Deck Motors..................................... 5-23
Scrub Deck Skirt-26in Scrubhead............... 5-25
Scrub Deck Skirt-32in Scrubhead............... 5-27
Scrub Deck Lift Linkage-26in Scrub Deck.. 5-29
Scrub Deck Lift Linkage-32in Scrub Deck.. 5-31
Scrub Deck Lift ........................................... 5-33
Solution....................................................... 5-37
Squeegee-26in Scrubhead......................... 5-41
Squeegee-32in Scrubhead......................... 5-43
Squeegee Lift Linkage (Lower)................... 5-45
Vacuum....................................................... 5-47
Wheels & Frame......................................... 5-49
Wiring-Battery............................................. 5-51
Wiring-Control Panel................................... 5-53
Wiring-Main Harness.................................. 5-55
Wiring-Schematic-SCX264, SCX324.......... 5-57
Wiring-Schematic-SCXC264, SCXC324 .... 5-58
Brake-Option............................................... 5-59
Emergency Stop-Option ............................. 5-61
Accessory Pump-Option............................. 5-63
Battery Charger- SCXC264, SCXC324...... 5-65
Suggested Spare Parts............................... 5-67
EC Declaration of Conformity..................... 5-68
Warranty..................................................... 5-70

HOW TO USE THIS MANUAL
CUTTER 24V 86039080 04/17/07
1-1
This manual contains the following sections:
- HOW TO USE THIS MANUAL
- SAFETY
- OPERATIONS
- MAINTENANCE
- PARTS LIST
The HOW TO USE THIS MANUAL section will tell
you how to find important information for ordering
correct repair parts.
Parts may be ordered from authorized Windsor
dealers. When placing an order for parts, the
machine model and machine serial number are
important. Refer to the MACHINE DATA box which
is filled out during the installation of your machine.
The MACHINE DATA box is located on the inside of
the front cover of this manual.
The model and serial number of your machine is on
the back panel of the machine.
The SAFETY section contains important information
regarding hazard or unsafe practices of the
machine. Levels of hazards are identified that could
result in product or personal injury, or severe injury
resulting in death.
The OPERATIONS section is to familiarize the
operator with the operation and function of the
machine.
The MAINTENANCE section contains preventive
maintenance to keep the machine and its
components in good working condition. They are
listed in this general order:
- Batteries
- Scrub Brushes
- Adjusting Squeegee
- Scrub Deck Skirt
- Squeegee Blade/Brush Head Options
- Service Schedule
The PARTS LIST section contains assembled parts
illustrations and corresponding parts list. The parts
lists include a number of columns of information:
- REF – column refers to the reference
number on the parts illustration.
- PART NO. – column lists the part
number for the part.
- PRV NO. – reference number.
- QTY – column lists the quantity of the
part used in that area of the machine.
- DESCRIPTION – column is a brief
description of the part.
- SERIAL NO. FROM – column indicates
the first machine the part number is
applicable to. When the machine design
has changed, this column will indicate
serial number of applicable machine.
The main illustration shows the most
current design of the machine. The
boxed illustrations show older designs. If
column has an asterisk (*), call
manufacturer for a serial number.
-NOTES – column for information not
noted by the other columns.
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement
parts numbers needed for ordering future parts.
MODEL _____________________________________
DATE OF PURCHASE ________________________
SERIAL NUMBER ____________________________
SALES REPRESENTATIVE # ___________________
DEALER NAME ______________________________
OPERATIONS GUIDE NUMBER __________________
PUBLISHED ________________________________
Copyright 2002 Windsor Industries, Printed in USA

CUTTER 24V 86039080 04/17/07 2-1
IMPORTANT SAFETY INSTRUCTIONS
When using an battery powered appliance, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of fire, electric shock, or injury:
Use only indoors. Do not use outdoors or expose to rain.
Use only as described in this manual. Use only manufacturer’s recommended components and
attachments.
If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into
water, return it to an authorized service center.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce
airflow.
This machine is not suitable for picking up hazardous dust.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this
machine near flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals,
factories, shops and offices for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
If foam or liquid comes out of machine, switch off immediately.
Disconnect battery before cleaning or servicing.
Before the machine is discarded, the batteries must be removed and properly disposed of.
Make sure all warning and caution labels are legible and properly attached to the machine.
During operation, attention shall be paid to other persons, especially children.
Before use all covers and doors shall be put in the positions specified in the instructions.
When leaving unattended, secure against unintentional movement.
The machine shall only be operated by instructed and authorized persons.
When leaving unattended, switch off or lock the main power switch to prevent unauthorized use.
Only chemicals recommended by the manufacturer shall be used.
This appliance has been designed for use with the brushes specified by the manufacturer. The fitting
of other brushes may affect its safety.
Do not use on surfaces having a gradient exceeding 2% unless the optional parking brake is installed
on the machine.
SAVE THESE INSTRUCTIONS
!
WARNING:

HAZARD INTENSITY LEVEL
CUTTER 24V 86039080 04/17/07
2-2
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR
SAFETY. The level of hazard intensity is determined by the following definitions:
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property
damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper
operating condition. Following is information that signals some potentially dangerous conditions to the
operator or the equipment. Read this information carefully. Know when these conditions can exist. Locate
all safety devices on the machine. Please take the necessary steps to train the machine operating
personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the
machine. Use Windsor approved replacement parts.
Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and open flame away. Keep
top cover in raised position when charging. Keep sparks and flames away from the batteries. Do
not smoke around batteries.
Disconnect batteries before working on machine. Only qualified personnel should work inside
machine. Always wear eye protection and protective clothing when working on or near batteries.
Avoid skin contact with the acid contained in the batteries.
Never allow metal to lie across battery tops.
!WARNING
!WARNING
!WARNING
!WARNING
!CAUTION

SAFETY LABEL LOCATION
CUTTER 24V 86039080 04/17/07 2-3
NOTE: These drawings indicate the location of safety labels on the machine. If at any time the labels become
illegible, promptly replace them.
BATTERY CAUTION
86252520
PRV NO. 80885
SAFETY DECAL
86252530
PRV NO. 81494
CIRCUIT BREAKER DECAL
86243530
PRV NO. 500565
2% GRADE WARNING
SEE MANUAL

TECHNICAL SPECIFICATIONS
CUTTER 24V 86039080 01/20/12
3-1
ITEM DIMENSION/CAPACITY
Nominal power 1450 W
Rated Voltage 24VDC
Rated Amperage 60 Amps
Batteries 4 X 6 Volt 250-305-335AH @ 20 hr
rate
Scrub Brush Motors 2 X .75 hp (0.56 kW)
Vacuum Motor .75 hp (0.56 Kw)
Propelling Motor .3 hp (0.22 Kw)
Mass (GVW) 915 lbs. (415 kg) with 335 AH
Weight empty without batteries 346 lbs. (157 kg)
Solution Control Gravity feed, fully variable with
automatic shut-off in neutral
Solution tank capacity 23 gal. (87 l)
Recovery tank capacity 25 gal. (95 l)
Scrub brush diameter for 26 in. (66 cm) scrub head 13 in (33.0 cm)
Scrub brush diameter for 32 in. (81 cm) scrub head 16 in (41 cm)
Scrub brush pressure Actuated 0 lbs to 150 lbs (0 kg to 68
kg)
Scrub brush speed 200 rpm
Tires 2 x 10 in (25.4 cm) non-marking
foam-filled
Casters 2 X 4 in (10.2 cm) polyurethane solid
non-marking
Foundation Pressure (at recommended tire psi) 21 lbs./in 2(140 kPa)
Maximum Speed 3.2 Miles/hour (5.2 km/hour)
Frame Construction Steel plate with epoxy powdercoat
finish.
Brakes (optional) Tire lock parking brake.
Minimum aisle u-turn width with 26 in. (66 cm) scrub head 64 in. (163 cm)
Minimum aisle u-turn width with 32 in. (81 cm) scrub head 69 in. (175 cm)
Maximum rated climb and descent angle with empty tanks and
without optional parking brake 2%
Maximum rated climb and descent angle with full tanks and
without optional parking brake 2%

TECHNICAL SPECIFICATIONS
CUTTER 24V 86039080 04/17/07 3-2
ITEM MEASURE
Height 45 in. (114 cm)
Length with 26 in. (66 cm) scrub head 64 in. (163 cm)
Length with 32 in. (81 cm) scrub head 66 in. (167 cm)
Width without squeegee and scrub head 24 in. (61 cm)
Width of squeegee for 26 in. (66 cm) scrub head 35 in. (89 cm)
Width of squeegee for 32 in. (81 cm) scrub head 39 in. (99 cm)
Width of scrub path for 26 in. (66 cm) scrub head 26 in. (66 cm)
Width of scrub path for 32 in. (81 cm) scrub head 32 in. (81 cm)
Height
Width
Length
SPECIAL NOTES:
The sound pressure level at the operator’s ear was
measured to be 72 dBA. This was a nearfield,
broad-band measurement taken in a typical industrial
environment on a tile floor. This appliance contains
no possible source of impact noise. The
instantaneous sound pressure level is below 63 Pa.
The weighted root mean square acceleration at the
operator’s arms was measured to be below 2.5m/s2 .
This was a tri-axial, third-octave-band measurement
made during normal operation on a composite tile
floor. The measurement and related calculations
were made in accordance with ANSI S3.34-1986.

HOW THE MACHINE WORKS
CUTTER 24V 86039080 04/17/07
3-3
The Saber Cutter is a battery powered, self-
propelled, hard floor scrubber intended for
commercial use. The appliance applies a
cleaning solution onto a hard floor, scrubs the
floor with brushes, and then vacuums the soiled
water back into the recovery tank.
The machine's primary systems are the solution
system, scrub system, recovery system, and
directional control system.
The function of the solution system is to store
cleaning solution and deliver it to the scrub
system. The solution system consists of the
solution tank, strainer, valve and controls. The
solution tank stores cleaning solution (water and
detergent) until it is delivered to the scrub system.
The strainer protects the valve from debris. The
valve is a solenoid type valve, which controls the
delivery of cleaning solution to the scrub system.
The valve automatically prevents solution flow
unless the scrub brushes are turned on and the
machine is being propelled. The solution control
knob controls the amount of cleaning solution
delivered to the scrub system by controlling the
amount of time the valve is open.
The function of the scrub system is to scrub the
floor. The scrub system consists of two rotary
type disk scrub brushes, motors, scrub deck skirt,
lift mechanism and controls. The brushes scrub
the floor and the motors drive the brushes. The
brush drive hubs allow the scrub brushes to follow
irregularities and changes in the floor without
loosing contact with floor. The scrub deck skirt
controls the cleaning solution on the floor so that
the squeegee can pick it up. The brush lift
mechanisms are controls used to raise and lower
the deck.
The function of the recovery system is to vacuum
the soiled water back into the recovery tank. The
recovery system consists of the squeegee,
vacuum motor, float ball filter, recovery tank and
controls. The squeegee wipes the dirty solution
off the floor as the machine moves forward. The
vacuum motor provides suction to draw the dirty
solution off the floor and into the recovery tank.
The recovery tank stores the dirty solution. The
float ball filter protects the vacuum fan from debris
and shuts off air going to the recovery tank when
tank is full. When flow of air is shut off the vacuum
motor will continue to run. At this time the
recovery tank must be drained.
The function of the directional control system is to
control the direction and speed of the machine.
The directional control system consists of the
propel control buttons, reverse button, speed
control knob/potentiometer, controller and
transaxle. The propel controls actuate switches
which cause the machine to move forward. For
reverse motion depress the reverse button while
depressing one of the propel controls. The speed
control knob actuates a potentiometer, which
signals speed. The controller interprets the
forward/reverse signals from the switches and the
speed signal from the potentiometer to command
the transaxle to propel the machine in the
direction, and at the speed, desired.

COMPONENTS
CUTTER 24V 86039080 04/17/07 3-4

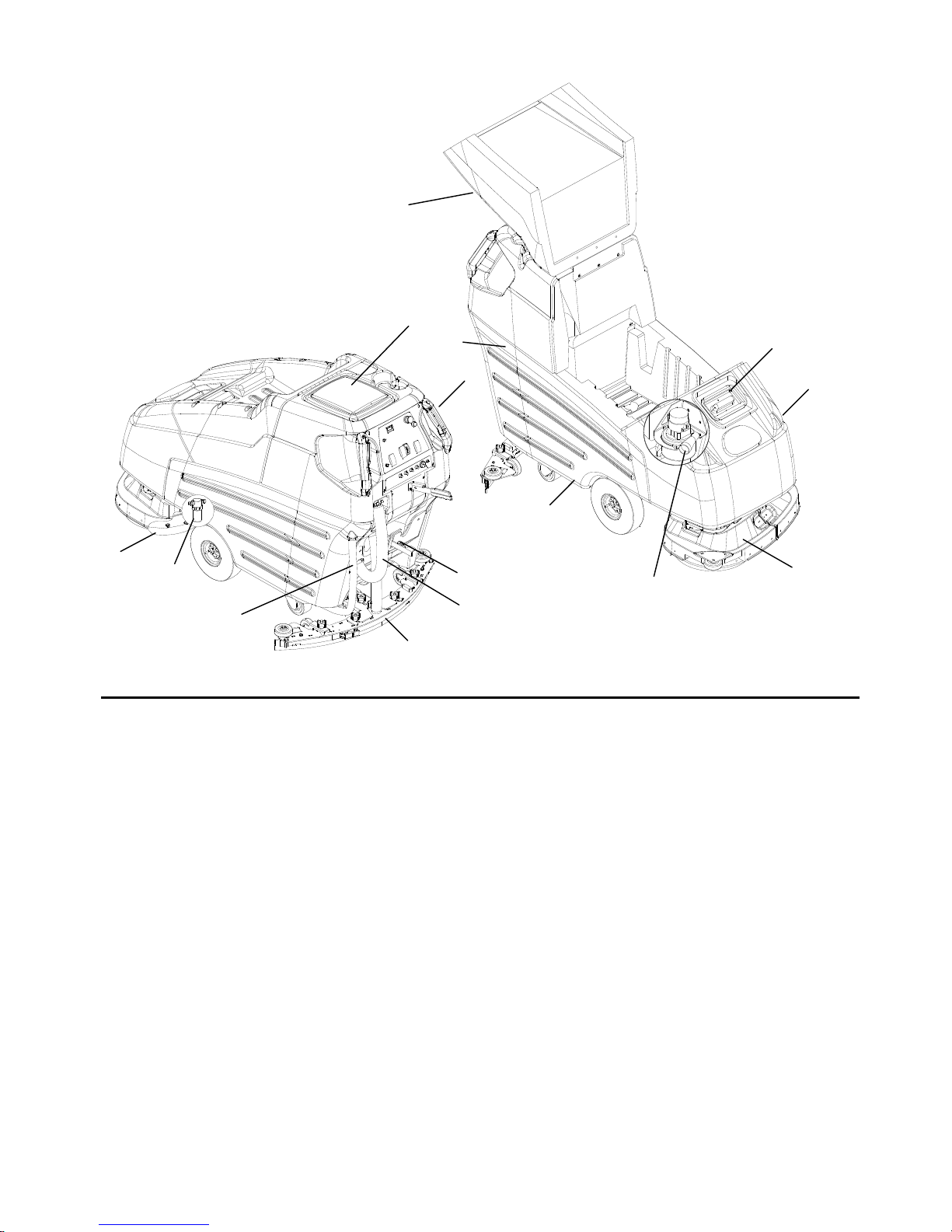

1. Control Panel
2. Front Cover
3. Recovery Tank
4. Recovery Tank Drain Hose
5. Scrub Head Shrouds
6. Solution Tank
7. Solution Tank Cover
8. Solution Tank Drain Hose
9. Solution Strainer
10. Squeegee
11. Aqua-Mizer
12. Top Cover
13. Vacuum Motor
14. Recovery Tank Dome
15. Accessory Pump Port (Optional)
12
7
2
5
6
3
1
15 13
4
10
8
11 9
14

CONTROLS
CUTTER 24V 86039080 04/17/07
3-5
3 5
8
6
13
9
2
12
11
15
1
14
7
10
4
16

CONTROLS
CUTTER 24V 86039080 04/17/07
3-
6
1. Key Switch
2. Emergency Shut Off Switch (Optional)
3. Speed Control Knob
4. Propel Control Lever
5. Reverse Button
6. Brush Switch
7. Actuator Switch
8. Solution Control Knob
9. Vacuum Switch
10.Squeegee Lift Lever
11.Squeegee Pitch Adjustment Knob
12.Squeegee Deflection Adjustment Knobs
13.Battery Charge Level Indicator
14.Parking Brake (Optional)
15.Hour Meter (Optional)
16.Brush Pressure Indicator
1. KEY SWITCH
Controls the power for machine functions.
To turn machine on, rotate key clockwise.
To turn machine off, rotate key
counterclockwise.
FOR SAFETY: Always remove the key
when machine is unattended or during
service to prevent unauthorized
movement.
2. EMERGENCY SHUT-OFF SWITCH
(OPTIONAL)
Shuts off machine.
To shut off machine, push the switch.
To restart machine, rotate the switch
clockwise.
3. SPEED CONTROL KNOB
Controls the speed of the machine.
To increase speed, rotate knob clockwise.
To decrease speed, rotate knob
counterclockwise.
4. PROPEL CONTROL LEVERS
Controls the machine direction, and scrub
brushes and solution flow.
To propel machine forward, squeeze either
propel lever.
The scrub brushes will not rotate and the
solution will not flow to scrub deck with the
propel levers in neutral.
5. REVERSE BUTTON
Controls the reverse function.
To propel machine backward, push the
reverse button while squeezing either propel
lever.
6. BRUSH SWITCH
Controls the scrub brush motors.
To turn scrub brushes on, press the bottom of
the switch. The brushes will not rotate with the
propel control levers in neutral.
To turn scrub brushes off, press the top of the
switch.

CONTROLS
CUTTER 24V 86039080 04/17/07
3-7
7. ACTUATOR SWITCH
Adjusts the amount of brush pressure to the
floor by raising or lowering the scrub deck.
To increase brush pressure, press the bottom
of the switch.
To decrease brush pressure or rise the scrub
deck, press the top of the switch.
8. SOLUTION CONTROL KNOB
Controls solution flow to scrub deck.
To increase flow, rotate knob clockwise.
To decrease flow, rotate knob counterclockwise.
If the brush motors are turned off or the propel
control levers are in neutral, the flow is
automatically interrupted until the motors are
turned on again. This feature prevents
unintentional draining of the solution tank and
allows the operator to adjust the solution flow to
the scrub deck without resetting each time the
scrubbing operation is interrupted.
9. VACUUM SWITCH
Controls the vacuum motor.
To start vacuum motor, press the bottom of the
switch.
To stop vacuum motor, press the top of the
switch.
10. SQUEEGEE LIFT LEVER
Raises and lowers the squeegee.
To lower the squeegee, lift the lever from its
raised position.
To raise the squeegee, lift the lever from its
lowered position.
11. SQUEEGEE PITCH ADJUSTMENT KNOB
Adjusts the deflection at the ends of the
squeegee.
To increase squeegee blade deflection at the
ends, turn knob counterclockwise.
To decrease squeegee blade deflection at the
ends, turn knob clockwise.
12. SQUEEGEE DEFLECTION ADJUSTMENT
KNOBS
Adjusts the deflection along the entire length of
the squeegee.
To increase squeegee blade deflection along the
entire length, turn the two knobs at the
squeegee ends counter-clockwise.
To decrease squeegee blade deflection along
the entire length, turn the two knobs at the
squeegee ends clockwise.

CONTROLS
CUTTER 24V 86039080 04/17/07 3-8
13. BATTERY CHARGE LEVEL INDICATOR
Indicates the charge level of the batteries.
The meter display is divided into 10 vertical
bars. Bar illuminated on the far right indicate
full charge. Bars flashing near the left side
indicate the batteries should be recharged.
Further operation of the machine could
damage the machine or the batteries.
When the machine is left overnight with less
than a full charge, the display may initially
indicate a full charge. It will also indicate a full
charge if the batteries are disconnected, then
reconnected. After a few minutes of operation
the meter will give the correct charge level.
14. PARKING BRAKE (OPTIONAL)
Locks front wheels to prevent unintentional
movement.
To set parking brake, push down to lock notch.
To release parking brake, push down and over
out of the lock down notch.
15. HOUR METER (OPTIONAL)
Records the number of hours the machine has
been in operation. This information is useful
in determining when to service the machine.
16. BRUSH PRESSURE INDICATOR
The brush pressure indicator corresponds to
the amp draw of the scrub brush motors to tell
how hard the motors are working. The green
zone indicates medium or proper operating
brush pressure. The red zone indicates heavy
or excessive brush pressure. Operating in the
red zone may cause the brush circuit breakers
to trip.

MACHINE OPERATION
CUTTER 24V 86039080 04/17/07
3-9
PRE-RUN MACHINE INSPECTION
Do a pre-run inspection to find possible problems that
could cause poor performance or lost time from
breakdown. Follow the same procedure each time to
avoid missing steps.
NOTE: See maintenance section for pre-run machine
inspection checklist items.
STARTING MACHINE
NOTE: Perform pre-run machine check before
operating machine.
FOR SAFETY: Before starting machine, make
sure that all safety devices are in place and
operating properly.
1. Turn the machine power on.
2. Release the parking brake, if your machine is
equipped with this option.
3. Engage the direction propel levers for the desired
direction.
EMERGENCY STOP PROCEDURES
1. Release the propel levers.
2. Turn machine power off with key switch.
3. If an electrical problem is suspected push in
emergency stop button, if machine is equipped
with this option.
4. Apply brakes, if your machine is equipped with
this option.
FILLING SOLUTION TANK
FOR SAFETY: Before leaving or servicing
machine; stop on level surface, turn off machine
and remove key.
1. Turn the machine power off.
2. Set the parking brake if your machine is equipped
with this option.
3. Remove solution tank cover.
4. Fill the solution tank with clean water, leaving
enough room for the required amount of cleaning
solution. The solution tank capacity filled to 2” (5
cm) from bottom of fill inlet is 23 gallons (87 liters).
The water must not be hotter than 140°F (60°C)
to prevent damage to the tank.
5. Measure the chemical into the solution tank.
Liquid chemicals should be added to the solution
tank after filling with water. Dry chemicals should
be thoroughly mixed before being added into
solution tank. Commercially available, high
alkaline floor cleaners, are suitable for use in the
solution system.
NOTE: Read the chemical manufacturers
recommended proportion instructions.
6. Replace solution tank cover.
Flammable materials can cause an explosion or
fire. Do not use flammable materials in the tanks.
!WARNING

MACHINE OPERATION
CUTTER 24V 86039080 04/17/07 3-10
NORMAL SCRUBBING
Plan the scrubbing pattern in advance. The
longest track is around the perimeter of the area
to be cleaned. For efficient operation, the runs
should be the longest possible without turning,
stopping, or raising and lowering scrub
deck/squeegee.
NOTE: In order to achieve the best possible
results, the area which is to be cleaned should be
swept before scrubbing. Large debris, strings &
wire must be removed to prevent being caught in
brushes or squeegee.
TO BEGIN SCRUBBING
When operating the machine around people, pay
close attention for unexpected movement. Use
extra caution around children.
Flammable liquids and/or reactive metals can
cause explosions or fire! Do not pick up.
1. Turn the machine power on.
2. Lower the squeegee.
3. Turn the vacuum on.
4. Lower the scrub brushes to the floor.
5. Turn the scrub brushes on (brushes will start
when machine is propelled).
6. Drive machine forward to begin scrubbing.
NOTE: Shut machine off immediately if water or
foam is expelled from the machine.
7. Adjust the speed of the machine, solution flow
and scrub brush pressure as necessary.
NOTE: Once solution flow rate is set it is not
necessary to shut off solution when stopping
scrubbing. Solution flow is automatically shut off
when brush motors stop. When brush motors are
activated, flow automatically resumes.
TO STOP SCRUBBING
1. Release the propel levers.
2. Turn the scrub brushes off.
3. Raise the scrub brushes.
4. Raise the squeegee.
5. Turn the vacuum off.
6. Turn the machine power off.
!CAUTION
!WARNING

MACHINE OPERATION
CUTTER 24V 86039080 04/17/07
3-11
DOUBLE SCRUB
For floors which are heavily soiled or have thick
accumulations of floor finish may not clean
sufficiently with one pass. In these cases it will be
necessary to double scrub.
To double scrub, make the first pass over the
surface being cleaned with the squeegee up,
vacuum off, the solution on, Aqua-Mizer removed
and brushes down. This allows the solution to stay in
contact with the soil while loosening the surface
accumulation with the brushes. Allow time for the
first application to stay in contact with the floor.
Length of time between the first and second pass
depends on amount of accumulation and the type of
chemical being used. A second scrubbing with the
squeegee down and again the solution and brushes
on will further loosen soil. The additional application
of solution will further assist the difficult cleaning job.
FOR SAFETY: When using machine, go slow on
inclines and slippery services.
EMPTYING AND CLEANING TANKS
1. Park the machine next to a floor drain. Drain
hose is on left rear corner of the machine.
2. Turn the machine power off and set parking
brake, if your machine is equipped with this
option.
SOLUTION TANK
1. Loosen small drain hose from the retainer, then
lower hose in direction of the drain.
2. Remove the solution tank cover.
3. Flush the solution tank out with clean water and
run several gallons of clean water through
systems. Do not use water hotter than 140°F
(60°C) to clean tank. Damage may occur.
NOTE: Never allow solution to remain in tank.
Damage to tank, seals and valves could occur.
4. Secure drain hose into the retainer.
RECOVERY TANK
1. Unhook the large drain hose from the retainer.
Unscrew the T-handle on plug enough to loosen
plug, then lower hose in direction of the drain.
Do not stand in front of end of hose. Recovered
solution will come out with force. Slowly remove
plug from drain hose.
2. Remove the recovery tank dome. Flush the
recovery tank out with clean water. Do not use
water hotter than 140°F (60°C) to clean tank.
Damage may occur.
3. Clean off the float shut-off system and inspect
for free movement of float. The float shut-off
system is located in the rear of the recovery
tank.
4. Replace the drain plug and secure drain hose in
bracket.
5. If machine is to be stored, leave the recovery
tank dome off.
SOLUTION
TANK DRAIN
RECOVERY
TANK DRAIN
RECOVERY
TANK COVER
SOLUTION
TANK COVER

MAINTENANCE
CUTTER 24V 86039080 04/17/07 4-1
SERVICE SCHEDULE
MAINTENANCE DAILY WEEKLY MONTHLY 100
HRS 200 HRS
Check batteries after charging; add water if necessary *
Check pad wear to prevent buildup of chemicals *
Check linkages and connectors for wear and damage *
Check hoses for wear, blockages, or damage *
Clean squeegee; check for adjustment; inspect for wear *
Check handles, switches, knobs, domes, and gaskets for
damage *
Clean out recovery tank *
Clean out solution tank; remove and clean screen *
Clean outside of all tanks; check for damage *
Run vac motor for at least one minute to allow motor to dry *
Store with dome off tank to allow the tank to dry *
Check scrub deck skirt *
Check batteries for corrosion, cracks and evidence of
overheating *
Check all bearings for noise *
Check all gaskets for wear and leakage *
Check vac motor carbon brushes *
Check brushes for wear; ensure bristles are not damaged *
Check linkages for wear and damage *
Grease transaxle *
Grease wheels and casters *
Check squeegee blades for wear and frame for damage *
Check overall performance of machine *
Clean batteries and terminals *
Check parking brake (inspect cables, linkages and pulleys) *
Check carbon brushes in all vacuum, brush drive, and propel
motors
*
Blow out dust in motors *
Inspect motor commutators *
Clean chains, cables and pulleys *
Clean pivot points on squeegee and scrub deck linkages *

MAINTENANCE
CUTTER 24V 86039080 04/17/07
4-2
1. Batteries
2. Squeegee
3. Aqua Mizer
4. Scrub Brushes
5. Float Shut-Off
6. Solution Strainer
7. Brush Motor
8. Traction Motor
9. Circuit Breakers
10.Brush Shroud & Brush Skirts
11.Vacuum Motor
12.Actuator Scrub Brush
9
8
7
6
5
3
4
2
1
11
10
12
