Cybernet IPC-R1s User manual

DOC ID: 16001100
Page | 1
IPC-R1s / IPC-E1s
User Manual
Declaration of Conformity
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be require to correct the interference at his own expense.
Notice 1 The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
The product(s) described in this manual complies with all applicable European
Union (CE) directives if it has aCE marking. For computer systems to remain CE
compliant, only CE-compliant parts may be used. Maintaining CE compliance
also requires proper cable and cabling techniques.
Trademarks
All trademarks are the properties of their respective owners.
Intel® is a registered trademarks of Intel Corporation.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Windows® 10/8.7/7 are registered trademarks of Microsoft Corporation.
Netware® is a registered trademark of Novell, Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.
AMI® is a registered trademark of American Megatrends Inc

DOC ID: 16001100
Page | 2
WEEE Statement
(Waste Electrical and Electronic Equipment)
The WEEE directive places an obligation on EU-based manufacturers, distributors,
retailers and importers to take-back electronics products at the end of their useful life.
A sister Directive, ROHS (Restriction of Hazardous Substances) compliments the
WEEE Directive by banning the presence of specific hazardous substances in the
products at the design phase. The WEEE Directive covers products imported into the
EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and
importers are obliged to finance the costs of recovery from municipal collection points,
reuse, and recycling of specified percentages per the WEEE requirements.
Instructions for disposal of WEEE by Users in the European Union
The symbol shown below is on the product or on its packaging, which indicates that
this product must not be disposed of with other waste. Instead, it is the user’s
responsibility to dispose of their waste equipment by handing it over to a designated
collection point for the recycling of waste electrical and electronic equipment. The
separate collection and recycling of your waste equipment at the time of disposal will
help to conserve natural resources and ensure that it is recycled in a manner that
protects human health and the environment. For more information about where you
can drop off your waste equipment for recycling, please contact your local city office,
your household waste disposal service or where you purchased the product.

DOC ID: 16001100
Page | 3
Safety Instructions
1. Always read the safety instructions carefully.
2. Keep this equipment away from humidity.
3. Lay this equipment on a reliable flat surface before setting it up.
4. Confirm the voltage of the power source and adjust accordingly to 110/220V
before connecting the equipment to the power inlet.
5. Place the power cord in such a way that it cannot be stepped on. Do not
place anything over the power cord.
6. Always unplug the Power Cord before inserting any add-on card or module.
7. All cautions and warnings on the equipment should be noted.
8. Never pour any liquid into the opening. This will cause damage and/or electrical
shock.
9. Do not disable the protective grounding pin from the plug. The equipment must
be connected to a grounded main socket/outlet.
10. If any of the following situations arise, have the equipment checked by
authorized service personnel:
•The power cord or plug is damaged.
•Liquid has penetrated into the equipment.
•The equipment has been exposed to moisture.
•The equipment has not worked well or you cannot get it working according to
the User's Guide.
•The equipment has been dropped and damaged.
•The equipment has obvious signs of breakage.
11. Do not attempt to remove or upgrade any components by yourself, any
installation or modification should be conducted by service personnel.
DO NOT LEAVE THIS EQUIPMENT IN AN UNCONDITIONED ENVIRONMENT WITH
A STORAGE TEMPERATURE ABOVE 85° C (185°F). IT MAY DAMAGE THE
EQUIPMENT.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer.

DOC ID: 16001100
Page | 4
Table of Contents
Declaration of Conformity ............................................................................................1
Trademarks....................................................................................................................1
WEEE Statement ...........................................................................................................2
Safety Instructions........................................................................................................3
Introduction ...................................................................................................................5
IPC R1S & IPC E1S Specifications...............................................................................6
IPC-R1s & IPC-E1s Overview .......................................................................................8
IPC-R1s Dimension.....................................................................................................8
IPC-E1s Dimension .....................................................................................................8
IPC-R1s & IPC-E1s Front I/O View..............................................................................9
IPC-R1s & IPC-E1s Back I/O View............................................................................15
Ignition Control ..........................................................................................................21
Adjusting Ignition Control Modes...............................................................................21
Ignition Control Wiring ...............................................................................................24
Power Management.....................................................................................................25
Waking the System Up..............................................................................................27
IPC-R1s / IPC-E1s BIOS introduction ........................................................................28
Appendices..................................................................................................................29
A - Isolated DIO Guide...............................................................................................30
B - Cybernet’s Recycling Program.............................................................................33
C - Getting Help.........................................................................................................33

DOC ID: 16001100
Page | 5
Caution:
Warning, electricity
Direct current
Operating Instructions
Alternating current
Ready to use
Introduction
Congratulations on your purchase of the IPC-R1s / IPC-E1s. We are confident the IPC-
R / IPC-E Series is the premier Slim Rugged PC line on the market. With their sleek
design and small form factor, these units can be quickly deployed anywhere they are
needed and their easy-to-use, feature-packed interfaces offer an unparalelled user
experience. If you have any questions about your new IPC-R1s / IPC-E1s, please do
not hesitate to contact us using any of the support numbers provided at the end of this
User Manual

DOC ID: 16001100
Page | 6
IPC R1s & IPC E1s Specifications
CPU
Supports Intel Skylake & Kabylake 6th & 7th Generation Processor,
Socket LGA 1151
Memory
2 x DDR4 SO-DIMM sockets, up to 64GB combined
Supports memory data transfer rates of 2133MHz/2400 MHz for
DDR4, un-buffered non-ECC DDR4 SO-DIMMs
Storage
Serial ATA controller facilitates high-speed transfers up to 6Gbps
Maximum 2 x 2.5” HDD or SSD
Video & Graphics
Skylake: Integrated Intel® HD Graphics 530
Kabylake: Integrated Intel® HD Graphics 630
Front I/O Ports
1x Display Port, up to 4096 x 2304 @ 60Hz
1x DVI-D, up to 1920x1200 @ 60Hz
1x DVI-I, up to 1920x1200 @ 60Hz
4x USB3.0
2x RJ45 Gigabit (Gbe) LAN
1x Line-out
3x SIM Card Sockets
1x CFast Slot
IPC E1S: 4x 802.3at PoE+, RJ45 Gigabit (Gbe) LAN
Rear I/O Ports
1 x DC-IN Power Connector (6-36V)
1x DC-IN Terminal Block Connector
1x Remote On/Off & Ignition Terminal Block
4 x COM RS232/422/485
2 x USB3.0
IPC-R1s: 16x GPIO
IPC-E1s: 16x Isolated DIO (8 DI, 8 DO)
Power Input
IPC-R1s: 19V / 6.32A Power Adapter, 120W, AC Input: 100-240V
AC / 2.0-1.0A / 50-60Hz
IPC-E1s: 19.5V / 9.23A Power Adapter, 180W, AC Input: 100-
240V AC 2.0-1.0A / 50-60Hz
Wireless
Communications
Intel AC7260 support IEEE802.11ac + BT4.0 (Optional)
Operating System
Windows 10 / IoT / Pro
Linux
Operating Environment
Ambient Temperature: -20°C ~ 70°C (operating)
Relative Humidity
10% ~ 95% (non-condensing)
Vibration
5 Grms @5-500 Hz according to IEC60068-2-64
Shock
Operating, 50 Grms, Half-sine 11ms duration according to
IEC60068-2-27
Dimensions
10.2” x 6.9”x 3.1” (L,W,D)

DOC ID: 16001100
Page | 7
Weight
8.4 lbs
System BIOS
AMI Flash BIOS supports ACPI, API, DMI, Plug & Play, and
security password.
BIOS Security
BIOS System POST and BIOS setup password protection. TPM
version 2.0 Support.
TPM
1 x Trusted Platform Module (TPM) Infineon SLB9665
Certifications
FCC Class A / CE
EN50155
EN50121-3-2
E13

DOC ID: 16001100
Page | 8
IPC-R1s & IPC-E1s Overview

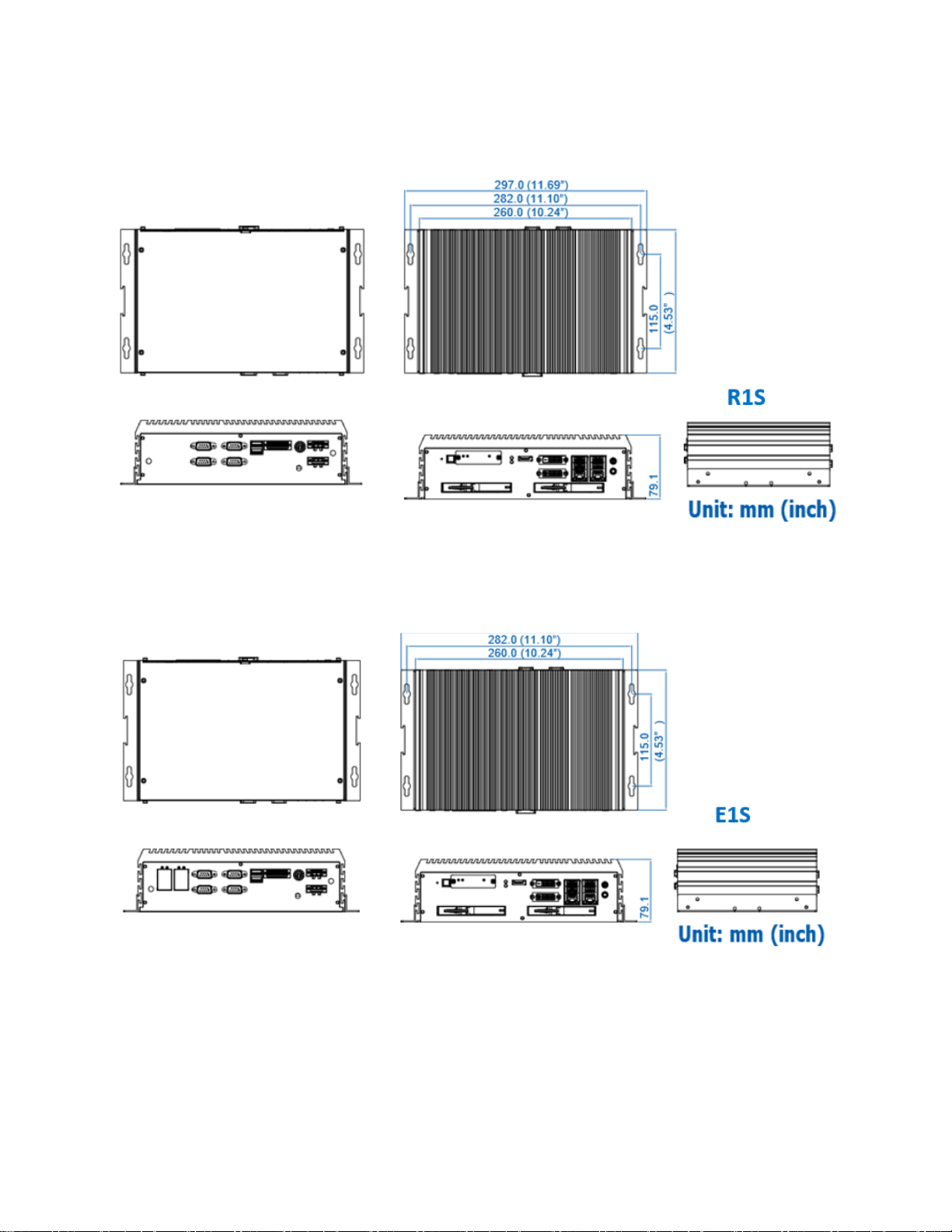

IPC-R1s Dimension
IPC-E1s Dimension

DOC ID: 16001100
Page | 9

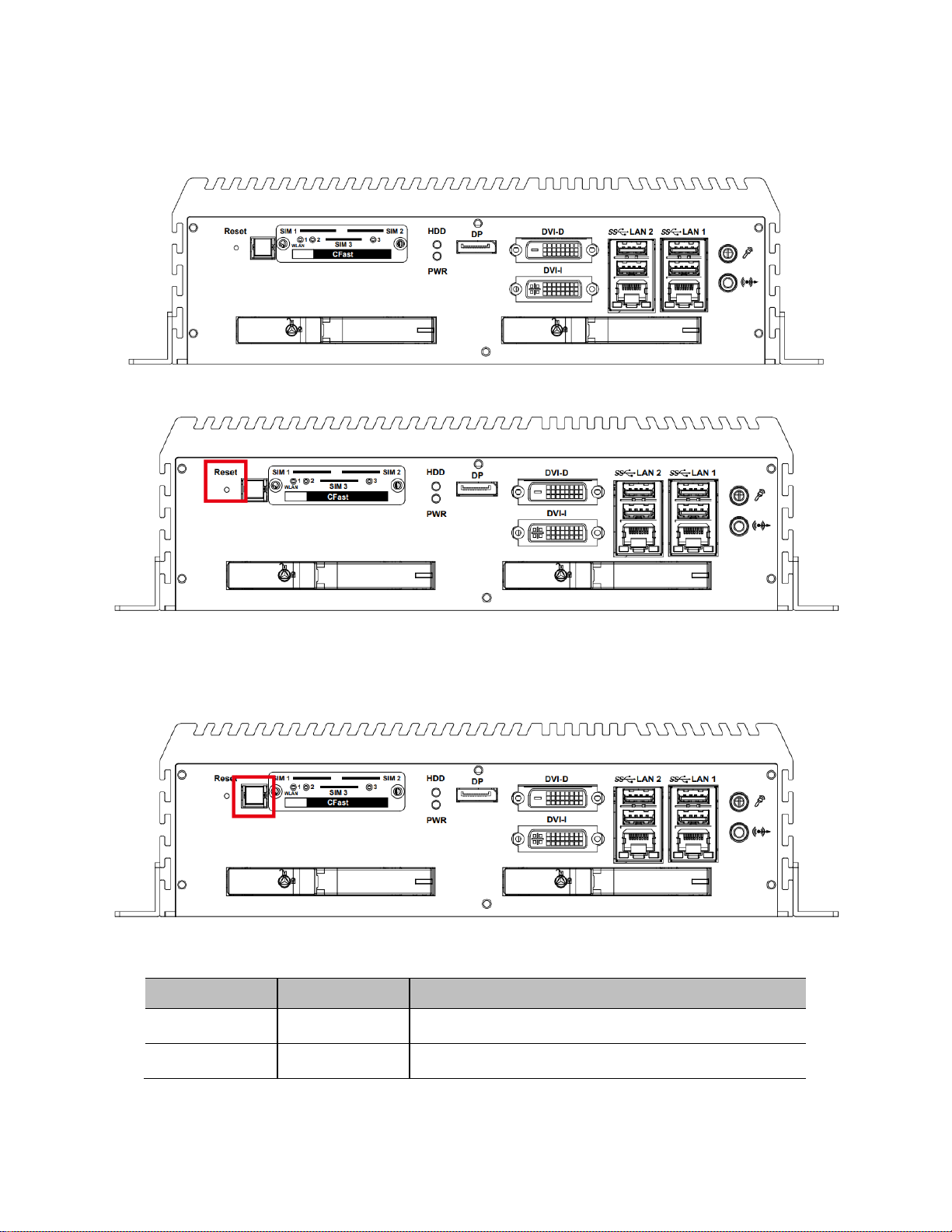

IPC-R1s & IPC-E1s Front I/O View
Reset Tact Switch
This is a hardware reset switch used to reset the system without powering off the
system.
Power Button
The Power Button is a momentary switch with dual color LED indicators.
LED Color
Power Status
System Status
Solid Blue
S0
Working state
Solid Orange
S3, S5
Suspend to RAM, System off with standby power

DOC ID: 16001100
Page | 10
Press the power button to turn on the system. To force a shutdown, press and hold the
power button for 4-seconds.

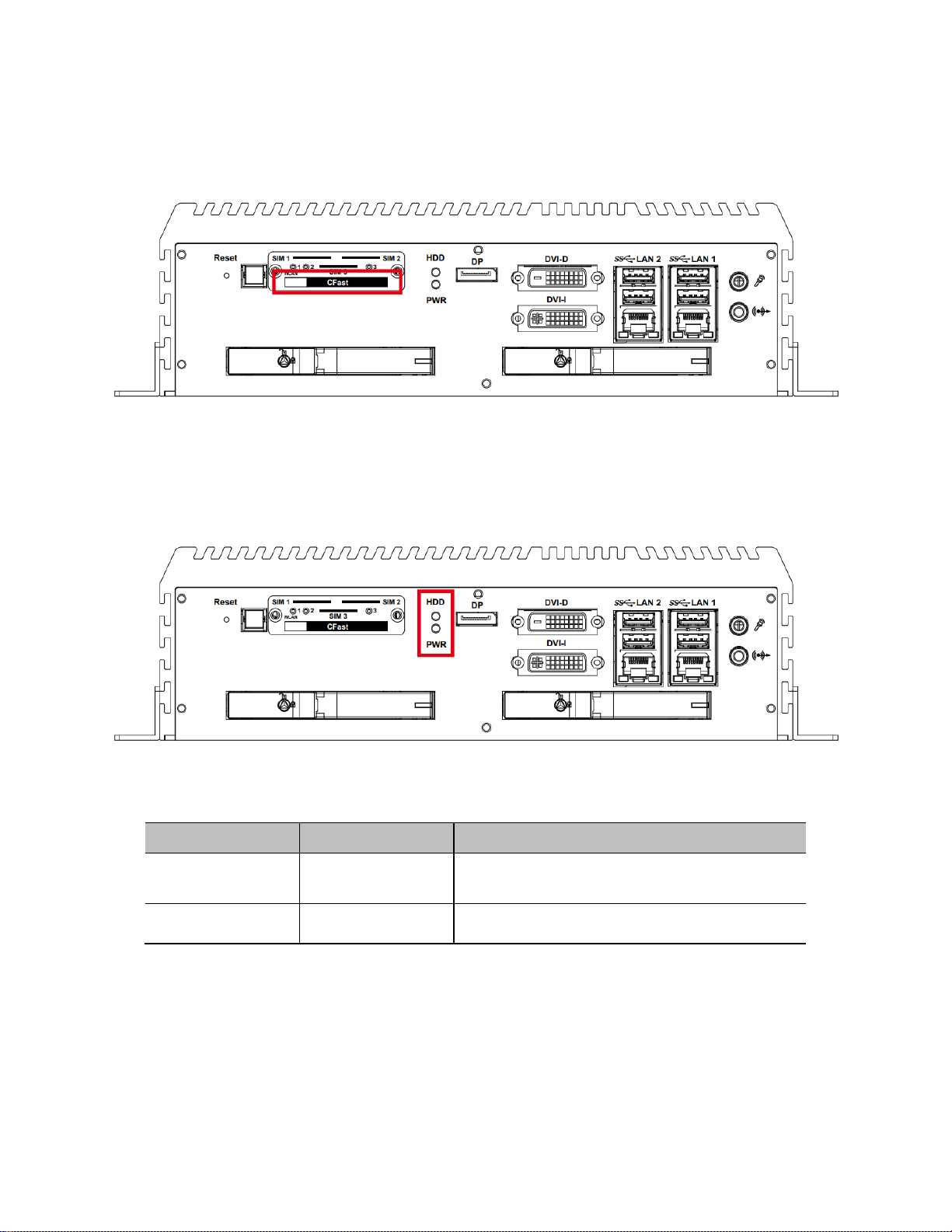

Cfast Card
Supports Type-I/II Compact Flash card. Be sure to disconnect the power source and
unscrew the Cfast socket cover before installing a Cfast card. The R1S/E1S does not
support hot-swapping and PnP (Plug and Play) functions. The Cfast card must be
installed when the system is powered off.
PWR and HDD LED Indicator
The HDD and PWR LED indicators will indicate the HDD and power status, as shown in
the table below.
LED Color
Power Status
System Status
Yellow
HDD/CFast
On: Storage functioning.
Blinking: Data transferring.
Green
Power
System power status (On/Off)

DOC ID: 16001100
Page | 11

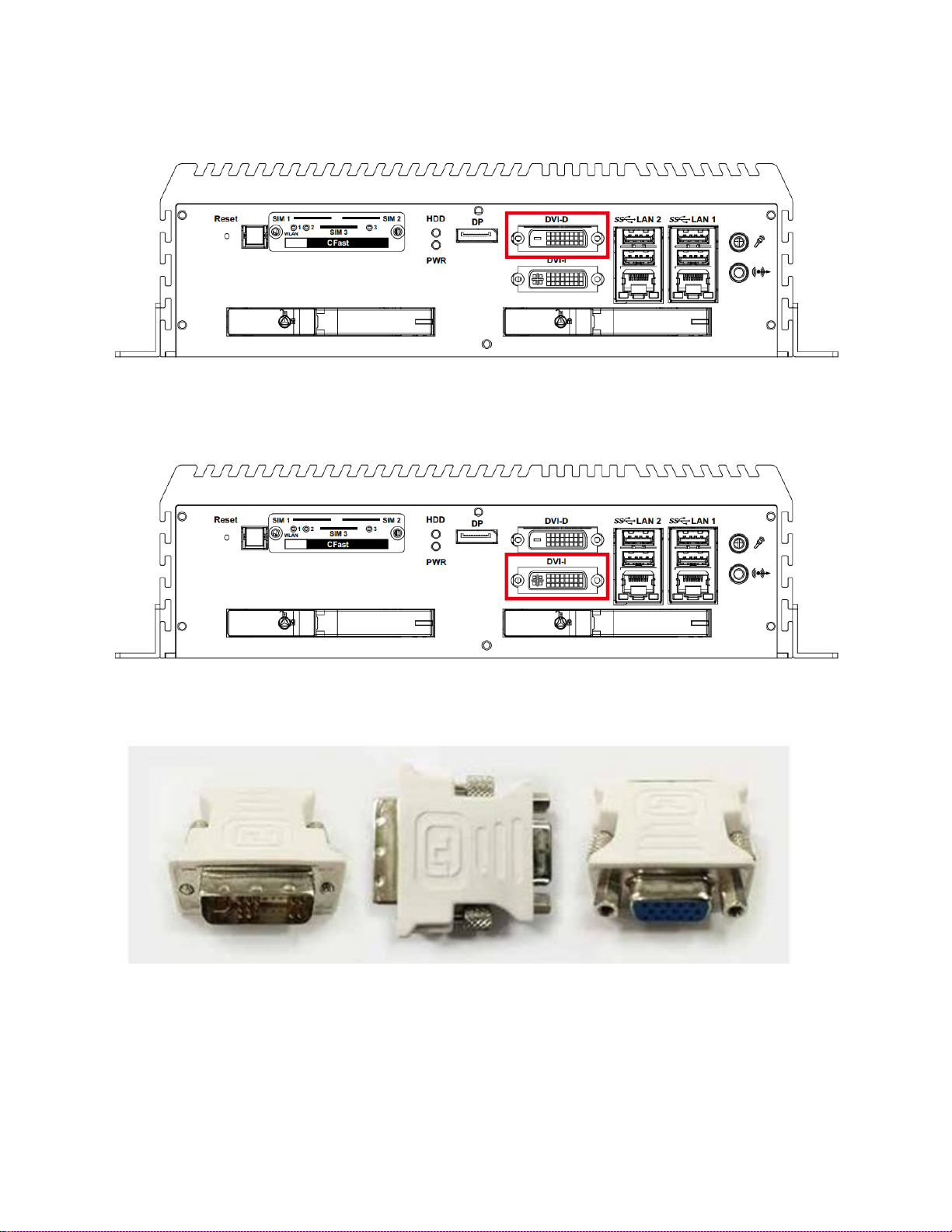

DVI-D Connector
This DVI output supports up to 1920x1200 resolution. Please ensure a DVI-D cable is
used when connecting to this port.
DVI-I Connector
The DVI-I connector supports both DVI and VGA display modes. The DVI output
supports up to 1920x1200 resolution. A DVI-I to VGA adapter will need to be used in
order to display VGA.

DOC ID: 16001100
Page | 12

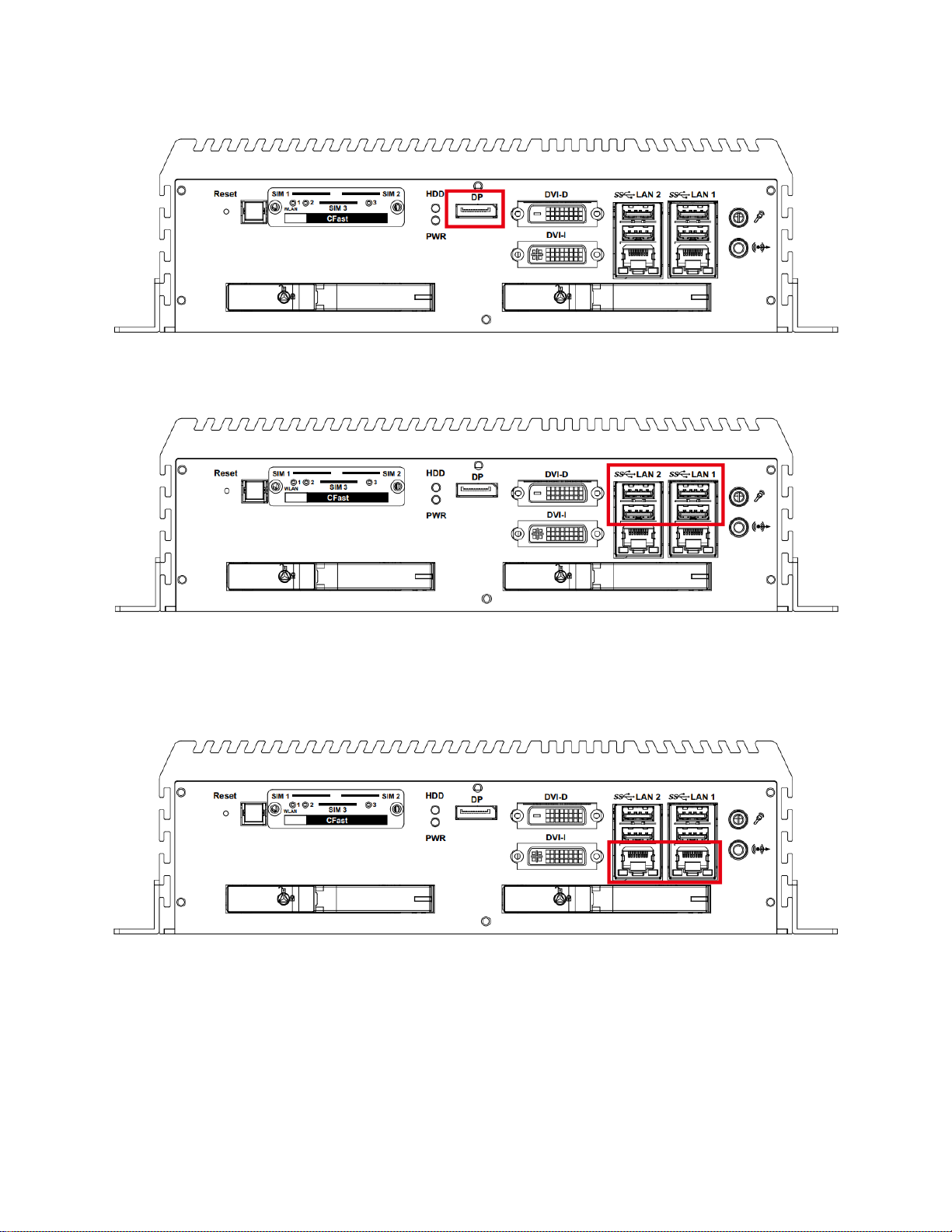

Display Port
DP supports up to 4096x2304 resolution at 60Hz.
USB3.0
There are 4x USB3.0 connections available, which supports up to 5Gbps data rate.
These USB ports are also compliant with Super Speed (SS), High Speed (HS), Full
Speed (FS), and Low Speed (LS).
Ethernet Port
LAN1: Intel I219LM 10/100/Gigabit LAN, supports Wake on LAN, PXE boot and vPro
technology.
LAN2: Intel I210 10/100/Gigabit LAN, supports Wake on LAN, PXE boot and vPro
technology.

DOC ID: 16001100
Page | 13

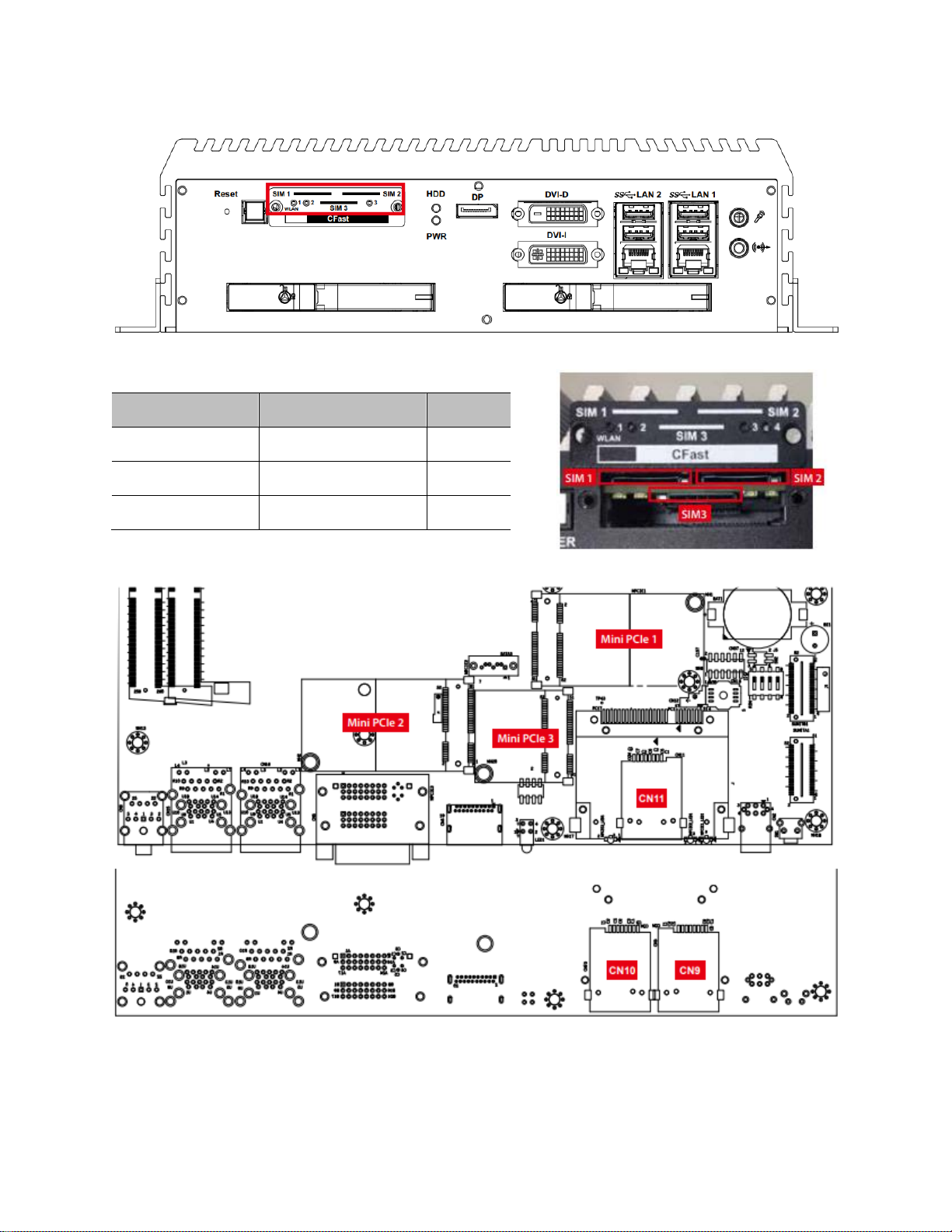

SIM Card Slots
MiniPCIe Slot/SIM Slot/WLAN LED Mapping Table:
Mini PCIe
SIM
LED
Mini PCIe 1
SIM 1 (CN9)
1
Mini PCIe 2
SIM 2 (CN10)
2
Mini PCIe 3
SIM 3 (CN11)
3
Note: The SIM card slots do not support hot-plug functionality. Please make sure to
unplug system power before inserting the SIM card(s).

DOC ID: 16001100
Page | 14
Audio Jacks
There is 1x Microphone jack and 1x Line-out jack. Onboard Realtek ALC897 audio
codec supports 5.1 channel HD audio and complies with Intel® High Definition Audio
(Azalia) specifications. To utilize the audio function in Windows platform, install
corresponding drivers for both Intel CM236 chipset and Realtek ALC897 codec.
SSD/HDD Trays
There are 2x front-accessible 2.5” SSD/HDD locking trays.

DOC ID: 16001100
Page | 15
IPC-R1s & IPC-E1s Back I/O View
Power Terminal Block
The system supports 6V to 36V DC power input by terminal block.
Pin No.
Definition
1
V+
2
V-
3
Chassis Ground

DOC ID: 16001100
Page | 16

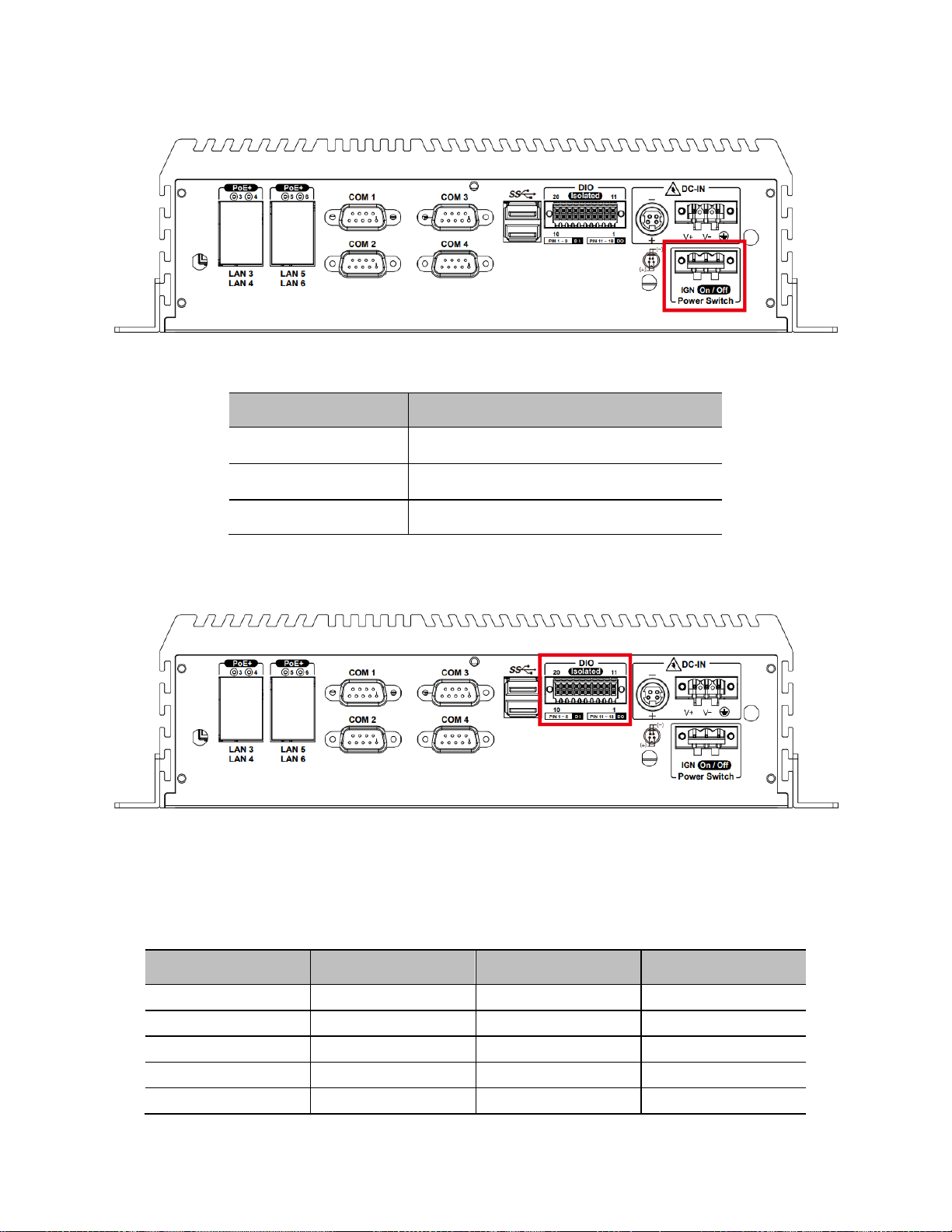

Power On/Off Switch & Ignition
This terminal block supports a 2-pin power on/off switch or ignition switch.
Pin No.
Definition
1
Ignition
2
External Power Button V+
3
External Power Button V-
GPIO (IPC-R1s only)
The system offers sixteen programmable I/O. If the GPIO is logic high, it indicates that
the mapping SIO GPIO pin is logic high level. If the GPIO is logic low, it indicates that
the mapping SIO GPIO pin is logic low level. GPIO Connectors pin assignments are
shown below.
Pin No.
Definition
Pin No.
Definition
1
SIO_GPI70
11
SIO_GPO80
2
SIO_GPI71
12
SIO_GPO81
3
SIO_GPI72
13
SIO_GPO82
4
SIO_GPI73
14
SIO_GPO83
5
SIO_GPI74
15
SIO_GPO84

DOC ID: 16001100
Page | 17
6
SIO_GPI75
16
SIO_GPO85
7
SIO_GPI76
17
SIO_GPO86
8
SIO_GPI77
18
SIO_GPO87
9
----------
19
----------
10
----------
20
----------

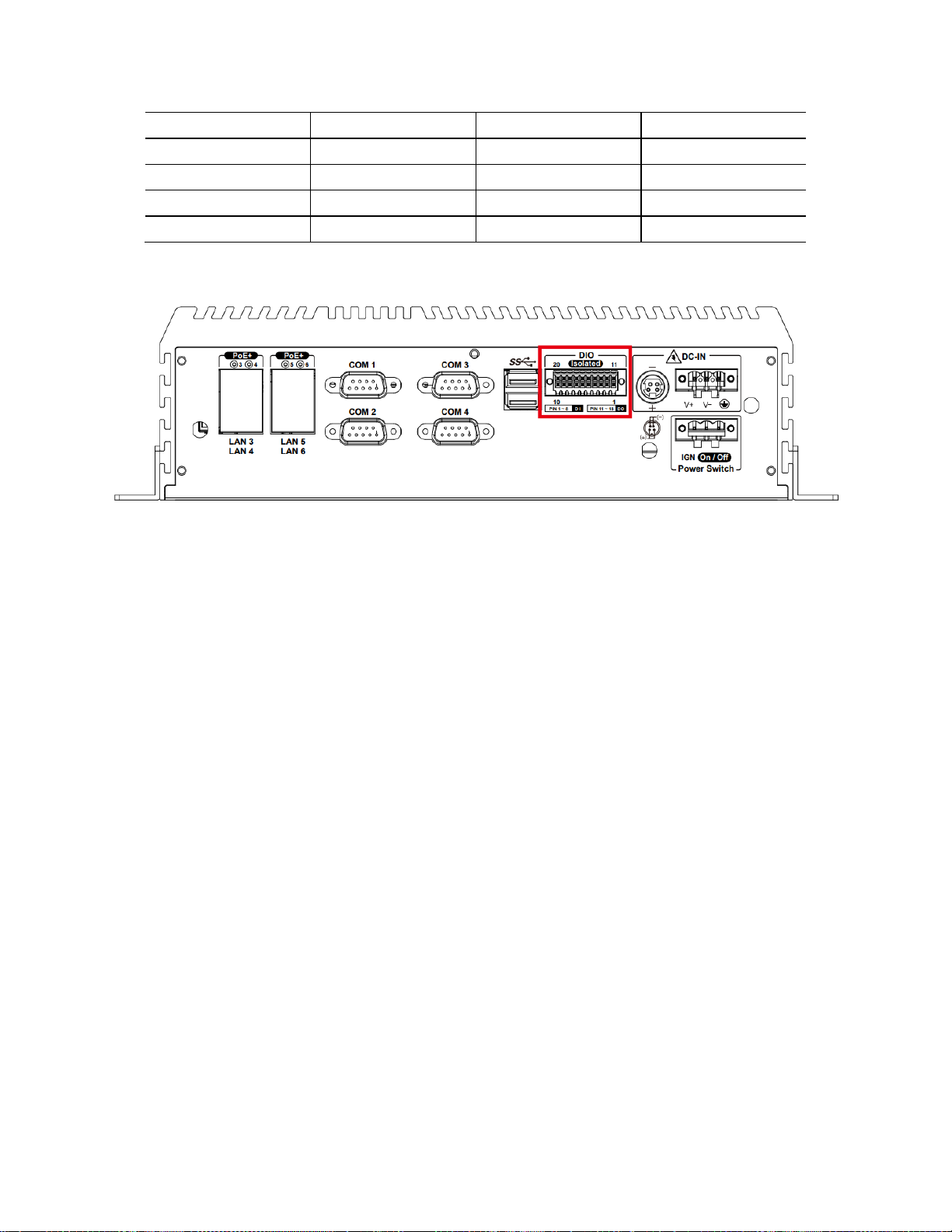

Isolated DIO (IPC-E1s only)
There is a 16-bit (8-bit DI, 8-bit DO) DIO connector. The DI/DIO supports NPN (Sink)
and PNP (Source) mode. Each DI channel is equipped with a photocoupler for isolated
protection. Each DO has an isolator chip, configured by a jumper for each DIO
connector. DO Safety-Related Certifications:
•4242-VPK Basic Isolation per DIN V VDE V 0884-10and DIN EN 61010-1
•3-KVRMS Isolation for 1 minute per UL 1577
•CSA Component Acceptance Notice 5A, IEC 60950-1 and IEC 61010-1 End
Equipment Standards
•GB4943.1-2011 CQC Certified

DOC ID: 16001100
Page | 18
DIO connectors pin out:
DIO
Pin No.
Definition
Function
DIO
1
INPUT 0
SIO_GPI80
2
INPUT 1
SIO_GPI81
3
INPUT 2
SIO_GPI82
4
INPUT 3
SIO_GPI83
5
INPUT 4
SIO_GPI84
6
INPUT 5
SIO_GPI85
7
INPUT 6
SIO_GPI86
8
INPUT 7
SIO_GPI87
9
DI1_COM
-
10
DIO1_GND
-
11
OUTPUT 0
SIO_GPO70
12
OUTPUT 1
SIO_GPO71
13
OUTPUT 2
SIO_GPO72
14
OUTPUT 3
SIO_GPO73
15
OUTPUT 4
SIO_GPO74
16
OUTPUT 5
SIO_GPO75
17
OUTPUT 6
SIO_GPO76
18
OUTPUT 7
SIO_GPO77
19
DIO1_GND
-
20
DIO1_VDC (6~48V
Input)
-

DOC ID: 16001100
Page | 19
