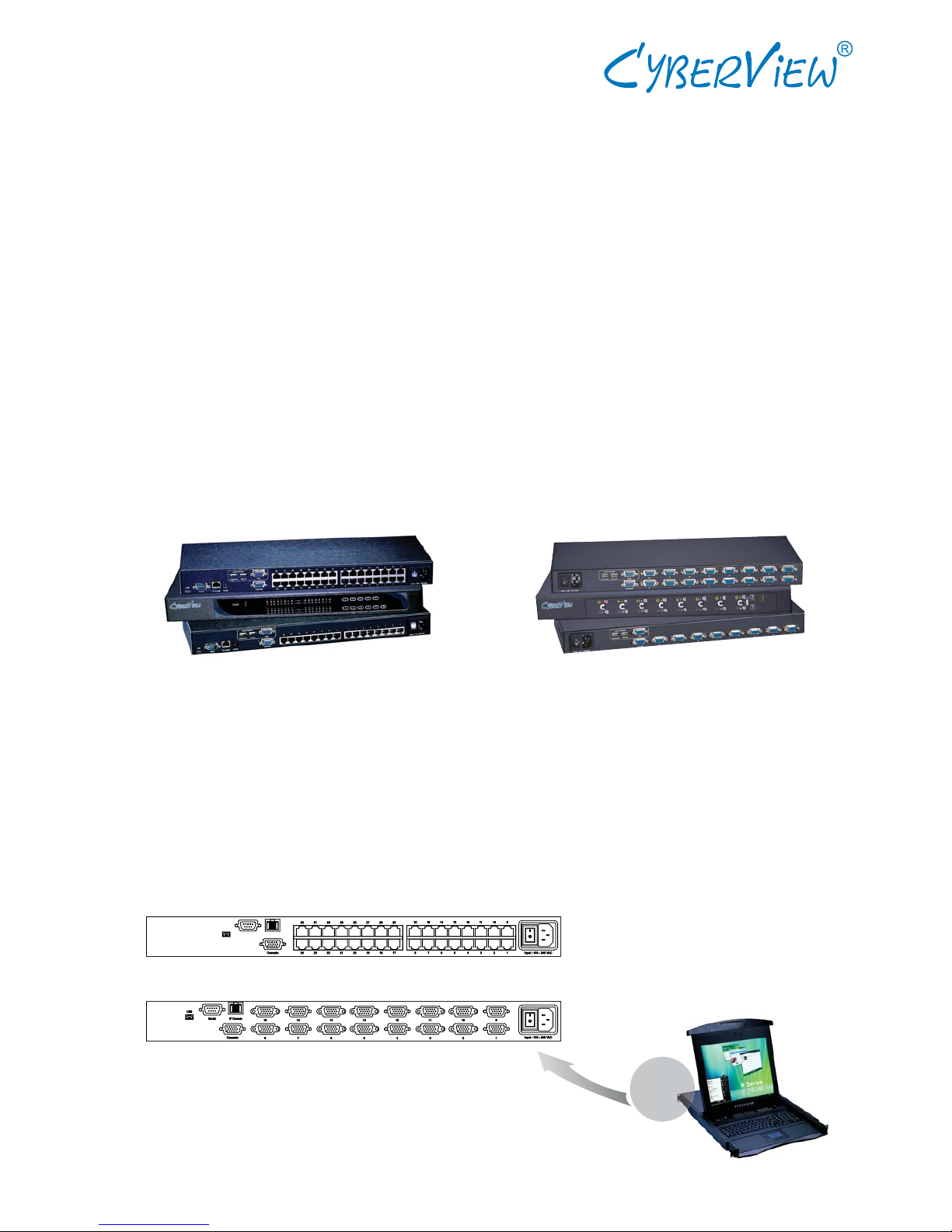

CyberView DG-100 User manual

KVM User Manual
- KVM modules for LCD keyboard drawers
- Rackmount KVM switches
Cat5
DB-15
Cat5
DB-15
back

Chapter 2 How to Connect Cat5 KVM Switches
2.1 U-1601 / U-3201 Cat5 Single Console KVM.....................5-7
2.2 U-1602 / U-3202 Cat5 Two Console KVM......................8-11
2.3 UIP-1602 / UIP-3202 IP Cat5 KVM.................................12-14
2.4 DG-100 / DG-100S Dongle Connections.............................15
Chapter 3 How to Use Cat5 KVM Switches
3.1 KVM Membrane...........................................................................16
3.2 Password......................................................................................17
3.3 KVM OSD.....................................................................................18
3.4 KVM Hotkey..........................................................................19
3.5 UIP-1602 / U-3202 IP Remote Setup.............................20-21
Chapter 4 Optional Specification
4.1 Optional Accessories......................................................22
4.2 DC Power 12V, 24V, 48V Input.......................................23
Chapter 5 Specifications...................................................................24-26
Contents
Part 1 Cat5 KVM
Chapter 1 Getting Started
1.1 Important Safeguards........................................................1
1.2 Regulatory Notice..............................................................2
1.3 Before Unpacking..............................................................3
1.4 Unpacking.........................................................................3
1.5 Installation........................................................................4

Part 2 DB-15 KVM
Chapter 6 How to Connect DB-15 KVM Switches
6.1 CV-401 / CV-801 / CV-1601 PS/2 DB-15 KVM..............27-29
6.2 CV-S801 / CV-S1601 USB DB-15 KVM...........................30-32
6.3 CV-802 / CV-1602 Two Console DB-15 KVM.................33-36
6.4 IP-802 / IP-1602 IP DB-15 KVM.........................................37-39
Chapter 7 How to Use DB-15 KVM Switches
7.1 KVM Membrane.............................................................................40
7.2 Password..................................................................................41-43
7.3 KVM OSD..................................................................................44-46
7.4 KVM Hotkey......................................................................47-48
7.5 IP-802 / IP-1602 IP Remote Setup.................................49-50
Chapter 8 Optional Specification
8.1 Optional Accessories........................................................51
8.2 DC power 12V, 24V, 48V Input..........................................52
Chapter 9 Specifications.....................................................................53-56
Chapter 10 FAQ and Troubleshooting........................................57-59

1.1 Important Safeguards Chapter 1
P. 1
Please read all of these instructions carefully before you use the device. Save this manual for future
reference.
What the warranty does not cover
■Any product, on which the serial number has been defaced, modified or removed.
■Damage, deterioration or malfunction resulting from:
□Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modifi
cation, or failure to follow instructions supplied with the product.
□Repair or attempted repair by anyone not authorized by us.
□Any damage of the product due to shipment.
□Removal or installation of the product.
□Causes external to the product, such as electric power fluctuation or failure.
□Use of supplies or parts not meeting our specifications.
□Normal wear and tear.
□Any other causes which does not relate to a product defect.
■Removal, installation, and set-up service charges.

P. 2
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is
given to the correctness of the contents. The information in this document is subject to change without no-
tice. We are not liable for any injury or loss that results from the use of this equipment.
Safety Instructions
■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned envi-
ronment with temperatures not exceeding 40º Celsius (104º Fahrenheit).
■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and
causing damage to other equipment or injury to persons nearby.
■When the drawer is in an open position, do not cover, block or in any way obstruct the gap between it
and the power supply. Proper air convection is necessary to keep it from overheating.
■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage
and current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be
higher than the one listed on the equipment’s ratings label.
■Observe all precautions and warnings attached to the equipment.
■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent
being damaged by transient over-voltage.
■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid
spilled on to the power supply or on other hardware may cause damage, fire or electrical shock.
■Only qualified service personnel should open the chassis. Opening it yourself could damage the equip-
ment and invalidate its warranty.
■If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service
personnel.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interfer-
ence in a residential installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equip-
ment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the follow-
ing measures:
■Re-position or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
1.2 Regulatory Notice Chapter 1

■It is very important to locate the KVM in a suitable environment.
■The surface for placing and fixing the KVM should be stable and level or mounted into a suitable cabinet.
■Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust,
dirt, heat, water, moisture and vibration.
■Position LCD Keyboard Drawer with respect to related facilities.
The KVM comes with the standard parts shown in chapter 2 & 6. Check and make sure they are included
and in good condition. If anything is missing, or damage, contact the supplier immediately.
1.4 Unpacking
1.3 Before Installation Chapter 1
P. 3

P. 4
1.5 Installation Chapter 1
C
e
b
yr
V
e
iw
C
e
b
yr
V
ei w
■Install each bracket using screws pro-
vided shown in Figure 1.
■Fix the KVM into the rack
* Hardware for fixing the mounting bracket
to the rack is not provided

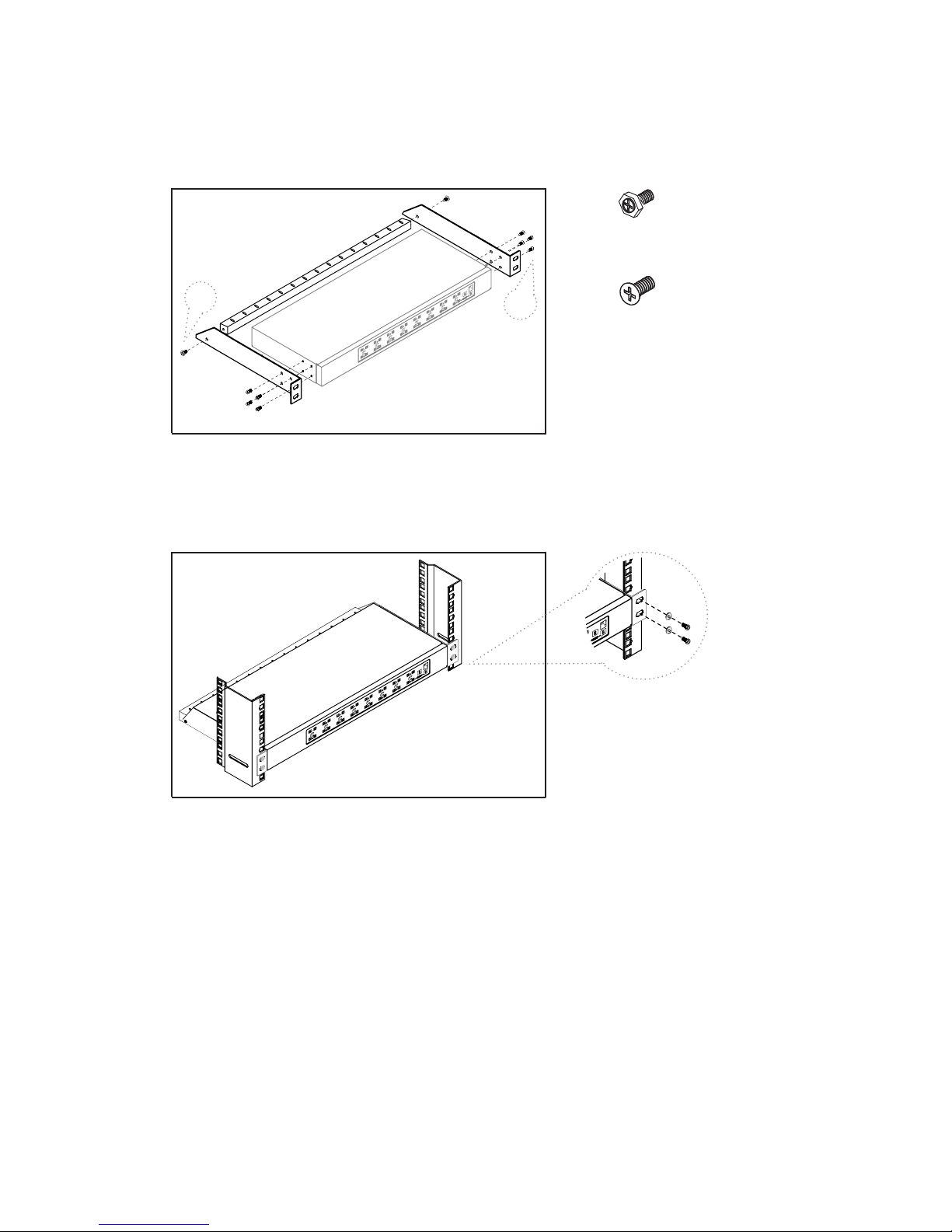

Figure 1. Installing the bracket to the KVM.
Figure 2. Fixing the KVM into the rack.
AB
screw A: M3.2 x 4.5 mm
screw B: M4 x 10 mm

P. 5
2.1 U-1601 / U-3201 Cat5 Single Console KVM Chapter 2

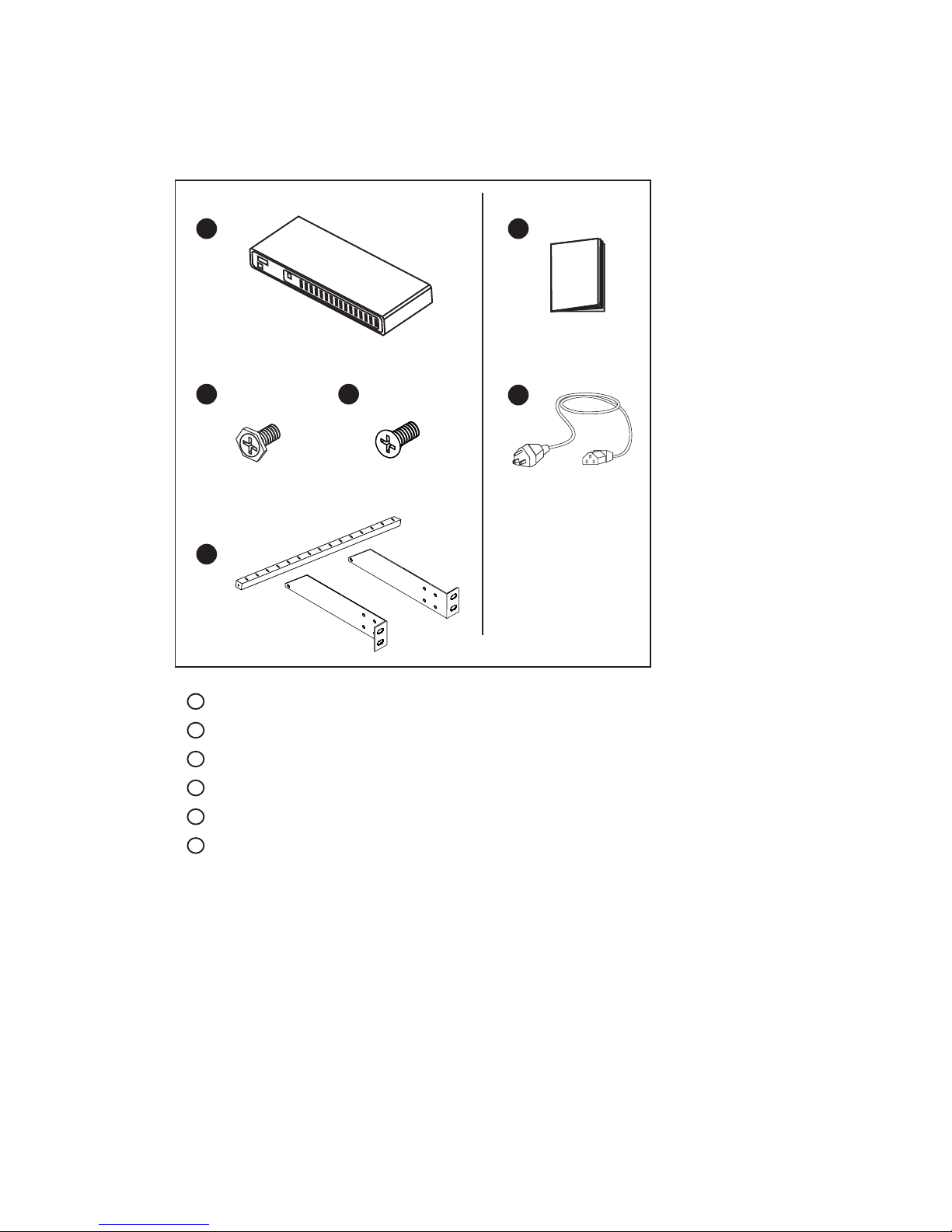

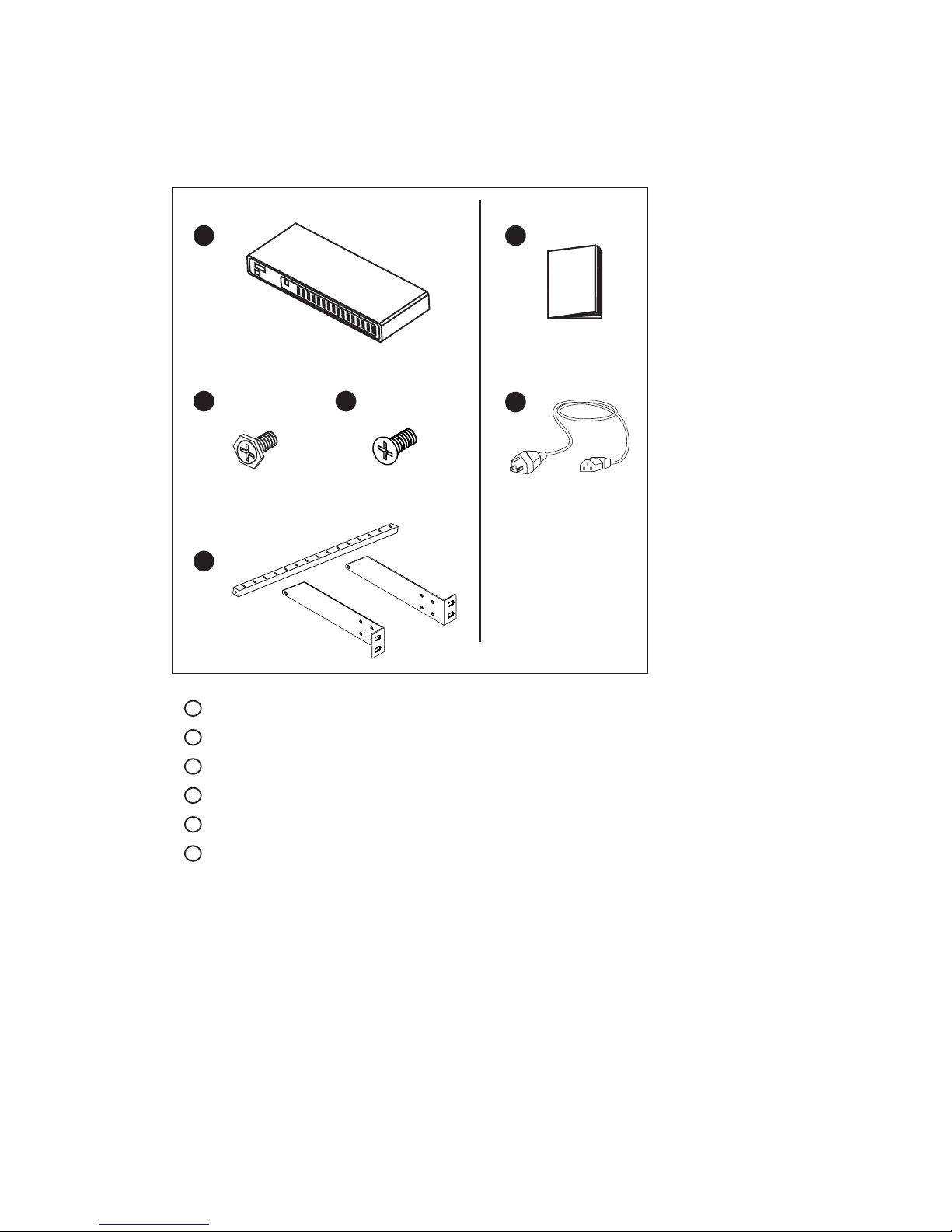

Package Content (only for rackmount KVM)
KVM switch x 1 pc
Screw M3.2 x 4.5mm x 4 pcs
Screw M4 x 10mm x 8 pcs
Bracket x 1 set
User manual x 1 pc
Power cord x 1 pc
5
4
2
6
1
3
User
Manual
1
6
5
4
32

P. 6

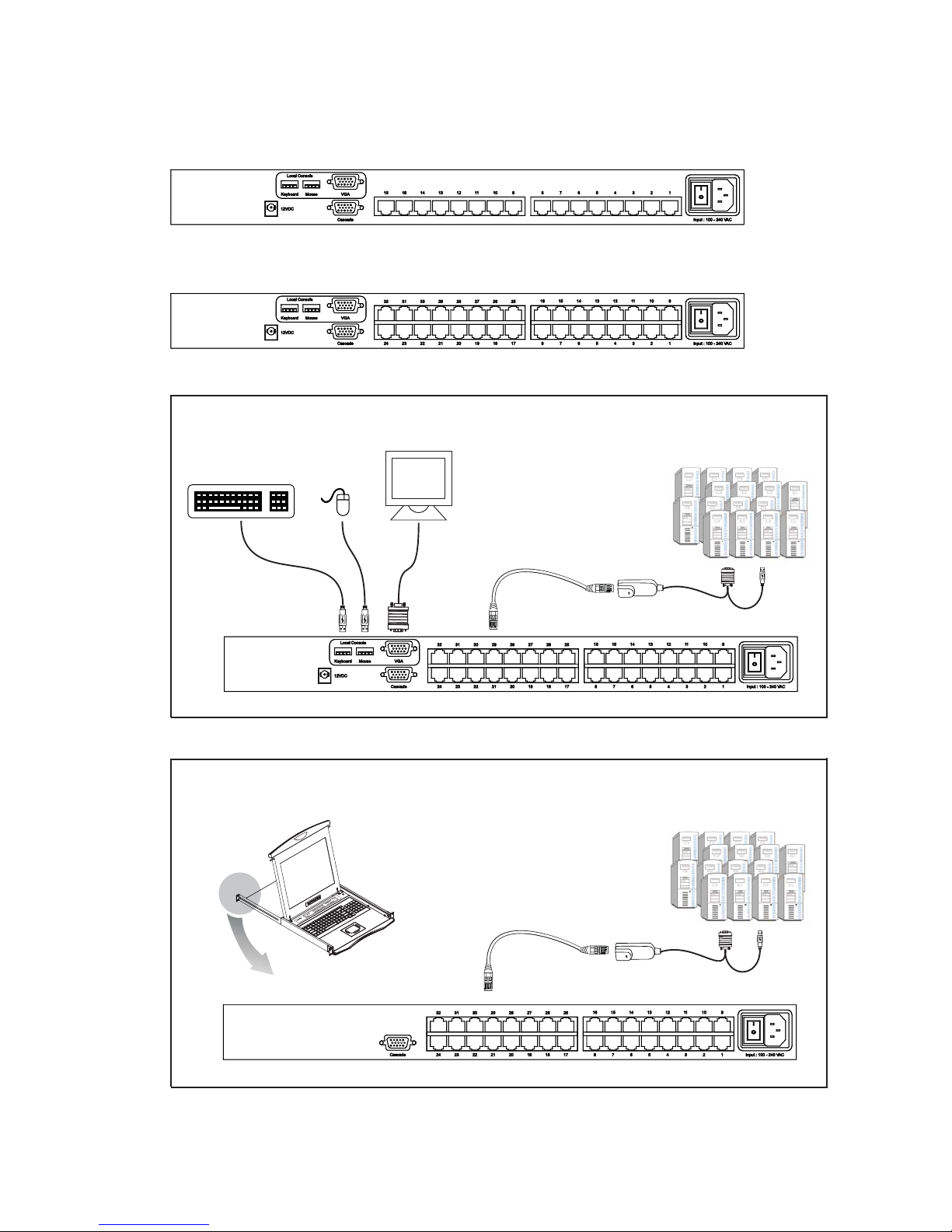

2.1 U-1601 / U-3201 Cat5 Single Console KVM Chapter 2
U-1601
U-3201
Local Console
Cascade
Connection
Dual power
with failover
Connection
Rackmount KVM
DG-100S dongle
Connection
KVM modules
DG-100S dongle
Cat5 cable
(up to 132 ft)
Cat5 cable
(up to 132 ft)
back

2.1 U-1601 / U-3201 Cat5 Single Console KVM Chapter 2
P. 7
Local Console
CBC-6 cascade cable
Bank 2
Bank 1
Bank 8
Cascade
Cascade
■With the U-1601 cascade up to 128 servers. With the U-3201 cascade up to 256 servers.
■Cascading multiple KVM by CBC-6 cable
Cascade
standalone KVM
Local Console
CBC-6 cascade cable
Bank 2
Bank 1
Bank 8
Cascade
Cascade
KVM modules
back

2.2 U-1602 / U-3202 Cat5 Two Console KVM Chapter 2
P. 8
KVM switch x 1 pc
Screw M3.2 x 4.5mm x 4 pcs
Screw M4 x 10mm x 8 pcs
Bracket x 1 set
Receiver x 1 pc
User manual x 1 pc
9V Power adapter for receiver x 1 pc
Power cord x 1 pc
CB-6 2-in-1 USB KVM cable x 1 pc
5
4
2
6
1
3
9
8
7
User
Manual
1 65
4
32 7 8
9
Cat.5 Remote Console
Remote I/OLocal Computer
KeyboardMouseRemoteLocal
Console
Select
VGA9VDC
500mA

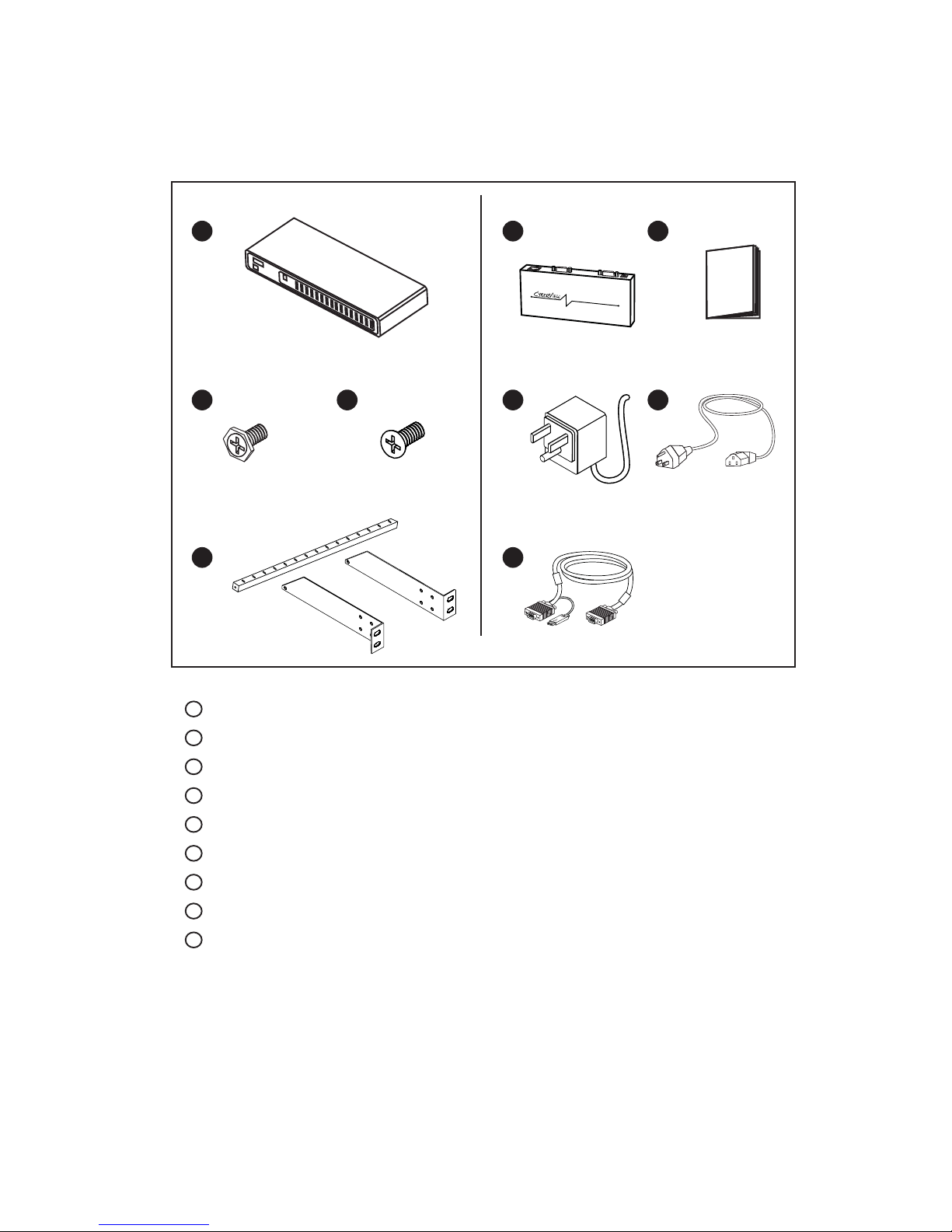

Package Content (only for rackmount KVM)

P. 9

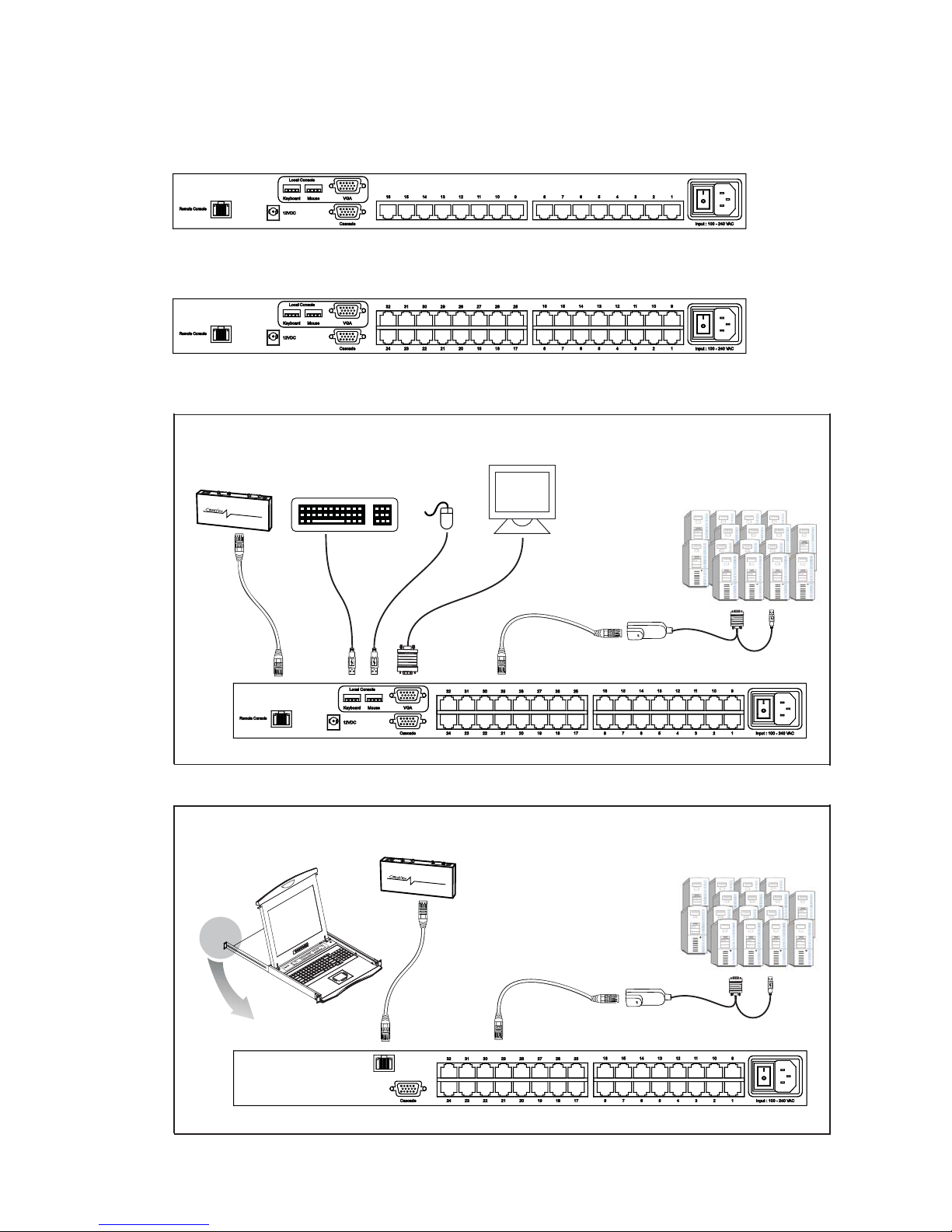

U-1602
U-3202
Local Console
Cascade
Cat.5RemoteConsole
RemoteI/OLocalComputer
KeyboardMouseRemoteLocal
Console
Select
VGA9VDC
500mA
Receiver
Dual power
with failover
2.2 U-1602 / U-3202 Cat5 Two Console KVM Chapter 2
Connection
Cat5 cable
(up to 132 ft)
DG-100S dongle
DG-100S dongle
Cat5 cable
(up to 1,000 ft)
Cat5 cable
(up to 132 ft)
Remote
console
Connection
Rackmount KVM
Connection
KVM modules
back
Cat.5RemoteConsole
RemoteI/OLocalComputer
KeyboardMouseRemoteLocal
Console
Select
VGA9VDC
500mA
Receiver

Receiver Connection
Keyboard Mouse
Console
LEDs
Console
Select
9VDC VGA Local Computer Remote
I/O
Front View Rear View
9V DC Power
Adapter
U-1602 / U-3202
Monitor
CB-6 KVM cable
USB
P. 1 0
Cat5 cable
up to 1,000 ft
2.2 U-1602 / U-3202 Cat5 Two Console KVM Chapter 2
Receiver
Receiver Box

2.2 U-1602 / U-3202 Cat5 Two Console KVM Chapter 2
P. 11

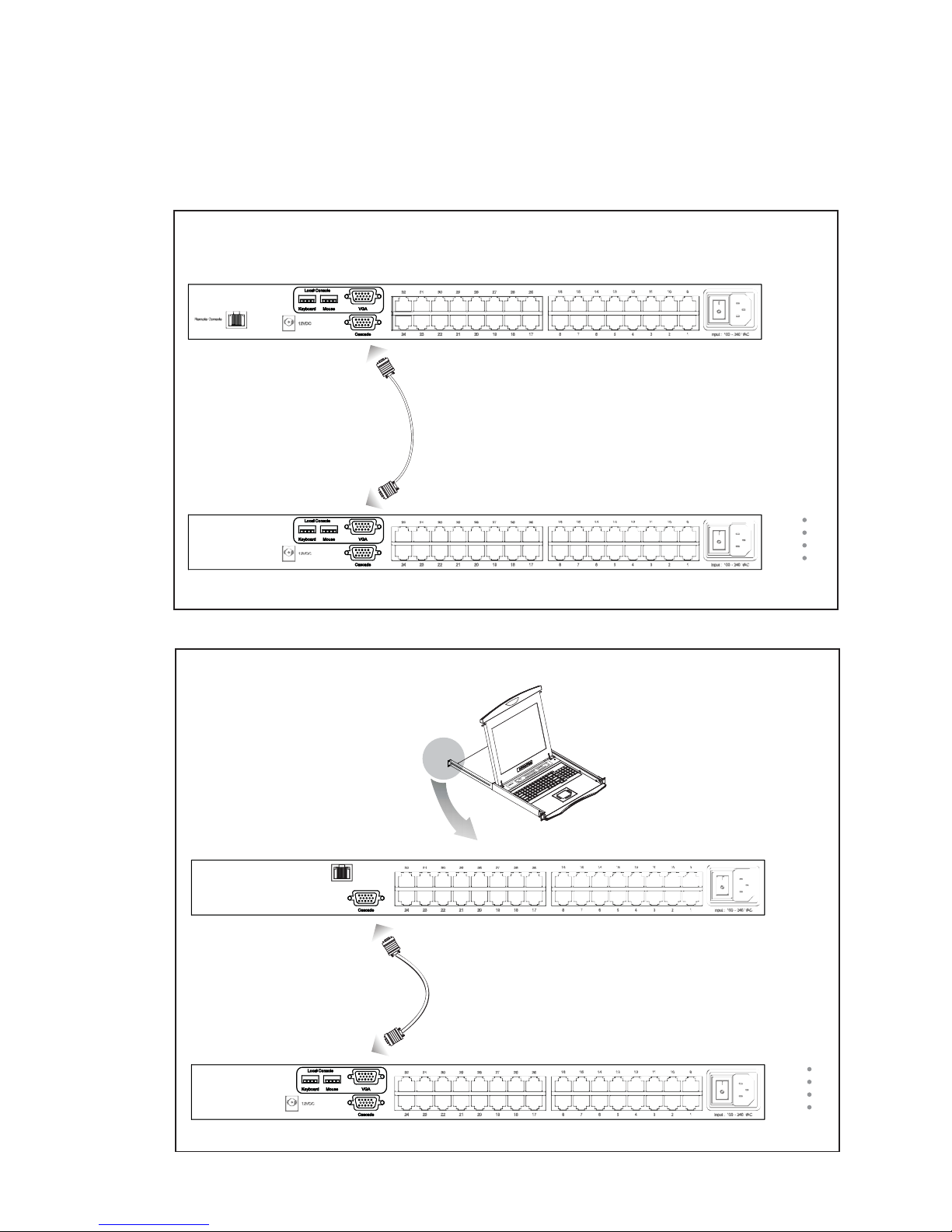

Cascade
■Cascaded KVM ( Bank 2 to 8 ) must be single console Cat5 KVM - U-1601 / U-3201
■Cascading multiple KVM by CBC-6 cable
■With the U-1602 cascade up to 128 servers. With the U-3202 cascade up to 256 servers.
Local Console
Bank 1
CBC-6 cascade cable
Cascade
Local Console
CBC-6 cascade cable
Bank 2
Bank 1
Bank 8
Cascade
Bank 2
Bank 8
back
Cascade
Rackmount KVM
Cascade
KVM modules
U-3202 Cat5 two console KVM
U-3201 Cat5 single console KVM
U-3202 Cat5 two console KVM
U-3201 Cat5 single console KVM

P. 1 2
2.3 UIP-1602 / UIP-3202 IP Cat5 KVM Chapter 2
Package Content (only for rackmount KVM)
KVM switch x 1 pc
Screw M3.2 x 4.5mm x 4 pcs
Screw M4 x 10mm x 8 pcs
Bracket x 1 set
User manual x 2 sets (KVM x 1 set ; IP KVM + CD disc x 1 set)
Power cord x 1 pc
5
4
2
6
1
3
User
Manual
1
6
5
4
32

P. 1 3
UIP-1602
UIP-3202
Local
Console
Cascade
Internet hub
Dual power
with failover
2.3 UIP-1602 / UIP-3202 IP Cat5 KVM Chapter 2
Connection
Cat5 cable
(up to 132 ft)
DG-100S dongle
DG-100S dongle
Cat5 cable
Cat5 cable
(up to 132 ft)
Cat5 cable
USB Serial Ethernet
Connection
Rackmount KVM
Connection
KVM modules
back
■For USB & serial connection, please refer to the attached IP KVM user manual
Internet hub

P. 1 4
Cascade
■Cascaded KVM ( Bank 2 to 8 ) must be single console Cat5 KVM - U-1601 / U-3201
■With the UIP-1602 cascade up to 128 servers. With the UIP-3202 cascade up to 256 servers.
■Cascading multiple KVM by CBC-6 cable
2.3 UIP-1602 / UIP-3202 IP Cat5 KVM Chapter 2
Local Console
Bank 1
CBC-6 cascade cable
Cascade
Local Console
CBC-6 cascade cable
Bank 2
Bank 1
Bank 8
Cascade
Bank 2
Bank 8
back
Cascade
Rackmount KVM
Cascade
KVM modules
UIP-3202 IP Cat5 KVM
U-3201 Cat5 single console KVM
UIP-3202 IP Cat5 KVM
U-3201 Cat5 single console KVM

2.4 DG-100 / DG-100S Dongle Connection Chapter 2
DG-100 PS/2 dongle
■To connect DB-15 connector to the computer’s video card
■To connect keybaord connector to the computer’s keyboard port
■To connect mouse connector to the computer’s mouse port
Keyboard
mouse
DB-15
Cat5 KVM switch
DG-100S USB dongle
■To connect DB-15 connector to the computer’s video card
■To connect USB connector to the computer’s USB port
USB
DB-15
P. 1 5
DG-100
PS/2 dongle
Cat5 cable
(up to 132 ft)
PS/2
server
USB
server
Cat5 KVM switch
DG-100S
USB dongle
Cat5 cable
(up to 132 ft)

3.1 KVM Membranes Chapter 3
Power ON
■Turn off all servers and KVM switches
■Make sure all cables / connectors are properly connected
■Recommend Power ON sequence is monitor, KVM switch finally computer
16 ports
32 ports
Bank no. PC port LEDs Channel
button
Bank
button
Bank no. 7-Segment BANK LED indication
PC port LEDs Power : Orange LED on indicating a PC is connecting to the port
Access : Red LED on indicating a selected channel
Channel button Press to select channel from 01 to 32
Bank button Select the bank from 1 to 8
P. 1 6
Front Panel - Port LED Indications

3.2 Password Chapter 3
The password is disabled by default ( i.e. There is no password required when you power on the KVM switch
for the first time)
■Enable password
1. Press the KVM hotkey Scroll Lock + Scroll Lock + U
2. Logout the KVM by pressing the hotkey Scroll Lock + Scroll Lock + P
3. In SUPERVISOR level, enter “00000000” eight zeros in user name & password field
(Do not use “0” on number pad)
4. In USER level, press Space bar + Enter in user name & password field
Remark: Automatic logout after 10 minutes of inactivity
■Set your own user name & password
1. Login the KVM in SUPERVISOR level by pressing “00000000” eight zeros in user name & password
field
2. Call KVM OSD menu by pressing the KVM hotkey Scroll Lock + Scroll Lock + Space Bar
3. Press F1 to the MAIN MENU
4. Select “USER SECURITY”
5. Set password in SUPERVISOR & USER level
a. In the left-top row “S” (SUPERVISOR), press Enter to set your own user name & password
b. In the row 1 to 8 (USER), press Enter to set your own user name & password
6. Press Enter to save the setting or press Esc to cancel the editing without any change
Remark: a. Blank has underscore, while SPACE doesn’t have
b. Press any alphanumeric key to move to next input item. SPACE is treated as a valid
character
■Change your password
1. Login the KVM in SUPERVISOR level by pressing your own user name & password
2. Call KVM OSD menu by pressing the KVM hotkey Scroll Lock + Scroll Lock + Space Bar
3. Press F1 to the MAIN MENU
4. Select “USER SECURITY”
5. Change password in SUPERVISOR & USER level
a. In the left-top row “S” (SUPERVISOR), press Enter to change your user name & password
b. In the row 1 to 8 (USER), press Enter to change your user name & password
6. Press Enter to save the setting or press Esc to cancel the editing without any change
Remark: a. Blank has underscore, while SPACE doesn’t have
b. Press any alphanumeric key to move to next input item. SPACE is treated as a valid
character
■Disable your password
1. Press the KVM hotkey Scroll Lock + Scroll Lock + U
2. Logout the KVM by pressing the KVM hotkey Scroll Lock + Scroll Lock + P
3. You don’t need user name & password to access the KVM OSD menu
■Forget your password
Please contact your supplier for further support
Remark:
■You must press the KVM hotkey within 2 seconds
■A beep sound will be heard for successful entering KVM hotkey
P. 1 7
