CyberView IP-802 User manual

Installation
C
e
b
yr
V
e
iw
C
e
b
yr
V
ei w
■Install each bracket using screws pro-
vided shown in Figure 1.
■Fix the KVM into the rack
* Hardware for fixing the mounting bracket
to the rack is not provided
Figure 1. Installing the bracket to the KVM.
Figure 2. Fixing the KVM into the rack.
AB
screw A: M3.2 x 4.5 mm
screw B: M4 x 10 mm

IP-802 / IP-1602 Combo DB-15 IP KVM

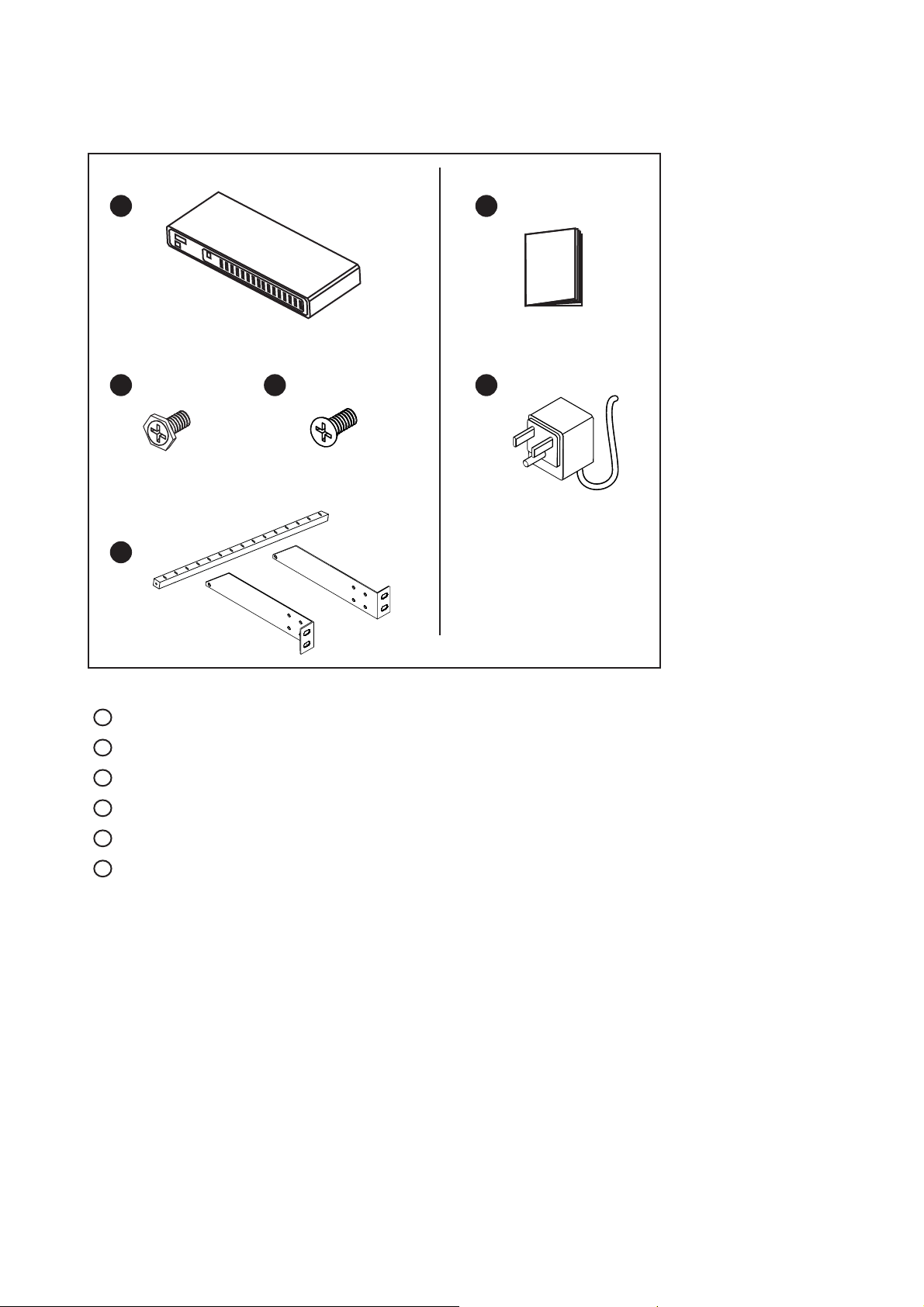

Package Content (only for rackmount KVM)
KVM switch x 1 pc
Screw M3.2 x 4.5mm x 4 pcs
Screw M4 x 10mm x 8 pcs
Bracket x 1 set
User manual x 2 pcs
12V Power adapter x 1 pc
5
4
2
6
1
3
User
Manual
1 5
4
32 6

IP-802 / IP-1602 Combo DB-15 IP KVM

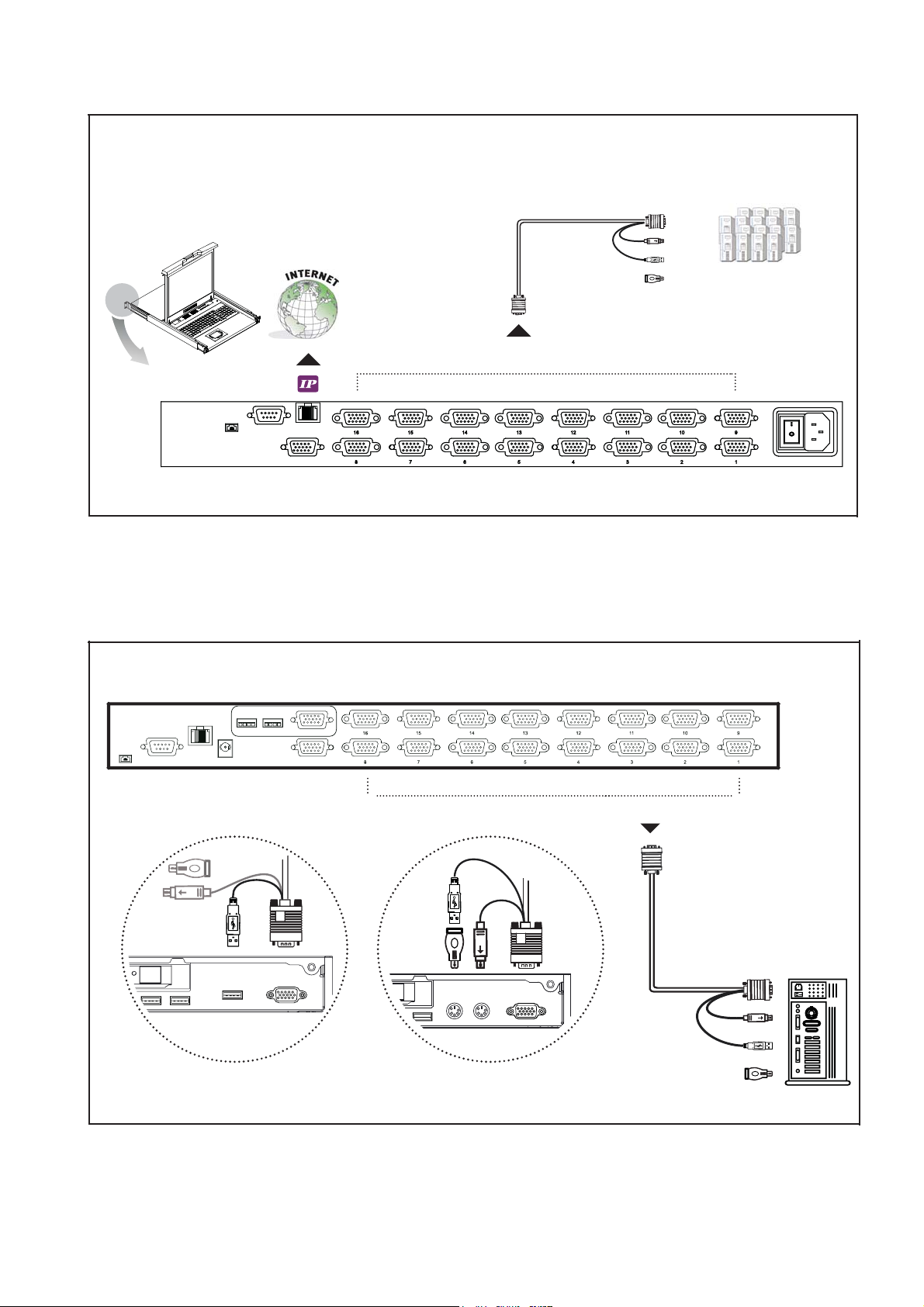

Connection
Connection
Rackmount KVM
IP-802
IP-1602
Local USB
Console
IP Console Power
Power
Cascade
Cascade
Local USB
Console
IP Console
Local USB
Console
Cascade
Servers
CE cable supports PS/2 or
USB interface server
DB-15 KVM port

IP-802 / IP-1602 Combo DB-15 IP KVM
Connection
KVM modules
CE-6 KVM cable
USB server via CE-6 PS/2 server via CE-6
Connection
CE-6
DB-15 KVM port
VGAKB MS
VGAUSB
Cascade
Power
back Servers
CE cable supports PS/2 or
USB interface server
DB-15 KVM port

Cascade
CV-S1601
CV-S801
U-1601
U-3201
Cascade
Local USB
Console
IP-802 / IP-1602 Combo DB-15 IP KVM

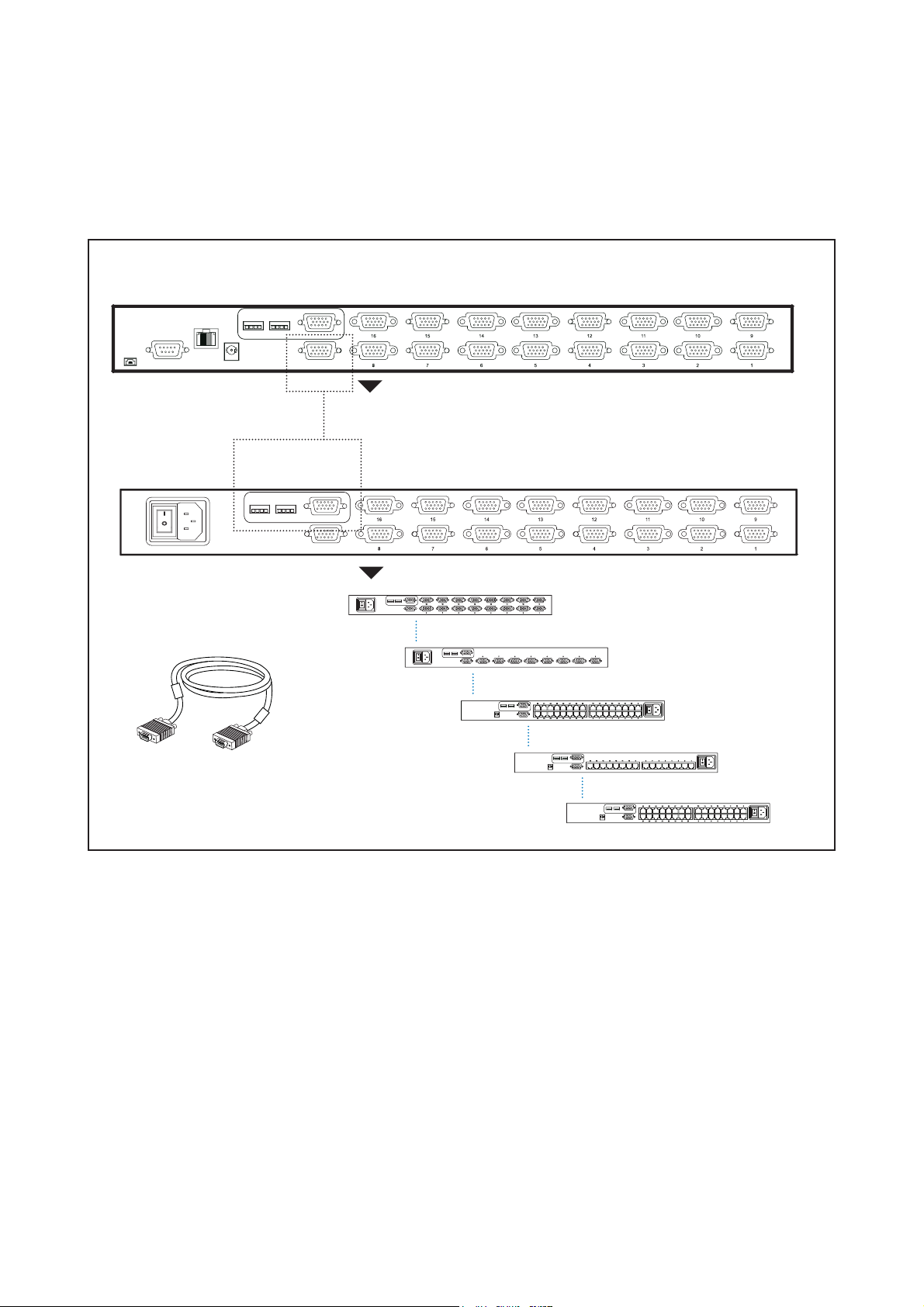

Cascade
■Cascade up to 8 levels, 128 servers
■Interconnection with Combo Cat6 KVM
■Cascading multiple KVM by CBC-6 cable.
Cascade
Rackmount KVM
CBC-6 cable
CBC-6 cable
CBC-6 cable
IP-1602
CV-S1601
CBC-6

IP-802 / IP-1602 Combo DB-15 IP KVM
Cascade
■Cascade up to 8 levels, 128 servers
■Interconnection with Combo Cat6 KVM
■Cascading multiple KVM by CBC-6 cable.
Cascade
KVM modules
CBC-6 cable
CBC-6 cable
CBC-6 cable
IP-1602 KVM module
CV-S1601
CBC-6
back
Cascade
Cascade
CV-S1601
CV-S801
U-1601
U-3201
Local USB
Console

IP-802 / IP-1602
▀KVM Port
Number of ports: 8 or 16
Connector: DB-15 combo connector
Connectivity: Combo 4-in-1 KVM cable, up to 6, 10 & 15 feet
▀Local Console
Graphic connector: 1 x DB-15 VGA
Resolution: Up to 1600 x 1200
Input device: 2 x USB type A for keyboard & mouse
▀IP Remote Console
Connector: RJ45 Ethernet
User management: 15-user login, 1 x active user
Network protocol: DHCP / BOOTP / DNS
Security: SSL v3, RSA, AES, HTTP / HTTPs, CSR
Resolution: Up to 1600 x 1200
Browser: IE, Firefox, Safari, Netscape
Others: Serial port, virtual media via USB
▀Expansion: Up to 128 servers by 8-level cascade
▀Compatibility
Multi-platform: Mix PCs, SUNs, IBMs, HPs, DELLs Server
Support: Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix
▀Power
Input: 100 or 240V AC at 50 or 60 Hz via IEC type cord OR
AC / DC power adapter [email protected] (optional)
Option DC: 12V / 24V / 48V DC input
Consumption: Max. 24 Watt, Standby 5 Watt
▀Regulatory Approval: FCC, CE
▀Environmental
Operating: 0 to 50°C
Storage: -5 to 60°C
Relative humidity: 90%, non-condensing
Shock: 50G peak acceleration (11ms, half-sine wave)
Vibration: 58~100Hz / 0.98G (11ms / cycle)
▀Product Information
Dimension (W x D x H): 446 x 180 x 44 mm / 17.6 x 7.1 x 1.73 inch
Net weight: IP-802: 4.5 kg / 10 lb, IP-1602: 5 kg / 11 lb
▀Packing Information
Dimension (W x D x H): 510 x 400 x 77 mm / 20.1 x 15.7 x 3 inch
Gross weight: IP-802: 5.5 kg / 12 lb, IP-1602: 6 kg / 13 lb
Specifications Combo DB-15 IP KVM

KVM Button Combo KVM Usage
Power ON
■Turn off all servers and KVM switches
■Make sure all cables / connectors are properly connected
■Recommend Power ON sequence is monitor, KVM switch finally computer
Bank no. 7-Segment BANK LED indication
PC port LEDs Power : Orange LED on indicating a PC is connecting to the port
Access : Red LED on indicating a selected channel
Channel button Press to select channel from 01 to 16
Bank button Select the bank from 1 to 8
Front Panel - Port LED Indications
8 ports
Bank no. PC port LEDs Channel
button
Bank
button
16 ports
BANK
BANK

Password Combo KVM Usage
The password is disabled by default ( i.e. There is no password required when you power on the KVM switch
for the first time)
■Enable password
1. Press the KVM hotkey Scroll Lock + Scroll Lock + U
2. Logout the KVM by pressing the hotkey Scroll Lock + Scroll Lock + P
3. In SUPERVISOR level, enter “00000000” eight zeros in user name & password field
(Do not use “0” on number pad)
4. In USER level, press Space bar + Enter in user name & password field
Remark: Automatic logout after 10 minutes of inactivity
■Set your own user name & password
1. Login the KVM in SUPERVISOR level by pressing “00000000” eight zeros in user name & password
field
2. Call KVM OSD menu by pressing the KVM hotkey Scroll Lock + Scroll Lock + Space Bar
3. Press F1 to the MAIN MENU
4. Select “USER SECURITY”
5. Set password in SUPERVISOR & USER level
a. In the left-top row “S” (SUPERVISOR), press Enter to set your own user name & password
b. In the row 1 to 8 (USER), press Enter to set your own user name & password
6. Press Enter to save the setting or press Esc to cancel the editing without any change
Remark: a. Blank has underscore, while SPACE doesn’t have
b. Press any alphanumeric key to move to next input item. SPACE is treated as a valid
character
■Change your password
1. Login the KVM in SUPERVISOR level by pressing your own user name & password
2. Call KVM OSD menu by pressing the KVM hotkey Scroll Lock + Scroll Lock + Space Bar
3. Press F1 to the MAIN MENU
4. Select “USER SECURITY”
5. Change password in SUPERVISOR & USER level
a. In the left-top row “S” (SUPERVISOR), press Enter to change your user name & password
b. In the row 1 to 8 (USER), press Enter to change your user name & password
6. Press Enter to save the setting or press Esc to cancel the editing without any change
Remark: a. Blank has underscore, while SPACE doesn’t have
b. Press any alphanumeric key to move to next input item. SPACE is treated as a valid
character
■Disable your password
1. Press the KVM hotkey Scroll Lock + Scroll Lock + U
2. Logout the KVM by pressing the KVM hotkey Scroll Lock + Scroll Lock + P
3. You don’t need user name & password to access the KVM OSD menu
■Forget your password
Please contact your supplier for further support
Remark:
■You must press the KVM hotkey within 2 seconds
■A beep sound will be heard for successful entering KVM hotkey

OSD operation
next to the system name The PC is powered on
next to the system name The PC is selected
F1 Access F1 MAIN MENU
F2 Logout the OSD menu
F3 Previous menu
Esc Cancel / Quit
Enter Complete / Switch to selected port
Switch to previous or next port
PgUp/PgDn Switch to previous bank or next bank
1 / 2 / 3 / 4 Display port 01 ~ 08 / 09 ~ 16 / 17 ~ 24 / 25 ~ 32
Remark: Display port 17 ~ 32 for 32 port model only
KVM OSD Combo KVM Usage
OSD Menu
F1 Main Menu
01 LANGUAGE OSD language change
02 PORT NAME EDIT Define port name
03 PORT SEARCH Quick searching by port name
04 USER SECURITY Change password
05 ACCESS LIST Define user access authority
06 HOTKEY Change hotkey
07 TIME SETTINGS Modify scan display time interval
08 OSD MOUSE Modify OSD mouse speed

KVM Hotkey Combo KVM Usage
Hotkey Function
Scroll Lock + Scroll Lock + Space Bar Calling OSD menu
Right-button mouse + Esc Calling OSD menu
Scroll Lock + Scroll Lock + Switch to previous port
Scroll Lock + Scroll Lock + Switch to next port
Scroll Lock + Scroll Lock + PgUp / PgDn Switch to previous bank or next bank
Scroll Lock + Scroll Lock + Bank no. + Port no. Switch to specific port
Scroll Lock + Scroll Lock + BTurn the buzzer ON and OFF
* Default the buzzer is ON
Scroll Lock + Scroll Lock + PLogout the KVM if password security is
ON. Show up the status windows
Advance hotkeys (for Supervisor login only)
Scroll Lock + Scroll Lock + S
Activate auto-scan mode for connected
servers
*Press any key to exit the auto-scan
mode
Scroll Lock + Scroll Lock + R
Reset all the KVM settings to factory
default
*Except User Security settings
Scroll Lock + Scroll Lock + UDisable and enable password security
*Default security is OFF
Scroll Lock + Scroll Lock + L
To enable / disable the screen saving
function and 10 minutes auto-logout
*Default the screen saving is OFF
Local Console Hotkey
Hotkey Function
Caps Lock + Caps Lock + F1 Show up the Help OSD windows
Caps Lock + Caps Lock + F2 Select Hotkey
*Default is Caps Lock
Caps Lock + Caps Lock + CToggle switch between remote & local port
Caps Lock + Caps Lock + QTurn the buzzer ON & OFF
*Default the buzzer is ON
Caps Lock + Caps Lock + SActivate auto-scan mode for remote & local port
*The scan time interval is 5 seconds
Caps Lock + Caps Lock + AAuto-adjust the video signal
Remote Console Hotkey
Remarks:
■Example of “Scroll Lock + Scroll Lock + Bank no. + Port no.”
- Bank No. : 1 to 8
- Port No. : 01 to 16
- e.g. Bank 1 Port 4 : Scroll Lock + Scroll Lock + 1+ 0+ 4
- e.g. Bank 2 Port 16 : Scroll Lock + Scroll Lock + 2+ 1+ 6
■You must press the hotkey within 2 seconds
■A beep sound will be heard for successful entering
■The numeric keypad is not supported, while in OSD screen, the arrow keys, PgUp, PgDn, and Enter keys
are supports

IP Setting Combo KVM Usage
Quick Installation Guide of IP KVM for remote access
Please perform the follow steps
1. Power off all KVM hardware and connected devices.
2. Connect the power supply to IP KVM
3. Connect the monitor, keyboard & mouse to console port of IP KVM (not applicable to integrated LCD
drawer version)
4. Connect the KVM cable to IP KVM and target servers
5. Use an Ethernet cable to connect your local area network (LAN) to the IP console port on the KVM
Initial IP configuration
The factory default, DHCP mode is disable (IP auto configuration = None), and the preset default address as
below :
IP address : 192.168.1.22 (default)
Subnet-mask : 255.255.255.0
Default Gateway: None
Install the “PSetup.exe” program from the provided CD-disc to a computer which networked with IP KVM
switch, then press Refresh Devices the look for the IP-KVM.
a. Select the MAC address from label on the bottom of the IP-KVM switch
b. Click Query Device
1. Configure the IP KVM with fixed address
a. Setup “IP auto configuration” as “None”; setup IP address and Subnet mask
b. Enter Super user login and password for Authentication (default : super/pass)
c. Setup Device. If super login was authenticated, it’ll show “Successfully configured device”.
Otherwise it’ll show “Permission Denied”.
2. Configure the IP KVM with DHCP
a. Setup “IP auto configuration” as “DHCP”
b. Enter Super user login and password for Authentication (default : super/pass)
c. Setup Device. If super login was authenticated, it’ll show “Successfully configured device”.
Otherwise it’ll show “Permission Denied”.
3. Install JVM on Client system
The IP-KVM switch was remote accessed by a standard JAVA enabled web browser. The client system
must install Sun JVM 1.4.2 or above for remote access the IP KVM.
Remark:
■At a minimum, you must have Internet Explorer 6.0 or Netscape 7.0 or Molliza 1.6 (and above) installed
on your client computer.
a
b

IP Setting Combo KVM Usage
4. Remote access the IP-KVM switch via Web
Using the HTTP protocol or a secure encrypted connection via HTTPS and entering the configured IP
address of IP KVM switch into the web browser to remote access the IP KVM switch.
With successful connection to IP KVM, the login page will show as below, then key in the default user
name & password
5. After successful login to IP KVM, you will enter the main page of IP KVM as below :
Remark:
■We strongly recommend the user changes the default username and password to user specific values
■Please refer to the “IP KVM User Manual” for more detailed information about IP KVM switch.
6. Bandwidth

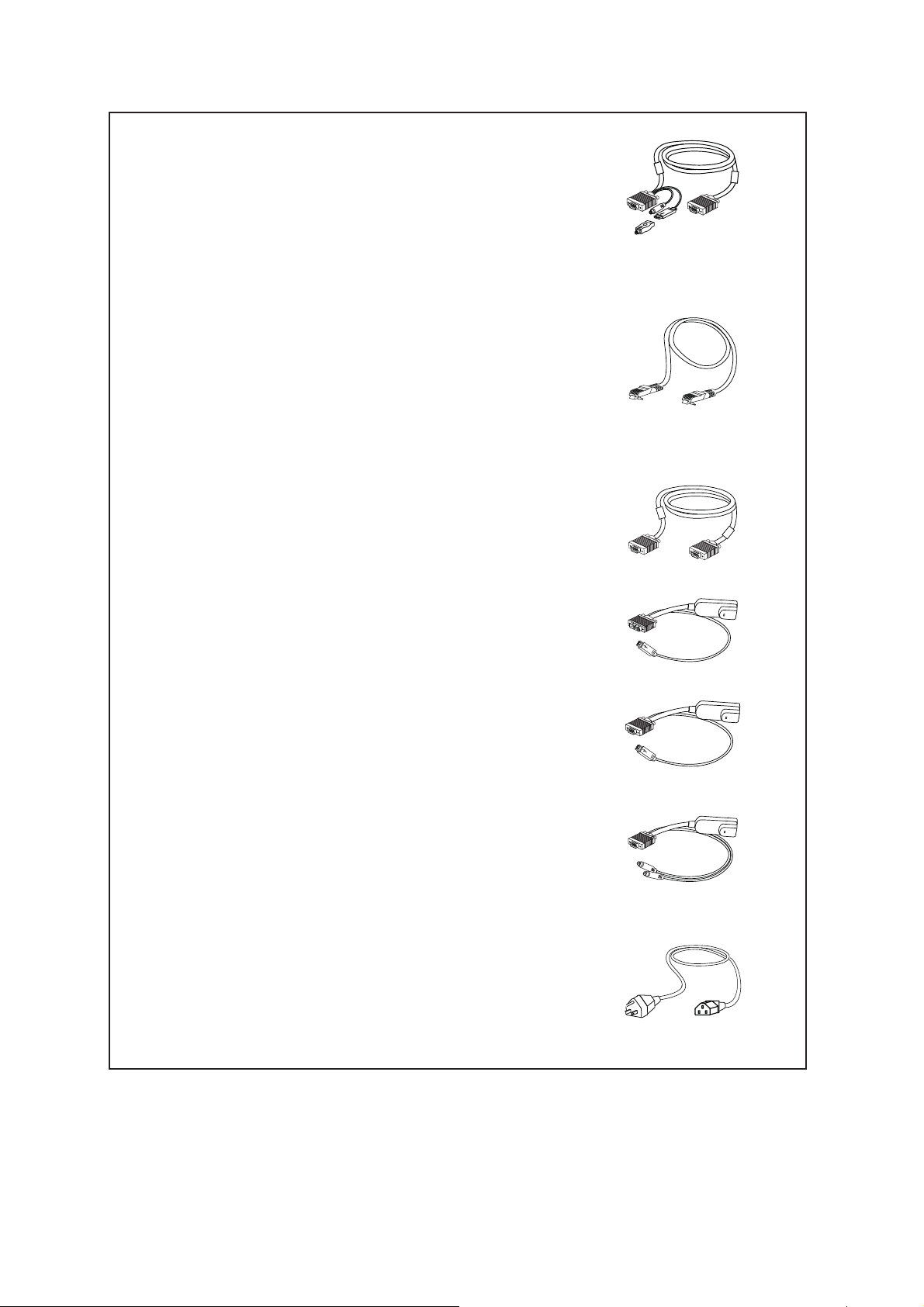

Optional Accessories Combo KVM Usage
1. Combo KVM cable
1.1 CE-6 6 feet
1.2 CE-10 10 feet
1.3 CE-15 15 feet
2. Cat5 cable
2.1 CU-3 3 feet
2.2 CU-6 6 feet
2.3 CU-10 10 feet
2.4 CU-15 15 feet
2.5 CU-33 33 feet
2.6 CU-66 66 feet
3. Combo KVM cascade cable
3.1 CBC-6 6 feet
4. DVI-USB Dongle
4.1 DG-100SD DVI-D
5. VGA-USB Dongle
5.1 DG-100S USB
6. VGA-PS/2 Dongle
6.1 DG-100 PS/2
7. Power cord
7.1 IEC power cord
7.2 NEMA 5-15 power cord (US)
7.3 BS 1363 power cord (UK)
7.4 CEE 7/4 power cord (German)
7.5 AS 3112 power cord (Australia)

DC Power 12V, 24V, 48V Input Combo KVM Usage
Model 12V 24V 48V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V
Input current
- No load 50 mA 50 mA 50 mA
- Full load 4950 mA 2450 mA 1220 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A
Efficiency 84% 85% 85%
Remarks:
■Package does not include power cord
