Cygnett Unison i-X6 User manual

i
-
X6

Warranty
Unison 3 Year Manufacturers Warranty
Register online at www.cygnett-unison.com to activate your warranty.
WARNING:
3 year parts and labour warranty against
manufacturer defects. Warranty will not cover
abuse or misuse including overdriven speakers.

Safety Precautions
Thank you for purchasing the Unison i-X6. For optimal performance and safety, please
read the manual carefully and retain it for future reference.
CAUTION: Contains 'dangerous voltage' within the enclosure that may constitute a
risk of electric shock. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
THE COVER OR BACK PANEL. REFER ALL SERVICING TO A QUALIFIED SERVICE
PROFESSIONAL.
Please read these operating and maintenance (servicing) instructions before
installing and operating your speakers.
WARNING: To reduce the risk of fire or electric shock, do not expose this speaker system to rain or
moisture (including swimming pools or objects filled with liquids, such as vases or drinks).
Important Safety Instructions
1) Read all safety and operating instructions before use and take notice of all warnings.
2) Follow all operating instructions and retain for later use.
3) Do not use this speaker system near water or moisture.
4) Clean only with a dry cloth.
5) Do not block any of the ventilation openings in accordance with the manufacturer's
instructions.
6) Do not install near any heat sources such as radiators, heat registers, stoves, or other
speaker systems (including amplifiers) that produce heat.
7) Protect the power cord from being walked on or pinched, particularly at the plugs,
convenience receptacles and the point where they exit from the speaker system.
8) Only use the attachments/accessories specified by the manufacturer.
9) Unplug this speaker system during lightning storms or when unused for long periods
of time.
10) Do not attempt to service the speaker system yourself. Refer all servicing to a qualified
service professional. Servicing is required when the speaker system has been
damaged in any way (i.e. power-supply cord/plug is damaged, liquid or objects or
have fallen inside the speaker, the speaker has been exposed to rain or moisture, the
speaker has been dropped or does not operate normally).
CAUTION
RISK OF ELECTRICAL SHOCK
DO NOT OPEN

Contents 1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
What's in the Box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
i-X6 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Introduction 2
What's in the Box?

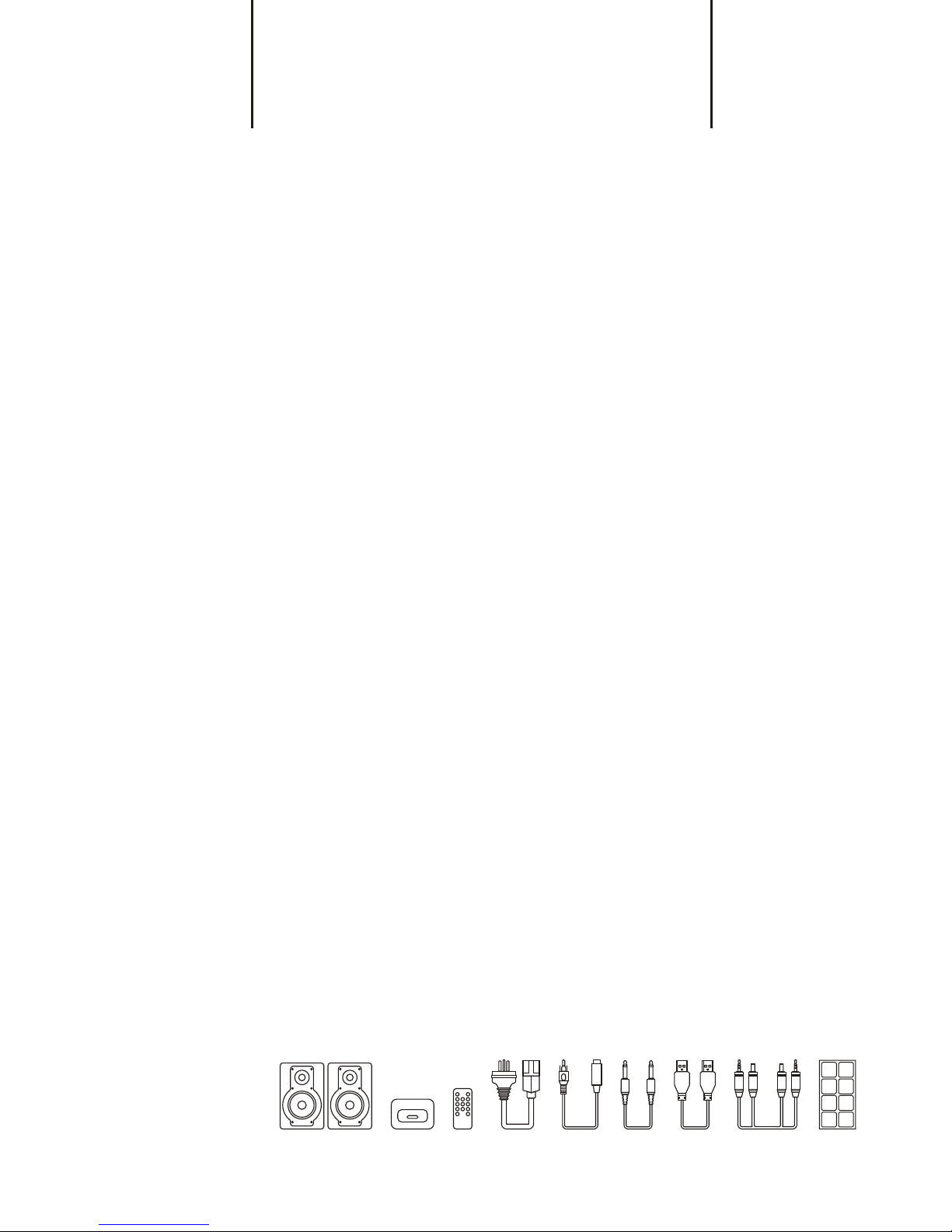

1. Two i-X6 speakers (Left and Right)
a. Left Speaker: Built-in amplifier and power supply; volume
control, auxiliary stereo input, main RCA stereo input and right
channel signal output
b. Right Speaker: Audio connection from left speaker on back
2. iPod dock and inserts
3. Remote control
4. 3 metre power cable
5. 1.5 metre S-Video cable
6. 5 metre 6.5mm to 6.5mm audio cable
7. 1.2 metre USB cable
8. 5 metre Audio & DC cable for iPod dock
9. Foam pad feet for speaker
User manual
Welcome
Thank you for choosing the Unison i-X6 Dynamic Speaker
System. Engineered to bring you an unsurpassed music
listening experience, the i-X6 reproduces sound to its highest-
fidelity potential. Featuring a built-in amplifier, magnetically
shielded paper cones and silk dome tweeters, the i-X6
delivers clearer highs, richer mid-range and powerful bass.
With a sophisticated iPod dock and remote, the i-X6
transforms your iPod into a powerful sound system, bringing
life to every track on your playlist.
1a 1b 2 3 4 5 6 7 8 9

Features 3
Rear Panel Features
4. Power Indicator LED: Indicates
whether the speakers power is
turned 'ON'.
5. DC Out: When connected to the dock,
this power cable allows your iPod to
charge when docked.
6. Aux In: This port enables stereo
audio connection between dock and
speakers.
7. RCA Input: Used to connect signals
from unbalanced, -10dBv devices.
The white connector is for the Left
input and the red connector is for the
Right input.

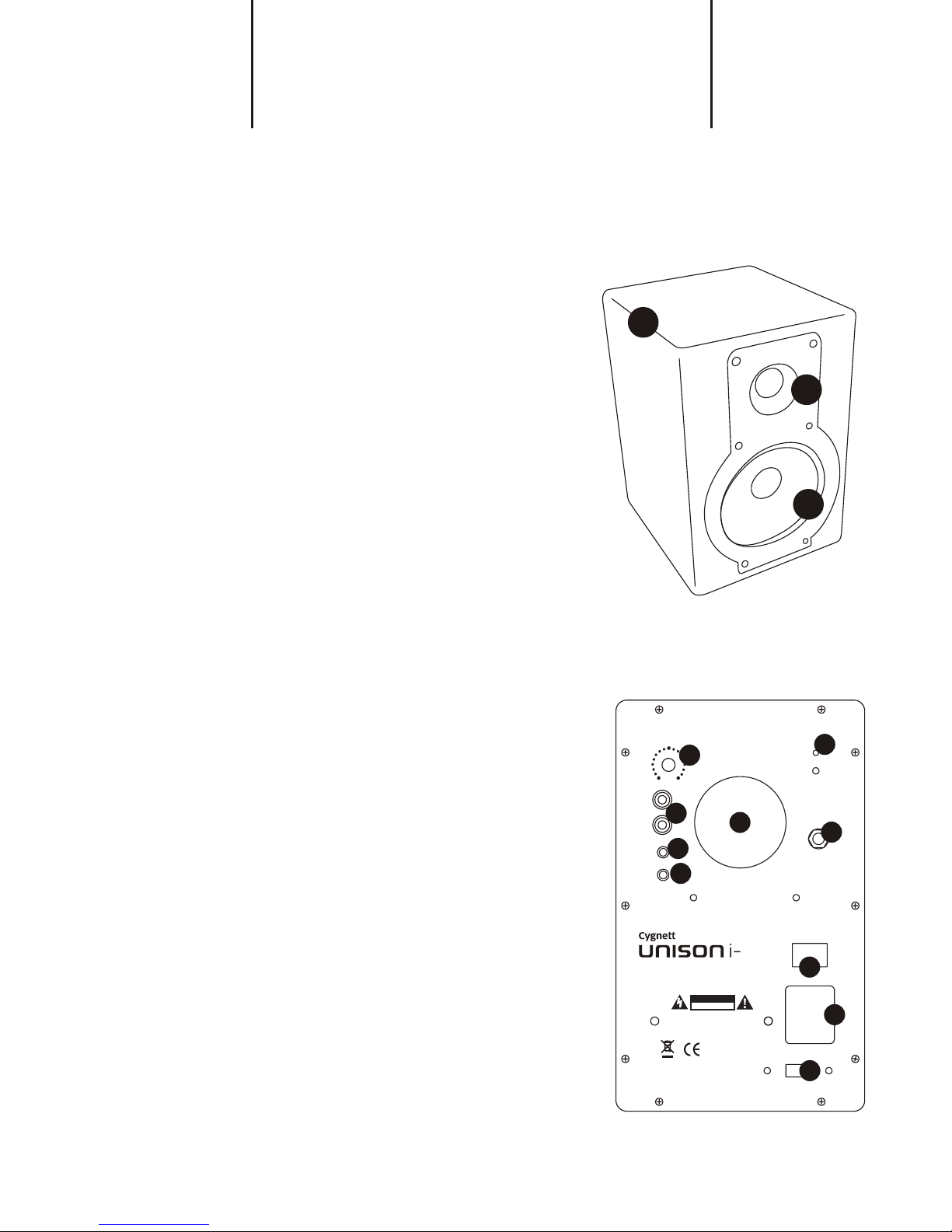

i-X6 Features
Front Panel Features
1. Tweeter: 1" Magnetically Shielded
Natural Silk Dome
2. Woofer: 6.5" Magnetically Shielded
Paper Cone
3. Enclosure: Hand-crafted wood
enclosure provides insulation of the
acoustic components delivering a
stable and superior bass
response. Designed with a custom-
made interior, the enclosure
minimises vibration for distortion free
sound and clear audio reproduction.
1
2
3
AC Select
Power
On Off
Volume
Line
Input
L
R
Output
Aux in
DC Out
100-12 0VAC 50/60Hz T2AL
220-24 0VAC 50/60Hz T1AL
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUT ION
Made in China
Serial Number:
Powe r Ratin g:70W
4
5
6
7
8
910
11
12
13
Designed & developed in Australia
Made in China
X6

Features 4
Rear Panel Features (continued)
8. Volume Control: The volume control allows you to set the output
level of your i-X5 (Note: this function is independent of the iPod
volume level).
9. Vent Port: This port aids in reproduction of very low frequencies
by discharging frequencies below 55Hz.
10. 6.5mm Jack Output: Use the 5 metre speaker cable included to
connect the left and right speakers through the 6.5mm jacks on
the back of each speaker.
11. Power Switch: This switch turns the device on and off, The 'ON'
position is marked with a white dot.
12. Power Receptacle: Accepts a detachable 3-circuit line cord in
order to power the device.
13. Voltage-Select Switch: Provides 2 selections, 115VAC and
230VAC, and should be set to match the “house supply”
(receptacle) voltage of the country or location in which the
speaker is used. The 115V setting is correct for the USA, while
the 230V setting is correct for most of the UK, Europe and
Australia. This setting must be correct or damage to the speaker
will occur.

Installation 5
For your safety and for the optimum performance of the i-X6
speaker system, please read all safety precautions and follow
the instructions carefully.
Precautions
Connections: Ensure that the i-X6 is switched 'off' before making any
connections. Connect the RCA outputs of your i-X6 to the
corresponding inputs on your computer sound card, portable music
player, or other audio device. We recommend that you use the
supplied cables (or cables of equal or higher quality) for all
connections.
Correct Power Operation: Since the i-X6 contains an amplifier, it
must be connected to a power outlet using the detachable AC cable
that is provided. Before connecting the power, please make sure that
the On/Off switch is in the 'OFF' position.
WARNING! Use of improper Voltage may result in hazardous
conditions and/or damage the speaker components not covered by
the products warranty.
Connecting the Speakers
Use the speaker wires (6.5mm jack audio cable) included with the i-X6
to connect the Left and Right speakers via the 6.5mm jacks on the
back of each speaker.
Connecting to a Computer Sound Card or Other Audio
Output Device
1. Before connecting the i-X6 Speaker System, make sure the power
from the computer or other output device has been turned off. The
power to the i-X6 must also be turned off before connecting.
2. Plug the RCA cable to the corresponding connectors on your
computer sound card, portable music player or audio device. You
can also use the 3.5mm mini stereo cable to connect a secondary
audio device to the ‘Aux in’ audio input.

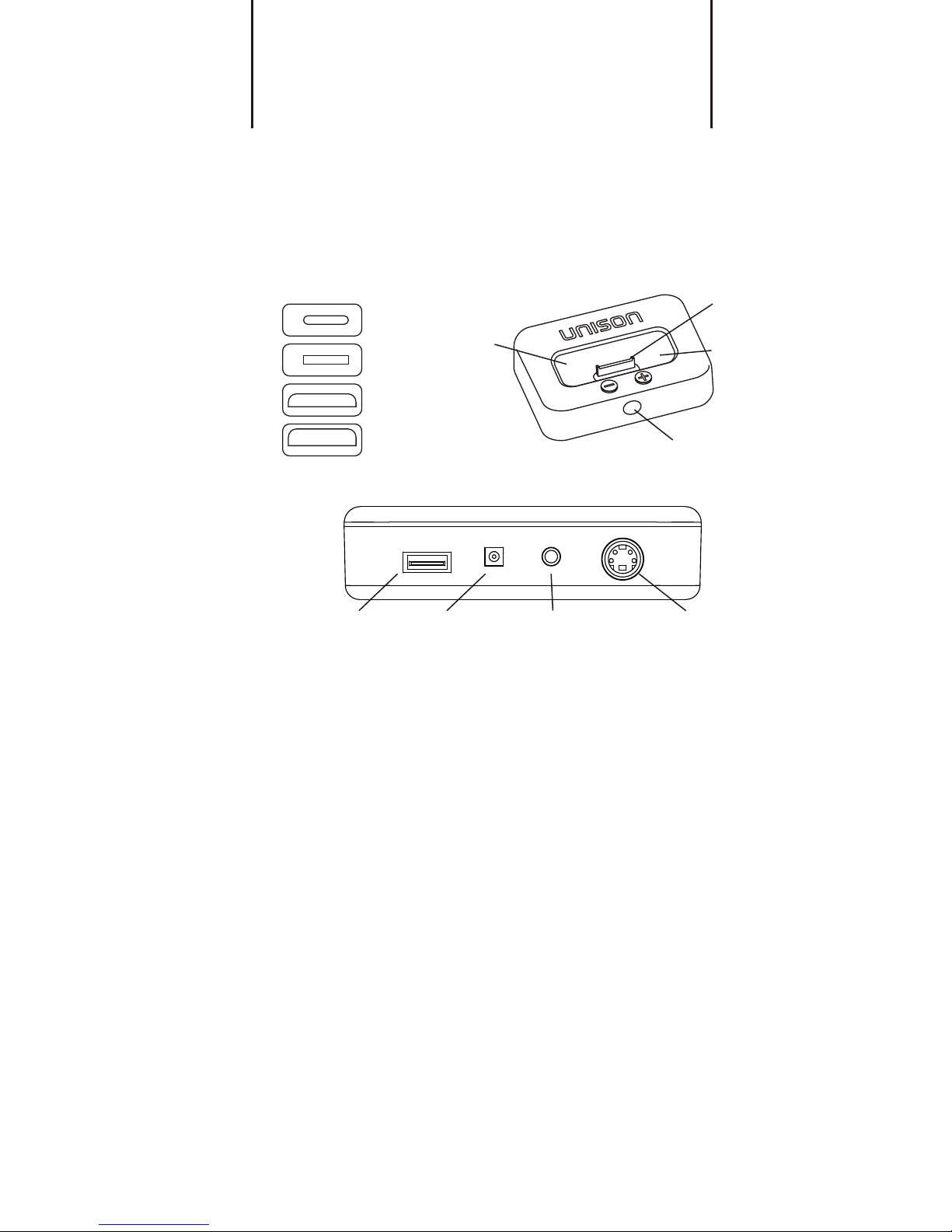

Installation
Dock your iPod here
Remote Control receiver
Insert appropriate
iPod adaptor for
your iPod here
iPod connector
1. USB 2. DC In 3. Audio Connection 4. S-Video
6
Connecting to your iPod
Connecting the dock and i-X6 Speakers
1. Connect the dock to the speakers using the included 5 metre Audio
(3) and DC (2) cable to connect the audio and provide power
to charge your iPod.
2. For viewing video footage, connect the S-video cable to the dock (4)
and into your television. This requires an iPod with video
capabilities. Make sure video output is set to on & settings on your
iPod are correct. ie. PAL or NTSC.
3. To sync your iPod with your computer, connect the included USB
cable from the dock (1) to your computer. Your iTunes should
automatically start after a short while and sync with your iPod.
4. Once you have connected the cables to the rear of the dock, slot in
the appropriate insert for your iPod. Then dock your iPod on the
iPod connector
To take full advantage of the stereo sound, we recommend you
place the dock close to the centre of your entertainment system and
separate the speakers.
5. To adjust the volume via the dock press the (+) or (-) buttons on the
front of the dock or on the remote.

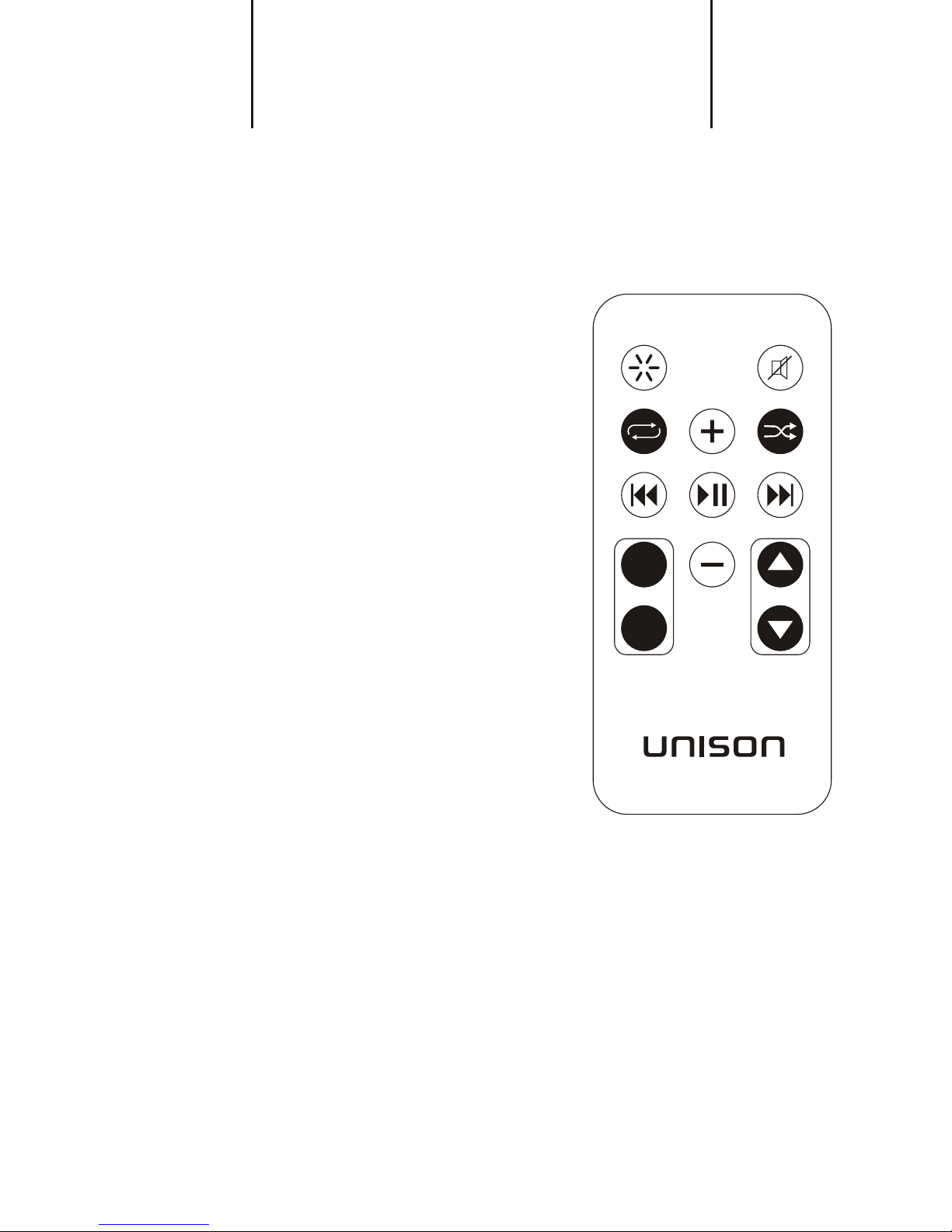

Remote Control Features
!Backlight: Your iPod’s
backlight is switched on for
30 seconds
!Mute: Changes between mute
and mute off.
!Repeat: Changes your iPod’s
repeat status. repeat off ==>
repeat one track ==> repeat all
tracks==>repeat off
!VolUp: Volume up
!Shuffle: Changes your iPod’s
shuffle status. Shuffle off ==>
shuffle tracks ==> shuffle albums
==> shuffle off
!Rew/Previous: Play previous
track. Press and hold to scan
backwards through the track.
!Play/Pause: When your iPod’s
power is on, changes play status
between play or pause. When
iPod’s power is on, press and
hold for 2 seconds to turn off
iPod. When your iPod’s power is off, press to turn on iPod.
!FF/Next: Play next track. Press and hold to scan forward
through the track.
!Menu: Works as your iPod’s Menu button
!VolDown: Volume down
!Menu Up: Works as your iPod’s Menu Up button
!Enter: Works as your iPod’s Enter button
!Menu Down: Works as your iPod’s Menu Down button
7Operation
Operating the Speaker System via remote control
BACKLIGHT
REPEAT VOL UP
VOL DOWN
MENU
ENTER
MENU
PLAY/PAUSEREW/PREVIOUS FF/NEXT
MUTE
SHUFFLE

8Specifications
Type: Two-way Powered Speaker System
LF Driver: Woofer: 6.5" magnetically shielded paper cone
HF Driver: Tweeter: 1" magnetically shielded natural silk
Frequency Response: 45Hz-22KHz
Crossover Frequency: 3.0KHz
S/N Ratio: >95dB (typical, A-weighted)
Power: 100 watts
Dynamic Power: 20 watts RMS 4 per channel @0.5% THD+N
Input Impedance: 10K Ohms Unbalanced
Polarity: Positive signal at “+” input produces outward
low-frequency cone displacement
Input Sensitivity: 100 mV pink noise input produces 95dBA
output SPL at 1 meter with volume control at
maximum
Protection: RF interference, output current limiting, over
temperature, turn on/off transient, subsonic
filter
Indicator: Power on/off indicator on rear panel
Input Connectors: 2 RCA Inputs
Aux Inputs
Power Requirements: 100-120V/60Hz & 220-240V/50Hz AC Select
Dimension: 300mm(H) x 198.5mm(W) x 250mm(D)
Weight: 11.82kg
Finish: High Gloss Enamel
Colour: Black
?

CYGNETT HEAD OFFICE
BUILDING 6/650 CHURCH STREET
RICHMOND VICTORIA AUSTRALIA 3121
DESIGNED & DEVELOPED IN AUSTRALIA
MADE IN CHINA
CYGNETT UNISON PRODUCT CODE: U-S-IX6B
website: www.cygnett-unison.com
e-mail: [e-mail]
For help or technical support,
please emil: [e-mail]
iPod is a trademark of Apple, Inc.,
registered in the U.S. and other countries.
