Cylinda FTTK 4275E User manual

FTTK 4275E

Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of fire / flammable materials
CAUTION Injury or property damage risk
IMPORTANT / NOTE Operating the system correctly
Thank you for choosing this product.
This User Manual contains important safety information and instructions on the operation
and maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep this
book for future reference.

CONTENTS
1.SAFETY INSTRUCTIONS ............................................................................................... .1
1.1 General Safety Warnings ...............................................................................................2
1.2 During Use .....................................................................................................................8
1.3 Packaging and Environment...........................................................................................9
1.4 Savings Information........................................................................................................9
2.TECHNICAL SPECIFICATIONS.................................................................................... .10
3.OVERVIEW OF YOUR MACHINE...................................................................................11
3.1 General Appearance.....................................................................................................11
4.INSTALLATION................................................................................................................11

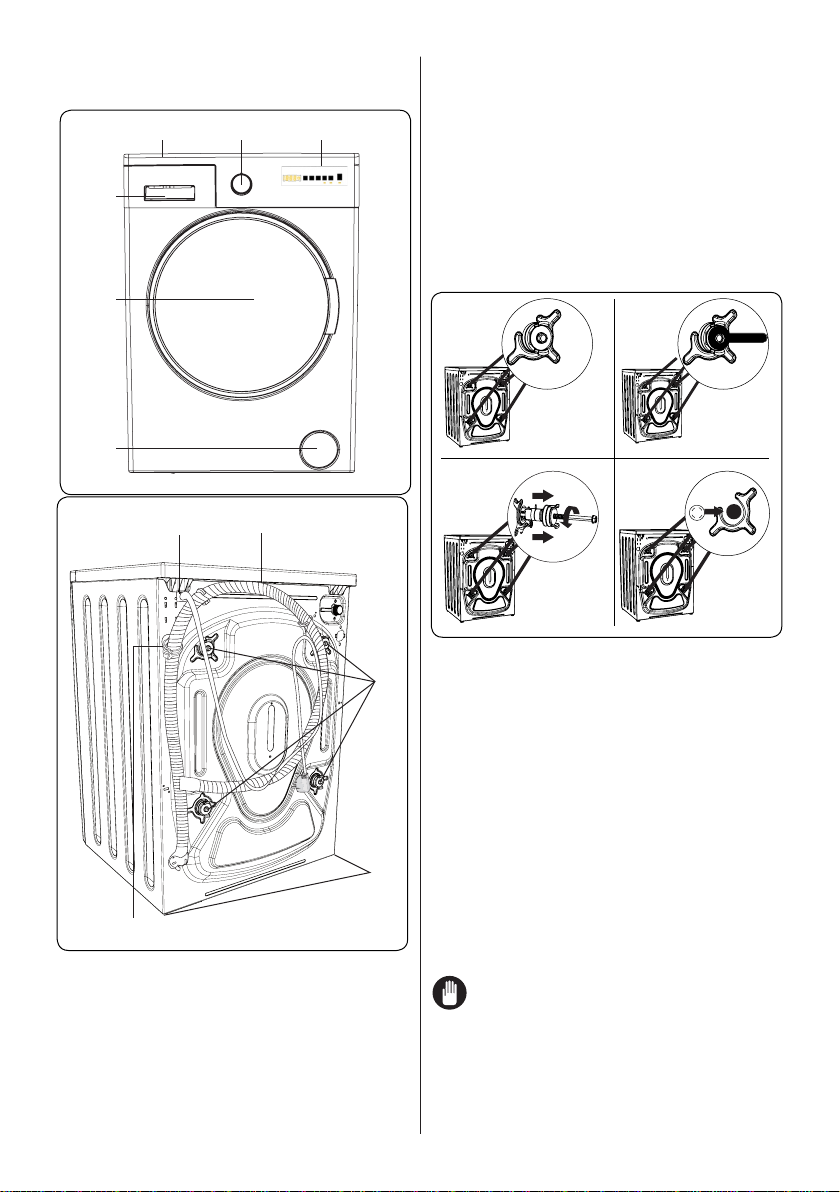

4.1 Removing the Transit Bolts...........................................................................................11
4.2 Adjusting the Feet / Adjusting Adjustable Stays............................................................12
4.3 Electrical Connection....................................................................................................12
4.4 Water Inlet Hose Connection........................................................................................12
4.5 Water Discharge Connection........................................................................................13
5.CONTROL PANEL OVERVIEW..................................................................................... .13

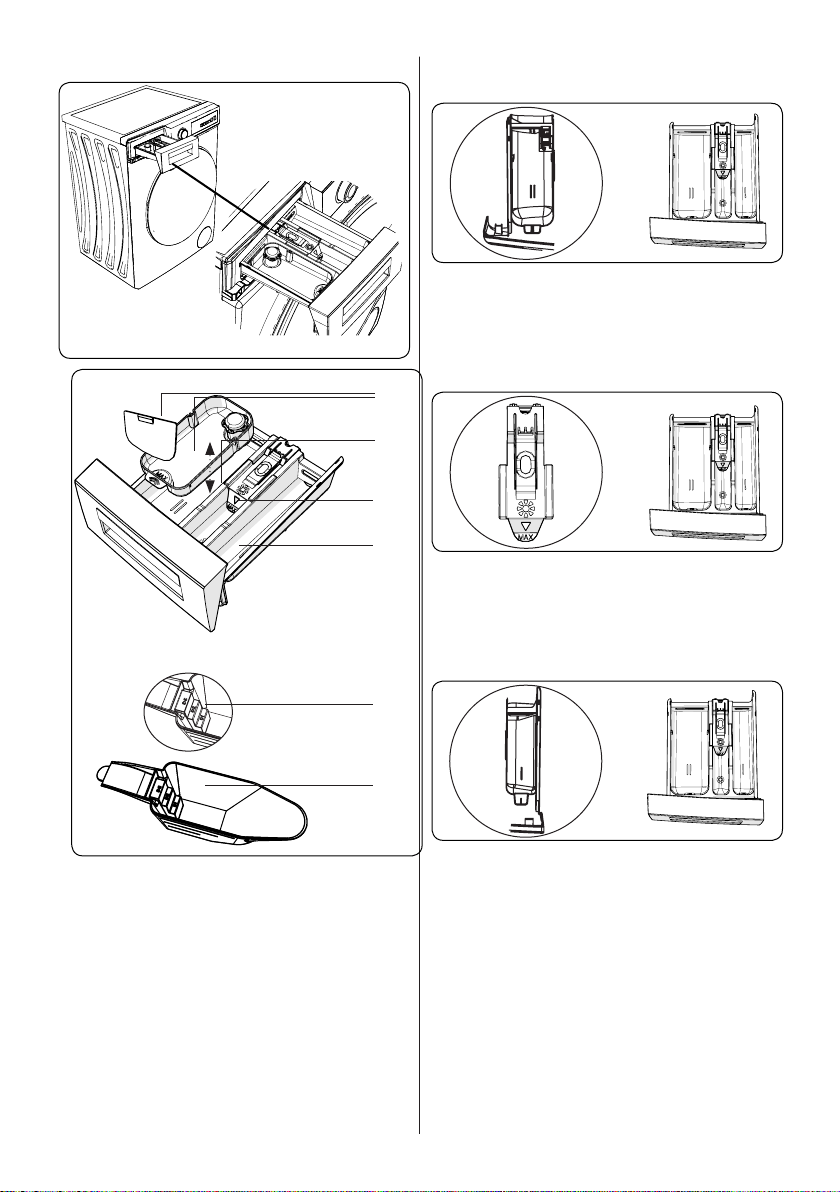

5.1 Detergent Drawer.........................................................................................................14
5.2 Sections ...................................................................................................................14
5.3 Program Dial.................................................................................................................15
5.4 Electronic Display.........................................................................................................15
6.USING YOUR WASHING MACHINE............................................................................. .15
6.1 Preparing Your Laundry................................................................................................15
6.2 Putting Laundry in the Machine....................................................................................16
6.3 Adding Detergent to the Machine.................................................................................16
6.4 Operating Your Machine...............................................................................................17
6.5 Selecting a Programme................................................................................................17
6.6 Half-Load Detection System.........................................................................................17
6.7 Additional Functions ....................................................................................................17
6.8 Child Lock ...................................................................................................................19
6.9 Cancelling the Programme ..........................................................................................19
6.10 Programme End .........................................................................................................19
7.PROGRAMME TABLE................................................................................................... .20
8.1 Warning ...................................................................................................................23
8.2 Water Inlet Filters .........................................................................................................23
8.3 Pump Filter...................................................................................................................24
8.4 Detergent Drawer.........................................................................................................24
9.Body / Drum...................................................................................................................25
10.TROUBLESHOOTING................................................................................................. .26
11.AUTOMATIC FAULT WARNINGS AND WHAT TO DO .............................................. .27

1.SAFETY INSTRUCTIONS
Operating voltage / frequency (220-240) V~/50Hz
Total current (A) 10
Water pressure (Mpa) Maximum 1 Mpa /
Minimum 0. 1Mpa
Total power (W) 2200
Maximum washing capacity
(dry laundry) (kg) 7
Maximum drying capacity (kg) 5
• Do not install your machine on a carpet or such
grounds that would prevent the ventilation of its
base.
• The appliance is not intended for use by people
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge unless they have been
given supervision or instruction concerning use
of the appliance by a person responsible for their
safety.
• Children of less than 3 years should be kept away
unless continuously supervised.
• Call the nearest authorized service centre for a
replacement if the power cord malfunctions.
• Use only the new water inlet hose coming
with your machine when making water inlet
connections to your machine.Never use old, used
or damaged water inlet hoses.
• Children should not play with the appliance.
EN - 1

Cleaning and user maintenance should not be
made by children without supervision.
NOTE: For a softcopy of this user manual,
please contact the following address:
“[email protected]”. In your
e-mail, please provide the model name and serial
number (20 digits) which you can find on the
appliance door.
To ensure your safety and the safety of others,
please read the following safety precautions
before using or installing your Washer Dryer.
Your machine is for domestic use only.
Using it for commercial purposes will void
your warranty.
This manual has been prepared for more than
one model therefore your appliance may not
have some of the features described within.
For this reason, it is important to pay particular
attention to any figures whilst reading the
operating manual.
1.1 General Safety Warnings
Before setting up your Washer Dryer, remove
the four transit bolts and the rubber washers
from the rear of the machine.
• Your warranty does not cover damage caused by
external factors such as fire, flooding and other
sources of damage.
• Retain this user manual for future use and pass it
on to the next user.
• The necessary ambient temperature for operation
EN - 2

of your Washer Dryer is 15-25 °C.
• Where the temperature is below 0 °C, hoses
may split or the electronic card may not operate
correctly.
• Please ensure that garments loaded into your
Washer Dryer are free from foreign objects such
as nails, needles, lighters and coins.
• Lints must not to be allowed to accumulate
around the washer dryer.
• Residue may build up on detergent and softeners
exposed to air for a long period of time. Only
put softener or detergent in the drawer at the
beginning of each wash.
• Unplug your Washer Dryer and switch off the
water supply if the Washer Dryer is left unused for
a long time. We also recommend that you leave
the door open to prevent build up of humidity
inside the Washer Dryer.
• Some water may be left in your Washer Dryer as
a result of quality checks during production. This
will not affect the operation of your Washer Dryer.
• Keep the document bag that was supplied inside
your Washer Dryer and contained this user
manual out of the reach of children and babies to
prevent the risk of suffocation.
• The packaging of the machine could be
hazardous to children. Do not allow children to
play with the packaging or small parts from the
Washer Dryer.
• Only use pre-wash programmes for very dirty
laundry.
• Do not exceed the maximum load for the washing
or drying programme you have chosen.
EN - 3

• In the event of a fault, unplug your Washer Dryer
and switch off the water supply. Do not attempt
to repair your Washer Dryer yourself. Repairs
should only be undertaken by an approved
service agent.
• Never open the detergent drawer while your
Washer Dryer is running.
• Never force the door open when your Washer
Dryer is running.
• Please follow the manufacturers’ instructions
on the use of fabric conditioner or any similar
products that you intend to use in your Washer
Dryer.
• Do not stop your Washer Dryer before the drying
phase of a programme has been completed. If
you have to do so, quickly remove all of your
laundry and immediately spread the items on an
appropriate surface to allow them to cool.
• The appliance must not be supplied through an
external switching device, such as a timer, or
connected to a circuit that is regularly switched on
and off by a utility.
• This appliance must not be installed behind a
lockable door, a sliding door or a door with a
hinge on the opposite side to that of the washer
dryer, in such a way that a full opening of the
washer dryer door is restricted.
• Install your Washer Dryer in a location that can be
ventilated and has constant air circulation.
SAFETY WARNINGS
• You must read these warnings. Ignoring these
warnings may put you or others at risk of fatal
injuries.
EN - 4

RISK OF BURNS
• Do not touch the door, drain hose or any
discharged water while your Washer Dryer in
running. The high temperatures involved pose a
burn risk.
• Open the door fully after the drying process.
Do not touch the door glass. It will reach high
temperatures and pose a burn risk.
ELECTROCUTION RISK
Do not connect your Washer Dryer to the mains
electricity supply using an extension lead.
• A damaged power cord/plug can cause fire or give
you an electric shock. When damaged it must be
replaced, this should only be done by qualified
personnel.
• Never remove the plug from the socket by pulling
the cord. Always hold the plug.
• Never touch the power cord/plug with wet hands
as this could cause a short circuit or electric
shock.
• Do not touch your Washer Dryer if your hands or
feet are wet.
• Call the nearest authorised service company for
assistance if the power cord malfunctions.
Explosion Risk
• Thoroughly rinse off any chemicals, such as stain
remover, from your garments before beginning a
washing and drying programme. Failure to do so
may cause a risk of explosion when the drying
function is used.
EN - 5

Fire Risk
• Do not keep flammable or explosive liquids near
your machine.
• Items that have been soiled with substances such
as cooking oil, acetone, alcohol, petrol, kerosene,
spot removers, turpentine, waxes and wax
removers should be washed in hot water with an
extra amount of detergent before being dried in
the tumble dryer.
• Do not use a detergent ball/device if you have
selected a washing and drying programme as this
may cause a fire hazard.
• Do not dry your laundry under the conditions
specified below as they present a fire risk:
• If the laundry is not washed.
• If oil based stains are not pre-treated before
beginning a washing or drying programme.
• Laundry which has been cleaned with industrial
chemicals.
• Laundry that has a high amount of sponge,
foam, rubber or rubber-like parts and
accessories.
• Items such as foam rubber (latex foam), shower
caps, waterproof textiles, rubber backed articles
and clothes or pillows fitted with foam rubber
pads should not be dried in the drying process
of the appliance.
• Stuffed or damaged items (such as pillows or
jackets). The rubber sponge presents a fire risk
during the drying process.
• Never use products that contain solvents in your
machine.
EN - 6

• Please ensure that garments loaded into your
Washer Dryer are free from foreign objects such
as nails, needles, lighters, matches and coins.
Fall and Injury Risk
• Do not climb on your Washer Dryer.
• Make sure hoses and cables do not cause a trip
hazard.
• Do not turn your Washer Dryer upside down or on
its side.
• Do not lift your Washer Dryer using the door or
detergent drawer.
• Make sure hoses and cables do not cause a trip
hazard.
To avoid risk of injury, please take care when
moving your Washer Dryer. It is heavy and we
recommend that a minimum of two people move
your Washer Dryer.
Child Safety
• Do not allow children to play with the machine.
• Do not leave children unattended near the
machine. They might lock themselves in the
machine.
• The door glass and machine surface can become
extremely hot during operation. Do not allow
children to touch the machine; it may damage
their skin.
• The packaging of the machine could be
hazardous to children. Do not allow children to
play with the packaging or small parts from the
Washer Dryer.
• Poisoning and irritation may occur if detergent or
other washing aids are consumed or come into
EN - 7
