Cylinda FTTK 4296E User manual

FTTK 4296E

Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of fire / flammable materials
CAUTION Injury or property damage risk
IMPORTANT / NOTE Operating the system correctly
Thank you for choosing this product.
This User Manual contains important safety information and instructions on the operation
and maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep this
book for future reference.

CONTENTS
1.SAFETY INSTRUCTIONS ............................................................................................... .1
1.1 General Safety Warnings ...............................................................................................2
1.2 During Use .....................................................................................................................8
1.3 Packaging and Environment...........................................................................................9
1.4 Savings Information......................................................................................................10
2.TECHNICAL SPECIFICATIONS.................................................................................... .12
3.OVERVIEW OF YOUR MACHINE ................................................................................. .13
3.1 General Appearance.....................................................................................................13
4.INSTALLATION.............................................................................................................. .13
4.1 Removing the Transit Bolts...........................................................................................13
4.2 Adjusting the Feet / Adjusting Adjustable Stays............................................................14
4.3 Electrical Connection....................................................................................................14
4.4 Water Inlet Hose Connection........................................................................................14
4.5 Water Discharge Connection........................................................................................15
5.CONTROL PANEL OVERVIEW..................................................................................... .15
5.1 Detergent Drawer .........................................................................................................16
5.2 Sections ...................................................................................................................16
5.3 Program Dial.................................................................................................................17
5.4 Electronic Display.........................................................................................................17
6.USING YOUR WASHING MACHINE............................................................................. .17
6.1 Preparing Your Laundry................................................................................................17
6.2 Putting Laundry in the Machine....................................................................................18
6.3 Adding Detergent to the Machine .................................................................................18
6.4 Operating Your Machine...............................................................................................19
6.5 Selecting a Programme................................................................................................19
6.6 Half-Load Detection System.........................................................................................19
6.7 Auxiliary Functions .......................................................................................................19
6.8 Auxiliary functions .....................................................................................................21
6.9 If you want to pause/cancel a running program or add laundry: .................................24
6.10 Program End ..............................................................................................................24
7.PROGRAMME TABLE................................................................................................... .26
8.1 Warning ...................................................................................................................29
8.2 Water Inlet Filters .........................................................................................................29
8.3 Pump Filter ...................................................................................................................30
8.4 Detergent Drawer .........................................................................................................30
9.Body / Drum .................................................................................................................. .31
10.TROUBLESHOOTING................................................................................................. .32
11.AUTOMATIC FAULT WARNINGS AND WHAT TO DO .............................................. .34
12.DESCRIBING THE ENERGY LABEL AND SAVING ENERGY .................................. .35

1.SAFETY INSTRUCTIONS
Operating voltage / frequency (220-240) V~/50Hz
Total current (A) 10
Water pressure (Mpa) Maximum 1 Mpa /
Minimum 0. 1Mpa
Total power (W) 2200
Maximum washing capacity
(dry laundry) (kg) 9
Maximum drying capacity (kg) 6
• Do not install your machine on a carpet or such
grounds that would prevent the ventilation of its
base.
• The appliance is not intended for use by people
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge unless they have been
given supervision or instruction concerning use
of the appliance by a person responsible for their
safety.
• Children of less than 3 years should be kept away
unless continuously supervised.
• Call the nearest authorized service centre for a
replacement if the power cord malfunctions.
• Use only the new water inlet hose coming
with your machine when making water inlet
connections to your machine.Never use old, used
or damaged water inlet hoses.
• Children should not play with the appliance.
EN - 1

Cleaning and user maintenance should not be
made by children without supervision.
NOTE: For a softcopy of this user manual,
please contact the following address:
“[email protected]”. In your
e-mail, please provide the model name and serial
number (20 digits) which you can find on the
appliance door.
To ensure your safety and the safety of others,
please read the following safety precautions
before using or installing your Washer Dryer.
Your machine is for domestic use only.
Using it for commercial purposes will void
your warranty.
This manual has been prepared for more than
one model therefore your appliance may not
have some of the features described within.
For this reason, it is important to pay particular
attention to any figures whilst reading the
operating manual.
1.1 General Safety Warnings

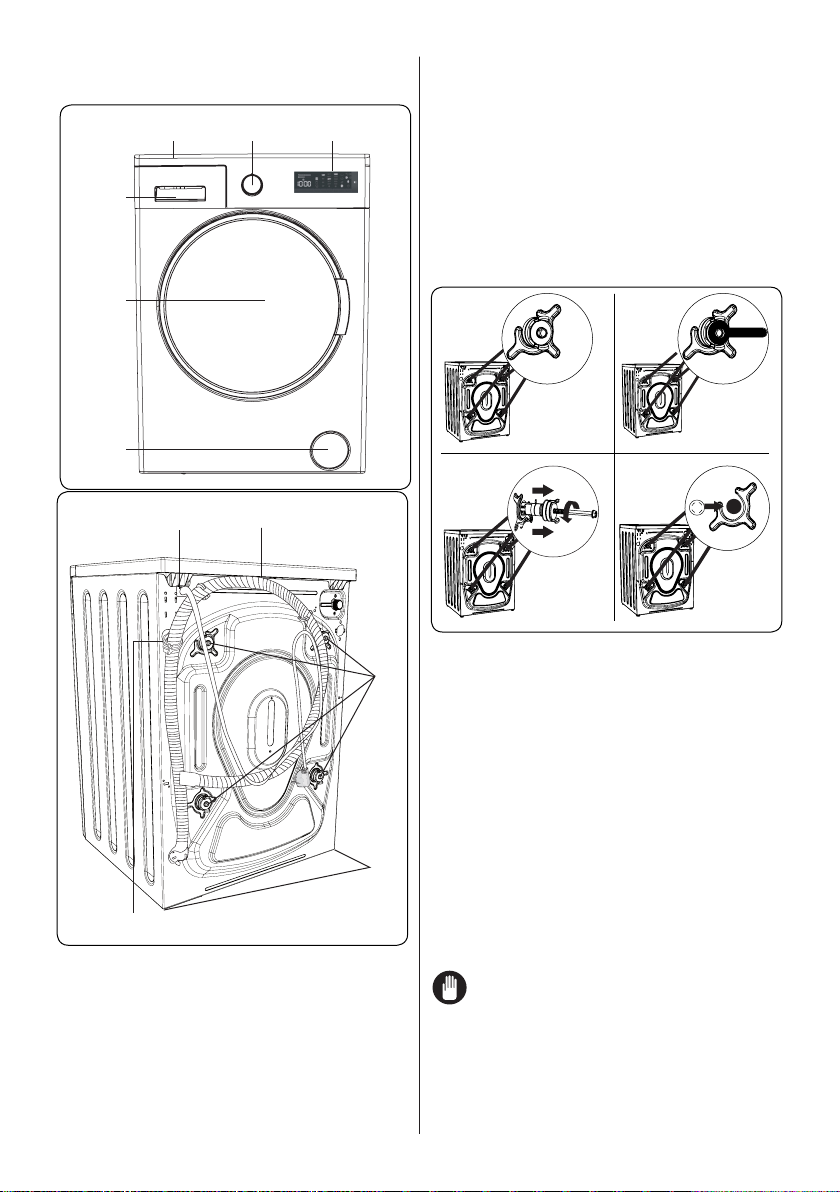

Before setting up your Washer Dryer, remove
the four transit bolts and the rubber washers
from the rear of the machine.
• Your warranty does not cover damage caused by
external factors such as fire, flooding and other
sources of damage.
• Retain this user manual for future use and pass it
on to the next user.
• The necessary ambient temperature for operation
EN - 2

of your Washer Dryer is 15-25 °C.
• Where the temperature is below 0 °C, hoses
may split or the electronic card may not operate
correctly.
• Please ensure that garments loaded into your
Washer Dryer are free from foreign objects such
as nails, needles, lighters and coins.
• Lints must not to be allowed to accumulate
around the washer dryer.
• Residue may build up on detergent and softeners
exposed to air for a long period of time. Only
put softener or detergent in the drawer at the
beginning of each wash.
• Unplug your Washer Dryer and switch off the
water supply if the Washer Dryer is left unused for
a long time. We also recommend that you leave
the door open to prevent build up of humidity
inside the Washer Dryer.
• Some water may be left in your Washer Dryer as
a result of quality checks during production. This
will not affect the operation of your Washer Dryer.
• Keep the document bag that was supplied inside
your Washer Dryer and contained this user
manual out of the reach of children and babies to
prevent the risk of suffocation.
• The packaging of the machine could be
hazardous to children. Do not allow children to
play with the packaging or small parts from the
Washer Dryer.
• Only use pre-wash programmes for very dirty
laundry.
• Do not exceed the maximum load for the washing
or drying programme you have chosen.
EN - 3

• In the event of a fault, unplug your Washer Dryer
and switch off the water supply. Do not attempt
to repair your Washer Dryer yourself. Repairs
should only be undertaken by an approved
service agent.
• Never open the detergent drawer while your
Washer Dryer is running.
• Never force the door open when your Washer
Dryer is running.
• Please follow the manufacturers’ instructions
on the use of fabric conditioner or any similar
products that you intend to use in your Washer
Dryer.
• Do not stop your Washer Dryer before the drying
phase of a programme has been completed. If
you have to do so, quickly remove all of your
laundry and immediately spread the items on an
appropriate surface to allow them to cool.
• The appliance must not be supplied through an
external switching device, such as a timer, or
connected to a circuit that is regularly switched on
and off by a utility.
• This appliance must not be installed behind a
lockable door, a sliding door or a door with a
hinge on the opposite side to that of the washer
dryer, in such a way that a full opening of the
washer dryer door is restricted.
• Install your Washer Dryer in a location that can be
ventilated and has constant air circulation.
SAFETY WARNINGS
• You must read these warnings. Ignoring these
warnings may put you or others at risk of fatal
injuries.
EN - 4

RISK OF BURNS
• Do not touch the door, drain hose or any
discharged water while your Washer Dryer in
running. The high temperatures involved pose a
burn risk.
• Open the door fully after the drying process.
Do not touch the door glass. It will reach high
temperatures and pose a burn risk.
ELECTROCUTION RISK
Do not connect your Washer Dryer to the mains
electricity supply using an extension lead.
• A damaged power cord/plug can cause fire or give
you an electric shock. When damaged it must be
replaced, this should only be done by qualified
personnel.
• Never remove the plug from the socket by pulling
the cord. Always hold the plug.
• Never touch the power cord/plug with wet hands
as this could cause a short circuit or electric
shock.
• Do not touch your Washer Dryer if your hands or
feet are wet.
• Call the nearest authorised service company for
assistance if the power cord malfunctions.
Explosion Risk
• Thoroughly rinse off any chemicals, such as stain
remover, from your garments before beginning a
washing and drying programme. Failure to do so
may cause a risk of explosion when the drying
function is used.
EN - 5

Fire Risk
• Do not keep flammable or explosive liquids near
your machine.
• Items that have been soiled with substances such
as cooking oil, acetone, alcohol, petrol, kerosene,
spot removers, turpentine, waxes and wax
removers should be washed in hot water with an
extra amount of detergent before being dried in
the tumble dryer.
• Do not use a detergent ball/device if you have
selected a washing and drying programme as this
may cause a fire hazard.
• Do not dry your laundry under the conditions
specified below as they present a fire risk:
• If the laundry is not washed.
• If oil based stains are not pre-treated before
beginning a washing or drying programme.
• Laundry which has been cleaned with industrial
chemicals.
• Laundry that has a high amount of sponge,
foam, rubber or rubber-like parts and
accessories.
• Items such as foam rubber (latex foam), shower
caps, waterproof textiles, rubber backed articles
and clothes or pillows fitted with foam rubber
pads should not be dried in the drying process
of the appliance.
• Stuffed or damaged items (such as pillows or
jackets). The rubber sponge presents a fire risk
during the drying process.
• Never use products that contain solvents in your
machine.
EN - 6

• Please ensure that garments loaded into your
Washer Dryer are free from foreign objects such
as nails, needles, lighters, matches and coins.
Fall and Injury Risk
• Do not climb on your Washer Dryer.
• Make sure hoses and cables do not cause a trip
hazard.
• Do not turn your Washer Dryer upside down or on
its side.
• Do not lift your Washer Dryer using the door or
detergent drawer.
• Make sure hoses and cables do not cause a trip
hazard.
Door emergency opening function
When the machine is running, any power cut or
when the program is not yet complete, the door will
remain locked.
To open the door;
1.Please turn off the machine. Take off the power
plug from the mains socket.
2.To drain the waste water, follow the instructions
given in cleaning the pump filter section on
page31
2.Pull the down the emergency opening mechanism
with the help of a tool and open the door at the
same time.
3.Doors, move the emergency opening handle
to the open position after being closed again,
if the door remains locked.
To avoid risk of injury, please take care when
moving your Washer Dryer. It is heavy and we
EN - 7

recommend that a minimum of two people move
your Washer Dryer.
Child Safety
• Do not allow children to play with the machine.
• Do not leave children unattended near the
machine. They might lock themselves in the
machine.
• The door glass and machine surface can become
extremely hot during operation. Do not allow
children to touch the machine; it may damage
their skin.
• The packaging of the machine could be
hazardous to children. Do not allow children to
play with the packaging or small parts from the
Washer Dryer.
• Poisoning and irritation may occur if detergent or
other washing aids are consumed or come into
contact with skin or eyes. Keep cleaning materials
out of reach of children.
1.2 During Use
• Do not allow pets near the machine.
• Please ensure that you have removed all of the
packaging materials and protective tape from the
outside of your Washer Dryer, inside the drum and
inside the detergent drawer before using. Check
for any external visible damage. Do not install or
use your Washer Dryer if it is damaged.
• Your Washer Dryer is for domestic use only and
is only intended to wash and dry items which
are specified by the manufacturer to be machine
washable and dryable on the label and textiles
EN - 8

composed of hand washable wool or wool blend
fabrics as well as satin, lace, silk and other hand-
washable garments. Do not use your Washer
Dryer for any purpose not expressly specified in
this user guide.
• This appliance can be used by children aged from
8 years and above and by persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be done by children without supervision.
• Installation of your machine must only be carried
out by an authorised service agent. Installation by
anyone other than an authorised agent will void
your warranty.
NOTE: Specifications for the machine may vary
depending on the product purchased.
Replacement of drive belt, only by authorized
service.
Only original spare belt: 42006396 Optibelt 6 EPJ
1236
1.3 Packaging and Environment
DISPOSE OF PACKAGING AND YOUR OLD
MACHINE RESPONSIBLY
Removal of packaging materials
Packaging materials protect your machine from
any damage that may occur during transportation.
Please recycle the packaging materials.
EN - 9

Recycled material reduces raw material consumption
and lowers waste production.
1.4 Savings Information
Some important information to get the most efficient
use out of your machine:
• The amount of laundry you put in your Washer Dryer
should not exceed the maximum amount indicated.
Avoid overloading to allow your machine to run
more efficiently.
• Not using the pre-wash feature for normal and
lightly soiled laundry will save electricity and water
consumption.
EN - 10

1.5 Twinjet system
Detergent water in your machine will be circulated with 2 water injection mechanisms
and a mixing system via twinjet system. Circulated detergent water will be injected
over your laundries, which allows a better washing performance. Twinjet system will
help you wash higher amount of laundries in a shorter time with a better washing
performance, guaranteeing less energy and water consumption.
CE Declaration of conformity
We declare that our products meet the applicable European Directives, Decisions and
Regulations and the requirements listed in the standards referenced.
Disposal of your old machine
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to
the applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling
of this product. For more detailed information about recycling of this
product, please contact your local city office, your household waste disposal service or
the shop where you purchased the product.
Twinjet
unit
Pump
Unit
EN - 11

2. TECHNICAL SPECIFICATIONS
Maximum washing capacity (dry laundry) (kg) 9
* Maximum drying capacity (kg) 6
Spin speed (rpm) 1400
Number of programmes 15
Operation voltage / Frequency (v/hz) 220-240 / 50
Water pressure (mpa) Maximum: 1
Minimum: 0.1
Dimensions (HxWxD) (mm) 845x597x582
* You should not put dry laundry in your machine for drying.
Energy consumption (washing, spinning, drying) (kWh/cycle) 6,12
Energy consumption (only washing and spinning) (kWh/cycle) 1,05
Water consumption (washing, spinning, drying) (l/cycle) 127
EN 50229 standard-compliant control programmes
Washing programme:
1. Programme “Cotton 60°C”, temperature 60°C, maximum spinning speed 1400 rpm,
9 kg laundry.
Drying Programmes:
1. Drying : 13. Programme “Cotton dry”
Drying option additional function selection: Hanger Dry
Load group: (~ 6 kg) ( 2 Sheet + 8 pillowcases+ 24 towels)
2. Drying: 13. Programme “Cotton dry”
Drying option additional function selection: Hanger Dry
Load group: (~ 3 kg) ( 2 Sheet + 6 pillowcases)
EN - 12

EN - 13EN - 13
3. OVERVIEW OF
YOUR MACHINE
8 9
10
11
11
123
4
5
6
3.1 General Appearance
1. Touch buttons and Electronic display
2. Programme Button
3. Upper Tray
4. Detergent Drawer
5. Door
6. Pump Filter Cover
7. Power Cord
8. Drain Hose
9. Transport Screws
10. Adjustable Feet
11. Plastic Drain Hose Holder: (Do not
remove the holder; the operation of the
machine will be affected).
4. INSTALLATION
4.1 Removing the Transit Bolts
X X4 4
X4
1
3
2
4
1. Before operating the washing machine,
remove the 4 transit bolts and rubber
spacers from the rear of the machine.
If the bolts are not removed, they
may cause heavy vibration, noise and
malfunction of the machine and void the
warranty.
2. Loosen the transit bolts by turning
them anticlockwise with an appropriate
spanner.
3. Remove the transit bolts with a straight
pull.
4. Fit the plastic blanking caps supplied in
the accessories bag into the gaps left
by the removal of the transit bolts. The
transit bolts should be stored for future
use.
NOTE: Remove the transit bolts
before using the machine for the first time.
Faults occurring due to the machine being
operated with transit bolts fitted are out of
the scope of the warranty.

EN - 14EN - 14

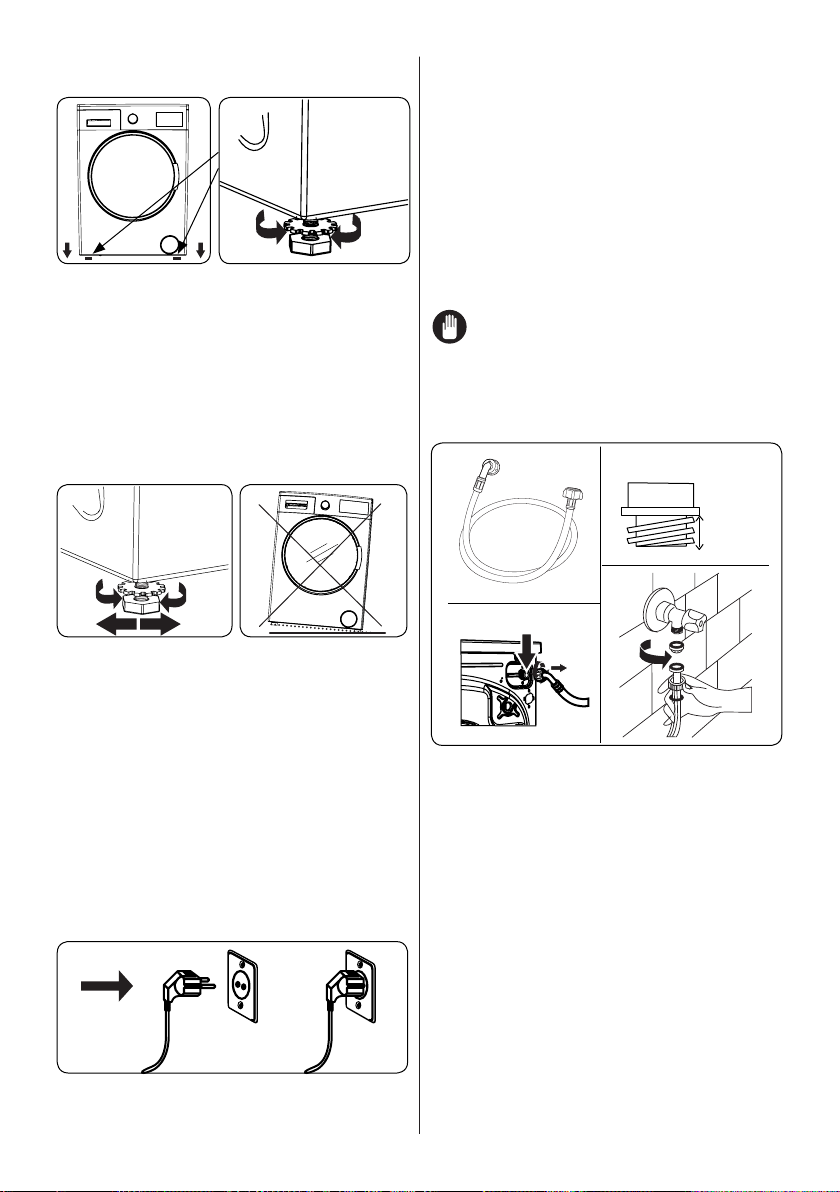

4.2 Adjusting the Feet /
Adjusting Adjustable Stays
1
1. Do not install your machine on a surface
(such as carpet) that would prevent
ventilation at the base.
• To ensure silent and vibration-free
operation of your machine, install it on a
firm surface.
• You can level your machine using the
adjustable feet.
• Loosen the plastic locking nut.
X4
2 3
2. To increase the height of the machine,
turn the feet clockwise. To decrease
the height of the machine, turn the feet
anticlockwise.
• Once the machine is level, tighten the
locking nuts by turning them clockwise.
3. Never insert cardboard, wood or other
similar materials under the machine to
level it.
• When cleaning the ground on which
the machine is located, take care not to
disturb the level of the machine.
4.3 Electrical Connection
• Your Washing Machine requires a 220-
240V, 50 mains supply.
• The mains cord of your washing
machine is equipped with an earthed
plug. This plug should always be
inserted to an earthed socket of 10
amps.
• If you do not have a suitable socket and
fuse conforming with this, please ensure
the work is carried out by a qualified
electrician.
• We do not take responsibility for
damage that occurs due to the use of
ungrounded equipment.
NOTE: Operating your machine
with low voltage will cause the life cycle
of your machine to be reduced and its
performance to be restricted.
4.4 Water Inlet Hose Connection
3/4”
10 mm
1
3
2
4
1. Your machine may have either a
single water inlet connection (cold)
or double water inlet connection (hot
and cold) depending on the machine
specifications. The white capped hose
should be connected to cold water inlet
and red capped hose to the hot water
inlet (if applicable).
• To prevent water leaks at the joints,
either 1 or 2 nuts (depending on your
machine’s specifications) are supplied
in the packaging with the hose. Fit these
nuts to the end(s) of the water inlet hose
that connect to the water supply.
2. Connectnewwaterinlethosestoa¾˝,
threaded tap.
• Connect the white capped end of the
water inlet hose to the white water inlet
valve on the rear side of the machine
and the red capped end of the hose to

EN - 15EN - 15
the red water inlet valve (if applicable).
• Hand tighten the connections. If in any
doubt, consult a qualified plumber.
• Water flow with pressure of 0. 1-1 Mpa
will allow your machine to operate at
optimum efficiency (pressure of 0. 1
Mpa means that more than 8 litres of
water per minute will flow through a fully
opened tap).
3. Once you have made all of the
connections, carefully turn the water
supply on and check for leaks.
4. Ensure that the new water inlet hoses
are not trapped, kinked, twisted, folded
or crushed.
• If your machine has a hot water inlet
connection, the temperature of the hot
water supply should not be higher than
70°C.
NOTE: Your Washing Machine
must only be connected to your water
supply using the supplied new fill hose. Old
hoses must not be reused.
4.5 Water Discharge Connection
• Connect the water drain hose to a
standpipe or to the outlet elbow of
a household sink, using additional
equipment.
• Never attempt to extend the water drain
hose.
• Do not put the water drain hose from
your machine into a container, bucket or
bathtub.
• Make sure that the water drain hose is
not bent, buckled, crushed or extended.
• The water drain hose must be installed
at a maximum height of 100 cm from the
ground.

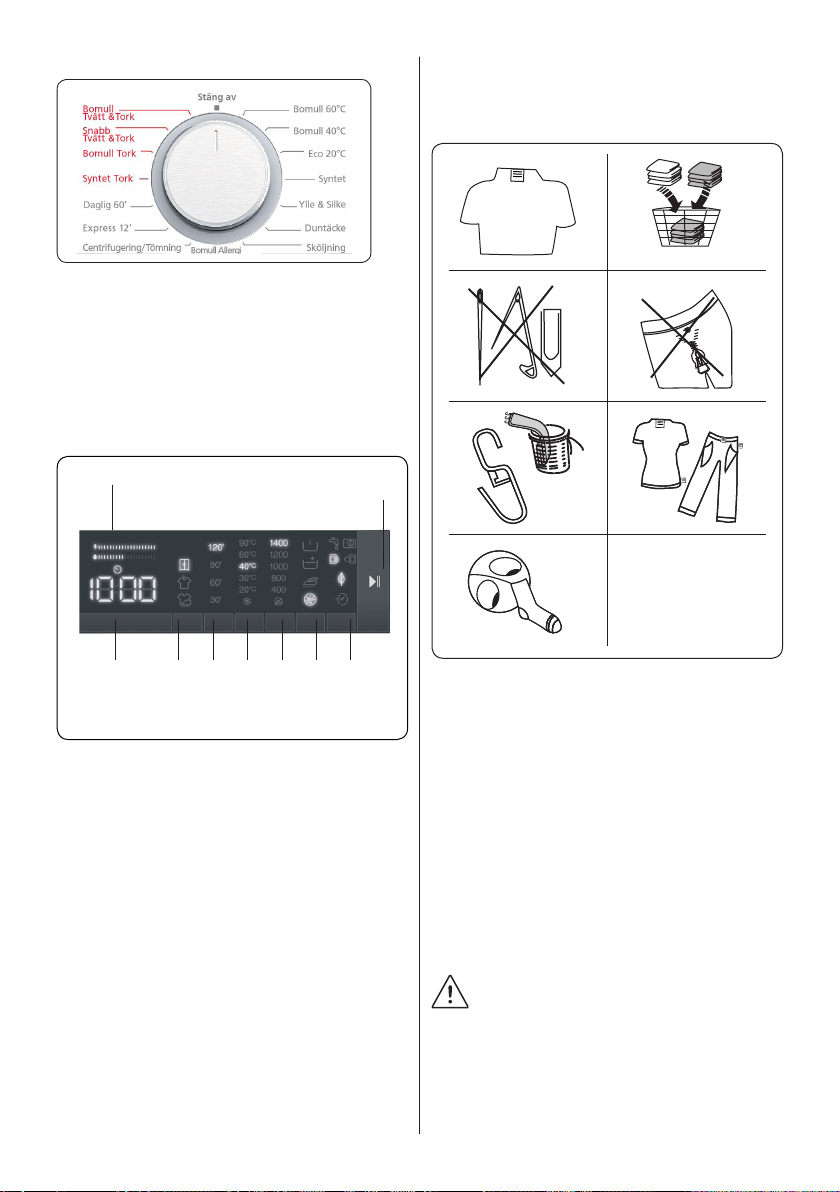

5. CONTROL PANEL OVERVIEW
1 2 3 45
1. Detergent drawer
2. Programme Dial: Use the programme
dial to select the washing / drying
programme for your laundry. Turn
the programme dial clockwise or
anticlockwise to select the required
programme. Make sure that the dial
is pointing exactly at the selected
programme.
3. Electronic Display
4. Additional Function Buttons: Use
these buttons to select additional
functions for the laundry programme.
See Additional Functions for more
information.
5. Start/Pause button: Start or pause the
selected programme.
~ 95 cm ~ 140 cm
~ 145 cm ~ 95 cm
0 – max. 100 cm
˜˜
95 cm 150 cm

EN - 16EN - 16
5.1 Detergent Drawer
1
2
3
4
5
6
1. Liquid Detergent Attachments
2. Main Wash Detergent Compartment
3. Softener Compartment
4. Pre-Wash Detergent Compartment
5. Powder Detergent Levels
6. Powder Detergent Scoop (*)
(*) Specifications may vary depending on
the machine purchased.
5.2 Sections
Main wash detergent compartment:
This compartment is for liquid or powder
detergents or limescale remover. The fluid
detergent level plate will be supplied inside
your machine. (*)
Fabric conditioner, starch, detergent
compartment:
This compartment is for softeners,
conditioners or starch. Follow the
instructions on the packaging. If softeners
leave residue after use, try diluting them or
using a liquid softener.
Pre-wash detergent compartment:
This compartment should be used only
when the pre-wash feature is selected. We
recommend that the pre-wash feature is
used only for very dirty laundry.
(*) Specifications may vary depending on
the machine purchased.

EN - 17EN - 17
5.3 Program Dial
• To select the desired programme, turn
the programme dial either clockwise or
anti-clockwise until the marker on the
programme dial points to the chosen
programme.
• Make sure that the programme dial is
set exactly to the programme you want.
5.4 Electronic Display
9
8
21 3 5
4 6 7
1. Delayed start auxiliary function
2. Drying option selection
3. Duration Drying selection
4. Selecting the washing water
temperature
5. Spin speed selection
6. Options(prewash, Extra rinse, Easy
ironing, Anti-allergy, auxiliary function)
7. Eco/Quick(Eco washing, Quick Wash
auxiliary function)
8. Start Pause Button
9. Energy/Water Efficiency Bar
6. USING YOUR
WASHING MACHINE
6.1 Preparing Your Laundry
1
3
5
7
2
4
6
1. Follow the instructions given in the care
labels on the clothing.
• Separate your laundry according to type
(cotton, synthetic, sensitive, wool etc.
), washing temperature (cold, 30°, 40°,
60°, 90°) and the degree of dirtiness
(slightly stained, stained, highly stained).
2. Never wash coloured and white laundry
together.
• Dark textiles may contain excess dye
and should be washed separately
several times.
3. Ensure that there are no metallic
materials on your laundry or in the
pockets; if so, remove them.
CAUTION: Any malfunctions
which occur due to foreign materials
damaging your machine are not covered by
the warranty.
4. Close zips and fasten any hooks and
eyes.
5. Remove the metallic or plastic hooks of
