CYP CLUX-18EU User manual
Operation Manual
Operation Manual
CLUX-18EU
1 by 8 HDMI Splitter
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VS1 25/11/11 First release
CONTENTS
1. Introduction..............................................1
2. Applications.............................................1
3. Package Contents .................................. 1
4. System Requirements.............................. 1
5. Features....................................................2
6. Operation Controls and Functions......... 3
6.1 Front Panel ..........................................3
6.2 Rear Panel...........................................4
7. Connection Diagram .............................. 5
8. Specications .......................................... 6
9. Acronyms .................................................6
1
1. INTRODUCTION
With eight HDMI outputs and capable of distributing 3D content the
HDMI 1 by 8 splitter is a forward looking device that helps you handle
futuristic technology today.
Transfer 3D content, Deep Color (10-bit and 12-bit) video and new
lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio) digital audio, this device does not only handle splitting
and distributing but it also amplies and equalizes the signals to
provide high-performance input/output of audio and video.
Further, this device allows users to cascade up to 4 layers for extending
and distributing the 1080p/8-bit signal without loss of quality or delay.
2. APPLICATIONS
• Display HDMI and 3D content
• Simultaneously display content on multiple screens
• Retail store/Conference/Advertising display
3. PACKAGE CONTENTS
•1 by 8 HDMI Splitter
•5 V DC power supply adaptor
•Operation Manual
4. SYSTEM REQUIREMENTS
Input source with HDMI/DVI connector and output to up to 8
HDMI displays.
2
5. FEATURES
•HDMI v1.3, HDCP 1.1 and DVI 1.0 compliant receiver.
•Deep Color video up to 12-bits, 1080p@24/60 Hz.
•Allows one HDMI source to simultaneously output to up to
eight HDMI displays.
•HDCP keysets allows each output to work independently
when connected to an HDMI display.
•Transmits an HDMI source to eight outputs without any
signal loss.
•Supports DVI source/display by using an optional HDMI/DVI
adaptor cable.
•Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and
DTS-HD Master Audio transmission (32~192 KHzsampling
rate).
•Supports a wide range of PC and HDTV resolutions from VGA
to UXGA and 480i to 1080p.
•HDMI cable distance tested to 15 m with 1080p/8-bit
resolution, and 10 m with 1080p/12-bit resolution.
3
6. OPERATION CONTROLS AND FUNCTIONS

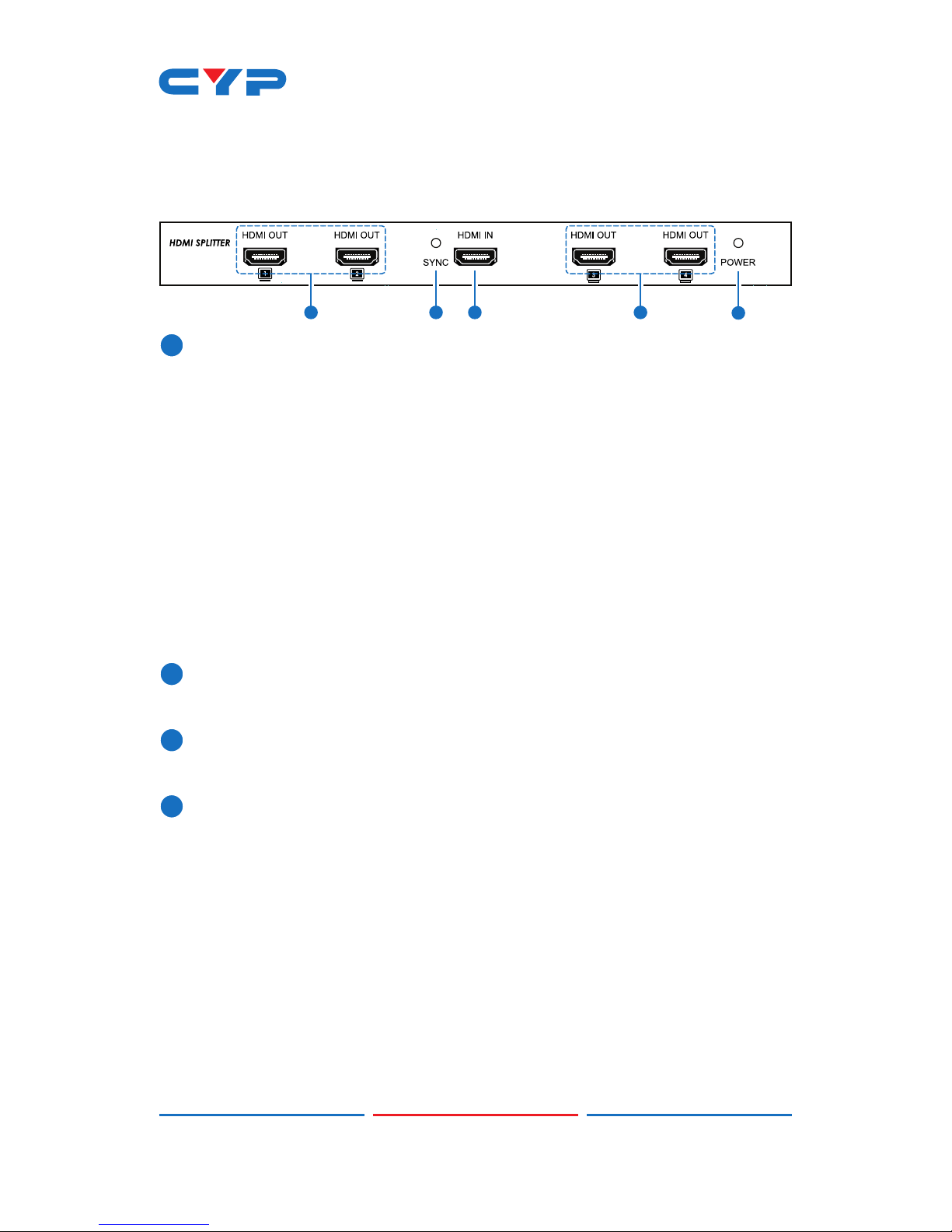

6.1 Front Panel
1 2 3 1 4
1HDMI OUT 1/2/3/4
HDMI equipped displays connected to these slots will display the
same content that is input from the HDMI IN slot.
NOTE
A. This system was tested with 24AWG cables, the performance of this
system may be different if using cables of a different specication.
B. Cable distance tested with a Playstation 3 and 40″ Samsung LED
12-bit LCD TV (Model UA40B700).
C. Figures provided in this manual are for reference only, actual
performance may depend on the source and display being used
along with the specication of the cable used.
2SYNC
The LED will turn yellow when the input signal is detected.
3HDMI IN
Connects to the source device such as a DVD or Blu-ray player.
4Power LED
The green LED will illuminate when the power supply is connected
to the unit and plugged into the AC wall outlet.
4
6.2 Rear Panel
SERVICE ONLY
2 3 4 2 5
1
1USB
For software update only.
2HDMI OUT 5/6/7/8
HDMI equipped displays connected to these slots will display the
same content that is input from the HDMI IN slot.
3SYS Reset ON/OFF
This switch allows user to perform a system reset. The default setting
is OFF, leave as is when in normal use. When switched ON, the unit
will perform a system reset every 8~10 minutes, in order to perform
this function the displays must have CEC support. When performed
successfully, the unit will automatically switch the displays to the
HDMI 1 input.
NOTE: For the system reset function to work will not affect displays
that are not CEC compatible.
4EDID Control switch
This EDID control switch determines if you are going to use the
EDID from the display attached to output 1 or use an onboard
EDID. When TV is selected, the EDID will attach to output 1 and
will accept a 3D signal input to display on the 3D TV. When STD is
selected, the EDID will become onboard EDID. The factory default
setting is TV mode.
5Power
Plug the 5 V DC power supply into the unit and connect the
adaptor to AC wall outlet.
5

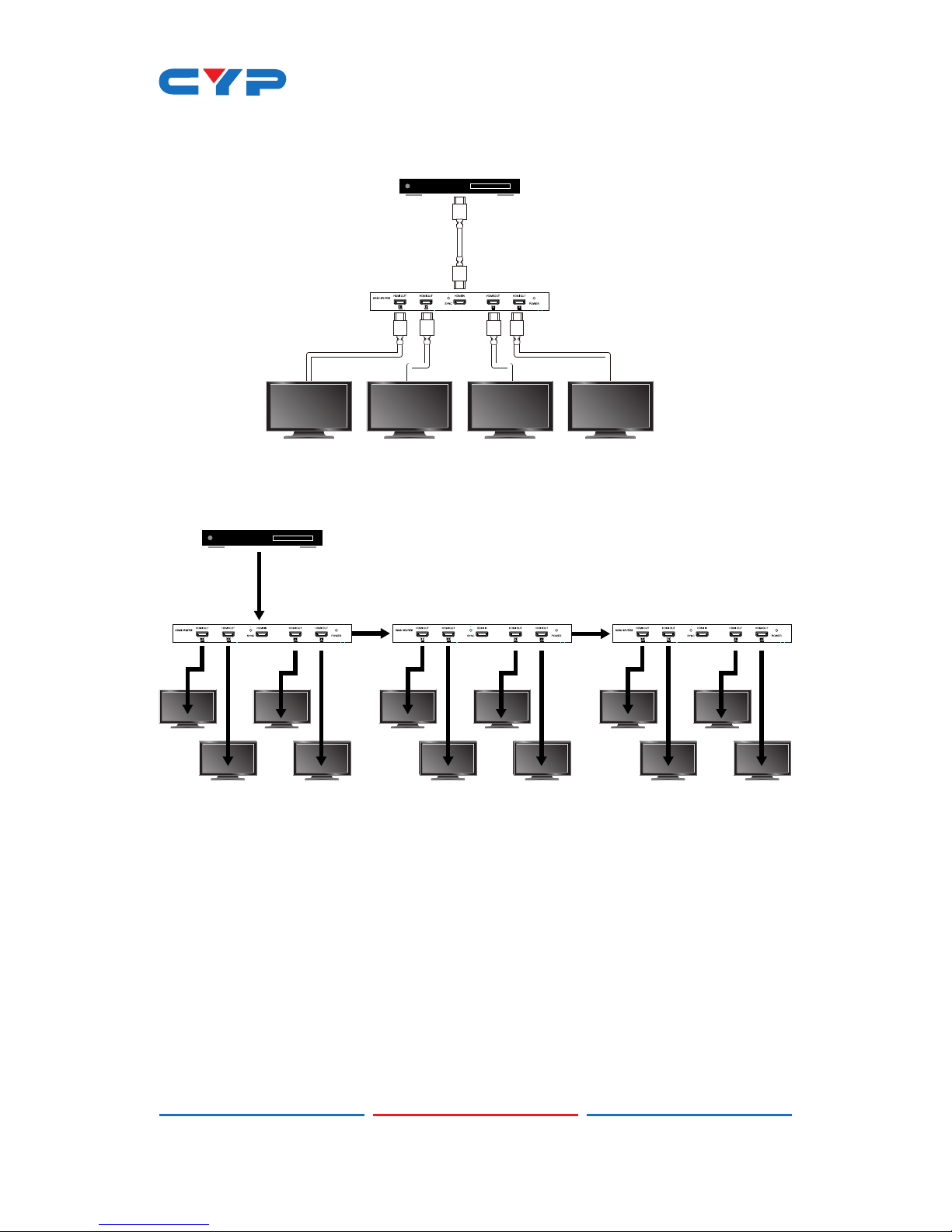

7. CONNECTION DIAGRAM
DVD or Blu-ray Player
TV Monitor TV Monitor
TV
Monitor Monitor
TV TV
Monitor Monitor
TV TV
Monitor Monitor
TV
HDMI Cable (15 M/8-bit) .
(10 M/12-bit)
HDMI Cable (15 M/8-bit) .
(10 M/12-bit)
DVD or Blu-ray Player
6
8. SPECIFICATIONS
TMDS Clock Frequency 225 MHz
Input Port 1 ×HDMI
Output port 8 ×HDMI
ESD Protection Human Body model: ±8
kV (air-gap
discharge)
±4 kV (contact
discharge)
Input/Output Resolution VGA~UXGA, 480i~1080p@60
HDMI Cable In 1080p/8-bits 15 m, 1080p/12-bits 10 m
HDMI Cable Out 1080p/8-bits 15 m, 1080p/12-bits 10 m
Power Supply 5 V/3 A DC (US/EU standards, CE/FCC/UL
certied)
Dimensions 240 mm (W) ×103 mm (D) ×25 mm (H)
Weight(g) 225 g
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0 ˚C~40 ˚C/32 ˚F~104 ˚F
Storage temperature −20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity 20~90 % RH (no condensation)
Power Consumption 10 W (Max)
9. ACRONYMS
ACRONYM COMPLETE TERM
LED Light-emitting Diode
HDCP High-bandwidth Digital Content Protection
HDMI High-denition Multimedia Interface
Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD
