CYP CDPS-P311 User manual

CDPS-P311
4K UHD+HDMI Video Streamer
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2018 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document are
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in
use to avoid wasting electricity.
VERSION HISTORY
REVISION DATE SUMMARY OF CHANGE
VS1 17/08/18 Final technical review

CONTENTS
1. Introduction......................................................1
2. Applications.....................................................1
3. Package Contents ..........................................1
4. System Requirements......................................2
5. Features............................................................2
6. Operation Controls and Functions.................4
6.1 Front Panel ................................................. 4
6.2 Rear Panel.................................................. 5
6.3 Remote Control......................................... 6
6.4 WebGUI Control ........................................ 7
6.4.1 Live Tab ............................................. 9
6.4.2 Streaming Tab ................................ 10
6.4.3 Audio Mixer Tab ............................. 12
6.4.4 Video Switch Tab ........................... 13
6.4.5 EDID Setting Tab............................. 15
6.4.6 User Conguration Tab.................. 17
6.4.7 System Setting Tab......................... 17
6.4.8 Logout Tab...................................... 18
6.5 RS-232 Control ......................................... 19
6.6 Telnet Control .......................................... 19
6.7 RS-232 and Telnet Commands .............. 20
7. Connection Diagram ....................................33
8. Specications ................................................34
8.1 Technical Specications ........................ 34
8.2 Video Specications............................... 35
8.3 Audio Specications............................... 36
8.4 Cable Specications .............................. 36
9. Acronyms .......................................................37

1
1. INTRODUCTION
This unit makes online broadcasting of live video an easy and simple
process. Video sources from cameras, PCs, video game consoles, etc.
are a breeze to connect for immediate broadcast. Video content up
to 4K UHD+ is supported and is automatically scaled to a resolution
that is more appropriate for efcient streaming. In addition to the
standard HDMI input, a VGA input with an analog stereo audio input
is also available as a source. An HDMI output is provided for local
monitoring of the selected input source.
All video content is encoded and streamed with minimal latency
and high quality making it ideal for live streaming events to a variety
of popular online streaming services or within the local network. An
audio mixer function is included, allowing an external audio source to
be mixed with the embedded audio of your HDMI source (LPCM 2.0
only) for your video stream.
Comprehensive EDID management provides improved compatibility
with different sink devices. The intuitive WebGUI provides easy control
of your live event stream including source selection, resolution, bitrate
and more. Audio functions include volume level adjustment, mute,
and mixer source selection. This unit can be controlled and congured
via an intuitive WebGUI or via standard Telnet or RS-232 connections.
2. APPLICATIONS
• Webcasting
• Social Media Broadcasting
• Live Event Streaming
• Video on Demand Streaming
3. PACKAGE CONTENTS
• 1×HDMI Video Streamer
• 1×5V/3A DC Power Adapter
• 1×Remote Control (CR-181)
• 1×Shockproof Feet (Set of 4)
• 1×Operation Manual

2
4. SYSTEM REQUIREMENTS
• HDMI or VGA source equipment such as a media player, video
game console, PC, or video camera.
• HDMI receiving equipment such as an HDTV, monitor or audio
amplier.
• The use of “Premium High Speed HDMI” cables is highly
recommended.
• Video streaming preview support within the WebGUI requires the
use of the Chrome, Internet Explorer or Safari browser with the
appropriate plugins (VLC for IE and Safari or VXG Player for Chrome)
installed.
Note: The Firefox browser does not currently support the WebGUI’s
video streaming preview window.
• To view RTSP streams directly on the local network, RTSP stream
compatible video player software (such as VLC Media Player or
PotPlayer) must be used.
5. FEATURES
• 1 HDMI and 1 VGA input
• 1 HDMI output
• HDCP 1.x and HDCP 2.2 compliant
Note: HDCP encrypted sources can not be streamed over the
Internet and will be blacked out
• HDMI input/output supports resolutions up to 4K UHD (18Gbps,
4K@60Hz 4:4:4, 8-bit)
• VGA input supports resolutions up to WUXGA (1920×1200@60Hz)
• Advanced H.264 video streaming is provided at QVGA (320×240),
VGA (640×480), 720p, or 1080p at up to 60fps
• Audio embedding and mixing support with the analog stereo audio
input
Note: Analog audio can only be mixed with LPCM 2.0 audio from
the HDMI source.
• Integrated support for live streaming to Facebook or YouTube
channels

3
• Can act as a streaming server (using RTP/RTSP protocols) or
streaming client (using the RTMP protocol)
• On screen countdown timer to inform the audience and event host
of the scheduled ending time for the current stream
• Supports text overlays over live broadcasts
• Integrated downscaling function will convert UHD video content (up
to 4K@60Hz) down to 1080p or lower for live video broadcast
• Generates 4 simultaneous streams from the same video source
(1080p@60fps, 1080p@30fps, VGA@30fps, QVGA@30fps) for easy
system integration at multiple bandwidth targets
• Supports automatic input switching
• Advanced EDID management including Internal , External & User
congured EDID selections
• Control via front panel buttons, WebGUI, Telnet, RS-232, and IR
remote

4
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
IR STOP PLAY
SOURCE
SEL
AUDIO
MIXER
STATUSPOWER
1 2 3 4 5 6 7
1POWER BUTTON & LED: Press this button to power the unit on or
place it into stand- by mode.
2IR WINDOW: Accepts IR signals from the included IR remote for
control of this unit only.
3SOURCE SEL BUTTON: Press this button to toggle between the HDMI
and VGA inputs. The status LED will change depending on the
input selection.
Note: Changing the input source will cause the video stream to
restart. Connected stream targets may need to be restarted or
reconnected.
4STATUS LED: This multi-function LED indicates the current video
source selection, audio mixer state and RTMP streaming client
(streaming to YouTube or Facebook) status.
LED State Description
RED Video source is VGA
BLUE Video source is HDMI
PURPLE Video source is HDMI, Audio Mixer is enabled
Solid (any color) RTMP streaming client is inactive
Blinking (any color) RTMP streaming client is active
5AUDIO MIXER BUTTON: Press this button to enable/disable the
Audio Mixer function when the video source is HDMI. The mixer’s
settings are congured within the WebGUI.
6STOP BUTTON: Press this button to stop streaming to the congured
YouTube or Facebook target server. The Status LED will be lit solidly
to indicate the stream is stopped.

5
7PLAY BUTTON: Press this button to start streaming to the congured
YouTube or Facebook target server. The Status LED will blink to
indicate the stream is currently active.
Note: The target streaming service (YouTube or Facebook)
controlled by this button is dened in the WebGUI.
6.2 Rear Panel
SERVICERS-232LANHDMI INHDMI OUT
DC 5V
AUDIO INVGA IN
123 4 5 6 78
1HDMI OUT PORT: Connect to an HDMI TV, monitor or amplier for
digital video and audio output.
2HDMI IN PORT: Connect to HDMI source equipment such as a
media player, game console or set-top box.
Note: HDCP encrypted sources can not be streamed over the
Internet and will be blacked out.
3VGA IN PORT: Connect to VGA source equipment such as a PC or
laptop.
4AUDIO IN PORT: Connect to the stereo analog output of a device
such as a CD player or PC.
5LAN PORT: Connect to a network switch or router for transmission
and distribution of streamed video as well as to control the unit via
Telnet or WebGUI.
Note: The maximum number of simultaneous stream connections is
limited by available network bandwidth and the unit’s CPU load.
6RS-232 PORT: Connect directly to a PC, laptop or other serial
control device to send RS-232 commands to control the unit.
7SERVICE PORT: This slot is reserved for rmware update use only.
8DC 5V PORT: Plug the 5V DC power adapter into this port and
connect it to an AC wall outlet for power.

6
6.3 Remote Control
1POWER BUTTON: Press to power the unit
on or place it into stand-by mode.
2COUNTDOWN BUTTON: Press to enable/
disable the Countdown Timer display on
the HDMI and streaming output.
3PLAY & STOP BUTTONS: Press to start/stop
streaming to the congured YouTube or
Facebook target server.
4TEXT SCREEN BUTTON: Press to enable/
disable the “Text Screen” feature.
5HDMI & VGA BUTTONS: Press to select
HDMI or VGA as the input source.
6PICTURE QUALITY BUTTONS: Press these
buttons to change the bitrate and
resolution of the YouTube/Facebook
streaming output. Available options are:
BEST: 1080p@30fps, 3000Kbps
HIGH: 720p@30fps, 2000Kbps
NORMAL: VGA@15fps, 1500Kbps
Note: Changing the bitrate will force the video stream to restart.
7 − (MINUS), OK & + (PLUS) BUTTONS: Press the OK button to start
or stop the Countdown Timer. Press the + (PLUS) and − (MINUS)
buttons to increase or decrease the remaining time in 30 second
steps.
8 VOL− & VOL+ BUTTONS: Press to increase or decrease the mixer
output volume.
MIXER BUTTON: Press to enable/disable the Audio Mixer function.
SWITCH BUTTON: Press to toggle the audio source for the HDMI
input between HDMI and analog stereo when the mixer is not
enabled.
MUTE BUTTON: Press to mute/unmute all audio output.
POWER COUNT
DOWN
TEXT SCREEN
HDMI VGA
BEST HIGH NORMAL
PICTURE QUALITY
OK
VOL +
VOL –
MUTESWITCHMIXER
AUDIO
CR-181
PLAY STOP
1
3
5
6
7
8
2
4

7
6.4 WebGUI Control
• Device Discovery
Please obtain the “Device Discovery” software from your authorized
dealer and save it in a directory where you can easily nd it.
Connect the unit and your PC/Laptop to the same active network
and execute the “Device Discovery” software. Click on “Find Devices
on Network” and a list of devices connected to the local network will
show up indicating their current IP address.
Note: The unit’s default IP address is 192.168.1.50.
By clicking on one of the listed devices you will be presented with the
network details of that particular device.
1) IP Mode: If you choose, you can alter the static IP network settings
for the device, or switch the unit into DHCP mode to automatically
obtain proper network settings from a local DHCP server. To switch
to DHCP mode, please select DHCP from the IP mode drop-down,
then click “Save” followed by “Reboot”.
2) WebGUI Hotkey: Once you are satised with the network settings,
you may use them to connect via Telnet or WebGUI. The network
information window provides a convenient link to launch the
WebGUI directly.

8
• WebGUI Overview
After connecting to the WebGUI’s address in a web browser, the
login screen will appear. Please enter the appropriate user name and
password then click “Submit” to log in.
Note: The default user name and password is “admin”.
On the left side of the browser you will see the following menu tabs
where all primary functions of the unit are controllable via the built in
WebGUI. The individual functions will be introduced in the following
sections.
Clicking the red “Logout” tab will automatically log the currently
connected user out of the WebGUI and return to login page.

9
6.4.1 Live Tab
This tab provides viewing access to, and control over, the rst local
video stream channel (of 4 channels total) generated by the unit.
The video source, streaming resolution, streaming framerate and
bitrate can be controlled directly here. At the bottom of the page,
a connection address for video stream channel 1 is displayed in the
format: “rtsp://nnn.nnn.nnn.nnn/live/ch1/h264_acc” (nnn.nnn.nnn.
nnn = the unit’s current IP address). When 3rd party video player
software with RTSP streaming support is used to view streams from this
unit, this is the URL that should be used to connect. To view streaming
channels 2~4, change “ch1” in the address to “ch2”, “ch3”, or “ch4”,
as appropriate.
Note: Channels 2~4 contain the same video content presented at
different streaming resolutions. Channel 2 matches the current settings
from the “Streaming” tab, Channel 3 is 640×480@30fps, and Channel 4
is 320×240@30fps.
1) Source Select: Select the video input (HDMI or VGA) to stream.
Note: Changing the input here will change it globally across the
unit.
2) Video Codec: Indicates the video codec used for the video
stream.
Note: Currently, only H.264 is supported.
3) Maximum Resolution: Select the resolution to use for this
video stream. Available resolutions are: 1080p(1920×1080),
720p(1280×720), VGA(640×480), or QVGA(320×240).

10
4) Maximum Framerate: Select the framerate to use for this video
stream. Available framerates are: 60, 50, 30, or 25 frames per
second.
5) Maximum Quality: Select the target bitrate for this video stream.
Available bitrates are: 6000Kbps, 3000Kbps, or 2000Kbps.
6) Video Window: This video window displays the content of streaming
channel 1 and provides the details of a direct connection address
that can be used to connect to this stream using 3rd party video
player software such as VLC or PotPlayer.
Note: Video streaming preview support within the WebGUI requires
the use of the Chrome, Internet Explorer or Safari browser with
the appropriate plugins (VLC for IE and Safari or VXG Player for
Chrome) installed.
6.4.2 Streaming Tab
This tab provides access to the streaming settings to use when
streaming directly to a YouTube or Facebook account as well as a
way to start and stop the stream.
Note: This unit can only stream to a single dedicated service at a
time. It is not possible to stream to both YouTube and Facebook
simultaneously, however, all 4 local streaming channels are always
active.

11
1) Streaming Path: Select the dedicated service (YouTube or
Facebook) to stream to when the “Play” button, in the WebGUI
or on the front of the unit, is pressed. Pressing the “Play” button
will make the unit start streaming immediately and change label
of the button to read “Stop”. To stop streaming, press the “Stop”
button.
Note: Both the Stream URL and Stream Key for the selected service
must be set correctly for streaming to work. If the video stream is
not connecting or not starting, please double check that those
values have been entered correctly.
2) Source Select (YouTube or Facebook): Select the video input (HDMI
or VGA) to stream.
Note: Changing the input here will change it globally across the
unit.
3) Maximum Video Resolution (YouTube or Facebook): Select
the resolution to use for the specied video stream. Available
resolutions are: 1080p(1920×1080), 720p(1280×720), VGA(640×480),
or QVGA(320×240).
4) Maximum Video Framerate (YouTube or Facebook): Select
the framerate to use for the specied video stream. Available
framerates are: 30 or 15 frames per second.
5) Maximum Video Quality (YouTube or Facebook): Select the target
bitrate for the specied video stream. Available bitrates are:
3000Kbps, 2000Kbps, or 1500Kbps.
6) Stream URL (YouTube or Facebook): Please enter the Stream URL
provided by the specied streaming service. This is the address
of the specic target streaming server. Type the Stream URL
EXACTLY as provided by the streaming service. The URL will start
with “rtmp://” or “rtmps://” followed by the specic destination
information of the server. Click on “Save” to conrm and store the
Stream URL.
7) Stream Key (YouTube or Facebook): Please enter the Stream Key
provided by the specied streaming service. This is an encrypted
key that provides the streaming server with your unique login
and identication credentials. Type the Stream Key EXACTLY as
provided by the streaming service. A typical stream key is a very
long string of letters, numbers and symbols. Click on “Save” to
conrm and store the Stream Key.

12
Note: The Stream URL and Stream Key will be provided on the
service’s stream setup page. More information can be found within
the help les of the specic service. Entering incorrect information
will result in a failed connection.
6.4.3 Audio Mixer Tab
This tab allows for control over the Audio Mixer function of this unit.
The Audio Mixer feature, when enabled, mixes the analog audio and
HDMI audio inputs together with independently controllable volume
levels.
Note: Only LPCM 2.0 audio from the HDMI source is supported by the
mixer.
1) Audio Mixer: Enable or Disable the Audio Mixer function.
2) Line In Volume: Adjusts the volume of the analog audio source
from 0% to 100%.
3) HDMI In Volume: Adjusts the volume of the HDMI audio source
from 0% to 100%.
4) Mixer Out Volume: Adjusts the volume of the mixed audio output
from 0% to 100%.

13
6.4.4 Video Switch Tab
This tab provides video/audio routing control as well as control over
HDCP behavior, Input and Output names, Text Screen intermission
details, and the Countdown Timer.
1) Auto Source Switch: Enable or disable the automatic input
switching feature of this unit. When enabled, the unit will
automatically switch to the most recently connected/detected
input. If the current input’s signal is lost, the unit will automatically
switch to the other input.
2) Text Screen: The Text Screen intermission output can be used when
the user wants to stream a simple text screen to indicate that
there is not currently any live video to view. It may be enabled or
disabled here.
Note: Enabling or disabling this feature may disconnect any
currently connected streaming clients.
3) Video Switch: To assign a new video route, please click the Output
button and then click on the button of the preferred Input port
to route. As you select each button they will change their color
to orange. The new route will become active immediately and
the routing information displayed on the buttons will change
accordingly.
■ Output: Click on this button to begin routing selection as
detailed above. Click the EDIT icon ( ) to open the Output Edit
window and modify additional Output settings.
■ Input: Rename either Input or modify the HDCP behavior (HDMI
Input only) by clicking on the EDIT icon ( ) to open the editing
window. Click on “Save” to conrm and activate any changes
made to a name. Changes made to the HDCP behavior are

14
applied immediately. Available HDCP settings are:
Unit's Default HDCP Settings
HDCP Support Off Completely disables HDCP support on the
input.
Refer to Source HDCP support follows the HDCP mode
required by the connected source device.
Refer to Display HDCP support follows the HDCP mode
supported by the connected sink.
4) Output Edit: This window is opened after clicking on the EDIT icon
( ) within the Output button and provides options to rename the
Outputs, and congure the countdown timer and its associated
OSD. Click on “Save” to conrm and activate any changes made
to a name or to the countdown timer’s default time. All other
changes are immediate.

15

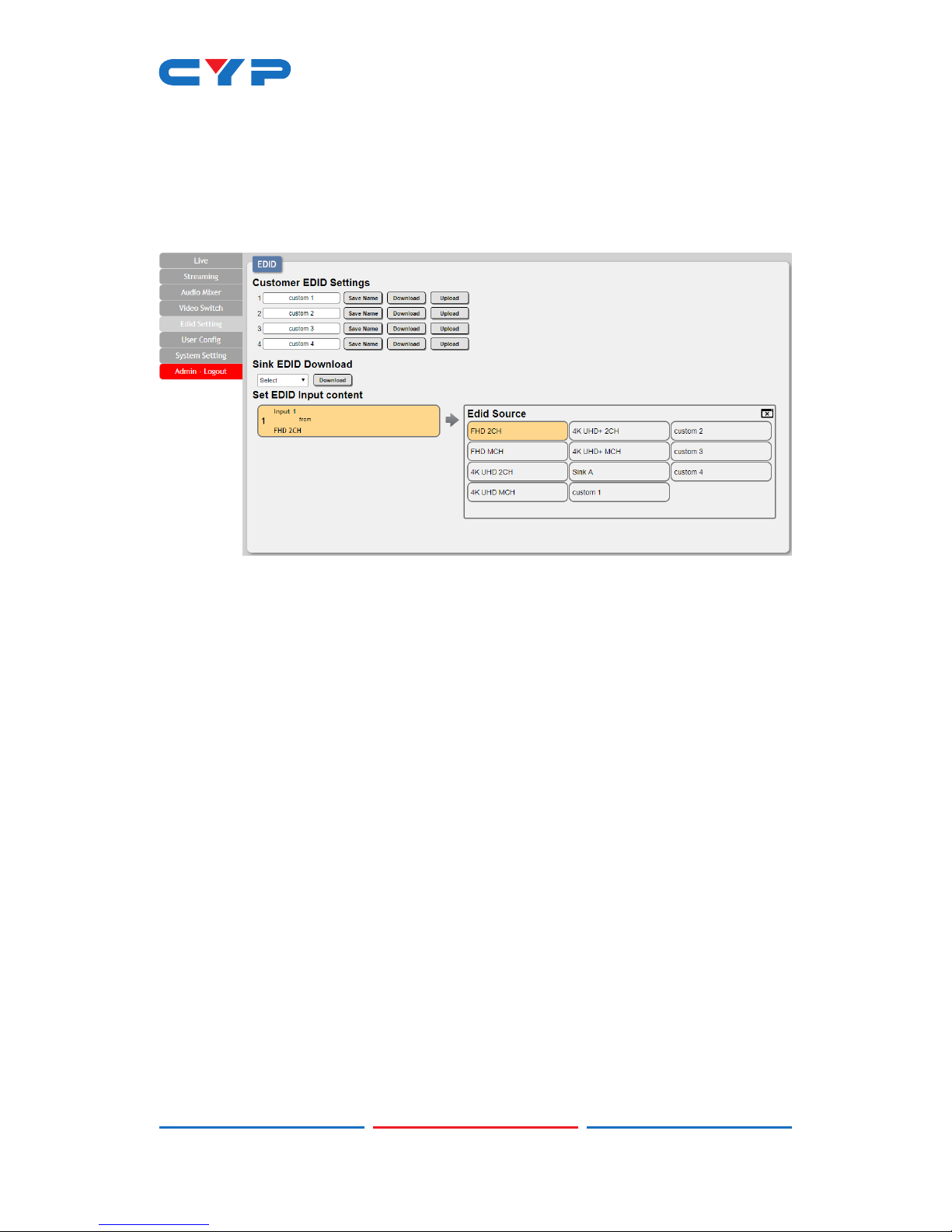

6.4.5 EDID Setting Tab
This tab provides the option of six standard EDIDs, one sink sourced
EDID and four customer uploaded EDIDs that can be assigned to the
HDMI input port. The names of the four customer uploaded EDIDs can
changed if desired.
1) Customer EDID Settings: To upload a custom EDID, please click
the “Upload” button next to the Customer EDID Settings item
you would like to change. An EDID Upload window will appear,
allowing you to locate and upload the preferred EDID le (*.bin
format) from a local PC. Once the correct le has been selected,
please click the “Upload” button in the window, and the le will be
transferred to the unit.
To save an existing custom EDID to your local PC please press
the “Download” button next to the EDID you would like to save.
Depending on your browser settings you will either be asked where
to save the downloaded le, or the le will be transferred to the
default download location on your PC. To change the name of
a custom EDID, type the new name in the space provided, then
click on the “Save Name” button.
2) Sink EDID Download: To save the EDID from the connected HDMI
display to your local PC, select the sink from the dropdown list then
press the “Download” button. Depending on your browser settings
you will either be asked where to save the downloaded le, or the
le will be transferred to the default download location on your
PC.
