Cyrus Stereo 200 User manual

Cyrus Stereo 200 User Instructions
CONTENTS
IMPORTANT! READ BEFORE OPERATING THIS EQUIPMENT! ...1
Power supply:............................................................................2
Servicing: ...................................................................................2
Product service centres:............................................................2
FCC NOTICE*..............................................................................3
WELCOME TO THE WORLD OF CYRUS!.......................................4
Preparaons for Installaon......................................................4
Speaker detecon......................................................................4
INSTALLATION...............................................................................5

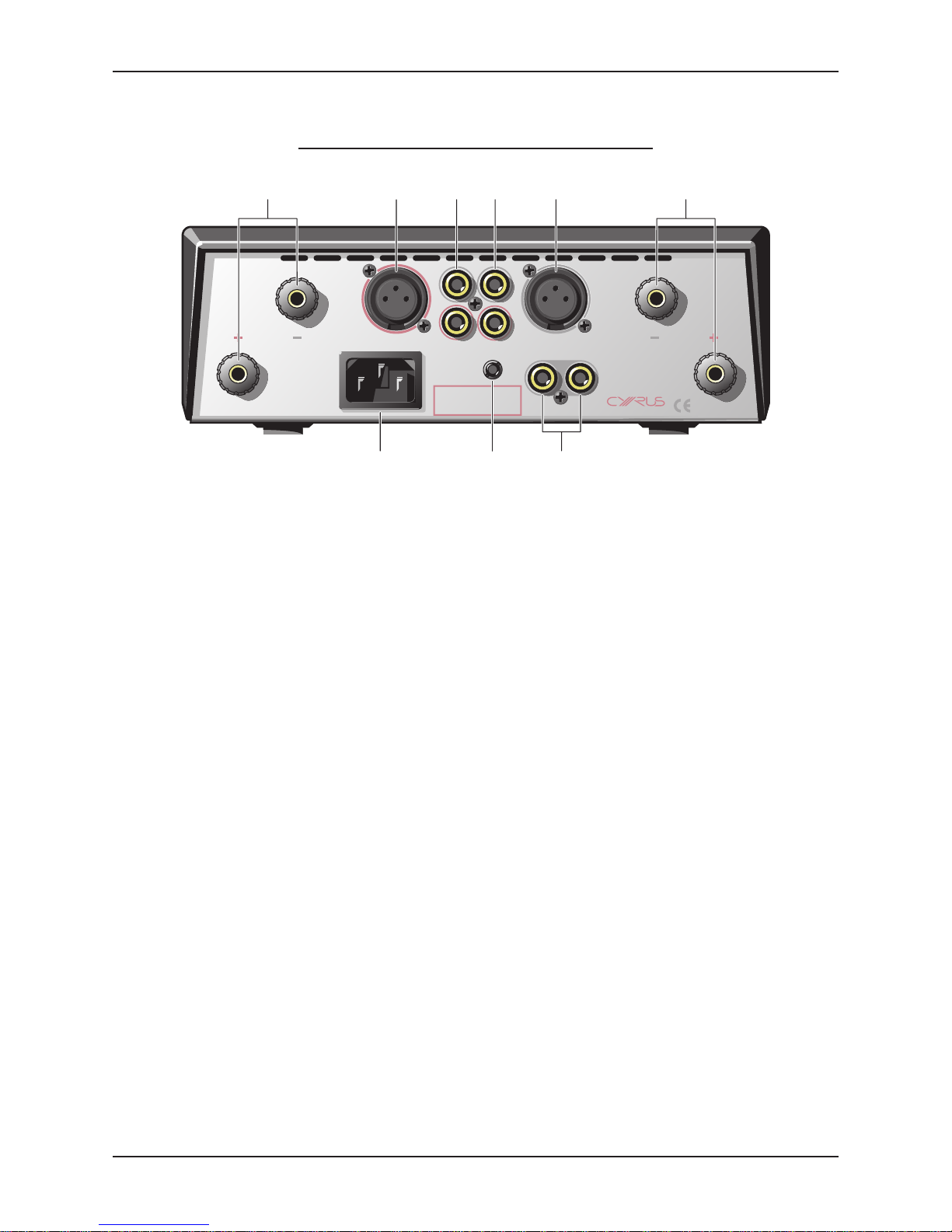

Key to the rear panel drawing ..............................................5
Placement..................................................................................5
Connecng to the AC Mains Supply ..........................................5
Connecng a Pre-Amplier or DAC ...........................................5
Connecng via phono (RCA) interconnects..........................5
Connecng using Balanced XLR cables.................................5
Connecng Loudspeakers..........................................................6
Choice of speaker cables ......................................................6
Speaker cable polarity ..........................................................6
Cable terminaon.................................................................6
Connecng spade tags .........................................................6
Connecng plugs ..................................................................6
Connecng bare wire terminaons......................................6
Connecng the cables to your speakers...............................6
Input and speaker connecons ............................................6
Chain Output .............................................................................7
Bi-Amplicaon....................................................................7
Gain Matching ......................................................................7
Chain output and bi-amplied speaker connecon .............7
Remote Power Control (MC-BUS or 12V Trigger) ......................8
Connecng MC-BUS .............................................................8
Connecng to a 12V trigger equipped system .....................8
OPERATION ...................................................................................9
Power Control..........................................................................10
Power control from the front panel ...................................10
First use ..............................................................................10
Music sensing automac power control ............................10
Input Indicator.........................................................................10
Selecng an Input....................................................................10
TROUBLESHOOTING GUIDE.......................................................11
SPECIFICATIONS..........................................................................11
Power Supply......................................................................11
Power Consumpon...........................................................11
Enclosure............................................................................11
Audio Performance..................................................................11
WARRANTY..................................................................................12
WEEE............................................................................................12

Cyrus Stereo 200 User Instructions
1
WARNING: To reduce the risk of electrical shock do not
remove any unit covers or panels. There are no user
serviceable parts in this product.
WARNING: To reduce the risk of electric shock, do not
expose this equipment to rain or moisture.
HEED WARNINGS: All warnings on the product and in the
operang instrucons should be adhered to.
READ ALL THE INSTRUCTIONS: All the safety and operang
instrucons should be read before the product is operated.
RETAIN INSTRUCTIONS: The safety and operang
instrucons should be retained for future reference.
FOLLOW INSTRUCTIONS: All operang and use instrucons
should be followed.
CLEANING: Unplug this product from the mains before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
WATER AND MOISTURE: Do not use this product near water
- for example, near a bath tub, wash bowl, kitchen sink, or
laundry tub, in a wet basement; or near a swimming pool
and the like. The product must not be exposed to dripping
or splashing and no objects lled with liquids, such as vases,
shall be placed on the product.
HEAT: The product should be situated away from heat
sources such as radiators, stoves, or any other products
(including ampliers) that produce heat.
VENTILATION: Slots and openings in the cabinet are
provided for venlaon, to ensure reliable operaon of
the product and to protect it from overheang and these
openings must not be blocked or covered. The openings
should never be blocked by placing the product on a bed,
sofa, rug or similar surface. This product should not be
placed in a built-in installaon such as a bookcase or rack
unless proper venlaon is provided or the manufacturer’s
instrucons have been adhered to.
OBJECT OR LIQUID ENTRY: Never push objects of any kind
into this product through openings as they may touch
dangerous voltage points or short-out parts that could
result in a re or electric shock.
ACCESSORIES: Do not place this product on an unstable
cart, stand, tripod, bracket, or table. The product may fall,
causing serious injury to a child or adult, and serious damage
to the product. Use only with a cart, stand, tripod, bracket
or table recommended by the manufacturer, or sold with
the product. Any mounng of the product should follow
the manufacturer’s instrucons, and should use a mounng
accessory recommended by the manufacturer.
POWER SOURCES: This product should be operated only
from the type of power source indicated on the marking
label. If you are not sure of the type of power supply to your
home, consult your product dealer or local power company.
For products intended to operate from baery power, or
other sources, refer to the operang instrucons.
OVERLOADING: Never overload wall outlets, extension
cords, or integral convenience receptacles. This can result in
an increased risk of re or electric shock.
POWER CORD PROTECTION: Power supply cords should be
routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying parcular
aenon to cords at plugs, convenience receptacles, and
the point where they exit from the product.
NAKED FLAMES: No naked ame sources, such as candles,
must be placed on this product.
LIGHTNING: For added protecon for this product during
a lightning storm, or when it is le unaended or unused
for long periods of me, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent
damage to the product due to lightning and power-line
surges.
BATTERIES: Warning : Baeries shall not be exposed to
excessive heat such as sunshine, re or the like.
CAUTION! POLARISED CONNECTOR (CANADA and USA): To
prevent electrical shock, match wide blade of plug to wide
slot, fully insert.
Do not alter or remove this plug if it does not t your
mains power socket. Have a suitable socket installed by a
competent electrician.
ACCESS TO THE MAINS PLUG: The means to disconnect this
product from the mains supply is the mains plug. Ensure
that the mains plug is accessible at all mes.
WARNING: This appliance must be earthed.
IMPORTANT! READ BEFORE OPERATING THIS EQUIPMENT!
CAUTION: The exclamaon mark is to draw your
aenon to important instrucons and safety
procedures in this manual.
ATTENTION: The lightning ash warns you of the
risk of electrical shock presented by components
inside this product. Unauthorised personnel
must not open this unit.
ATTACHMENTS: Do not use aachments not recommended
by the product manufacturer as they may cause hazards.
MOVING THE PRODUCT: A product and cart
combinaon should be moved with care. Sudden
stops, excessive force, and uneven surfaces may
cause the product and cart to overturn.

Cyrus Stereo 200 User Instructions
2
Power supply:
The mains supply requirement for your Stereo 200 is marked
on a label on the rear panel. Before connecng power, check
that this voltage is the same as your mains supply.
230V Products: Voltage Range 220V-240V
115V Products: Voltage Range 110V-120V
If you move to an area with a dierent mains voltage,
contact your local Cyrus distributor to have your product
converted.
There are no user replaceable fuses in this unit.
Servicing:
Do not aempt to service this product yourself as opening
or removing covers may expose you to dangerous voltage
or other hazards. Refer all servicing to qualied service
personnel.
CONDITIONS REQUIRING SERVICE: Unplug this product
from the wall outlet and refer servicing to qualied service
personnel when:
When the power supply cord or plug is damaged.•
If liquid has been spilled, or objects have fallen into the •
product.
If the product has been exposed to rain or water.•
If the product has been dropped or damaged in any •
way.
If the product does not operate normally by following •
the operang instrucons. (Adjust only those controls
that are covered by the operang instrucons. Improper
adjustment of other controls may result in damage
requiring extensive work by a qualied technician to
restore the product to its normal operaon).
When the product exhibits a disnct change in •
performance.
REPLACEMENT PARTS: When replacement parts are
required, be sure the service technician has used
replacements specied by the manufacturer or have the
same characteriscs as the original part. Unauthorised
substuons may result in re, electric shock, or other
hazards.
SAFETY CHECK: Upon compleon of any service or repairs
to this product, ask the service technician to perform safety
checks to determine that the product is in proper operang
condion.
Product service centres:
For product service or technical advice, contact only
authorised Cyrus service centres. Contact details for Cyrus
distributors may be found on the Cyrus website at www.
cyrusaudio.com.

Cyrus Stereo 200 User Instructions
3
FCC NOTICE*
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protecon against harmful interference in a residenal installaon. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instrucons, may cause harmful interference to radio
communicaons. However, there is no guarantee that interference will not occur in
a parcular installaon. If this equipment does cause harmful interference to radio
or television recepon, which can be determined by turning the equipment o and
on, the user is encouraged to try and correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.•
Increase the separaon between the equipment and receiver.•
Connect the equipment into an outlet on a circuit dierent from that to which the •
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.•
Any changes or modicaons not expressly approved by the manufacturer could void
the user’s authority to operate the equipment.
*115V products

Cyrus Stereo 200 User Instructions
4
WELCOME TO THE WORLD OF CYRUS!
Congratulaons on your choice of Cyrus Hi- products. Our
state-of-the-art design technology and outstanding quality
of manufacture has won countless awards around the
world. We are condent that you will derive great pleasure
from owning a product from one of the most recognised and
respected manufacturers of hi- equipment.
Now is a good me to register your new Cyrus product.
Registraon takes only a few minutes, brings the added
benet of a full two year factory warranty and adds you to
our mailing list for future product updates and upgrades.
To register, visit www.cyrusaudio.com and click the ‘Login/
Register’ link.
Please read these instrucons carefully before commencing
installaon. They provide full guidance to help you install
your amplier safely and correctly.
Preparations for Installation
Before installing the Stereo 200 check that the following
items are included in the accessory box.
Power Cable•
4 Loudspeaker plugs•
2 MC-BUS cables•
Ferrite clamp•
Aer removing these items, please retain the packaging.
Install the amplier in a well venlated locaon away from
sources of high temperature, dust or humidity. Never stand
the amplier under another unit or on any surface likely to
hamper its cooling or venlaon.
Speaker detection
The Stereo 200 automacally measures the impedance of
your speakers and adjusts its performance accordingly. The
process takes a few seconds and only takes place on the rst
occasion that the amplier is switched on aer connecon
to the mains.
NOTE: A faint noise may be heard through the speakers
during opmisaon. This is normal.
Once the speakers have been measured, the results are
stored unl mains power is next disconnected.
To ensure that this speaker opmisaon runs correctly,
follow these guidelines -
Make all connecons, including speakers, to the amplier •
before connecng mains power.
Turn the system volume control to minimum when•
speaker opmisaon is running.
If you change your speakers, disconnect the amplier •
from mains power and re-connect it once the new
speakers are connected.
NOTE: The amplier will not be damaged if you switch on
before connecng the speakers, but performance may be
compromised.

Cyrus Stereo 200 User Instructions
5
INSTALLATION
Key to the rear panel drawing
Right speaker output1.
Right channel balanced input2.
Chain output3.
Unbalanced RCA (phono) Input4.
Le channel balanced input5.
Le speaker output6.
MC-BUS connecons7.
12V trigger input8.
IEC Power Inlet9.
RIGHT INPUT
SPEAKER
SPEAKER
WARNING:
THIS APPLIANCE
MUST BE EARTHED
ATTENTION:
CET APPAREIL DOIT
ÊTRE BRANCHÉ À
LA TERRE
TRIGGER
INPUT
INPUTCHAIN
OUT IN
MC-BUS
INPUT
MADE IN ENGLAND
LEFT
g
i
abacd ef
h

Cyrus Stereo 200 User Instructions
6
Placement
When installing a Stereo 200 amplier, choose a posion
where there is at least 3cm clearance from the sides and
top of the amplier to allow cooling air to circulate. Never
stand the amplier on a so or carpeted surface or install
the amplier in an enclosed space or cabinet where cool air
cannot enter.
Connecting to the AC Mains Supply
To ensure your Stereo 200 power amplier meets with
the requirements of the EMC direcve(s), t the supplied
ferrite clamp. The hinged clamp folds around the mains
lead and will lock together once you rmly close the shaped
channels.
Connecting a Pre-Amplier, Streamer or
DAC
NOTE: When connecng a streamer or DAC to a Stereo
200, ensure that it includes a volume control and use the
‘variable’ or ‘preamp’ output.
Phono (RCA) dand Balanced input connectors b/e are
available to link the Stereo 200 to a pre-amplier, streamer
or D/A converter etc.
If your amplier is a long distance from the pre-amplier/
DAC, or beside a loudspeaker, then balanced XLR connecons
b/e may give improved performance.
Connecting via phono (RCA) interconnects
Connect a stereo phono interconnect from the output of
the preamplier to the le and right inputs d of the Stereo
200. Be sure to observe colour coding of the plugs to keep
le and right channels correctly ordered.
Connecting using Balanced XLR cables
Connect a 3-pin XLR cable from the balanced outputs of the
preamplier to the le eand right b balanced inputs of the
Stereo 200.
Note. Fit the lter 20mm from the IEC plug as shown.
Connect the socket on the AC Power cable to the Power
inlet i on the rear panel of the amplier. Now connect the
cable to a suitable AC power point.
The mains plug is the disconnect device for this product.
Ensure that the mains plug is always readily accessible.
20mm

Cyrus Stereo 200 User Instructions
7
Connecting Loudspeakers
Choice of speaker cables
When choosing speaker cables, avoid litz-wound cables with
a complex ‘plaited wire’ construcon. These cables can be
highly reacve and may degrade the sound of your amplier.
Always choose a cable of simple construcon, manufactured
from high quality materials and priced sensibly within the
cabling budget of your system.
If in doubt about the correct cable to choose, any Cyrus
retailer will be able to advise.
CAUTION: The speaker outlets are only suitable for
connecon directly to speakers. Never connect any switch-
box or other device to the speaker outlets.
Speaker cable polarity
Speaker cables will always include polarising marks such as a
rib or stripe to indicate the ‘+’ wire and red/black ideners
on the terminals. Ensure you connect the red terminal/
striped cable to the + terminals.
Cable termination
Speaker cables for use with the Stereo 200 may be terminated
with spade tags, 4mm plugs or bare wire ends.
Of these choices, 4mm plugs are the most convenient to
connect/disconnect and are easiest to t to most cables.
Spade tags will give the best quality connecon. Bare wire
ends may be used, but very thin or highly stranded cables
may be beer with plug or spade terminaon to protect the
fragile cable end.
USE PSX-R ONLY
HEADPHONE
MADE IN ENGLAND IN-11IN-10IN-9IN-8IN-7
IN-1IN-2IN-3IN-4IN-5IN-6ZONE 2
OUT
PRE OUT 1 PRE OUT 2
MC-
BUS
IN
OUT
RIGHT INPUT
SPEAKER
SPEAKER
WARNING:
THIS APPLIANCE
MUST BE EARTHED
ATTENTION:
CET APPAREIL DOIT
ÊTRE BRANCHÉ À
LA TERRE
TRIGGER
INPUT
INPUTCHAIN
OUT IN
MC-BUS
INPUT
MADE IN ENGLAND
LEFT
Right
speaker
terminals
Le
speaker
terminals

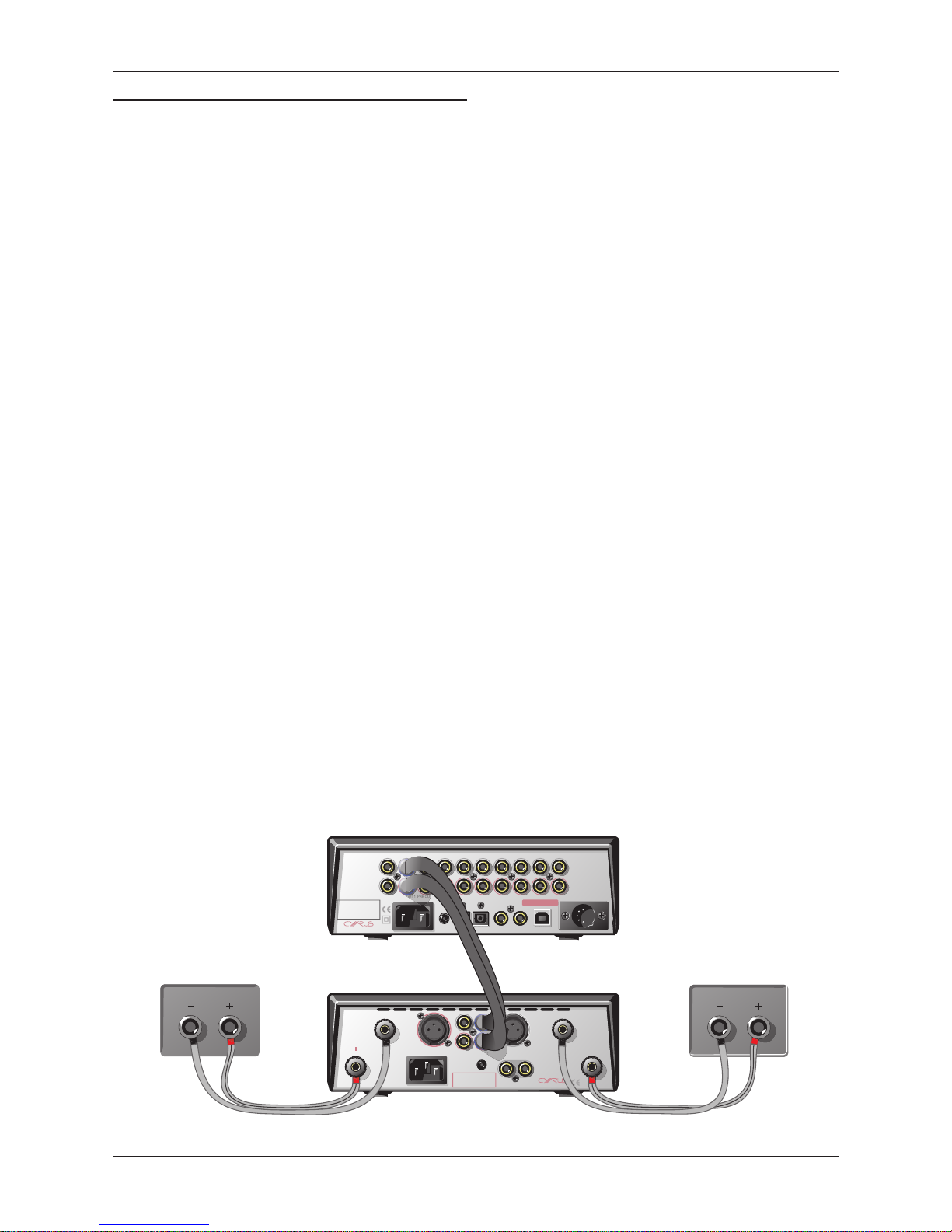

Input and speaker connections
Preamplier
Stereo 200
Connecting spade tags
Unscrew the knobs on the four speaker terminals •
a
and f .
Fit each spade terminal under the knob of the correct •
terminal.
Tighten the knob securely.•
Repeat these steps for the other terminals.•
Check carefully that channel and cable polaries are •
correct.
Connecting plugs
If necessary, t the plugs (supplied) to the cable •
ends.
Check that the knobs on the terminals are ghtened.•
Push each plug into the centre of the correct •
terminal.
Check carefully that channel and cable polaries are •
correct.
Connecting bare wire terminations
Unscrew the knobs on the four speaker terminals •
a
and f .
If the cables are stranded, twist the cables before •
ng them to the terminals.
Pass the cable ends through the cross-holes in •
the terminals. Check that there are no loose wire
strands.
Tighten the knob securely.•
Repeat these steps for the other terminals.•
Check carefully that channel and cable polaries are •
correct.
Connecting the cables to your speakers.
Refer to the speaker instrucons for cable •
connecon.

Cyrus Stereo 200 User Instructions
8
Chain Output
Bi-Amplication
If your pre-amplier only has a single set of pre outputs,
the Chain output c can be used to connect addional Cyrus
power ampliers to each channel for Bi/Tri-amping. Such
a bi-amplied system provides the sonic benets of totally
separate power amplicaon for the bass and treble units
of the loudspeakers.
Note: To set up bi-amplicaon, the loudspeakers must
have bi-wirable terminals to enable separate connecon to
the bass and treble units.
In the bi-amplied system illustraon below, a preamplier
is connected to two Stereo 200 ampliers, one to drive the
speaker bass (LF) units, and one to drive the treble (HF)
units. Phono input connecons are shown.
Note: The Chain output is operaonal whether phono (RCA)
or Balanced XLR input connecon is made to the Stereo
200.
RIGHT INPUT
SPEAKER
SPEAKER
WARNING:
THIS APPLIANCE
MUST BE EARTHED
ATTENTION:
CET APPAREIL DOIT
ÊTRE BRANCHÉ À
LA TERRE
TRIGGER
INPUT
INPUTCHAIN
OUT IN
MC-BUS
INPUT
MADE IN ENGLAND
LEFT
RIGHT INPUT
SPEAKER
SPEAKER
WARNING:
THIS APPLIANCE
MUST BE EARTHED
ATTENTION:
CET APPAREIL DOIT
ÊTRE BRANCHÉ À
LA TERRE
TRIGGER
INPUT
INPUTCHAIN
OUT IN
MC-BUS
INPUT
MADE IN ENGLAND
LEFT
USE PSX-R ONLY
HEADPHONE
MADE IN ENGLAND IN-11IN-10IN-9IN-8IN-7
IN-1IN-2IN-3IN-4IN-5IN-6ZONE 2
OUT
PRE OUT 1 PRE OUT 2
MC-
BUS
IN
OUT
Gain Matching
All Cyrus power ampliers, and all power amplier stages
in Cyrus integrated ampliers have the same voltage gain
characteriscs. This means that you can use the Stereo 200
in conjuncon with any Cyrus amplier for bi-amping, etc.
without any set-up adjustments being required.
Chain output and bi-amplied speaker connection
Right
speaker
terminals
Le
speaker
terminals
Preamplier
Stereo 200
Stereo 200

Cyrus Stereo 200 User Instructions
9
The Stereo 200 may be remotely switched to and from
Standby when used with other Cyrus components using the
Cyrus MC-BUS system.
Connecting MC-BUS
An MC-BUS (Master Control) loop is established by
connecng single phono cables from the MC-BUS output of
one unit to the MC-BUS input of another in a daisy-chain.
Complete the loop by returning the MC-BUS output of
the nal component to the MC-BUS input of the rst (see
example system connecons below).
With MC-BUS established you can control the power funcon
of the system from the front panel or remote control of the
main Cyrus amplier.
The Stereo 200 also includes a 12V trigger input for Home
Cinema, mul-room and other non-Cyrus systems that
use a 12V trigger signal to switch components to and from
Standby.
Connecting to a 12V trigger equipped system
A 3.5mm jack cable will be required to set up 12V trigger
operaon. These are available in standard lengths or can be
made up to a custom length.
Once the cable is available, connect it between the 12V
Trigger input h on the back of the Stereo 200 and a 12V
trigger output on the Home Cinema receiver or other
component that is controlling system power.
Remote Power Control (MC-BUS or 12V Trigger)
Cyrus preamplier
Cyrus CD player
Cyrus streamer
Stereo 200
Home Cinema receiver
Stereo 200
MC-BUS out
MC-BUS in
MC-BUS out
MC-BUS in
MC-BUS out
MC-BUS in
MC-BUS out
MC-BUS in
12V trigger output
12V trigger input

Cyrus Stereo 200 User Instructions
10

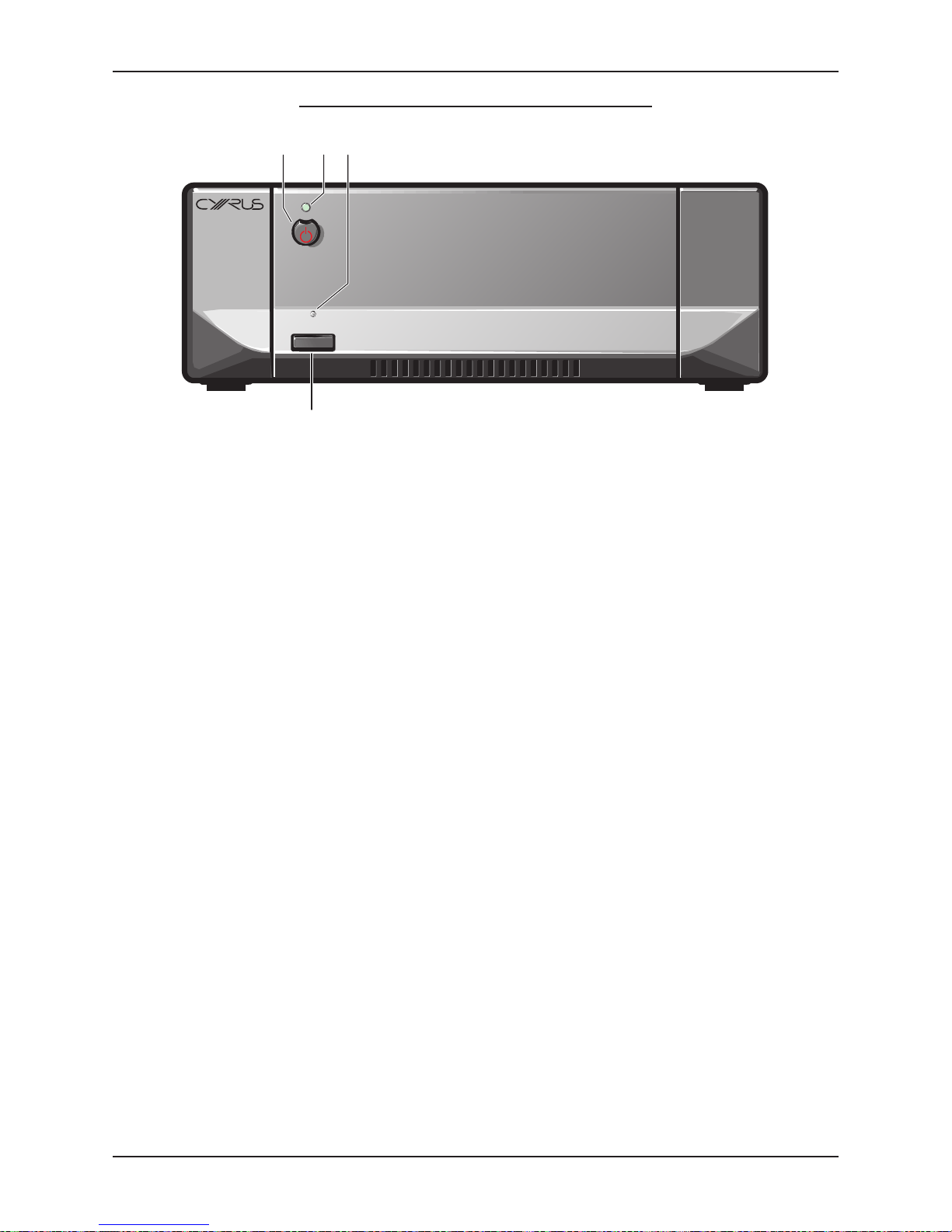

Key to the front panel drawing
Standby key1.
Standby indicator2.
Input indicator3.
Input selector key4.
OPERATION
Stereo 200
INPUT
d
cab

Cyrus Stereo 200 User Instructions
11
Power Control
When power is rst applied, the amplier will inialise, then
set to Standby.
Power operation sequence
It is always good pracce to switch on the system control
amplier (preamplier, streamer or DAC) rst, then wait for
a second before switching on the Stereo 200. This will avoid
any unwanted switch-on noise from the loudspeakers.
Follow the opposite sequence when switching o these
components, switching o the Stereo 200, then waing a
second before switching o the control amplier.
NOTE: The above does not apply if MC-BUS is connected for
automac power control between Cyrus components.
Power control from the front panel
Press the STANDBY key a briey to switch the amplier
between operaonal and standby modes. The Standby
Indicator b will glow green when operaonal or red when
set to Standby.
First use
When the amplier is rst switched on aer connecon
to the mains, there will be a short delay while speaker
performance is opmised. During this me the Standby
Indicator will ash green. The indicator will stop ashing
when opmisaon is complete.
NOTE: A faint noise may be heard through the speakers
during opmisaon. This is normal.
Music sensing automatic power control
Music sense power control can be enabled if required.
To enable or disable Music sense, rst set the amplier
to Standby, then press and hold the STANDBY key for two
seconds. The Standby Indicator will ash red three mes,
then change colour to show the status of Music sense –
orange when enabled or red when disabled.
When Music sense is enabled, the amplier will switch on
automacally if a music signal is detected from the pre-
amplier, and set to Standby aer 10 minutes of silence. The
STANDBY key may also be used to switch the amplier on if
required, or to switch the amplier back to Standby with
Music sense enabled (Standby indicator will glow orange).
A 12V trigger or any MC-BUS command cancels the Music
sense funcon.
NOTE: The music sense seng will be retained when mains
power is disconnected.
Input Indicator
The INPUT Indicator c will glow red when the output of the
Stereo 200 is muted. This occurs for a few seconds following
Standby operaon or if a temporary overload condion
arises.
Selecting an Input
The front panel INPUT key dselects RCA Phono or Balanced
input connecon. To change inputs, the amplier must be
switched on.
Press and hold the INPUT key d unl the INPUT indicator c
changes colour as shown.
INPUT Indicator colour Input selected
Green Balanced
Orange RCA Phono
NOTE: The input seng will be retained when mains power
is disconnected.

Cyrus Stereo 200 User Instructions
12
TROUBLESHOOTING GUIDE
If your Stereo 200 is not operang properly, disconnect
the power and check all connecons using the notes in this
handbook. If problems persist, the checklist below may be
helpful.
If you are in doubt, consult your dealer.
No sound from one or both speakers
Check that the pre-
amplier and the Stereo
200 are switched on.
Check that the correct
amplier input is selected.
The standby lights should
be green.
The INPUT indicator will
glow green for balanced
input, orange for RCA/
phono.
Check that the
loudspeakers are
connected.
The connecon at
the terminals of the
loudspeakers and the
Stereo 200 should be
checked.
Distorted sound at very low volume
The wrong input may be
selected.
Press and hold the INPUT
buon to change the input.
The input indicator will
light orange for phono
input or green for balanced
input.
Your amplier has a unique fault indicaon system to help
you to diagnose problems. Fault condion messages will be
displayed via the Standby indicator in the event of a system
fault.
STANDBY indicator ashing red/green
The amplier has
overheated.
The amplier will mute
then set to Standby. The
error indicaon will clear
when the amplier cools.
STANDBY indicator ashing orange/green
The amplier has been
overloaded or the speaker
connecons have been
short-circuited.
NOTE: The Stereo 200
can detect a short-circuit
whether music is playing
or not.
Check that the speaker
connecons are correctly
made with no possibility
of a short-circuit. To return
to normal operaon, set
the amplier to Standby to
clear the fault indicaon
and switch back on. If the
problem persists when
playing music, the speaker
impedance may be too low.
Ensure that only
speakers are connected
to the speaker outputs.
Switch boxes and other
accessories are not suitable
for connecon.
STANDBY indicator ashing red, green or red/orange
The amplier has detected
an error.
Switch o the amplier,
disconnect it from the
mains, wait 10 seconds and
reconnect it. Check if the
problem has cleared.
If the fault indicaon
persists, disconnect the
amplier and return it for
service.

Cyrus Stereo 200 User Instructions
13
SPECIFICATIONS
Power Supply
Voltage: ........................................... As plate on rear of unit
Power Consumption
Standby...................................................................... <0.5W
ON (No Signal) .............................................................. 17W
Max............................................................................. 500W
Safety Compliance............................................................CE
EMC (230V).......................................................................CE
EMC (115V).....................................................................FCC
Enclosure
Dimensions (WxHxD).............................. 215 x 75 x 365mm
Weight ......................................................................... 6.9kg
Material....................................................... Die cast chassis
Audio Performance
Input Sensivity (50W 8Ω) RCA................................ 381mV
Input Sensivity (50W 8Ω) BAL ................................ 775mV
Input Impedance (RCA) ............................................... 33kΩ
Input Impedance (BAL)................................................ 33kΩ
Output Power (Connuous) 8Ω........................... 170Wrms
THD+N @1/3 full power (1kHz 8Ω) ........................ <0.005%
Frequency Response (-3dB)...............................<1Hz-50kHz
S/N Rao (Ref. 170W / 8Ω)...................................... 100dBA
Chain Output (buered) ........................ (unity gain) 381mV
(ref. 381mV RCA input, 775mV Balanced input.)
Cyrus reserves the right to change all specicaons without noce. E & OE
WARRANTY
The warranty should be registered on-line within 8 days of
purchase. No Dealer or Distributor may vary the terms of
this warranty, which is personal to the original Purchaser
and is not transferable.
Please retain the sales receipt as proof of purchase.
Warranty claims must wherever possible be made through
the Dealer from whom the equipment was purchased.
This warranty excludes:
Damage caused through neglect, accident, misuse, wear •
and tear, or through incorrect installaon, adjustment
or repair by unauthorised personnel. Any unauthorised
servicing will result in loss of warranty.
Liability for damage or loss occurring in transit to or from •
the purchaser.
Consequenal damage, loss or injury, arising from or in •
conjuncon with this equipment.
Equipment for aenon under warranty should be consigned
return carriage paid. If returned equipment is found to
comply with the published specicaon, CYRUS reserves
the right to raise a charge.
The above condions do not aect your statutory rights as
a consumer.
WEEE
This logo means that this product is not to
be disposed of with your household waste.
This product should be handed over to a
designated collecon point to be recycled.
Your cooperaon in the correct disposal of this
product will contribute to the eecve usage
of natural resources. For more informaon
on collecon points, contact your disposal
service or local government administraon.

Cyrus Audio Ltd., Ermine Business Park, Hunngdon, PE29 6XY, U.K.
