D.C. Athletics Performance 1.0 User manual

Performance 1.0
MANUAL

- 1 -
WARNING
Read all instructions carefully before using this product. Retain this owner’s manual for
future reference:
----When using this treadmill, keep attaching the safety pull pin rope to your clothes.
----When you are running, keep your hand swinging natural, stare frontward, never look adown at your
feet.
----Add the speed step by step when running.
----When emergency happens, take away the “emergent stop button” immediately.
----Leave the treadmill after the running belt stop stably.
Caution: Read the assembly instruction carefully, follow the instruction when
assemble.
ATTENTION
01- Before starting any exercise program, consult with your physician or health professional.
02- Check all the bolts locked.
03- Never put the treadmill in the wetness area, or it will cause troubles.
04- We take no responsibility for any troubles or hurts due to above reasons.
05- Dress sport clothes and shoes before running.
06- Do not do exercise in 40 minutes after meal.
07- To prevent hurts, please warm up before exercise.
08- Consult with doctor before exercise if you have high blood pressure.
09- The treadmill is only used for adults.
10- Provide the olds, children and handicapped with good care, guide and supervision.
11- Do not plug anything into any parts of this equipment, or it may damage.
12- Do not connect line to the middle of cable; do not lengthen cable or change the cable plug; do not put
any heavy thing on cable or put the cable near the heat source; forbid using socket with several
holes, these may cause fire or people may be hurt by the power.
13- Cut off the power when the equipment is not used. When the power is cut off , do not pull the power
line to keep the wire unbroken.
14. Maximum weight of user: 100 KGS.
15. Pulse monitor data may not be accurate, cannot be used for medicine. Over-exercise may cause

- 2 -
injury, even death. If you have a feeling of dizziness, sickness or other abnormal symptoms, please stop
training and consult a doctor immediately.
IMPORTANT SAFETY PRECAUSTION
1. Plug the power cord of the treadmill directly into a dedicated grounded circuit. This product must be
grounded. If it has breakdown, grounding provides a path of least resistance for electric current to
reduce the risk of electric shock.
2. Position the treadmill on a clear, level surface. Do not place the treadmill on thick carpet as it may
interfere with proper ventilation. Do not place the treadmill near water or outdoors.
3. Position treadmill so that the wall plug is visible and accessible.
4. Never start the treadmill while you are standing on the walking belt. After turning the power on and
adjusting the speed control, there may be a pause before the walking belt begins to move, always stand
on the foot rails on the sides of the frame until the belt is moving.
5. Wear appropriate clothing when exercising on the treadmill. Do not wear long, loose fitting clothing
that may be caught in the treadmill. Always wear running or aerobic shoes with rubber soles.
6. Make sure the power supply is connected and the safety lock is effective before using the treadmill. Fit
one side of the safety lock on the treadmill and clip the other side on your clothes or belt, which will
enable you to pull off the safety lock promptly in an emergency.
7.Always unplug the power cord before remove the treadmill motor cover.
8. Make sure there is no less than 2*1m space behind the treadmill.
9. Keep small children away from the treadmill during operation.
10. Always hold the handrails when initially walking or running on the treadmill, until you are comfortable
with the use of the treadmill.
10. Always attach the safety pull pin rope to your clothing when using the treadmill. If the treadmill should
suddenly increase in speed due to an electronics failure or the speed being inadvertently increased, the
treadmill will come to a sudden stop when the pull pin is disengaged from the console.
12. In case of any abnormality during the use process, please remove the safety lock immediately,
grasping the handlebar and jumping onto the two edgings, then get off the treadmill after it stops.
13. When the treadmill is not being used, the power cord should be unplugged and the safety pull pin
removed.
14. Put the safety key away where can not be reached by the children. Minors must be accompanied by
the adults when using the treadmill.
15. Before starting any exercise program, consult with your physician or health professional. He or she
can help establish the exercise frequency, intensity (target heart zone) and time appropriate for your
particular age and condition. If you have any pain or tightness in your chest, an irregular heartbeat,
shortness of breath, feel faint or have any discomfort while you exercise, STOP! Consult your physician
before continuing.
16. If you observe any damage or wear on the mains plug or on any section of the mains lead then
please have these replaced immediately by a qualified electrician –do not attempt to change or repair

- 3 -
these yourself.
17. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
18. Put your feet on the side rail before using the treadmill, and always attach the safety pull pin rope to
your clothing. Hold the handle bar before the running belt moving well (feel the running speed by your
single foot before using it). To avoid loss balance, please slow down the speed to the lowest or take off
the safety. And hold the handle bar to jump to the side rail when emergency or the safety key is not
attached.
19. Make sure the treadmill has stopped before folding. Please don’t operate it after folding the treadmill.
ASSEMBLY STEPS

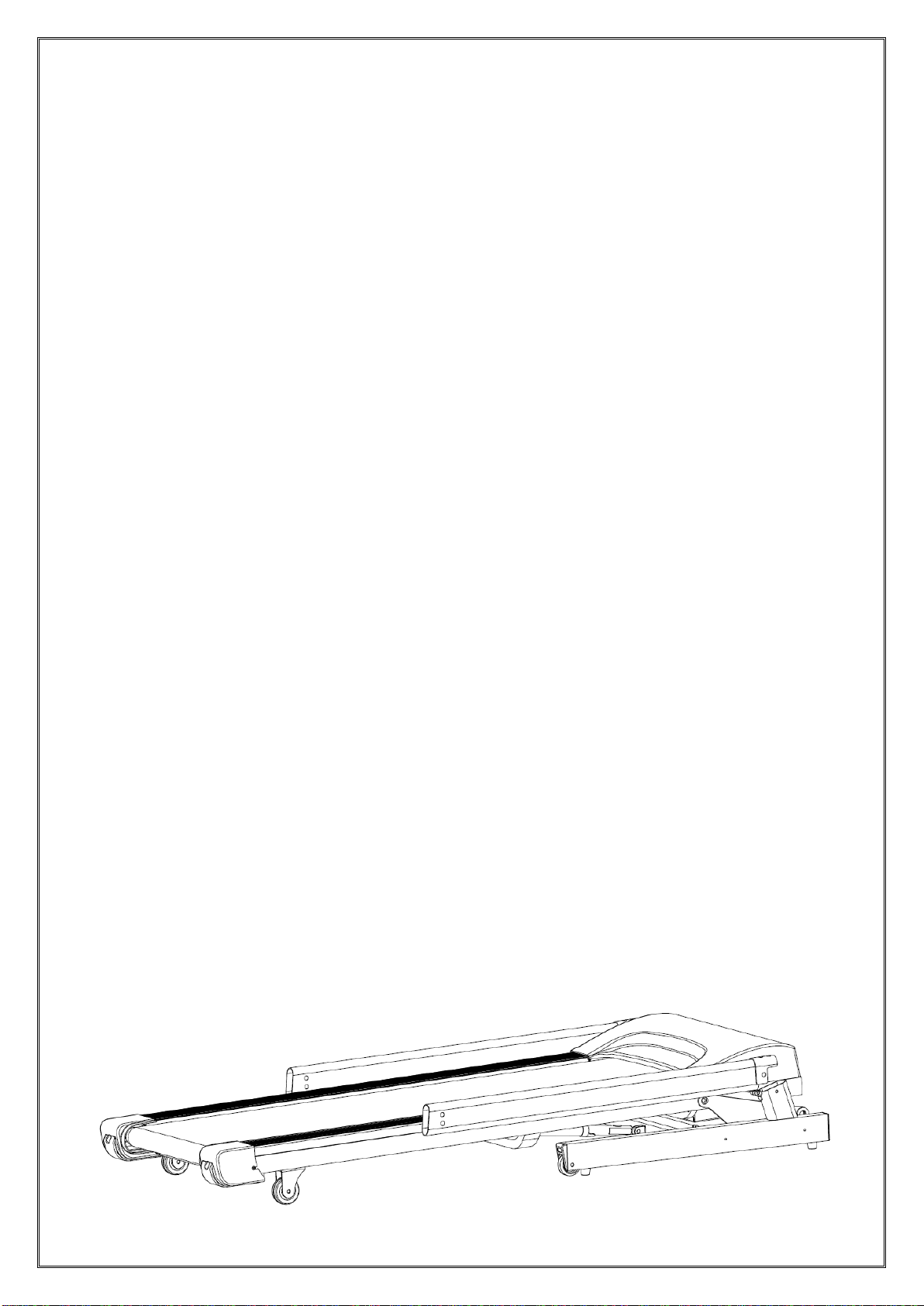

STEP 1:
Open the package, take out all parts and place the main frame on the flat ground.(NOTE: Please don’t
cut down the packing straps right now.)

- 4 -

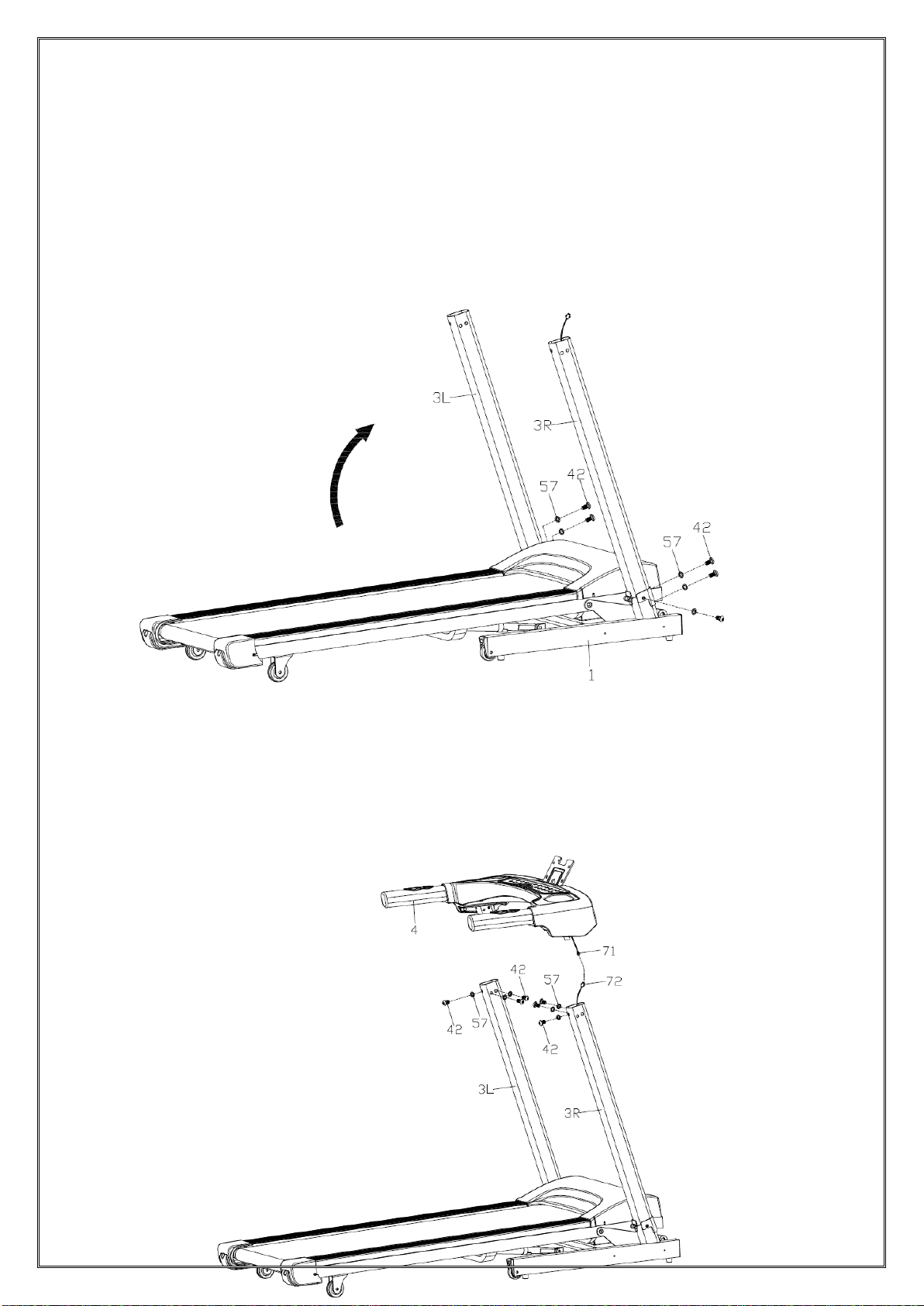

STEP 2:
1. Cut down the straps when the main frame was placed well (Don’t move it any more).
2. Lift up the left and right upright tubes (3L/R) following the direction of the arrow as shown
3. Lock the Upright tubes (3L/R) on the Bottom frame (1) with the Hex socket screws (42) and Serrated
lock washer(57) NOTE: Please don’t tighten the Hex socket screw (42) for the time being.
STEP 3:
1. Connect the Computer extension upper wire (71) with the Computer extension wire (72).
4. Secure the Computer frame (4) on the Upright tubes (3L/R) with the Hex socket screws (42) and
Serrated lock washer(57)
2. NOTE: Tighten all screws which didn’t tighten in previous steps.

- 5 -

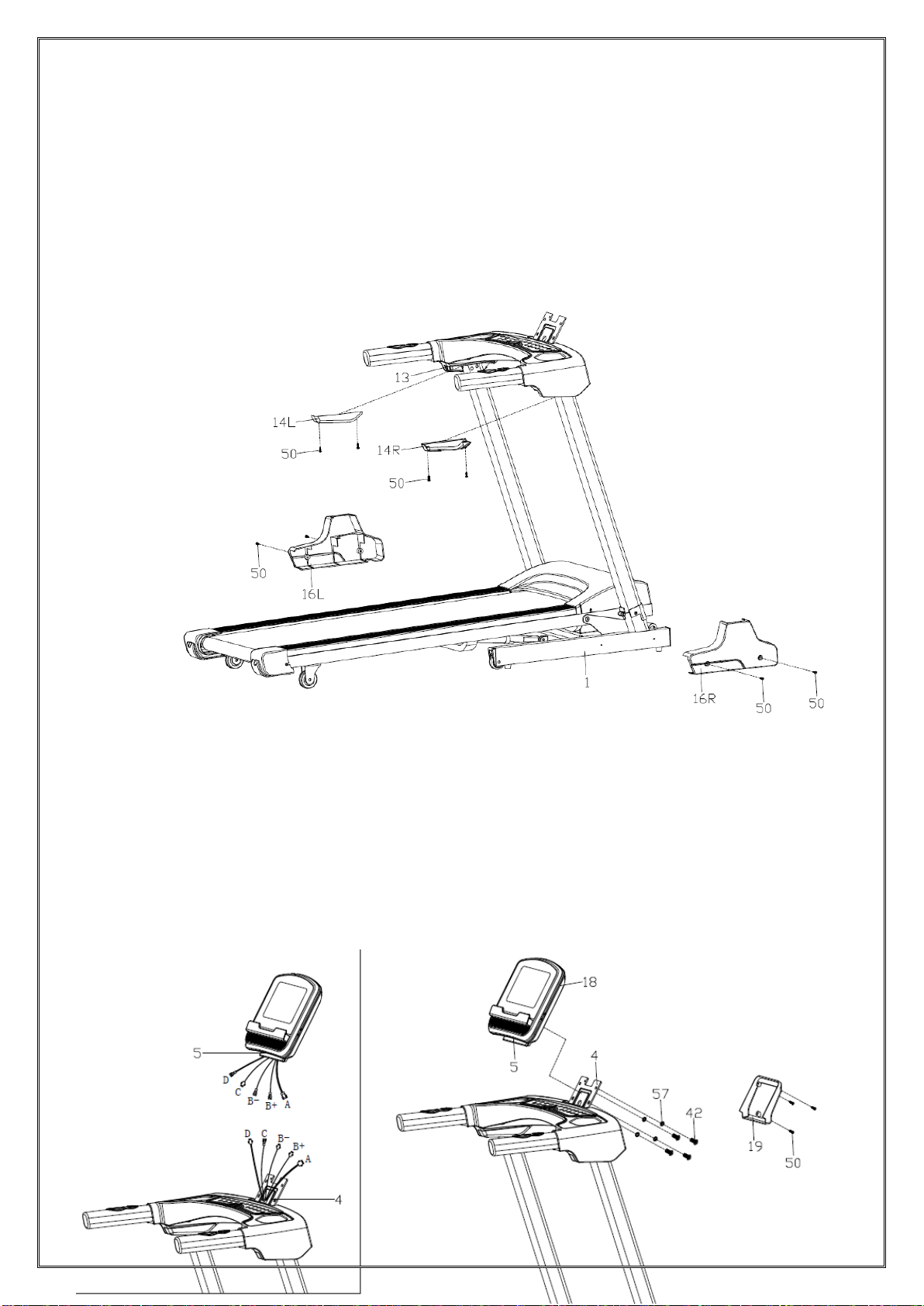

STEP 4:
1. Secure the Upright tube protective cover (14L/R ) to Computer bottom cover（13）with Cross tapping
screw (50).
2. Lock Bottom protective cover (16L /R ) on the joint of Bottom frame (1) with Cross tapping screw (50).
STEP 5 :
1. Connect all wires from Panel bracket (5) with the one from Computer frame (4) properly well.( Wires of
the same order are joined together)
2. Using Hex socket screws (42) and Serrated lock washer(57) to secure the Computer panel (5) on
Computer frame (4).
3. Using Cross tapping screw (50) to secure the Computer rear cover (19) on Computer panel lower
cover (18).
NOTE: There are 3 holes on the adjustable pad (10), 3 gradients are available by adjusting these holes
and adjustable plug (6).
PictureA

- 6 -

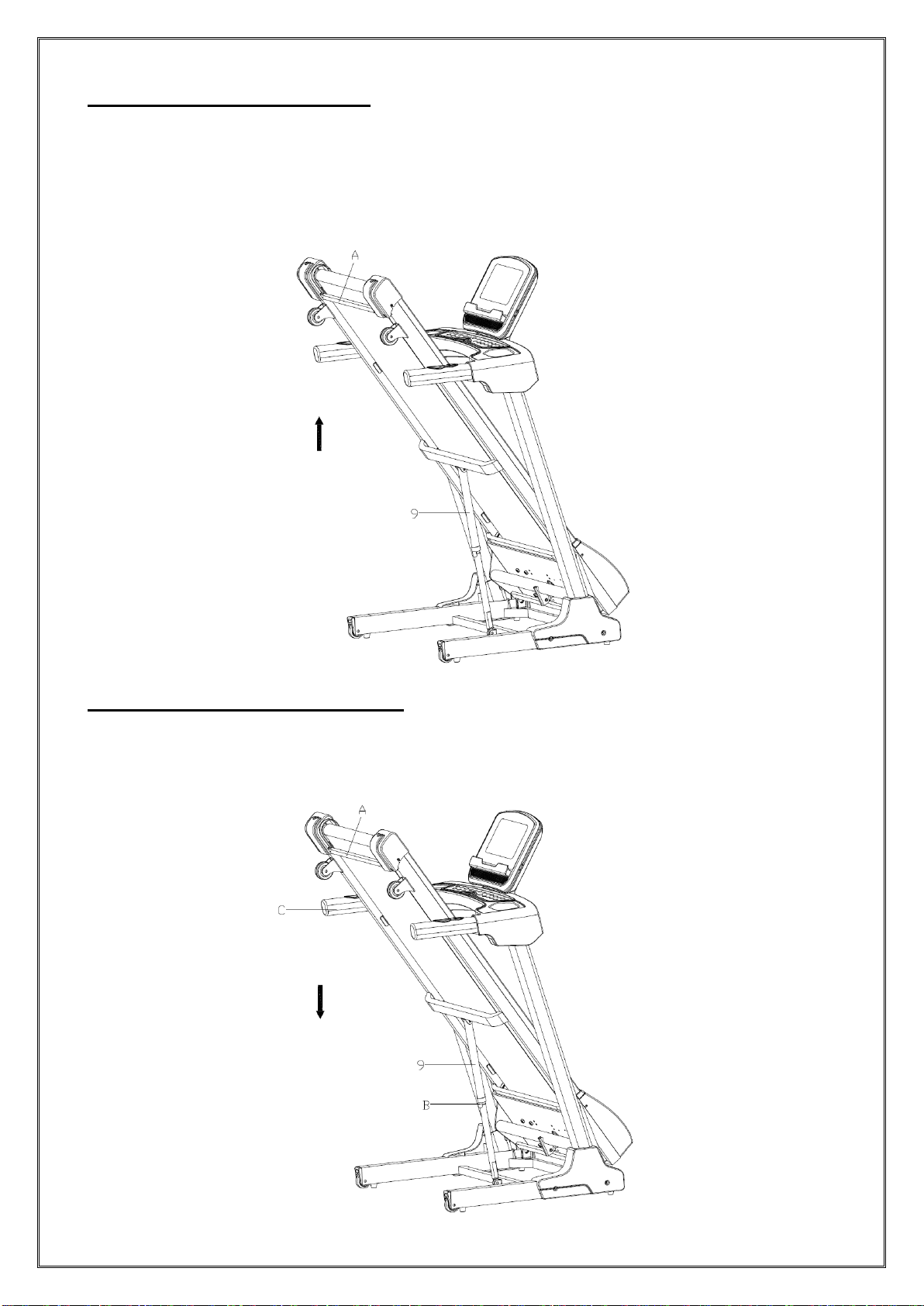

When you fold the machine:
Put your hands on placeA, lift up the machine in the direction of the arrow until you hear the sound from
the cylinder (9).
Note: Please unplug the power cord and make sure treadmill stopping completely before folding
machine. Don’t operate the treadmill after folding
When you unfold the machine:
Grasp the placeAby one hand, kick the place B of cylinder (9) with your right foot, pull the running board
to the level of place C, then the running board will get down automatically.

- 7 -
GROUNDING METHODS
This product must be grounded. If it should malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock.
This product is equipped with a cord having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
DANGER –Improper connection of the equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as
to whether the product is properly grounded.
Do not modify the plug provided with the product –if it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
This product is for use on a nominal 220-volt circuit and has a grounding plug that looks
like the plug illustrated in sketch A in following figure. Make sure that the product is
connected to an outlet having the same configuration as the plug.
No adapter should be used with this product.
TECHNICAL PARAMETER
ASSEMBLY SIZE
(mm)
1540*720*1370
POWER
1.25HP
FOLDING SIZE
(mm)
915*720*1370
MAX OUTPUT
POWER
2.0HP
RUNNING
SURFACE (mm)
400x1200
INPUT CURRENT
230V
NET WEIGHT
44 KG
SPEED RANGE
0.8-14 KM/H
MAX WEIGHT
51 KG
INCLINE
0~15%

- 8 -
OPERATION INSTRUCTIONS
1. Function specifications
1.1. Start
Normal startup after 3s counting backwards.
1.2. Number of programs
Manual modes, 9Preset programs,3 User setting programs,3 HRC(option), FAT.
1.3. Safe lock function
Remove the safety lock in any modes could rapidly slow down the treadmill till stop.
“---” will be instantly displayed on the window, the buzzer buzz “Bi, Bi”sound
continuously. Buttons are invalid in this condition. When the safety lock is off, at the
same time press "program" + "MODE" key for 3s, the display switches between
imperial and metric systems.

- 9 -
Restore the safety lock, the window will display for 2s and then get into standby state,
wait for inputting commands.

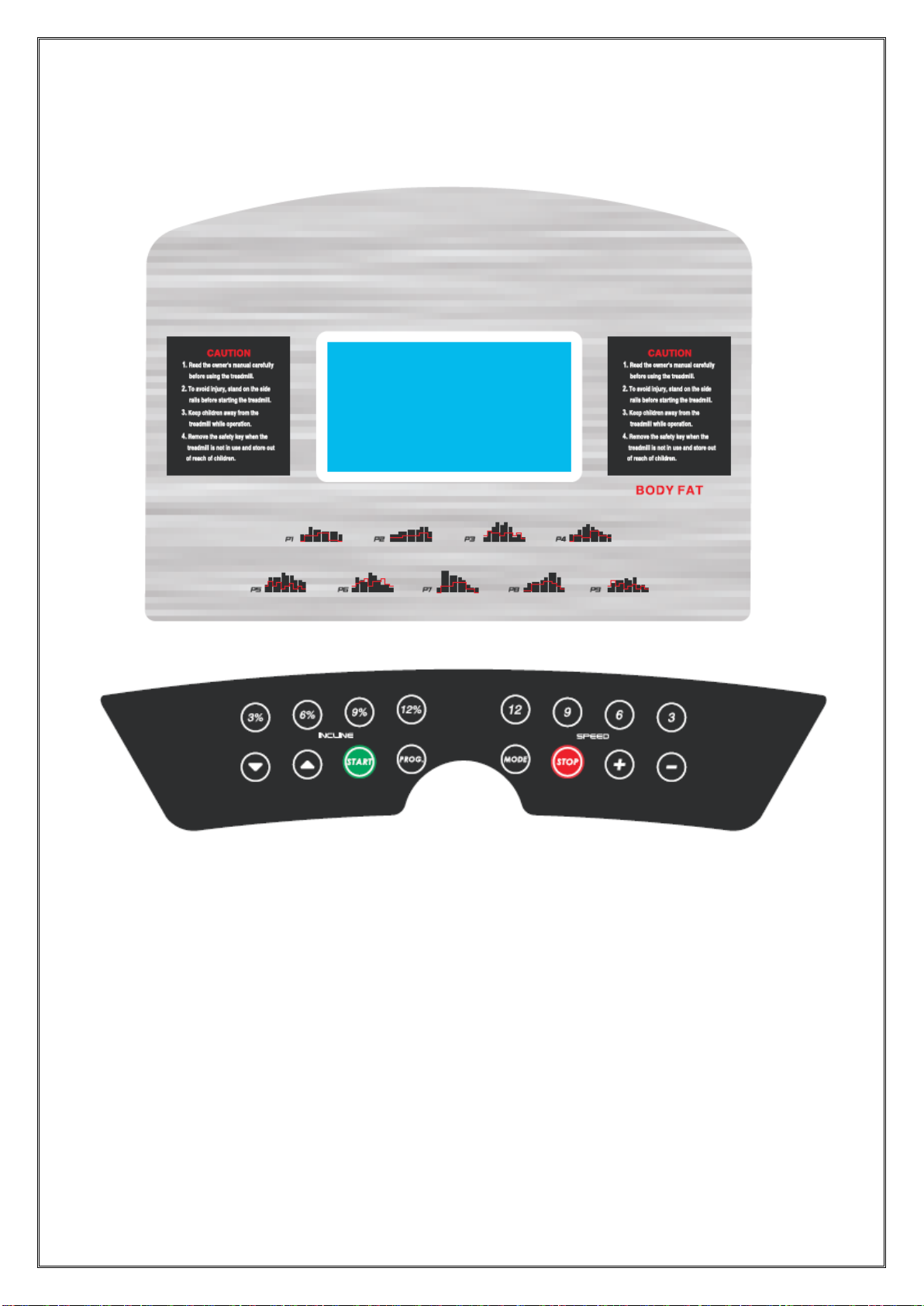

1.4. Key function
①“START” is the star key. Press “START” when the treadmill is in stop state，the speed
will be displayed as “0.8, treadmill will be started. ”STOP”is the stop key, Press
“STOP” when the treadmill is running, the data will be cleared and the treadmill will be
in manual mode after the treadmill is completely stopped.
②“PROG.” stands for program key: in standby mode, press the key you can select
manual mode "0.8" to "P1-P9", "U1-U3" , 3HRC and FAT different programs; manual
mode is the default mode, the default speed is 1.0KM/H, the max operating speed is
14.0km/h. In The British System, the default speed 0.5MPH, the max operating speed
is 8.7MPH.
③"MODE" stands for mode key, in standby mode, press the key you can loop set H-1 to
H-3 different countdown modes. H-1 is time countdown mode, H-2 is distance
countdown mode, H-3 is calorie countdown mode; all mode parameter can be set by
speed +/- key, and press "start" key to start the treadmill.
④Speed keys: “SPEED+” and “SPEED -” are accelerating and decelerating keys:
They may be used to adjust parameter setting when setting up parameters of the
treadmill. When the treadmill is running, they are used to adjust the speed for
0.1km/time; after holding for more than 2s, automatic continuous acceleration and
deceleration will be realized.
There are fast keys on the handrail.
⑤Speed shortcut keys: Speed can be directly adjusted to 3km/h, 6km/h, 9km/h and
12km/h, by speed shortcut keys when the treadmill is running.
⑥Incline key: “INCLINE+” and “INCLINE-” are incline increasing and incline reducing
keys: They may be used to adjust parameter setting when setting up parameters of
the treadmill. When the treadmill is running, they are used to adjust the incline for 1
grade/time; after holding for more than 2s, automatic continuous increasing or reducing
will be realized.
There are fast keys on the handrail.
⑦Incline shortcut keys: Incline can be directly adjusted to grade 3%, 6%, 9% and 12%
by incline shortcut keys when the treadmill is running.
1.5. Display function
1.5.1. Speed display
Display the current running speed.
1.5.2. Time display
Display the running time under manual mode or the countdown running time under
mode and programmed mode.
1.5.3. STEPS/DIS./CAL.display
Switch display distance or countdown distance,calorie or countdown calorie
and current running Steps.

- 10 -
Note: Different User Weight and Usage Habits may result in differences in the number of
displayed Steps from actual steps once the speed below 3km/h .
1.5.4 Heart rate display
Detect heat rate signals and display the pulse value.
1.5.5 window:
“Lubrication”reminder. Display will light up the icon when needed lubrication.
1.5.7 Data display range of various parameters:
TIME: 0:00 –99.59(MIN)
DISTANCE: 0.00 –99.9(KM)
CALORIES: 0.0 –999 (KC)
SPEED: 0.8 –14.0(KM/H)
PULSE: 50 –200 (BPM)
INCLINE: 0 –15%
1.6. Heart rate measurement function
While the treadmill is connected to the power, hold the pulse tester for 5s and the
heart rate value will be displayed. The initial value is the actually measured heart rate,
and its display range is: 50-200 times/ minutes. In the heartbeat measurement
process, there will be a heart shaped icon flashing.
Heart rate displayed is for reference only and can not be used as medical data.
1.7. Manual Modes
1.7.1. How to enter manual mode:
A. Switch on the power supply; then, directly enter normal mode under the manual
mode.
B. In stop state, press MODE to select Normal mode, Time Countdown, Calorie
Countdown and Distance Countdown modes under the manual mode.
1.7.2. Setting functions under manual mode: Time, Distance and Calorie Setting
A. When entering the manual mode, the time is displayed as 0:00;
B. In manual mode, press MODE to enter Time Countdown mode; the time window
will display the time and flicker; the initial time is 30:00; set countdown time by
SPEED +/ SPEED - and INCLINE +/ INCLINE -. Time setting range: 5:00-99:00;
each time of increase/ decrease will be 1: 00.
C. In time countdown mode, press MODE to enter Distance Countdown mode; the
initial distance will be displayed as 1.00 km; set the distance by SPEED +/ SPEED -
and INCLINE +/ INCLINE - in the range of 1.0-99.0 km/mi; each time of increase/
decrease will be 1 km.
D. In distance countdown mode, press MODE to enter Calorie Countdown mode; the
initial distance will be displayed as 50.0kcal; set the calorie by SPEED +/ SPEED -
and INCLINE +/ INCLINE - in the range of 20.0-990.0 kcal; each time of increase/
decrease will be 10.0 kcal.
1.7.3. Operation in manual mode:

- 11 -
A. Press START and the motor will start operating after 3s of countdown; the initial
speed will be 0.8km/h for metric system or 0.5mile/h for imperial system;
B. Press SPEED +/ SPEED - to adjust speed;
C. Press INCLINE +/ INCLINE - to adjust the incline;
D. Press speed shortcuts to quickly set up to the speed marked on the key;
E. Press incline shortcuts to quickly set up to the incline marked on the key;
F. When the motor is running, press STOP and the motor will slow down and stop
finally;
G. Remove the safety lock to urgently stop motor running; then, LCD window will
display “---” and the buzzer will make short sound of Bi-Bi-Bi.
H. When the set time reduces to zero or when the set calorie reduces to zero, or the set
distance reduces to zero, the speed will gradually reduce till the stop of the machine,
the buzzer will make short alarm “Bi-Bi-Bi”, and the speed window will display END;
5s later, the machine will return to the standby state and the buzzer will make long
alarm “Bi-Bi”;
I. Parameters not set will increase forwards, and will be reset after reaching the upper
limit of the display range; in manual mode, the machine will stop when the time
accumulates to be more than 99: 59 (100min).
1.8. Preset Programs
Each program is divided into 10 sections; the operation time will be evenly distributed
to each program section. Here below is the 9section program running diagram.
Time Section
Program
Setup time / 10 = each segment of the running time
1
2
3
4
5
6
7
8
9
10
P1
SPEED
3
3
6
5
5
4
4
4
4
3
INCLINE
0
3
3
3
4
4
4
1
1
0
P2
SPEED
3
3
4
4
5
5
5
6
6
4
INCLINE
2
2
2
3
3
3
3
4
4
2
P3
SPEED
2
4
6
8
7
8
6
2
3
2
INCLINE
3
5
4
4
3
4
4
3
4
2
P4
SPEED
3
3
5
6
7
6
5
4
3
3
INCLINE
0
3
3
2
2
5
5
3
3
2
P5
SPEED
3
6
6
6
8
7
7
5
5
4
INCLINE
3
5
3
4
2
3
4
2
3
2
P6
SPEED
2
6
5
4
8
7
5
3
3
2
INCLINE
3
4
5
6
3
5
5
6
4
3
P7
SPEED
2
9
9
7
7
6
5
3
2
2
INCLINE
0
3
3
3
4
4
4
1
1
0
P8
SPEED
2
4
4
4
5
6
8
8
6
2
INCLINE
1
1
4
4
4
5
5
4
3
2
P9
SPEED
2
4
5
5
6
5
6
3
3
2
INCLINE
3
5
3
4
2
3
4
2
3
2

- 12 -
1.9. User-setting programs:
Beside the 9 inner systems, the treadmill setup 3 user-defined programs: U1, U2, U3.
1. Setting the user-defined program:
Continuously press "PROG" key until the expected program (U1/U2/U3) display in the
standby condition, while the "time" window flash, display the setting time, press
“SPEED+”, “SPEED -”to set up expected run time, press "MODE" key to enter program
parameter, then set up the first time period parameter, by " SPEED +" /" SPEED -" key
or shortcut key to set the speed; press "MODE" key to finish the first time period setting,
and entering the next time period setting, until all 10 time period setting. The parameter
will be kept permanently until resetting, and all parameter will not be lost when power
off.
2. Selection and start the user-defined program:
In the standby condition, continuously press "PROG" key until the expected user-defined
program U1/U2/U3 display, set up the run time, press "start" key to turn on the treadmill.
1.10. Body Fat Test:
In standby state, press PROG to enter FAT (Physical fitness test) program. Press
MODE to enter the program of F—1, F—2, F—3, F—4, F—5 (F—1:gender, F—2:age,
F—3:height, F—4:weight, F—5:physical test), Press SPEED +/ SPEED - or INCLINE +/
INCLINE to set the parameter of 01-04(see below detailed table), then press MODE to
enter the program of F—5 for physical test. At this state, hold the handle pulse board for 5-6
seconds and it will display the FAT, check if the weight matches with your height.
FAT is to measure the relevance between height and weight, not the body proportion.
FAT is suitable for every man and woman, it provide the important grounds for adjusting the
weight with other health indicators. The perfect FAT is between 20-24, which means if less
than 19 is too thin, and if between 25-29 is overweight and if more than 30 is obesity.
F--1
Gender
01(man)
02(woman)
F--2
Age
10------------99
F--3
Height
100----------200
F--4
Weight
20------------150
F--5
FAT
≦19
Underweight
FAT
=(20--24)
Normal weight
FAT
=(25--29)
Overweight
FAT
≧30
Obesity
1.11.HRC Function (optional)
HRC1 speed limit (Max-4.0km/h), HRC2 speed limit (max-2.0km/h), HRC3 Max.
1. HRC setting: after repeatedly pressing P button to get to HRC, press M to advance to
the next setting, adjust speed or inclination accordingly.
A: age setting:13-80, default 30
B: target heart rate: (220 minus age)*0.6
C: target heart rate is changeable, ranging from 0.45 to 0.75 (220 minus age)
D: maximum heart rate: (220 minus age)
2.Speed

- 13 -
A: change sequence, HRC detects heart rate every 30 sec
B: If the user’s heart rate is lower than target heart rate by 30 times/min, then speed
increases by 2 km/h
C: if such a discrepancy is within 1-29 times/min, then speed increases by 1 km/h
D: Vice versa, if the user’s heart rate is higher than target heart rate, the speed
decreases and the same rule applies
3. During the following circumstances, the treadmill will run at 1km/h for 15 sec and then
shut down automatically; in the 15 sec, the treadmill will beep for each second elapsed
A: No heart rate detected for more than one minute
B: Heart rate exceeds (220 minus age)
1.12. Others
1.12.1. When a countdown parameter run off, display "END", the alarm rings 0.5s every 2s,
until the treadmill full stop, then return to manual mode.
1.12.2. In setting a parameter, it can be loop-setting, for example, time range is
5:00--99:00, when set at 99:00, press "+" key, the time return to 5:00, and so on
recirculation, add or reduce by “+”“-”symbol.
1.12.3. Countdown time, countdown calorie and countdown distance can only be set up for
one of them. The last time setting will be implemented. The parameter set will be counted
backwards while other parameters will be counted forwards.
1.12.4. The standard calorie is about 70.3kcal/km.
1.12.5. The acceleration is 0.5Km/S and the deceleration is 0.5Km/S.
1.12.6. MP3 music audio amplification, input from the enter hole by the side.
1.12.7. In the process the un-set parameter will be up cumulative, the display clear when up
to the max range; in the manual mode when the time accumulation excess 99:59(100min)
the treadmill stops.
1.13.“Lubrication”reminder:
Treadmill total working
after Every 300KM, the screen will light up the icon. Standby, remove
the safety key then hold the “STOP" button
simultaneously till “Bi Bi”buzz comes will cancel this reminder. 300KMs later,the loop ru
ns again.
1.14. Meanings of error message codes
Problem
Potential reasons
Solutions

- 14 -
-------
Safe lock falls down
1. Place back the safe lock;
2. Replace safe lock switch or magnetic sensor in the
electronic meter; if the problem still fails to be solved, replace
the electronic meter;
E01
After powering on, the electronic
meter displays E01
Communication failure from the
electronic meter to the driver,
The electronic meter displays
E01 in the operating process
Communication failure from the
driver to the electronic meter
1. Check whether the connecting joint between the electronic
meter and the core wire of the controller is loose; whether
wires are damaged; whether the core wires are in correct
connecting order.
2. The controller may be defective. Check and replace a good
one.
3. The electronic controller’s IC may not be plugged to the
place. Check and ensure good plugging.
4. The transformer may be damaged. Check and replace a
good one.
E02
Explosion-proof protection or
motor abnormality
1. Check whether the power supply voltage is less than 50%
of the normal value; please ensure correct voltage and test
again;
2 Check whether motor wires are well connected; re-connect
motor wires, or, if the problem still fails to be solved, replace
the motor;
3. Check whether there is peculiar odor generated by the
controller; if yes, it means that IGBT has been broken down to
cause short circuit; then, replace the controller.
E03
No sensory signal
Check whether the photoelectric sensor directs to the hole on
CD; check whether wires of photoelectric sensor are
damaged and whether terminals of the photoelectric sensor
and speed terminals on the controller are firmly connected.
E04
Lifting learning or self-inspection
fails
1. Check whether motor signal wires are well inserted;
re-insert the signal wire joint to ensure that it is reliable;
2. Check whether lifting motor's AC wires are properly
connected; lifting motor shall be correctly plugged according
to marks on itsAC controller;
3. Check whether motor wiring is damaged to form open
circuit; if yes, replace wires or replace the lifting motor;
4. Replace the controller;
5. After all of these inspections, press the learning key for
learning again.
E05
Over-current protection
1. It may be the system’s self-protection against excessive
current when the load exceeds the rated value; restart the
machine;
2. Some part of the treadmill is jammed so that the motor can
not rotate, thus triggering the self-protection of the system
against excessive current under excessive load; adjust the
treadmill and restart it, or add lubricant.
3. Check whether there is over-current sound or burning odor
when the motor is running; replace the motor;
4. Check whether the controller emits the odor of burning; if
yes, replace the controller.
E06
Lifting sensor has no signal
1. Check whether lifting signal wires are damaged.
2. Check whether lifting signal terminals and the controller’s

- 15 -
lifting terminals are firmly connected.
3. Check whether lifting power cords are damaged.
4. Check whether lifting power cord terminals and the
controller’s lifting terminals are firmly connected.
No
display on
the
electronic
meter
The controller is not powered on
or is damaged
1. First of all, check whether the over-load protector has
tripped off; if yes, press it;
2. Check the power supply switch, over-load protector and
the controller’s power cord and transformer to ensure well
connection;
3. Check whether the power cords from the electronic meter
to the controller are well collected; dismantle the pillar to
check connecting joints on each section of the wiring from the
electronic meter to the controller; ensure that each wire core
is well connected; or the reason may be the communication
power cord defect (damaged or broke down); in such case,
re-connect or replace wires.
4. The transformer is damaged; replace the transformer
EXERCISE INSTRUCTIONS
1. The Warm Up Phase
This stage helps get the blood flowing around the body and the muscles working properly. It will
also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as
shown below. Each stretch should be held for approximately 30 seconds, do not force or jerk your
muscles into a stretch - if it hurts, STOP.
2. The Exercise Phase
This is the stage where you put the
effort in. After regular use, the
muscles in your legs will become
Stronger. Work to your but it is
very important to maintain a steady
tempo throughout. The rate of
work should be sufficient to raise your
heart beat into the target zone shown on the graph below.

- 16 -
This stage should last for a minimum of 12 minutes though most people start at about 15-20
minutes
3. The Cool Down Phase
This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the
warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching
exercises should now be repeated, again remembering not to force or jerk your muscles into the
stretch.
As you get fitter you may need to train longer and harder. It is advisable to train at least three
times a week, and if possible space your workouts evenly throughout the week.
To tone muscle while on your Treadmill you will need to have the resistance set quite high. This
will put more strain on our leg muscles and may mean you cannot train for as long as you would like.
If you are also trying to improve your fitness you need to alter your training program. You should
train as normal during the warm up and cool down phases, but towards the end of the exercise
phase you should increase resistance, making your legs work harden than normal. You may have to
reduce your speed to keep your heart rate in the target zone.
The important factor here is the amount of effort you put in. The harder and longer you work the
more calories you will burn. Effectively this is the same as if you were training to improve your
fitness, the difference is the goal.
MAINTENANCE INSTRUCTIONS
WALKING BELT CENTERING AND TENSION ADJUSTMENT
DO NOT OVERTIGHTEN the walking belt. This may cause reduced motor performance and excessive
roller wear.
TO CENTER WALKING BELT:
● Place treadmill on a level surface
● Run treadmill at approximately 3.5 mph
● If the belt offs the track to the right side, please screw the right adjusting bolt clockwise slowly, noticing
the change of the deviating distance, until center the belt. (Attention: the space between the belt and the
right/left edgings is at a distance normally. And the gap between the right and left distance should be no

- 17 -
more than 5mm.
●If the belt offs the track to the left side, please screw the left adjusting bolt clockwise slowly, noticing the
change of the deviating distance, until center the belt. (Attention: the space between the belt and the
right/left edgings is at a distance normally. And the gap between the right and left distance should be no
more than 5mm.

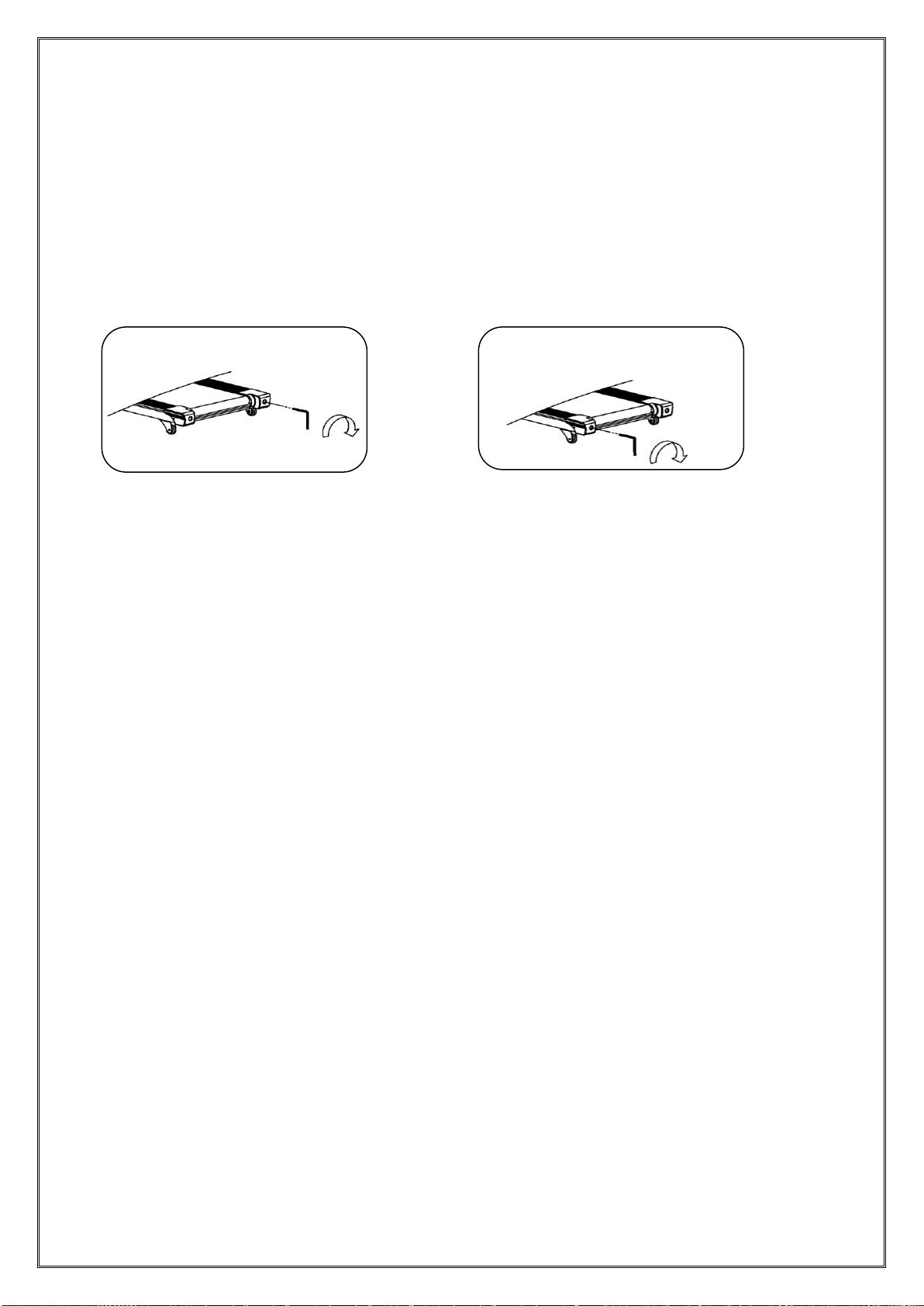

Picture A:If the belt has drifted to the RIGHT Picture B: If the belt has drifted to the LEFT
TENSIONING THE BELT
If you can feel a slipping sensation when running on the treadmill, the running belt must be tightened.
In most cases, the belt has stretched from use, causing the belt to slip. This is a normal and
commonadjustment. To eliminate this slipping, tension both the rear roller bolts with the appropriate size
allenwrench, turning it 1/4 TURN to the right as shown. Try the treadmill again to check for slipping.
Repeat if necessary, but NEVER TURN the rollerbolts more than 1/4 turn at a time. The belt
tensionis set properly when the running belt is 50 - 75mm from the deck.
WARNING: ALWAYS UNPLUG THE TREADMILL FROM THE ELECTRICAL OUTLET BEFORE
CLEANING OR SERVICING THE UNIT.
CLEANING
General cleaning or the unit will greatly prolong the treadmill. Keep treadmill clean by dusting regularly.
Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails.
This reduces the build up of foreign material underneath the walking belt.
The top of the belt may be cleaned with a wet, soapy cloth. Be careful to keep liquid away from inside the
motorized treadmill frame or from underneath the belt. Warning：Always unplug the treadmill from the
electrical outlet before removing the motor cover.At least once a year remove the motor cover and
vacuum under the motor cover.
PIC B
PIC A

- 18 -

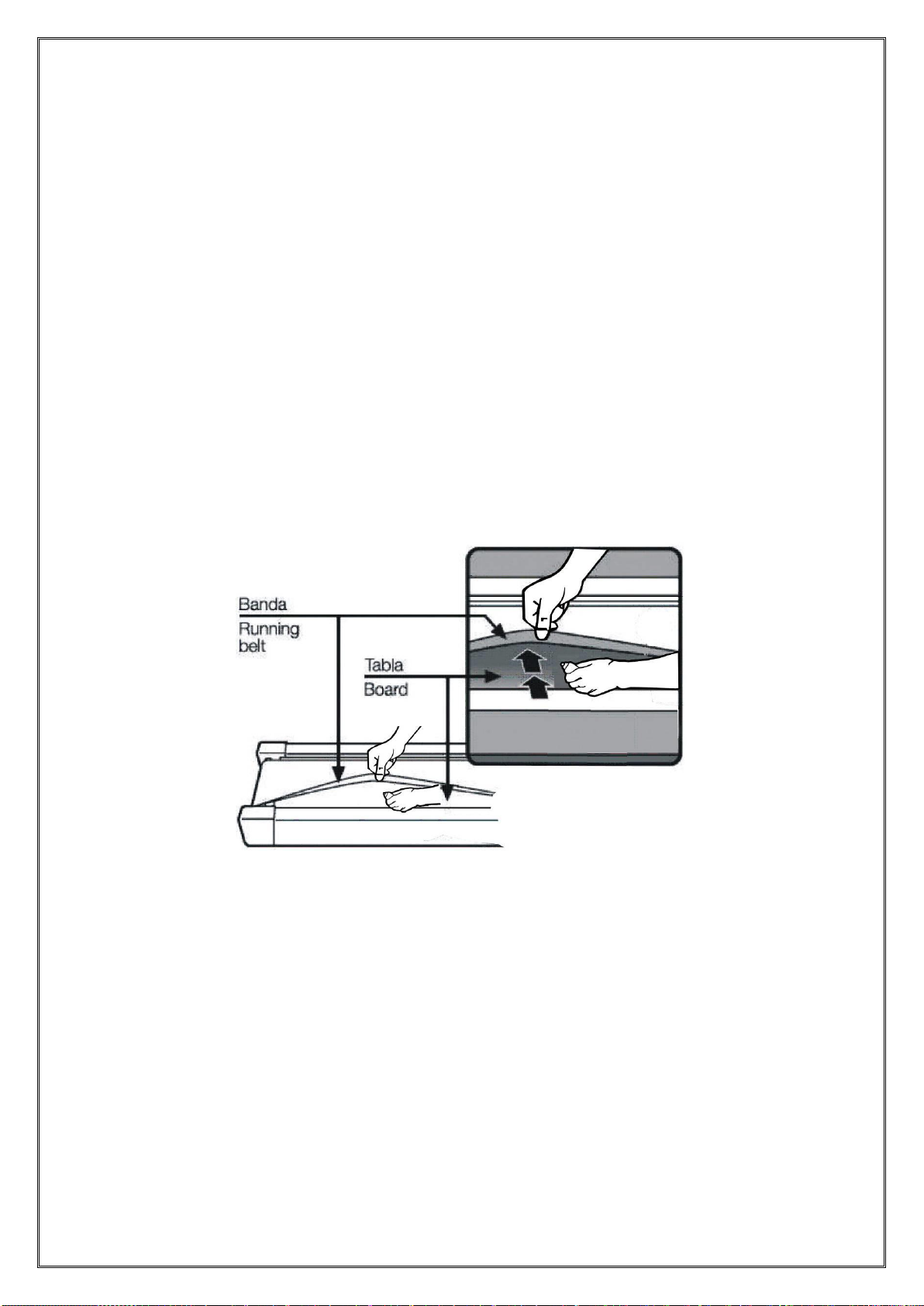

RUNNING BELT AND DECK LUBRICATION
This treadmill is equipped with a pre-lubricated, low maintenance deck system. The belt/ deck
friction may play a major role in the function and life of your treadmill, thus requiring periodic
lubrication. We recommend a periodic inspection of the deck.
We recommend lubrication of the deck according to the following timetable:
➢Light user (less than 3 hours/ week) annually
➢Medium user (3-5 hours/ week) every six months
➢Heavy user (more than 5 hours/ week) every three months

- 19 -
EXPLODED DRAWING
