D-Link Air DCF-660W/K User manual

D-Link Air DCF-660W/K
2.4 GHz Wireless Compact Flash Adapter
Manual
Rev. 040802
Building Networks for People

2
Contents
Package Contents .................................................... 3
The Spec of DCF-663 CF/PC Card Converter ......... 4
Introduction............................................................... 5
Wireless Basics ........................................................ 6
Getting Started ......................................................... 9

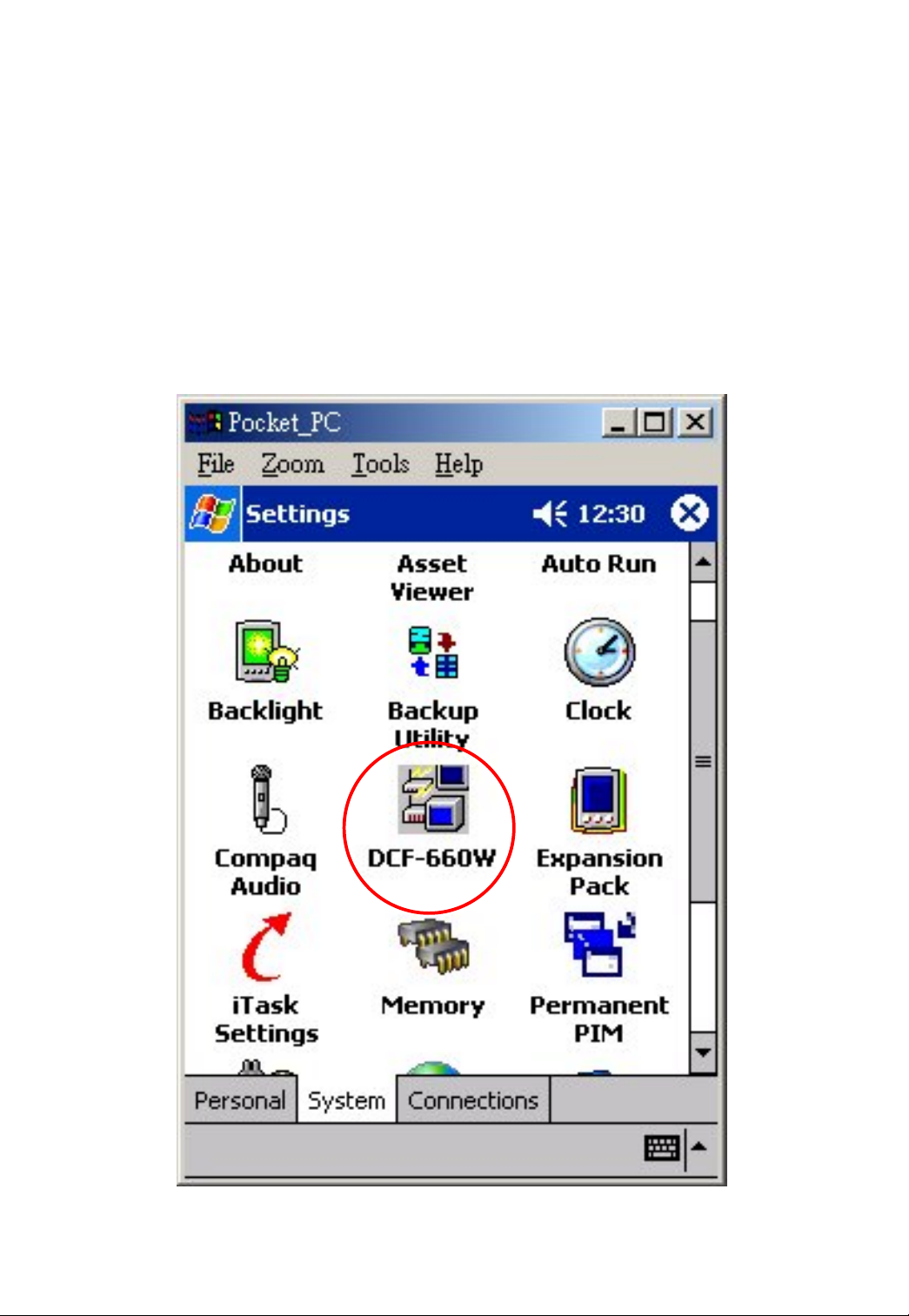

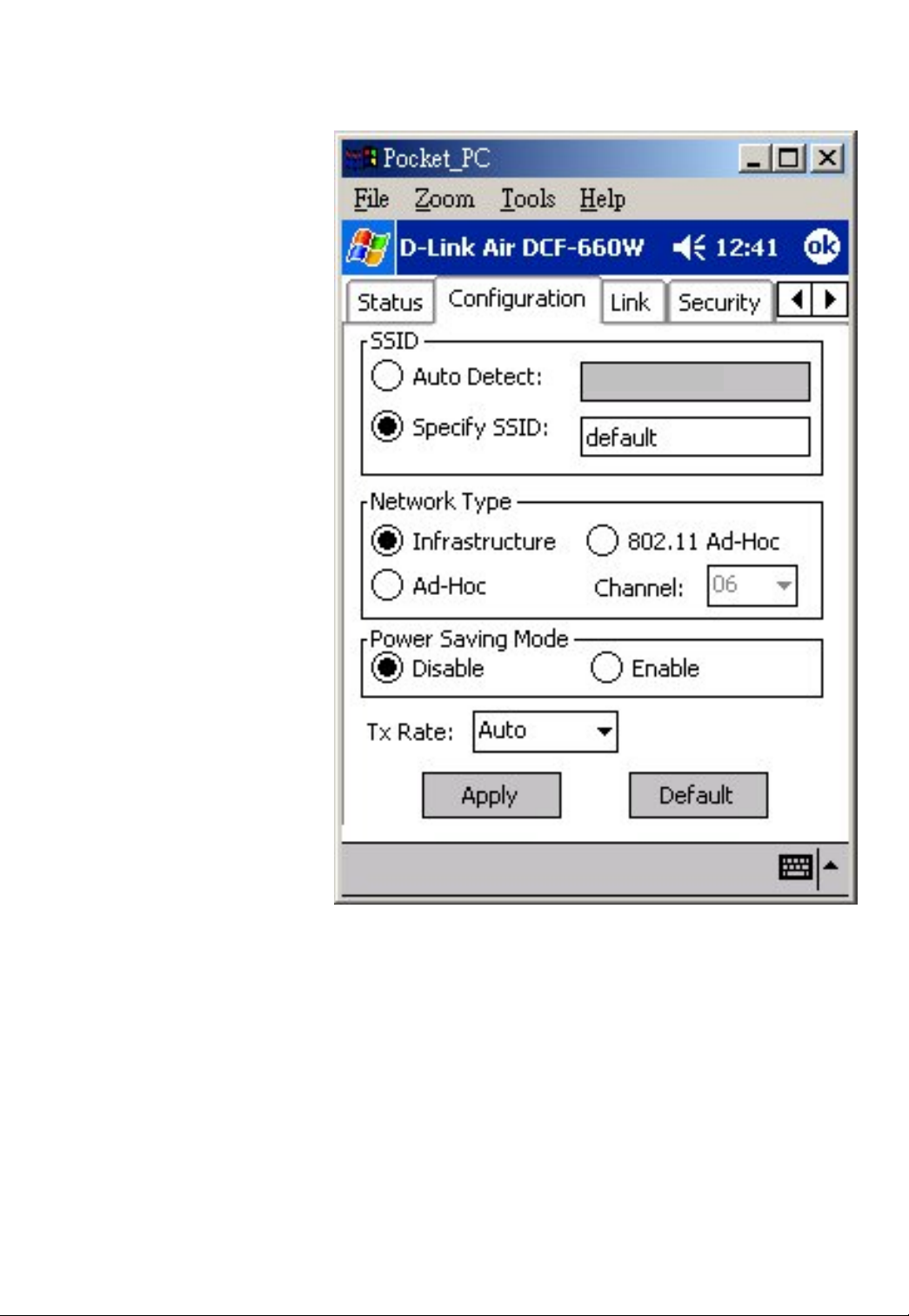

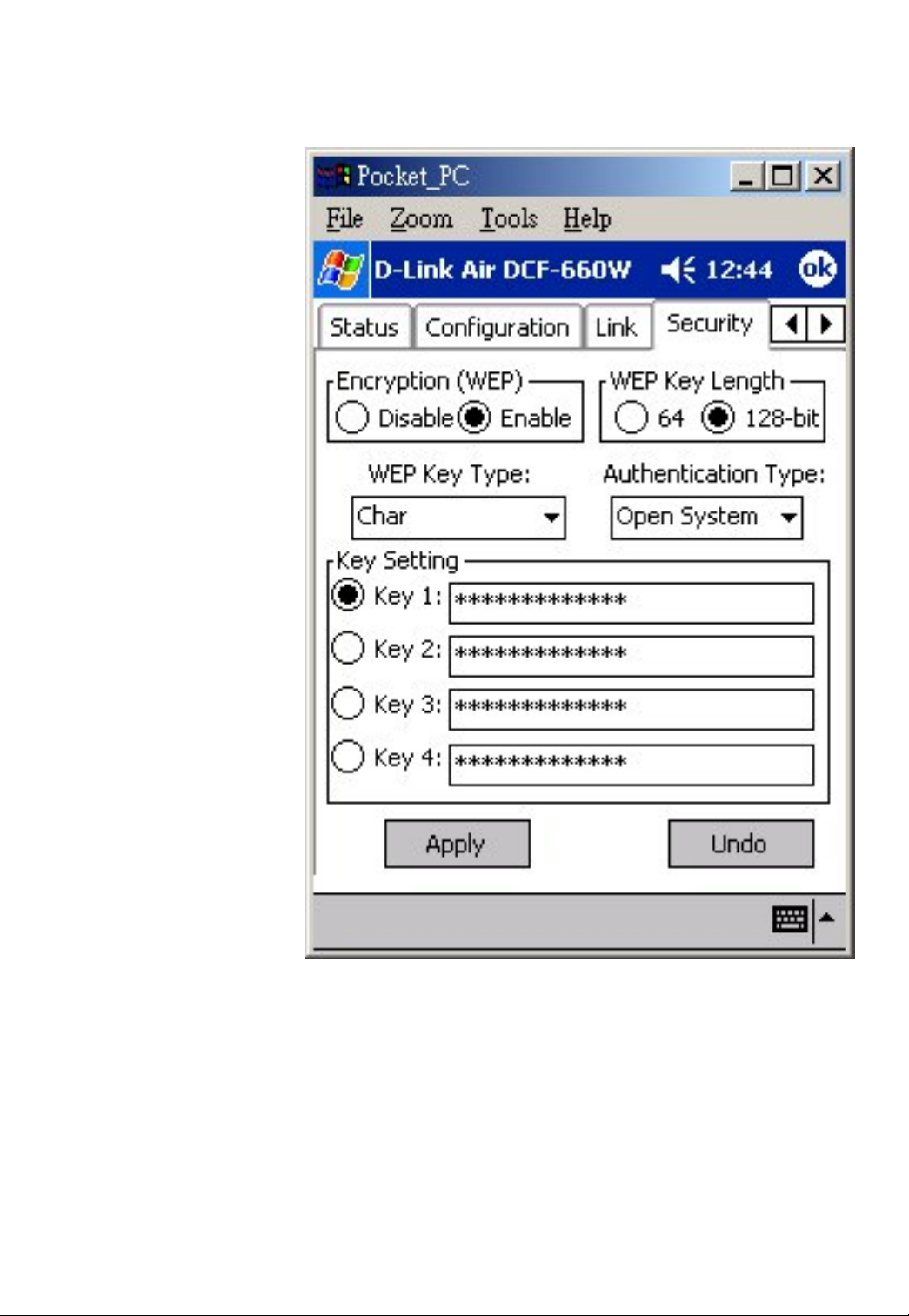

Using the Configuration Utility ................................ 13
Using the Configuration Utility on the Laptop ......... 19
Troubleshooting ...................................................... 25
Technical Specifications ......................................... 26
Contacting Technical Support................................. 28
Limited Warranty and Registration ......................... 29

Package Contents
Contents of Package:
• D-Link Air DCF-660W 2.4GHz Wireless Compact Flash Adapter
• D-Link Air DCF-663 CF/PC Card Converter
• Manual, Drivers, and Utility on CD
• Quick Installation Guide (printed)
If any of the above items are missing, please contact your reseller.
System Requirements:
• PDA with Windows CE 3.0/Pocket PC 2002 with at least 32 MB of
memory
• Compact Flash Type I or Type II slot
• A computer with Microsoft Active Sync installed
• An 802.11b Access Point (e.g., DWL-1000AP for Infrastructure
Mode) or another 802.11b wireless adapter (e.g., DWL-650 for Ad-
Hoc mode.)

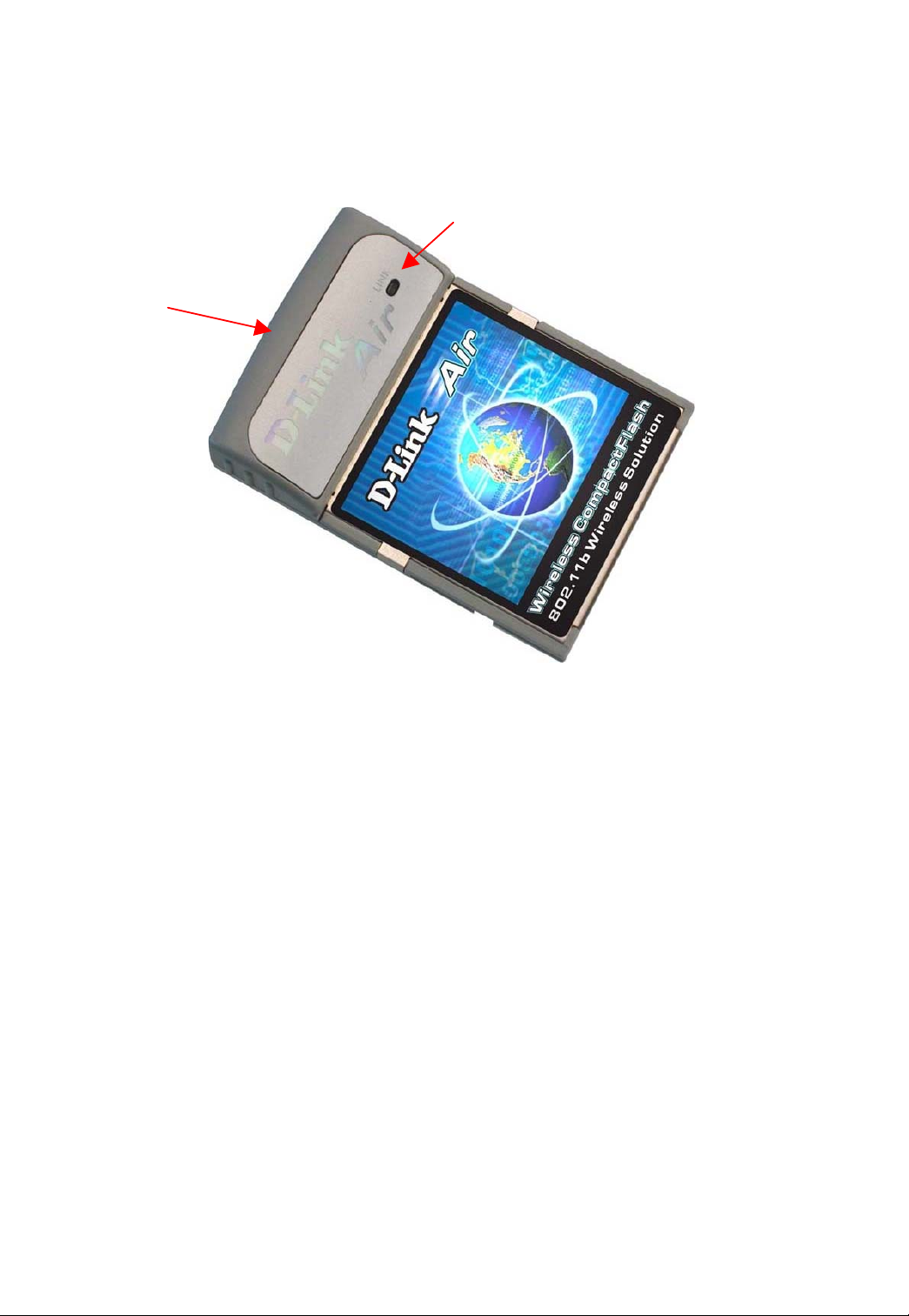

Link/Power LED
Antenna

4
The Spec of DCF-663 CF/PC Card Converter
Features:
1. Converts Type I Compact Flash Card to standard Type II PCMCIA Card.
2. Fully compatible with Type I Compact Flash Card Specification standards.
3. Allows changing Compact Flash Card without “PC Card Registration” or
“Stop PC Card”.
4. High access speed, transfers images from Compact Flash Card to any
PCMCIA equipped computer via PC Card Socket, including Notebook or
Desktop PC.
5. Supports compact and removable Type I Compact Flash Card; easy
connectivity and convenient “Hot-Swapping” PC Card Standards.
6. Supports PCMCIA PC Card ATA/IDE mode.
7. Conforms to 8-bit and 16-bit access.
Specifications:
1. Sockets - 1x Type II PC Card Adapter with 68-pin connector.
- 1x Type I Compact Flash Card 50-pin socket.
2. Interface - PCMCIA
3. Power supply - DC 5V from PCMCIA socket directly.
4. Dimension - W54.0mm x H5.0mm x D85.6mm
5. Weight - 20g (approx.)
Environment:
1. Temperature - Operating temperature : 0℃~ +70℃
- Storage temperature : -40℃~ +70℃
2. Relative Humidity - Operating RH : 50% (Max. without condensing)
- Storage RH : 95% (Max. without condensing)

Introduction
The D-Link Air DCF-660W 2.4GHz Wireless Compact Flash Adapter is a
standard Type I CF interface adapter (backwards compatible to Type II)
integrated with WLAN (Wireless Local Area Network) technology. The DCF-
660W/K a compact flash card and a PC card adapter designed to be used
with a Laptop with Windows XP / 2000 / ME / 98 / 98SE Operating System in
an “Ad Hoc” or “Infrastructure” mode.
It provides an easy and quick way to access a wireless network.
With up to 11 Mbps connection speed, the DCF-660W provides a fast
connection when accessing a corporate network or the Internet in a wireless
environment. When installed, the DCF-660W/K is able to communicate with
existing 802.11b wireless networks at home, at the office, or in public areas
such as airports and coffee shops where a wireless network has been
deployed.
Product Features
• Provides speeds of 1Mbps, 2Mbps, 5.5Mbps and 11 Mbps
• Working range up to 1,311 ft. (400 meters) in an open environment
• Supports Ad-Hoc and Infrastructure modes for easy wireless
connection
• Uses Direct Sequence Spread Spectrum (DSSS) modulation
technology in the 2.4 GHz frequency range
• Maximum 15dBm output power
• Supports Win CE/Pocket PC 2002
• Supports RC4 128-bit WEP (Wired Equivalent Privacy) Encryption
• Compatible to IEEE 802.11b standard
• Power Save mode of 80mA

6

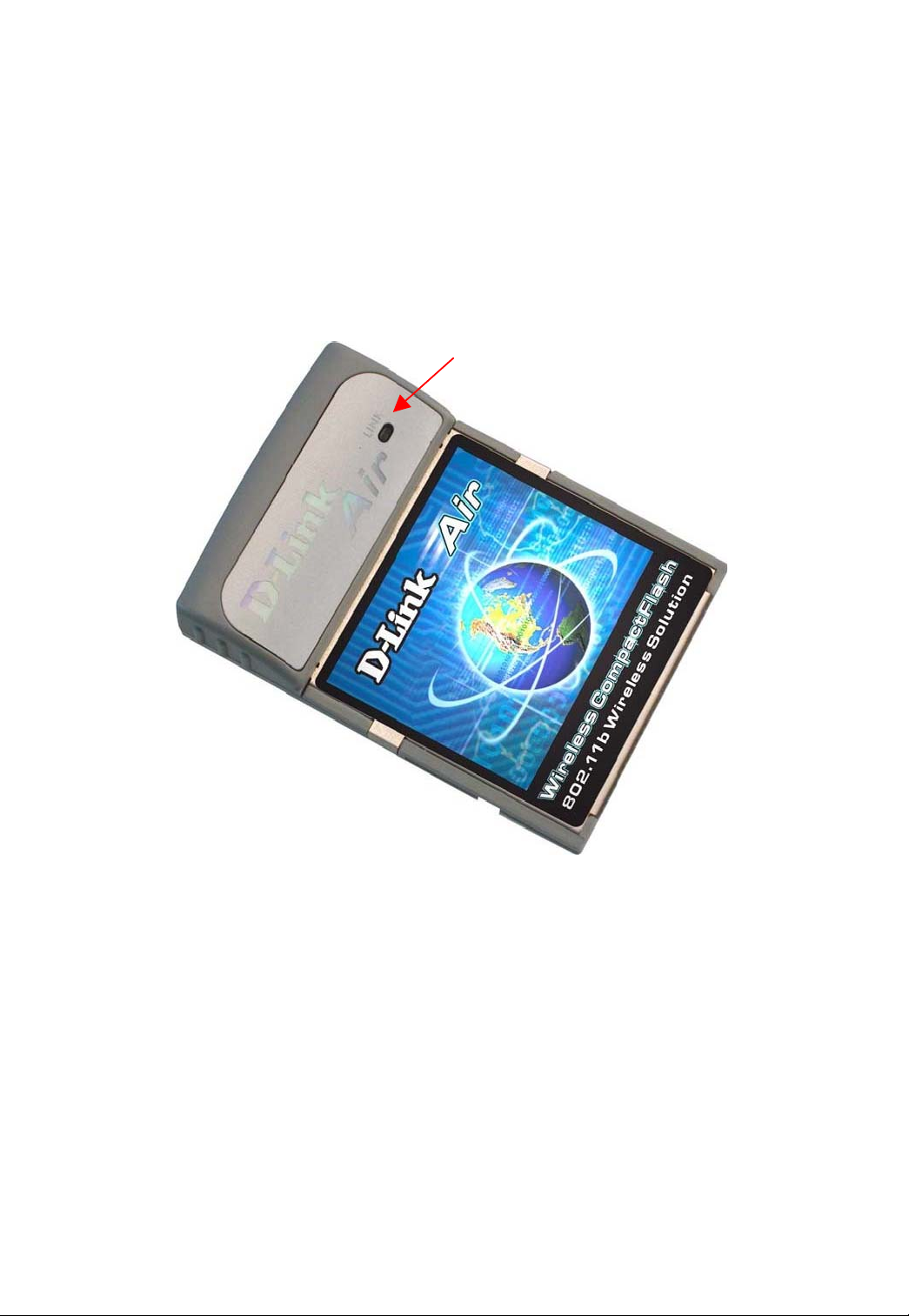

LED
LED stands for Light-Emitting Diode. The DCF-660W has one LED:
Link/Power - a solid Green light indicates proper installation and a
wireless connection. A flashing Green light indicates proper installation,
but no link established.
Wireless Basics
D-Link Air wireless products are based on industry standards to provide
easy-to-use and compatible high-speed wireless connectivity within your
home, business or public access wireless networks. Strictly adhering to the
IEEE standard, the D-Link Air wireless family of products will allow you to
access the data you want, when and where you want it. You will be able to
enjoy the freedom that wireless networking delivers.
Under many circumstances, it may be desirable for mobile network devices
to link to a conventional Ethernet LAN in order to use servers, printers or an
Link/Power

Wireless Basics
Internet connection supplied through the wired LAN. A Wireless Access
Point (AP) is a device used to provide this link.
Installation Flexibility
The D-Link Air DCF-660W offers a fast, reliable, cost-effective wireless
solution for client access to the network in a wide variety of scenarios and
applications:
1. Remote access to corporate network information
E-mail, file transfer and terminal emulation
2. In difficult-to-wire environments
Such as historical or old buildings, asbestos installations, and open
areas where wiring is difficult to deploy
3. In frequently changing environments
Retail, manufacturing and other workplaces that undergo frequent
changes of worker locations
4. Temporary LANs for special projects or peak time
At trade shows, exhibitions and construction sites that may require a
temporary network; retailers, airlines or shipping companies that
need additional workstations during peak periods; or auditors that
may set up workgroups at customer sites
5. Access to databases for mobile workers
Hospital clinical staffs or retailers that may require access to their
databases while maintaining mobility throughout a building or
campus
6. For Small Office and Home Office users
Users who need an easy and quick installation of a small computer
network
7. Secure communication
For those companies or organizations that require a measure of
security to transmit information or communicate.
Other D-Link Air Wireless LAN products include:

2.4GHz Wireless Cardbus Adapters used with laptop computers
(DWL-650)

2.4GHz Wireless PCI cards used with desktop computers (DWL-520)
 2.4GHz Wireless Access Points (DWL-1000AP)

2.4GHz Wireless Routers (DI-714 and DI-713P)

8
Wireless Basics
Installation Considerations
Designed to go up to 1,311 feet (approximately 400 meters), the D-Link Air
DCF-660W lets you access your network from virtually anywhere. Keep in
mind, however, that the number, thickness and location of walls, ceilings or
other objects that the wireless signals must pass thru may limit range.
Typical ranges vary depending on the types of materials and background RF
(radio frequency) noise in your home or business. The key to maximizing
range is to follow these basic principles:
1. Keep the number of walls and ceilings between the wireless Access
Point and your receiving device (i.e., the DCF-660W) to a minimum -
Each wall or ceiling can reduce your D-Link Air Wireless product’s range
from 3-90 feet (1-30 meters.) Position your Access Points, Residential
Gateways, and computers so that the number of walls or ceilings is
minimized.
2. Be aware of the direct line between Access Points, Residential
Gateways, and computers. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-
degree angle it looks over 42 feet (14 meters) thick! Try to position the
Access Points and adapters so that the signal will travel straight through
a wall or ceiling for better reception.
3. Building Materials make a difference - A solid metal door or aluminum
studs may have a negative effect on range. Try to position Access Points,
and computers with wireless adapters so that the signal passes through
drywall or open doorways and not other materials.
4. Make sure that the device’s antenna is positioned for best reception by
using the software signal strength tools included with your product.
5. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical
devices or appliances that may generate extreme RF noise.
For the average home, range should not be a problem. If you experience
low or no signal strength in areas of your home that you wish to access,
consider positioning the Access Point in a location directly between the
computers with wireless adapters. Additional Access Points can be
connected to provide better coverage in rooms where the signal does not
appear as strong as desired.

Getting Started
Right out of the box, with its default settings, the DCF-660W will
automatically connect with other D-Link Air products.
On the following pages we will show you an example of two modes of
networking:
Infrastructure – using an Access Point, such as the DWL-
1000AP

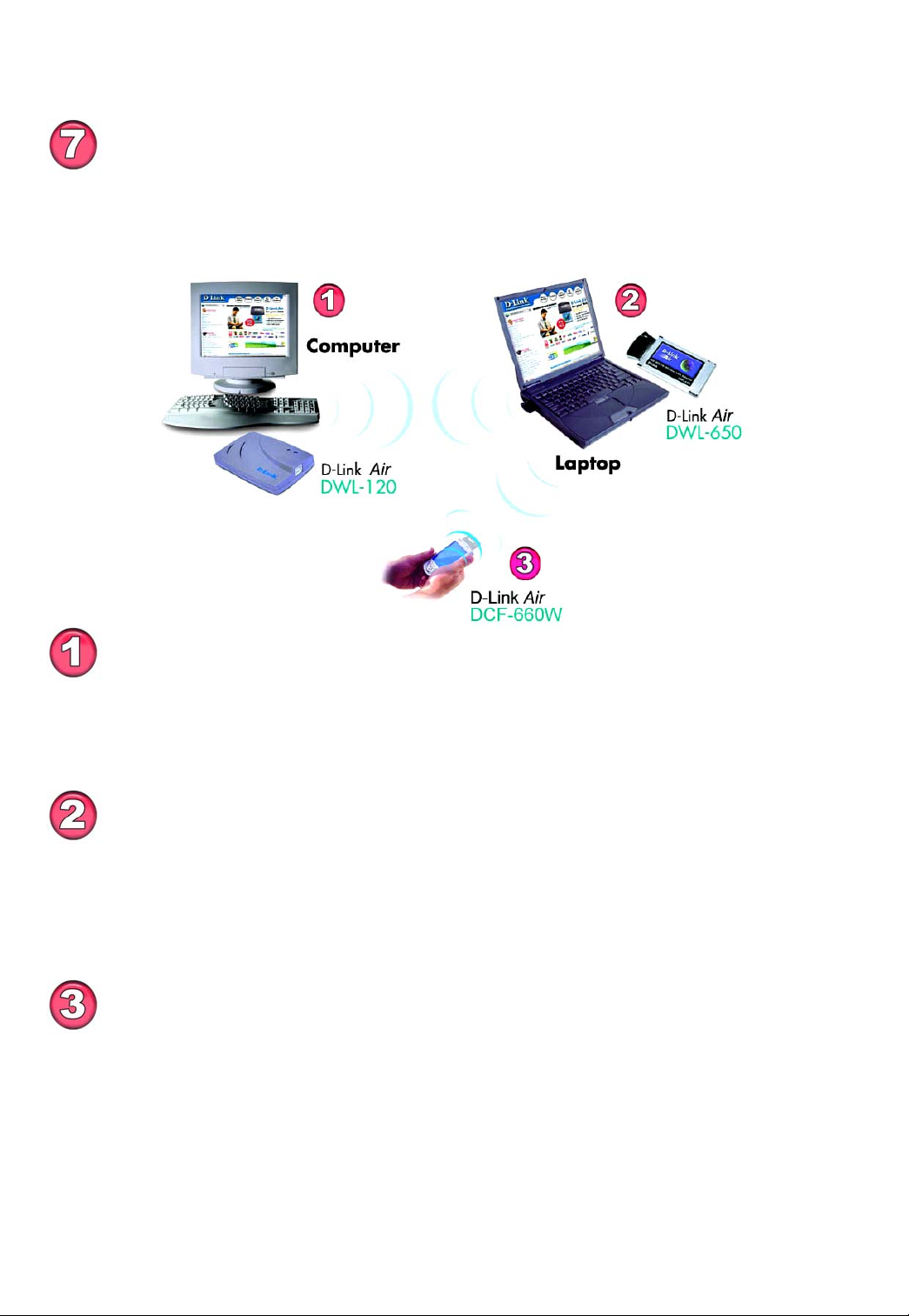

Ad-Hoc – directly connecting to another computer, in a peer-to-
peer mode, using a wireless network adapter, such as the DWL-
650 in a laptop computer and the DCF-660W in a PDA.

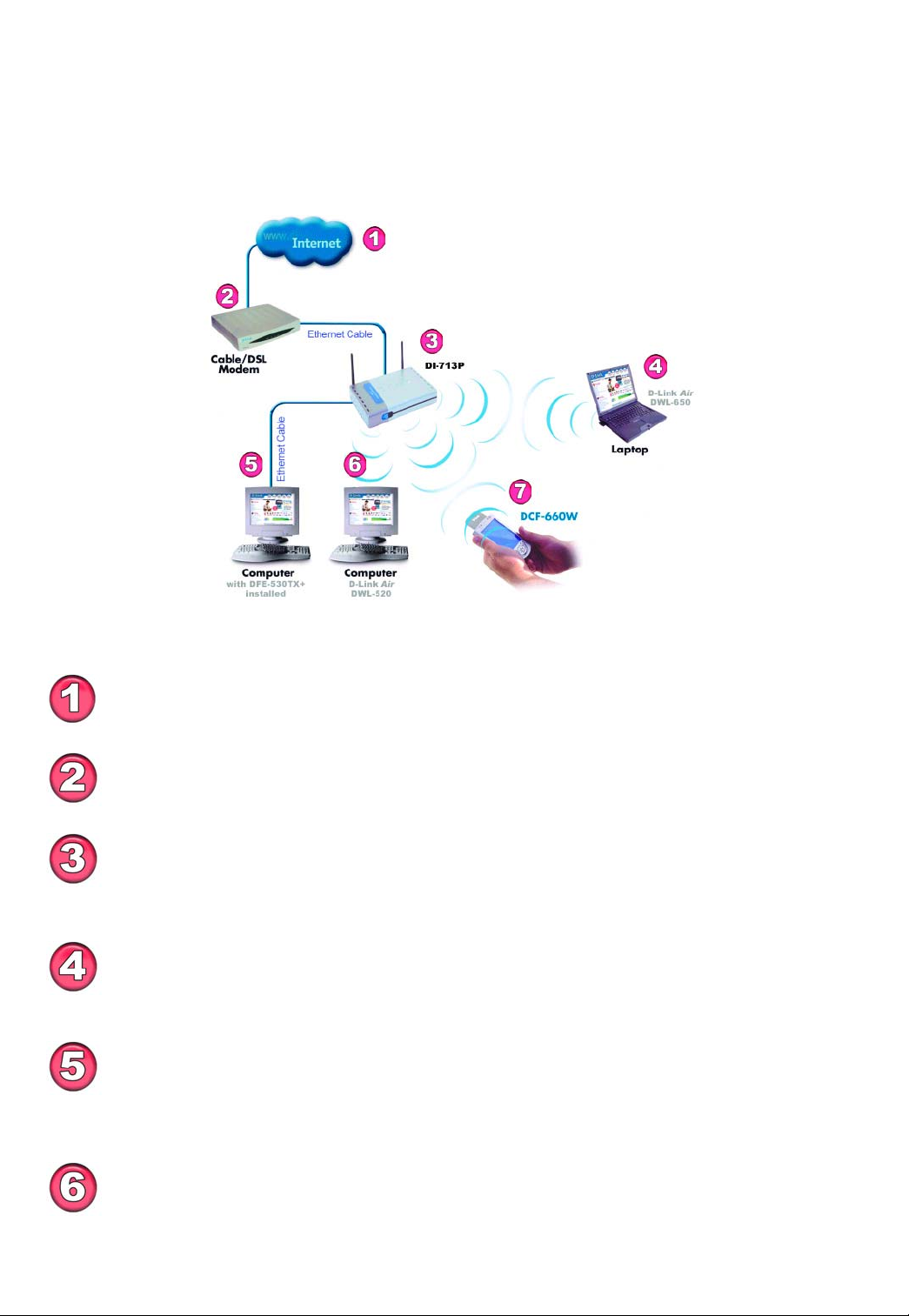

An Infrastructure network contains an Access Point. The Infrastructure
Network example shown on the following page contains the following D-Link
network devices:
A wireless DHCP Router/Access Point/Print Server - D-Link Air DI-713P
A laptop computer with a wireless network adapter - D-Link Air DWL-650
A desktop computer with an Ethernet adapter - D-Link DFE-530TX+
A desktop computer with a wireless network adapter- D-Link Air DWL-520
A Cable modem - D-Link DCM-200
A PDA with a wireless compact flash adapter - D-Link Air DCF-660W
A laptop with DCF-660W same as CF/PC Converter– D-Link Air DCF-663W
Please refer to the following sections of this manual for additional information
about setting up a network:
Networking Basics- learn how to check your IP Address; share printers and
files.
Using the Configuration Utility- learn the settings you must use on each
computer in your network for successful communication.
DHCP stands for Dynamic Host Configuration Protocol.
It is a protocol for assigning dynamic IP addresses “automatically.”
With a DHCP-capable gateway/router, there is no need
to manually assign an IP address.

10
Getting Started
Troubleshooting – learn how to check for the proper installation of the
network adapters’ drivers and other tips for troubleshooting the network.
Setting Up an Infrastructure Network
Please remember that D-Link Air wireless devices are pre-configured to connect
together, right out of the box, with the default settings.
You will need a broadband Internet access (Cable/DSL)
subscription.
Consult with your Cable/DSL provider for proper installation of the
modem.
Connect the modem to a wireless Broadband router (such as the D-
Link Air DI-713P.) See the installation instructions included with the
router.
If an Ethernet port is available on the router, connect a computer
that is equipped with an Ethernet Network adapter (such as the
DFE-530TX+
)
to the router.
Install the drivers for the wireless network adapter (such as the D-
Link Air DWL-650) into the laptop computer. See the Quic
k
Installation Guide included with the DWL-650.
If you have a desktop computer in your network, install the drivers
for the D-Link Air DWL-520 wireless network adapter. See the
Quick Installation Guide included with the DWL-520.

Getting Started
Setting up a Wireless Ad Hoc Network
Install a network adapter into one computer. In the example
above, a D-Link Air DWL-120 USB Wireless Network adapter is
installed. A DWL-520 Wireless PCI Adapter could also be
installed in a desktop computer. See the Quick Installation Guid
e
included with the product for installation instructions.
Install a wireless cardbus adapter (such as the DWL-650) into a
laptop computer. See the Quick Installation Guide included with the
network adapter. Set the wireless configuration for the adapters to
Ad-Hoc mode, set the adapters to the same channel, and assign
an IP Address to each computer on the Ad-Hoc network. (See
box below.)
Install and configure the DCF-660W. See the Quick Installation
Guide included with the product.
Install the D-Link Air DCF-660W into your PDA. See the Quic
k
Installation Guide included with the DCF-660W. In all the above
installations, the LEDs will light ON to show connection.

12
IP Address
When assigning IP Addresses to the computers on the network, please
remember that the IP Address for each computer must be in the same IP
Address range as all the computers in the network, and the subnet mas
k
must be exactly the same for all the computers in the network.
For example: If the first computer is assigned an IP Address of 192.168.0.2
with a Subnet Mask of 255.255.255.0, then the second computer can be
assigned an IP Address of 192.168.0.3 with a Subnet Mask of 255.255.255.0,
etc.
IMPORTANT: If computers or other devices are assigned the same IP
Address, one or more of the devices may not be visible on the network.

Using the Configuration Utility
Using the Utility in Windows CE 3.0 / Pocket PC 2002
Please note: The DCF-660W Wireless Compact Flash Adapter is a
ready-to-use device. Its default settings are compatible with a typical
Infrastructure WLAN (Wireless Local Area Network). If you choose to
adjust the settings, please see the following instructions:
On the PDA, go to Start >Settings> System tab
Click on the DCF-660W

14
Using the Configuration Utility
STATUS
The STATUS tab
displays the DCF-
660W Compact
Flash Adapter’s
current status and
includes information
on the following
items:
Adapter -Displays
the name of the
Wireless Compact
Flash Adapter
Firmware –Displays
the firmware version
of the DCF-660W
Domain – Specifies
the regulating
organization of the
wireless bandwidth
Channel –Displays
the selected channel
setting
MAC Address –
Displays the Media
A
ccess Control
identifier for the DCF-
660W
AP - Shows the MAC
address of the
Access Point that is
associated with the
D-Link Air DCF-
660W Compact
Flash Adapter
Link Quality – Monitors the quality of the data
transmission between the Wireless Compact
Flash adapter and the Access point
Signal Level – This bar graph displays signal
strength as reported by the radio, averaged
over all frames that are received from the
Access Point

Using the Configuration Utility
CONFIGURATION
Select the
CONFIGURATION
tab to view the current
settings for:
SSID
(Service Set Identifier)
is a name that
identifies a wireless
network. Access
Points and wireless
clients attempting to
connect to a specific
WLAN (Wireless
Local Area Network)
must use the same
SSID. The default
setting is default.
Note: Specifying an SSID
will prevent you from
inadvertently connecting to
a different wireless
network.
Network Type
Use Infrastructure
mode if you will be
using an Access Point
in your network.
Use Ad-Hoc, if you
will not be using an
Access Point. Ad-hoc
requires the same
channel and the same
SSID for wireless
devices on the
network.
802.11 Ad-hoc
requires the same
channel and SSID
among the wireless
clients.
Power Save Mode – The Power Save mode is
used to extend battery life.
Note: In Power Save mode, the Access Points
used must support Power Saving for
communication to be established.
Tx Rate (Transmission rate) – The defaul
t
transfer rate is Auto which allows the DCF-
660W to adjust to the most optimal transfe
r
rate available. However, the settings can be
set at a fixed transfer rate.
NOTE: Click A
pp
l
y
to save an
y
chan
g
es.
Default

16
Using the Configuration Utility
LINK
The LINK tab is similar to the Ping Command. It allows you to monito
r
transmission quality between two stations. Enter the IP address o
f
another station, set the timeout and packet size to see if the
communication was sent successfully.

Using the Configuration Utility
SECURITY
If an additional
measure of security is
desired on the
wireless network,
WEP (Wired
Equivalent Privacy)
encryption can be
enabled.
• Select Enable to
activate encryption.
• Select 64 Bit or
128 Bit WEP Key
Length
• Select WEP Key
Type: Character
or Hexadecimal
• Select
Authentication
Type: Open,
Shared or Auto
Please note that all
devices must share the
same Encryption
settings to
communicate on the
network.
Input 4 different Key
Settings in the fields provided.
• For 64 Bit WEP encryption, you may enter 5characters in the range of
a-z and 0-9 (for example: MyKey); or a 10 digit hexadecimal value in the
range A-F, a-f, and 0-9. (For example: 11AA22BB33).
• For 128 Bit WEP encryption, you will enter 13 characters in the range of
a-z, A-Z and 0-9 (for example: MyKey12345678); or a 26 digit
hexadecimal number for 128-bit encryption. If the number is entered
incorrectly the function will not work.

18
Using the Configuration Utility
After entering the WEP keys, choose the WEP key you wish to use and click
Apply for the configuration to take effect.

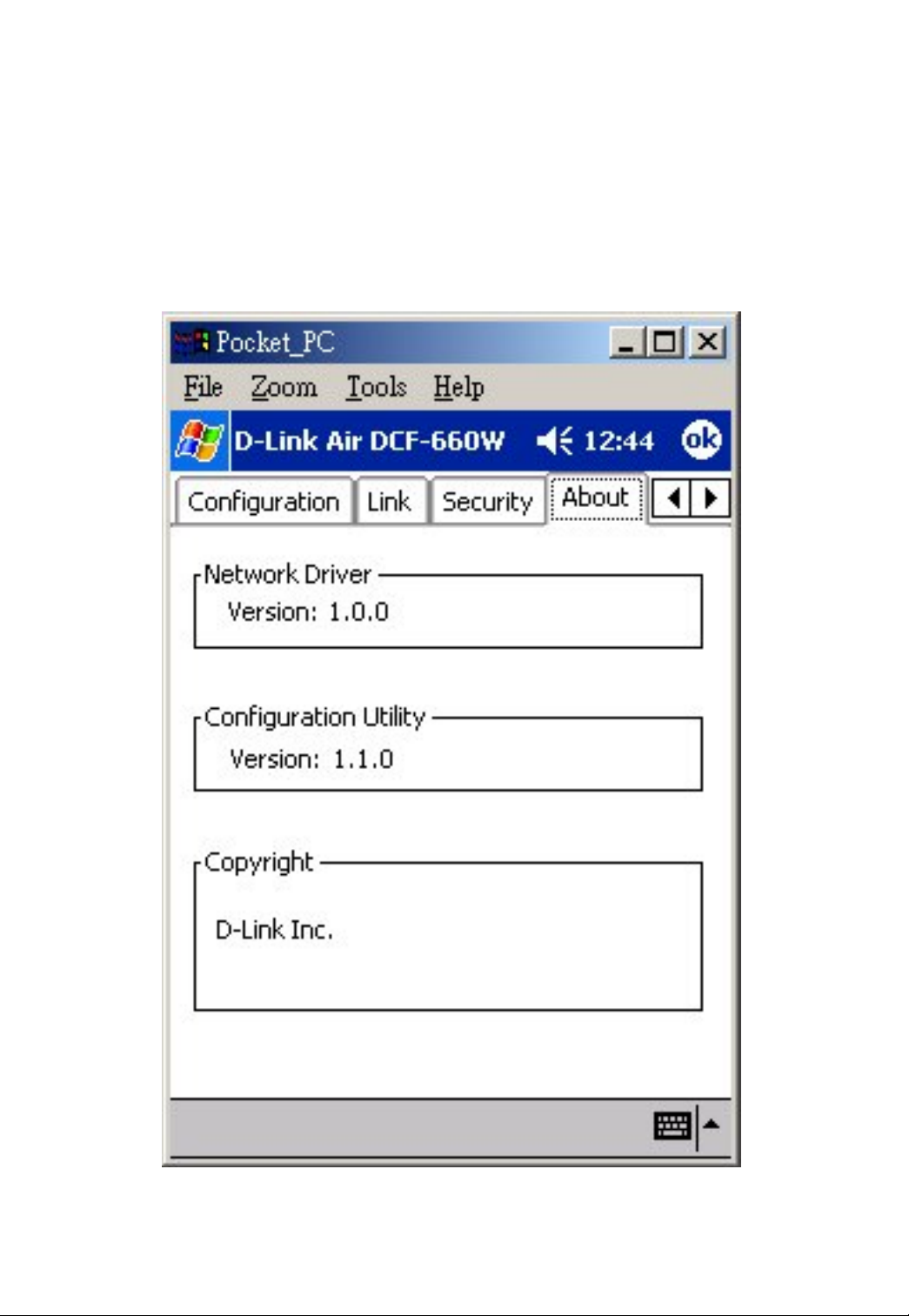

ABOUT
The About tab shows the driver and utility version for the DCF-660W
Wireless LAN Compact Flash Card.

Using the Configuration Utility on the Laptop

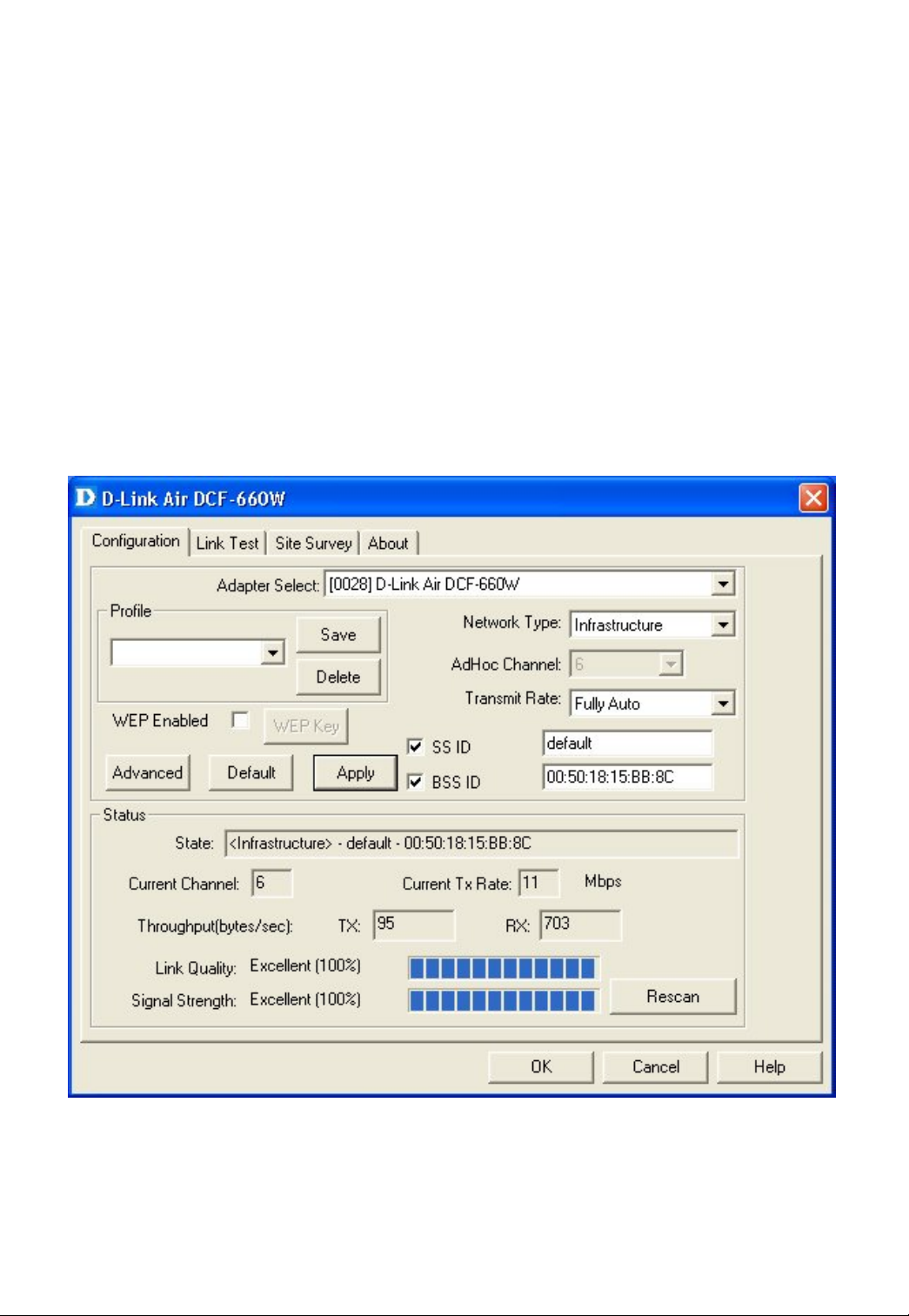

The Configuration Utility consists of a window with four items with which to
monitor and configuration DCF-660W Wireless Compact Flash Adapter.
The four items are Configuration, Link Test, Site Survey, and About.
The Configuration tab allows you to modify the configuration parameters for
DCF- 660W. The Configuration tab includes Profile,Network Type,
AdHoc Channel, Transmit Rate,SSID, and WEP. You may also monitor
the current status of DCF-660W Wireless Compact Flash Adapter properties:
State, Current Channel, Current Tx Tate, Throughput, Link Quality, and
Signal Strength. To configure advanced properties, click on Advanced
button.

20

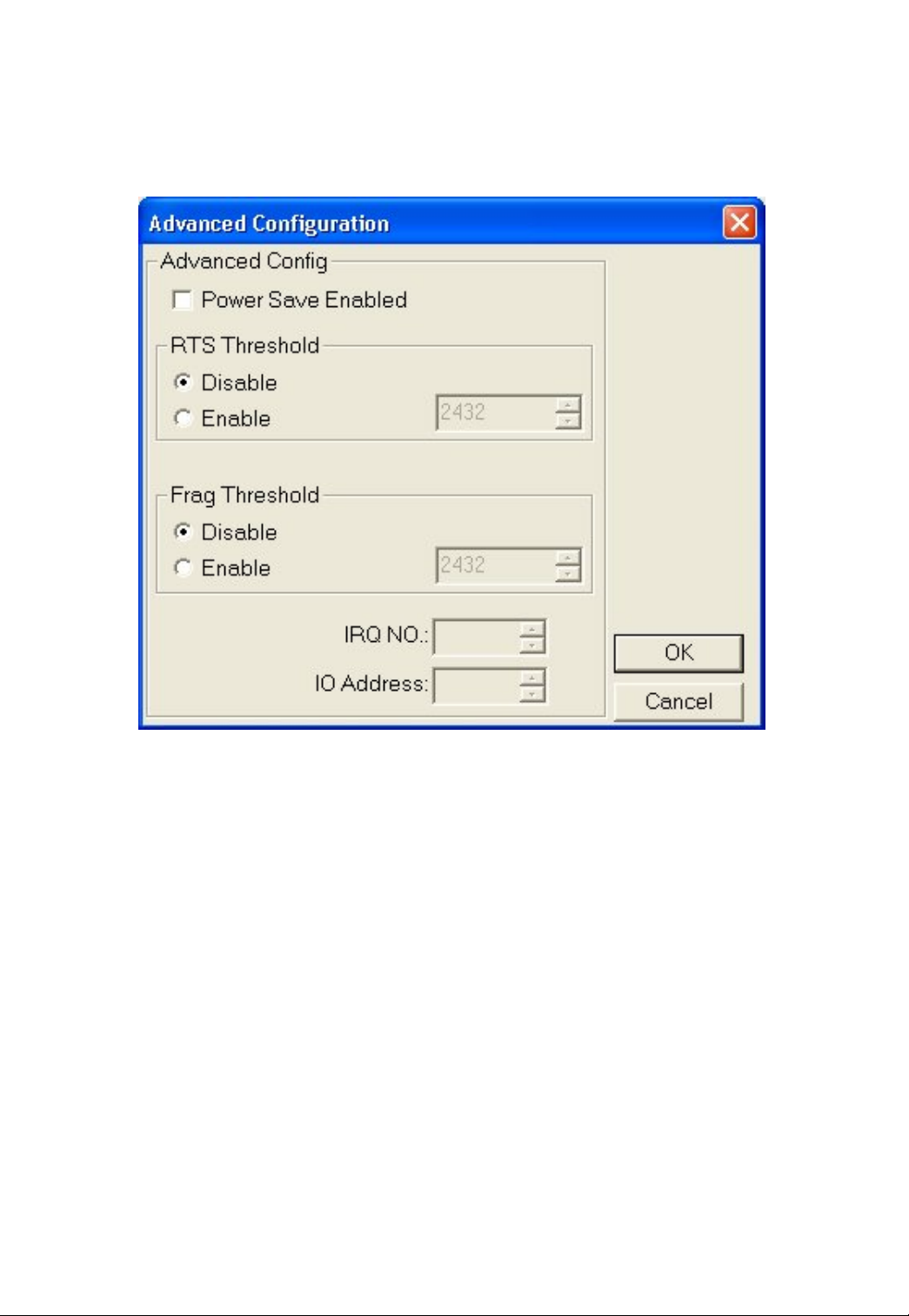

In the Advanced Configuration window you can configure the following
fields: Power Save mode, RTS Threshold, Frag Threshold, IRQ Number,
and IO Address. After you have made your changes, click on OK button to
take effect.
WEP:
To prevent unauthorized wireless stations from accessing data transmitted
over the network, the Configuration Utility offers highly secure data
encryption, known as WEP, making your data transmission over air more
secure. To activate the WEP Encryption, check the WEP Enabled check box.
An Encryption window will then appear. The instructions are as follows:
To create encryption keys by using a passphrase, click the Create Key with
Passphrase check box and type a character string in the Passphrase field.
As you type, the utility uses an algorithm to generate 4 keys automatically.
Select either the 64bit or 128bit encryption first, and type a string in the
Create Key with Passphrase field. Select one key from the 4 WEP keys
and click OK. Then click the Apply button on the Configuration tab to
make the setting take effect.
