D-Link Air DWL-120 User manual

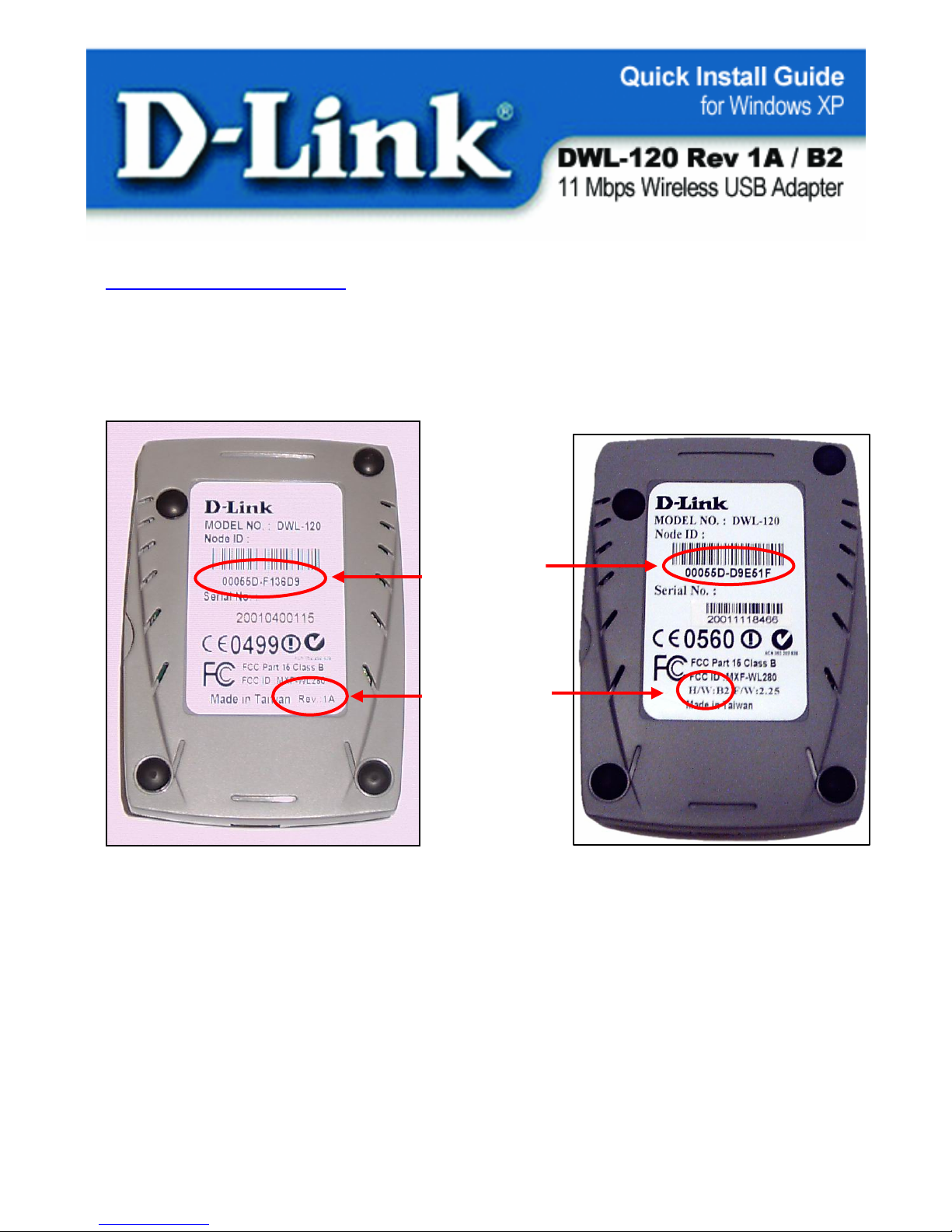

Note: Download the XP drivers for the DWL-120_Rev1A from
http://support.dlink.comand select Products. This software is applicable only to
DWL-120´s with a MAC address higherthan 004005-DF005Dor with a Rev
number marked 1A or B2. This information can be found on the bottom of the
DWL-120 unit.
§After downloading the driver “dwl120a_driver_225b02.exe,”
save this file on your computer.
§Run “dwl120a_driver_225b02.exe” by double clicking on the file.
§This is a self-extracting file and will be saved to a temporary directory. For
example: F:\Documents and Settings\dlink\Desktop\DWL-120_Rev1A.
§After the files have been extracted, remember where the files have been
extracted to and follow the instructions below.
CMAC
Address
Rev.
Number

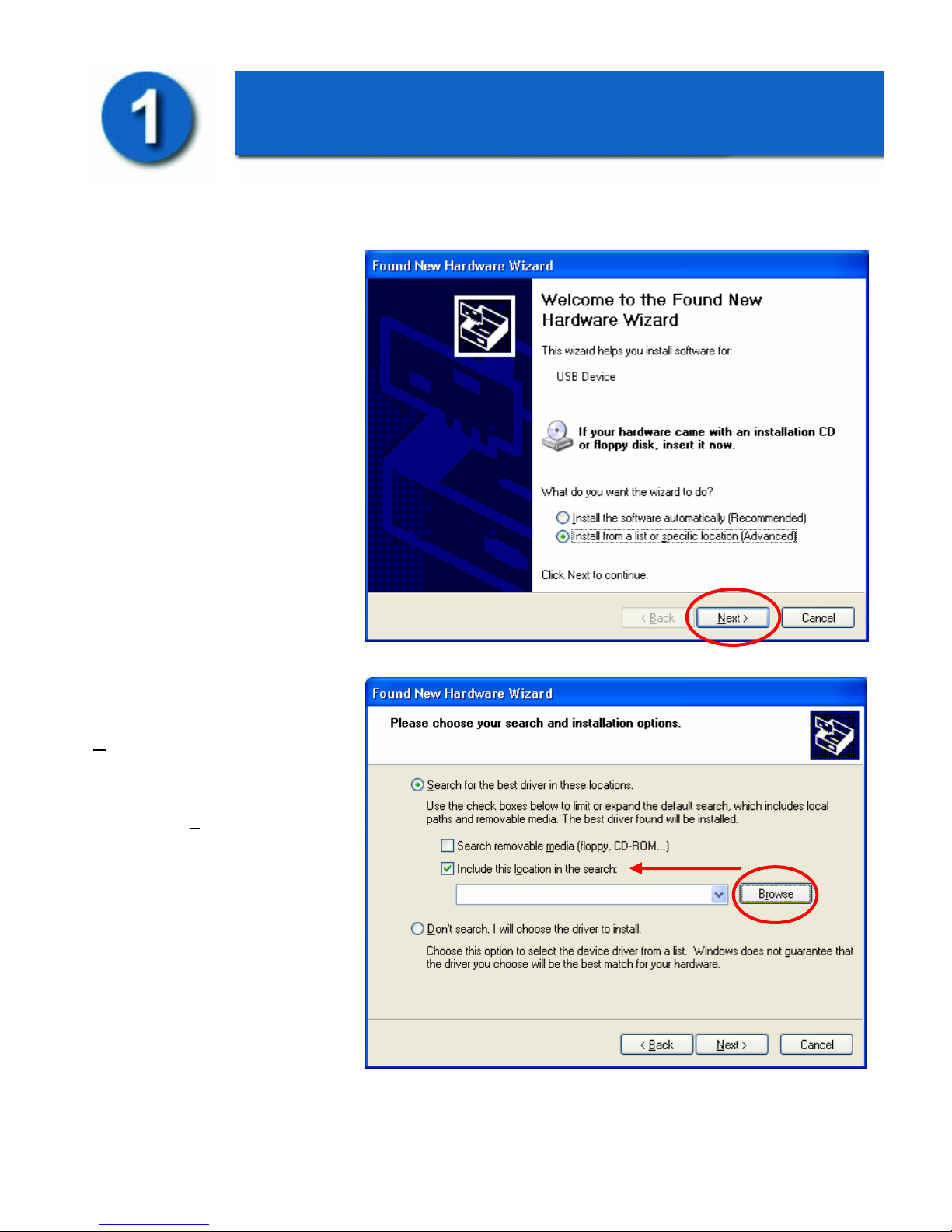

Plug in the DWL-120 Wireless USB Adapter and turn on your computer.
The following “Welcome”
screen will appear. Select
“Install from a list or
specific location.”
NOTE: If this screen does
not appear, go to Start >
Settings > Control Panel >
Add Hardware. Double-
click on the icon.
Click Next
Check “Include this
location in the search”
Click on Browse
Installing the Drivers

After clicking on Browse,
the “Browse For Folder”
will show.
Select “The location where
the files were saved.”
For example, the drivers
were saved on the Desktop
under the folder called
DWL-120_Rev1A>
dwl120a_drivers_225b02
> WinXP.
Click OK.
Click Next.
Installing the Drivers (continued)

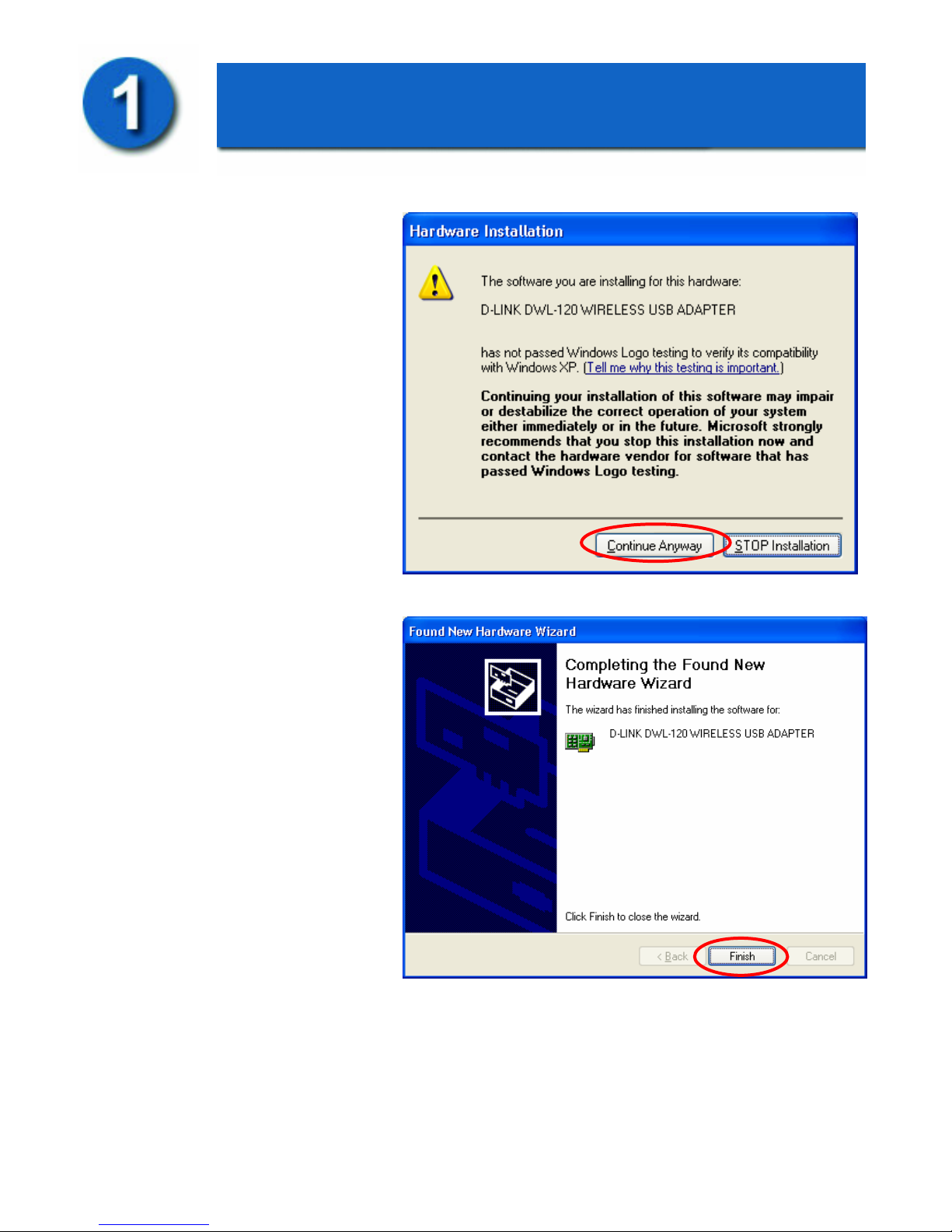

Click on “Continue
Anyway.”(D-Link software
is currently undergoing
Windows Logo testing.
Microsoft certification is
pending.)
Windows will load the
necessary files.
The Installation is now
Complete.
Click Finish
Installing the Drivers (continued)

To connect to your wireless network, please do the following:
Right-click on the computer icon in the task bar.
Select “View Available
WirelessNetworks.”
If “View Available
Wireless Networks” is
not shown on your
computer, make sure
Zero Wireless
Configuration is enabled.
To do this, go to Start >
run > msconfig > select
Services Tab > place a
check mark on Zero
Wireless Configuration.
Then, Click OK and
restart your computer.
Connecting to the Wireless
Network

The “Connect to Wireless
Network” window will contain
a list of all the available
Wireless Networks. Select the
proper network for your needs.
In this example, “default”
network was selected as shown.
Click Connect
This notice is displayed to
confirm the wireless connection
Connecting to the Wireless
Network (continued)

Double -click on the computer icon in the task bar to see status
and information about your connected network. The window on
the next page will appear.
The window below will appear
showing the current status of
your connected network.
Connecting to the Wireless
Network (continued)

You can find the most recent software and user documentation on the D-Link
website. D-Link provides free technical support for customers within the United
States during the warranty period on this product. U.S. customers can contact D-Link
Technical Support through our web site, or by phone.
D-Link Technical Support over Telephone :
[phone]
24 hours a day, seven days a week.
D-Link Technical Support over the Internet:
http://support.dlink.com
Building Networks for People
Technical Support
