D-Link DWA-520 User manual

2D-Link DWA-520 User Manual
Table of Contents
Product Overview ........................................................ 3
Package Contents ................................................... 3
System Requirements ............................................. 3
Introduction..............................................................4
Features .................................................................. 5
Hardware Overview ................................................. 6
LEDs ..................................................................6
Installation....................................................................7
Getting Started ........................................................ 7
Remove Existing Installations............................7
Disable Other Wireless Adapters....................... 8
Wireless Installation Considerations...................... 10
Adapter Installation ................................................ 11
Conguration............................................................. 18
D-Link Conguration Utility .................................... 18
Wireless Networks ........................................... 19
D-Link Wi-Fi Protected Setup ..........................20
My Wireless Networks .....................................21
Support ............................................................24
About ...............................................................25
Windows® XP Conguration Utility......................... 26
Disabling The Windows® XP Utility .................. 27
Wireless Security....................................................... 29
What is WEP? .......................................................29
What is WPA? .......................................................30
Congure WEP...................................................... 31
Using the D-Link Utility .................................... 31
Using the Windows® XP Utility......................... 33
Congure WPA/WPA2 Passphrase....................... 35
Using the D-Link Utility .................................... 35
Using the Windows® XP Utility......................... 37
Congure WPA/WPA2........................................... 39
Using the D-Link Utility .................................... 39
Congure 802.1x ................................................... 40
Using the D-Link Utility .................................... 40
Troubleshooting ........................................................ 41
Wireless Basics .........................................................46
Networking Basics .................................................... 51
Check your IP address .......................................... 51
Statically Assign an IP address ............................. 52
Technical Specications........................................... 53
Table of Contents

3D-Link DWA-520 User Manual
Section 1 - Product Overview
• D-Link DWA-520 Wireless 108G Desktop
Adaptor
• Manual and Warranty on CD
• D-Link Wireless Utility on CD
System Requirements
• A desktop computer with an available 32-bit Desktop slot
• Windows®98SE, ME, 2000, XP or Vista
• 300MHz processor and at least 64MB of RAM
• An 802.11g or 802.11b access point (for Infrastructure mode), or another 802.11g or 802.11b wireless
adapter (for Ad-Hoc mode.)
Product Overview
Package Contents

4D-Link DWA-520 User Manual
Section 1 - Product Overview
Introduction
The D-Link Wireless 108G DWA-520 Desktop Adapter is a wireless 108G Desktop adapter featuring the latest technology
to deliver data transfer rates up to 108Mbps* in the 2.4GHz frequency. The DWA-520 also works with 802.11b-compliant
devices and when used with other Wireless 108G products delivers throughput speeds capable of handling heavy
data payloads including real-time MPEG video streaming. Plus, the DWA-520 also includes a conguration utility to
discover available wireless networks and create and save detailed connectivity proles for those networks most often
accessed.
The D-Link Wireless 108G DWA-520 is a powerful 32-bit Desktop adapter that installs quickly and easily into desktop
computers. Like all D-Link wireless adapters, the DWA-520 can be used in ad-hoc mode to connect directly with other
cards for peer-to-peer le sharing or in infrastructure mode to connect with a wireless access point or router for access
to the Internet in your ofce or home network.
The DWA-520 features robust security to help protect the wireless network from intruders, complying with the latest
wireless networking security protocols, including WEP encryption and Wi-Fi Protected Access (WPA) support for
both 802.1x and WPA-PSK. The products are also capable of supporting the government-grade AES encryption and
upcoming 802.11i standards. The DWA-520 also includes a conguration utility to discover available wireless networks
and create and save detailed connectivity proles for those networks most often accessed.
* Maximum wireless signal rate derived from IEEE Standard 802.11b/g specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trafc, building materials and construction, and network overhead, lower actual data throughput
rate. Environmental factors may adversely affect wireless signal range.

5D-Link DWA-520 User Manual
Section 1 - Product Overview
• 15 times faster - achieve data transfer speeds up to 108Mbps*; up to 15x faster than conventional 802.11b
networks, when used with other 802.11g devices
• Integrates into existing 802.11b wireless networks - no need to invest in all new devices; the
DWA-520 is interoperable with existing 802.11b devices to provide a wireless data rate of up to
11Mbps*
• Stronger Security than ever before with WPA - Wi-Fi Protected Access authorizes and identies users
based on a secret key that changes automatically at a regular interval, for example:
• TKIP (Temporal Key Integrity Protocol), in conjunction with a RADIUS server, changes the temporal key
every 10,000 packets, ensuring greater security
• Pre Shared Key mode means that the home user, without a RADIUS server, will obtain a new security
key every time he or she connects to the network, vastly improving the safety of communications on the
network.
• Extra Protection - 802.1x Authentication in conjunction with the RADIUS server veries the identity of
would be clients
• User-friendly conguration and diagnostic utilities allow you to easily discover available wireless networks
and create and save detailed connectivity proles
• Utilizes OFDM technology (Orthogonal Frequency Division Multiplexing)
* Maximum wireless signal rate derived from IEEE Standard 802.11b/g specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trafc, building materials and construction, and network overhead, lower actual data throughput
rate. Environmental factors may adversely affect wireless signal range.
Features

6D-Link DWA-520 User Manual
Section 1 - Product Overview

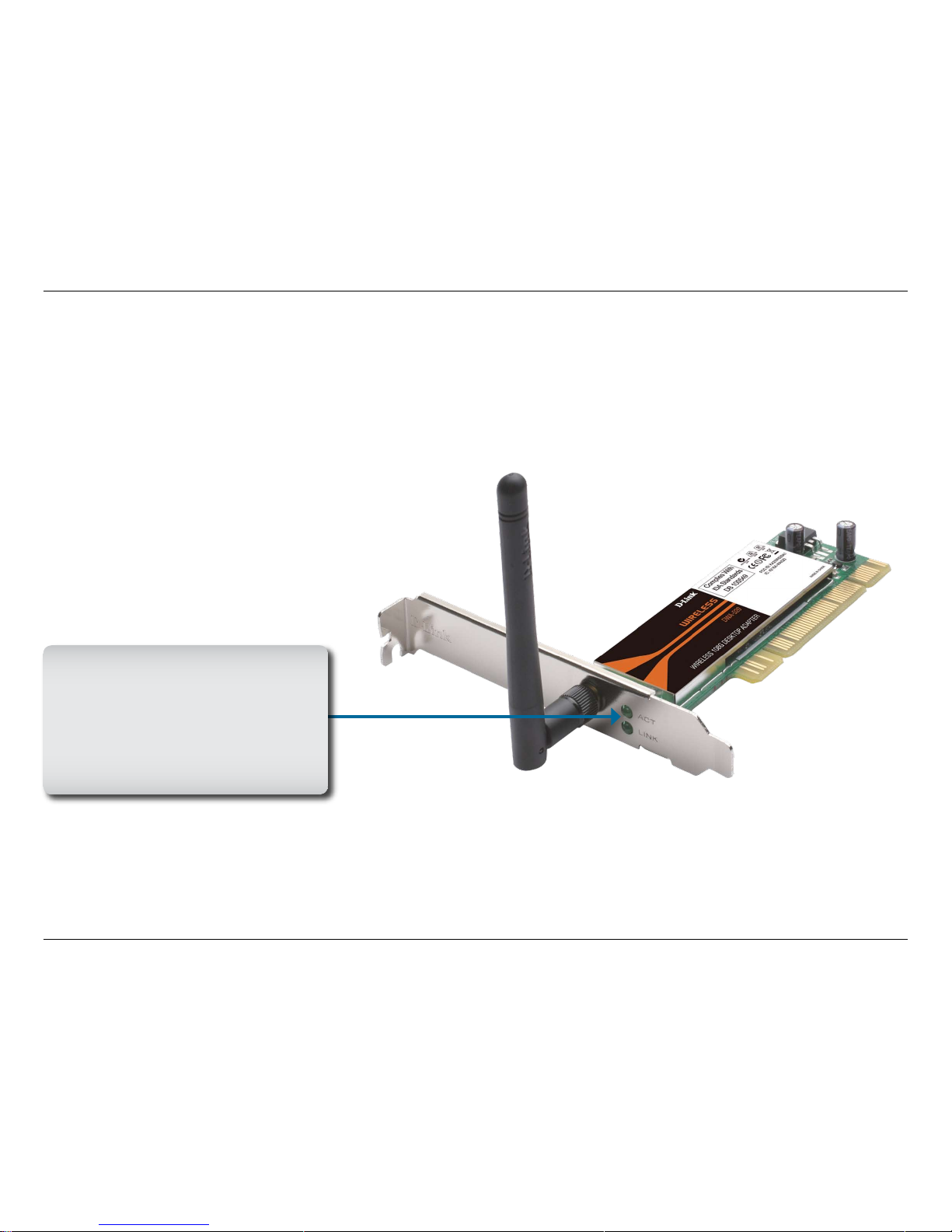

Hardware Overview
LEDs
Link
A steady light indicates a connection
to a wireless network.
ACT
A blinking light indicates transmission
of data.

7D-Link DWA-520 User Manual
Section 2 - Installation
Getting Started
Installation
This section will walk you through the installation process. If you have a built-in wireless adapter, please disable it in
device manager before installing your D-Link adapter. Also, if you have previously installed another wireless adapter,
please make sure any software is uninstalled.
Before installing your new D-Link wireless adapter, please verify the following:
• Remove any previous installations of wireless adapters
• Disable any built-in wireless adapters
• Verify the settings such as the SSID and security settings of the network(s) you want to connect to
Remove Existing Installations
If you’ve installed a different manufacture’s adapter or a different model D-Link adapter, make sure the software is
uninstalled before installing the new software. Some utilities may cause a conict with the new software. If you plan
to use multiple adapters at different times, make sure the utilities are not set to load when your computer boots up.
Windows®XP/ Vista users may use the built-in wireless utility for all adapters.
To remove any old software:
Windows®Vista users: Click Start > Control Panel > Programs & features.
Windows®XP users: Click Start > Control Panel > Add or Remove Programs.
Windows®2000 users: Click Start > Settings > Control Panel > Add or Remove Programs.

8D-Link DWA-520 User Manual
Section 2 - Installation
Disable Other Wireless Adapters
Most newer computers may include a built-in wireless adapter. To prevent any conicts with the D-Link wireless adapter,
it is recommended to disable the wireless adapter (as well as any unused Ethernet adapters).
From the desktop, right-click on the My Computer icon and select
Properties.

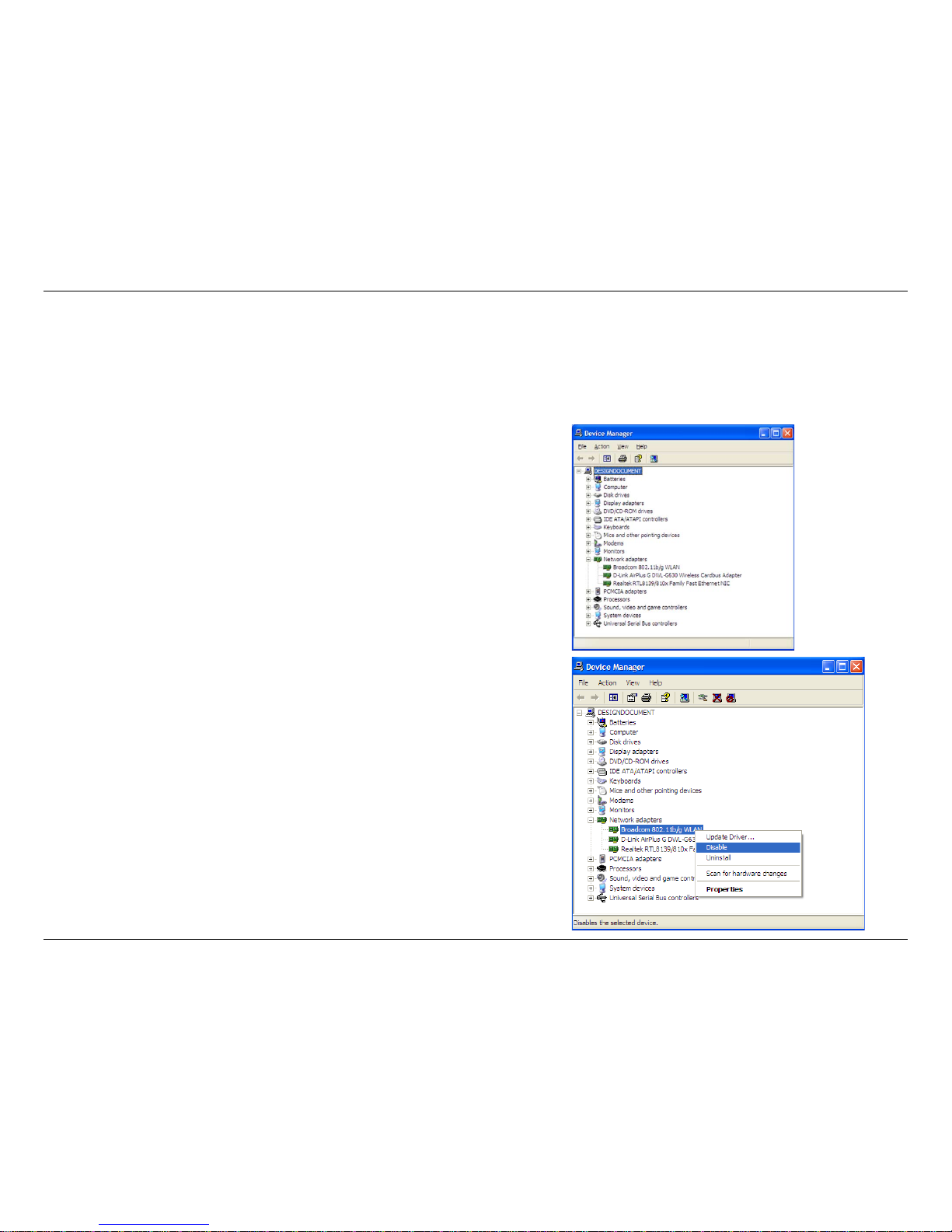

Click the Hardware tab and then click Device Manager. Scroll down
the list and click the +sign to the left of Network Adapters.
Right-click the adapter you would like to disable and select
Disable.

9D-Link DWA-520 User Manual
Section 2 - Installation
Click Yes to disable the adapter.
The adapter is now disabled. When disabled, a red X will be
displayed.
Disabling the adapter will not remove the drivers. If you would like
to use the adapter, simply right-click it and select Enable.

10D-Link DWA-520 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless adapter lets you access your network using a wireless connection from virtually anywhere within
the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls,
ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending
on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing
wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link adapter and other network devices to a
minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position
your devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet
(14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead
of at an angle) for better reception.
3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on
range. Try to position access points, wireless routers, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water
(sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that
generate RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and
home security systems), your wireless connection may degrade dramatically or drop completely. Make
sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits
a signal even if the phone in not in use.

11D-Link DWA-520 User Manual
Section 2 - Installation
Turn on the computer and Insert the D-Link DWA-520 Driver CD in the CD-ROM drive. The step-by-step instructions
that follow are shown in Windows XP. The steps and screens are similar for the other Windows operating systems.
If the CD Autorun function does not automatically start on your computer, go to Start > Run. In the run box type “D:\
Drivers\setup.exe” (where D : represents the drive letter of your CD-ROM drive).
When the autorun screen appears, click Install Drivers.
Adapter Installation

12D-Link DWA-520 User Manual
Section 2 - Installation

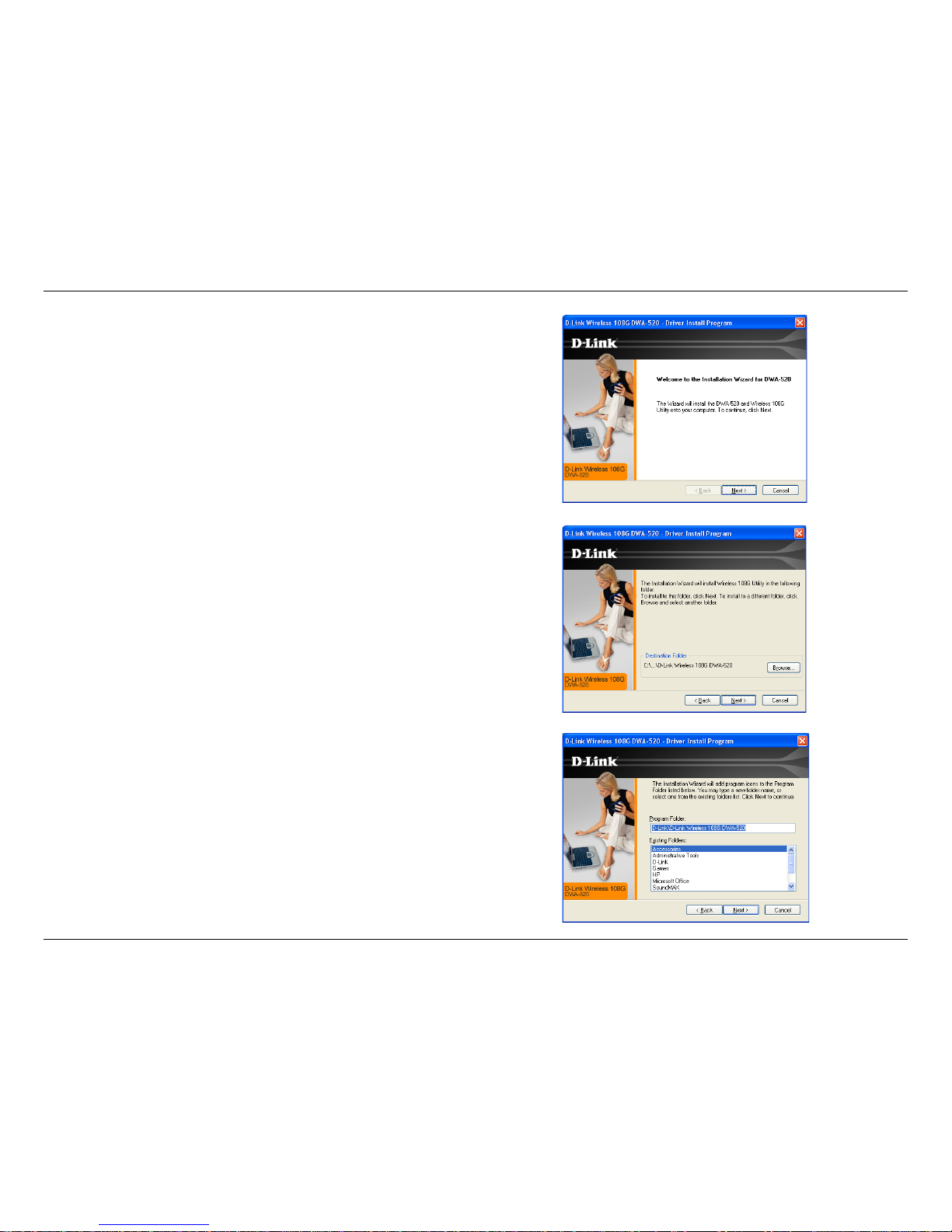

The InstallShield Wizard window will appear.
Click Next to continue.
By default setup will install to the default location: C:\Program
Files\D-Link Utility , where C: represents the drive letter of your
hard drive. To install to a different location click Browse and
specify the location. Click Next.
Select the program les folder location.
Click “Next” to continue.

13D-Link DWA-520 User Manual
Section 2 - Installation

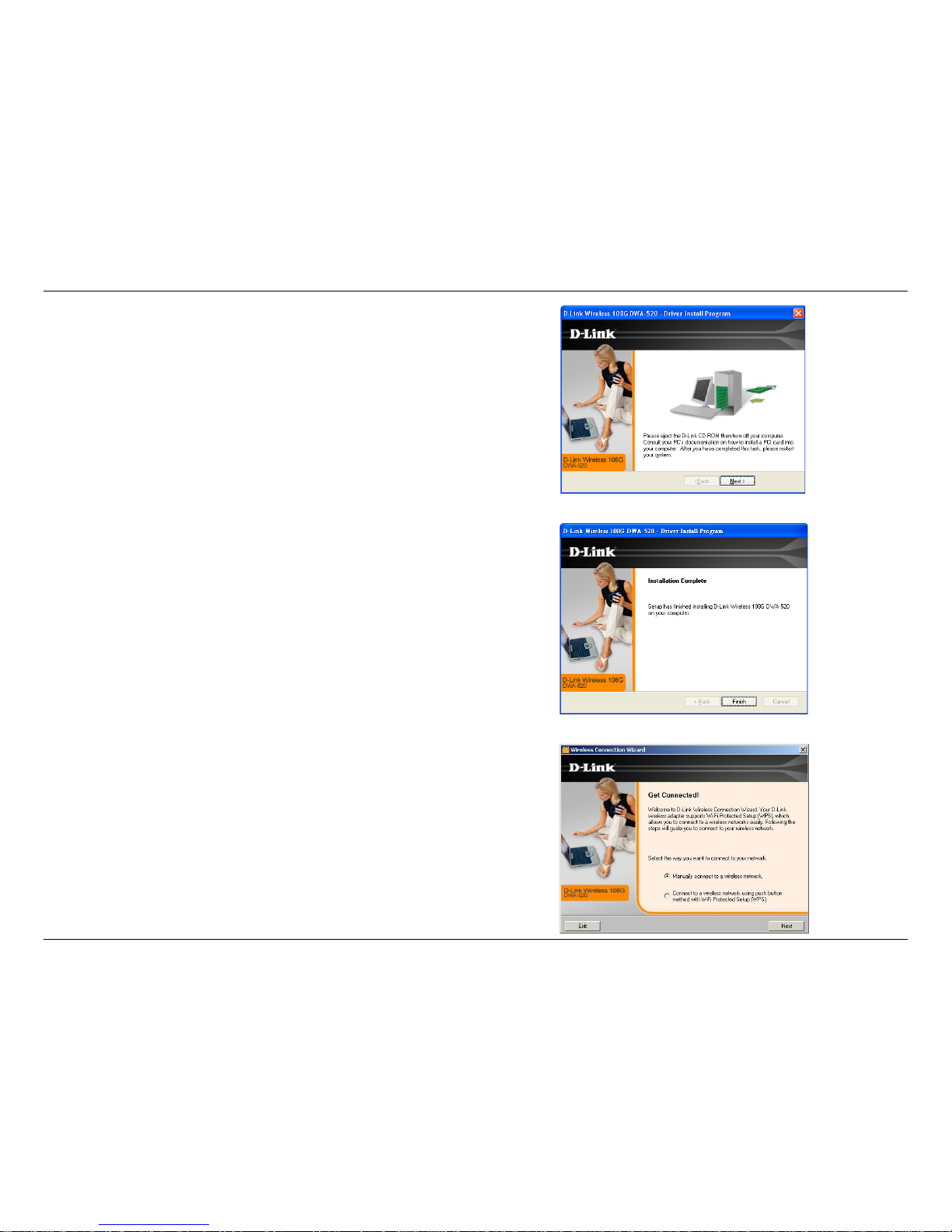

Click Next.

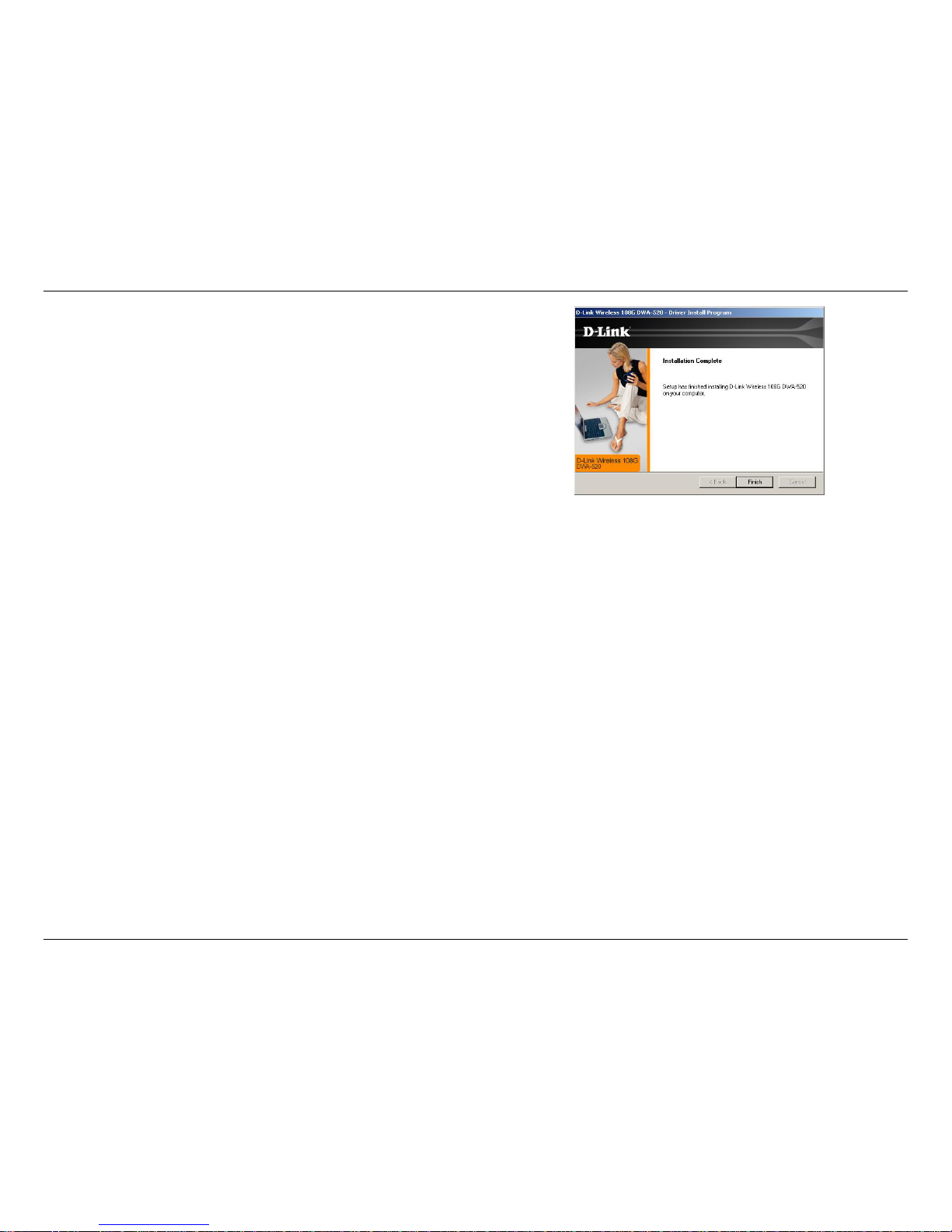

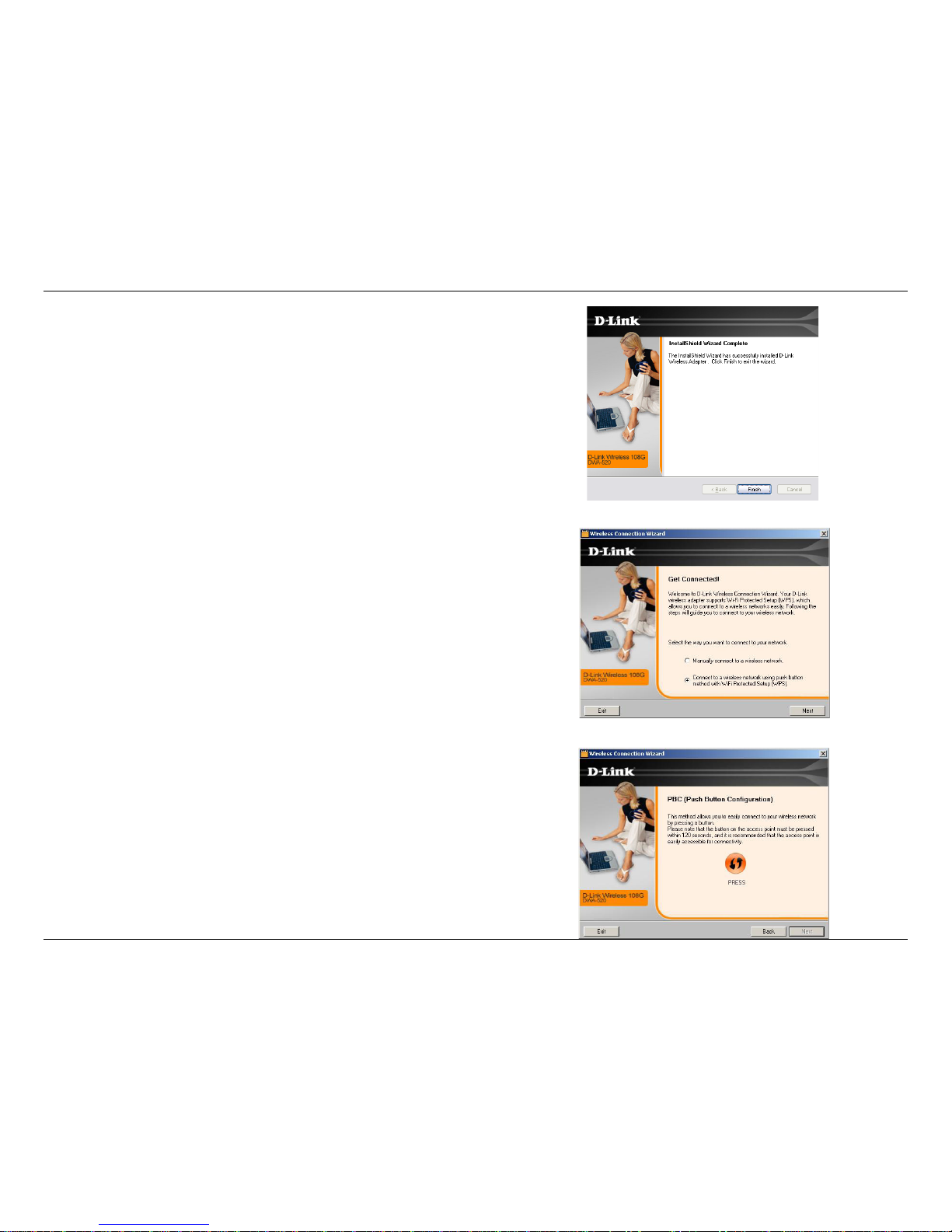

Click Finish and shut down your computer. Next, insert your
desktop adapter and then restart your system.
If you want to connect to your network manually, select the
option. And then click “Next”.

14D-Link DWA-520 User Manual
Section 2 - Installation

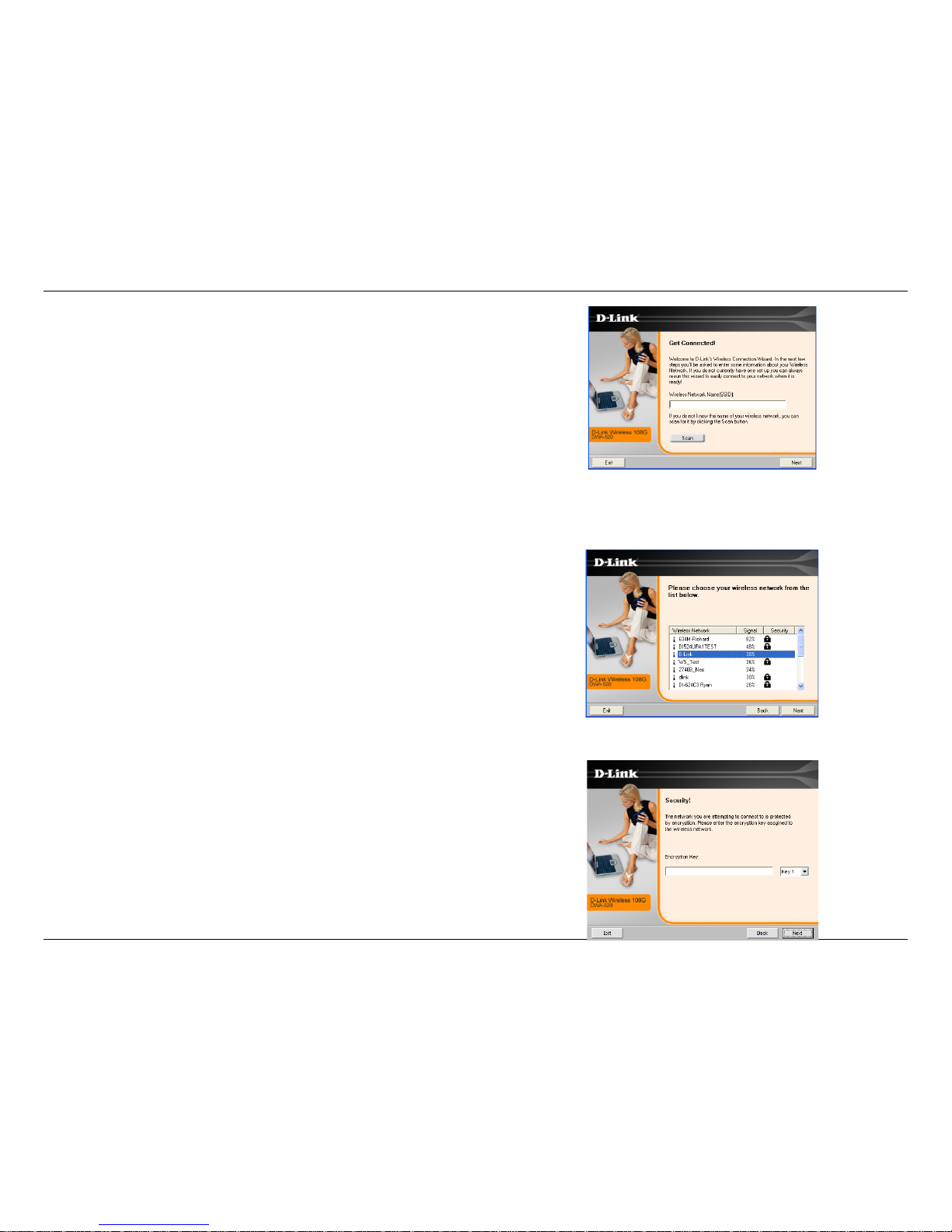

Click the Scan button to display a list of wireless networks (site survey).
Click on the network name (SSID) and click Next.
Enter the network name (SSID) manually. If you enter the
SSID incorrectly, you will automatically be brought to the site
survey page.
Click Next to continue or click Scan to display the site survey
page.
If the wireless network you are trying to connect to is encrypted, enter
the WEP key or WPA-PSK passphrase. Click Next to continue.

15D-Link DWA-520 User Manual
Section 2 - Installation
If you want to connect to your network with WPS, select the option.
And then click “Next”.
Click Finish to continue.

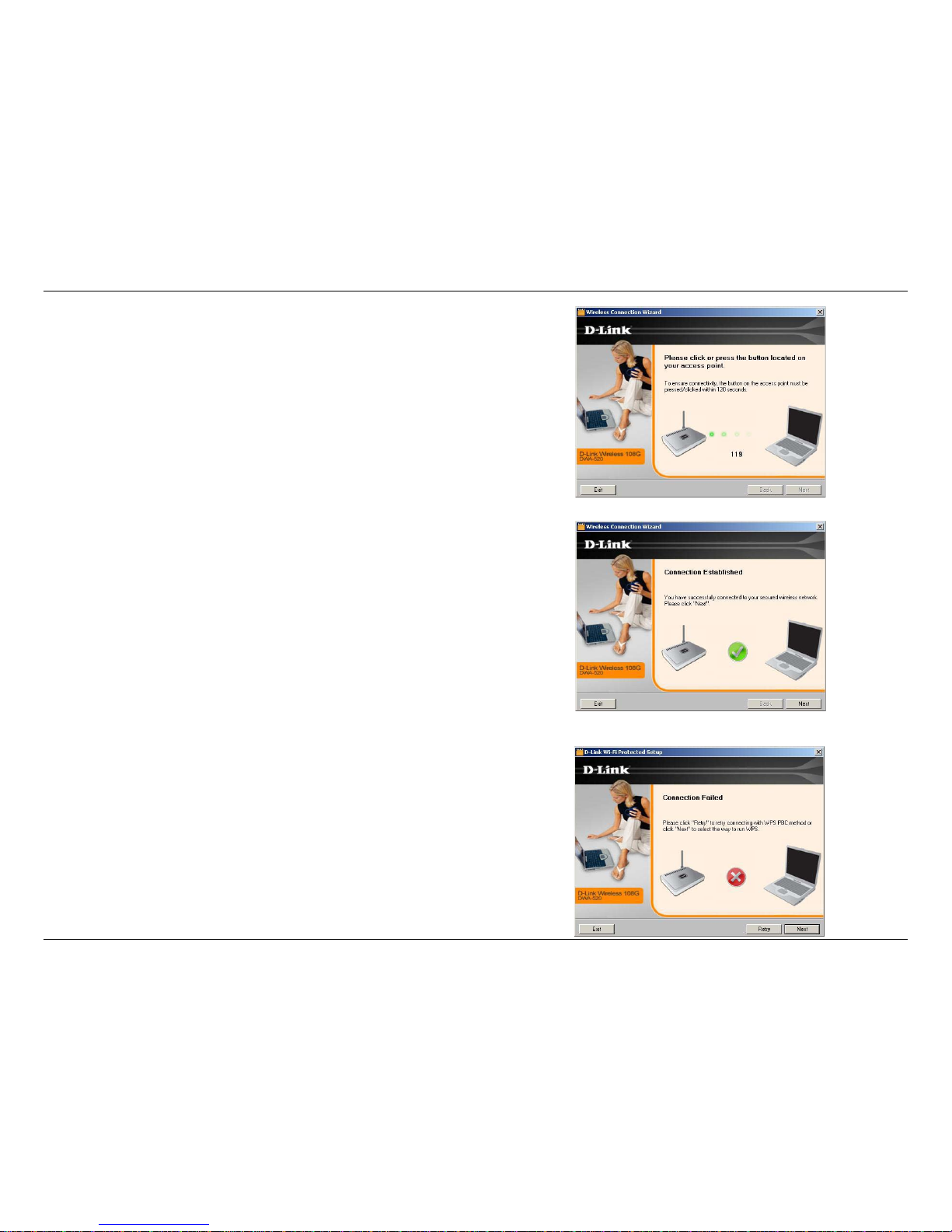

Click “Press” to connect to your wireless network. Click the push button
on your access point.

16D-Link DWA-520 User Manual
Section 2 - Installation
Connection Established
And Click “Next”.
Note: please press the button on the access point within 120 seconds
and it is recommended that the access point is nearby.
If you encounter failure of WPS, below page will show.
Click “Retry” to re-connect to your wireless network with WPS.
Click “Next” to select the way you want to get connected to your wireless
network.
Click ”Exit ” to complete the installation.

17D-Link DWA-520 User Manual
Section 2 - Installation
Click “Finish” to complete.

18D-Link DWA-520 User Manual
Section 3 - Configuration
Configuration
This section will show you how to congure your new D-Link wireless adapter using the D-Link Utility as well as the
Windows® Zero Conguration Utility.
D-Link Configuration Utility
The D-Link DWA-520 uses the Conguration Utility as the management software. The utility provides the user an
easy interface to change any settings related to the wireless adapter. After you have completed the installation of the
DWA-520 and whenever you start the computer, the Conguration Utility starts automatically and the system tray icon
is loaded in the toolbar. Clicking on the utility icon will start the Conguration Utility.
If you are using Windows®XP, please skip to page 26.

19D-Link DWA-520 User Manual
Section 3 - Configuration

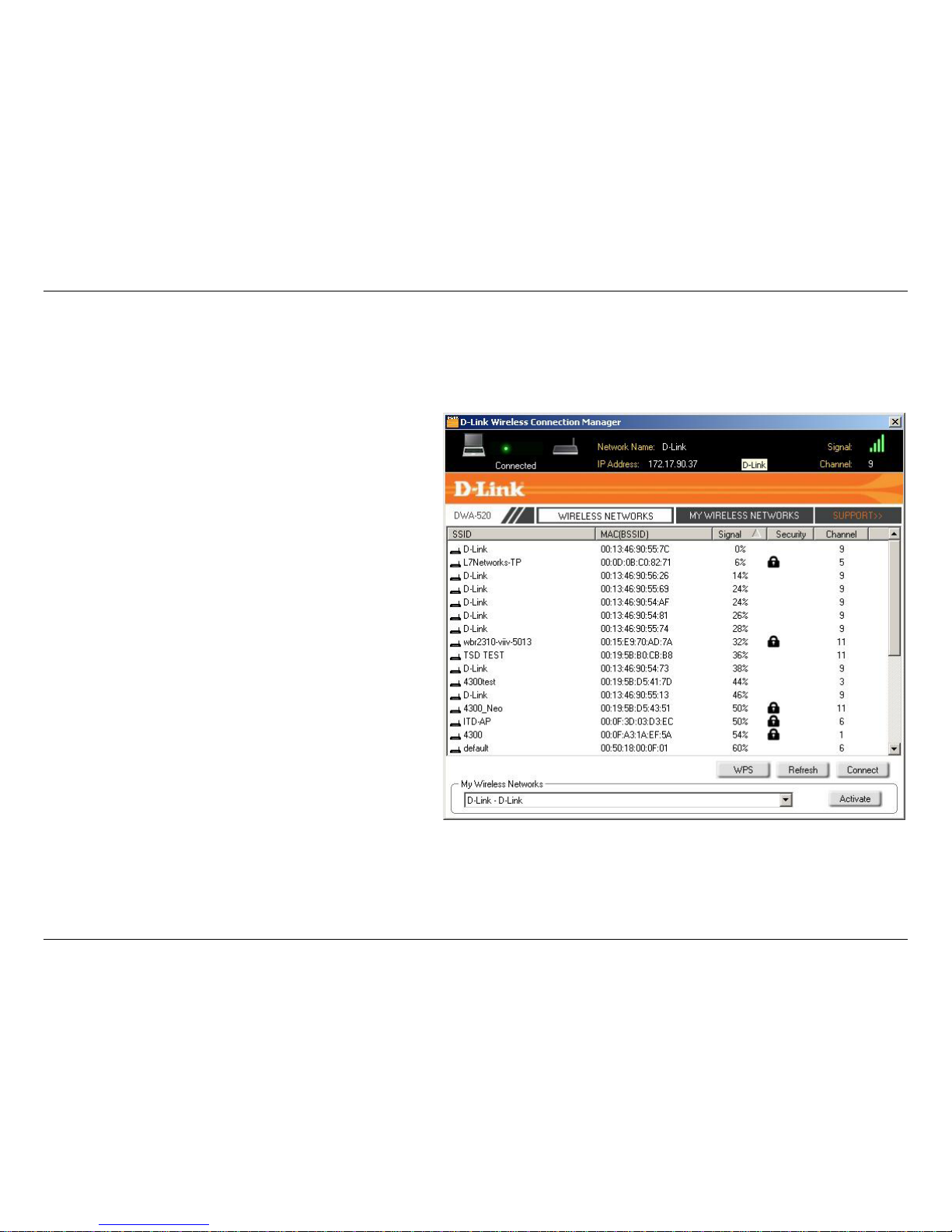

Wireless Networks
The SSID (Service Set Identier) is the name
of the wireless network.
Displays the MAC address of the wireless
device.
Displays the Link Quality of the wireless
connection.
If there is a “lock” icon, this means the wireless
network is secure. You must know the encryption
key/security settings to connect.
Displays the channel of the wireless network.
Make sure your access point is WPS enabled.
Click “WPS” and connect to your wireless
network with Wi-Fi Protected Setup.
Rescans for available wireless networks in your
area.
Highlight a wireless network and click the
Connect button. If the network is secure, a
pop-up window will appear. Enter the security
information to connect (refer to the Wireless
Security section for more information).
Select a wireless network profile from the
drop-down menu and click Activate to connect.
Allow up to 30 seconds to connect.
MAC:
SSID:
Channel:
Signal:
Security:
Refresh Button:
Connect Button:
Activate Button:
The Wireless Networks (Site Survey) page will display all wireless networks that are available in your area. To connect
to a network, simply highlight the wireless network (SSID) and click Connect.
WPS Button:

20D-Link DWA-520 User Manual
Section 3 - Configuration

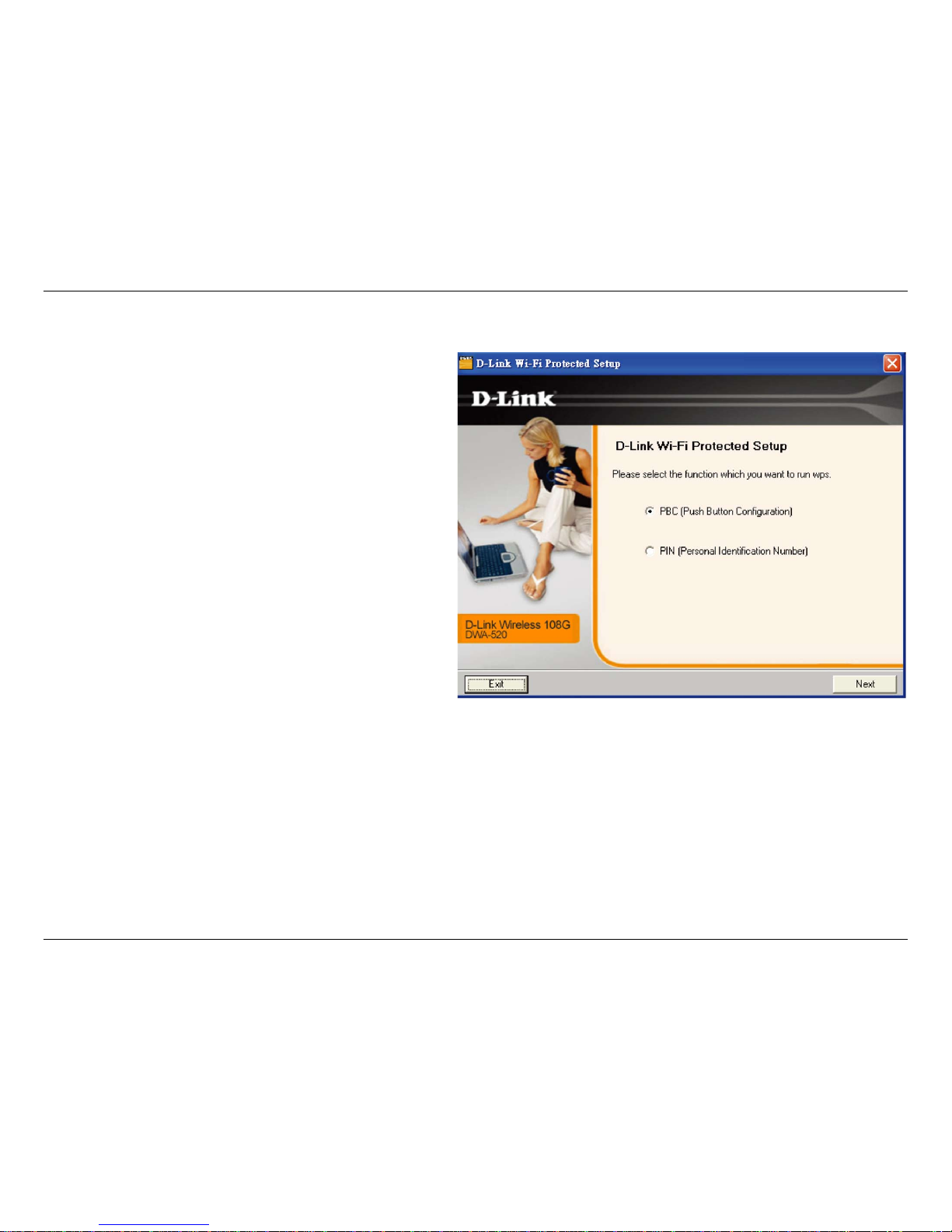

D-Link Wi-Fi Protected Setup
“Push Button Conguration” is a virtual button on
the utility that can be pressed to get connected
to your wireless network. Please make sure the
access point is nearby and its physical button
is placed on the device.
“Personal Identication Number” is an unique
number that is generated randomly by device.
PIN should be entered on the utility of your access
point and be accepted to get connected.
PIN:
PBC:
