Section 1 - Product Overview
• D-Link DWA-645 Rangebooster N™650
Notebook Adapter
• Manual and Warranty on CD
• D-Link Wireless Connection Manager
on CD
System Requirements
• A laptop computer with an available 32-bit cardbus slot
• Windows® 2000 (Service Pack 4) or XP (Service Pack 2), Vista
• CD-ROM Drive
• 300MHz processor and at least 64MB of RAM
• 20MB Hard Disk Space20MB Hard Disk Space
• A draft 802.11n, 802.11g or 802.11b access point (for Infrastructure mode), or another 802.11n,
802.11g or 802.11b wireless adapter (for Ad-Hoc mode.)
Product Overview
Package Contents

4D-Link DWA-645 User Manual
Section 1 - Product Overview
Introduction
The D-Link RangeBooster N™ 650 Notebook Adapter (DWA-645) is a Draft 802.11n client device that delivers unrivaled
wireless performance for your notebook computer. With the DWA-645, you can add or upgrade your notebook’s wireless
connectivity without having to purchase a new notebook. Once connected, access your network’s high-speed Internet
connection while sharing photos, les, music, video, printers, and storage. Get a better Internet experience with a faster
wireless connection so you can enjoy digital phone calls, gaming, downloading, and video streaming.
Powered by RangeBooster N 650 technology, the DWA-645 provides a faster wireless connection and superior reception
than 802.11g*. The DWA-645 is designed for use in bigger homes and for those that demand higher networking. Maximize
wireless performance by connecting this notebook adapter to a RangeBooster N 650 Router and stay connected from
virtually anywhere in the home. This notebook adapter supports WEP, WPA and WPA2 encryption to prevent outside
intrusion and protect your personal information from being exposed.
D-Link’s Quick Setup Wizard guides you step-by-step through the installation process. You’ll be able to congure this
notebook adapter without having to call the teenager from down the street to help you. The D-Link Wireless Manager
is included with this product to keep track of all your most frequently accessed networks.
With unmatched wireless performance, reception, and security protection, the D-Link RangeBooster N 650 Notebook
Adapter (DWA-645) is the best choice for easily adding or upgrading wireless connectivity to your notebook
computer.
* Maximum wireless signal rate derived from IEEE Standard 802.11g and Draft 802.11n specications. Actual data throughput will vary. Network
conditions and environmental factors, including volume of network trafc, building materials and construction, and network overhead, lower actual
data throughput rate. Environmental conditions will adversely affect wireless signal range.
** All devices in the wireless network must be enabled with D-Link RangeBooster™Technology

5D-Link DWA-645 User Manual
Section 1 - Product Overview
• Faster Wireless Networking - Enable wireless connectivity on your notebook computer with the
DWA-645. With the performance of D-Link’s RangeBooster N™ line of wireless products, the DWA-645
delivers an unsurpassed wireless experience. Perform multiple network tasks at once with the speed
provided by this Wireless Adapter.
• Compatible with 802.11b and 802.11g Devices - Fully compatible with the IEEE 802.11b and 802.11g
standards, the DWA-645 can connect with existing 802.11b or 802.11g compliant routers, access points
and cards. That means you can still communicate with colleagues and friends while you have the ability
to link to even more wireless networks.
• Better Security with 802.1x and WPA - With the DWA-645 in your laptop PC you can securely connect
to a wireless network using 802.1x for wireless authentication, as well as WPA (Wi-Fi Protected Access)
providing you a much higher level of security for your data and communication than has previously been
available.
• 32-bit Cardbus Performance/Plug & Play Connectivity - The DWA-645 is a powerful 32-bit Notebook
Adapter that installs quickly and easily into laptop PCs, and when used with other D-Link RangeBooster
N™products will automatically connect to the network out of the box.
• Total Performance - Upgrade your notebook with the latest draft 802.11n technology.
• Total Wireless Portection - Connect to secure wireless networks using WEP, and WPA.
• Total Connection - Get reception throughout your home by connecting to a RangeBooster N 650
Router.
Features

6D-Link DWA-645 User Manual
Section 1 - Product Overview

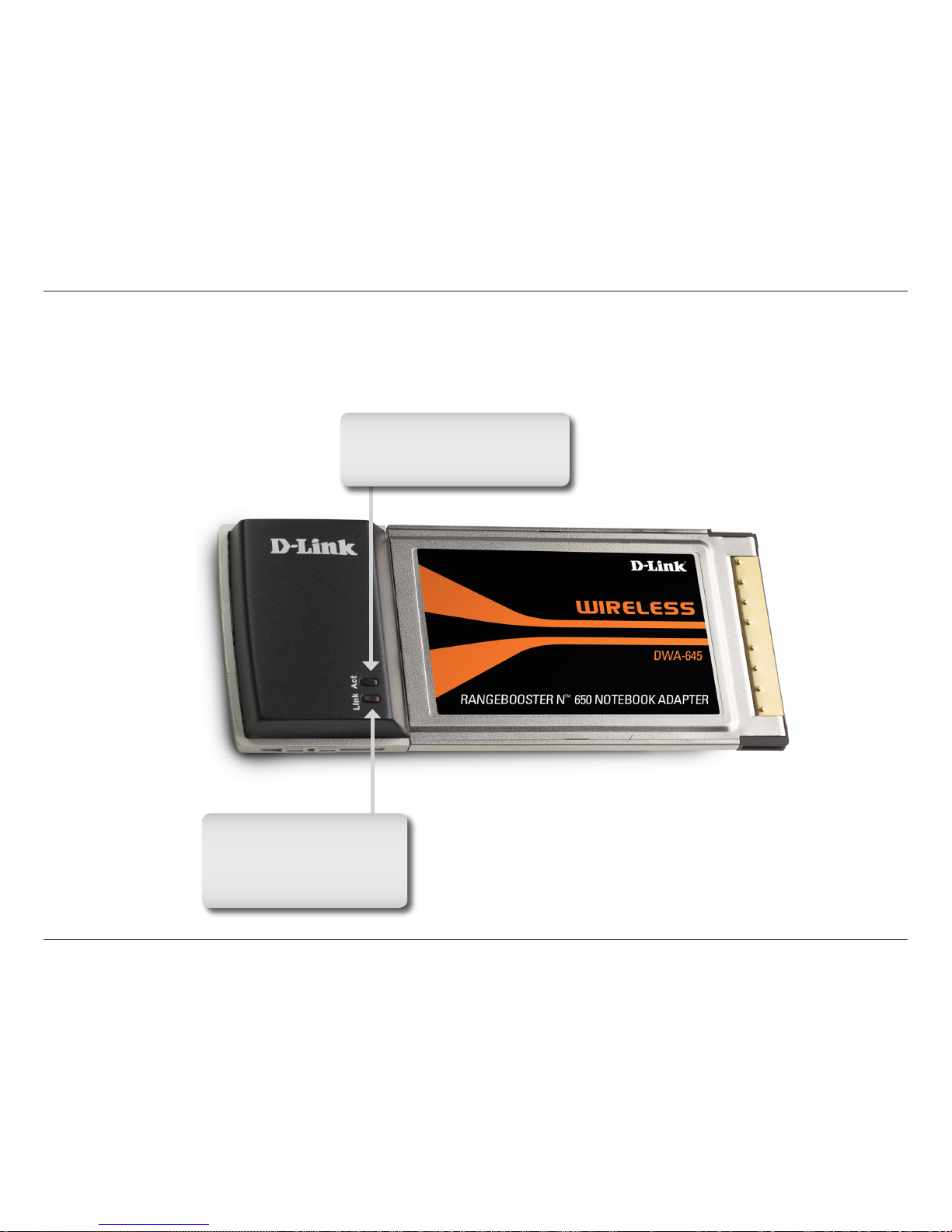

Hardware Overview
LEDs
Activity LED
A blinking light indicates data
is being transmitted.
Link LED
A steady light indicates a
connection to a wireless
network.

7D-Link DWA-645 User Manual
Section 2 - Installation
Getting Started
Installation
This section will walk you through the installation process. If you have a built-in wireless adapter, please disable it in
device manager before installing your D-Link adapter. Also, if you have previously installed another wireless adapter,
please make sure any software is uninstalled.
Before installing your new D-Link wireless adapter, please verify the following:
• Remove any previous installations of wireless adapters
• Disable any built-in wireless adapters
• Verify the settings such as the SSID and security settings of the network(s) you want to connect to
Remove Existing Installations
If you’ve installed a different manufacture’s adapter or a different model D-Link adapter, make sure the software is
uninstalled before installing the new software. Some utilities may cause a conict with the new software. If you plan
to use multiple adapters at different times, make sure the utilities are not set to load when your computer boots up.
Windows®XP / Vista users may use the built-in wireless utility for all adapters.
To remove any old software:
Windows® XP / Vista users: Click Start > Control Panel > Add or Remove Programs.
Windows® 2000 users: Click Start > Settings > Control Panel > Add or Remove Programs.

8D-Link DWA-645 User Manual
Section 2 - Installation
Disable Other Wireless Adapters
Most newer laptops may include a built-in wireless adapter. To prevent any conicts with the D-Link wireless adapter,
it is recommended to disable the wireless adapter (as well as any unused Ethernet adapters).

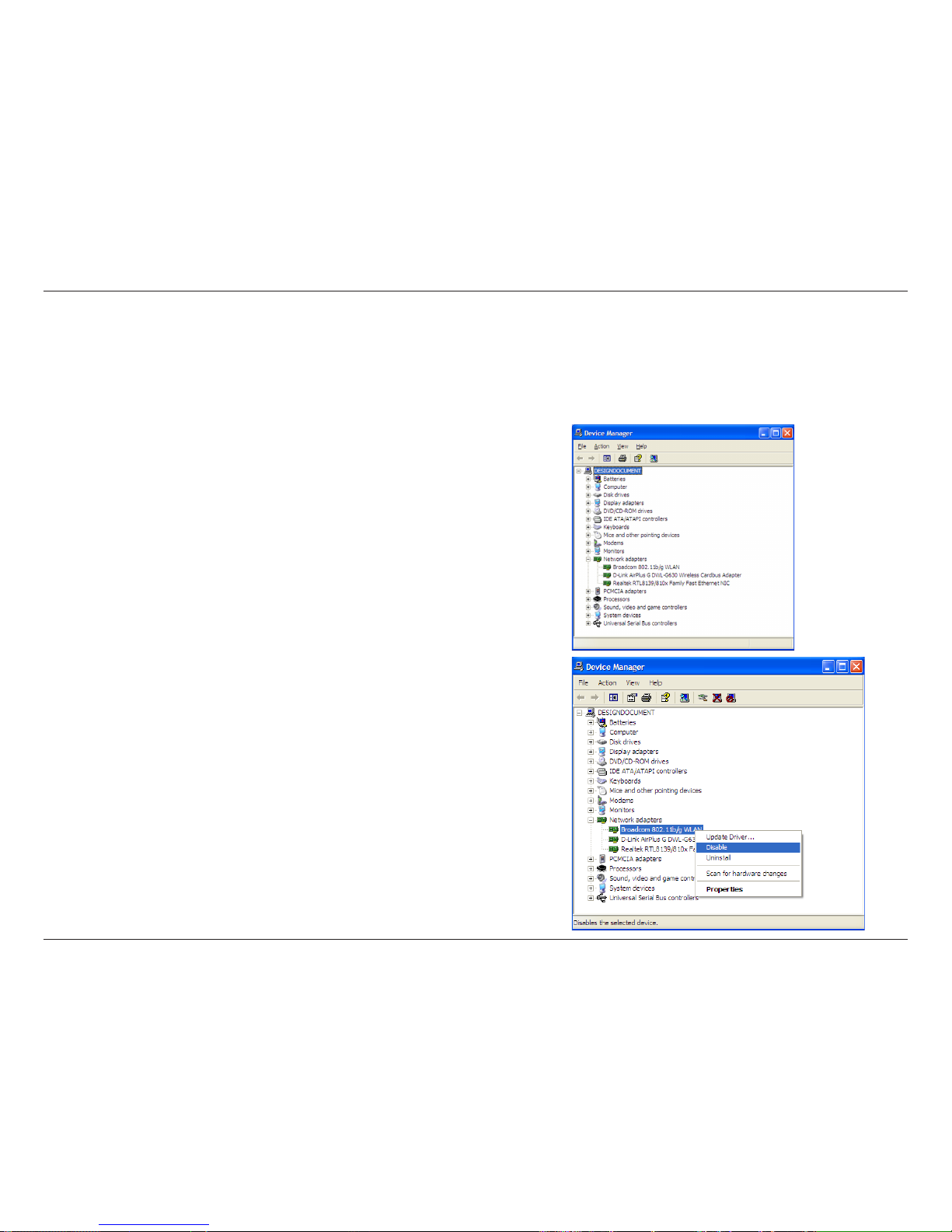

From the desktop, right-click on the My Computer icon and select
Properties.

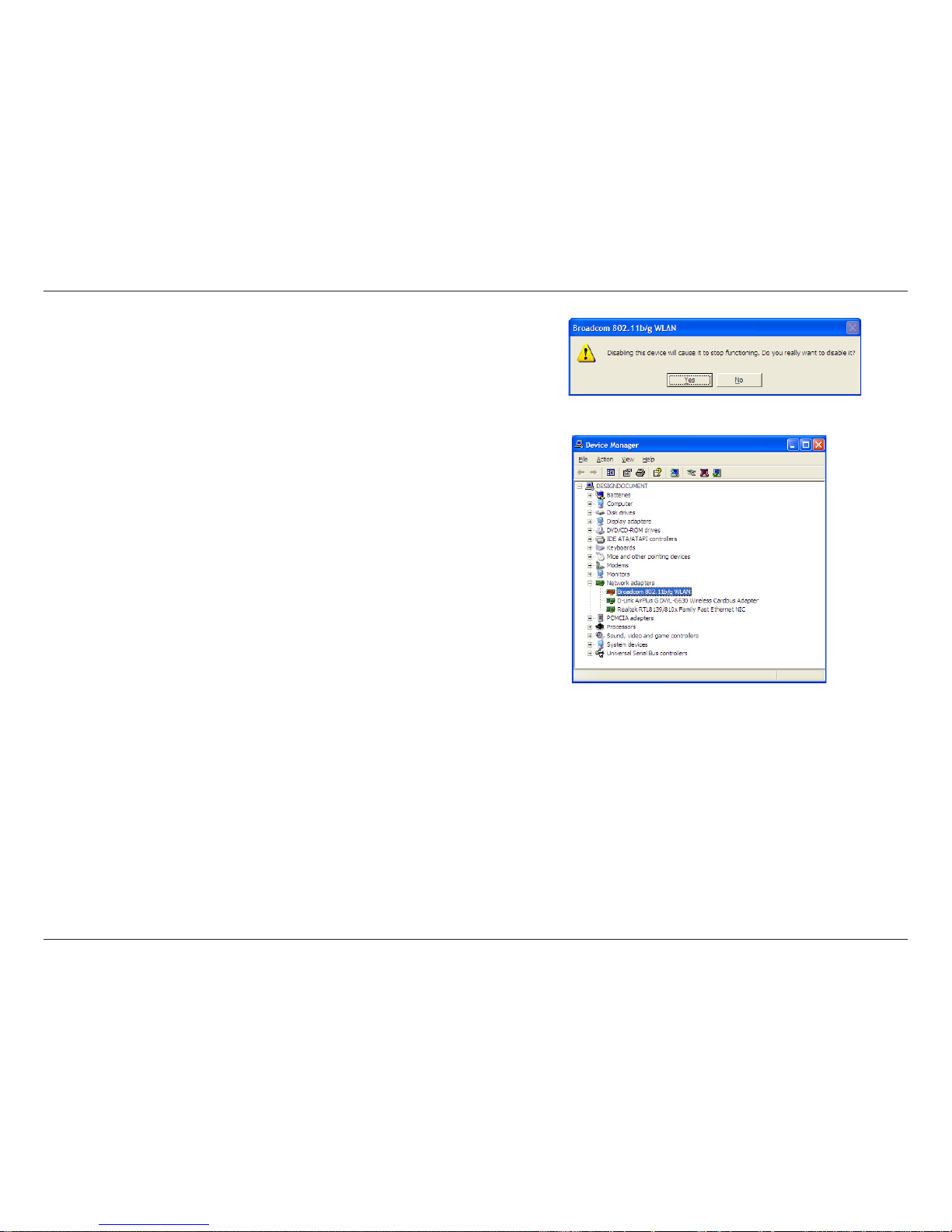

Click the Hardware tab and then click Device Manager. Scroll down
the list and click the +sign to the left of Network Adapters.
Right-click the adapter you would like to disable and select
Disable.

9D-Link DWA-645 User Manual
Section 2 - Installation
Click Yes to disable the adapter.
The adapter is now disabled. When disabled, a red X will be
displayed.
Disabling the adapter will not remove the drivers. If you would like
to use the adapter, simply right-click it and select Enable.

10D-Link DWA-645 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless adapter lets you access your network using a wireless connection from virtually anywhere within
the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of
walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary
depending on the types of materials and background RF (radio frequency) noise in your home or business. The key
to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link adapter and other network devices to a
minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position
your devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet
(14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead
of at an angle) for better reception.
3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on
range. Try to position access points, wireless routers, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water
(sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that
generate RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and
home security systems), your wireless connection may degrade dramatically or drop completely. Make
sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits
a signal even if the phone in not in use.

11D-Link DWA-645 User Manual
Section 2 - Installation
Warning: Do NOT install the DWA-645 Notebook Adapter into your computer before installing the driver
software from the D-Link CD.
Turn on the computer and Insert the D-Link DWA-645 Driver CD in the CD-ROM drive. The step-by-step instructions
that follow are shown in Windows XP. The steps and screens are similar for the other Windows operating systems.
If the CD Autorun function does not automatically start on your computer, go to Start > Run. In the run box type
“D:\DWA645.exe” (where D: represents the drive letter of your CD-ROM drive).

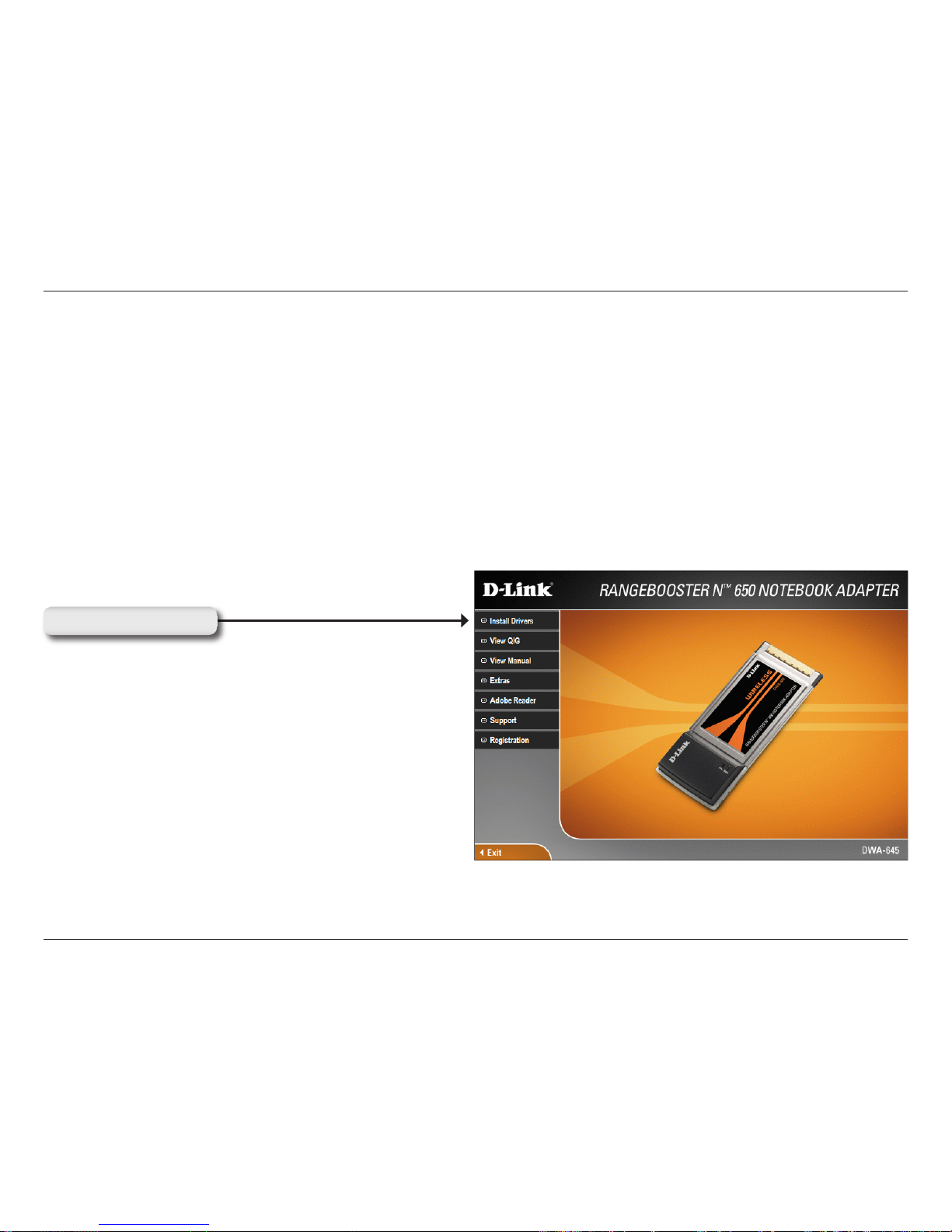

When the autorun screen appears, click Install Drivers.
Adapter Installation
Click Install Drivers

12D-Link DWA-645 User Manual
Section 2 - Installation

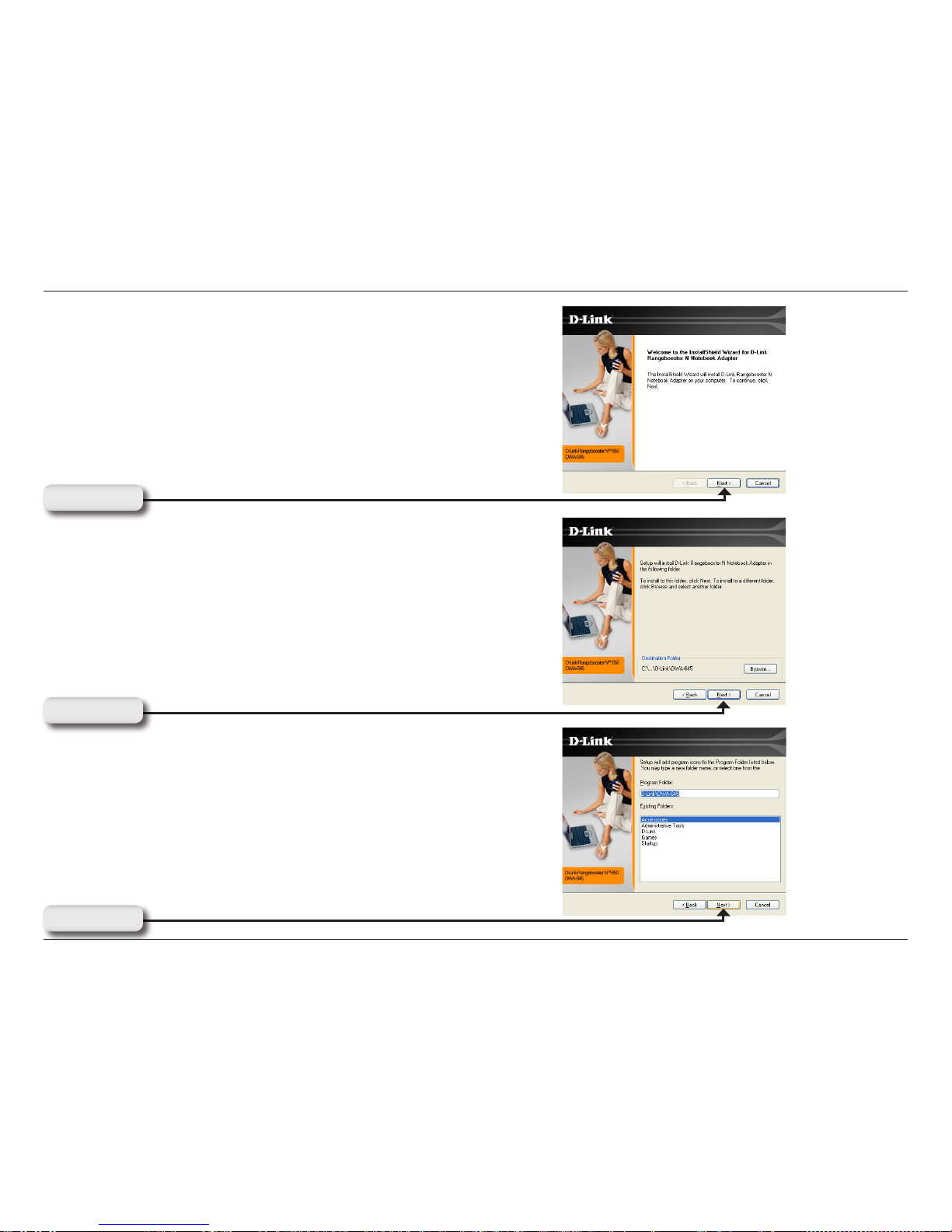

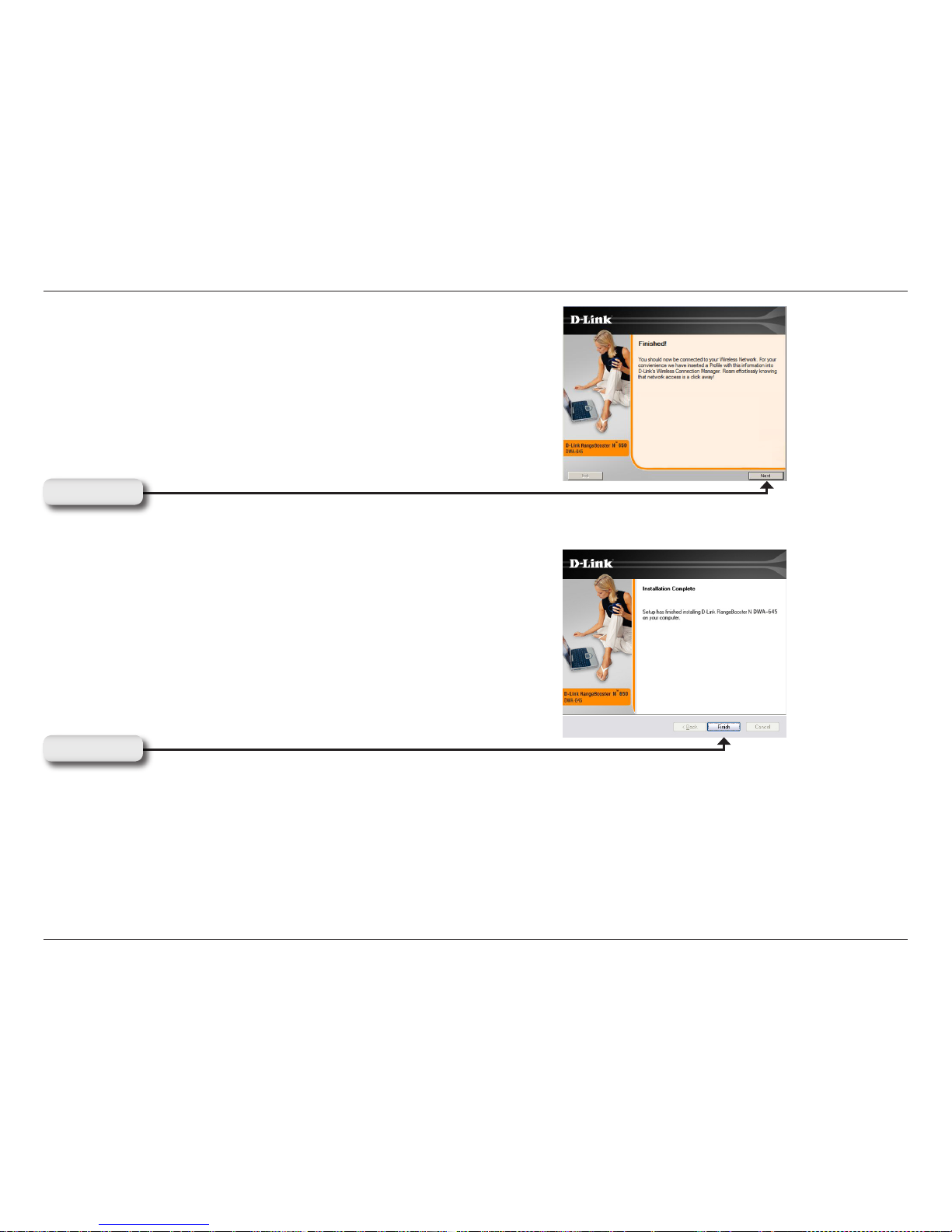

The InstallShield Wizard window will appear.
By default setup will install to the default location: C:\Program
Files\D-Link\DWA-645, where C: represents the drive letter of
your hard drive. To install to a different location click Browse
and specify the location.
Select the Program Files folder location.
Click Next
Click Next
Click Next

13D-Link DWA-645 User Manual
Section 2 - Installation

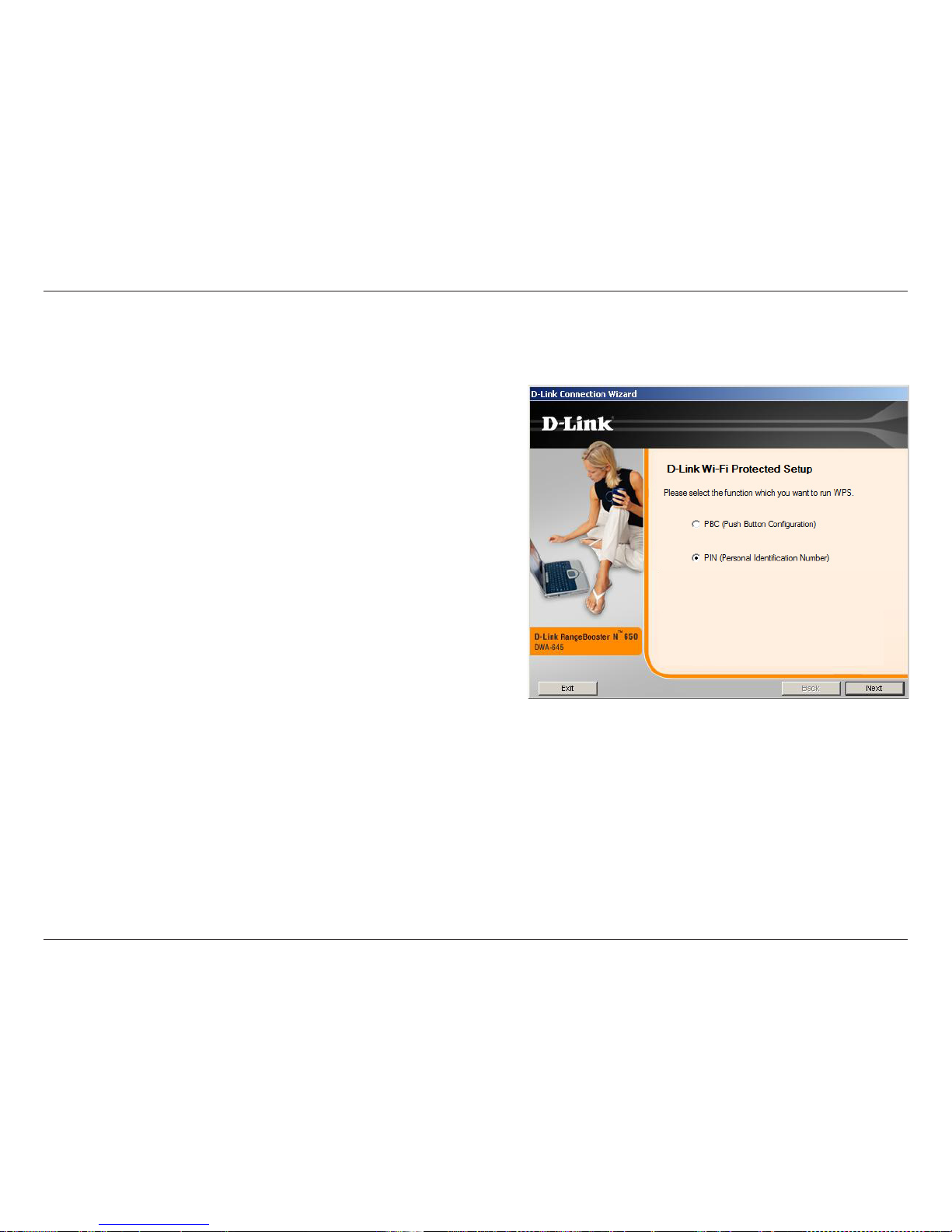

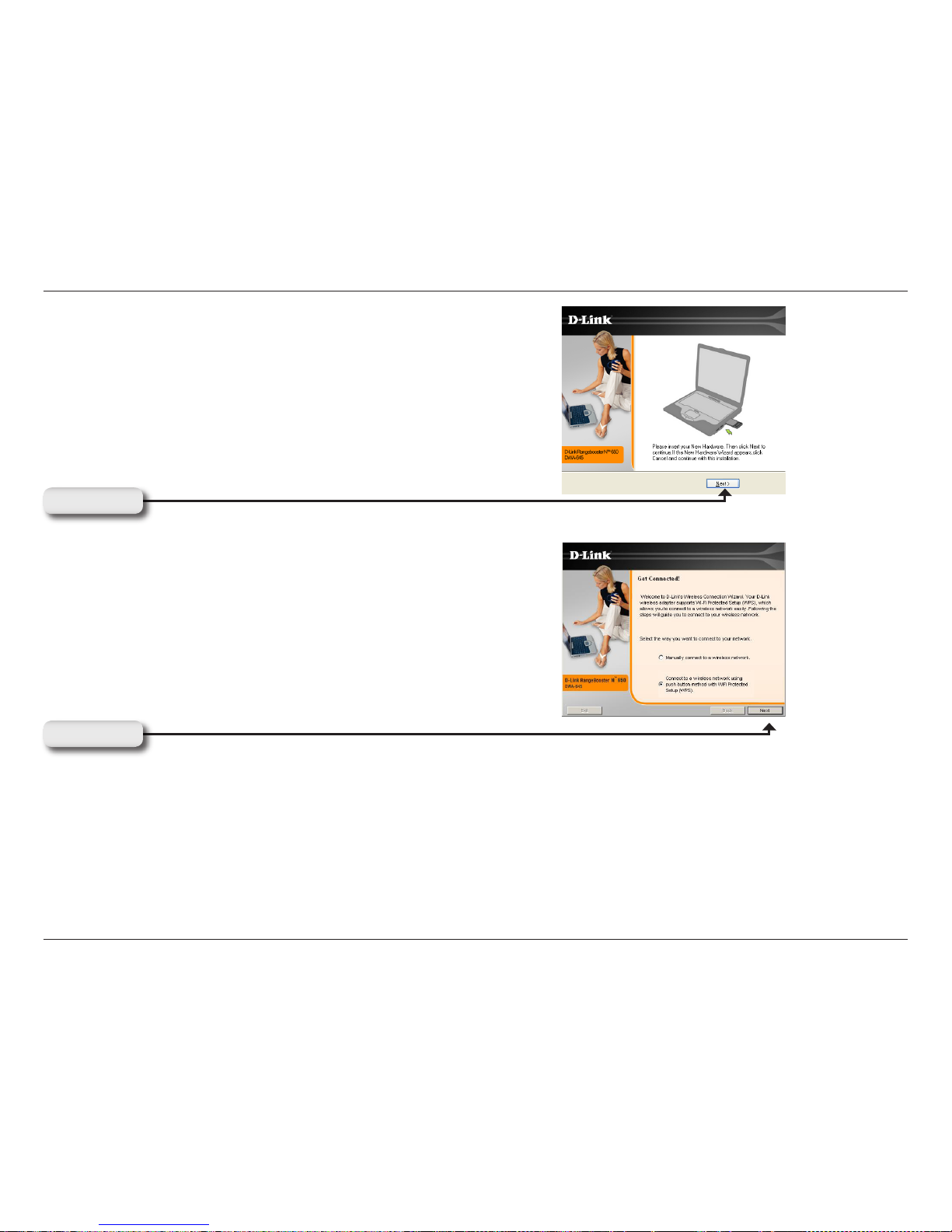

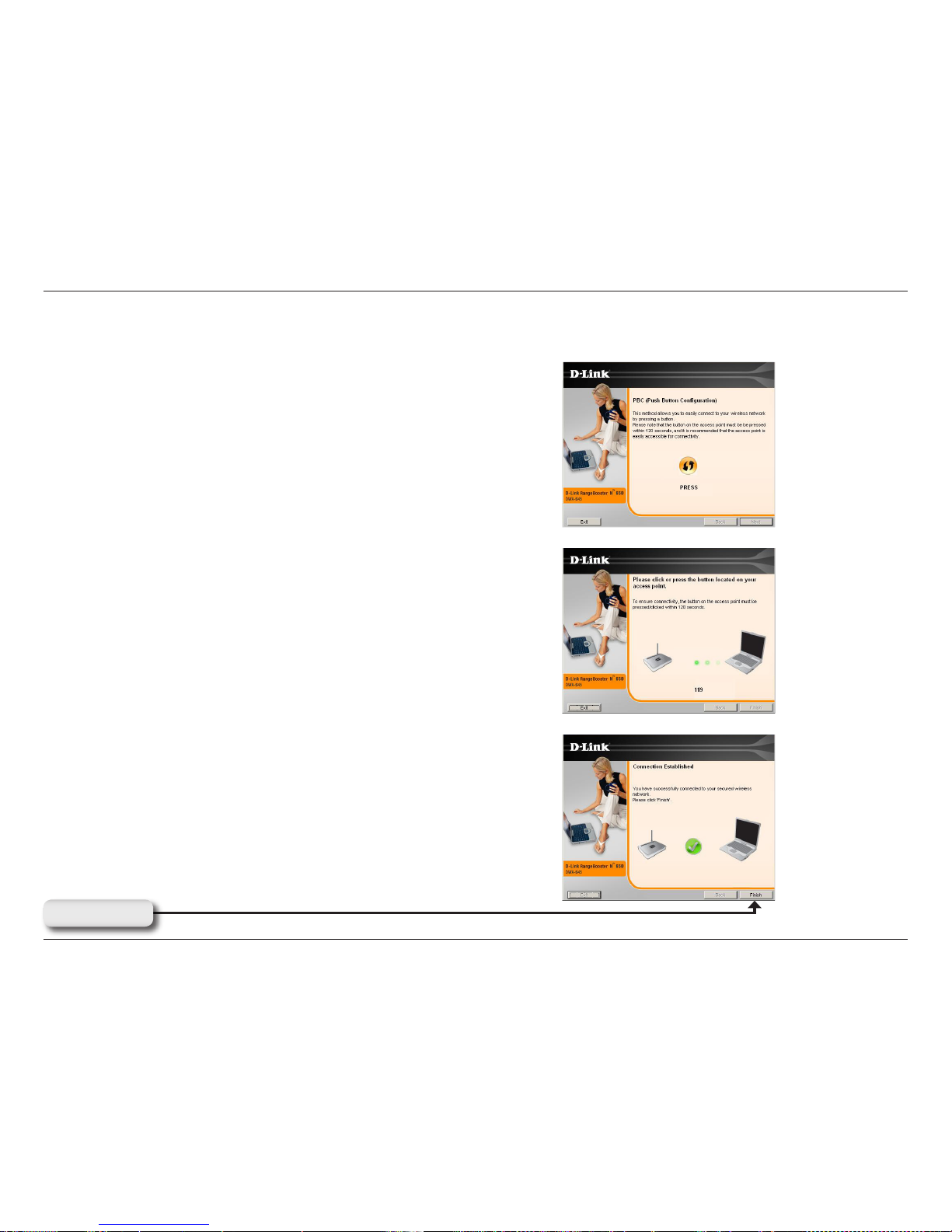

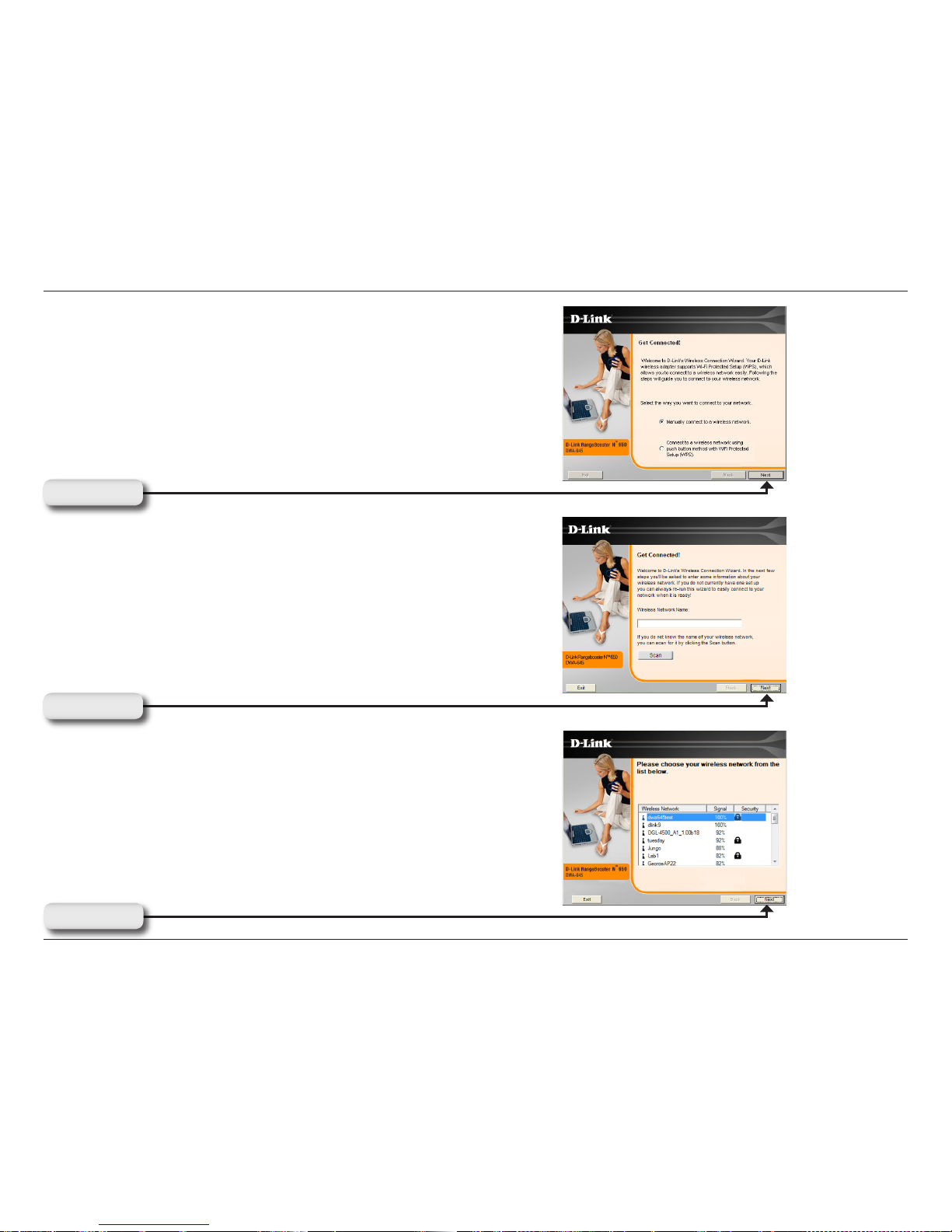

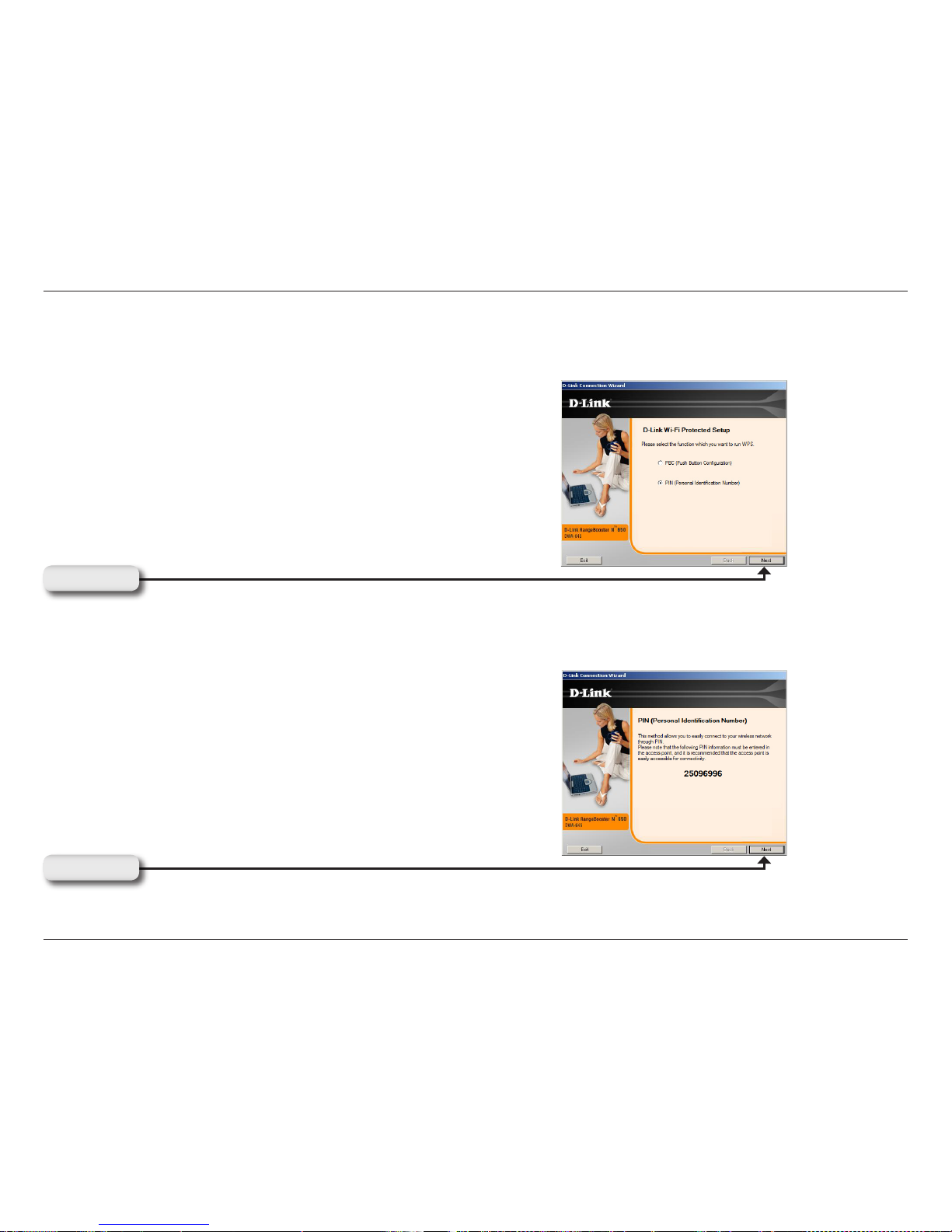

The Wireless Connection Wizard will now appear.
If you want to manually connect to a wireless network, refer
topage 15. The following instructions will connect you to a
wireless network using Wi-Fi Protected Setup (WPS).
Insert the adapter into an available cardbus slot on your
computer.
If the Found New Hardware Wizard appears, click Cancel.
Click Next
Click Next

14D-Link DWA-645 User Manual
Section 2 - Installation
To connect to your network using the WPS push button
conguration method, click the virtual button as shown in the
screenshot.
Press the WPS button on your access point or wireless router
within 2 minutes to establish connectivity.
Click Finish
Push Button Configuration (PBC)
When this screen appears, you have successfully connected to
your wireless network. Click Next to complete your setup.

15D-Link DWA-645 User Manual
Section 2 - Installation
To manually connect to your wireless network, select Manually
connect to a wireless network and then click Next.
Enter the network name (SSID) manually. If you enter the SSID
incorrectly, you will automatically be brought to the site survey
page. Click Scan to display the site survey page.
Click on the network name (SSID) and click Next.
Click Next
Click Next
Click Next

16D-Link DWA-645 User Manual
Section 2 - Installation
When this screen appears, you are successfully connected to
your wireless network. Click Next to complete your setup.
Click Finish to continue. If you are prompted to reboot your
computer, select Yes, I want to restart my computer now.
Click Next
Click Next

17D-Link DWA-645 User Manual
Section 3 - Configuration
Configuration
This section will show you how to congure your new D-Link wireless adapter using the D-Link Utility as well as the
Windows® XP Zero Conguration Utility & Windows Vista WLAN AutoCong.
D-Link Wireless Connection Manager
The D-Link DWA-645 uses the Wireless Connection Manager as the management software. The manager provides
the user an easy interface to change any settings related to the wireless adapter. Clicking on the Wireless Connection
Manager icon on the desktop will start the Conguration .
If you are using Windows® Vista, please skip to page 27 or Windows XP skip to Page 2929

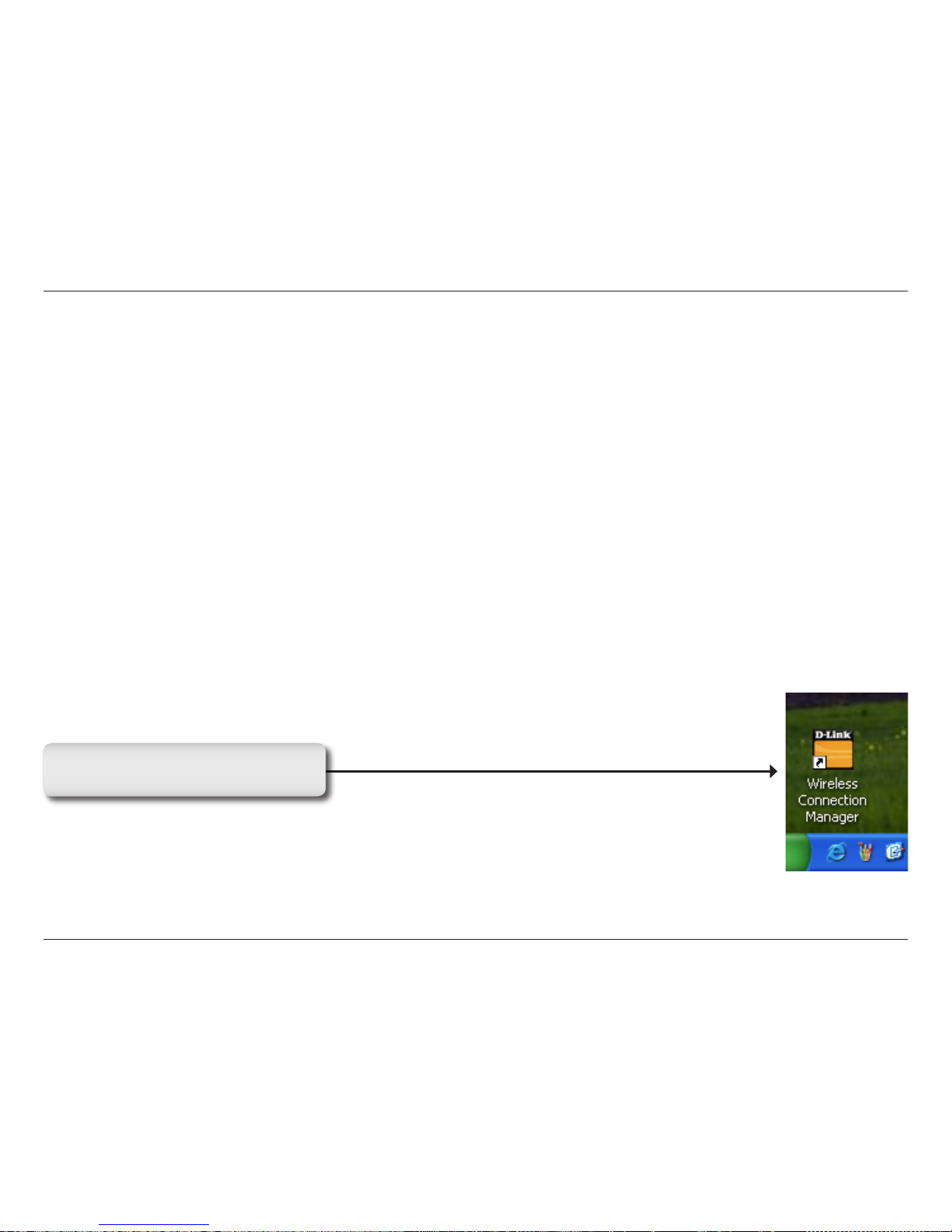

Double-click the Wireless Conection
Manager icon on your desktop.

18D-Link DWA-645 User Manual
Section 3 - Configuration
Wireless Networks
The SSID (Service Set Identier) is the name
of the wireless network.
Displays the MAC address of the wireless
device.
Displays the Link Quality of the wireless
connection.
If there is a “lock” icon, this means the wireless
network is secure. You must know the encryption
key/security settings to connect.
Displays the channel of the wireless network.
Connect to a wireless network using Wi-Fi
Protected Setup. Refer to the next page.
Rescans for available wireless networks in your
area.
Highlight a wireless network and click the
Connect button. If the network is secure, a
pop-up window will appear. Enter the security
information to connect (refer to the Wireless
Security section for more information).
Select a wireless network profile from the
drop-down menu and click Activate to connect.
Allow up to 30 seconds to connect.
MAC:
SSID:
Channel:
Signal:
Security:
Refresh Button:
Connect Button:
Activate Button:

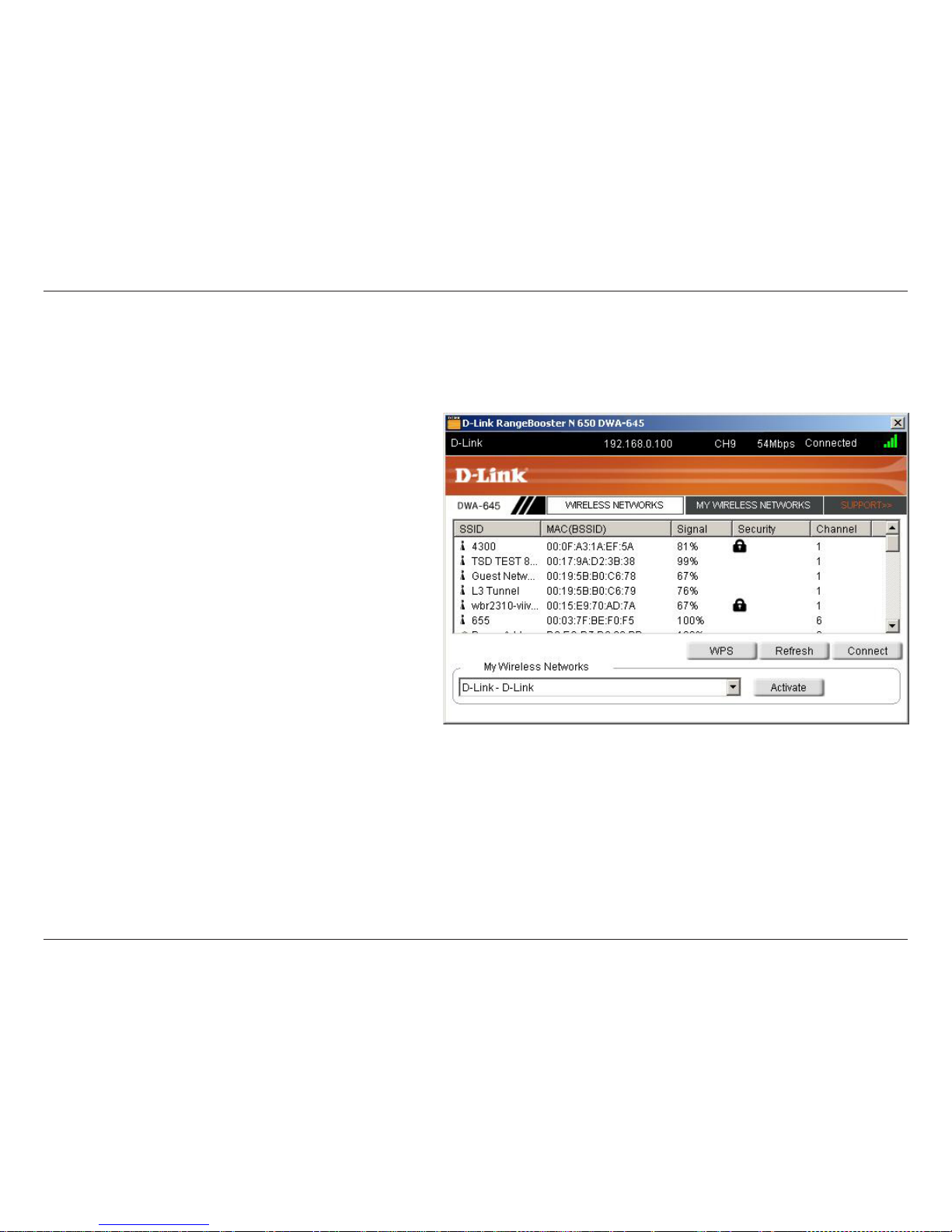

The Wireless Networks (Site Survey) page will display all wireless networks that are available in your area. To connect
to a network, simply highlight the wireless network (SSID) and click Connect.
WPS Button:

19D-Link DWA-645 User Manual
Section 3 - Configuration
Wi-Fi Protected Setup (WPS)
Wi-Fi Protected Setup (WPS) System is designed for easy setup
of security-enabled Wi-Fi networks. It is recommended to have
the access point or wireless router nearby during setup.
For more information on WPS, visit the Wi-Fi Alliance website
at www.wi-.org.
“Push Button Conguration” (PBC) is a virtual button in the utility
that connects you to other WPS-enabled devices. A connection
can be established by clicking on the virtual button, then pushing
the physical button on the access point or wireless router within
120 seconds. Refer to page 14.
“Personal Identication Number” (PIN) is a unique number
generated randomly by the wireless adapter’s utility. Entering
this number in the utility of the WPS-enabled wireless router or
access point connects you with the intended wireless network.
Refer to the next page for more information.

20D-Link DWA-645 User Manual
Section 3 - Configuration
If you want to connect using the PBC method, refer to page 14. To
use the PIN method, select PIN (Personal Identication Number)
and click Next.
Make sure your access point or wireless router is close by. Write
down the number on the screen. Enter this number in your access
point or wireless router. Please refer to the manufacture’s manual
for instructions.
Once you click Next, you will have 2 minutes to enter this number
in your access point or wireless router.
Personal Identification Number (PIN)
Click Next
Click Next
