Section 1 - Product Overview
• D-Link WDA-1320 Wireless G Desktop Adapter
• Manual, Software, and Warranty on CD
System Requirements
• A desktop computer with an available PCI slot
• Windows® Vista™, XP (Service Pack 2) or 2000 (Service Pack 4)
• 300MHz processor and at least 64MB of RAM
• An 802.11g or 802.11b access point (for Infrastructure mode), or another 802.11g or 802.11b wireless adapter
(Peer-to-Peer networking mode.)
Product Overview

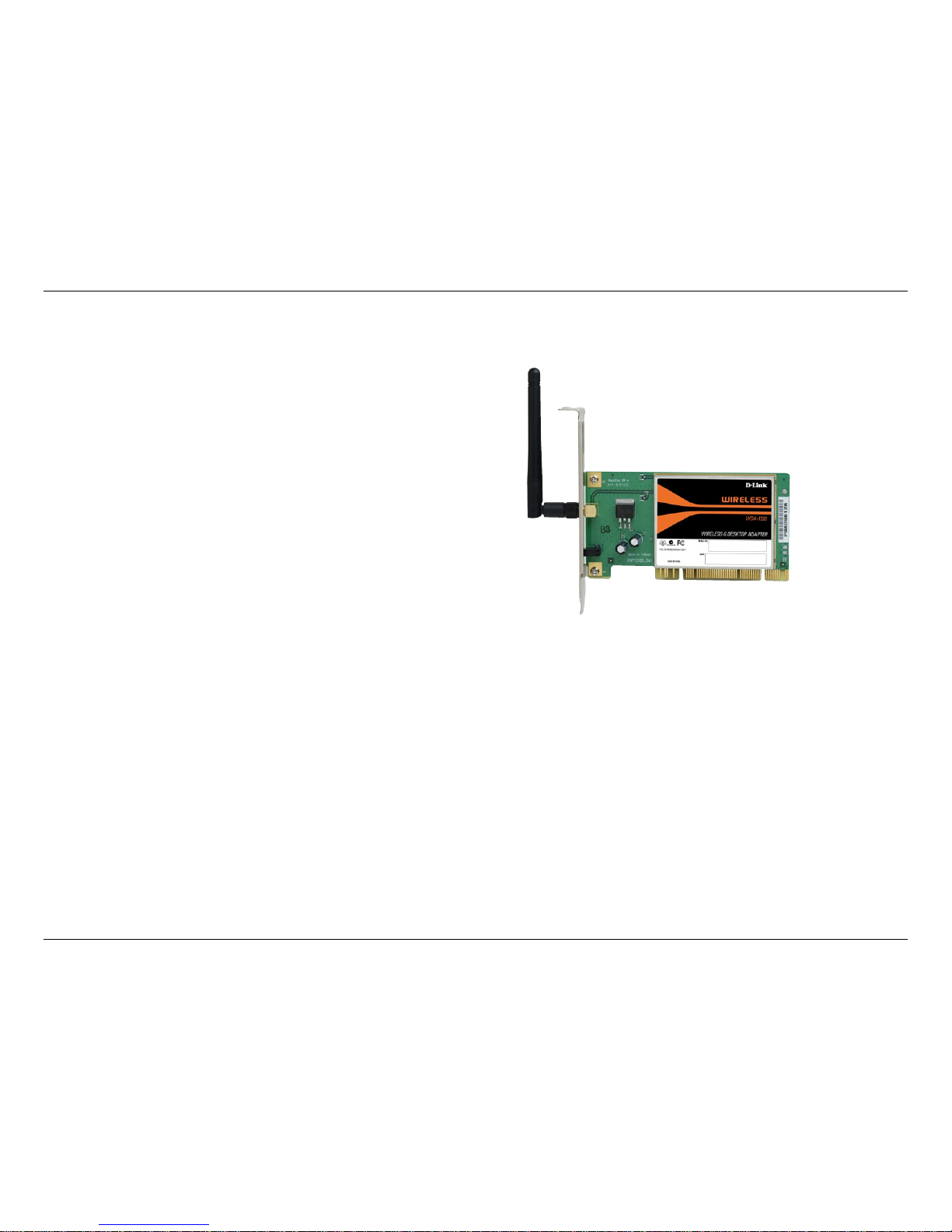

Package Contents

5D-Link WDA-1320 User Manual
Section 1 - Product Overview
Introduction
The D-Link Wireless G WDA-1320 Desktop adapter features the very latest in advanced wireless silicon chip technology to deliver
a maximum wireless signal rate of up to 54Mbps* in the 2.4GHz frequency. The WDA-1320 also works with 802.11b standard
wireless devices and when used with other D-Link Wireless G products delivers throughput speeds capable of handling heavy data
payloads.
The WDA-1320 also includes a configuration utility to discover available wireless networks and create and save detailed connectivity
profiles for those networks most often accessed.
The WDA-1320 is a powerful 32-bit Desktop adapter that installs quickly and easily into desktop PCs and when used with other D-
Link Wireless G products automatically connects to the network.
* Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely
affect wireless signal range.

6D-Link WDA-1320 User Manual
Section 1 - Product Overview
• Faster Wireless Networking - Faster data transfers mean increased productivity. With the WDA-1320 in your desktop
PC, you will have the flexibility of wireless networking speeds that save you time and money.
• Compatible with 802.11b and 802.11g Devices - Fully compatible with the IEEE 802.11b and 802.11g standards,
the WDA-1320 can connect with existing 802.11b or 802.11g compliant routers, access points and cards. That
means you can still communicate with colleagues and friends while you have the ability to link to even more wireless
networks.
• 32-bit PCI Performance/Plug & Play Connectivity - The WDA-1320 is a powerful 32-bit PCI adapter that installs quickly
and easily into desktop PCs, and when used with other D-Link Wireless G products will automatically connect to the
network out of the box.
• User-friendly configuration and diagnostic utilities.
Features

7D-Link WDA-1320 User Manual
Section 1 - Product Overview

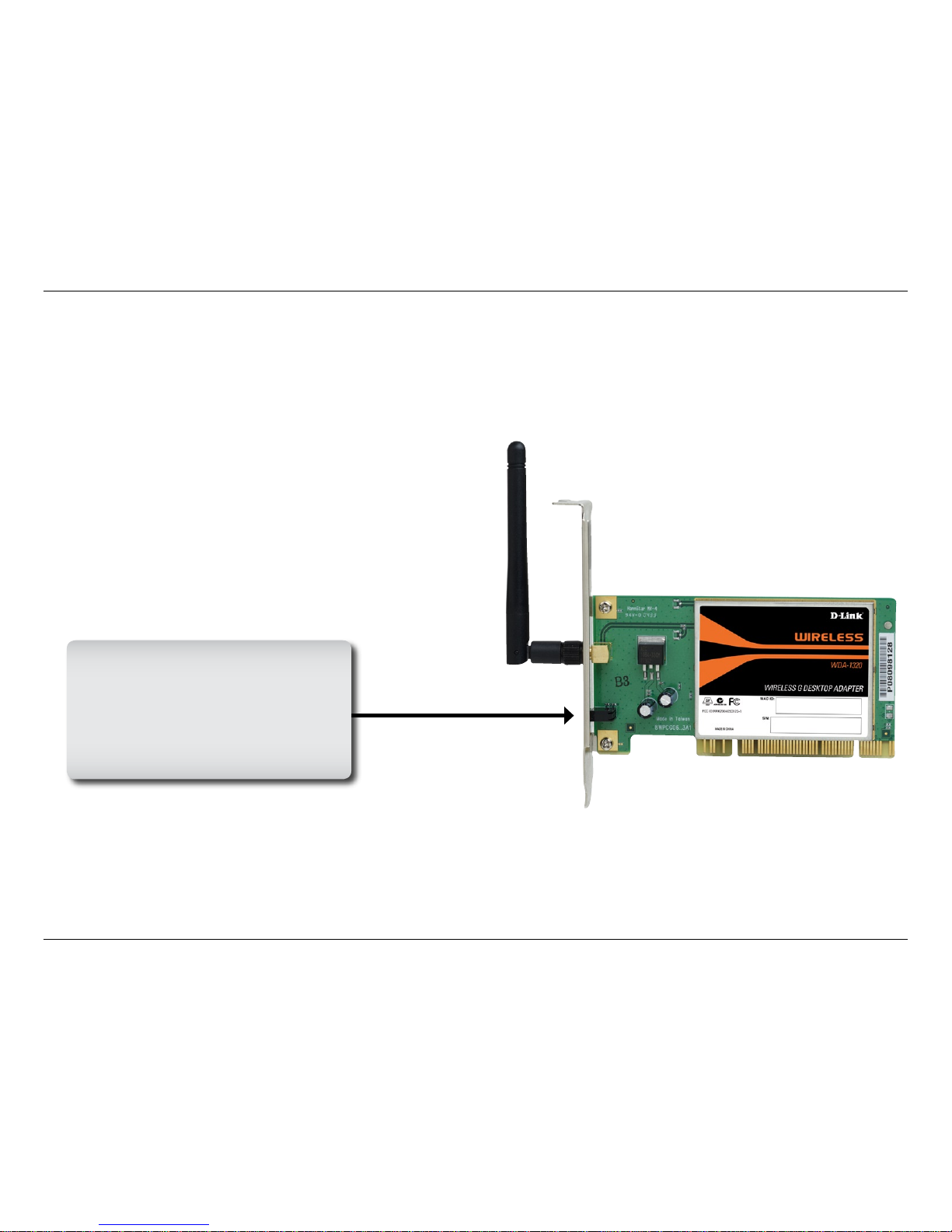

Hardware Overview
LEDs
Link
A steady light indicates a connection to a
wireless network.
A blinking light indicates activity on the
network.

8D-Link WDA-1320 User Manual
Section 2 - Installation
Getting Started
Installation
This section will walk you through the installation process. If you have a built-in wireless adapter, please disable it in device manager
before installing your D-Link adapter. Also, if you have previously installed another wireless adapter, please make sure any software
is uninstalled.
Before installing your new D-Link wireless adapter, please verify the following:
• Remove any previous installations of wireless adapters
• Disable any built-in wireless adapters
• Verify the settings such as the SSID and security settings of the network(s) you want to connect to
Remove Existing Installations
If you’ve installed a different manufacture’s adapter or a different model D-Link adapter, make sure the software is uninstalled before
installing the new software. Some utilities may cause a conflict with the new software. If you plan to use multiple adapters at different
times, make sure the utilities are not set to load when your computer boots up. Windows®XP users may use the built-in wireless
utility for all adapters.
To remove any old software:
Windows®XP users: Click Start > Control Panel > Add or Remove Programs.
Windows®2000 users: Click Start > Settings > Control Panel > Add or Remove Programs.

9D-Link WDA-1320 User Manual
Section 2 - Installation
Disable Other Wireless Adapters
Most newer laptops may include a built-in wireless adapter. To prevent any conflicts or confusion with the D-Link wireless adapter,
it is recommended to disable the wireless adapter (as well as any unused Ethernet adapters).

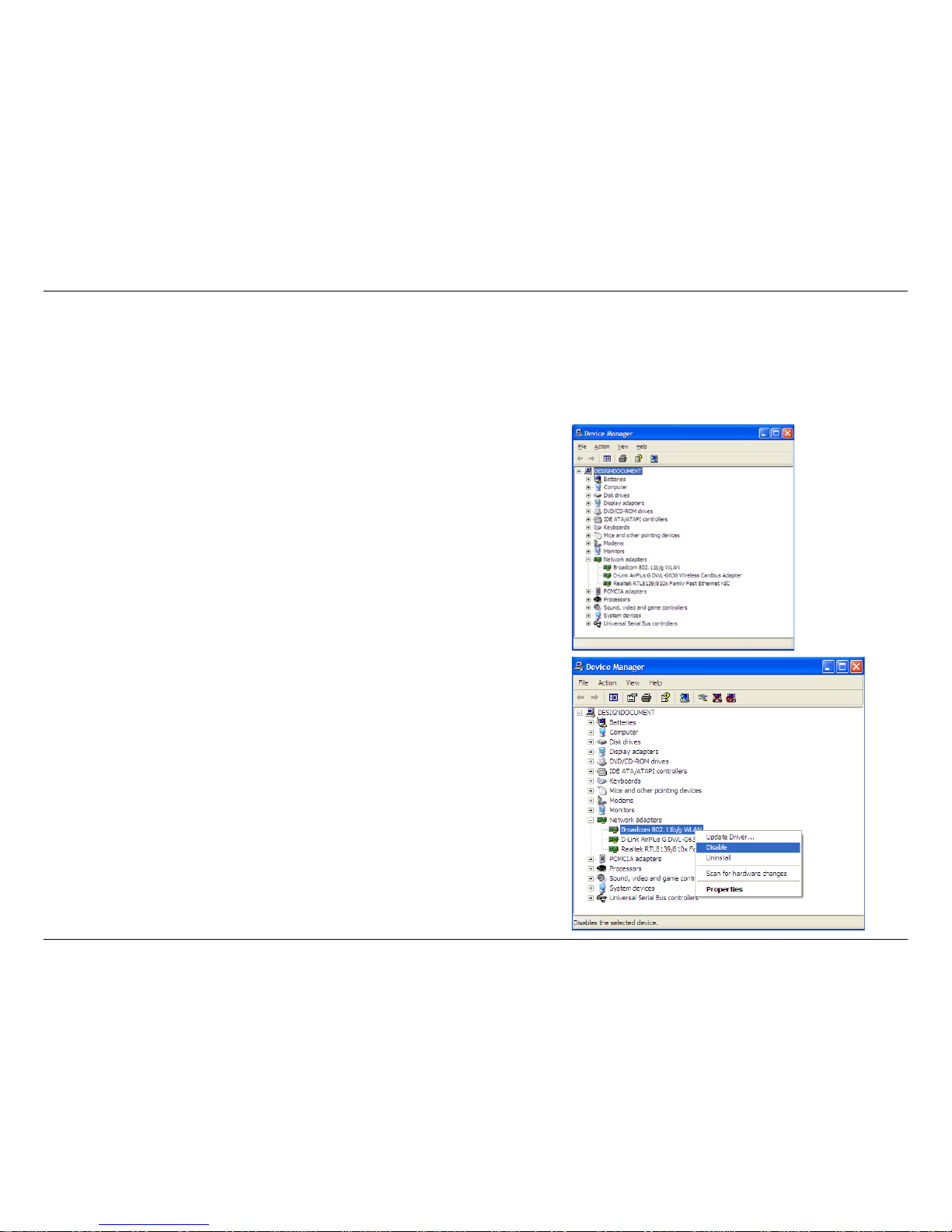

From the desktop, right-click on the My Computer icon and select Properties.
Click the Hardware tab and then click Device Manager. Scroll down the list and
click the +sign to the left of Network Adapters.
Right-click the adapter you would like to disable and select Disable.

10D-Link WDA-1320 User Manual
Section 2 - Installation

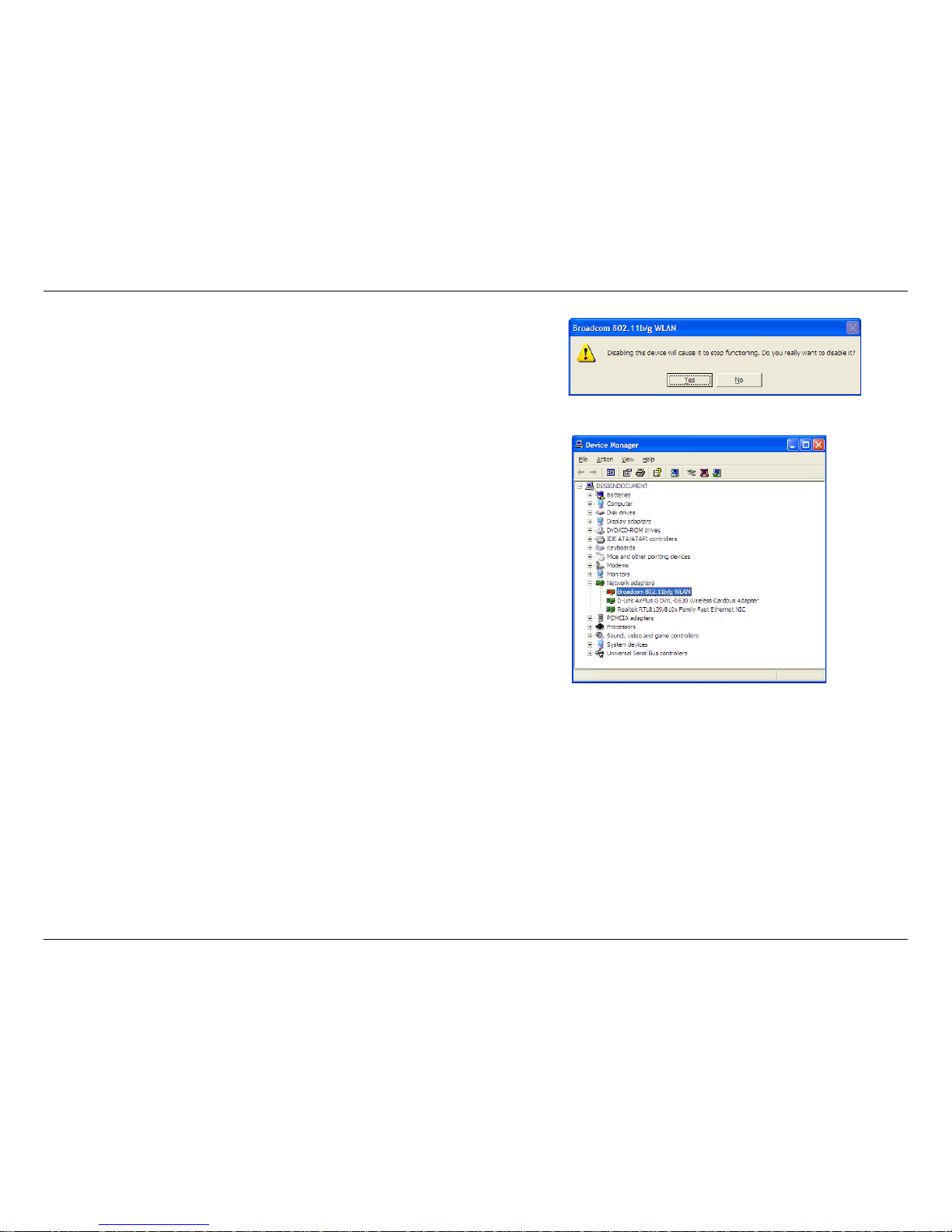

Click Yes to disable the adapter.
The adapter is now disabled. When disabled, a red X will be displayed.
Disabling the adapter will not remove the drivers. If you would like to use
the adapter, simply right-click it and select Enable.

11D-Link WDA-1320 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless adapter lets you access your network using a wireless connection from virtually anywhere within the operating
range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that
the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background
RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link adapter and other network devices to a minimum - each
wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number
of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)
thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on range.
Try to position access points, wireless routers, and computers so that the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (fish tanks), mirrors, file
cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not in
use.

12D-Link WDA-1320 User Manual
Section 2 - Installation
Note: Please install the WDA-1320 Desktop Adapter into your computer before installing the driver software from the D-Link CD.
Refer to the insert included with this adapter for installation instructions.
Turn on the computer and Insert the D-Link WDA-1320 Driver CD in the CD-ROM drive. The step-by-step instructions that follow
are shown in Windows XP. The steps and screens are similar for the other Windows operating systems.
If the CD Autorun function does not automatically start on your computer, go to Start > Run. In the run box type “D:\Drivers\setup.
exe” (where D: represents the drive letter of your CD-ROM drive).

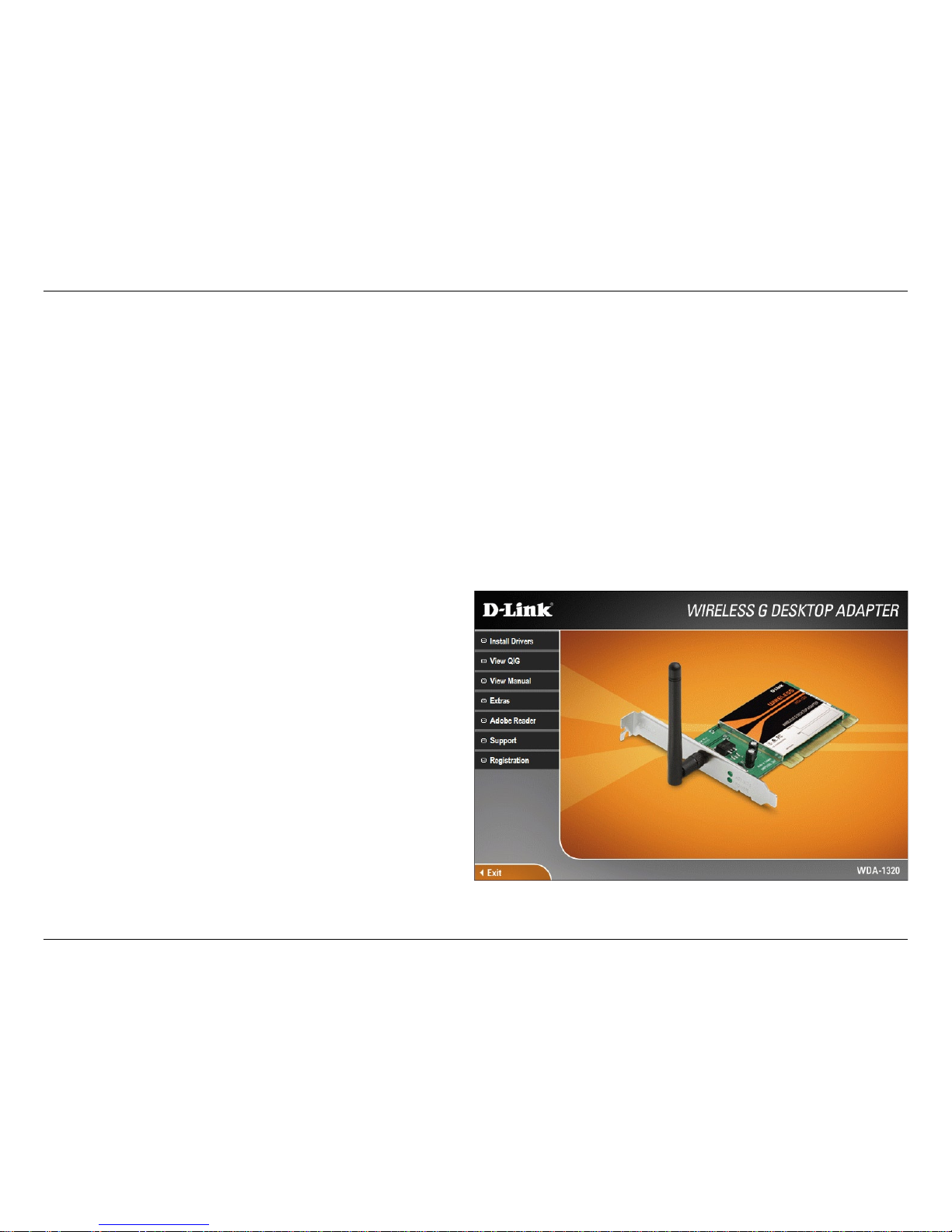

When the autorun screen appears, click Install Drivers.
Adapter Installation

13D-Link WDA-1320 User Manual
Section 2 - Installation
Windows Vista™Installation

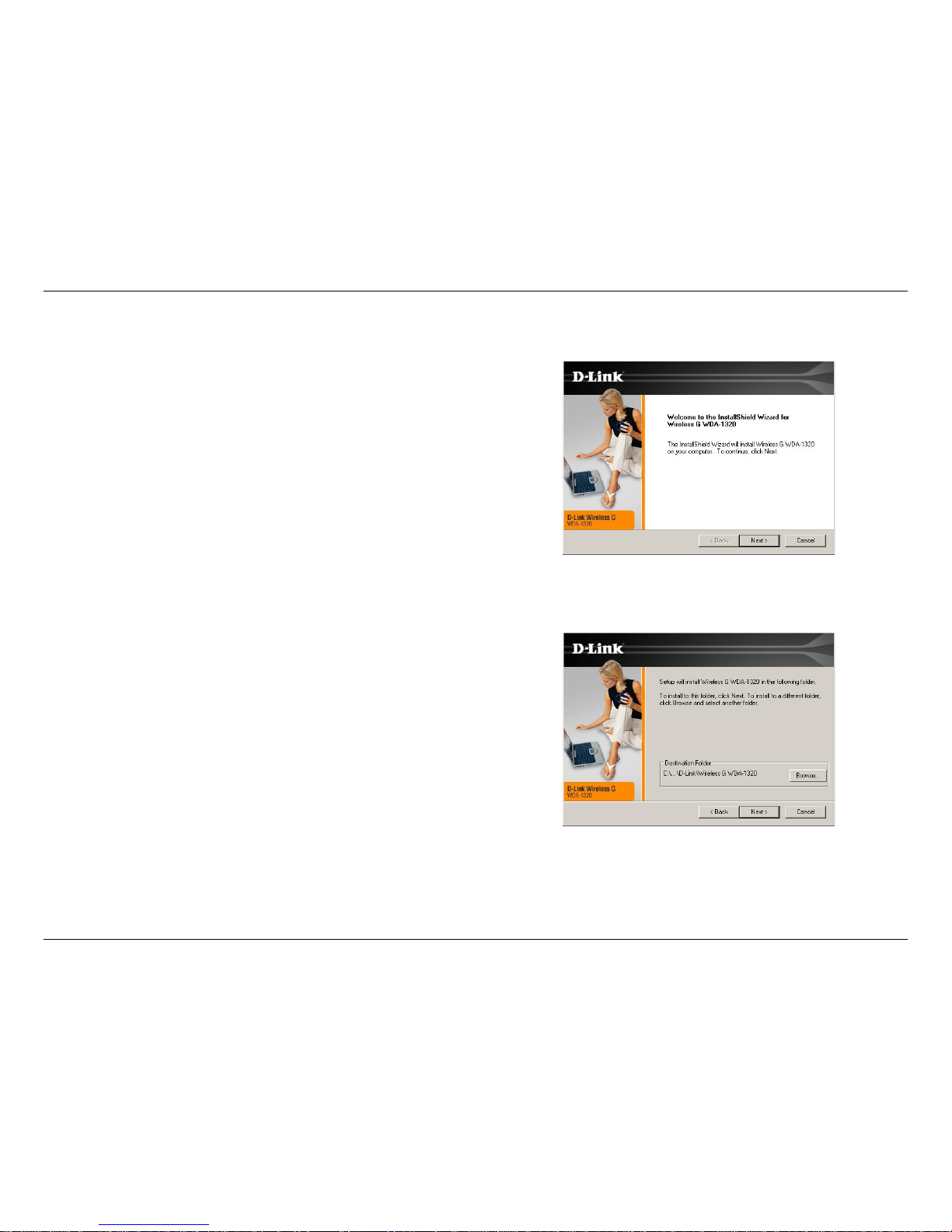

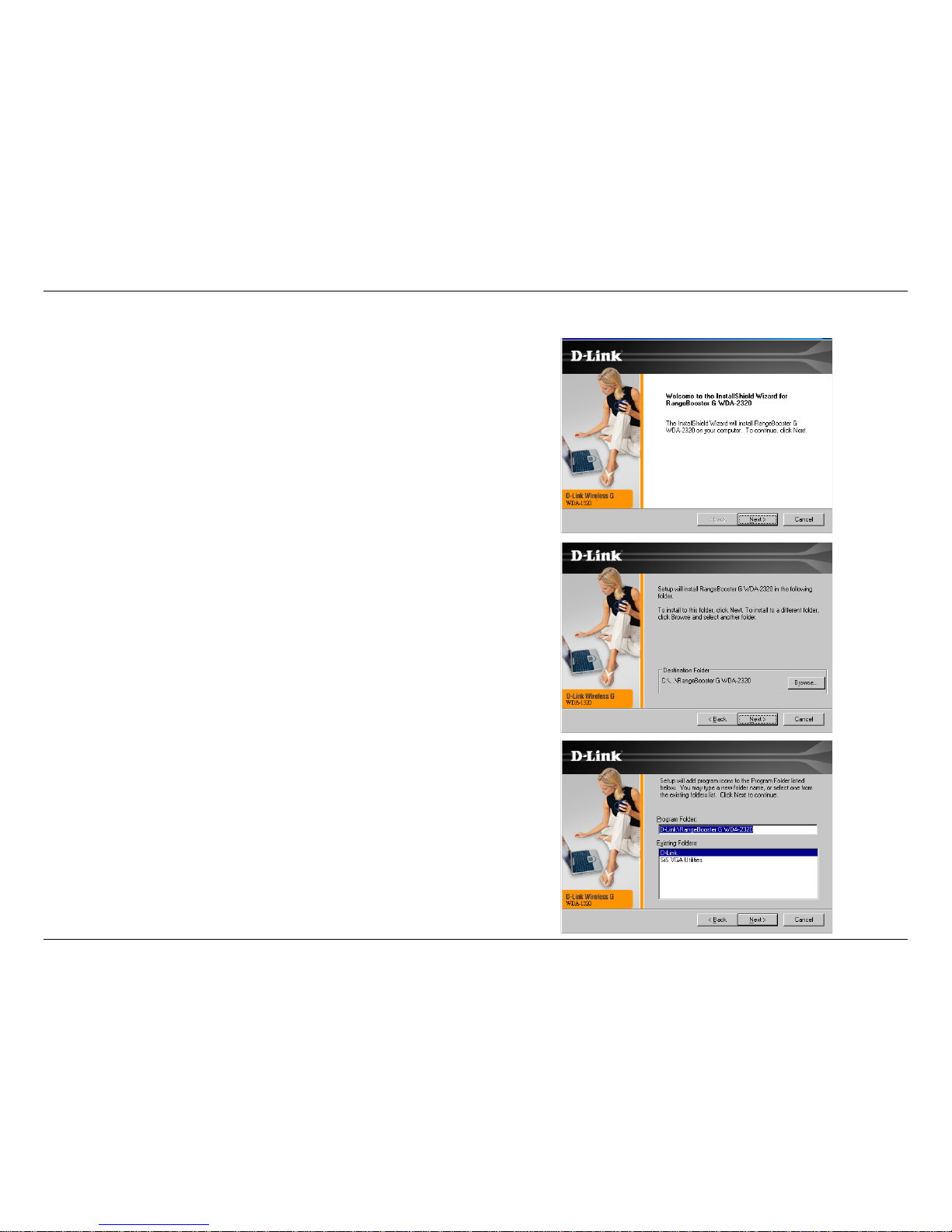

The InstallShield Wizard window will appear.
Click Next to continue.
By default setup will install to the default location: C:\Program
Files\D-Link\WDA-1320, where C: represents the drive letter of
your hard drive. To install to a different location click Browse and
specify the location. Click Next to continue.

14D-Link WDA-1320 User Manual
Section 2 - Installation

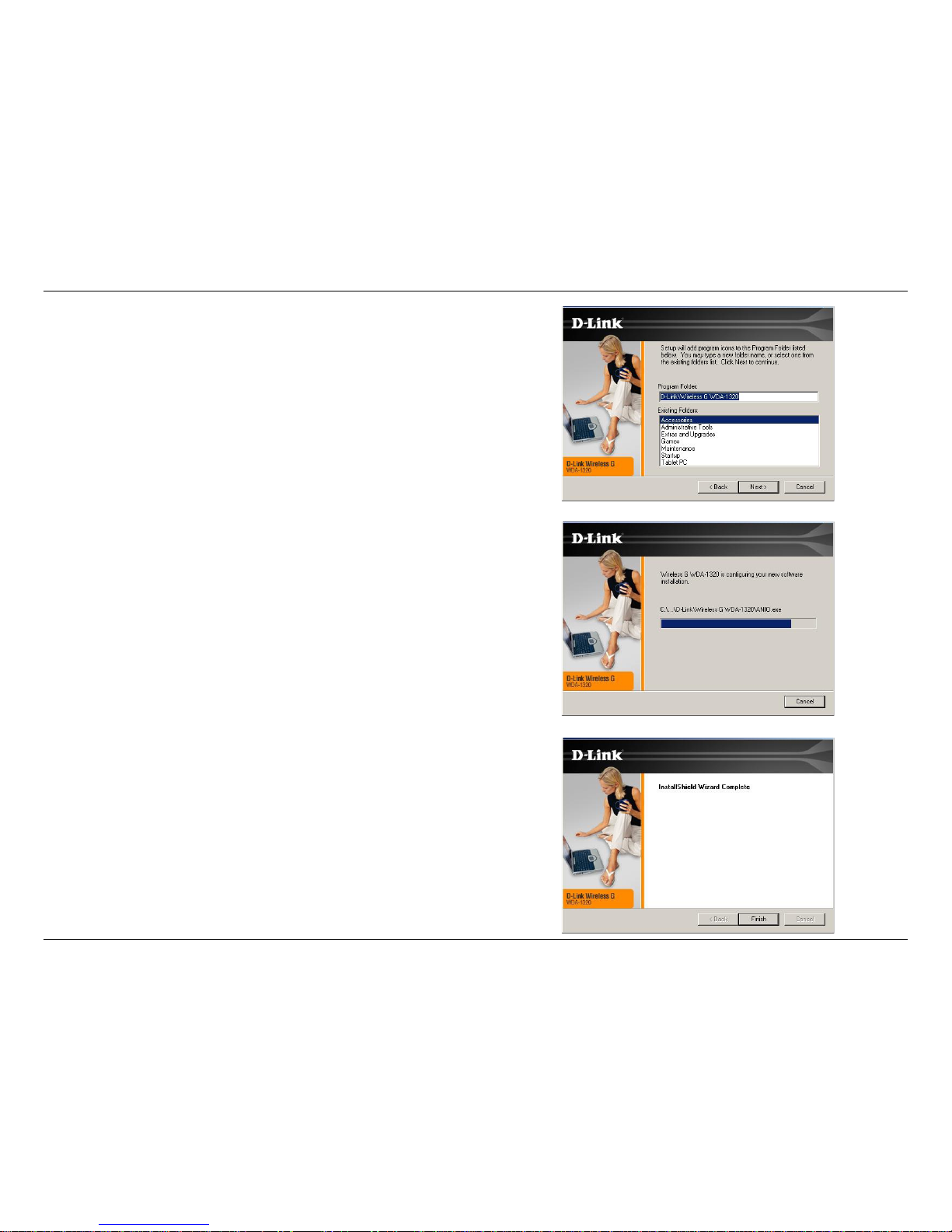

Select the Program Files folder location. Click Next to continue.
WDA-1320 will start configuring your new software installation. This
may take few minutes.

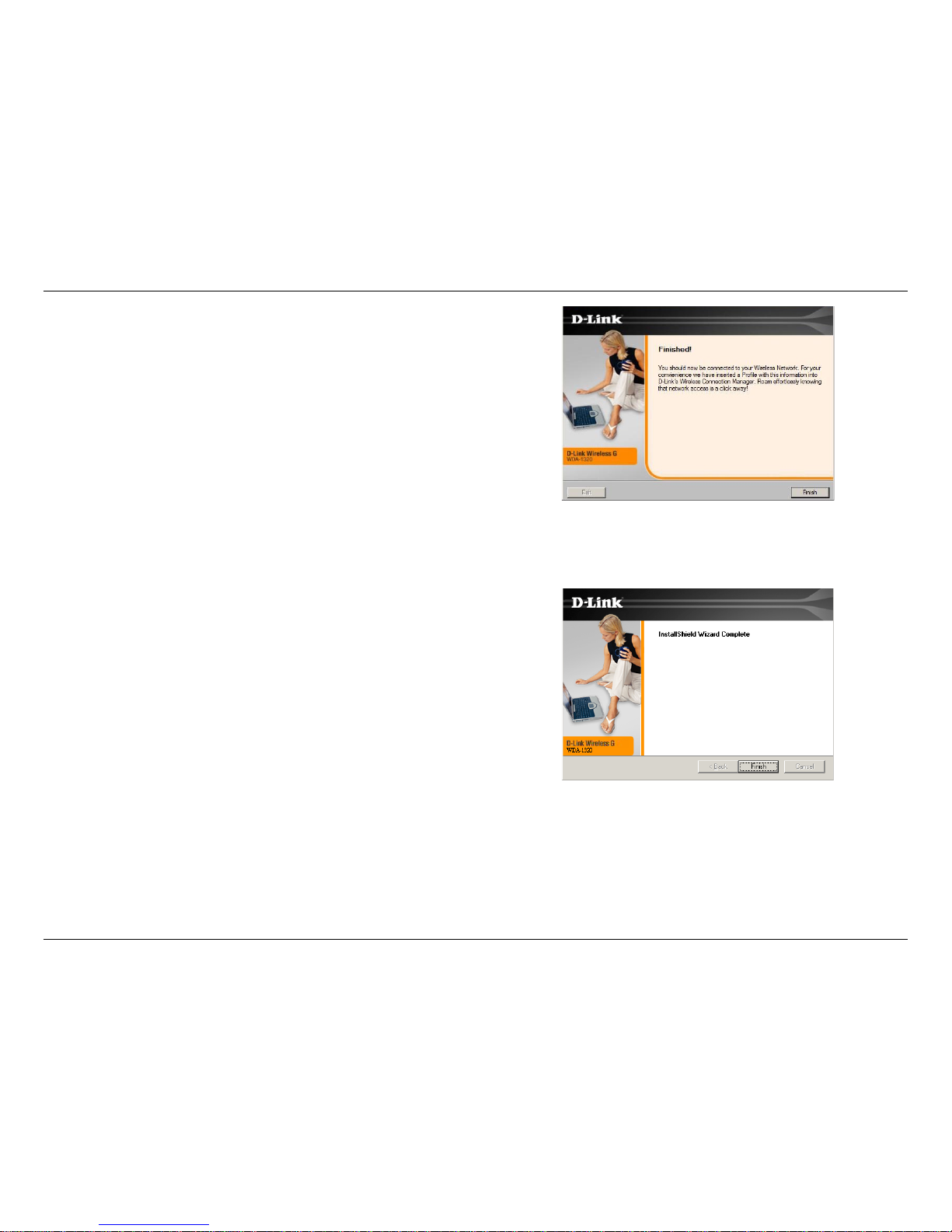

Once the installation is complete, the InstallShield Wizard screen
displays.
Click Finish to close the window.

15D-Link WDA-1320 User Manual
Section 2 - Installation

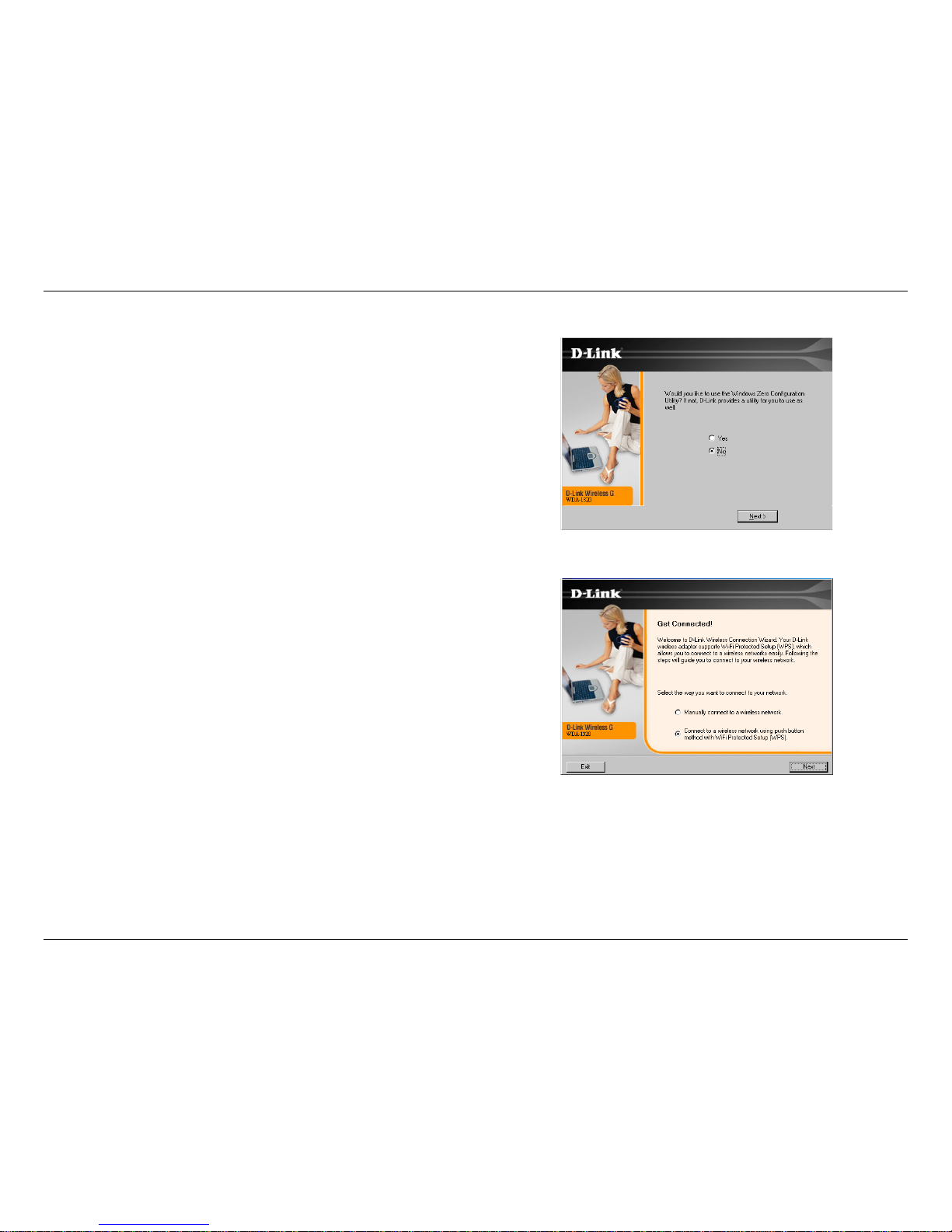

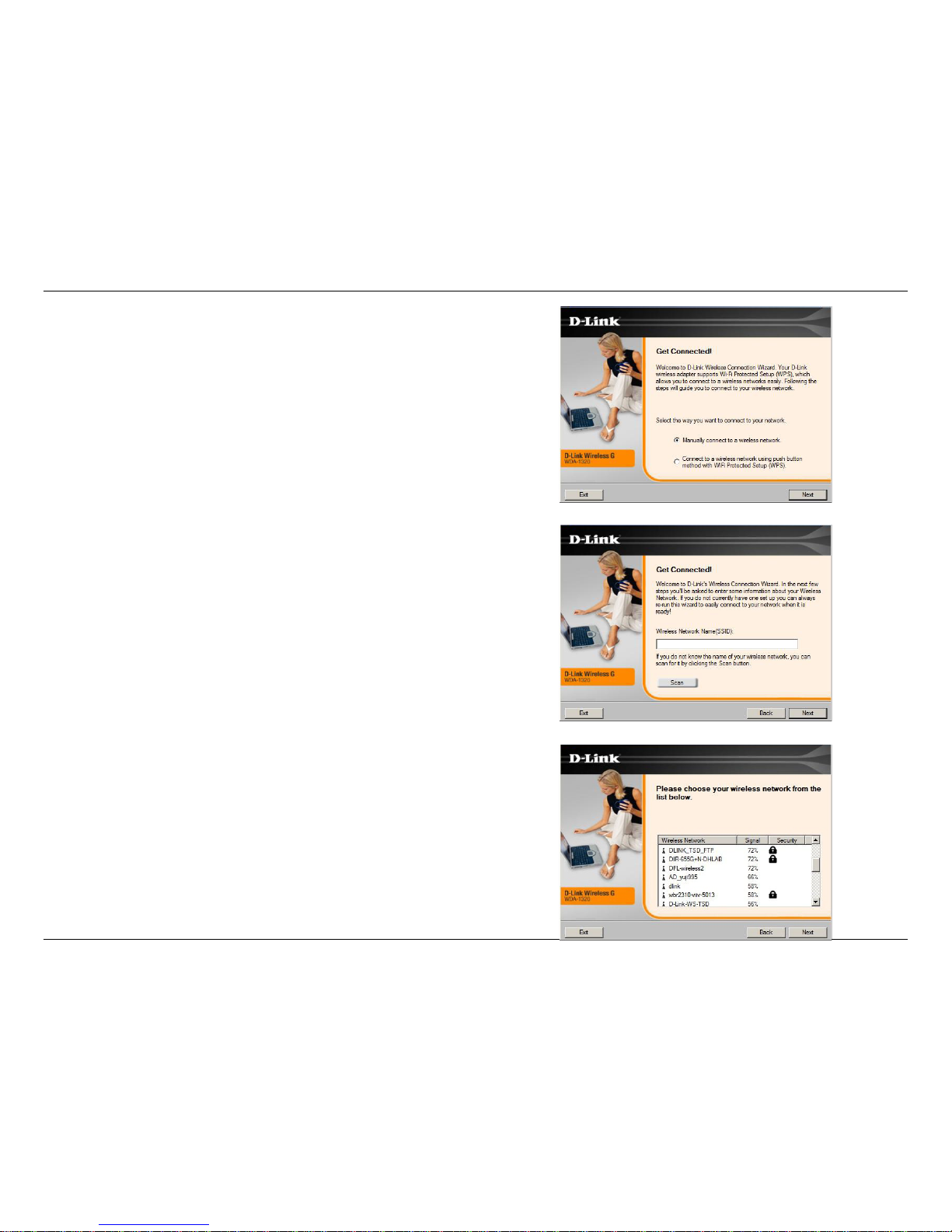

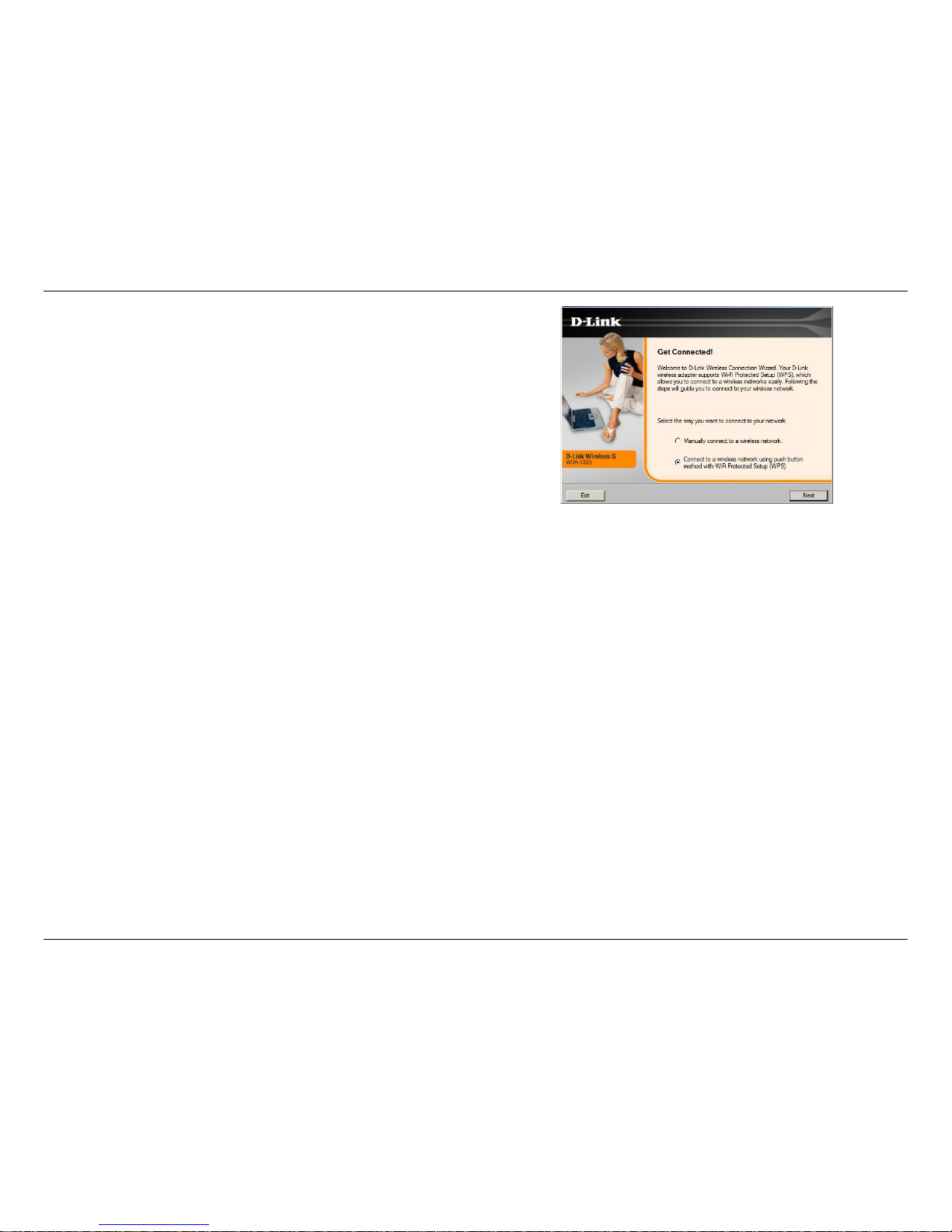

The Wireless Connection Wizard will now appear.

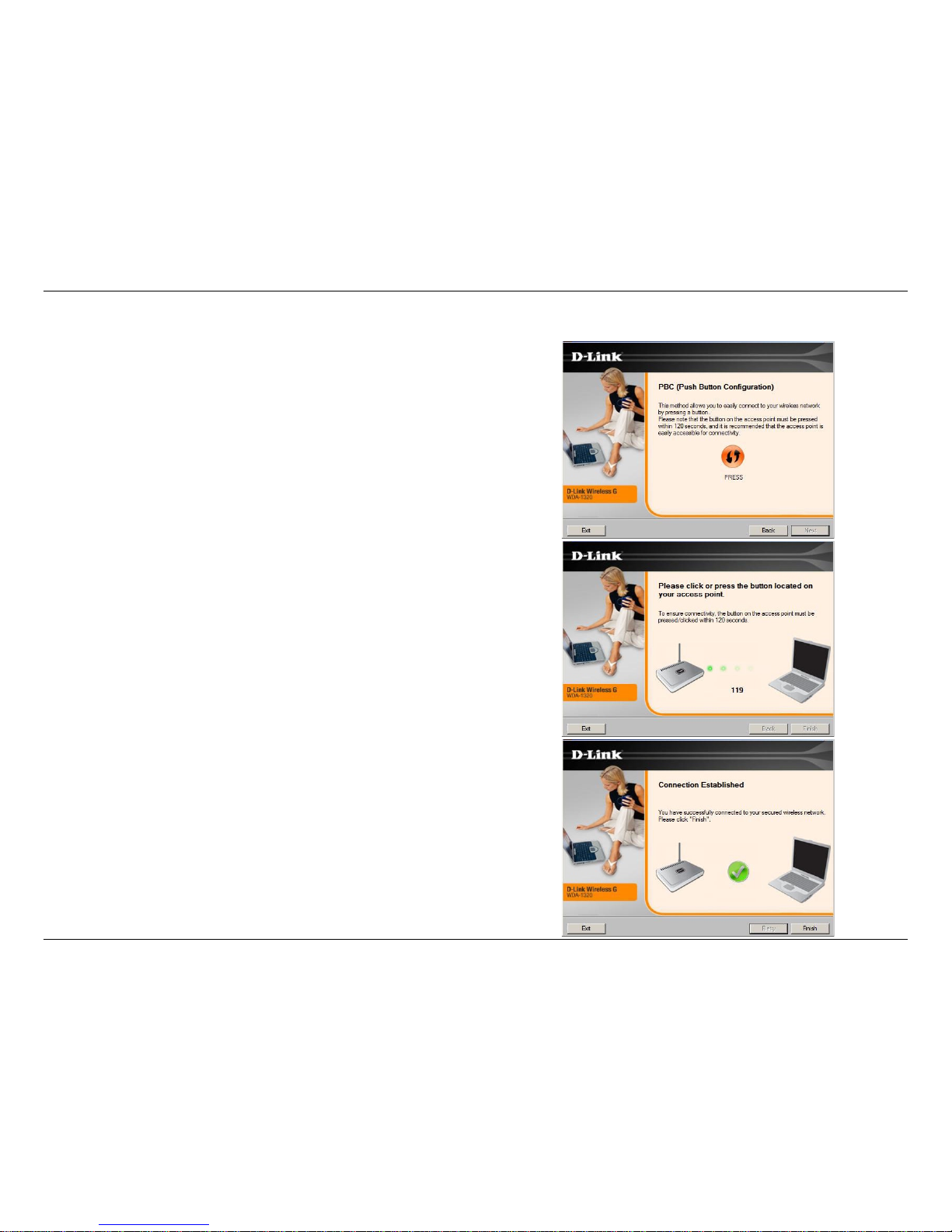

If you want to manually connect to a wireless network, refer to
page 17. The following instructions will connect you to a wireless
network using Wi-Fi Protected Setup (WPS).

16D-Link WDA-1320 User Manual
Section 2 - Installation
To connect to your network using the WPS push button configuration
method, click the virtual button as shown in the screenshot.
Push Button Configuration (PBC)
Press the WPS button on your access point or wireless router within
2 minutes to establish connectivity.
When this screen appears, you have successfully connected to your
wireless network. Click Next to complete your setup.

17D-Link WDA-1320 User Manual
Section 2 - Installation
To manually connect to your wireless network, select Manually
connect to a wireless network and then click Next.
Click the Scan button to display a list of wireless networks (site
survey). Click on the network name (SSID) and click Next.
Enter the network name (SSID) manually. If you enter the SSID
incorrectly, you will automatically be brought to the site survey page.
Click Scan to display the site survey page.

18D-Link WDA-1320 User Manual
Section 2 - Installation
Click Finish to continue. If you are prompted to reboot your computer,
select Yes, I want to restart my computer now.
When this screen appears, you are successfully connected to your
wireless network. Click Next to complete your setup.

19D-Link WDA-1320 User Manual
Section 2 - Installation
The InstallShield Wizard window will appear.
Click Next to continue.
By default setup will install to the default location: C:\Program
Files\D-Link\WDA-1320, where C: represents the drive letter of
your hard drive. To install to a different location click Browse and
specify the location.
Click Next to continue.
Select the Program Files folder location.
Click Next to continue.
Windows®XP Installation

20D-Link WDA-1320 User Manual
Section 2 - Installation
The D-Link configuration wizard will now appear.
If you are using Windows®XP (SP2), you will have the option to use
either the D-Link utility or the built-in Windows®Wireless utility.
Click Next to continue.
The Wireless Connection Wizard will now appear.
If you want to manually connect to a wireless network, refer to page 22.
The following instructions will connect you to a wireless network using
Wi-Fi Protected Setup (WPS).
