D-Link DWL-P100 User manual

DWL-P100DWL-P100
DWL-P100DWL-P100
DWL-P100
Power OverPower Over
Power OverPower Over
Power Over
Ethernet AdaptersEthernet Adapters
Ethernet AdaptersEthernet Adapters
Ethernet Adapters
48V DC Power Adapter
©2002 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and
specifications subject to change without notice. DWL-P100.12232002
About Power Over Ethernet.About Power Over Ethernet.
About Power Over Ethernet.About Power Over Ethernet.
About Power Over Ethernet.
Check Your Package ContentsCheck Your Package Contents
Check Your Package ContentsCheck Your Package Contents
Check Your Package Contents
DWL-P100 Base Unit and Terminal Unit
Female-to-Female Power Connector
Ethernet (CAT5 UTP/Straight Through) Cable
Using a power supply
with a different voltage
rating will damage and void
the warranty of this product.
If any of the above items are missing, please contact your reseller.
The DWL-P100 Power Over Ethernet (POE) Adapters are designed to supply
operational power to a Wireless Access Point. These adapters eliminate the need to
use an additional AC/DC power supply at the Access Point giving you the ability to
mount an Access Point virtually anywhere in a building where power outlets are not
available, ( for example in, ceilings, attics). D-Link’s DWL-P100 Adapters take
advantage of the unused cable pairs within Ethernet Cat 5 cabling. The Base Unit
inserts DC voltage into the unused wires therefore allowing the single Category 5 cable
to carry both Ethernet data and DC power to an Access Point. The POE Terminal Unit
splits the data and DC power apart, which is then supplied to the Access Point.
WarningWarning
WarningWarning
Warning: Please follow the: Please follow the
: Please follow the: Please follow the
: Please follow the
instructions in this guideinstructions in this guide
instructions in this guideinstructions in this guide
instructions in this guide
carefully. Connecting thesecarefully. Connecting these
carefully. Connecting thesecarefully. Connecting these
carefully. Connecting these
adapters incorrectly may result inadapters incorrectly may result in
adapters incorrectly may result inadapters incorrectly may result in
adapters incorrectly may result in
damage to you network devices.damage to you network devices.
damage to you network devices.damage to you network devices.
damage to you network devices.

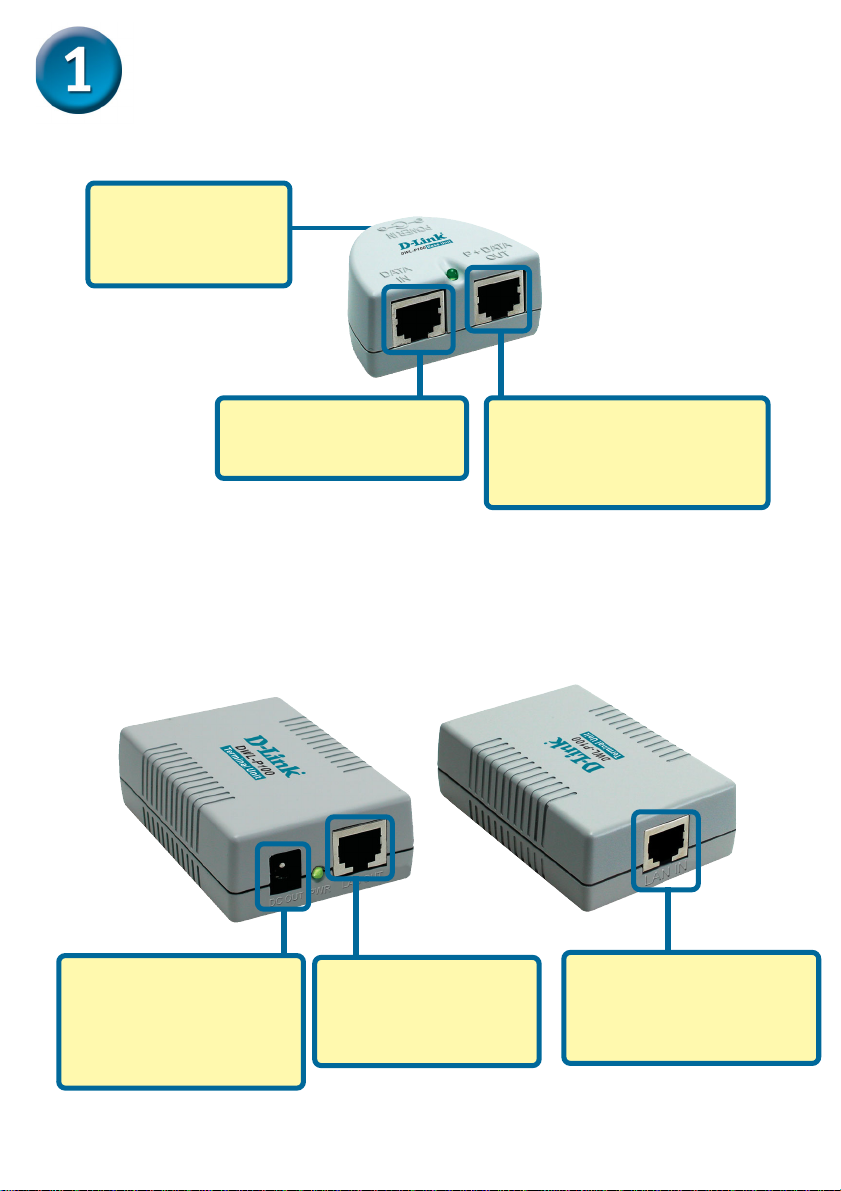

Connecting The DWL-P100Connecting The DWL-P100
Connecting The DWL-P100Connecting The DWL-P100
Connecting The DWL-P100
Base UnitBase Unit
Base UnitBase Unit
Base Unit
Terminal UnitTerminal Unit
Terminal UnitTerminal Unit
Terminal Unit
Power In: using the
supplied 48V power
supply, connect to a
wall power outlet.
LAN Out: connect a
CAT 5 RJ-45 straight-
through cable to an
Ethernet enabled device.
LAN In: connect a CAT 5
RJ-45 straight-through
cable from the P + Data
Out port on the Base Unit.
Data In: connect an RJ-45
straight-through cable to
your computer or switch.
P + Data Out: provides the
data and power to the terminal
unit. Connect this port to the
LAN In on the Terminal unit.
DC In: supplies 5V 2.5
amps of power. Using the
included power cable,
connect to your Ethernet
enabled device’s power.

Connecting The DWL-P100Connecting The DWL-P100
Connecting The DWL-P100Connecting The DWL-P100
Connecting The DWL-P100

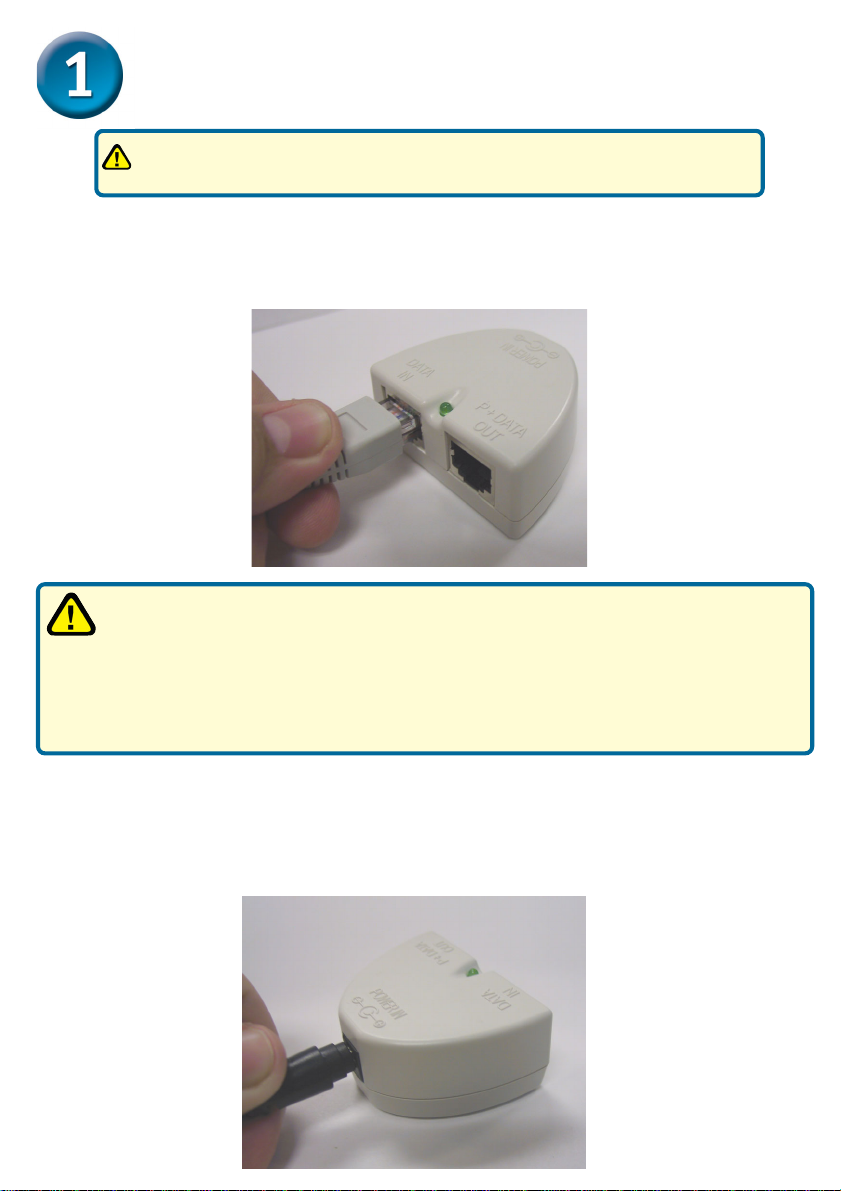

Insert one end of a Cat 5 Ethernet RJ-45 cable into the “LAN IN” port
of the Base Unit. Connect the other end of the cable to your network
switch or PC.
DO NOT use two Base units together, or two Terminal units together.
In configuring your network, pair one Base unit with one Terminal unit.
Plug one end of the Power Adapter into the “DC 48V IN” Base Unit
and the other end into your electrical outlet. The green “PWR” LED
on the Base Unit should light up.
Do Not mistake the “LAN IN” port with the “P + DATA OUT” port.
Incorrectly plugging the wrong Ethernet cable into the wrong Ethernet
port may cause serious damage to your network devices. D-Link will not
replace or repair products or reimburse customers for devices that become
damaged due to incorrect installation, nor is liable for any loss of business
resulting in the incorrect installation of this product.

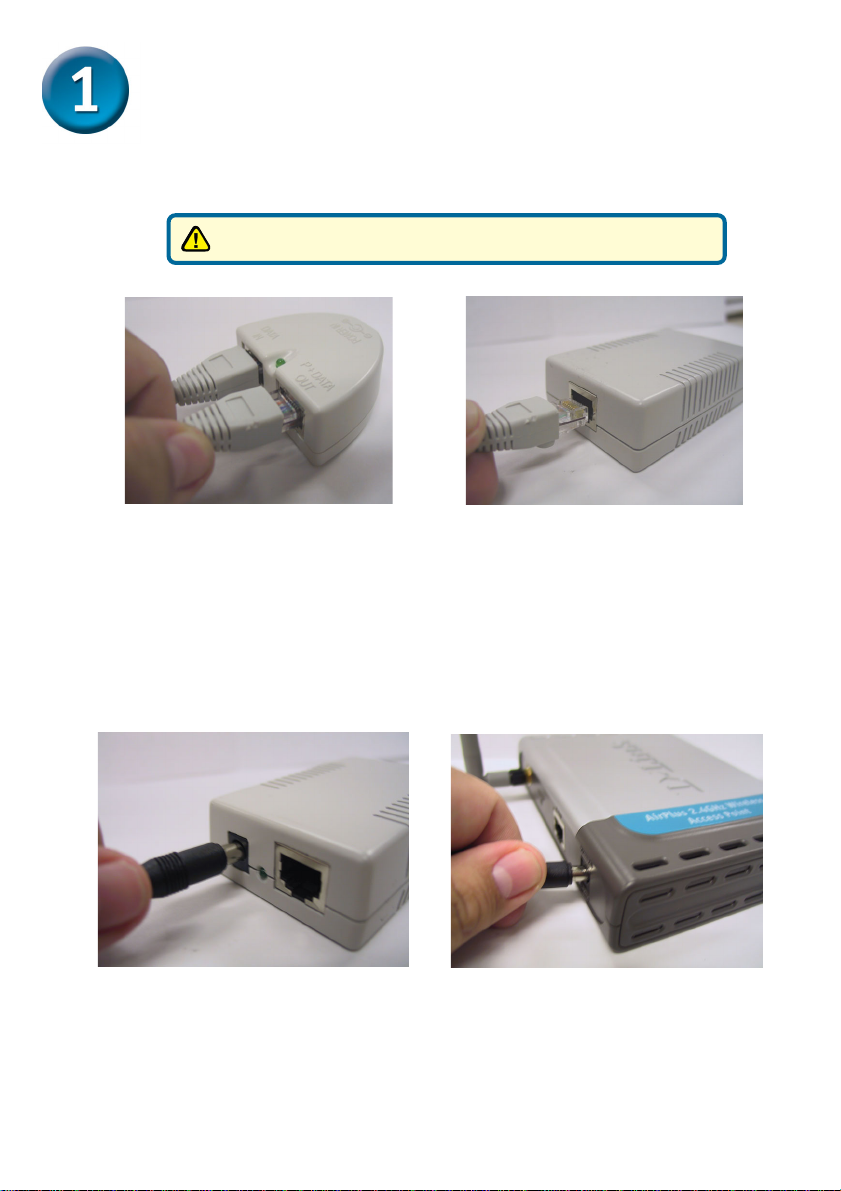

Connect another Cat 5 Ethernet cable from the Base Unit “P + DATA
OUT” to the “LAN IN” of the Terminal Unit.
Connecting The DWL-P100Connecting The DWL-P100
Connecting The DWL-P100Connecting The DWL-P100
Connecting The DWL-P100
Insert one end of the DC 5V Power Cable that is provided into the
Terminal Unit, and the other end into the DC 5V of the Wireless
Access Point. The green LED of the Terminal Unit should light up.
Only use a CAT 5 Ethernet straight-through cable.

Connecting The DWL-P100Connecting The DWL-P100
Connecting The DWL-P100Connecting The DWL-P100
Connecting The DWL-P100

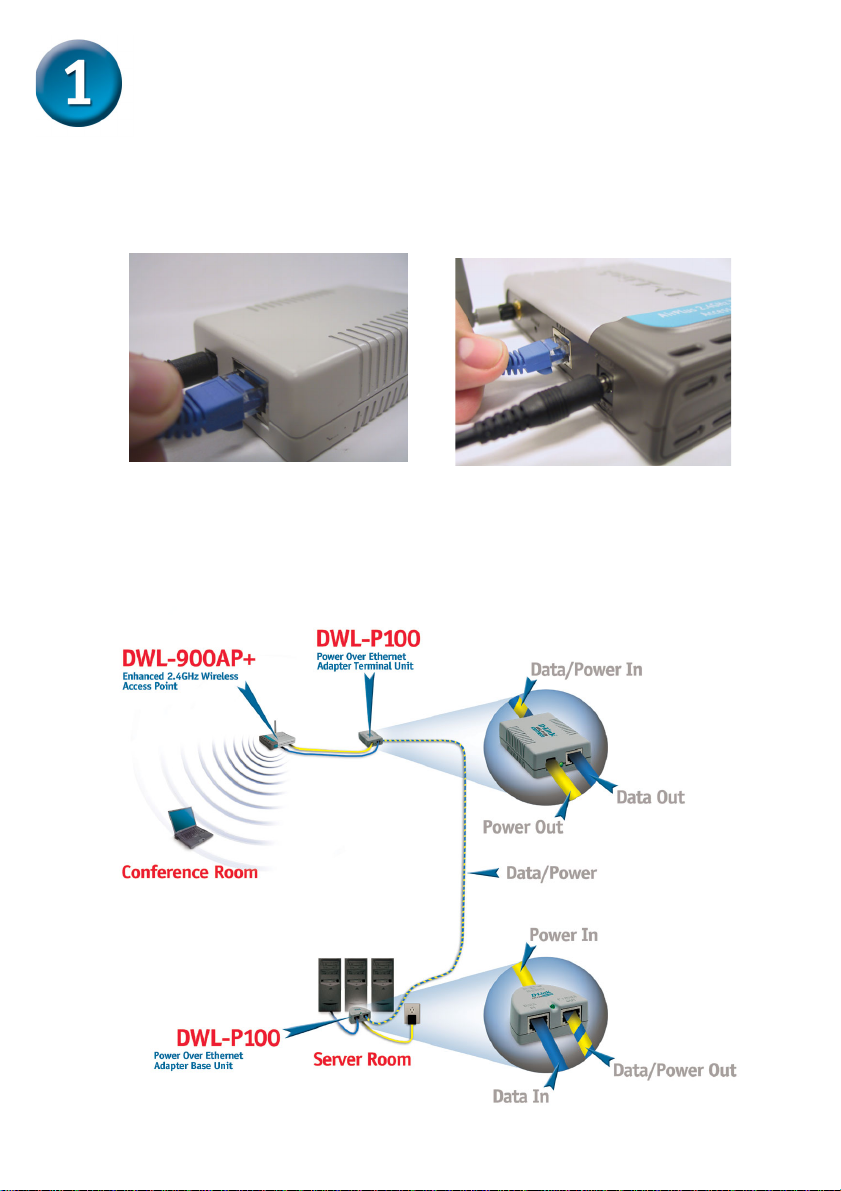

At this point, your Wireless Access Point should have power and
data, and function normally.
Connect the provided Cat 5 Ethernet cable from the Terminal Unit
“LAN OUT” to the RJ-45 LAN port of the Wireless Access Point.

Category 5 Pin Usage
.Data: 1, 2, 3, 6
.Power: 4, 5, 7, 8
Voltage
.Input: 48VDC, 400mA
.Output: 5VDC, 2.5A
Ethernet
.Connector: RJ-45
.Data Rate: 10/100Mbps
.Cable: TIA/EIA - 568, Category 5
Dimensions
.Base Unit: 5.3 x 4.2 x 2.5cm
.Terminal Unit: 8 x 5.3 x 2.5cm
Weight
.Base + Terminal Unit: 3.3oz
Temperature
. Operating: 0°C to 40°C (32°F to 104°F)
. Storage: -20°C to 70°C (-4°F to 158°F)
Operating Humidity
.Up to 90%
Warranty
.1 Year
SpecificationsSpecifications
SpecificationsSpecifications
Specifications
FeaturesFeatures
FeaturesFeatures
Features
. Provides DC power over existing CAT 5 cabling to Access Points.
. Transforms incoming AC power into low-voltage DC power.
. Base and Terminal Power Over Ethernet modules powers any Wireless
Access Point requiring 5V DC input.
. Protects Access Points from possible damages due to power-surges.

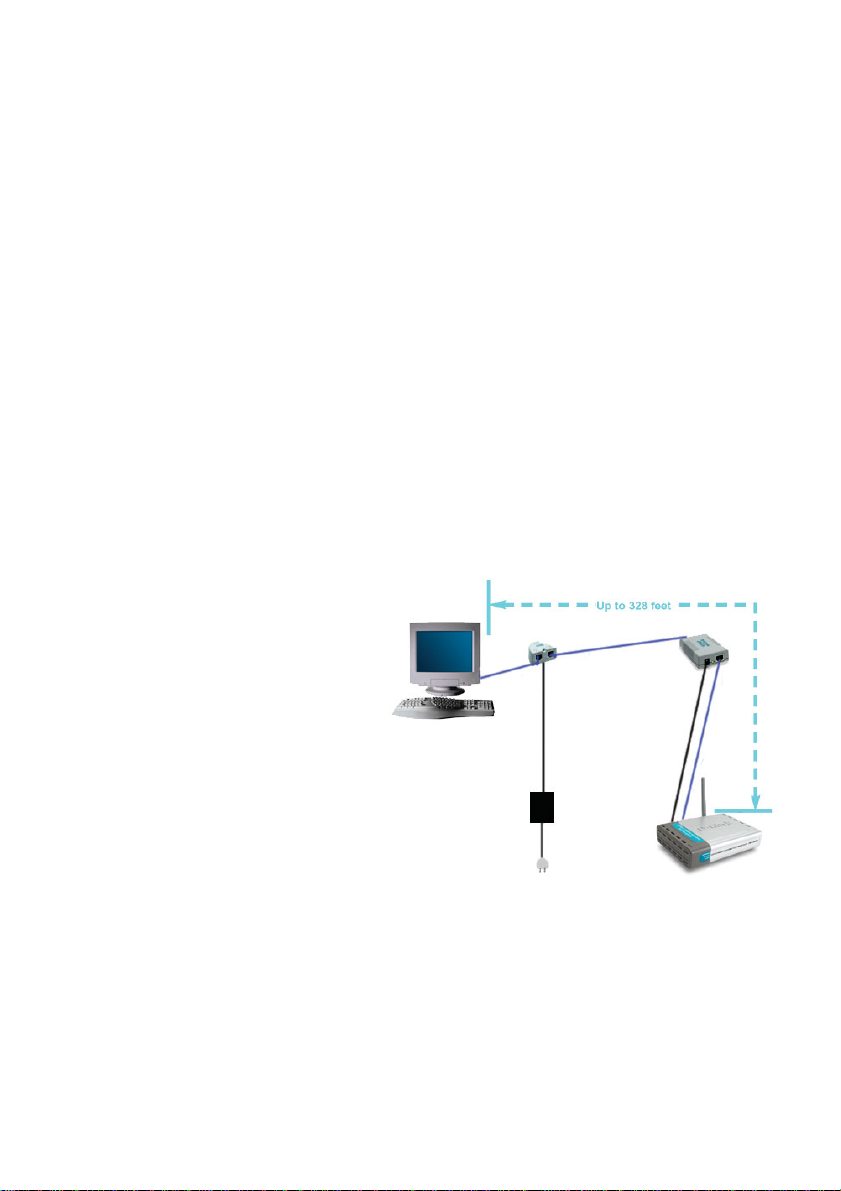

LAN Computer
D-Link Wireless
Access Point
DWL-P100
Power Over Ethernet
(Base Unit)
DWL-P100
Power Over Ethernet
(Terminal Unit)
Ethernet Cable
DC Power Cable
AC/DC Power Adapter
Ethernet Cable

Technical SupportTechnical Support
Technical SupportTechnical Support
Technical Support
You can find the most recent software and user documentation on the D-Link
website.
D-Link provides free technical support for customers within the United States
for the duration of the warranty period on this product.
U.S. customers can contact D-Link technical support through our web site or
by phone.
D-Link Technical Support over the Telephone:
[phone]
24 hours a day, seven days a week
D-Link Technical Support over the Internet:
http://support.dlink.com
