DWL-AG700AP Install Guide
Version 2.02
ANT24-Series
ANT70-Series
D-Link Antenna Kits
User’s Guide

2
ANT24-0700 Install GuideSystem Requirements
D-Link Antenna-kit Installation Guide
ANT24-0700 Install Guide
System Requirements
Installation
(If needed)
Install the surge protector. (You can install with
optional ANT24 series low loss cables)
Note:
/antenna

3
System Requirements
System Requirements
Installation
D-Link Antenna-kit Installation Guide

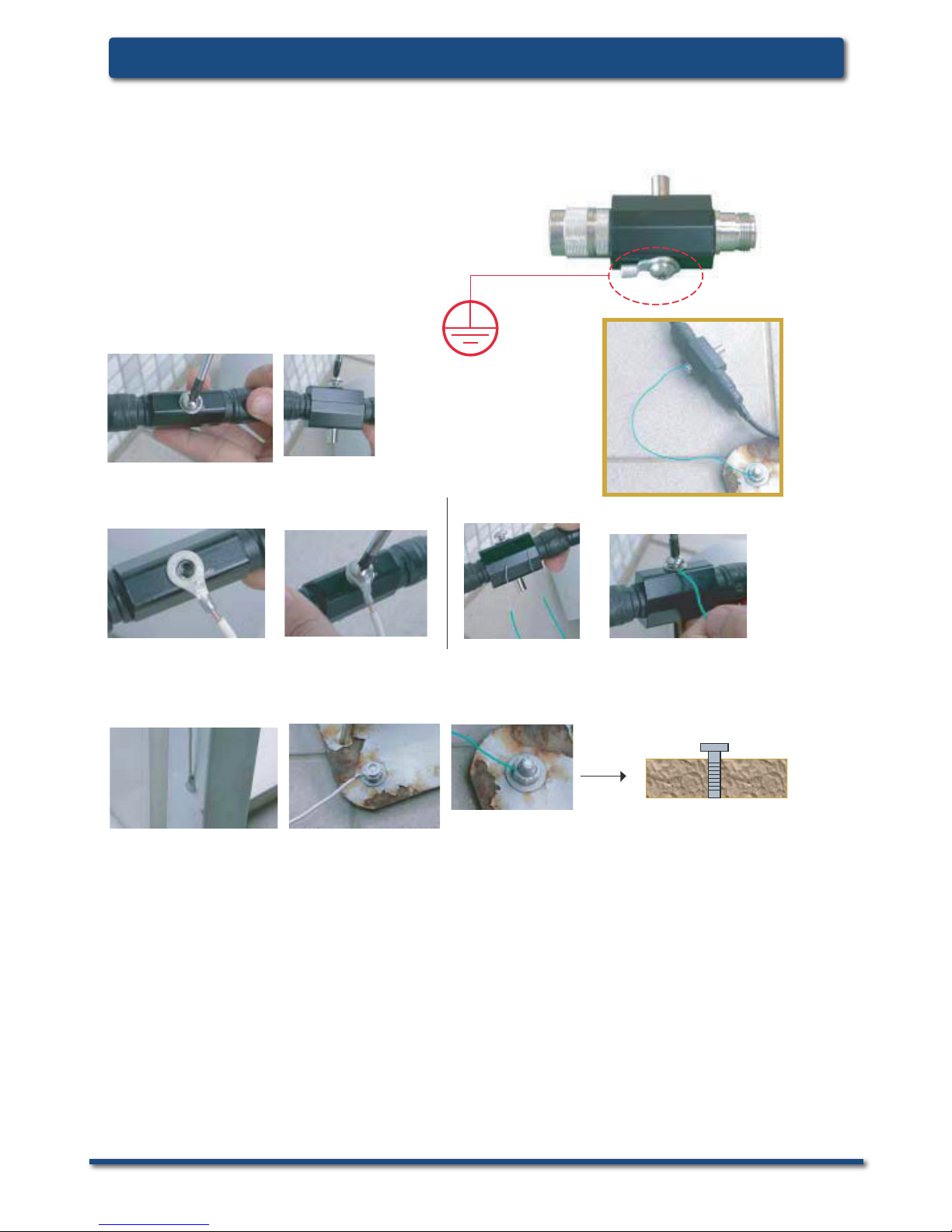

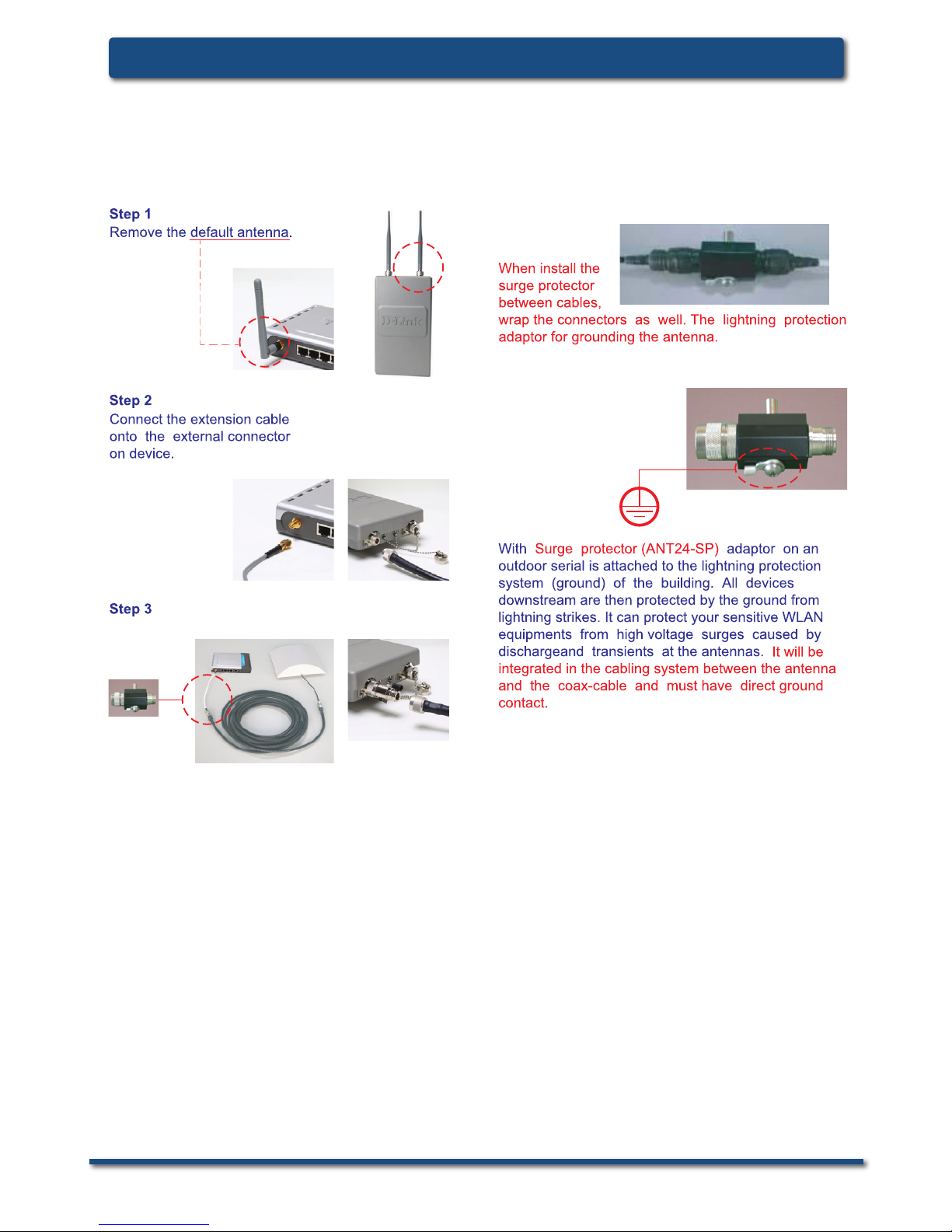

ANT24-SP Surge protector
Installation guide
for outdoor antenna-kit
Step 1
loosen the screw from the surge protector.
Step 2
get a normal conductive copper wire with 2 sides stripped long enough to be conductive,
these wires can lead high voltage surges into the grounding.
Remark:
(1) for the ground screw you use, we suggest the longer (deeper into ground) the better performance it has.
(2) please use a copper wire with diameter at least from 2.0mm, the thicker the diameter, the higher
voltage it can sustain.
Option (1) Option (2)
Ground
Step 3
find a conductive material nearby the antenna installation sites, connect another end of the wire
into position, there are several options:
(1) Use a long screw to stick into the ground tightly, connect another wire onto.
(2) fix or solder another end of wire onto a steel material/ bar under steel construction,
such as wall for buildings, railings or other conductive materials which set up from
the ground.

4
ANT24-0700 Install GuideSystem Requirements
ANT24-0700 Install Guide
System Requirements
ANT24-Series
Regulations
2.4GHz~2.5GHz 5.15GHz~5.35GH
z
5.47~5.725 5.75GHz~5.875GHz
point to multi-point
point to point
point to multi-point 36dBm 36dBm
point to point
30+6(antenna gain ) dBm
then above 30dBm, one dB output
power reduced, then 3dB antenna gain
increased
30+23(antenna gain)
then above 30dBm, one dB output power
reduced, then 3dB antenna gain increased
For outdoor use
X
FCC 23dBm
ETSI 20dBm ave.
23dBm peak. 23dBm 30dBm
X
Based
EIRP limitaton:
EIRP = Effective,Isotropic Radiated Power
= Device Output Power + Antenna Gain - Cable Loss
Model Cable Type Length Interface Cable loss (dB)
@ 2.4GHz
Cable loss(dB)
@5GHz
ANT24-CB03N LMR400 3m N plug to N jack 1 1.75
ANT24-CB06N LMR400 6m N plug to N jack 1.85 2.7
ANT24-CB09N LMR400 9m N plug to N jack 2.6 3.8
ANT24-ODU03M LMR200 0.3m RP N plug to N plug 0.6 1.15
ANT24-ODU1M LMR400 1m RP N plug to N plug 0.6 1.15
ANT24-ODU3M LMR400 3m RP N plug to N plug 1 1.75
ANT24-DLK3M LMR200 3m RP SMA plug to N plug 2 3.45
Note:
1. The loss value includes two connectors ( around 0.3~0.4dB @2.4GHz, 0.39~0.52dB@5GHz).
2. The longer cable you use, the more attenuation it causes, therefore, the extended range might be
shorten then a normal link with default cables.
3. To comply with EU regulation, please use longer cables which can cause enough attenuation value.
4. For more detail of connectors type, please refer to the appendix page.(P.34)
Cable Loss
Please add some sentences in P4 as below
“Use of high gain antennas need careful planning to conform with EU regulations and
extra consideration to avoid causing a potential health hazard, Please always seek
qualifi ed professional installer in all cases. “
“Outdoor Installations
Although D-Link offers a range of quality outdoor antennas, please note these devices
are designed only to be installed by a professional as there are EU regulations that need
to be considered. Cable lengths and quality will affect the antenna gain dramatically.”

5
System Requirements
System Requirements
ANT24-Series

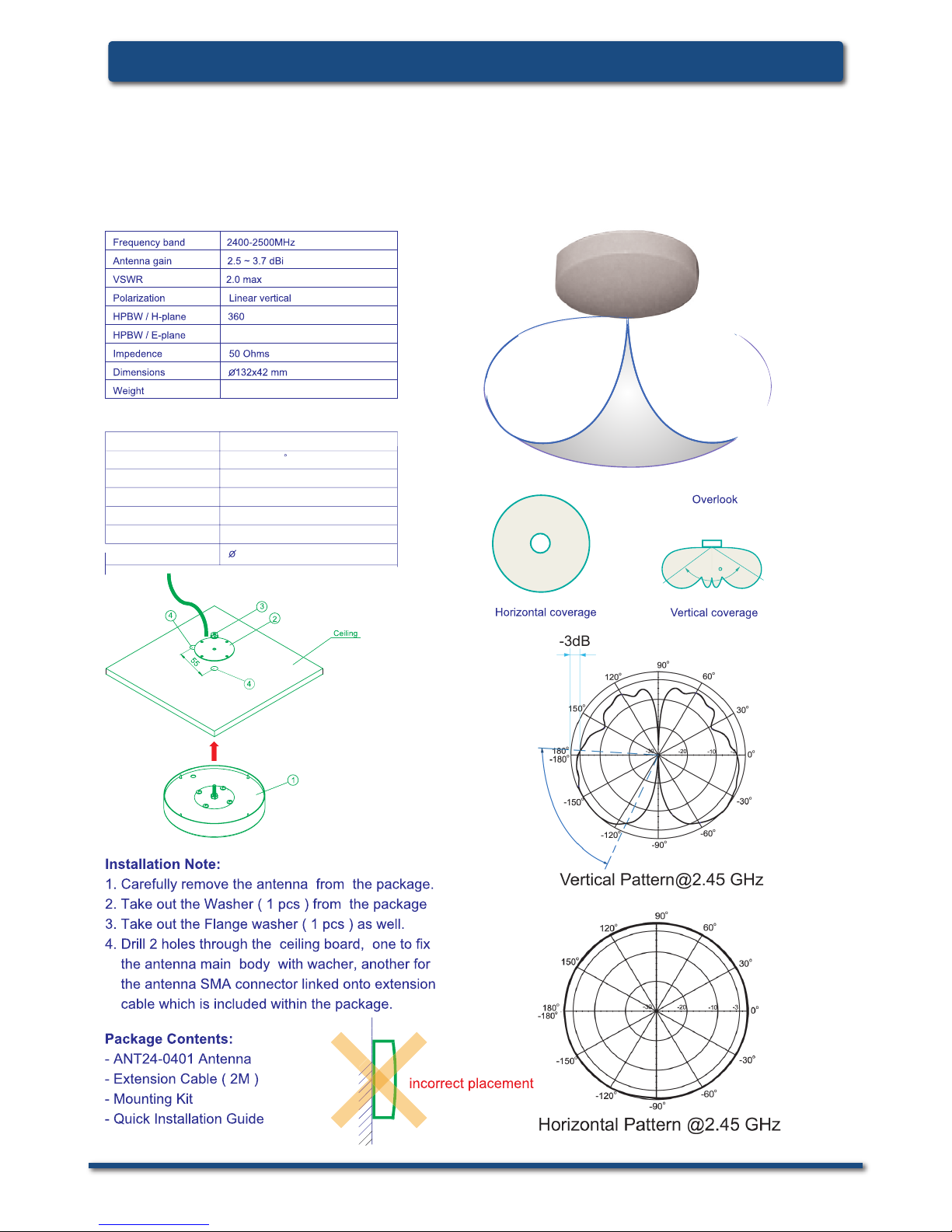

D-Link ANT24-0401
Ceiling Mount Antenna
Electrical specifi cation
Environmental & Mechanical Characteristics
Temperature -10°C to 55°C
Humidity 100% @ 25 C
Lightning protection DC ground
Radome color white
Radome material ABS
Weight 100gw
Dimensions 132 x 42 mm
120
58°~75°
110g without joint

6
ANT24-0700 Install GuideSystem Requirements
ANT24-0700 Install Guide
System Requirements
ANT24-Series

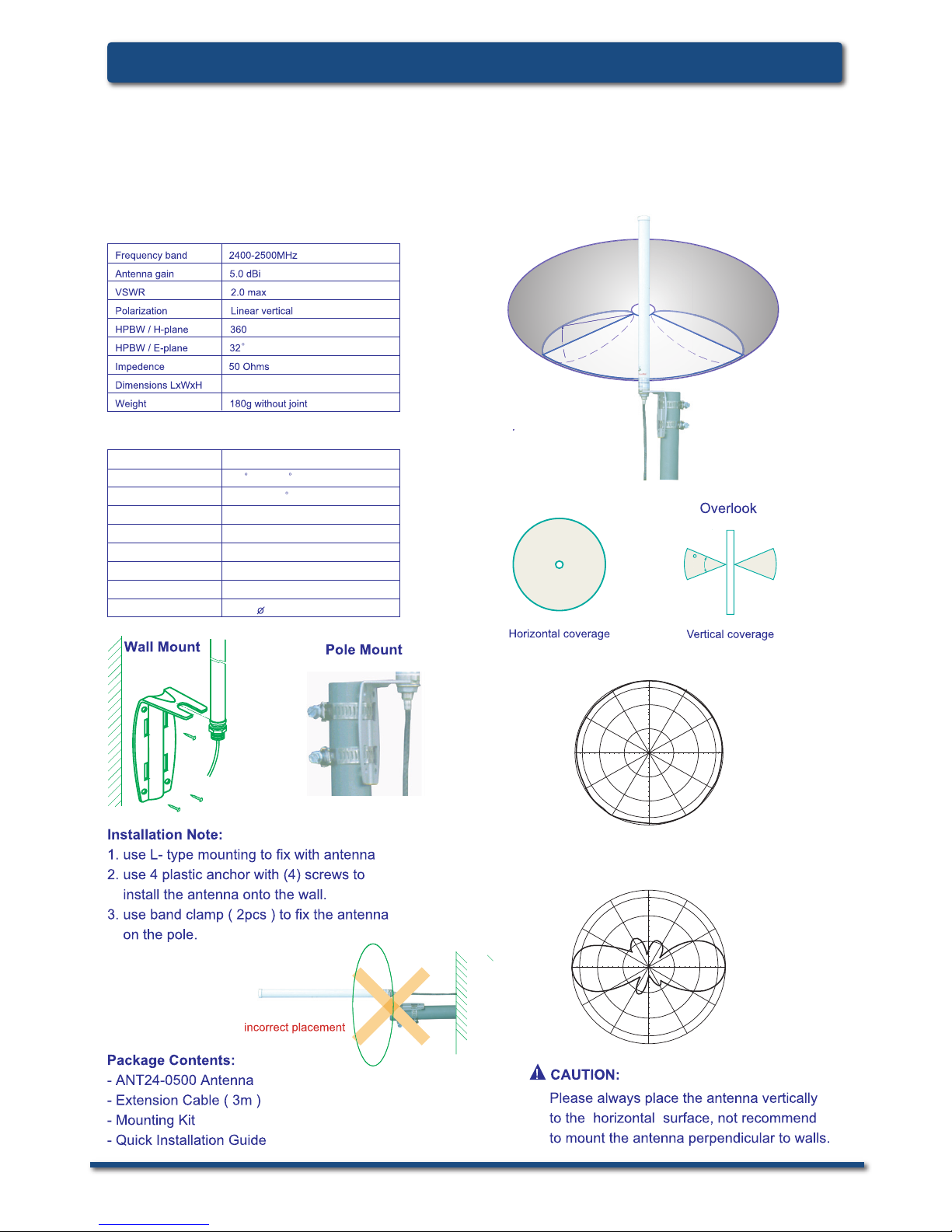

D-Link ANT24-0500 Indoor/Outdoor
Omni-Directional Antenna
Electrical specifi cation
Environmental & Mechanical Characteristics
Survival wind speed 180 km/hr
Temperature -40 C to +80 C
Humidity 100% @ 25 C
Lightning protection DC ground
Radome color Gray-white
Radome material Fiberglass
Radiator material Micro striple line
Weight 0.8kgw
Dimensions 330 x 19 mm
Omni-Directional Antenna
for 2.4 GHz
SAA04-050170
Frequency range 2400 MHz - 2500 MHz
Gain 5.0 dBi
VSWR 2.0 : 1 Max.
Polarization Linear, vertical
HPBW / horizontal 360o
HPBW / vertical 32o
Downtilt 0o
Power handling 20 W (cw)
Impedance 50 Ohms
Connector SMA Plug
Cable ULA 168, 100cm
Electrical Specification
Environmental & Mechanical Characteristics
Temperature - 10oC to +55oC
Humidity 95% @ 25oC
Lightning protection DC ground
Radome color Gray-white
Radome material Fiberglass, UV resistant
Weight 0.8kg
Dimensions φ19 x 330 mm
90o
180o
150o
120o60o
30o
0o
-150o
-90o
-120o-60o
-30o
-3
-10
-20
-30
Version 1
H-plane Co-polarization Pattern
90
o
180
o
150
o
120
o
60
o
30
o
-150
o
-90
o
-120
o
-60
o
-30
o
-3
-10
-20
-30
V-plane Co-polarization Pattern
0
o
http:// www.smartant.com TEL: [phone] FAX: [phone] E-mail: [e-mail]
All right reserved by SmartAnt Telecom Co., Ltd.
P1
EMW2403005AMLM01


32
Ø19×330mm

7
System Requirements
D-Link ANT24-0500 Indoor/Outdoor
Omni-Directional Antenna
System Requirements
ANT24-Series

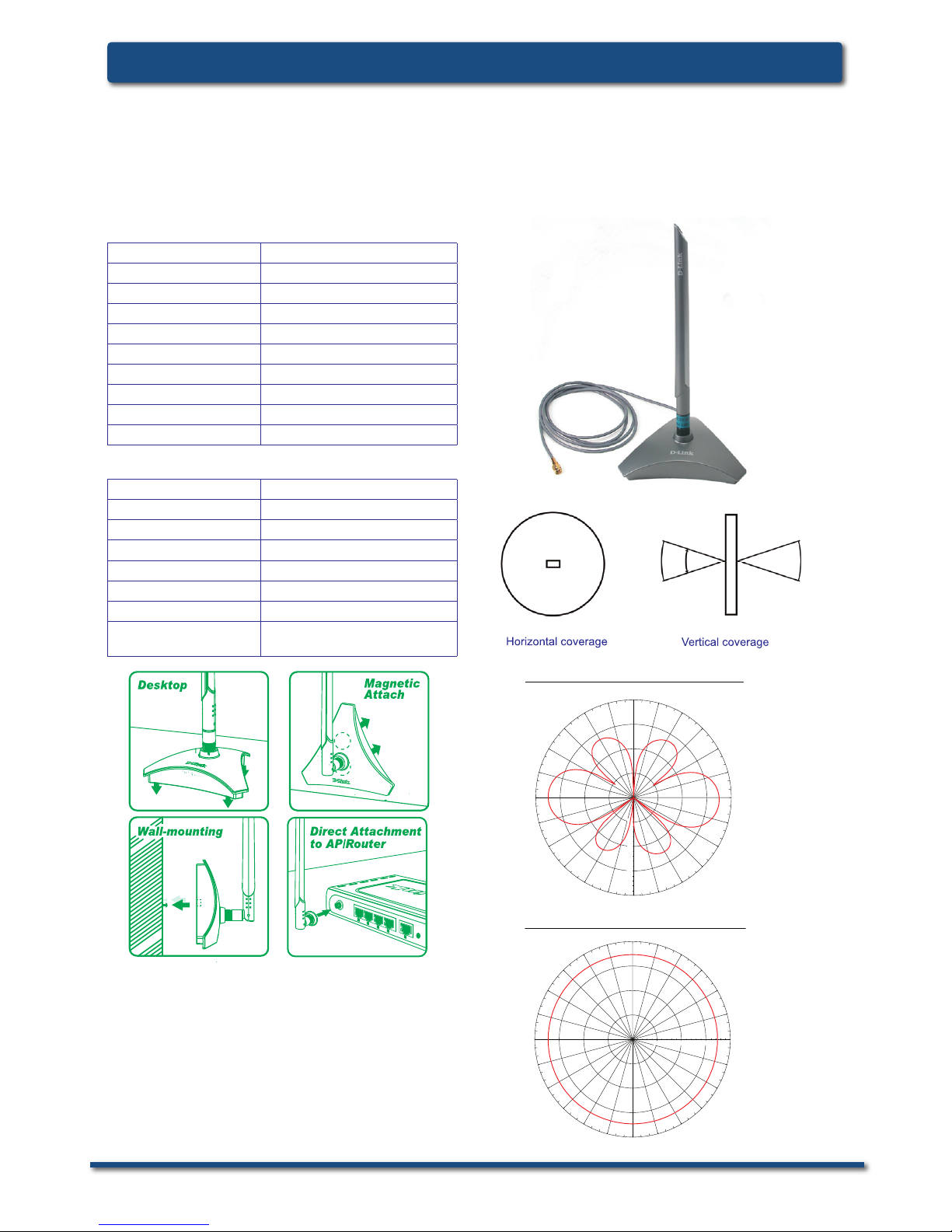

D-Link ANT24-0501
Indoor Omni-Directional Antenna
Electrical specifi cation
Physical Properties
Package Contents
-One ANT24-0501 2.4GHz indoor 5dBi omni-
directional Antenna with 1.5M extension cable and
RP-SMA Jack connector
-One RP-SMA/ RP-TNC adaptor
-One registration card and international of ce guide
-Mounting kit includes:
-Two Crews
-Two plastic  xings
-One sticker
Frequency Range 2400~2500MHz
Impedance 50Ω Normal
VSWR 1.92 Max
Return Loss -10 dB Maximum
Antenna Structure Helis antenna
Peak Gain ( w/o cable loss) 5dBi
Admitted Power 1 W
Cable loss( 1.5m) [email protected]
E-Plane 36 deg.
H-Plane 360 deg.
Cable RG-178 50Ω
Cable length 1.5 M
Cable color Gray
Connector Reverse SMA plug
Antenna Material ABS, ABS+PC
Operating Temp -20°C ~ +65°C
Storage Temp -30°C ~ +75°C
Color Antenna: Metallic gray and silver
Base: Metallic gray

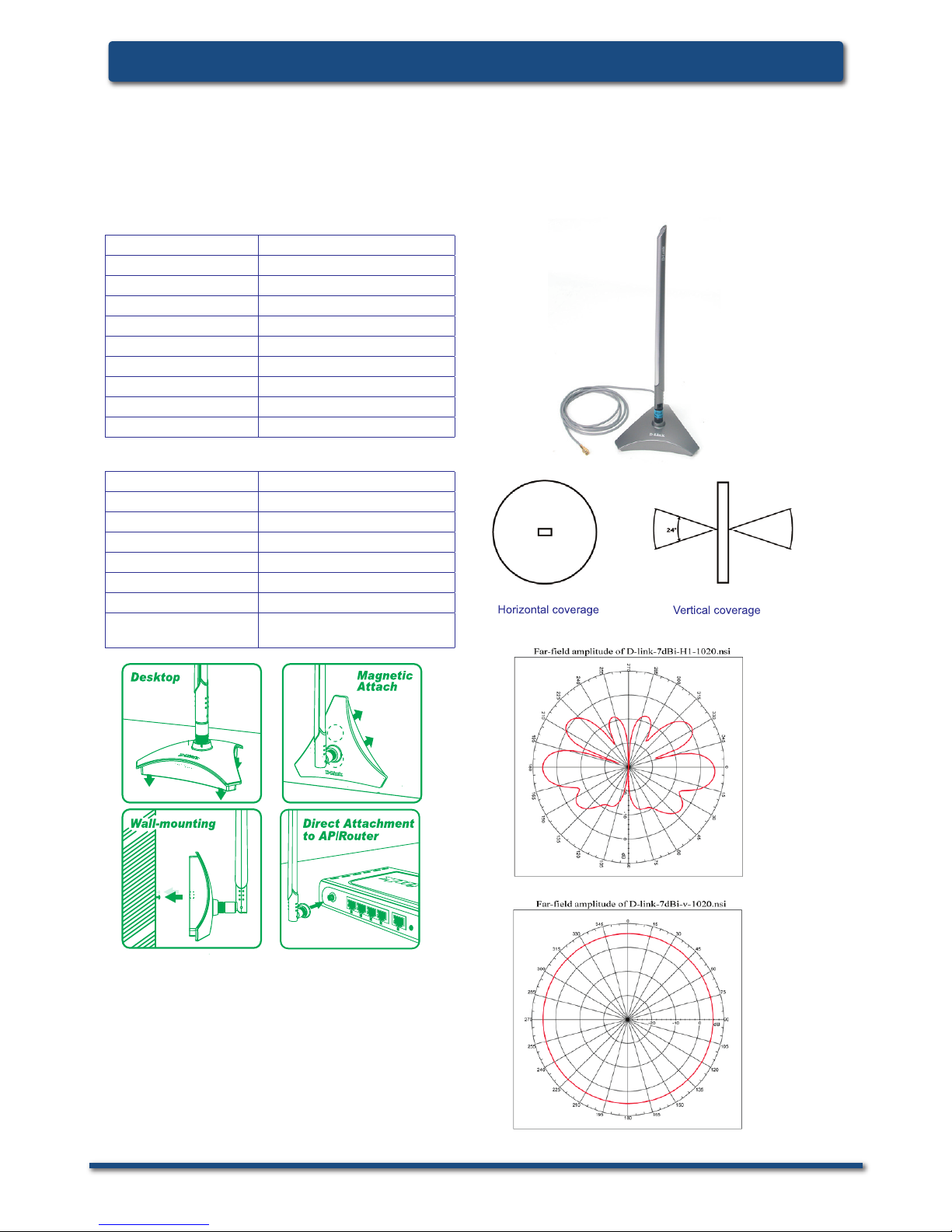

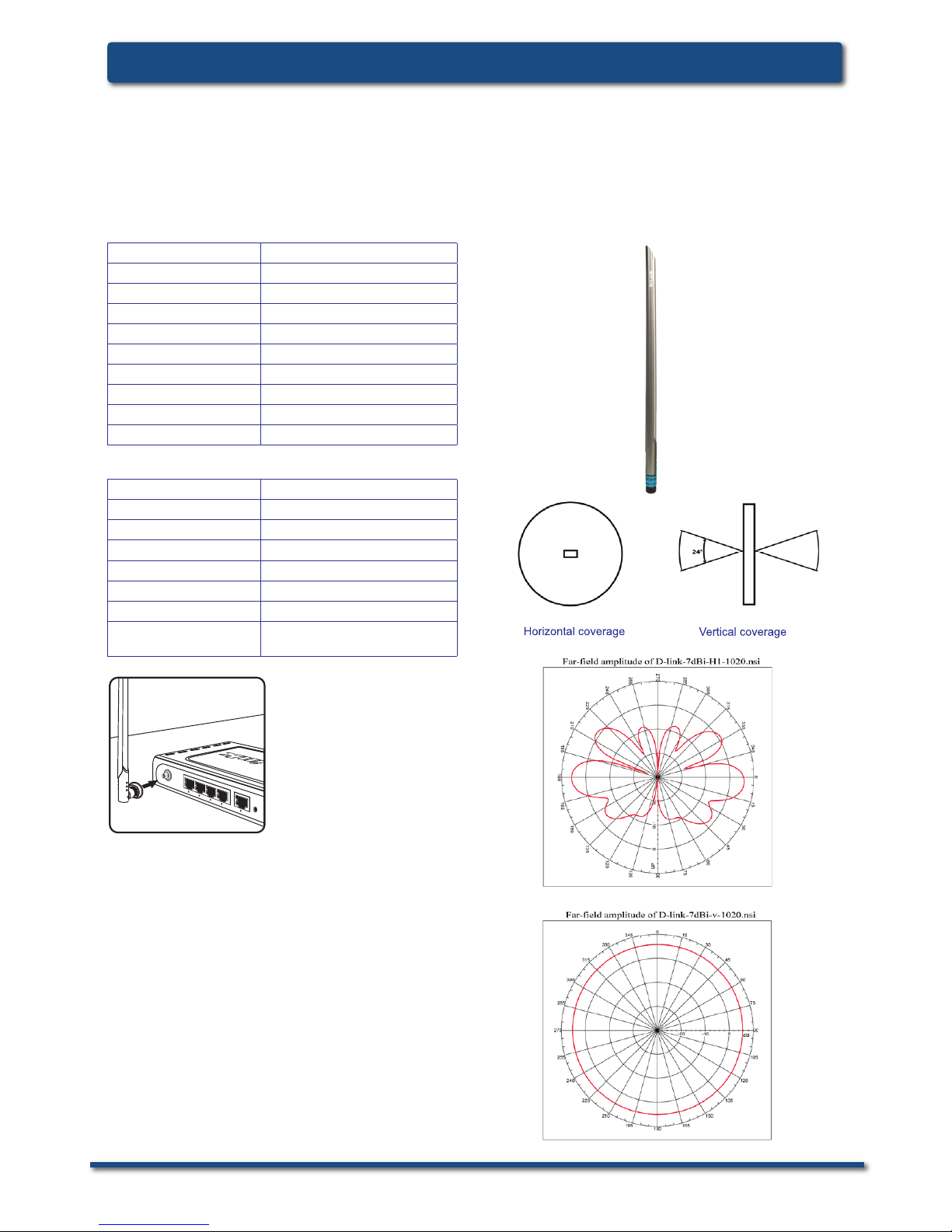

ANT24-0700 / ANT24-0700C
0
345
330
315
300
285
270
255
240
225
210
195
180
165
150
135
120
105
90
75
60
45
30
15
-20 -10 0
dB
Far-field amplitude of D-link-7dBi-H1-1020.nsi
0
345
330
315
300
285
270
255
240
225
210
195
180
165
150
135
120
105
90
75
60
45
30
15
-20 -10 0
dB
Far-field amplitude of D-link-7dBi-v-1020.nsi
ANT24-0501C/ ANT24-0501
0
345
330
315
300
285
270
255
240
225
210
195
180
165
150
135
120
105
90
75
60
45
30
15
-20 -10 0
dB
Far-field amplitude of D-link-5dBi-H-1020.nsi
0
345
330
315
300
285
270
255
240
225
210
195
180
165
150
135
120
105
90
75
60
45
30
15
-20 -10 0
dB
Far-field amplitude of D-link-5dBi-v-1020.nsi
ANT24-0700 / ANT24-0700C
0
345
330
315
300
285
270
255
240
225
210
195
180
165
150
135
120
105
90
75
60
45
30
15
-20 -10 0
dB
Far-field amplitude of D-link-7dBi-H1-1020.nsi
0
345
330
315
300
285
270
255
240
225
210
195
180
165
150
135
120
105
90
75
60
45
30
15
-20 -10 0
dB
Far-field amplitude of D-link-7dBi-v-1020.nsi
ANT24-0501C/ ANT24-0501
0
345
330
315
300
285
270
255
240
225
210
195
180
165
150
135
120
105
90
75
60
45
30
15
-20 -10 0
dB
Far-field amplitude of D-link-5dBi-H-1020.nsi
0
345
330
315
300
285
270
255
240
225
210
195
180
165
150
135
120
105
90
75
60
45
30
15
-20 -10 0
dB
Far-field amplitude of D-link-5dBi-v-1020.nsi
36°
ANT24-0700 / ANT24-0700C
0
345
330
315
300
285
270
255
240
225
210
195
180
165
150
135
120
105
90
75
60
45
30
15
-20 -10 0
dB
Far-field amplitude of D-link-7dBi-H1-1020.nsi
0
345
330
315
300
285
270
255
240
225
210
195
180
165
150
135
120
105
90
75
60
45
30
15
-20 -10 0
dB
Far-field amplitude of D-link-7dBi-v-1020.nsi
ANT24-0501C/ ANT24-0501
0
345
330
315
300
285
270
255
240
225
210
195
180
165
150
135
120
105
90
75
60
45
30
15
-20 -10 0
dB
Far-field amplitude of D-link-5dBi-H-1020.nsi
0
345
330
315
300
285
270
255
240
225
210
195
180
165
150
135
120
105
90
75
60
45
30
15
-20 -10 0
dB
Far-field amplitude of D-link-5dBi-v-1020.nsi

8
ANT24-0700 Install GuideSystem Requirements
ANT24-0700 Install Guide
System Requirements
ANT24-Series

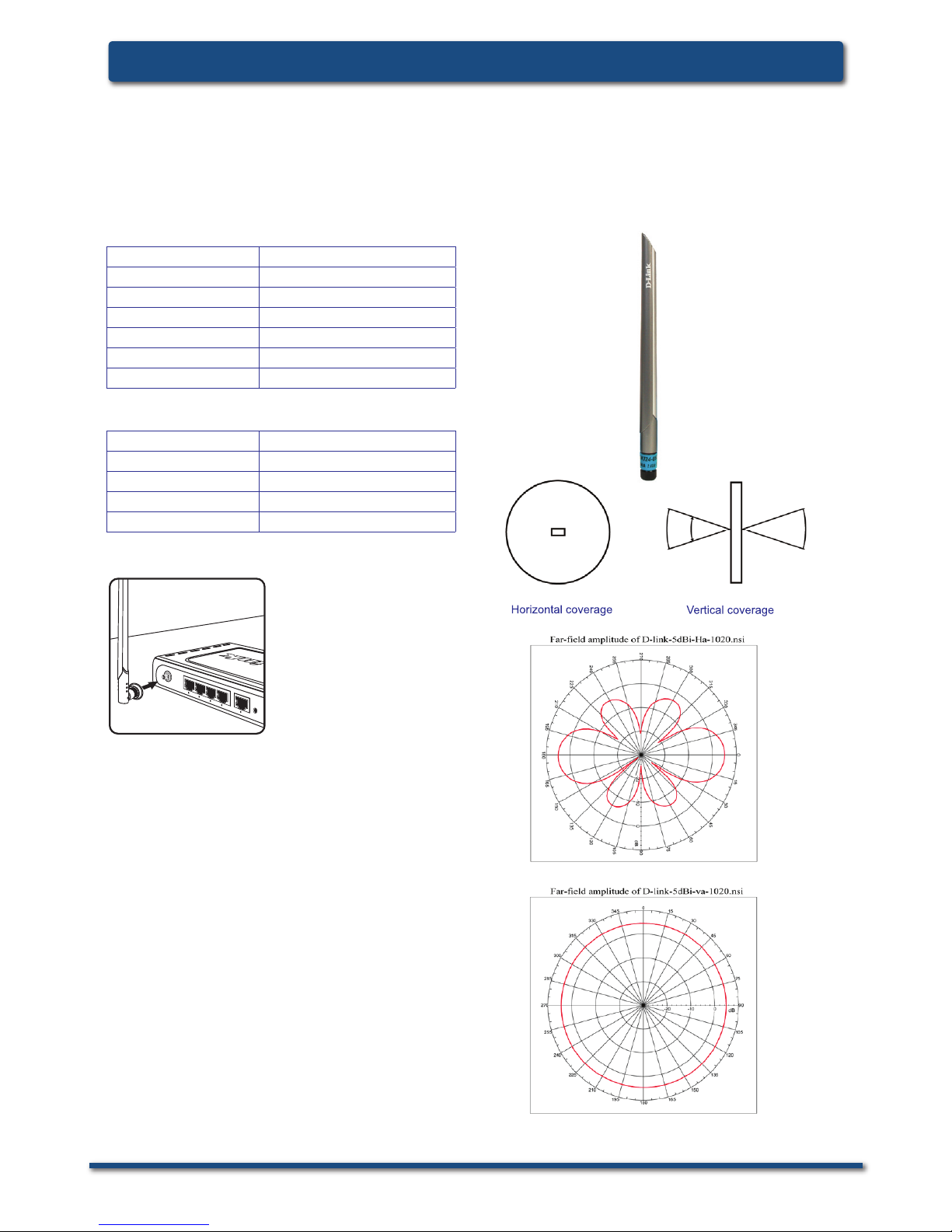

D-Link ANT24-0501C
Indoor Omni-Directional Antenna
Electrical specifi cation
Physical Properties
Package Contents
-One ANT24-0501C 2.4GHz 5dBi indoor
omni-directional antenna with a RP-SMA
plug connector
-One RP SMA/ RP TNC adapter
-One registration card and company contact
guide
Frequency Range 2400~2500MHz
Impedance 50Ω Normal
VSWR 1.92 Max
Peak Gain 5dBi
Admitted Power 1 W
E-Plane 36 deg.
H-Plane 360 deg.
Connector Reverse SMA plug
Antenna Material ABS, ABS+PC
Operating Temp -20°C ~ +65°C
Storage Temp -30°C ~ +75°C
Color Antenna: Metallic gray and silver
Attach to AP/Router
36°

9
System Requirements
System Requirements
ANT24-Series

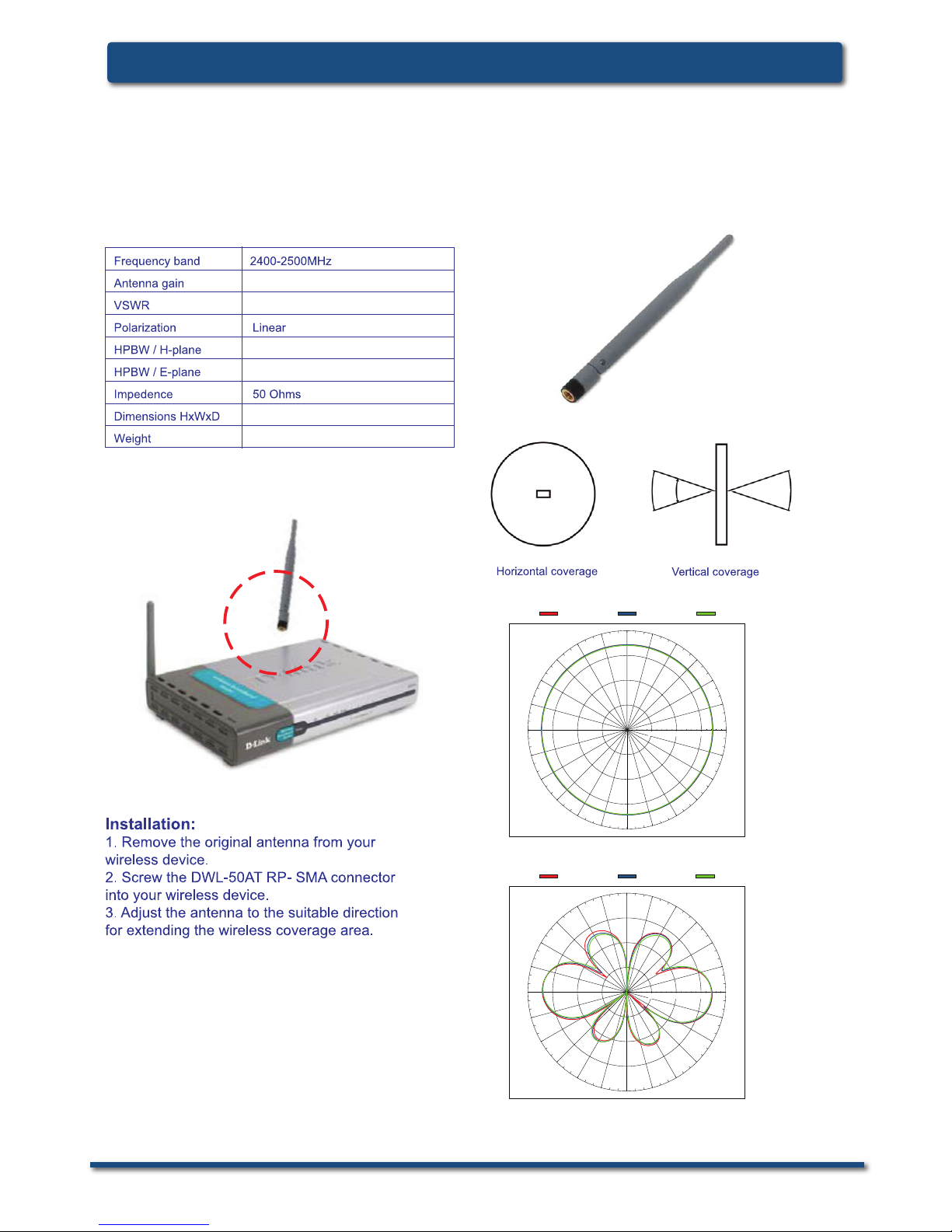

D-Link DWL-50AT
Indoor Omni-Directional Antenna
5.0dBi Typical
2.0:1 Max.
nominal
197 mm(length)
29.5gw
Electrical specifi cation
0
345
330
315
300
285
270
255
240
225
210
195
180
165
150
135
120
105
90
75
60
45
30
15
-20 -10 0
dB
Far-field amplitude of C147-510017-A-V.nsi
2.4GHz 2.45GHz 2.5GHz
0
345
330
315
300
285
270
255
240
225
210
195
180
165
150
135
120
105
90
75
60
45
30
15
-20 -10 0
dB
Far-field amplitude of C147-510017-A-H.nsi
2.4GHz 2.45GHz 2.5GHz
0
345
330
315
300
285
270
255
240
225
210
195
180
165
150
135
120
105
90
75
60
45
30
15
-20 -10 0
dB
Far-field amplitude of C147-510017-A-V.nsi
2.4GHz 2.45GHz 2.5GHz
0
345
330
315
300
285
270
255
240
225
210
195
180
165
150
135
120
105
90
75
60
45
30
15
-20 -10 0
dB
Far-field amplitude of C147-510017-A-H.nsi
2.4GHz 2.45GHz 2.5GHz
30°
30 degree
360°

10
ANT24-0700 Install GuideSystem Requirements
ANT24-0700 Install Guide
System Requirements
ANT24-Series

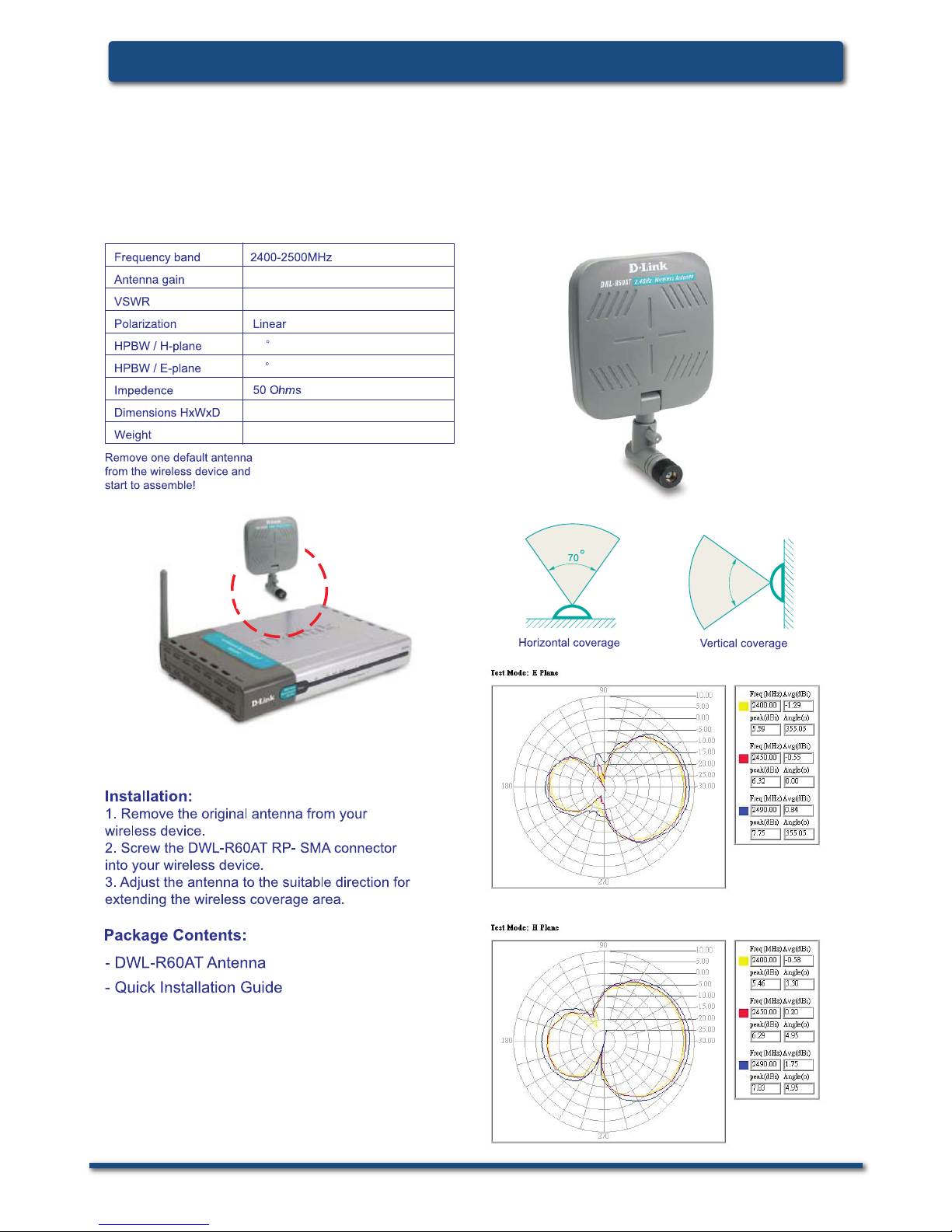

D-Link DWL-R60AT
Indoor Directional Antenna
2.0:1 Max.
6.0dBi Typical
nominal
75gw
80x85x12.8 mm
Electrical specifi cation
70
85
85°

11
System Requirements
System Requirements
ANT24-Series

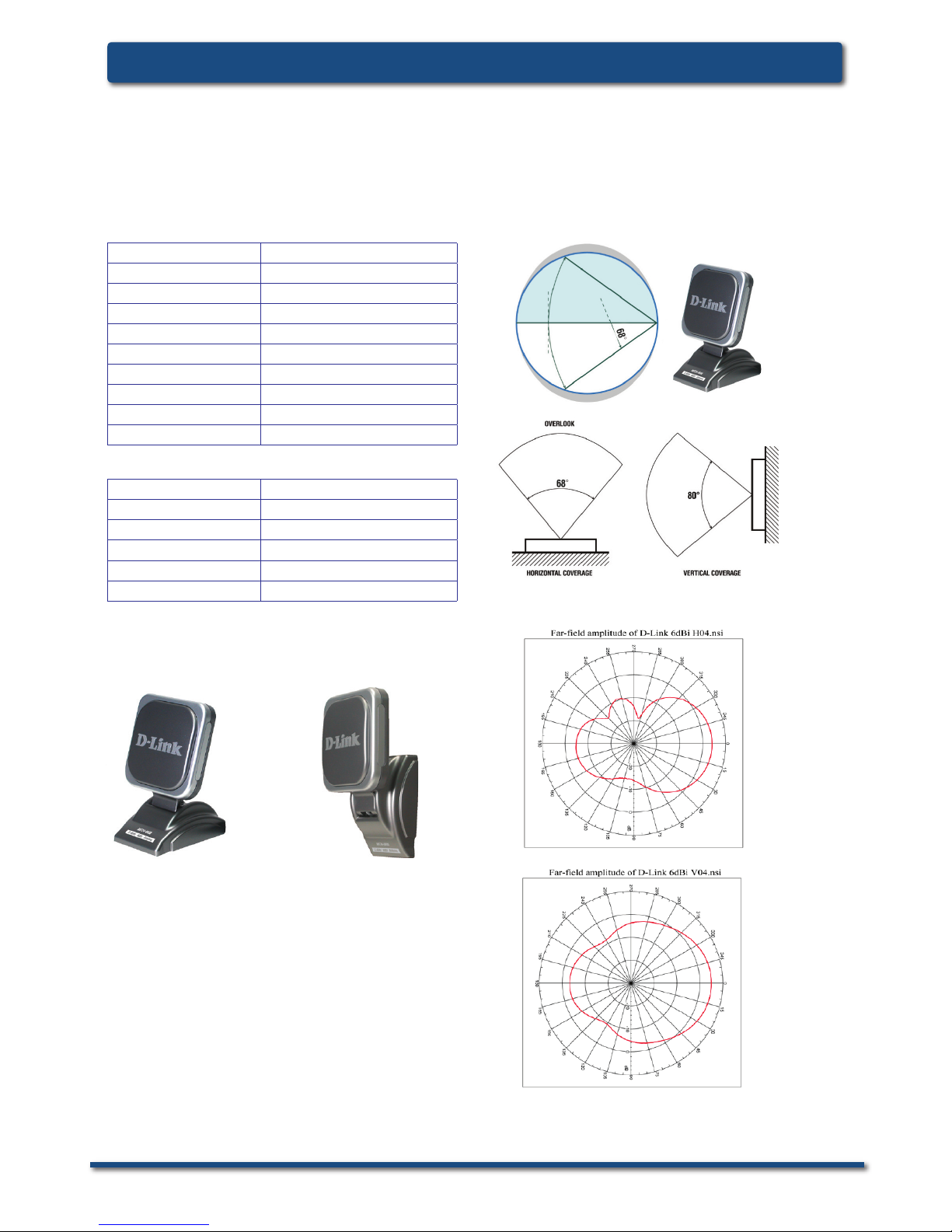

D-Link ANT24-0600
Indoor Directional Antenna
Electrical specifi cation
Physical Properties
Package Contents
-One ANT24-0600 2.4GHz indoor 6dBi directional
Antenna with 1.5 Filotex cable and RP-SMA Jack
connector
-One RP-SMA/ RP-TNC adaptor
-One User’s QIG
-Two Crews
-Two plastic  xings
-One sticker
Frequency Range 2400~2500MHz
Impedance 50Ω Normal
VSWR 1.92 Max
Return Loss -10 dB Maximum
Antenna Structure Pateh antenna
Peak Gain ( w/o cable loss) 6.0 dBi @ 2.45GHz ( typical)
Admitted Power 1 W
Cable loss( 1.5m) [email protected]
E-Plane 68°
H-Plane 80°
Cable Filotex 50Ω
Antenna Cover ABS
Antenna Base PC
Operating Temp -20°C ~ +65°C
Storage Temp -30°C ~ +75°C
Color White
Desktop
Magnetic Attach
Wall Mounting

12
ANT24-0700 Install GuideSystem Requirements
ANT24-0700 Install Guide
System Requirements
ANT24-Series
D-Link ANT24-0700
Indoor Omni-Directional Antenna
Electrical specifi cation
Physical Properties
Frequency Range 2400~2500MHz
Impedance 50Ω Normal
VSWR 1.92 Max
Return Loss -10 dB Maximum
Antenna Structure Helis antenna
Peak Gain ( w/o cable loss) 7dBi
Admitted Power 1 W
Cable loss( 1.5m) [email protected]
E-Plane 24 deg.
H-Plane 360 deg.
Cable RG-178 50Ω
Cable length 1.5 M
Cable color Gray
Connector Reverse SMA plug
Antenna Material ABS, ABS+PC
Operating Temp -20°C ~ +65°C
Storage Temp -30°C ~ +75°C
Color Antenna: Metallic gray and silver
Base: Metallic gray
Package Contents
-D-Link ANT24-0700 2.4GHz Omni-Directional Indoor
Antenna
-SMA to TNC Adapter
-Magnetic Base with 1.5m Extension Cable
-Mounting Kit
-Installation Guide

13
System Requirements
System Requirements
ANT24-Series
D-Link ANT24-0700C
Indoor Omni-Directional Antenna
Electrical specifi cation
Physical Properties
Package Contents
-One ANT24-0700C 2.4GHz 7dBi indoor omni-
directional antenna with a RP-SMA plug connector
-One RP SMA/ RP TNC adapter
-One registration card and company contact guide
Frequency Range 2400~2500MHz
Impedance 50Ω Normal
VSWR 1.92 Max
Return Loss 10 dB Maximum
Antenna Structure Helis antenna
Peak Gain ( w/o cable loss) 7dBi
Admitted Power 1 W
Cable loss( 1.5m) [email protected]
E-Plane 24 deg.
H-Plane 360 deg.
Cable RG-178 50Ω
Cable length 1.5 M
Cable color Gray
Connector Reverse SMA plug
Antenna Material ABS, ABS+PC
Operating Temp -20°C ~ +65°C
Storage Temp -30°C ~ +75°C
Color Antenna: Metallic gray and silver
Base: Metallic gray
Attach to AP/Router

14
ANT24-0700 Install GuideSystem Requirements
ANT24-0700 Install Guide
System Requirements
ANT24-Series

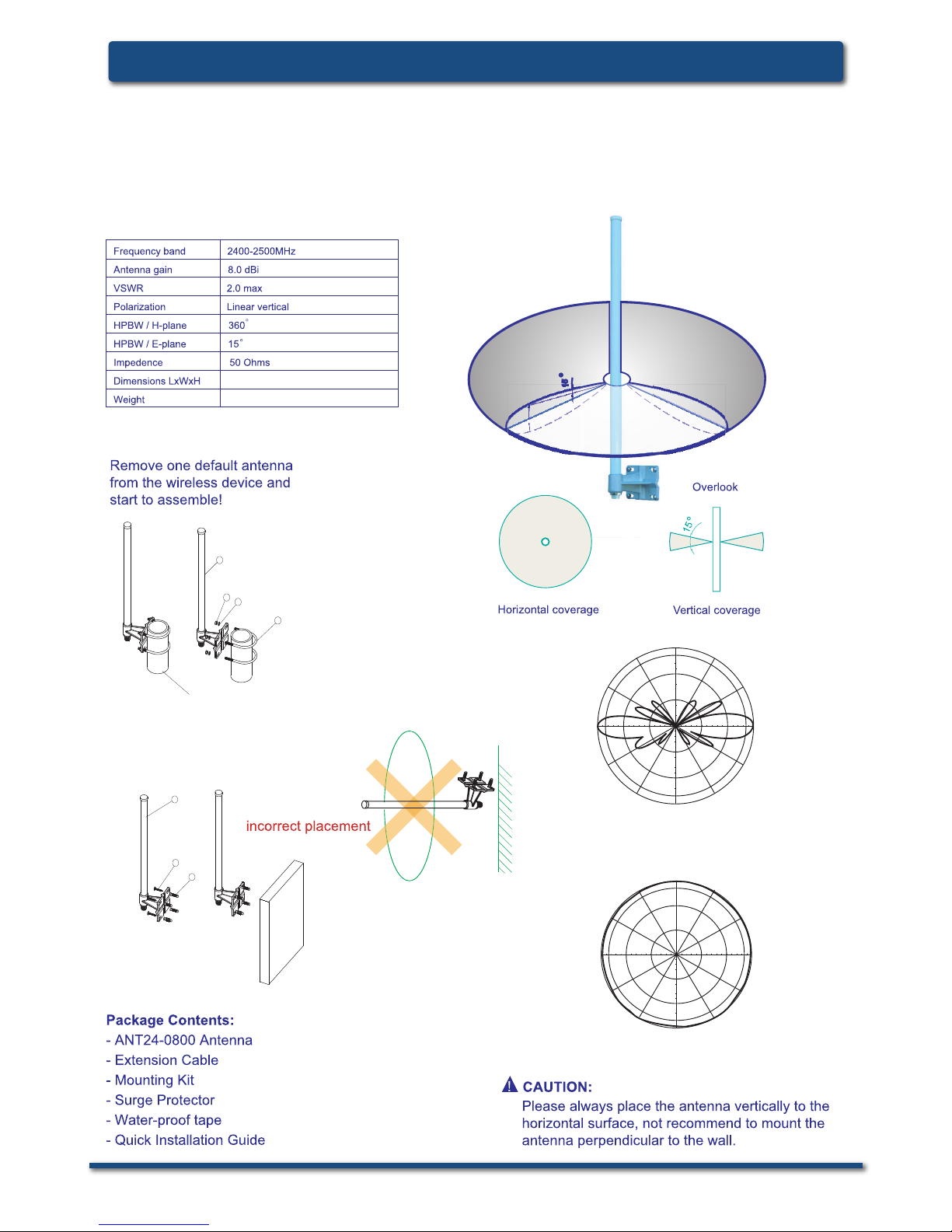

D-Link ANT24-0800 Indoor/Outdoor
Omni-Directional Antenna
Electrical specifi cation
Environmental & Mechanical Characteristics
Mounting Configurations for pole/ wall
Omni-Directional Antenna for 802.11b/g
Pole(max φ=50mm)
Wall
23
1
4
1
5
6
1 Antenna body
2 M5-0.8 nut
3 M5 Washer
4 M5 U-Type Screw
5 Screw
6 Anchor
When you install the antenna,
please try to find an open space like
the picture (1) , avoid to install like
the picture (2) cause the omni-directional
signals might be blocked and performance
be affected.
Picture (1)
Picture (2)
Please always install the antenna
vertically to the horizontal surface, not
recommended to mount it perpendicular
to the wall.
Picture (3)
Omni-Directional Antenna for 2.4 GHz
ANT24-0800A2
Frequency range 2400 MHz - 2500 MHz
Gain 8.0 dBi
VSWR 2.0 : 1 Max.
Polarization Linear, vertical
HPBW / horizontal 360o
HPBW / vertical 15o
Downtilt 0o
Power handling 50 W (cw)
Impedance 50 Ohms
Connector N female
Electrical Specification
Environmental & Mechanical Characteristics
Survival wind speed 216 km/hr
Temperature - 40oC to +80oC
Humidity 95% @ 25oC
Lightning protection DC ground
Radome color Gray-white
Radome material Fiber glass
Weight 337 gw
Dimensions 520 x 19 mm
90o
180o
150o
120o60o
30o
0o
-150o
-90o
-120o-60o
-30o
-3
-10
-20
-30
.
Horizontal
90
o
180
o
150
o
120
o
60
o
30
o
-150
o
-90
o
-120
o
-60
o
-30
o
-3
-10
-20
-30
Vertical
0
o
Mounting Configurations for pole/ wall
Omni-Directional Antenna for 802.11b/g
Pole(max φ=50mm)
Wall
23
1
4
1
5
6
1 Antenna body
2 M5-0.8 nut
3 M5 Washer
4 M5 U-Type Screw
5 Screw
6 Anchor
When you install the antenna,
please try to find an open space like
the picture (1) , avoid to install like
the picture (2) cause the omni-directional
signals might be blocked and performance
be affected.
Picture (1)
Picture (2)
Please always install the antenna
vertically to the horizontal surface, not
recommended to mount it perpendicular
to the wall.
Picture (3)
1.Antenna body
2.M5-0.8 nut
3.M5 Washer
4.M5 U-Type Screw
5.Screw
6.Anchor
Ø19×520mm
340g without joint
(50cm)

15
System Requirements
System Requirements
ANT24-Series

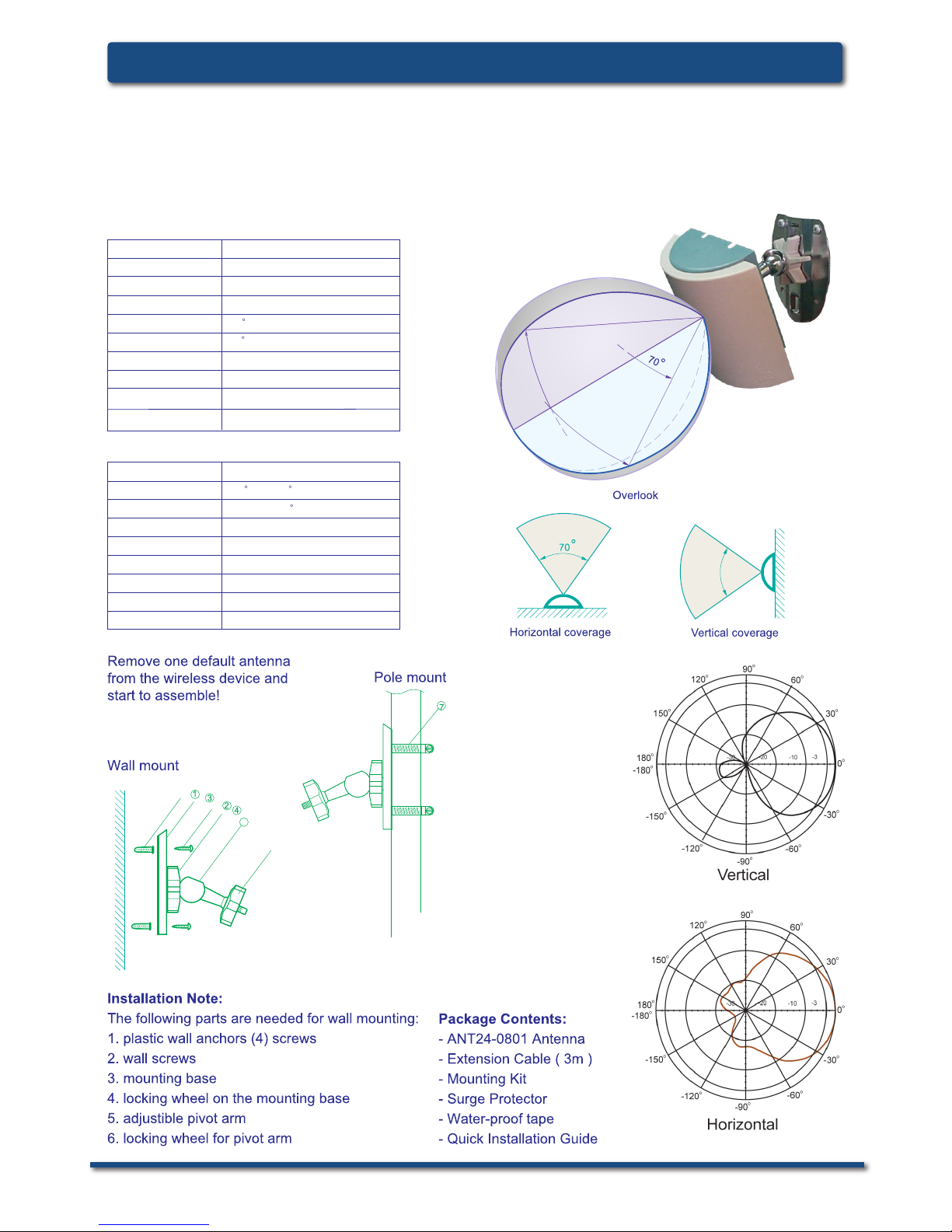

D-Link ANT24-0801 Indoor/Outdoor
Directional Panel Antenna
Electrical specifi cation
Environmental & Mechanical Characteristics
Survival wind speed 216 km/hr
Temperature -40 C to +80 C
Humidity 95% @ 55 C
Lightning protection DC ground
Radome color Gray-white
Radome material ABS, UV resistant
Housing material AL6063
Weight 0.3 kgw
Dimensions 120 x 120 x 43 mm
Frequency 2400~2500MHz
Gain 8.5 dBi
VSWR 1.5 : 1 Max
Polarization Linear, vertical
HPBW / horizontal 65
HPBW / vertical 65
Front to back ratio 15 dB
Power handling 50 W (cm)
Impedance 50 Ohms
Connector N - female
65°

16
ANT24-0700 Install GuideSystem Requirements
16
ANT24-0700 Install Guide
System Requirements
ANT24-Series

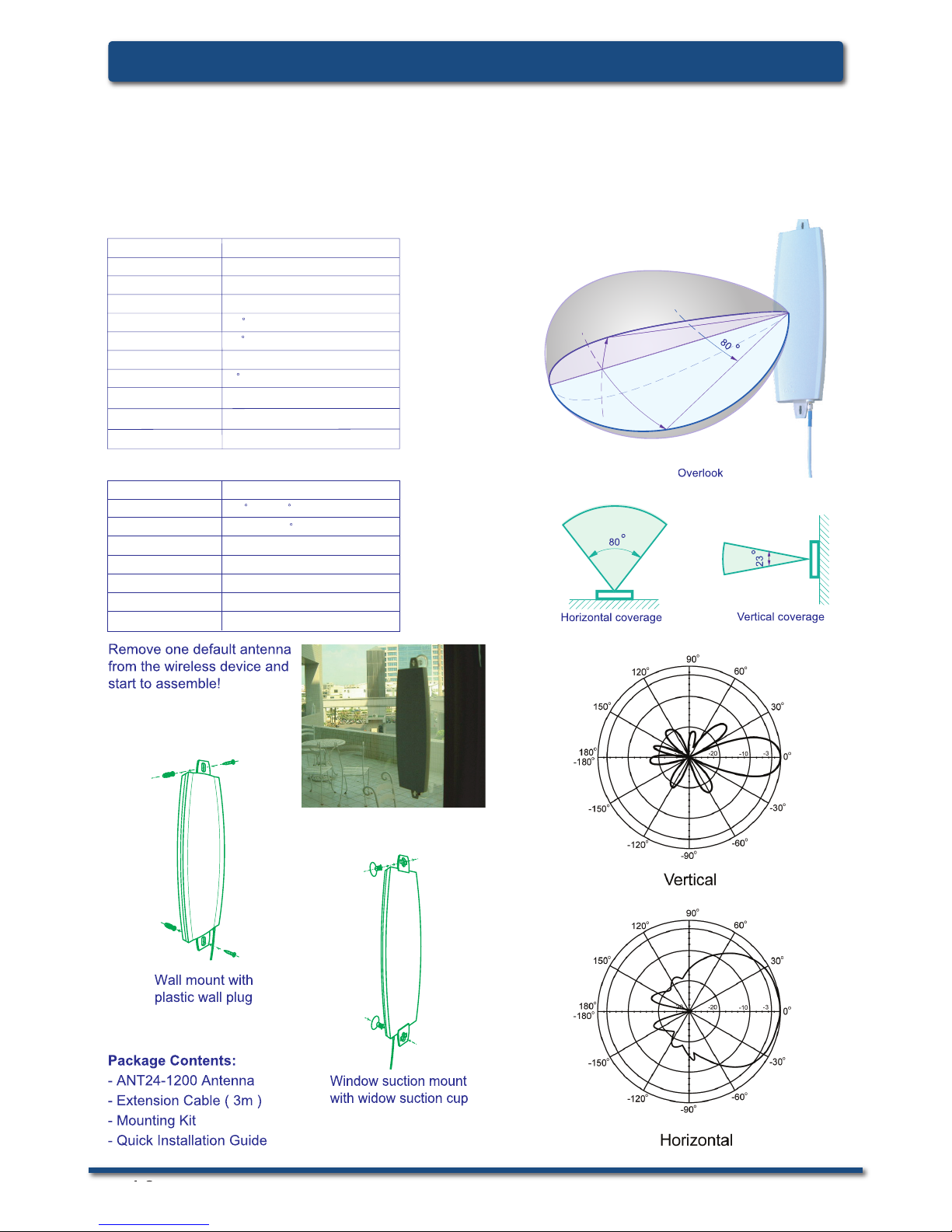

D-Link ANT24-1200
Indoor Directional Panel Antenna
Electrical specifi cation
Environmental & Mechanical Characteristics
Survival wind speed 180 km/hr
Temperature -10 C to +55 C
Humidity 95% @ 55 C
Lightning protection DC ground
Radome color White
Radome material ABS, UV resistant
Weight 19 kgw
Dimensions 330 x 93 x 20.7 mm
Frequency range 2400 MHz - 2500 MHz
Gain 12 dBi
VSWR 1.5 : 1 Max
Polarization Linear, vertical
HPBW / horizontal 80
HPBW / vertical 23
Front to back ratio 15 dB
Downtilt 0
Power handling 20 W(cm)
Impedance 50 Ohms
Connector SMA female

17
System Requirements
System Requirements
ANT24-Series

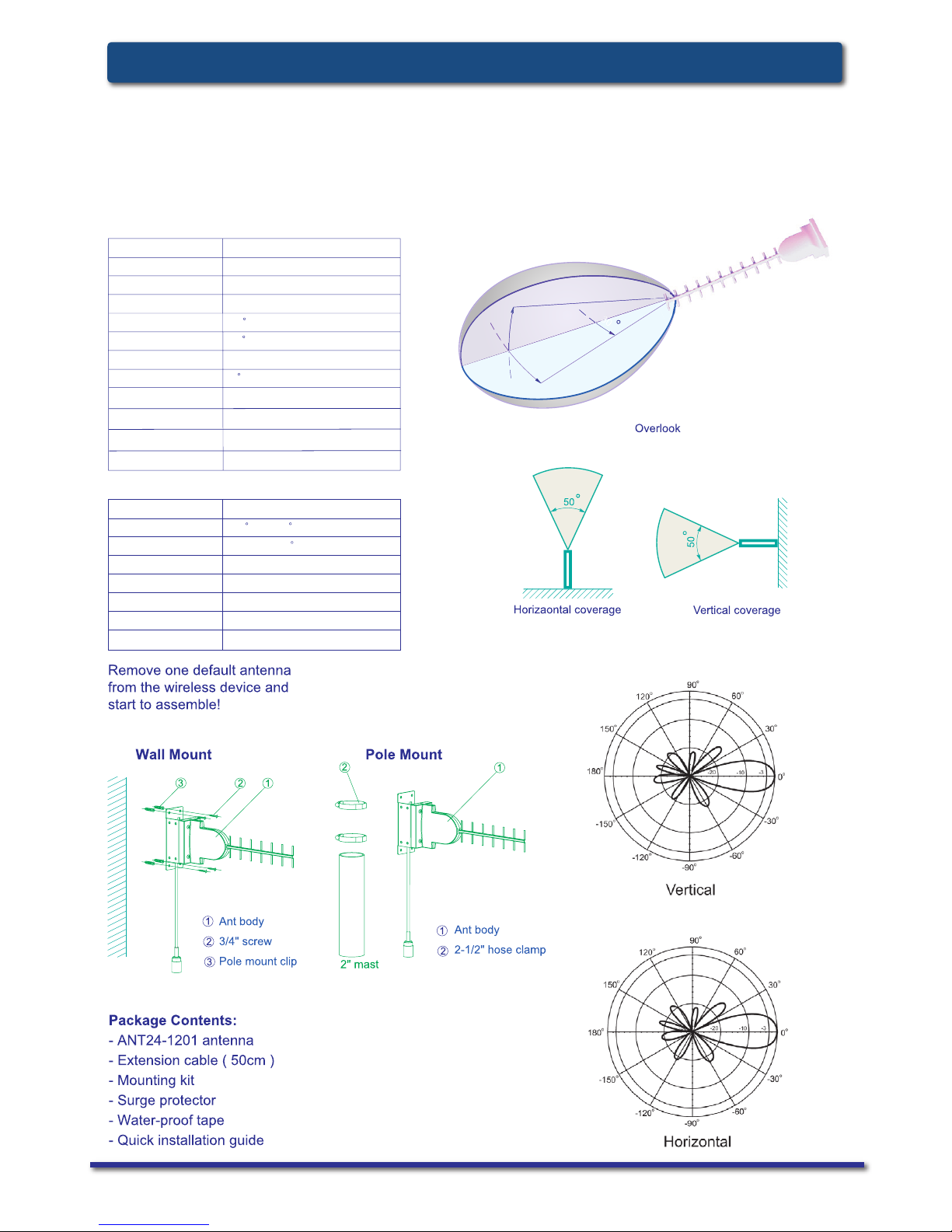

D-Link ANT24-1201
Outdoor Directional Yagi Antenna
Electrical specifi cation
Environmental & Mechanical Characteristics
Survival wind speed 216 km/hr
Temperature -40 C to +80 C
Humidity 95% @ 25 C
Lightning protection DC ground
Radome color Gray-White
Radome material ABS, UV resistant  re retaedant
Weight 0.3 kgw
Dimensions 280 x 87x 48 mm
Frequency range 2400 MHz - 2500 MHz
Gain 12 dBi
VSWR 1.5 : 1 Max
Polarization Linear, vertical
HPBW / horizontal 50
HPBW / vertical 50
Front to back ratio 15 dB
Downtilt 0
Power handling 10 W (cm)
Impedance 50 Ohms
Connector N female
Cable UL 198; 32cm
50

18
ANT24-0700 Install GuideSystem Requirements
18
ANT24-0700 Install Guide
System Requirements
ANT24-Series

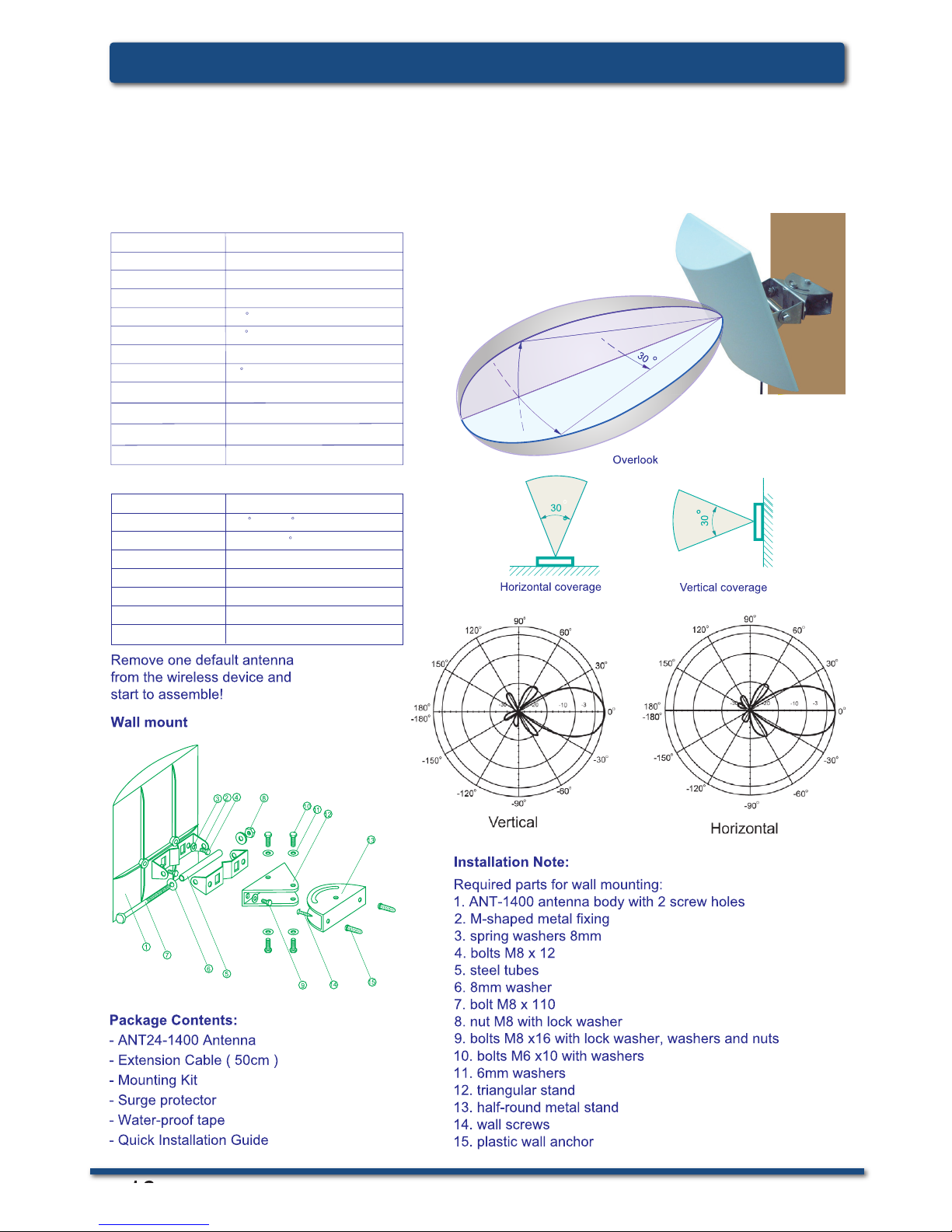

D-Link ANT24-1400
Outdoor Directional Panel Antenna
Electrical specifi cation
Environmental & Mechanical Characteristics
Survival wind speed 216 km/hr
Temperature -40 C to +80 C
Humidity 100% @ 25 C
Lightning protection DC ground
Radome color Gray-White
Radome material ABS, UV resistant
Weight 0.825 kgw
Dimensions 240 x 240x 69.5 mm
Frequency range 2400 MHz - 2500 MHz
Gain 14 dBi
VSWR 1.5 : 1 Max
Polarization Linear, vertical
HPBW / horizontal 30
HPBW / vertical 30
Front to back ratio 15 dB
Downtilt 0
Power handling 10 W (cm)
Impedance 50 Ohms
Connector N female
Cable ULA198

19
System Requirements
System Requirements
ANT24-Series

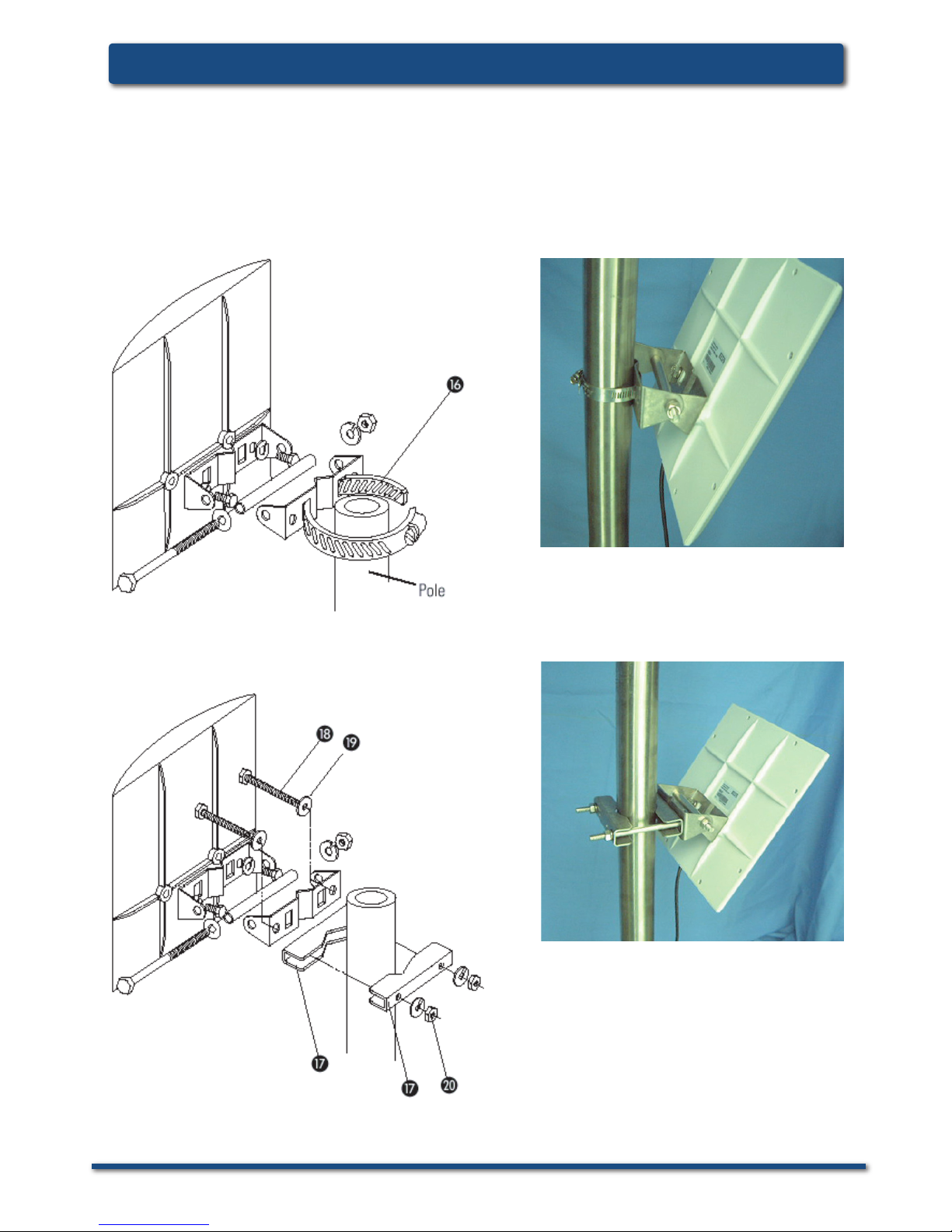

D-Link ANT24-1400(cont.)
Outdoor Directional Panel Antenna
Pole mounting
method 1.
Pole mounting
method 2.

20
ANT24-0700 Install GuideSystem Requirements
20
ANT24-0700 Install Guide
System Requirements
ANT24-Series

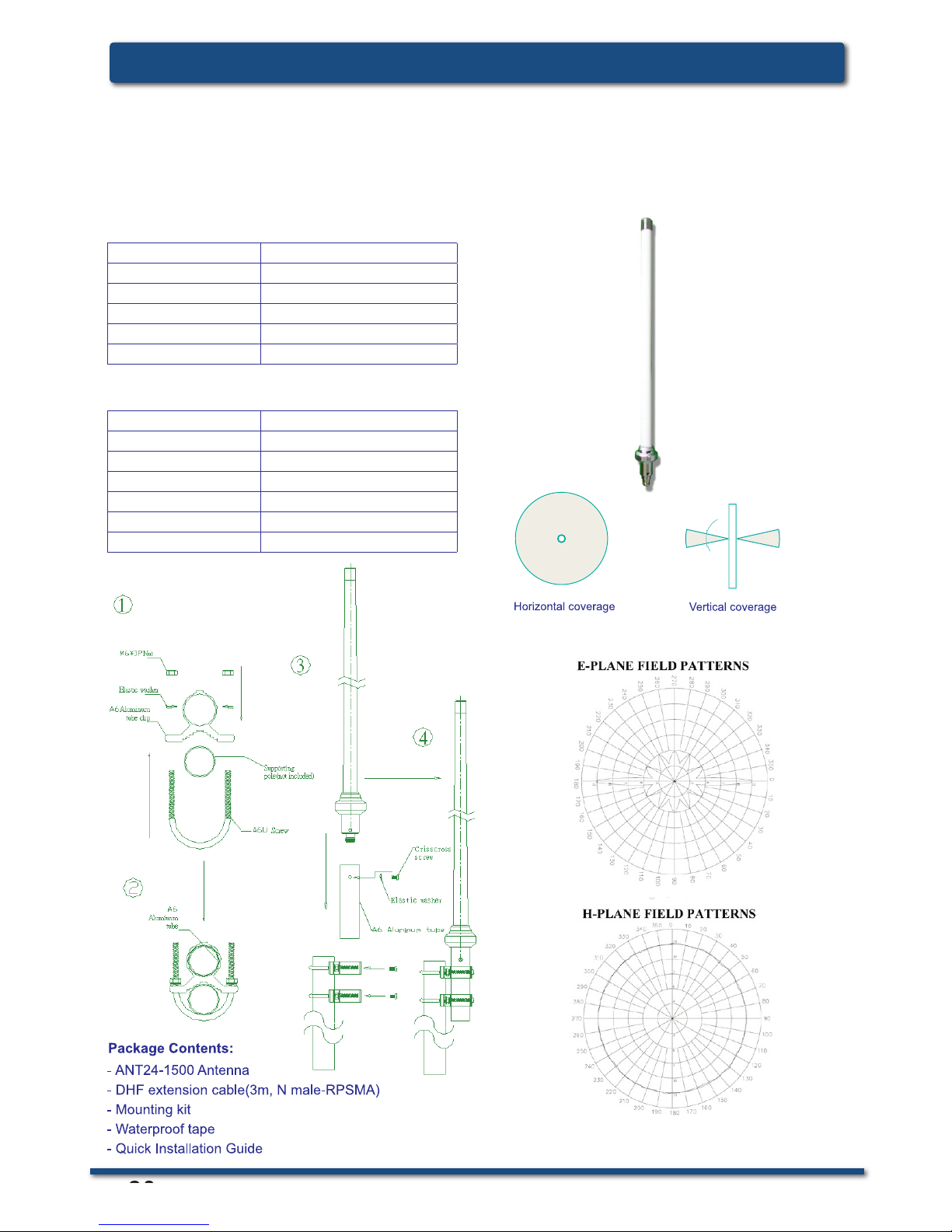

D-Link ANT24-1500 Outdoor Omni-
Directional Panel Antenna
Electrical specifi cation
Mechanical Properties
Frequency Range 2400~2500 MHz
Impedance 50 OHMS ±5Ω
SWR 1=1.3 Max
Gain 15 dBi
Radiation Omni directional
Polarization Vertical
Connector N ( FEMALE)
Weight 1050 g
Radiator Copper
Radome Fiberglass
Mounting Zinc
Guide Pipe Aluminum Alloy
Bracket Aluminum Alloy
Magnetic Attach
8
