D-Link ANT24-0600 User manual

This product is compatible
with 2.4GHz wireless
networking devices.
Check Your Package Contents
If any of the above items are missing, please contact your reseller.
©2005 D-Link® Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders.
Software and specifi cations subject to change without notice. ANT24-0600.05072004
These are the items included with your ANT24-0600
ANT24-0600 Antenna with 1.5m cable
Mounting Accessories (1 Sticker, 2 plastic
anchors, 2 screws )
RP-SMA to RP-TNC adapter
• Always place the antenna on a fl at or secure surface.
• Concealing the antenna behind books, cabinets or other offi ce equipment
may affect the performance of the wireless network.
• The antenna transmission range may vary according to different
environments or applications.
• This antenna has a magnetic meterial embedded inside that might cause
damage to surrounding objects, including memory card, storage disks
and credit cards...etc. Please ensure to keep these objects at least 15
cm away from this antenna to avoid possible damage.
Ver. 1.00
ANT24-0600
2.4 GHz 6 dBi Directional
Indoor Antenna

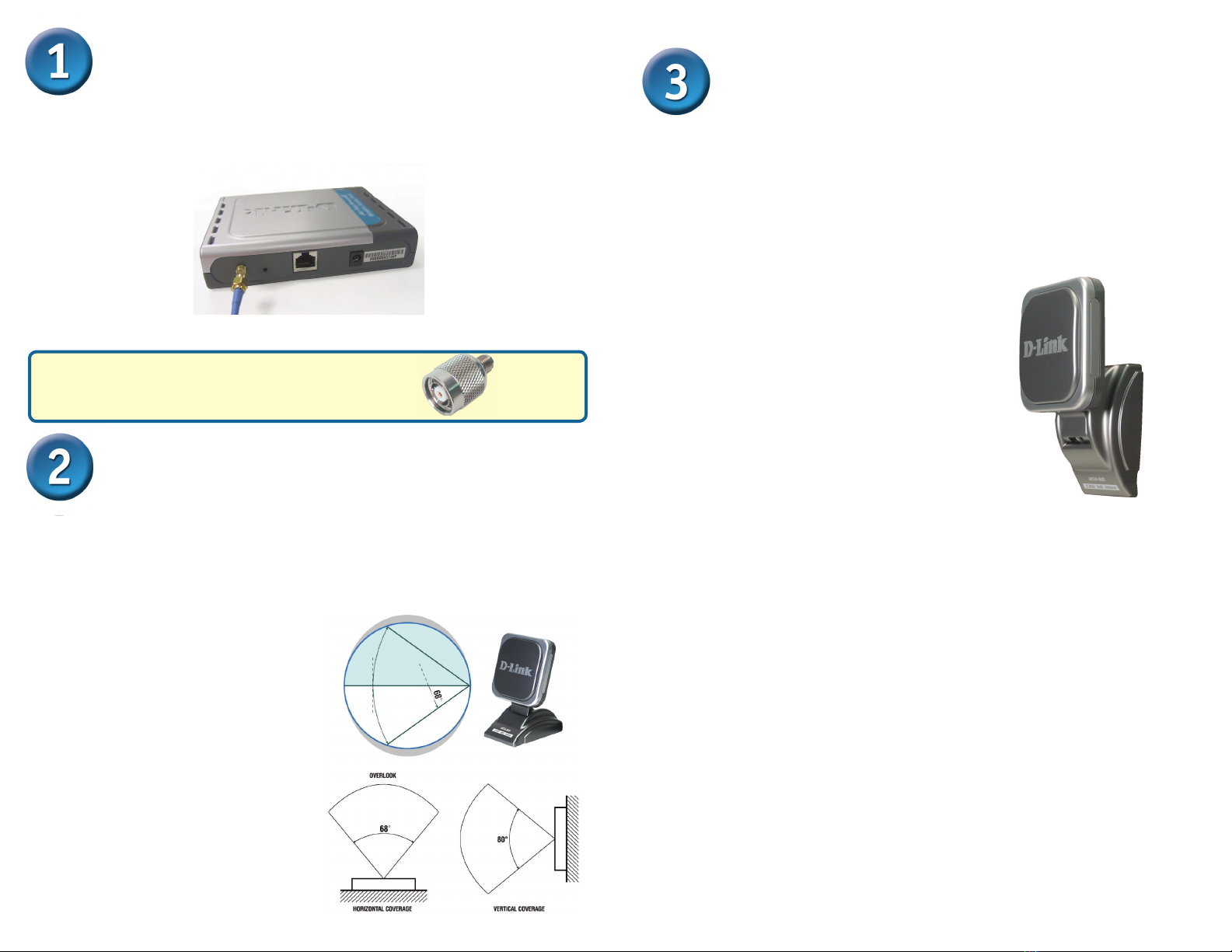

Connecting the Antenna
The ANT24-0600 attaches to the RP-SMA connector that is standard on most
D-Link® products. Simply disconnect your existing antenna and connect the cable
from the ANT24-0600 to the RP-SMA connector on your D-Link® product.
Installing the ANT24-0600
The ANT24-0600 also includes an RP-SMA to
RP-TNC adapter for attaching the ANT24-0600
to products with a RP-TNC connector.
Mounting the Antenna (optional)
A. Simply remove the default antenna from device such as AP or Router and
replace it with ANT24-0600.
B. Identify an optimal location for the antenna. The antenna can be placed on a
fl at surface such as desk, mounted on the wall or use magnetic mounting method
to places such as partition.
Note : Allow the cable to bend naturally.
It’s recommended that you place the
antenna near wireless devices to avoid
excessive strain on the cable and
connector.
C. Adjust the angle of the antenna to a
right angle, which can attain better signal
transmission and a larger coverage area.
A. Wall Mounting :
Step 1 : Identify a mounting location and place the sticker on.
Step 2 : Use a 4/16”drill bit to drill holes at 2 marked places on sticker.
Step 3 : Tap the plastic anchors gently into the hole by using a rubber
mallet or hammer.
Step 4 : Use a screwdriver to secure the screws
into the plastic anchors.
Be sure to leave enough space so the
antenna base will slide over the head of
the screw.
Step 5 : Place the antenna base over the screw
and slide it into the locking position.
B. Magnetic Mounting :
Step 1 : Identify a mounting location which is
available for magnetic using. For example
: Offi ce partition, white board, etc.
Be sure not to place antenna onto monitor,
hard disk, notebook, etc.

International Offices
U.S.A
17595 Mt. Herrmann Street
Fountain Valley, CA. 92708
TEL: [phone]
FAX: [phone]
URL: www.dlink.com
Canada
2180 Winston Park Drive
Oakville, Ontario, L6H 5W1
Canada
TEL: [phone]
FAX: [phone]
URL: www.dlink.ca
Europe (U. K.)
4th Floor, Merit House
Edgware Road, Colindale
London NW9 5AB
U.K.
TEL: [phone]
FAX: [phone]
URL: www.dlink.co.uk
Germany
Schwalbacher Strasse 74
D-65760 Eschborn
Germany
TEL: [phone]
FAX: [phone]
URL: www.dlink.de
France
Le Florilege #.2, Allee de la Fresnerie
78330 Fontenay le Fleury
France
TEL: [phone]
FAX: [phone]
URL: www.dlink-france.fr
Netherlands
Weena 290
3012 NJ Rotterdam
Netherlands
Tel: [phone]
Fax: [phone]
URL: www.dlink-benelux.com
Belgium
Rue des Colonies 11
B-1000 Brussels
Belgium
Tel: [phone]
Fax: [phone]
URL: www.dlink-benelux.com
Italy
Via Nino Bonnet n. 6/b
20154 – Milano,
Italy
TEL: [phone]
FAX: [phone]
URL: www.dlink.it
Sweden
P.O. Box 15036, S-167 15 Bromma
Sweden
TEL: [phone]
FAX: [phone]
URL: www.dlink.se
Denmark
Naverland 2, DK-2600
Glostrup, Copenhagen,
Denmark
TEL: [phone]
FAX: [phone]
URL:www.dlink.dk
Norway
Karihaugveien 89
1086 Oslo
Norway
TEL: [phone]
FAX: [phone]
URL: www.dlink.no
Finland
Pakkalankuja 7A
01510 Vantaa,
Finland
TEL : [phone]
FAX: + 358-9-2707 5081
URL: www.dlink.fi
Iberia
C/Sabino De Arana,
56 Bajos
08028 Barcelona
TEL: [phone]
FAX: [phone]
URL: www.dlinkiberia.es
Singapore
1 International Business Park
#03-12 The Synergy
Singapore 609917
TEL: [phone]
FAX: [phone]
URL: www.dlink-intl.com
Australia
1 Giffnock Avenue,
North Ryde, NSW 2113
Australia
TEL: [phone]
FAX: [phone]
URL: www.dlink.com.au
India
D-Link House, Kurla Bandra Complex Road,
Off CST Road, Santacruz (East), Mumbai -
400098.
India
TEL: [phone]
FAX: [phone]
URL: www.dlink.co.in
Middle East (Dubai)
P.O.Box: 500376
Office No.:103, Building:3
Dubai Internet City
Dubai, United Arab Emirates
Tel:[phone]
Fax:[phone]
URL: www.dlink-me.com
Turkey
Maslak Ayazaga Yolu
No: 2 Kat :5
Ayazaga-Istanbul
TURKEY
TEL: [phone]
FAX: [phone]
URL: www.dlink.com.tr
Egypt
19 El-Shahed Helmy, El Masri
Al-Maza, Heliopolis
Cairo,Egypt.
TEL:[phone]
FAX:[phone]
URL: www.dlink-me.com
Israel
11 Hamanofim Street
Ackerstein Towers, Regus Business Center
P.O.B 2148, Hertzelia-Pituach 46120.
Israel
TEL: [phone]
FAX: [phone]
URL: www.dlink.co.il
LatinAmerica
Isidora Goyeechea 2934 of 702,
Las Condes
Santiago – Chile S.A.
TEL: [phone]
FAX: [phone]
URL: www.dlink.cl
Brasil
Av das Nacoes Unidas,
11857 - 14 - andar - cj 141/142
Brooklin Novo
Sao Paulo - SP - Brazil
CEP 04578-000
TEL: [phone]
FAX: [phone]
URL: www.dlinkbrasil.com.br
South Africa
Einstein Park II
Block B
102-106 Witch-Hazel Avenue
Highveld Technopark
Centurion
Gauteng
Republic of South Africa
TEL: [phone]
FAX: [phone]
URL: www..d-link.co.za
Russia
Grafsky per., 14, floor 6
Moscow
129626 Russia
TEL: [phone]
FAX: [phone] #350
URL: www.dlink.ru
China
No.202,C1 Building, Huitong Office Park,
No.71, Jianguo Road, Chaoyang District,
Beijing,
100025, China.
TEL [phone]
FAX: [phone]
URL: www.dlink.com.cn
Taiwan
2F, No. 119, Pao-Chung Rd.
Hsin-Tien, Taipei
Taiwan
TEL: [phone]
FAX: [phone]
URL: www.dlinktw.com.tw
Headquarters
2F, No. 233-2, Pao-Chiao Rd.
Hsin-Tien, Taipei
Taiwan
TEL: [phone]
FAX: [phone]
URL: www.dlink.com.tw

Registration Card
