D-Link DWL-R60AT User manual

The D-Link DWL-R60AT is an indoor 6
dBi Microstrip Antenna.
The D-Link DWL-R60AT connects to
the DWL-900AP+, DI-614+, DI-714P+,
DWL-900AP, DI-714 and DI-713P.
The D-Link DWL-R60AT antenna pro-
vides extended coverage for an existing
802.11b wireless local area network
(WLAN). Using a reverse SMA connec-
tor, the D-Link DWL-R60AT is easily
connected to the DWL-900AP+ wireless
access point, DI-614+ wireless router,
DI-714P+ wireless router, DWL-900AP
wireless access point, DI-714 wireless
router and the DI-713P wireless router Rev
C1 or later wireless broadband router.
6 dBi Signal Gain
2.4GHz Frequency Range
Microstrip Technology for
Maximum Performance
Circular Polarization Diminish
the Interference from Multi-Path
D-LLink
DWL-RR60AT
IInnddoooorr
66 ddBBii MMiiccrroossttrriipp AAnntteennnnaa
Data Sheet

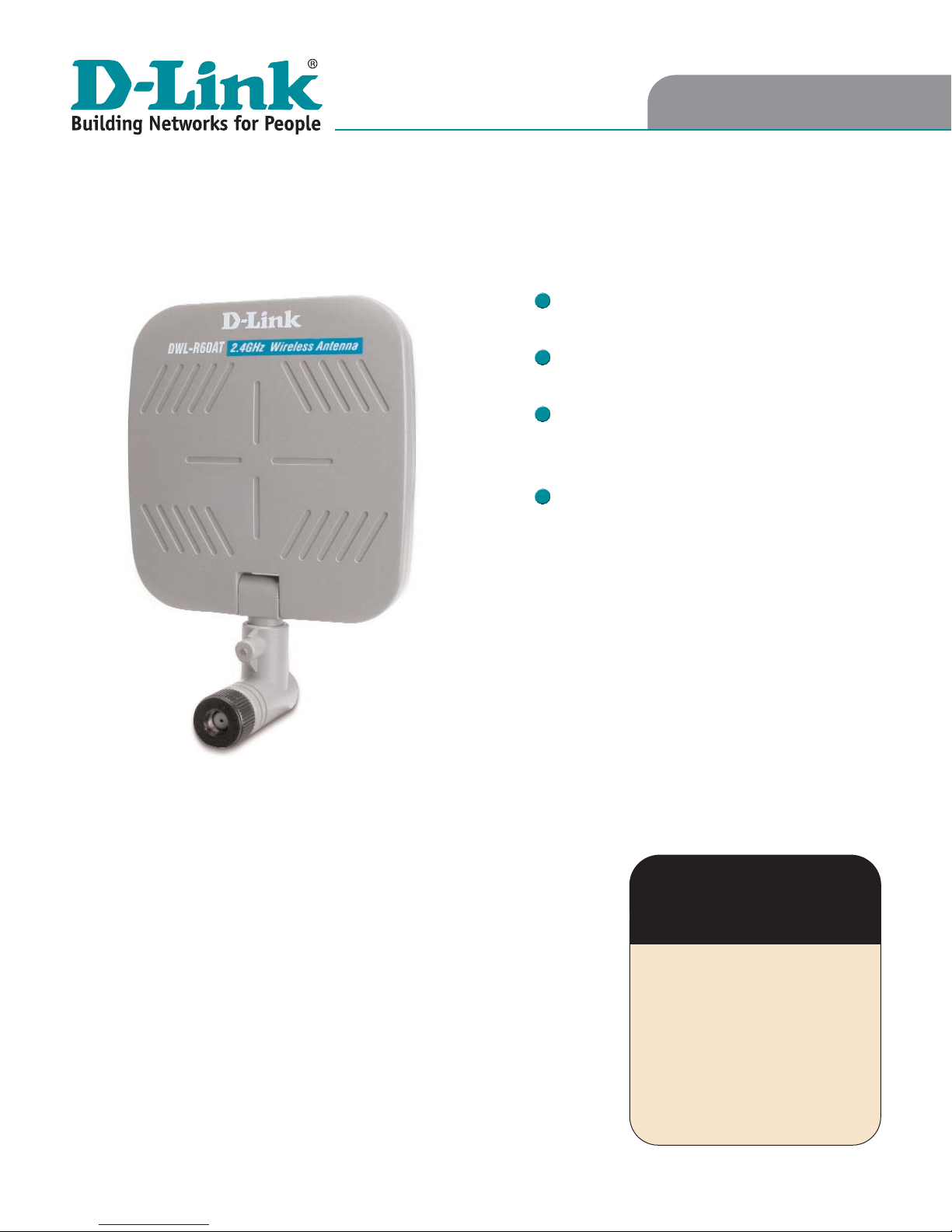

Indoor 6 dBi Microstrip Antenna
The D-Link
DWL-R60AT Includes
Antenna
Manual

Data Sheet
Technical
Specifications
Electrical Specifications
Frequency range
2.4-2.4835GHz
Antenna Type
Microstip Patch
Gain
6 dBi
VSWR
2.0 Max
HPBW
• horizontal - 60°
• vertical- 90°
Polarization
Linear
3 dB Beamwidth
60°@ H-plane for vertical polarization
3 db Beamwidth
90°@ E-plane for vertical polarization
Front-to-Back Gain Ratio
50W (cw)
Input Impedance
50 Ohms
Connector
SMA Female
Output
SMA (M)
D-LLink DWL-RR60AT
IInnddoooorr
66 ddBBii MMiiccrroossttrriipp AAnntteennnnaa
Environmental & Mechanical
Characteristics
Size Without Case
5.84 x 5.84 x 0.6 cm
Size With Case
7.11 x 7.11 x 1.27 cm
Warranty
1 Year
