Network Camera Enclosures
D-Link Camera Enclosures offer a cost-effective solution for protecting your D-Link Network Camera from the elements and assures proper camera operation
in various environmental conditions. D-Link offers multiple enclosures to fit many applications including models with IP66 rating to protect your camera
from environmental elements, built-in heater and blower to ensure proper operational temperature in extreme weather conditions, built-in power supply to
minimize installation costs, and PoE support for greater placement flexibility.
Technical Specifications
Model Number DCS-45
Description The DCS-45 includes a thermal barrier design to withstand temperature fluctuations, a flip open top, and adjustable
bracket for easy installation.
Supported Devices DCS-3420, DCS-3410, DCS-3110
Dimensions (W x D x H) 5” x 15.4” x 4.9” (127mm x 390mm x 124mm)
Weight 6.61lbs (3.0kg)
Material Aluminum Housing with Steel Bracket
Color Light Gray Powder Coating
Model Number DCS-50
Description The DCS-50 is IP66 rated for protection against dust and heavy jets of water. This model includes a built-in power supply
for easy cable management.
Supported Devices DCS-3420, DCS-3410, DCS-3110
IP Rating IP66
Power Supply 90 to 264V AC Input, 12V DC, 3A Output
Dimensions (W x D x H) 5” x 15.4” x 4.9” (127mm x 390mm x 124mm)
Weight 6.72lbs (3.05kg)
Material Aluminum Housing
Color White
Operation Temperature -4° to 113°F (-20° to 45°C) (Enclosure)
Humidity 5% to 95% RH non-condensing (Enclosure)
Network Camera Enclosures

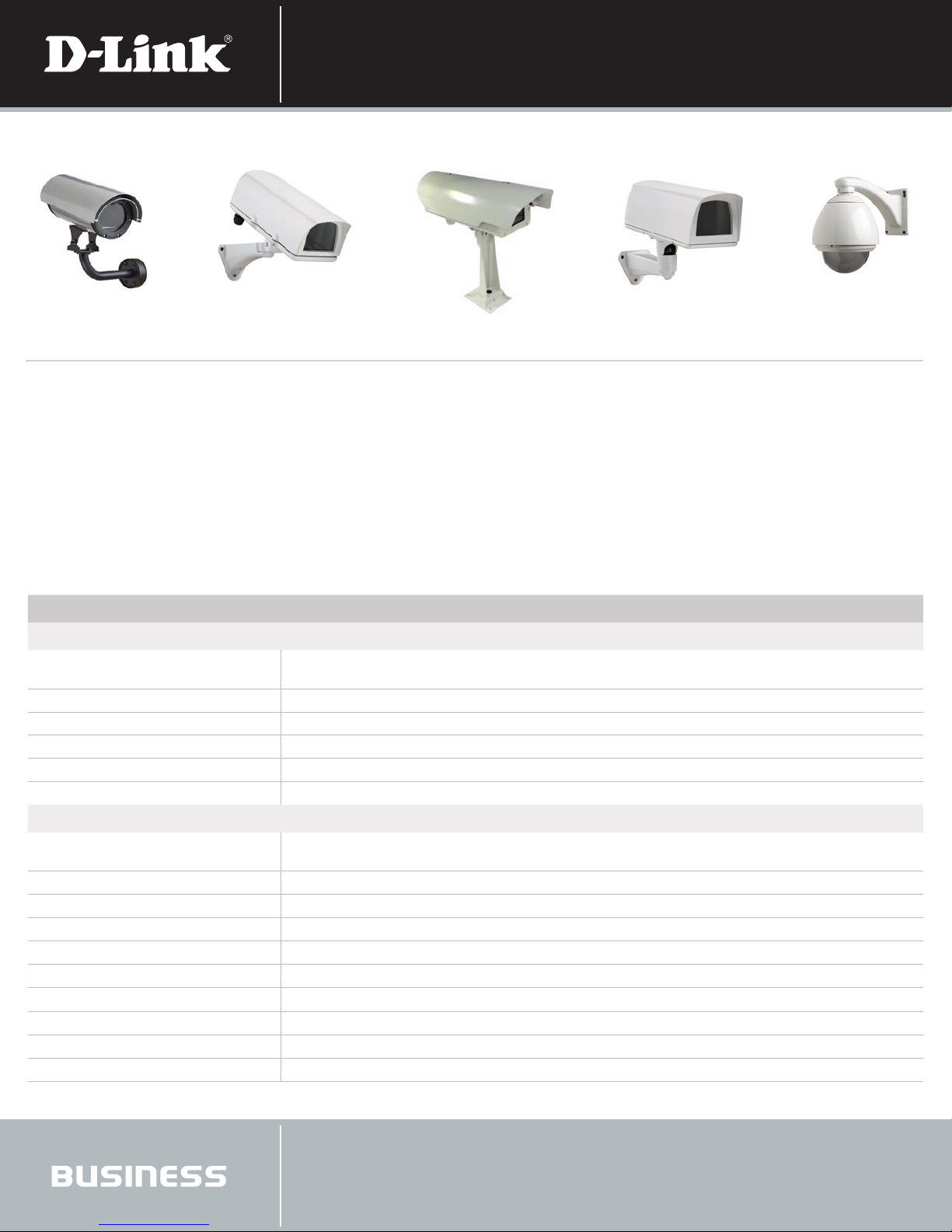

DCS-45 DCS-50 DCS-55 DCS-60 DCS-70

D-Link Systems, Inc. 17595 Mt. Herrmann Street Fountain Valley CA 92708
©2009 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the
D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries in the
United States and/or other countries. Other trademarks or registered trademarks are
the property of their respective owners. Visit www.dlink.com for more details.
Model Number DCS-55
Description The DCS-55 is IP66 rated for protection against dust and heavy jets of water. This model includes a heater and blower
for camera operation in environments with extreme temperature fluctuations. The Power over Ethernet enables greater
placement flexibility and minimizes installation costs.
Supported Devices DCS-3420, DCS-3410, DCS-3110
IP Rating IP66 Certified with PoE, Heater and Blower
Power Supply PoE 802.3af, (12V DC Output)
Dimensions (WxDxH) 5.9” x 17.3” x 4.7” (150mm x 440mm x 120mm)
Weight 5lbs (2.27kg)
Material Aluminum Housing
Color Beige
Operation Temperature -22° to 140°F (-30° to 60°C) (Enclosure)
Humidity 5% to 95% RH non-condensing (Enclosure)
Model Number DCS-60
Description The DCS-60 is IP44 rated for protection against splashing water. This model includes a heater and blower for camera
operation in environments with extreme temperature fluctuations. The built-in power supply simplifies the installation
procedure.
Supported Devices DCS-3420, DCS-3410, DCS-3110
IP Rating IP44
Power Supply 90 to 264V AC Input, 12V DC, 3A Output
Heater On at 64°F (18°C), Off at 82°F (28°C)
Blower On at 95°F (35°C), Off at 77°F (25°C)
Dimensions (W x D x H) 5.3” x 17.7” x 5.5” (135mm x 450mm x 140mm)
Weight 9.47lb (4.3kg)
Material Aluminum Housing
Color White
Operation Temperature -4° to 113°F (-20° to 45°C) (Enclosure)
Humidity 5% to 95% RH non-condensing (Enclosure)
Model Number DCS-70
Description The DCS-70 is a dome-type enclosure and is designed for use with D-Link motorized pan/tilt cameras. This IP66 rated
enclosure protects your camera against dust and heavy jets of water. Camera installation is simplified with the built-in
power supply, while the heater and blower keeps your camera in proper operational temperatures.
Supported Devices DCS-6620, DCS-6620G, DCS-5610, DCS-5300, DCS-5300G, DCS-5220
IP Rating IP66
Power Supply 90 to 264V AC Input, 12V DC, 3A Output
Heater On at 32°F (0°C), Off at 50°F (10°C)
Blower On at 104°F (40°C), Off at 86°F (30°C)
Dimensions (H x D) 8.86” x 8.58” (225mm x 218mm)
Weight 7.27lb (3.4kg)
Material Aluminum Housing with Smoked Acrylic Cover
Color Beige
Operation Temperature -4° to 113°F (-20° to 45°C) (Enclosure)
Humidity 5% to 95% RH non-condensing (Enclosure)
