Cordless Internet Phone
Support http://www.d-life.com/contact/

iD-Link DHA-130 User Manual
Quick Reference Guide
Setting up your phone for the rst time
Basic handset usage
Managing your device on the D-Life website
p. 7
p. 21
p. 40

iiD-Link DHA-130 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to
notify any person or organization of such revisions or changes. Information in this document may become obsolete
as our services and websites develop and change - please refer to the www.d-life.com website for the most current
information.
Manual Revisions
Revision Date Description
    1.00   June12,2008  DHA-130revisionA1withrmware1.0
Trademarks
D-Link, D-Life, and their respective logos are trademarks or registered trademarks of D-Link Systems or its subsidiaries
in the United States or other countries. All other company or product names mentioned herein are trademarks or
registered trademarks of their respective companies.
Copyright © 2008 by D-Link Systems, Inc. All rights reserved. This publication may not be reproduced, in whole or in
part, without prior expressed written permission from D-Link Systems, Inc.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a Particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

iiiD-Link DHA-130 User Manual
Table of Contents
Quick Reference Guide................................................ i
Product Overview ........................................................ 1
Features .................................................................. 2
Package Contents ................................................... 3
System Requirements ............................................. 4
Installation....................................................................7
Before you Begin ..................................................... 7
Step 1: Install your Cordless Internet Phone ........... 8
Step 1.1: Connect the Ethernet Cable ...............8
Step 1.2: Connect the Phone Cable ..................8
Step 1.3: Connect the Power Adapter ...............9
Step 1.4: Insert the Batteries .............................9
Step 2: Activate Your Product ...............................10
Creating a D-Life Account - New Users...........10
Adding a Device - Existing Users ....................13
Installing ActiveX® Controls .............................. 15
Checking your connection .....................................16
Setting up a static IP or PPPoE connection ..........18
Getting Started........................................................... 21
Basic handset controls ..........................................21
D-Life Internet calling............................................. 22
Traditional calling................................................... 23
Redialing a call ......................................................23
Receiving calls....................................................... 24
During a call........................................................... 25
Using the Phonebook ............................................26
Deleting your Phonebook ......................................28
Using call logs .......................................................29
Paging your handset.............................................. 30
Intercom calls ........................................................ 31
Direct page ............................................................ 32
Changing the ringer melody ..................................33
Call transfer ........................................................... 34
Setting the time and date....................................... 35
Extra functions ....................................................... 38
D-Life ..........................................................................40
Call Log ................................................................. 41
Phonebook (D-Life) ............................................... 42
D-Life Internet Call Forwarding.............................. 43
Info......................................................................... 44
D-Life Widget.........................................................45
Appendix A: Managing your handsets.................... 47
Appendix B: Connecting to the base station.......... 49
Method 1: Web Interface .................................49
Method 2: Direct connection ............................50
Appendix C: Changing the time zone...................... 54
Appendix D: Upgrading the rmware...................... 55
Appendix E: Setting your country code.................. 56
Appendix F: Technical Specications .................... 57
Table of Contents

1D-Link DHA-130 User Manual
Section 1 - Product Overview
Product Overview
Thank you for purchasing the DHA-130 Cordless Internet Phone. Aside from being a high-end cordless DECT phone,
it also allows you to call any D-Life user for free for as long as you want, whenever you want, for as long as you want.
Call other D-Life phones simply by dialing a unique 8-digit D-Life number, or make long distance and international calls
to traditional phone numbers at heavily discounted rates through D-Life service.

2D-Link DHA-130 User Manual
Section 1 - Product Overview
Dual Mode Phone – Free calling over the internet using a real cordless phone
The DHA-130 gives you the cost savings of internet calling with the convenience of a dual-mode cordless phone.
Call any D-Life member across the globe anytime, for as long as you want, for free. You can also call any landline or
mobile telephone number at heavily discounted rates. Make long distance and international calls all at the same low
rate.YoucanplaceandreceiveinternetcallsaseasilyastraditionalphonecallswithoutsacricingPSTNaccess.
Unique 8-digit D-Life phone number
By embedding D-Life service into the DHA-130, you can make and receive calls without a PC. Every phone is bundled
with a unique 8-digit D-Life number free of charge that makes it easy to call any D-Life member. There are no user
names or e-mail addresses you need to enter into your phone – just dial their 8-digit D-Life number. The calling process
is transparent and does not require you to learn complicated calling procedures.
Zero-conguration setup
Installing the DHA-130 is incredibly simple and requires no networking knowledge. Simply go to the D-Life website
andregisteryourDHA-130,thenplugitinandconnectittoyourInternetrouter.Thereisnorouterconguration,port
forwarding, or other complicated procedure needed – the DHA-130’s auto-provisioning and NAT traversal automatically
connect to the D-Life service for you.
Bundled D-Life Services
Not only does the DHA-130 provide users with a feature-rich dual-mode phone, but it also comes bundled with D-Life
services free of charge. The D-Life service portal allows you to manage all your D-Life devices, and manage your
accountdetailsthroughauser-friendlyinterface.Itgivesyouaconvenientwaytoedityouruserprole,buyD-Life
credit, check your order history and more. You can also view your call log, manage your DHA-130’s phonebook, and
setup call forwarding, all from the same website.
Features

3D-Link DHA-130 User Manual
Section 1 - Product Overview
• Handset
• Base Station
• Belt Clip
• Power Adapter
• 2 AAA Batteries (rechargeable)
• Ethernet Cable (white)
• Phone Cable
• Quick Install Guide
• Registration Card (attached to Quick Install Guide)
• Battery Safety Card
• Warranty Card
Package Contents
Warning: Using a power supply with a different voltage rating than the one included
with the DHA-130 will cause damage and void the warranty for this product.
Warning: Only use the included rechargeable batteries or NiMH 750mAh AAA batteries in the
DHA-130 handset. Do not use alkaline or other types of rechargeable batteries, as they
may leak or explode when the DHA-130 handset is placed on the base station to charge.

4D-Link DHA-130 User Manual
Section 1 - Product Overview
System Requirements
To use the DHA-130 phone, you should have the following:
• Router/modem with an available Ethernet port1
• Internet connection with at least 128K upload/download bandwidth
• Available 100-240V, 50/60Hz AC power outlet
You will also need the following in order to register your
DHA-130 and manage it on the d-life.com website:
PC:
• Operating system - Windows 2000/XP/Vista 32-bit
• Processor speed - 600MHz or faster
• Memory - 256MB RAM minimum
• Browser - Internet Explorer 6 or higher
• Network interface
1This is required if you wish to use the DHA-130 on the Internet at the same time as another device such as a PC.
Warning: D-Life telephony service is not a replacement for your traditional telephone service and cannot be used
for emergency calling. Emergency calls may still be made using the DHA-130 through a traditional telephone line.
However, please note that the DHA-130 will not function in the event of a power outage, and cannot be used for
emergency calls in this event. See D-Life’s terms and conditions at www.d-life.com/EULA/.

5D-Link DHA-130 User Manual
Section 1 - Product Overview
Hardware Overview

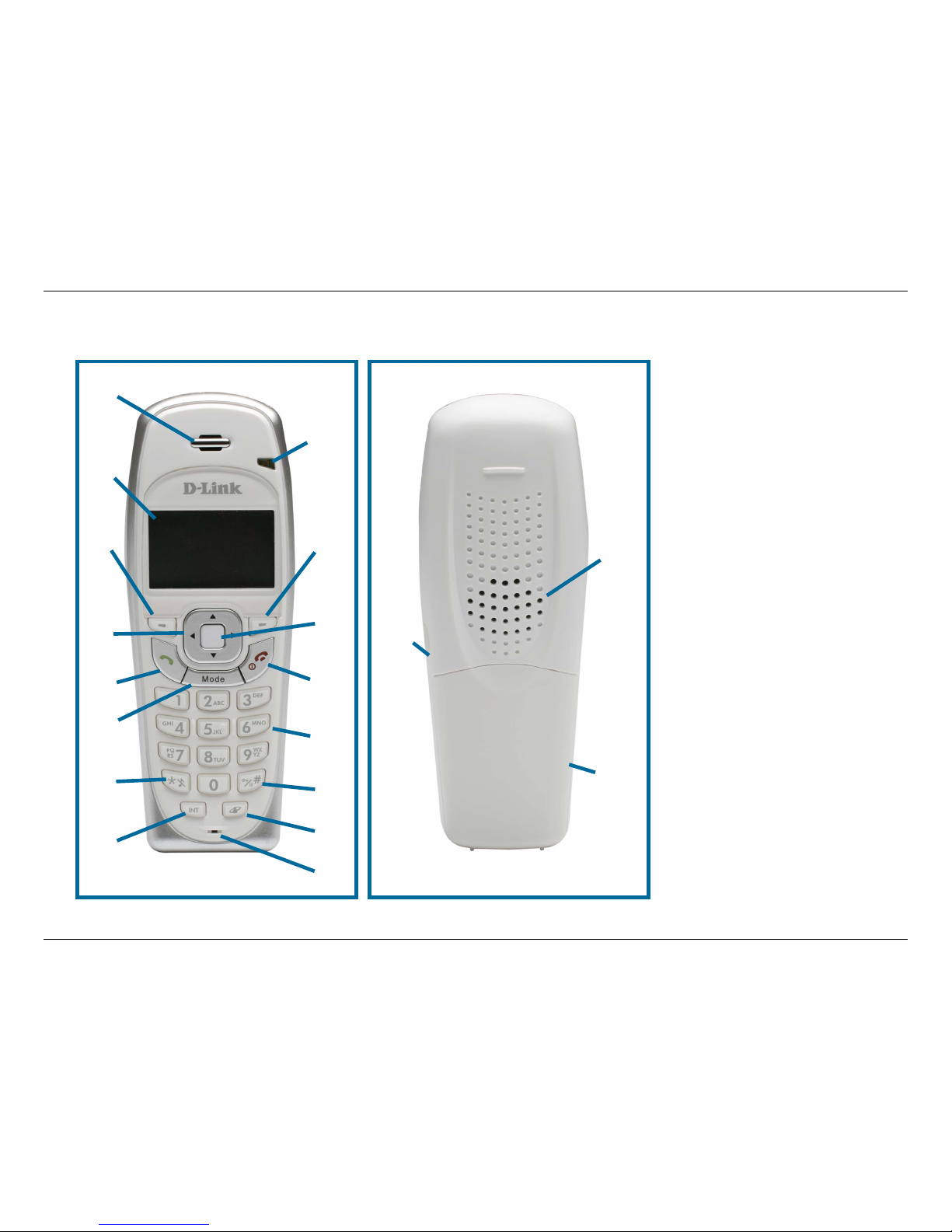

1. Earpiece
2. LCD display
3. Left soft key
4. Directional keypad
Up: D-Life phonebook
Down: Handset phonebook
Right: Dialed call log
Left: Missed call log
5. Call key
6. Call mode change key
7. * / Ringer off key
8. Intercom key
9. Call LED
10. Right soft key
11. Direct Page key
12. Power / End call key
13. Keypad
14. # / Keylock key
15. Services key
16. Microphone
17. Headset jack
18. Speaker
19. Battery cover
1
2
3
5
10
12
7
15
9
8
14
6
11
4
13
16
18
17
19

6D-Link DHA-130 User Manual
Section 1 - Product Overview
4 5 6 7

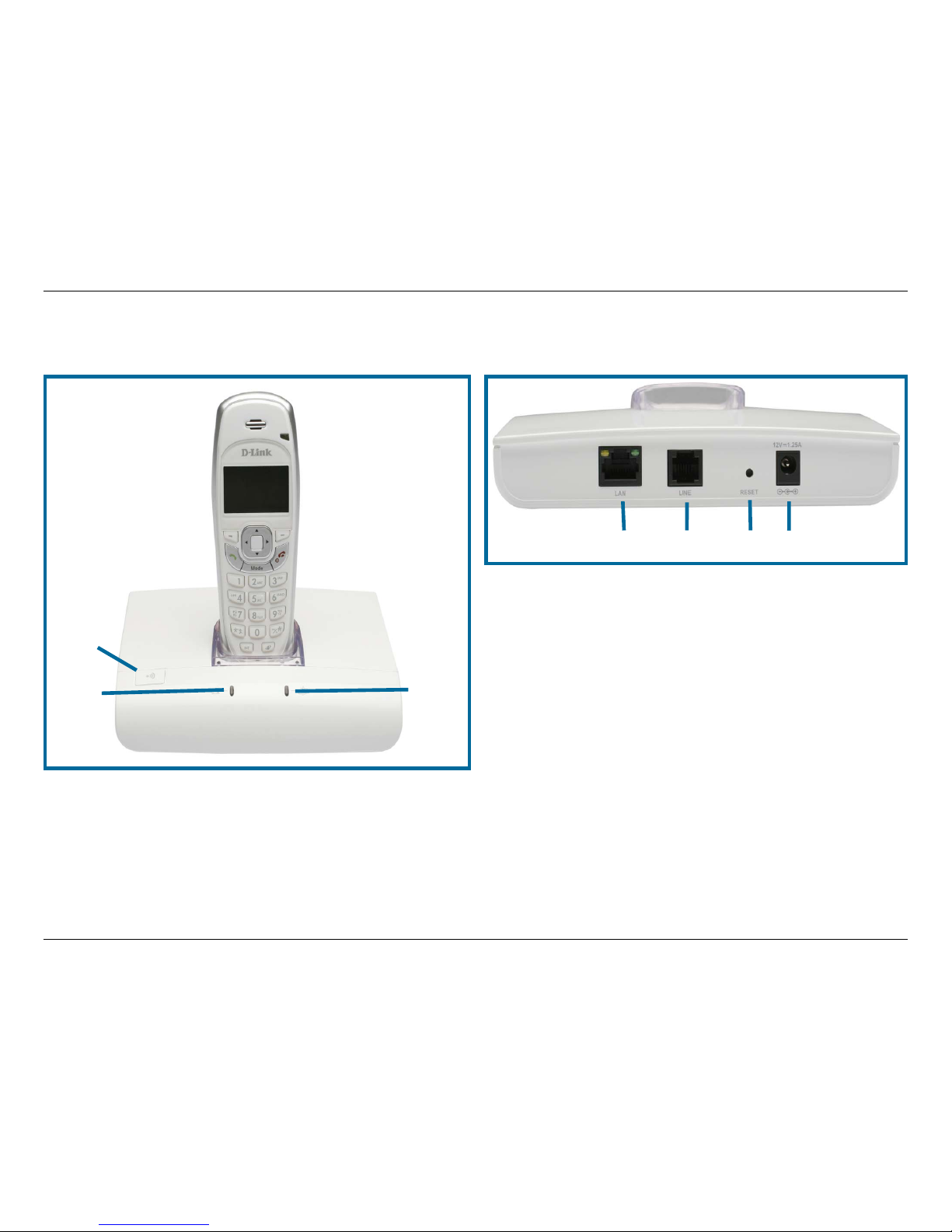

1. Page handset button
2. PSTN phone line status
3. D-Life VoIP line status
4. LAN port (to router/modem)
5. Line port (to phone line)
6. Reset button
7. Power jack
1
3
2
Hardware Overview

7D-Link DHA-130 User Manual
Section 2 - Installation
Before you Begin
Installation
To install the DHA-130 Cordless Internet Phone you must:
1. Install your Cordless Internet Phone
2. Register your phone at www.d-life.com
If you do not have a D-Life account, you will need to create one.
Itisimportantthatyouregisteryourphonerst,asyourphonewillnotfunctionuntilyoudoso.

8D-Link DHA-130 User Manual
Section 2 - Installation
Step 1: Install your Cordless Internet Phone

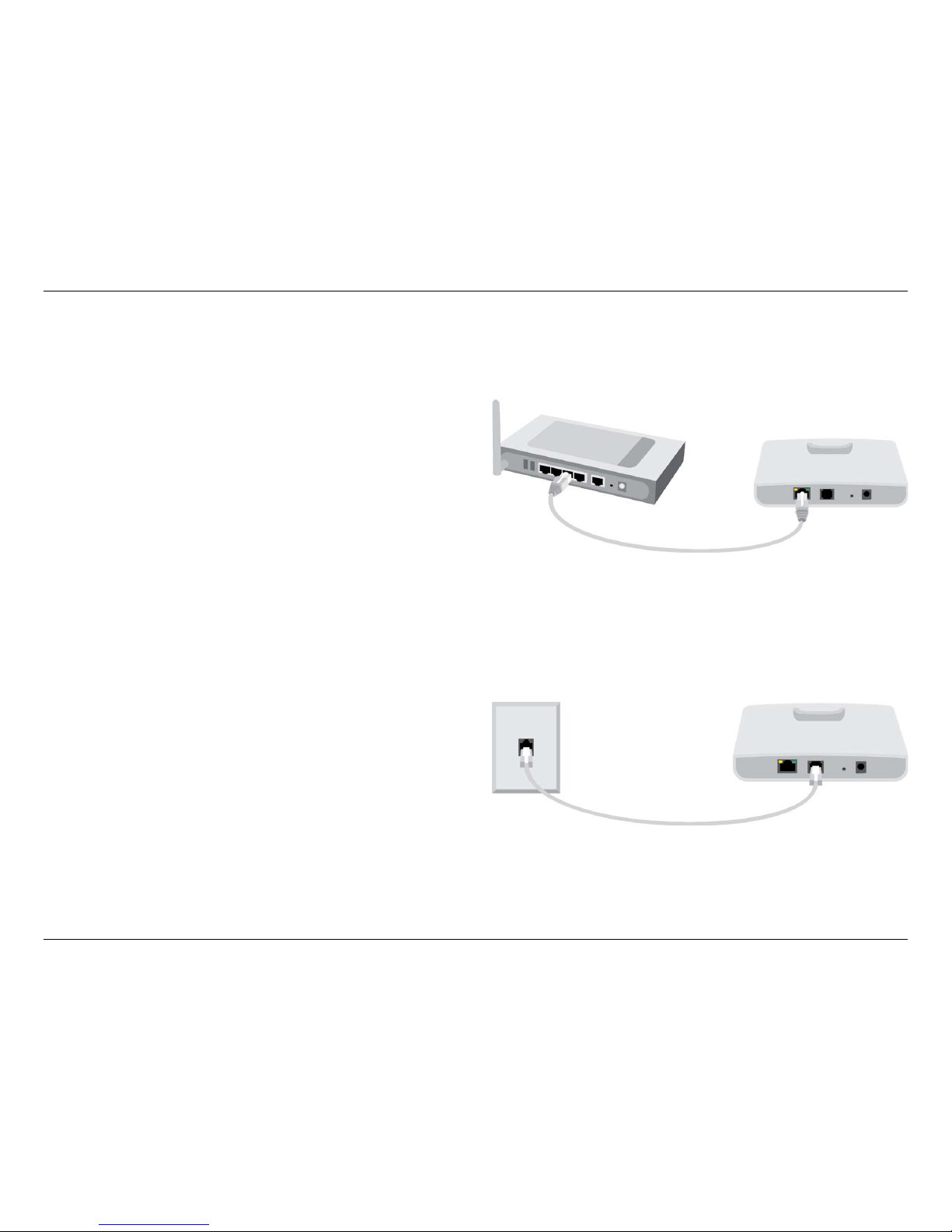

Step 1.1: Connect the Ethernet Cable
Connect the white Ethernet cable to the LAN port located on
the back of the DHA-130 base station, and connect the other
end to your router.
Connect the phone cable to the LINE port on the back of the
DHA-130 base station, and connect the other end to your
wall jack.
Step 1.2: Connect the Phone Cable

9D-Link DHA-130 User Manual
Section 2 - Installation
Connect the phone cable to the LINE port on the back of the
DHA-130 base station, and connect the other end to your
wall jack.
Step 1.3: Connect the Power Adapter
Remove the battery cover from the handset by sliding the cover downwards. Insert the batteries
in the directions shown by the icons on the handset. Replace the battery cover and connect the
phone to the base station to charge the batteries.
You need to leave the phone on the charger for at least 14 hours to fully charge the batteries.
Warning: Only use the included rechargeable batteries or NiMH 750mAh AAA batteries in the
DHA-130 handset. Do not use alkaline or other types of rechargeable batteries, as they may
leak or explode when the DHA-130 handset is placed on the base station to charge.
Step 1.4: Insert the Batteries

10D-Link DHA-130 User Manual
Section 2 - Installation
Step 2: Activate Your Product
Creating a D-Life Account - New Users

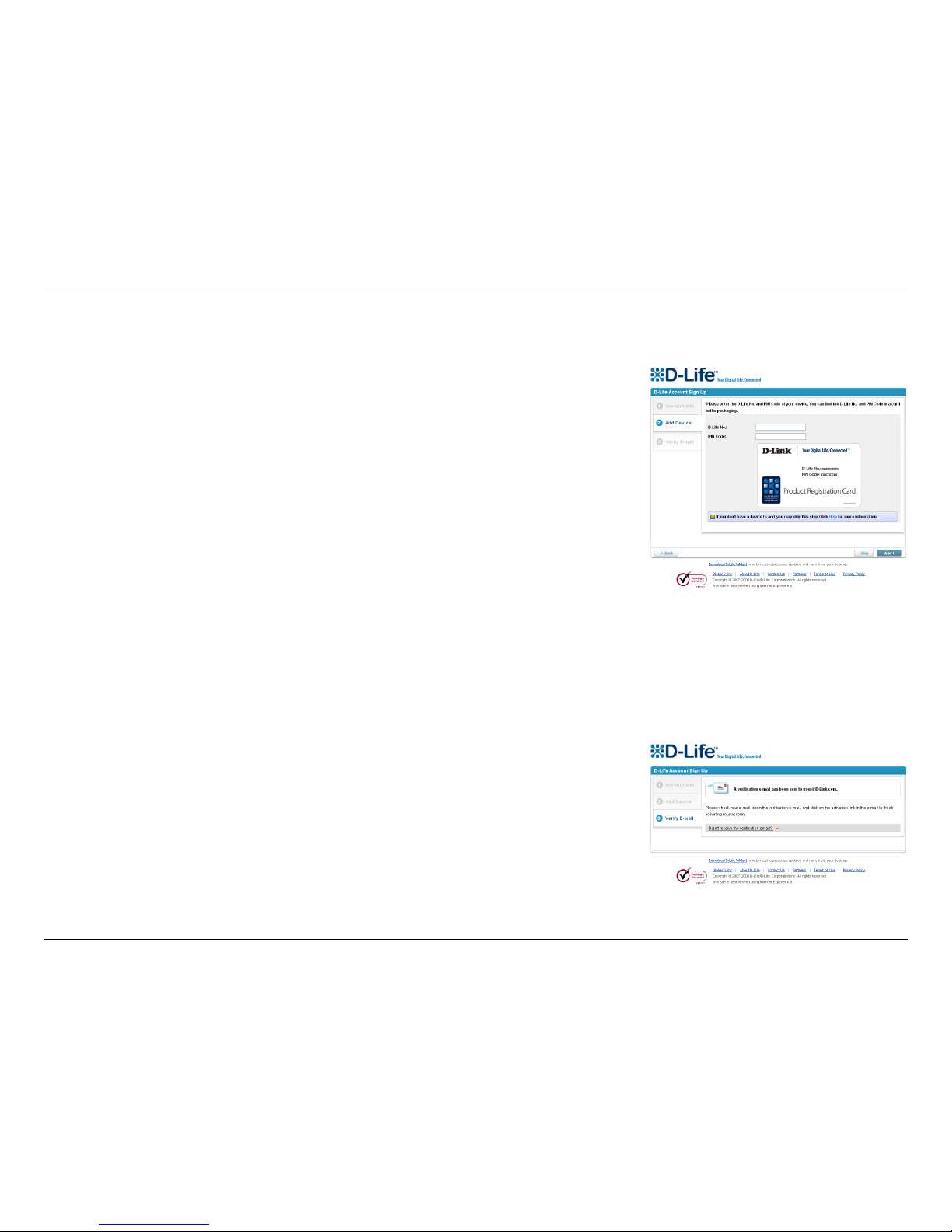

If you do not already have a D-Life account, you will need to create one.

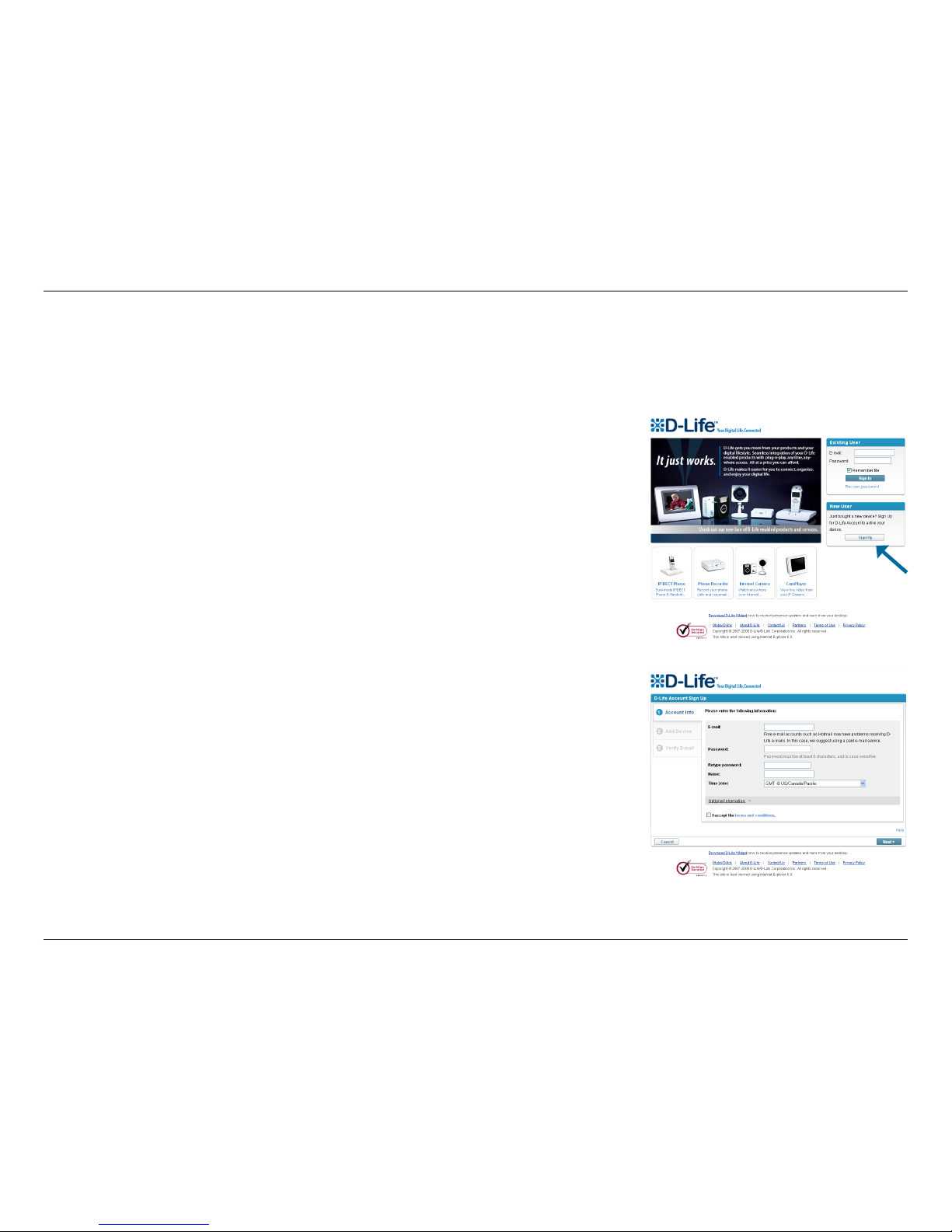

Open Internet Explorer and go to www.d-life.com. Click on the Sign Up button
to create a new D-Life account.
Note: If you already have a D-Life account, log in to the d-life.com website or
the D-Life Widget and skip ahead to Adding a device - Existing Users .
Enter/Conrm Information and EULA
Please enter your information into the boxes shown. Additional options such as
interface and e-mail language and currency display can be changed by clicking
on Optional Information, or you can change them later from your My Prole
screen.
Click on the terms and conditions link to read the D-Life Terms & Conditions
agreement and EULA, and tick the I accept the terms and conditions checkbox
to indicate that you have read and agree to these agreements, then click Next.
Please note that use of your camera’s main features require acceptance of this
agreement.

11D-Link DHA-130 User Manual
Section 2 - Installation
Creating a D-Life Account - New Users (cont.)
Additional Verication (region dependent)
Depending on your region, you may need to enter additional information. Fill in the required information and click
Next.
Add Device
Register your device by entering your D-Life No. and PIN code and clicking
Next. The D-Life No. and PIN code can be found on the D-Life registration
card included with your package.
Verify E-mail
 Ane-mailwithavericationlinkwillbesenttothee-mailaddressyouentered.
Check your e-mail, then click on the link in the e-mail to verify your e-mail
address.

12D-Link DHA-130 User Manual
Section 2 - Installation
Creating a D-Life Account - New Users (cont.)

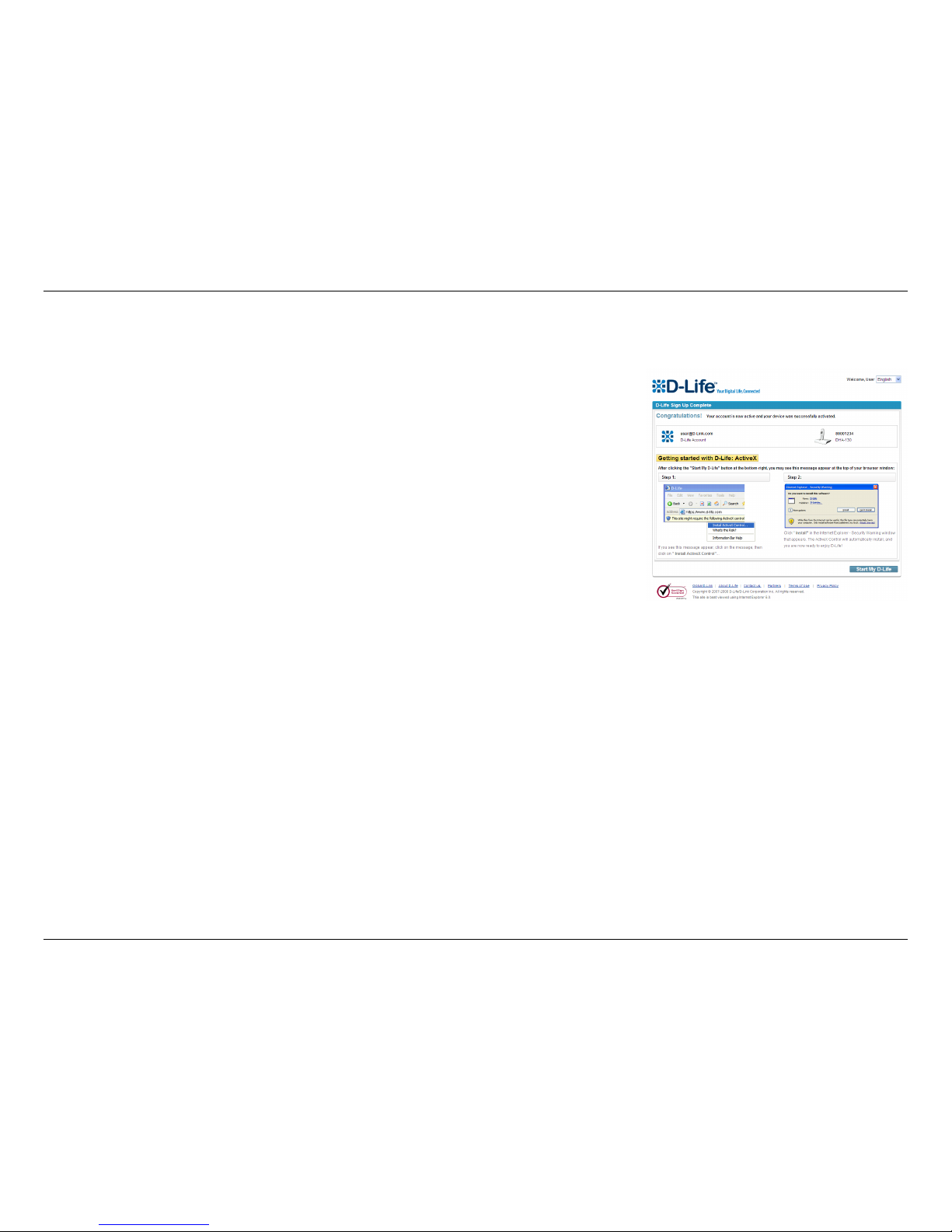

This completes registration of your device. Click Start My D-Life to go to the
My Devices screen.

13D-Link DHA-130 User Manual
Section 2 - Installation
If you already have a D-Life account, sign in to your account, then click on Add Device.
Adding a Device - Existing Users
Add Device
Register your device by entering your D-Life No. and PIN code and clicking
Next. The D-Life No. and PIN code can be found on the D-Life registration
card included with your package.
Additional Verication (region dependent)
Depending on your region, you may need to enter additional information. Fill
in the required information and click Next.

14D-Link DHA-130 User Manual
Section 2 - Installation
Adding a Device - Existing Users (cont.)
This completes registration of your device. Click Finish to go to the My Devices
screen.

15D-Link DHA-130 User Manual
Section 2 - Installation
Installing ActiveX® Controls

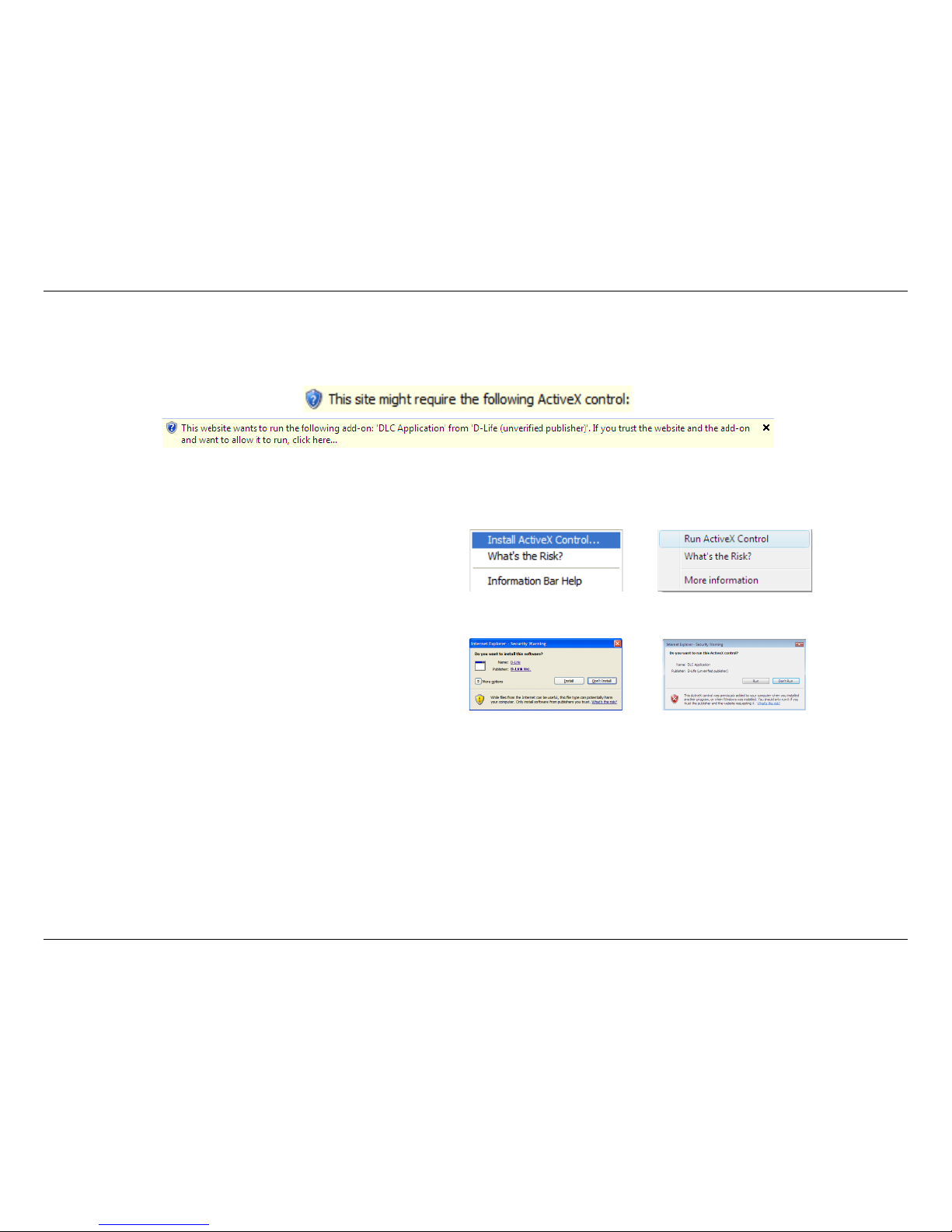

If you see a message similar to one of these after signing in to your account...
...then do the following:
Note: Make sure your antivirus program
is not blocking ActiveX
®
Controls.
• Click the Install or Run button
• Click on the message and select
Install ActiveX Control...
Vista UsersXP Users

16D-Link DHA-130 User Manual
Section 2 - Installation
Checking your connection
Turn on your handset by holding down the Power key.
The phone will automatically connect to D-Life service, and will display the D-Life on the display when it is ready to
use.

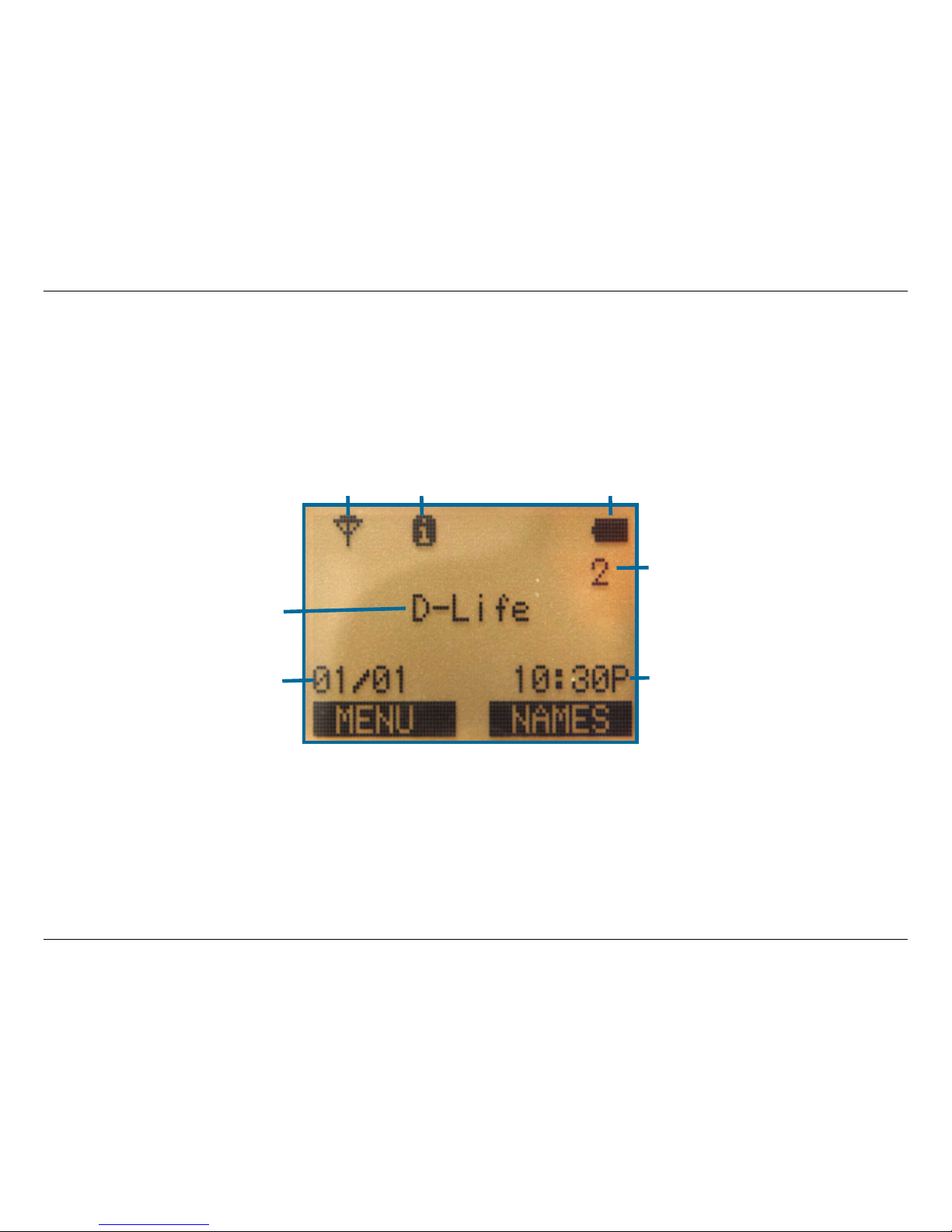

1. Handset connection icon
2. Calling mode icon
3. Battery life icon
4. Handset number
5. D-Life (when in D-Life Internet phone mode and connected to D-Life service)
6. Date
7. Time
1
4
5
2 3
67
