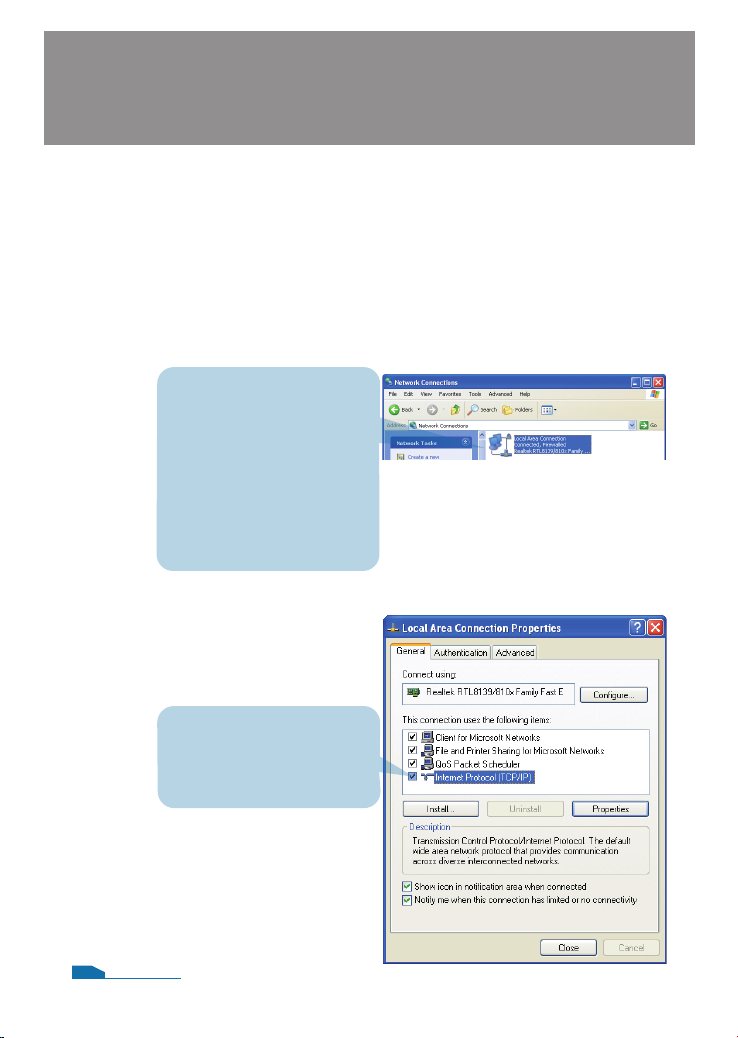

5.1 How to Configure Static IP Manually on Microsoft Windows XP..............15
5.2 How to Configure Static IP Manually on Apple MAC OS X...........................16
6.Statement

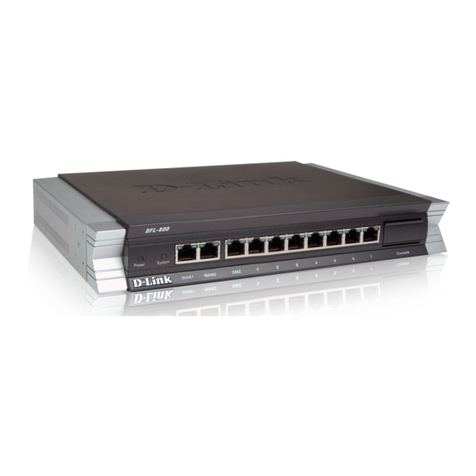

DFL-800 Quick Installation Guide

1.1 Check Your Package Contents
Your NetDefend Network Security Firewall package should
contain all the items listed below. If any of these items is found
damaged or missing in your package, report it to your reseller
immediately for replacement.

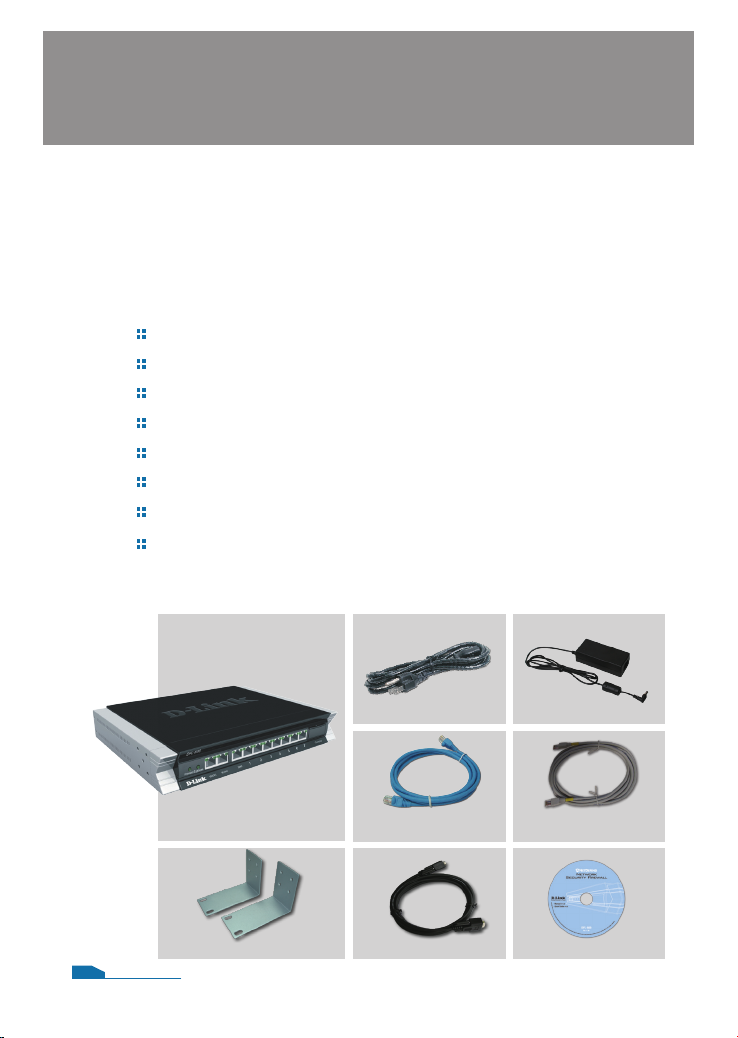

One (1) DFL-800 NetDefend™ Network Security Firewall
One (1) Power Cord
One (1) 5V DC Power Adapter
One (1) Console Cable (RS-232 cable)
One (1) Ethernet (CAT5 UTP/Straight Through) Cable
One (1) Ethernet (CAT5 UTP/Cross-over) Cable
One (1) CD-ROM (containing QIG/Manual )
Two (2) Rack Mount Brackets
DFL-800
Before You Begin 1
01
DFL-800
Power Cord Power Adapter
Ethernet Cable
(Straight-Through)
Console Cable CD-ROM
Ethernet Cable
(Cross-over)
Rack Mount Brackets

Identifying Components 2

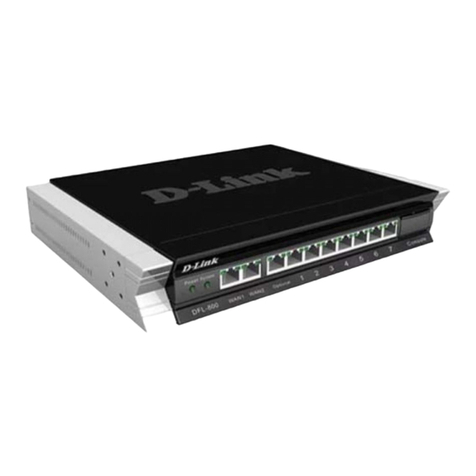

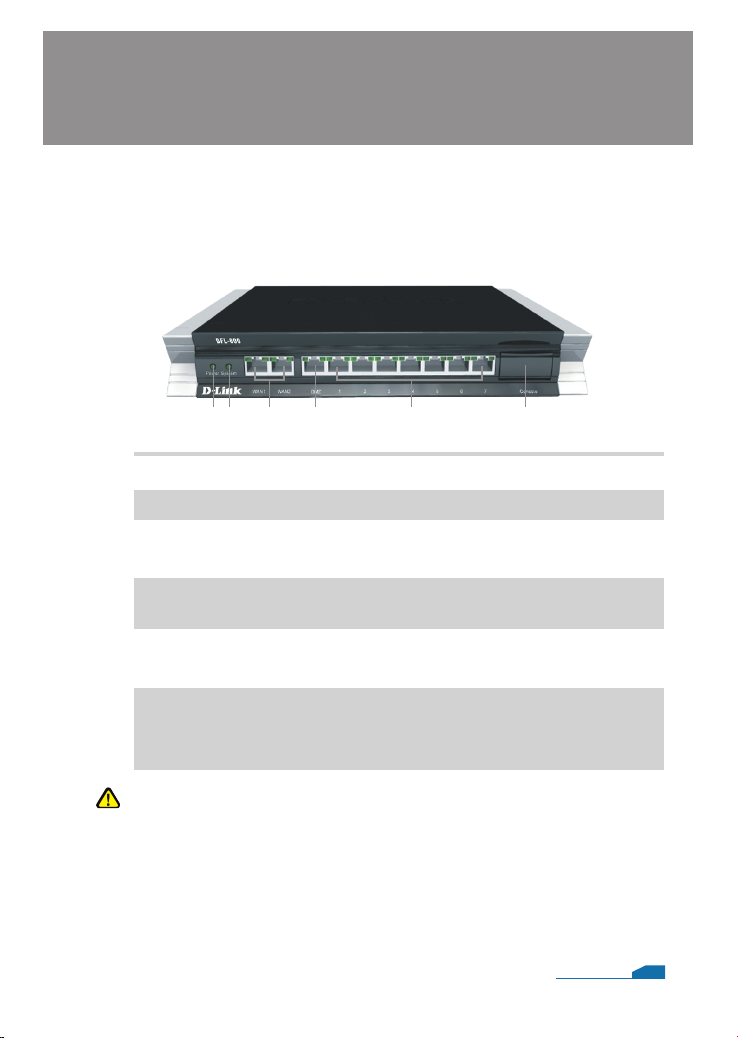

The following illustrates the front panel of the DFL-800 and
explains the front panel’s key components:

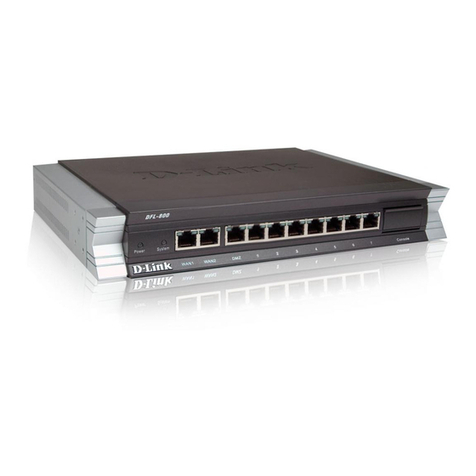

2.1 Front View
1 2 3 4 5 6
02
1. Power LED
2. System LED
3. WAN Ports
4. DMZ Port
5. LAN Ports
6. Console Port
Power indication of the DFL-800.
System status indication of the DFL-800.
These are for the connection of an Ethernet cable to a Cable
or DSL modem.
This is for the connection of an Ethernet cable to an DMZ
network.
These are for the connection of Ethernet cables to the internal
network.
Connects to RS-232 console cable that connects to PC.
The console port is hidden behind a protection coverlid that
can be opened by pulling down the lid.
Note:
None of the WAN1 and WAN2 interfaces support Auto MDI/MDI-X
(Automatic cable detection for Straight-through and Crossover
function.

2.3 Default Interface Attribute Definition
Note:
NetDefendOS only allows Web GUI access from LAN port by default
for security consideration. Please refer to user manual for more
detail about how to change this conguration.
DFL-800 Quick Installation Guide
03
Wording on
Front plate
Default name
in rewall
Default interface
type denition
Default interface
IP Address
Default
DHCP Status
WAN1 WAN1 DHCP client N/A Enabled
WAN2 WAN2 Static IP 192.168.120.254/24 Disable
DMZ DMZ Static IP 172.17.100.254/24 Disable
Ports: 1~7 LAN Static IP 192.168.1.1/24 Disable
2.2 LED Indicators
Status
Solid green
Light off
Solid green
Light off
Blinking green
Light off
Solid Green
Blinking Green
Light off
Solid green
Description
The device is powered on.
The device is powered off.
System is operating properly.
The device is not working.
System is defective, such rmware
upgrade fail.
No link
Link present
Port is sending or receiving data.
Port is operating at 10Mbps.
Port is operating at 100Mbps.
Color
Green
Green
Green
Green
LED
Power
System
Phone Jack LED
light (right)
Phone Jack LED
light (left)

Connecting the DFL-800 3
04
3.1 Connecting Firewall to Your Network
A. First, connect the power cord to the receptor at the back panel of
the DFL-800 and then plug the other end of the power cord to a
wall outlet or power strip. Then powered on the DFL-800 using
the on/off switch. Now the Power LED will turn ON to indicate
proper operation. After the power LED turns on, you need to wait
1-2 minutes for the DFL-800 to boot up completely.
B. Connect an Ethernet cable from the DFL-800 to your Cable/
DSL modem. If the Cable/DSL modem is powered on, wait for
the WAN1 LED on the DFL-800 to light up to show a proper
connection. Otherwise, turn off your Cable/DSL modem, connect
the Ethernet cable from the DFL-800 to your Cable/DSL modem,
and turn on the Cable/DSL modem. Some Cable/DSL modems
may not have an on/off switch and will require you to unplug the
power adapter.
Note:
The default management IP address of the DFL-800 is
192.168.1.1. If you have are using a router that uses DHCP,
there may be a conict if the router uses the same IP address as
the DFL-800. If this is the case, either disconnect the DFL-800
from the router and change the management IP address of the
DFL-800, or change the DHCP settings on your router.
C. Insert an Ethernet cable to the LAN1 port on the front panel of
the DFL-800 and connect it to a port on your network hub or
switch. The LED light above the Ethernet port on the DFL-800
will illuminate to indicate proper connection
D. Connecting the computer that you will use to congure the
DFL-800 to the network hub or switch.

4.1 Configure Your Computer’s IP Address

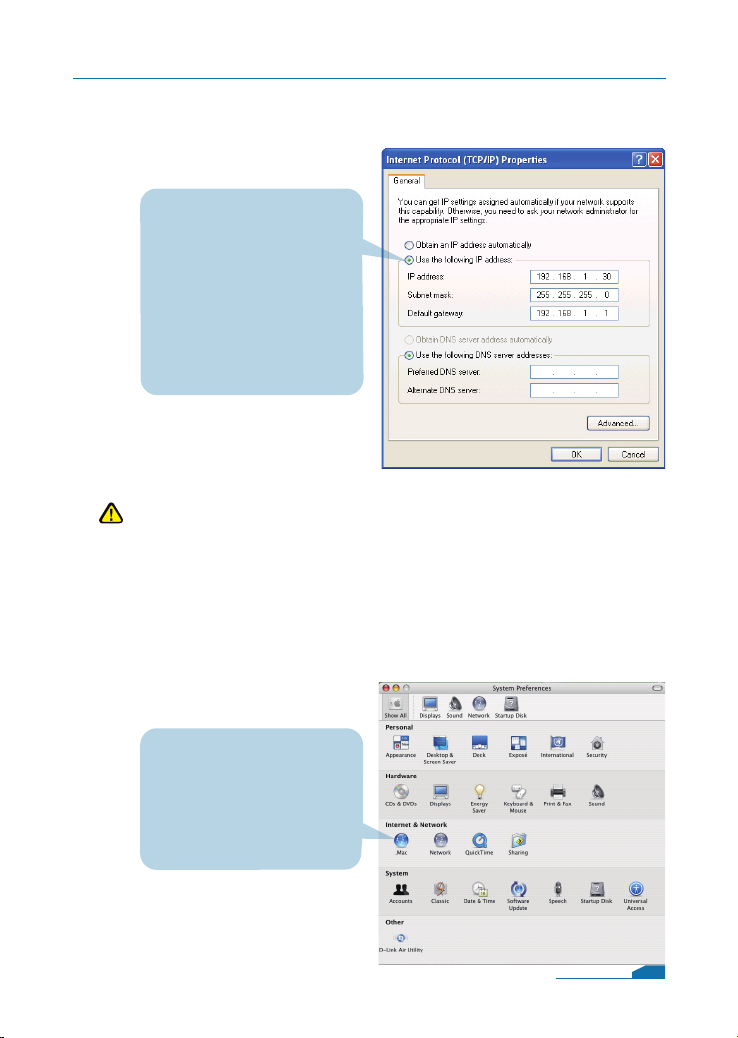

Make sure that the network adapter in your computer is congured
to use a static IP address with 192.168.1.1 as default gateway and
255.255.255.0 as netmask. Instructions on how to congure the
network adapter can be found in the appendix.
When you have completed the steps in this Quick Installation

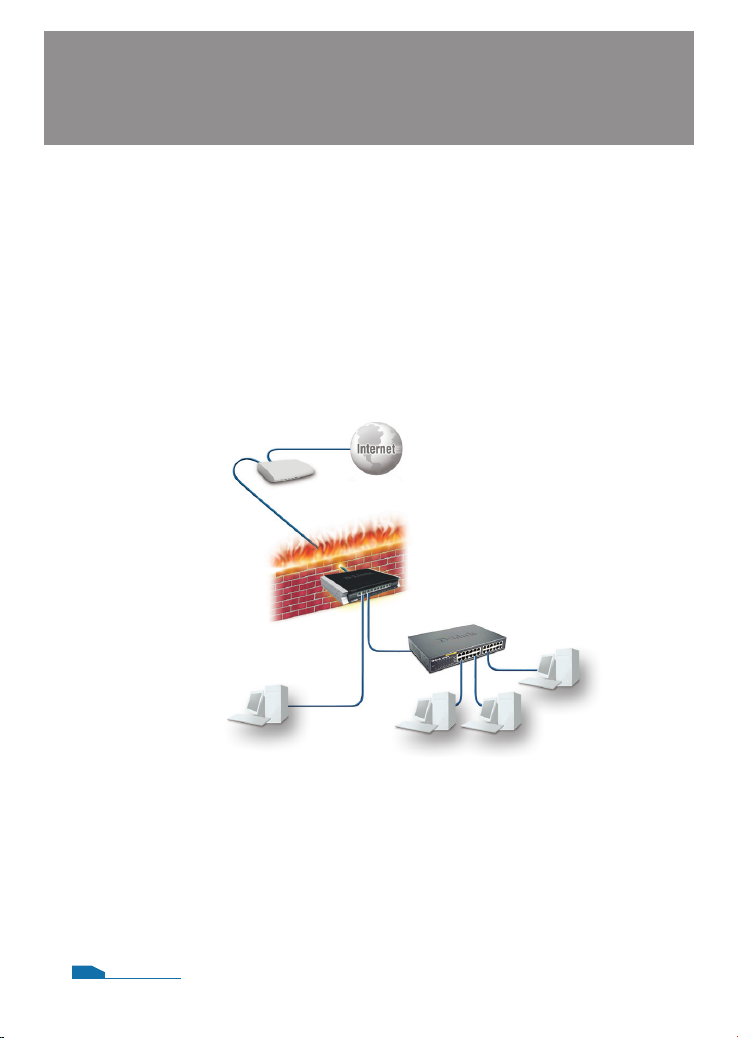

Guide, your connected network should look similar to this:
Configure DFL-800 4
05
Cable/DSL Modem
DFL-800
Switch
Internal
Network
DMZ
Network
(optional)
Computer1 Computer2

4.2 Using the Setup Wizard
The DFL-800 provides Web based conguration. You can congure
your DFL-800 through Internet Explorer 6 and later or Firefox 1.0 and
later browser in MS Windows, Macintosh or UNIX based platforms.
Activate your browser, and ensure your built-in Pop-Up Blocker has
been disabled, so that the Pop-Up Blocker will not block the Startup
Wizard while you initiate the NetDefend Firewall for the rst time.
Additionally, in order to reduce the impact of Pop-Up Blocker, a user-
friendly mechanism has beem implemented in NetDefend Firewalls. A
"Startup Wizard" button is shown on the toolbar since rmware v2.20.
This button is available on the WebGUI while the appliance is initiated
with Conguration Version 1. Once you complete conguration and
save/activate the setting, the Startup Wizard button will be removed
automatically from the toolbar while you login WebGUI next time.
Now, let's start on WebGUI login, type the IP address of the DFL-800,
e.g. https://192.168.1.1, in the Location (for Netscape) or Address (for
IE) eld and press "Enter".

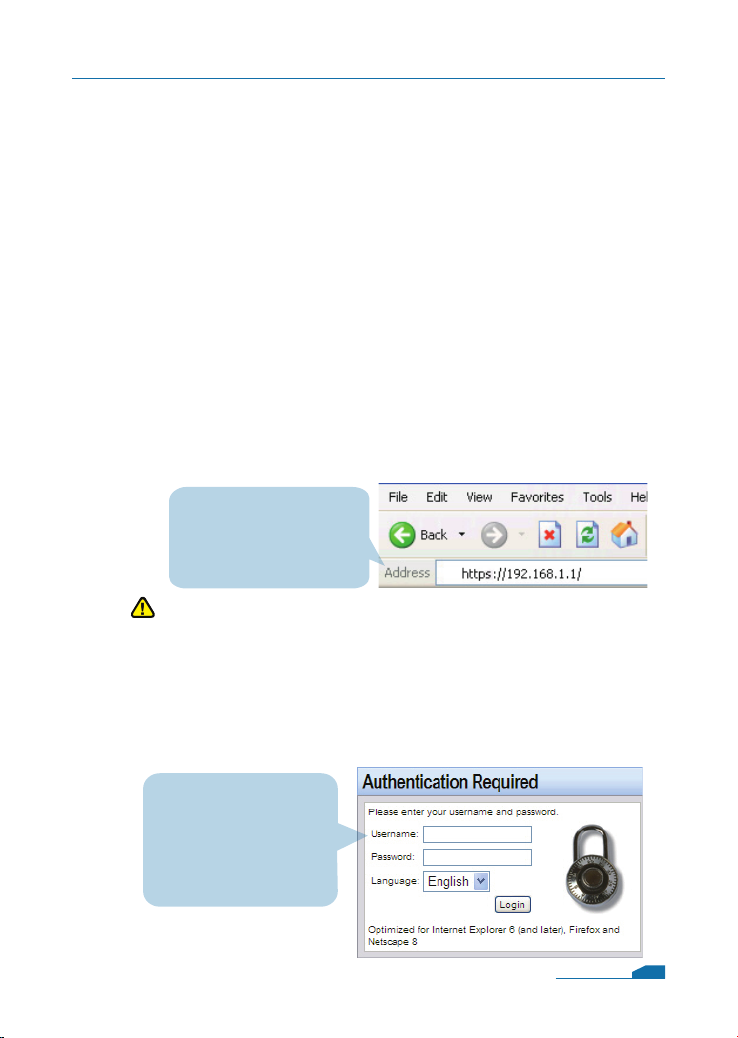

Log on to the DFL-800 web interface.
To start using the DFL-800 web interface you need to log on
using the default username and password.
DFL-800 Quick Installation Guide
Open your Web browser and
type https://192.168.1.1 /
into the URL address box.
Then press the Enter or
Return key.
Type the default
Username/Password
Username: admin
Pasword: admin
and click Login
06
Note:
DFL-800 allows either HTTP or a secure HTTPS connection
from any management host. However, for security reason, by
default only a secure HTTPS connection is allowed.

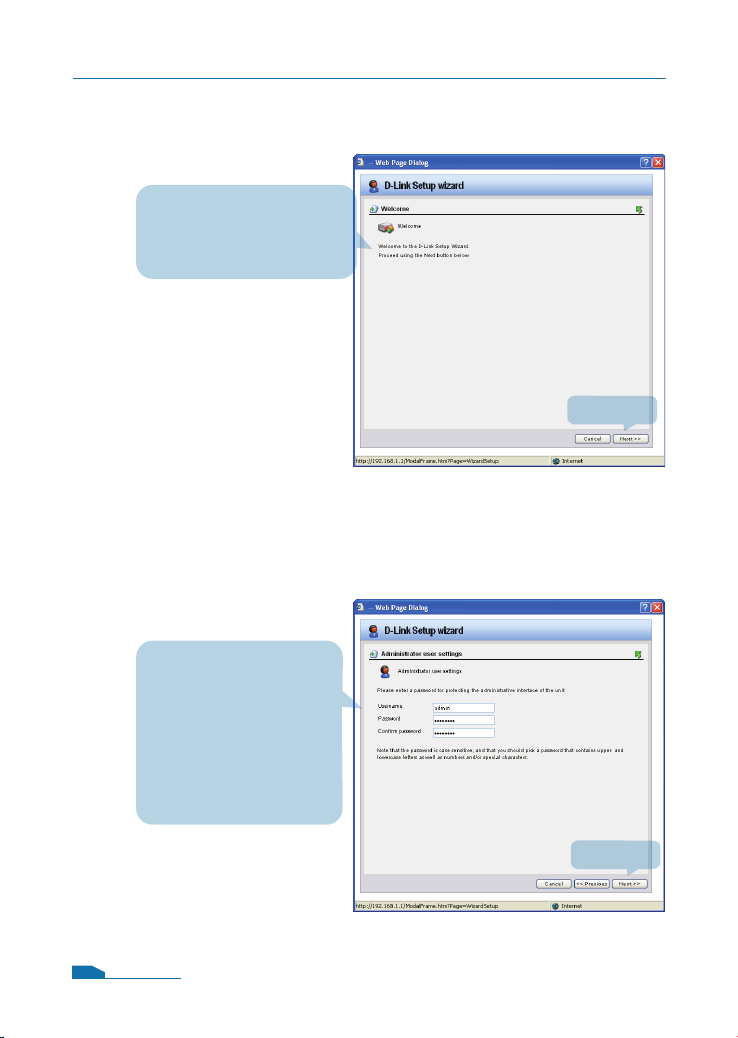

Step1 - Welcome to the DFL-800 setup wizard!
Step2 - Set up rewall administrator password
First Enter the
username that you want
to use for the admin
account.
Enter the password
that you want to use
for the admin account.
DFL-800 Quick Installation Guide
This wizard will guide
you through the setup of
your DFL-800
Click Next
07
Click Next

2

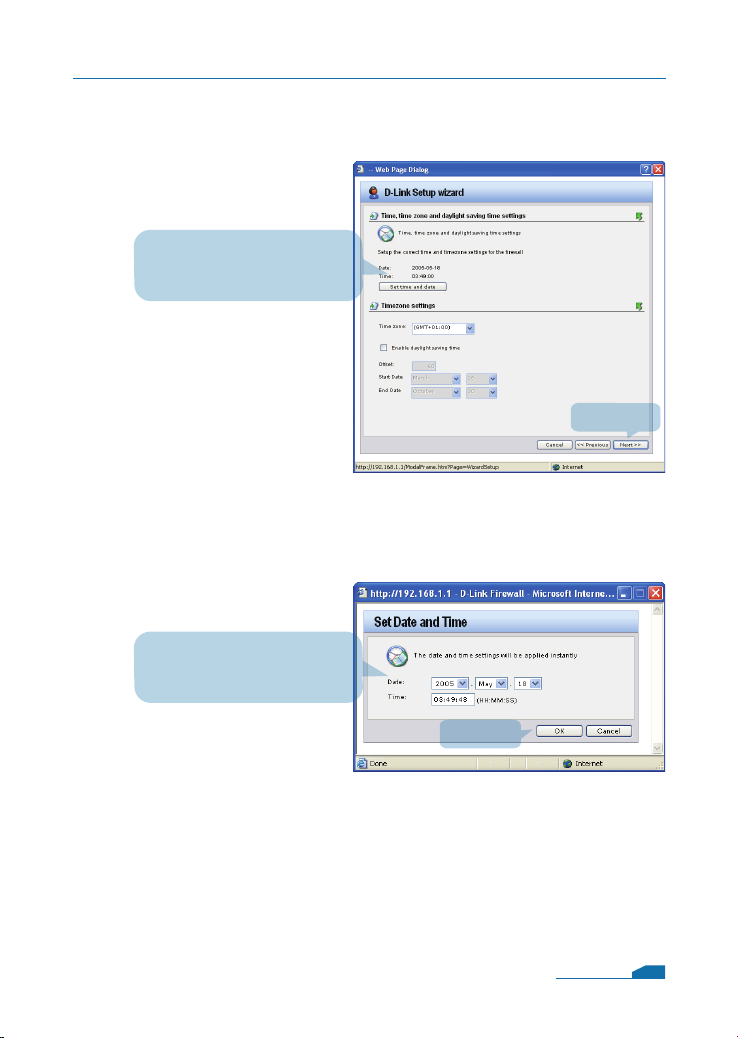

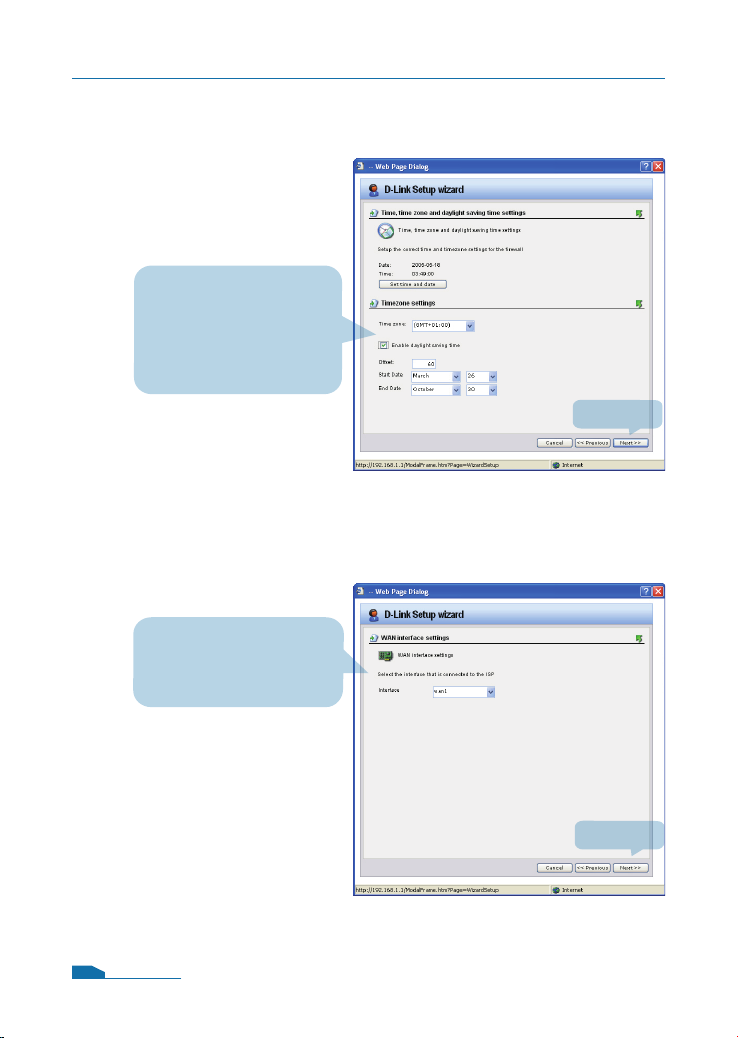

Step 3 - Set up time and date
Click Set time and date
button for setting device
08
Click Next
Select the appropriate date
Enter the appropriate time
Click OK
DFL-800 Quick Installation Guide

Step 4 - Set up timezone
Step 5 - Select WAN interface
Select the appropriate
timezone.
Enter the appropriate
dayligt saving time
settings.
Select the WAN
interface that you want
to use.
09
Click Next
Click Next
DFL-800 Quick Installation Guide

Step 6 - Congure WAN interface
Select the appropriate
conguration for the
WAN interface,
Click Next and
continue to step 7.1
further down.
Note:
If you are unsure of which setting to select, please contact your
Internet Service Provider.

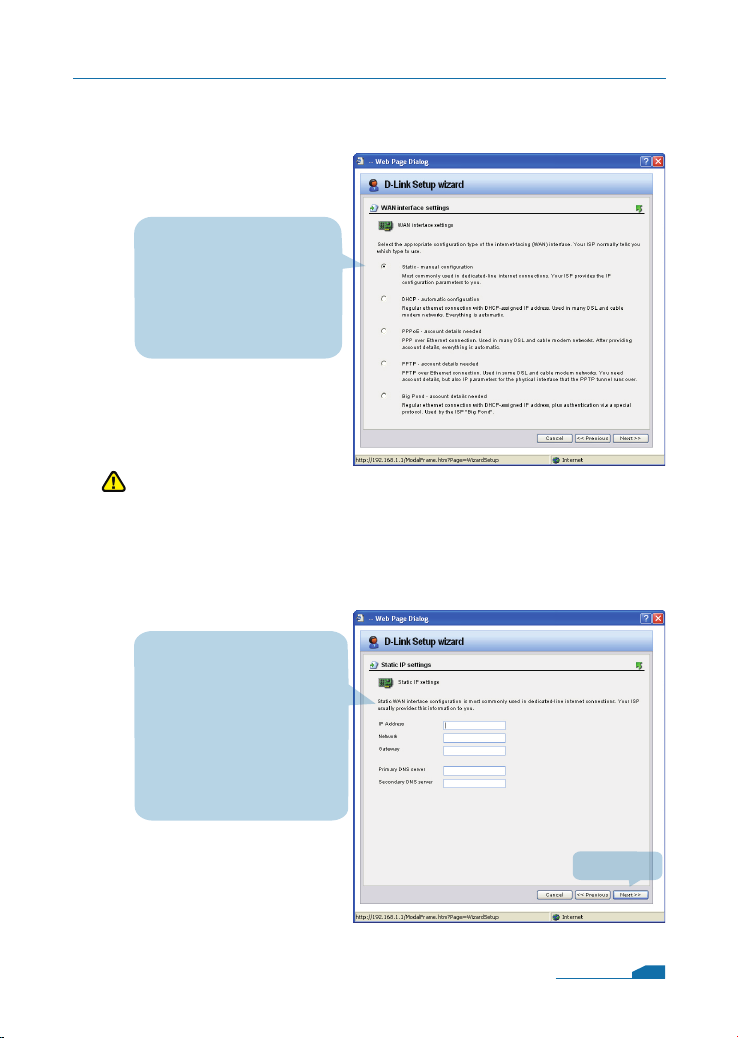

Step 7.1 - WAN Interface Type is Static IP
If you selected Static IP
you have to ll out the
IP address information
provided to you by
your ISP. You will need
to complete all the
required elds except for
Secondary DNS Server.
10
Click Next
DFL-800 Quick Installation Guide

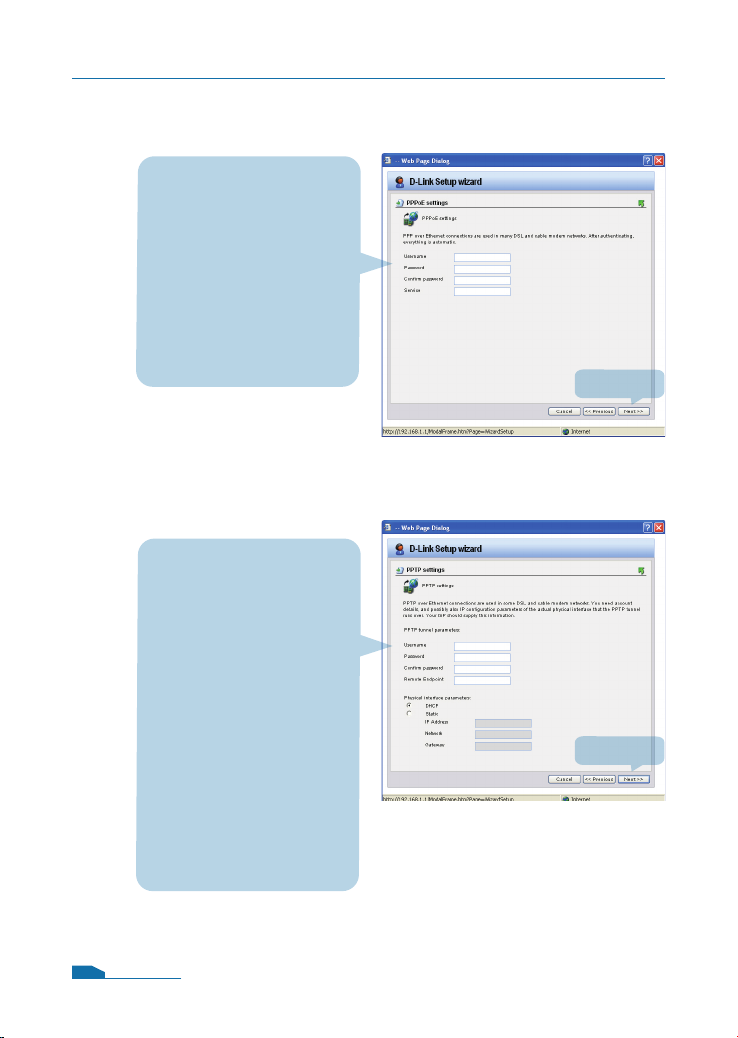

Step 7.2 - WAN Interface Type is PPPoE
Step 7.3 - WAN Interface Type is PPTP
If you selected PPPoE
(Point-to-Point Protocol
over Ethernet) you will
have to ll out the user
name and password
provided to you by your
ISP. The PPPoE Service
Name eld should be left
blank unless your ISP
informs you otherwise.
Enter Username,
Password and the
PPTP Server IP address
provided by your ISP.
DHCP:If your ISProvider
is using DHCP you
should select the DHCP
radio button.
Static IP:If your Internet
Service Provider is using
Static IP you should
select the Static IP
radio button and enter
IP Address, choose a
Subnet Mask and enter
the Gateway IP address.
11
Click Next
Click Next
DFL-800 Quick Installation Guide

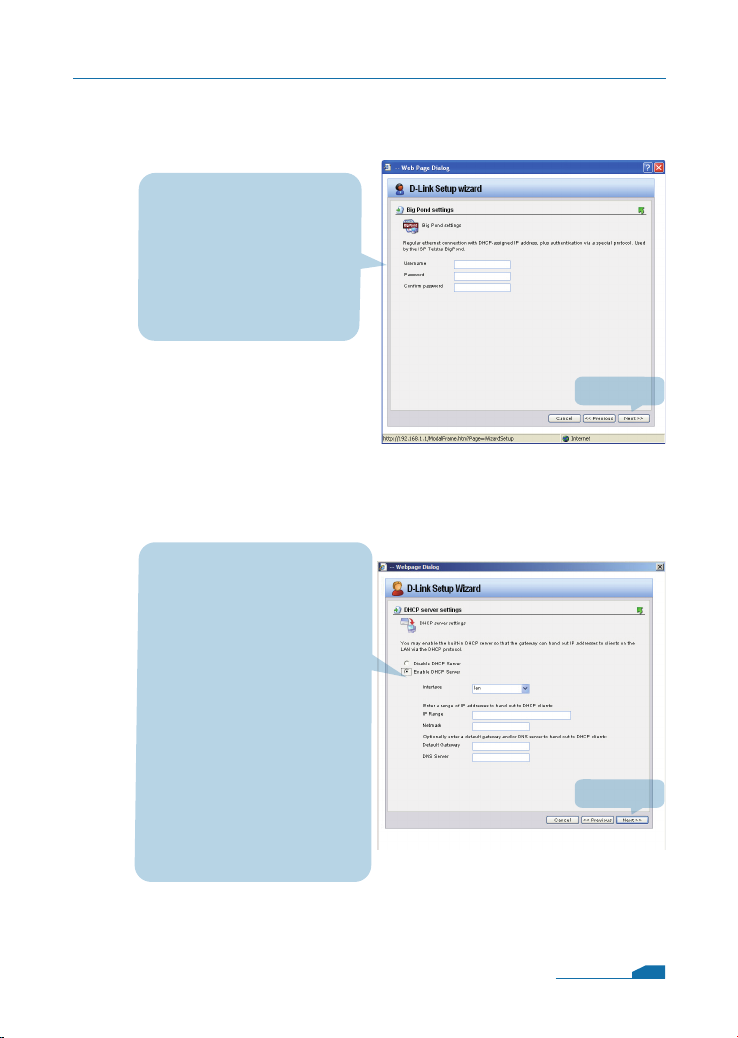

Step 7.4 - WAN Interface Type is Big Pond
Step 8 - Set up built-in DHCP server
If you selected Big Pond
you will have to ll out the
user name and password
provided to you by your
ISP.
Click Next and continue
to step 8.
If you want to use the
built-in DHCP Server in
the DFL-800, choose
Enable DHCP Server
in this screen. You then
need to specify a range
of IP addresses to hand
out to the DHCP clients.
This range is entered in
the format “Start IP - Stop
IP” i.e. 192.168.0.100 -
192.168.0.200. If you don’t
want to use the built-in
DHCP Server or congure
it later, choose Disable
DHCP Server.
12
Click Next
Click Next
DFL-800 Quick Installation Guide

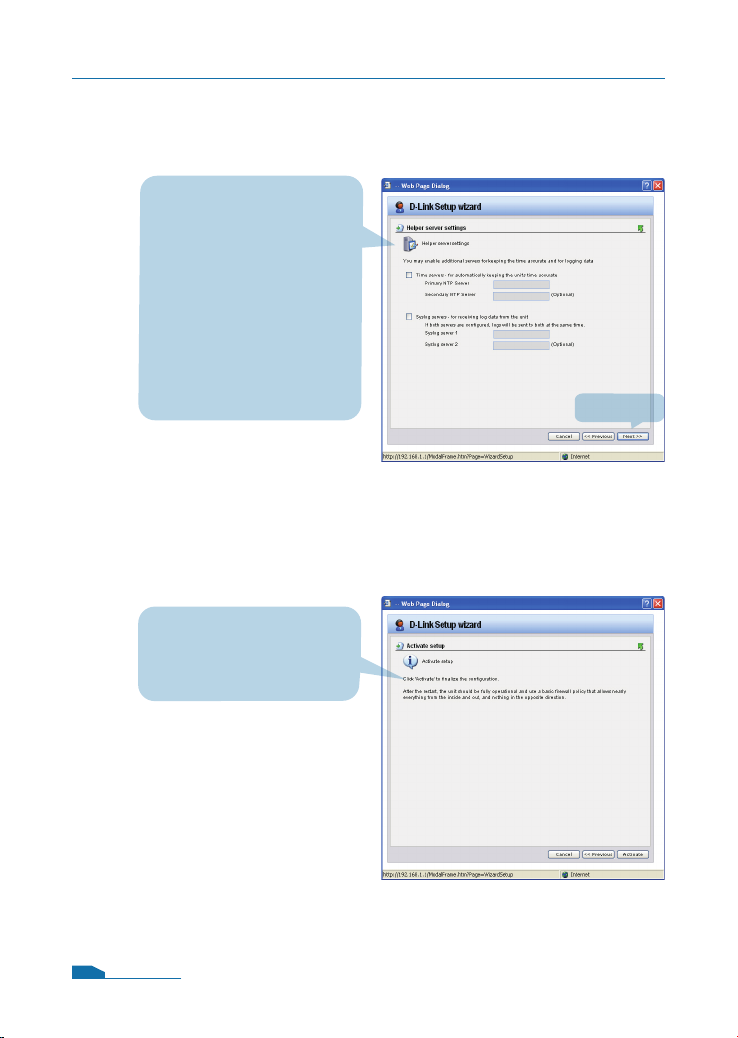

Step 9 - Congure helper servers
Step10 - Setup Wizard Complete
NTP Servers
If enabled, specify which
NTP Servers that should
be used to syncronize
the rewall time
Syslog Servers
If enabled, specify
where the rewall should
log, you can specify up
to two Syslog recievers
Click Activate to
complete your
conguration.
13
Click Next
DFL-800 Quick Installation Guide

14

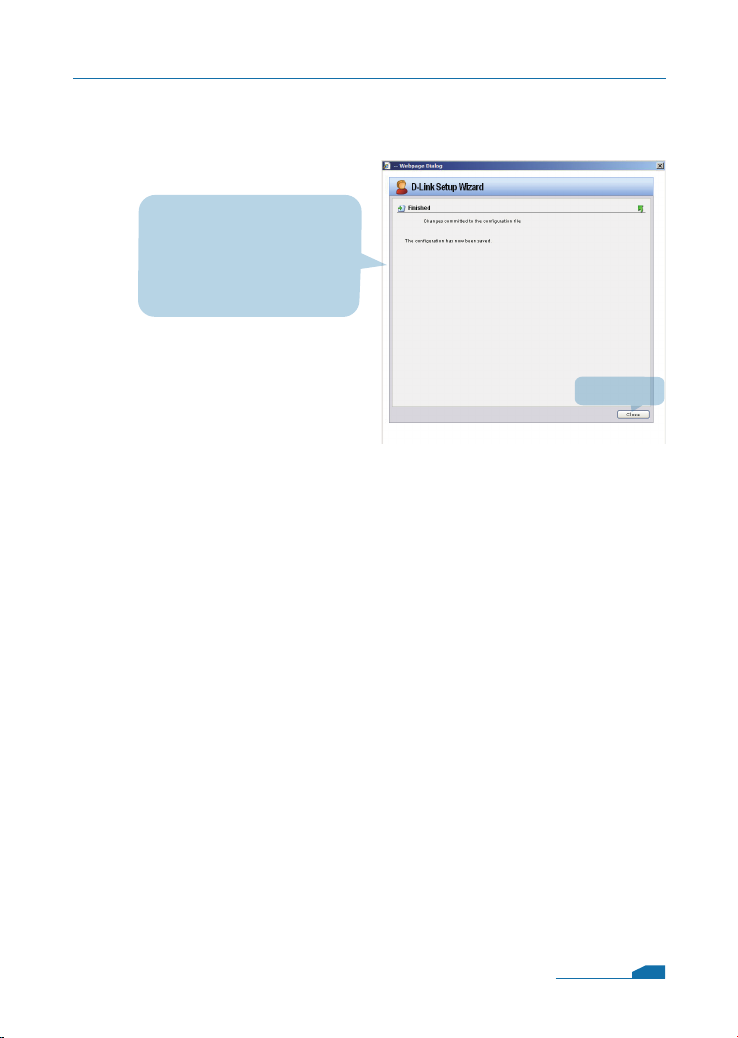

Step 11 - Conrmation
Conrm the changes
committed to the
conguration le and it
has been saved now.
Click Close
DFL-800 Quick Installation Guide

Appendix 5
To connect to the DFL-800 Network Security Firewall, make
sure the network adapter in your computer is congured
properly. Here is how to congure the network adapter
manually to the correct IP-address.
Go to Start > right click
on My Network Places >
select Properties >
Right-click on the
Network Connection
of the Ethernet adapter
connecting to the
DFL-800 and select
Properties.
Click Internet Protocol
(TCP/IP)
Click Properties
5.1 How to configure Static IP Manually on
Microsoft Windows XP
15

Note:
Except for 192.168.1.1, you could set your PC with any IP
addresses that same as the 192.168.1.0/ 255.255.255.0 subnet.
Select Use the
following IP address
Set IP address to
192.168.1.30,
Subnet mask to
255.255.255.0
and Default gateway to
192.168.1.1
Click OK

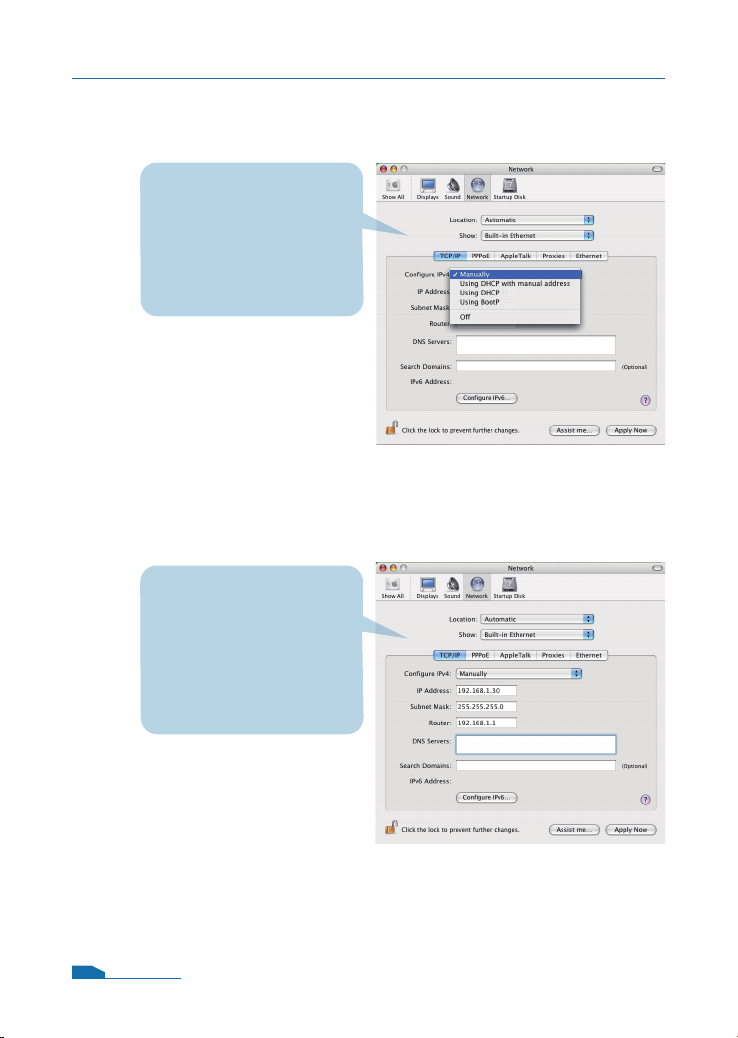

Go to the Apple Menu
Click on Network
and Select System
Preferences
Click on Network
5.2 How to Configure Static IP Manually on
Apple Mac OS X
16
DFL-800 Quick Installation Guide

Set IP Address to
192.168.1.30,
Subnet Mask to
255.255.255.0
and Router to
192.168.1.1.
Click on Apply Now
Select Built-in Ethernet
in the show pull down
menu
Select Manually in the
Congure pull down
menu
17
DFL-800 Quick Installation Guide

STATEMENT 6
EMI Statement
FCC Warning
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in
accordance with this user’s guide, may cause harmful interference to
radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
CE Mark Warning
This is a Class B product. In a domestic environment, this product
may cause radio interference in which case the user may be required
to take adequate measures.
Warnung!
Dies ist ein Produkt der Klasse B. Im Wohnbereich kann dieses
Produkt Funkstoerungen verursachen. In diesem Fall kann
vom Benutzer verlangt werden, angemessene Massnahmen zu
ergreifen.
Precaución!
Este es un producto de Clase B. En un entorno doméstico, puede
causar interferencias de radio, en cuyo case, puede requerirse al
usuario para que adopte las medidas adecuadas.
Attention!
Ceci est un produit de classe B. Dans un environnement domestique,
ce produit pourrait causer des interférences radio, auquel cas
l`utilisateur devrait prendre les mesures adéquates.
18
