D-Link DCS-1110 - Network Camera User manual

2D-Link DCS-1110 Quick Install Guide
• Internet Explorer 6.x or above
• Windows® 2000 or XP
• 1.3GHz processor and at least 128MB of RAM
• An available Ethernet connection
CAT5 Ethernet Cable

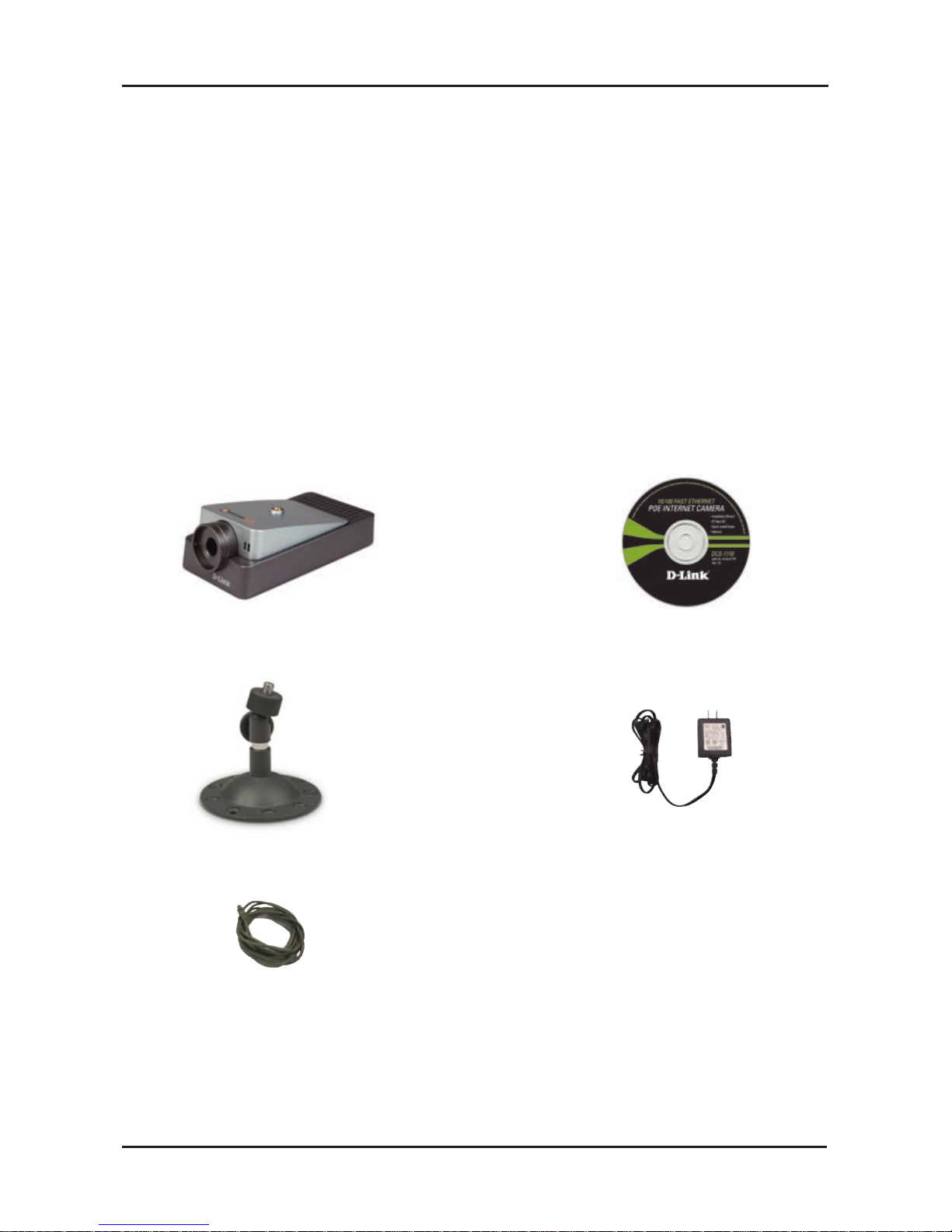

Package Contents
DCS-1110 10/100 TX
PoE Internet Camera
System Requirements
If any of the above items are missing, please contact your reseller.
CD-ROM with Manual and
Installation Wizard
Camera Stand 5V 2.5A AC Power Adapter

3 D-Link DCS-1110 Quick Install Guide
Hardware Overview
Hardware Overview

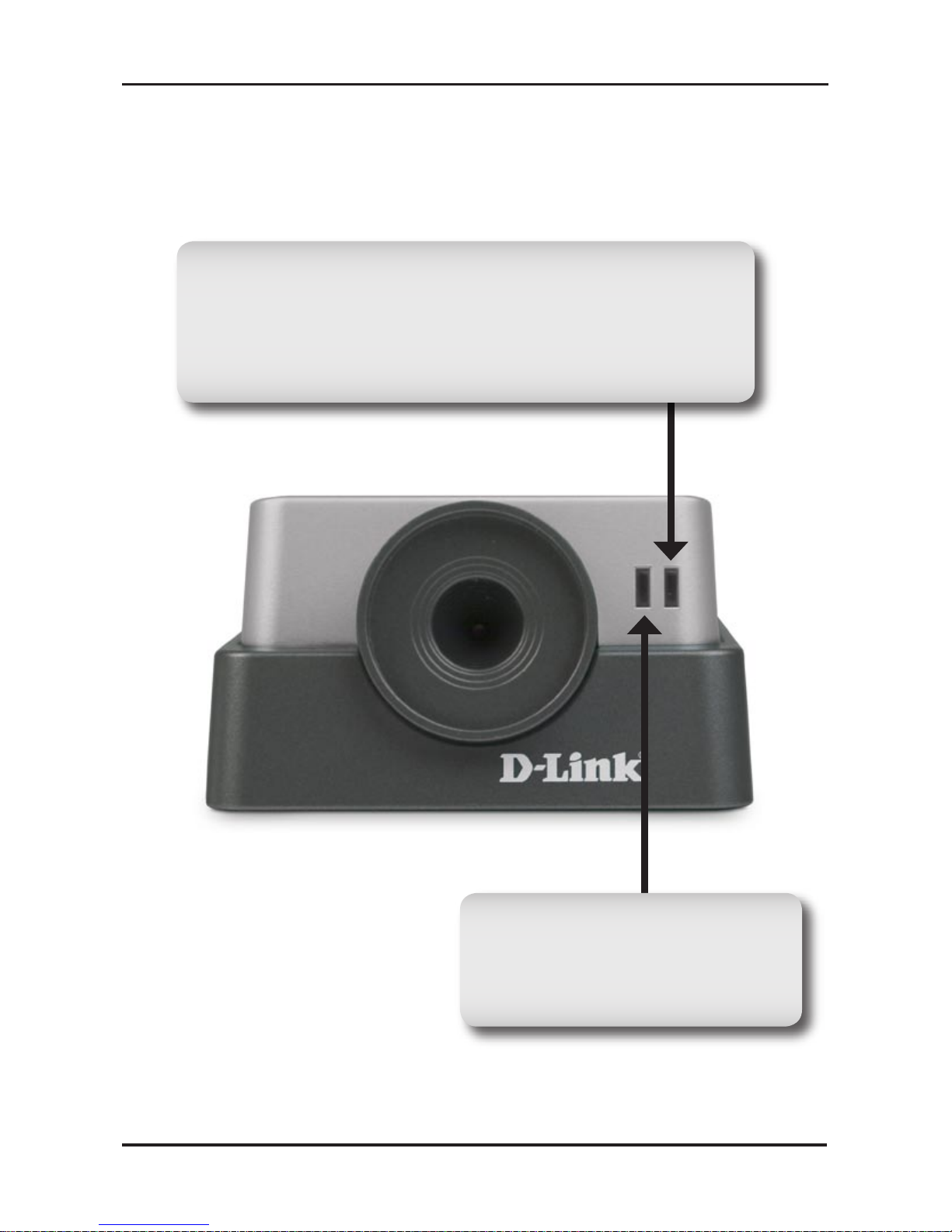

Power LED
The Power LED is positioned on the
right side of the DCS-1110 lens. Steady
blue confirms that the DCS-1110 is
powered ON.
Link LED
The Link LED is positioned on the right side of the DCS-1110’s lens.
It is located to the right of the Power LED. Steady orange confirms
a good connection to the LAN. Depending on the data traffic, the
LED will begin to flash to indicate that the DCS-1110 is receiving/
transceiving from/to the LAN network.

Hardware Overview
D-Link DCS-1110 Quick Install Guide 4

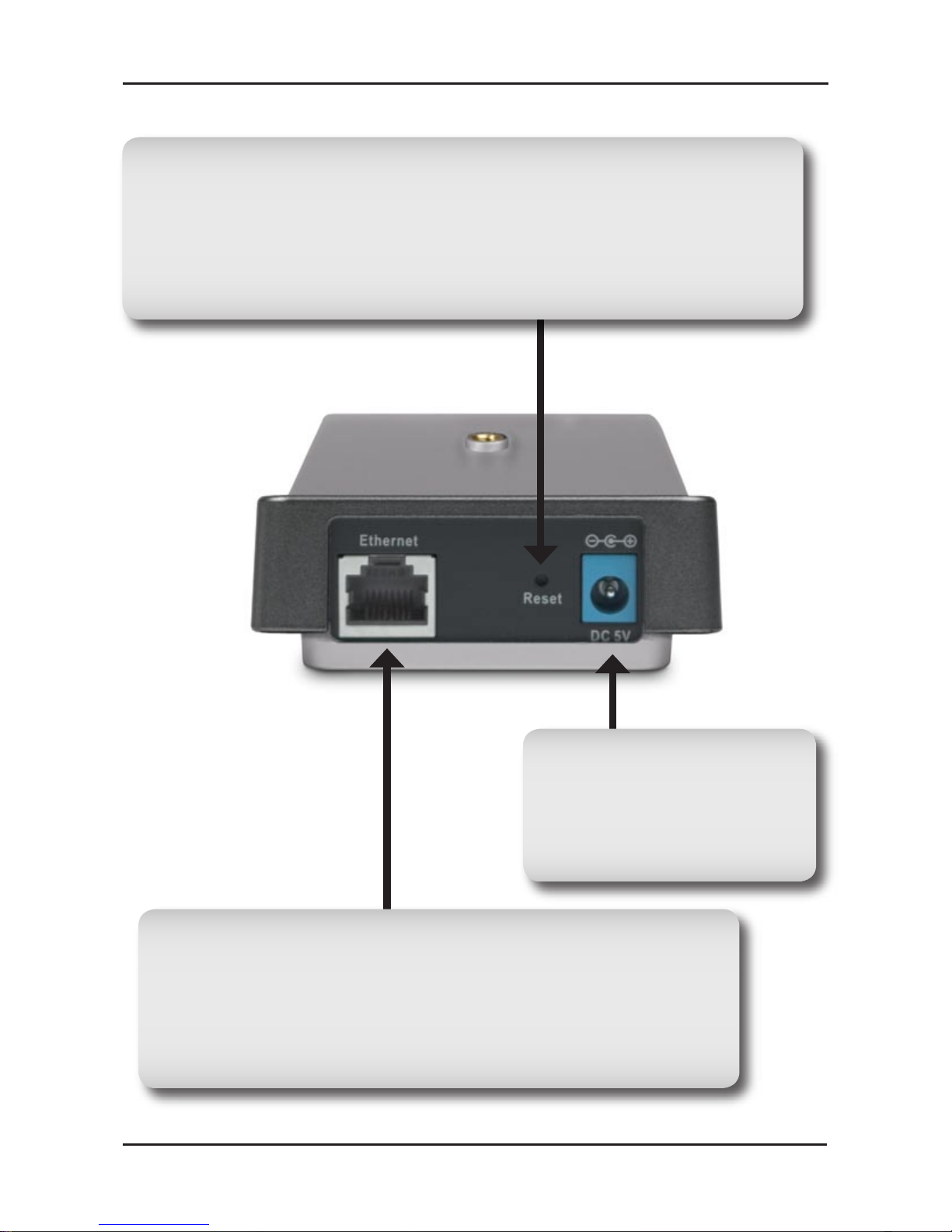

Reset Button
Reset will be initiated when the reset button is pressed once and Power LED
begins to flash.
Factory Reset will be initiated when the reset button is pressed continuously
for ten seconds. Release the reset button and the Power LED will begin to flash
indicating that the DCS-1110’s settings are reverting back to the factory settings.
The IP address will also return to the default setting with DHCP selected.
DC Power Connector
The DC power input connector is
labeled DC 5V with a single jack
socket to supply power to the
DCS-1110. The power supply is
optional if PoE is used.
Ethernet Cable Connector
The DCS-1110 features an RJ-45 connector for connections to
10Base-T Ethernet cabling or 100Base-TX Fast Ethernet cabling.
The port supports 802.3af Power over Ethernet (PoE) and the NWay
protocol, allowing the DCS-1110 to automatically detect or negotiate
the transmission speed of the network. The port also supports MDI/X,
which allows the use of either straight through or cross-over cables.

5 D-Link DCS-1110 Quick Install Guide
Hardware Installation
Hardware Installation

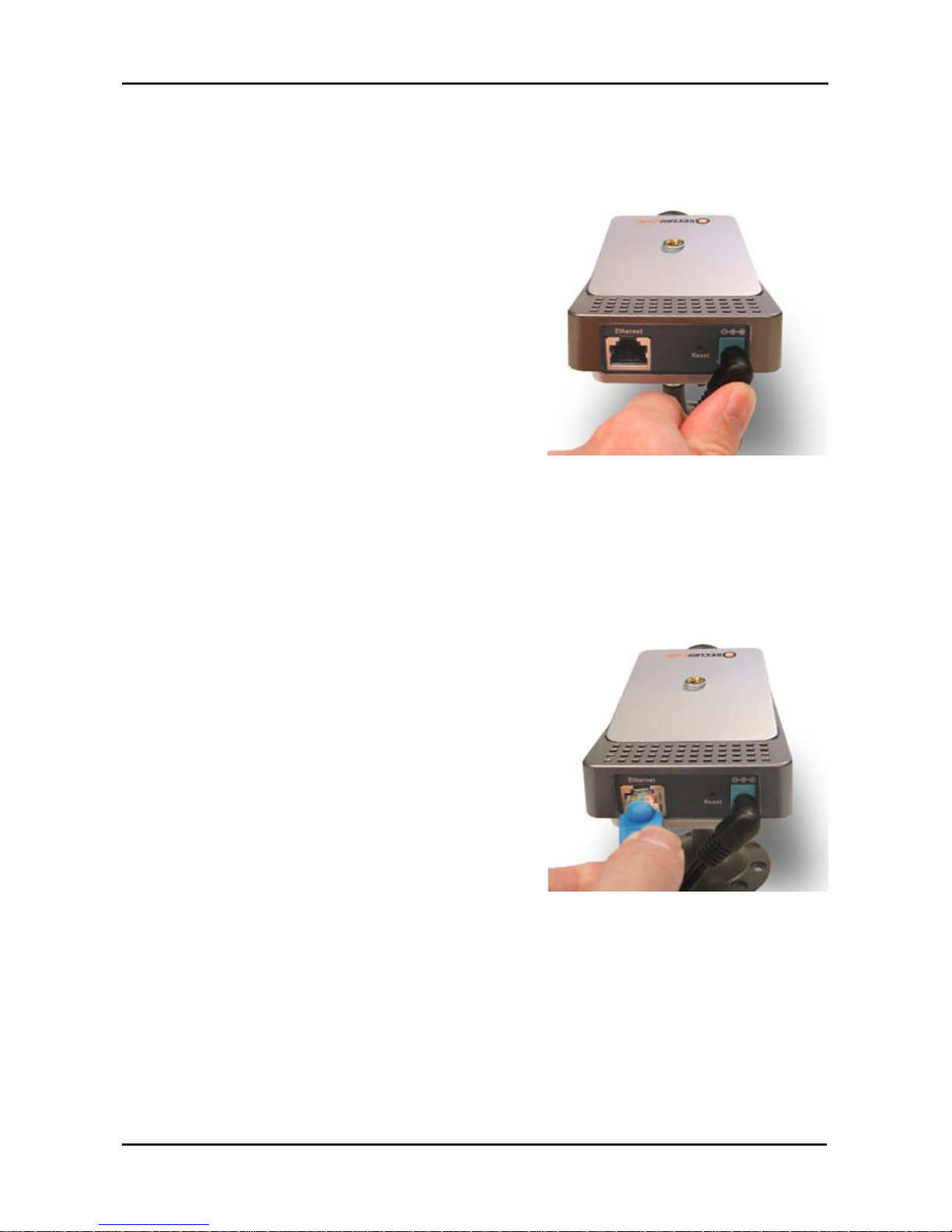

Connect the Ethernet Cable
Connect an Ethernet cable to the Ethernet
connector located on the Internet Camera’s
back panel and attach it to the network.
If you connect this camera directly to a PC,
the DCS-1110 has an MDI/X port that will
allow you to use either a straight through
(included) or cross-over cable.
The LAN LED will light orange when there is a good connection to the
LAN. The LED will begin to flash indicating the camera is receiving or
sending data.
Attach the External Power Supply
Attach the external power supply to the
DC power input connector located on the
Internet Camera’s back panel (labeled
DC 5V) and connect it to an AC power
outlet.
Note: The power supply is optional if the
PoE (Power over Ethernet) is used.
Power source is confirmed when the LED Power Indicator on the
Internet Camera is illuminated.

Software Installation
D-Link DCS-1110 Quick Install Guide 6
Click Next

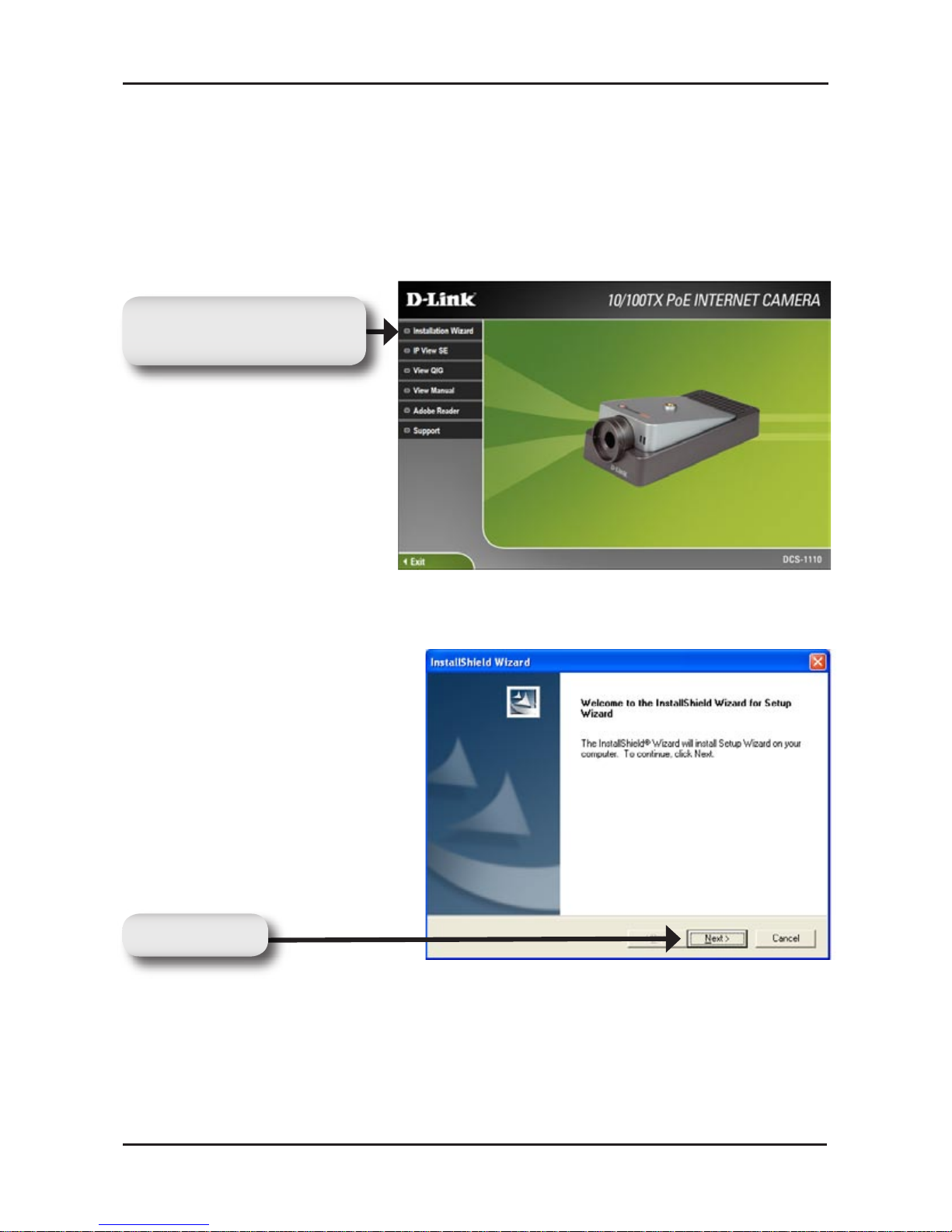

Insert the DCS-1110 CD into the
CD-ROM drive.
Software Installation
Click on Installation
Wizard

7 D-Link DCS-1110 Quick Install Guide
Software Installation

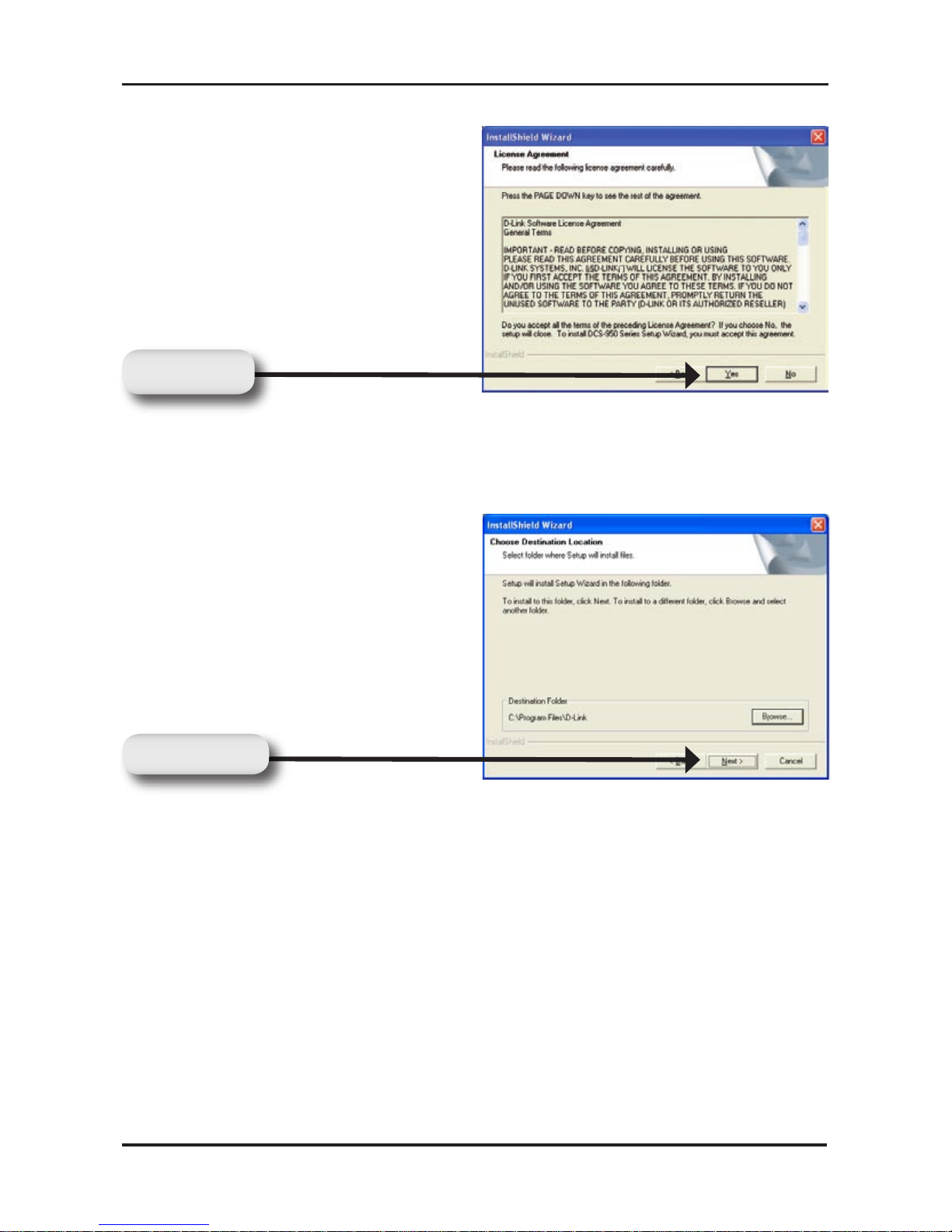

Click Yes
Click Next

Software Installation
D-Link DCS-1110 Quick Install Guide 8

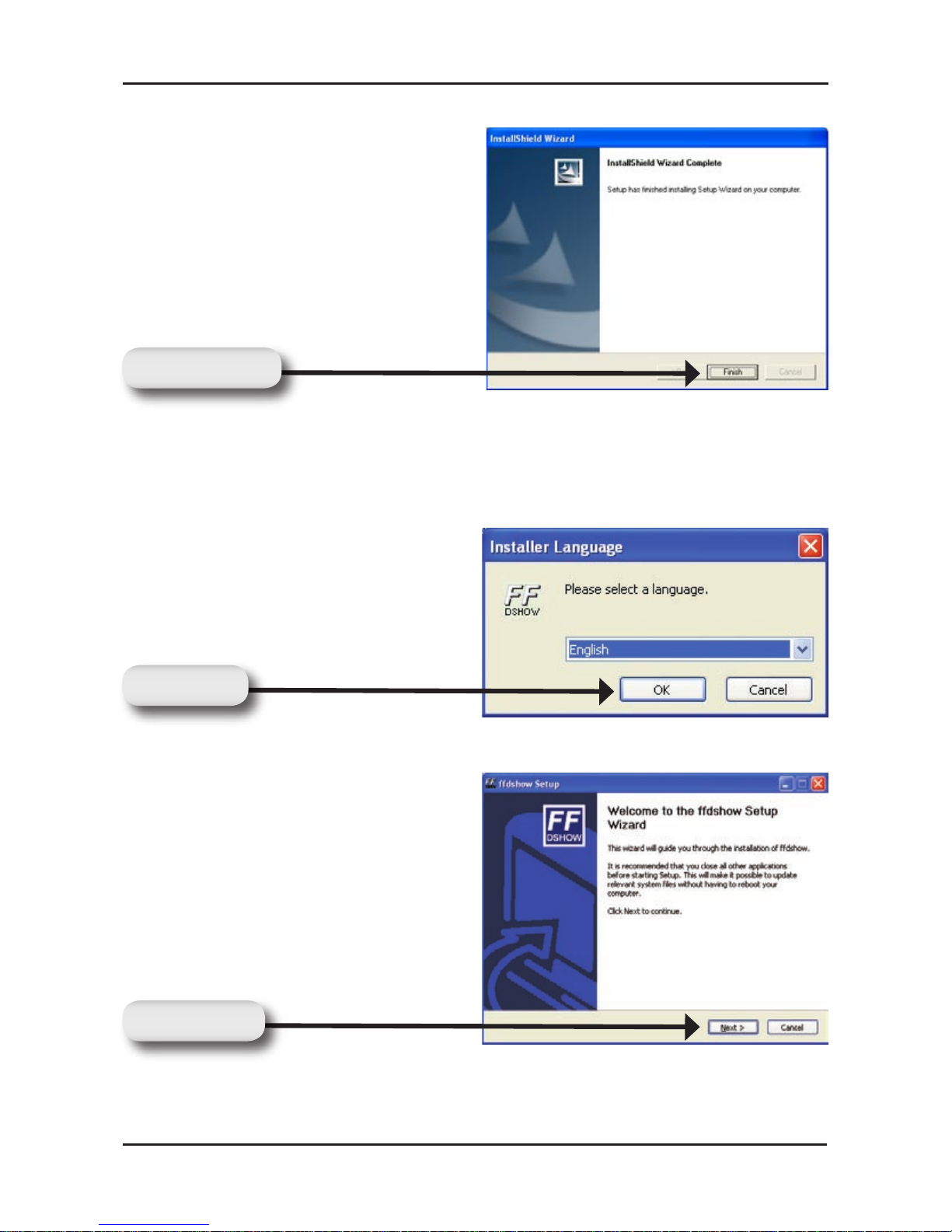

Now you should install ffdshow, this will install the proper codec that
will allow you to playback recorded video taken by the DCS-1110.
Click Finish
Click OK
Click Next

9 D-Link DCS-1110 Quick Install Guide
Software Installation

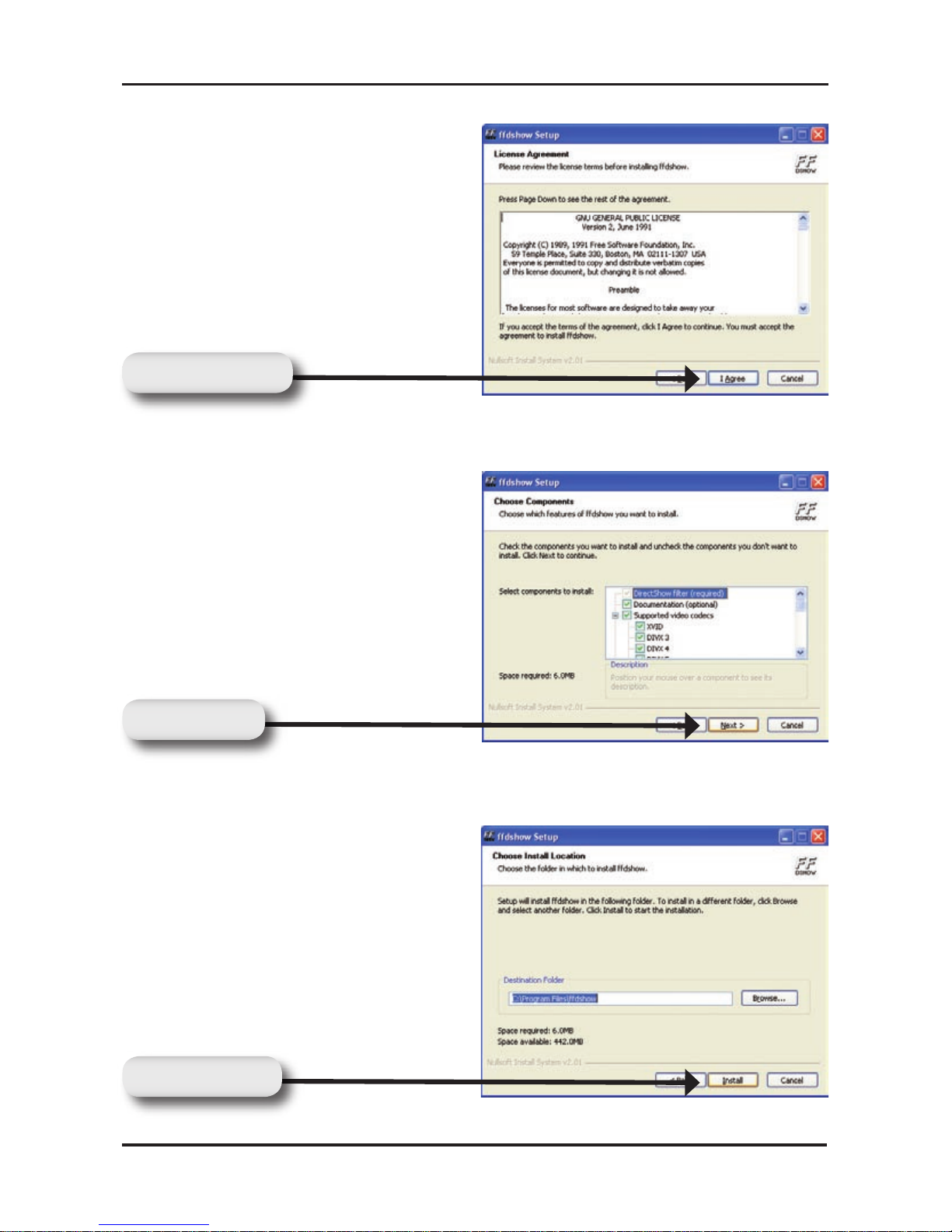

Click I Agree
Click Next
Click Install

Software Installation
D-Link DCS-1110 Quick Install Guide 10

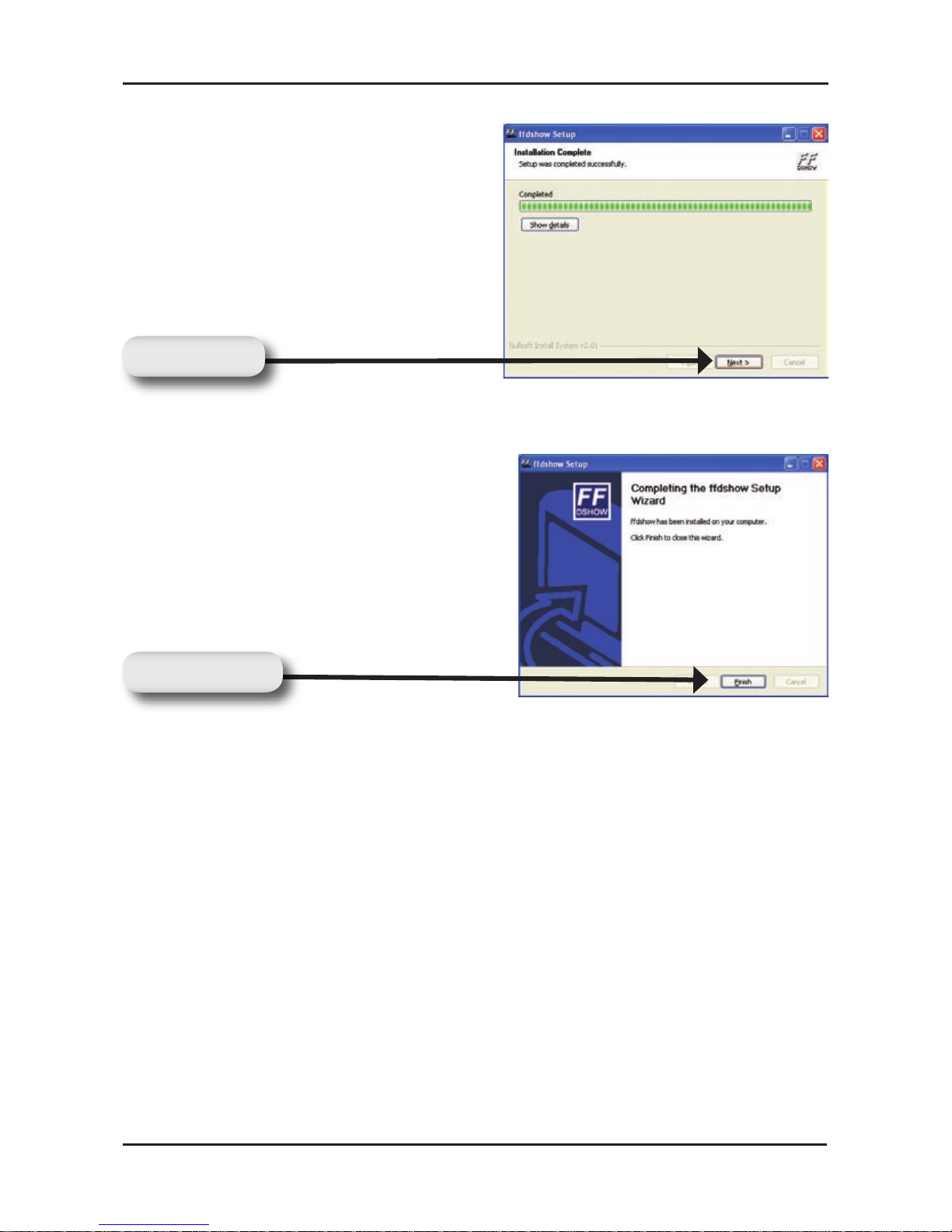

Click Next
Click Finish

11 D-Link DCS-1110 Quick Install Guide
Configuration
Configuring Your Camera with
the Setup Wizard

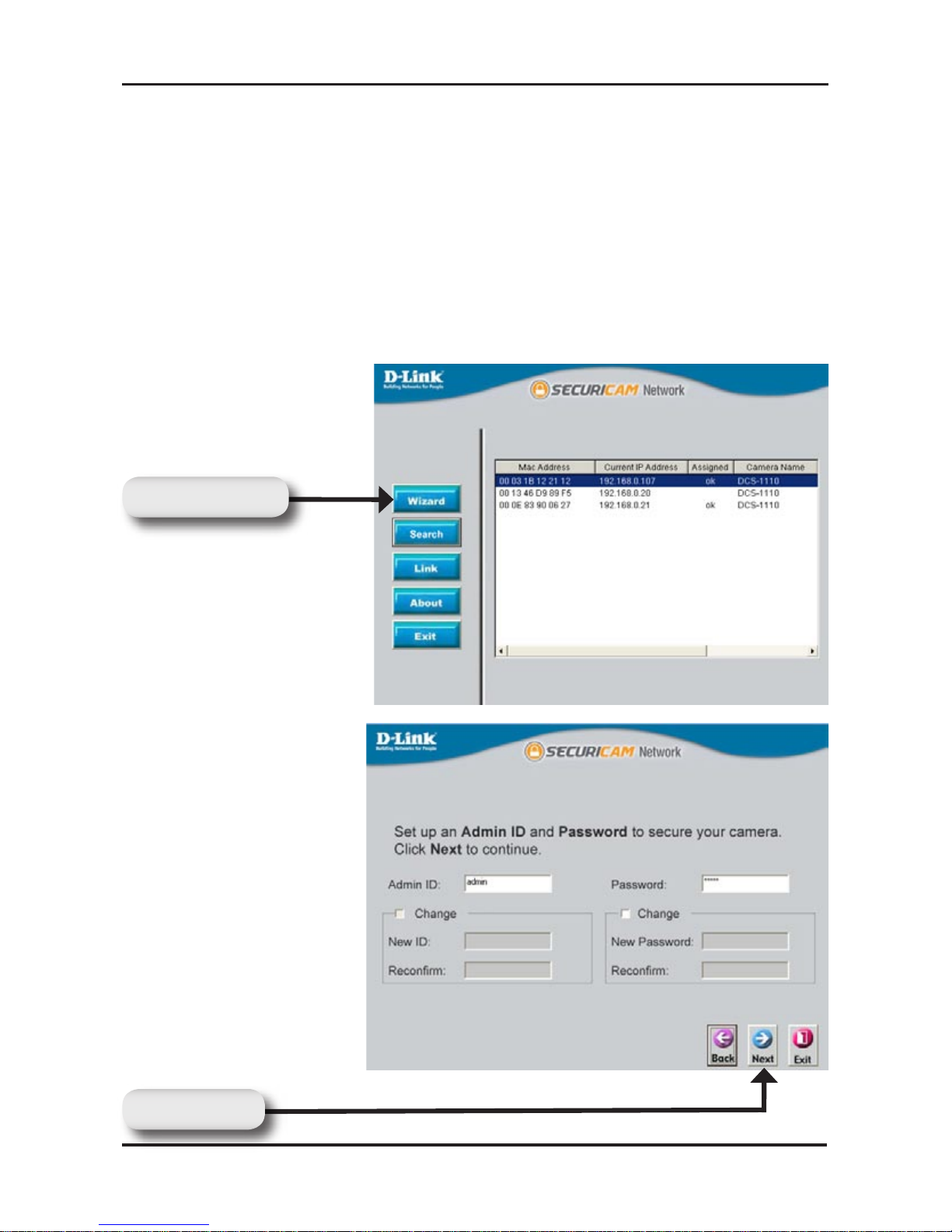

Click Wizard
Click Next
To run the Setup Wizard, click on Start->Programs->D-Link Setup
Wizard.
Select the camera you want to setup and click Wizard.

Configuration
D-Link DCS-1110 Quick Install Guide 12
Click Next
Click Restart
This page shows the current network settings of the camera.
Click Next to continue.

13 D-Link DCS-1110 Quick Install Guide
Viewing Your Internet Camera

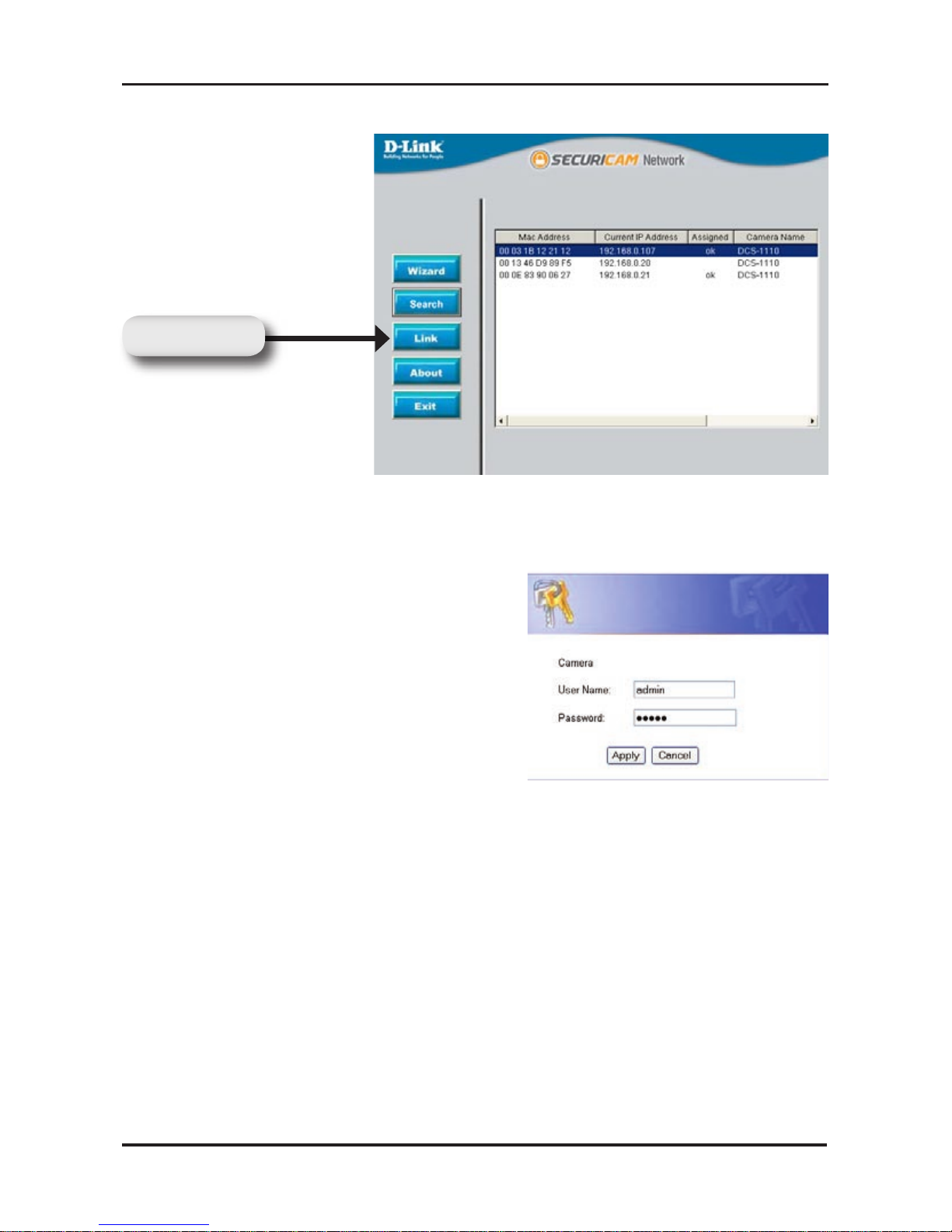

After you click the Link button, the
Installation Wizard will automatically
open your Web browser to the IP
address of the DCS-1110 and prompt
you for a user name and password.
Enter “admin” into both fields. If
you changed the user name and
password in the setup wizard, enter
the new values and click Apply.
Click Link

Viewing Your Internet Camera
D-Link DCS-1110 Quick Install Guide 14

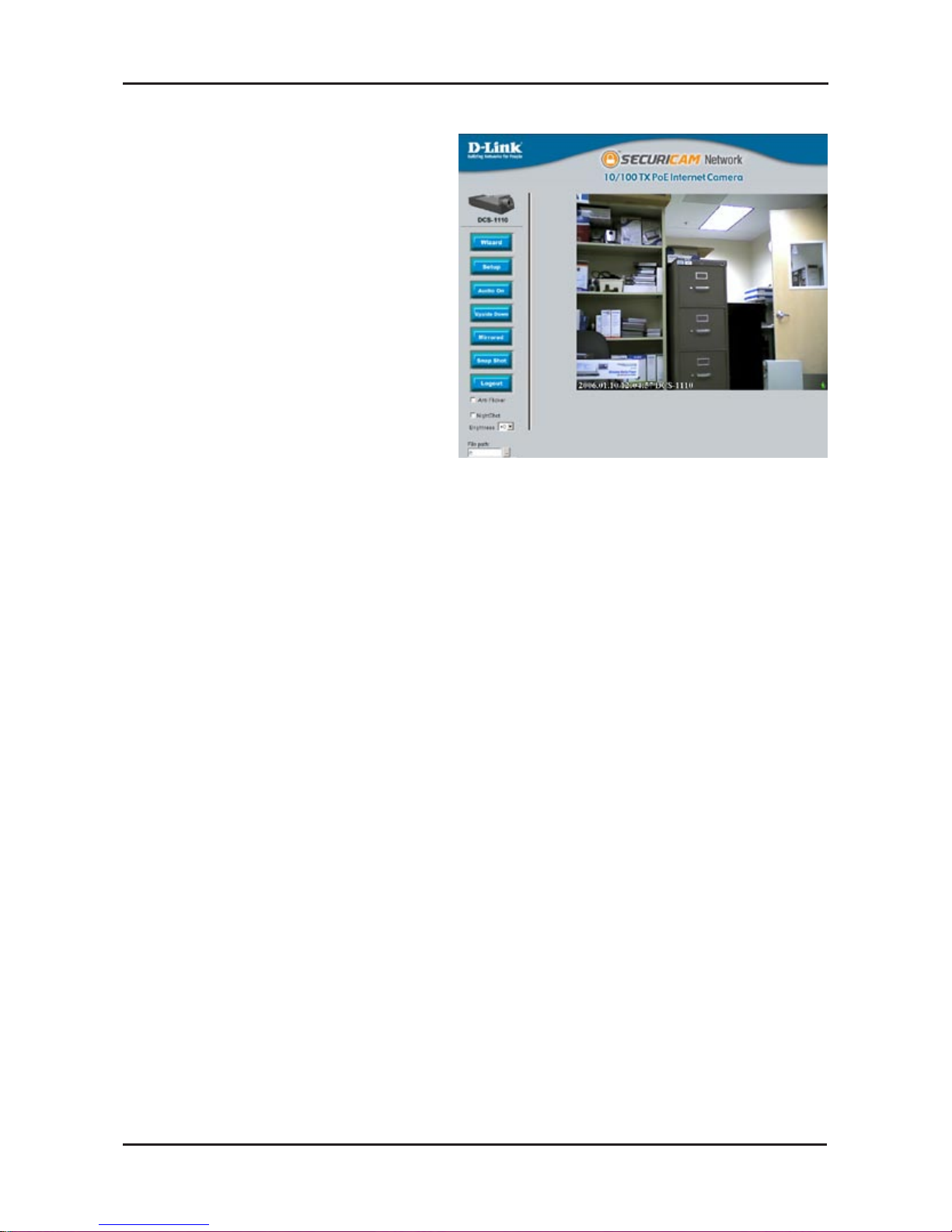

After you successfully log in,
the camera will be displayed
in your Web browser. In this
example the IP address of the
camera is http://192.168.0.20.
Your DCS-1110 may have a
different IP Address.
The installation and configuration of the DCS-1110 Internet
Camera is now complete.

15 D-Link DCS-1110 Quick Install Guide
Notes
Notes

16D-Link DCS-1110 Quick Install Guide
Technical Support
D-Link’s website contains the latest user documentation and
software updates for D-Link products.
U.S. and Canadian customers can contact D-Link Technical
Support through our website or by phone.
United States
Telephone
[phone]
Twenty four hours a day, seven days a week.
World Wide Web
http://support.dlink.com
E-mail
suppor[email protected]
Canada
Telephone
[phone]
Monday through Friday, 7:30am to 9:00pm EST.
World Wide Web
http://support.dlink.ca
E-mail
suppor[email protected]
