D-Link DCS-5000L User manual

Pan & TilT Wi-Fi Day/nighT Camera
DCS-5000l
QUICK
INSTALLATION
GUIDE
КРАТКОЕ РУКОВОДСТВО ПО УСТАНОВКЕ
GUÍA DE INSTALACIÓN RÁPIDA
GUIA DE INSTALAÇÃO RÁPIDA
快速安裝指南
PETUNJUK PEMASANGAN CEPAT
クイックインストールガイド
快速安裝指南

DCS-5000l
2
ENGLISH

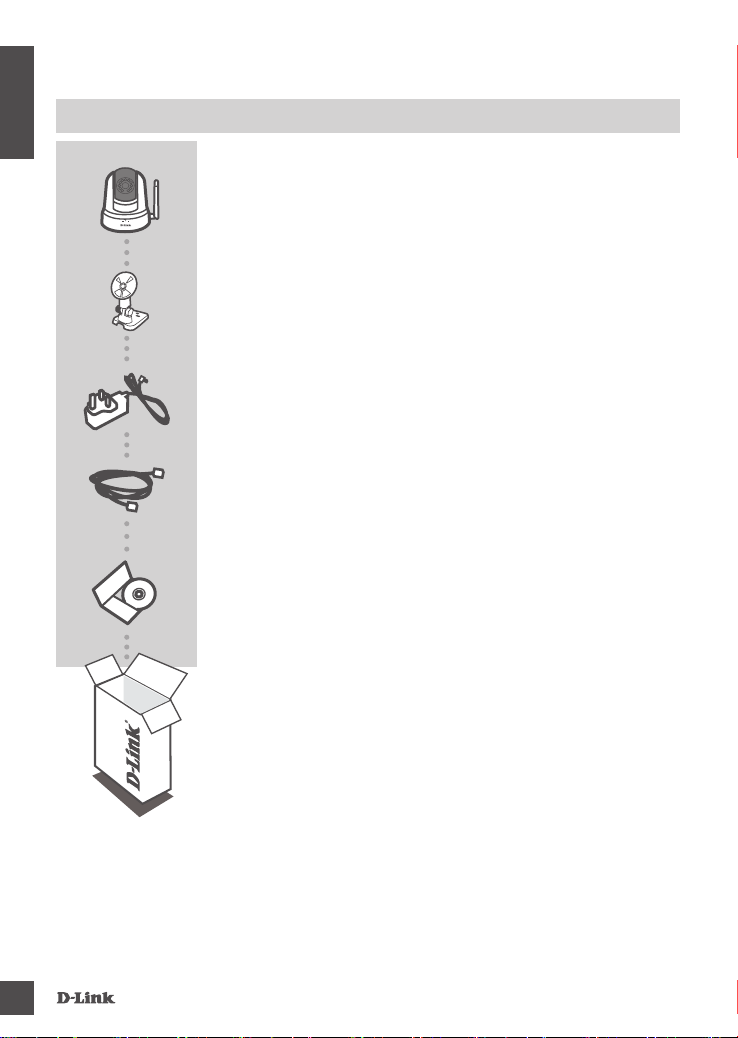

CONTENTS OF PACKAGING
PAN & TILT WI-FI DAY/NIGHT CAMERA
DCS-5000L
POWER ADAPTER
MOUNTING KIT
ETHERNET CABLE (CAT5 UTP)
CONNECTS THE CAMERA TO YOUR ROUTER DURING SETUP
If any of these items are missing from your packaging, contact your
reseller.
INSTALLATION CD
INCLUDES SETUP WIZARD & TECHNICAL MANUALS

DCS-5000l 3
ENGLISH
If you have a D-Link Cloud Router, you can take advantage of Zero Conguration Setup. This
feature automatically congures your camera’s settings for you and adds it to your mydlink account
automatically.
If you do not have a D-Link Cloud Router, you can use the mydlink Lite app or the downloadable
Setup Wizard to install and congure your camera, as described in the following section.
Step 2:
Connect the other end of the Ethernet cable to your D-Link Cloud
Router and connect the camera’s power adapter to a power outlet.
Step 3:
From any computer, open a web browser, go to
http://www.mydlink.com and log in to your account.
Click on the device name when the new device notication appears
to add the camera to your account. You can adjust the focus by
turning the ring on the front of the camera.
If you wish to connect your camera to your router with a wireless
connection, you can simply disconnect the Ethernet cable and move
the camera to its intended location.
DCS-5000L
Step 1:
Connect the power cable and Ethernet cable to your Cloud Camera.

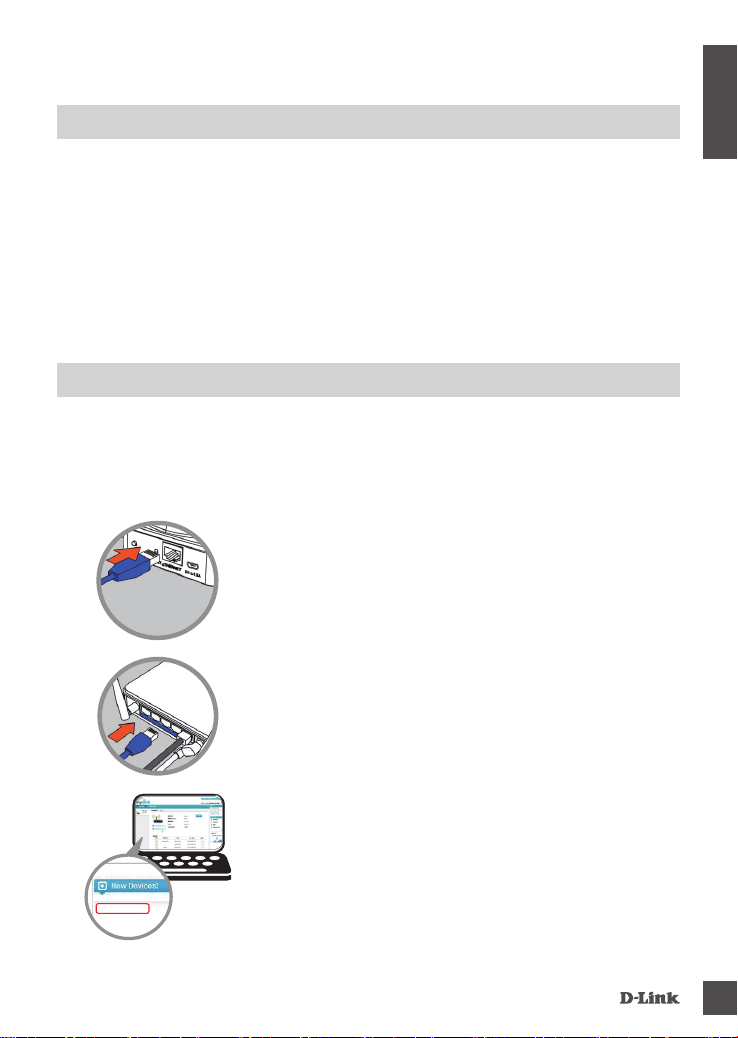

PRODUCT SETUP
ZerO COnFigUraTiOn SeTUP
SYSTEM REQUIREMENTS
• 802.11n/g router (a D-Link Cloud Router is recommended)
• A broadband Internet connection
• Computer with:
• Microsoft Windows®8/7/Vista/XP, or Mac with OS X 10.6 or higher
• PC with 1.3 GHz or above and at least 128 MB RAM
• Internet Explorer 7, Firefox 12, Safari 6, or Chrome 20 or higher version with Java installed and
enabled
• iPhone, iPad, Android, or Windows smartphone or tablet (for remote viewing using mobile device)

DCS-5000l
4
ENGLISH

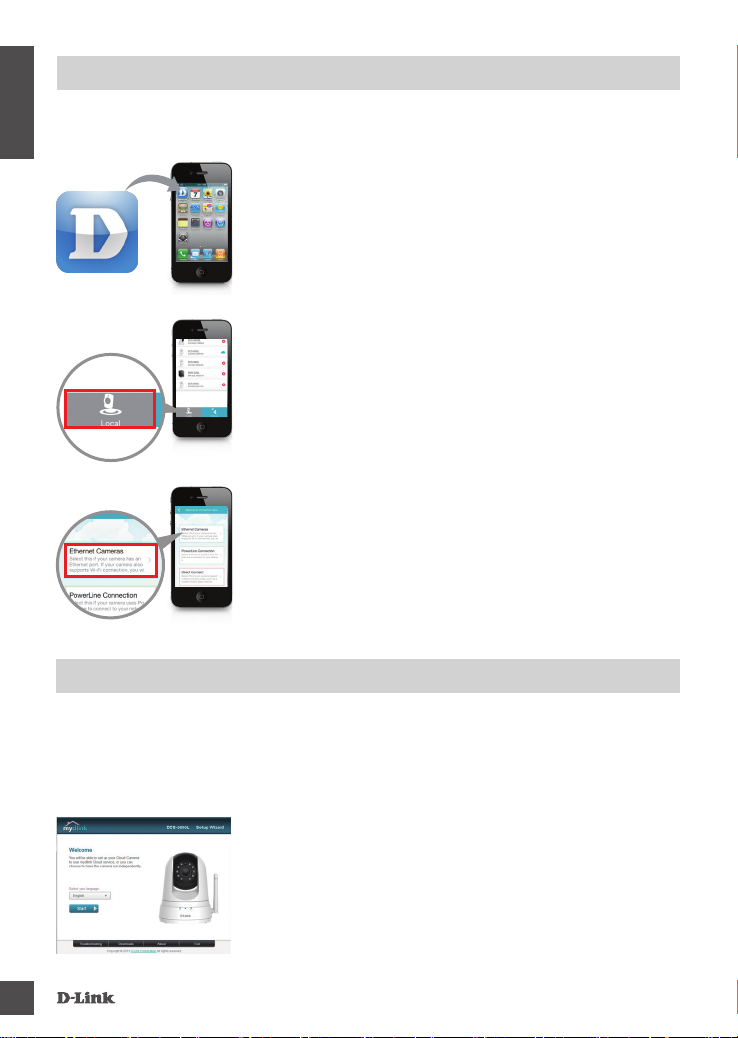

USing The mOBile aPP
If you do not have a D-Link Cloud Router, you can use the mydlink Lite mobile app to set up your
camera.
Step 1:
Download the free mydlink™ Lite app by searching for mydlink Lite
in the App Store (iOS) or Google Play (Android).
Step 3:
On the next screen, select Ethernet Cameras. Follow the on-screen
instructions. The wizard will guide you through the conguration
process for your DCS-5000L.
Step 2:
Launch the app, tap on the Local tab at the bottom-left, then tap the
Add Camera button when it appears.
USing The SeTUP WiZarD
If you do not have a D-Link Cloud Router, you can simply use any Windows or Mac computer to
go through the Setup Wizard from the CD, which will guide you through the installation process from
connecting your hardware to conguring your camera.
If you do not have a CD-ROM drive, or the CD is missing, please download the Setup Wizard from
http://www.mydlink.com/support
• Windows Users: Insert the CD. If the Setup Wizard program does
not automatically start on your computer, go to Start > Run. In the
run box type D:\autorun.exe (where D: represents the drive letter
of your CD-ROM drive) and click OK.
• Mac Users: Insert the CD. On the desktop, open your CD drive,
and double-click on the SetupWizard le. Wait about 20-30
seconds, and follow the instructions on screen.

DCS-5000l 5
ENGLISH
• Ensure that your browser supports both Java and ActiveX, and that these features have been
installed and enabled.
• Windows does not have Java installed by default. You can download the latest version from
http://www.java.com
• In Mac OS X 10.7.x, Java applets are disabled by default. To enable Java applets, click the Finder
> Applications > Utilities > Java Preferences and check the Enable applet plug-in and Web
Start applications option.
• The ActiveX®controls in IE will install automatically if needed. We suggest that you make sure that
you have enabled the related options in Tools > Internet Options > Security > Custom Level.

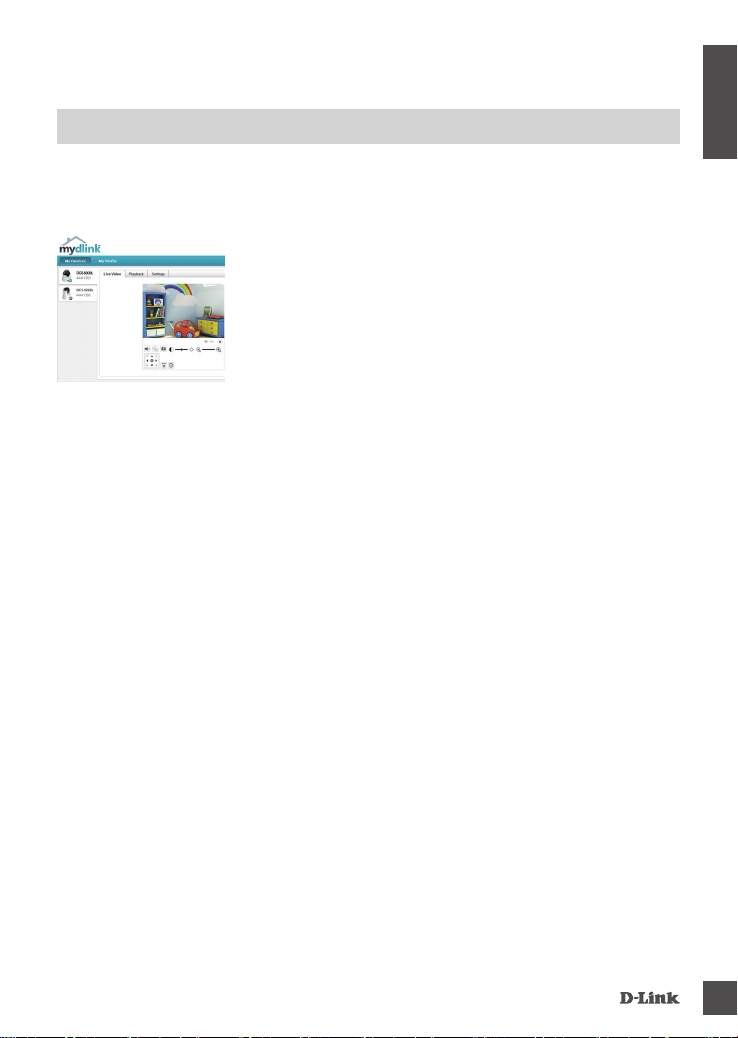

GETTING STARTED WITH mydlink
mydlink is a web-based service which allows you to view and control your mydlink-enabled devices
through any computer connected to the Internet. If you have cameras linked to your mydlink account,
you will be able to see their live views using the mydlink website. Follow the instructions below to
access your mydlink account.
• Open a web browser on any computer connected to the Internet.
• Type http://www.mydlink.com in the address bar and press
Enter.
• Sign in using your mydlink account.
• From the home screen, you will be able to view all devices which
have been linked to your mydlink account.

DCS-5000l
6
ENGLISH

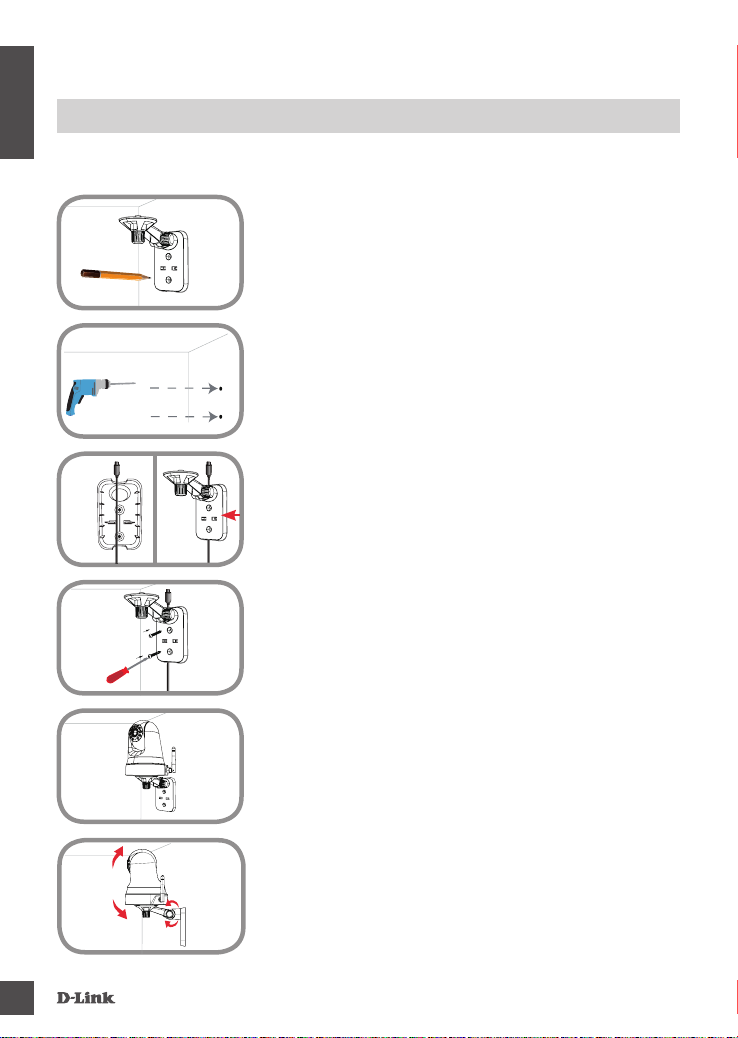

MOUNTING THE CAMERA
Please refer to the steps below to assist you with mounting the camera using the arm mount. We
suggest that you congure the camera before mounting.
Step 1:
Place the arm mount where you want to position the camera and
use a pencil to mark the holes. Ensure the arm mount is oriented
correctly with adequate space for the camera to be mounted and
necessary cables to be routed.
Step 2:
Depending on the material of the wall or ceiling, use proper tools to
drill two holes 25mm deep with a 6mm drill bit where you marked.
After drilling the holes, insert the plastic anchors to support the
screws.
Step 4:
Fasten the mounting bracket to the wall using the screws provided.
Step 5:
Using the supplied thumbscrew, fasten the camera to the mounting
bracket. Connect the power cable to the camera.
Step 3:
If desired, the cable can be concealed behind the mounting bracket.
Run the cable through the back of the mounting bracket, securing
it with the built-in guides. Be sure to leave enough cable length
protruding to allow connection to the camera.
Step 6:
Adjust the angle of the arm on the mounting bracket as required.
Tighten the thumbscrew to lock the arm in place.

DCS-5000l 7
ENGLISH
TROUBLESHOOTING
SeTUP anD COnFigUraTiOn PrOBlemS
1. HOW DO I CONNECT MY CAMERA USING WPS?
We recommend that you use either the Zero Conguration or Setup Wizard method described earlier
in this guide as they will automatically congure your camera for your wireless network.
If you wish to use WPS to connect your camera, follow these steps:
• Press and hold the WPS button on the back of the camera for 5 seconds. The blue WPS status
LED will blink.
• Press the WPS button on your wireless router or access point within 60 seconds. On some
routers, you may need to log into the web interface and then click an onscreen button to activate
the WPS feature. If you are not sure where the WPS button is on your router or access point,
please refer to your router's user manual.
2. THE IMAGE IS OUT OF FOCUS.
You can turn the focus ring on the front of the camera to adjust the focus.
3. WHY IS THE CAMERA VIEW HAZY OR BRIGHT WHEN USING NIGHT VISION MODE?
The IR night vision lights on the camera may be reecting off of a nearby surface or window. Try
repositioning your camera to avoid reections or glare.

DCS-5000l
8
ENGLISH
TeChniCal SUPPOrT
Australia:
Tel: [phone]
24/7 Technical Support
Web: http://www.dlink.com.au
E-mail: [email protected]
India:
Tel: [phone]
Toll Free 1800-233-0000
Web: www.dlink.co.in
E-Mail: [email protected]
Singapore, Thailand, Indonesia,
Malaysia, Philippines, Vietnam:
Singapore - www.dlink.com.sg
Thailand - www.dlink.co.th
Indonesia - www.dlink.co.id
Malaysia - www.dlink.com.my
Philippines - www.dlink.com.ph
Vietnam - www.dlink.com.vn
Korea:
Tel : [phone]
Monday to Friday 9:00am to 6:00pm
Web : http://d-link.co.kr
E-mail : [email protected]
New Zealand:
Tel: [phone]
24/7 Technical Support
Web: http://www.dlink.co.nz
E-mail: [email protected]
South Africa and Sub Sahara
Region:
Tel: [phone]
08600 DLINK (for South Africa only)
Monday to Friday 8:30am to 9:00pm South
Africa Time
Web: http://www.d-link.co.za
E-mail: [email protected]
D-Link Middle East - Dubai, U.A.E.
Plot No. S31102,
Jebel Ali Free Zone South,
P.O.Box 18224, Dubai, U.A.E.
Tel: [phone]
Fax: [phone]
Technical Support: [phone]
General Inquiries: [email protected]
Tech Support: [email protected]
Egypt
1, Makram Ebeid Street -
City Light Building - oor 5
Nasrcity - Cairo, Egypt
Tel.: [phone]
Technical Support: [phone]
General Inquiries: [email protected]
Tech Support: [email protected]
Kingdom of Saudi Arabia
Ofce # 84 ,
Al Khaleej Building ( Mujamathu Al-Khaleej)
Opp. King Fahd Road, Olaya
Riyadh - Saudi Arabia
Tel: [phone]
Technical Support:
[phone]
General Inquiries: info.sa@ dlinkmea.com
Tech Support: support.sa@ dlinkmea.com
Pakistan
Islamabad Ofce:
61-A, Jinnah Avenue, Blue Area,
Suite # 11, EBC, Saudi Pak Tower,
Islamabad - Pakistan
Tel.: [phone]
Fax: [phone]
Karachi Ofce:
D-147/1, KDA Scheme # 1,
Opposite Mudassir Park, Karsaz Road,
Karachi – Pakistan
Phone: [phone]
Fax: [phone]
Technical Support: [phone], 34305069
General Inquiries: [email protected]
Tech Support: [email protected]
You can nd software updates and user documentation on the D-Link website.
