DCS-2330L
Quick Install Guide
Outdoor HD Wireless Network Camera

If any of the above items are missing, please contact your reseller.
DCS-2330L Outdoor HD Wireless Network Camera
Power Adapter
Package Contents
CAT5 Ethernet Cable
Quick Install Guide
Minimum Requirements
Mobile Device
• iPhone, iPad, or Android smartphone or tablet
(Refer to the mobile app’s store page to see if your device is compatible)
Network Device and Service
• A wireless router (802.11ac/n/g) with Internet service
• An e-mail account (required to create a mydlink® account)
* If you use a mobile device with the mydlink Lite app, a PC is not required for
setup. Refer to Setting up Your Camera on page 4.
2
ENGLISH

Camera Lens
Microphone IR LED
Power/Status LED
PIR Sensor WPS Status LED
Light Sensor
Antenna
Power Cable
Ethernet Cable WPS Button
Weatherproof Cover
Adjustment Ring
Weatherproof Cover
Weatherproof Screw
Coverings

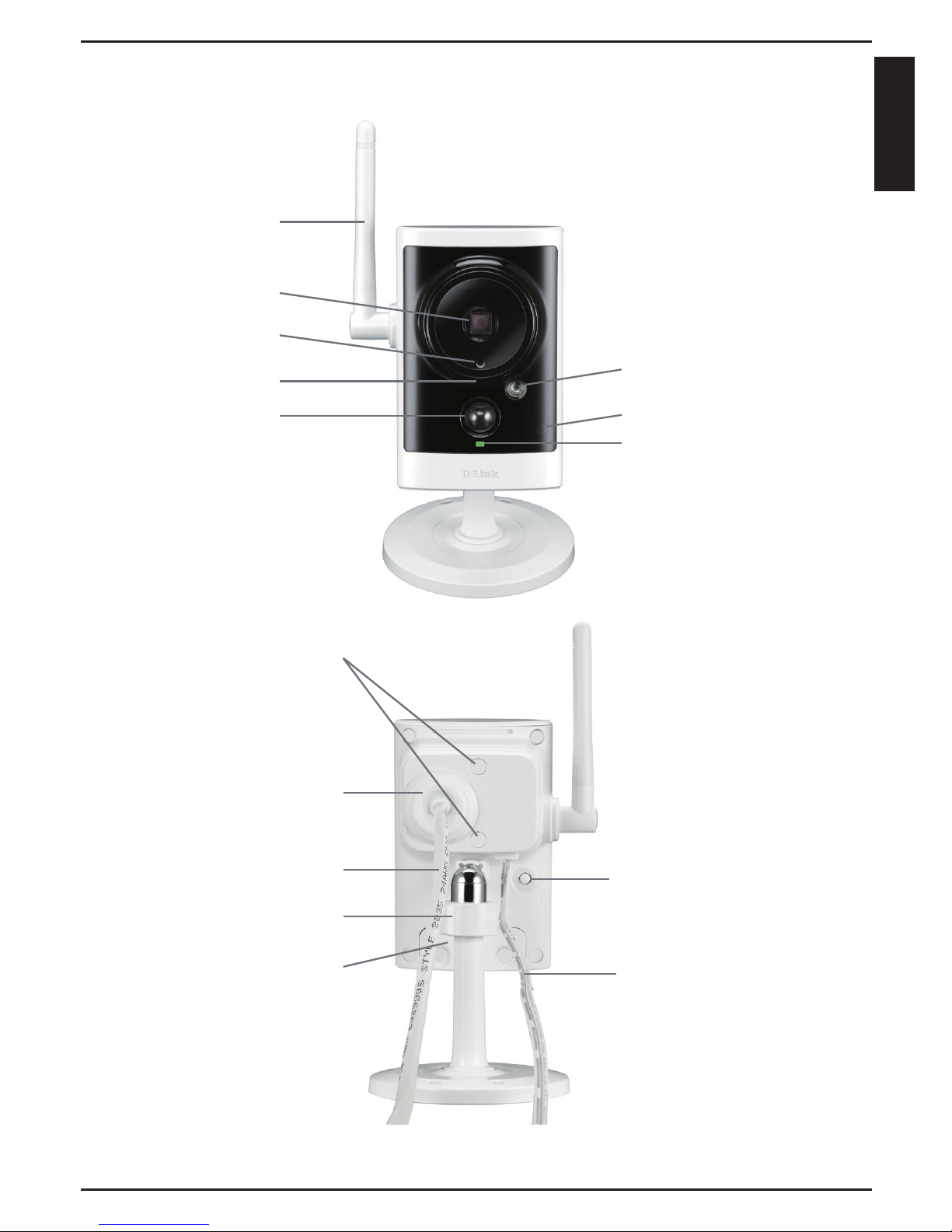

Product Overview
Front
Back
3
ENGLISH

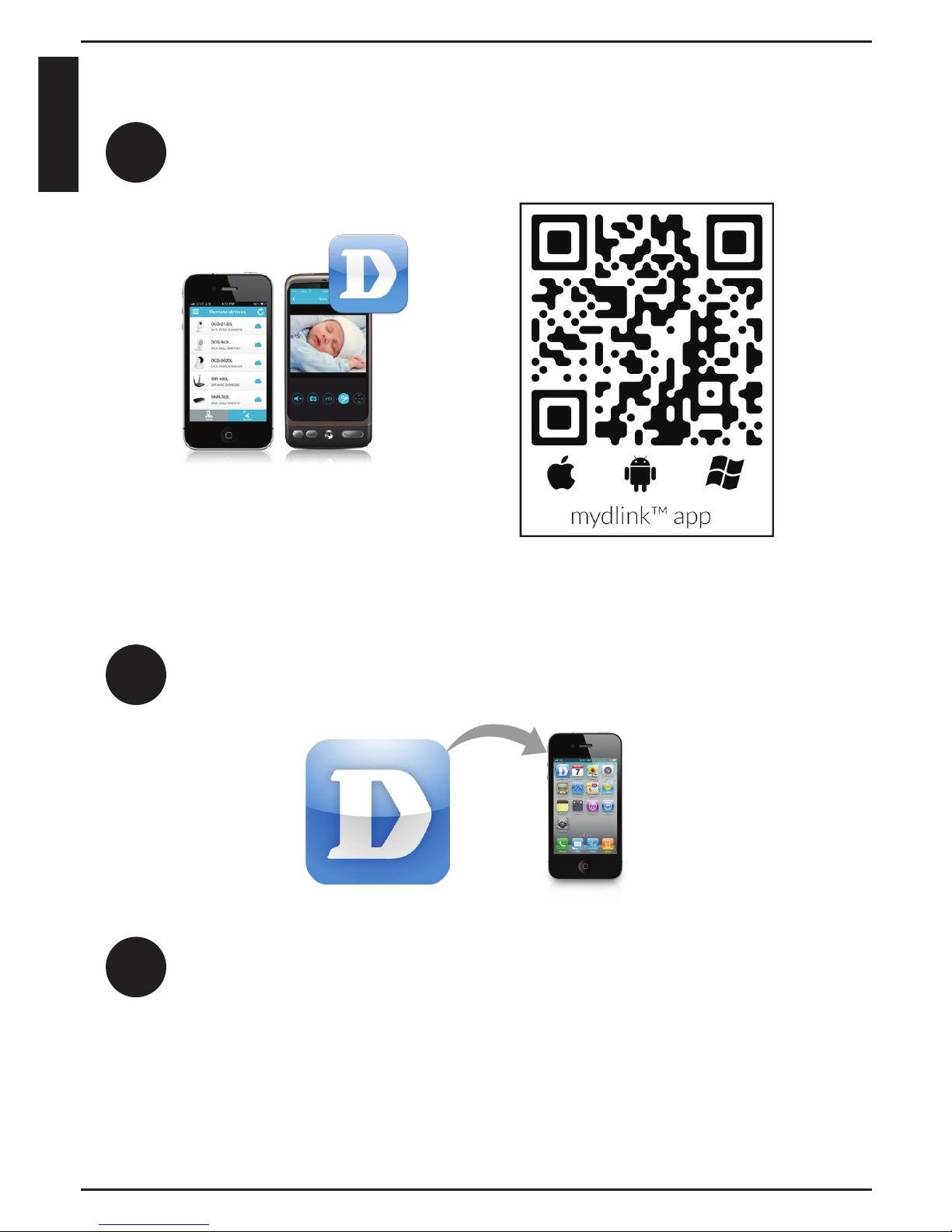

Setting Up Your Camera
System Requirements: Refer to the mydlink Lite app page on Apple App Store, Google Play or Windows Phone Store.
Once the mydlink Lite app is installed, tap on the icon to open the app.
Download the free mydlink Lite app on your smartphone or tablet.
1
2
3Refer to either New mydlink User or Existing mydink User on the next page.
4
ENGLISH

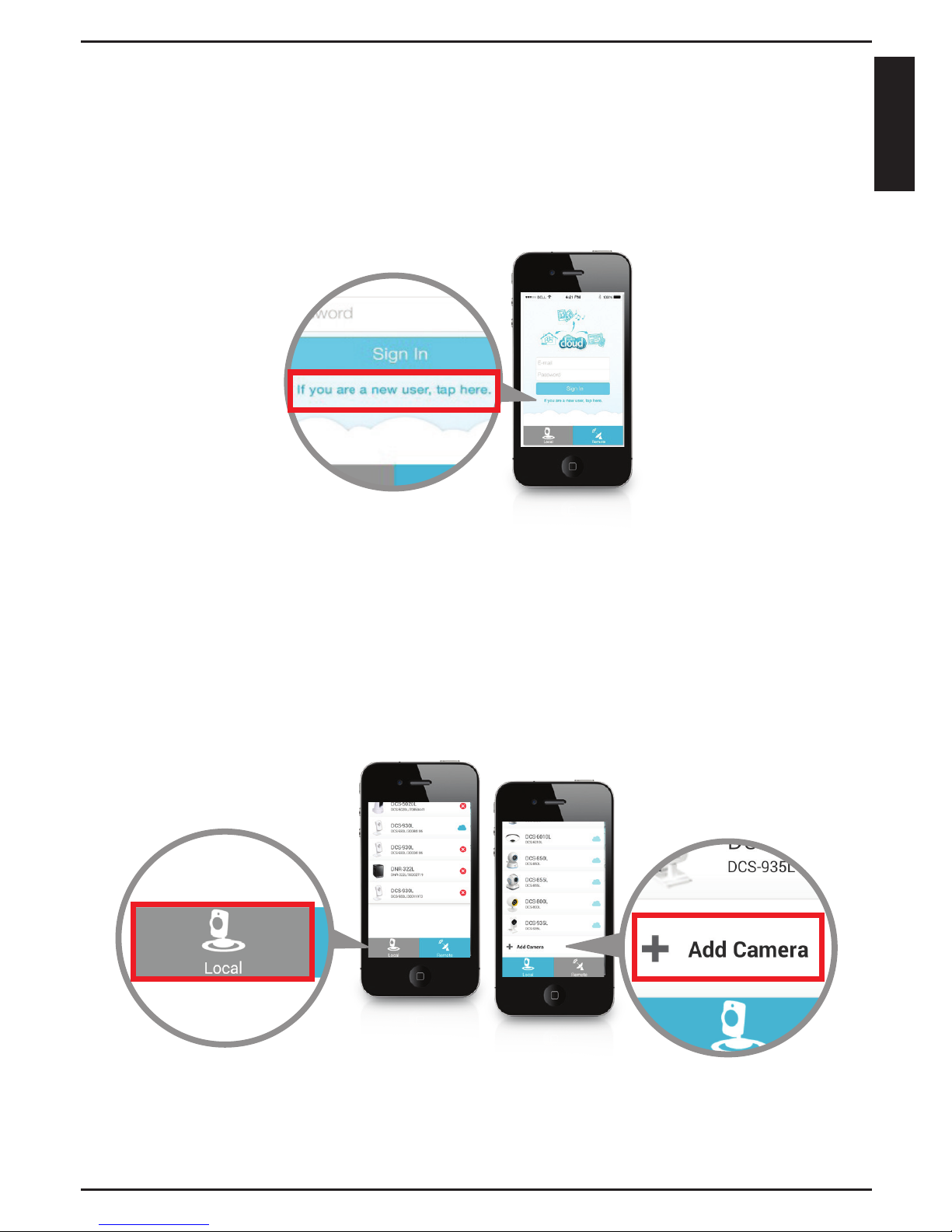

If you do not have a mydlink account, tap If you are a new user tap here located
under the Sign In button.The app will guide you through the conguration and
account creation process.
Once you log in, tap the Local icon followed by Add Camera. The app will then
guide you through the conguration process.
New mydlink User
Existing mydlink User
5
ENGLISH

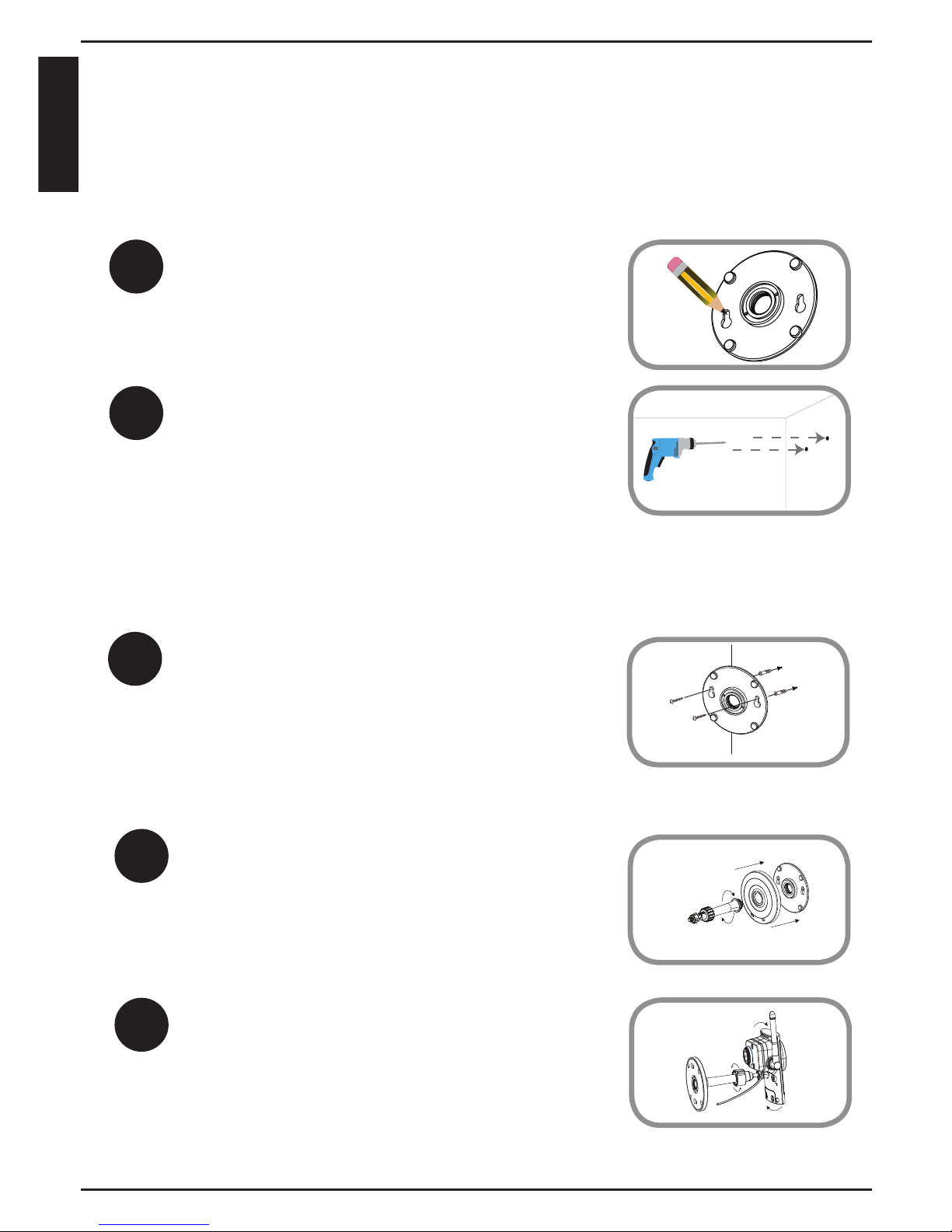

Mount the Camera
Refer to the steps below to assist you with mounting the camera.
We recommended that you congure the camera rst, before mounting it.
1
2
Place the mounting plate where you want
to position the camera and mark the holes
where you will place the screws.
Depending on the material of the wall or
ceiling, use the proper tools to drill two
holes where you drew the marks.
Note: If the wall is made out of concrete, drill
the holes first and insert the plastic anchors to
support the screws.
3When you place the mounting plate over
the holes that you drilled in the wall, make
sure you align the holes. Use the supplied
screws to attach the mounting base to the
surface of the wall.
4Place the mounting base cover on the
mounting plate. Reattach the camera
mount onto the mounting base by holding
the camera mount and twisting the camera
mount clockwise into the mounting base.
Adjust the direction of the camera as
desired, then tighten the collar on the
camera mount to lock it in place.
5
6
ENGLISH

1. What is a mydlink No.? What is it used for?
Each camera has a unique eight-digit mydlink No. which will be shown on
the label on the back of your camera. This eight-digit number identies
your device, and is required to add your device to your mydlink account.
2. What can I do if my DCS-2330L is not working correctly?
• Reset the camera (see next step) and run the setup steps starting
on page 4 again.
• To make sure your hardware is installed correctly, make sure that:
- the power LED is solid green
- your Internet connection is working
- your router’s LAN & WAN connections are working
- your router supports UPnP®
- your camera is on the same network as your mobile device/PC
- both your mobile device/PC and camera have a working Internet
connection
• If your camera is still not working, check your router and make sure it
has the latest rmware.
3. What can I do if I forget my password?
FAQs
If you forget your password, you must reset the
camera. Unfortunately, this process will change
your settings back to factory default. To reset the
camera, locate the reset button on the back of
the camera. With the camera powered on, use an
unfolded paper clip to hold the button down for
10 seconds. Run the setup procedure located on
page 4 once the camera restarts.
4. Why is there a white haze when viewing in night vision mode?
When viewing in night vision mode, the IR lights on the camera may be
reecting o a nearby surface. Try repositioning the camera in order to
avoid glare from IR LEDs.
Reset button
located under
the weather
proof cover.
7
ENGLISH

Technical Support
This guide is only for the rst time conguration. Please refer to the
user manual to learn more or visit http://www.mydlink.com for more
information. Also feel free to contact us. U.S. and Canadian customers
can contact D-Link Technical Support through our website.
http://support.dlink.com
USA
http://support.dlink.ca
Canada
Version 1.1
March 10, 2015
RMN0101123
