D-Link DCS-2800LH-EU User manual

Wire-Free Battery Camera
Quick Start Guide
DCS-2800LH-EU

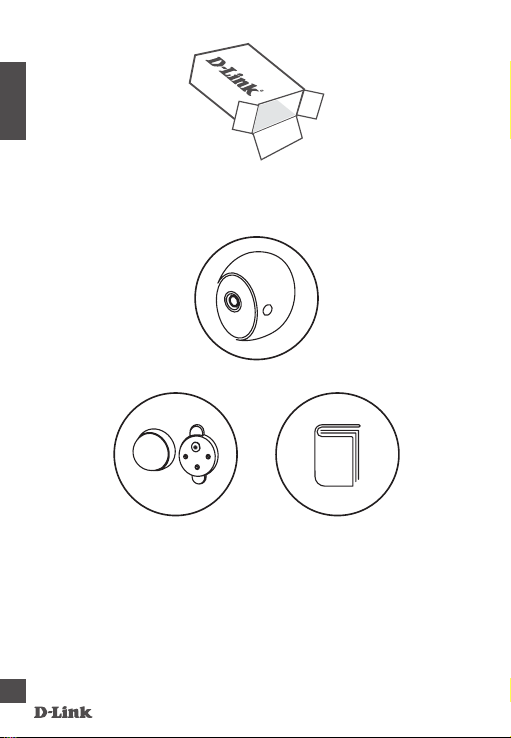

DCS-2800LH-EU
2
ENGLISH

3
DCS-2800LH-EU
ENGLISH
Minimum Requirements
To install this product, you will need:
• 802.11g/n wireless router
• Internet connection
• DCS-H100 hub (included in the DCS-2802KT-EU Wire-Free Camera
Kit)
• The latest version of the mydlinkTM app from your operating
system’s application store.
• The mydlink app is available for iPhone®, iPad® and Android™
devices. Please refer to the mobile app's store page to check
whether your device is compatible.
• An e-mail account (required to register for mydlink service)
Note: Please assure that your phone is connected to the same Wi-Fi
network on the router that you plan on plugging the hub into.

DCS-2800LH-EU
4
ENGLISH

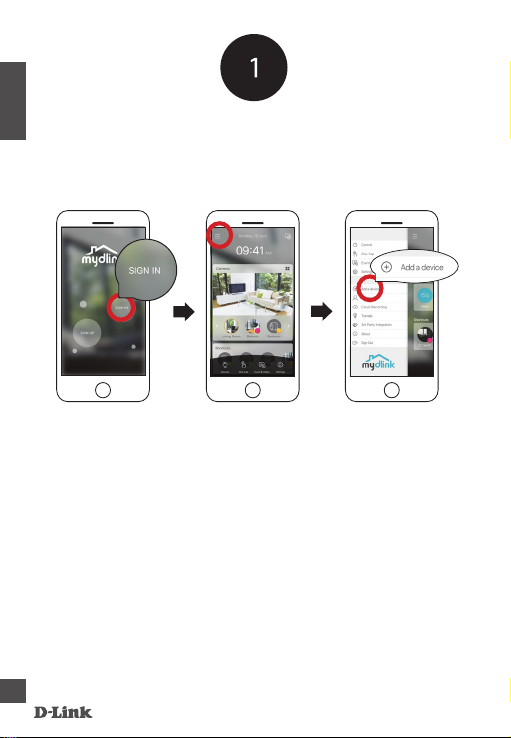

Sign In using your mydlink account and tap the icon at the
top left, then tap Add a Device to start the setup wizard.
Continue conguraton in the app.

5
DCS-2800LH-EU
ENGLISH
2

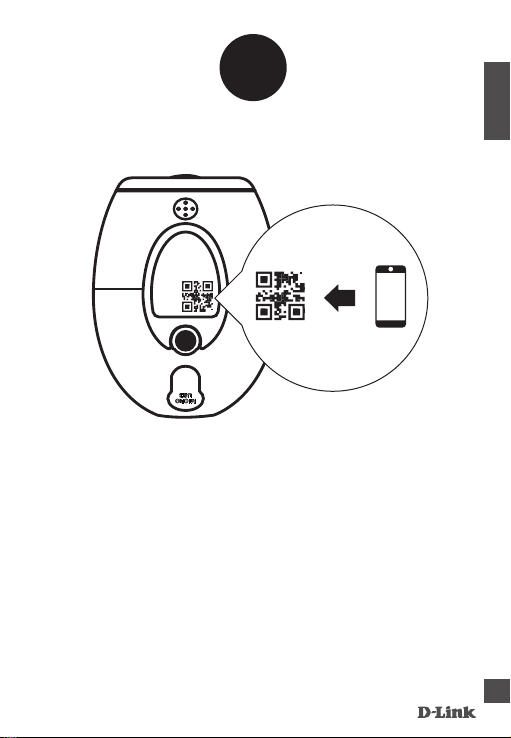

If you select "Yes" in the app, scan the QR code on the bottom of
the camera. Continue conguration in the app.

DCS-2800LH-EU
6
ENGLISH
3

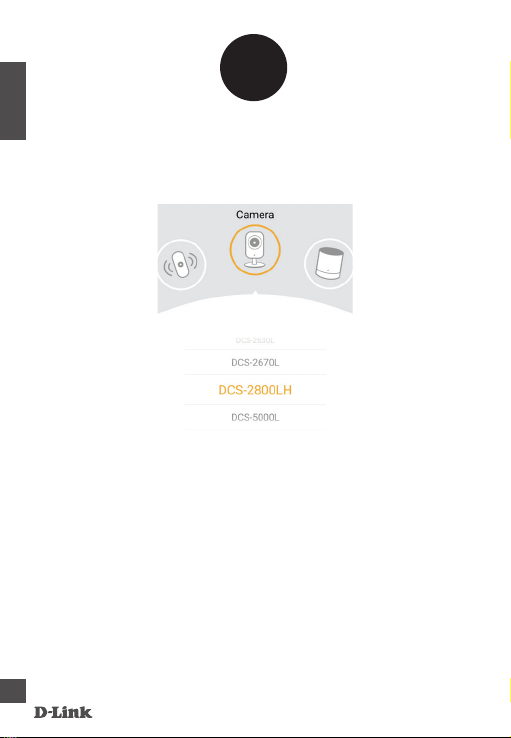

If you select "No" in the app then select the DCS-2800LH camera
from the menu. Continue conguration in the app.
OR

7
DCS-2800LH-EU
ENGLISH
4

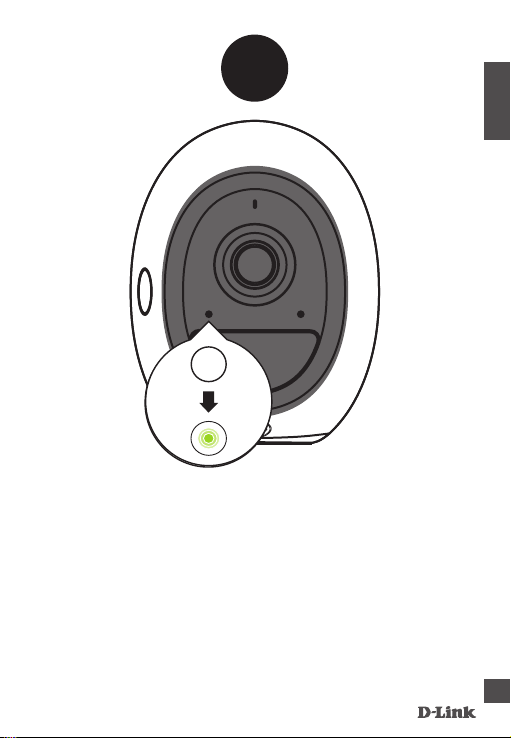

Once at the camera is synced successfully, the LED on the camera
will illuminate green to indicate it's currently connected.

DCS-2800LH-EU
8
ENGLISH
Camera Placement Precautions
Improper Placement:
Do not place the camera directly on top of a surface or in a spot
where there is something directly below it, obstructing its view.
Caution:
Please make sure that the camera is
not directly facing the sun or a source
of heat.
Proper Placement:

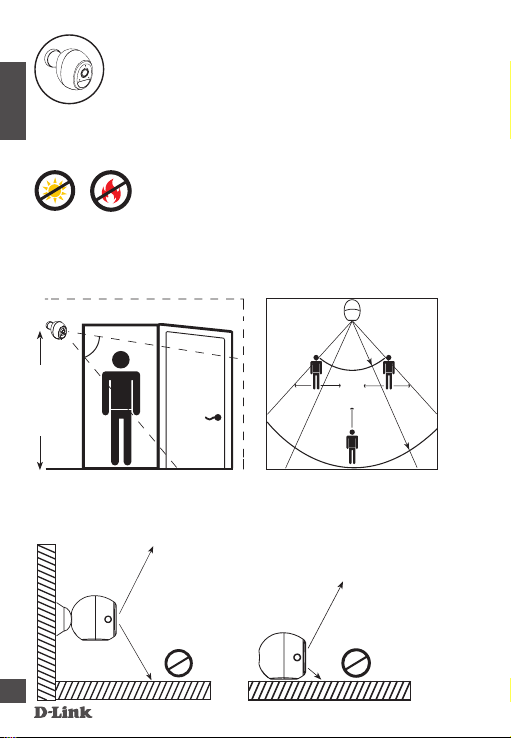

Place the camera at least 2.2 m (7 ft) or higher from the ground, and at least
20cm (7.8in) from the ceiling. The minimum recommended viewing distance
for the motion detection is 60 cm (24 in), and the maximum is 7.5 m (25 ft).
2.2 m
(7 ft)
64° 60 cm
(24 in)
min
115°
7.5 m
(25 ft)
max
good detection
poor detection

9
DCS-2800LH-EU
ENGLISH

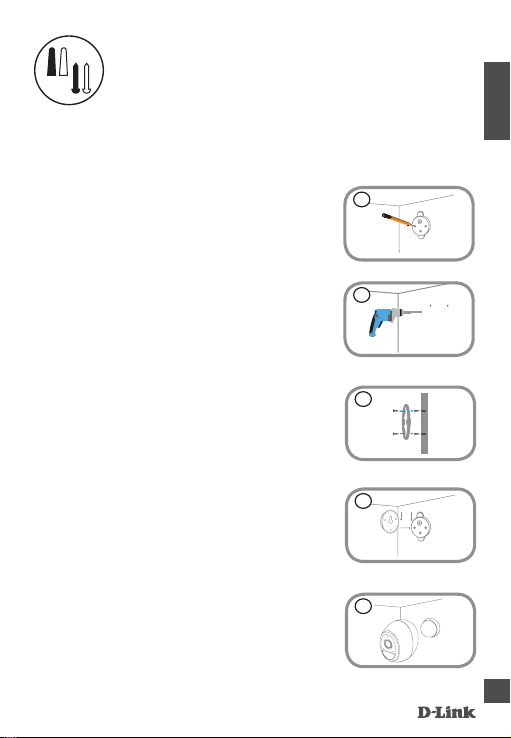

Step 1:
Place the baseplate at the desired location, assuring
that it is at least 20cm from the ceiling. Make sure
the screw is facing up and the holes are level. Use a
pencil to mark the holes.
Step 2:
Using a 6 mm drill bit, drill two 25 mm deep holes
over the pencil marks. For a plaster, drywall, or
concrete wall, insert the plastic anchors to support
the screws rst.
Step 3:
Place the baseplate over the holes. Use the supplied
screws to attach the baseplate to the wall.
Step 4:
Align the large top screw with the largest hole on
the snap mount. Slide the mount down to lock into
place.
Step 5:
Attach the back of the camera to the mount. Adjust
the angle as desired.
Camera Mounting Instructions
1
2
3
4
5
Snap Mount

Version 1.00 (EU)_90X130
June 27, 2018
Support
For troubleshooting tips and more information, visit:
support.dlink.com
