D-Link DCS-5220 User manual

Wireless G USB 2.0 Adapter

2D-Link DCS-5220 Quick Install Guide
System Requirements
• Windows®2000 or XP
• At least 128MB of memory (256MB recommended)
• A wireless (802.11b or 802.11g) or Ethernet network
• Internet Explorer 6.x or higher Internet Web Browser
• VGA card resolution: 800x600 or above
• CPU: 1.3GHz or above processor (2.4GHz processor or higher
with 512MB memory and a 32MB video card is required for
multiple camera viewing and recording in IP surveillance program)
Manual and Software on CD

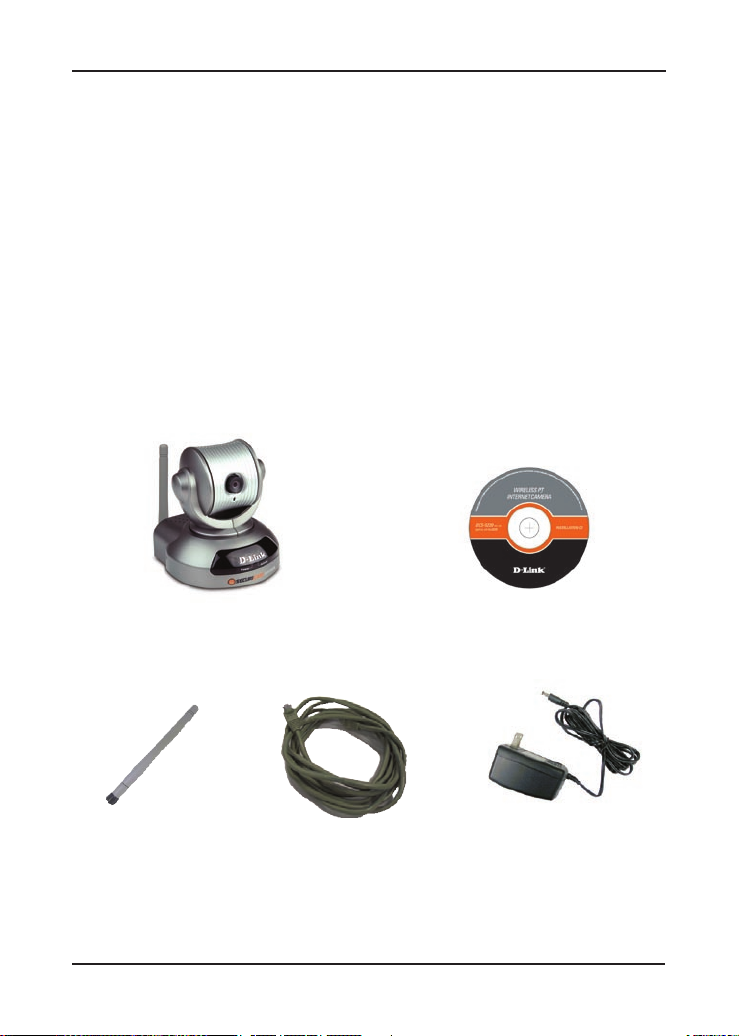

Package Contents
D-Link DCS-5220
Wireless PT Internet Camera
with 3G Mobile Video Support
System Requirements
If any of the above items are missing, please contact your reseller.
Antenna CAT5 Ethernet Cable Power Adapter

3 D-Link DCS-5220 Quick Install Guide

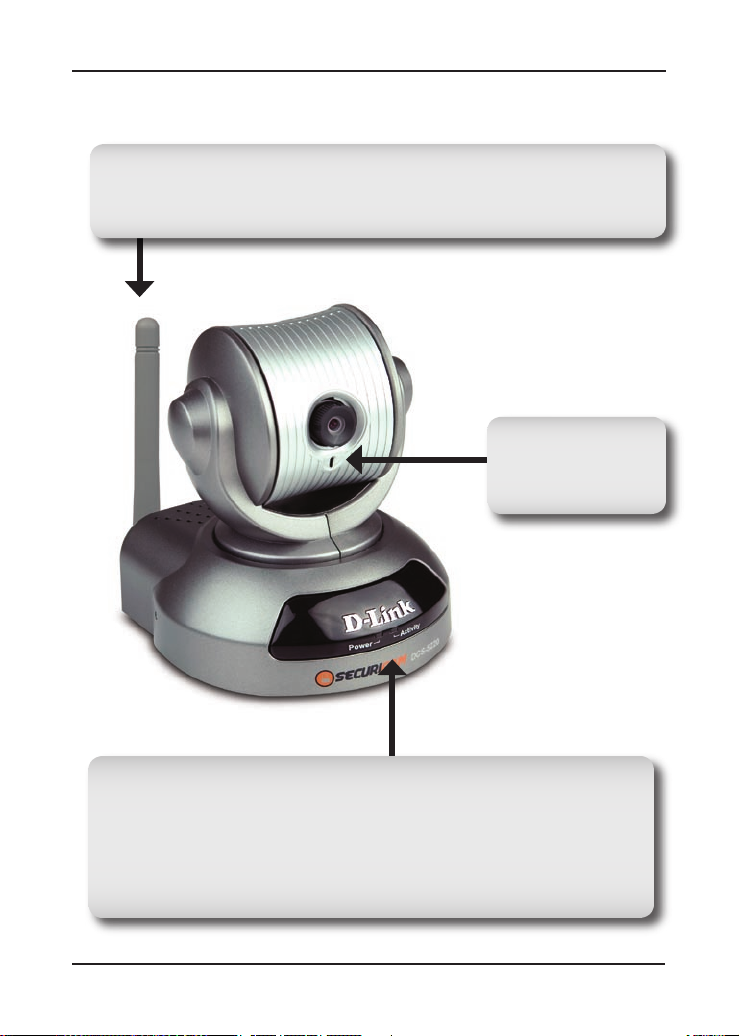

Hardware Overview
Hardware Overview
Power LED
As soon as the power adapter is connected to the camera, the red LED and the
green LED light will both appear steady on. As the camera is booting, a ashing
red LED and steady green LED light will appear next.
The red LED will be turned off during self-test. Upon passing the self-test, a
steady red LED and ashing green LED light will appear, indicating a good
connection to the Ethernet port.
Antenna
One antenna is included with the DCS-5220. It is fastened onto the antenna
connector located on the back panel, which is used to provide a connection
with a wireless network.
Microphone
The DCS-5220 Internet
Camera has a built-in
internal microphone.

4D-Link DCS-5220 Quick Install Guide
Hardware Overview

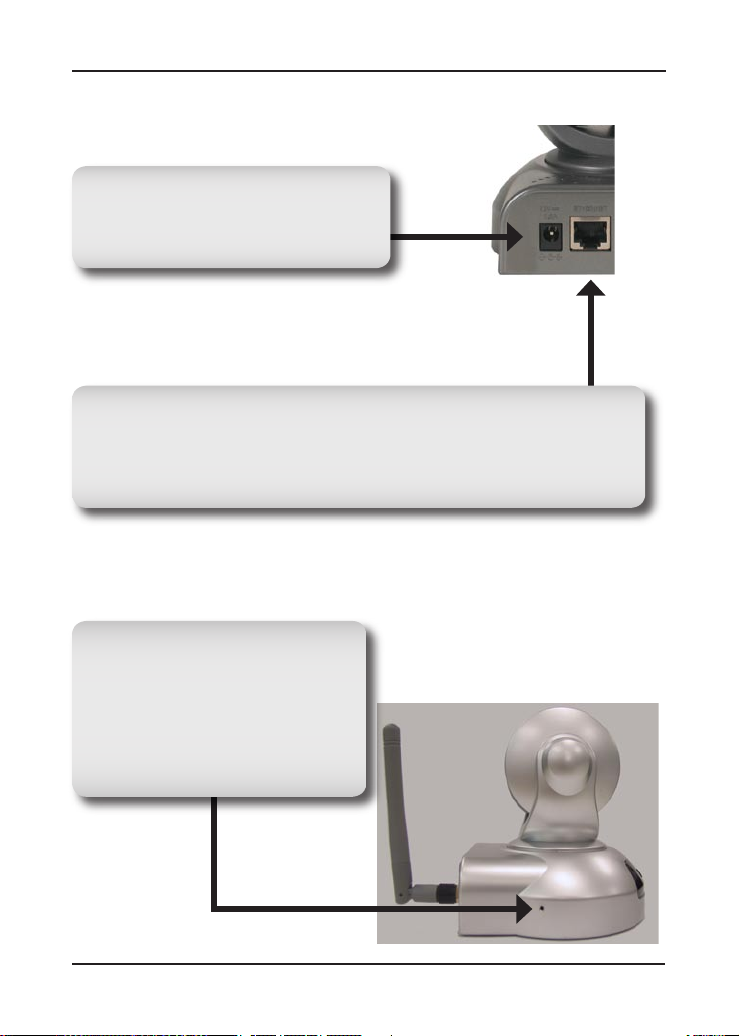

Ethernet Cable Connector
The DCS-5220 features a RJ-45 connector for connections to 10Base-T
Ethernet cabling or 100Base-TX Fast Ethernet cabling. The port supports the
NWay protocol, allowing the DCS-5220 to automatically detect or negotiate the
transmission speed of the network.
Reset Button
When the reset button is pressed, the
power and activity LED light will both
appear steady on. While pressing the
reset button both LEDs will begin to
ash, indicating that the DCS-5220’s
settings are now restored to factory
default. Release the reset button.
DC Power Connector
The DC Power input connector is labeled
DC 12V with a single jack socket to supply
power to the DCS-5220.

5 D-Link DCS-5220 Quick Install Guide

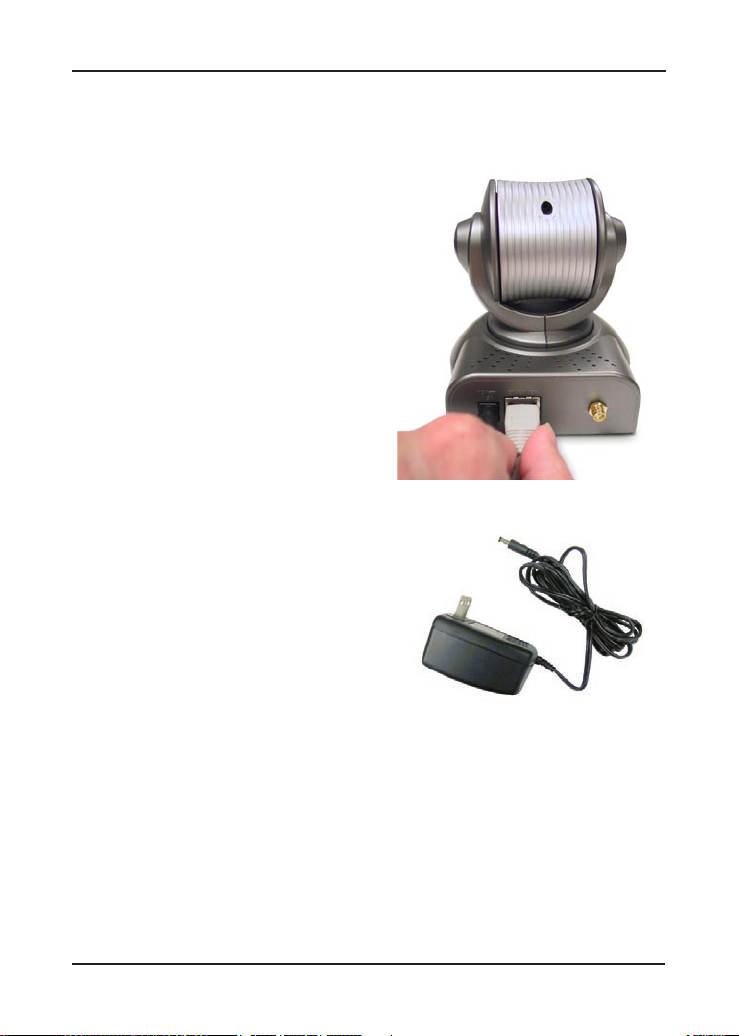

Hardware Installation
Connect an Ethernet cable to the
Ethernet connector located on the
Internet Camera’s back panel and
attach it to the network.
Note: It is required that an Ethernet
cable is used during initial setup.
Once your wireless configuration is
set, you may disconnect the Ethernet
cable and begin communicating
wirelessly with your DCS-5220.
Attach the external power supply
to the DC power input connector
located on the Internet Camera’s
back panel (labeled DC 12V) and
connect it to an AC power outlet.
Hardware Installation

6D-Link DCS-5220 Quick Install Guide
Software Installation
Turn on the computer and Insert the D-Link DCS-5220 CD into
the CD-ROM drive. The following step-by-step instructions shown
here are demonstrations in Windows®XP, and are similar to other
Windows®operating systems.
If the CD Autorun function does not automatically start on your
computer, click Windows® Start > Run. In the Run command box
type “D:\DCS5220.exe”, where D: represents the drive letter of your
CD-ROM. If it does start, proceed to the next screen.

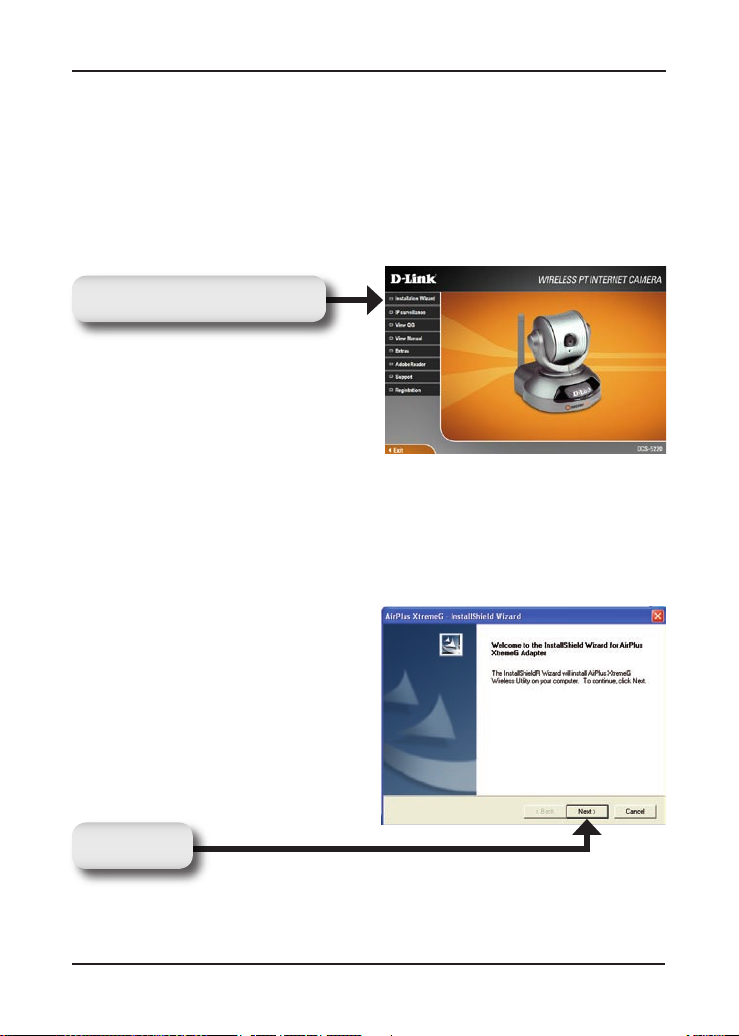

The InstallShieldWizard window
will appear.
Software Installation
Click Installation Wizard
Click Next

7 D-Link DCS-5220 Quick Install Guide

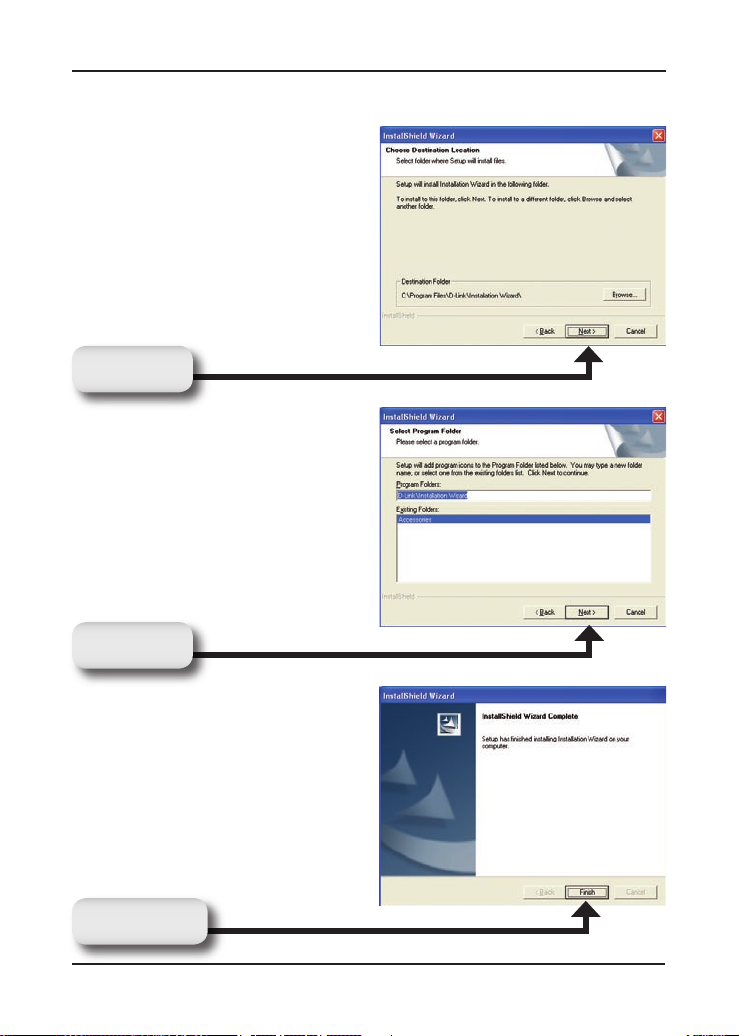

Software Installation
By default the program will be
installed to: C:\Program Files\
D-Link\Installation Wizard, where
C: represents the drive letter of
your hard drive.
To install to a different location,
click Browse and specify the
location.
Specify a Program Folder.
Setup is complete.
Click Next
Click Next
Click Finish

8D-Link DCS-5220 Quick Install Guide
Configuration

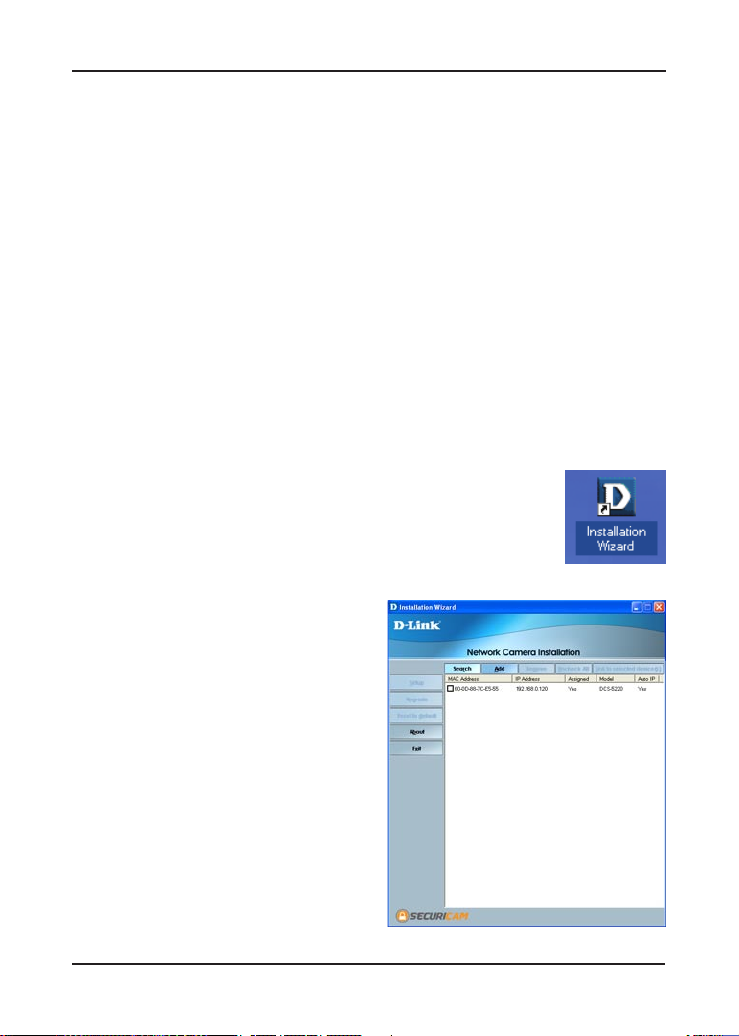

The D-Link DCS-5220 uses the Installation Wizard as the management
software. The wizard provides the user an easy interface to change
any settings related to the Wireless PT Internet Camera. Clicking on
the Installation Wizard icon will start the wizard.
The Installation Wizard will appear
and show the MAC address of the
DCS-5220 and an IP Address. If
you have a DHCP* server on your
network, there will be a valid IP
Address displayed here, indicated
by a “Yes” under the assigned
column.
*A DHCP server is a device that
supplies IP Addresses to its clients,
which are on the same network.
D-Link Installation Wizard
This section will show you how to congure your new D-Link Wireless
PT Internet Camera using the D-Link Installation Wizard.
Configuration

9 D-Link DCS-5220 Quick Install Guide
Configuration

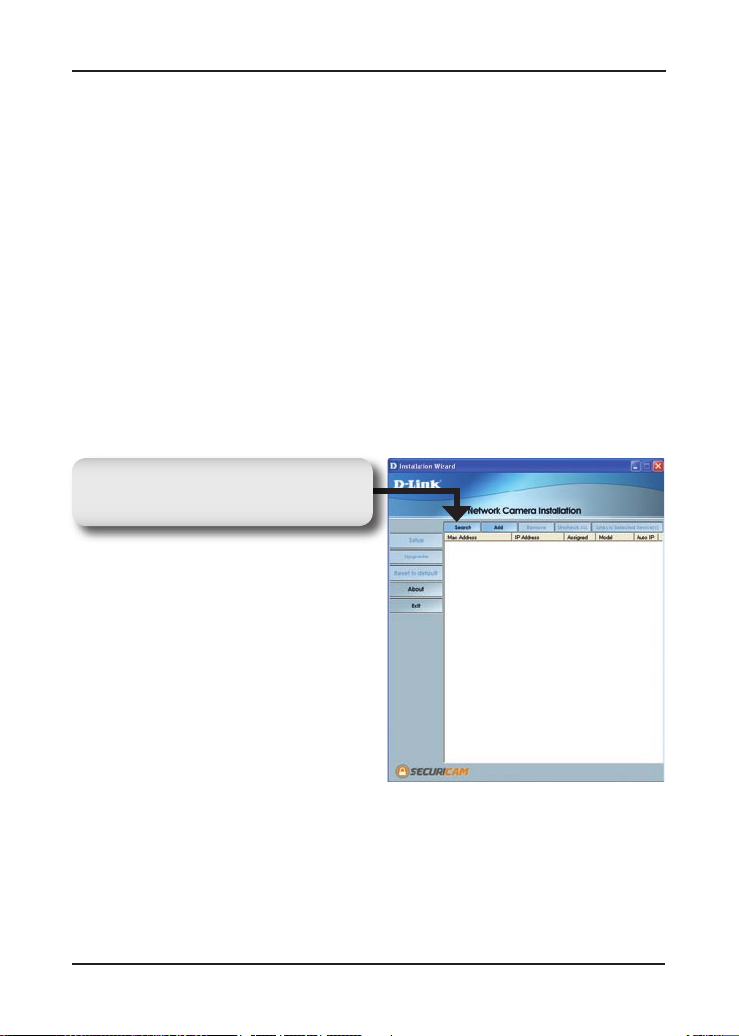

If the Installation Wizard does not detect any devices, you will need
to reset the camera (see page 4 for instructions).
Click Search to refresh the list
of cameras.

10D-Link DCS-5220 Quick Install Guide
Configuration

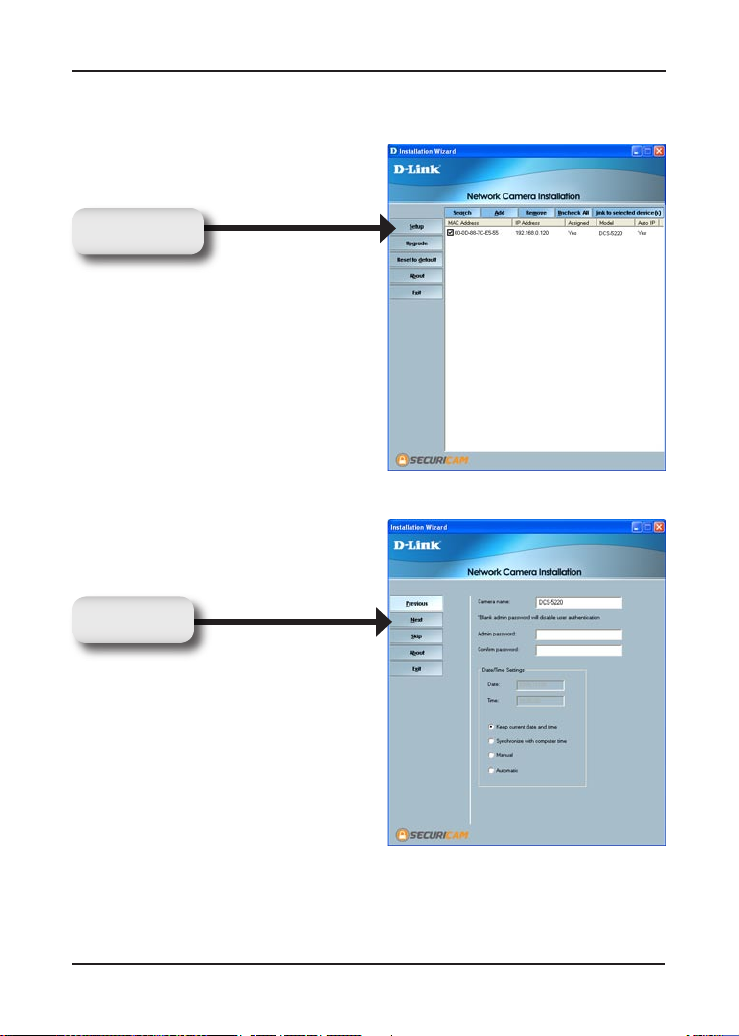

Once the camera appears, select the camera by placing a check
mark in the box.
Enter an administrative password
in the Admin password and Conrm
password elds.
Note: For details on the Date and
Time Settings, please refer to the
Manual on the CD-ROM.
Click Next
Click Setup

11 D-Link DCS-5220 Quick Install Guide
Configuration
Uncheck the box Reset IP
address at next boot.
Note: If you need to modify the
IP Settings, please refer to the
Manual on the CD-ROM.
Users can congure the Wireless
Network Settings for the camera,
by entering the SSID and selecting
the Wireless Mode, Channel, TX
Rate, and Preamble.
Click Next
Click Next

12D-Link DCS-5220 Quick Install Guide
Configuration

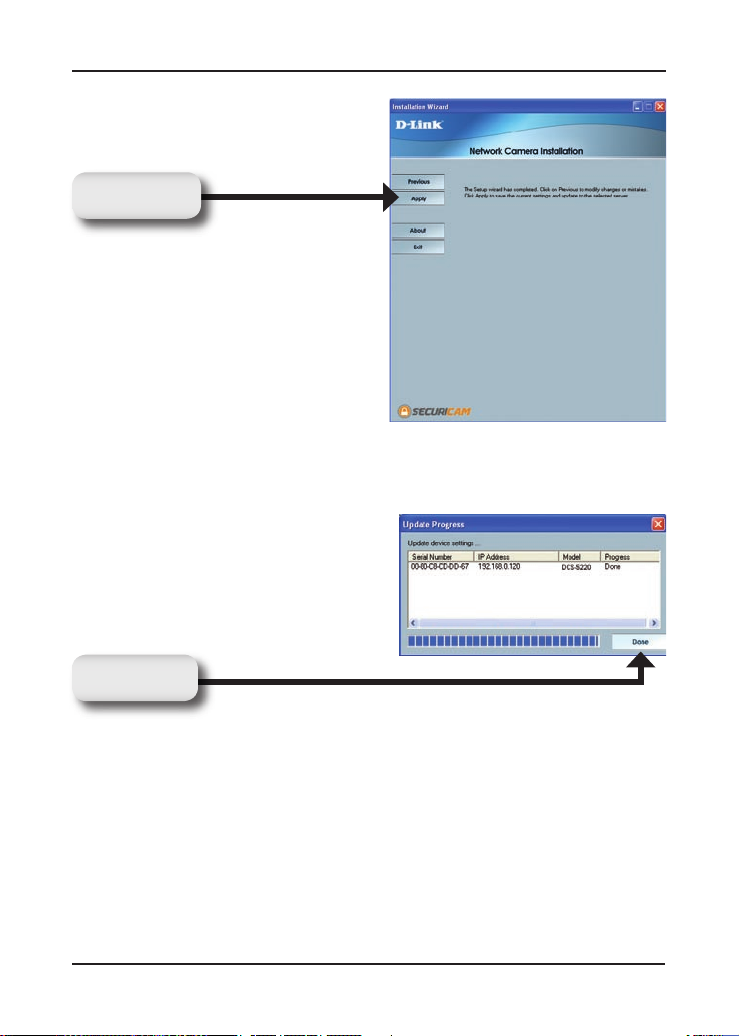

Click Apply
Click the Done button after the
settings have been saved.
Click Done

13 D-Link DCS-5220 Quick Install Guide
Configuration

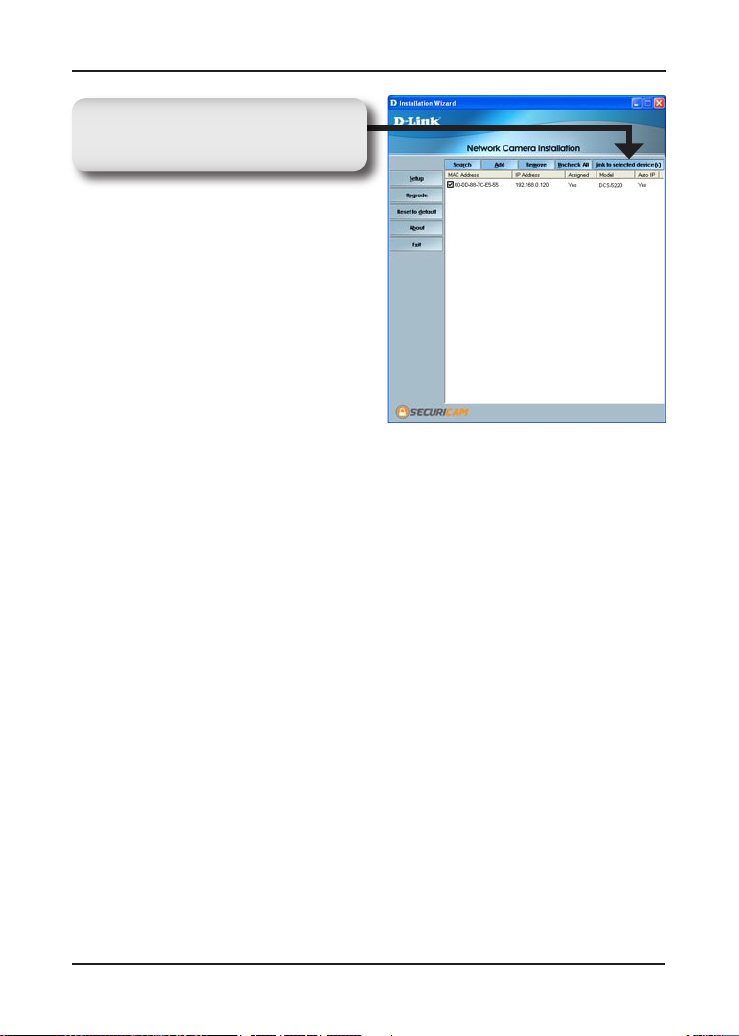

Click the Link to Selected
Device(s) button.

14D-Link DCS-5220 Quick Install Guide
Configuration

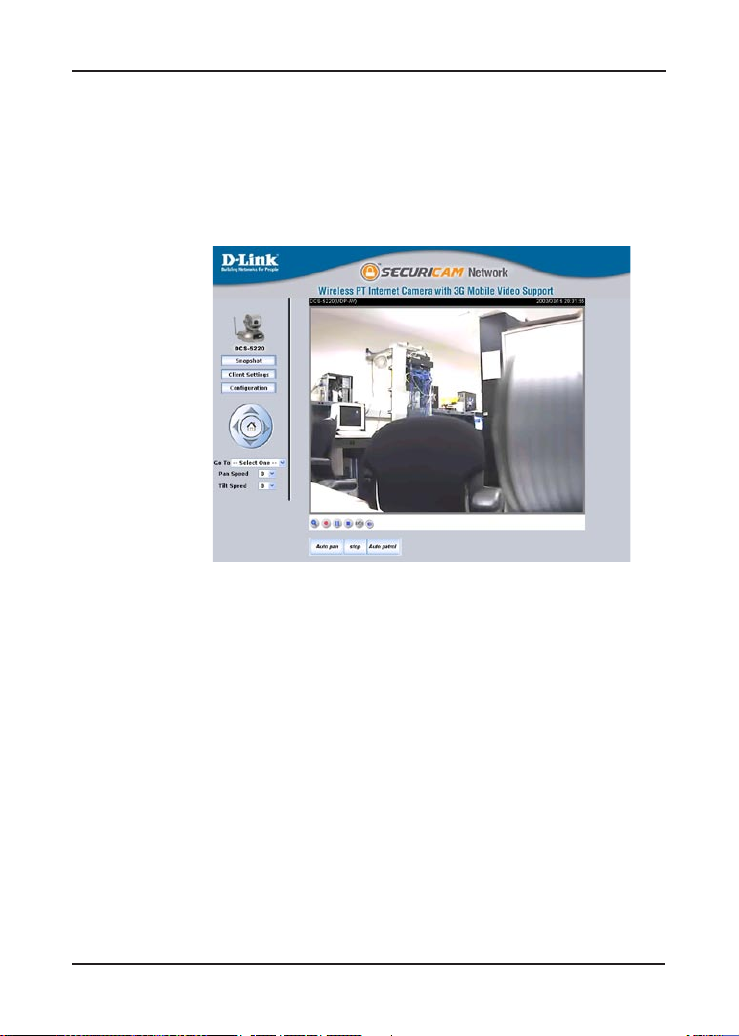

After you click the button Link to Selected Device(s), the Installation
Wizard will automatically open your Web browser to the IP address
of the DCS-5220, in this example it is: http://192.168.0.120. Your
DCS-5220 may have a different IP Address.
Your Basic Installation is Complete!

15 D-Link DCS-5220 Quick Install Guide
IP surveillance Installation
IP surveillance software is included for the administrator to manage
up to 16 DCS-5220s remotely. The administrator can also record
the video to hard drive and congure advanced settings. IP surveillance
is a complete management tool and includes all congurable settings.

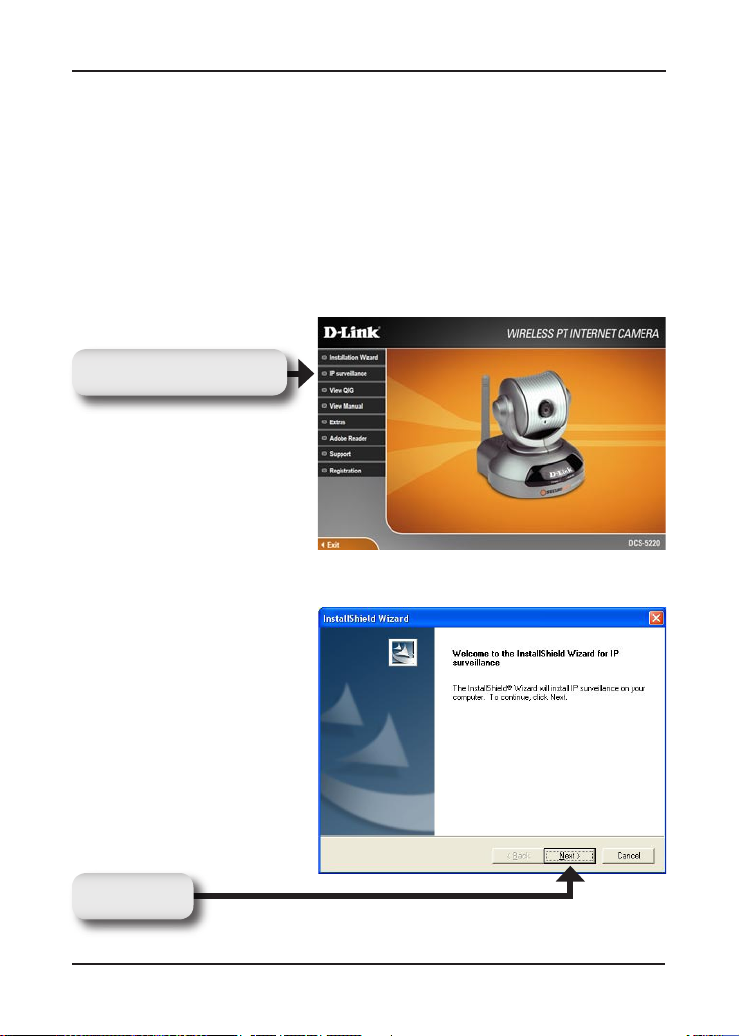

Insert the CD-ROM into the CD-ROM drive. A menu screen will appear
as shown below.
IP surveillance Installation
Click Next
Click IP surveillance

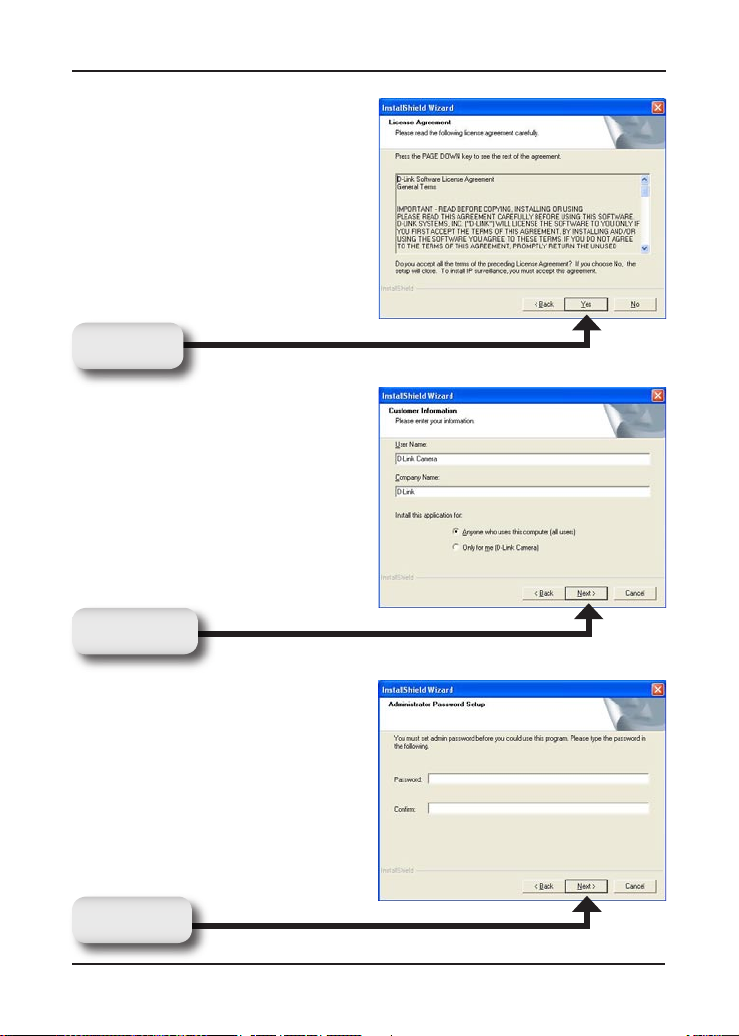

16D-Link DCS-5220 Quick Install Guide
IP surveillance Installation
Click Yes
Click Next
Click Next

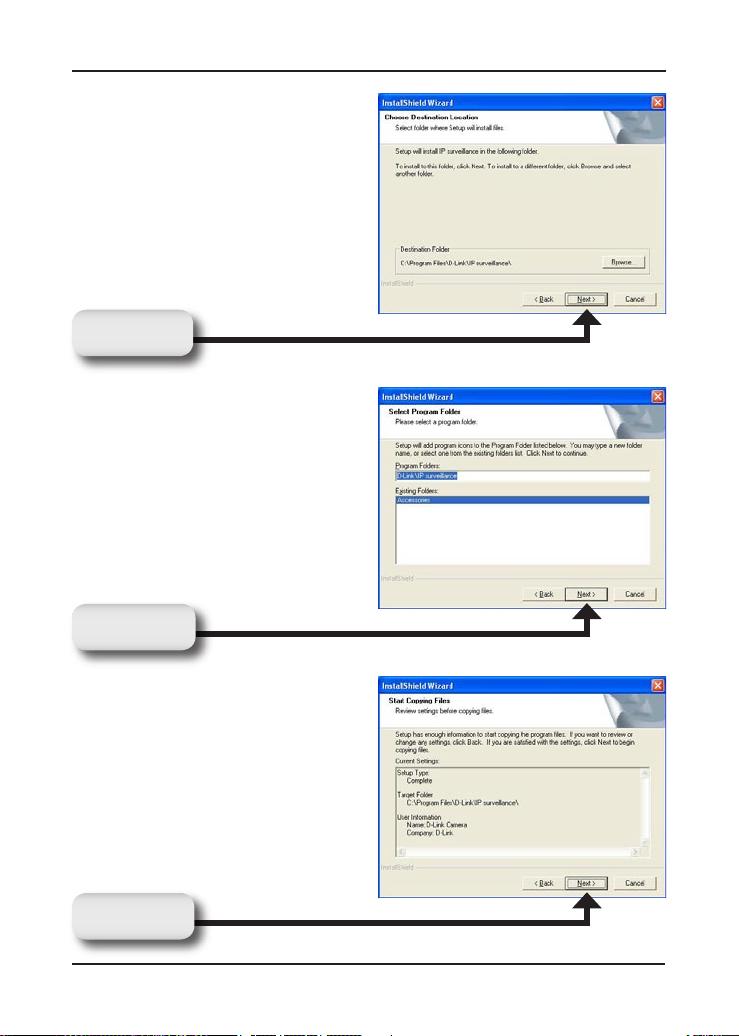

Enter an Admin Password for
the IP surveillance program.

17 D-Link DCS-5220 Quick Install Guide
IP surveillance Installation
Click Next
Click Next
Click Next

18D-Link DCS-5220 Quick Install Guide
IP surveillance Installation

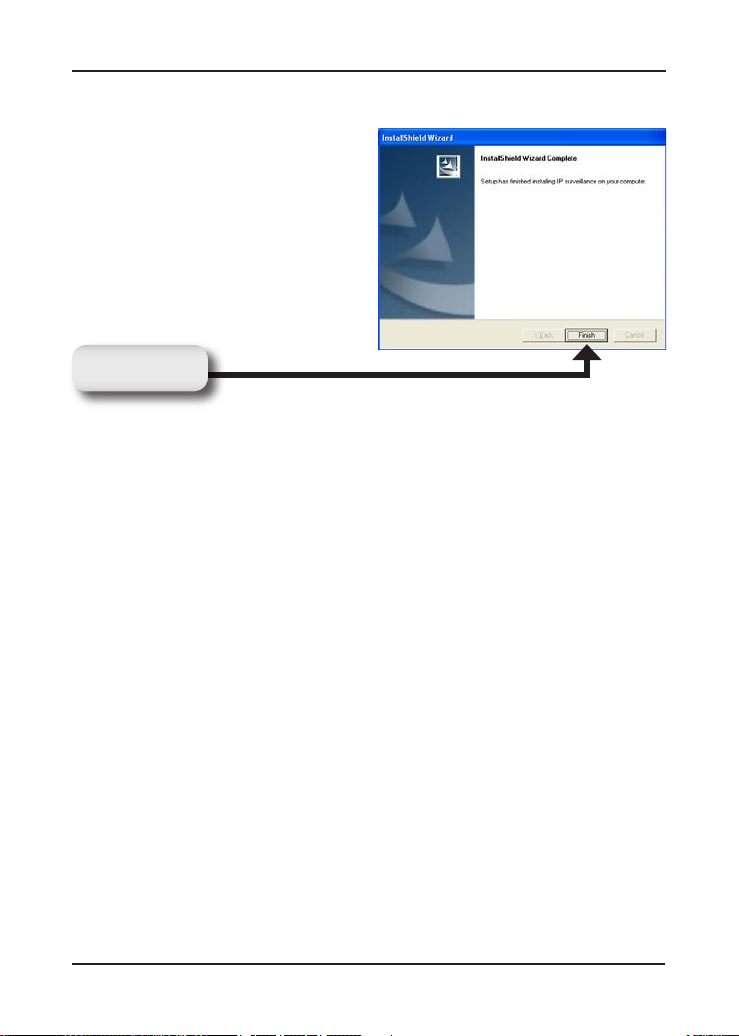

After successfully installing IP surveillance, the application program
for the DCS-5220 is automatically installed to \Program Files\D-
Link\IP surveillance Directory.
Click Finish

19 D-Link DCS-5220 Quick Install Guide

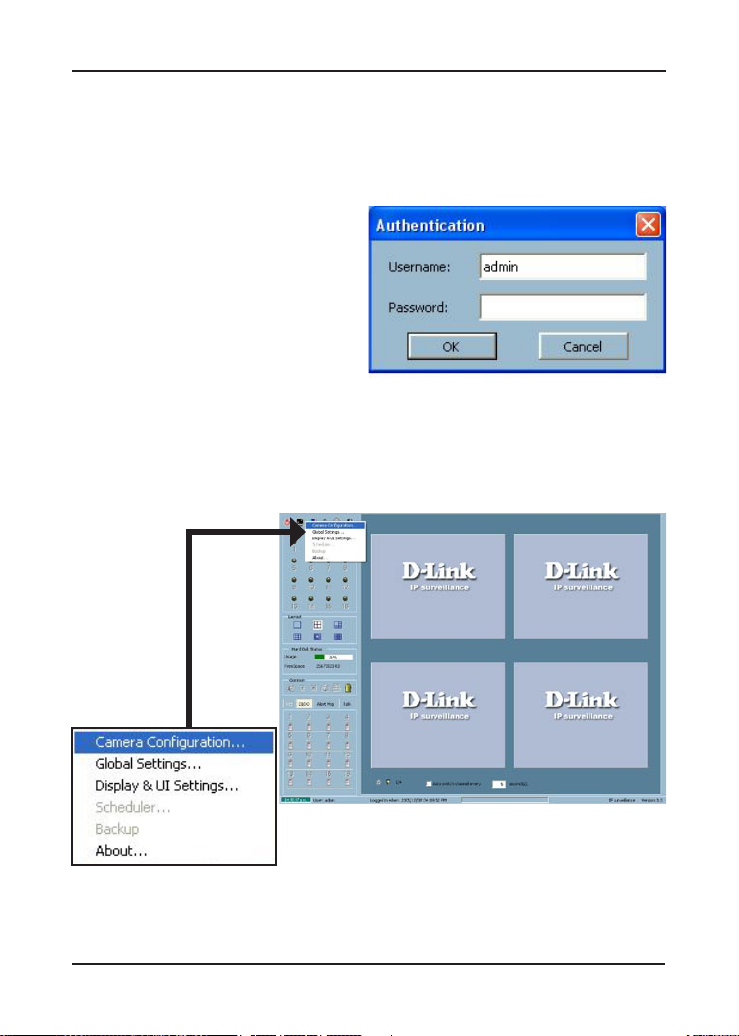

Add a Camera
To start IP surveillance, click on Windows®Start > Programs >
D-Link > IP surveillance > Monitor.
Once the Authentication screen
appears, enter “admin” as your
Username and the Password
that was entered during the
installation of IP surveillance.
Add a Camera
The IP surveillance Monitor screen will appear as shown below.
On the menu to the left, click the Conguration button and select
Camera Conguration.

20D-Link DCS-5220 Quick Install Guide

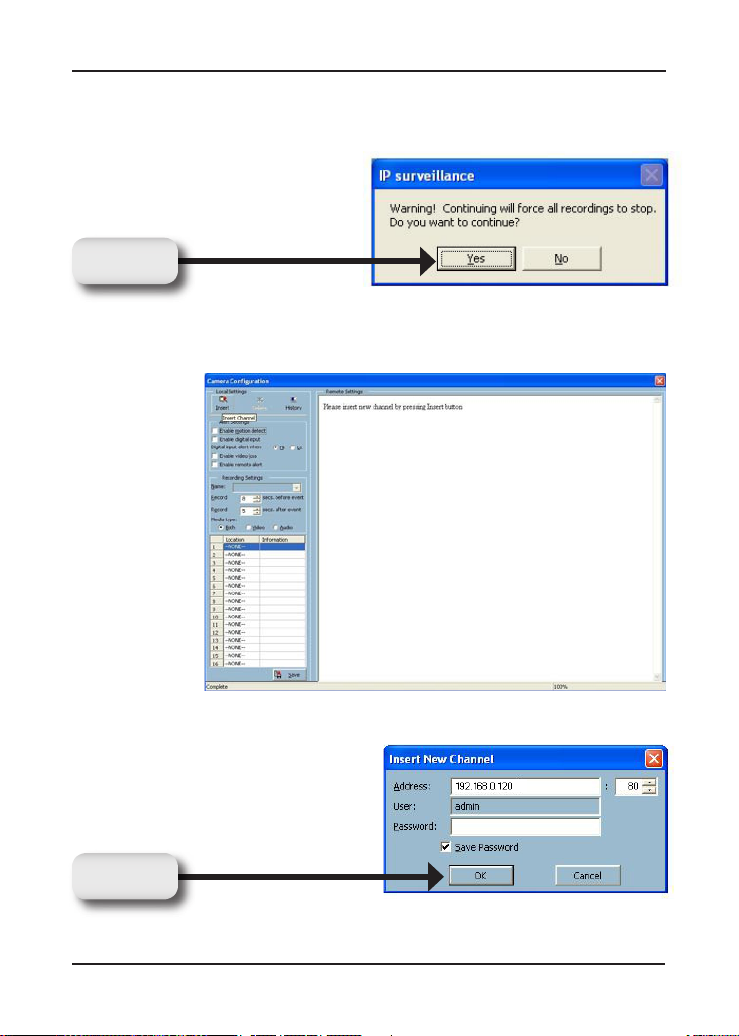

Add a Camera
After selecting Camera Conguration, a warning message will appear
and all cameras will stop recording. Click Yes to continue.
Click the Insert Channel button located in the upper left corner of
the Camera Conguration screen.
Enter the IP address of the camera you would like to add.
By default, the port number is set
at 80. Click OK to continue.
Click Yes
Click OK
