D-Link DCS-2630L User manual

Version 1.0 | 11/23/2015
User Manual
Full HD Ultra-Wide View Wi-Fi Camera
DCS-2630L

Manual Overview
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization
of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change. Please refer to the
www.mydlink.com website for the most current information.
Manual Revision
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All
other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright ©2015 by D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation.
Revision Date Description
1.0 Nov. 23, 2015 DCS-2630L Revision A1 with rmware version 1.00

3D-Link DCS-2630L User Manual
Table of Contents
Table of Contents
Product Overview..............................................................4
Package Contents......................................................................... 4
System Requirements................................................................. 4
Introduction ................................................................................... 5
Features............................................................................................ 5
Hardware Overview..................................................................... 6
Front View................................................................................ 6
Rear View ................................................................................. 7
Side View.................................................................................. 7
Installation......................................................................... 8
Wireless Installation Considerations...................................... 9
Mobile App Setup ......................................................................10
Zero Conguration Setup........................................................11
Mounting the Camera...............................................................14
mydlink...........................................................................................16
Conguration...................................................................17
Accessing the Web Conguration Utility ...........................17
Live Video ......................................................................................18
Setup...............................................................................................20
Wizard.....................................................................................20
Network..................................................................................28
Wireless Setup......................................................................30
Dynamic DNS ......................................................................31
Image Setup .........................................................................32
Audio and Video..................................................................33
Time and Date......................................................................35
Video Clip ..............................................................................36
Snapshot................................................................................37
IP Filter....................................................................................38
HTTPS Setup.........................................................................39
SD Recording........................................................................40
Motion Detection ...............................................................41
Sound Detection.................................................................42
SD Management .................................................................43
Maintenance ................................................................................44
Admin .....................................................................................44
System ....................................................................................45
Firmware Upgrade..............................................................46
Status ..............................................................................................47
Device Info ............................................................................47
Log ...........................................................................................48
Troubleshooting..............................................................49
Technical Specications..................................................50
Regulatory Information ..................................................52

4D-Link DCS-2630L User Manual
Section 1 - Product Overview
• DCS-2630L Full HD Ultra-Wide View Wi-Fi Camera
• Power Adapter
• Mounting Kit
• Quick Installation Guide
• Quick Install Card
Note: Using a power supply with a dierent voltage than the one included with your
product will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
System Requirements
• 802.11ac/n/g router (a D-Link Cloud Router is recommended)
• A broadband Internet connection
• iPhone, iPad, Android, or Windows smartphone or tablet (please refer to the mobile app’s store page to check whether your
device is compatible)
Product Overview
Package Contents

5D-Link DCS-2630L User Manual
Section 1 - Product Overview
Introduction
The DCS-2630L Full HD Ultra-Wide View Wi-Fi Camera boasts a horizon-wide 180° lens that easily captures your entire room, wall-to-wall, in high-
quality 1080p. Its rotatable head makes ceiling installations easy, and the built-in night vision, PIR motion detection, and handy mobile app empower
you with knowing exactly what is happening, day or night.
180°Wide Angle Lens
The DCS-2630L provides whole-room coverage with a 180°wide angle lens, eliminating the need for multiple cameras to cover a single room.
Built-in dewarping technology automatically corrects the image for you.
1080p HD Video
The 1080p HD sensor provides crisp detail and clarity for high-quality snapshots and video.
Comprehensive Day/Night Surveillance
The built-in infrared LEDs enable night time viewing of up to 16 feet (5 meters), and the PIR sensor detects nearby motion even in complete darkness.
The microSD card slot allows the camera to record snapshots and video directly to onboard storage for a complete surveillance solution.
Wireless AC
The DCS-2630L uses high-speed Wireless AC to connect to your wireless router, and is backwards compatible with 802.11n/g/a.
Web Conguration
Using a standard web browser, you can congure and manage the DCS-2630L through the mydlink website, so you can access your DCS-2630L
anytime, anywhere in the world.
Broad Range of Applications
With today’s high-speed Internet services, the Network Camera can provide the ideal solution for delivering live video images over the Intranet and
Internet for remote monitoring.The Network Camera allows remote access using aWeb browser for live image viewing, and allows the administrator
to manage and control the Network Camera anytime, anywhere in the world. Many applications exist, including industrial and public monitoring
of homes, oces, banks, hospitals, child-care centers, and amusement parks.
Remote Monitoring Utility
The D-ViewCam application adds enhanced features and functionality for the Network Camera and allows administrators to congure and access
the Network Camera from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing
up to 32 cameras on one screen, and taking snapshots.
Features

6D-Link DCS-2630L User Manual
Section 1 - Product Overview

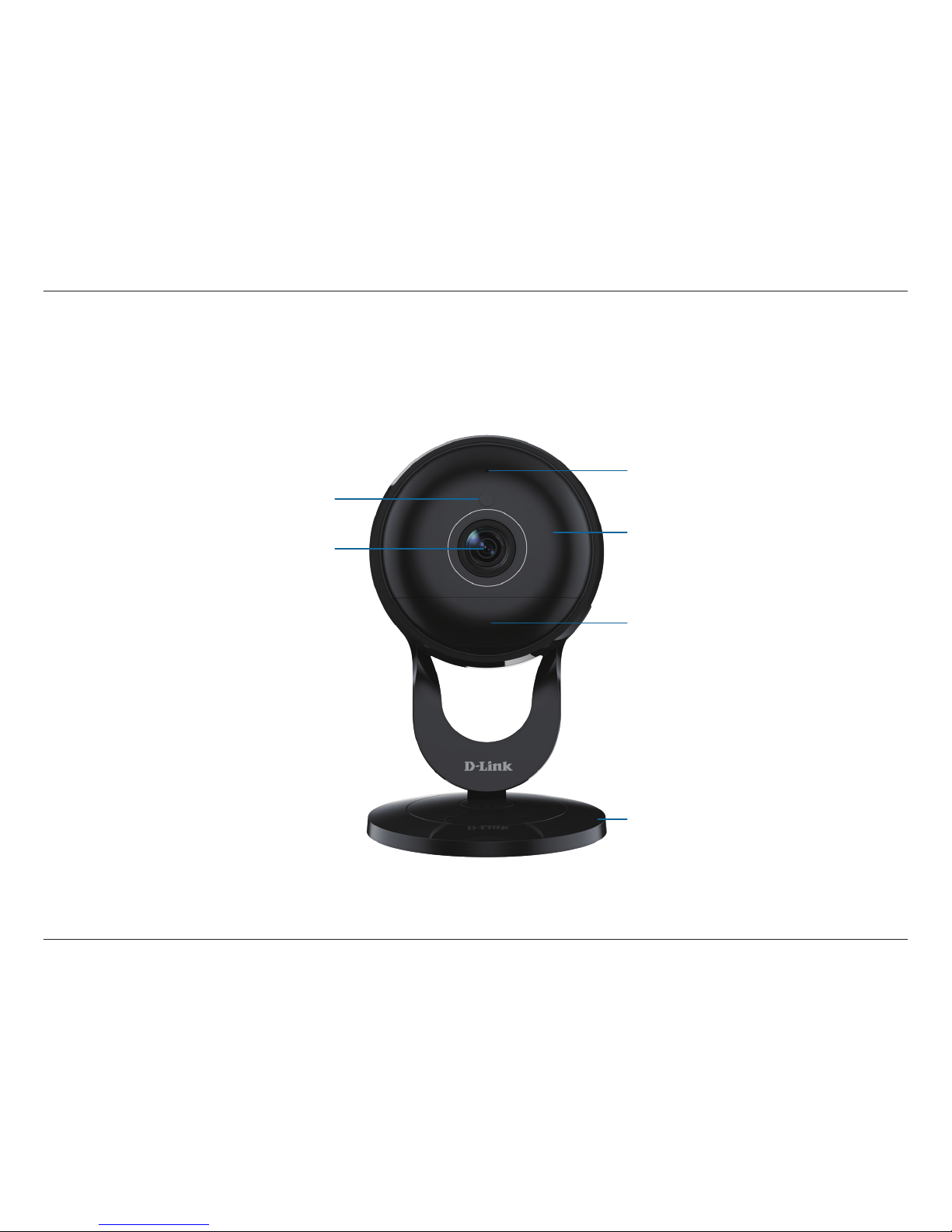

Hardware Overview
Front View
Camera Lens
Microphone
IR LEDs (behind cover)
Light Sensor
PIR Sensor (behind cover)
Camera Stand

7D-Link DCS-2630L User Manual
Section 1 - Product Overview

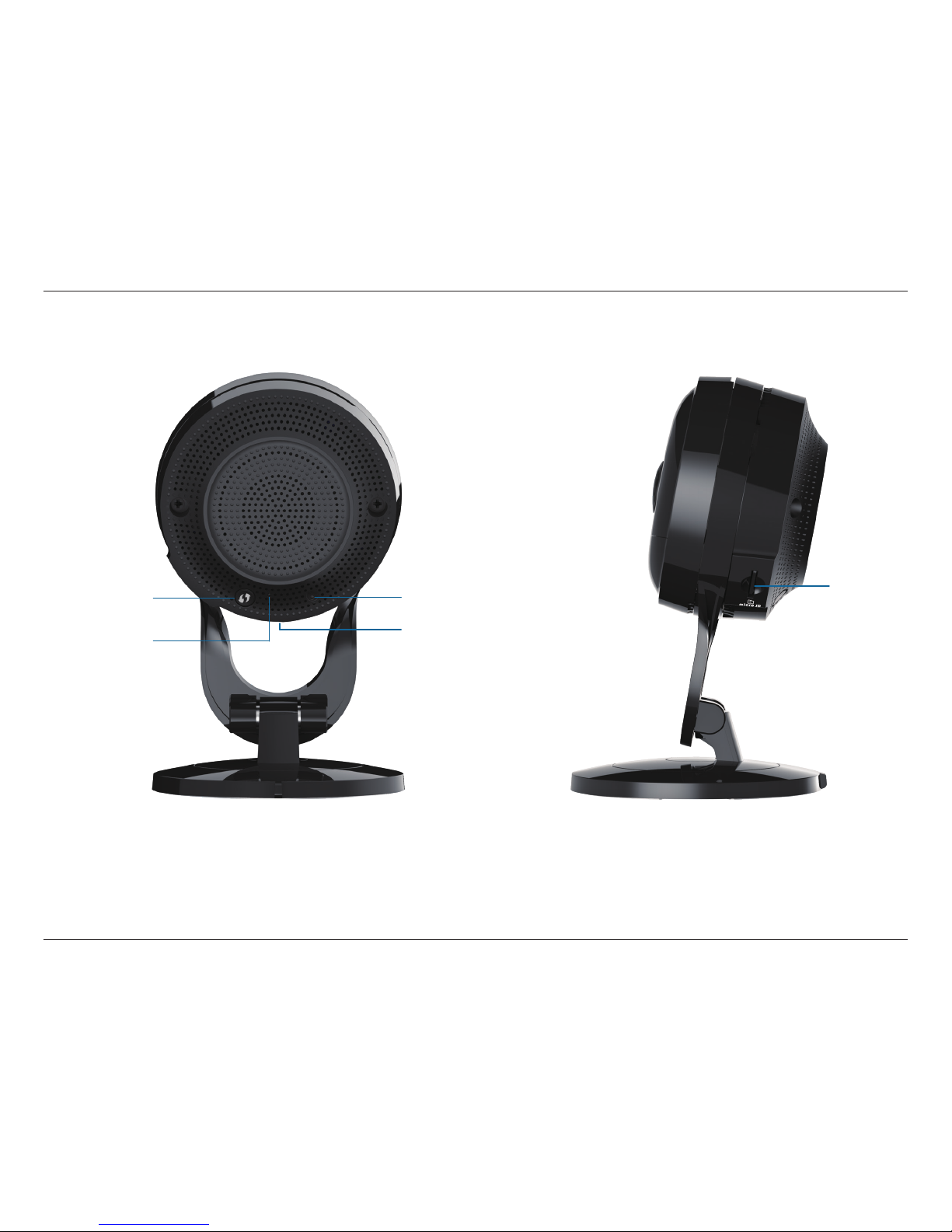

Rear View Side View
microSD Slot
MicroUSB Connector
(for power)
Reset Button
WPS Button
Power/Status LED

8D-Link DCS-2630L User Manual
Section 2 - Installation
Installation
There are two ways to set up your camera:
mydlink Lite Mobile App: You can use the mydlink Lite mobile app to guide you through setup and initial conguration of your
camera. Refer to Mobile App Setup on page 10.
Zero Conguration Setup: If you have a mydlink-enabled router (D-Link Cloud Router), this is the easiest way to set up your
camera. Refer to Zero Conguration Setup on page 11.

9D-Link DCS-2630L User Manual
Section 2 - Installation
Wireless Installation Considerations
The DCS-2630L lets you access your network using a wireless connection from anywhere within the operating range of your wireless network.
However, the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range.
Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business.The key to maximizing
wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between your adapter and other network devices (such as your Network Camera) - each
wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be
almost 3 feet (1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position your devices so that the signal
will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal. Try to position your
access points, wireless routers, and other networking devices where the signal passes through drywall or open doorways. Materials
and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade
your wireless signal.
4. Keep your product at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or other radio frequency sources (such as microwave ovens), your wireless connection
may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as
possible. The base transmits a signal even if the phone in not in use.

10D-Link DCS-2630L User Manual
Section 2 - Installation
Mobile App Setup
You can congure your camera through the mydlink Lite mobile app. On your mobile device, download mydlink Lite by searching for mydlink Lite
in the iTunes App Store, Google Play, or the Windows Store.
Launch the mydlink Lite app and create a new account or sign in to your existing account. Follow the onscreen instructions to set up your camera.
When you are asked to scan a QR code, use the code on the Quick Install Card in your package, or on the label attached to your device.
Congratulations, your DCS-2630L is now ready to use! Be sure to check the mydlink.com website periodically for the latest rmware updates to
keep your product secure and up to date with the latest features.

11D-Link DCS-2630L User Manual
Section 2 - Installation
Zero Conguration Setup
If you have a mydlink-enabled Cloud Router, you can take advantage of Zero Conguration Setup. Zero Conguration automatically congures
your camera’s settings for you, and adds the camera to your mydlink account automatically. This type of setup allows you to set up your camera by
simply plugging it in and connecting it to your router.
Connect your camera to your mydlink-enabled Cloud Router and Zero Configuration will automatically configure your DCS-2630L and
add the camera to your mydlink account. After the short time it takes to do this you can remotely access your camera from the website
(http://www.mydlink.com) to manage and monitor your DCS-2630L.

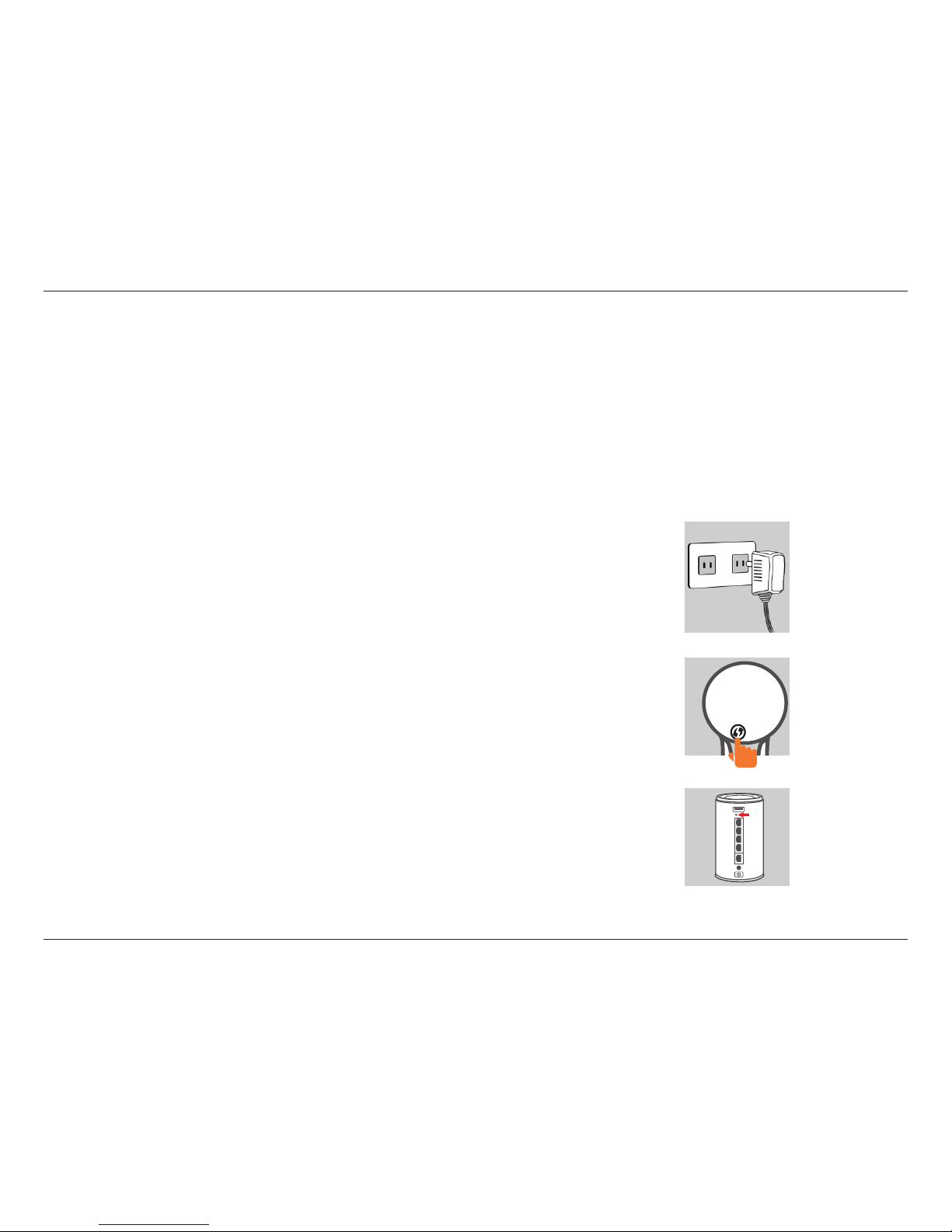

Plug in the External Power Adapter
Connect the power adapter to the microUSB port on the back of the camera. Plug the
power adapter in to a wall outlet.
Press the WPS button on your camera
Press and hold theWPS button for three seconds.The blueWPS status LED will start blinking.
Press the WPS button on your Cloud Router
Press the WPS button on your router within 60 seconds. The WPS button is usually on
the side or back of your Cloud Router. The DCS-2630L will automatically create a secure
wireless connection to your router and reboot. When it has successfully connected, the
Power LED will be lit green and the Direct LED will be turned o.

12D-Link DCS-2630L User Manual
Section 2 - Installation
DCS-2630L

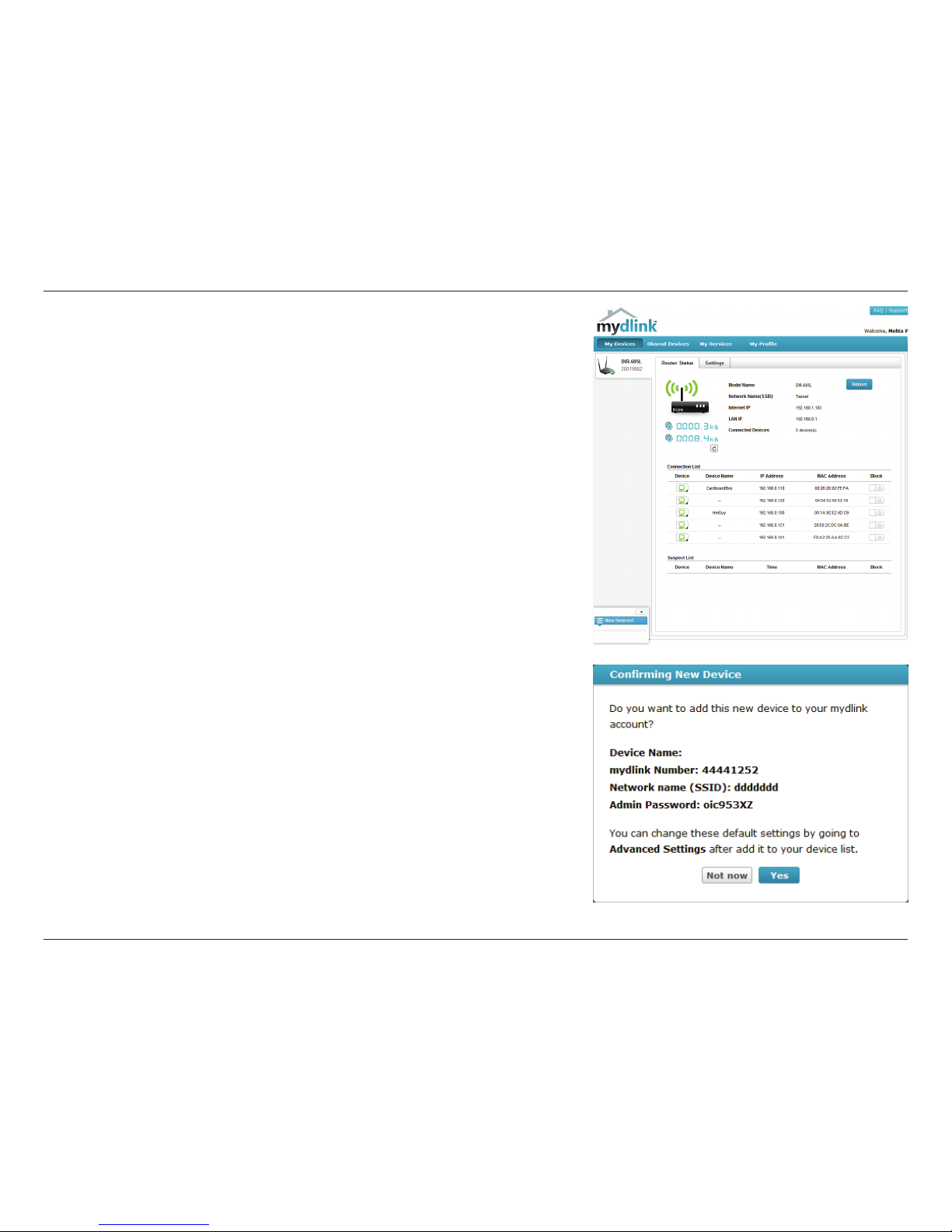

Check Your mydlink Account
From any computer with an Internet connection, open a web browser and login to your
mydlink account. The mydlink page will check for new devices and display a New device
Found! pop-up notication in the bottom-left corner. Click the notication to continue.
A summary and conrmation notication will appear with the automatically congured
details. Make a note of the details and click Yes to add the camera to your account.
DCS-2630L

13D-Link DCS-2630L User Manual
Section 2 - Installation

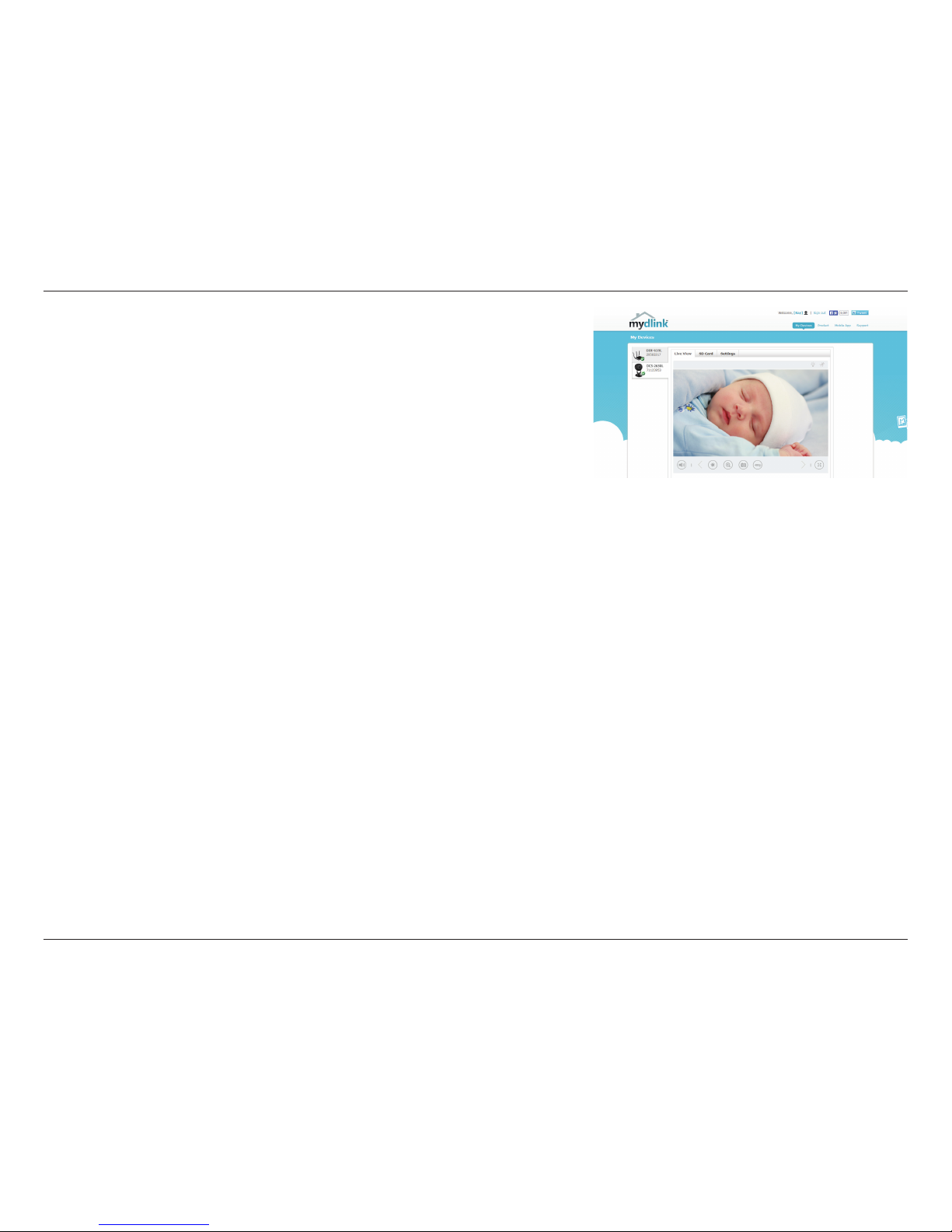

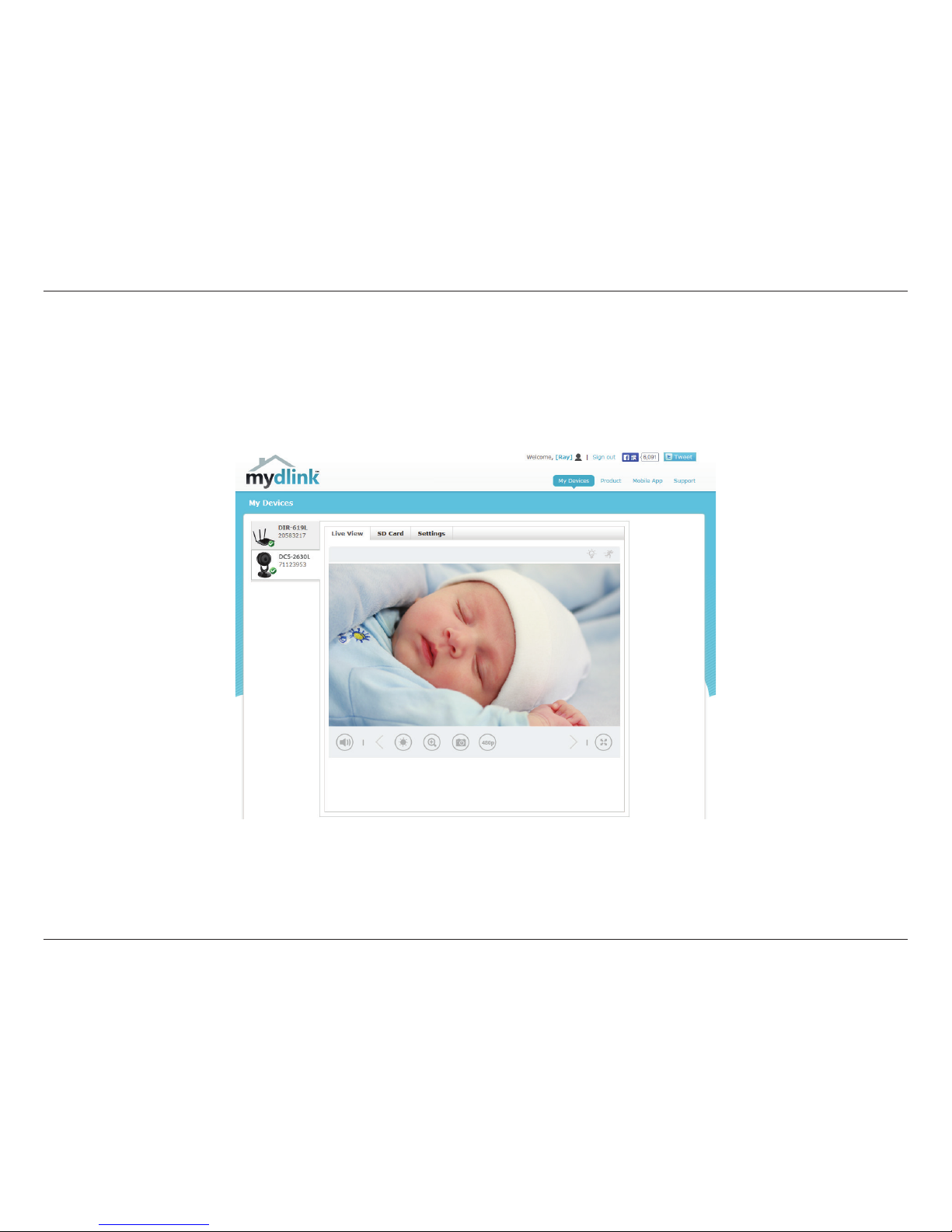

Zero Conguration will navigate to the mydlink Live View tab for your camera where you
will see a screen similar to the following.
Your camera is now set up, and you can skip to mydlink on page 16 to learn more about the
mydlink features of this camera, or to Conguration on page 17 for advanced conguration
of your camera.
Note: If you see a white haze when viewing in night vision mode, the night vision light on
the camera may be reecting o a nearby surface.Try repositioning and aiming the camera.

14D-Link DCS-2630L User Manual
Section 2 - Installation

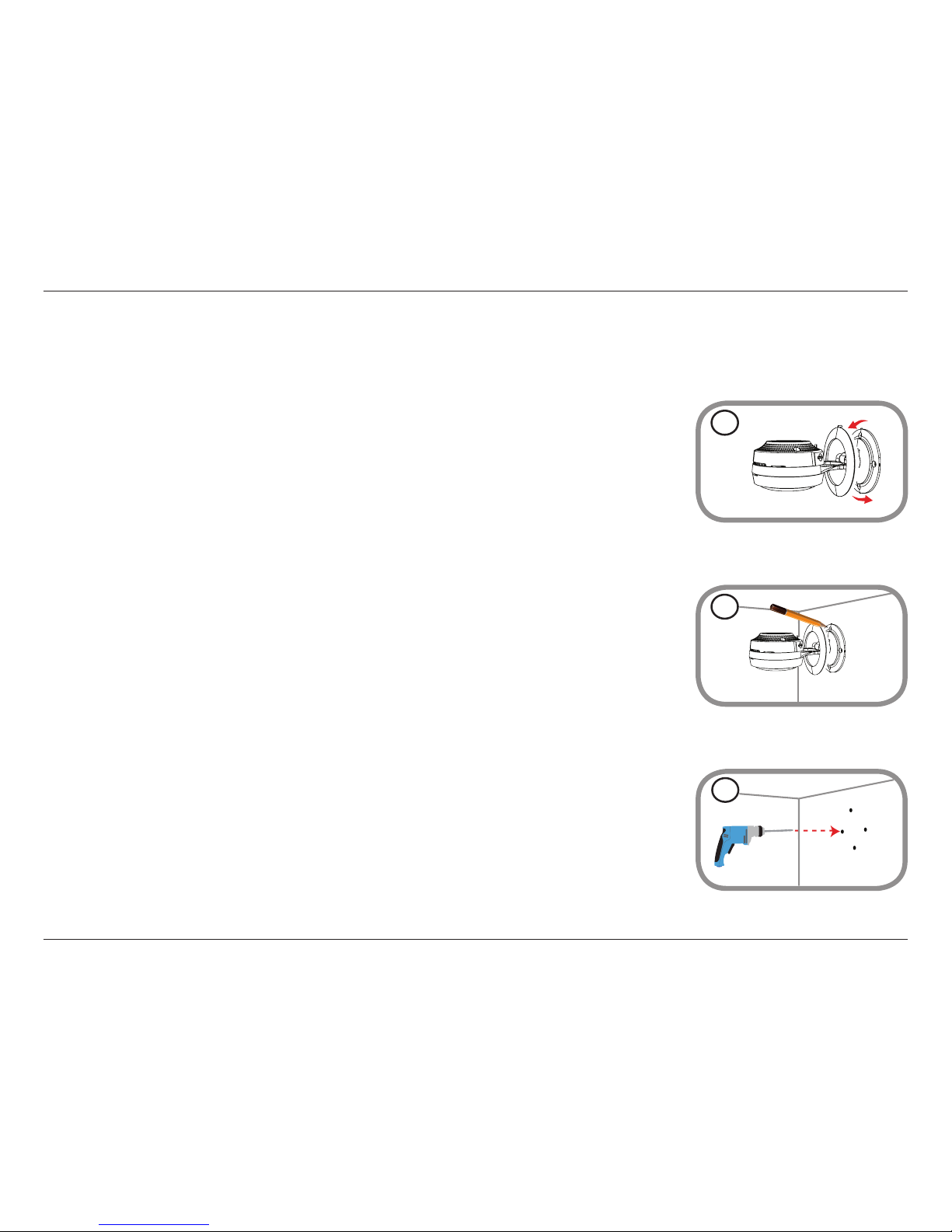

Mounting the Camera
To mount your camera on a wall or ceiling, please follow the steps below. It is recommended that you congure the camera before mounting.
Step 1
Rotate the camera base cover counterclockwise, then lift it to expose the mounting holes.
Step 3
Depending on the material of the wall or ceiling, use proper tools to drill four holes 25mm deep with a 6mm
drill bit where you marked. If the wall is made out of concrete, drill the holes rst, then insert the plastic
anchors to support the screws.
Step 2
Place the camera base where you want to position the camera and use a pencil to mark the holes.
1
2
3

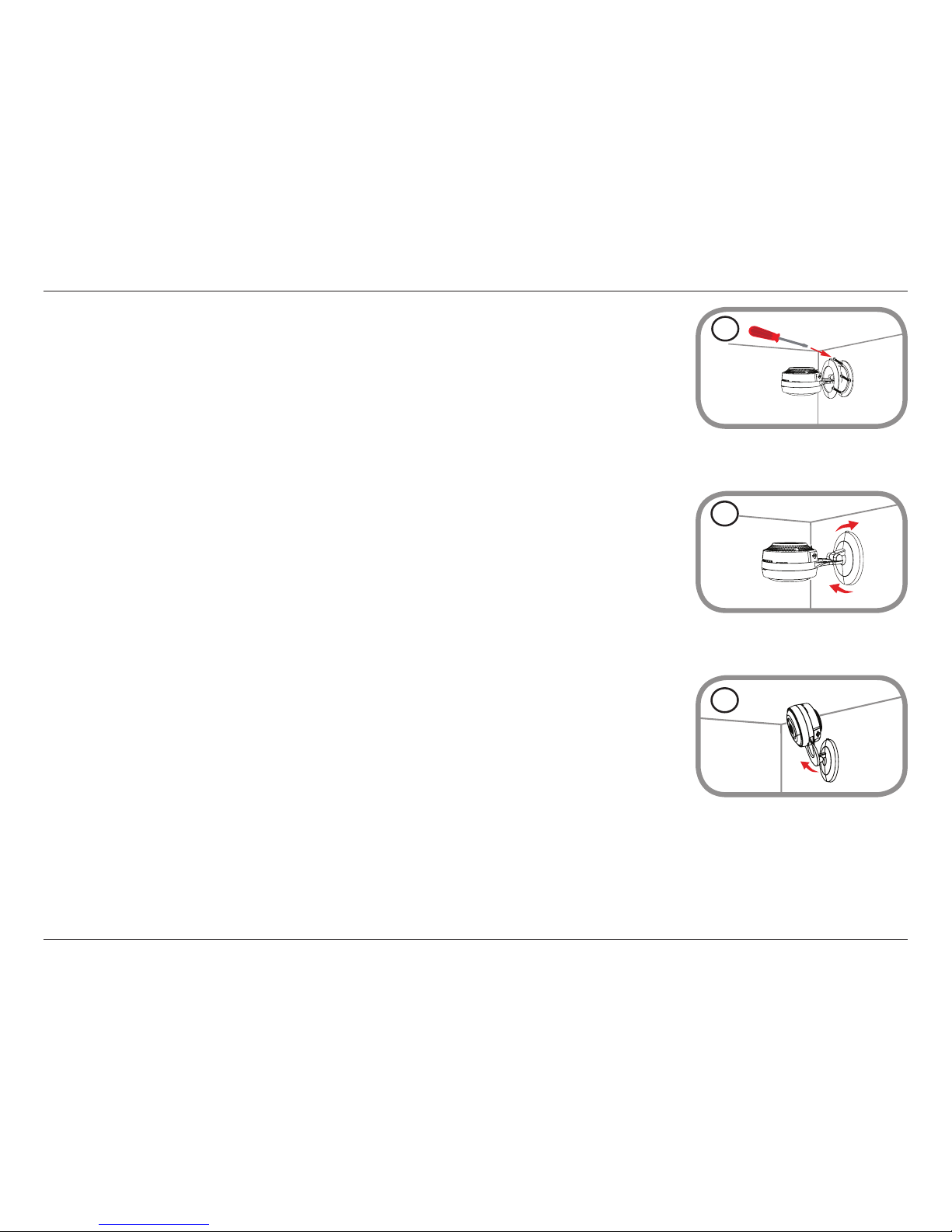

15D-Link DCS-2630L User Manual
Section 2 - Installation
4
5
6
Step 6
Adjust the angle of the camera as desired.
Step 5
Reattach the base cover and turn it clockwise to lock it in place.
Step 4
Place the camera base over the holes that are in the wall. Make sure to align the camera base holes with the
holes in the wall. Use the supplied screws to attach the camera to the surface of the wall.

16D-Link DCS-2630L User Manual
Section 2 - Installation
mydlink
After registering your camera with a mydlink account, you will be able to remotely access your camera from the www.mydlink.com website. After
signing in to your mydlink account, you will see a screen similar to the following:
For more details on using your camera with mydlink, go to the Support section of the mydlink website and check the User Manual section for
your product to nd the latest instruction guide for your camera’s mydlink features.

17D-Link DCS-2630L User Manual
Section 3 - Conguration
Conguration

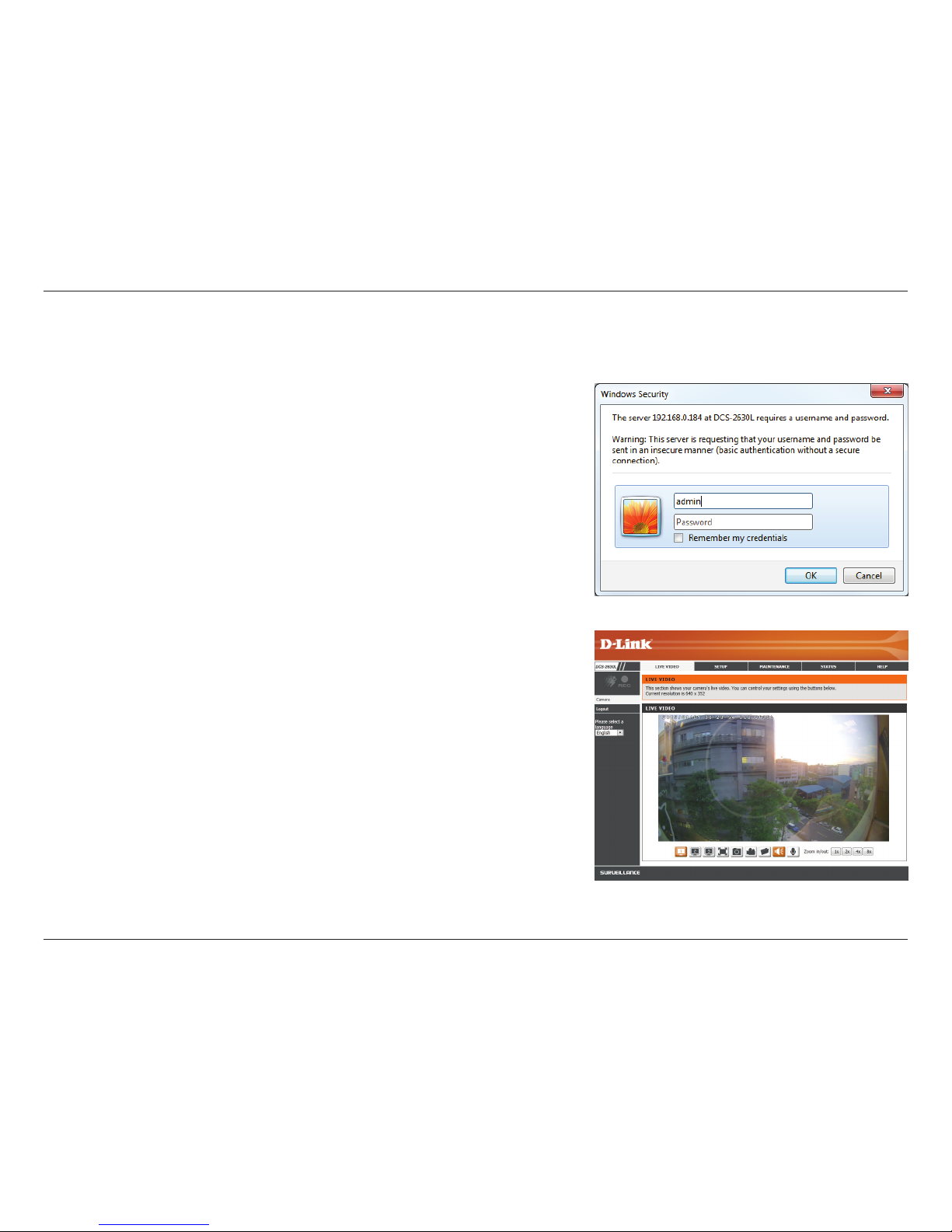

Accessing the Web Conguration Utility
After completing the Camera Installation Wizard, you are ready to use your camera. The
camera’s built-in Web conguration utility is designed to allow you to easily access and
congure your DCS-2630L. At the end of the wizard, click Go To Camera, or enter the IP
address of your camera into a web browser, such as Internet Explorer®. To log in, use the User
name admin and the password you created in the Installation Wizard. If you did not create a
password, the default password is blank. After entering your password, click OK.
Note: If you are directly connecting your PC to the camera, or if you are using the camera on
a closed network, the default IP is 192.168.0.20.
Please make sure that you have the latest version of Java application installed on your computer
to ensure proper operation when viewing the video in Java mode. The Java application can
be downloaded at no cost from Sun’s web site (http://www.java.com).
When you connect to the home page of your camera, you may be prompted to download
ActiveX. If you want to use ActiveX to view your video images instead of Java, then you must
download ActiveX.

18D-Link DCS-2630L User Manual
Section 3 - Conguration

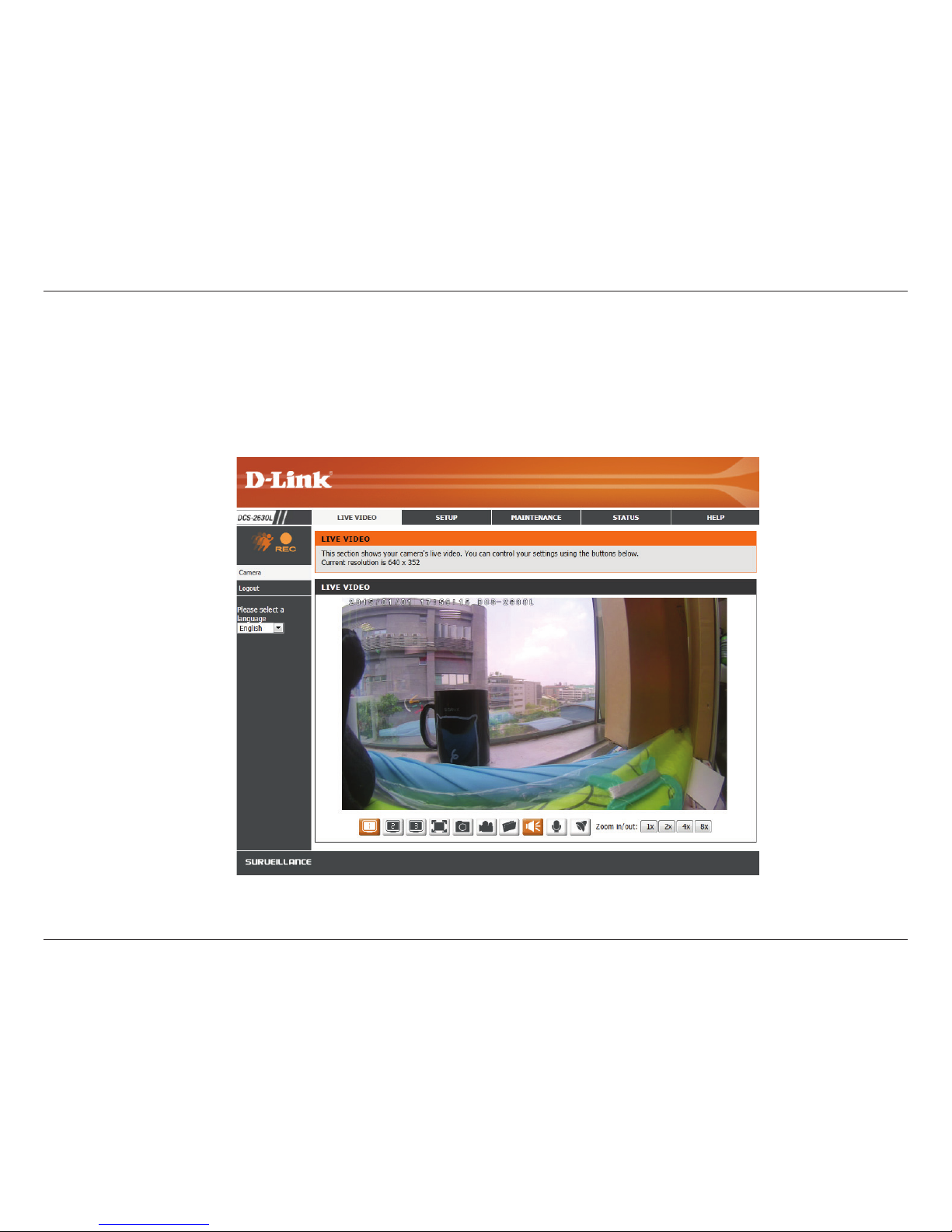

Live Video
The Live Video page lets you view the live video stream from your camera.
Please make sure that you have the latest version of Java installed on your computer to ensure proper operation when viewing the video in Java
mode. The Java application can be downloaded free from Sun’s web site (http://www.java.com).

19D-Link DCS-2630L User Manual
Section 3 - Conguration

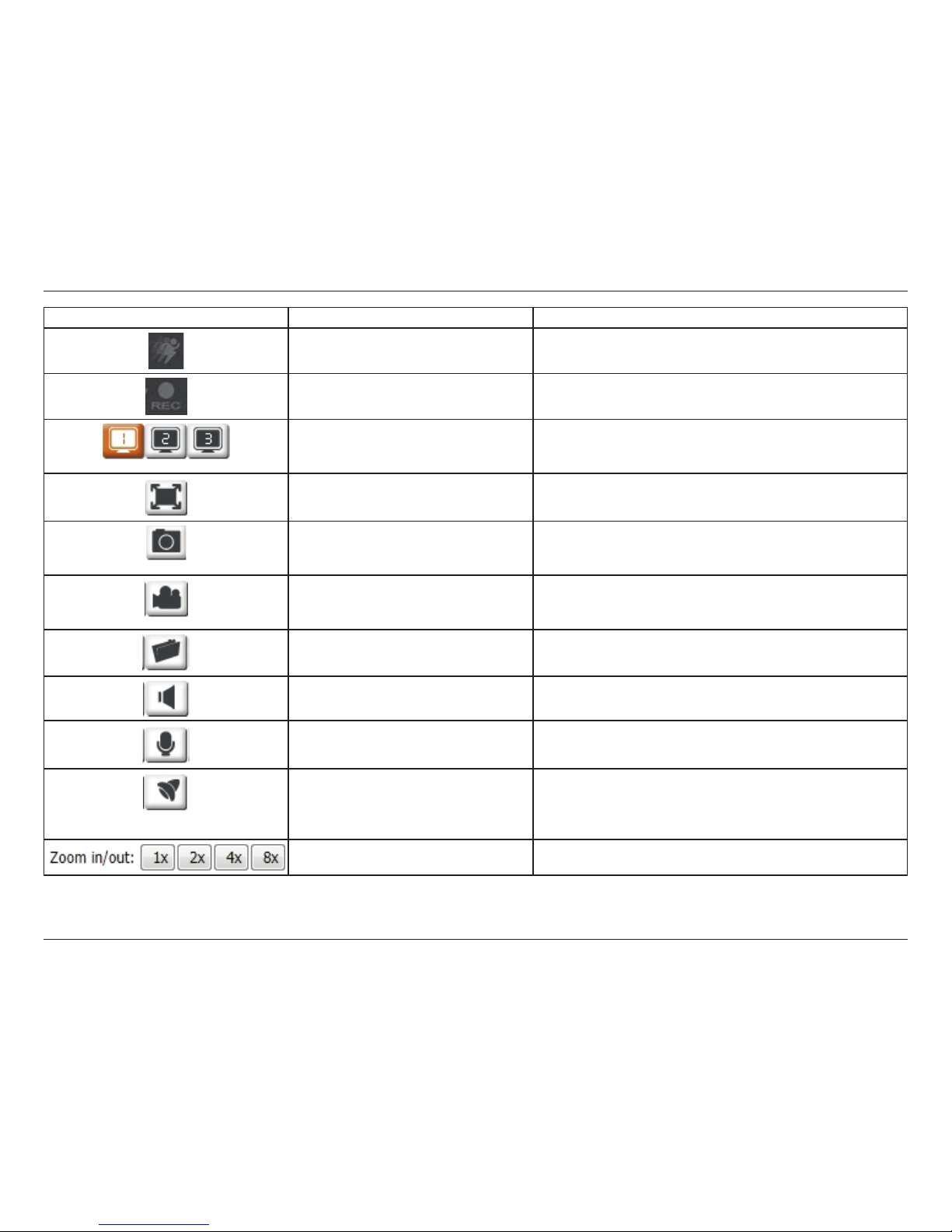

Icon Button Name Function
Event Trigger Indicator This indicator will change color when a trigger event occurs,
such as when motion or sound is detected.
Recording Indicator When a recording is in progress, this indicator will change
color.
Prole buttons Use these buttons to switch between video proles. Refer to
Audio and Video on page 33 for more information on setting
up proles.
Full Screen button Switches to a full screen view of the camera video.
Snapshot button Takes a snapshot of the image currently displayed on the
screen and saves it to the hard drive in the folder specied
using the Storage folder button.
Video recording button Triggers the camera’s recording function. This will record the
video displayed on the screen and saves it to the hard drive in
the folder specied using the Storage folder button.
Storage folder button Sets the storage folder for snapshots and video recordings.
Listen button Sends the audio received from the camera’s microphone
through to the PC’s speakers.
Talk button Sends audio from a microphone connected to the PC through
to the speakers connected to the camera.
IR LED On/O button Turns the Infrared lights on or o.
(The icon only appears when you activate the manual IR
option. Refer to Day/Night Mode in Audio and Video on
page 33 for more.)
Zoom buttons Zooms in or out of the picture.

20D-Link DCS-2630L User Manual
Section 3 - Conguration

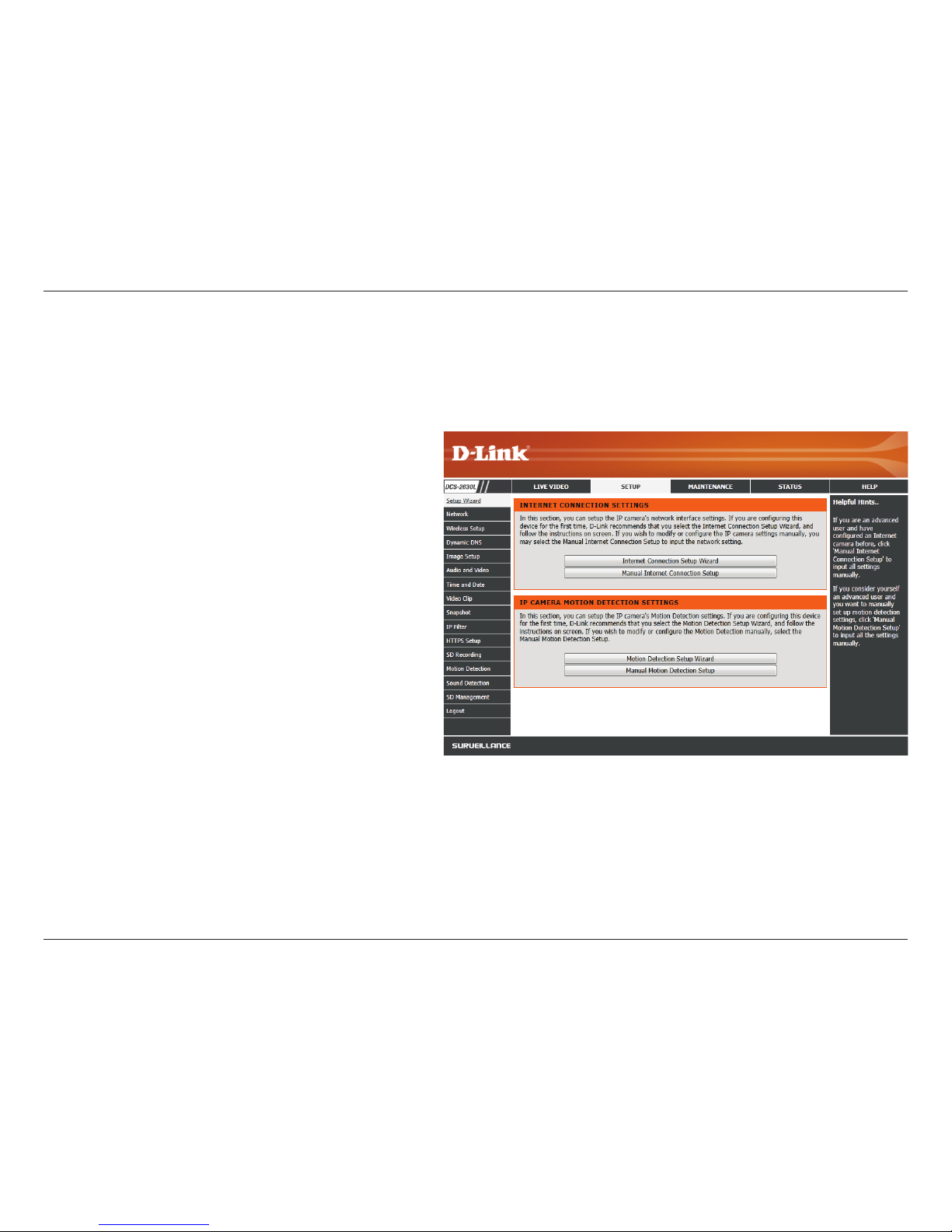

Setup
Wizard
You may choose to congure your network by
using the Internet Connection Setup Wizard
that includes step-by-step instructions.
Please refer to Internet Connection Setup
Wizard on page 21 for more details.
If you would rather manually set up the
camera internet connection, you can refer
to Network on page 28 which provides more
details on the information required.
You may choose to congure motion
detection by using the Motion Detection
Setup Wizard that includes step-by-step
instructions.PleaserefertoMotionDetection
Setup Wizard on page 24 for more details.
If you would rather manually set up the
camera’s motion detection features, you can
refer to Motion Detection on page 41 which
provides more details on the information
required.
Internet
Connection
Setup Wizard:
Manual
Internet
Connection
Setup:
Motion
Detection
Setup Wizard:
Manual Motion
Detection
Setup:
This section allows you to begin setup wizards which will guide you through the process of getting your camera’s various functions congured. If
you comfortable with adjusting the settings manually, you may skip the wizards and adjust settings manually as needed.
