D-Link DCS-2530L User manual

DCS-2530L
Quick Install Guide

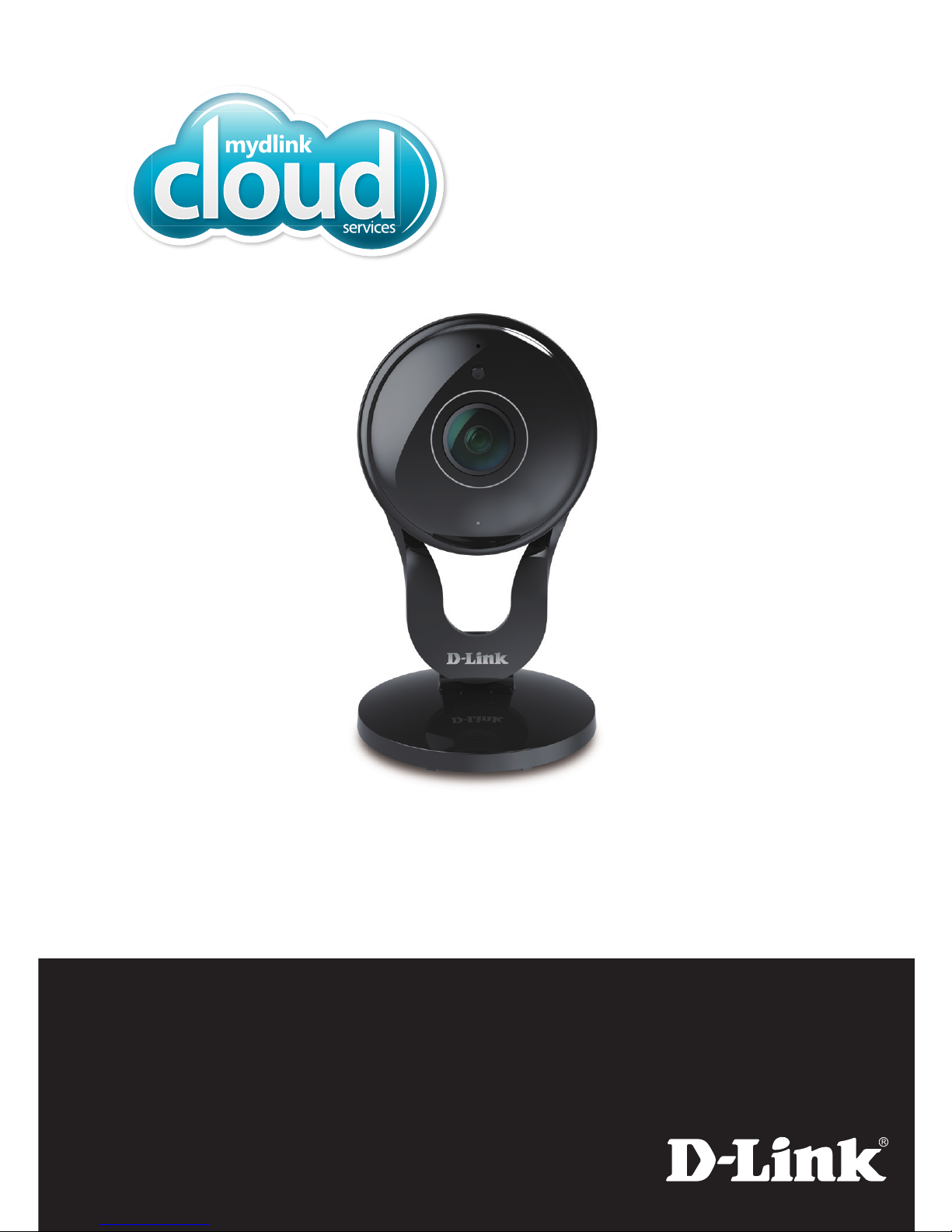

Full HD 180-Degree Wi-Fi Camera

If any of the above items are missing, please contact your reseller.
DCS-2530L Full HD 180-Degree Wi-Fi Camera
Power Adapter
Package Contents
Mounting Hardware
Minimum Requirements
Mobile Device (to use mydlink Lite app)
• iPhone, iPad, Android smartphone or tablet, or Windows Phone 8/8.1
(Refer to the mobile app’s store page to see if your device is compatible)
Network Device and Service
• A wireless router (802.11n/g) with Internet service
• An e-mail account (required to create a mydlink® account)
Quick Install Guide
For warranty and regulatory information, please visit:
http://support.dlink.com/warranty.aspx
2
ENGLISH

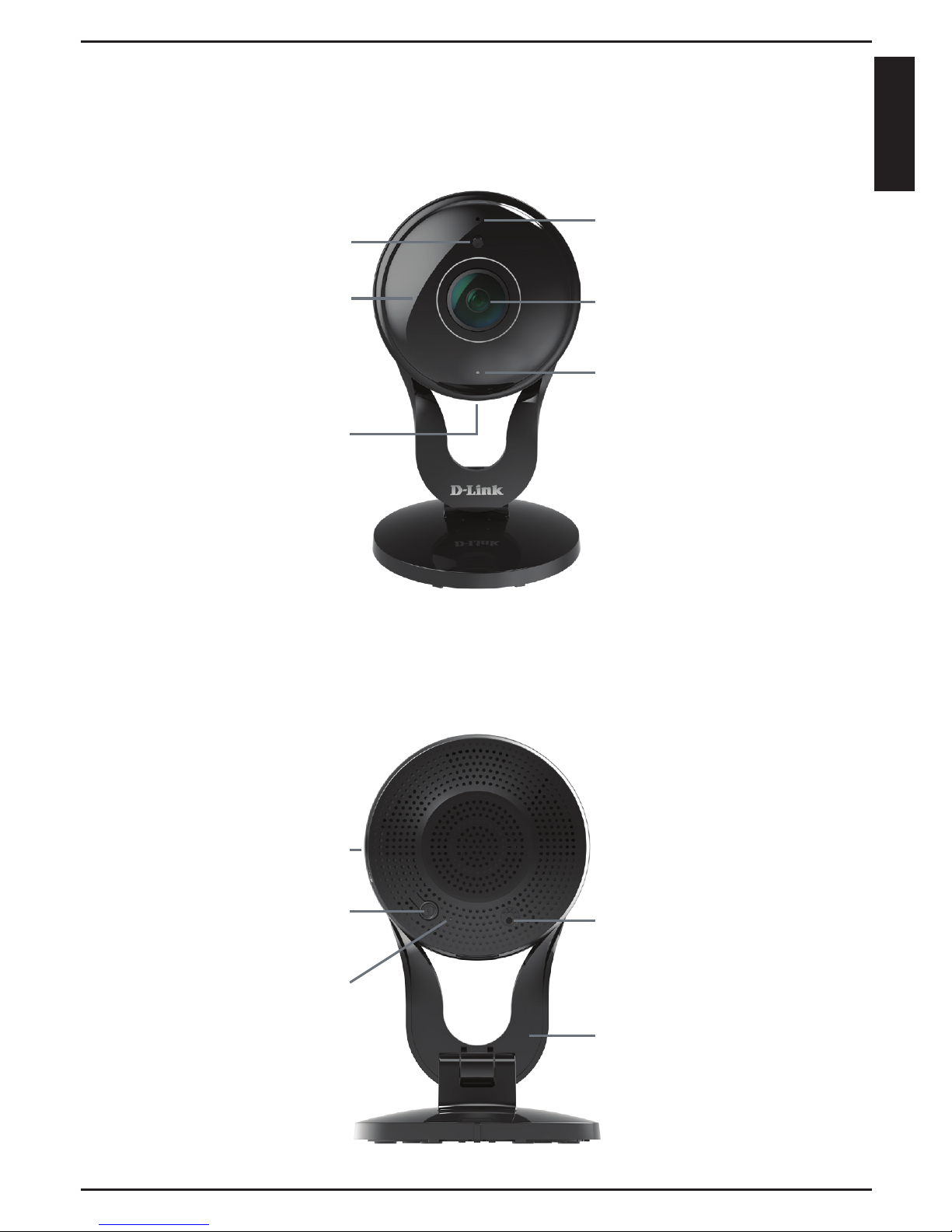

Product Overview
Camera Lens
Microphone
Power Connector
Reset Button
WPS Button
Front
Back
microSD Slot
Camera Stand
Light Sensor
IR LEDs
Signal Locator LED
Solid Green = Best wireless signal
Solid Orange = Good wireless signal
Blinking Orange = Poor wireless signal
Power/Status LED
Solid Green = Successfully connected
Blinking Green = WPS process in progress
Solid Red = Camera is booting or rmware
upgrade is in progress
3
ENGLISH

Setting Up Your Camera
System Requirements: Refer to the mydlink Lite app page on Apple App Store, Google Play or Windows Phone Store.
Launch the mydlink Lite app, then create a new account or log in to your
existing account.

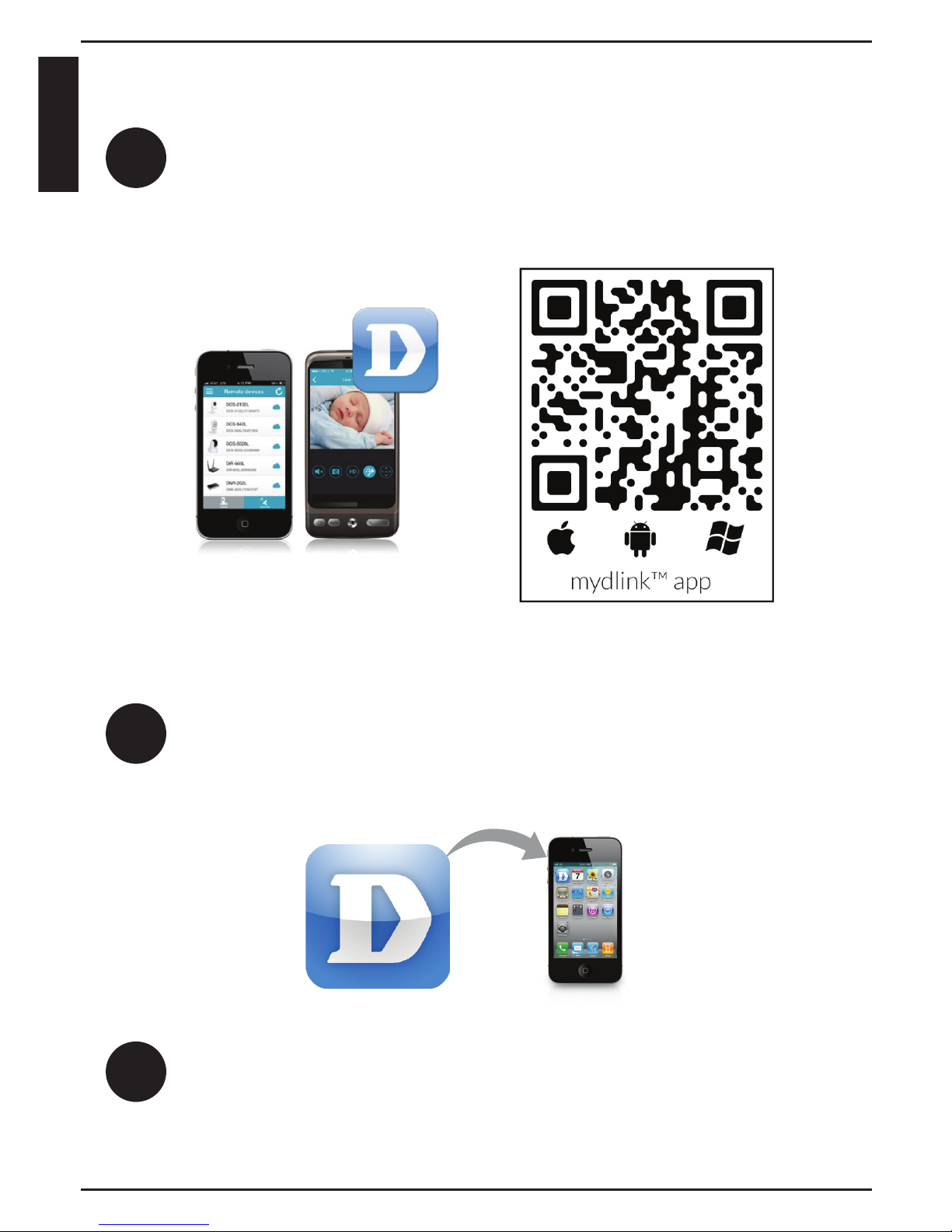

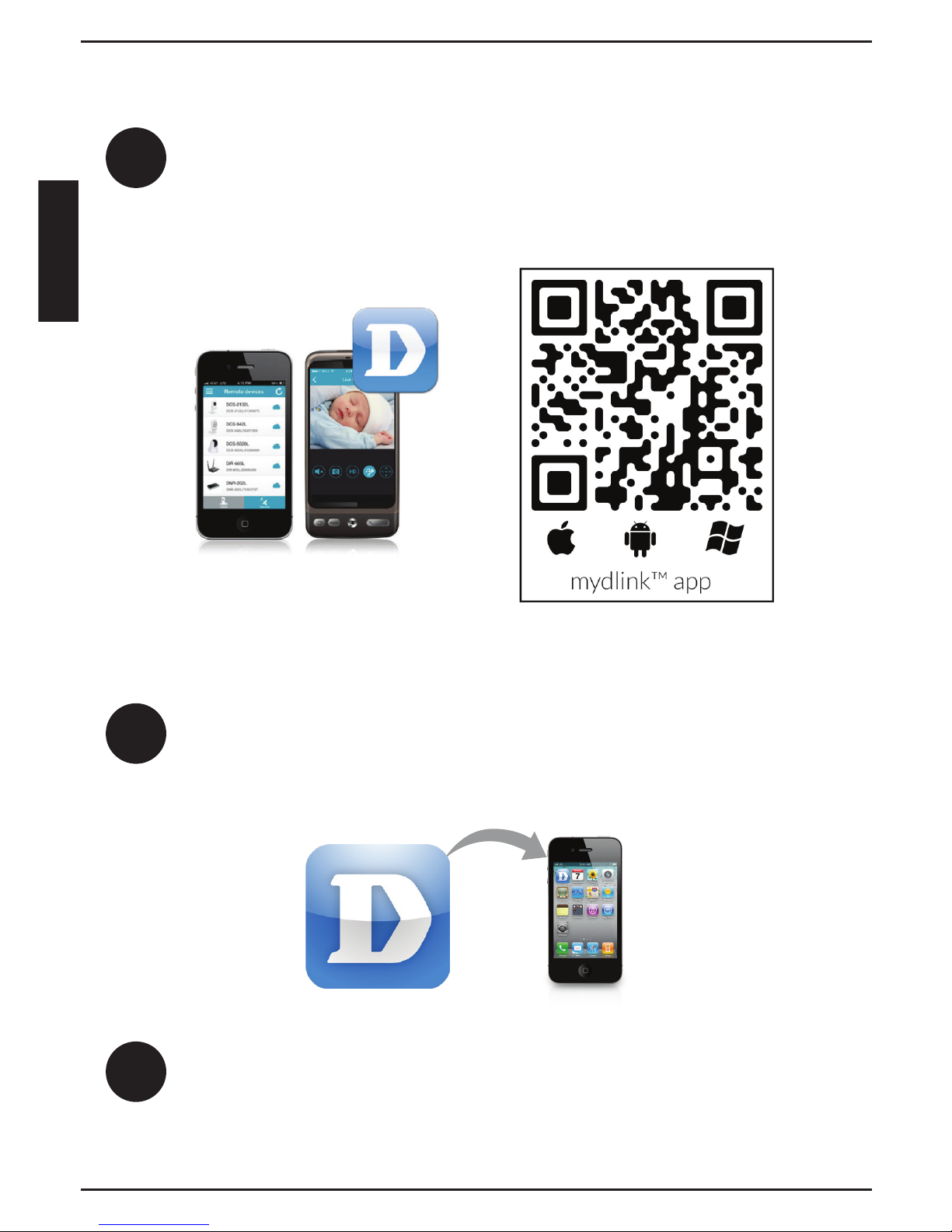

Download the free mydlink Lite app on your smartphone or tablet by
scanning the QR code below, or by searching for mydlink Lite in the app
store for your device.
1
2
3The app will guide you through the rest of the conguration process.
4
ENGLISH

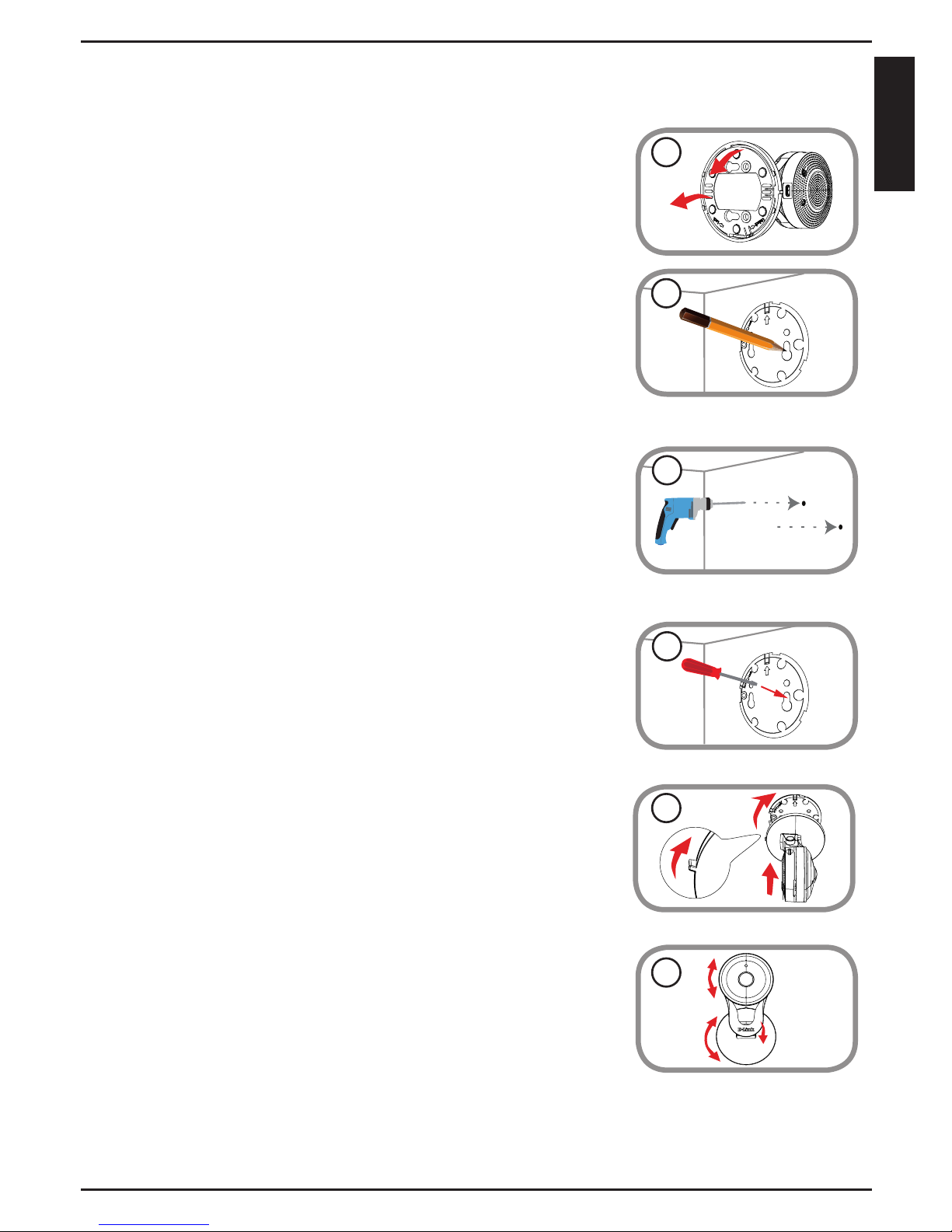

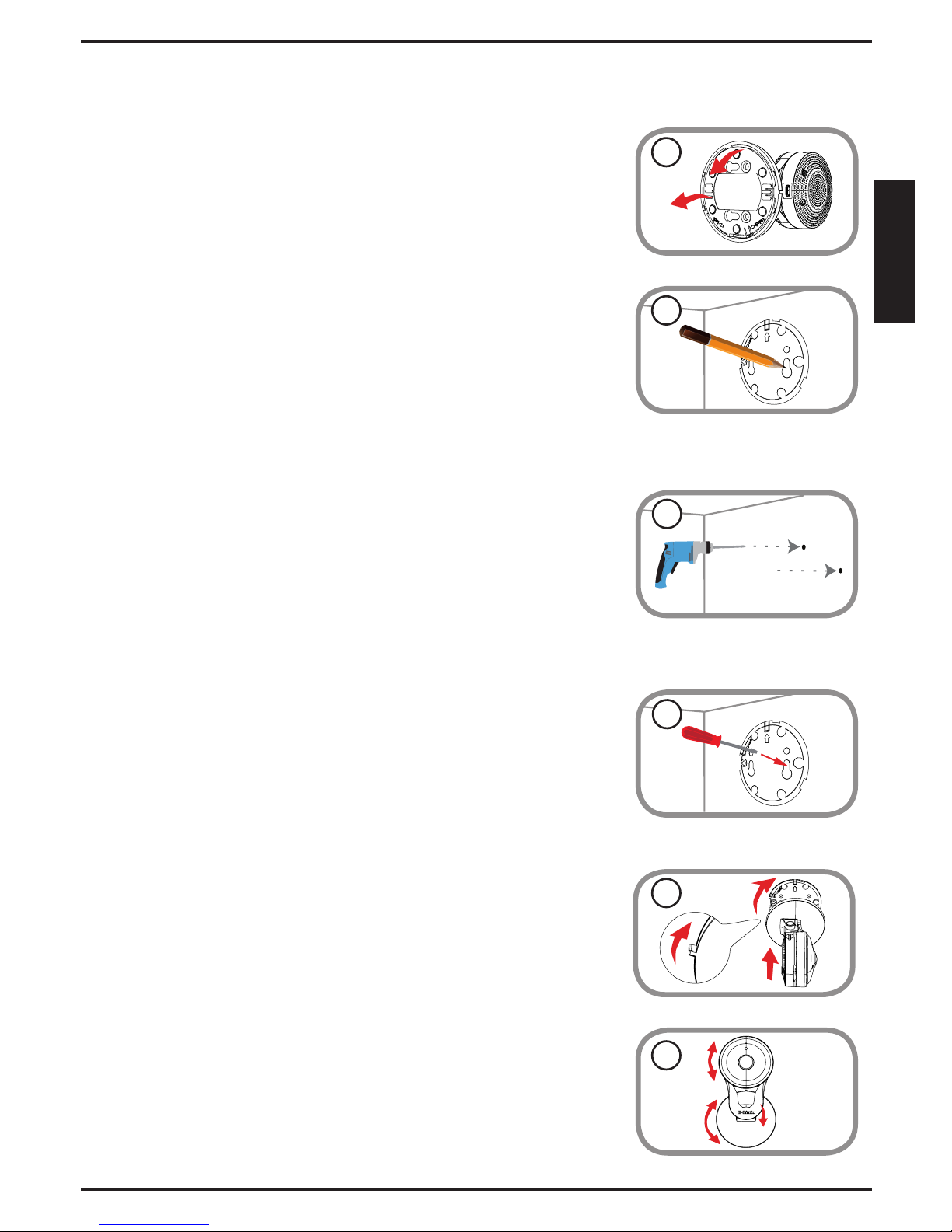

Mount the Camera
Step 1:
Rotate the baseplate counterclockwise and remove it. 1
Step 2:
Place the baseplate where you want to position the camera
and use a pencil to mark the holes. You can use the lower
holes for a removable installation, or the top holes for a
fixed one. Make sure that the arrow on the baseplate is
pointing up.
2
Step 3:
Depending on the material of the wall or ceiling, use proper
tools to drill holes 25mm deep with a 6mm drill bit where
you marked. If the wall is made out of concrete, drill the
holes first, then insert the plastic anchors to support the
screws.
3
Step 4:
Place the baseplate over the holes that are in the wall or
ceiling. Make sure to align the baseplate holes with the
holes in the wall or ceiling. Use the supplied screws to
attach the baseplate to the surface of the wall or ceiling.
4
Step 6:
Adjust the angle and rotation of the camera as desired. You
can also rotate the camera on the baseplate about 45° to
the right or left.
6
Step 5:
Place the camera over the baseplate with the alignment tab
pointing left, then attach the camera by rotating it until the
alignment tab points up.
5
5
ENGLISH

1. What is a mydlink No.? What is it used for?
Each camera has a unique eight-digit mydlink No. which will be shown on
the label on the bottom of your camera.This eight-digit number identies
your device, and is required to add your device to your mydlink account.
2. What can I do if my DCS-2530L is not working correctly?
• Reset the camera (see next step) and run the setup steps starting
on page 4 again.
• To make sure your hardware is installed correctly, make sure that:
- the Power/Status LED on the back of the camera is solid green
- your Internet connection is working
- your router’s LAN & WAN connections are working
- your router supports UPnP®
- your camera is on the same network as your mobile device
- both your mobile device and camera have a working Internet connection
• If your camera is still not working, check your router and make sure it
has the latest rmware.
3. What can I do if I forget my password?
FAQs
If you forget your password, you must reset the
camera. Unfortunately, this process will change
your settings back to factory default. To reset the
camera, locate the reset button on the back of
the camera. With the camera powered on, use an
unfolded paper clip to hold the button down for
10 seconds. Run the setup procedure located on
page 4 once the camera restarts.
4. Why is there a white haze when viewing in night vision mode?
When viewing in night vision mode, the IR lights on the camera may be
reecting o a nearby surface. Try repositioning the camera in order to
avoid glare from IR LEDs.

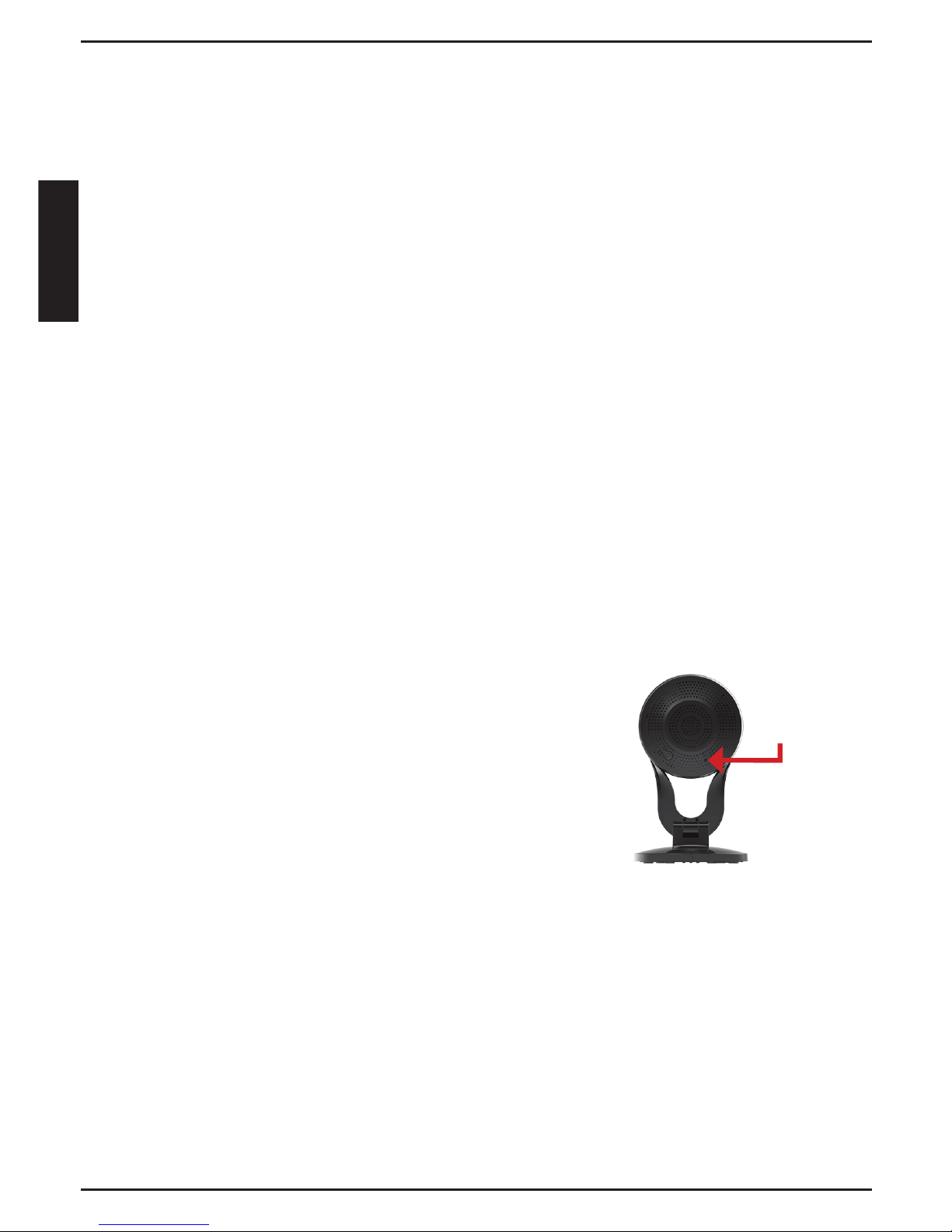

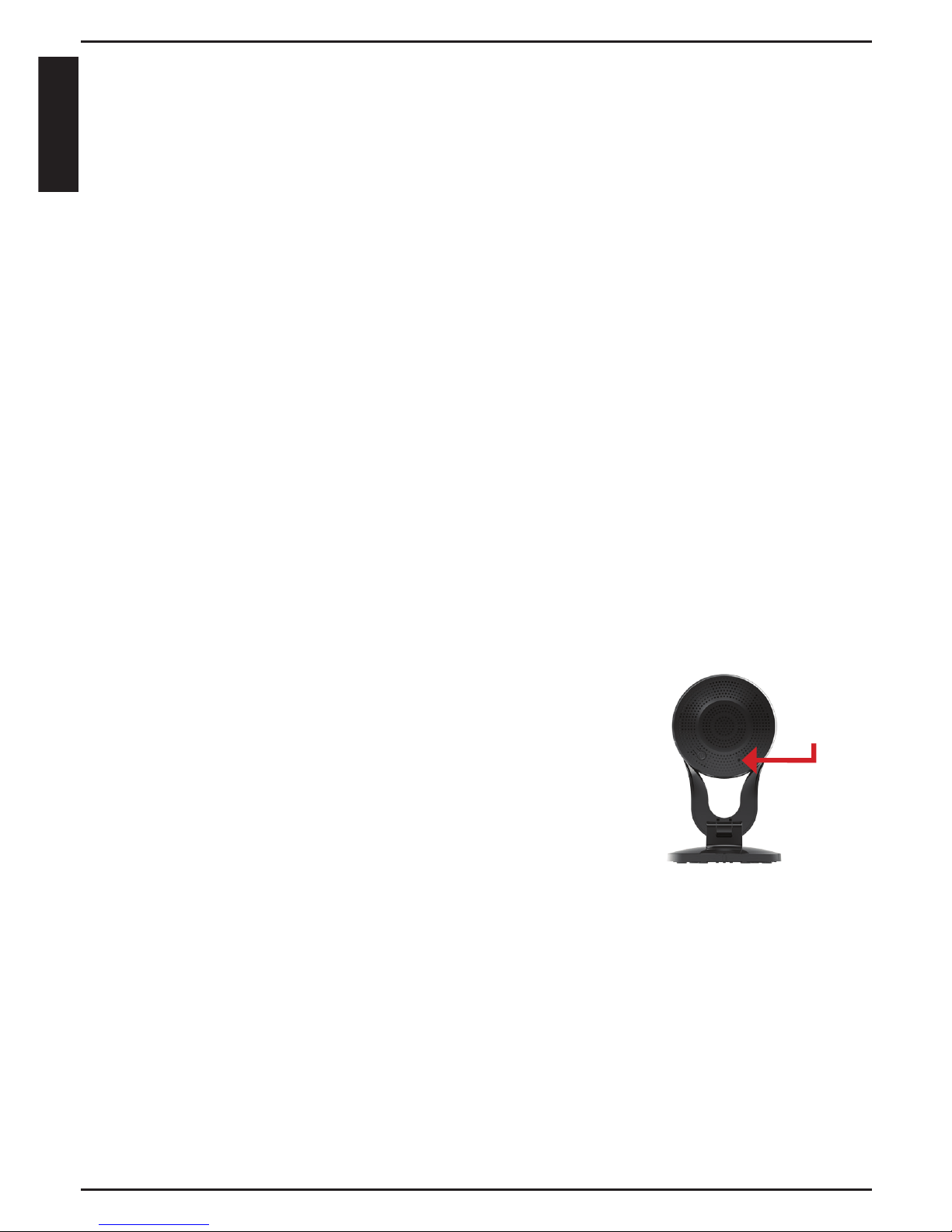

Reset
Button
6
ENGLISH

Notes
7
ENGLISH

Technical Support
This guide is only for initial conguration. Please refer to the user
manual to learn more or visit http://www.mydlink.com for more
information. Also feel free to contact us. U.S. and Canadian customers
can contact D-Link Technical Support through our website.
http://support.dlink.com
USA
http://support.dlink.ca
Canada
Version 1.00(NA)_90x130
February 5, 2016
RMN0101963
Copyright ©2016 All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link
Corporation or its subsidiaries. Other trademarks are the property of their respective owners. Maximum
wireless signal rate derived from IEEE Standard 802.11n specications. Actual data throughput will vary.
Network conditions and environmental factors, including volume of network trac, building materials
and construction, and network overhead, lower actual data throughput rate. Environmental factors will
adversely aect wireless signal range. Product specications, size and shape are subject to change without
notice, and actual product appearance may dier from that depicted on the packaging. Visit dlink.com
(US) or dlink.ca (Canada) for more details.
