D-Link Cobra DSL-5300 User manual

Version 1.00 | 12/07/2017
User Manual
DSL-5300
Tri-Band Wireless AC5300 Gigabit VDSL Modem Router

iD-Link DSL-5300 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries.
App StoreSM is a service mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2017 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
Preface
Revision Date Description
1.00 December 6, 2017 Initial release

iiD-Link DSL-5300 User Manual
Table of Contents
Preface................................................................................. i
Product Overview.............................................................. 1
Package Contents......................................................................... 1
System Requirements................................................................. 2
Introduction ................................................................................... 3
Features............................................................................................ 4
Antenna Setup............................................................................... 5
Hardware Overview..................................................................... 6
Connections ........................................................................... 6
LEDs........................................................................................... 7
Installation ......................................................................... 8
Before you Begin........................................................................... 8
Wireless Installation Considerations...................................... 9
Manual Setup...............................................................................10
Getting Started ................................................................13
Setup Wizard ................................................................................14
Conguration...................................................................20
Home ..............................................................................................20
Internet...................................................................................21
IPv4 .....................................................................................22
IPv6 .....................................................................................23
DSL ......................................................................................24
DSL-5300................................................................................25
Connected Clients..............................................................26
Connected Clients (Cont).................................................27
USB Device............................................................................28
Settings ..........................................................................................29
Wizard.....................................................................................29
Internet...................................................................................29
IPv4 .....................................................................................31
DSL ......................................................................................41
ATM .....................................................................................42
PTM .....................................................................................43
VLAN...................................................................................44
IPv6 .....................................................................................45
Wireless ..................................................................................59
Guest Zone.......................................................................61
Advanced Settings ........................................................62
Network..................................................................................65
SharePort ...............................................................................67
Create User.......................................................................68
Features..........................................................................................69
QoS Engine............................................................................69
Firewall Settings..................................................................70
IPv4/IPv6 Rules ...............................................................72
Port Forwarding ..................................................................73
Virtual Server...................................................................74
Website Filter........................................................................75
Static Routes.........................................................................76
IPv6 .....................................................................................77
Table of Contents

iiiD-Link DSL-5300 User Manual
Table of Contents
Dynamic DNS .......................................................................78
IPv6 Host ...........................................................................79
VPN......................................................................................80
Management................................................................................82
Time & Schedule .................................................................82
Time....................................................................................82
Schedule ...........................................................................83
System Log............................................................................84
Admin .....................................................................................85
System ...............................................................................87
Upgrade .................................................................................88
Statistics .................................................................................89
Connect a Wireless Client to your Router ......................90
WPS Button...................................................................................90
Windows® 10................................................................................91
Windows® 8...................................................................................93
WPA/WPA2 ............................................................................93
Windows® 7...................................................................................95
WPA/WPA2 ............................................................................95
WPS..........................................................................................98
Windows Vista®......................................................................... 102
WPA/WPA2 ......................................................................... 103
Windows® XP............................................................................. 105
WPA/WPA2 ......................................................................... 106
Troubleshooting ............................................................108
Wireless Basics ...............................................................112
What is Wireless?...................................................................... 113
Tips................................................................................................ 115
Wireless Modes......................................................................... 116
Networking Basics.........................................................117
Check your IP address............................................................ 117
Statically Assign an IP address............................................ 118
Wireless Security ......................................................... 119
What is WPA? ................................................................ 119
Technical Specications................................................120

1D-Link DSL-5300 User Manual
Section 1 - Product Overview
Wi-Fi Conguration Card
D-Link Cloud Service Mobile Apps Guide
Quick Installation Guide
Wall Mount Hardware
Product Overview
Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DSL-5300 will cause damage and void the warranty
for this product.
If any of the above items are missing, please contact your reseller.
DSL-5300 Tri Band Wireless AC5300
Gigabit VDSL Modem Router
DSL Phone Cable
Splitter
Ethernet Cable
Power Adapter
Wi-Fi CongurationNote

2D-Link DSL-5300 User Manual
Section 1 - Product Overview
Network Requirements • An Ethernet-based cable or DSL modem
• 802.11ac/n/g/b/a wireless or Ethernet port
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 9 or higher
• Firefox 20 or higher
• Safari 5.1 or higher
• Chrome 25 or higher
Windows®Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
System Requirements

3D-Link DSL-5300 User Manual
Section 1 - Product Overview
Introduction
The D-Link DSL-5300 Tri-Band Wireless AC5300 Gigabit VDSL Modem Router shares your DSL Internet connection over a
blazing-fast Wireless AC connection using advanced AC beamforming technology to maximize the speed and range of your
wireless signal to signicantly outperform 802.11n and other 802.11ac devices. It also comes equipped with four Gigabit ports
to provide speeds up to 10x faster than standard 10/100 ports. With the addition of Advanced Quality of Service (QoS), data
streams are separated, which helps organize and prioritize your network trac so your video streaming, gaming, and VoIP calls
run smoother over both your wired and wireless network.
The Tri-Band Wireless AC5300 Gigabit VDSL Modem Router supports VDSL2 to help you make the most of your broadband
subscription. With download speeds of up to 100Mbps, the DSL-5300 provides more than enough bandwidth for multiple
devices streaming HD video, playing intense online games, or multiple simultaneous le transfers. With VDSL2 and a
compatible ISP, you can say goodbye to buering, queuing, and compromises for bandwidth-intensive applications.
File sharing technology lets you take advantage of the USB 3.0 port found on the back of your DSL-5300 (as well as an
additional USB 2.0 port). Plug in a USB storage drive and you can use the access les, stream videos, view photos, or listen to
music on your laptop or mobile devices.
The DSL-5300 Tri-Band Wireless AC5300 Gigabit VDSL Modem Router provides incredible speeds, smart antenna technology,
fast ports, and cloud features. It also features an innovative design and easy installation options.

4D-Link DSL-5300 User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The DSL-5300 uses Smart Connect, a D-Link feature, when combined with
additional 5 GHz antennas, can provide up to a full 5300 Mbps*wireless connection with concurrent 801.11ac
and 802.11n wireless clients. It operates on both the 2.4 GHz and 5 GHz bands to allow separation of trac so
users can participate in high-bandwidth activities, such as video streaming, online gaming, and real-time audio,
without aecting low-priority trac like email and web surng.
• Compatible with 802.11n/g/b/a Devices - The DSL-5300 is fully compatible with the 802.11n, IEEE 802.11g and
802.11a standards, so it can connect with existing 802.11n, 802.11g, 802.11b, and 802.11a wireless devices.
• Advanced Firewall Features - The web-based user interface displays a number of advanced network
management features including:
• Content Filtering - Easily applied content ltering based on MAC address, URL, and/or domain
name.
• Scheduling - The Firewall, wireless, and port forwarding features can be scheduled to be active on
certain days, or for a duration of a set number of hours.
• User-friendly Setup Wizard - Through its easy-to-use web-based user interface, the DSL-5300 lets you control
what information is accessible to those on the wireless network, whether from the Internet or from your
company’s server. Congure your router to your specic settings within minutes.
• Fast VDSL2 - VDSL2 support for up to 100 mbps broadband speeds lets you make the most of your high-speed
connection. Plenty of bandwidth for every family member to each stream their own HD content and ultra-
responsive for the most intense games, real-time video conferencing, or large le transfers.
* Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ac specications. Actual data throughput will vary. Network conditions
and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
Features

5D-Link DSL-5300 User Manual
Section 1 - Product Overview
Antenna Setup

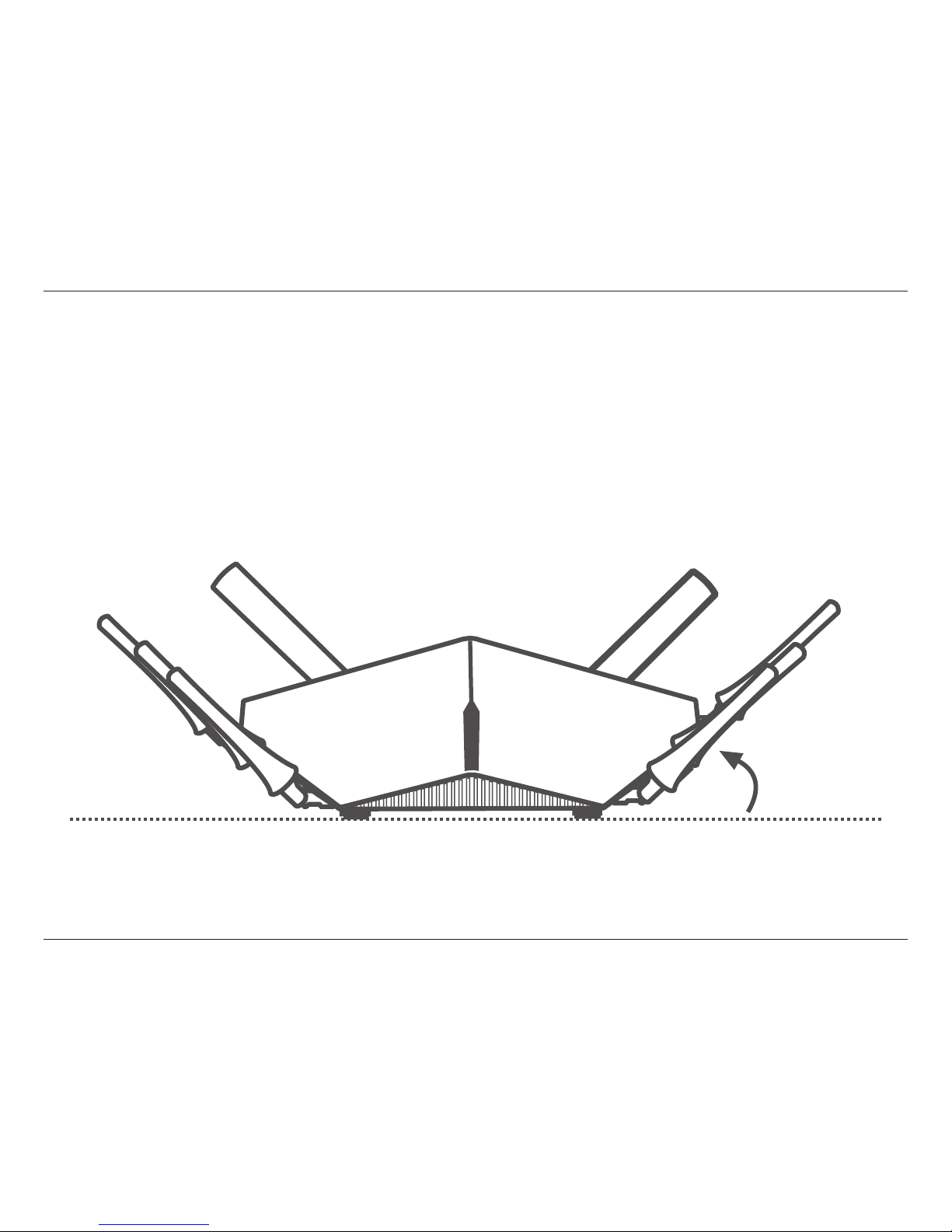

The DSL-5300 is designed to give you the fastest, most stable network connection possible. In order to maximize performance,
potition the antennas at an angle, pointing outward and away from the base unit.
NOTE: Attach the antennas to the router before powering it on.
45°

6D-Link DSL-5300 User Manual
Section 1 - Product Overview
Hardware Overview
Connections

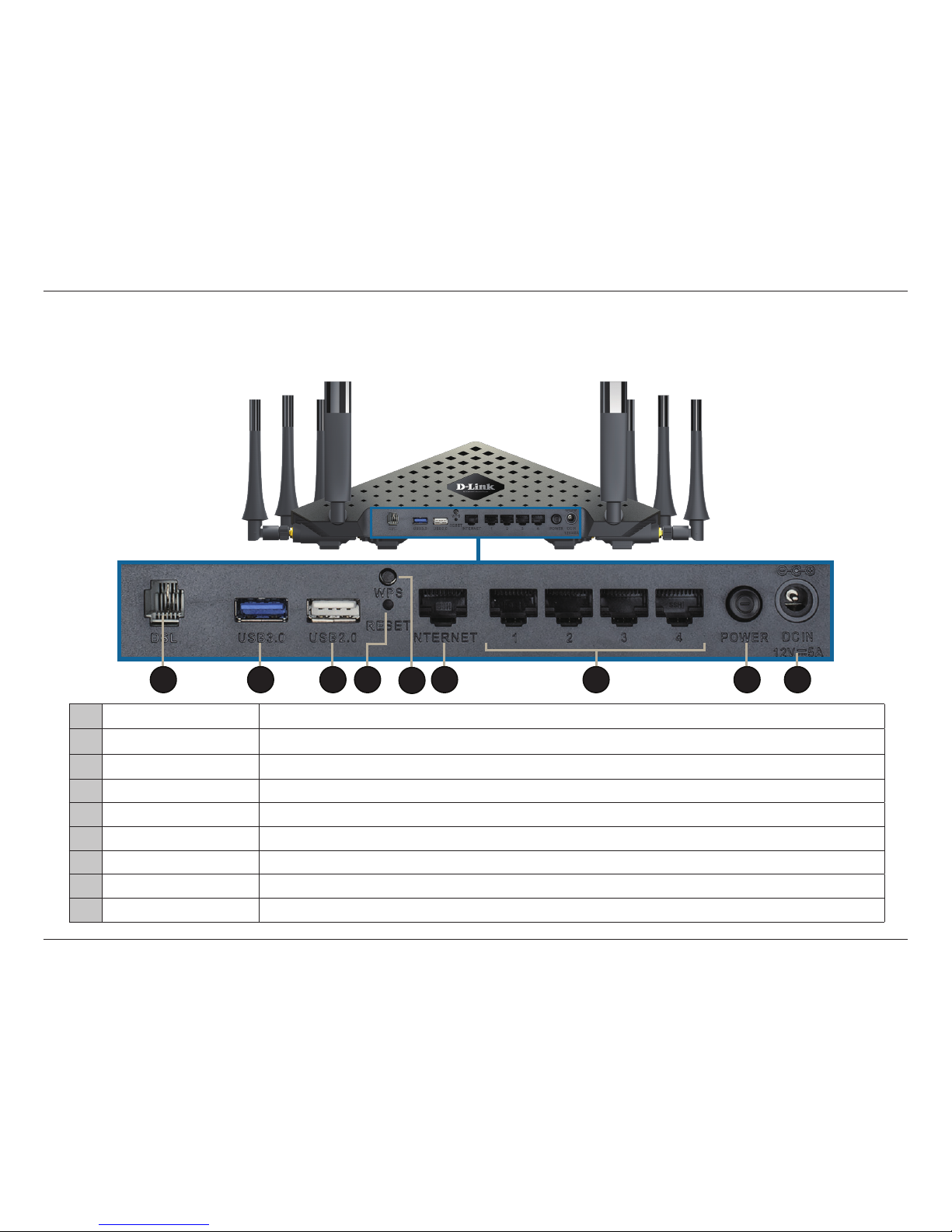

1 2 3 64 57 8 9
1 DSL Port Connect to a DSL-enabled telephone line with the supplied microlter/splitter.
2 USB 3.0 Port Connect a USB ash drive to share content or connect it to a USB printer to share it on your network.
3 USB 2.0 Port Connect a USB ash drive to share content or connect it to a USB printer to share it on your network.
4 Reset Button Insert a paperclip in the hole and wait for several seconds to reset the router to default settings.
5 WPS Button Press to start the WPS process and automatically create a secure connection to a WPS client.
6Gigabit WAN Port Connects to Ethernet WAN devices.
7 Gigabit LAN Ports (1-4) Connect Ethernet devices such as computers, switches, storage (NAS) devices, and game consoles.
8 Power Button Press the power button to turn the router on or o.
9 Power Connector Connector for the supplied power adapter.

7D-Link DSL-5300 User Manual
Section 1 - Product Overview
Hardware Overview

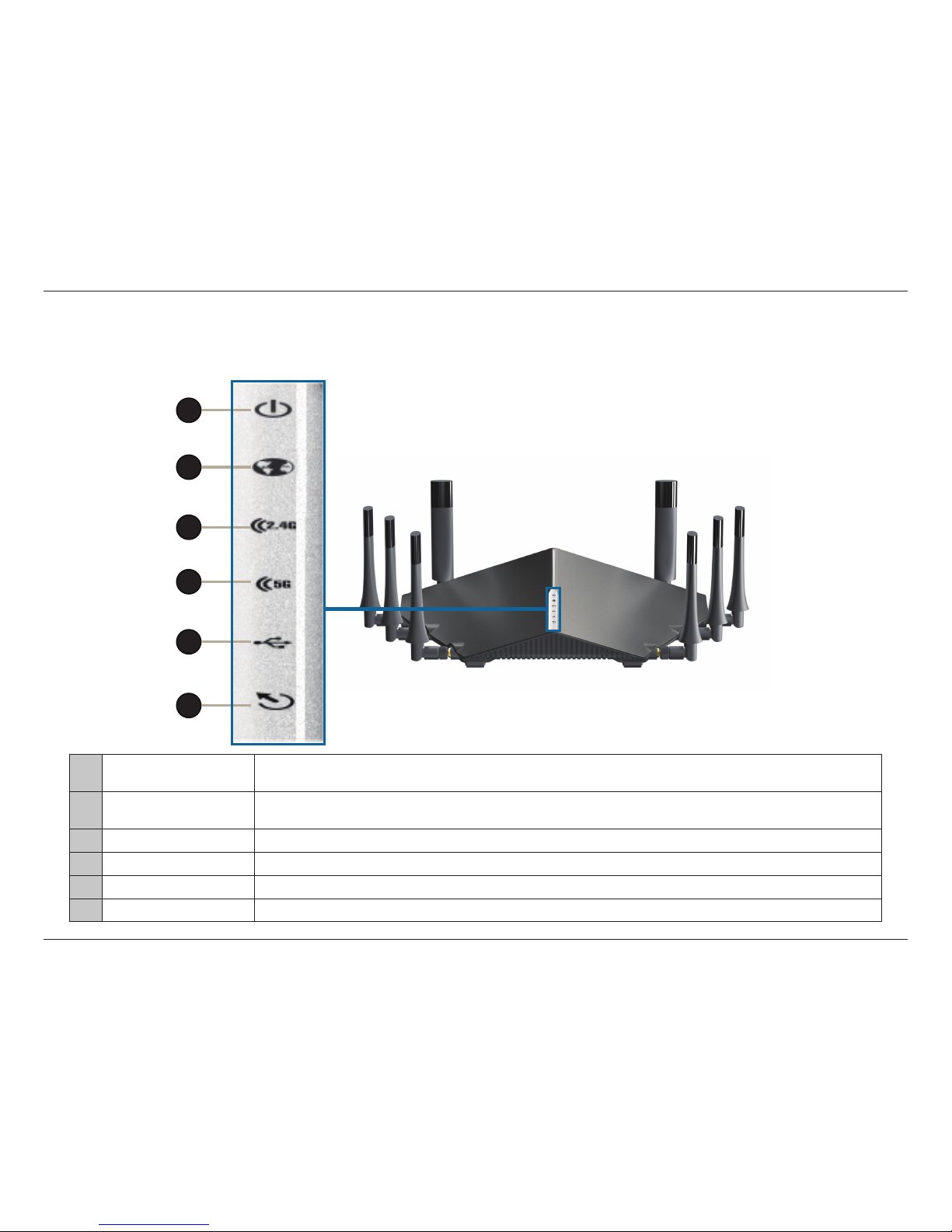

LEDs
1 Power LED A solid green light indicates a proper connection to the power supply. The light will be solid red during
boot up.
2 USB 3.0/2.0 LED A solid green light indicates that a USB device was detected in the USB 3.0 port.
A solid orange light indicates that a USB device was detected in the USB 2.0 port.
3 Wireless (2.4 GHz) LED A solid green light indicates that the 2.4 GHz wireless band is enabled.
4 Wireless (5 GHz) LED A solid green light indicates that the 5 GHz wireless band is enabled.
5 DSL LED A solid green light indicates a proper connection to a DSL-enabled telephone line.
6 Internet LED A solid green light indicates a proper connection to a broadband service.
1
2
4
5
6
3

8D-Link DSL-5300 User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router in
an enclosed area such as a closet, cabinet, attic, or garage.
Note: This installation section is written for users who are setting up their home Internet service with the
DSL-5300 Tri-Band Wireless AC5300 Gigabit VDSL Modem Router for the rst time. If you are replacing an existing DSL modem
and/or router, you may need to modify these steps.
• Make sure to have your DSL service information provided by your Internet Service Provider handy. This
information is likely to include your DSL account's Username and Password. Your ISP may also supply you with
additional WAN conguration settings necessary to establish a connection. This information may include the
connection type (DHCP IP, Static IP, PPPoE, or PPPoA) and/or ATM PVC details.
• If you are connecting a considerable amount of networking equipment, it may be a good idea to take the time to
label each cable or take a picture of your existing setup before making any changes.
• We suggest setting up your DSL-5300 from a single device and verifying that it is connected to the Internet before
connecting additional devices.
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE connection software
such as WinPoET, BroadJump, or EnterNet 300 from your computer as the DSL-5300 will provide functionality.

9D-Link DSL-5300 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through may limit the range. Typical ranges vary depending on the types of
materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position access points, wireless routers, and computers so that the signal passes through drywall or
open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors,
le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home
security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4
GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the
phone is not in use.

10D-Link DSL-5300 User Manual
Section 2 - Installation
1

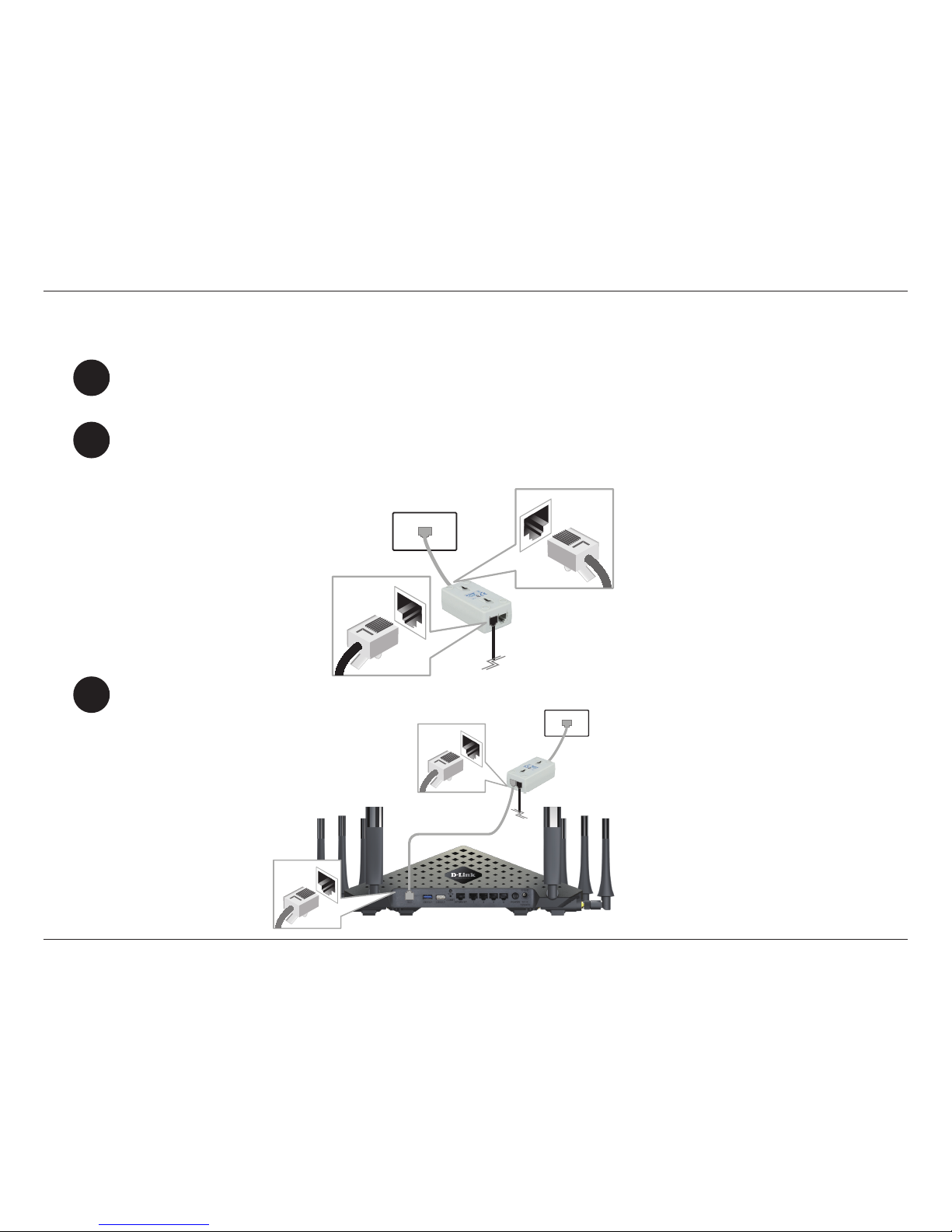

Connect your existing phone cable from a telephone outlet to the LINE port on the microlter and your
telephone handset into the PHONE port.
2
3Connect the phone cable from the DSL port on the Microlter to the ADSL port of the modem router.
Microlter
Telephone Outlet LINE
PHONE
Phone Cable
DSL-5300
Microlter
Position your router close to a wall jack that provides DSL service. Place the router in an open area of your
intended work area for better wireless coverage.
Manual Setup
Caution: - To reduce the risk of re, use only No. 26 AWG or larger telecommunication line cord.

11D-Link DSL-5300 User Manual
Section 2 - Installation
Ethernet Cable
DSL-5300
DSL-5300
Computer
Power Adapter
Computer
4
5

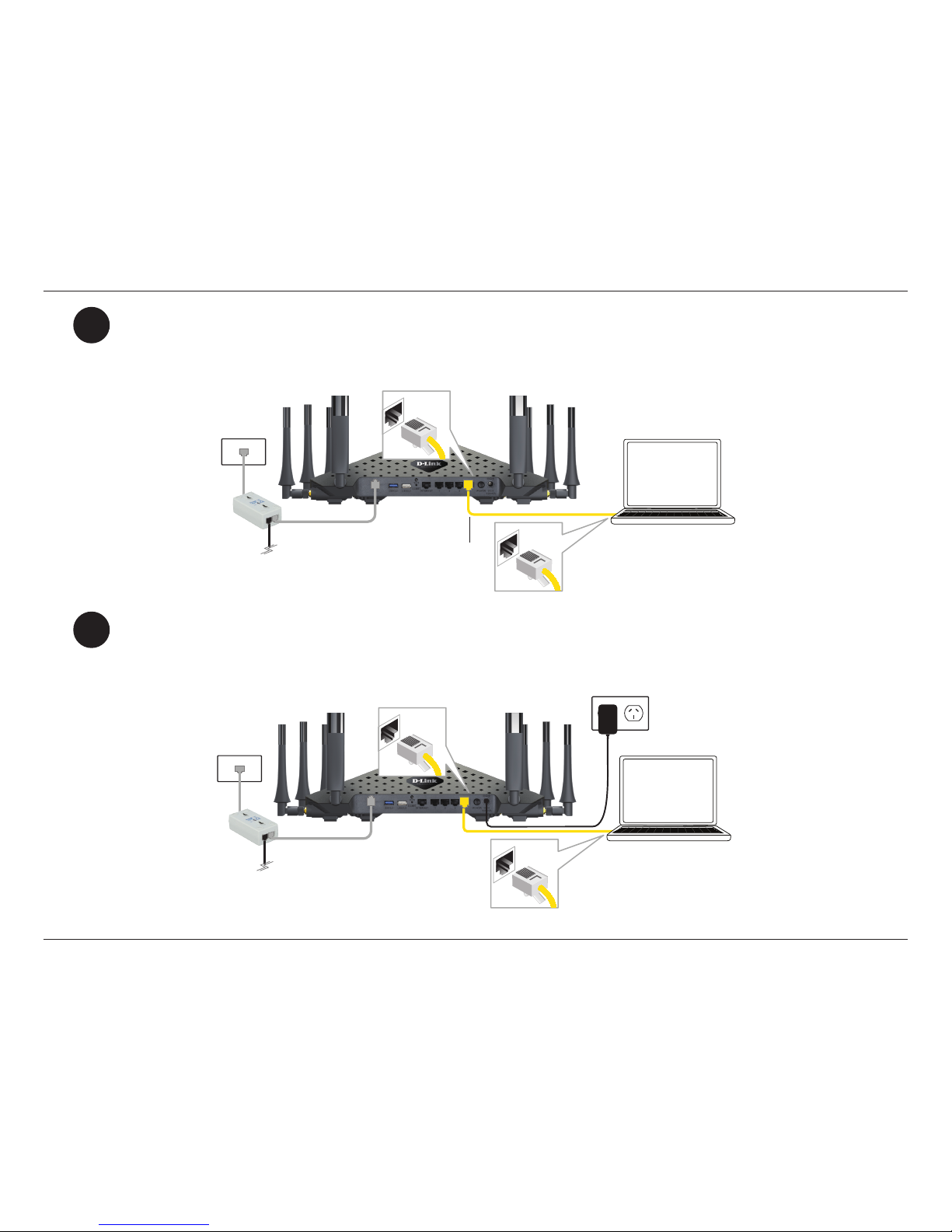

If you wish to use a wired connection, connect the Ethernet cable from a LAN port of the DSL-5300 to the
Ethernet port on your computer.
Plug the power adapter into your modem router and connect it to an available power outlet or surge
protector.
Caution: - Use only the included power adapter with this product.

12D-Link DSL-5300 User Manual
Section 2 - Installation
6
7If connecting to the DSL-5300 wirelessly, access the wireless utility on your computer or mobile device. Scan
for available Wi-Fi networks (SSID). Select and join a Wi-Fi network and use the password corresponding to
the information on the supplied Wi-Fi Conguration Card.
Press the power button and verify that the power LED is lit. Allow 1 minute for the router to boot up.
Wi-Fi CongurationNote

13D-Link DSL-5300 User Manual
Section 3 - Getting Started
There are two ways you can congure your router to connect to the Internet and connect to your clients:
• D-Link Setup Wizard - This wizard will launch when you log into the router for the rst time. Refer to page "Setup Wizard"
on page 14.
• Manual Setup - Log into the router and manually congure your router. Refer to "Conguration" on page 20.
Getting Started

14D-Link DSL-5300 User Manual
Section 3 - Getting Started
Setup Wizard

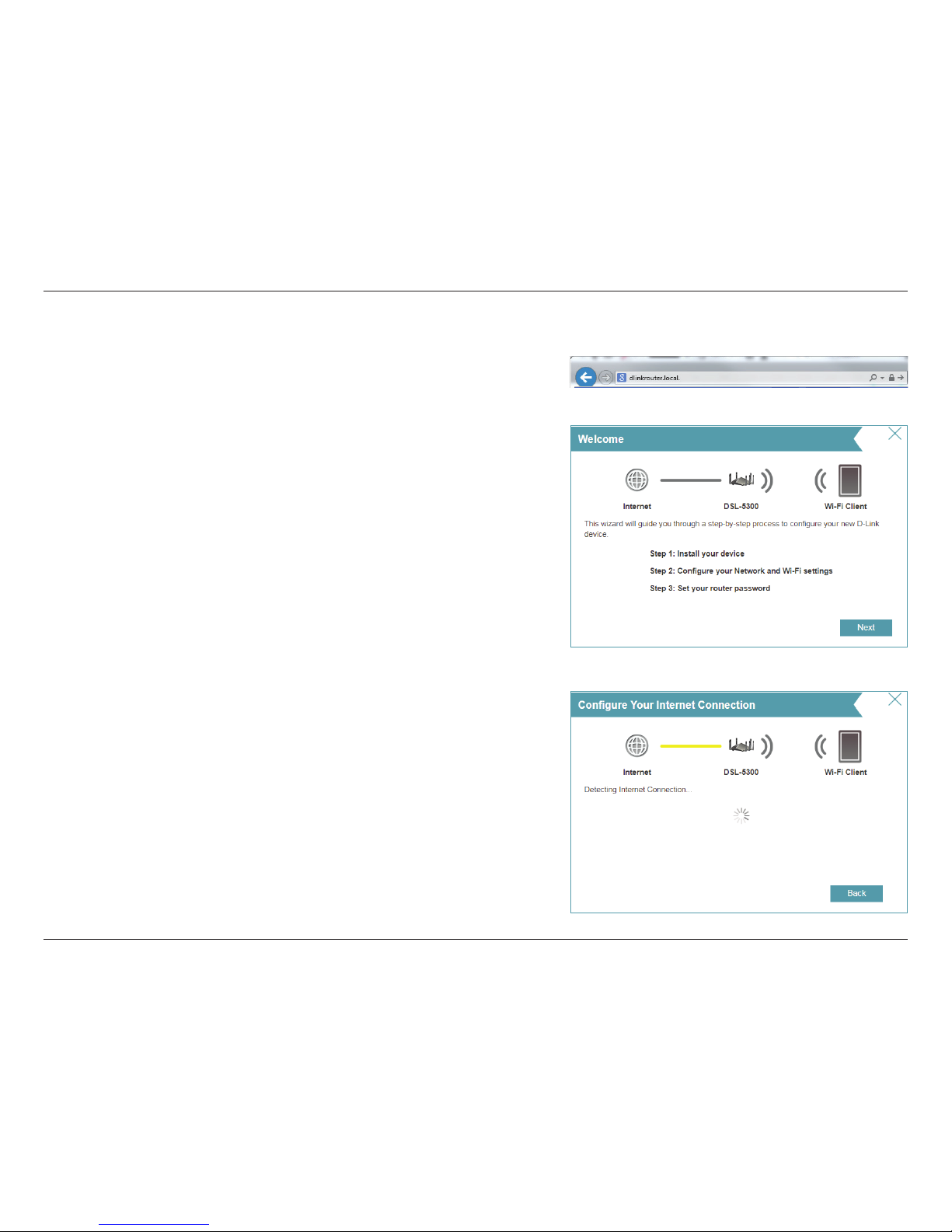

If this is your rst time installing the router, open your web browser and
enter http://dlinkrouter.local./ in the address bar. Alternatively, enter
the IP address of the router (default: http://192.168.1.1).
The wizard is designed to guide you through a step-by-step process to
congure your new D-Link router and connect to the Internet.
Click Next to continue.
Ensure that your DSL phone cable is connected to both the router and
the wall jack.
Click Next to continue.
Please wait while your router detects your Internet connection type. If
the router detects your Internet connection, you may need to enter your
ISP information such as username and password.

15D-Link DSL-5300 User Manual
Section 3 - Getting Started
If the router does not detect a valid Internet connection, a list of
connection types to choose from will be displayed.
Select your Internet connection type (this information can be obtained
from your Internet Service Provider) and click Next to continue.

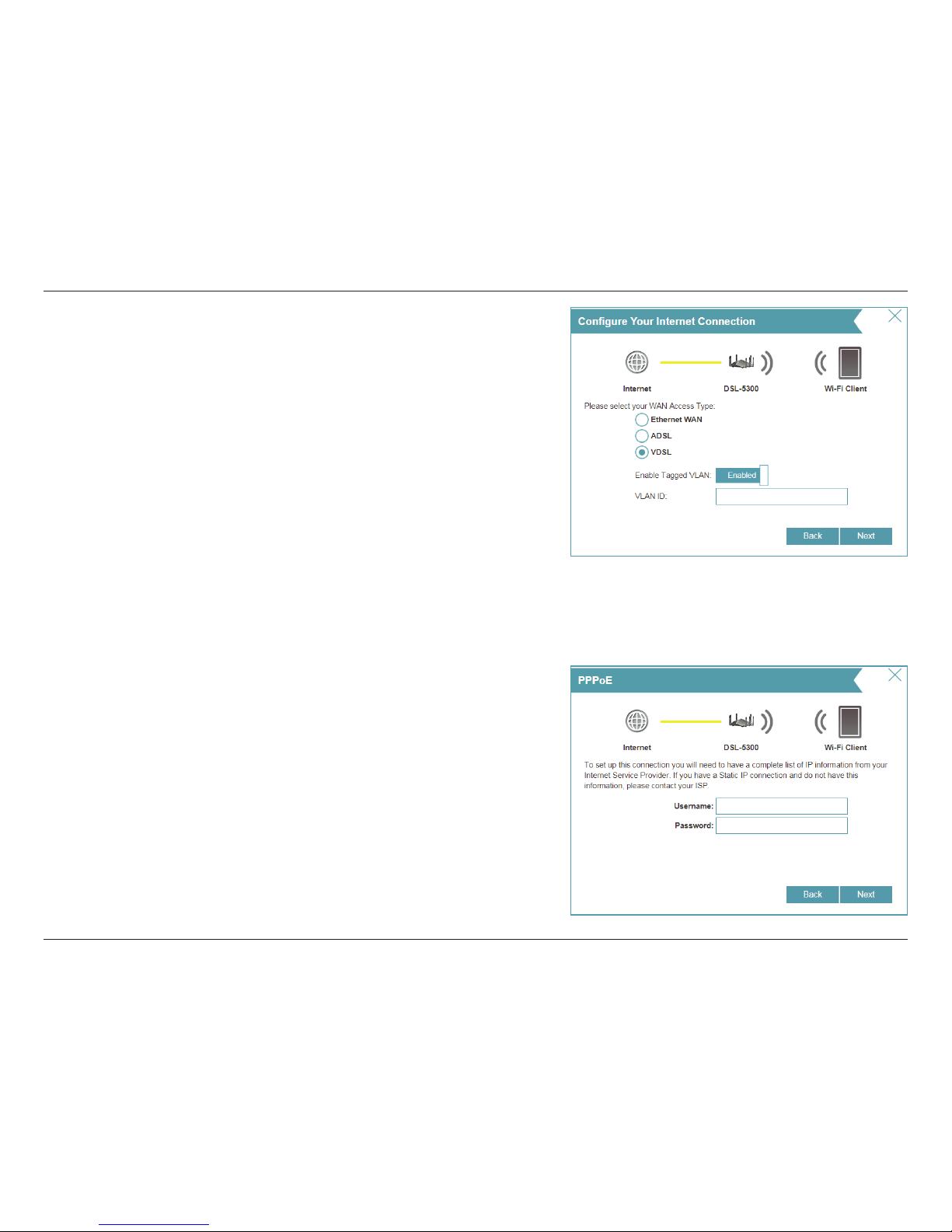

If the router detected or you selected PPPoE, enter your PPPoE username
and password and click Next to continue.
Note: Make sure to remove your PPPoE software from your computer. The
software is no longer needed and will not work through a router.

16D-Link DSL-5300 User Manual
Section 3 - Getting Started

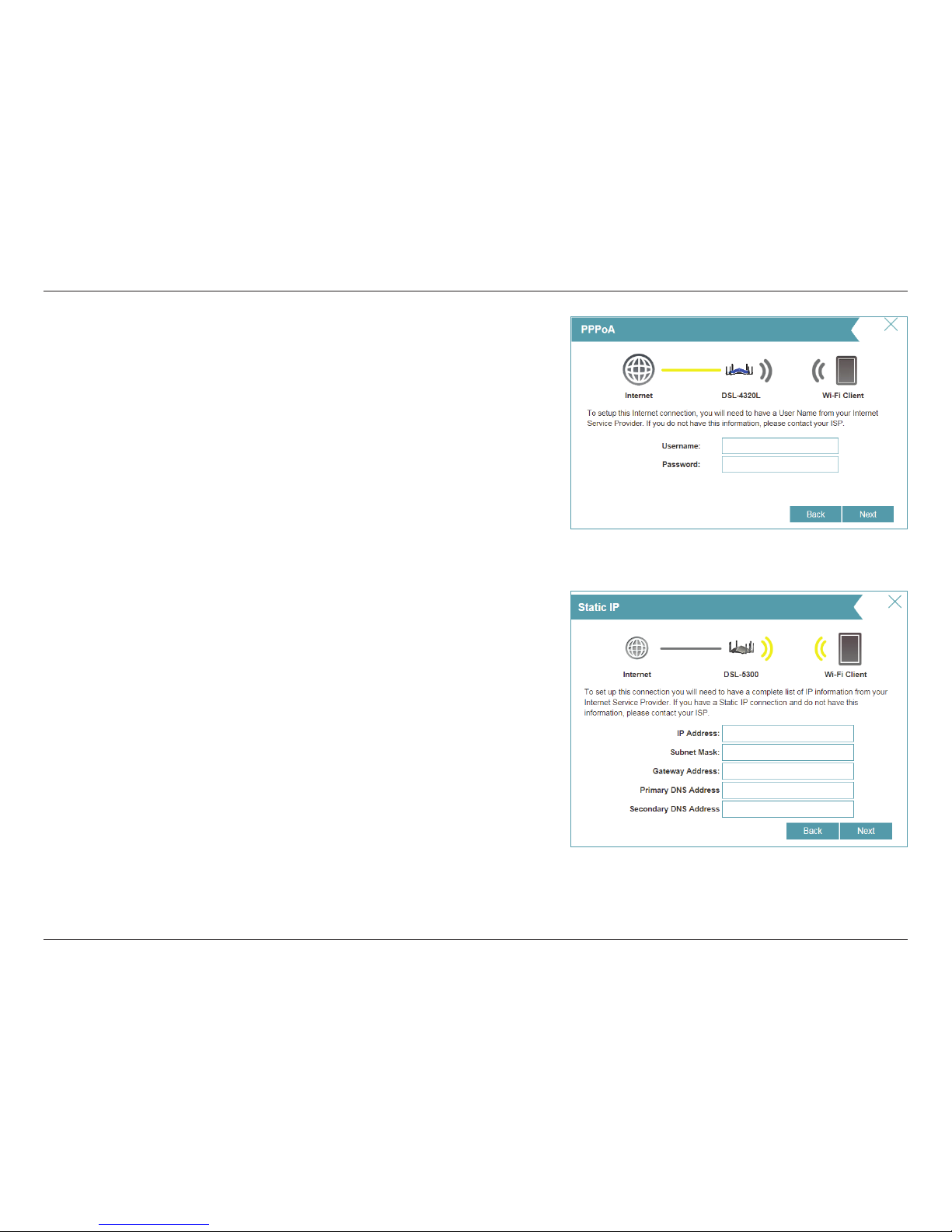

If the router detected or you selected PPPoA, enter your PPPoA username
and password and click Next to continue.
Note: Make sure to remove your PPPoA software from your computer. The
software is no longer needed and will not work through a router.
If the router detected or you selected Static, enter the IP and DNS settings
supplied by your ISP. Click Next to continue.
