D-Link Amplifi DHP-1565 User manual






INSTALLATIONSANLEITUNG
GUIDE D’INSTALLATION
GUÍA DE INSTALACIÓN
GUIDA DI INSTALLAZIONE
INSTALLATIEHANDLEIDING
INSTRUKCJA INSTALACJI
INSTALAČNÍ PŘÍRUČKA
TELEPÍTÉSI SEGÉDLET
INSTALLASJONSVEILEDNING
INSTALLATIONSVEJLEDNING
ASENNUSOPAS
INSTALLATIONSGUIDE
GUIA DE INSTALAÇÃO
ΟΔΗΓΌΣ ΓΡΉΓΟΡΗΣ ΕΓΚΑΤΆΣΤΑΣΗΣ ΤΟ
VODIČ ZA BRZU INSTALACIJU
KRATKA NAVODILA ZA UPORABO
GHID DE INSTALARE RAPIDĂ


2





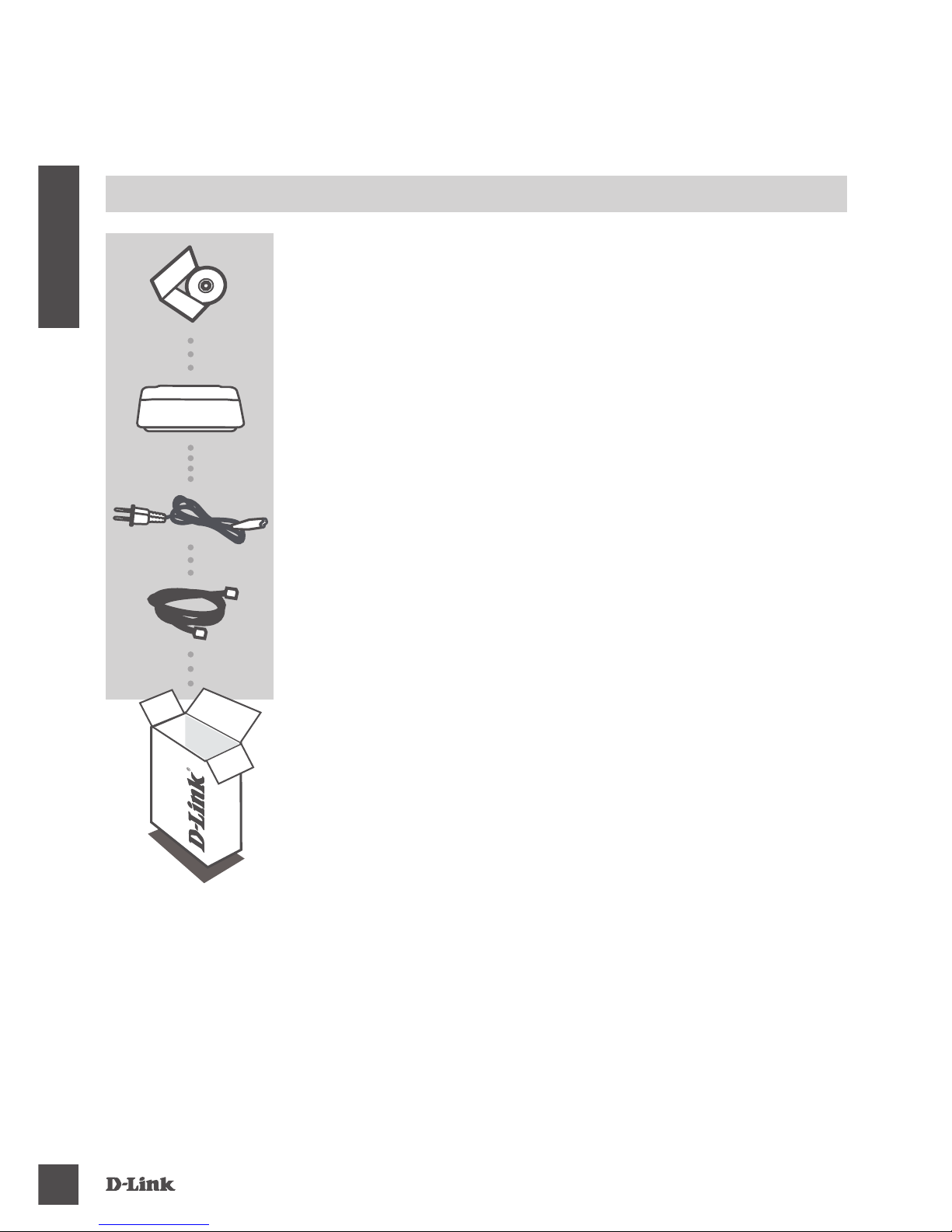

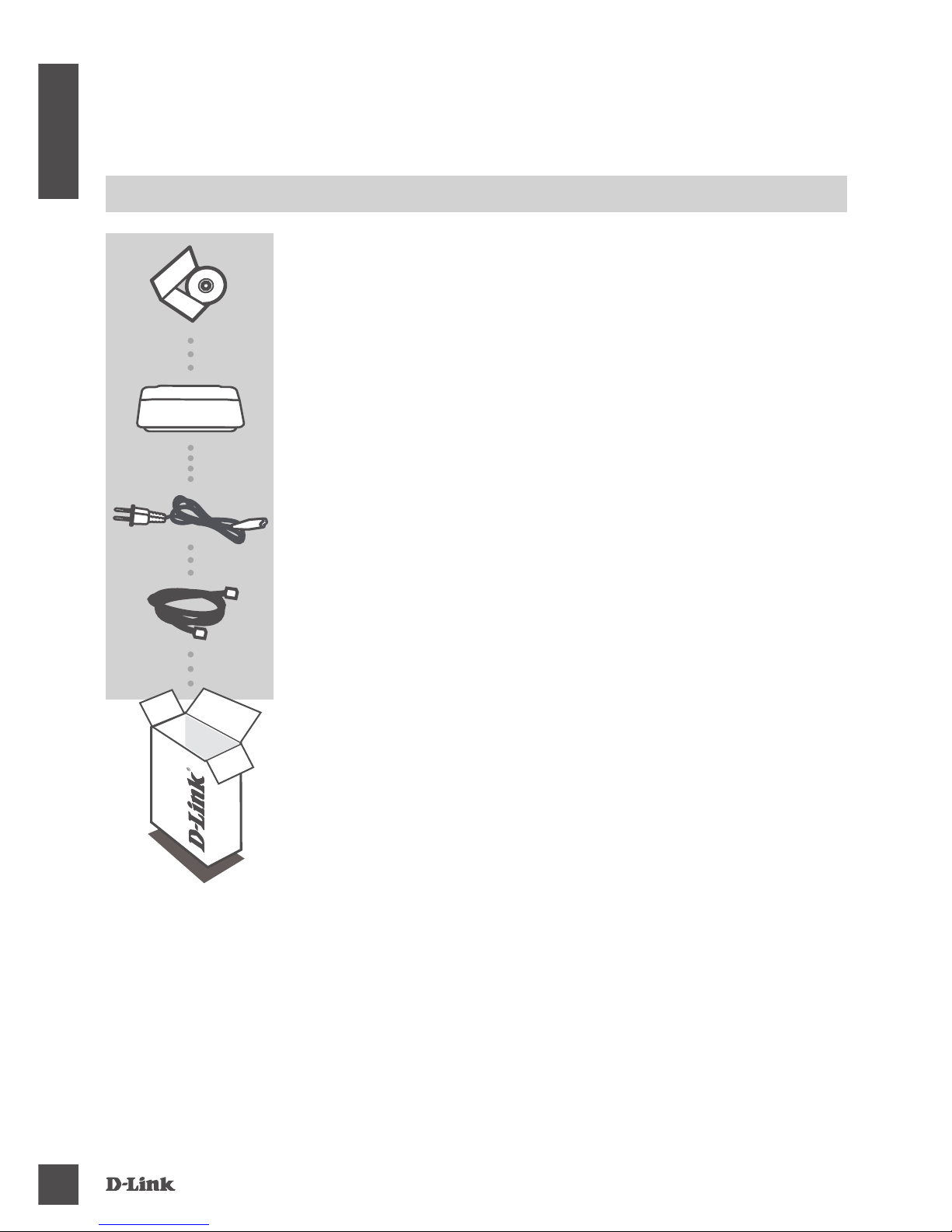

INCLUDES SETUP WIZARD & USER MANUAL

CONNECTS THE DEVICE TO YOUR NETWORK
If any of these items are missing from your packaging, contact
your reseller.

DHP-1565



 3






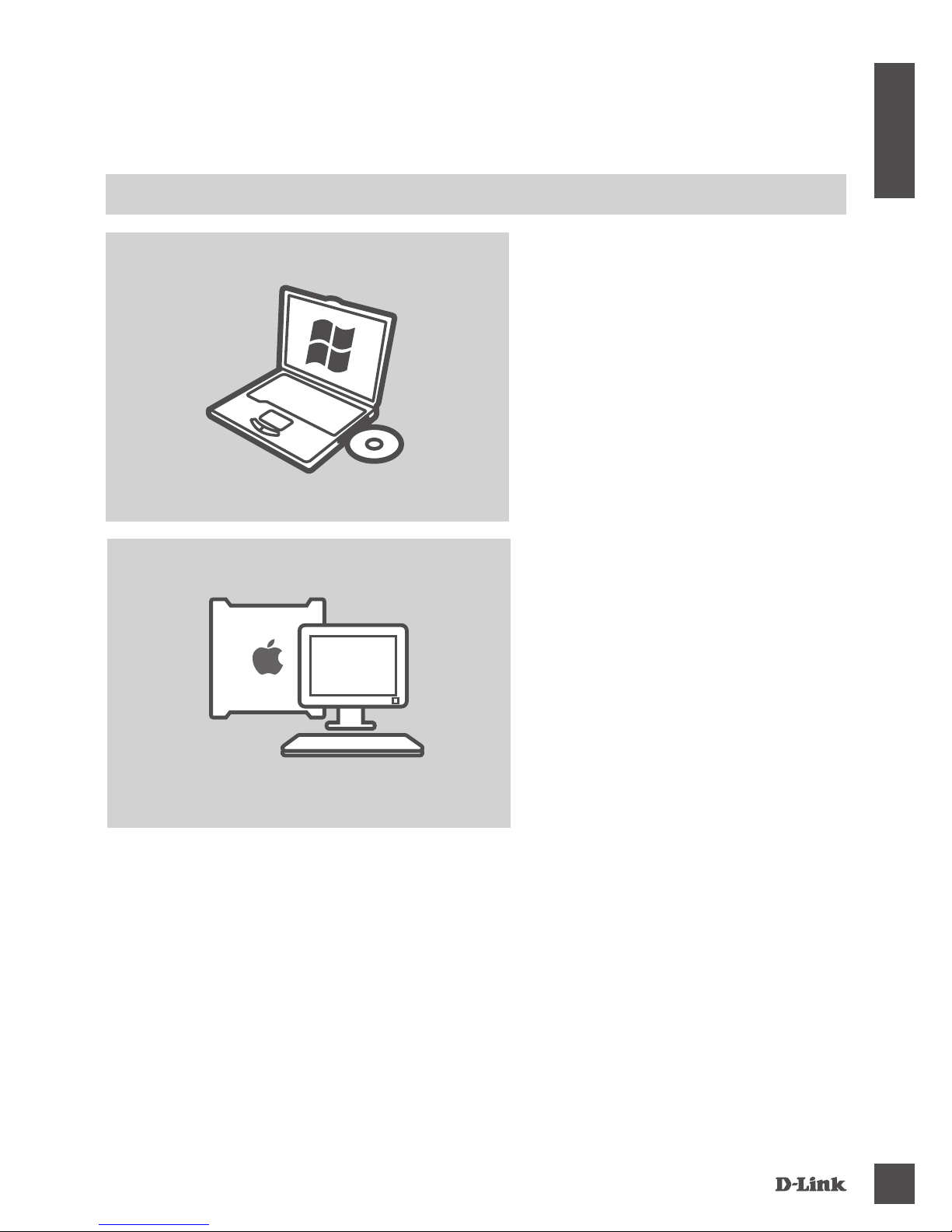

To use the DHP-1565 under Windows
and congure Router, run the Setup
Wizard on the Installation CD.
Alternatively, manually install your router
and connect to the Internet. please follow
the instruction below.

To use the DHP-1565 under Linux,
Mac OS X, or other OS, manually install
your router and connect to the Internet.
For installation, securing your wireless
network, or securing your PLC network,
please follow the instructions below.


4






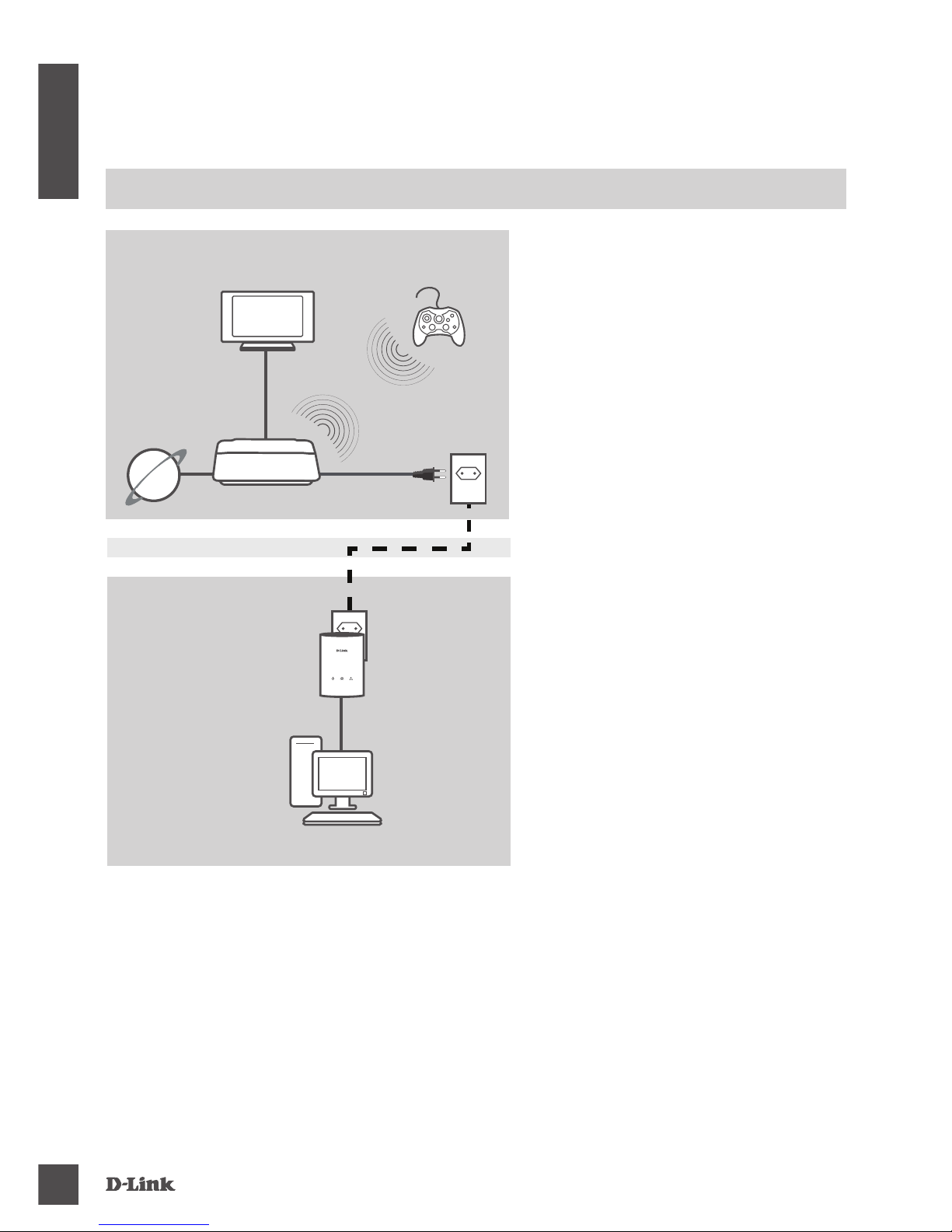

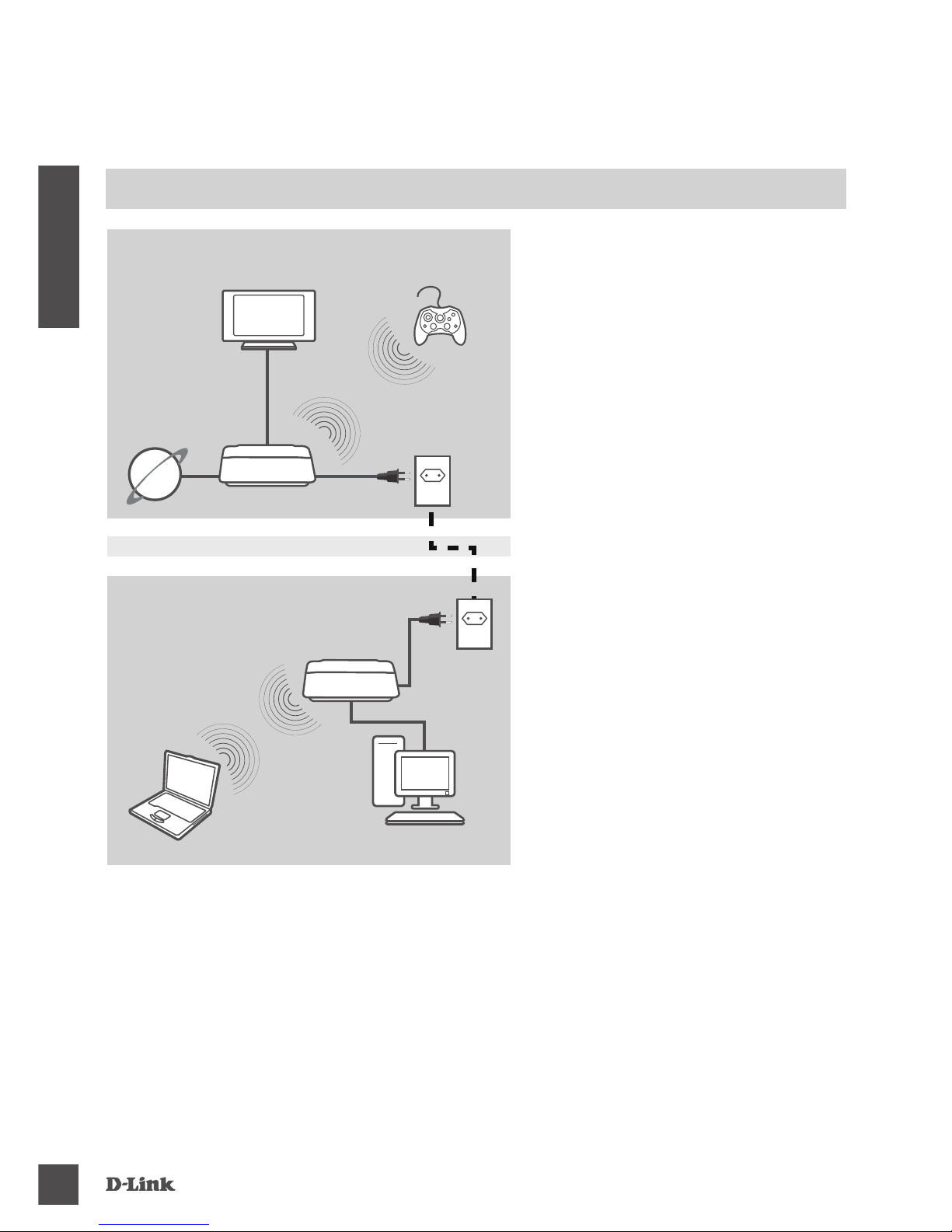

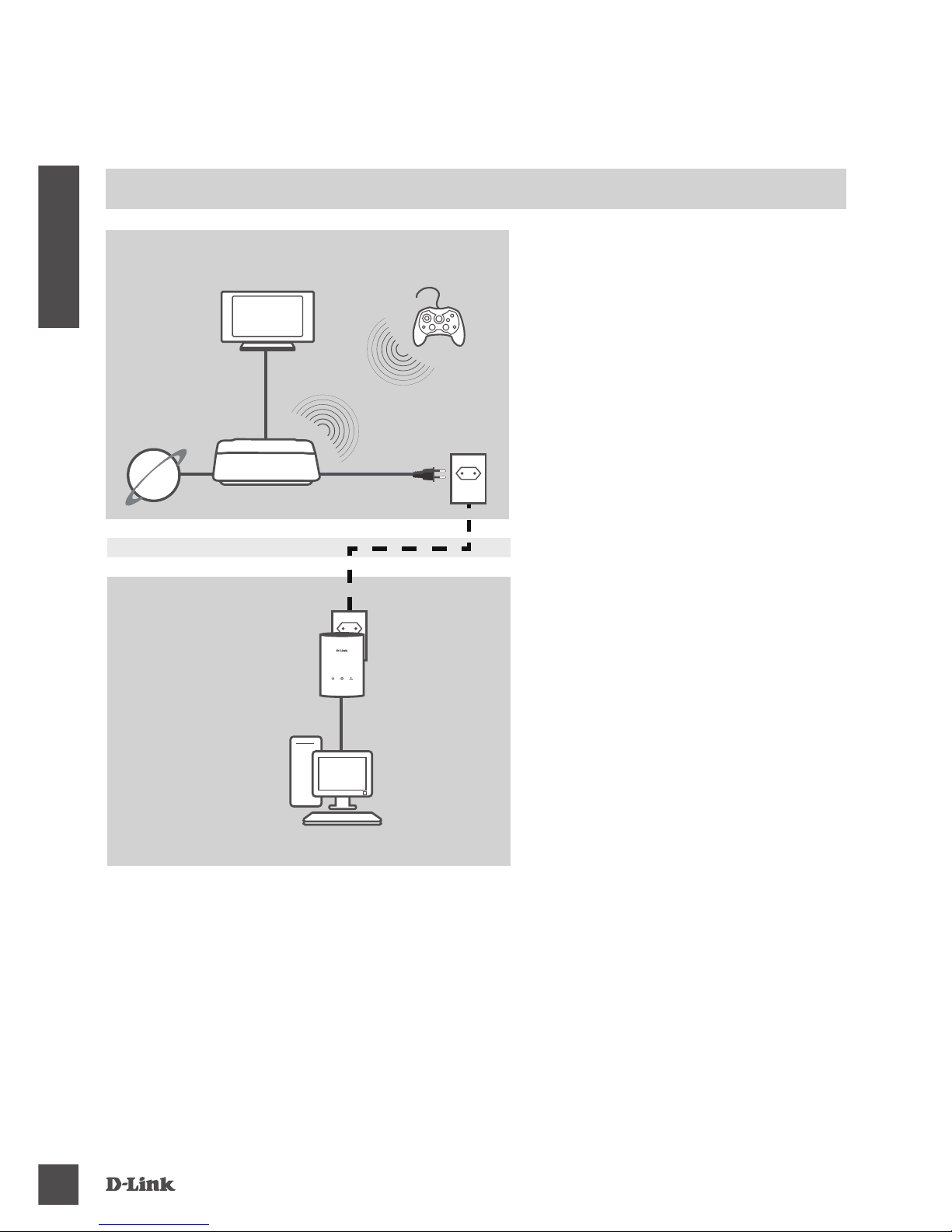

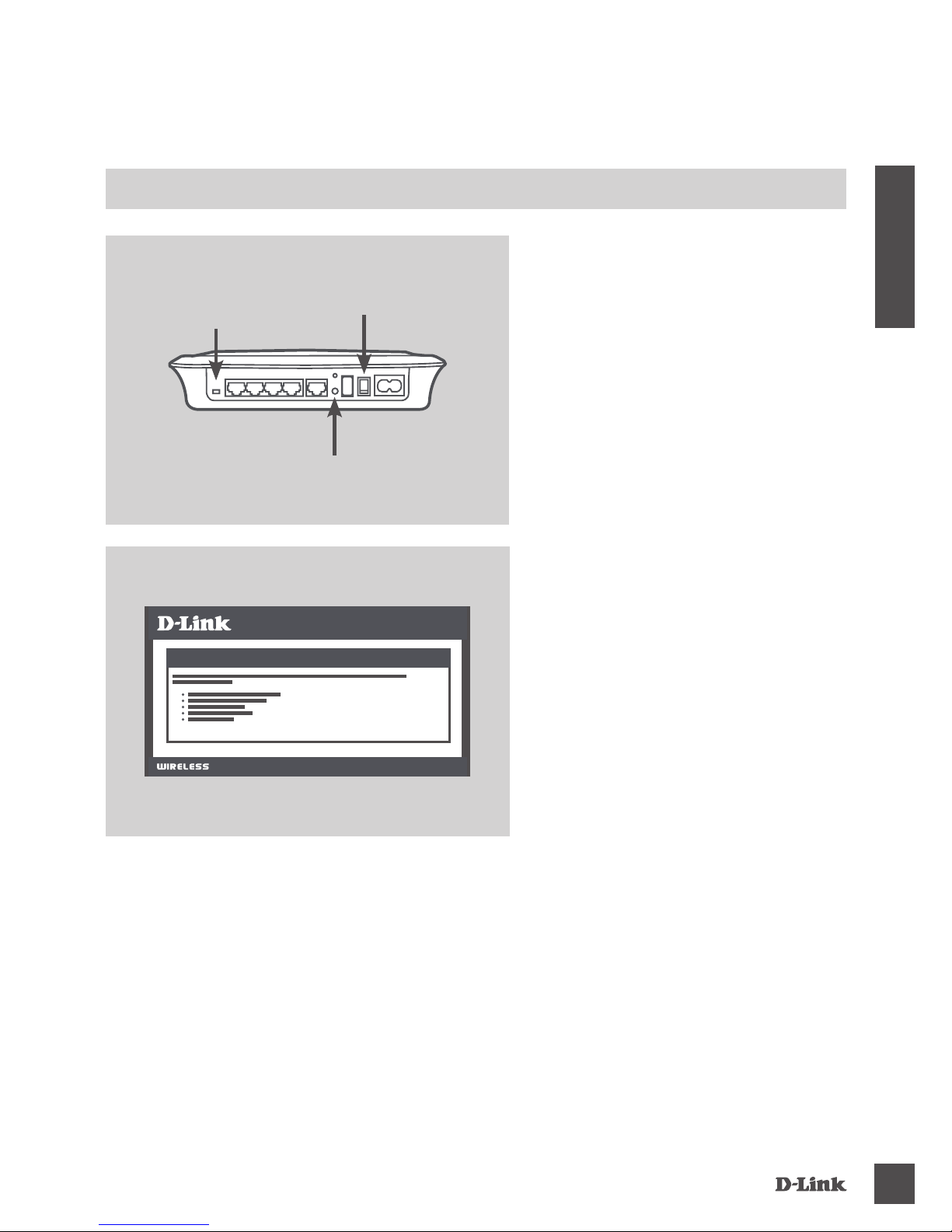

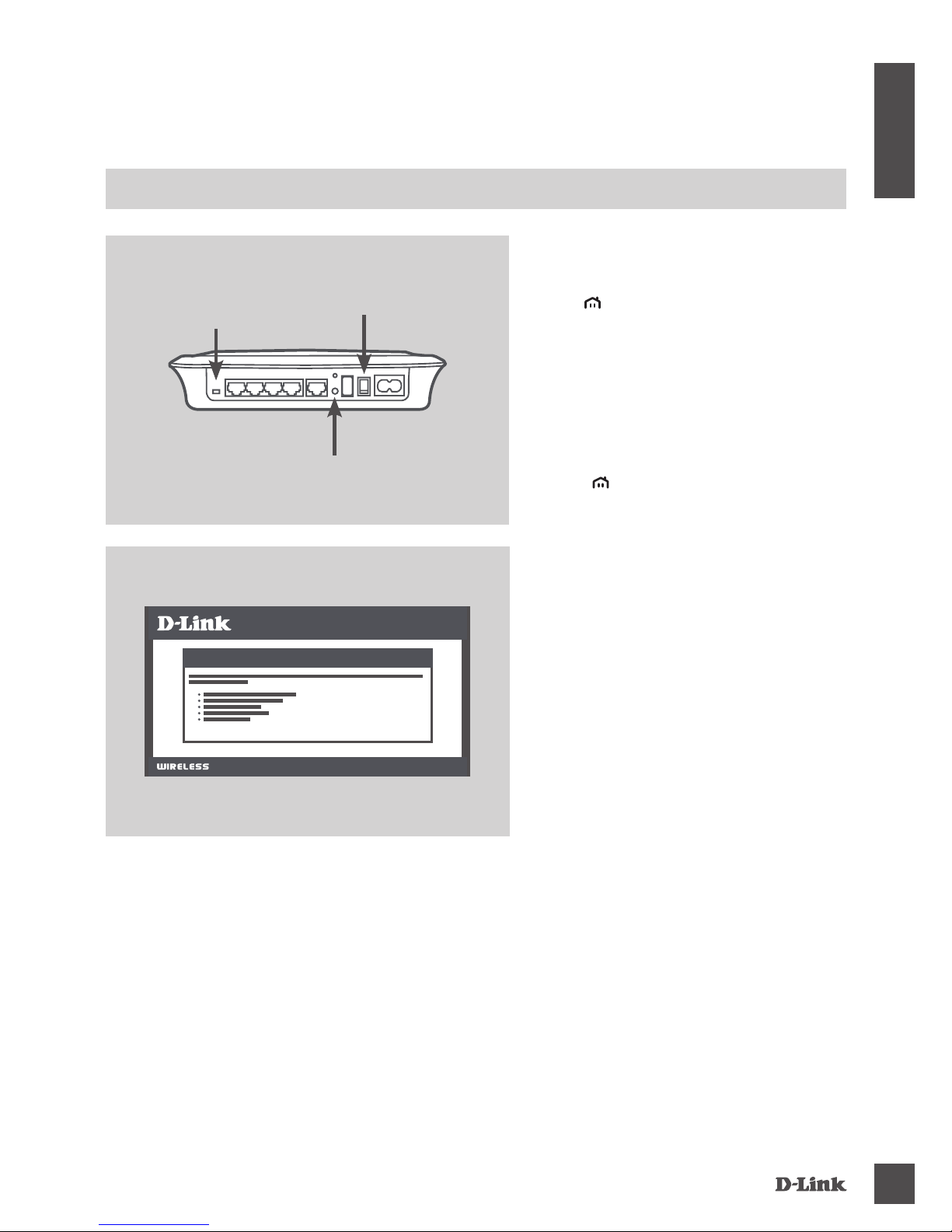

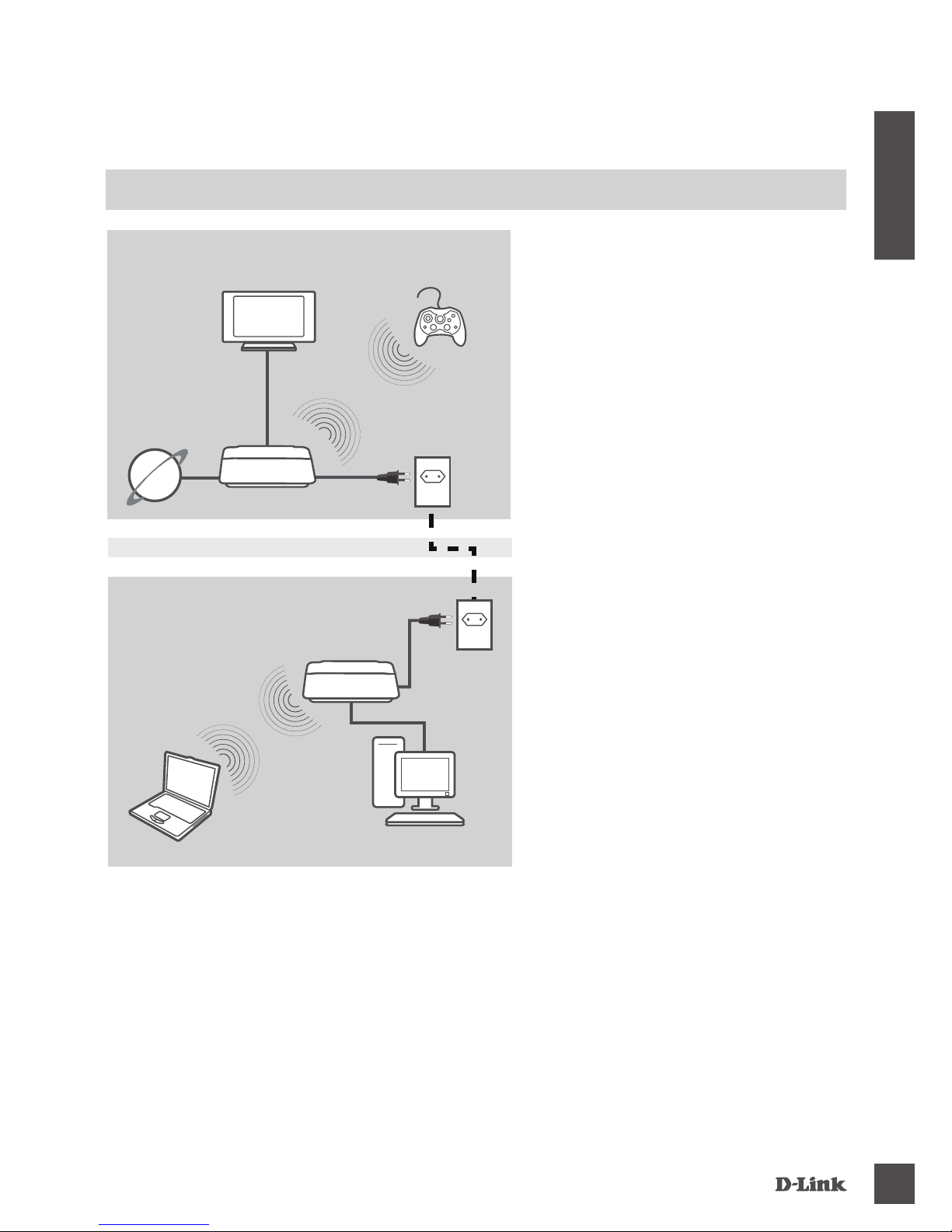

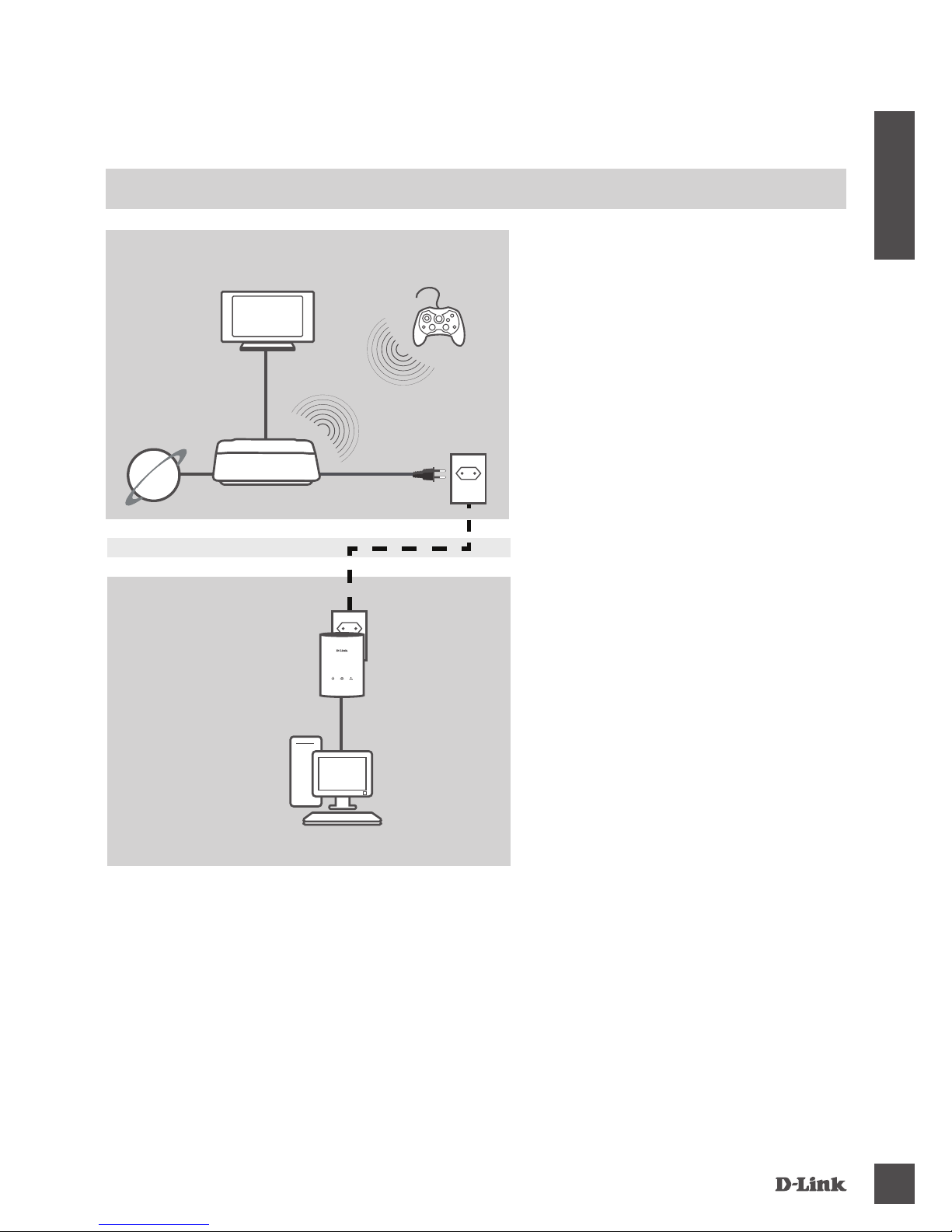

Plug the power cord of the DHP-1565
into an AC wall outlet close to your
modem as seen in Room A. Conrm the
DHP-1565 is in Router mode and turn it
on by pushing the on/off switch located
on the back of the unit. Wait about 30
seconds for the DHP-1565 to boot.
Unplug the Ethernet cable that connects
to your modem and plug it into the
Internet port of the DHP-1565.
Connect one end of the supplied CAT5
Ethernet cable to the Ethernet port on
the DHP-1565 and the other end to the
Ethernet port on your computer.
 








 5


To access the Web UI, open a web
browser such as Internet Explorer
and enter either http://dlinkrouter or
http://192.168.0.1 in the address eld.
Follow the Setup Wizard to assist you in
establishing an Internet connection and
secure wireless network.
(Please refer to “Setup Wizard” in the user manual
for detailed installation information.)





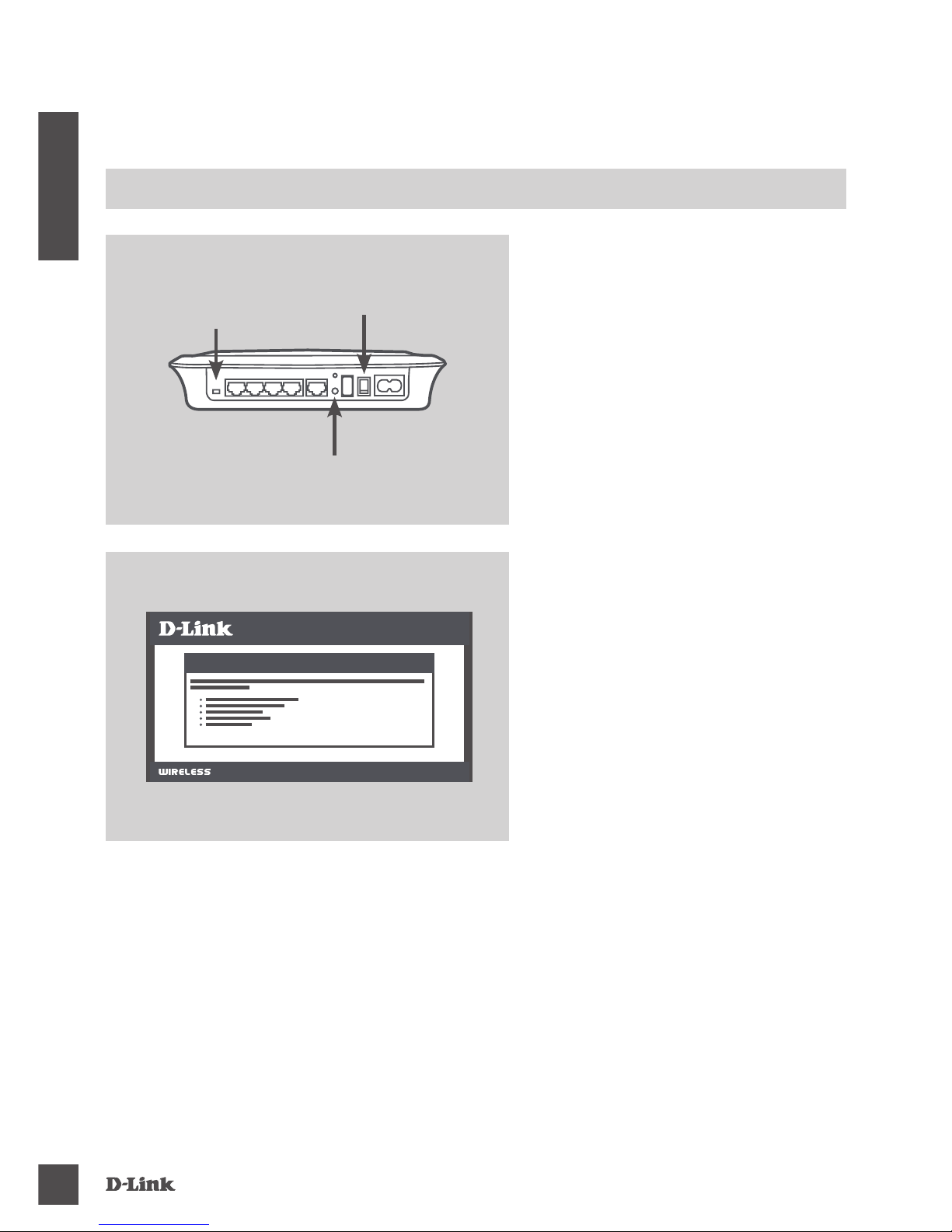

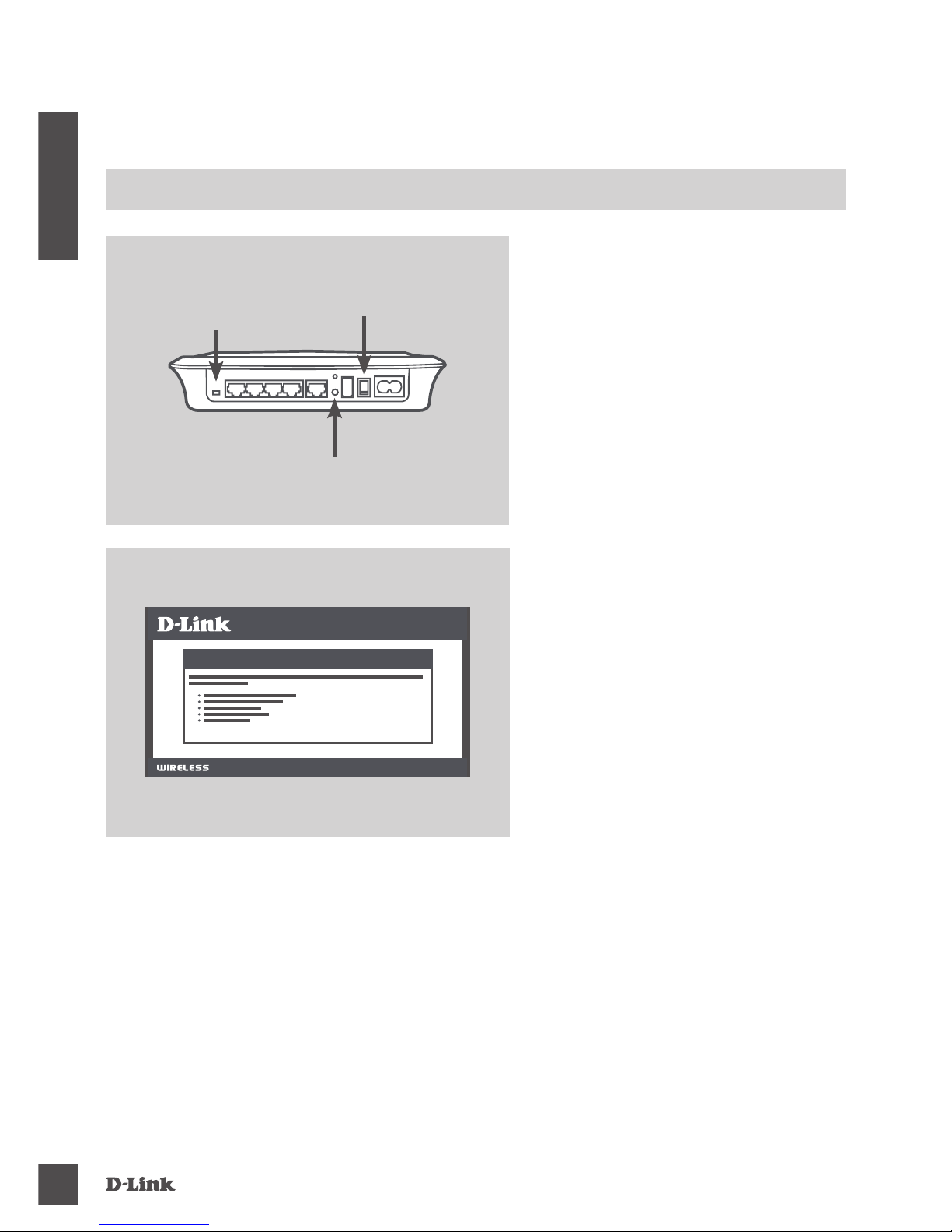

Press the Common Connect button for
one to three seconds. The PowerLine
LED should start to blink.
Plug the second PowerLine device (for
example the DHP-500AV in Room B
as seen on page 4) into a power outlet.
Press the Common Connect button on
this PowerLine device for one to three
seconds.
Wait for both devices to reboot (all LEDs
will turn off and on). When the PowerLine
LEDs on both devices are steadily
lit, the two devices will be networked
together securely.









6





Plug the power cord of the DHP-1565
into an AC wall outlet close to your
Computer as seen in Room B. Conrm
the DHP-1565 is in AP mode and turn it
on by pushing the on/off switch located
on the back of the unit. Wait about 30
seconds for the DHP-1565 to boot.
Connect one end of the supplied CAT5
Ethernet cable to the Ethernet port on
the DHP-1565 and the other end to the
Ethernet port on your computer.
 








 7





Press the Common Connect button for
one to three seconds. The PowerLine
LED should start to blink.
Plug the second PowerLine device (for
example the DHP-1565 in Room B as
seen on page 6) into a power outlet.
Press the Common Connect button on
this PowerLine device for one to three
seconds.
Wait for both devices to reboot (all LEDs
will turn off and on). When the PowerLine
LEDs on both devices are steadily
lit, the two devices will be networked
together securely.

Open a web browser, enter http://
dlinkrouterWXYZ (WXYZ: four-digit sufx
of the LAN MAC address MAC address
located on the
bottom of device) and then press Enter.
Follow the Setup Wizard to assist you in
establishing secure wireless network.
(Please refer to “Setup Wizard” in the user manual for
detailed installation information.)









8




Yes. The DHP-1565 features a push-button encryption technology to allow you to protect your
network easily. Please refer to the Manual supplied on the CD-ROM for setup instructions.



- Plug the DHP-1565 directly into a wall socket and not into a power strip or surge protector. Some
power strips have surge protectors that may block power line signals.
- If this is not possible, then try plugging the device/s into a different power strip that shared with
fewer devices.
- Check that there are no other interfering appliances plugged into the same power strip. In
particular, avoid mobile phone chargers or hair dryers, as Powerline networks are very sensitive
to electrical interference.

 website: http://www.dlink.co.uk FTP: ftp://ftp.dlink.co.uk
Home Wireless/Broadband 0871 873 3000 (9.00am–06.00pm, Sat 10.00am-02.00pm)
Managed, Smart, & Wireless Switches, or Firewalls 0871 873 0909 (09.00am- 05.30pm)
(BT 10ppm, other carriers may vary.)

All Products 1890 886 899 (09.00am-06.00pm, Sat 10.00am-02.00pm)
Phone rates: €0.05ppm peak, €0.045ppm off peak times

 9





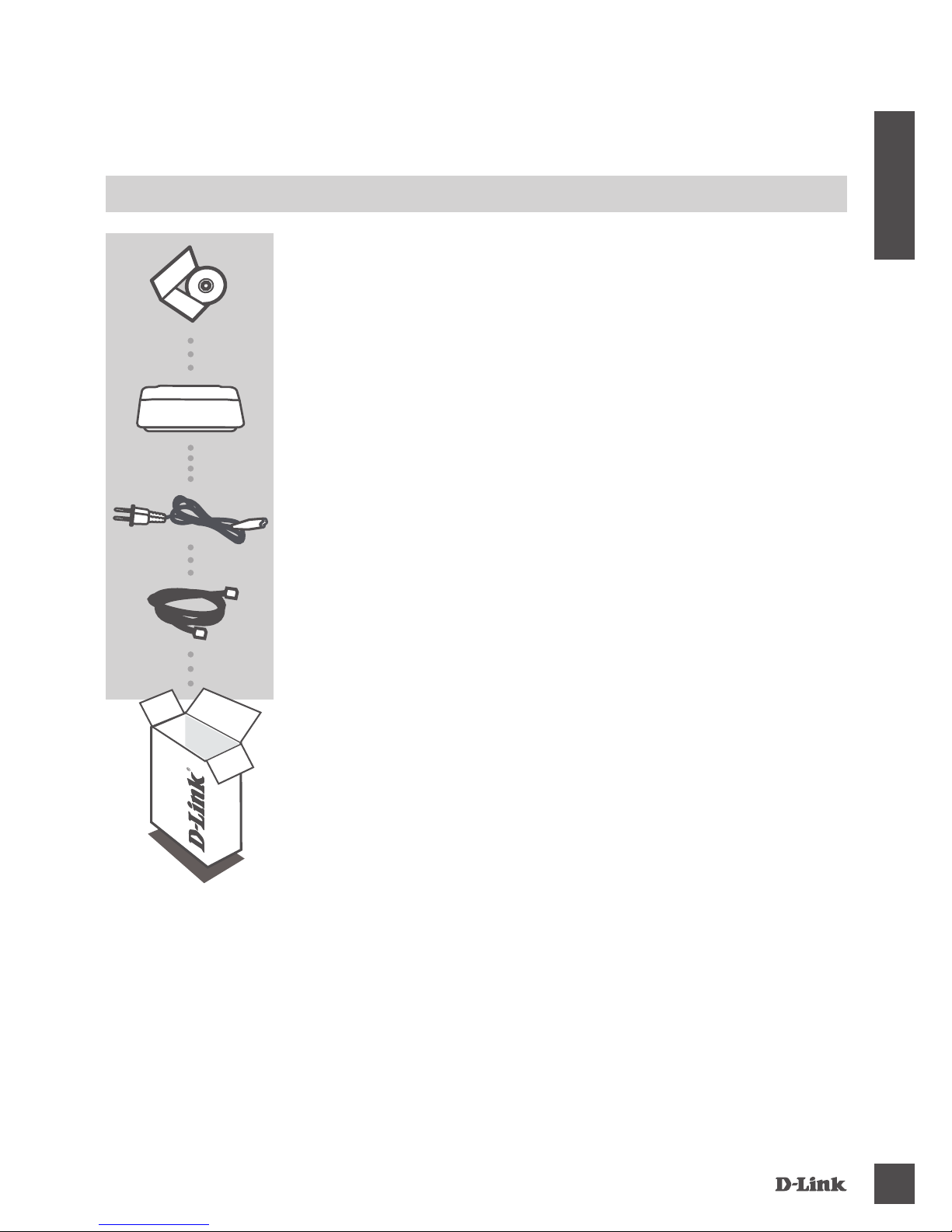

ENTHÄLT SETUP-ASSISTENTEN UND
BENUTZERHANDBUCH

VERBINDET DAS GERÄT MIT IHREM NETZWERK
Wenn eines dieser Elemente in Ihrer Packung fehlt, wenden Sie
sich bitte an Ihren Fachhändler.

DHP-1565




10






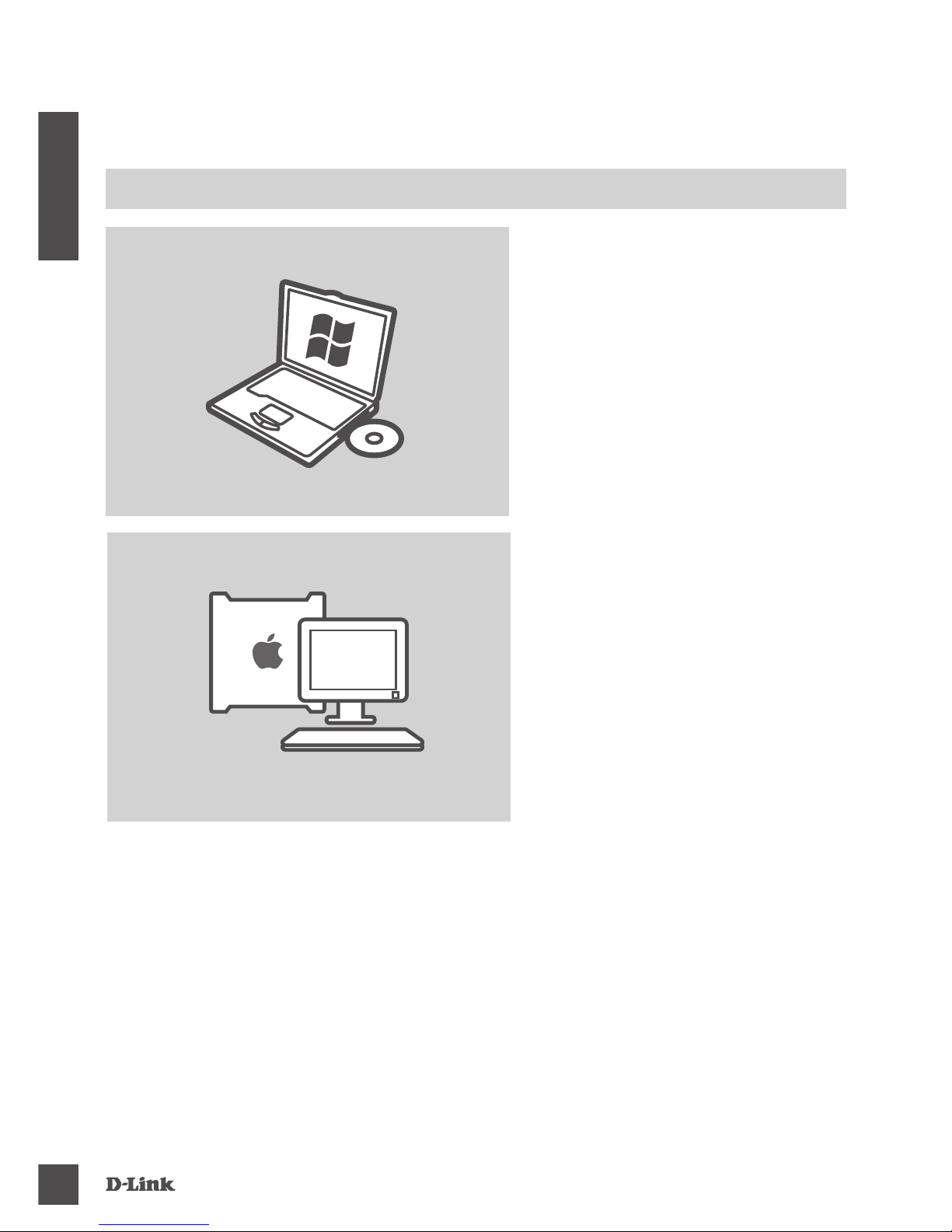

Um den DHP-1565 unter Windows
zu verwenden und den Router zu
kongurieren, führen Sie den Setup-
Assistenten auf der Installations-CD
aus. Sie können Ihren Router aber auch
manuell installieren und eine Verbindung
zum Internet herstellen. Folgen Sie dazu
den Anleitungen unten.


Um den DHP-1565 unter Linux,
Mac OS X oder einem anderen
Betriebssystem zu verwenden,
installieren Sie bitte Ihre Router manuell
und stellen Sie eine Verbindung zum
Internet her. Für die Installation und die
Sicherheit Ihres drahtlosen Netzwerks
oder Ihres PLC-Netzwerks folgen Sie
bitte den Anleitungen unten.
