1D-Link DIR-822 User Manual
Section 1 - Product Overview
Product Overview

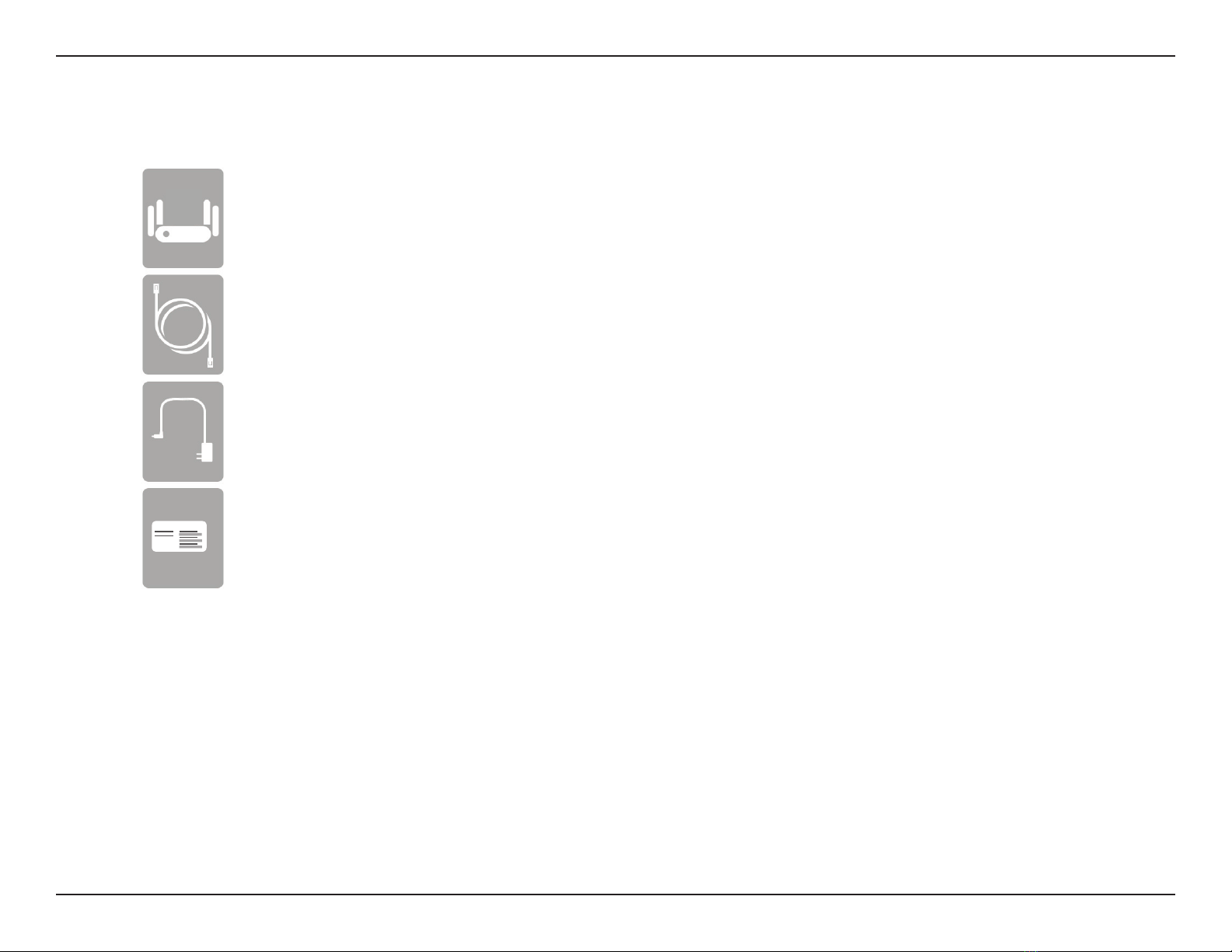

Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-822 will cause damage and void the warranty
for this product.
If any of the above items are missing, please contact your reseller.
DIR-822 AC1200 Wi-Fi Router
Ethernet Cable
Power Adapter
WI-FI Conguration Note
Wi-Fi Conguration Note

2D-Link DIR-822 User Manual
Section 1 - Product Overview
Network Requirements
• An Ethernet-based cable or DSL modem
• IEEE 802.11ac/n/g/b/a wireless clients
• 10/100 Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 9 or higher
• Firefox 20 or higher
• Safari 5.1 or higher
• Chrome 25 or higher
Windows®Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
QRS Mobile Requirements • iPhone®/iPad®/iPod Touch® (iOS 6.0 or higher)
• Android™ device (2.33 or higher)
System Requirements

3D-Link DIR-822 User Manual
Section 1 - Product Overview
Introduction
The D-Link DIR-822 is a wireless IEEE 802.11ac compliant device that delivers up to 3x faster speeds than 802.11n while staying
backward compatible with 802.11n/g/b/a devices. This means you can connect the DIR-822 to a cable or DSL modem and
provide high-speed Internet access to multiple computers, game consoles, and media players. You can create a secure wireless
network to share photos, les, music, videos, printers, and network storage. Powered by 802.11ac technology and equipped
with four external antennas, this router provides superior wireless coverage for larger homes and oces, or for users running
bandwidth-intensive applications. The DIR-822 also includes a 4-port 10/100 Fast Ethernet switch that connects to wired
devices for uninterrupted video calling and faster le transfers.
D-Link Intelligent QoS Technology helps to increase network eciency by analyzing wired and wireless network trac and
prioritizing it in order of importance. This way, important network trac such as VoIP and video streaming, take priority over
background network trac such as a le downloads and print tasks, ensuring you have optimal network performance.
The DIR-822 supports the latest wireless security features to help prevent unauthorized access, be it from over a wireless
network or the Internet. Support for WPA™ and WPA2™ standards ensure that you will be able to use the best possible
encryption regardless of your client devices. In addition, this router is equipped with a dual-active rewall (SPI and NAT) to
prevent potential attacks over the Internet.

4D-Link DIR-822 User Manual
Section 1 - Product Overview
• Ultimate Fast Wireless Networking - The DIR-822 provides up to 300 Mbps wireless connection in 2.4 GHz
band, and up to 867 Mbps* wireless connection in 5 GHz with other 802.11ac and 802.11n wireless clients. This
capability allows users to participate in real-time activities online, such as video streaming, online gaming, and
real-time audio. The performance of this 802.11ac wireless router gives you the freedom of wireless networking
at speeds 3x faster than 802.11n.
• Compatible with 802.11n/g/b/a Wireless Devices - The DIR-822 is still fully compatible with the IEEE 802.11a,
IEEE 802.11b, 802.11g and 802.11n, so it can connect with existing 802.11a, IEEE 802.11b, 802.11g and 802.11n
PCI, USB, and CardBus adapters.
• Advanced Firewall Features - The web-based user interface displays a number of advanced network
management features including:
• Content Filtering - Easily applied content ltering based on MAC address, URL, and/or domain
name.
• Filter Scheduling - These lters can be scheduled to be active on certain days or for a duration of
hours or minutes.
• Secure Multiple/Concurrent Sessions - The DIR-822 can pass through VPN sessions. It supports
multiple and concurrent IPSec and PPTP sessions, so users behind the DIR-822 can securely access
corporate networks.
• User-friendly Setup Wizard - Through its easy-to-use web-based user interface, the DIR-822 lets you control
what information is accessible to those on the wireless network, whether from the Internet or from your
company’s server. Congure your router to your specic settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g, 802.11n and 802.11ac specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
Features

5D-Link DIR-822 User Manual
Section 1 - Product Overview
Hardware Overview

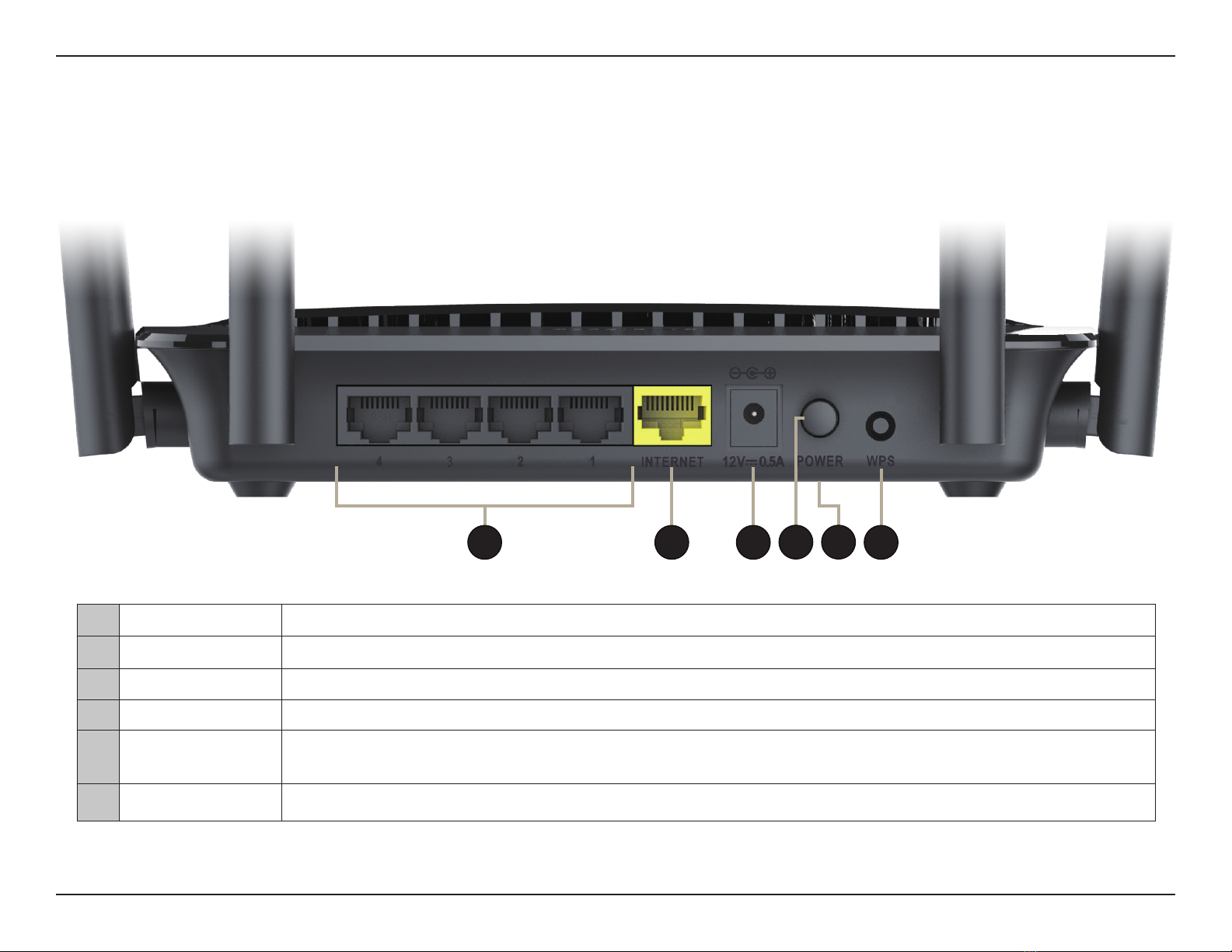

Connections
1LAN Ports (1-4) Connect 10/100 Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.
2Internet Port Using an Ethernet cable, connect your broadband modem to this port.
3Power Receptor Receptor for the supplied power adapter.
4Power Button Press the power button to power the DIR-822 on and o.
5Reset Button Insert a paperclip in the hole on the bottom of the device and wait for several seconds to reset the router to
default settings.
6WPS Button Press to start the WPS process.
5
32 6
4
1

6D-Link DIR-822 User Manual
Section 1 - Product Overview
Hardware Overview

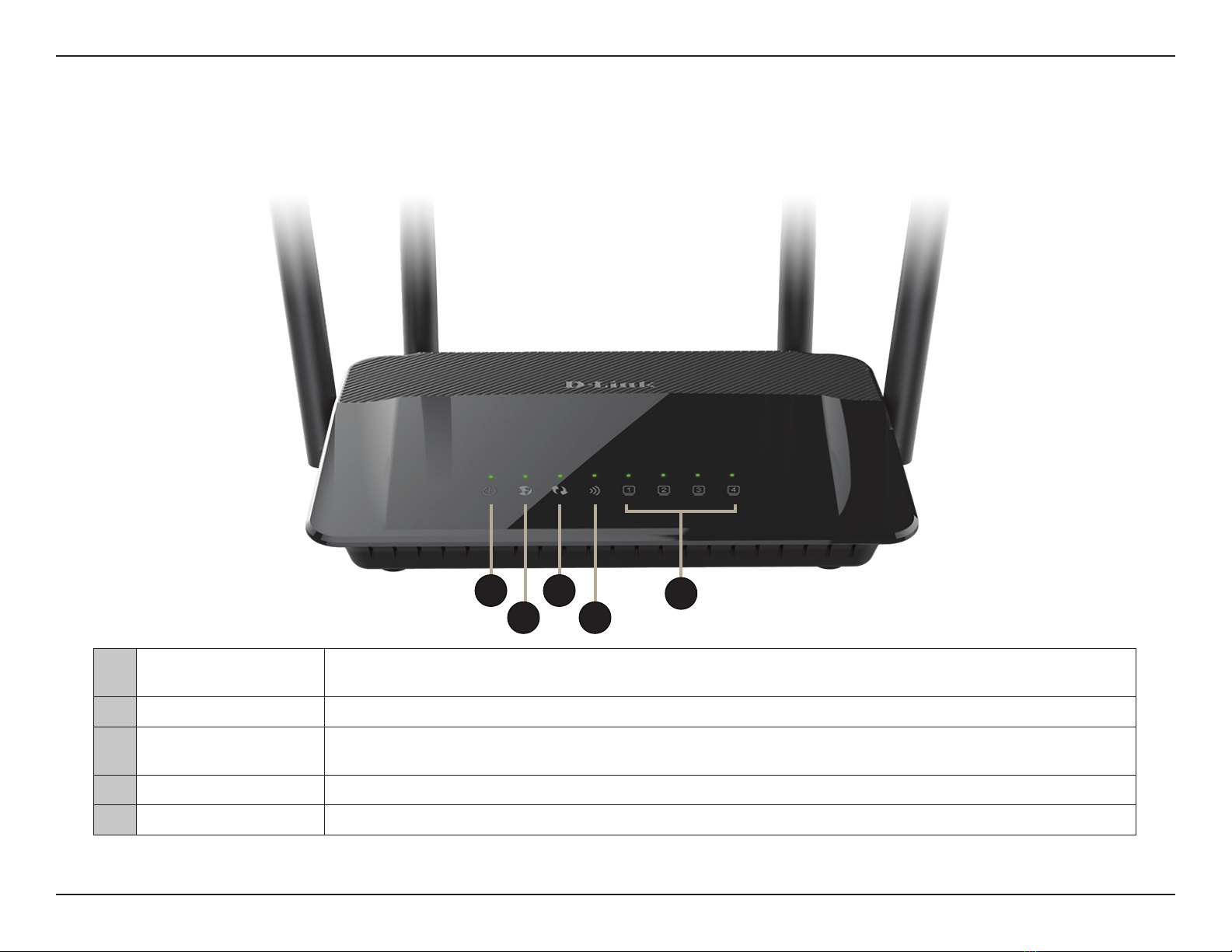

LEDs
1Power LED A solid light indicates that the device is powered on. The light will blink while the device is in recovery
mode.
2Internet LED A solid light indicates that an Internet link is established.
3WPS LED A solid light indicates that the WPS handshake has been completed. The light will blink while the WPS
handshake is processing.
4WLAN LED A solid light indicates that the wireless segment is ready.
5LAN LEDs 1-4 A solid light indicates a connection to an Ethernet-enabled computer on ports 1-4 respectively.
1 3
2 4 5

7D-Link DIR-822 User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router in
an enclosed area such as a closet, cabinet, or in the attic or garage.
• Please congure the router with the computer that was last connected directly to your modem.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router,
then you must turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet
port on the router, and then turn the modem back on. In some cases, you may need to call your Internet Service
Provider (ISP) to change connection types (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as
WinPoET, BroadJump, or EnterNet 300 from your computer or you will not be able to connect to the Internet.

8D-Link DIR-822 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through may limit the range. Typical ranges vary depending on the types of
materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position access points, wireless routers, and computers so that the signal passes through drywall or
open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors,
le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home
security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4
GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the
phone is not in use.

9D-Link DIR-822 User Manual
Section 2 - Installation
1. Turn o and unplug your cable or DSL broadband modem. This is required.
2. Position your router close to your modem and a computer. Place the router in an open area of your intended
work area for better wireless coverage.
3. Unplug the Ethernet cable from your modem (or existing router if upgrading) that is connected to your
computer. Plug it into the LAN port labeled 1on the back of your router. The router is now connected to your
computer.
4. Plug one end of the included blue Ethernet cable that came with your router into the yellow port labeled
INTERNET on the back of the router. Plug the other end of this cable into the Ethernet port on your modem.
5. Reconnect the power adapter to your cable or DSL broadband modem and wait for two minutes.
6. Connect the supplied power adapter into the power port on the back of the router and then plug it into a
power outlet or surge protector. Press the power button and verify that the power LED is lit. Allow 1 minute for
the router to boot up.
7. If you are connecting to a broadband service that uses a dynamic connection (not PPPoE), you may be online
already. Try opening a web browser and connecting to a website. If the Internet LED indicator is lit, indicating a
connection on the Internet/WAN port, then the router should be able to connect to the Internet.
Manual Setup

10D-Link DIR-822 User Manual
Section 3 - Getting Started
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
• QRS Mobile App - Use your Android device, iPhone, iPad, or iPod touch to congure your router. Refer to page 11.
• D-Link Setup Wizard - This wizard will launch when you log into the router for the rst time. Refer to page 16.
• Manual Setup - Log into the router and manually congure your router. Refer to page 19
Getting Started

11D-Link DIR-822 User Manual
Section 3 - Getting Started

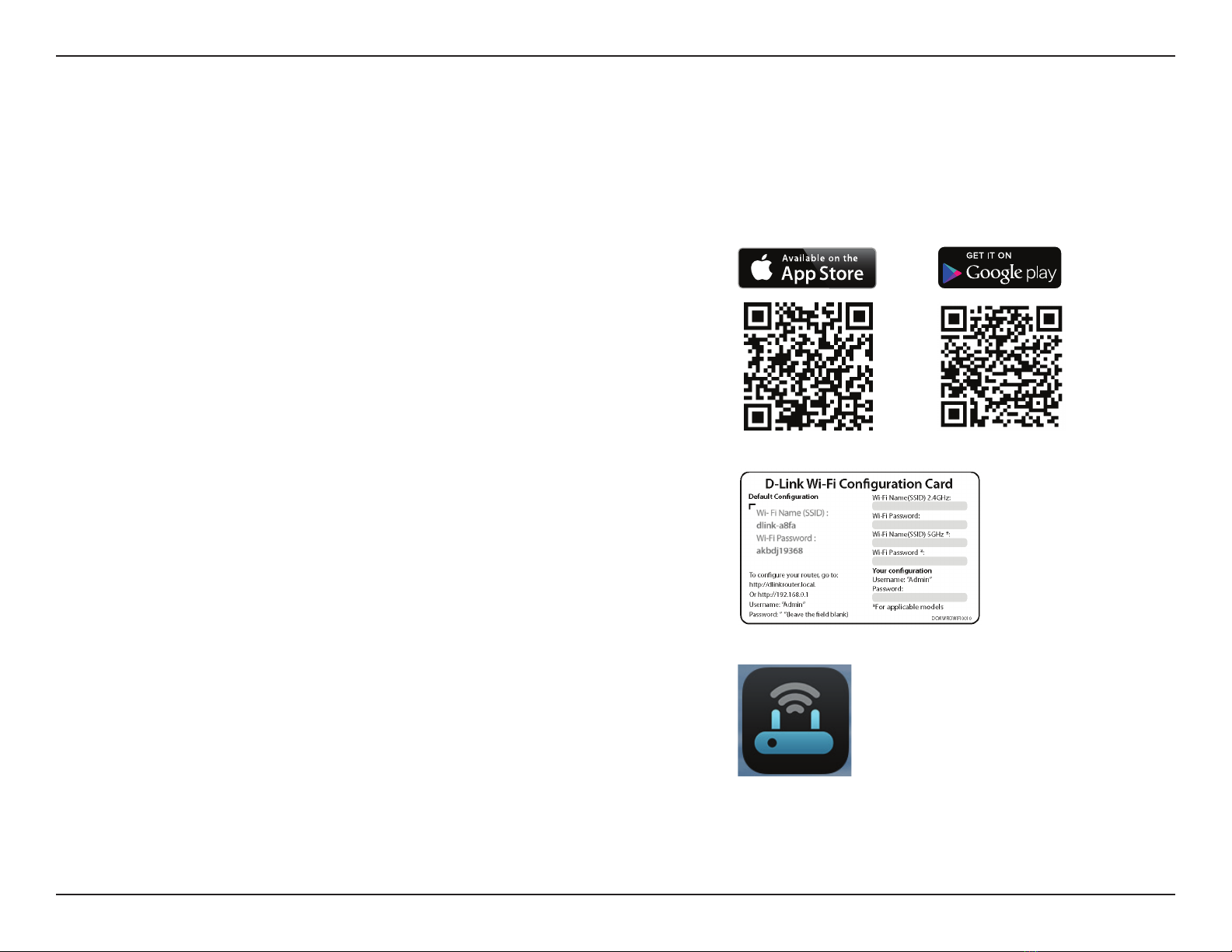

QRS Mobile App
QRS Mobile app allows you to install and congure your router from your mobile device.
Note: The screenshots may be dierent depending on your mobile device’s OS version.
Step 1
Search for the free QRS Mobile App on the iTunes Store or Google Play.
Step 2
Once your app is installed, you may now congure your router. Connect
to the router wirelessly by going to your wireless utility on your device.
Scan for the Wi-Fi name (SSID) as listed on the supplied info card. Select
and then enter your Wi-Fi password.
Step 3
Once you connect to the router, launch the QRS Mobile app from the
Home screen of your device.
Note: The following steps show the Android interface of the QRS Mobile
app. If you are using an iPhone, iPad, or iPod touch, the appearance may be
dierent to that of the screenshots, but the process is the same.

12D-Link DIR-822 User Manual
Section 3 - Getting Started
Step 4

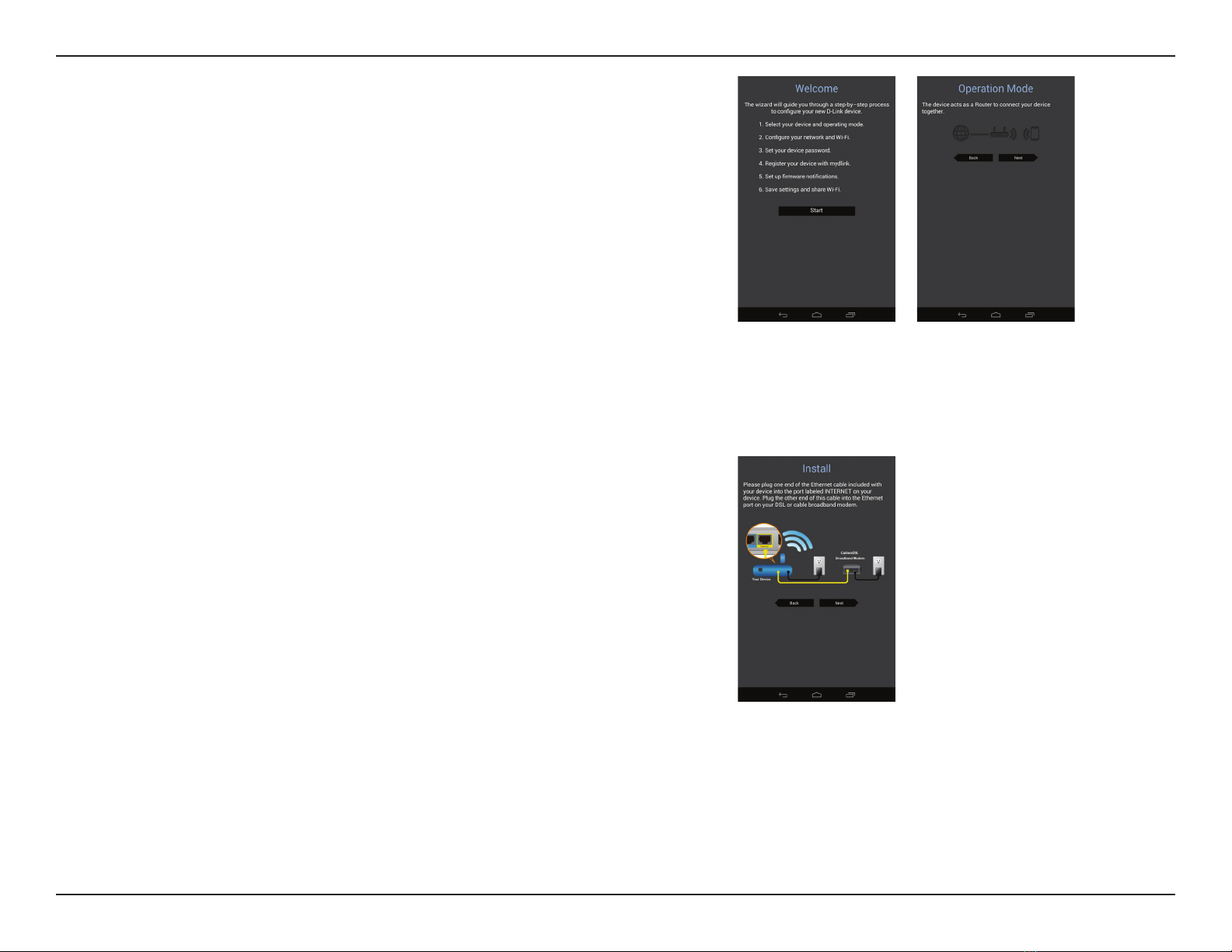

You will see the welcome screen. Tap Start to proceed, then enter your
device password and tap Log In. Tap Next once the Operation Mode
screen appears.
Step 5
At this point, please ensure that you the router is connected to a
modem. Plug one end of the provided Ethernet cable into your DSL or
cable modem, and plug the other end into the port marked INTERNET
on the DIR-822. Tap Next to automatically detect your Internet
connection and proceed to the next step.

13D-Link DIR-822 User Manual
Section 3 - Getting Started
Step 6

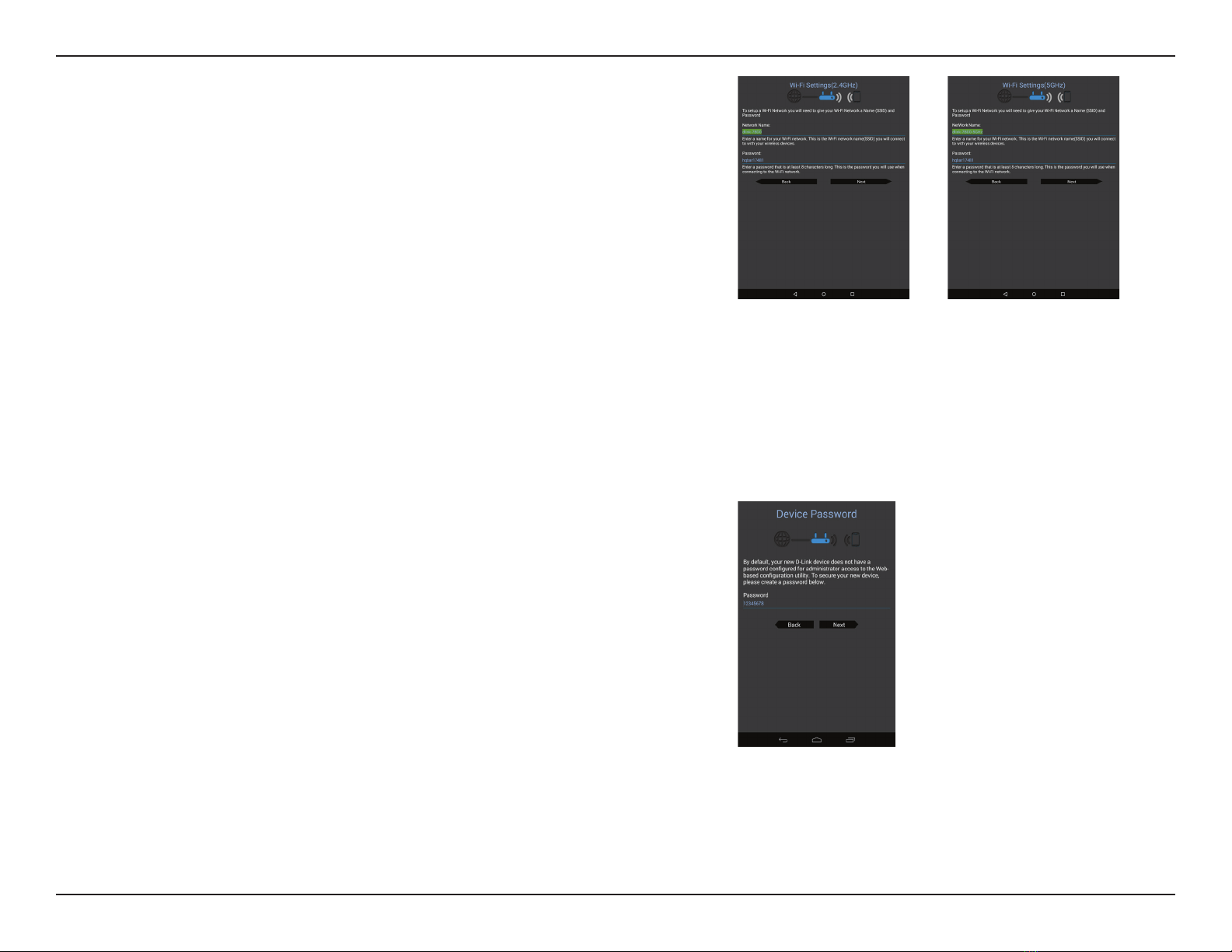

You will be asked to congure your 2.4 GHz wireless network. Enter a
network name (SSID) of your choice, or leave it unchanged to accept the
default SSID.
Next, choose a Wi-Fi password of at least 8 characters. Any device trying
to connect to the router wirelessly will need to enter this password the
rst time it connects.
Tap Next to congure your 5 GHz wireless network. When satised tap
Next to proceed.
Step 7
Enter the administrator password of your choice. Unlike the Wi-Fi
password, this password is only required when you need to congure
the router. See "Conguration" on page 19 for details of when this
password is used. Tap Next to proceed.

14D-Link DIR-822 User Manual
Section 3 - Getting Started
Step 8

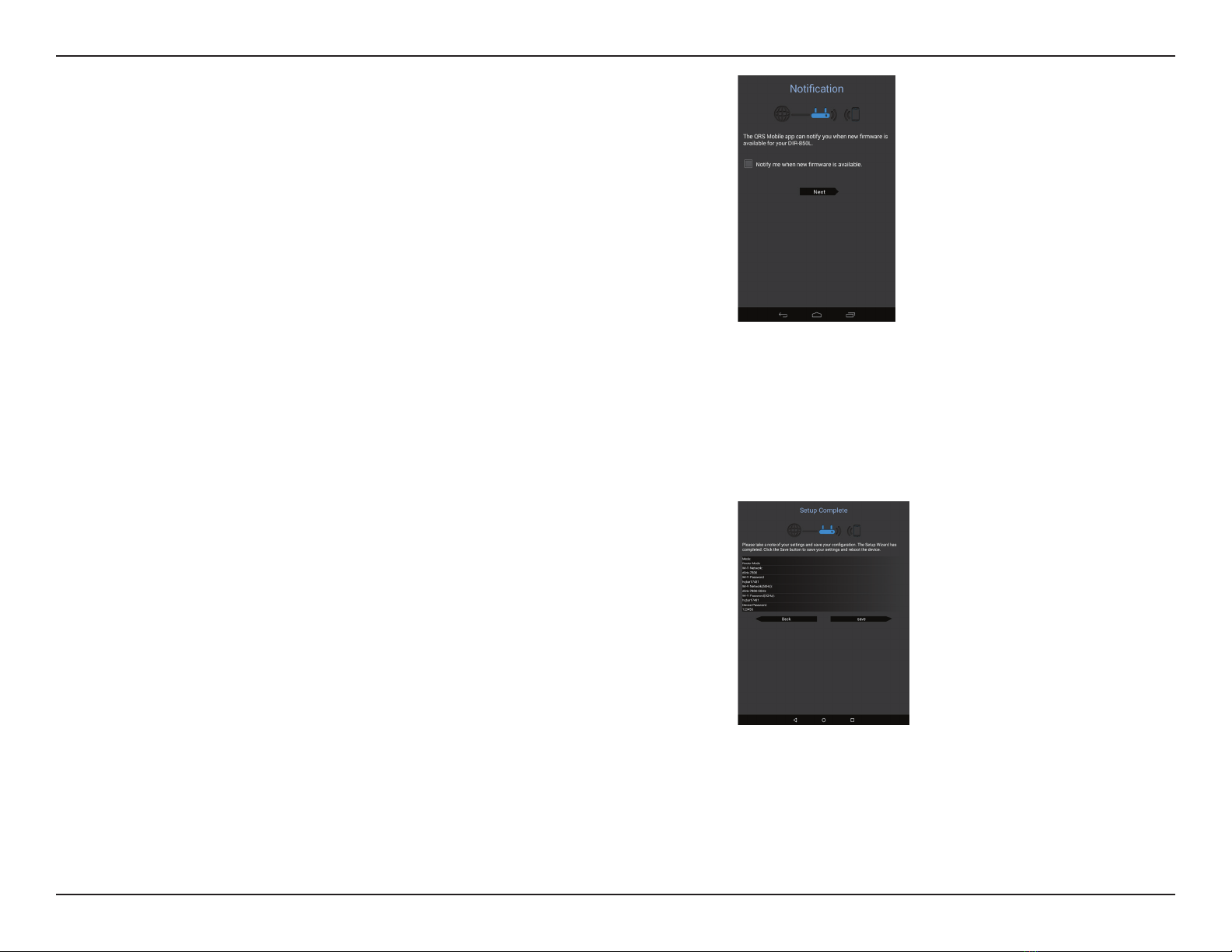

If you wish to receive push notications whenever a new rmware
update is available, check the Notify me when new rmware is
available box and tap Next.
Otherwise, just tap Next to proceed.
Step 10
You will be presented with a summary of your chosen settings.
Tap Save to complete the setup.

15D-Link DIR-822 User Manual
Section 3 - Getting Started

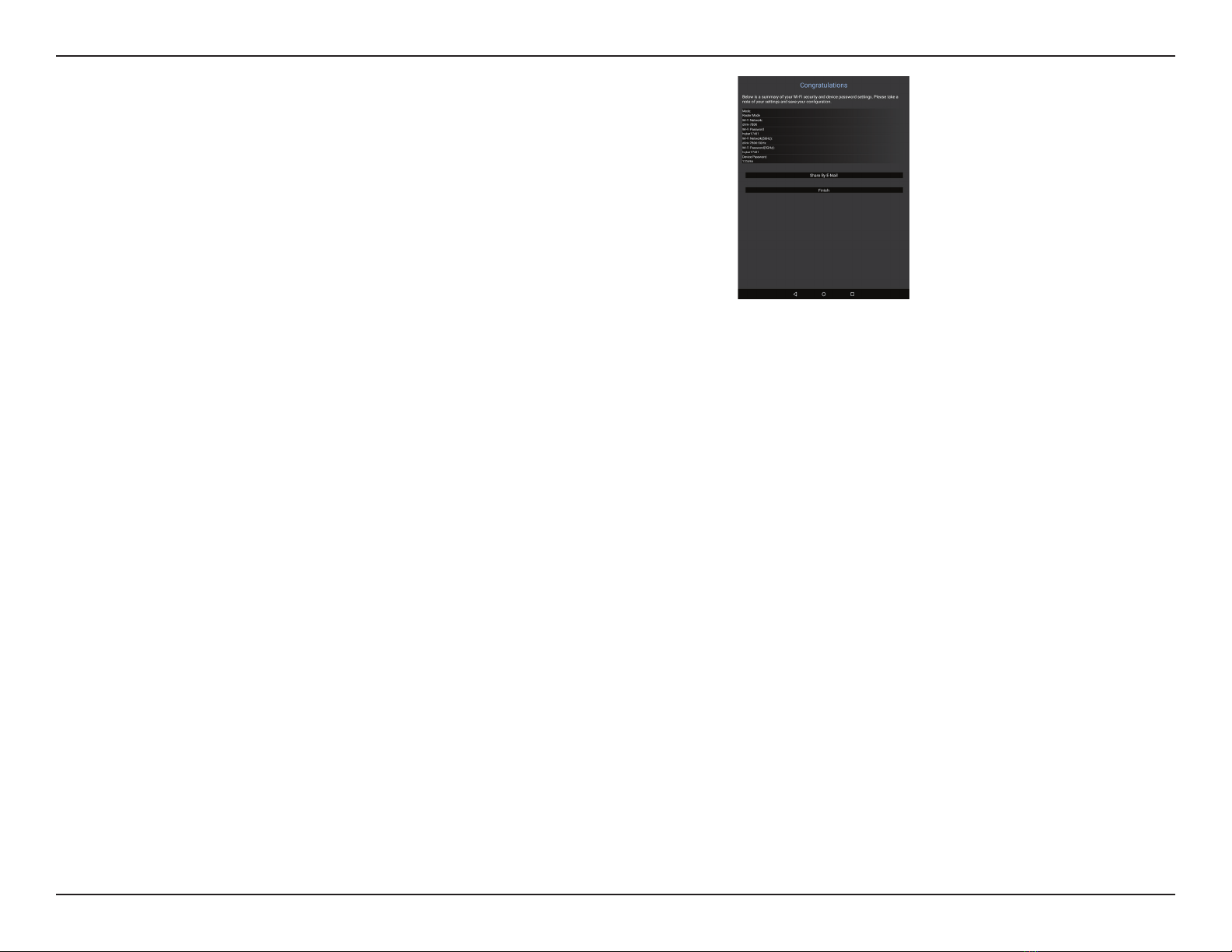

Congratulations, your device has been successfully congured! You can
share this information by tapping Share By E-mail, or tap Finish to exit
the app.

16D-Link DIR-822 User Manual
Section 3 - Getting Started

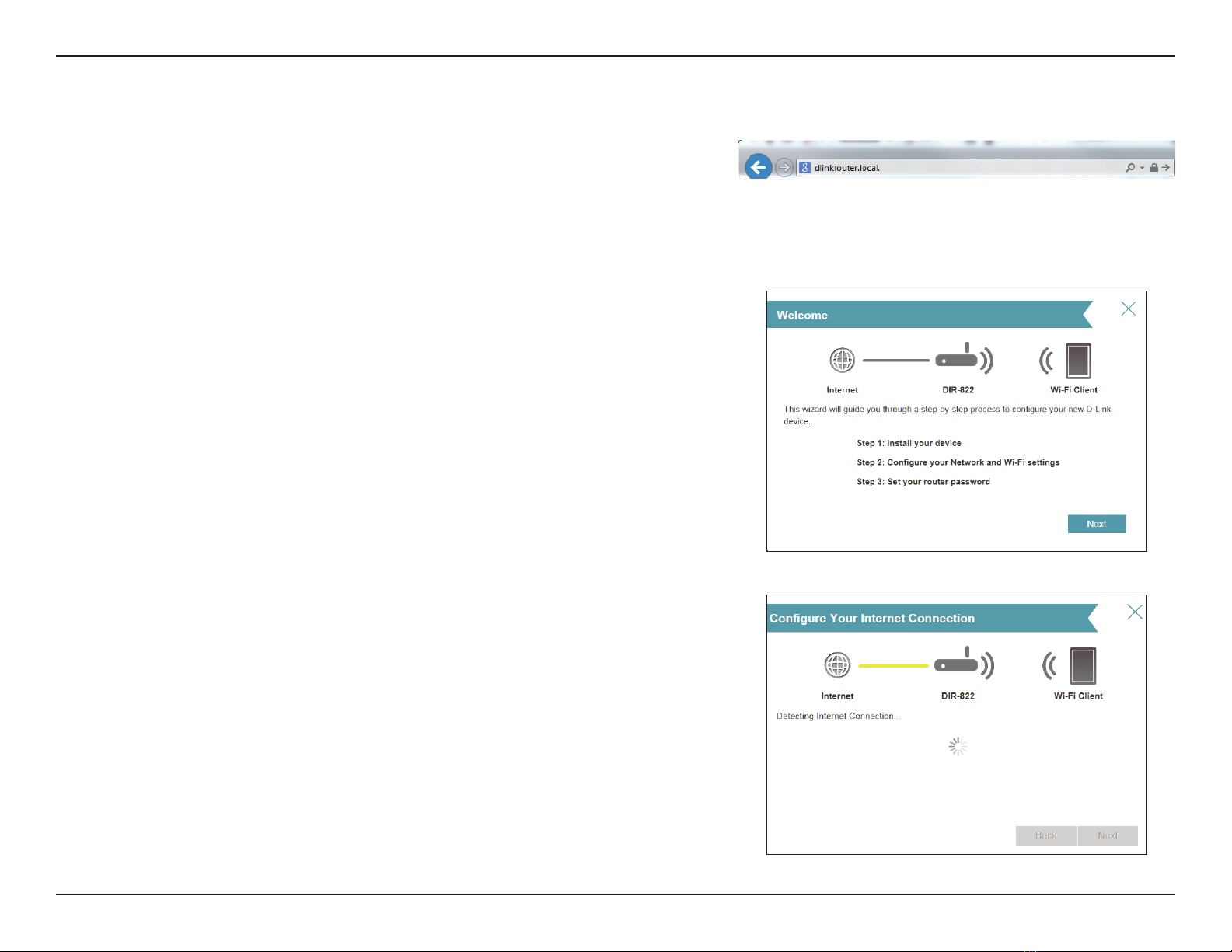

The wizard is designed to guide you through a step-by-step process to
congure your new D-Link router and connect to the Internet.
Click Next to continue.
Setup Wizard
If this is your rst time installing the router, open your web browser and
enter http://dlinkrouter.local./ in the address bar. Alternatively, enter
the IP address of the router (default: http://192.168.0.1). Please refer to
page 19.
Please wait while your router detects your Internet connection type. If
the router detects your Internet connection, you may need to enter your
ISP information such as username and password.
