D-Link DAP-1155 User manual

User Manual
DAP-1155
Wireless N150 Access Point & Router
January 2016

DAP-1155 Wireless N150 Access Point & Router
User Manual
Contents
Chapter 1. Introduction..........................................4
Contents and Audience.......................................................4
Conventions.................................................................4
Document Structure..........................................................4
Chapter 2. Overview..............................................5
General Information.........................................................5
Specifications..............................................................
Product Appearance..........................................................9

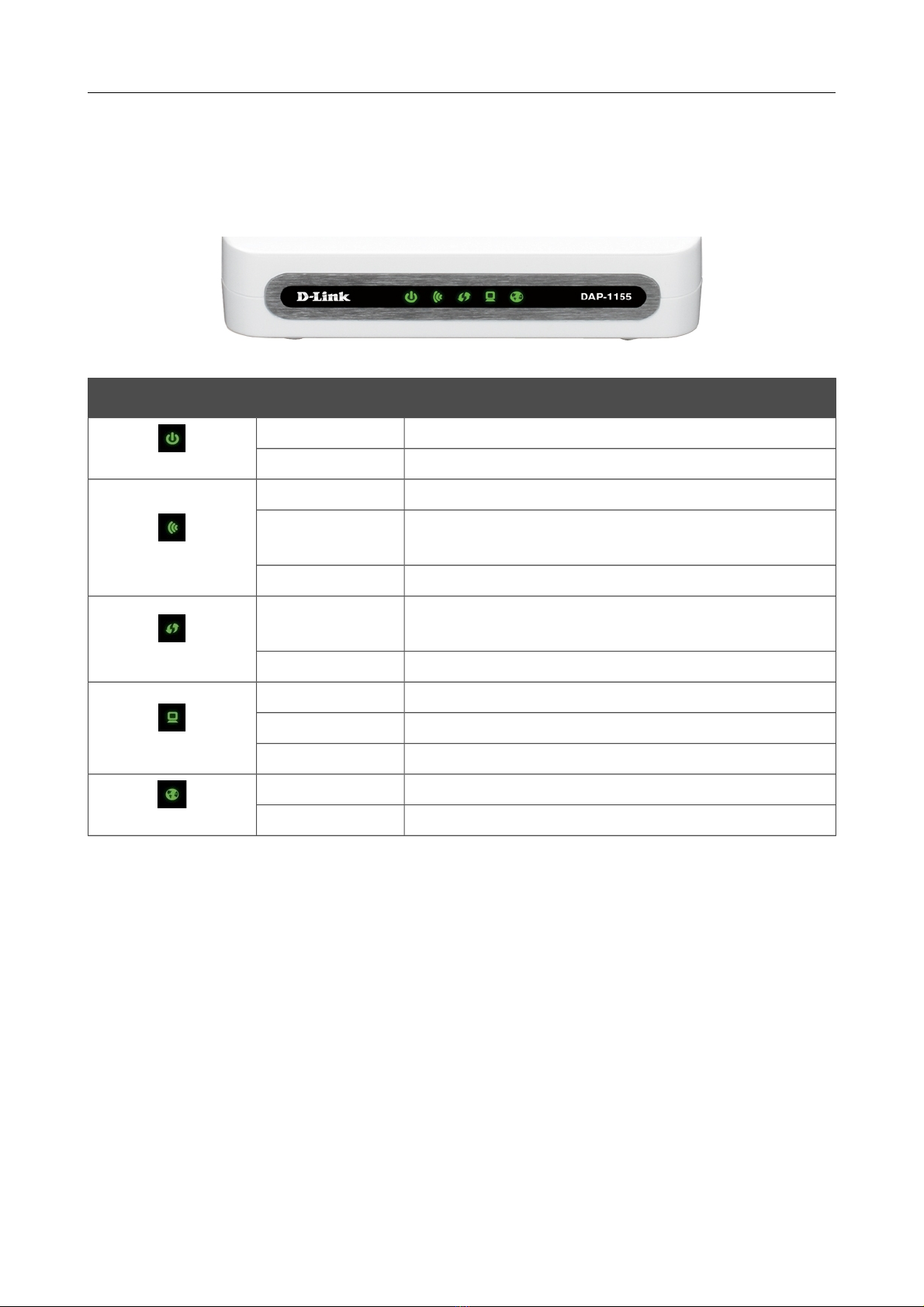

Front Panel...............................................................9

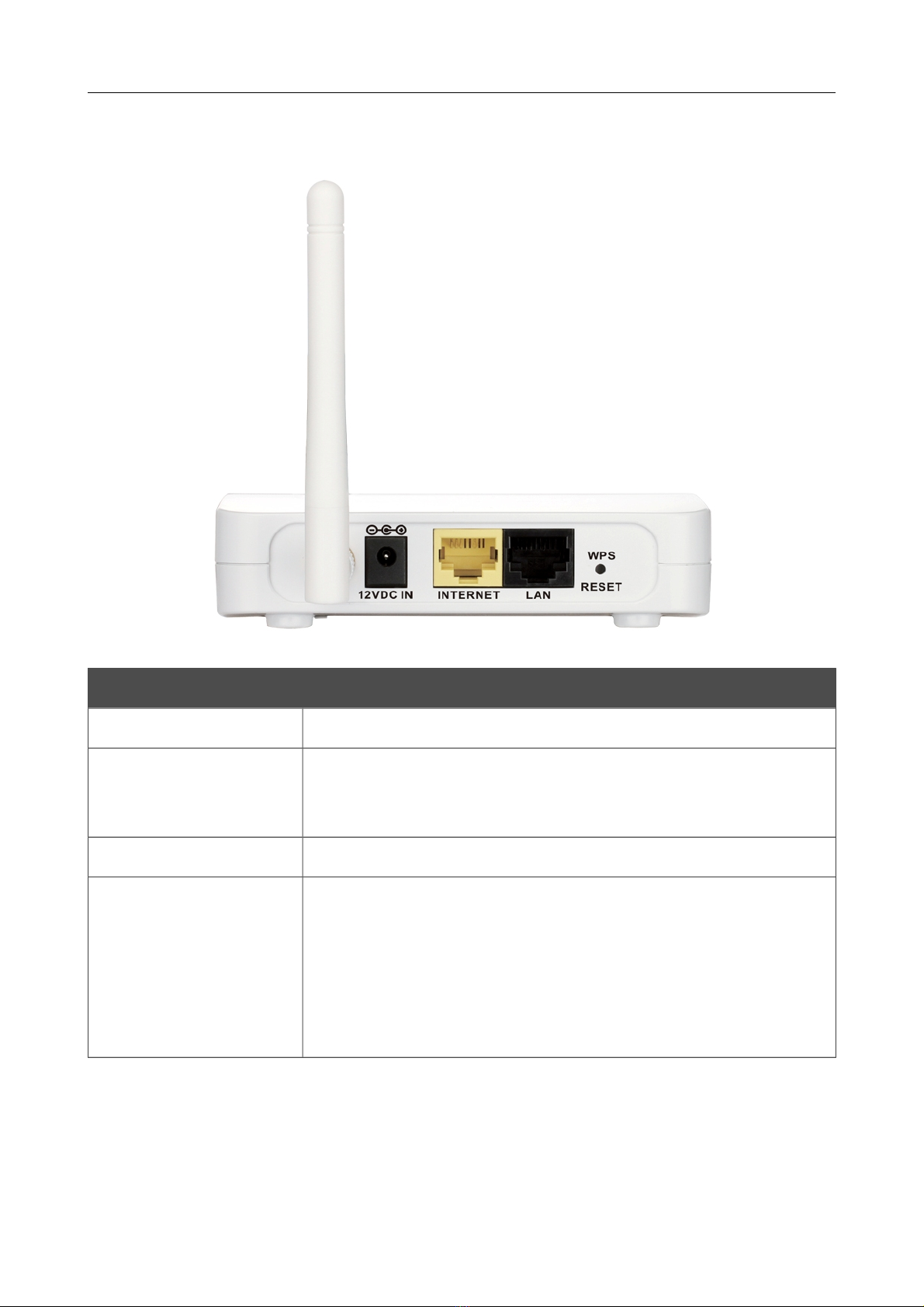

Back Panel...............................................................10
Delivery Package...........................................................11
Chapter 3. Installation and Connection..........................12
Before You Begin...........................................................12
Connecting to PC...........................................................13
PC with Ethernet Adapter.................................................13

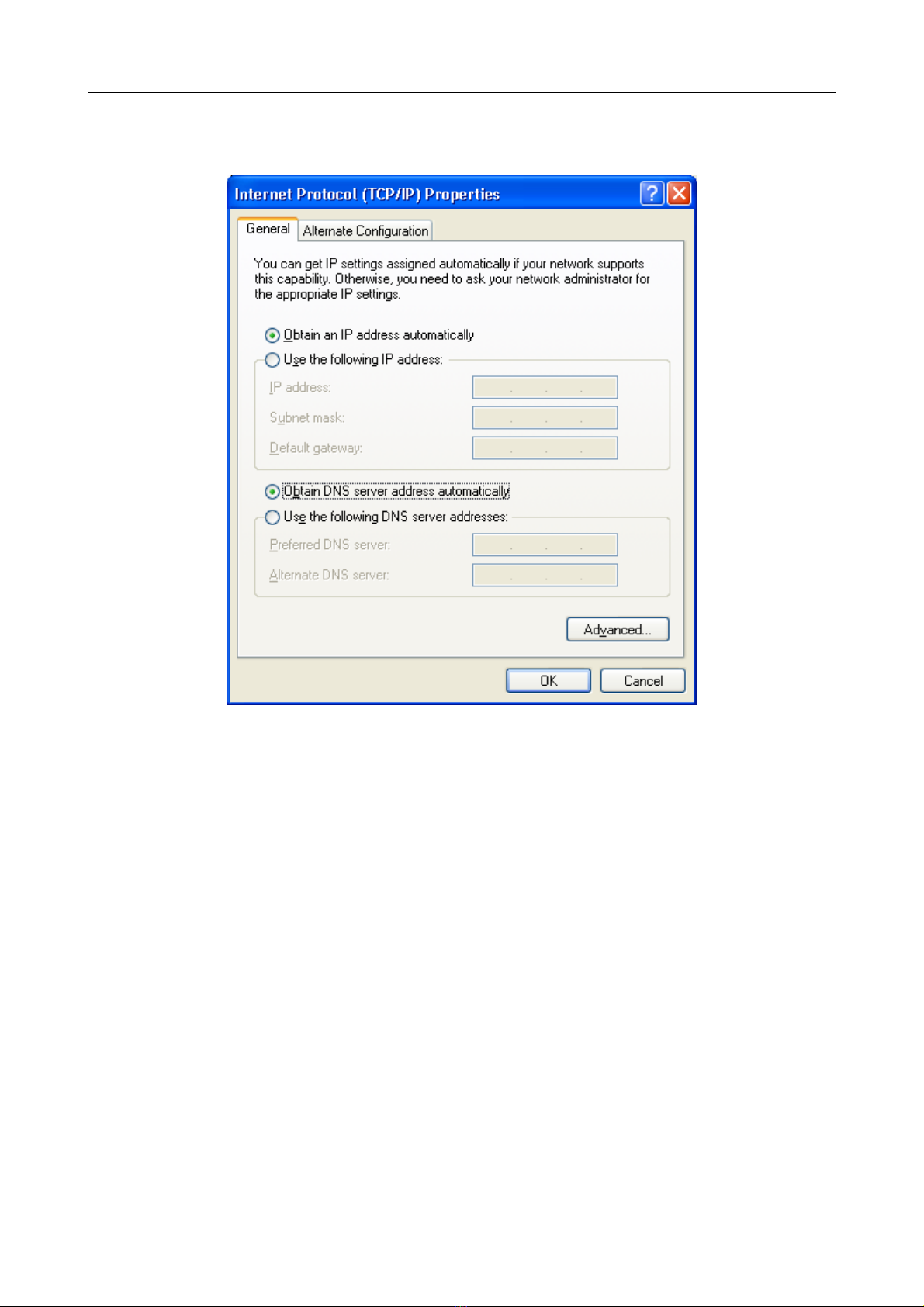

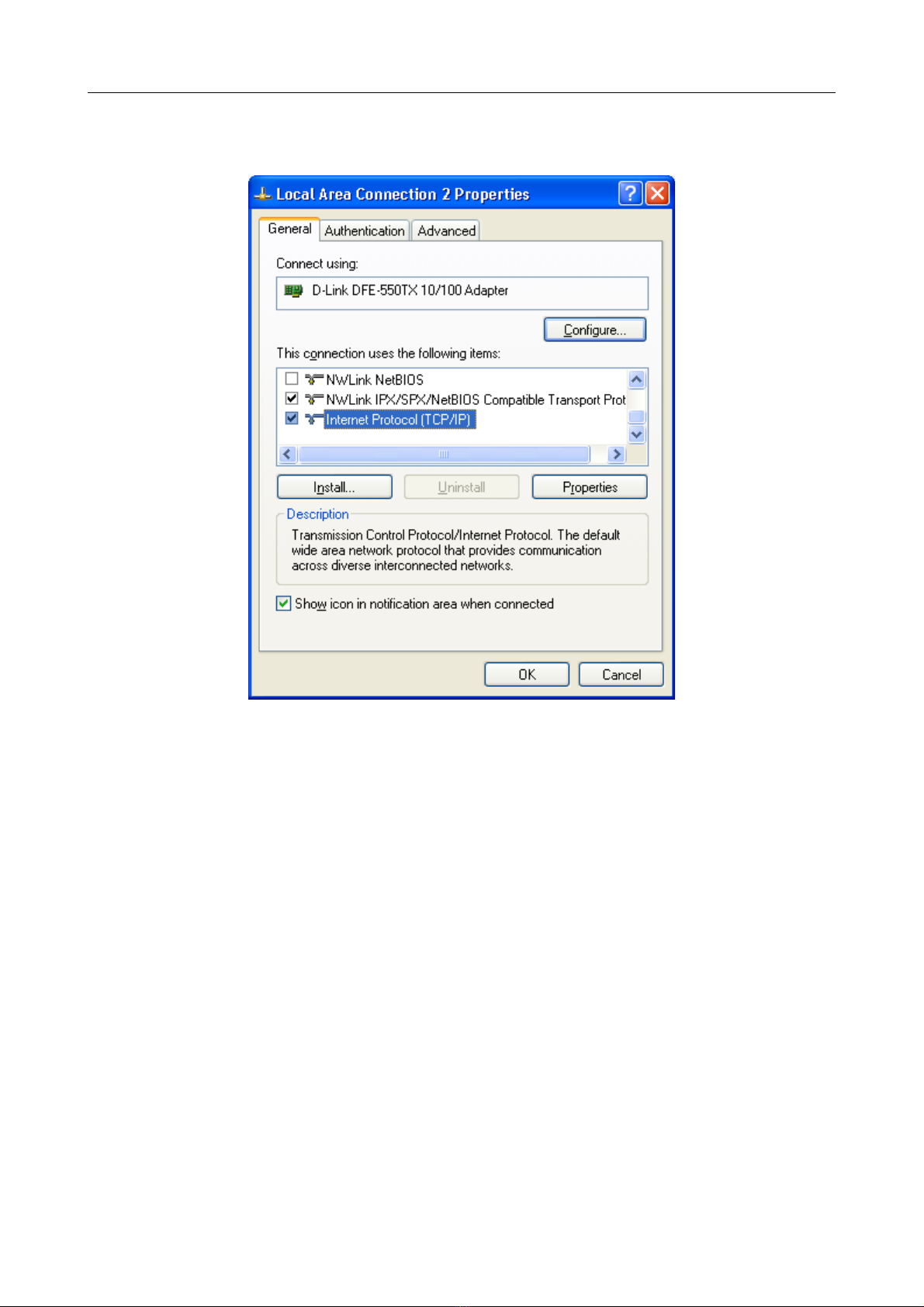

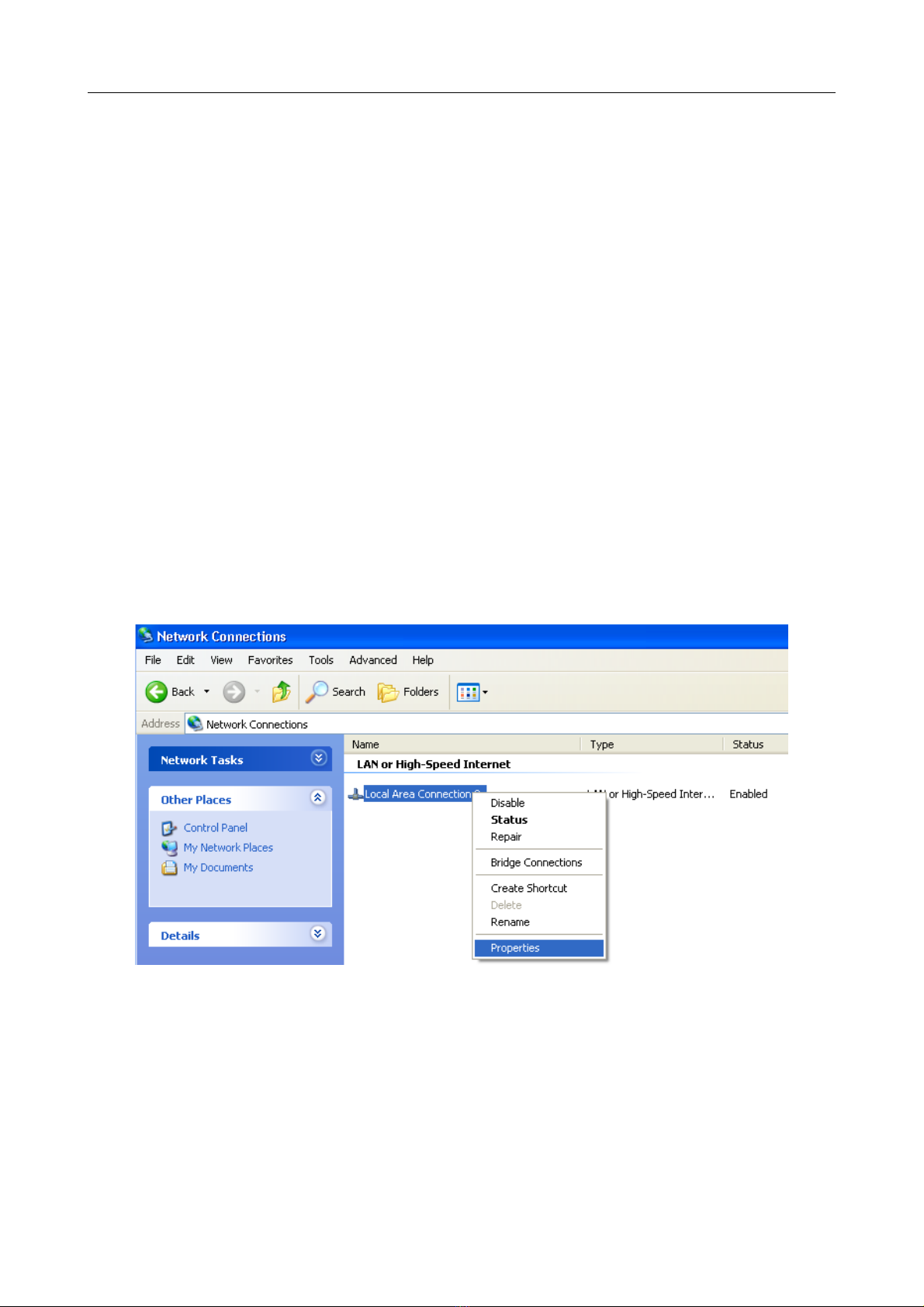

Obtaining IP Address A tomatically in OS Windows XP......................13

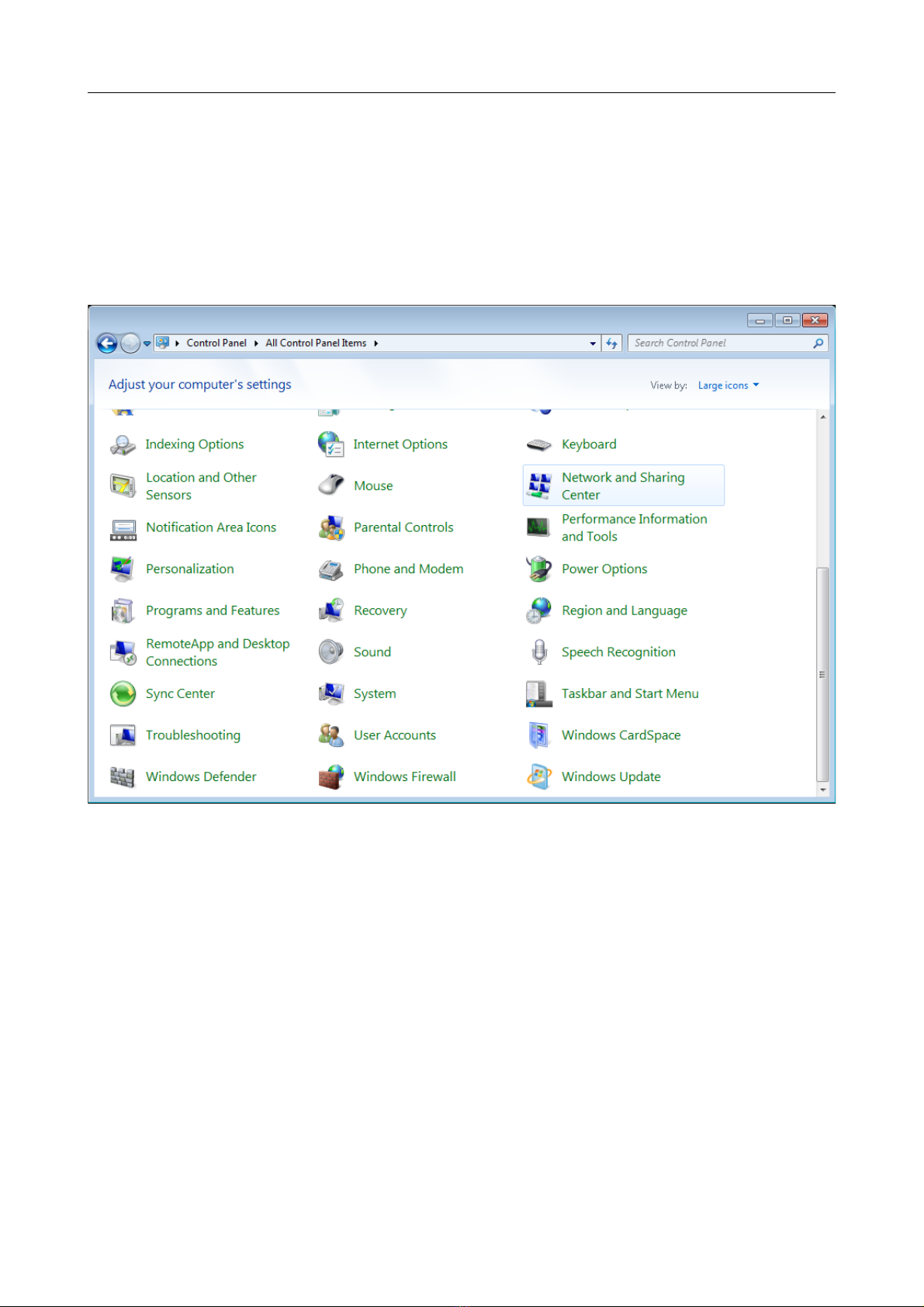

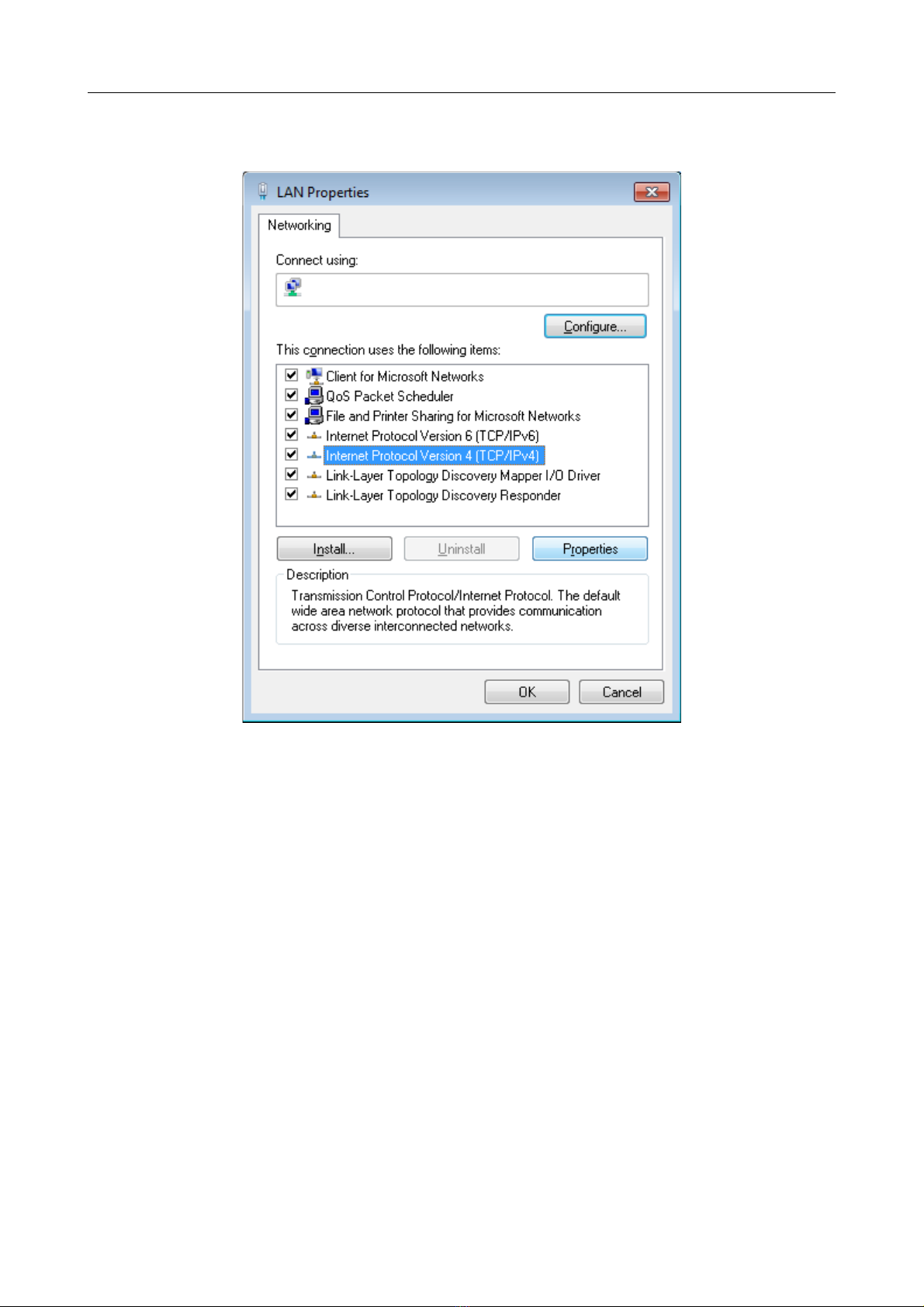

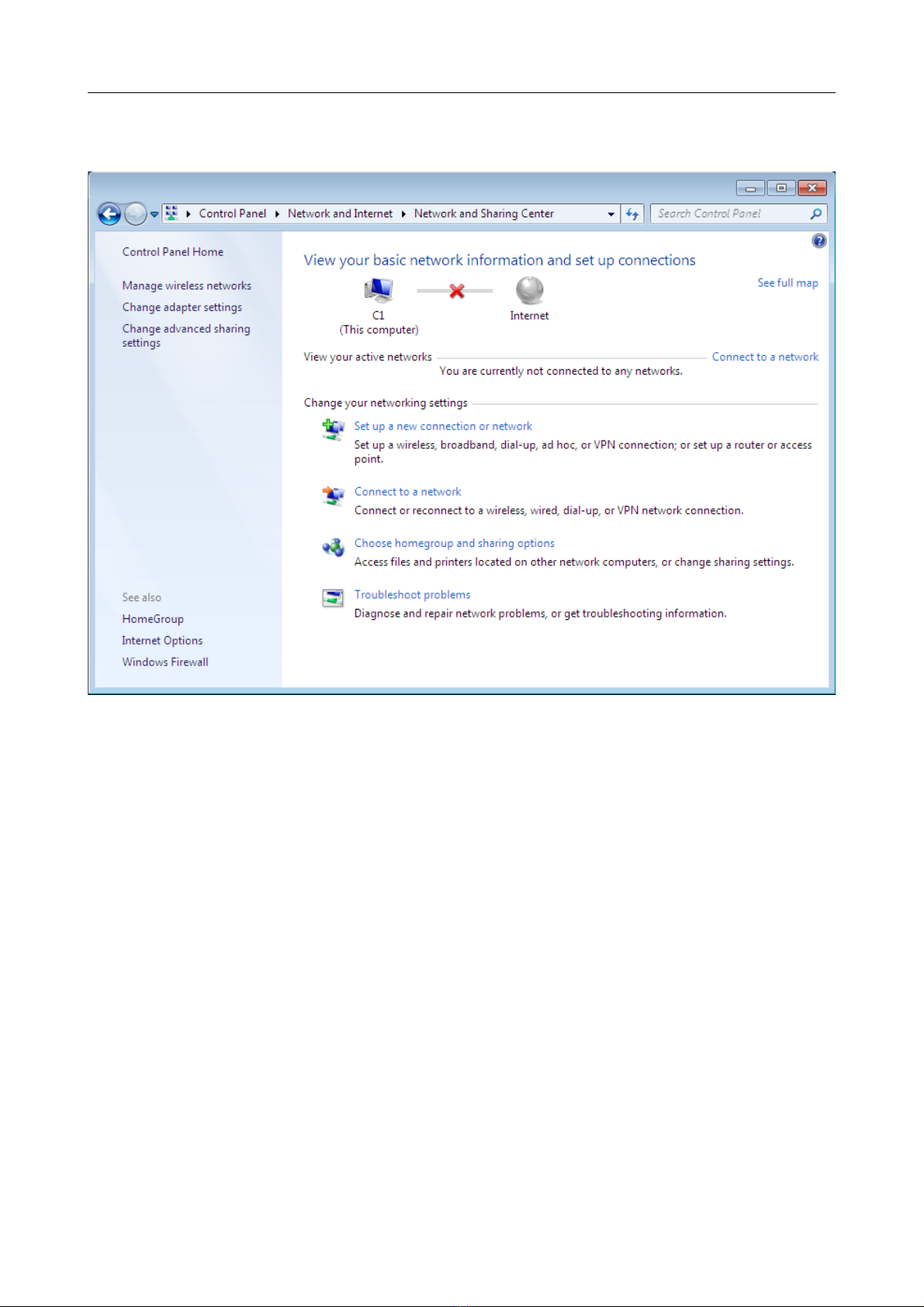

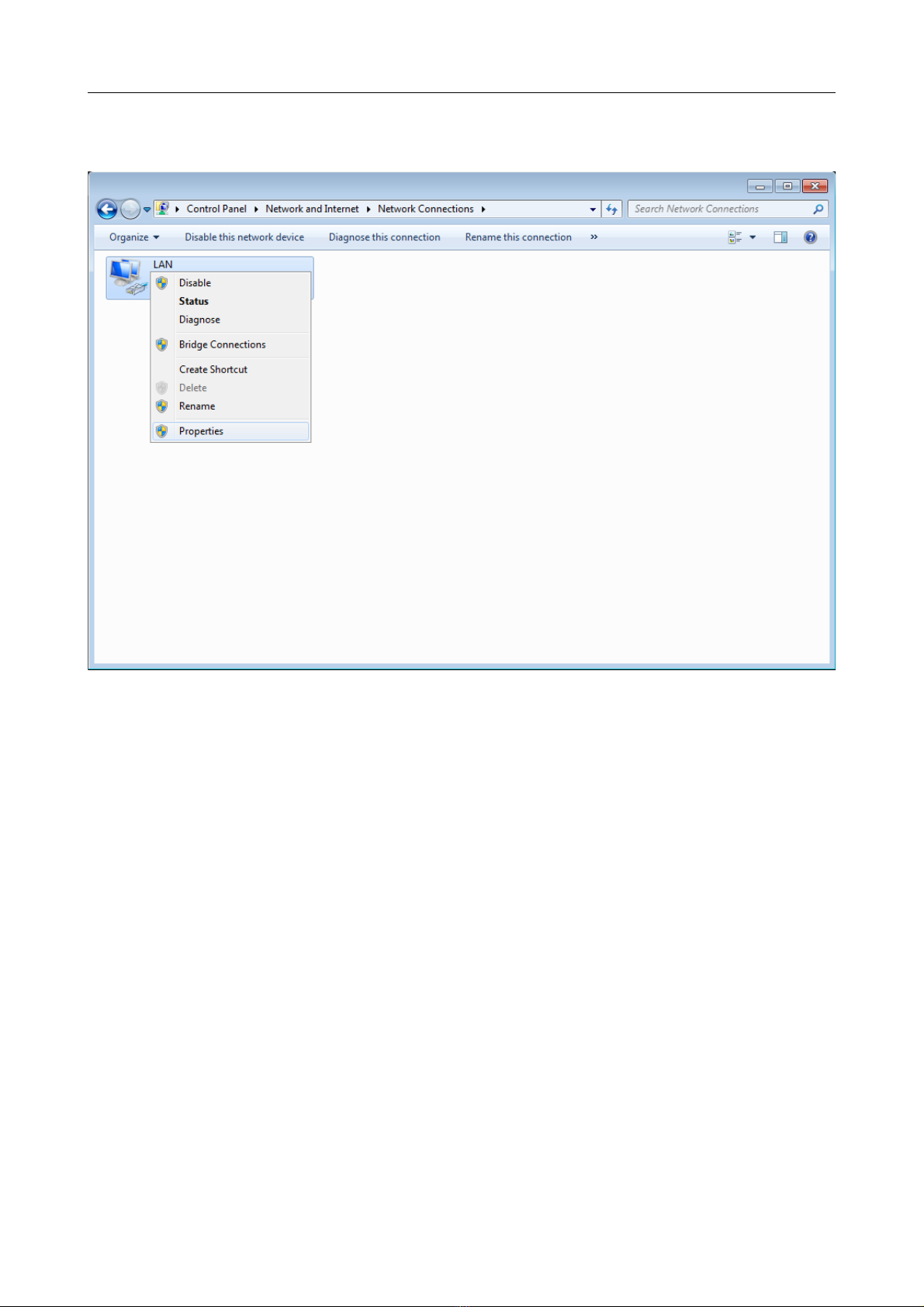

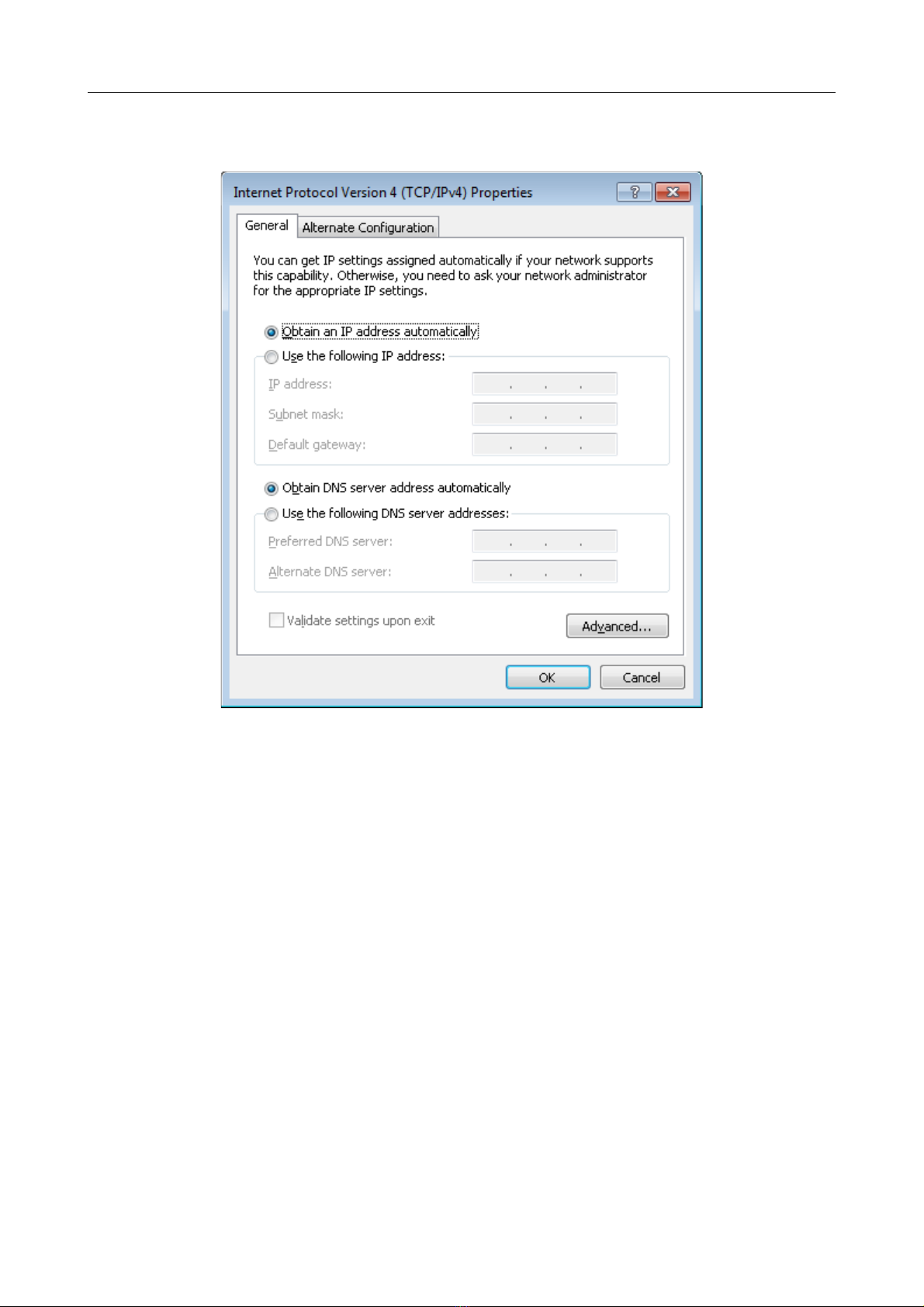

Obtaining IP Address A tomatically in OS Windows 7.......................16
PC with Wi-Fi Adapter....................................................21
Config ring Wi-Fi Adapter in OS Windows XP...............................22
Config ring Wi-Fi Adapter in OS Windows 7................................23
Connecting to Web-based Interface..........................................25
Web-based Interface Structure..............................................2
General Information Page.................................................26
Men Sections............................................................27
Notifications and System Drop-down Men ..................................29
Chapter 4. Configuring Device...................................31
Monitoring.................................................................31
Click'n'Connect............................................................35
Creating WAN Connection..................................................37
PPPoE Connection.......................................................37
Static IP Connection...................................................38
Dynamic IP Connection..................................................39
PPPoE + Static IP Connection...........................................40
PPPoE + Dynamic IP Connection..........................................43
PPTP + Static IP or L2TP + Static IP Connection........................45
PPTP + Dynamic IP or L2TP + Dynamic IP Connection......................48
Checking Internet Availability...........................................50
Config ring Wireless Connection..........................................51
Config ring IPTV.........................................................54
Wireless Network Settings Wizard...........................................55
Access Point Mode........................................................56
Client Mode..............................................................58
Virtual Server Settings Wizard............................................. 1
IPTV Settings Wizard....................................................... 3
Status..................................................................... 4
Network Statistics.......................................................64
DHCP.....................................................................65
Ro ting Table............................................................66
Clients..................................................................67
Active Sessions..........................................................68
M lticast gro ps.........................................................69
Page 2 of 158

DAP-1155 Wireless N150 Access Point & Router
User Manual
Net........................................................................70
WAN......................................................................70
Creating PPPoE W N Connection..........................................71
Creating Static IP or Dynamic IP W N Connection........................75
Creating PPPoE + Static IP or PPPoE + Dynamic IP W N Connection........79
Creating PPTP/L2TP + Static IP or PPTP/L2TP + Dynamic IP W N Connection85
LAN......................................................................92
Wi-Fi......................................................................94
Basic Settings...........................................................94
Sec rity Settings........................................................96
MAC Filter..............................................................101
List of Wi-Fi Clients...................................................103
WPS.....................................................................104
Using WPS Function via Web-based Interface............................106
Using WPS Function without Web-based Interface........................106
Additional Settings.....................................................108
WMM.....................................................................110
Client..................................................................112
Advanced..................................................................115
VLAN....................................................................116
UPnP IGD................................................................119
DDNS....................................................................120
DNS.....................................................................122
Ro ting.................................................................123
Remote Access to Device.................................................124
Miscellaneo s...........................................................126
TR-069 Client...........................................................128
Flow Control............................................................130
Firewall..................................................................131
IP Filters..............................................................131
Virt al Servers.........................................................134
DMZ.....................................................................137
MAC Filter..............................................................138
Control...................................................................140
URL Filter..............................................................140
System....................................................................142
Administrator Password..................................................143
Config ration...........................................................144
System Log..............................................................146
Firmware Upgrade........................................................148
Local Update..........................................................149
Remote Update.........................................................150
System Time.............................................................151
Ping....................................................................152
Tracero te..............................................................153
Telnet..................................................................154
Chapter 5. Operation Guidelines................................155
Safety Instructions.......................................................155
Wireless Installation Considerations......................................155
Connecting to Cable or DSL Modem..........................................15
Chapter . Abbreviations and Acronyms..........................157
Page 3 of 158

DAP-1155 Wireless N150 Access Point & Router
User Manual Introduction
CHAPT R 1. INTRODUCTION
Contents and Audience
This manual describes the device DAP-1155 and explains how to configure and operate it.
This manual is intended for users familiar with basic networking concepts who create an in-home
local area network and system administrators who install and configure networks in offices.
Conventions
xample Description
text The body text of the manual.
Before You Begin A reference to a chapter or section of this manual.
“Quick Installation
Guide” A reference to a document.
Change A name of a menu menu item control (field checkbox drop-down
list button etc.).
192.1 8.0.50 Data that you should enter in the specified field.
!Information An important note.
Document Structure
Chapter 1 describes the purpose and structure of the document.
Chapter 2 gives an overview of the device's hardware and software features describes its
appearance and the package contents.
Chapter 3 explains how to install the DAP-1155 device and configure a PC in order to access its
web-based interface.
Chapter 4 describes all pages of the web-based interface.
Chapter 5 includes safety instructions and tips for networking.
Chapter introduces abbreviations and acronyms used in this manual.
Page 4 of 158

DAP-1155 Wireless N150 Access Point & Router
User Manual Overview
CHAPT R 2. OV RVI W
General Information
The DAP-1155 device is a wireless access point in the router mode. It is an affordable solution for
creating wireless networks at home or in an office.
Using DAP-1155 you are able to quickly create a wireless network and let your relatives or
employees connect to it virtually anywhere (within the operational range of your wireless network).
The access point can operate as a base station for connecting wireless devices of the standards
802.11b 802.11g and 802.11n (at the rate up to 150Mbps).
The device supports multiple functions for the wireless interface: several security standards (WEP
WPA/WPA2) MAC address filtering the “client” function WPS WMM.
You are able to connect the wireless access point DAP-1155 in the router mode to a cable or DSL
modem or to a private Ethernet line and use a high-speed Internet connection to successfully fulfill
a wide range of professional tasks.
DAP-1155 includes a built-in firewall. The advanced security functions minimize threats of hacker
attacks prevent unwanted intrusions to your network and block access to unwanted websites for
users of your LAN.
You can configure the settings of DAP-1155 via the user-friendly web-based interface (the interface
is available in several languages).
Now you can simply update the firmware: the device itself finds approved firmware on D-Link
update server and notifies when ready to install it.
Page 5 of 158

DAP-1155 Wireless N150 Access Point & Router
User Manual Overview
Specifications*
Hardware
Interfaces ·10/100BASE- X WAN port
·10/100BASE- X LAN port
L Ds ·POWER
·WLAN
·WPS
·LAN
·IN ERNE
Buttons ·WPS/RESE button to restore factory default settings and set up secure
wireless connection
Antenna ·External detachable omnidirectional antenna (2dBi gain)
Power connector ·Power input connector (DC)
Software
Operation modes ·Router mode
This firmware version supports the router mode only. For the firmware version supporting the
access point mode, see www.dlink.ru.
WAN connection types ·PPPoE
·Static IP / Dynamic IP
·PPPoE + Static IP / Dynamic IP
·PP P/L2 P + Static IP
·PP P/L2 P + Dynamic IP
Network functions ·DHCP server/relay
·DNS relay
·Dynamic DNS
·Static IP routing
·IGMP Proxy
·RIP
·Support of UPnP IGD
·Support of VLAN
·Flow control
·WAN ping respond
·Support of SIP ALG
·Support of R SP
Firewall functions ·Network Address ranslation (NA )
·Stateful Packet Inspection (SPI)
·IP filter
·MAC filter
·URL filter
·DMZ
·Prevention of ARP and DDoS attacks
·Virtual servers
VPN ·IPSec/PP P/L2 P/PPPoE pass-through
* The device features are subject to change without notice. For the latest versions of the firmware and relevant
documentation visit www.dlink.ru.
Page 6 of 158

DAP-1155 Wireless N150 Access Point & Router
User Manual Overview
Software
Management ·Local and remote access to settings through ELNE /WEB (H P)
·Multilingual web-based interface for configuration and management
·Firmware update via web-based interface
·Automatic notification on new firmware version
·Saving/restoring configuration to/from file
·Support of remote logging
·Automatic synchronization of system time with N P server and manual
time/date setup
·Ping function
·raceroute utility
·R-069 client
Wireless Module Parameters
Standards ·IEEE 802.11b/g/n
Frequency range ·2400 ~ 2483.5MHz
Wireless connection security ·WEP
·WPA/WPA2 (Personal/Enterprise)
·МАС filter
·WPS (PBC/PIN)
Advanced functions ·Support of “client” function
·WMM (Wi-Fi QoS)
·Managing connected stations
·Advanced settings
Wireless connection rate ·IEEE 802.11b: 1, 2, 5.5, and 11Mbps
·IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps
·IEEE 802.11n: from 6.5 to 150Mbps (from MCS0 to MCS7)
Transmitter output power
The maximum value of the transmitter
output power depends upon the radio
frequency regulations applied in your
country
·802.11b (typical at room temperature 25 °C)
18dBm at 1, 2, 5.5, 11Mbps
·802.11g (typical at room temperature 25 °C)
17dBm at 6, 9, 12Mbps
16dBm at 18, 24Mbps
15dBm at 36, 48, 54Mbps
·802.11n (typical at room temperature 25 °C)
H 20
17dBm at MCS0/1/2
16dBm at MCS3/4/5
15dBm at MCS6
14dBm at MCS7
H 40
17dBm at MCS0/1/2
16dBm at MCS3/4/5
15dBm at MCS6
14dBm at MCS7
Page 7 of 158

DAP-1155 Wireless N150 Access Point & Router
User Manual Overview
Wireless Module Parameters
Receiver sensitivity ·802.11b (typical at PER = 8% (1000-byte PDUs) at room temperature 25 °C)
-82dBm at 1Mbps
-80dBm at 2Mbps
-78dBm at 5.5Mbps
-76dBm at 11Mbps
·802.11g (typical at PER = 10% (1000-byte PDUs) at room temperature 25 °C)
-85dBm at 6Mbps
-84dBm at 9Mbps
-82dBm at 12Mbps
-80dBm at 18Mbps
-77dBm at 24Mbps
-73dBm at 36Mbps
-69dBm at 48Mbps
-68dBm at 54Mbps
·802.11n (typical at PER = 10% (1000-byte PDUs))
H 20
-82dBm at MCS0
-79dBm at MCS1
-77dBm at MCS2
-74dBm at MCS3
-70dBm at MCS4
-66dBm at MCS5
-65dBm at MCS6
-64dBm at MCS7
H 40
-79dBm at MCS0
-76dBm at MCS1
-74dBm at MCS2
-71dBm at MCS3
-67dBm at MCS4
-63dBm at MCS5
-62dBm at MCS6
-61dBm at MCS7
Modulation schemes ·802.11b: DQPSK, DBPSK, DSSS, CCK
·802.11g: BPSK, QPSK, 16QAM, 64QAM with OFDM
·802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
Physical Parameters
Dimensions ·109 x 86 x 22 mm (4.3 x 3.4 x 0.9 in)
Weight ·95 g (0.21 lb)
Operating nvironment
Power ·Output: 12V DC, 0.5A
Temperature ·Operating: from 0 to 40 °C
·Storage: from -20 to 65 °C
Humidity ·Operating: from 10% to 90% (non-condensing)
·Storage: from 5% to 95% (non-condensing)
Page 8 of 158

DAP-1155 Wireless N150 Access Point & Router
User Manual Overview
Product Appearance
Front Panel
Figure 1. Front panel view.
L D Mode Description
Power
Solid green The device is powered on.
No light The device is powered off.
WLAN
Solid green The device's WLAN is on.
Blinking green The WLAN interface is active (upstream or
downstream traffic).
No light The device's WLAN is off.
WPS
Blinking green Attempting to add a wireless device via the WPS
function.
No light The WPS function is not in use.
LAN
Solid green A device (computer) is connected to the port.
Blinking green The port is active (upstream or downstream traffic).
No light The cable is not connected to the port.
Internet
Blinking green The cable is connected to the port.
No light The cable is not connected to the port.
Page 9 of 158

DAP-1155 Wireless N150 Access Point & Router
User Manual Overview
Back Panel
Figure . Back panel view.
Port Description
12 VDC IN Power connector.
INT RN T
A port to connect to a cable or DSL modem or to a private Ethernet
line (it is recommended to use the cable included in the delivery
package).
LAN An Ethernet port to connect to a computer.
WPS
R S T
A button to restore the factory default settings and to quickly add
wireless devices to the access point's WLAN (the WPS function).
To use the WPS function: with the device turned on push the button
and immediately release it.
To restore the factory defaults: with the device turned on push the
button hold it for 15 seconds then release it.
The device is equipped with a detachable antenna (Reverse SMA).
Page 10 of 158

DAP-1155 Wireless N150 Access Point & Router
User Manual Overview
Delivery Package
The following should be included:
•Access point DAP-1155
•Power adapter DC 12V/0.5A
•Ethernet cable
•Detachable antenna
•“Quick Installation Guide” (brochure).
The “User Manual” and “Quick Installation Guide” documents are available on D-Link website
(see www.dlink.ru).
!Using a power supply with a different voltage rating than the one included will cause
damage and void the warranty for this product.
Page 11 of 158

DAP-1155 Wireless N150 Access Point & Router
User Manual Installation and Connection
CHAPT R 3. INSTALLATION AND CONN CTION
Before You Begin
Please read this manual prior to installing the device. Make sure that you have all the necessary
information and equipment.
Operating System
Configuration of the access point DAP-1155 in the router mode (hereinafter referred to as “the
access point”) is performed via the built-in web-based interface. The web-based interface is
available from any operating system that supports a web browser.
Web Browser
The following web browsers are recommended:
•Apple Safari 5 and later
•Google Chrome 5 and later
•Microsoft Internet Explorer 8 and later
•Mozilla Firefox 5 and later
•Opera 10 and later.
For successful operation JavaScript should be enabled on the web browser. Make sure that
JavaScript has not been disabled by other software (such as virus protection or web user security
packages) running on your computer.
Wired or Wireless NIC (Ethernet or Wi-Fi Adapter)
Any computer that uses the access point should be equipped with an Ethernet or Wi-Fi adapter
(NIC). If your computer is not equipped with such a device install an Ethernet or Wi-Fi adapter
prior to using the access point.
Wireless Conne tion
Wireless workstations from your network should be equipped with a wireless 802.11b g or n NIC
(Wi-Fi adapter). In addition you should specify the values of SSID channel number and security
settings defined in the web-based interface of the access point for all these wireless workstations.
Page 12 of 158

DAP-1155 Wireless N150 Access Point & Router
User Manual Installation and Connection
Connecting to PC
PC with Ethernet Adapter
1. Make sure that your PC is powered off.
2. Connect an Ethernet cable between the LAN port located on the back panel of the access
point and the Ethernet port of your PC.
3. Connect the power cord to the power connector port on the back panel of the access point
then plug the power adapter into an electrical outlet or power strip.
4. Turn on your PC and wait until your operating system is completely loaded.
Now you need to configure an IP address for the Ethernet adapter of your PC.
Obtaining IP Address Automatically in OS Windows P
1. Click the Start button and proceed to the Control Panel > Network and Internet
Connections > Network Connections window.
2. In the Network Connections window right-click the relevant Local Area Connection
icon and select the Properties line in the menu displayed.
Figure 3. The Net ork Connections window.
Page 13 of 158

DAP-1155 Wireless N150 Access Point & Router
User Manual Installation and Connection
3. In the Local Area Connection Properties window on the General tab select the
Internet Protocol (TCP/IP) line. Click the Properties button.
Figure 4. The Local Area Connection Properties window.
Page 14 of 158

DAP-1155 Wireless N150 Access Point & Router
User Manual Installation and Connection
4. Select the Obtain an IP address automatically and Obtain DNS server address
automatically radio buttons. Click the OK button.
Figure 5. The Internet Protocol (TCP/IP) Properties window.
5. Click the ОК button in the connection properties window.
Now your computer is configured to obtain an IP address automatically.
Page 15 of 158

DAP-1155 Wireless N150 Access Point & Router
User Manual Installation and Connection
Obtaining IP Address Automatically in OS Windows 7
1. Click the Start button and proceed to the Control Panel window.
2. Select the Network and Sharing Center section. (If the Control Panel has the category
view (the Category value is selected from the View by drop-down list in the top right
corner of the window) choose the View network status and tasks line under the
Network and Internet section.)
Figure 6. The Control Panel window.
Page 16 of 158

DAP-1155 Wireless N150 Access Point & Router
User Manual Installation and Connection
3. In the menu located on the left part of the window select the Change adapter settings
line.
Figure 7. The Net ork and Sharing Center window.
Page 17 of 158

DAP-1155 Wireless N150 Access Point & Router
User Manual Installation and Connection
4. In the opened window right-click the relevant Local Area Connection icon and select
the Properties line in the menu displayed.
Figure 8. The Net ork Connections window.
Page 18 of 158

DAP-1155 Wireless N150 Access Point & Router
User Manual Installation and Connection
5. In the Local Area Connection Properties window on the Networking tab select the
Internet Protocol Version 4 (TCP/IPv4) line. Click the Properties button.
Figure 9. The Local Area Connection Properties window.
Page 19 of 158

DAP-1155 Wireless N150 Access Point & Router
User Manual Installation and Connection
6. Select the Obtain an IP address automatically and Obtain DNS server address
automatically radio buttons. Click the OK button.
Figure 10. The Internet Protocol Version 4 (TCP/IPv4) Properties window.
7. Click the OK button in the connection properties window.
Now your computer is configured to obtain an IP address automatically.
Page 20 of 158
