What it does
Stream music, videos and High Denition media to multiple
devices, at the same time, with this HD Media Router.
Experience high quality video on your TV screen and lag free
gaming via the built-in Quality of Service feature. Wireless N
technology included in the router, gives you the very best in
speed and coverage around your home.
Share files and stream your
multimedia
The DLNA ready Media Server built-in allows you to stream
media content directly onto game consoles and media players
like the Boxee Box by D-Link. Accessing or sharing photos,
music and videos is made easy via the SD card slot.1 You can
even eortlessly share any USB device (like a printer or hard
drive) courtesy of D-Link’s SharePort™ Plus technology.

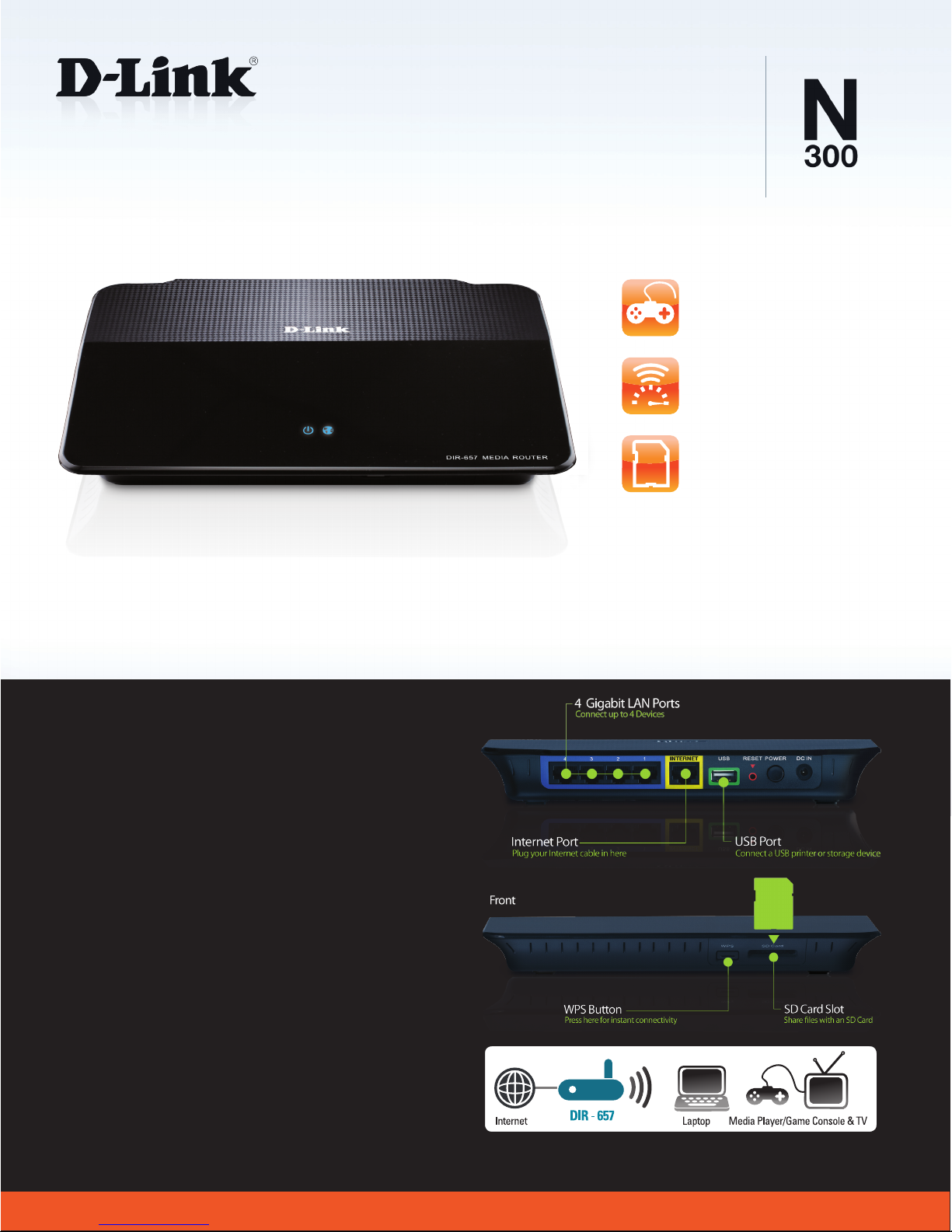

HD Media Router
DIR-657
Flawless wireless HD video
streaming, gaming & Internet calls
Exceptional speed and coverage
with Wireless N
Access and share media
via the SD card slot

Technical Specications
STANDARDS
- IEEE 802.11n
- IEEE 802.11g
- IEEE 802.11b
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- USB 2.0
DEVICE INTERFACES
- Four 10/100/1000 Gigabit LAN ports
- Gigabit Internet/WAN port
- USB 2.0 port
- Built-in 802.11n wireless LAN
WIRELESS DATA RATE
- Up to 300 Mbps in wireless N mode 2
WIRELESS LAN SECURITY
- WPA and WPA2 (Wi-Fi Protected Access)
- WEP 64/128-bit
ADVANCED FIREWALL FEATURES
- Network Address Translation (NAT)
- Stateful Packet Inspection (SPI)
- VPN Pass-through/Multi-session PPTP/
L2TP/IPSec
QoS
- WMM for WLAN trac
- QoS engine for prioritizing trac
SHAREPORT™ PLUS FUNCTION
SUPPORT 3
- Allows for connection of an external
hard drive, ash memory drive, or a
multifunction printer to the USB port
- Allows sharing of hard drives, printing and
scanning functions
LEDS
- Power
- Internet
SYSTEM REQUIREMENTS
- Windows 7/Vista/XP SP3 or higher 4
- Internet Explorer 6 or higher, Mozilla
Firefox 2.0 or higher, or other Java-
enabled browser
DEVICE MANAGEMENT
- UPnP support
- DDNS support
- Integrated Wireless Security Wizard and
Wireless Protected Setup (WPS) support
- Windows Connect Now (WCN) support
- Web-based management using Internet
Explorer 6 or higher; Mozilla Firefox 2.0 or
higher; or other Java-enabled browser
- Online rmware update check
- E-mail notications for triggered events
- UPnP™ AV Server for streaming media to
compatible media players 5
- Scheduled downloads
- Multi-language le name support
- D-Link Network Monitor Yahoo! Widget
- D-Link Internet Usage Meter Yahoo!
Widget
Features
+ IEEE 802.11n and 802.11g compliant
+ Gigabit Ethernet
+ Dual active rewalls – Stateful Packet Inspection
(SPI) and Network Address Translation (NAT)
+ Enhanced security with WPA2-PSK
+ Includes Advanced Encryption Standard (AES)
+ D-Link Intelligent QoS technology for
enhancing Internet access and performance
+ Advanced parental controls
+ Supports UPnP, LLTD, DDNS and WPS PBC and
PIN
+ SharePort™ Plus technology
+ Built-in DLNA ready Media Server
+ SD Card slot
+ IPv6 ready
+ D-Link Green technology
Think Green
While this may look like your average router,
it’s not. This is a D-Link Green™ router, which
is as good for your wallet as it is for the
environment. The DIR-657 is designed to
conserve energy, protect our environment
from harmful substances and reduce waste
by using recyclable packaging. To learn
more, visit www.dlinkgreen.com
D-Link Green™ Technology
+ Power saving by link status
+ Power saving by cable length
+ Power saving by wireless LAN scheduling
DIR-657

Technical Specications (cont.)
DIMENSIONS L x W x H
- 212 x 159.93 x 32.3 mm (8.4 x 6.3 x 1.2 in)
WEIGHT
- 331.5 g (0.73 lb)
OPERATING TEMPERATURE
- 0 to 40 °C (32 to 104 °C)
OPERATING HUMIDITY
- 10% to 90% (non-condensing)
CERTIFICATIONS
- FCC Class B
- IC
- CE
- UL
- LVD
- RoHS compliant
- Wi-Fi Certied
- Wi-Fi Protected Setup (WPS)
- Windows 7 Certied
- IPv6 Ready
Package Contents
+ DIR-657 Wireless N HD Media Router
+ Easy install CD and manual
+ Quick install guide and warranty documents
+ Power adapter 12V DC / 2A
+ Ethernet cable – CAT5
System Requirements
+ Cable or ADSL Internet service
+ Cable or DSL Modem with Ethernet port
+ Microsoft Internet Explorer 6 or higher, or
FireFox 1.5 or higher
+ Network interface card
+ CD ROM drive
Optional Products
Combine the Wireless N HD Media Router
with these D-Link products for a complete
solution:
+DSM-380: The Boxee Box by D-Link
Unleash the Internet on your HD TV
+DWA-160: Wireless USB Adapter
Add a wireless connection to your computer via
USB adapter
+DNS-325: Network Storage
Add storage to your network & back up les
1 SD Card not included.
2 Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and
network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range. Wireless range and speed rates are D-Link RELATIVE performance measurements based on the wireless range and speed
rates of a standard Wireless G product from D-Link. Maximum throughput based on D-Link’s 802.11n devices
3 Software included is not Mac-compatible.
4 Computer must adhere to Microsoft’s recommended system requirements.
5 D-Link does not guarantee full compatibility or proper playback with all codecs. Playback capability depends on the codec support of the UPnP AV media player.
