D-Link DIR-895L User manual

QUICK
INSTALLATION
GUIDE
AC5300 ULTRA WIFI ROUTER
DIR-895L
КРАТКОЕ РУКОВОДСТВО ПО УСТАНОВКЕ
GUÍA DE INSTALACIÓN RÁPIDA
GUIA DE INSTALAÇÃO RÁPIDA
快速安裝指南
PETUNJUK PEMASANGAN CEPAT

DIR-895L 1
ENGLISH

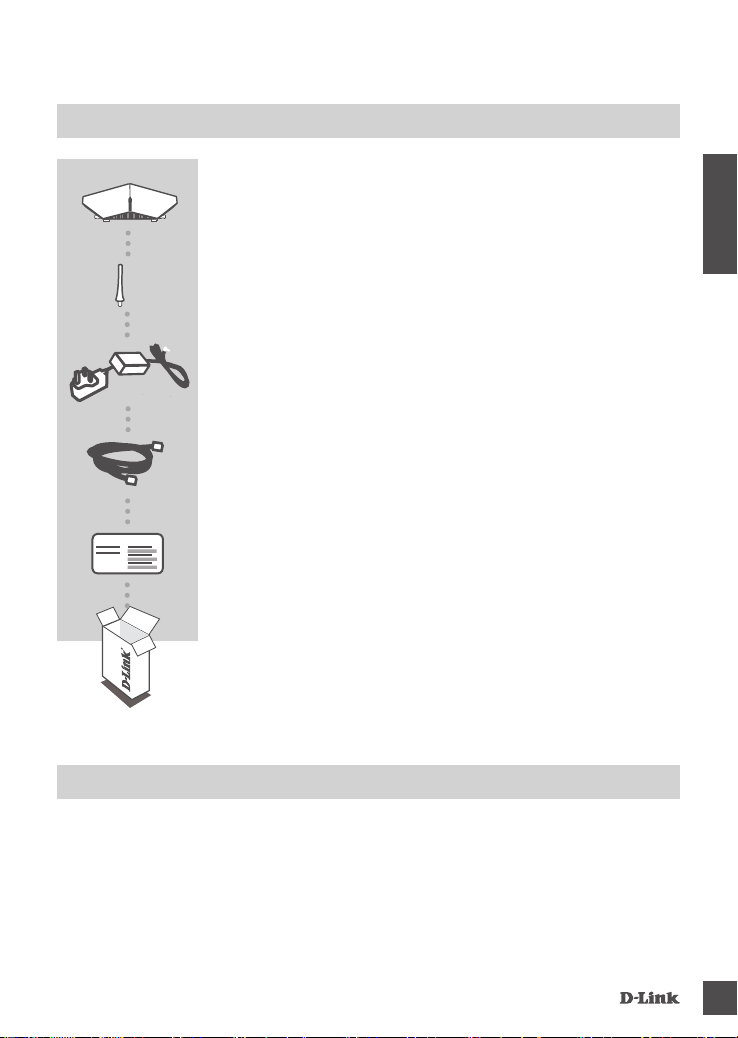

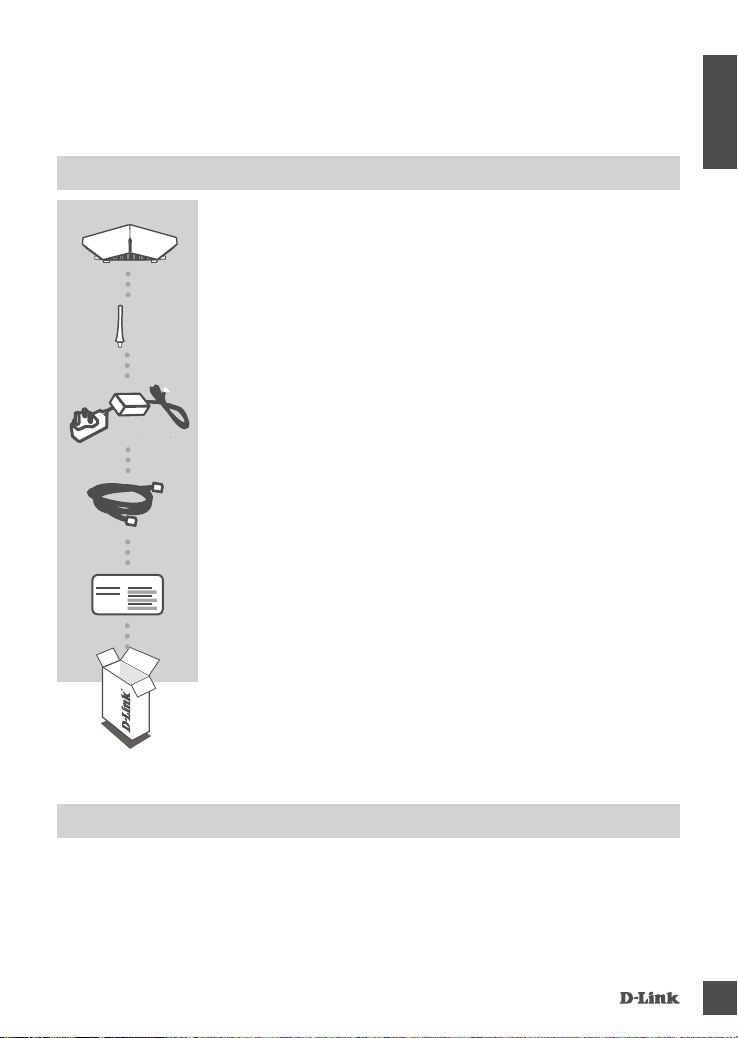

CONTENTS OF
PACKAGING
If any of these items are missing from your packaging, contact
your reseller.
POWER ADAPTER
12V / 5A
ETHERNET CABLE (CAT5 UTP)
CONNECTS THE ROUTER TO YOUR PC DURING SETUP
WI-FI CONFIGURATION CARD
CONTAINS THE DEFAULT WI-FI INFORMATION
CONTENTS
• A broadband Internet connection
• An e-mail account (required to register for mydlink service)
• Mobile device or tablet with iOS 6 or above, Android 2.3.3 or above
• Computer with:
• Microsoft Windows®8/7/Vista or Mac with OS X 10.6 or higher
• Internet Explorer 9, Firefox 20, Safari 5.1, or Chrome 25 or higher version with Java installed
and enabled
SYSTEM REQUIREMENTS
AC5300 ULTRA WIFI ROUTER
DIR-895L
8 ANTENNAS
Wi-Fi Conguration Note
x8

DIR-895L
2
ENGLISH
PRODUCT SETUP
To set up and manage your DIR-895L, you can use the free QRS Mobile app, or you can use the
built-in web interface. In order to use all of the functions of this router, you must register it with
mydlink. Simply follow the steps at the end of the Setup Wizard during installation to register your
product with your mydlink account.
NOTE: After mydlink registration is completed, your router’s default PPPoE, L2TP, PPTP connection
will be set to Always On. If your ISP charges for usage, you may wish to manually choose Dial On
Demand as your default setting.
NOTE: Attach the antennas to the router before powering it on.

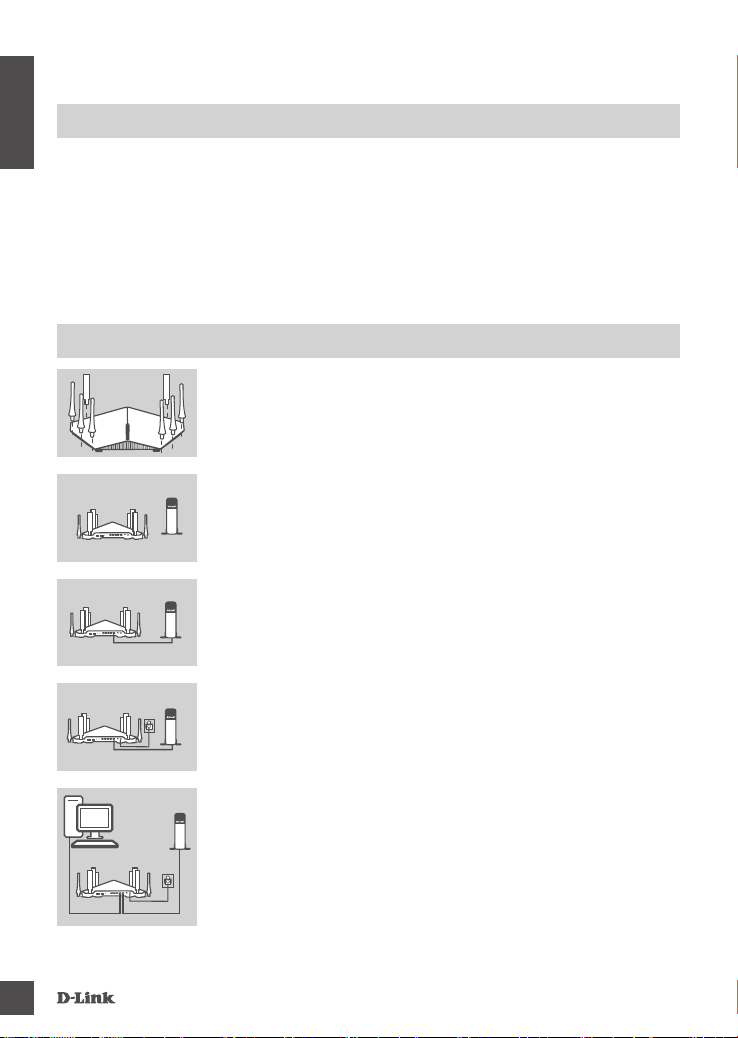

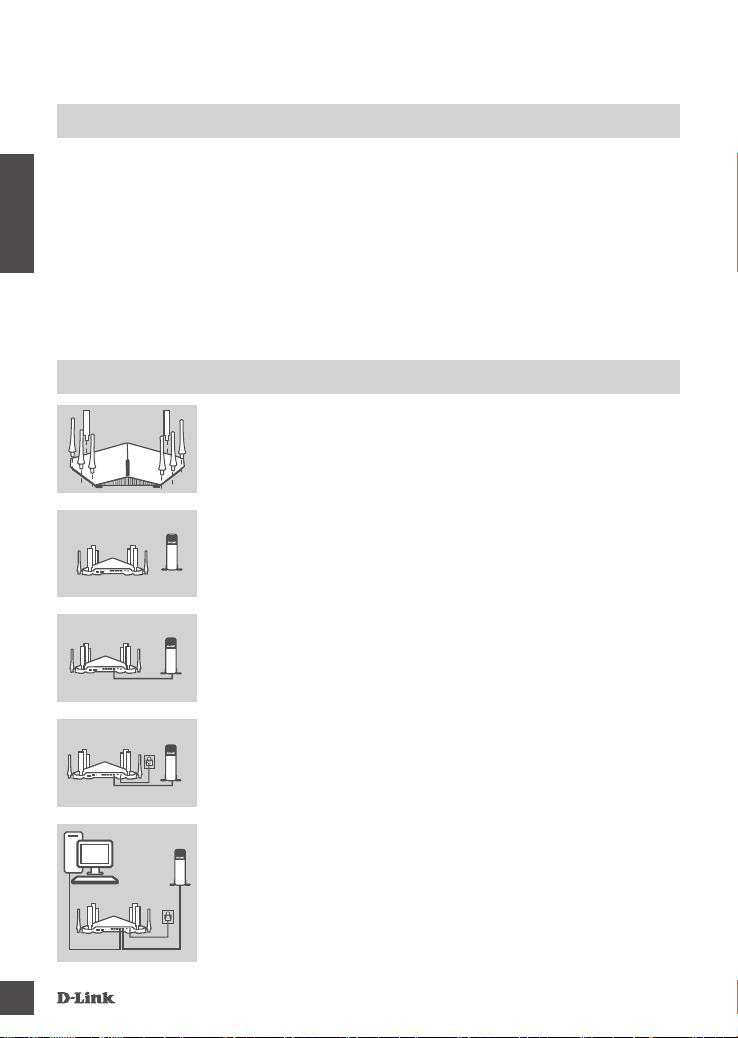

HARDWARE SETUP
Step 5
If using a PC to congure the router, plug one end of an Ethernet
cable into the port labeled 1 on the back of the router, and the other
end into the Ethernet port on your computer.
If you are setting up the DIR-895L using a laptop or mobile device,
connect it to the Wi-Fi network printed on the included Wi-Fi
Conguration Card.You can also nd the Wi-Fi network name and
password on the label attached to your router.
Step 1
Attach each of the antennas to the router by twisting them on in a
clockwise direction.
Step 2
Position your DIR-895L near your Internet-connected modem. Keep
the router in an open area for better wireless coverage.
Step 3
Use the included Ethernet cable to connect your modem to the port
labeled INTERNET on the router.
Step 4
Connect the supplied power adapter to the router and a power
outlet, press the power button, and verify that the power LED is on.
ModemRouter
ModemRouter
ModemRouter
PC
Modem
Router

DIR-895L 3
ENGLISH

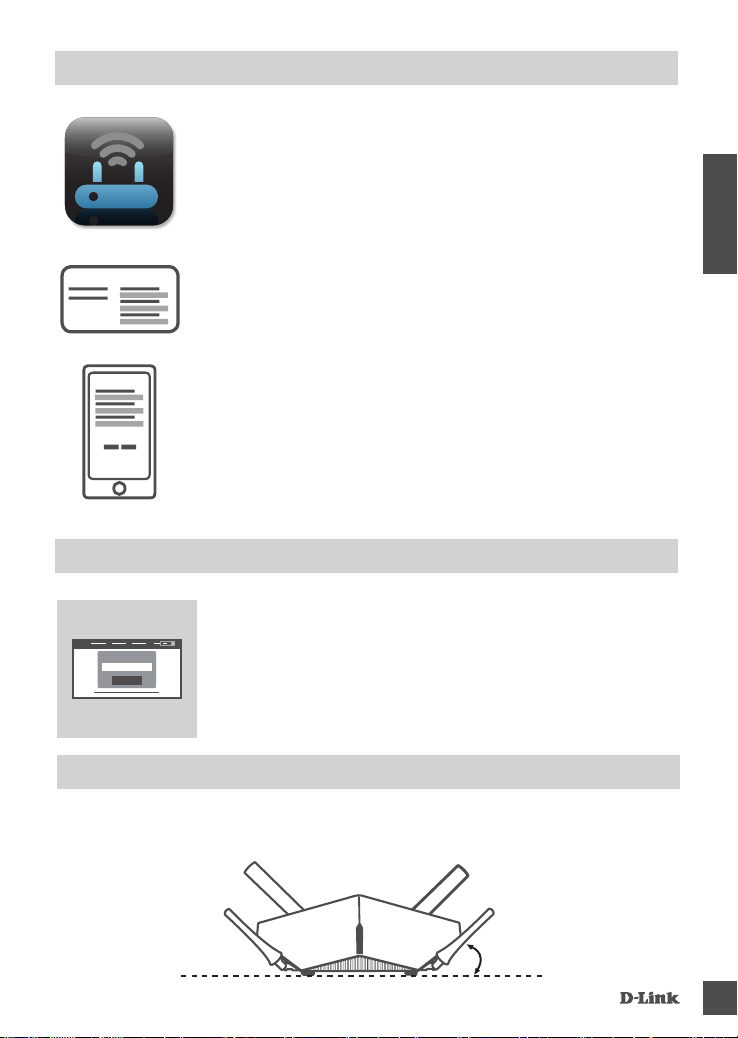

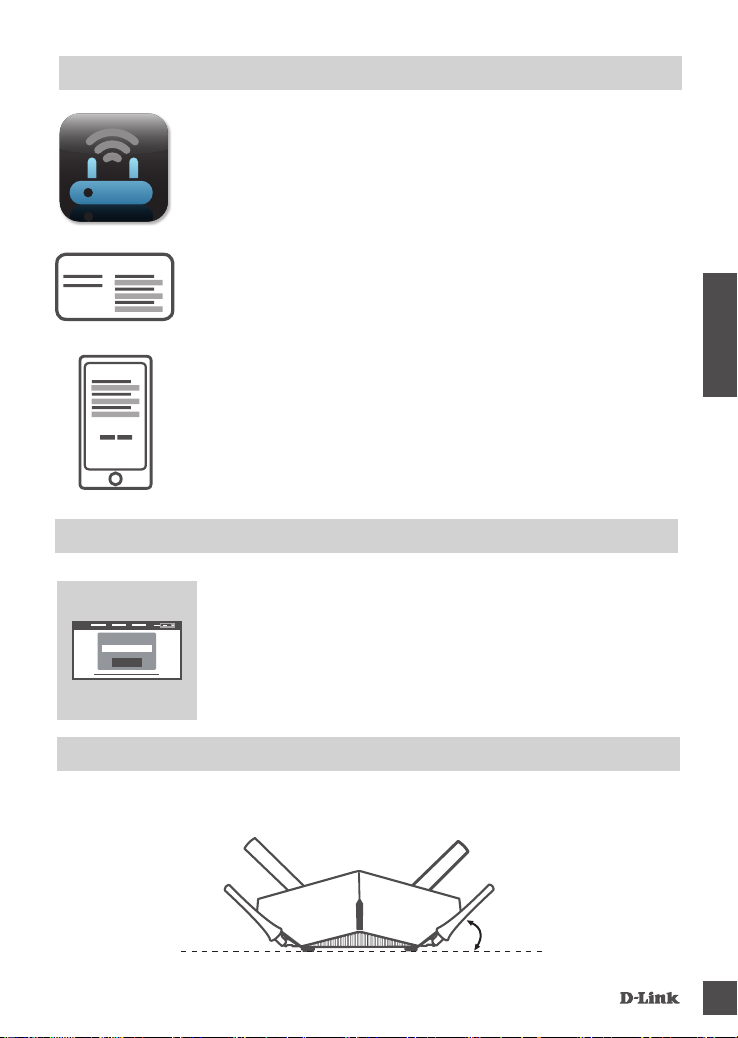

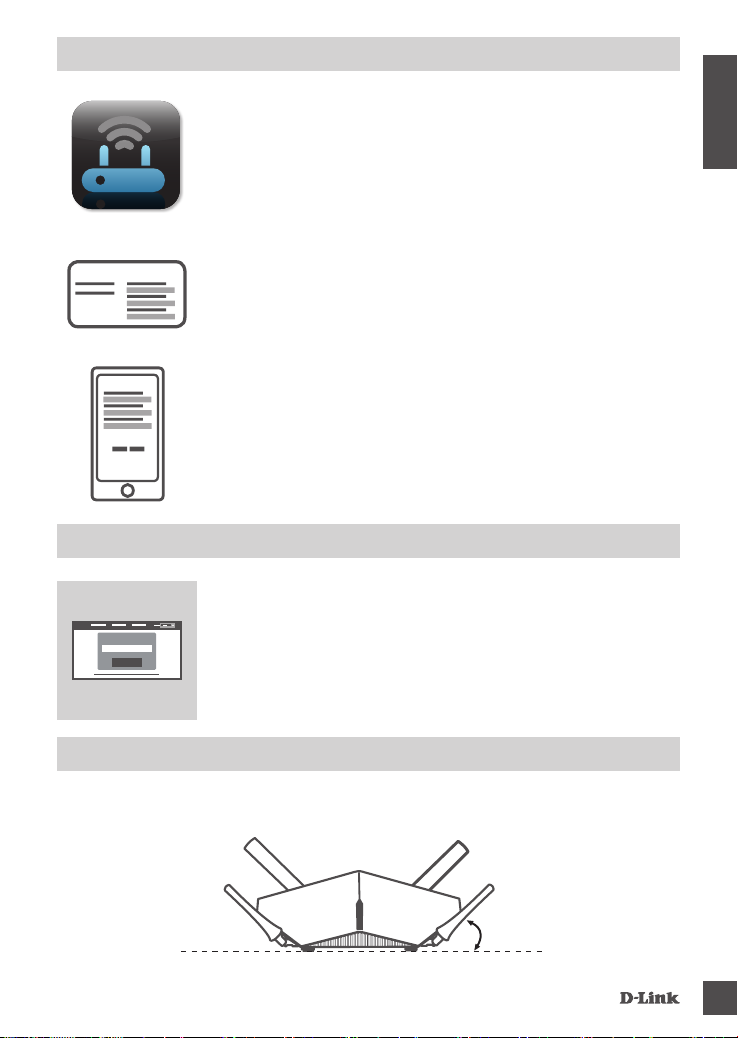

SETUP USING THE QRS MOBILE APP
Step 1
On your mobile device, go to the App Store or Google Play and
search for the free QRS Mobile app and download it.
Step 2
Connect your mobile device to the Wi-Fi network printed on the
included Wi-Fi Conguration Card. You can also nd the Wi-Fi
network name and password on the label attached to the router.
Wi-Fi Conguration Note
Step 3
Run the QRS Mobile app on your mobile device, and it will guide
you step by step through conguration of your router.
ANTENNA ORIENTATION
The DIR-895L is designed to give you the fastest, most stable network connection possible. In order to
maximize performance, orient the antennas at an angle, pointing outward and away from the base unit.
45°
To configure your DIR-895L, open a browser on the connected
computer. If you are not automatically directed to the D-Link Setup
Wizard, go to http://dlinkrouter.local./ and follow the onscreen
instructions. Use Admin as your username and leave the password
blank.
Log In
Admin Password:
SETUP USING THE BUILT-IN WEB INTERFACE

DIR-895L
4
ENGLISH
TROUBLESHOOTING
SETUP AND CONFIGURATION PROBLEMS
1. HOW DO I CONFIGURE MY DIR-895L ROUTER MANUALLY?
- Connect your PC to the router using an Ethernet cable.
- Open a web browser and enter the address http://dlinkrouter.local./ (or 192.168.0.1).
- The default username is Admin. The password should be left blank by default.
- If you have changed the password and cannot remember it, you will need to reset the router to
return to an empty password eld.
2. HOW DO I RESET MY DIR-895L ROUTER TO FACTORY DEFAULT SETTINGS?
- Ensure the router is powered on.
- Use an unfolded paperclip to press and hold the reset button on the back of the device for 10
seconds.
Note: Resetting the router to factory default will erase the current conguration settings.
To re-congure your settings, log into the router as outlined in question 1, then run the Setup Wizard.
3. HOW DO I ADD A NEW WIRELESS CLIENT OR PC IF I HAVE FORGOTTEN MY
WI-FI NAME (SSID) OR WI-FI PASSWORD?
- For every PC that needs to connect to the router wirelessly, you will need to ensure you use the
correct Wi-Fi Name (SSID) and Wi-Fi password.
- Use the web-based user interface (as described in question 1 above) to check or choose your
wireless settings.
- Make sure you write down these settings so that you can enter them for each wirelessly
connected PC. The back of this document features an area to record this important information.
4. WHY CAN'T I GET AN INTERNET CONNECTION?
- For ADSL users, please contact your ISP to make sure the service has been enabled/connected
by your ISP and that your ISP username and password are correct.
5. WHY CAN'T I REGISTER MY DEVICE WITH MYDLINK?
- If you experience issues registering this router with your mydlink account, try performing a hard
reset by using an unfolded paperclip to press and hold the reset button for 10 seconds while the
router is powered on. This may be necessary if you purchased an open box or resold unit.
MYDLINK LITE
The mydlink Lite app lets you check on your router, anywhere,
anytime. Check on your current upload and download speeds, see
who's connected, manage your wireless network details, and more!
After registering your DIR-895L with your mydlink account, just go
to the App Store, Google Play, or the Windows Store and search for
the free mydlink Lite app and download it.

DIR-895L 5
ENGLISH
TECHNICAL SUPPORT
You can nd software updates and user documentation on the D-Link website.
Tech Support for customers in
Australia:
Tel: [phone]
24/7 Technical Support
Web: http://www.dlink.com.au
E-mail: [email protected]
India:
Tel: [phone]
Toll Free 1800-233-0000
Web: www.dlink.co.in
E-Mail: [email protected]
Singapore, Thailand, Indonesia,
Malaysia, Philippines, Vietnam:
Singapore - www.dlink.com.sg
Thailand - www.dlink.co.th
Indonesia - www.dlink.co.id
Malaysia - www.dlink.com.my
Philippines - www.dlink.com.ph
Vietnam - www.dlink.com.vn
Korea:
Tel : [phone]
Monday to Friday 9:00am to 6:00pm
Web : http://d-link.co.kr
E-mail : [email protected]
New Zealand:
Tel: [phone]
24/7 Technical Support
Web: http://www.dlink.co.nz
E-mail: [email protected]
South Africa and Sub Sahara
Region:
Tel: [phone]
08600 DLINK (for South Africa only)
Monday to Friday 8:30am to 9:00pm South
Africa Time
Web: http://www.d-link.co.za
E-mail: [email protected]
D-Link Middle East - Dubai, U.A.E.
Plot No. S31102,
Jebel Ali Free Zone South,
P.O.Box 18224, Dubai, U.A.E.
Tel: [phone]
Fax: [phone]
Technical Support: [phone]
General Inquiries: [email protected]
Tech Support: [email protected]
Egypt
1, Makram Ebeid Street -
City Light Building - oor 5
Nasrcity - Cairo, Egypt
Tel.: [phone]
Technical Support: [phone]
General Inquiries: [email protected]
Tech Support: [email protected]
Kingdom of Saudi Arabia
Ofce # 84 ,
Al Khaleej Building ( Mujamathu Al-Khaleej)
Opp. King Fahd Road, Olaya
Riyadh - Saudi Arabia
Tel: [phone]
Technical Support:
[phone]
General Inquiries: info.sa@ dlinkmea.com
Tech Support: support.sa@ dlinkmea.com
Pakistan
Islamabad Ofce:
61-A, Jinnah Avenue, Blue Area,
Suite # 11, EBC, Saudi Pak Tower,
Islamabad - Pakistan
Tel.: [phone]
Fax: [phone]
Karachi Ofce:
D-147/1, KDA Scheme # 1,
Opposite Mudassir Park, Karsaz Road,
Karachi – Pakistan
Phone: [phone]
Fax: [phone]
Technical Support: [phone], 34305069
General Inquiries: [email protected]
Tech Support: [email protected]

DIR-895L
6
ENGLISH
TECHNICAL SUPPORT
Iran
Unit 5, 5th Floor, No. 20, 17th Alley , Bokharest
St. , Argentine Sq. ,
Tehran IRAN
Postal Code : 1513833817
Tel: [phone],19
+98-21-88706653,54
General Inquiries: [email protected]
Tech Support: [email protected]
Morocco
M.I.T.C
Route de Nouaceur angle RS et CT 1029
Bureau N° 312 ET 337
Casablanca , Maroc
Phone : [phone]
Email: [email protected]
Lebanon RMA center
Dbayeh/Lebanon
PO Box:901589
Tel: [phone] Ext:14
Fax: [phone] Ext:12
Email: [email protected]
Bahrain
Technical Support: [phone]
Kuwait:
Technical Support: + 965 22453939 / +965
22453949
Türkiye
Büyükdere Cad. Ferro Plaza No:155
D: 1 K: 1 Zincirlikuyu / Istanbul
Tel: [phone]
Email: [email protected]
לארשי
רטנס ןולטמ
20 םימישגמה 'חר
7060 ד"ת ,49348 ת"פ ,ןולטמ תירק
03-9215173 :לט
073-7962797 :לט
[email protected] :יללכ ל"אוד
[email protected] :הכימת ל"אוד

DIR-895L 7
РУССКИЙ

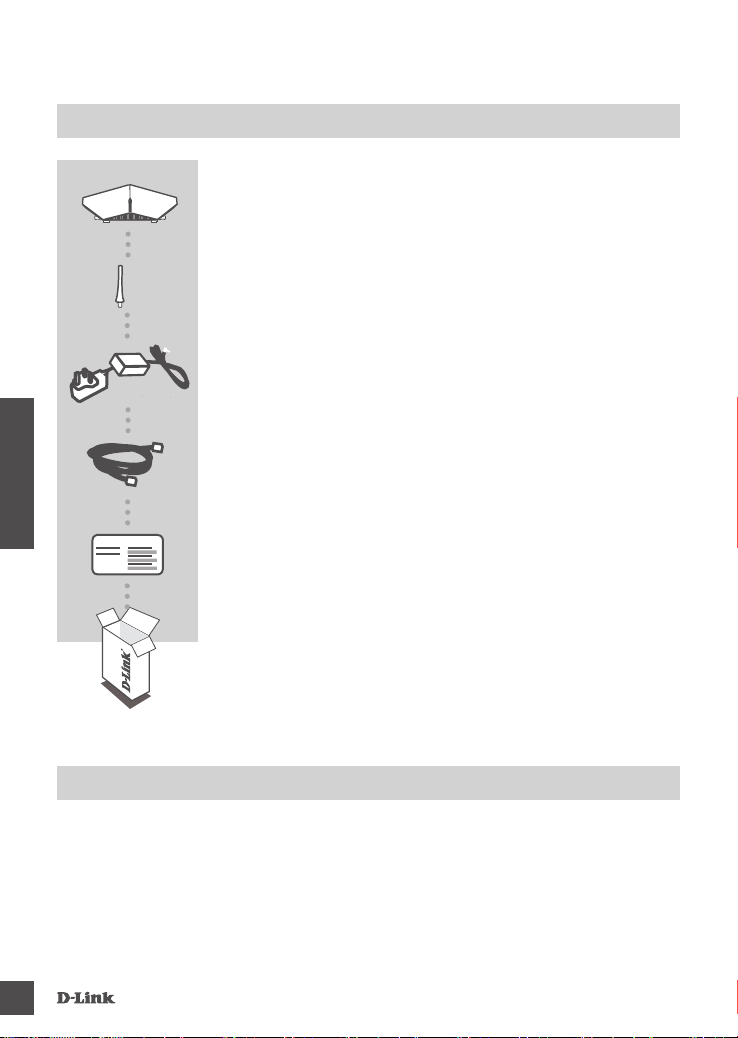

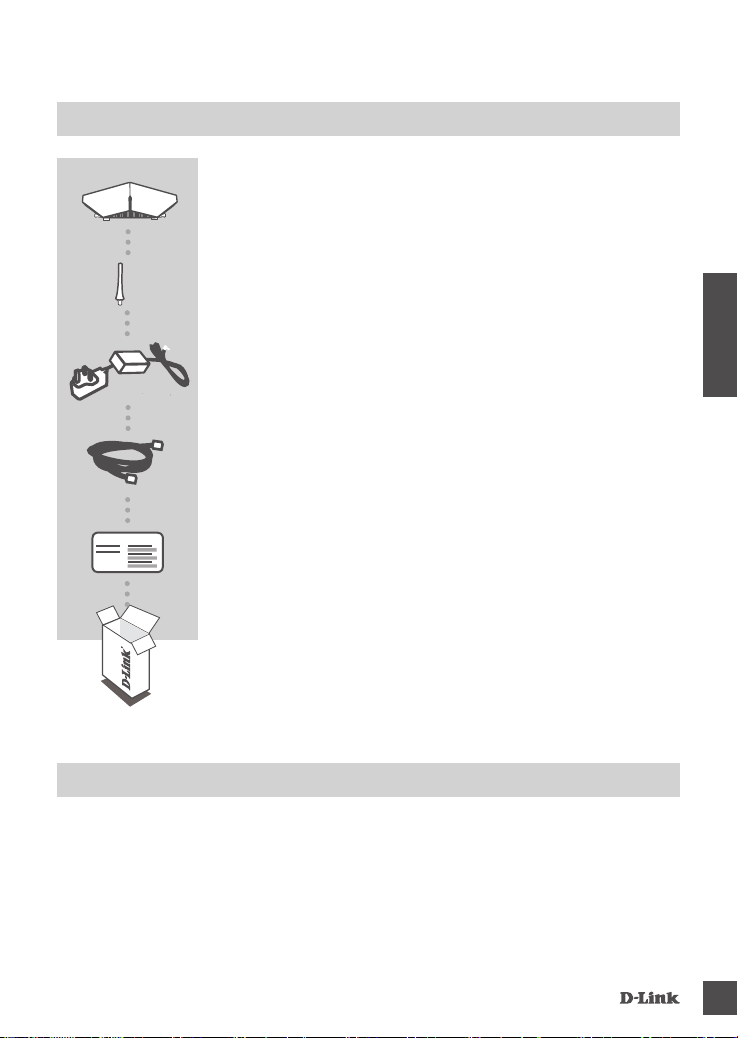

КОМПЛЕКТ ПОСТАВКИ
АДАПТЕР ПИТАНИЯ
12 В / 5 А
ETHERNET-КАБЕЛЬ (CAT5 UTP)
ДЛЯ ПОДКЛЮЧЕНИЯ МАРШРУТИЗАТОРА К КОМПЬЮТЕРУ
Если что-либо из вышеперечисленного отсутствует, обратитесь
к поставщику.
КАРТОЧКА С НАСТРОЙКАМИ БЕСПРОВОДНОЙ СЕТИ
СОДЕРЖИТ ИНФОРМАЦИЮ О НАСТРОЙКАХ
БЕСПРОВОДНОЙ СЕТИ ПО УМОЛЧАНИЮ
БЕСПРОВОДНОЙ ДВУХДИАПАЗОННЫЙ ГИГАБИТНЫЙ
МАРШРУТИЗАТОР AC5300 С ПОРТАМИ USB 2.0 И USB
3.0 И ПОДДЕРЖКОЙ СЕРВИСА MYDLINK
DIR-895L
СОДЕРЖИМОЕ
• Широкополосное Интернет-соединение
• Учетная запись e-mail (требуется для регистрации на портале mydlink)
• Мобильное устройство или планшетный ПК с iOS версии 6 или выше, Android версии 2.3.3
или выше
• Компьютер:
• Microsoft Windows® 8/7/Vista, или Mac OS X 10.6 или выше
• Internet Explorer версии 9, Firefox версии 20, Safari версии 5.1, Chrome версии 25 или выше
с установленными и включенными элементами управления Java
СИСТЕМНЫЕ ТРЕБОВАНИЯ
8 АНТЕННЫ
Wi-Fi Conguration Note
x8

DIR-895L
8
РУССКИЙ
УС ТАНОВКА
Для настройки и управления маршрутизатором DIR-895L Вы можете использовать бесплатное
приложение QRS Mobile или встроенный Web-интерфейс. Для того чтобы использовать
весь функционал данного маршрутизатора, необходимо зарегистрировать устройство
на сайте mydlink. Для регистрации следуйте пошаговым инструкциям завершающей стадии
установки с помощью Мастера.
ПРИМЕЧАНИЕ: После завершения регистрации в mydlink для соединений PPPoE, L2TP, PPTP
по умолчанию будет установлен режим подключения Always On (Всегда). Если провайдер
взимает плату на основе времени, Вы можете задать по умолчанию режим Dial On Demand
(Соединение по требованию).

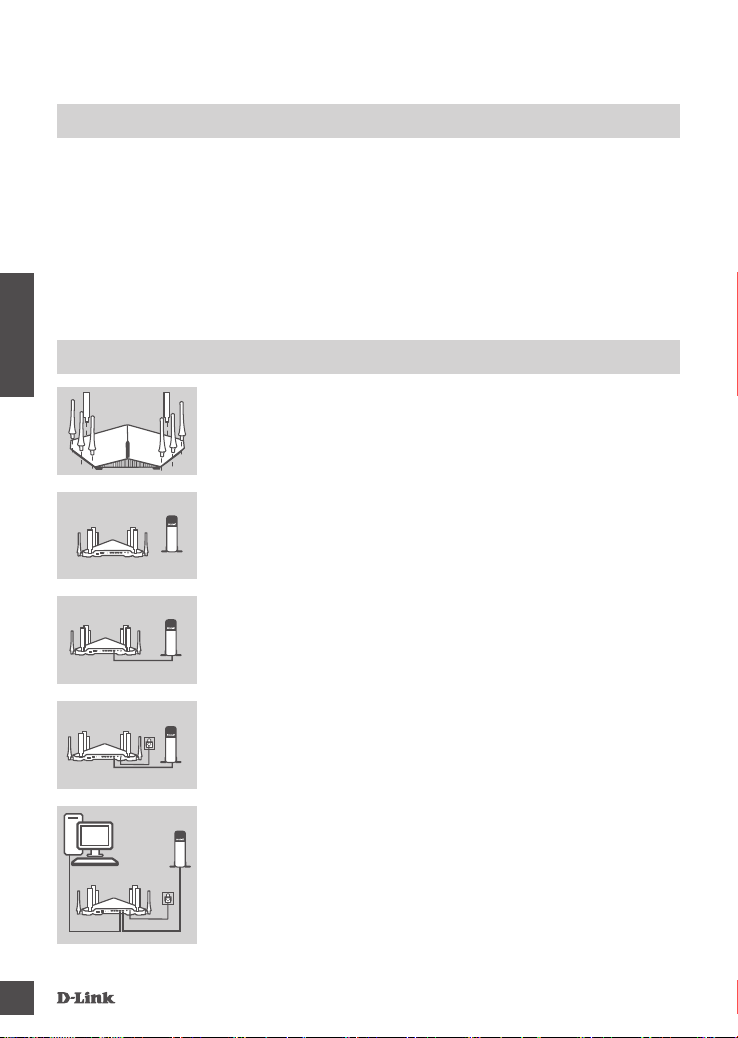

УСТАНОВКА УСТРОЙСТВА
Шаг 5
Если при настройке маршрутизатора используется ПК,
подключите Ethernet-кабель к порту 1, расположенному на
задней панели маршрутизатора, и к Ethernet-порту компьютера.
Если при настройке маршрутизатора DIR-895L используется
ноутбук или мобильное устройство, подключите его к
беспроводной сети, имя которой напечатано на входящей
в комплект поставки карточке с настройками беспроводной
сети. Имя сети и пароль Wi-Fi также можно найти на этикетке,
прикрепленной к маршрутизатору.
Шаг 1
Присоедините каждую из антенн к маршрутизатору, поворачивая
ее по часовой стрелке.
Шаг 2
Установите DIR-895L рядом с модемом, подключенным к сети
Интернет. Для увеличения зоны покрытия беспроводной сети
устройство следует устанавливать на открытом пространстве.
Шаг 3
Используйте входящий в комплект поставки Ethernet-кабель,
чтобы подключить модем к порту INTERNET, расположенному
на задней панели маршрутизатора.
Шаг 4
Подключите входящий в комплект поставки адаптер питания к
соответствующему разъему на задней панели маршрутизатора,
а затем подключите его к электрической розетке или к
устройству защиты от перенапряжений. Нажмите кнопку
питания, проверьте индикатор питания и убедитесь в том, что
маршрутизатор включен.
ПРИМЕЧАНИЕ: Присоедините антенны к маршрутизатору до включения его питания.
Модем
Модем
Модем
Маршрутизатор
Маршрутизатор
Маршрутизатор
Модем
Маршрутизатор
ПК
