D-Link DFL-1500 User manual

1
Before You Begin
It’s best to use a computer with an Ethernet adapter for configuring the DFL-1500. The
default IP address for the DFL-1500 is 192.168.1.254 (LAN1 at the port number 3)
with a Subnet Mask of 255.255.255.0. You will need to assign your computer a Static
IP address within the same range as the DFL-1500’s IP address, say 192.168.1.2 to
configure the DFL-1500. See the Appendix if you need assistance in assigning a
Static IP address for your network adapter.
Check Your Package Contents
These are the items included with your DFL-1500 V.A1 purchase:
If any of the above items are missing, please contact your reseller.
©2003 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective
holders. Software and specifications are subject to change without notice. DFL-1500 VA1.08062002
This product can be set up using
any currentweb browser, i.e.,
Internet Explorer 6x.
D-Link DFL-1500
Firewall/VPN
Router
ENGLISH
• DFL-1500
V
PN
/
Firewall Router
• CD-ROM (containing Manual and Warranty)
• Console Cable (baud rate 9600)
•Ethernet Cable (RJ45)
•Power Cord

2
Device default value
You should have an Internet account already set up and have been given most of the
following information as the following table. Fill out this table when you edit the web
configuration of DFL-1500.
Items Default value New value
Password: admin
IP Address ____.____.____.____
Subnet Mask ____.____.____.____
Gateway IP ____.____.____.____
Primary DNS ____.____.____.____
Fixed IP
Secondary DNS ____.____.____.____
PPPoE Username ____.____.____.____
PPPoE PPPoE Password ____.____.____.____
WAN1
(Port 1)
DHCP
Not initialized
IP Address ____.____.____.____
Subnet Mask ____.____.____.____
Gateway IP ____.____.____.____
Primary DNS ____.____.____.____
Fixed IP
Secondary DNS ____.____.____.____
PPPoE Username ____.____.____.____
PPPoE PPPoE Password ____.____.____.____
WAN2
(Port 2)
DHCP
Not initialized
IP Address 10.1.1.254 ____.____.____.____
DMZ1(Port 3) IP Subnet Mask 255.255.255.0 ____.____.____.____
IP Address 192.168.1.254 ____.____.____.____
LAN1(Port 4) IP Subnet Mask 255.255.255.0 ____.____.____.____
IP Address 192.168.2.254 ____.____.____.____
LAN2(Port 5) IP Subnet Mask 255.255.255.0 ____.____.____.____

3
System Architecture
DFL-1500 is an integrated solution that can provide enterprises the maximum security
and the best resource utilization. It contains stateful inspection Firewall, NAT, VPN,
Intrusion Detection System, Dynamic Routing, Content Filtering, Bandwidth
Management, WAN load balancer, Anti-Virus, in a single box. It also features high
performance accelerator and wire-speed VPN encryption/decryption. It is the most
cost-effective solution for enterprise.

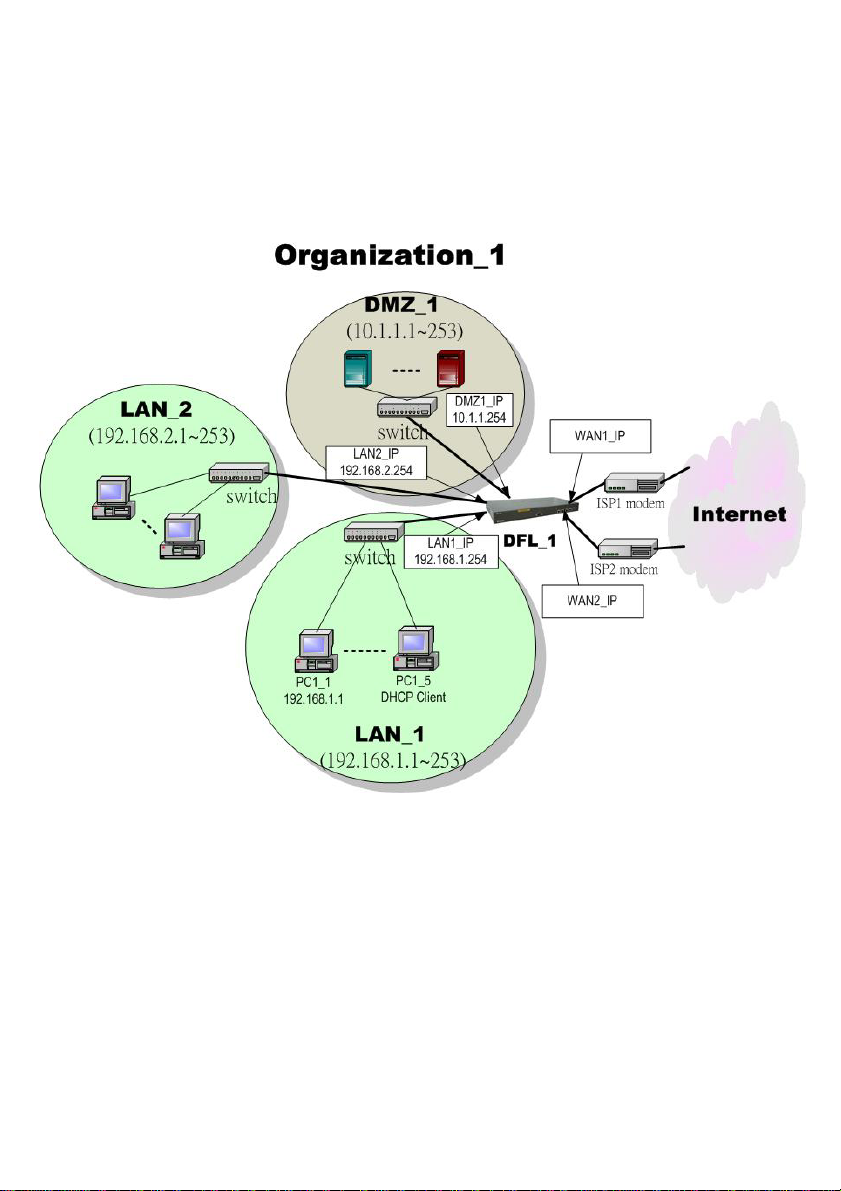

Figure 1 DFL-1500 default topology and port value settings.

4

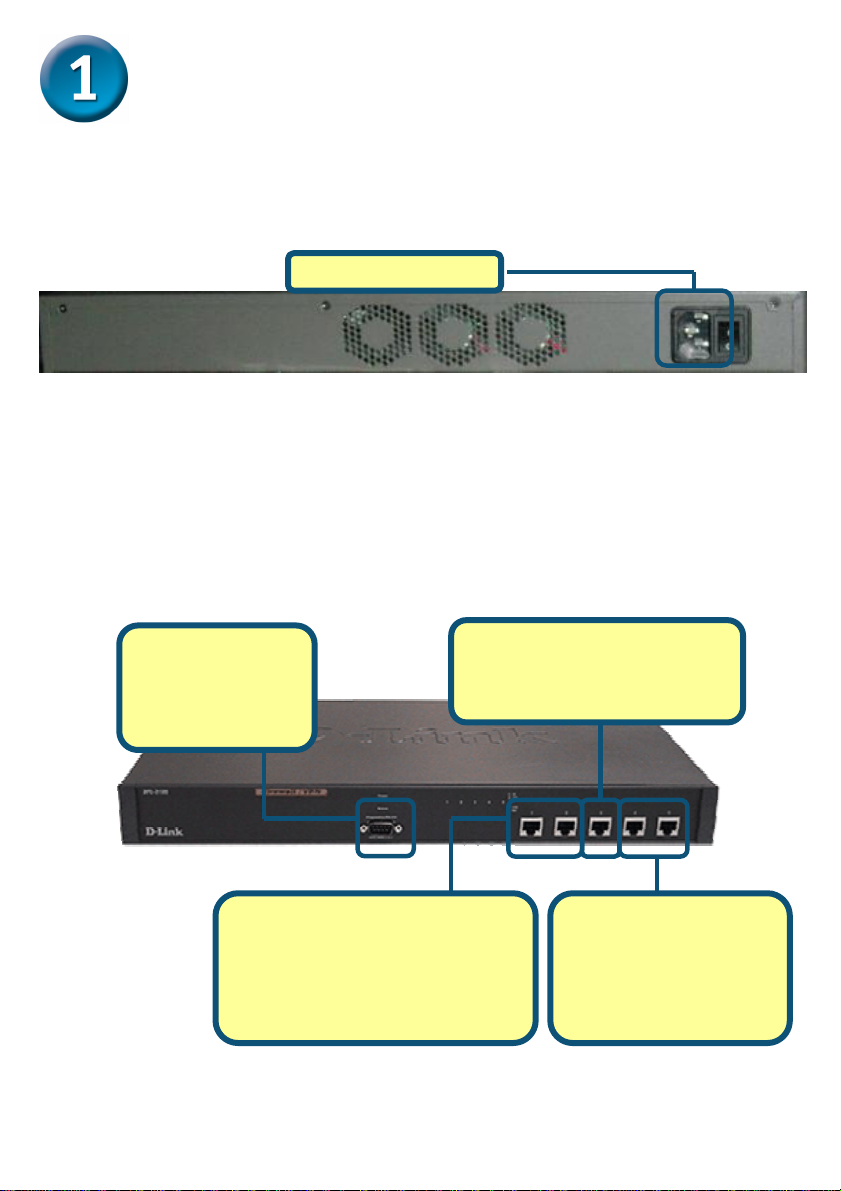

Connecting the DFL-1500
A. First, connect the power cord to the Power Socket at the back panel
of the DFL-1500 and then plug the other end of the power adapter to
a wall outlet or power strip. Press the switch to ON position. The
Power LED will turn ON to indicate proper operation.
B. Using an Ethernet cable, insert one end of the cable to the WAN port
on the front panel of the DFL-1500 and the other end of the cable to a
DSL / Cable modem or other internet access devices.
C. Computers with an Ethernet adapter can be directly connected to any
of the LAN ports using a cross-over Ethernet cable.
D. Computers that act as servers to provide Internet services should be
connected to the DMZ port using an Ethernet Cable.
C.LAN Ports
For connecting
computers and network
devices to your LAN.
Left to right: LAN1, LAN2
Console Port
For managing the
DFL-1500 with CLI
commands.
B.WAN Port
For connecting the DFL-1500 to a
DSL or Cable Modem supplied by
your ISP to access the Internet.
Left to right: WAN1, WAN2
D.DMZ Port
For connecting computers that
act as servers for Internet
users to access.
A
.Power Socket

5

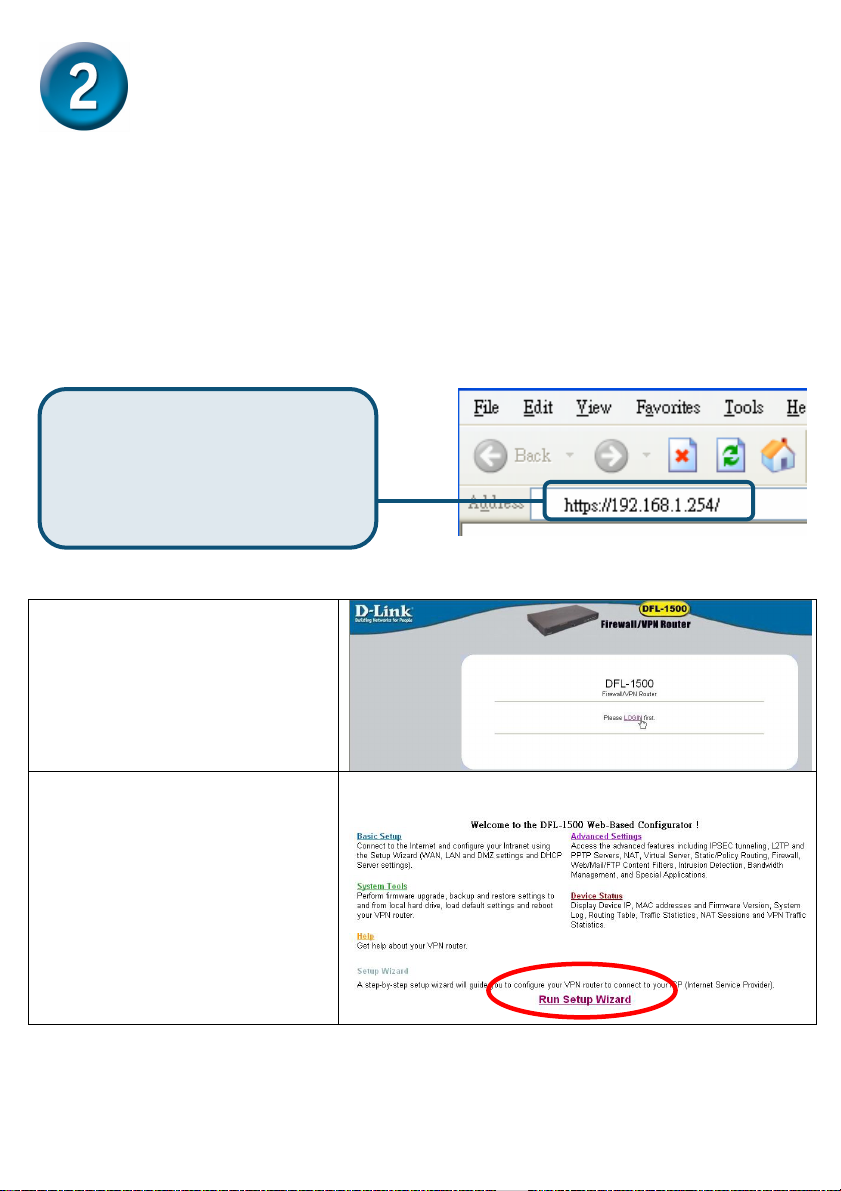

Using the Setup Wizard
A computer on your LAN1 must be assigned an IP address and subnet mask from the
same range as the IP address and subnet mask assigned to the DFL-1500 in order to
be able to make an HTTPS connection using a web browser. The DFL-1500 is
assigned an IP address of 192.168.1.254 with a subnet mask of 255.255.255.0 by
default. The computer that will be used to configure the DFL-1500 must be assigned
an IP address between 192.168.1.1 and 192.168.1.253 with a subnet mask of
255.255.255.0 to be able to connect to the DFL-1500. This address range can be
changed later. There are instructions in the DFL-1500 User’s Guide, if you do not
know how to set the IP address and subnet mask for your computer.
Step 1 －Login
Type “admin” in the account field,
“admin” in the Password field and
click Login.
Step 2 －Run Setup
Wizard
Click the Run Setup Wizard.
After login to DFL-1500 web configurator
BASIC SETUP > Wizard
Open your Web browse
r
and
type “http://192.168.1.254:8080”
or “https://192.168.1.254”into the
URL address box. Then press the
Enter or Return key.

6

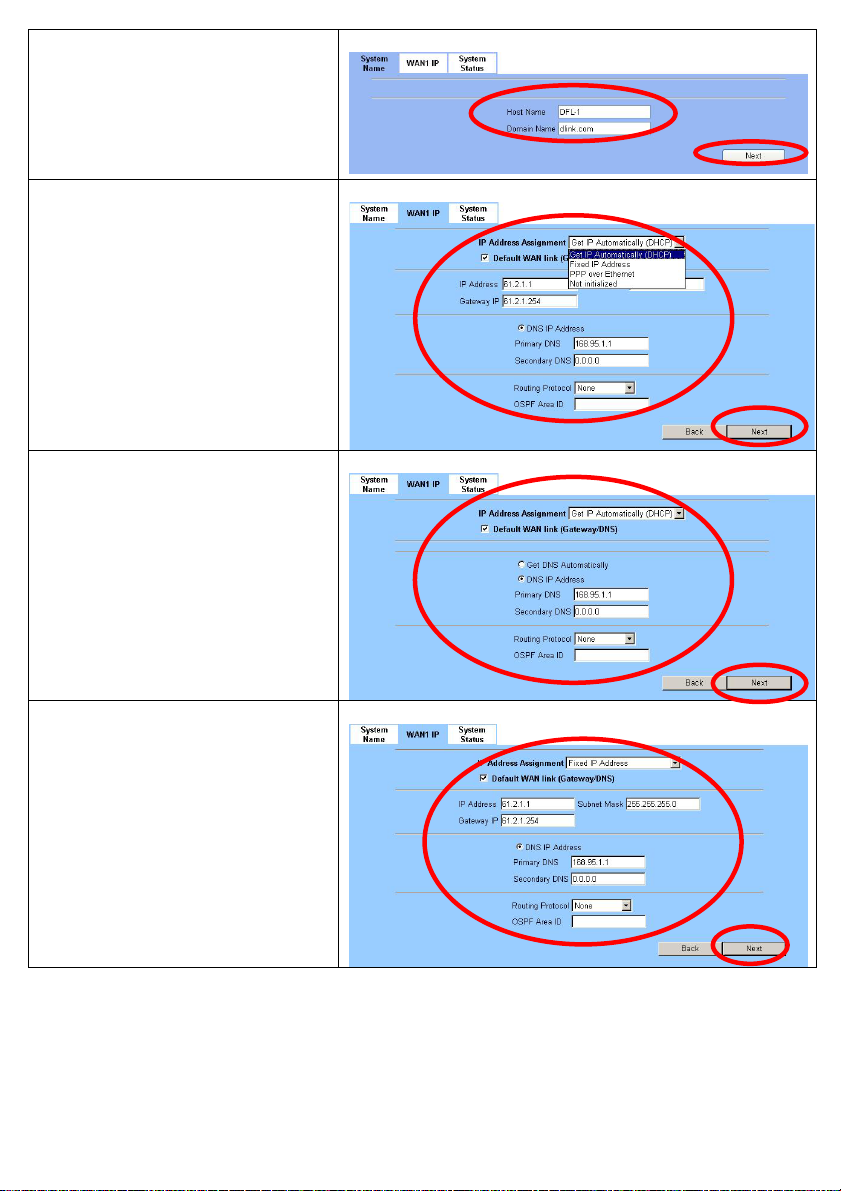

Step 3 －System Name
Enter the Host Name and the
Domain Name, followed by clicking
the Next.
BASIC SETUP > Wizard
Step 4 －WAN
Connectivity
To setup the first WAN link, make
WAN1 as the Default WAN link
(Gateway/DNS). Choose the type
of IP Address Assignment
provided by your ISP to access the
Internet. Here we have four types to
select. This will determine how the
IP address of WAN1 is obtained.
Click Next to proceed.
BASIC SETUP > Wizard > Next
Step 4.a —DHCP client
If Get IP Automatically
(DHCP) is selected, DFL-1500 will
request for IP address, netmask,
and DNS servers from your ISP.
You can use your preferred DNS by
clicking the DNS IP Address and
then completing the Primary DNS
and Secondary DNS server IP
addresses. Click Next to proceed.
BASIC SETUP > Wizard > Next > DHCP
Step 4.b —Fixed IP
If Fixed IP Address is selected,
enter the ISP-given IP Address,
Subnet Mask, Gateway IP,
Primary DNS and Secondary
DNS IP. Click Next to proceed.
BASIC SETUP > Wizard > Next > Fixed IP

7

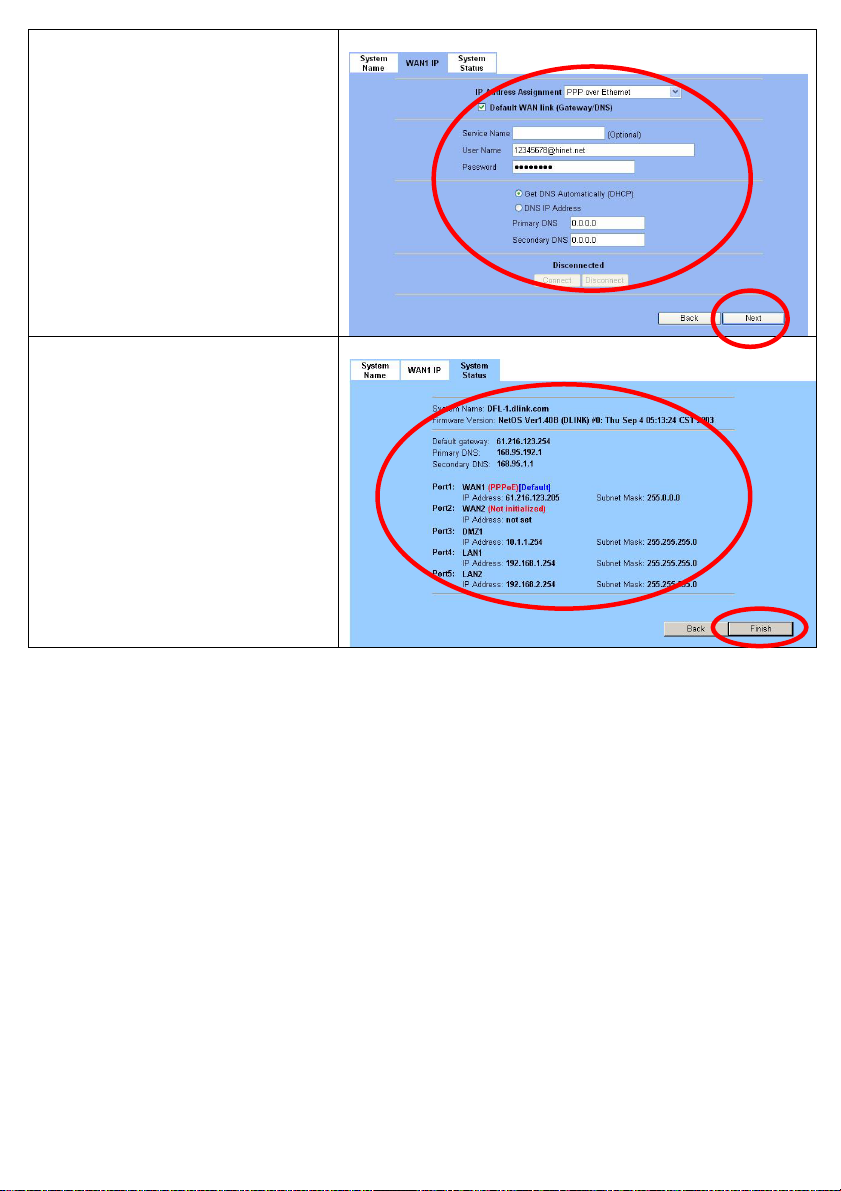

Step 4.c —PPPoE client
If PPP over Ethernet is
selected, enter the ISP-given User
Name, Password and the optional
Service Name. Click Next to
proceed.
BASIC SETUP > Wizard > Next > PPPoE
Step 5 －System Status
Here we select PPPoE method in
WAN1 port. Then the DFL-1500
provides a short summary of the
system. Please check if anything
mentioned above is properly set
into the system. Click Finish to
close the wizard.
BASIC SETUP > Wizard > Next > Next

8
Basic Setup
Setting up a VPN and configuring the Firewall on the DFL-1500 requires a deeper
understanding of the protocols and security features of the DFL-1500 than can be
presented here. If you need additional information about setting up a VPN or
configuring the Firewall, please consult your DFL-1500 User’s Guide or your Network
Administrator.
Please Note:
Each configuration page has buttons on the bottom labeled Apply and Reset. When
you configure any page, you must press the Apply button to make the configuration
effective. You CANNOT configure multiple pages, and then press Apply. Each page
must have the configuration information ‘applied’ before going on to the next page.
WAN Settings
The WAN Settings page allows you to modify the protocol that the DFL-1500 will use
to connect to your ISP and obtain the necessary network address information.
The usage of these pages is essentially the same as those introduced in the wizard
pages. The ISP Settings page allows you to modify the way that the DFL-1500 obtains
its network settings from your Internet Service Provider (ISP). The entry fields on the
page will change depending upon which of the following options you choose: Fixed IP
Address, Get IP Automatically, and PPPoE.

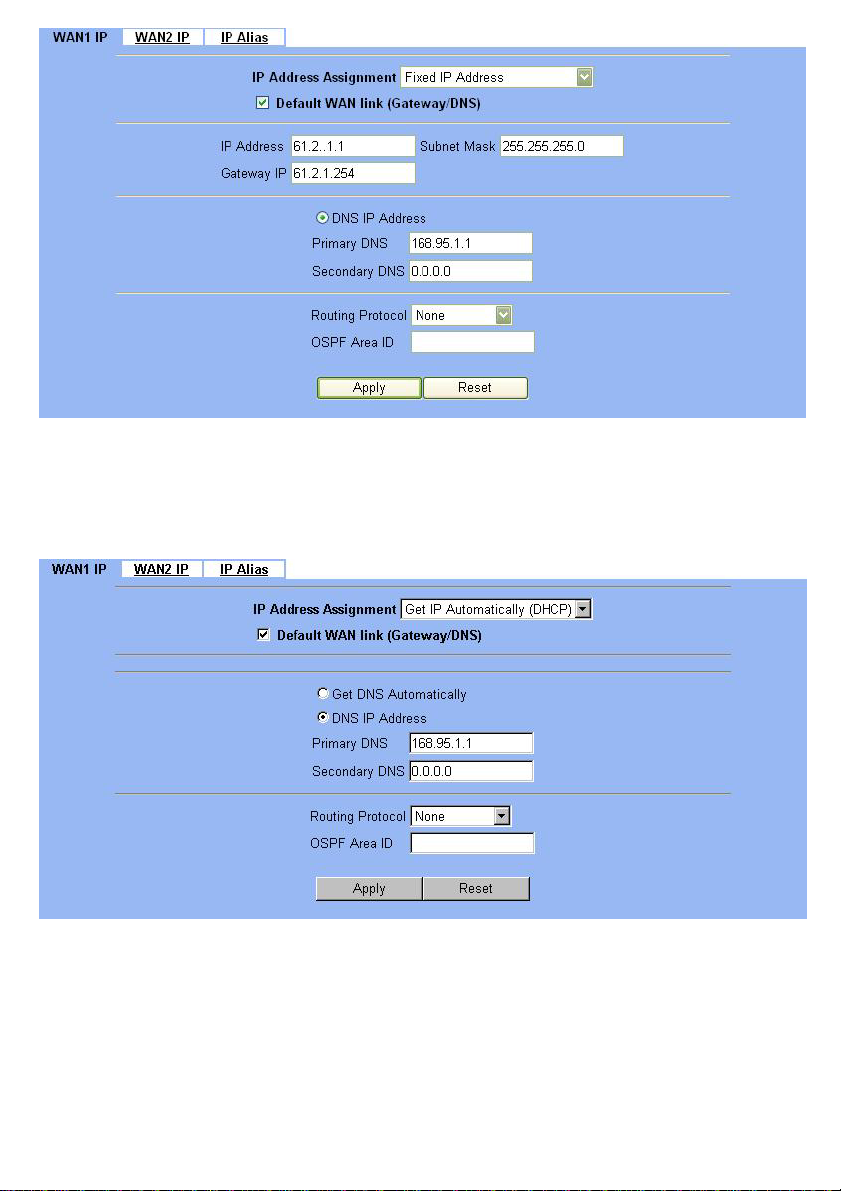

1. Fixed IP Address
If your ISP has assigned you an IP address that will never change, choose this option.
When this option is chosen, the following fields appear to allow you to enter the
network address information. The example shows that the ISP assigns an IP 61.2.1.1,
a netmask 255.255.255.0, a default gateway 61.2.1.254, and DNS (168.95.1.1).

9
2. Get IP Automatically
If your ISP uses the Dynamic Host Configuration Protocol (DHCP) to assign an IP
address, subnet mask, default gateway and DNS addresses, choose this option.

10

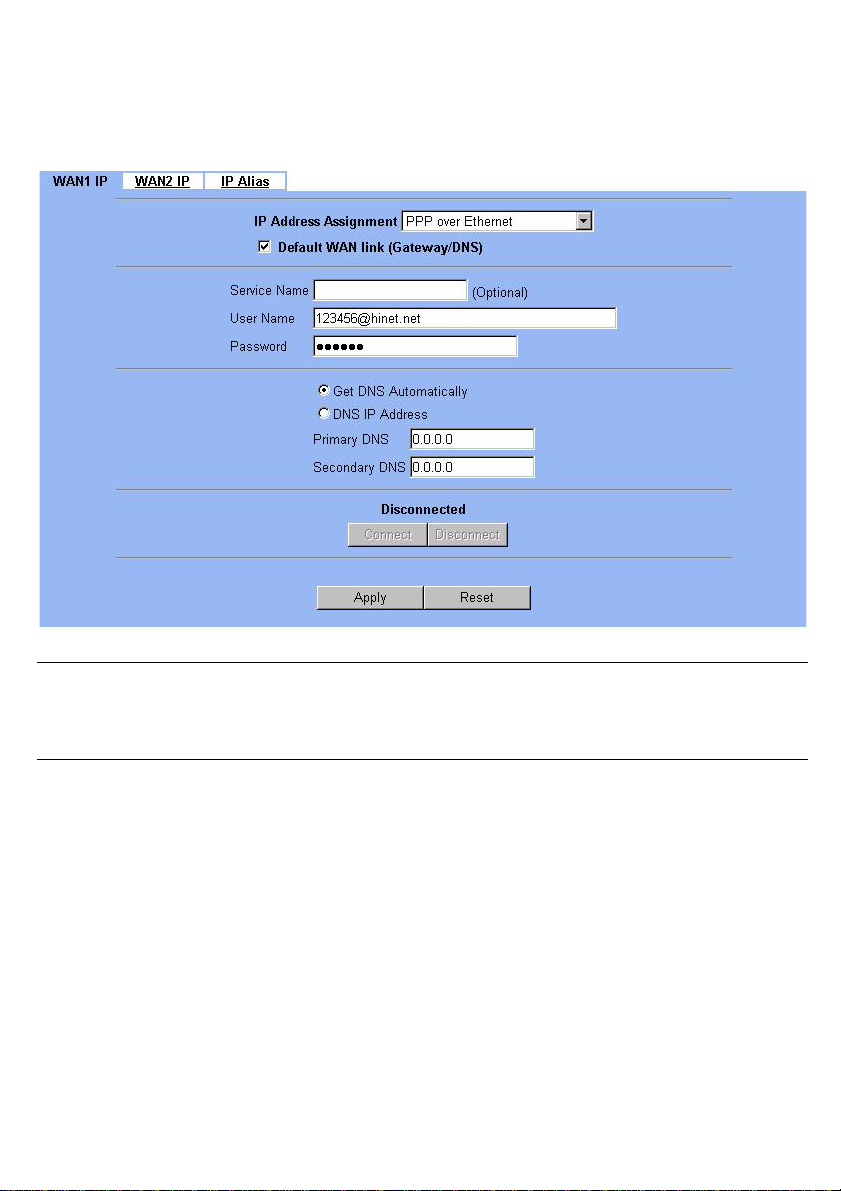

3. PPPoE
If your ISP uses Point-to-Point Protocol over Ethernet (PPPoE), choose this option.
When this option is chosen, the following fields appear to allow you to enter the
network address information:
To simplify the initial settings of the DFL-1500, the Network Address Translation is
automatically configured if the NAT Basic mode is selected. Then the DFL-1500
will let all private-IP traffic from the subnets of LAN/DMZ ports to access the
Internet using the global IP address assigned by the ISP.

11

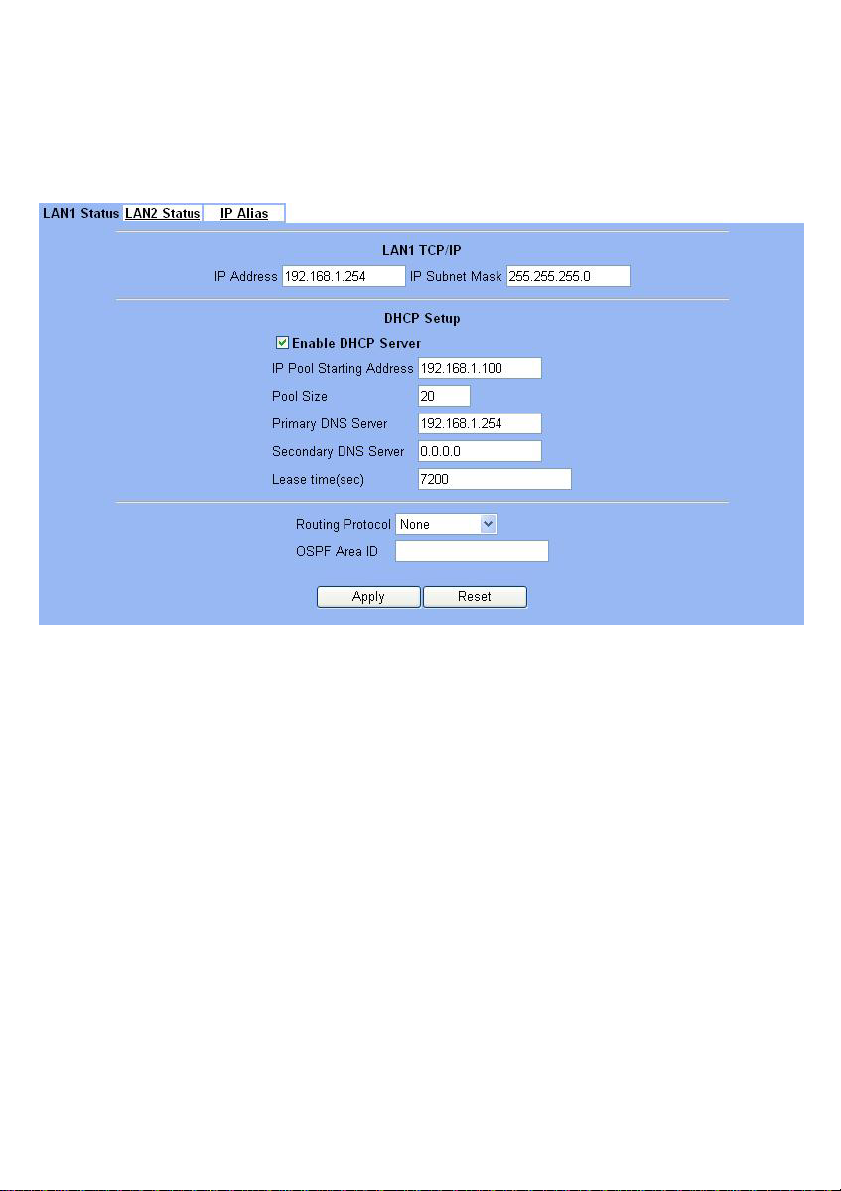

LAN Settings
The LAN Settings page allows you to modify the IP address and subnet mask that will
identify the DFL-1500 on your LAN. This is the IP address you will enter in the URL
field of your web browser to connect to the DFL-1500. It is also the IP address that all
of the computers and devices on your LAN will use as their Default Gateway.
IP Address −this is the IP address that will be assigned to the LAN port. The default
is 192.168.1.254 with a subnet mask of 255.255.255.0.
IP Subnet Mask −this is the subnet mask corresponding to the LAN port’s IP address,
above. The default is 255.255.255.0.
The IP address assigned to the DFL-1500 here, must be on the same subnet (be
within the same IP address range) specified on the DHCP Servers. The DHCP Server
fields allow you to configure the DFL-1500 to be a DHCP Server on your LAN. The
DFL-1500 can then automatically assign IP addresses, subnet masks, default gateway
and DNS server addresses to computers on your LAN. The computers on your LAN
must have a DHCP client enabled to get their network address information from the
DFL-1500.
IP Pool Starting Address −the first IP address of the range from which the DFL-1500
will assign to each of the computers on your LAN.
Pool Size −the number of IP addresses which the DFL-1500 will assign to the
computers on you LAN.

12

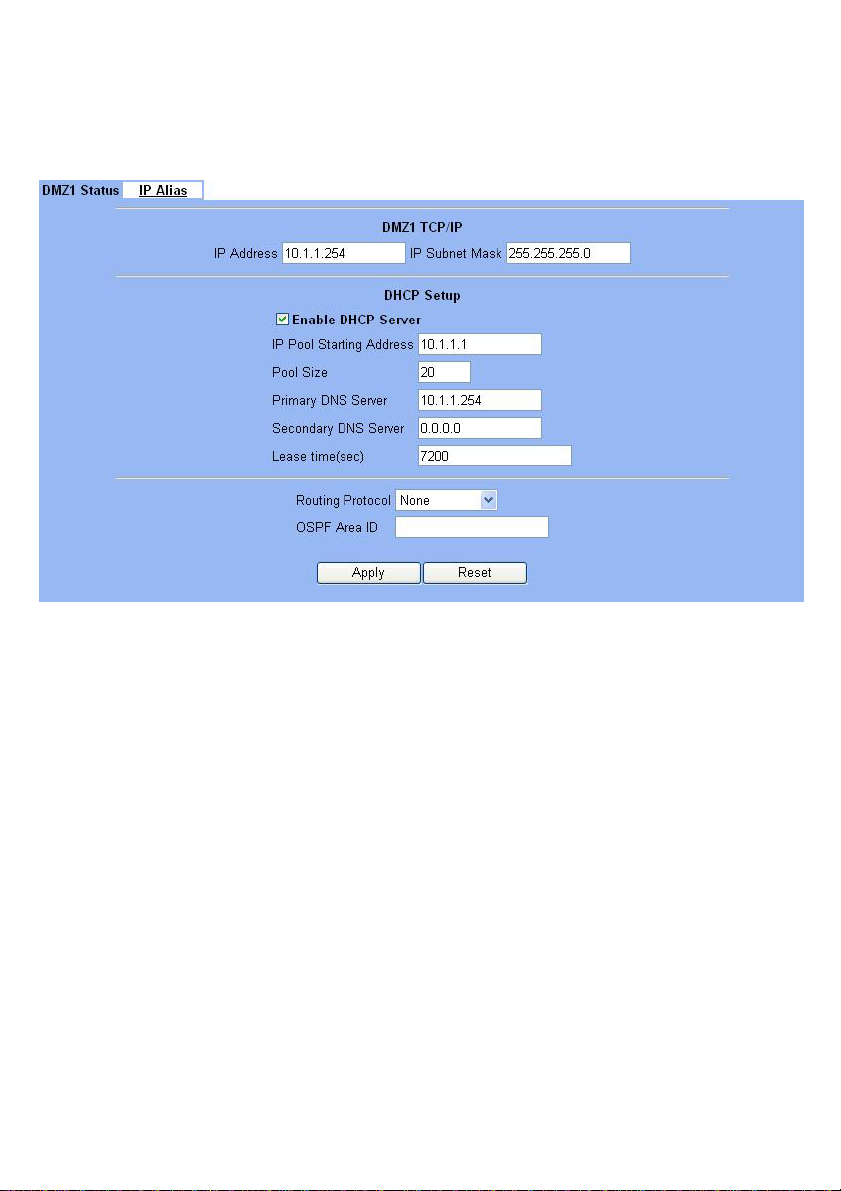

DMZ Settings
The DFL-1500 has one DMZ port for connecting servers that are exposed to the public
Internet for accesses. The DMZ port is assigned an IP address of 10.1.1.254 with a
subnet mask of 255.255.255.0 by default. Note that the DMZ IP address is on the
10.1.1.x subnet while the LAN ports are on the 192.168.1.x subnet by default.
IP Address −this is the IP address that will be assigned to the DMZ port. The default
is 10.1.1.254 with a subnet mask of 255.255.255.0.
IP Subnet Mask −this is the subnet mask corresponding to the DMZ port’s IP address,
above. The default is 255.255.255.0.
The IP address assigned to the DFL-1500 here, must be on the same subnet (be
within the same IP address range) specified on the DHCP Servers. The DHCP Server
fields allow you to configure the DFL-1500 to be a DHCP Server on your DMZ. The
DFL-1500 can then automatically assign IP addresses, subnet masks, default gateway
and DNS server addresses to computers on your DMZ. The computers on your DMZ
must have a DHCP client enabled to get their network address information from the
DFL-1500.
IP Pool Starting Address −the first IP address of the range from which the DFL-1500
will assign to each of the computers on your DMZ.
Pool Size −the number of IP addresses which the DFL-1500 will assign to the
computers on you DMZ.

13

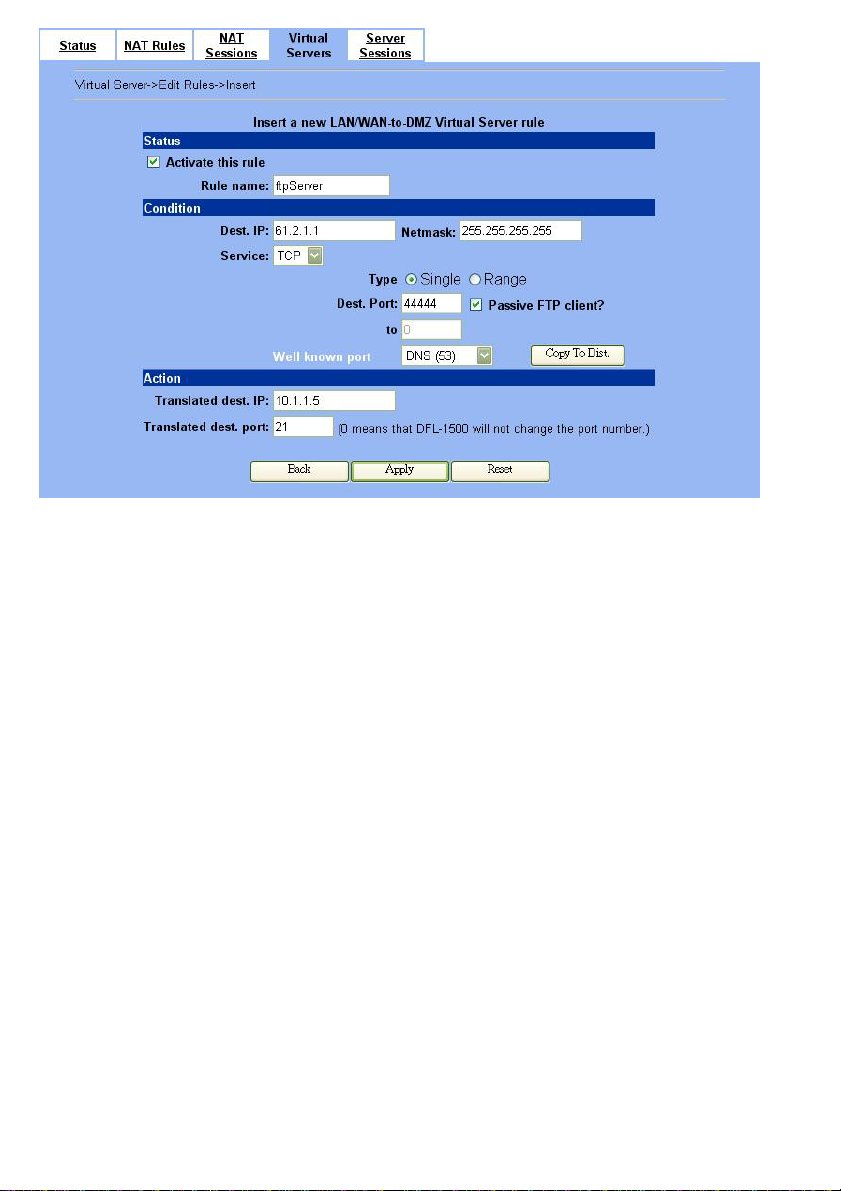

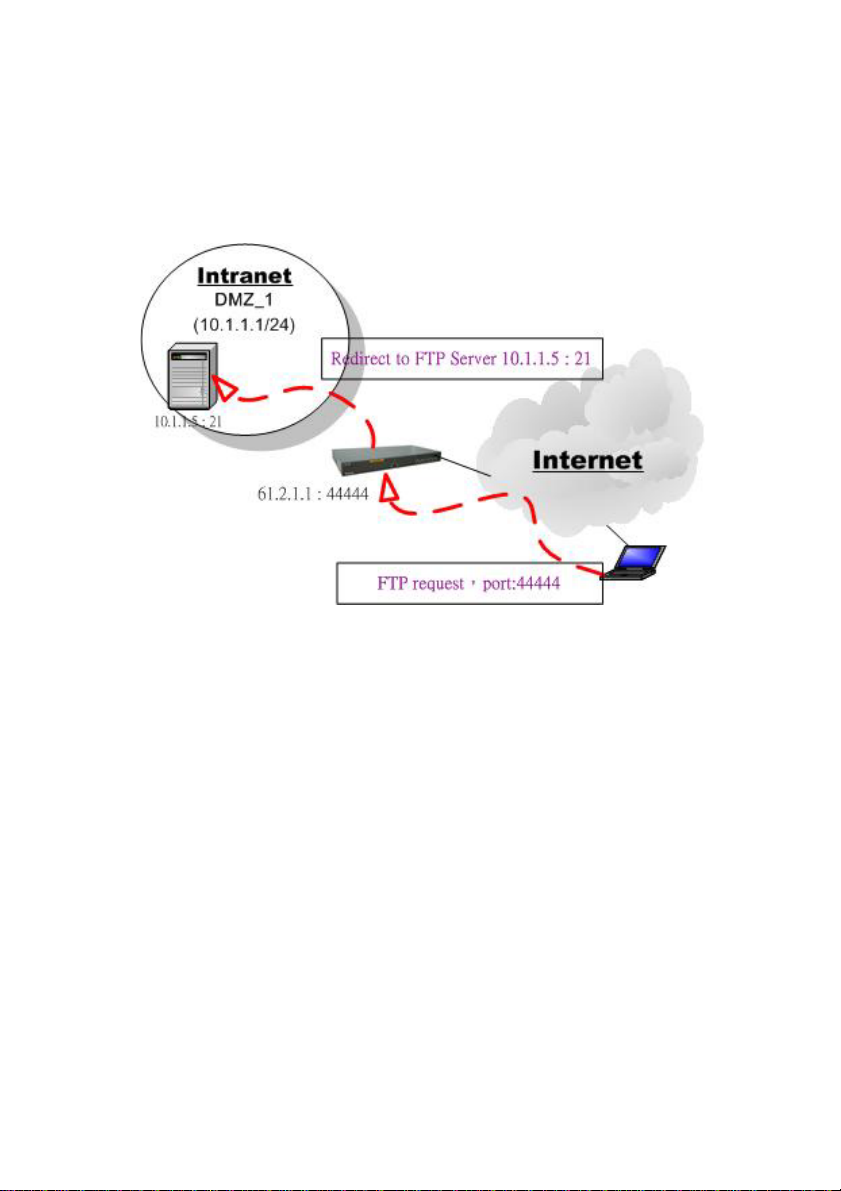

Virtual Server Settings
Virtual Servers are computers connected using the DMZ port. They act as servers to
provide services to your LAN ports or other Internet users on the WAN ports. The
Virtual Server setting page maps one global IP address −an IP address that is valid
on the Internet, usually assigned by your ISP −to one local IP address from the IP
address range assigned to the DFL-1500’s DMZ port. The default DMZ IP address is
10.1.1.254, so the servers’ IP must range from 10.1.1.1 to 10.1.1.253, with a subnet
mask of 255.255.255.0.
Figure 2 Internet host connects to the Virtual Server behind DFL-1500.
As the above Figure 2 illustrated, the server 10.1.1.5 provides FTP service and is
located on the DMZ region behind DFL-1500. By this way, DFL-1500 will act as a
Virtual Server role which redirects the packets to the real server 10.1.1.5. And you can
announce to the internet users that the ftp server ip/port is 61.2.1.1/44444. So, all of
the internet users can connect the 61.2.1.1/44444 to get ftp service.
An example virtual server: Customize the rule name as the ftpServer. For any
packets with its destination IP equaling to the WAN1 IP (61.2.1.1) and destination port
equaling to 44444, ask DFL-1500 to translate the packet’s destination IP/port into
10.1.1.5/21. Check the Passive FTP at this port to maximize the compatibility of the
FTP protocol. This is useful if you want to provide connectivity to passive FTP clients.
For passive FTP clients, the server will return them the private IP address and the port
number for them to connect back to do data transmissions. Since the private IP from
them cannot be routed to our zone, the data connections would fail. After enabling this
feature, the DFL-1500 will translate the private IP/port into an IP/port of its own. Thus
the problem is gracefully solved. Click Apply to proceed.

14
Dest. IP−an unique, global IP address that is valid in the Internet. This will be one of
the IP addresses assigned by your ISP, or the single IP address assigned by your ISP,
if your ISP assigns you only one IP address. Use Netmask to specify a range of the
dest. IP (see the example above).
Service −TCP or UDP or Any of them. Choose a port number (range) to explicitly
indicate which application traffic to redirect.
Translated Destination IP −the IP address of the computer that will act as a server
for this application you are setting up.

15
APPENDIX
To assign a Static IP address to the
Ethernet adapter, please do the following
steps. The examples below are using a
DFE-530TX+ in Microsoft Windows XP,
and Mac OS X.
Note: Screens in other Operating
Systems will look a bit different, but the
steps are the same.

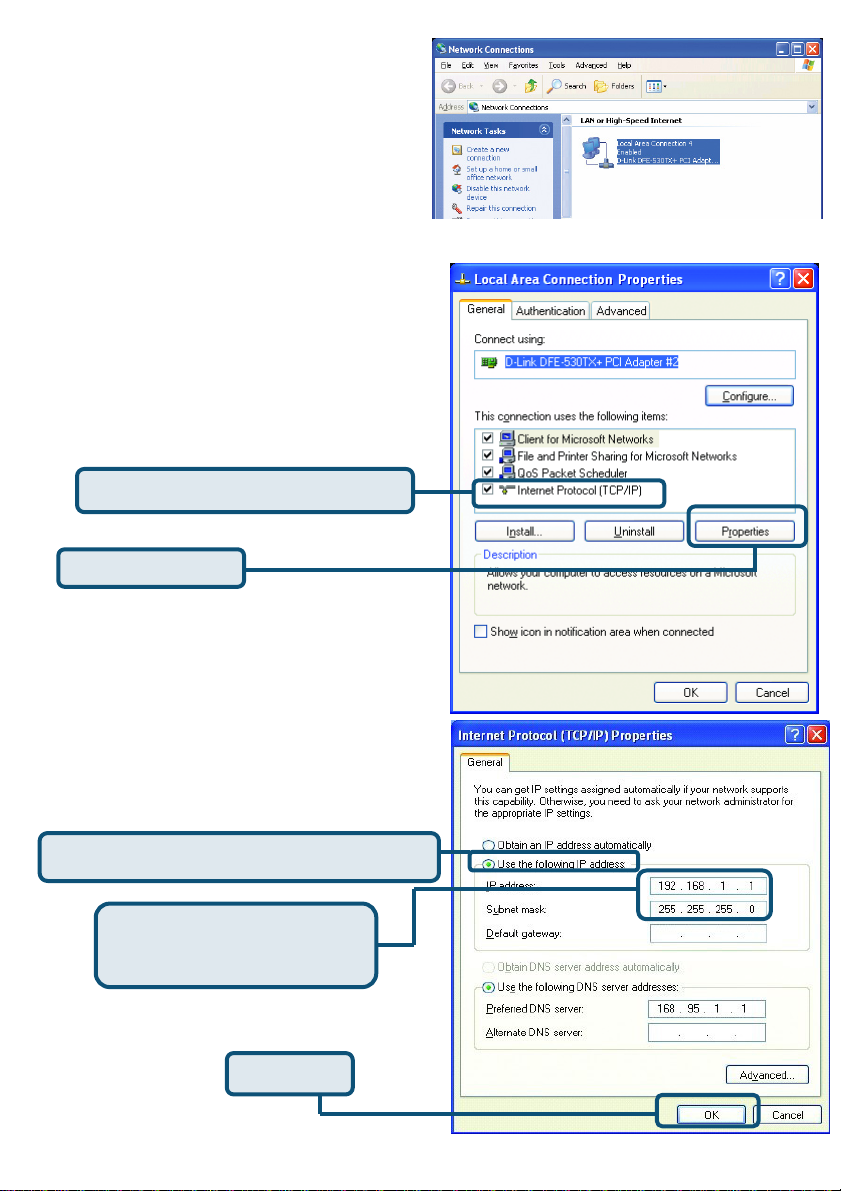

For Microsoft Windows XP:
Go to Start > right click on
My Network Places >
select Properties > Double-click on
the Network Connection associated
with the Ethernet adapter (i.e.,
D-Link DFE-530TX+).
Click Internet Protocol (TCP/IP)
Click Properties
Enter the following:
IP address: 192.168.1.1
Subnet mask: 255.255.255.0
Click OK
Select Use the following IP address

16

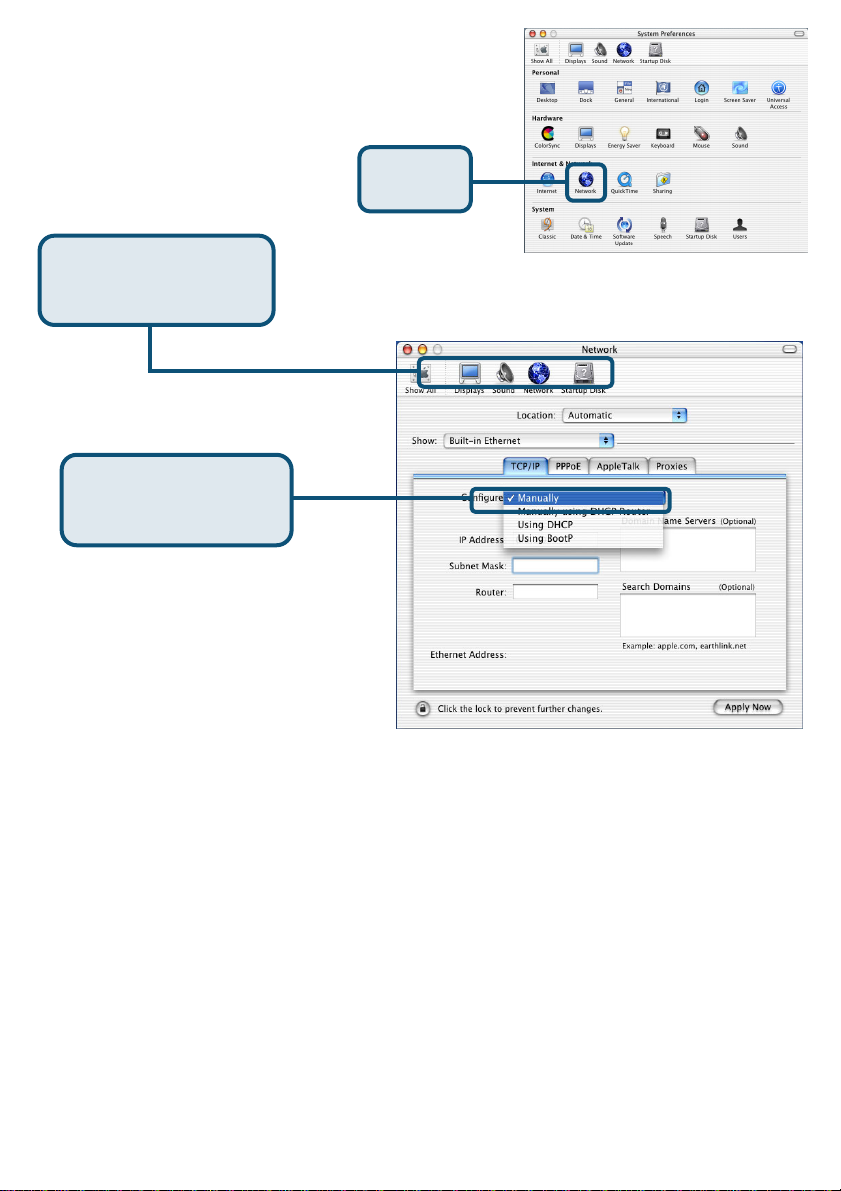

Setting a Static IP address for
Apple Macintosh OS X:
Go to the Apple Menu
and Select System
Preferences.
Click on
Network
Select Built-in
Ethernet in the Show
pull-down menu
Select Manually in
the Configure pull-
down menu

17

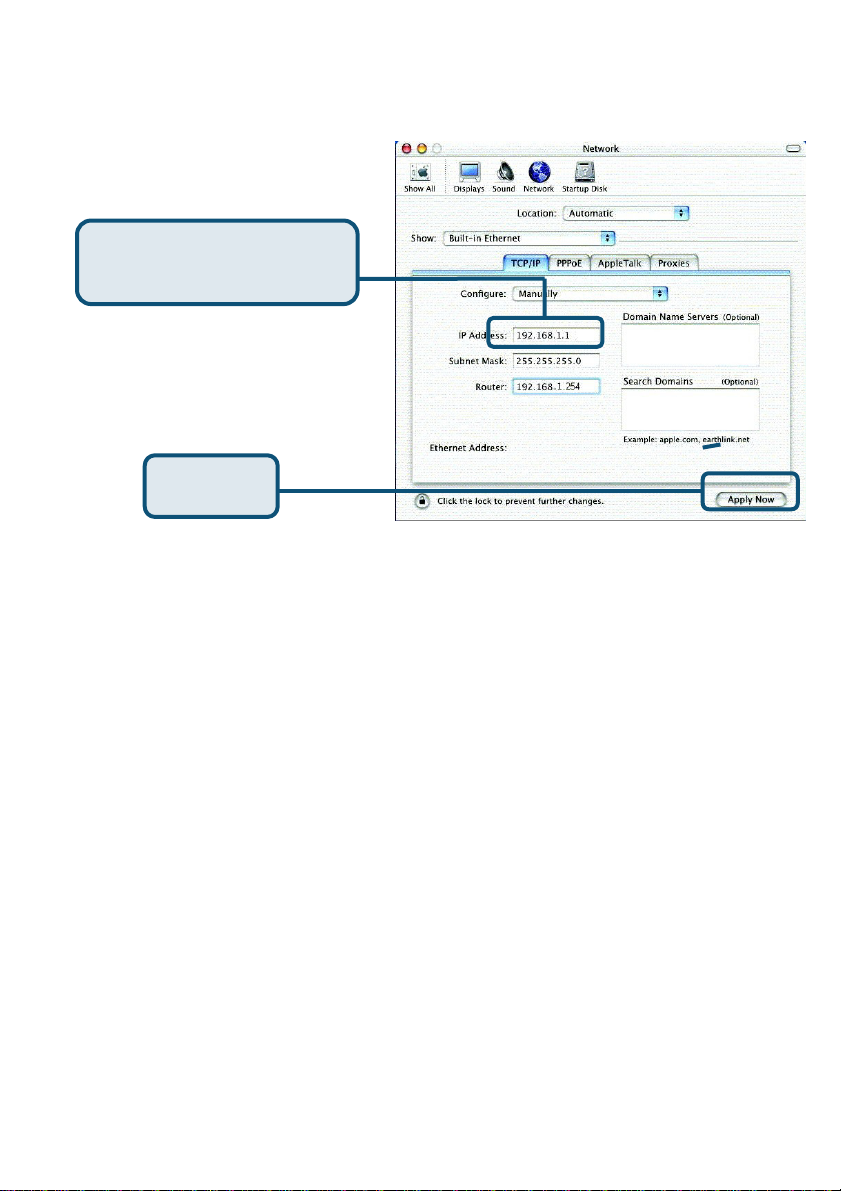

Click on
Apply Now
Enter the IP address information,
the Subnet Mask and the
Router’s IP address.
Enter the following:
IP address: 192.168.1.1
Subnet mask: 255.255.255.0

18
NOTES
Technical Support
Software updates and documentation are available
on the D-Link website.
D-Link provides free technical support for customers
within the United States for the duration of the
warranty period on this product.
U.S. customers can contact D-Link technical support
through our web site or by phone.
D-Link Technical Support over the Telephone:
[phone]
24 hours a day, seven days a week
D-Link Technical Support over the Internet:
http://support.dlink.com
email: [e-mail]
