1 Introduction
The DSL-2750E supports multiple line modes. It provides four
10/100 base-T Ethernet interfaces at the user end. The
device provides high-speed ADSL broadband connection to
the Internet or Intranet for high-end users, such as net bars
and office users. It provides high performance access to the
Internet, downstream up to 24 Mbps and upstream up to 1
Mbps.
The device supports WLAN access, such as WLAN AP or
WLAN device, to the Internet. It complies with IEEE
802.11,802.11b/g specifications, WEP, WPA, and WPA2
security specifications.
1.1 Package List
1 x DSL-2750E
1 x external splitter
1 x power adapter
2 x telephone cables (RJ-11, more than 1.8m)
1 x Ethernet cable (RJ-45, more than 1.8m)
1 x USB cable (usb, more than 1m)
1 x user manual
1 x quality guarantee card
1 x certificate of quality
1.2 Safety Cautions
Follow the following instructions to prevent the device from
risks and damage caused by fire or electric power:
Use volume labels to mark the type of power.
Use the power adapter packed within the device
package.

錯誤
錯誤錯誤
錯誤! 尚未定義樣式
尚未定義樣式尚未定義樣式
尚未定義樣式。
。。
。
2
Pay attention to the power load of the outlet or prolonged
lines. An overburden power outlet or damaged lines and
plugs may cause electric shock or fire accident. Check
the power cords regularly. If you find any damage,
replace it at once.
Proper space left for heat dissipation is necessary to
avoid damage caused by overheating to the device. The
long and thin holes on the device are designed for heat
dissipation to ensure that the device works normally. Do
not cover these heat dissipation holes.
Do not put this device close to a place where a heat
source exits or high temperature occurs. Avoid the
device from direct sunshine.
Do not put this device close to a place where it is over
damp or watery. Do not spill any fluid on this device.
Do not connect this device to any PCs or electronic
products, unless our customer engineer or your
broadband provider instructs you to do this, because any
wrong connection may cause power or fire risk.
Do not place this device on an unstable surface or
support.
1.3 LEDs and Interfaces

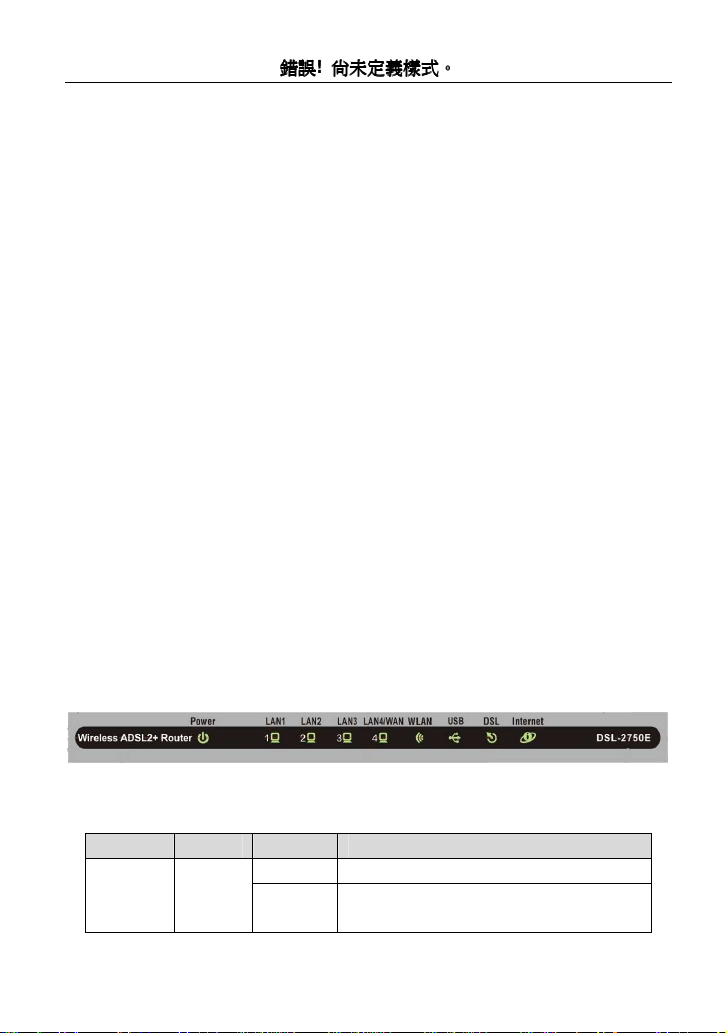

Front Panel
Figure 1 Front panel
The following table describes the LEDs of the device.
LED Color Status Description
Off The power is off.Power Green
On The power is on and the initialization
is normal.

錯誤
錯誤錯誤
錯誤! 尚未定義樣式
尚未定義樣式尚未定義樣式
尚未定義樣式。
。。
。
3
LED Color Status Description
On The device is initiating.
Red Blinks The firmware is upgrading.
Off No LAN link.
Blinks Data is being transmitted through
the LAN interface.
LAN
1/2/3/4 Green
On The connection of LAN interface is
normal.
Blinks WPS negotiation is enabled, waiting
for the clients.
WPS Blue Off WPS negotiation is not enabled on
the device.
Blinks Data is transmitted through the
WLAN interface.
On The connection of WLAN interface is
normal.
WLAN
Off
Green
Off
The WLAN connection is not
established.
Off Initial self-test is failed.
Blinks The device is detecting itself.
DSL Green
On Initial self-test of the unit has passed
and is ready.
Blinks Data is transmitted through the USB
interface.
USB Green
Off USB negotiation is not enabled on
the device.
Off The device is under the Bridge mode, DSL connection is not
present, or the power is off.
Green
On IP is connected.
Internet
Red On The device is attempted to become
IP connected, but failed.

錯誤
錯誤錯誤
錯誤! 尚未定義樣式
尚未定義樣式尚未定義樣式
尚未定義樣式。
。。
。
4
Rear Panel

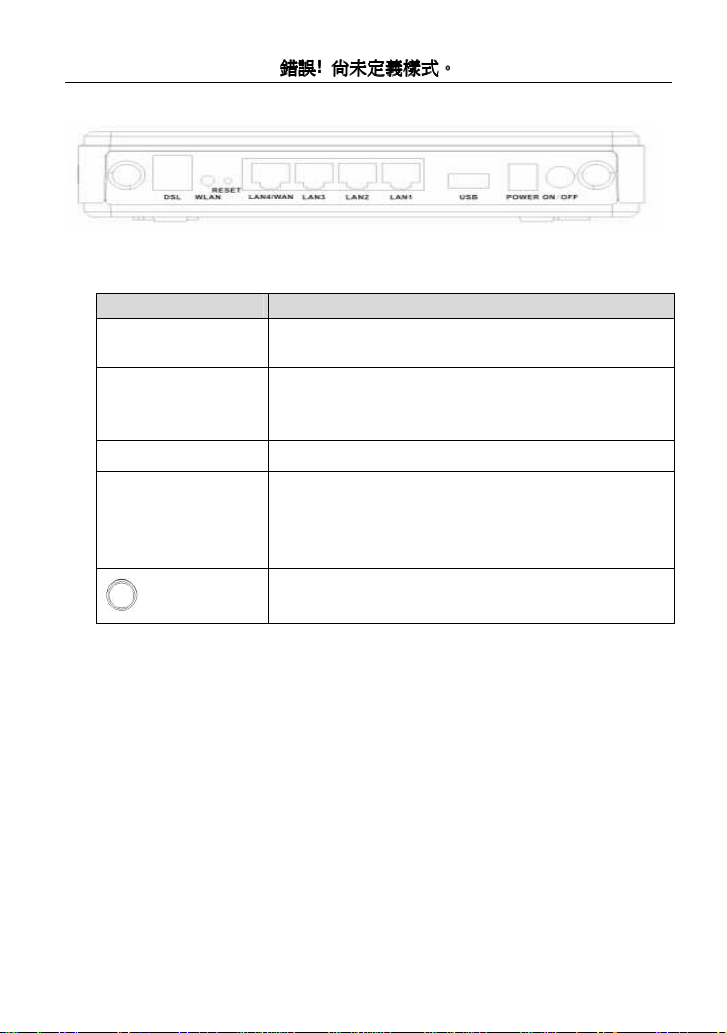

Figure 2 Rear panel
The following table describes the interface of the device.
Interface/Button Description
DSL RJ-11 interface that connects to the telephone set
through the telephone cable.
LAN1/2/3/4 Ethernet RJ-45 interfaces that connect to the Ethernet interfaces of computers or Ethernet
devices.
Power Interface that connects to the power adapter.
Reset
Reset to the factory defaults. To restore factory
defaults, keep the device powered on and push a
paper clip into the hole. Press down the button for
over 5 seconds and release.
Power on or off.
1.4 System Requirements
Recommended system requirements are as follows:
An 10 baseT/100BaseT Ethernet card is installed on your
PC
A hub or switch (attached to several PCs through one of
Ethernet interfaces on the device)
Operating system: Windows 98SE, Windows 2000,
Windows ME, or Windows XP
Internet Explorer V5.0 or higher, Netscape V4.0 or higher,
or Firefox 1.5 or higher

錯誤
錯誤錯誤
錯誤! 尚未定義樣式
尚未定義樣式尚未定義樣式
尚未定義樣式。
。。
。
5
1.5 Features
The device supports the following features:
Various line modes
External PPPoE dial-up access
Internal PPPoE and PPPoA dial-up access
Leased line mode
Zero installation PPP bridge mode (ZIPB)
1483B, 1483R, and MER access
Multiple PVCs (eight at most) and these PVCs can be
isolated from each other
A single PVC with multiple sessions
Multiple PVCs with multiple sessions
Binding of ports with PVCs
802.1Q and 802.1P protocol
DHCP server
NAT and NAPT
Static route
Firmware upgrade: Web, TFTP
Reset to the factory defaults
DNS relay
Virtual server
DMZ
Two-level passwords and user names
Web user interface
Telnet CLI
System status display
PPP session PAP and CHAP
IP filter
IP QoS
Remote access control
Line connection status test
Remote management (telnet and HTTP)
Backup and restoration of configuration file
Ethernet interface supports crossover detection,
auto-correction and polarity correction

錯誤
錯誤錯誤
錯誤! 尚未定義樣式
尚未定義樣式尚未定義樣式
尚未定義樣式。
。。
。
6
UPnP

錯誤
錯誤錯誤
錯誤! 尚未定義樣式
尚未定義樣式尚未定義樣式
尚未定義樣式。
。。
。
7
2 Hardware Installation
Step 1 Connect the DSL port of the device and the Modem
port of the splitter with a telephone cable. Connect the
phone to the Phone port of the splitter through a
telephone cable. Connect the incoming line to the
Line port of the splitter.
The splitter has three ports:
Line: Connect to a wall phone port (RJ-11 jack).
Modem: Connect to the DSL port of the device.
Phone: Connectto a telephone set.
Step 2 Connect the LAN port of the device to the network
card of the PC through an Ethernet cable
(MDI/MDIX).
Note:
Use twisted-pair cables to connect with the Hub or switch.
Step 3 Plug one end of the power adapter to the wall outlet
and connect the other end to the Power port of the
device.
Connection 1: Figure 3 displays the application diagram for
the connection of the device, PC, splitter and telephone sets,
when no telephone set is placed before the splitter.

錯誤
錯誤錯誤
錯誤! 尚未定義樣式
尚未定義樣式尚未定義樣式
尚未定義樣式。
。。
。
8

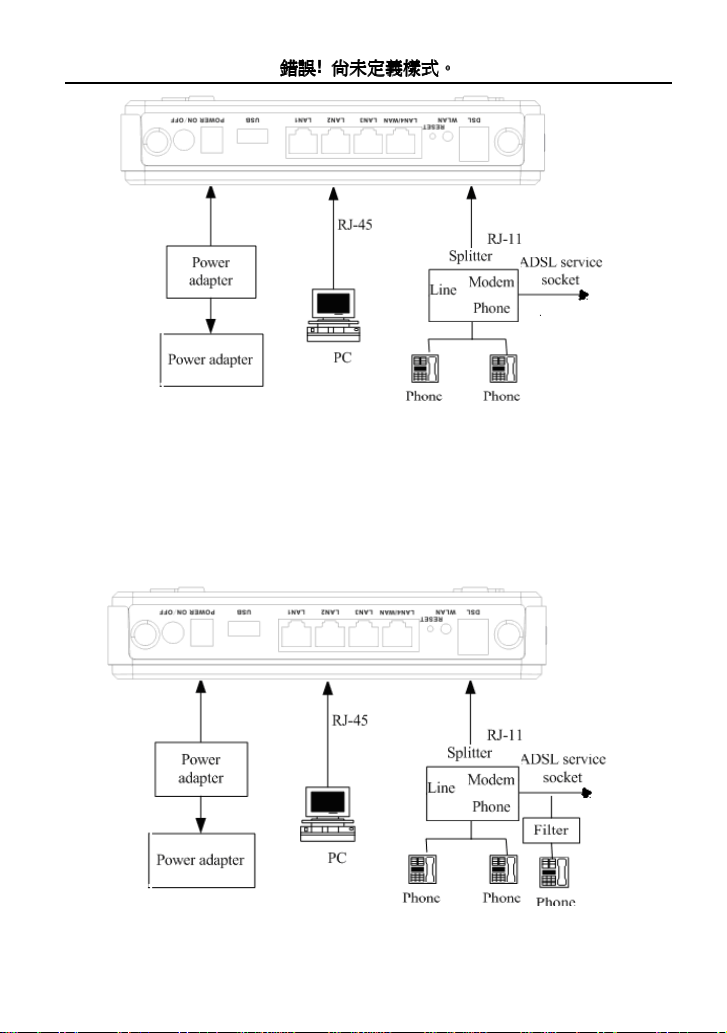

Figure 3 Connection diagram (without telephone sets before the splitter)
Connection 2: Figure 4 displays the application diagram for
the connection of the device, PC, splitter and telephone sets
when a telephone set is placed before the splitter.
As illustrated in the following figure, the splitter is installed
close to the device.

錯誤
錯誤錯誤
錯誤! 尚未定義樣式
尚未定義樣式尚未定義樣式
尚未定義樣式。
。。
。
9
Figure 4 Connection diagram (with a telephone set before the splitter)
Connection 1 is recommended.
Note:
When connection 2 is used, the filter must be installed close to the
telephone cable. See Figure 4. Do not use the splitter to replace the
filter.
Installing a telephone directly before the splitter may lead to
failure of connection between the device and the central office,
or failure of Internet access, or slow connection speed. If you
really need to add a telephone set before the splitter, you
must add a microfilter before a telephone set. Do not connect
several telephones before the splitter or connect several
telephones with the microfilter.

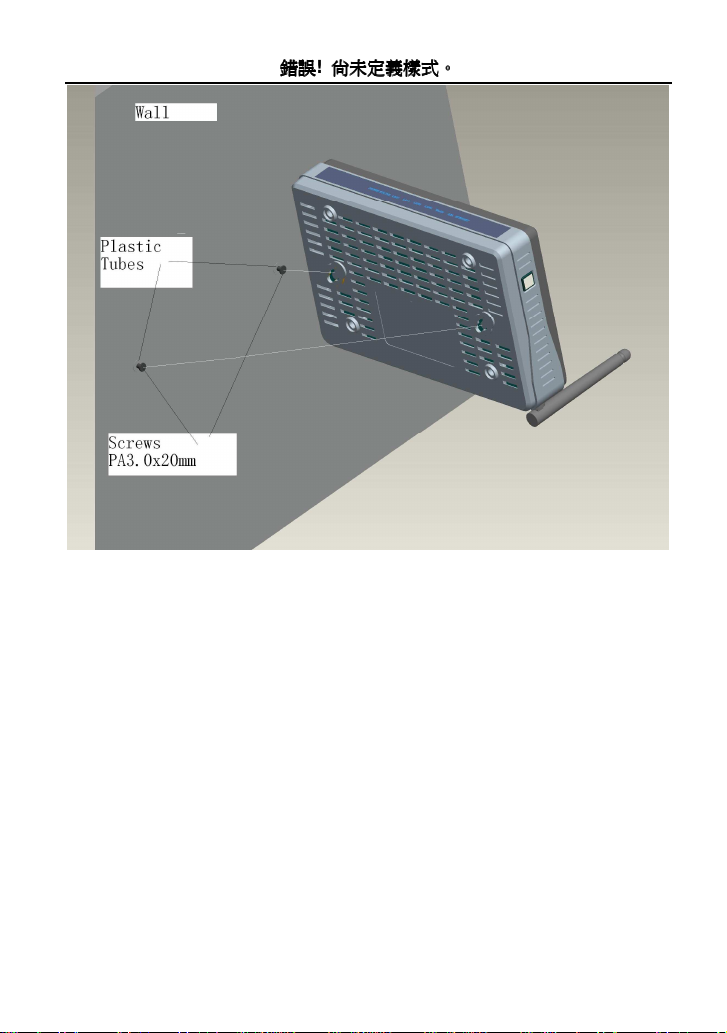

Figure 5 Wall Mount Description.
The device can be hung on the wall, as shown in annex
pictures

錯誤
錯誤錯誤
錯誤! 尚未定義樣式
尚未定義樣式尚未定義樣式
尚未定義樣式。
。。
。
10

錯誤
錯誤錯誤
錯誤! 尚未定義樣式
尚未定義樣式尚未定義樣式
尚未定義樣式。
。。
。
11
3 About the Web Configurator
This chapter describes how to configure the device by using
the Web-based configuration utility.
3.1 Access the Device
The following is the detailed description of accesing the
device for the first time.
Step 1 Open the Internet Explorer (IE) browser and enter
http://192.168.1.1.
Step 2 The Login page shown in the following figure

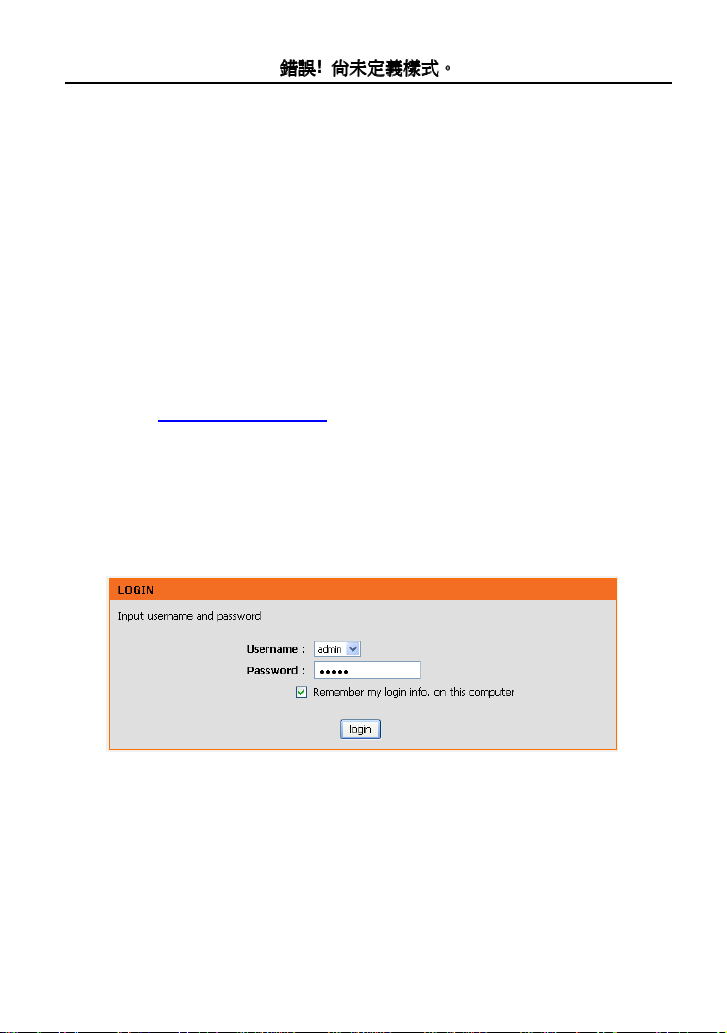

appears. Enter the user name and password.
The user name and password of the super user
are admin and admin.
The user name and password of the normal user
are user and user.
If you log in as the super user successfully, the page shown in
the following figure appears.

錯誤
錯誤錯誤
錯誤! 尚未定義樣式
尚未定義樣式尚未定義樣式
尚未定義樣式。
。。
。
12
If the login information is incorrect, the page shown in the
following figure appears. Click Try Again to log in again.
3.2 Setup
3.2.1 Wizard
Wizard enables fast and accurate configuration of Internet
connection and other important parameters. The following
sections describe these various configuration parameters.
When subscribing to a broadband service, you should be
aware of the method, by which you are connected to the

錯誤
錯誤錯誤
錯誤! 尚未定義樣式
尚未定義樣式尚未定義樣式
尚未定義樣式。
。。
。
13
Internet. Your physical WAN device can be Ethernet, DSL, or
both. Technical information about the properties of your
Internet connection is provided by your Internet service
provider (ISP). For example, your ISP should inform you
whether you are connected to the Internet using a static or
dynamic IP address, or the protocol, such as PPPoA or
PPPoE, that you use to communicate over the Internet.

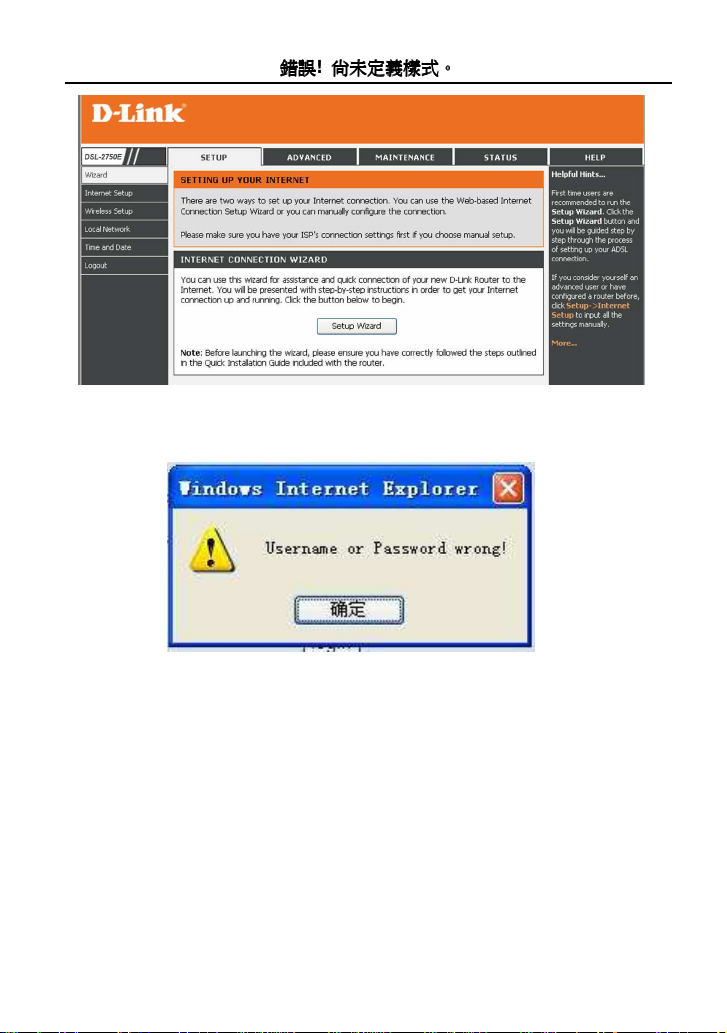

Step 1 Choose Setup > Wizard. The page shown in the
following figure appears.

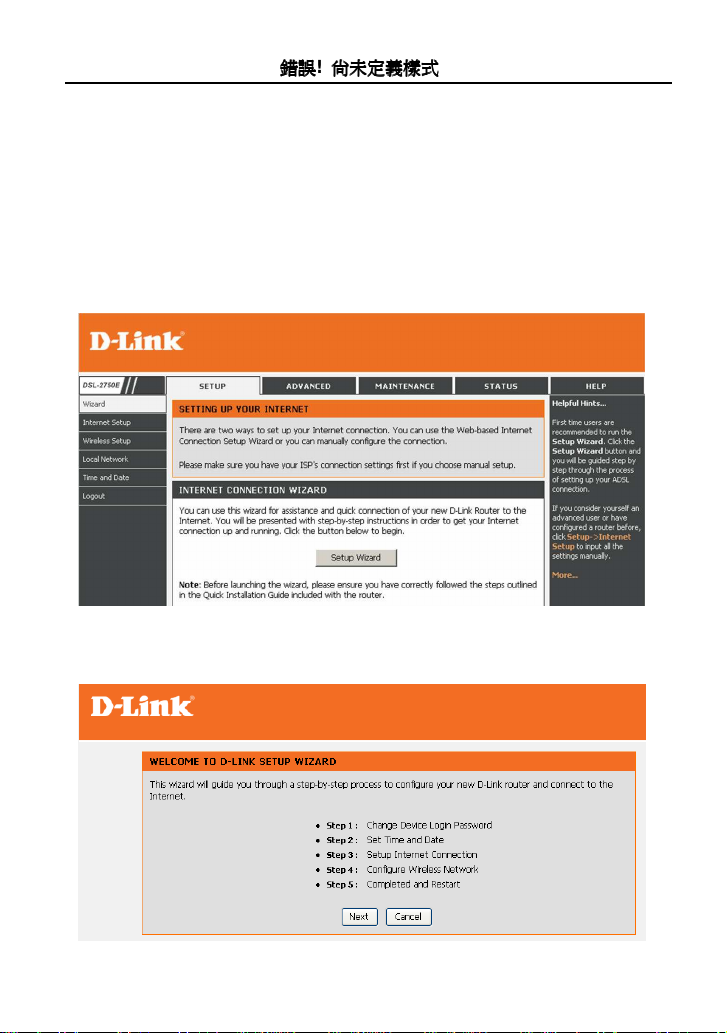

Step 2 Click Setup Wizard. The page shown in the following
figure appears.

錯誤
錯誤錯誤
錯誤! 尚未定義樣式
尚未定義樣式尚未定義樣式
尚未定義樣式。
。。
。
14
Step 3 There are five steps to configure the device. Click
Next to continue.

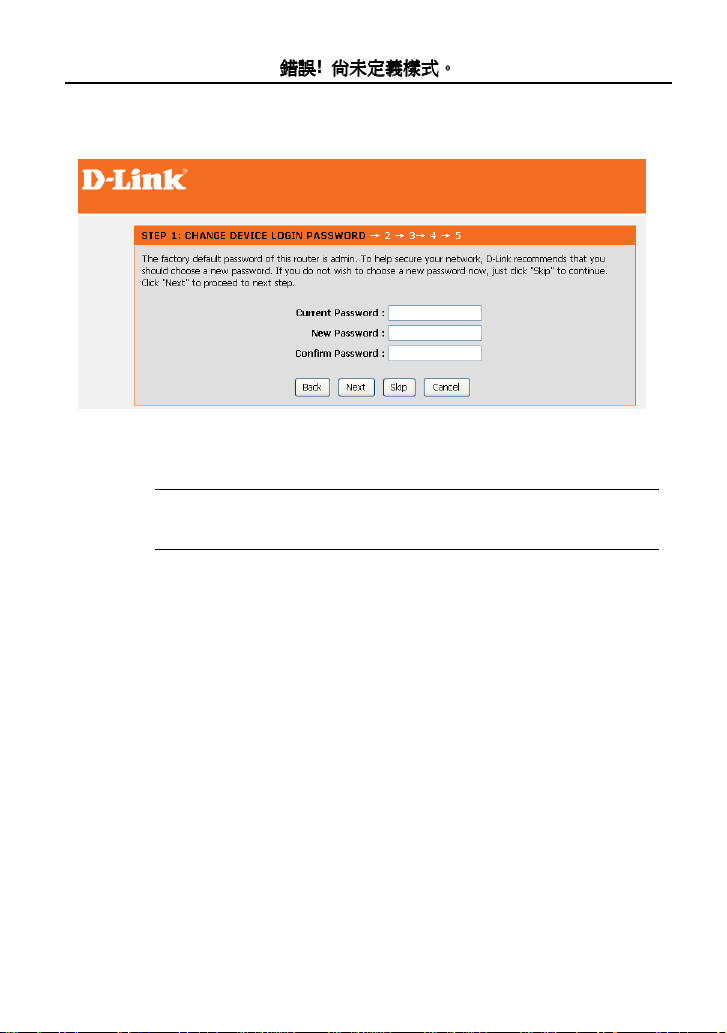

Step 4 Change the password for logging in to the device.
The default password is admin. To secure your
network, modify the password timely.
Note:
Confirm password must be the same as the new password.
To ignore the step, click Skip.

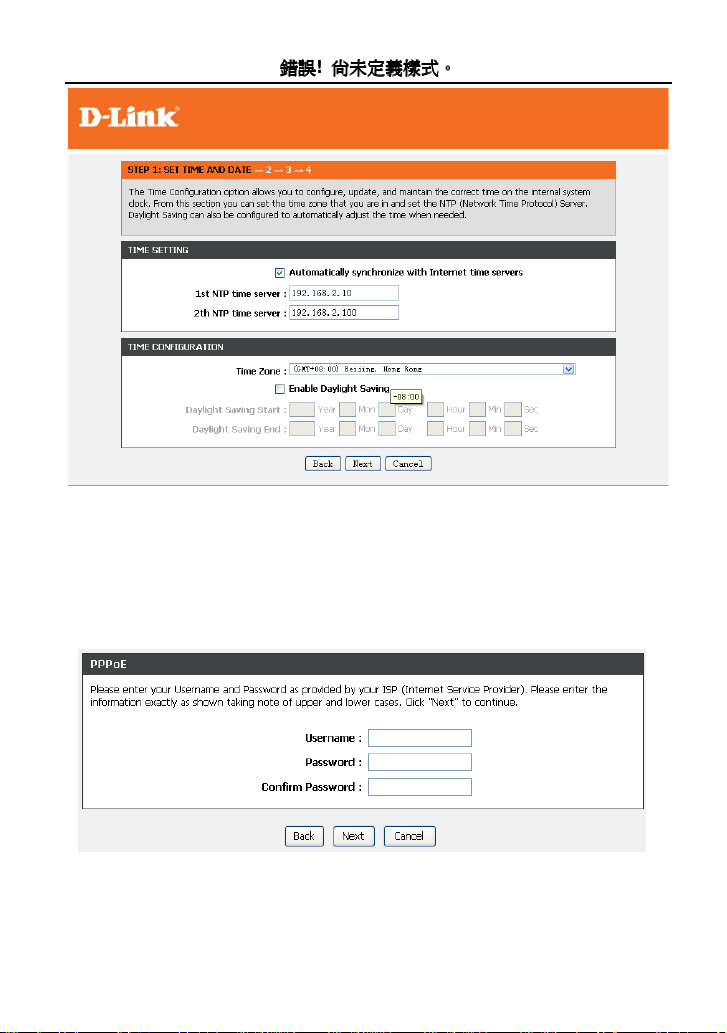

Step 5 Set the time and date.

錯誤
錯誤錯誤
錯誤! 尚未定義樣式
尚未定義樣式尚未定義樣式
尚未定義樣式。
。。
。
15
Step 6 Configure the Internet connection.
Select the country and ISP. Set the VPI and VCI. If
you fail to find the country and ISP from the
drop-down lists, select Others. Click Next. If the
Protocol is PPPoE or PPPoA, the page shown in
either of the two following figures appears.

錯誤
錯誤錯誤
錯誤! 尚未定義樣式
尚未定義樣式尚未定義樣式
尚未定義樣式。
。。
。
16

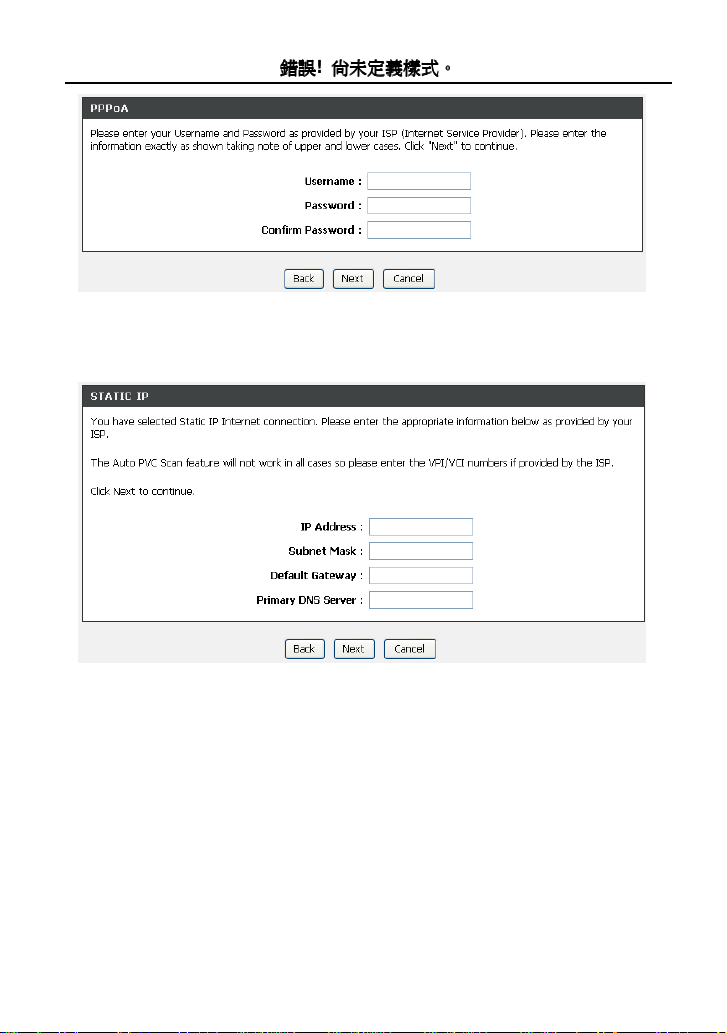

Set the user name and password.
If the Protocol is Static IP, the page shown in the
following figure appears.
Enter the IP Address, Subnet Mask, Default
Gateway, and Primary DNS Server. Click Next. The
page shown in the following page appears.

錯誤
錯誤錯誤
錯誤! 尚未定義樣式
尚未定義樣式尚未定義樣式
尚未定義樣式。
。。
。
17

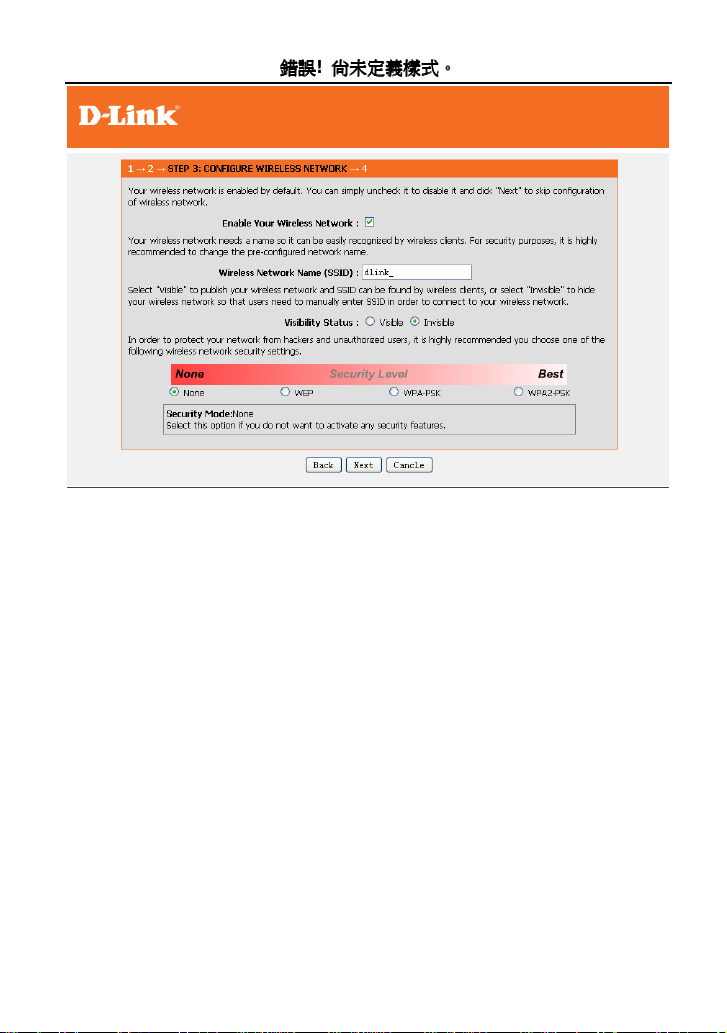

Step 7 Configure the wireless network. Enter the information
and click Next.
