D-Link DSL-502T User manual

Before You Begin
1. If you purchased this Router to share your high-speed Internet connection with other
computers, you must have an established Internet account from an Internet Service Provider
(ISP).
This product can be set upusing
any current web browser, i.e.,
InternetExplorer6orNetscape
Navigator 6.2.3. DSL-502T
A
DSL Modem Route
r
2. It is best to use the same computer that is connected to your ISP for configuring the DSL-
502T ADSL Modem Router. The DSL-502T acts as a DHCP server and will assign all the
necessary IP address information on your network. See the Appendix for setting each
network adapter to automatically obtain an IP address.
©2006 D-Link Australi
respecti
a Pty Ltd. All rights reserved. Trademarks or registered trademarks are the property of their
ve holders. Software and specifications subject to change without notice.
DSL-502T ADSL Modem Router.
Check Your Package Contents
DSL-502T
ADSL Modem Route
r
CD-ROM with Click’n Connect Utility,
P
r
oduct Documentation and USB Drivers
USB Cable
Telephone Cable (RJ-11)
CAT 5 UTP Ethernet Cable (RJ-45)
Using a power adapter with
a different voltage rating will
damage and void the
warranty for this product.
9V 1A
Power Ada
p
te
r
If any of the above items are missing, please contact your reseller.

Configuring the Router via the D-Link
Click’n Connect Utility

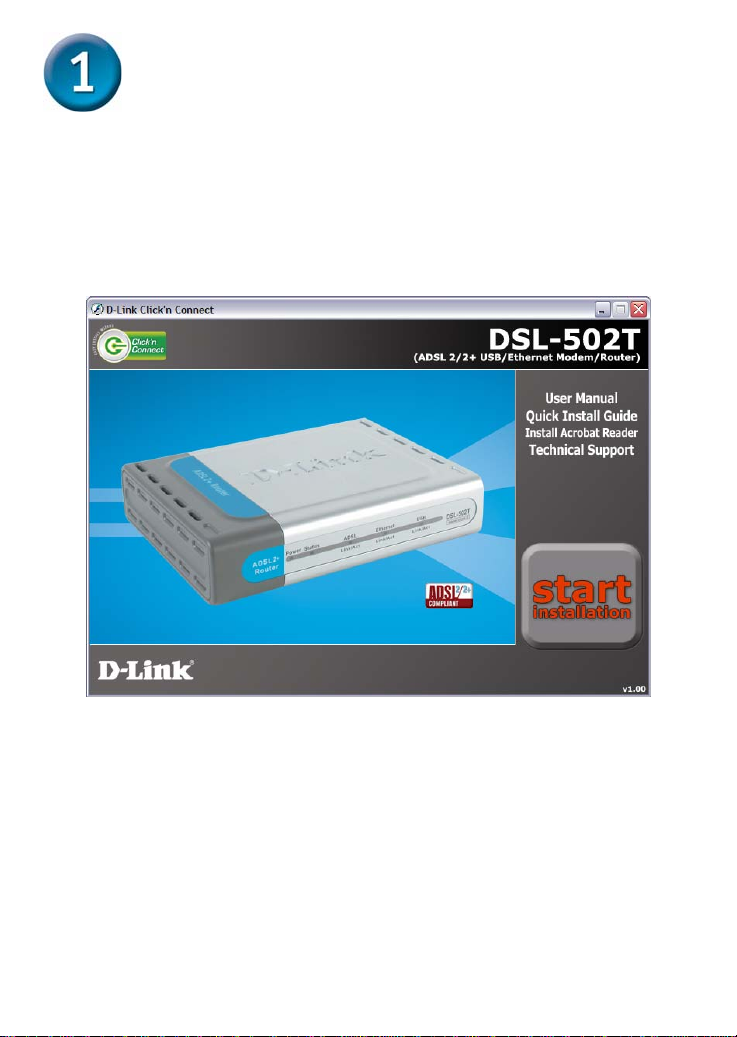

Insert the CD-ROM into your PCs CD Drive. The Click’n Connect utility should
appear automatically. If it does not appear, explore your CD-ROM drive within
Windows, and double-click on the file “dslutility.exe” to start the utility manually.
It is extremely important that you DO NOT connect any cables to the DSL-
502T prior to completing the Click’n Connect Utility.
You can select one of five options:
1. User Manual: This option will open up the DSL-502T user manual. You
will need Adobe Acrobat Reader installed to view the manual.
2. Quick Install Guide: This option will show you a software-based version
of this Quick Install Guide
3. Install Acrobat Reader: Selecting this option will install Adobe Acrobat
Reader onto your PC.
4. Technical Support: Selecting this option will link you to D-Link
Australia/New Zealand Technical Support online.
5. Start Installation: This will commence the installation of the DSL-502T.
2

Configuring the Router via the D-Link
Click’n Connect Utility
The Click’n Connect utility will guide you through the installation process step-by-
step. Follow the on-screen instructions, then proceed to the next step.

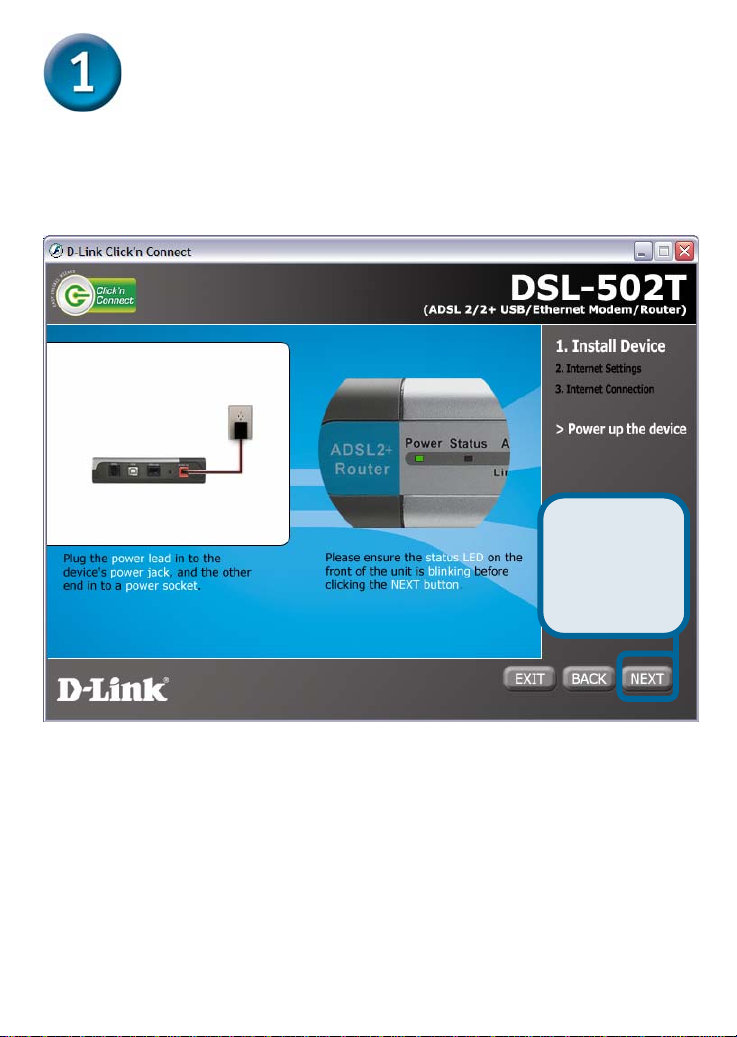

Step 1 - Power Up the Device
Follow the on-
screen
instructions,
then Click
Next to
continue
Connect the Power Adapter from the wall socket to the DSL-502T. Wait for the
Status LED to blink before proceeding onto the next step.
3

Configuring the Router via the D-Link
Click’n Connect Utility
The Click’n Connect utility will guide you through the installation process step-by-
step. Follow the on-screen instructions, then proceed to the next step.
Step 2 – Select Your Connection Type

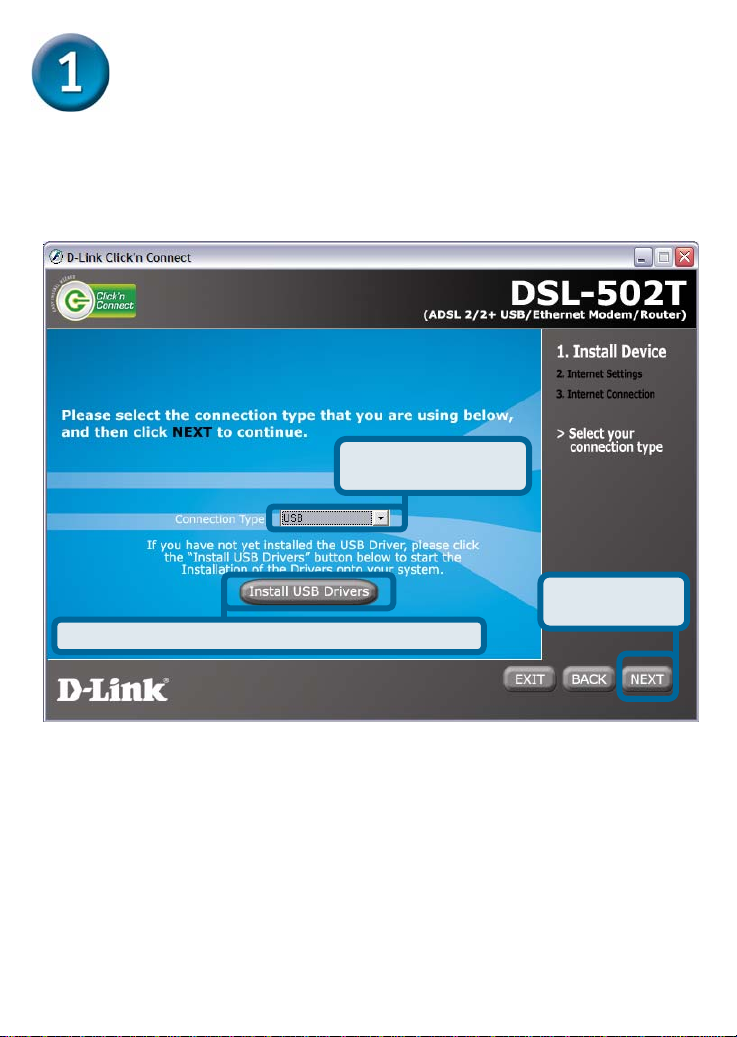

elect the connection type that you would like to use to connect the DSL-502T to
02T
Install USB Drivers if USB connection re
q
uired
Click Next to
continue
Select your
Connection Type
S
your PC. You can select Ethernet, which uses a network cable to connect it to
your PC, or you can select USB to connect the DSL-502T with a USB cable.
Please note, however, that you will be required to install drivers for the DSL-5
if you proceed with the USB connection option. Click on Install USB Drivers, this
will open a separate program that will install the drivers for you. Once you have
completed with this option, click on Next to continue onto Step 3.
4

Configuring the Router via the D-Link
Click’n Connect Utility
he Click’n Connect utility will guide you through the installation process step-by-
his section is only relevant if you selected Ethernet as the connection type
tep 3 – Select Your Connection Type – Ethernet

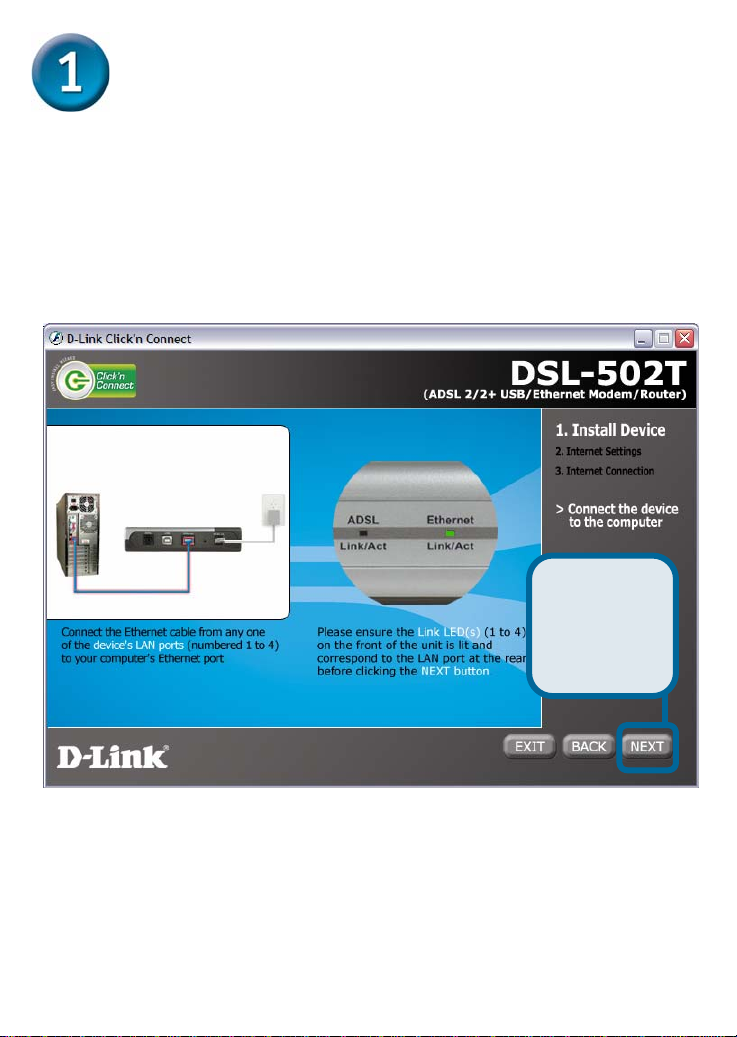

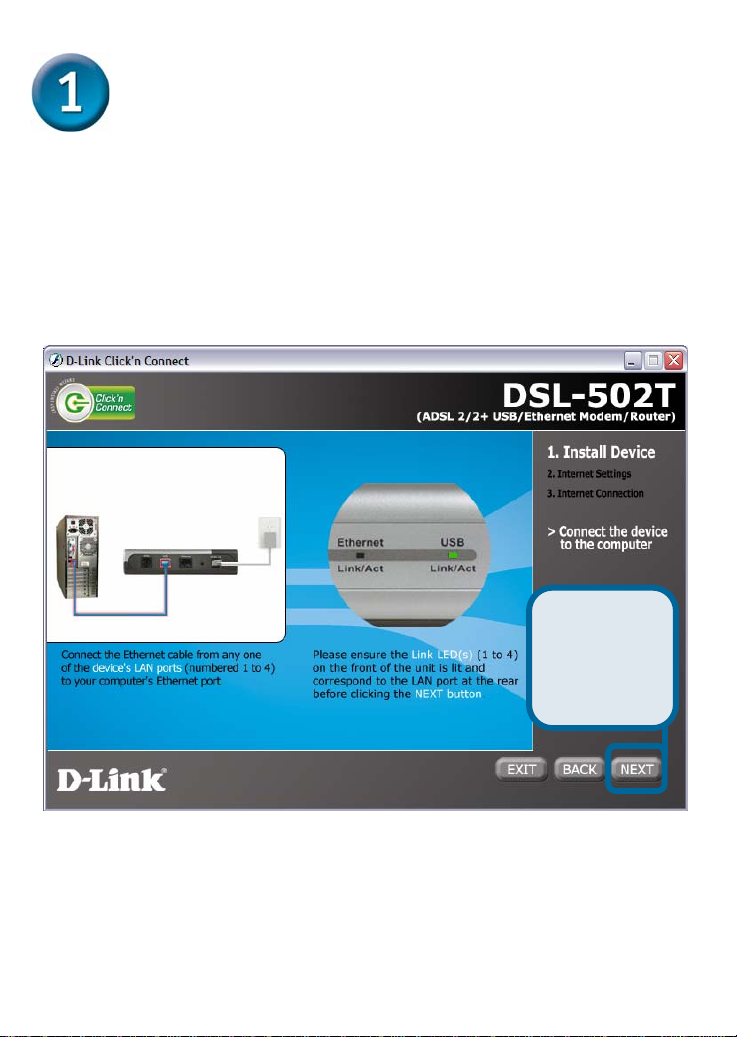

you have selected Ethernet as your connection type, connect your Ethernet
T
step. Follow the on-screen instructions, then proceed to the next step.
T
at Step 2. If you selected USB as your connection type, please proceed to
page 7.
S
Follow the on-
ins ,
screen
tructions
then Click
Next to
continue
If
cable from the computer to the DSL-502T now. Wait for the Link LED to flash
then click on Next to continue to Step 4.
5

Configuring the Router via the D-Link
Click’n Connect Utility
The Click’n Connect utility will guide you through the installation process step-by-
step. Follow the on-screen instructions, then proceed to the next step.
This section is only relevant if you selected Ethernet as the connection type
at Step 2. If you selected USB as your connection type, please proceed to
page 7.

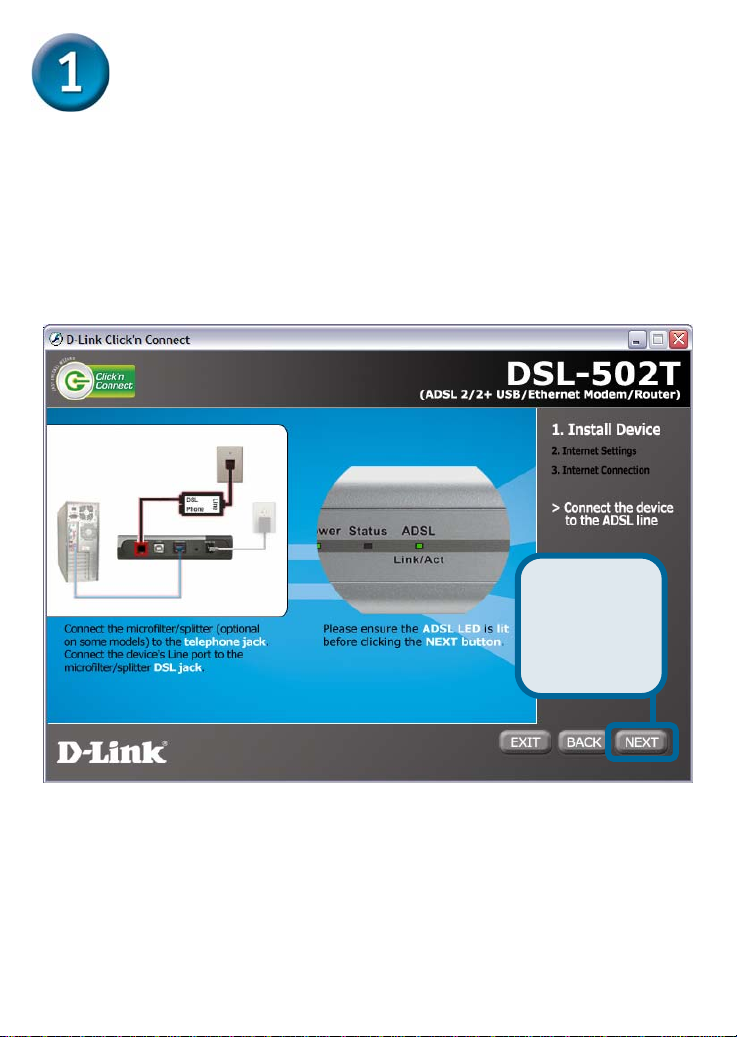

Step 4 – Connect the Device to the ADSL Line – Ethernet
you have selected Ethernet as the connection type, connect your ADSL
cket.
nce you have completed this, wait for the ADSL LED to light up, and click on
Follow the on-
screen
instructions,
then Click
Next to
continue
If
telephone line from the wall socket to the DSL-502T ADSL socket. Please note
that if you are using an ADSL Splitter/Filter, you will need to connect the
telephone line from the DSL socket on the filter to the DSL-502T ADSL so
O
Next to continue to Step 5 on Page 9.
6

he Click’n Connect utility will guide you through the installation process step-by-
his section is only relevant if you selected USB as the connection type at
tep 3 – Select Your Connection Type – USB
you have selected USB as your connection type, connect your USB cable from
e computer to the DSL-502T now. Wait for the Link LED to flash, then click on
Configuring the Router via the D-Link
Click’n Connect Utility
T
step. Follow the on-screen instructions, then proceed to the next step.
T
Step 2. If you selected Ethernet as your connection type, please go back to
Page 5.
S
Follow the on-
screen
tructions
then Click
Next to
continue
ins ,
If
th
Next to continue to Step 4.
7

Configuring the Router via the D-Link
Click’n Connect Utility
The Click’n Connect utility will guide you through the installation process step-by-
step. Follow the on-screen instructions, then proceed to the next step.
This section is only relevant if you selected USB as the connection type at
Step 2. If you selected Ethernet as your connection type, please go back to
Page 5.
Step 4 – Connect the Device to the ADSL Line – USB
If you have selected USB as the connection type, connect your ADSL telephone
line from the wall socket to the DSL-502T ADSL socket. Please note that if you
are using an ADSL Splitter/Filter, you will need to connect the telephone line from
the DSL socket on the filter to the DSL-502T ADSL socket.
Once you have completed this, wait for the ADSL LED to light up, and click on
Next to continue to Step 5.
Follow the on-
screen
instructions,
then Click
Next to
continue
8

Configuring the Router via the D-Link
Click’n Connect Utility
The Click’n Connect utility will guide you through the installation process step-by-
step. Follow the on-screen instructions, then proceed to the next step.

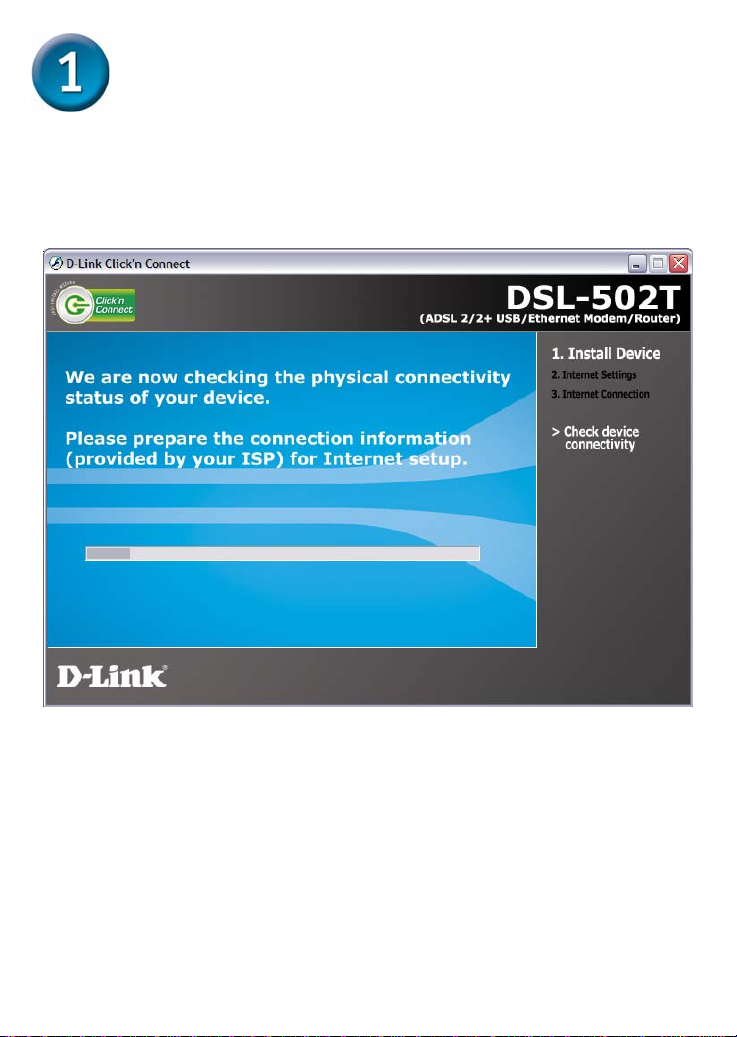

Step 5 – Checking Device Connectivity – Ethernet and USB
The Click’n Connect utility will now check the DSL-502T to make sure it has been
connected correctly. Once it has successfully detected your modem, it will
roceed to the next step automatically.
t this point, you may want to prepare your ADSL account information that is
p
A
provided to you by your Internet Service Provider (ISP) as you will require it
shortly.
9

Configuring the Router via the D-Link
Click’n Connect Utility
The Click’n Connect utility will guide you through the installation process step-by-
step. Follow the on-screen instructions, then proceed to the next step.
Step 6 – ISP Configuration – Ethernet and USB
Click Next to
continue
Select your
ISP
Select your
Country

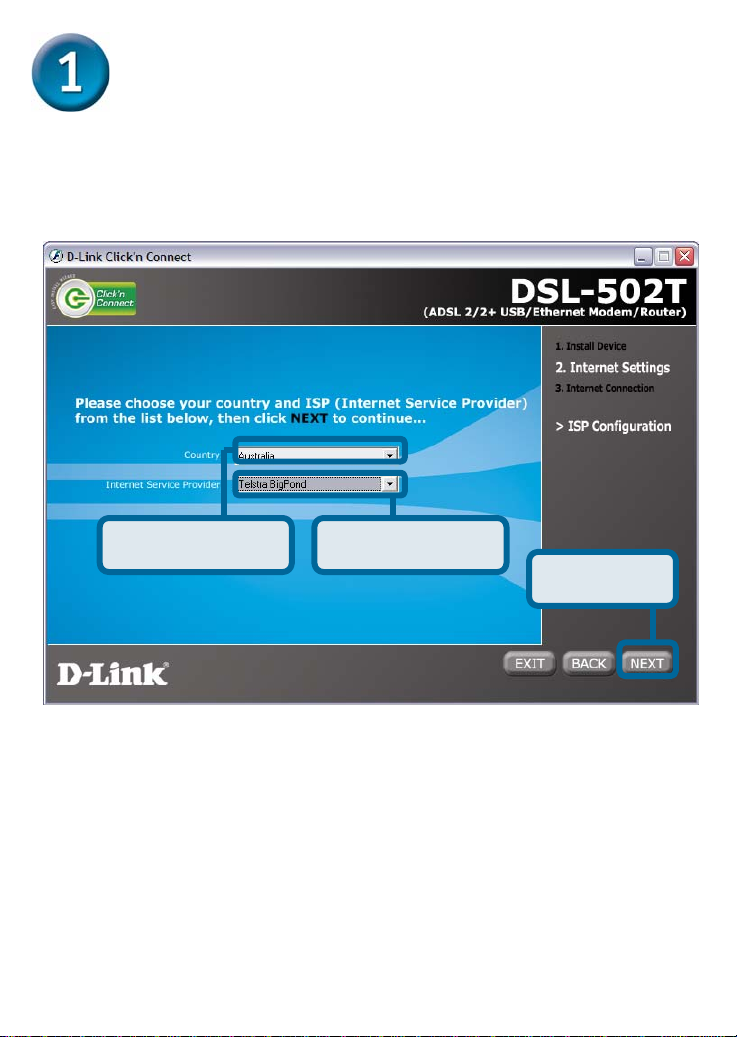

You will now be prompted to select your Country as well as your Internet
Service Provider (ISP). If your ISP is not listed for your country, select Oth
nter the details that are relevant to you er and
r ISP.e
Once you have completed this step, click on Next to continue.
10

Configuring the Router via the D-Link
Click’n Connect Utility
The Click’n Connect utility will guide you through the installation process step-by-
step. Follow the on-screen instructions, then proceed to the next step.

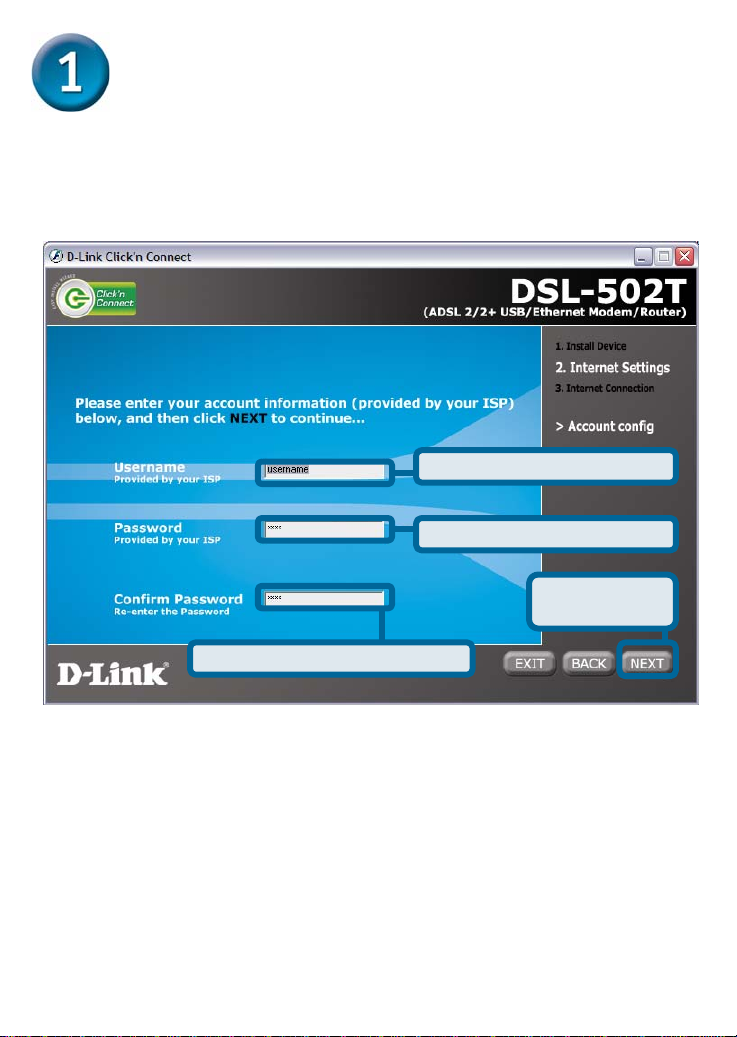

Step 7 – Account Configuration – Ethernet and USB
t this step, you will be required to enter your ADSL account Username, as
lease note, different ISP’s use different Usernames. Some use the first part of
il address. If you
are unsure as to which one your ISP uses, please confirm this with your ISP.
Enter
y
our ISP Username
Enter
y
our ISP Password
Cl o
continue
11
A
provided by your ISP. You will also be required to enter your ADSL account
Password, and then reenter the password in the Confirm Password box.
P
your email address while some ISP’s use part or all of your ema
Re-Enter
y
our ISP Password
ick Next t

Configuring the Router via the D-Link
Click’n Connect Utility
The Click’n Connect utility will guide you through the installation process step-by-
step. Follow the on-screen instructions, then proceed to the next step.

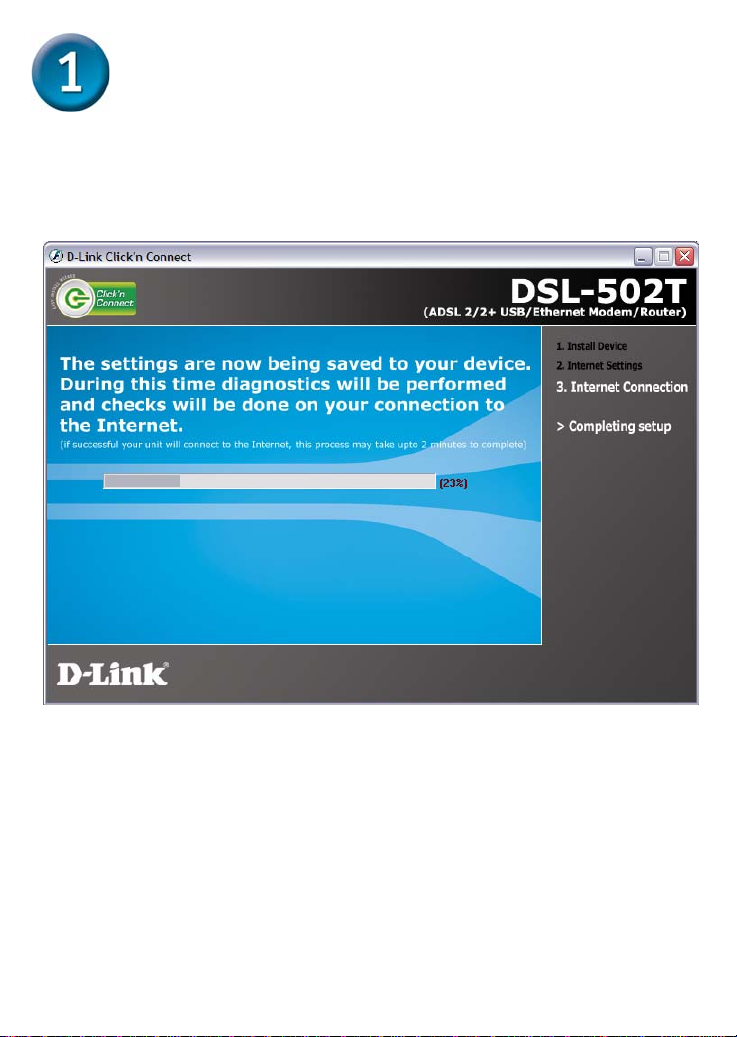

Step 8 – Completing Setup – Ethernet and USB
The Click’n Connect Utility will now save the settings you have entered to the
SL-502T modem, and verify that you have entered your account details
ave
ntered in very carefully, and try again.
D
correctly to ensure an Internet connection can be established.
If you receive an error message, please review all the information that you h
e
12

Configuring the Router via the D-Link
Click’n Connect Utility
The Click’n Connect utility will guide you through the installation process step-by-
step. Follow the on-screen instructions, then proceed to the next step.

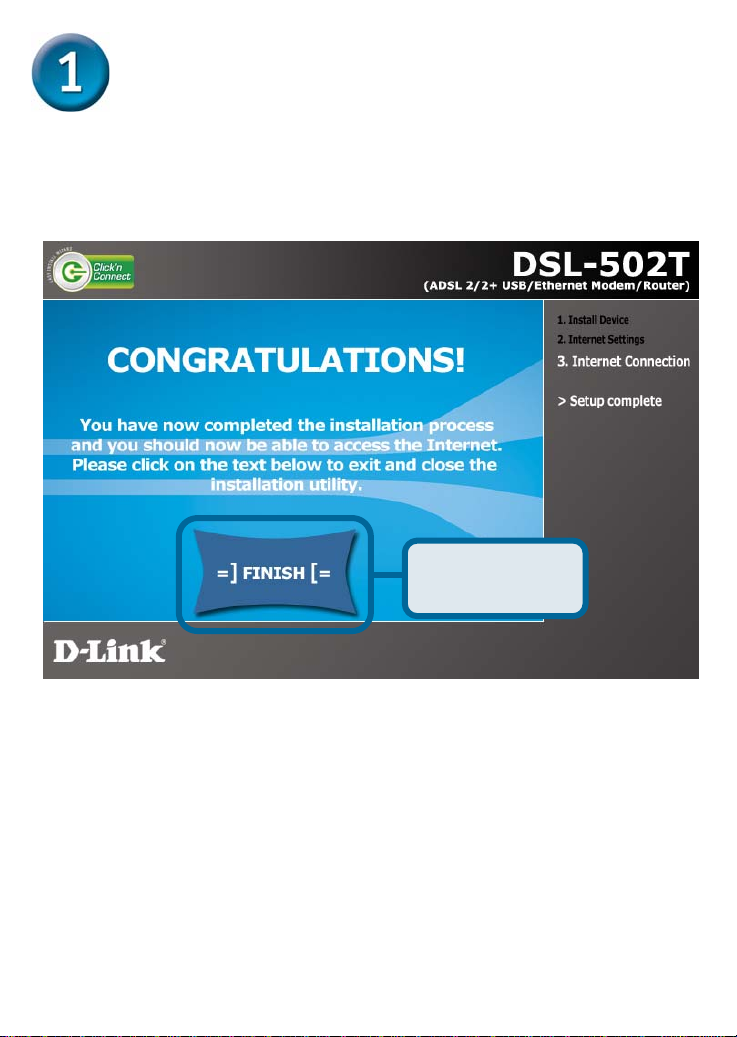

Step 9 – Setup Complete – Ethernet and USB
Click Finish to
close the Click’n
Connect Utility
If you have arrived at this screen, this means that your Internet connection has
been successfully established and all the details that you have entered are
correct.
13

14
Configuring the Router via the Web
Interface
ust
o that it is a DHCP Client. If
to change your network
settings, refer to the Appendix. You may also wish to refer to the User Manual
for further instructions.
Step 1 – Logging into the Router
The Login page appears below:
To use your Web browser to access the DSL-502T Router, your computer must
e configured to “Obtain an IP address automatically”, that is, you m
b
change the IP network settings of your computer s
you are using Windows XP and do not know how

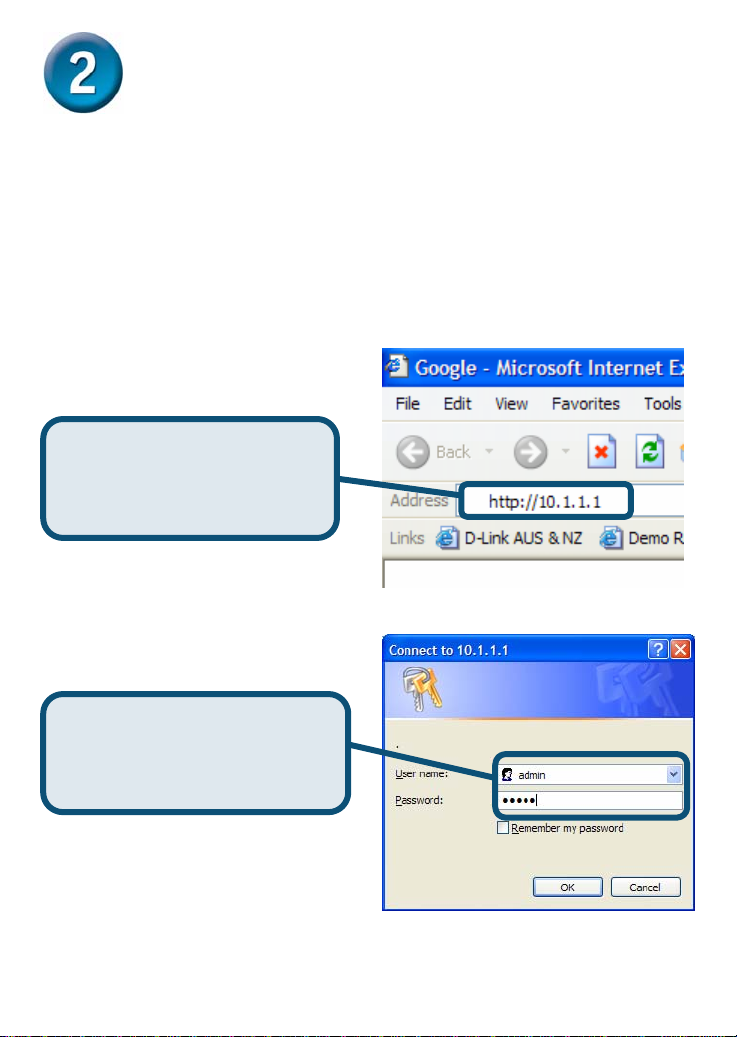

Open your Web browser and
type http://10.1.1.1 into the
URL address box. Press Enter
or Return.
When you first log in, your Login
Name is admin; your password is
also admin. These may be
changed later.

15
C
I
izard, click on the Run Wizard button.
onfiguring the Router via the Web
nterface

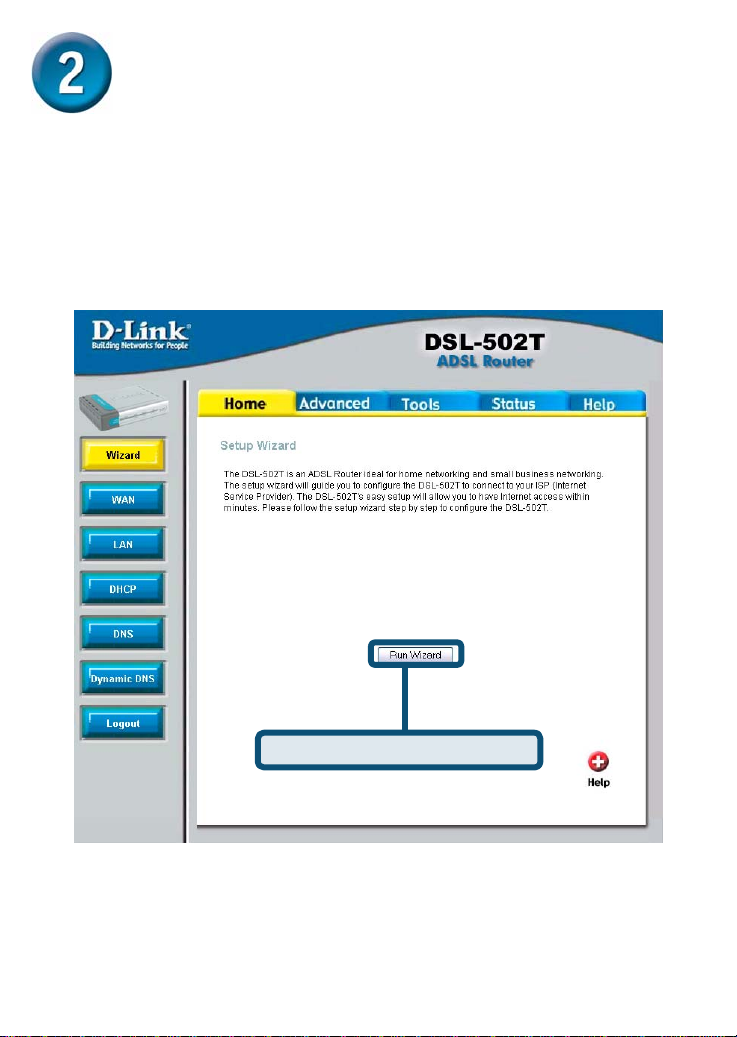

Step 2 – Accessing the Router Setup Wizard
Once you have logged in, the Home directory tab is highlighted with the setup
Wizard menu displayed. Most users will be able to use the setup wizard to
establish the ADSL connection to your ADSL Internet Service Provider (ISP). To
begin using the setup w
A pop-up menu will appear. This pop-up menu is the Setup Wizard. Proceed to
Step 3 to continue.
Click the Run Wizard button.

Configuring the Router via the Web
Interface

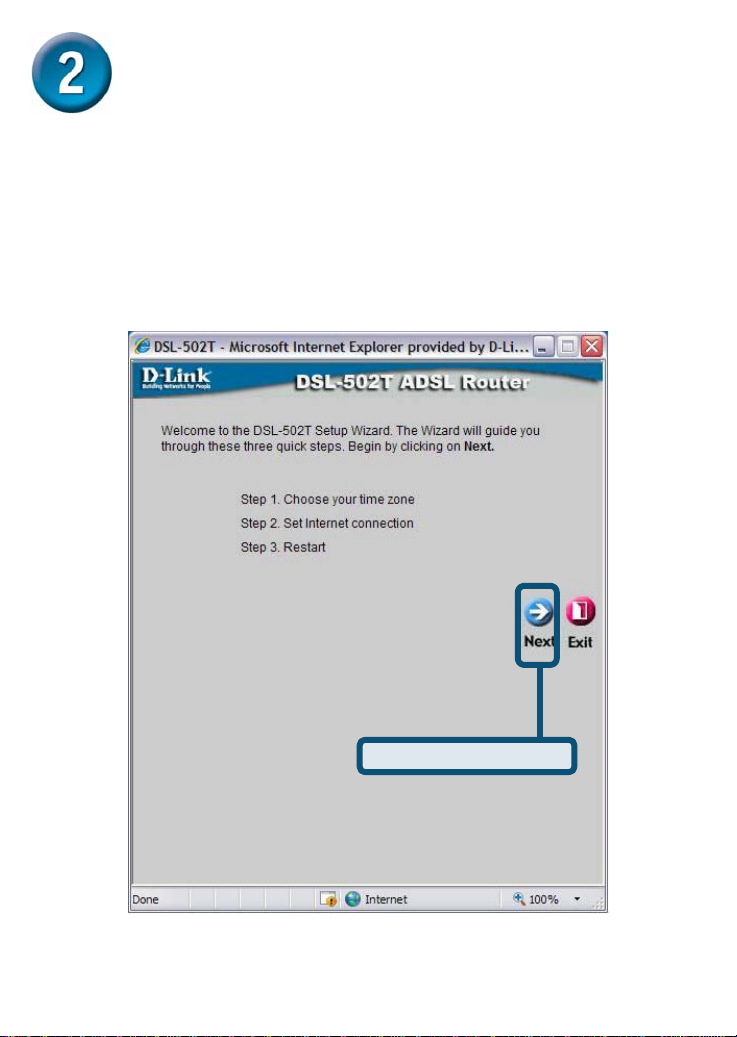

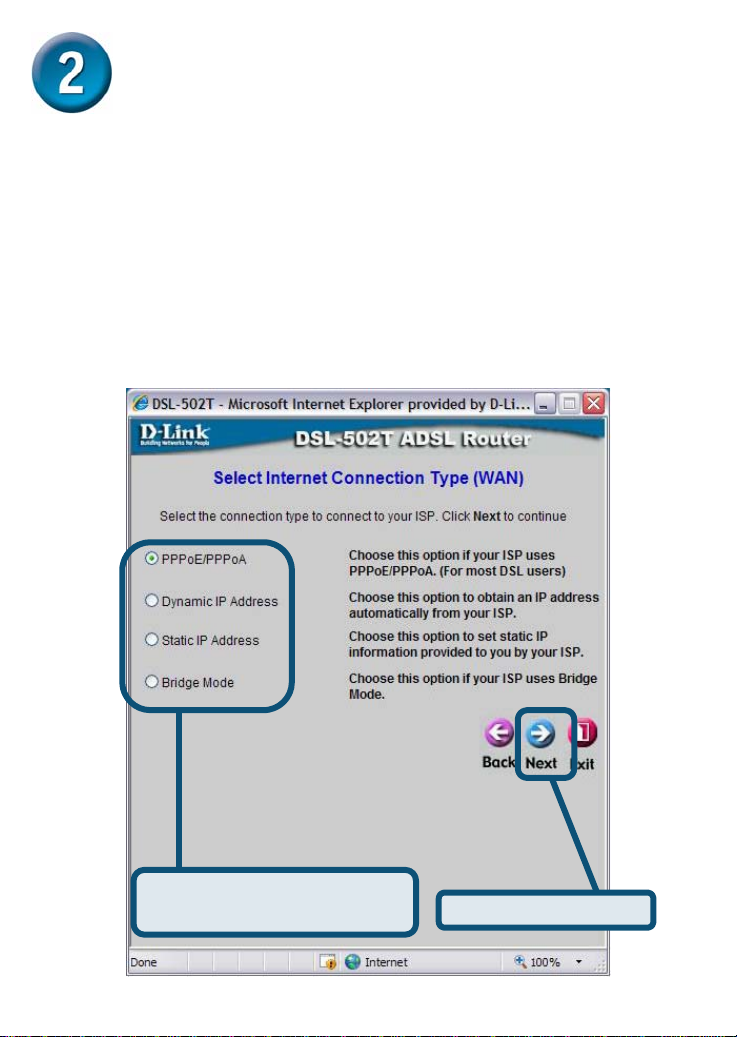

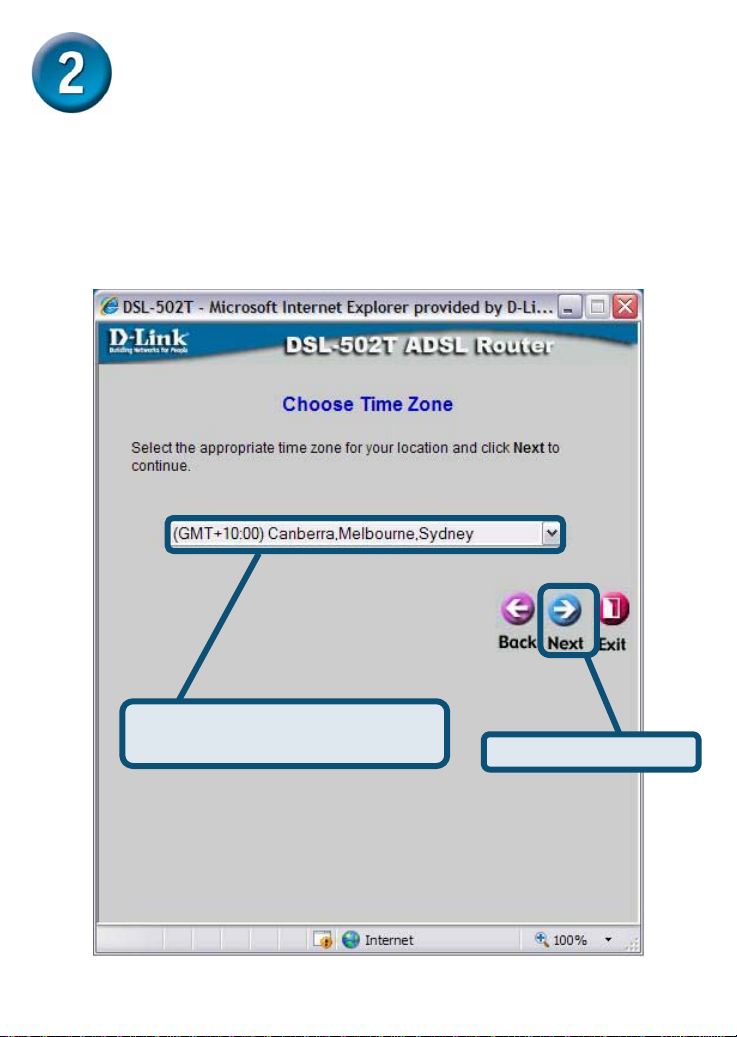

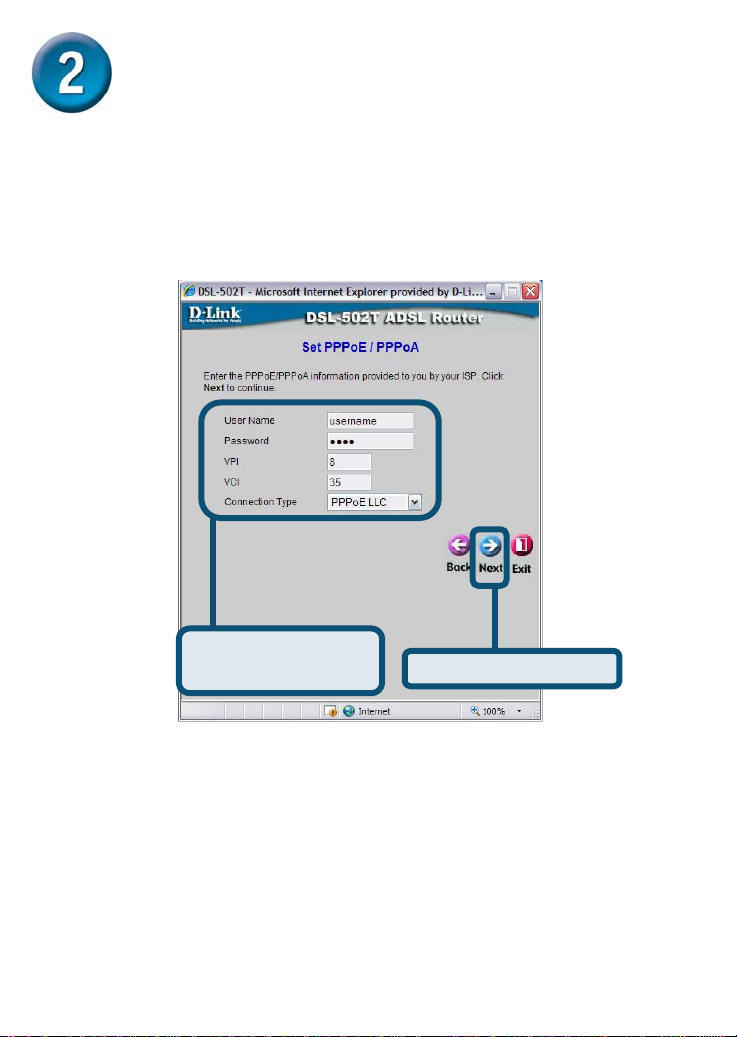

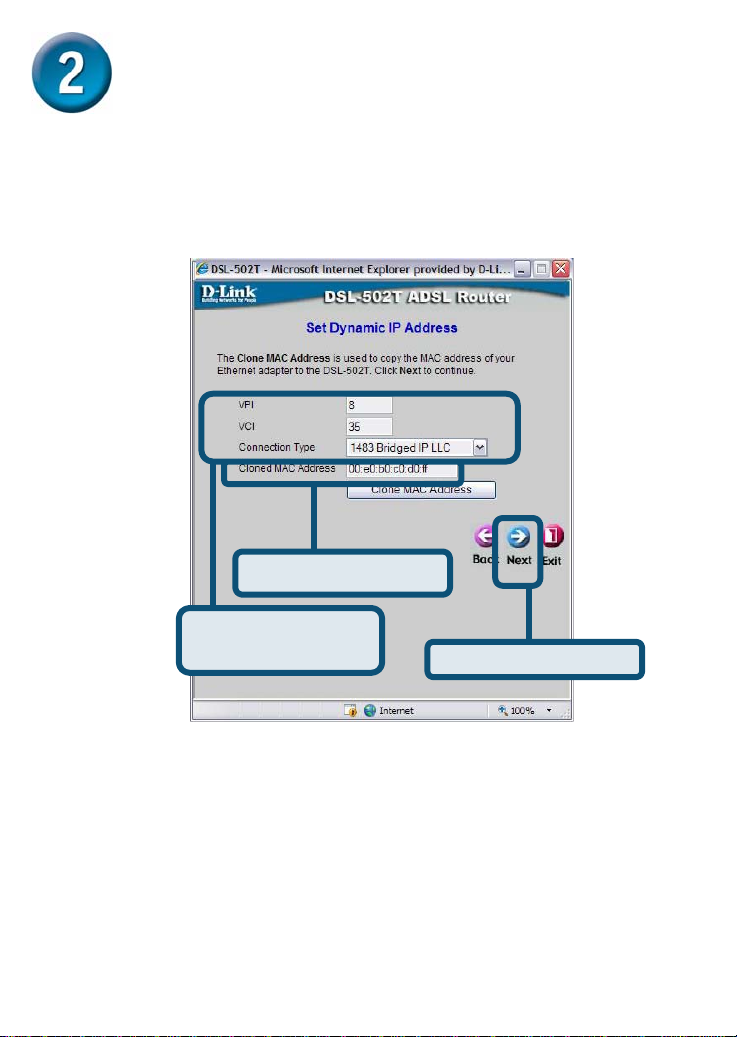

Step 3 – Run Wizard
The Setup wizard procedure consists of three steps:
1. Choose your time zone
2. Set Internet connection
16
3. Save & Restart
Click the Next button.
The Setup Wizard menu lists a summary of the steps that are required to
complete the initial setup. Click the Next button to begin setup.

Configuring the Router via the Web
Interface
17
Zone
clock. Select the
ppropriate time zone and Daylight Saving Time setting for your location, then
click
Step 4 – Choose Time
Configure the Time Zone used for the Router’s system
aNext.
Select the Time Zone you are
located at. Click
the Next button.

Configuring the Router via the Web
Interface
18
ection Type (WAN)
ur
connection type for your ISP. If you do not know what type of
onnection you have, exit the Setup Wizard and contact your ISP. The Setup
Wizard menu that appears when you click the Next button depends on what
connection type you have selected. Please skip forward to the page that relates
to your selection.
Step 5 – Select Internet Conn
Now, you will need to Select Internet Connection Type for the router. Yo
Internet Service Provider (ISP) should have given this information to you. Select
the appropriate
c
Select the Connection Type
your ISP has specified for you. Click
the Next button.

Configuring the Router via the Web
Interface
Step 6 – PPPoE / PPPoA Connections
19
Here, you will need to enter your ADSL account details. T ils will be
provided to yo your ISP.
1. Usern me: This is the username of your ADSL accou
2. Password: This is the password of your ADSL accou
3. by your ISP.
4. Connection Type: Select the ia your ISP.
Once you have completed this step, Click Next to continue to Step 7 on Page 23.
Select PPPoE / PPPoA if your ISP requires you to use this connection type to
connect onto their ADSL Network. PPPoE / PPPoA is the standard connection
type used by most ISPs.
Click the Next button.
Enter these details as
provided by your ISP
hese deta
u by
ant.
nt.
VPI/VCI: These are provided to you
appropr sed by
te one as is u

Configuring the Router via the Web
Interface
20
ns
.
lect the
Step 6 – Dynamic IP Address Connectio
Select the Dynamic IP Address connection type if your ISP requires you to use
this connection type to connect onto their ADSL Network. Click Next to continue
Enter these details as
provided by your ISP
Leave this unchanged
Click the Next button.
Here, you will need to enter your ADSL account details. These details will be
provided to you by your ISP.
1. VPI/VCI: These are provided to you by your ISP.
2. Connection Type: This is provided to you by your ISP. Se
appropriate one as is used by your ISP.
3. Cloned Mac Address: Leave this field unchanged.
Once you have completed this step, Click Next to continue to Step 7 on Page 23.
