D-Link DSL-G624M User manual

Check Your Package Contents
1. If you purchased this Router to share your high-speed xDSL Internet connection with
other computers, you must have an established Internet account from an Internet Service
Provider (ISP).
2. It’s best to use the same computer that is connected to your router for confi guring the DSL-
G624M Wireless 108G MIMO ADSL 2/2+ Router. By default the DSL-G624M acts as a
DHCP server and will assign all the necessary IP address information for your network.
See below in this Quick Installation Guide or the Manual on the CD-ROM for how to set
each network adapter to automatically obtain an IP address.
DSL-G624M
Wireless ADSL Router
DSL-G624M Wireless 108G MIMO ADSL 2/2+
Router
CD-Rom (containing Manual and Warranty)
Ethernet Cable (CAT5 UTP/Straight Through) Cable
Using a power supply
with a different voltage
rating will damage and void
the warranty for this product.
ADSL Cable (TP RJ-11)
Power Adapter
12VDC 1.2A
©2005 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders.
Software and specifi cations subject to change without notice.
If any of the above items is missing, please contact your reseller.
This product can be set up using
any current web browser, i.e.,
Internet Explorer 6x or Netscape
Navigator 7x.
Before You Begin

2
Connecting the Router to Your Computer
A.First, connect the power adapter to the power input at the back panel of the
DSL-G624M, then plug the other end of the power adapter to a wall outlet or
power strip. On the front of the device, the Power LED will turn ON to indicate
proper operation.
B.Insert one end of the Ethernet cable into an Ethernet (LAN) port on the back
panel of the DSL-G624M and the other end of the cable to an Ethernet Adapter
or available Ethernet port on your computer.
C.Insert the ADSL (telephone) cable included with the Router into the ADSL port
and then connect the cable to your telephone line.

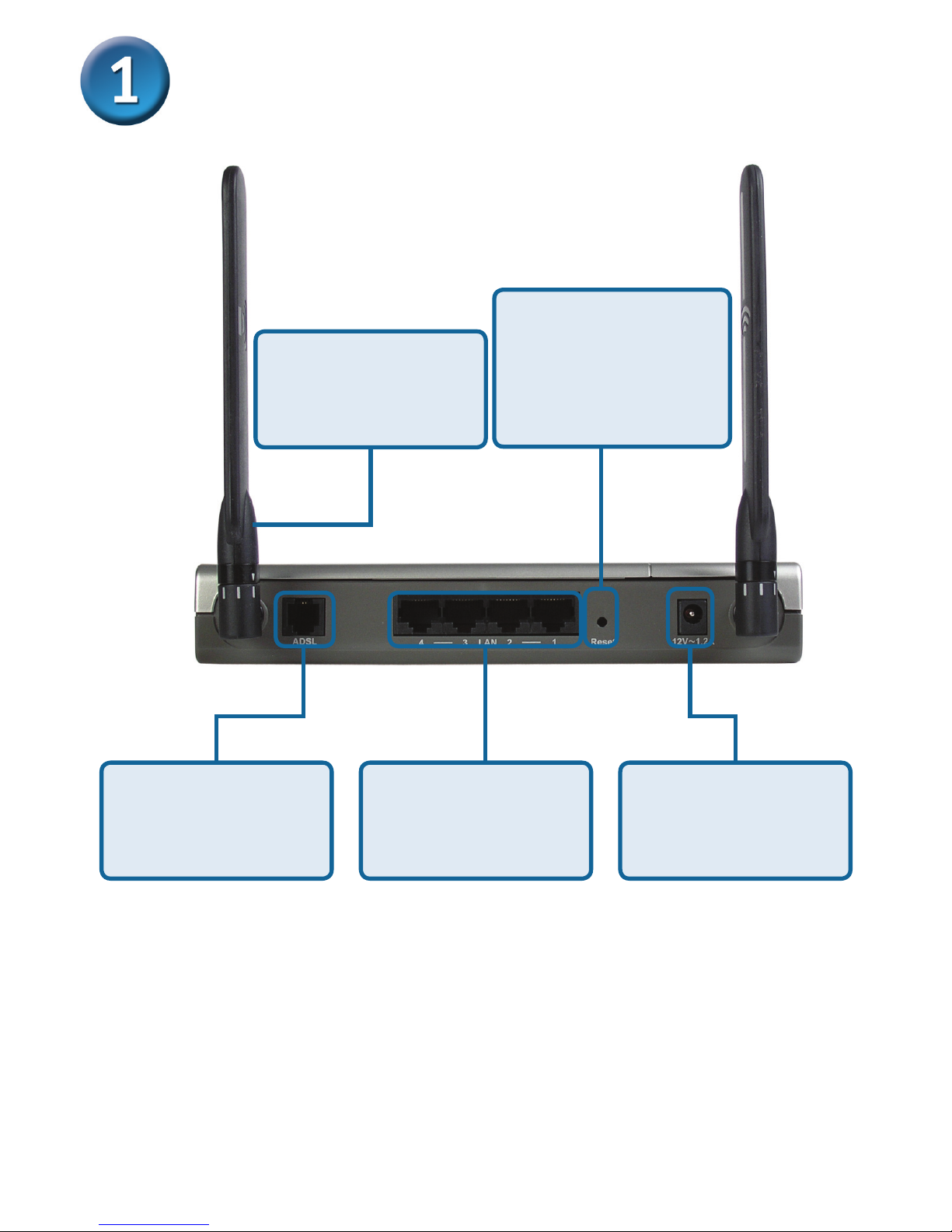

Antenna
For good wireless
reception.
Reset Button
Push to return to
default settings.
ADSL Port
Connect ADSL
line here.
LAN Ports
Connects to your
PC on the Ethernet
LAN
Power Input
Connect to AC
power adapter.

3
Configuring the Router
To access your new D-Link DSL-G624M router use your Web browser to access
the web pages used to setup the Router, your computer must be configured to
“Obtain an IP address automatically”, that is, you must change the IP network
settings of your computer so that it is a DHCP Client. If you are using Windows
XP and do not know how to change your network settings, skip ahead to Appen-
dix and read the instructions provided. You may also read the User Manual for
instructions on changing IP settings for computers running Windows operating
systems.

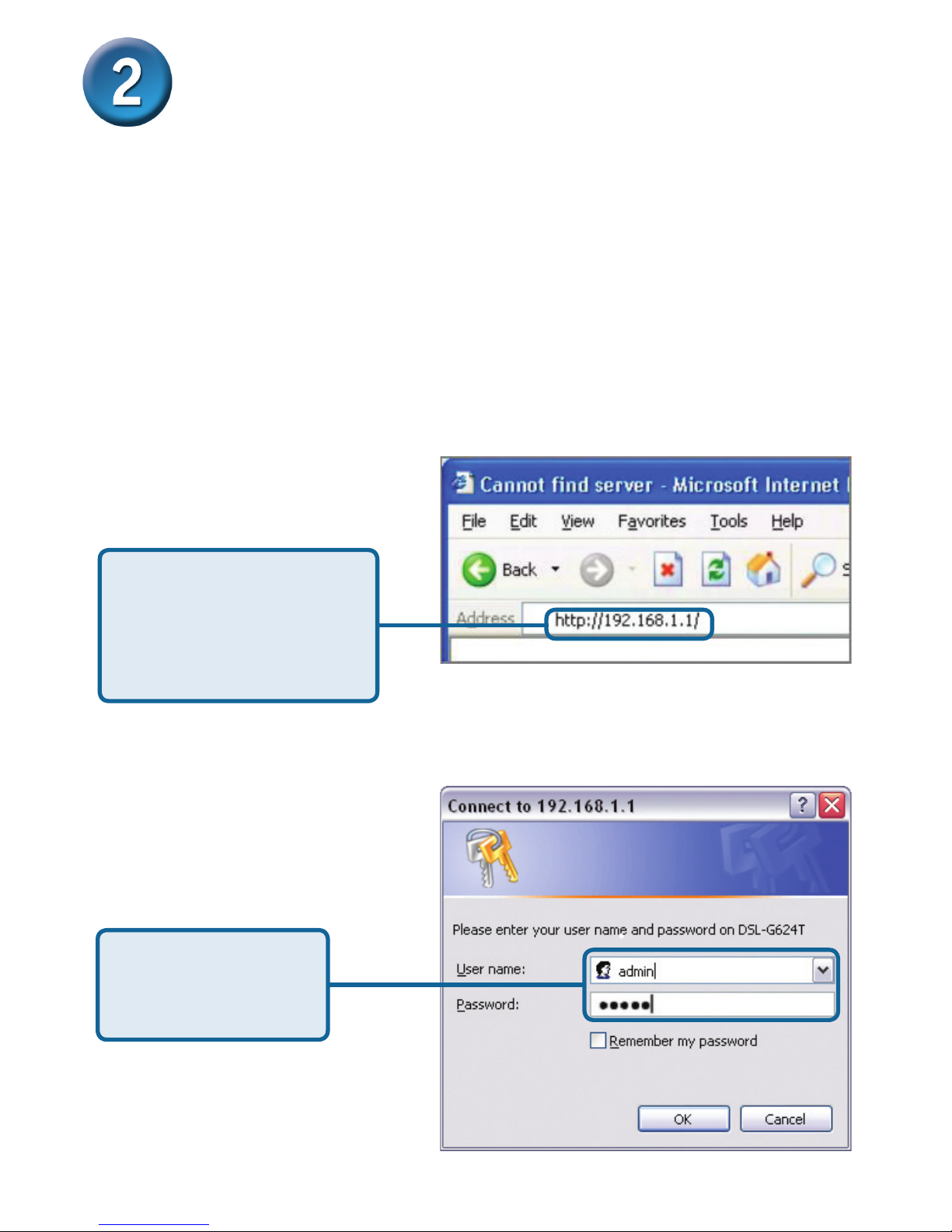

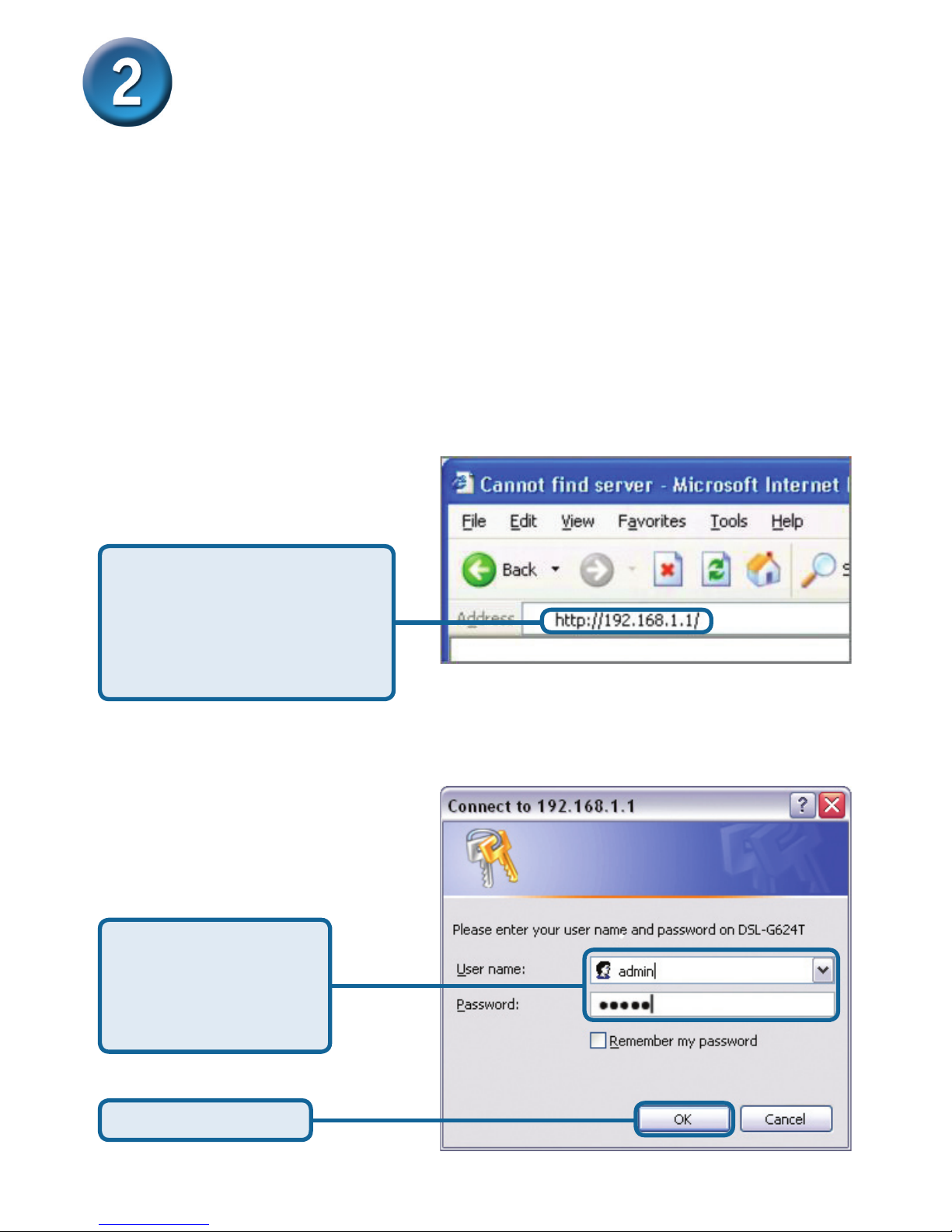

Type “admin” for
the User Name
and “admin” in the
Password field.
Open your Web browser and
type “http://192.168.1.1” into
the URL address box. Then
press the Enter or Return
key.
The login prompt appears.

4
Configuring the Router

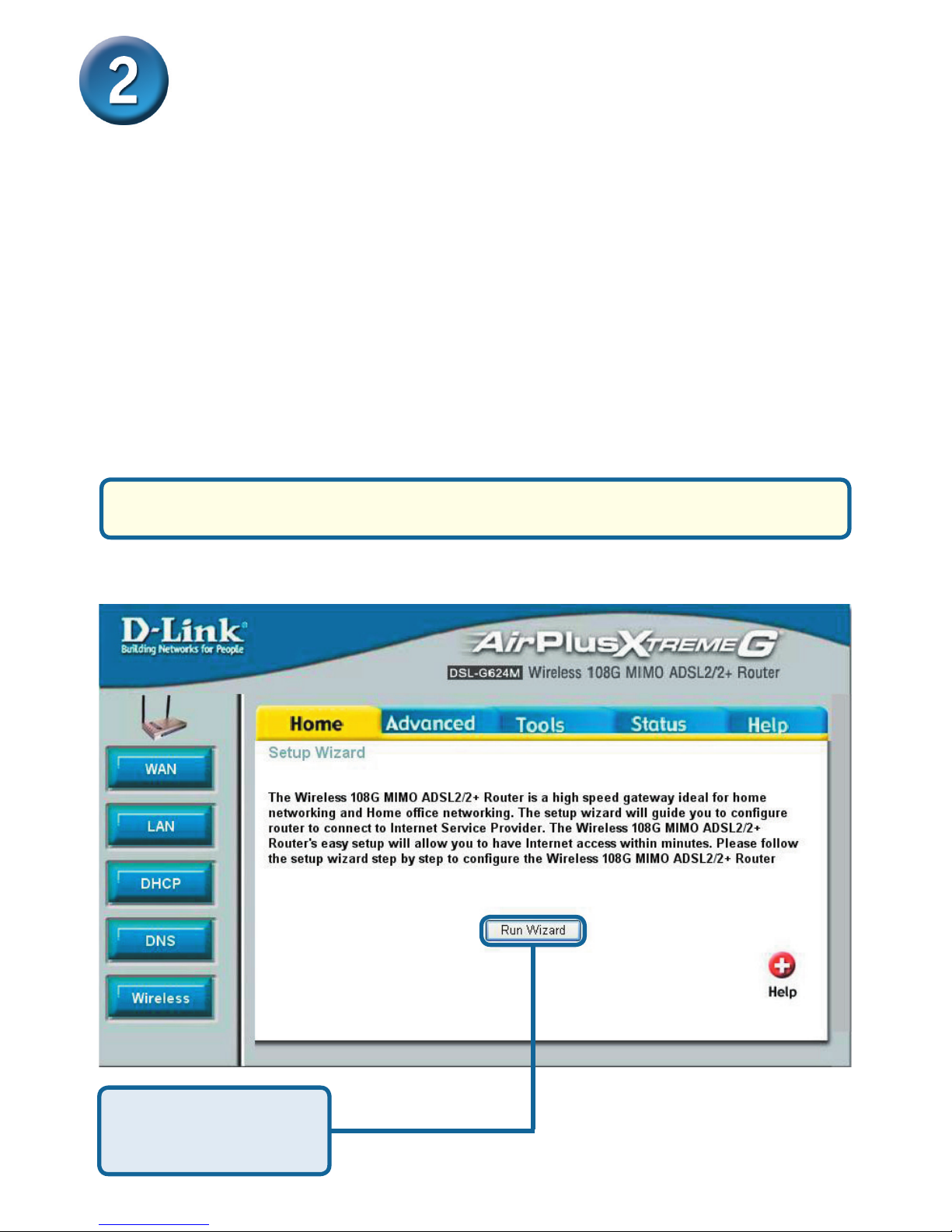

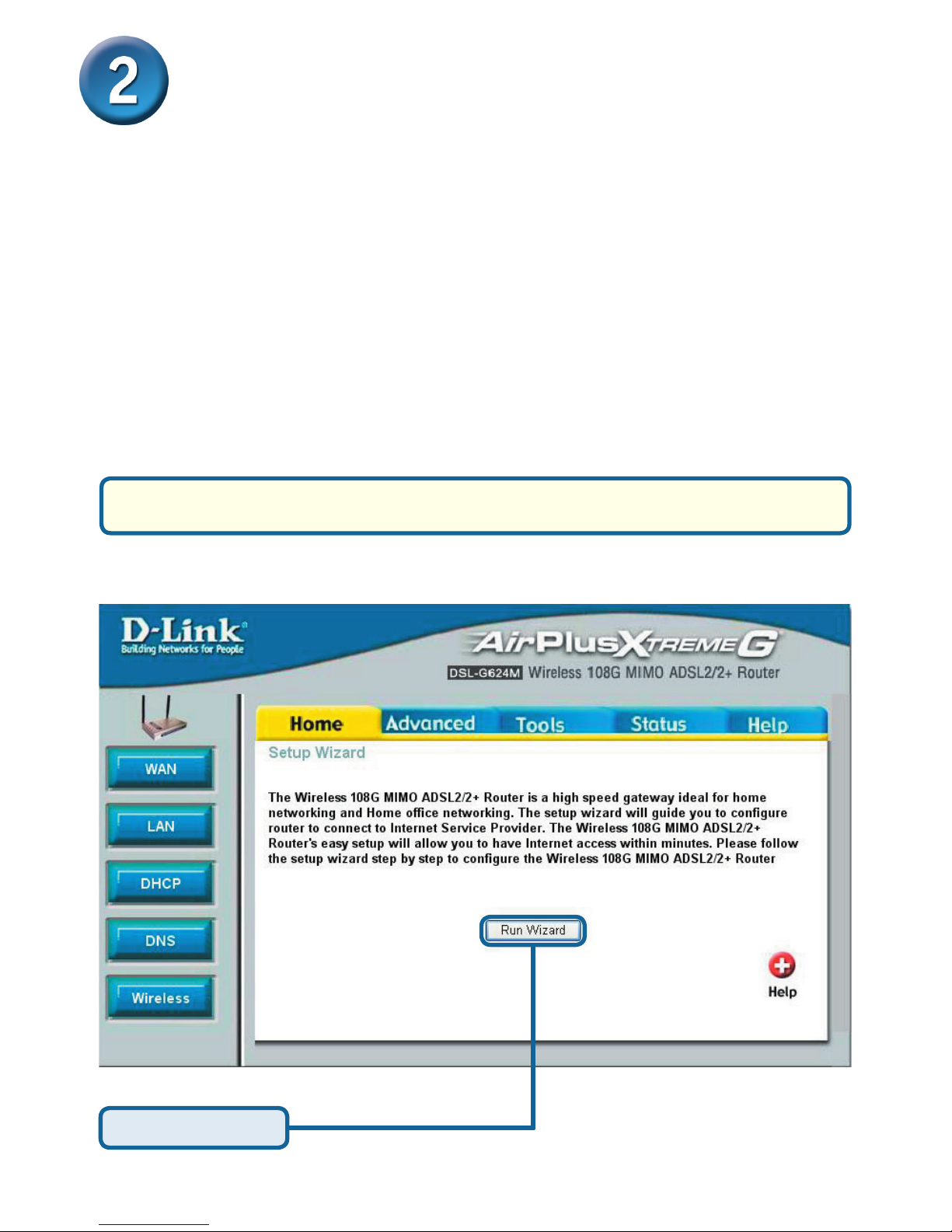

Once you have logged in, the Home directory tab is prominent with the Setup
Wizard menu displayed. Most users will be able to use the Setup Wizard to estab-
lish the ADSL connection to your ADSL Internet Service Provider (ISP). To begin
using the Setup Wizard, click on the Run Wizard button in the middle of the web
page. A pop-up menu will appear. This pop-up menu is the Setup Wizard. The
Setup Wizard procedure consists of three general steps:
1.Choose your time zone
2.Set Internet connection
3.Save & Restart
Please see the user manual for information on setting up wireless operation.
Click Run Wizard

5

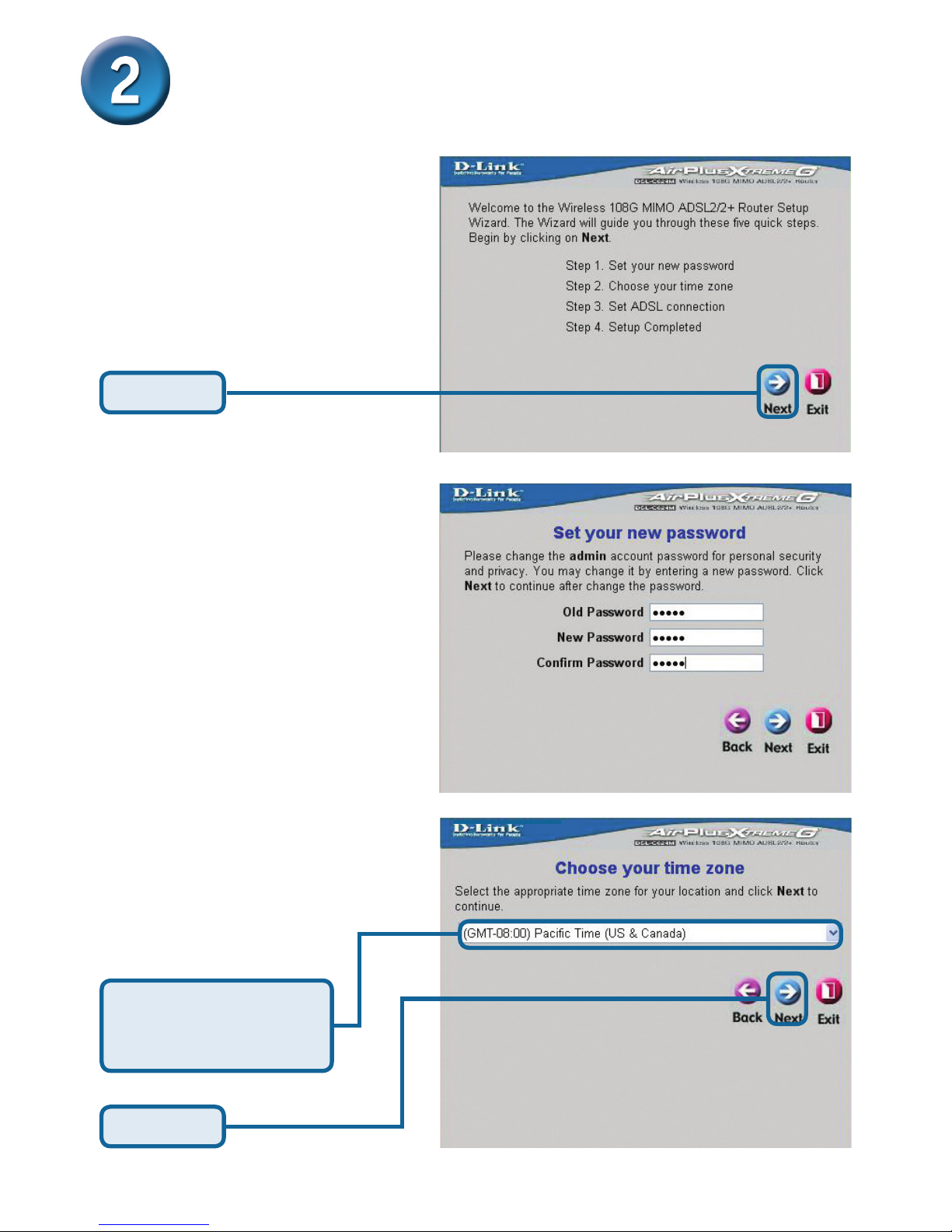

Configuring the Router - Setup Wizard
The first Setup Wizard menu
lists a summary of the steps
required to complete the setup.
Click the Next button to begin
setup.
Change the default Password
for the router from admin.
Now configure the Time Zone
used for the Router’s system
clock. Select the appropriate
time zone setting for your
location.
Select the Time Zone
in which you are
located.
Click Next
Click Next

6
Configuring the Router - ADSL
Connection

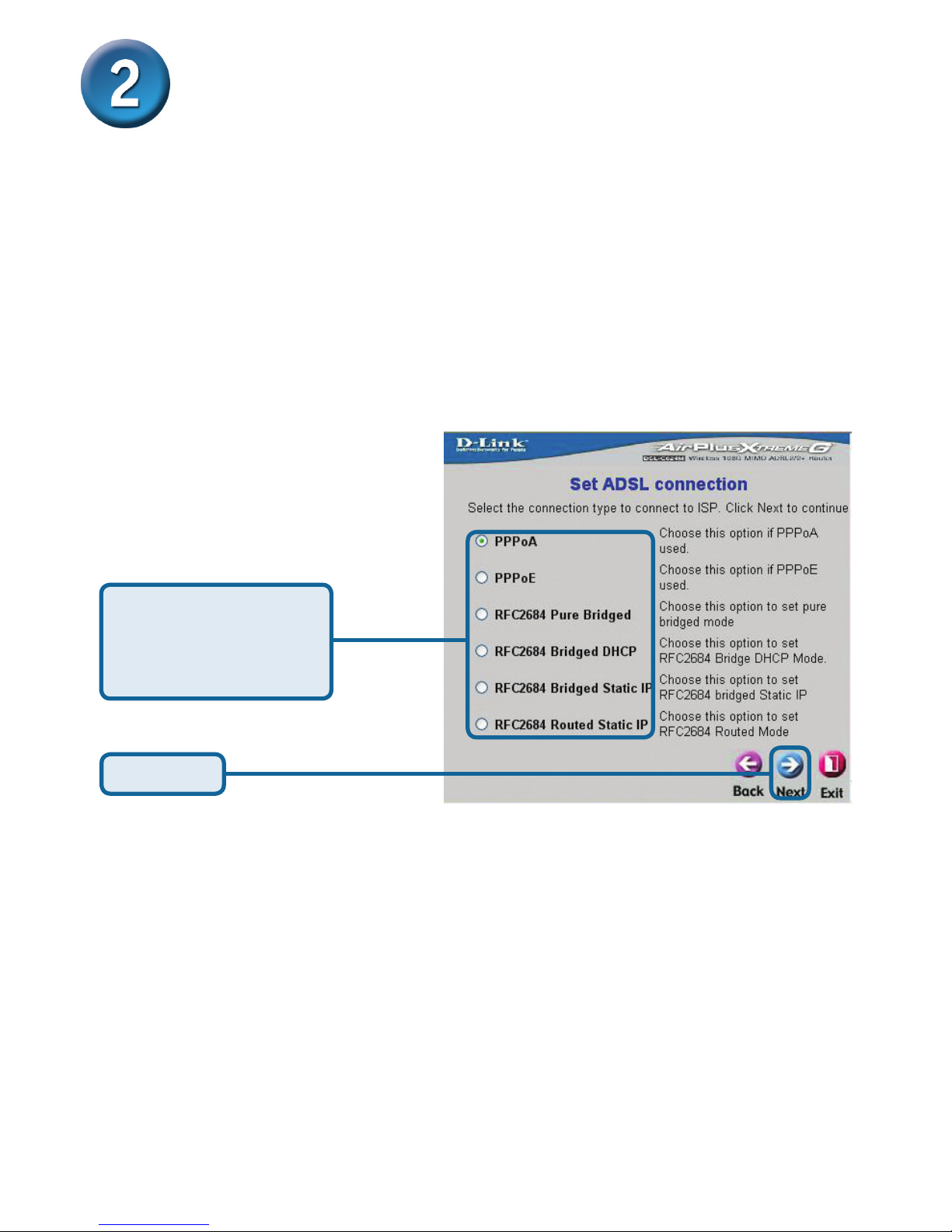

Next you will Select the ADSL Connection Type for the WAN interface. Your
ISP has given this information to you. If you do not know what type of connection
to use, exit the Setup Wizard and contact your ISP for the information. The
Setup wizard menu that appears when you click the Next button depends on
what connection type you select. The connection types available in the Setup
Wizard menu are RFC2684 Pure Bridged, RFC2684 Bridged Static IP, RFC2684
Bridged DHCP, RFC2684 Routed Mode, PPPoE, and PPPoA . Follow the
instructions below for the type of connection you are using.
Select the
Connection Type
used for your ADSL
service.
Click Next

7
Configuring the Router - ADSL
Connection

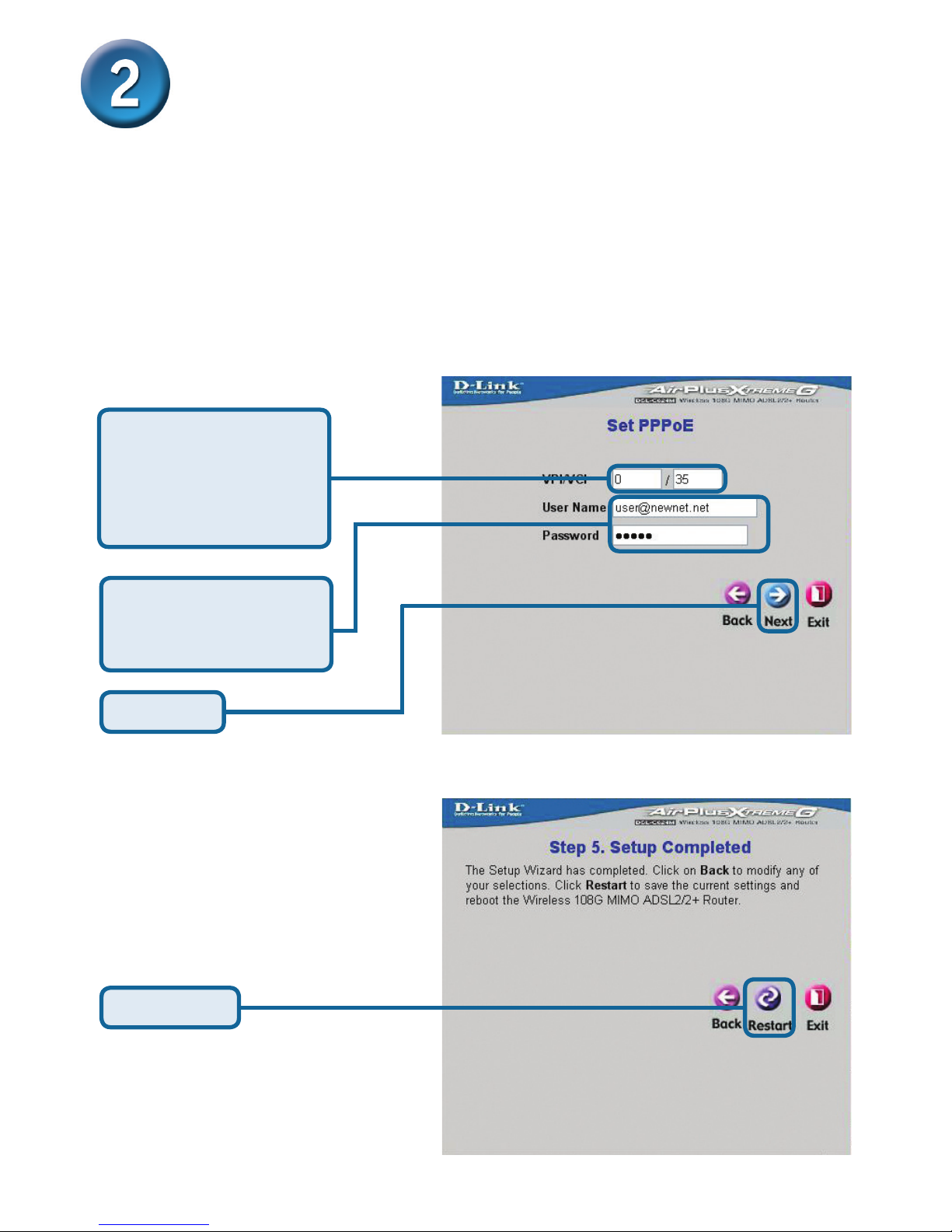

If you selected the PPPoE connection type in the previous menu, you will see the
Setup Wizard menu pictured here. Type in the Username and Password used to
identify and verify your account to the ISP. If you have been instructed to change
the VPI number and VCI number, type in the new values. Select the Connection
Type used for encapsulation specific to your service. Click Next when you are
ready to continue the Setup Completed menu.
Click Restart
Change the VPI and
VCI n u m b e r s a s
instructed by your
ISP by Typing in the
new values.
PPPoE Connections
Type the Username
a n d Password f o r
your ISP account.
Click Next

8
Configuring the Router - ADSL
Connection

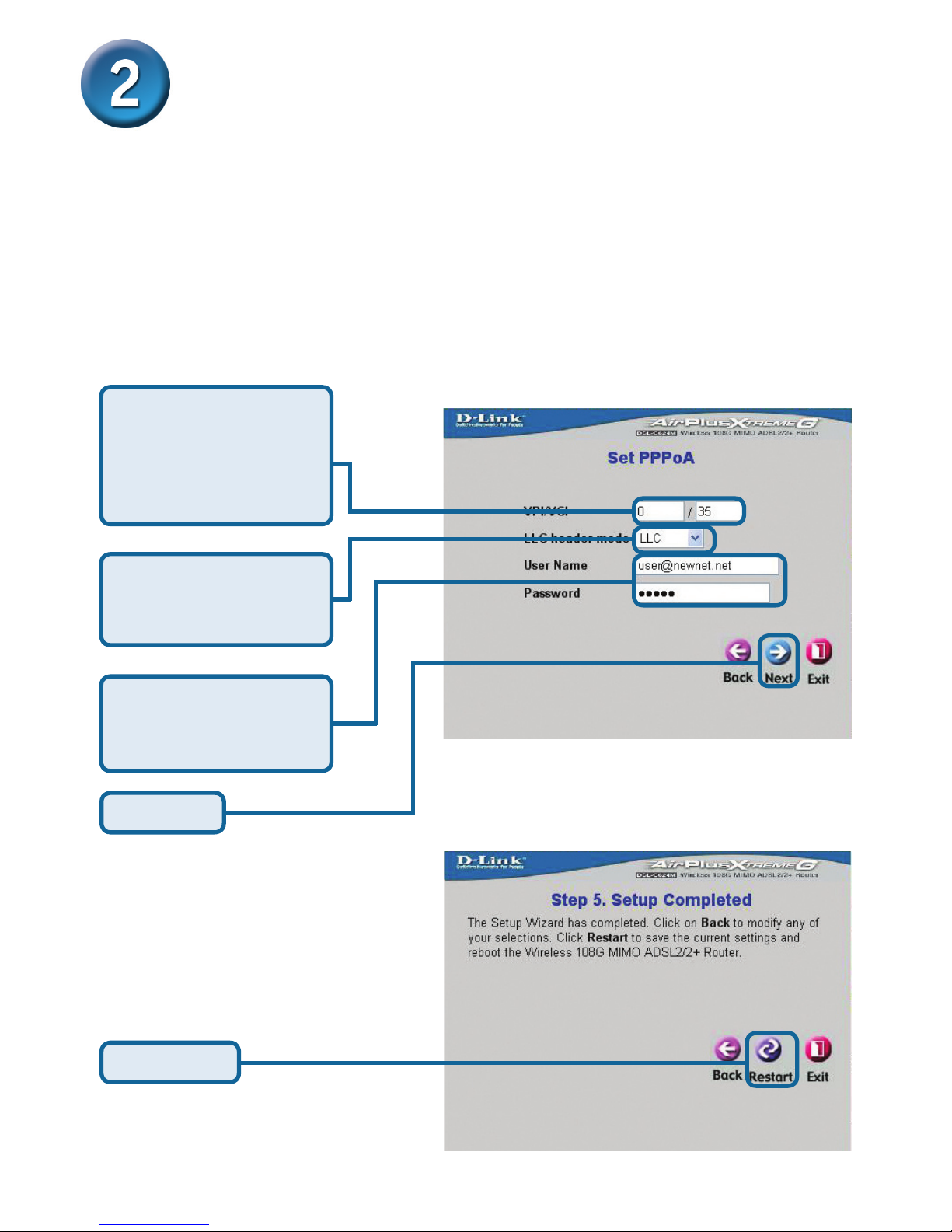

If you selected the PPPoA connection type in the previous menu, you will see the
Setup Wizard menu pictured here. Type in the Username and Password used to
identify and verify your account to the ISP. If you have been instructed to change
the VPI number and VCI number, type in the new values. Select the LLC header
mode used for encapsulation specific to your service. Click Next when you are
ready to continue the Setup Completed menu.
Click Restart
Change the VPI and
V C I numbers as
instructed by your
ISP by Typing in the
new values.
PPPoA Connections
Select the LLC header
mode used for your
ADSL service.
Type the Username
a n d Password f o r
your ISP account.
Click Next

9
Configuring the Router - ADSL
Connection

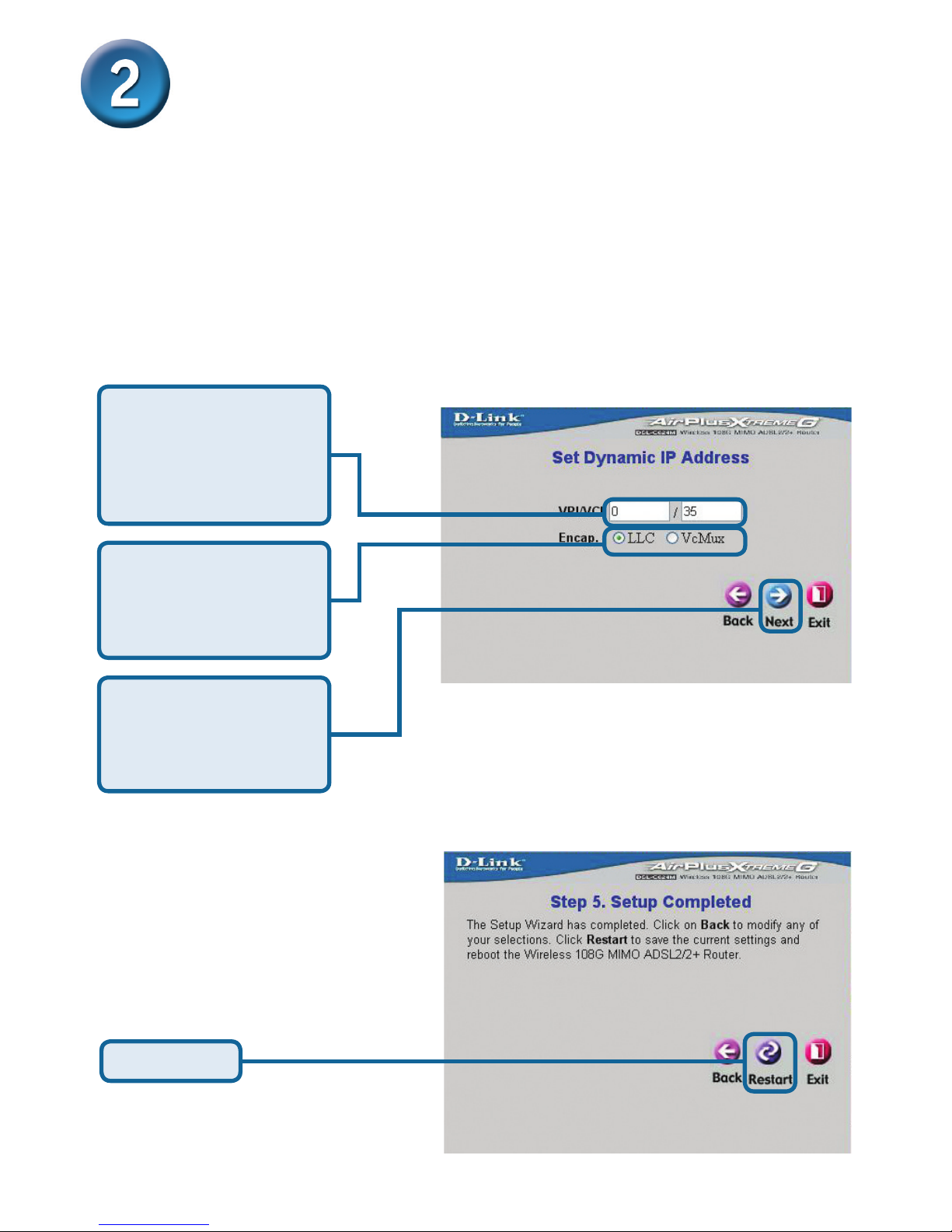

If you selected the RFC2684 Bridged DHCP connection type, select the Encap.
(Encapsulation type) used for your account. If you have been instructed to change
the VPI number and VCI number, type in the new values. Click Next when you are
ready to continue the Setup Completed menu.
Click Restart
Change the VPI and
VCI n u m b e r s a s
instructed by your
ISP by Typing in the
new values.
RFC2684 Bridged DHCP Connections
Select the
Encapsulation type
used for your ADSL
service.
Click the Next button.
S k i p a h e a d t o t h e
Setup Completed
menu.

10
Configuring the Router - ADSL
Connection

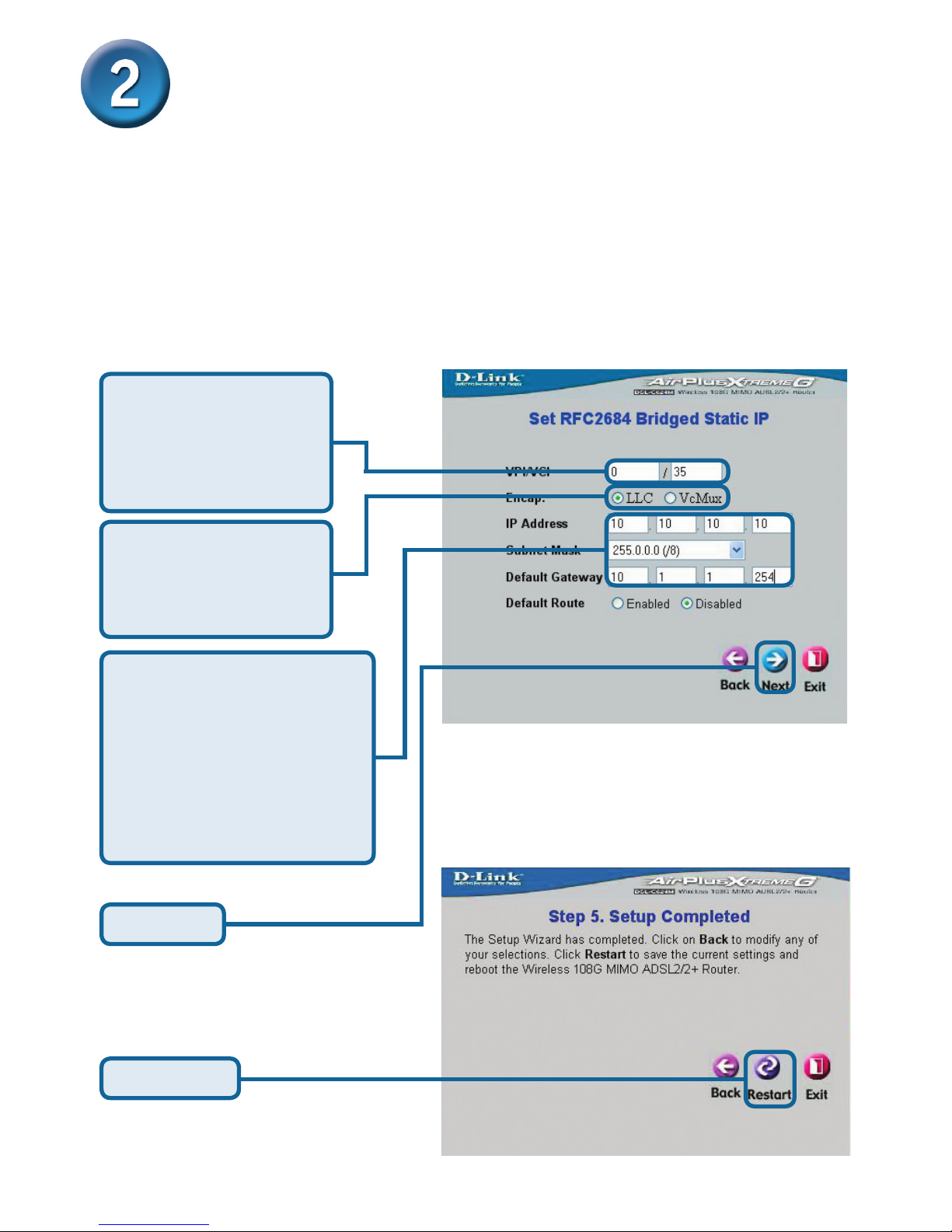

If you selected the Static IP Address connection type, change the WAN IP
Address, Subnet Mask, Default Gateway address and if the router will be your
main Internet connection, select Default Route Enabled. Select the Encap. type
used for encapsulation. If you have been instructed to change the VPI number and
VCI number, type in the new values. Click Next when you are ready to continue
the Setup Completed menu.
Click Restart
Change the VPI and
V C I n u m b e r s a s
instructed by your
ISP by Typing in the
new values.
RFC2684 Static IP Address Connections
Select the
Encapsulation type
used for your ADSL
service.
Type the IP addresses
for the WAN IP Address,
W A N Subnet Mask,
Default Gateway Address
and select Default Route
Enabled if the router will
be your main Internet
connection.
Click Next

11
Configuring the Router - ADSL
Connection

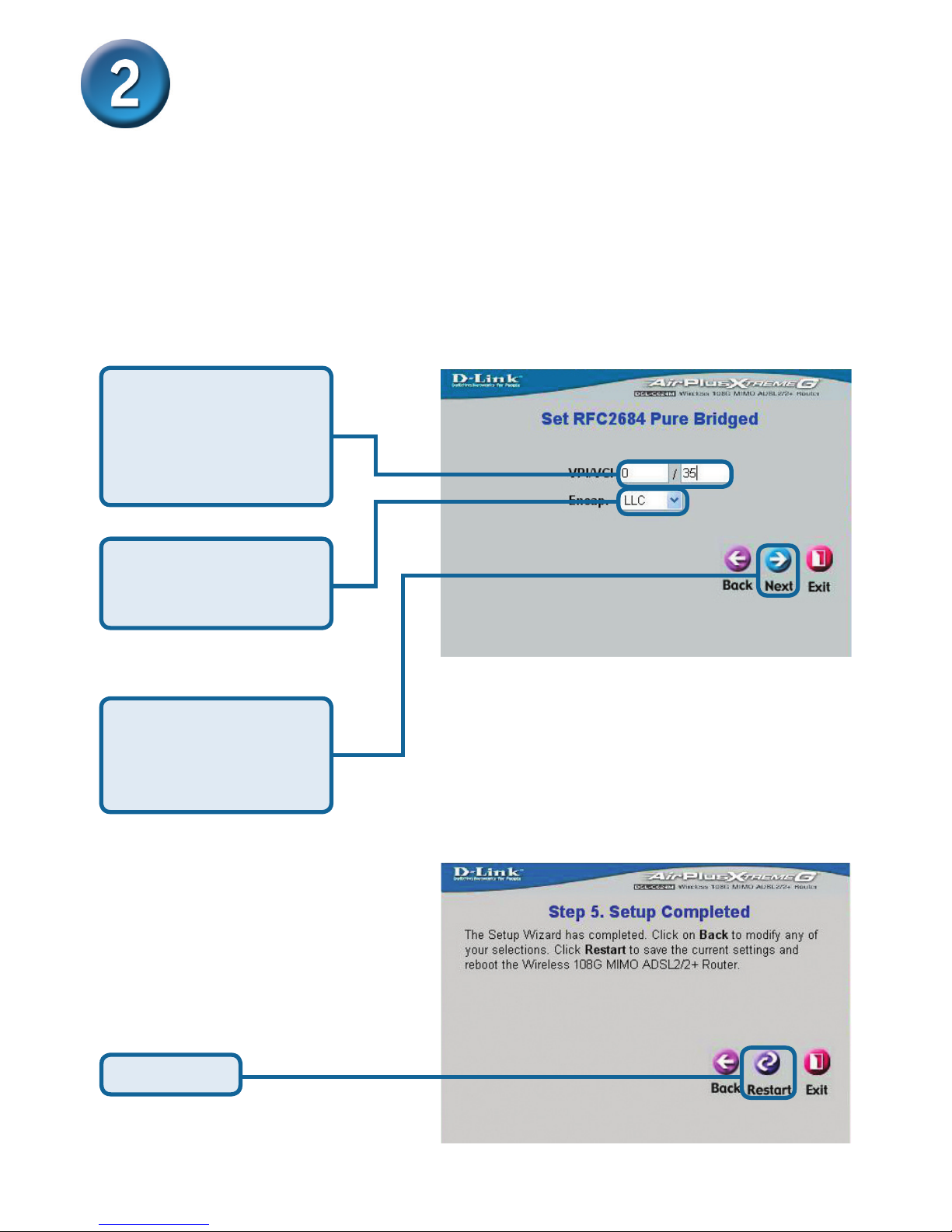

If you selected the Pure Bridged connection type, select the Encap. used for
encapsulation. If you have been instructed to change the VPI number and VCI
number, type in the new values. Click Next when you are ready to continue the
Setup Completed menu.
Click Restart
Change the VPI and
VCI numbers as
instructed by your
ISP by Typing in the
new values.
RFC2684 Pure Bridged Connections
Select the Connection
Type as instructed by
your ISP.
Click the Next button.
S k i p a h e a d t o t h e
S e t u p C o m p l e t e d
menu.

12
Configuring the Router - ADSL
Connection
If you selected the Routed Mode connection type, select the Encap. used for
encapsulation. If you have been instructed to change the VPI number and VCI
number, type in the new values. Click Next when you are ready to continue the
Setup Completed menu.
Click Restart
C h a n g e t h e V P I
and VCI numbers
as instructed by
your ISP by Typing
in the new values.
RFC2684 Routed Mode Connections
S e l e c t t h e
Encapsulation type
used for your ADSL
service.
T y p e t h e I P
addresses for the
WA N IP Address,
WAN Subnet Mask,
D e f a u l t G a t e w a y
Addres.
Click Next

13
Configuring the Router - ADSL
Connection

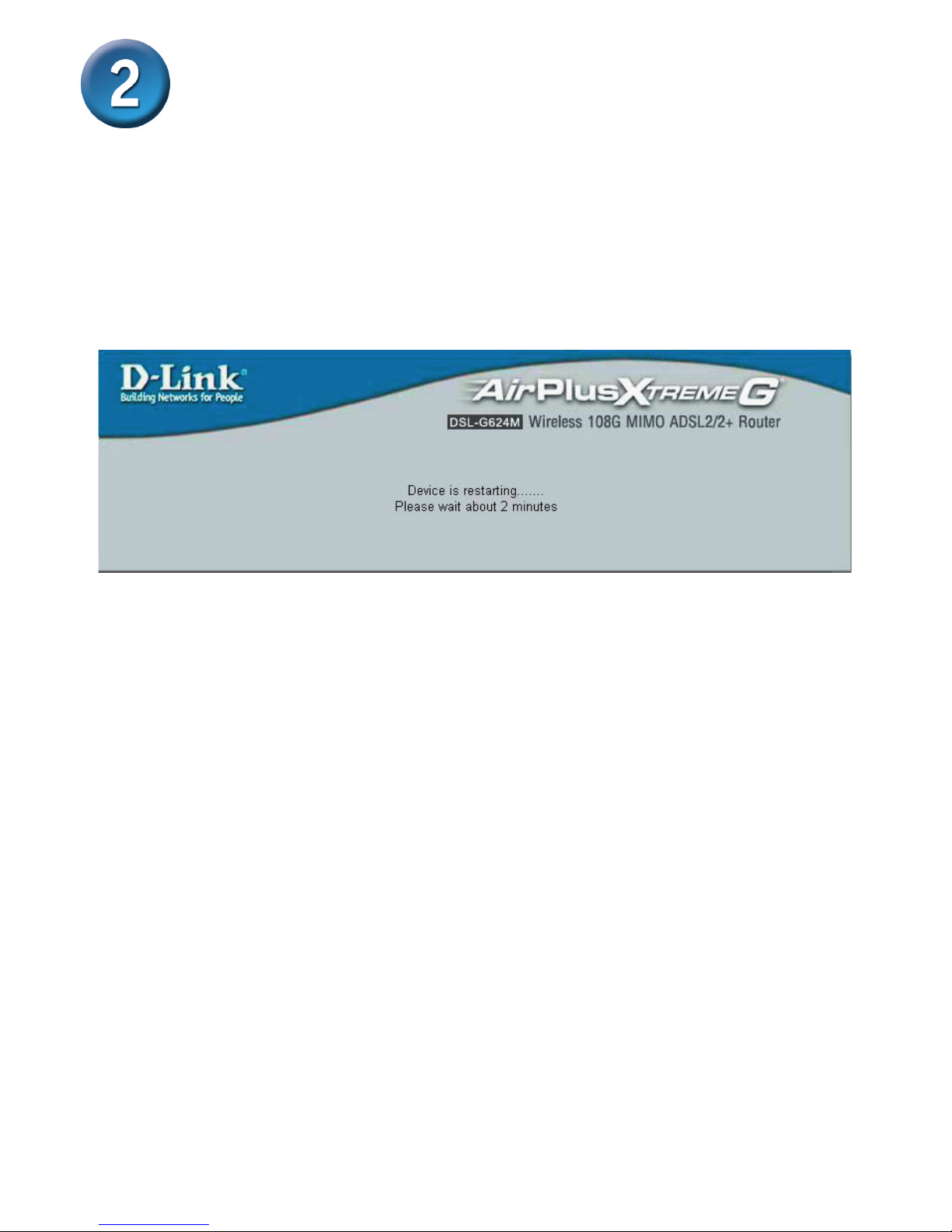

All the settings for the ADSL connection are now completed. Click the Restart
button (as shown above) to save the new settings and restart the Router. It will
take about two minutes to reboot the Router. The screen below will appear.
Setup Completed
While the Router is restarting, DO NOT TURN OFF THE ROUTER. The Home
page will reappear when the device has rebooted successfully. You can then
launch your web browser to access the Internet.

14
Appendix
For additional settings or information, refer to the Advanced, Tools, or Status
tabs on the web-management interface; or to the manual located on the CD-ROM.
Right-click on the
Local Area Connection
icon and Select the
Properties option from
the pull-down menu.
Configuring IP Settings in Windows XP
Use the following steps to configure a computer running Windows XP to be a
DHCP client.

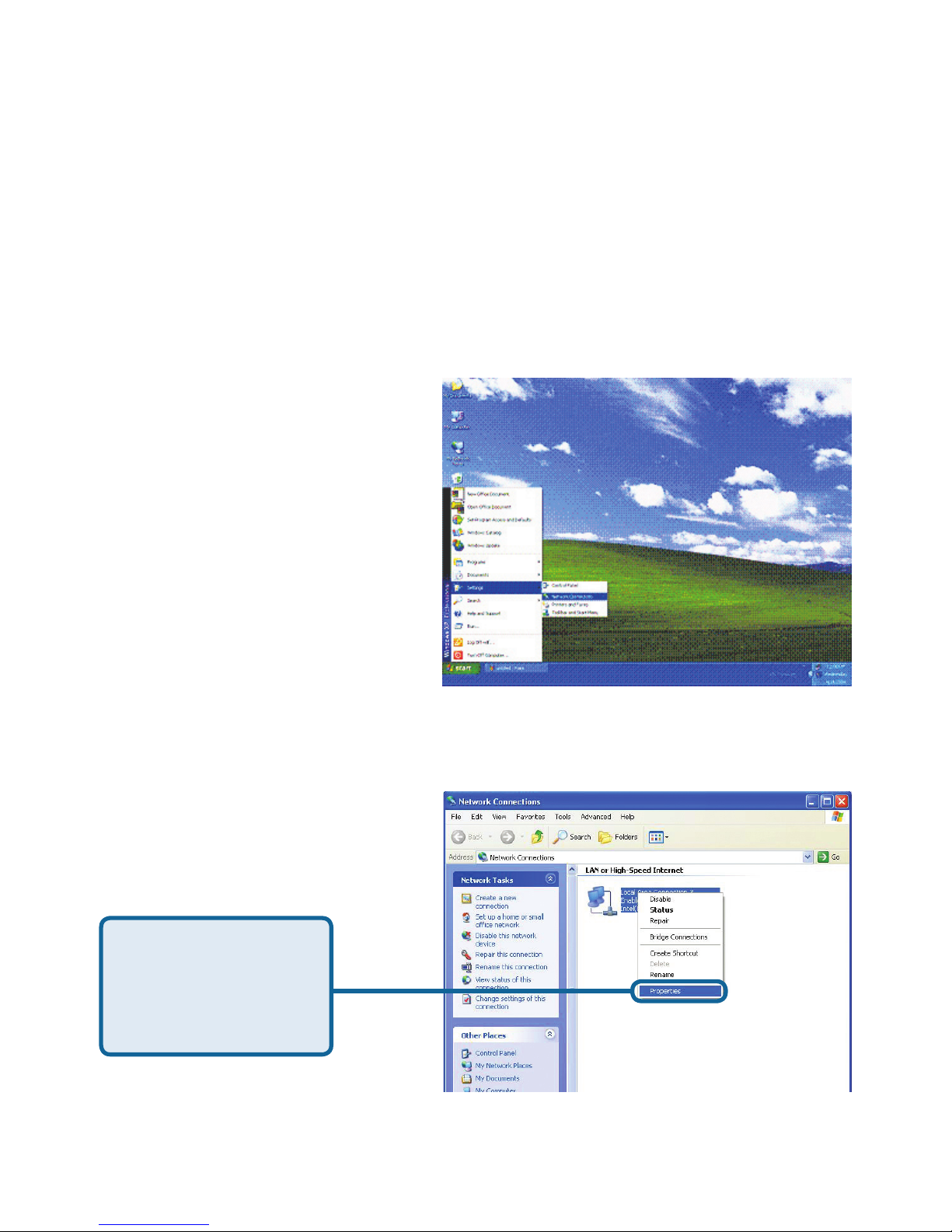

From the Start menu on
your desktop, go to Set-
tings, then click on Network
Connections.
In the Network Connec-
tions window, right-click on
LAN (Local Area Connec-
tion), then click Properties.

15

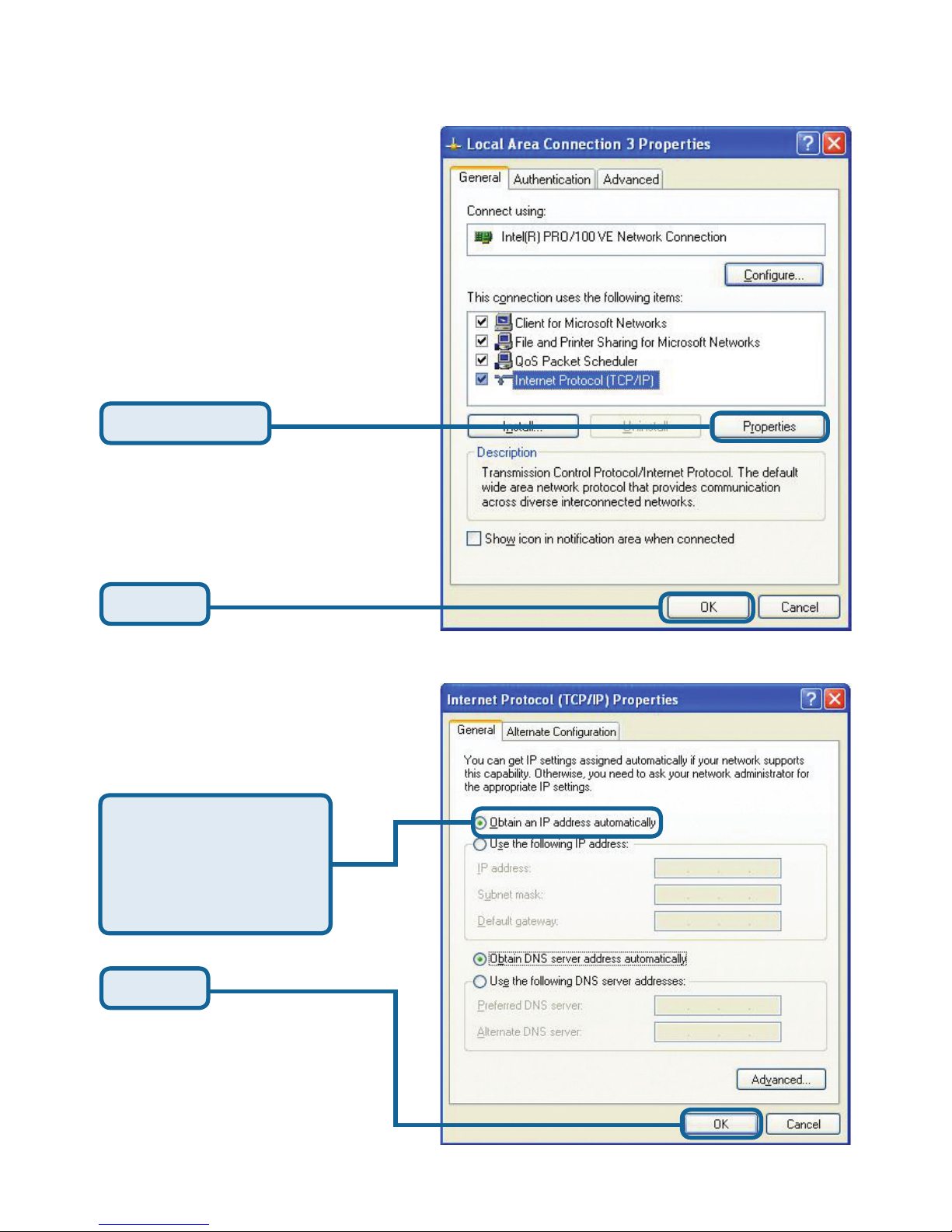

In the General tab of the
Local Area Connection
Properties menu, highlight
Internet Protocol (TCP/IP)
under “This connection
uses the following items:” by
clicking on it once.
Select “Obtain an IP ad-
dress automatically” by
clicking once in the circle.
Click the OK button.
Select Obtain an IP
address automatically
i n t h e I n t e r n e t
Protocol (TCP/IP)
Properties window.
Your computer is now ready
to use the Router’s DHCP
server.
Click Properties
Click OK
Click OK

Technical Support
You can find software updates and user documentation on the D-Link websites.
D-Link provides free technical support for customers within Canada,
the United Kingdom, and Ireland.
Customers can contact D-Link technical support through our websites,
or by phone.
For Customers within
The United Kingdom & Ireland:
D-Link UK & Ireland Technical Support over the Telephone:
08456 12 0003 (United Kingdom)
[phone] (Ireland)
Lines Open
8.00am-10.00pm Mon-Fri
10.00am-7.00pm Sat & Sun
D-Link UK & Ireland Technical Support over the Internet:
http://www.dlink.co.uk
ftp://ftp.dlink.co.uk
For Customers within Canada:
D-Link Canada Technical Support over the Telephone:
1-800-361-5265 (Canada)
Monday to Friday 7:30 am to 3:00 am ET
Saturday and Sunday 9:00am to 12:00am ET
D-Link Canada Technical Support over the Internet:
http://support.dlink.ca
email: [email protected]

Lieferumfang überprüfen
1. Wenn Sie diesen Router erworben haben, um eine Highspeed-xDSL-Internetverbindung
mit mehreren Computern gleichzeitig zu nutzen, müssen Sie über einen eingerichteten
Zugang bei einem Internet-Dienstanbieter verfügen.
2. Es wird empfohlen, den drahtlosen 108G MIMO ADSL 2/2+ Router DSL-G624M von dem
Computer aus zu konfi gurieren, der direkt mit dem Router verbunden ist. Der DSL-G624M
übernimmt standardmäßig die Funktion eines DHCP-Servers und weist im Netzwerk die
IP-Adressen zu. Nähere Informationen zur automatischen Zuweisung von IP-Adressen
fi nden Sie weiter unten in dieser Kurzanleitung bzw. im Handbuch auf der CD-ROM.
DSL-G624M
Wireless 108G MIMO ADSL
2/2+ Router
DSL-G624M 108G MIMO ADSL 2/2+ Router
CD-ROM (mit Handbuch und Garantiekarte)
Ethernetkabel (CAT5 UTP, nicht gekreuzt)
Die Verwendung eines
Netzteils mit abwei-
chender Spannung führt zur Be-
schädigung des Geräts und zum
Erlöschen der Garantie.
ADSL-Kabel (TP RJ-11)
Netzteil 12 V / 1,2 A
(Gleichstrom)
©2005 D-Link Systems, Inc. Alle Rechte vorbehalten. Marken und eingetragene Marken sind Eigentum ihrer jeweiligen Inhaber.
Sollte eines dieser Teile fehlen, wenden Sie sich an Ihren Fachhändler.
Dieses Produkt kann mit jedem
aktuellen Webbrowser eingerichtet
werden (z. B. Internet Explorer 6.x
oder Netscape Navigator 7.x).
Bevor Sie anfangen

18
Router mit dem Computer verbinden
A.Verbinden Sie das Netzteil zunächst mit der Buchse auf der Rückseite des DSL-
G624M, und schließen Sie das Netzteil danach an eine Steckdose an. Auf der
Vorderseite des Geräts leuchtet die LED-Betriebsanzeige und zeigt damit den
ordnungsgemäßen Betrieb an.
B.Verbinden Sie das eine Ende des Ethernetkabels mit dem Ethernet-(LAN-
)Anschluss auf der Rückseite des DSL-G624M und das andere Ende mit
einem Ethernet-Adapter oder einem verfügbaren Ethernet-Anschluss an Ihrem
Computer.
C.Verbinden Sie das mit dem Router mitgelieferte ADSL-Telefonkabel zunächst
mit dem ADSL-Anschluss und anschließend mit Ihrer Telefonleitung.
Antennen
Omnidirektionale
MIMO-Quadantennen
Reset-Taste
Zum Wiederherstellen
der Standardeinstellun-
gen Taste fünf Sekun-
den lang gedrückt
halten
ADSL-2/2+-Anschluss
Schließen Sie hier die
ADSL-Leitung an.
10/100 Mbit/s-LAN-
Anschlüsse
Verbinden Sie hier Ihren
PC mit dem Ethernet-
LAN.
Netzanschluss
Schließen Sie hier das
12-V-Netzteilan (Glei-
chstrom).

19
Router konfigurieren
Um über den Webbrowser auf die Websites zum Einrichten des D-Link DSL-
G624M Routers zu gelangen, muss an dem verwendeten Computer die Option „
IP-Adresse automatisch beziehen“ aktiviert sein. Das bedeutet, er muss über
die IP-Netzwerkeinstellungen als DHCP-Client konfiguriert sein. Falls Sie Win-
dows XP verwenden und nicht wissen, wie Sie die Netzwerkeinstellungen ändern,
fahren Sie mit den Anweisungen im Anhang fort. Weitere Informationen zur Än-
derung der IP-Einstellungen bei Computern mit Betriebssystemen von Windows
finden Sie auch im Benutzerhandbuch.
Geben Sie als User
Name (Benutzername)
u n d a l s P a s s w o r d
(Kennwort) jeweils „
admin“ ein.
Klicken Sie auf „OK“
Starten Sie den Webbrowser,
und geben Sie in das Adress-
feld „http://192.168.1.1“ ein.
Drücken Sie anschließend die
Eingabetaste. Die Anmeldeauf-
forderung wird angezeigt.

20
Router konfigurieren
Nach der Anmeldung wird das Verzeichnis „Home“ (Startseite) mit dem Menü „
Setup Wizard“ (Setup-Assistent) angezeigt. In den meisten Fällen kann die
ADSL-Verbindung zum Internet-Serviceprovider (ISP) mit dem Setup-Assistenten
hergestellt werden. Um den Setup-Assistenten zu starten, klicken Sie in der Mitte
der Webseite auf die Schaltfläche „Run Wizard“ (Assistent starten). Ein Popup-
Menü wird angezeigt. Dieses Popup-Menü ist der Setup-Assistent. Der Konfigu-
rationsvorgang besteht aus drei Schritten:
1.Wählen Sie Ihre Zeitzone.
2.Konfigurieren Sie die Internetverbindung.
3.Speichern Sie die Einstellungen, und starten Sie den Computer neu.
Informationen zur Einrichtung des drahtlosen Betriebs finden Sie im
Benutzerhandbuch.
Klicken Sie auf „Run
Wizard“ (Assistent
starten).
