Package Contents
SharePort™ Go Your Mobile Companion
USB Cable (for power/battery charge only)
Battery
• SharePort Mobile App Requires iOS 4.3 or higher, and Android 2.0 or higher
• QRS Mobile App Requires iOs 4.2 or higher, and Android 2.0 or higher
Mobile Apps:

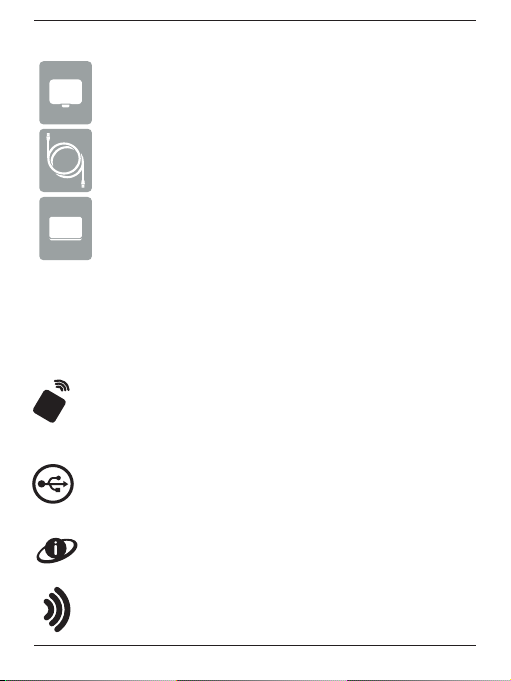

LEDs
Power LED - A solid amber light indicates a proper connection to
the power supply. The light will blink green when the USB cable is
disconnected. A solid red light indicates a low battery. When the
light is ashing red, you need to charge the device soon.
USB LED - A solid green light indicates that the USB cable is
attached and the SharePort is ready for use. A ashing green will
indicate your USB is processing the le.
Wi-Fi LED - A blinking green light indicates data is being
transmitted. A solid green shows that the Wi-Fi is on.
Ethernet LED - A green light indicates the Ethernet connection
has been established. A blinking green indicates data is being
transferred.

4 D-Link DIR-506L Quick Install Guide

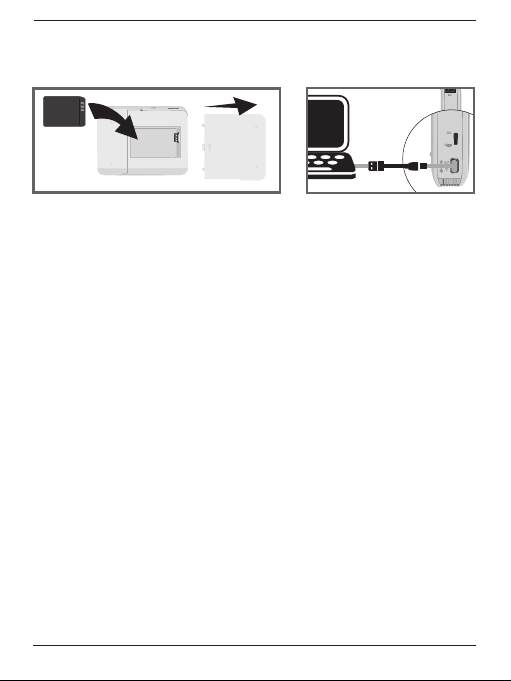

1. The battery must be installed for the device to operate. Slide o
the cover and insert the battery. Make sure the gold contacts
align with the gold terminals. Slide the cover back on.
2. Connect the USB cable to the DIR-506L and then connect to a
USB port on your computer.
Note: Charge the device using the USB cable for at least 4 hours
or until it is fully charged before usage.
LAN
ON
OFF
5V
LAN
ON
OFF
5V
+
-
Insert and Charge Battery

D-Link DIR-506L Quick Install Guide 5
Insert and Charge Battery User Scenarios
The Internet does not need to be available in order to view photos,
watch movie or play music from your device. With the SharePort Mo-
bile App you will be able to:
• Watch movies and play music
• View photos and PowerPoint presentations
• View PDF les
• Upload your videos and photos to a USB ash drive.
What is SharePort Mobile?
The SharePort Mobile makes it simple to access media saved on your
USB drive right from your iPhone, iPad or Android device. Just follow
the three simple steps below:
1. Download the SharePort Mobile App from the Apple App store or
the Google Play store to your mobile device.
2. Plug the USB ash drive with media content such as movies (mov
or mp4), music (mp3 or wav), photos (jpg, bmp, gif or png), or
documents (key, pages, numbers, txt, ref, doc, PPt, XIS, or Pdf) to
the DIR-506L. *
3. Connect your Mobile device wirelessly to the DIR-506L. Then,
open the SharePort Mobile App, and you will be able to stream
your movies, music, and photos to all your mobile devices.
* Note: supports formats
Vdeo: iOS supports MP4 and MOV. Android supports MP4 and MOV video for-
mats.
Music: iOS support MP3 & WAV. Android supports MP3 & WAV.
Image: iOS & Android both support : JPG, BMP,GIF, PNG.
Document: iOS & Android both support: html, key, pages, numbers, txt, ref, doc,
PPt, XIS, Pdf.

6 D-Link DIR-506L Quick Install Guide
Download the SharePort Mobile App
Scan this code using a barcode scanner App (e.g. Bakodo or
RedLaser) from your iOS or Android device. If you do not have the
App, search for D-link SharePort Mobile from the App Store or
Google play. You will be directed to the App Store or the Google
play store to begin the Installation process. Please make sure you
have Internet connection before downloading the app.

D-Link DIR-506L Quick Install Guide 7
Download the SharePort Mobile App Connect USB ash drive and turn on power
Insert your USB drive into the
USB port on the DIR-506L.
Turn on the power switch
and wait until the power LED
turns green. Please allow 3-4
minutes to complete the boot-
up process before accessing
your USB drive.
Connect your Mobile Device Wirelessly to
the DIR-506L
Please connect your mobile device wirelessly to DIR-506L.
SharePort
WIFI SSID: dlink_DIR-506L
Password: “” (leave it blank)
LAN
ON
OFF
5V
LAN
ON
OFF
5V
SharePort
LAN
ON
OFF
5V
SharePort
LAN
ON
OFF
5V
ON
OFF
5V

8 D-Link DIR-506L Quick Install Guide
Using The SharePort Mobile App
1. Open the SharePort Mobile App.
2. Please wait for Wireless icon
on the bottom of the screen
to turn blue, then begin to
use.
3. Click on the Settings icon located on the right top corner of the
screen. Then, click Edit to enter your User Name and Password
(refer to the Create User section below). Once you nish,
click Done to continue. By default, User Name is “admin” and
Password is blank.
Note: If you set the password for the “admin” in your DIR-506L, you
need to enter the password.
Settings

D-Link DIR-506L Quick Install Guide 9
For the Movie section, click the Movie icon to
play your movie from your USB ash drive.
Movie
For the Music section, click the Music icon to
play your music from your USB ash drive.
Music
For the Photo section, click the Photo icon to
open your photo from your USB ash drive.
For the Files section, click on the Files icon to
open your le from your USB ash drive.
File

10 D-Link DIR-506L Quick Install Guide
For the Folder section, click on the Folder icon to
open a le from your USB ash drive. To upload a
photo le from your mobile device to your USB go
to + sign located on the upper right.
Once you open a le, you may add this le to your
Favorite folder by selecting the “Star” icon. For the
Favorite section, click on the Favorite icon to open
your favorite le from your USB ash drive.
Folder
You can access les from a USB hard drive that is plugged into the
DIR-506L from a web browser: http://dlinkrouter.local. :8181
Note: If you change your device/admin password, you will also
need to change your password in the SharePort Mobile app.

D-Link DIR-506L Quick Install Guide 11
Device Modes

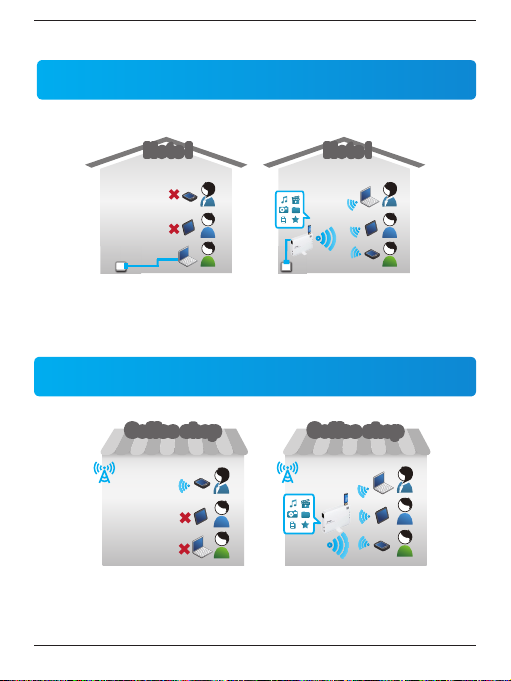

Wherever you are, SharePort Go is for you! Use it as a travel router to gain
instant fast wireless connection wherever a network already exists. It behaves
as a router in areas where you cannot take your home router and it is great for
hotels with poor wireless signal or with only wired connection.
Wireless Router Mode
Hote lHote lHote lHote l
Adding wireless network
Wi-Fi HotSpot Mode
This feature allows you to transform any wireless Internet connection into a
Wi-Fi hotspot. This provides your own private network from anywhere that
you may travel and allows you to share a single connection with multiple
devices (laptop, mobile phone, Ipad etc.).
Coffee shopCoffee shop Coffee shopCoffee shop
WIFLY
Hinet
WIFLY
Hinet
TPE-Free TPE-Free
Share wireless connection with friends

12 D-Link DIR-506L Quick Install Guide
Download QRS (Quick Router Setup)
Mobile APP
Scan this code using the barcode scanner App (e.g. Bakodo or
RedLaser) from your iOS or Android device. If you do not have
the App, search QRS Mobile from the App Store or Google Play.
You will be directed to the App store or Play store so that you may
begin the Installation process. Please make sure you have Internet
connection before download the app.

D-Link DIR-506L Quick Install Guide 13

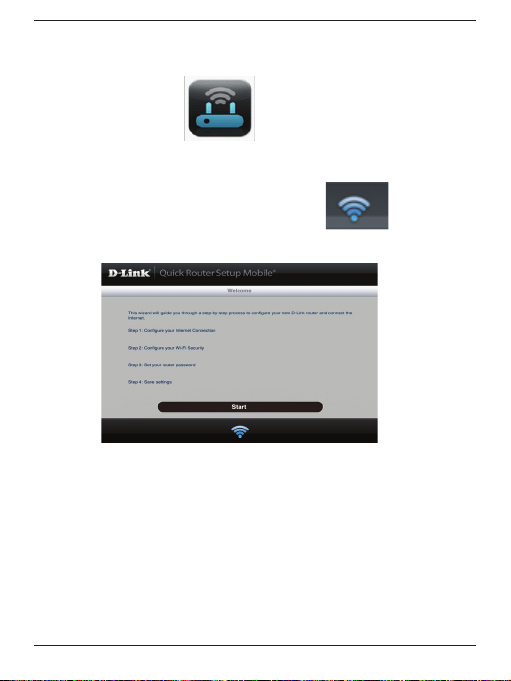

Using QRS Mobile APP
1. Open the QRS App
2. Please wait for the Wireless icon on
the bottom of the screen to turn blue,
then begin to use

14 D-Link DIR-506L Quick Install Guide

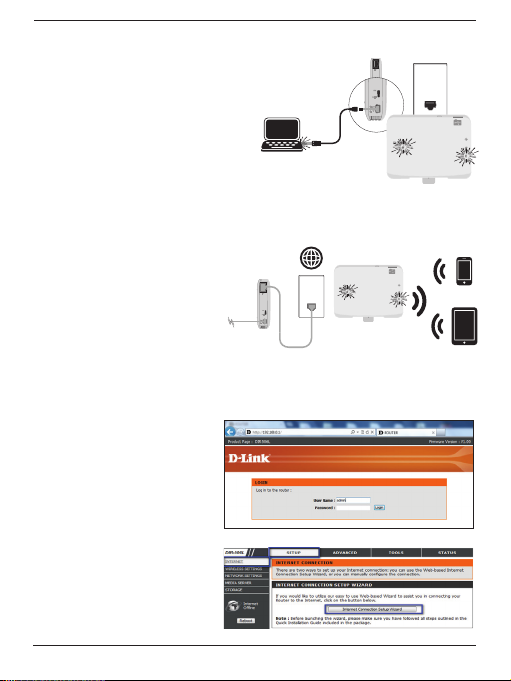

Wireless Router Mode
1. Insert the included battery into
DIR-506L. Connect your device to
your laptop to charge using a USB
cable. Then, turn on the power
switch and wait until the power
LED turns green.
2. Connect one end of the Ethernet
cable into the Ethernet port of
the Internet-enabled device
(e.g. modem) and then plug the
other end of this cable into the
Ethernet port of the DIR-506L.
(Ethernet Cable not included in
package contents)
From your laptop or mobile
device go to
your Wireless Utility to display
the ailable wireless networks
LAN
ON
OFF
5V
LAN
ON
OFF
5V
LAN
ON
OFF
5V
SharePort
SharePort
4. Go to Setup > Internet and
click on Internet Connection
Setup Wizard to run the
wizard.
3. Open a web browser
and type 192.168.0.1 or
dlinkrouter.local. in the
address bar. Then, type
admin as your user name and
click Login.
LAN
ON
OFF
5V
LAN
ON
OFF
5V
LAN
ON
OFF
5V
SharePort
SharePort

D-Link DIR-506L Quick Install Guide 15

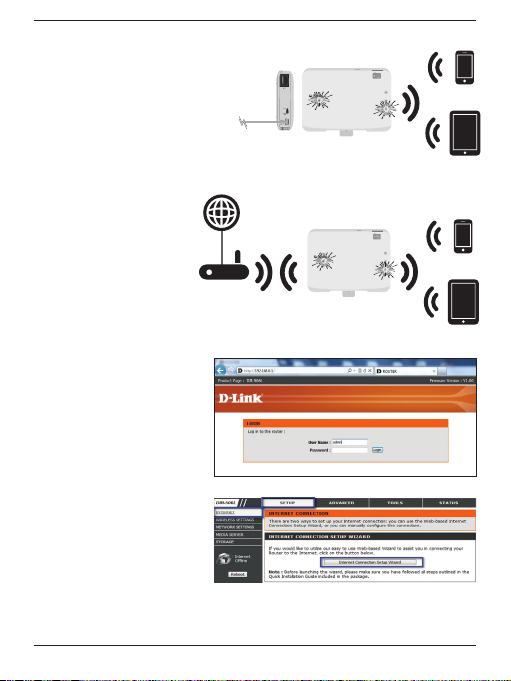

Wi-Fi HotSpot Mode
1. Verify if the Power LED is lit
amber and if the Wi-Fi LED
turned green.
LAN
ON
OFF
5V
SharePort
3. Open a web browser
and type 192.168.0.1 or
dlinkrouter.local. in the
address bar. Then, type
admin as your user name
and click Login.
4. Go to Setup > Internet
and click on Internet
Connection Setup Wizard
to run the wizard.
Please refer to the user manual for more information. Please download the
user manual from http://www.dlink.com/support
2. Make sure the WI-FI LED
turned green and power
LED is lit amber.
From your laptop or
mobile device go to
your wireless Utility to
display th ailable wireless
networks.
LAN
ON
OFF
5V
LAN
ON
OFF
5V
LAN
ON
OFF
5V
SharePort
SharePort

16 D-Link DIR-506L Quick Install Guide
©2012 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link
logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States
and/or other countries. Other trademarks or registered trademarks are the property of
their respective owners.Maximum wireless signal rate derived from IEEE Standard 802.11g,
802.11a and 802.11n specications. Actual data throughput will vary. Network conditions
and environmental factors, including volume of network trac, building materials and
construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range. Product specications, size and shape
are subject to change without notice, and actual product appearance may dier from that
depicted on the package. Visit dlink.com (US) or dlink.ca (Canada) for more details.
iPhone, iPad, and iPod touch are registered trademarks of Apple Inc.
United States
Internet: http://support.dlink.com
Canada
Internet: http://support.dlink.ca
Technical Support
U.S. and Canadian customers can contact D-Link technical support
through our web site or by phone. You can nd software updates and
user documentation on the D-Link website as well as frequently asked
questions and answers to technical issues.
Before you contact technical support, please have the following ready:
• Model number of the product (e.g. DIR-506L)
• Hardware Revision (located on the label on the bottom of the
product (e.g. rev A2))
• Serial Number (s/n number located on the label on the bottom
of the product).
11500Y20ND00302A1
