D-Link Router User manual

Version 1.00 | 07/29/2019
User Manual
DWR-961
Wireless AC1200 4G LTE Router

iD-Link DWR-961 User Manual
D-Link reserves the right to revise this publication and to make changes in thke content hereof without obligation to notify
any person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2019 by D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Corporation.
Revision Date Description
1.00 July 29, 2019 • Initial release
Preface

iiD-Link DWR-961 User Manual
Table of Contents
Product Overview.............................................................. 1
Package Contents......................................................................... 1
System Requirements................................................................. 1
Introduction ................................................................................... 2
Hardware Overview..................................................................... 3
Front View................................................................................ 3
Back View................................................................................. 4

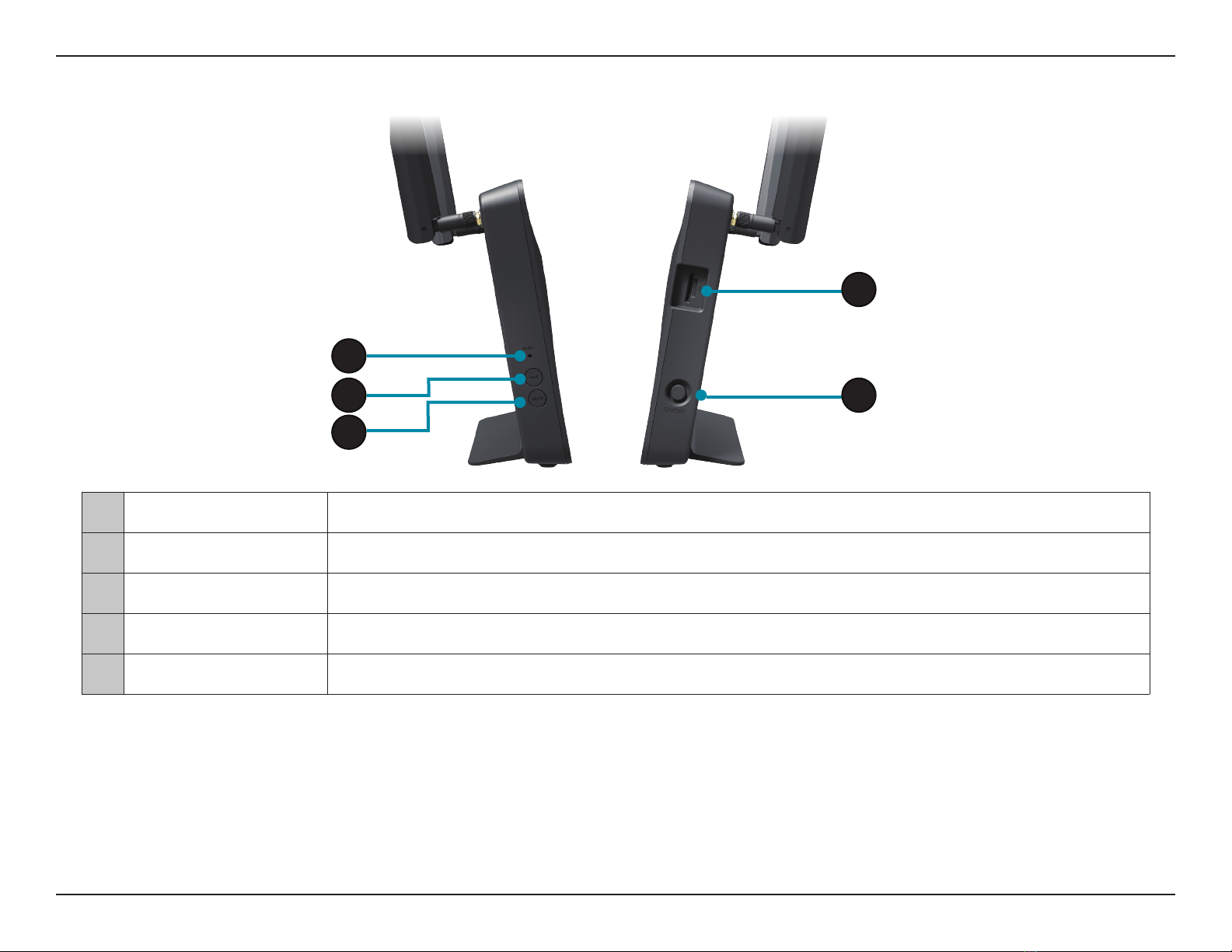

Side View.................................................................................. 5
Installation ......................................................................... 6
Before You Begin........................................................................... 6
Wireless Installation Considerations...................................... 7
Conguration..................................................................... 8

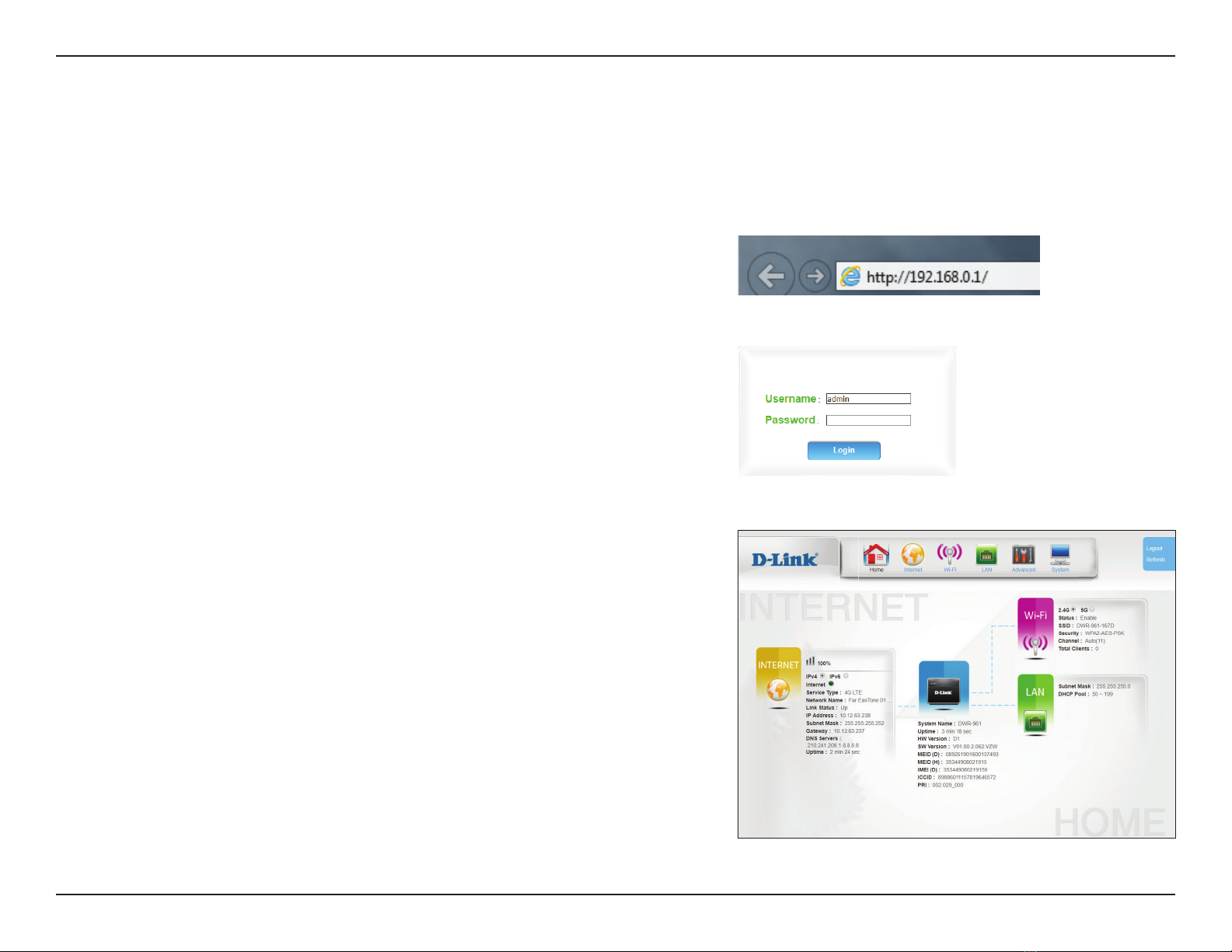

Getting Started.............................................................................. 8
Internet............................................................................................. 9

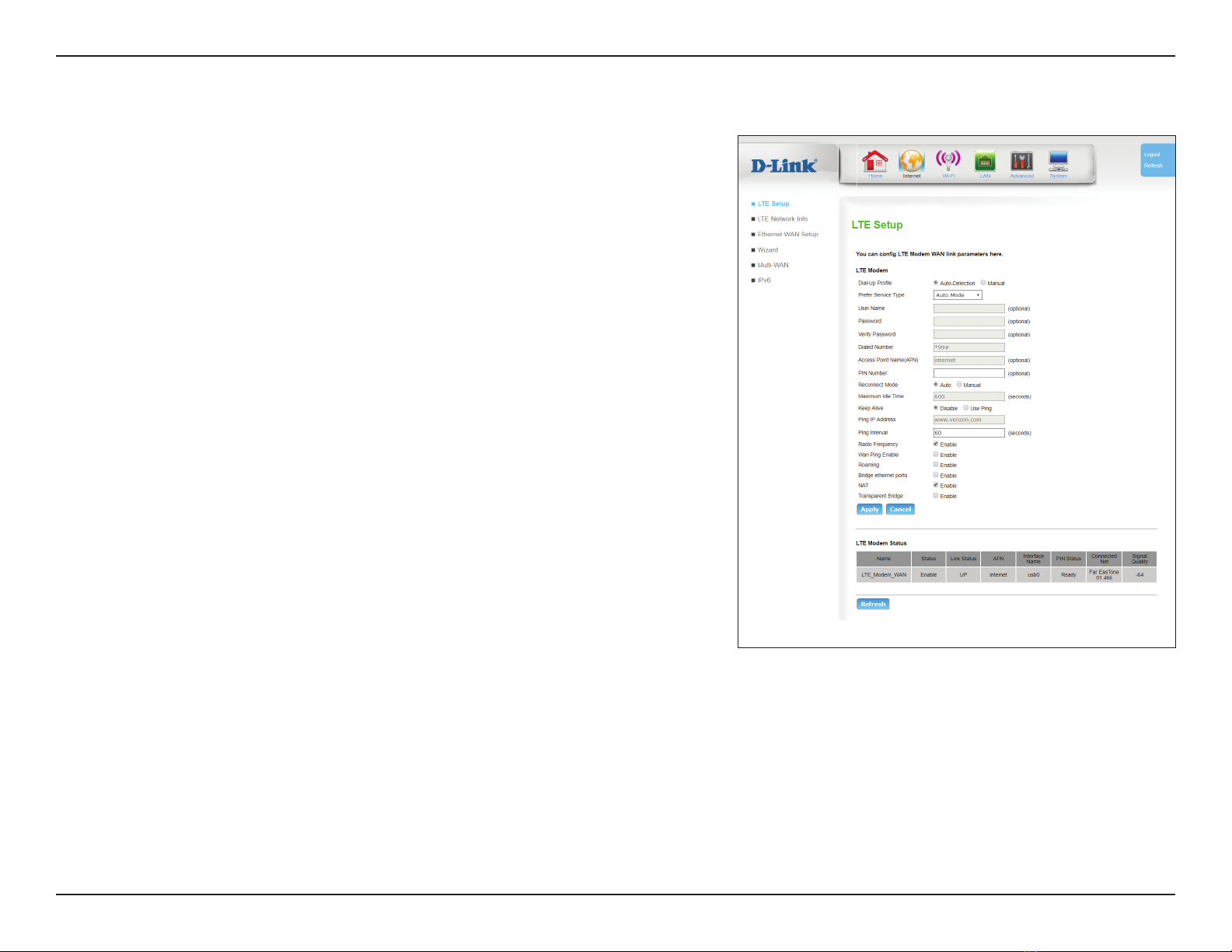

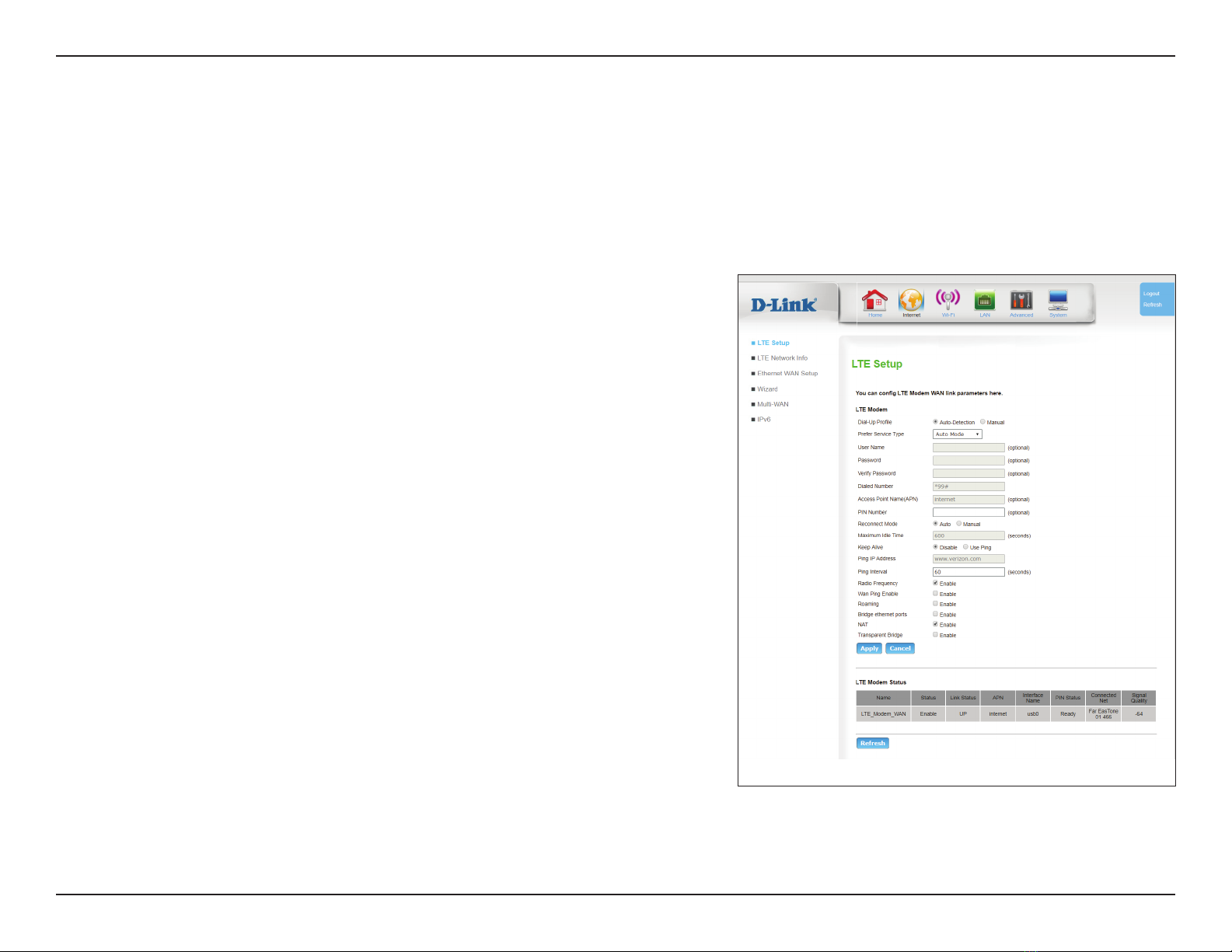

LTE Setup ................................................................................. 9

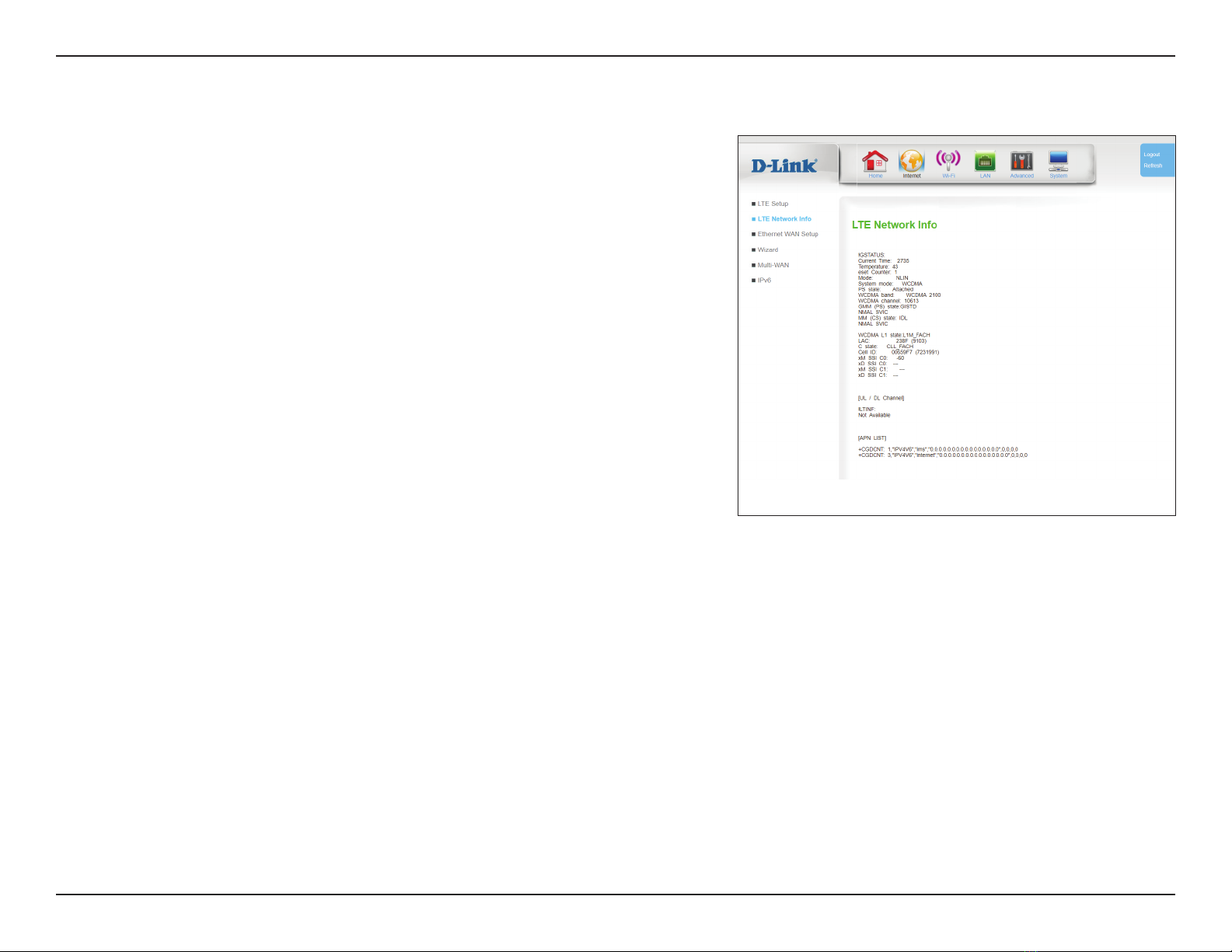

LTE Network Info.................................................................12

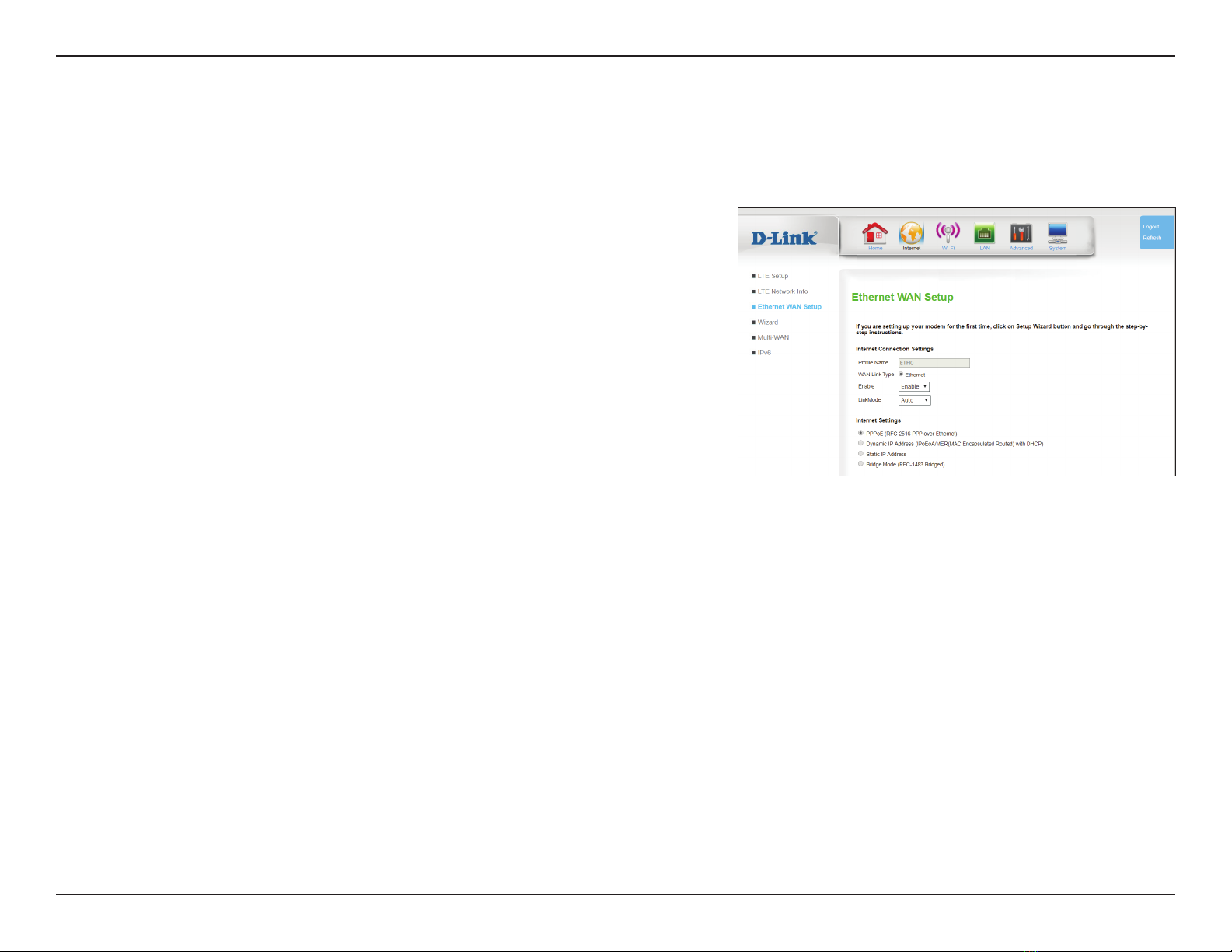

Ethernet WAN Setup..........................................................13

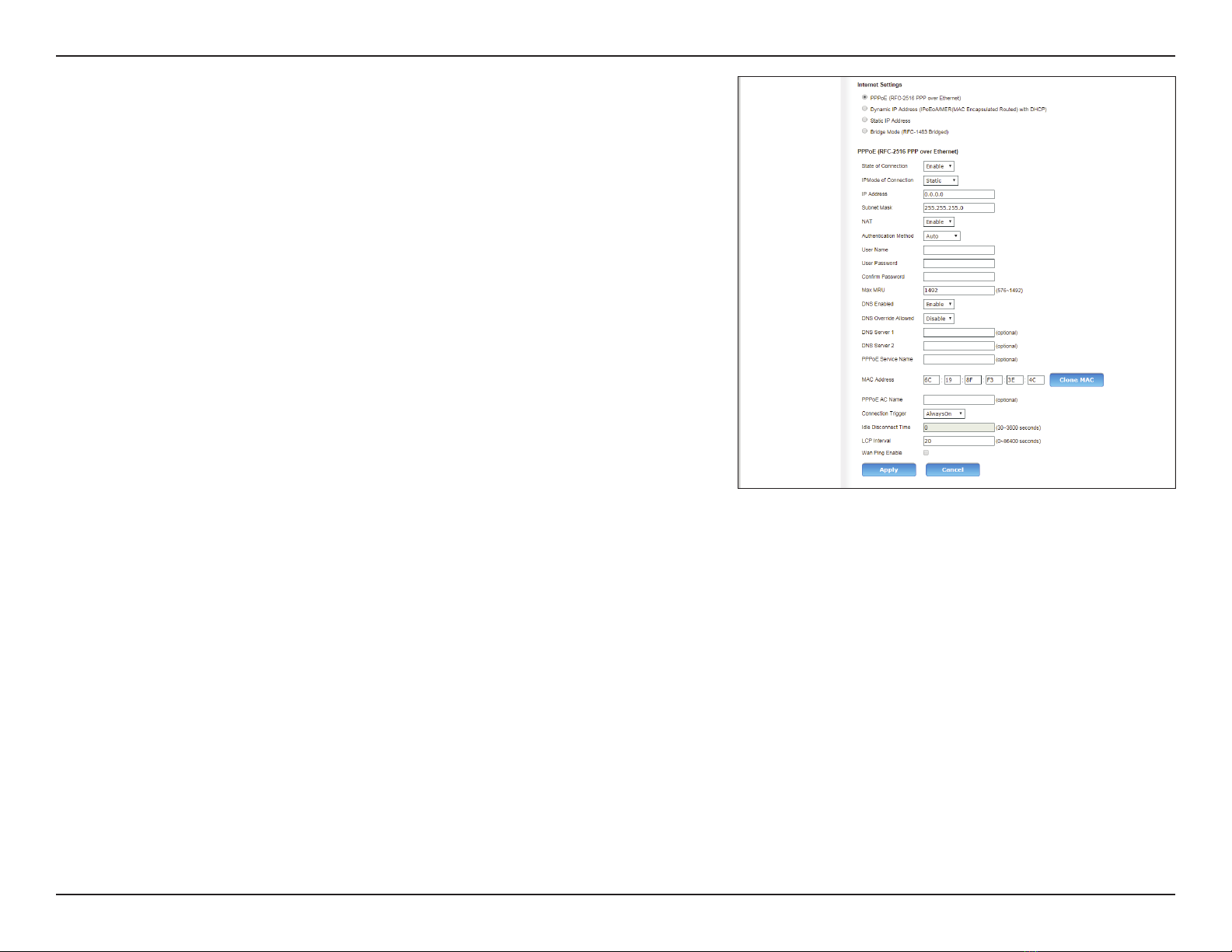

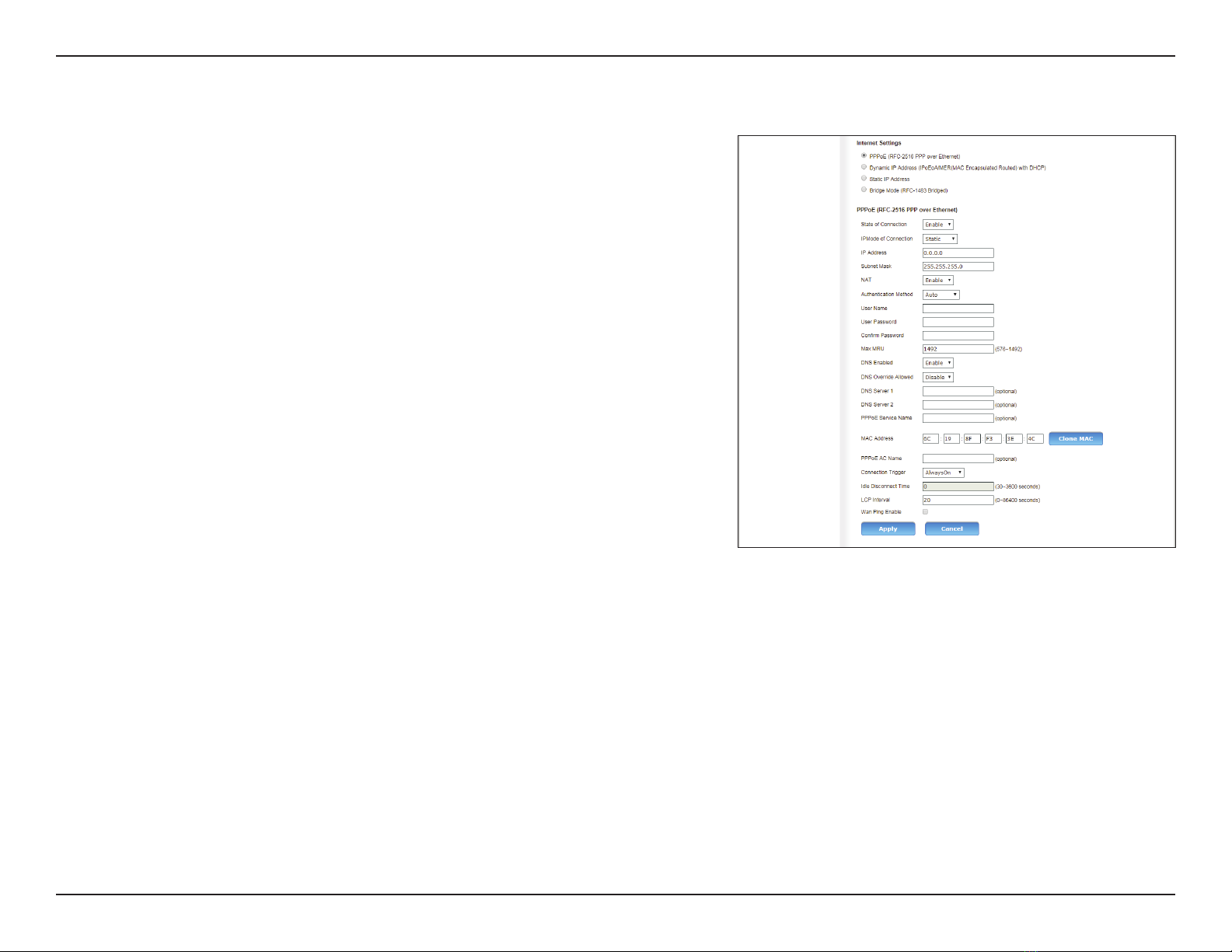

PPPoE (Username / Password) ..................................14
Dynamic IP (DHCP)........................................................17
Static IP..............................................................................18
Bridge Mode (RFC-1483 Bridged) ............................19
Wizard.....................................................................................20
Multi-WAN.............................................................................33
IP/PPP Cong...................................................................33
Failover ..............................................................................34
IPv6 ..........................................................................................35
IPv6 WAN...........................................................................35
IPv6 LAN Setting ............................................................40
Wi-Fi.................................................................................................43
Wireless 5G/2.4G.................................................................43
Basic Setting ....................................................................43
Security Setting ..............................................................44
Advanced Wireless ........................................................48
Wireless MAC Filter........................................................50
WPS..........................................................................................51
LAN ..................................................................................................53
LAN Settings.........................................................................53
Advanced LAN .....................................................................55
Advanced ......................................................................................56
RIP Settings ...........................................................................56
NAT...........................................................................................57
Virtual Server...................................................................57
Virtual Server Cong.....................................................58
Port Trigger ......................................................................59
Port Trigger Cong ........................................................60
ALG......................................................................................61
VPN Passthrough ...........................................................62
Firewall ...................................................................................63
Parent Control Filter...........................................................63
MAC Filter .........................................................................65
IP Filters .............................................................................66
IP Filter Cong.................................................................67
URL Filter...........................................................................69
Table of Contents

iiiD-Link DWR-961 User Manual
Table of Contents
Dos Protection .....................................................................70
Domain Blocking ...........................................................71
DMZ ....................................................................................72
SPI Settings ......................................................................73
Packet Filter...........................................................................74
Filters & Rules ..................................................................74
Static Route...........................................................................81
Static Route Set ..............................................................82
Multicast ................................................................................83
IGMP ...................................................................................83
MLD.....................................................................................86
Dynamic DNS .......................................................................89
Dynamic DNS Add.........................................................90
Ethernet Settings................................................................91
Quality of Service................................................................92
Queue Management ....................................................92
Queue Cong ..................................................................93
QoS Classication ..........................................................96
Queue Status................................................................ 100
UPnP..................................................................................... 101
SNMP.................................................................................... 102
System ......................................................................................... 103
Time Settings .................................................................... 103
Password............................................................................. 104
Remote Management.................................................... 105
SysLog.................................................................................. 107
Time Schedule .................................................................. 108
Firmware Upgrade........................................................... 109
Reboot & Reset ................................................................. 110
Ping....................................................................................... 111
Trace Route ........................................................................ 112
Status ................................................................................... 113
Wireless 5G/2.4G Clients .......................................... 113
Status ................................................................................... 114
Wireless 5G/2.4G Clients .......................................... 114
LAN Clients.................................................................... 115
Routing Table ............................................................... 116
Trac Meter.................................................................. 117
Statistics ......................................................................... 118
Connect a Wireless Client to your Router ....................119
WPS Button................................................................................ 119
Windows® 10............................................................................. 120
Windows® 8................................................................................ 122
WPA/WPA2 ......................................................................... 122
Windows® 7................................................................................ 124
WPA/WPA2 ......................................................................... 124
WPS....................................................................................... 127
Windows Vista®......................................................................... 131
WPA/WPA2 ......................................................................... 132
Windows® XP............................................................................. 134
WPA/WPA2 ......................................................................... 135
Troubleshooting ............................................................137
Wireless Basics ...............................................................141
What is Wireless?...................................................................... 142
Tips................................................................................................ 144
Wireless Modes......................................................................... 145

ivD-Link DWR-961 User Manual
Table of Contents
Networking Basics.........................................................146
Check your IP address............................................................ 146
Statically Assign an IP address............................................ 147
Wireless Security ......................................................... 148
What is WPA? ................................................................ 148
Technical Specications ................................................149
Regulatory Information ................................................150

1D-Link DWR-961 User Manual
Section 1 - Product Overview
Product Overview
Package Contents
If any of the above items are missing, please contact your reseller.
System Requirements
* Subject to services and service terms available from your carrier.
• A compatible SIM card with service.*
• Computer with Windows 10/8/7/Vista/XP, Mac OS 10.3 or above, or Linux-based operating
system with a compatible network adapter.
• Java-enabled browser such as Internet Explorer 9, Safari 7, Chrome 28, or Firefox 23 or above
(for conguration).
Power Adapter
3G/4G Antennas
RJ-45 Cable
DWR-961 Wireless AC1200 4G LTE Router with Preinstalled SIM/UICC card

2D-Link DWR-961 User Manual
Section 1 - Product Overview
Introduction
D-Link’s DWR-961 Wireless AC1200 4G LTE Router allows you to access mobile broadband networks from anywhere. Once
connected, you can check e-mail, surf the web, and stream media. Use your carrier’s SIM/UICC card to share your 4G Internet
connection through an encrypted wireless network or by using any of the four gigabit Ethernet ports.
The DWR-961 lets you connect to your 4G mobile connection with fast downlink speeds of up to 300 Mbps and uplink
speeds up to 50 Mbps, giving you the speed to ensure fast, responsive Internet access. Surf the web with ease and stream
music and video over the Internet to your PCs and mobile devices.
The DWR-961 utilizes dual-active rewalls (SPI and NAT) to help resist potential attacks across the Internet. Industry stan-
dard WPA/WPA2 wireless encryption standards help protect your wireless network and trac from unwanted access while
sharing your 4G connection.
The DWR-961 can be installed quickly and easily almost anywhere. It can be congured through almost any web browser
without the need for special software. This router makes it possible to stay connected, even when conventional broadband
services are unavailable.

3D-Link DWR-961 User Manual
Section 1 - Product Overview
Hardware Overview

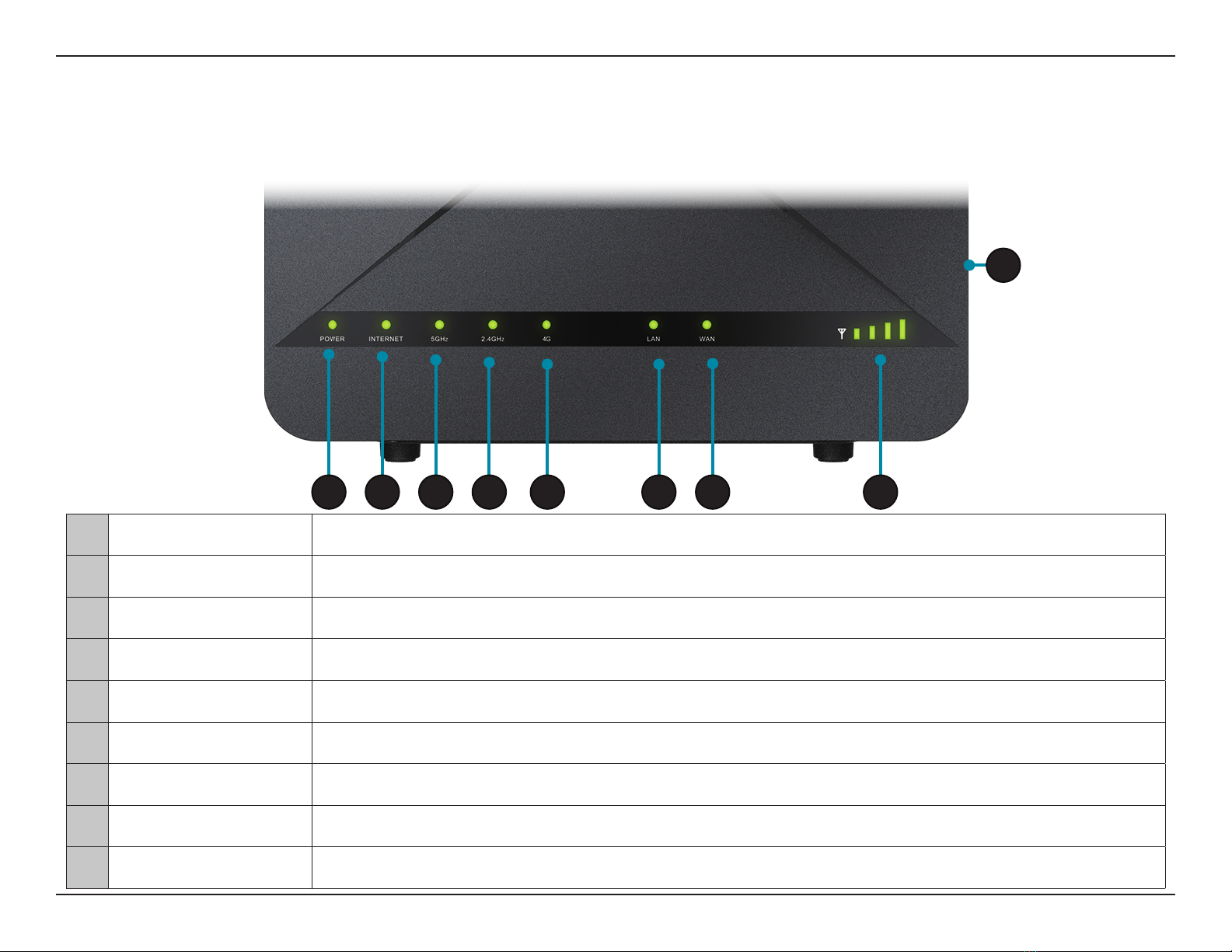

Front View
1 Power LED Will be lit green if the device is powered on and working. Turns red if there is an error.
2 Internet Will be lit if an Internet connection is established, and will blink when data is being transferred.
3 5 GHz Wi-Fi/WPS Will be lit if the 5 GHz wireless function is enabled, blinks when data is transferred or during WPS pairing.
4 2.4 GHz Wi-Fi/WPS Will be lit if the 2.4 GHz wireless function is enabled, blinks when data is transferred or during WPS pairing.
5 4G LED Will be lit if a 4G LTE connection is established, and will blink when data is being transferred.
6 LAN Will be lit if an Ethernet LAN connection is established, and will blink when data is being transferred.
7WAN Will be lit if an Ethernet WAN connection is established, and will blink when data is being transferred.
8 Signal Strength LED Indicates 4G signal strength with bars. More bars indicates a stronger signal.
9 Power Button Turns the device on or o.
1 2 3 4 5 6 7 8
9

4D-Link DWR-961 User Manual
Section 1 - Product Overview

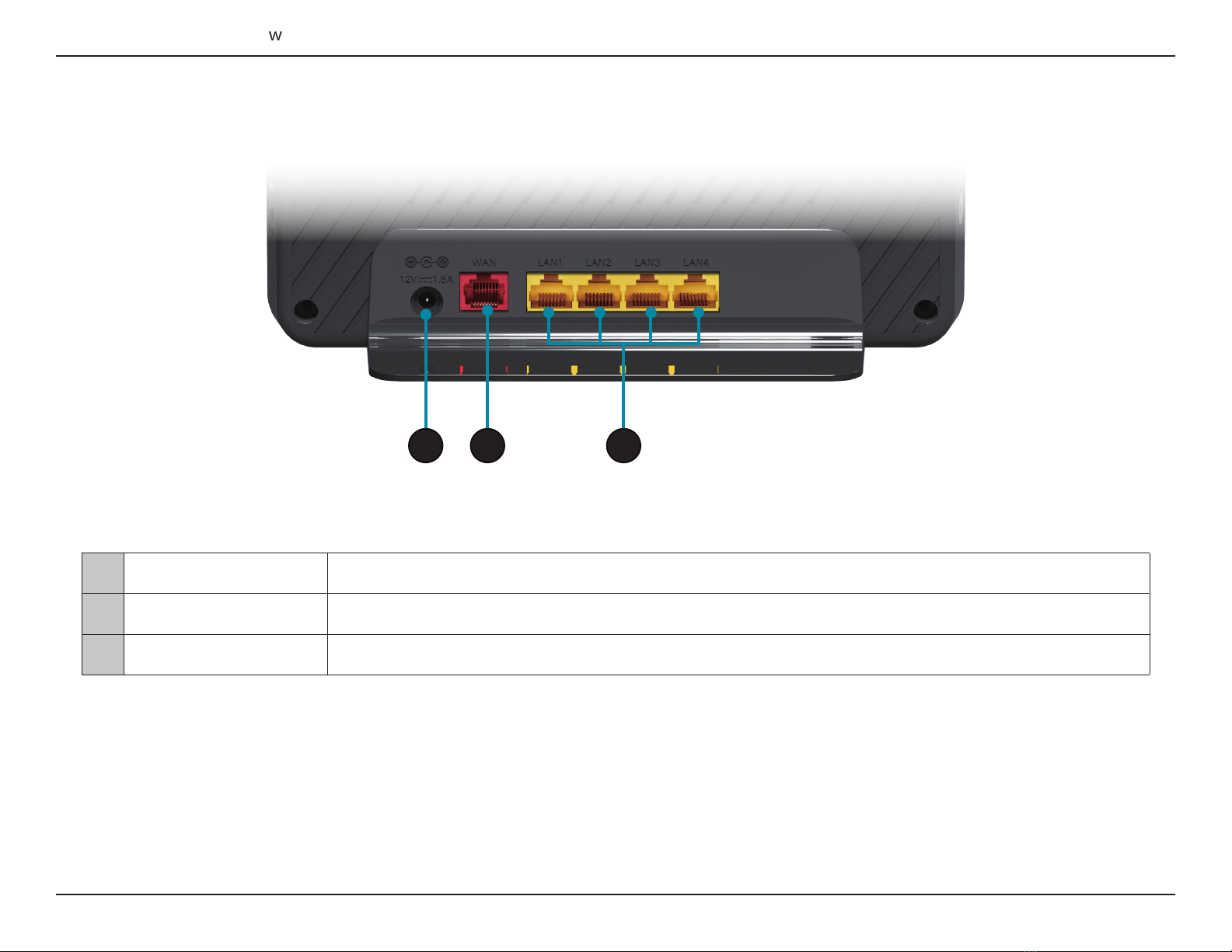

1 Power Connector Connects to the included power adapter.
2Ethernet WAN Port For connection to a DSL/cable modem or router.
3 Ethernet LAN Ports For connection to a network-enabled desktop or notebook computer.
Back View
1 2 3

5D-Link DWR-961 User Manual
Section 1 - Product Overview
1 Reset Button Press this button with an unfolded paperclip and hold for ten seconds to reset the device.
2 WPS Button Press this button to initiate a new WPS connection. See WPS Button on page 119 for details.
3 WLAN Press this button to toggle wireless LAN on or o.
4 SIM/UICC Card Slot Accepts a standard mini-SIM card for 4G LTE connectivity.
5 Power Button Turns the device on or o.
Side View
5
4
1
2
3

6D-Link DWR-961 User Manual
Section 2 - Installation
Before You Begin
Installation
This section will guide you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area
such as a closet, cabinet, or in an attic or garage.
Ensure that your DWR-961 Wireless AC1200 4G LTE Router is disconnected and powered o before performing the steps below..
1. Verify that your SIM/UICC card is installed and has been activated by your carrier.
Caution: Always unplug/power down the router before installing or removing the SIM/UICC card. Never insert or remove the SIM/UICC card while
the router is in use.
2. Attach the included antennas to the back of the router, screwing them in clockwise. Arrange them so that they point upward.
3. Connect the power adapter to the socket on the back panel of your DWR-961. Plug the other end of the power adapter into a wall outlet or
power strip. Make sure the power button is in the“On” position.
a. The Power LED will light up to indicate that power is being supplied to the router and the router is turned on.
b. The LEDs on the front panel will ash on and o as the DWR-961 Mobile Router performs initialization and Internet connection processes.
c. After a few moments, if a connection has been established, the following LEDs will turn solid green: Power, Network, WiFi (if enabled), LAN
(if connected), WAN (if connected), and Signal Strength.
Note: By default, the DWR-961 uses the mobile network as the sole Internet connection. If you wish to use your mobile connection as a backup to
a wired connection, or you wish to use a wired connection exclusively, you must use the Optional Advanced Setup procedure.
4. Connect via Wi-Fi using the SSID and password printed on the bottom of the router, or through Ethernet via one of the LAN ports on the back
of your DWR-961.

7D-Link DWR-961 User Manual
Section 2 - Installation
Wireless Installation Considerations
The DWR-961 can be accessed using a wireless connection from anywhere within the operating range of your wireless network. Keep in mind that
the quantity, thickness, and location of walls, ceilings, or other objects that the wireless signals must pass through may limit the range of the wireless
signal. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or oce. The key to maximizing
the wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between the D-Link router and other network devices. Each wall or ceiling can reduce your adapter’s
range from 3 to 90 feet (1 to 30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle appears to be almost 3 feet
(1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick. Position devices so that the signal will travel straight through a wall
or ceiling (instead of at an angle) for better reception.
3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways and drywall. Materials such as
glass, metal, brick, insulation, concrete, and water can aect wireless performance. Large objects such as sh tanks, mirrors, le cabinets, metal
doors, and aluminum studs may also have a negative eect on range.
4. If you are using 2.4 GHz cordless phones, make sure that the 2.4 GHz phone base is as far away from your wireless device as possible. The base
transmits a signal even if the phone is not in use. In some cases, cordless phones, X-10 wireless devices, and electronic equipment such as ceiling
fans, uorescent lights, and home security systems may dramatically degrade wireless connectivity.

8D-Link DWR-961 User Manual
Section 3 - Conguration
Conguration
To access the conguration utility, open a web browser such as Internet Explorer and
enter the address of the router (192.168.0.1 by default).
To log in to the conguration utility, admin is the default username and the default
password is left blank.
Note: If you get a Page Cannot be Displayed error, please refer to the Troubleshooting
section for assistance.
Once you have successfully logged in, you will see the Home page. On this page
you can view information about your Internet connection, the wireless/LAN status,
and system information.
At the top of the page is a menu. Clicking on one of these icons will take you to the
appropriate conguration section.
Getting Started

9D-Link DWR-961 User Manual
Section 3 - Conguration
Internet
LTE Setup
This page allows you to congure your 3G/4G LTE Internet connection. Note that by default, the router uses this connection as the primary
Internet connection.
LTE Modem
Dial-Up
Prole:
Choose whether to use an auto-detection prole or a manual
prole.
Prefer Service
Type:
Choose from drop down list which mode of service to use.
User Name: (Optional) Specify a user name.
Password: (Optional) Specify a password.
Verify
Password:
(Optional) Should you have specied a password above, verify your
password one more time.
Dialed
Number:
Specify number to dial.
Access point
Name (APN):
Enter the access point name provided by your carrier.
PIN Number: (Optional) If your SIM/USIM card is protected with a PIN number,
enter it here. Note that repeatedly entering the wrong PIN may
cause the SIM card to become locked.

10D-Link DWR-961 User Manual
Section 3 - Conguration
Reconnect
Mode:
Choose whether to auto reconnect or manual reconnect if your
connection drops.
Maximum
Idle Time:
Specify maximum amount of time in seconds where connection
can remain idle.
Keep Alive: Choose whether to use ping to keep connection alive or to disable
this function.
Ping IP
Address:
If Keep Alive is enabled above, specify ip address to ping.
Ping Interval: Specify in seconds the time interval device will ping the address
above.
Radio
Frequency:
Check this box to enable cellular radios. If this box is unchecked,
the 3G/4G radios will be disabled.
WAN Ping
Enable:
Check this box to enable response when the router is pinged.
Roaming: Check this box to enable roaming of other networks.
Bridge
ethernet
ports:
Check this box to enable bridging between two networks.
NAT: Check this box to enable the NAT rewall function.
Transparent
Bridge:
Check this box to enable transparent bridge.
Click Apply to save your settings, or Cancel to revert to your previous settings.

11D-Link DWR-961 User Manual
Section 3 - Conguration
LTE Modem Status
Name: Indicates the name of the LTE modem.
Status: Indicates whether the modem is Enabled or Disabled.
Link Status: Indicates the LTE link status.
APN: Indicates the APN to which the router is connected.
Interface
Name:
Indicates the physical interface to which the LTE modem is
connected. This information is provided for debugging purposes.
PIN Status: Indicates the current status of the PIN security feature.
Connected
Net:
Indicates the cellular network to which the modem is connected.
Signal
Quality:
Indicate the signal quality in dBi. The value is negative. A higher
value is a stronger signal. For example -78 is a stronger signal than
-90.

12D-Link DWR-961 User Manual
Section 3 - Conguration
LTE Network Info
This page shows you information regarding your LTE Network. This is useful for
troubleshooting issues with your connection.

13D-Link DWR-961 User Manual
Section 3 - Conguration
Ethernet WAN Setup
On this page you can congure your Ethernet WAN connection. This would be used if you have an Internet connection from a DSL, Cable, or
other external source. Note that, by default, the 4G connection is used as your primary connection. If you are not sure which settings to use,
please contact your Internet Service Provider (ISP).
Internet Connection Settings
Prole Name: Displays the name of the current prole.
WAN Link
Type:
Indicates the interface used by the WAN connection. As of this
writing, only Ethernet is available.
Enable: Enable or Disable the interface.
LinkMode: Choose a link speed for the Ethernet interface. The default and
recommended setting is Auto.
Enable
Default Vlan:
If your WAN interface uses a VLAN ID, select Enable and ll out the
following two section. Otherwise, select Disable.
Default VLAN
ID:
If enabled, enter the default VLAN ID.
Default VLAN
Priority:
If enabled, enter the default VLAN priority.
Internet Settings
Select an Internet connection type for your Ethernet WAN. This information should
be provided by your ISP.
If you have chosen PPPoE, see PPPoE (Username / Password) on page 14.
If you have chosen Dynamic IP, see Dynamic IP (DHCP) on page 17.
If you have chosen Static IP, see Static IP on page 18.
If you have chosen Bridge Mode, see Bridge Mode (RFC-1483 Bridged) on page
19.

14D-Link DWR-961 User Manual
Section 3 - Conguration
PPPoE (Username / Password)
PPPoE (RFC-2516 PPP over Ethernet)
State of
Connection:
Select Enable to enable the connection or Disable to disable the
connection.
IPMode of
Connection:
Specify a Static or Dynamic IP address.
IP Address: If you have selected Static IP, enter the IP Address provided by
your ISP or network administrator.
Subnet Mask: If you have selected Static IP, enter the subnet mask provided by
your ISP or network administrator.
NAT: Disabling this option will disable the NAT rewall function of
the DWR-961, exposing all connected devices directly to the
Internet. This is an advanced feature and not recommended for
normal use.
Authentication
Method:
Specify if the connection is authenticated with PAP (Password
Authentication Protocol), CHAP (Challenge-Handshake
Authentication Protocol), or MS-CHAP (Microsoft Challenge
Handshake Authentication Protocol). This setting is determined
by your ISP or network administrator.
User Name: The username provided by your ISP for your PPPoE account.
User Password: Password provided by your ISP for your PPPoE account.
Conrm
Password:
Re-type your password in this eld.

15D-Link DWR-961 User Manual
Section 3 - Conguration
Max MRU: You may need to change the Maximum Receive Unit (MRU) for
optimal performance. The default value is 1492.
DNS Enabled: Enables DNS lookup.
DNS Override
Allowed:
Check this box to override the DNS provided by the DHCP lease.
Normally, connections using Dynamic IP/DHCP should not need
this.
DNS Server 1/2 Fill in if provided by your ISP. If not, keep the default value
(optional).
PPPoE Service
Name:
Fill in if provided by your ISP. (Optional)
MAC Address: The default MAC address is set to the WAN port’s physical
interface MAC address on the router. It is not recommended that
you change the default MAC address unless required by your ISP.
You can use the Clone button to replace the WAN port’s MAC
address with the MAC address of your PC.
PPPoE AC
Name:
If your network uses an Access Concentrator (AC), enter the name
here.
Connection
Trigger:
Specify whether the connection should be Always On, On
Demand, or Manual. This determines under what circumstances
the connection is dialed.
Idle Disconnect
Time:
The amount of time of inactivity before disconnecting an
established PPPoE session. Set it to zero or enable auto-
reconnect to disable this feature.
LCP Interval: Species the Link Control Protocol (LCP) interval in seconds.
