D-Link DWA-510 User manual

2D-Link DWA-510 User Manual
Table of Contents
Product Overview ...................................................3
Package Contents..............................................................3
System Requirements .......................................................3
Introduction.......................................................................4
Features.............................................................................5
Hardware Overview ...........................................................6
LEDs ...........................................................................6
Installation...........................................................7
Getting Started ..................................................................7
Remove Existing Installations .....................................7
Disable Other Wireless Adapters.................................8
Wireless Installation Considerations................................10
Adapter Installation..........................................................11
Configuration ...................................................... 15
D-Link Configuration Utility .............................................15
Wireless Networks ....................................................16

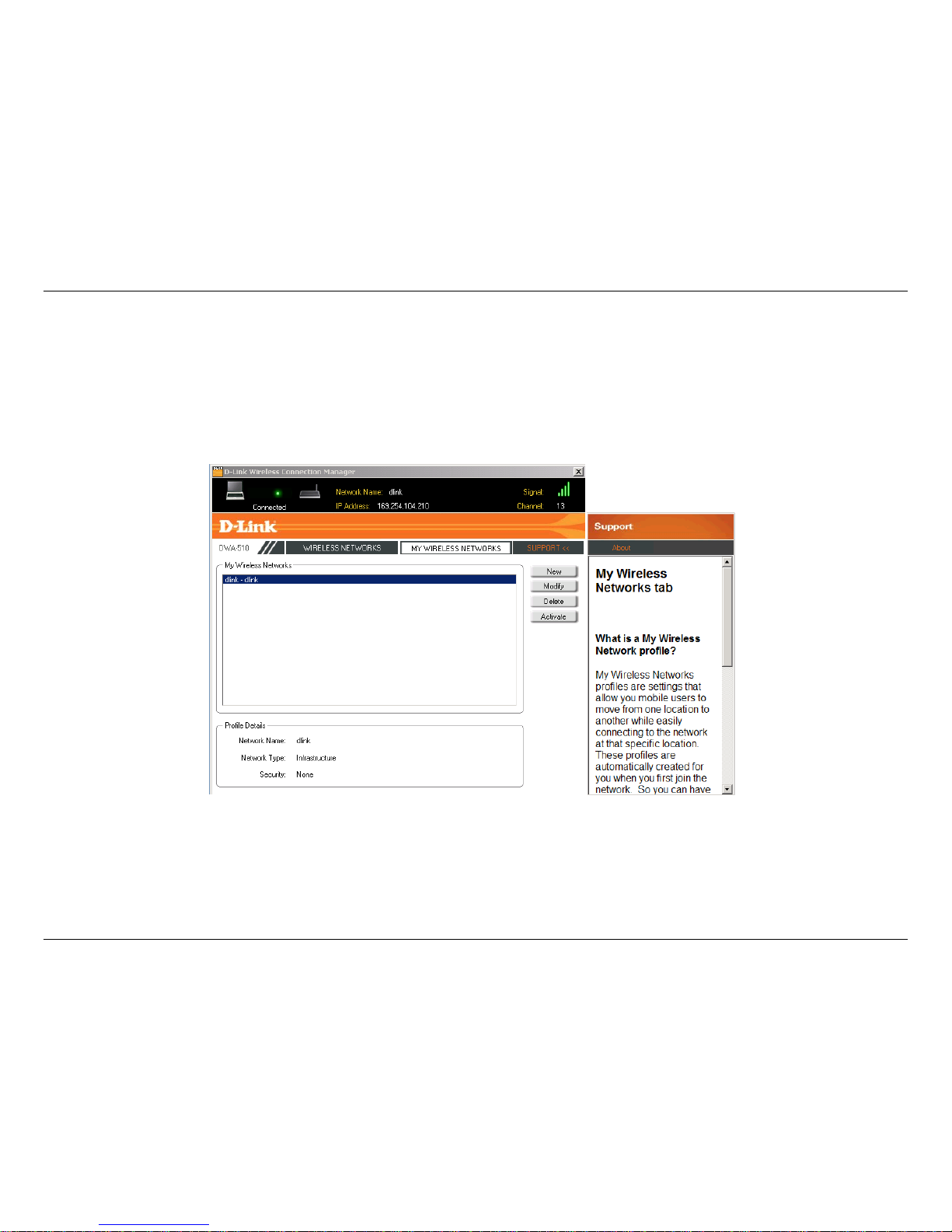

My Wireless Networks ..............................................17
Support.....................................................................20
About ........................................................................21
Windows®XP Configuration Utility..................................22
Disabling The Windows®XP Utility ........................... 23
Wireless Security ................................................. 25
What is WEP?.................................................................. 25
What is WPA?..................................................................26
Configure WEP ................................................................27
Using the D-Link Utility ............................................. 27
Using the Windows®XP Utility .................................29
Configure WPA/WPA2 Passphrase ..................................31
Using the D-Link Utility ............................................. 31
Using the Windows®XP Utility .................................33
Configure WPA/WPA2 .....................................................35
Using the D-Link Utility ............................................. 35
Configure 802.1x.............................................................36
Using the D-Link Utility ............................................. 36
Troubleshooting ................................................... 37
Wireless Basics ................................................... 42
Networking Basics ................................................ 47
Check your IP address..................................................... 47
Statically Assign an IP address........................................ 48
Technical Specifications ......................................... 49
Table of Contents

3D-Link DWA-510 User Manual
Section 1 - Product Overview

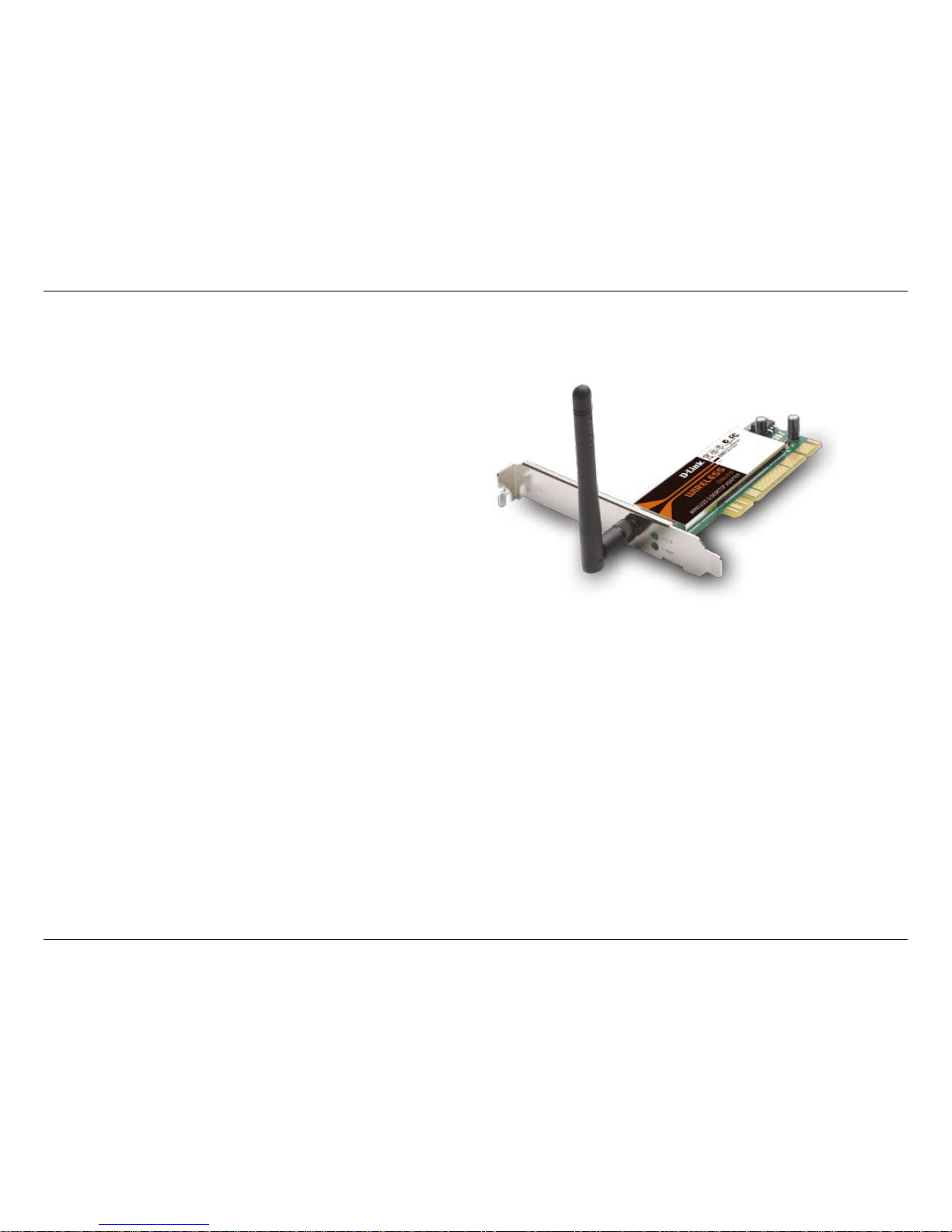

• D-Link DWA-510 Wireless G Desktop Adapter
• Manual, Software, and Warranty on CD
System Requirements
• A desktop computer with an available PCI slot
• Windows®2000, XP, 98SE, Me or Vista
• 300MHz processor and at least 64MB of RAM
• An 802.11g or 802.11b access point (for Infrastructure mode), or another 802.11g or 802.11b wireless adapter
(for Ad-Hoc, Peer-to-Peer networking mode.)
Product Overview
Package Contents

4D-Link DWA-510 User Manual
Section 1 - Product Overview
Introduction
The D-Link Wireless G DWA-510 Desktop adapter features the very latest in advanced wireless silicon chip technology to deliver
a maximum wireless signal rate of up to 54Mbps* in the 2.4GHz frequency. The DWA-510 also works with 802.11b standard
wireless devices and when used with other D-Link Wireless G products delivers throughput speeds capable of handling heavy data
payloads.
The DWA-510 also includes a configuration utility to discover available wireless networks and create and save detailed connectivity
profiles for those networks most often accessed.
The DWA-510 is a powerful 32-bit Desktop adapter that installs quickly and easily into desktop PCs and when used
with other D-Link Wireless G products automatically connects to the network. Like all D-Link wireless adapters, the
DWA-510 can be used in Ad-Hoc mode to connect directly with other 2.4GHz wireless computers for peer-to-peer file sharing or
in Infrastructure mode to connect with a wireless access point or wireless router for access to the Internet in your office or home
network. The DWA-510 is an ideal solution enabling wireless networking capabilities on desktops PCs for the home or office.
* Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely
affect wireless signal range.

5D-Link DWA-510 User Manual
Section 1 - Product Overview
• Faster Wireless Networking - Faster data transfers mean increased productivity. With the DWA-510 in your desktop
PC, you will have the flexibility of wireless networking speeds that save you time and money.
• Compatible with 802.11b and 802.11g Devices - Fully compatible with the IEEE 802.11b and 802.11g standards, the
DWA-510 can connect with existing 802.11b or 802.11g compliant routers, access points and cards. That means you can
still communicate with colleagues and friends while you have the ability to link to even more wireless networks.
• 32-bit PCI Performance/Plug & Play Connectivity - The DWA-510 is a powerful 32-bit PCI adapter that installs quickly
and easily into desktop PCs, and when used with other D-Link Wireless G products will automatically connect to the
network out of the box.
• User-friendly configuration and diagnostic utilities.
Features

6D-Link DWA-510 User Manual
Section 1 - Product Overview

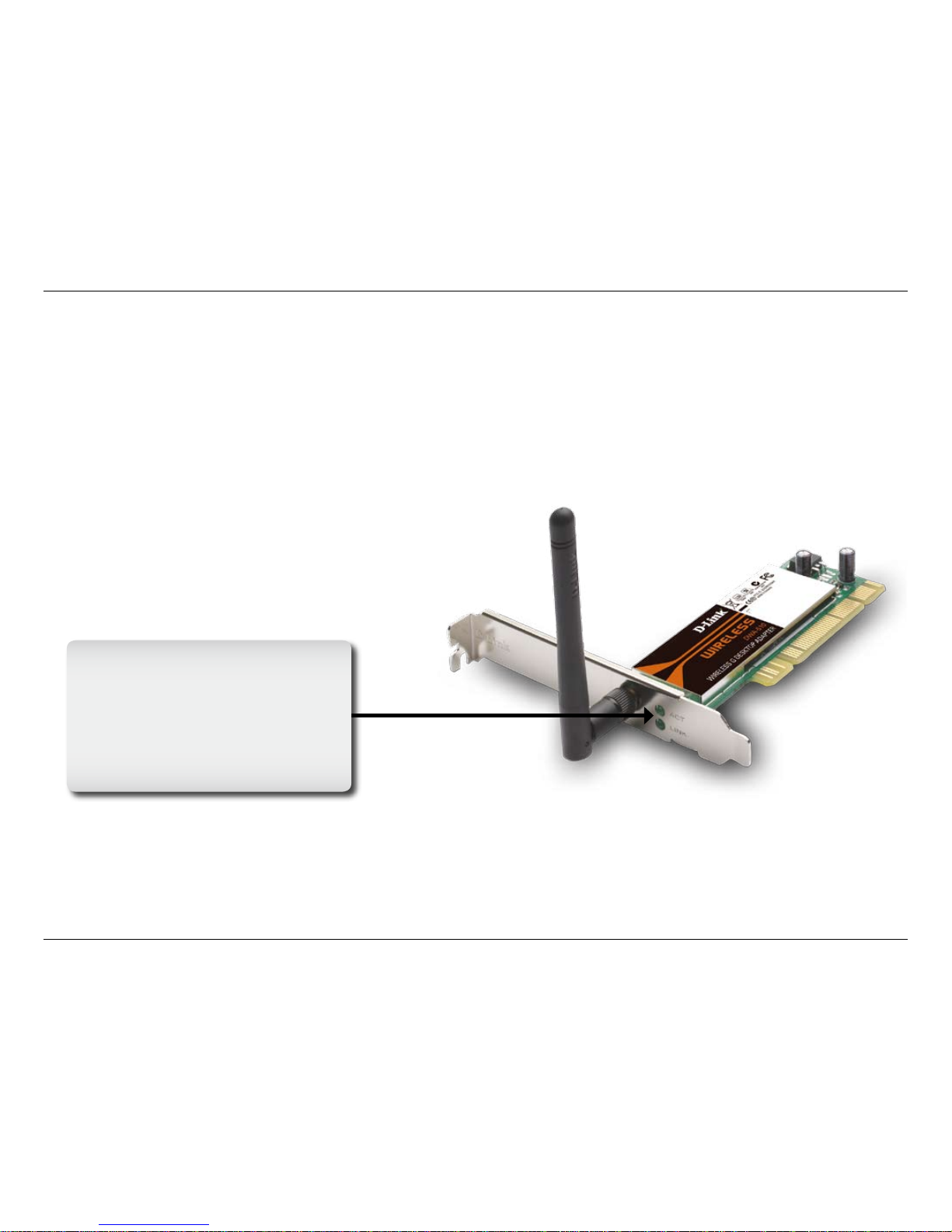

Hardware Overview
LEDs
ACT
A blinking light indicates transmission of
data.
Link
A steady light indicates a connection to a
wireless network.

7D-Link DWA-510 User Manual
Section 2 - Installation
Getting Started
Installation
This section will walk you through the installation process. If you have a built-in wireless adapter, please disable it in device manager
before installing your D-Link adapter. Also, if you have previously installed another wireless adapter, please make sure any software
is uninstalled.
Before installing your new D-Link wireless adapter, please verify the following:
• Remove any previous installations of wireless adapters
• Disable any built-in wireless adapters
• Verify the settings such as the SSID and security settings of the network(s) you want to connect to
Remove Existing Installations
If you’ve installed a different manufacture’s adapter or a different model D-Link adapter, make sure the software is uninstalled before
installing the new software. Some utilities may cause a conflict with the new software. If you plan to use multiple adapters at different
times, make sure the utilities are not set to load when your computer boots up. Windows®XP users may use the built-in wireless
utility for all adapters.
To remove any old software:
Windows®Vista users: Click Start > Control Panel > Program & Features.
Windows®XP users: Click Start > Control Panel > Add or Remove Programs.
Windows®2000 users: Click Start > Settings > Control Panel > Add or Remove Programs.

8D-Link DWA-510 User Manual
Section 2 - Installation
Disable Other Wireless Adapters
Most newer laptops may include a built-in wireless adapter. To prevent any conflicts or confusion with the D-Link wireless adapter,
it is recommended to disable the wireless adapter (as well as any unused Ethernet adapters).

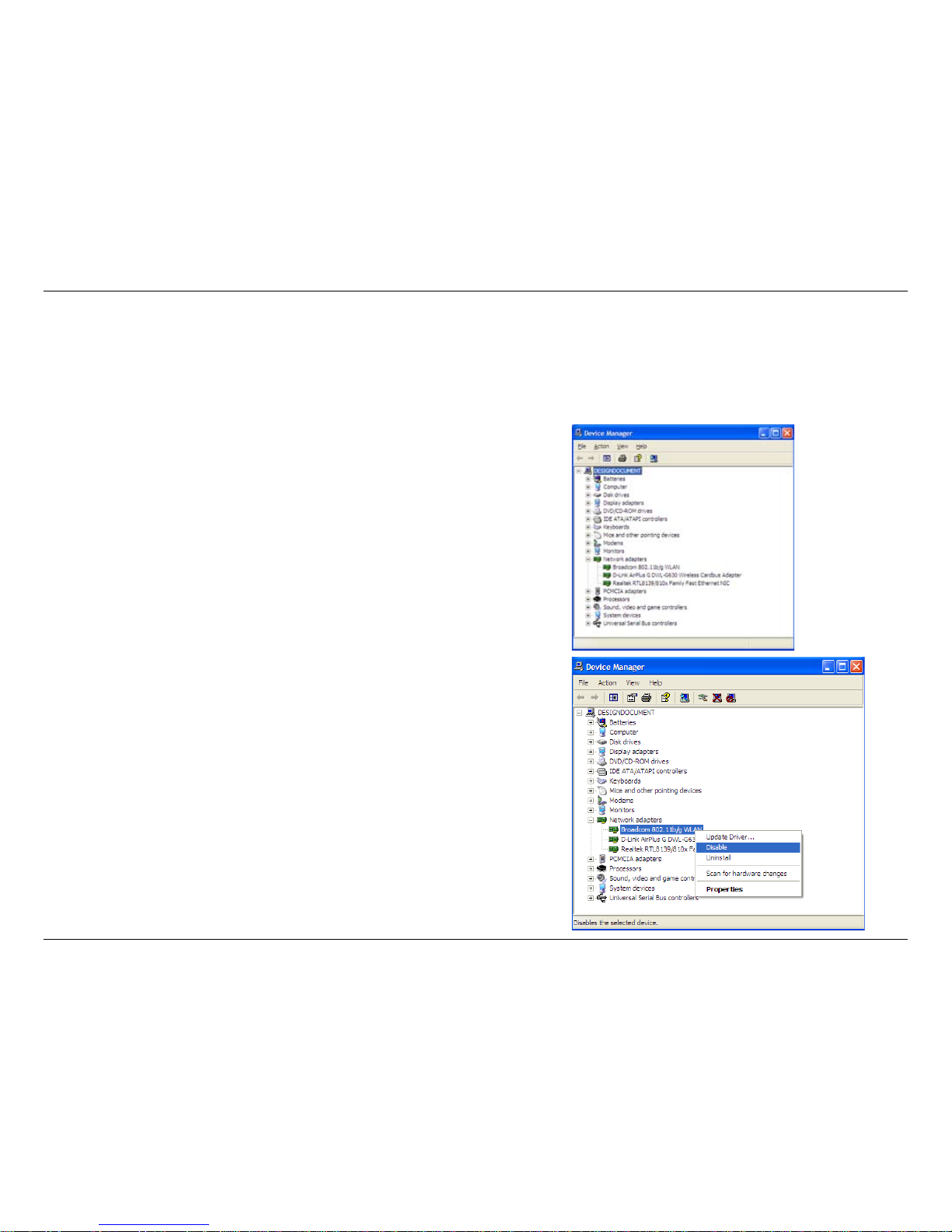

From the desktop, right-click on the My Computer icon and select Properties.
Click the Hardware tab and then click Device Manager. Scroll down the list and
click the +sign to the left of Network Adapters.
Right-click the adapter you would like to disable and select Disable.

9D-Link DWA-510 User Manual
Section 2 - Installation

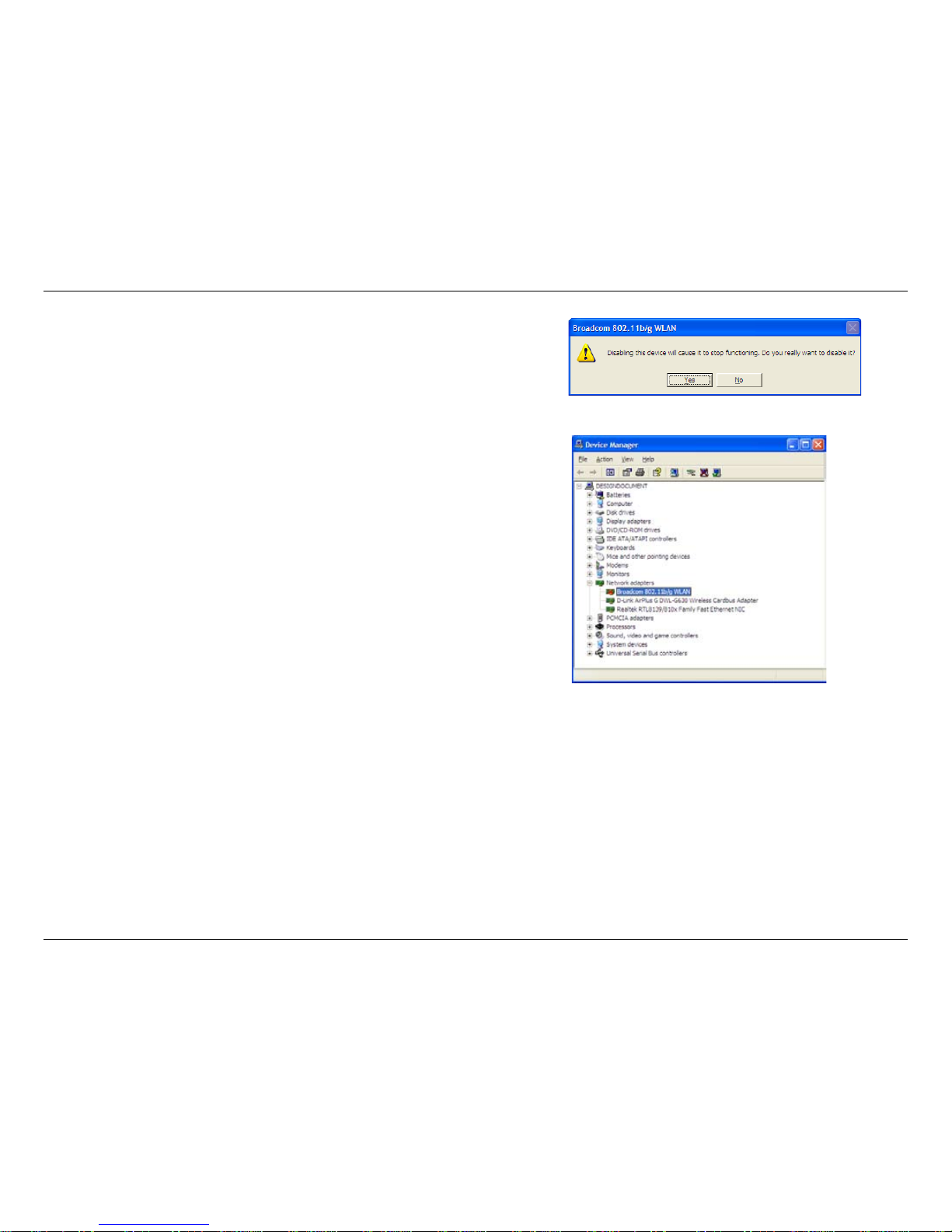

Click Yes to disable the adapter.
The adapter is now disabled. When disabled, a red X will be displayed.
Disabling the adapter will not remove the drivers. If you would like to use
the adapter, simply right-click it and select Enable.

10D-Link DWA-510 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless adapter lets you access your network using a wireless connection from virtually anywhere within the operating
range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that
the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background
RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link adapter and other network devices to a minimum - each
wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number
of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)
thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on range.
Try to position access points, wireless routers, and computers so that the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (fish tanks), mirrors, file
cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not in
use.

11D-Link DWA-510 User Manual
Section 2 - Installation
Note: Please install the DWA-510 Desktop Adapter into your computer before installing the driver software from the D-Link CD.
Refer to the insert included with this adapter for installation instructions.
Turn on the computer and Insert the D-Link DWA-510 Driver CD in the CD-ROM drive. The step-by-step instructions that follow are
shown in Windows XP. The steps and screens are similar for the other Windows operating systems.
If the CD Autorun function does not automatically start on your computer, go to Start > Run. In the run box type “D:\Drivers\setup.
exe” (where D: represents the drive letter of your CD-ROM drive).

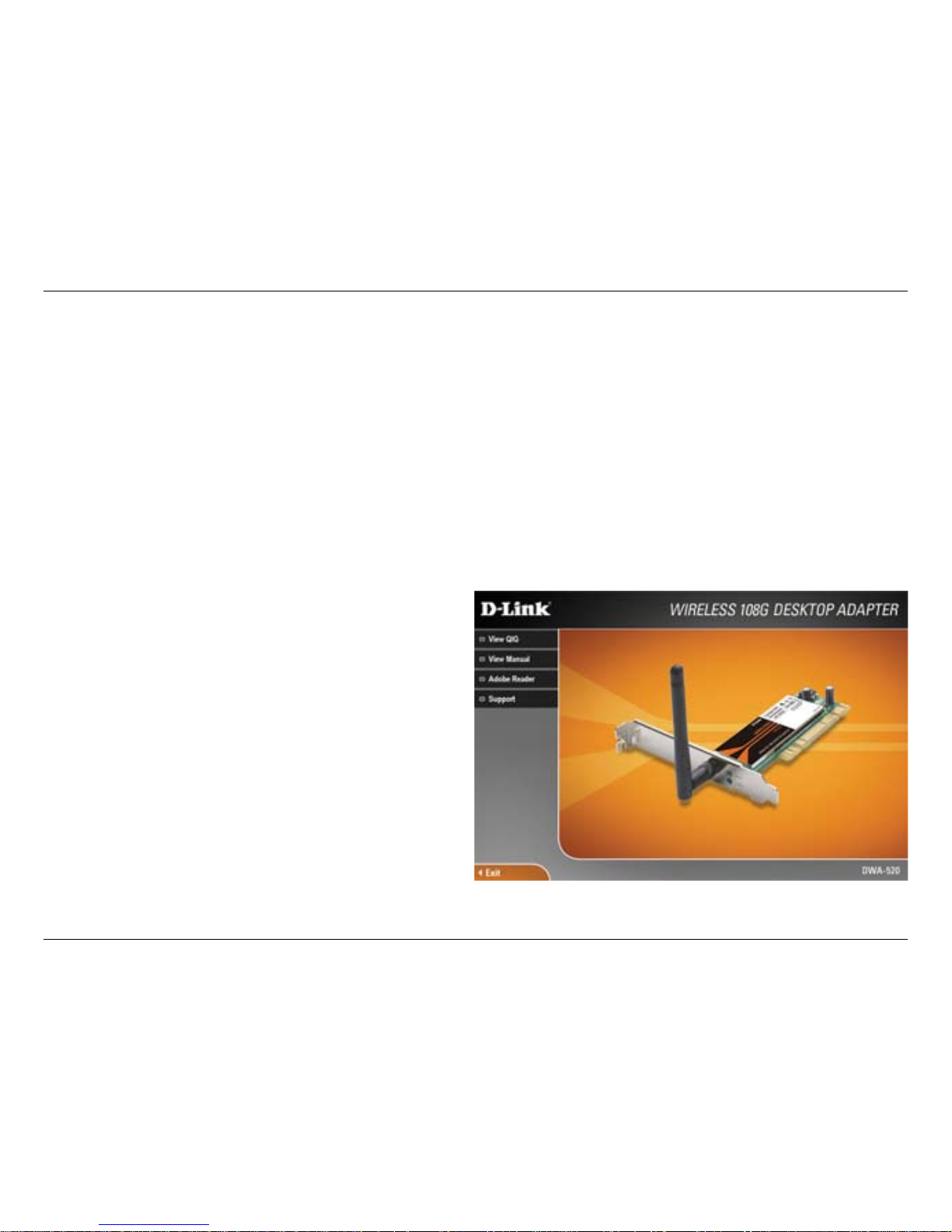

When the autorun screen appears, click Install Drivers.
Adapter Installation

12D-Link DWA-510 User Manual
Section 2 - Installation

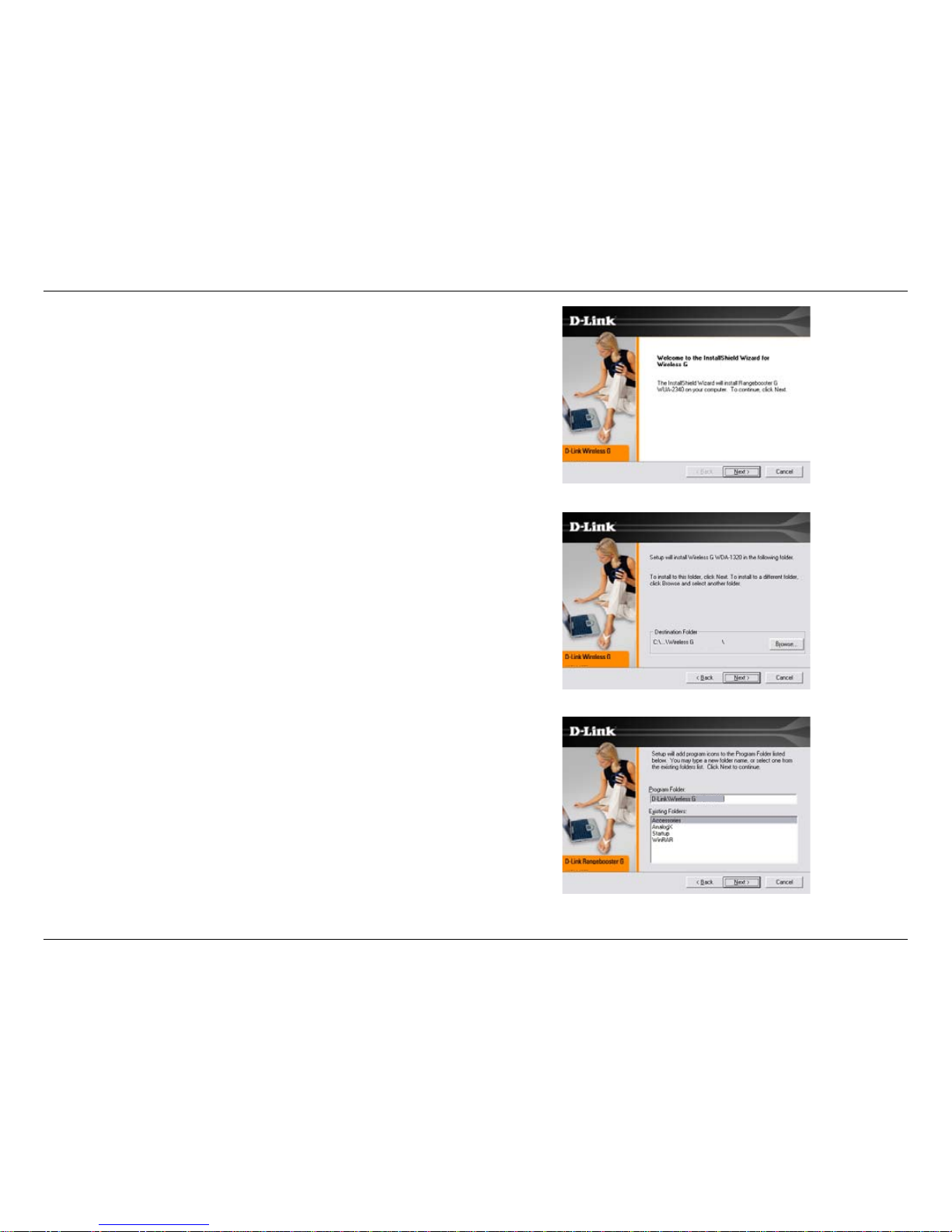

The InstallShield Wizard window will appear.
Click Next to continue.
By default setup will install to the default location: C:\Program
Files\Wireless G DWA-510, where C: represents the drive letter
of your hard drive. To install to a different location click Browse and
specify the location. Click Next.
Select the Program Files folder location. Click Next to continue.
DWA-510
DWA-510
DWA-510
DWA-510
DWA-510
DWA-510
DWA-510

13D-Link DWA-510 User Manual
Section 2 - Installation

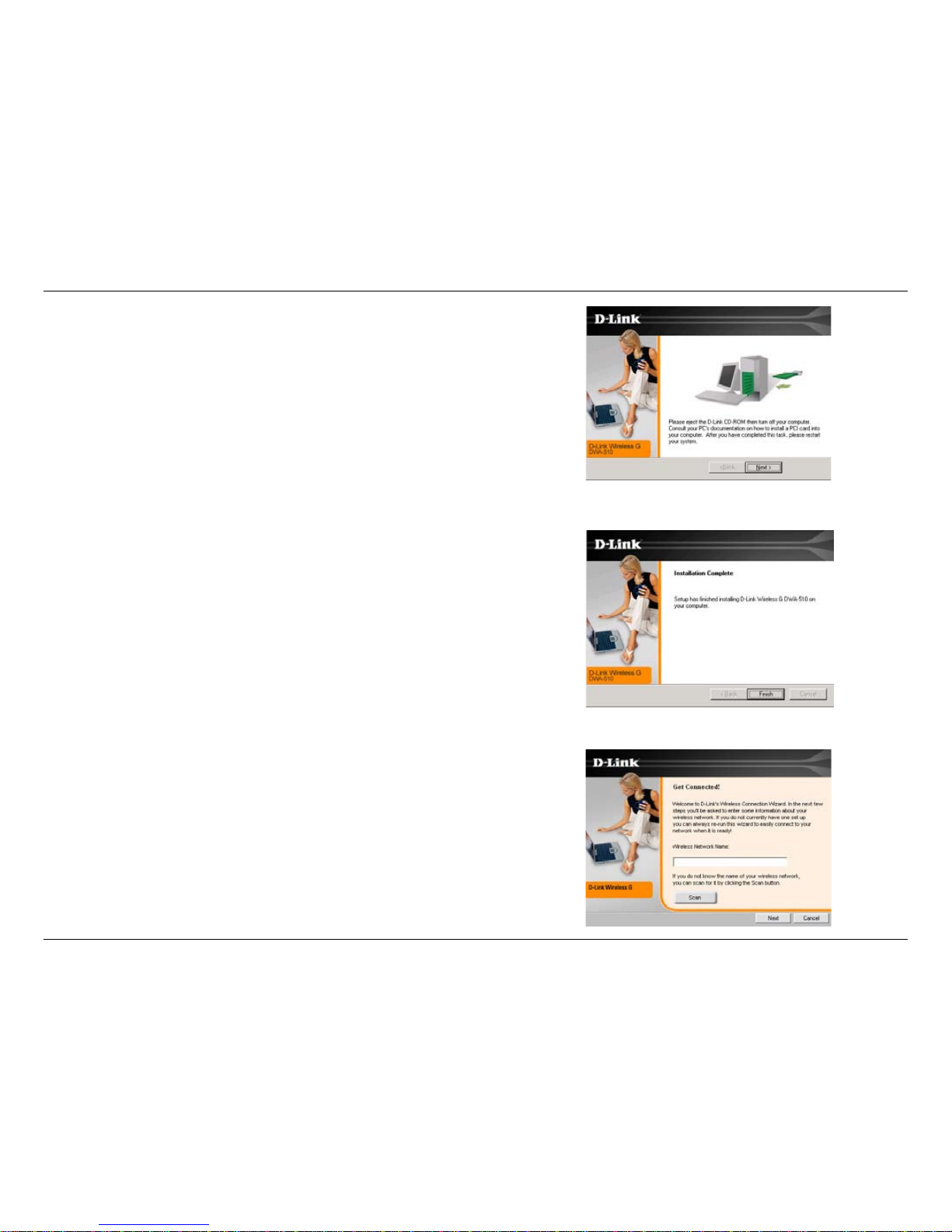

Enter the network name (SSID) manually. If you enter the SSID incorrectly, you
will automatically be brought to the site survey page.
Click Next to continue or click Scan to display the site survey page.
DWA-510
Click Next
Click Finish and shut down your computer. Next, insert your desktop adapter
and then restart your system.

14D-Link DWA-510 User Manual
Section 2 - Installation

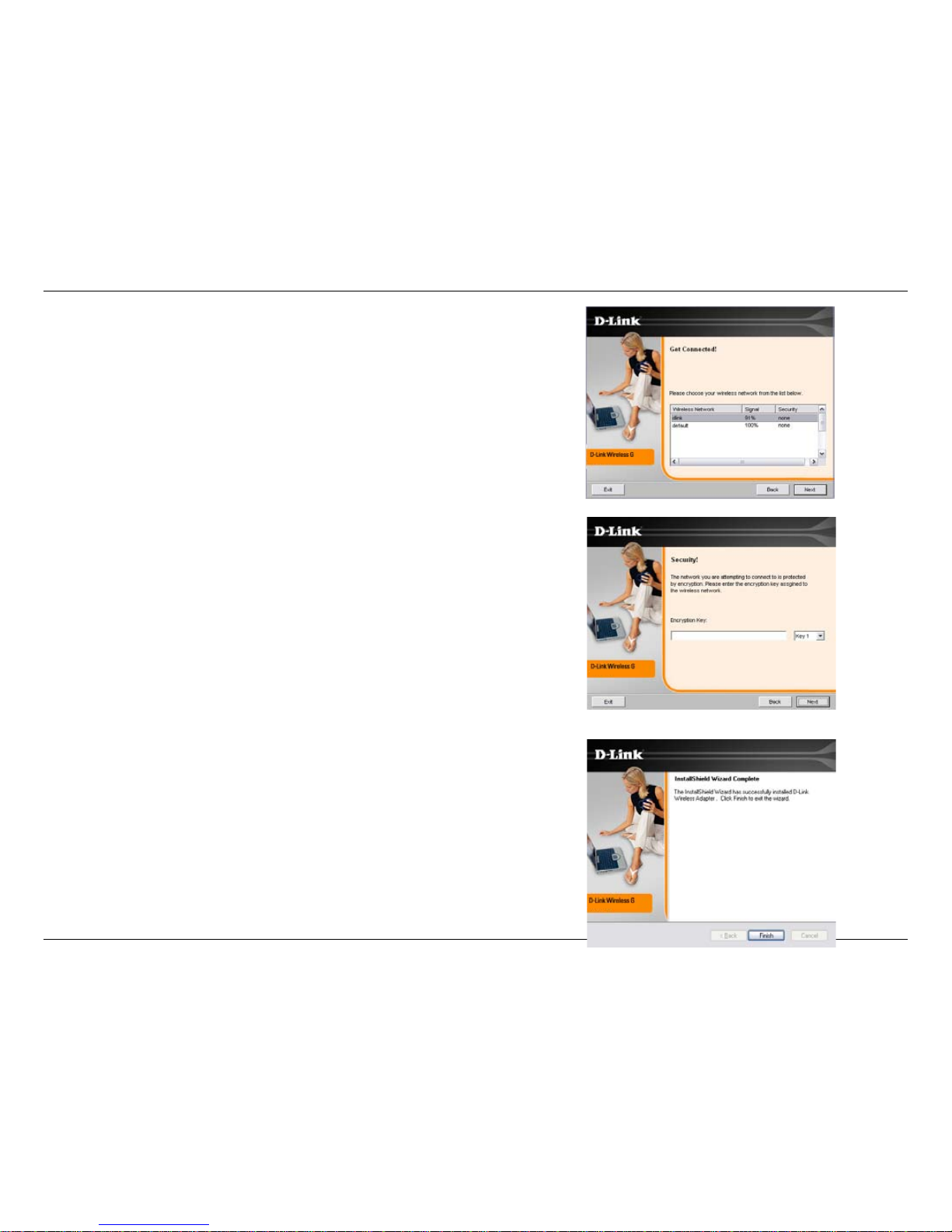

If the wireless network you are trying to connect to is encrypted, enter the WEP
key or WPA-PSK passphrase. Click Next to continue.
Click Finish to continue.
Click the Scan button to display a list of wireless networks (site survey). Click
on the network name (SSID) and click Next.
DWA-510
DWA-510
DWA-510

15D-Link DWA-510 User Manual
Section 3 - Configuration
Configuration
This section will show you how to configure your new D-Link wireless adapter using the D-Link Utility as well as the Windows®XP
Zero Configuration Utility.
D-Link Configuration Utility
The D-Link DWA-510 uses the Configuration Utility as the management software. The utility provides the user an
easy interface to change any settings related to the wireless adapter. After you have completed the installation of the
DWA-510 and whenever you start the computer, the Configuration Utility starts automatically and the system tray icon is loaded in
the toolbar. Clicking on the utility icon will start the Configuration Utility.
If you are using Windows®XP, please skip to page 22.

16D-Link DWA-510 User Manual
Section 3 - Configuration

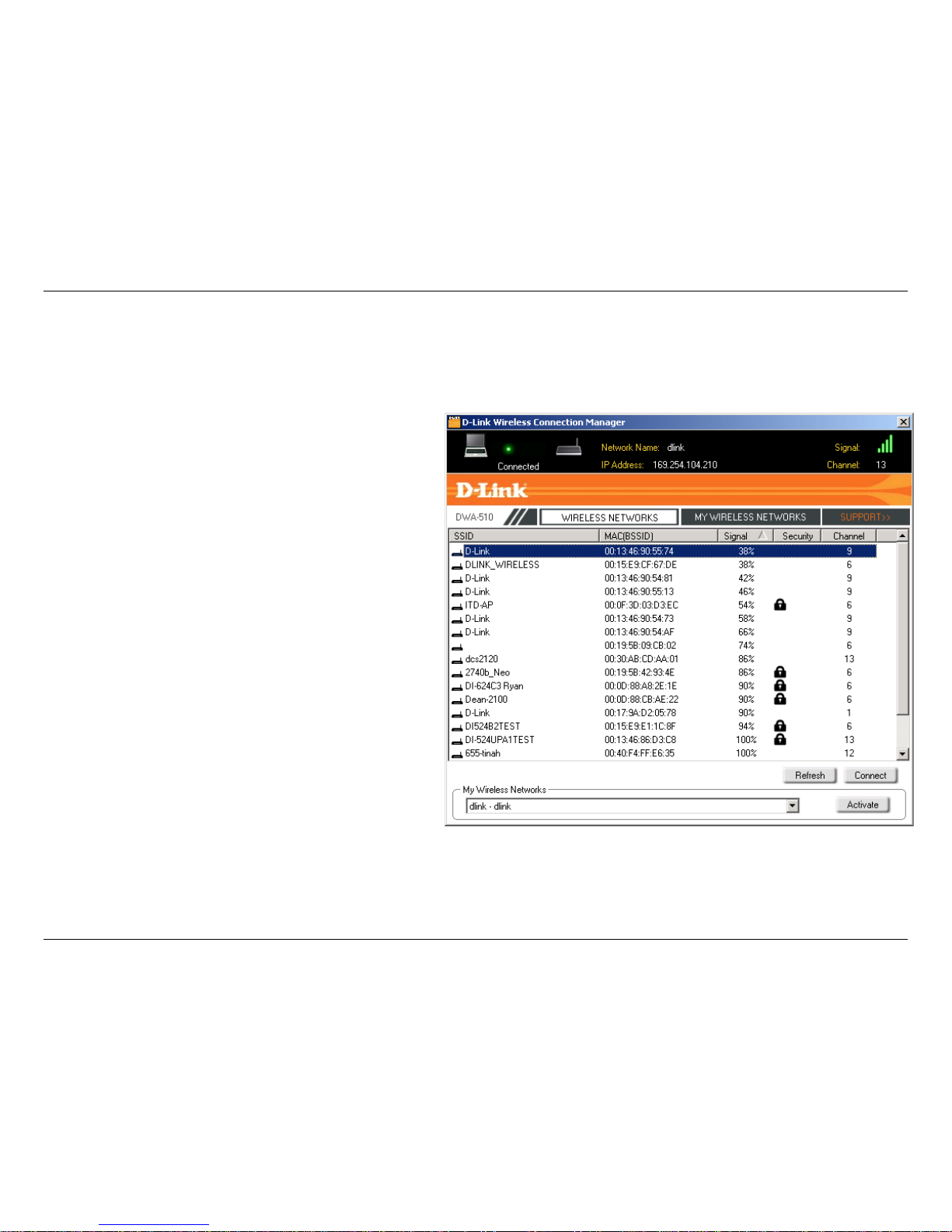

Wireless Networks
The SSID (Service Set Identifier) is the name of the
wireless network.
Displays the MAC address of the wireless device.
Displays the Link Quality of the wireless
connection.
If there is a “lock” icon, this means the wireless
network is secure. You must know the encryption
key/security settings to connect.
Displays the channel of the wireless network.
Rescans for available wireless networks in your
area.
Highlight a wireless network and click the Connect
button. If the network is secure, a pop-up window
will appear. Enter the security information to connect
(refer to the Wireless Security section for more
information).
Select a wireless network profile from the
drop-down menu and click Activate to connect. Allow
up to 30 seconds to connect.
MAC:
SSID:
Channel:
Signal:
Security:
Refresh Button:
Connect Button:
Activate Button:
The Wireless Networks (Site Survey) page will display all wireless networks that are available in your area. To connect to a network,
simply highlight the wireless network (SSID) and click Connect.

17D-Link DWA-510 User Manual
Section 3 - Configuration
My Wireless Networks
The My Wireless Networks page will allow you to create, edit, and delete wireless network profiles. Every time you connect to a
network using the Wireless Networks page, a profile will automatically be created.
New Button:
Modify:
Click New to create a new wireless network profile
(refer to page 18).
Click Modify to edit a current profile (refer to page
19).
Click Delete to remove a profile.
Click Activate to use a profile. Allow up to 30 seconds
to connect to the wireless network.
The Profile Details section will display information
about the wireless network such as the network name
(SSID), network type (Infrastructure or Ad-Hoc), and
if the network is secured.
Delete:
Active:
Profile Details:

18D-Link DWA-510 User Manual
Section 3 - Configuration

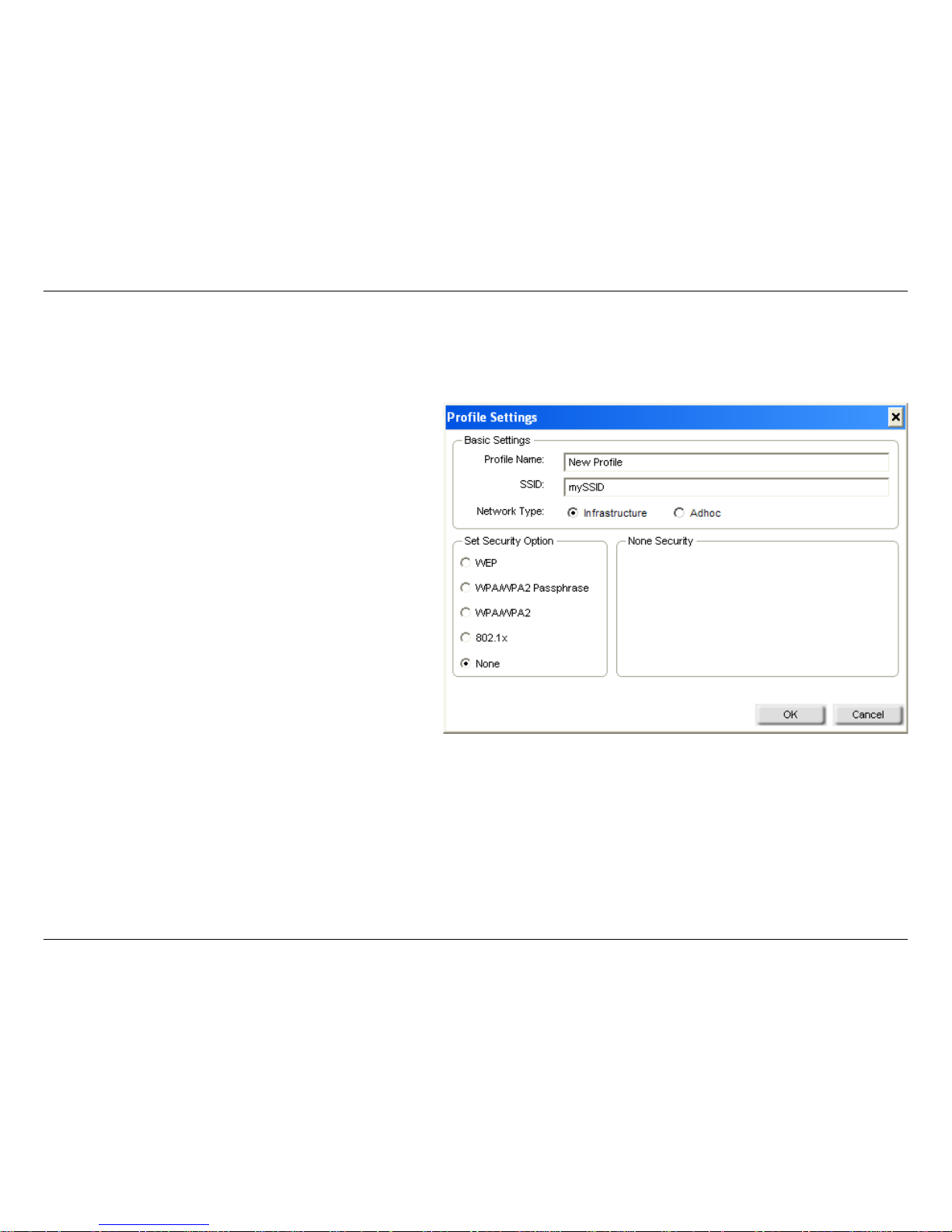

Add Profile
You may add a new network by clicking the New button from the My Wireless Networks page.
Profile Name:
SSID:
Enter a name for your profile (e.g. Home, Office,
Coffee Shop).
Enter the SSID of the wireless network.
Select the network type. If you are connecting
to a wireless router or access point, select
Infrastructure. If you are connecting to another
wireless client such as an adapter, select
Ad-Hoc.
Select the type of security used. Please refer to the
Wireless Security section for more information.
Click OK to save your settings.
Network Type:
Set Security:
OK Button:

19D-Link DWA-510 User Manual
Section 3 - Configuration
Modify Profile
You may edit an existing profile by clicking the Modify button from the My Wireless Networks page.
Profile Name:
SSID:
Enter a name for your profile (e.g. Home, Office,
Coffee Shop).
Displays the SSID of the network.
Displays the network type.
Select the type of security used. Please refer to the
Wireless Security section for more information.
Click OK to save your settings.
Network Type:
Set Security:
OK Button:

20D-Link DWA-510 User Manual
Section 3 - Configuration
Support
If you need help, click the Support button. A pane will appear to the right of the utility which will display information about the
utility.
