D-Link DAP-1365 Manual

Technical Support Setup Procedure
Page | 1
How to configure DAP-1365 as Repeater?
(Note: Please ensure the device LED is blinking orange colour before you do setup.
If it is not blinking in orange colour, follow the guide on page 4 on how to reset the device
before follow the guide to setup.)

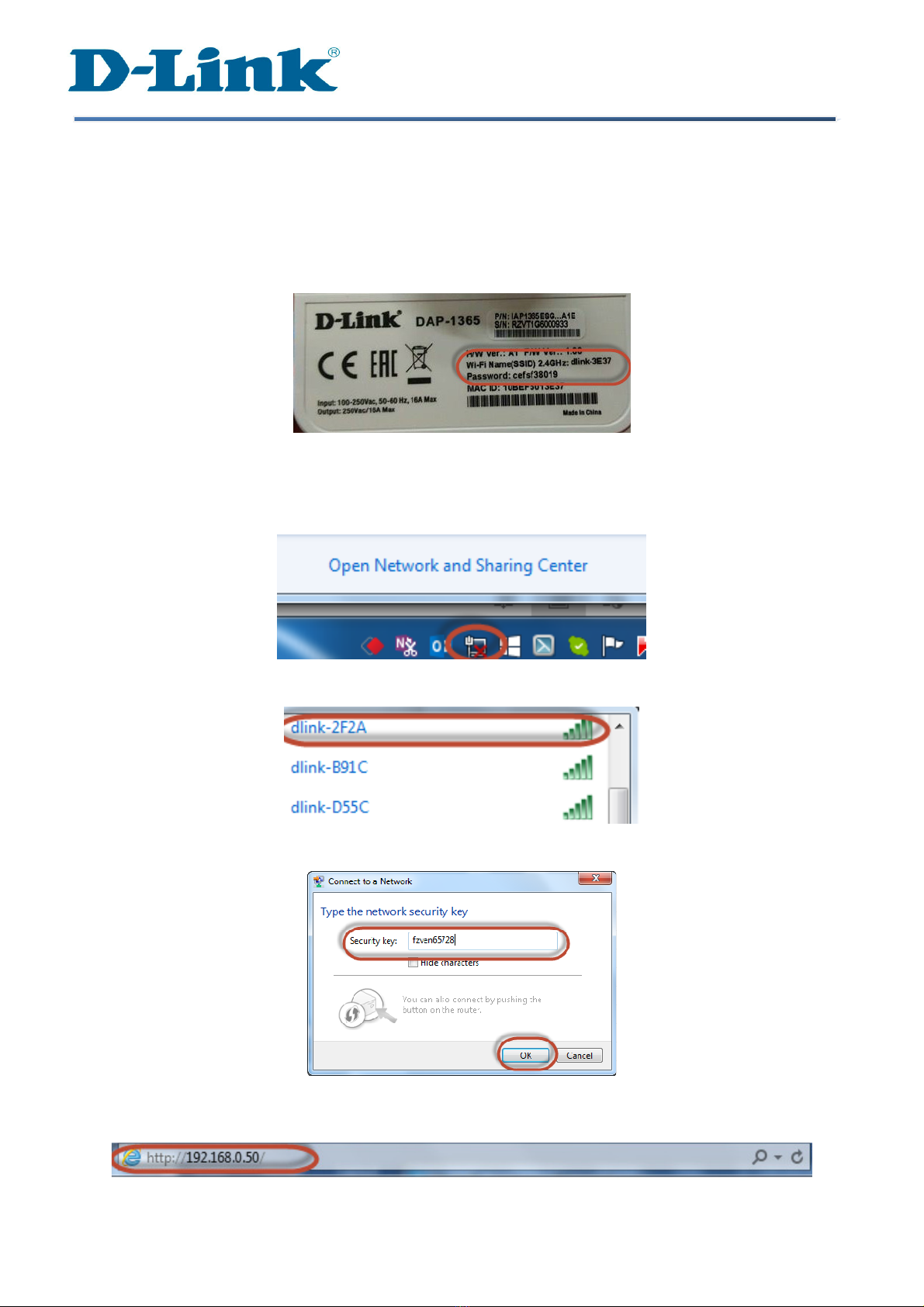

Step 1: Copy down the wireless name and password that was on the sticker of the device.
Step 2: Plug DAP-1365 direct to power outlet.
Step 3: Click on the Computer Icon on the right bottom side of the Windows. Select the
Wireless network name that was copy down.
STEP 4: Select the Wireless network name that was copy down.
Step 5: Enter the Wifi Password which had copy down earlier on. Click on OK.
Step 6: Open Internet Explorer and enter http://192.168.0.50 on the URL bar.

Technical Support Setup Procedure
Page | 2

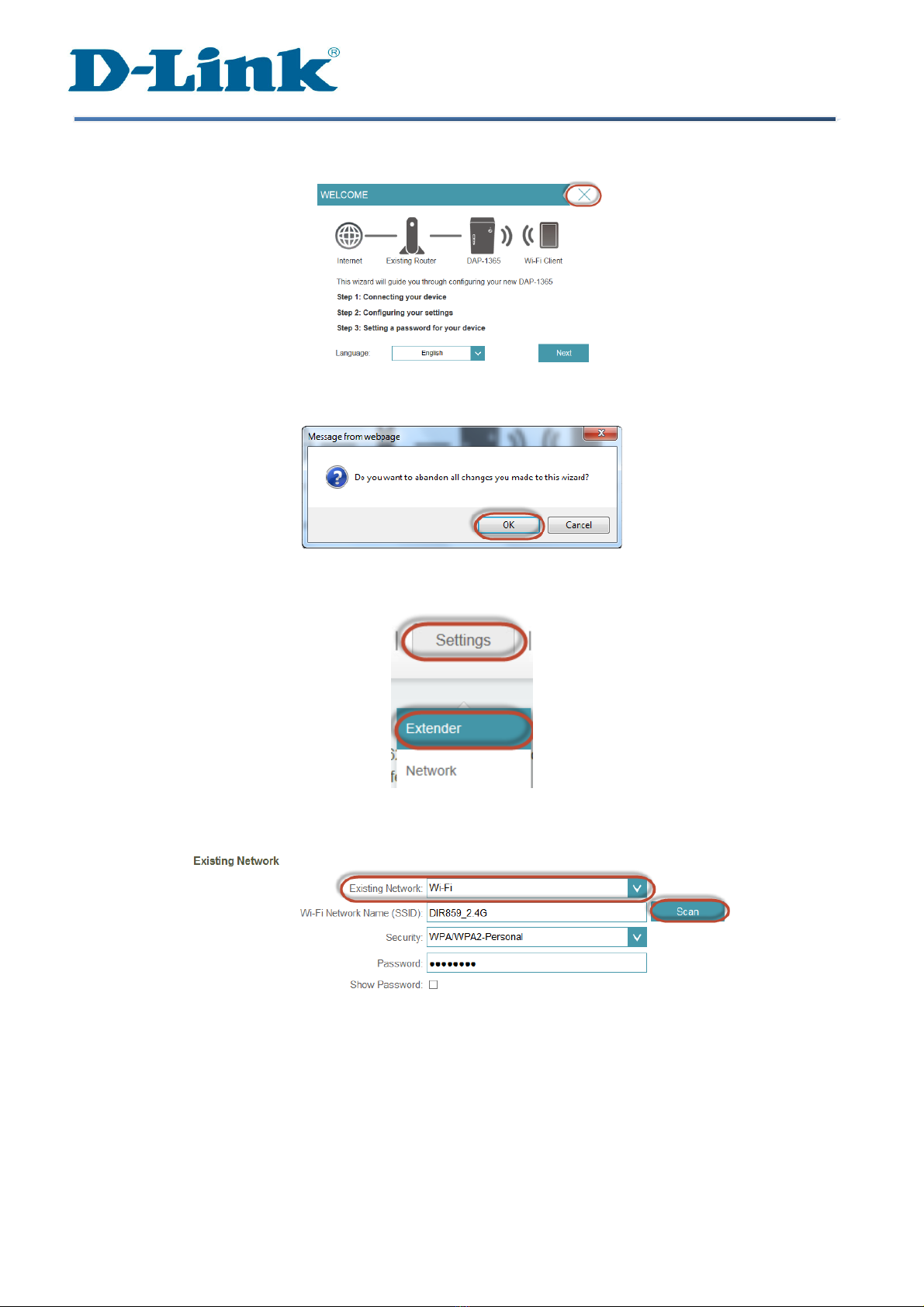

Step 6: Click on X.
Step 7: Click on OK.
Step 8: Click on Settings and select Extender.
Step 9: Select Wi-Fi for Existing Network. Click on Scan.

Technical Support Setup Procedure
Page | 3

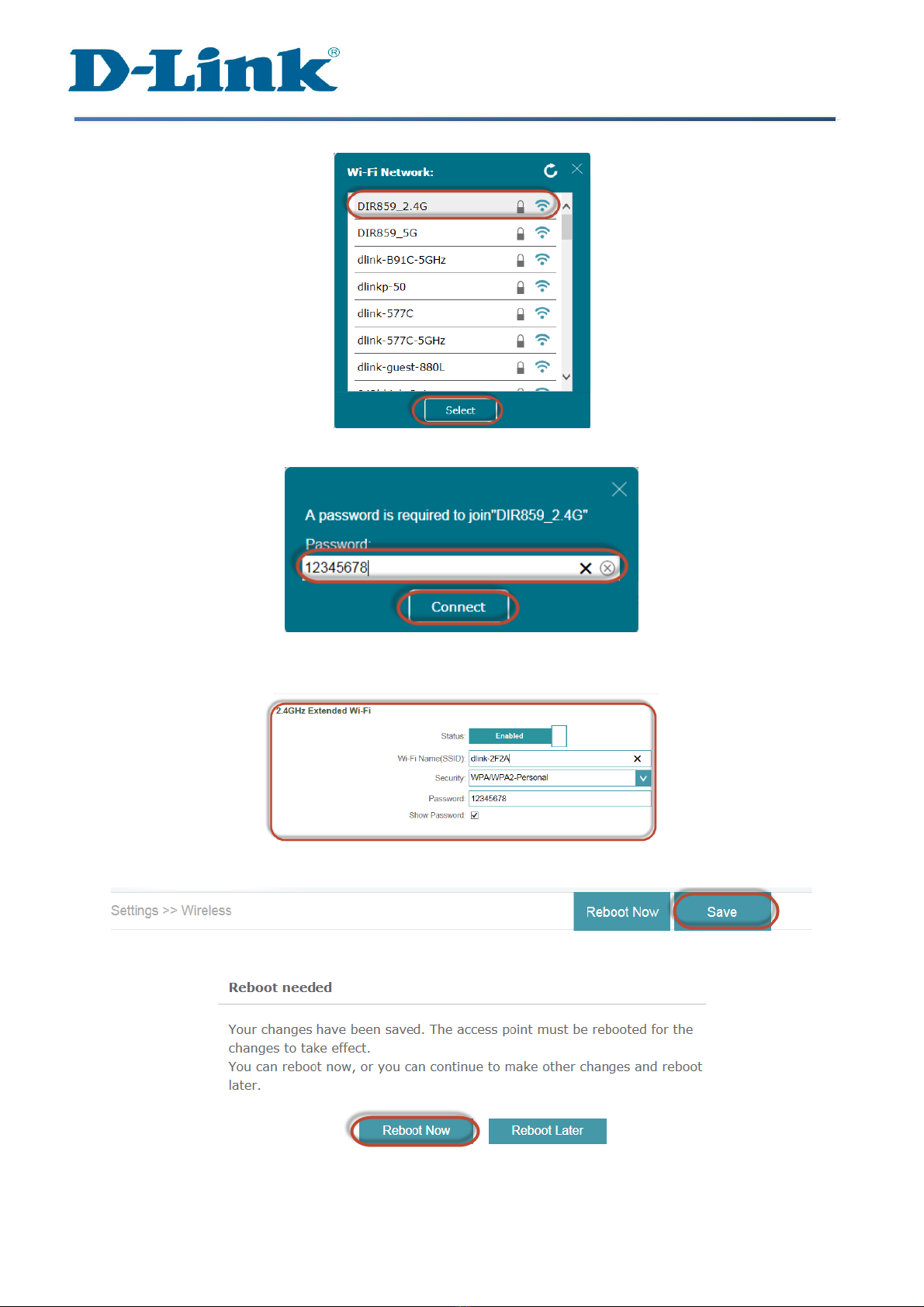

Step 10: Select the Wi-Fi Network which you want to repeat. Click on Select
Step 11: Key in the Wi-Fi Password for the Wi-Fi name you select. Click on Connect.
Step 12 a) You can change the default SSID to a desired SSID in the field for 2.4Ghz.
b) Please key in 8-Digit characters password in the Password field for 2.4Ghz.
Step 13: Click on Save
Step 14: Click on Reboot Now
--- END ---

Technical Support Setup Procedure
Page | 4

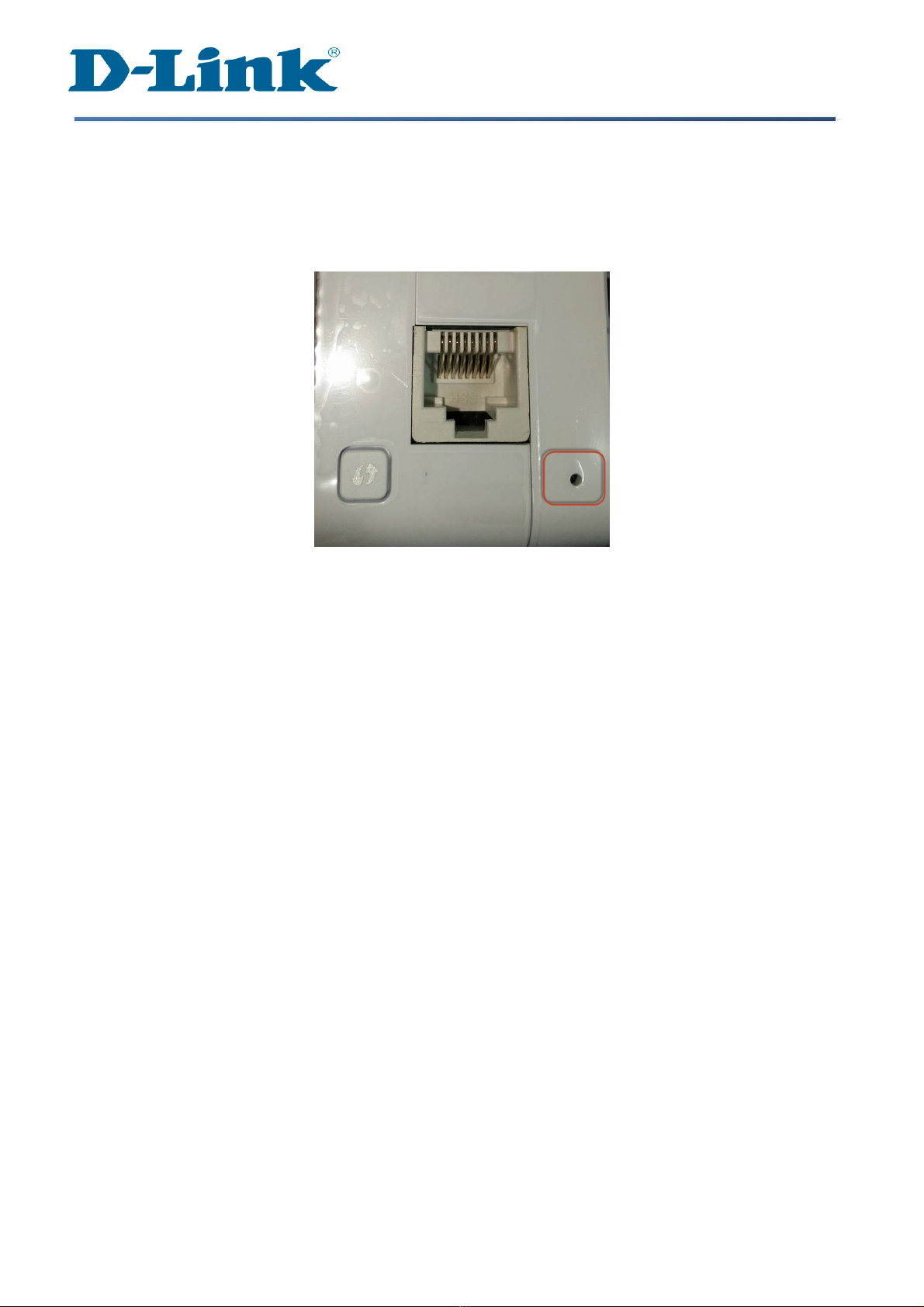

How to reset DAP-1365.
Step 1: Plug DAP-1365 direct to power outlet.
Step 2: Power on DAP-1365 and wait for 1 min.
Step 3: Use a paper clip to press and hold the Reset Button for 30 second.
Step 4: Wait for 2 min for the device to fully power on after reset.
--- END ---
